LMP-Series

Dock Leveler

Owner’s/User’s Manual

PoweramP • Division of Systems, Inc. • W194 N11481 McCormick Drive • Germantown, WI 53022

800.643.5424 • fax: 262.257.7399 • www.docksystemsinc.com • techservices@docksystemsinc.com

Manual No. 4111-0013

June 2010

Aug 2012

Table of Contents

Page

Safety

Recognize Safety Information ............................................................. 1

General Operational Safety Precautions ............................................ 1

Operational Safety Precautions ........................................................... 2

Maintenance Safety Precautions ......................................................... 4

Safety Decals ......................................................................................... 5

Owner’s/User’s Responsibilities ......................................................... 6

Introduction

General Information .............................................................................. 7

Dock Leveler Stock Specifications ..................................................... 7

Component Identification ..................................................................... 8

Installation

Prepare Pit ............................................................................................. 9

Prepare Dock Leveler .......................................................................... 10

Install Dock Leveler ............................................................................ 12

Operation

Theory .................................................................................................. 17

Operating Instructions ....................................................................... 18

Ramp Loading/Unloading Instructions ....................................... 19

End Loading/Unloading Instructions........................................... 20

Maintenance

Service Dock Leveler Safely .............................................................. 21

Periodic Maintenance ......................................................................... 22

Adjustments

Adjust Lift Arm Spring and Lip Assist Spring Tension .................. 24

NON-Adjustable Lip Stop .................................................................. 26

Troubleshooting

Troubleshooting .................................................................................. 27

Parts

Hold-Down Mechanism ...................................................................... 29

Frame Components ............................................................................ 30

Platform Components ........................................................................ 32

Toe Guard/Weather Seal—Optional .................................................. 34

Miscellaneous

Customer Information ........................................................................ 37

Warranty ................................................................................ Back Cover

SAFETY

Recognize Safety Information

Safety-Alert Symbol

The Safety-Alert Symbol identifies important safety messages on equipment, safety signs, in manuals, or elsewhere. When you see this symbol, be alert to the possibility of personal injury or death. Follow the instructions in the safety message.

The use of the word DANGER signifies the presence of an extreme hazard or unsafe practice which will most likely result in severe injury or death.

General Operational Safety Precautions

Read and understand the operating instructions and become thoroughly familiar with the equipment and its controls before operating the dock leveler.

Never operate a dock leveler while a safety device or guard is removed or disconnected.

Never remove DANGER, WARNING, or CAUTION signs or decals on the equipment unless replacing them.

The use of the word WARNING signifies the presence of a serious hazard or unsafe practice which may result in serious injury or death.

The use of the word CAUTION signifies possible hazard or unsafe practice which could result in personal injury.

IMPORTANT

The use of the word IMPORTANT is to draw attention to a procedure that needs to be followed to prevent machine damage.

g Zon

peratin

ting

era

DO NOT activate the equipment until all unauthorized personnel in the area have been warned and have moved outside the operating zone.

Remove any tools or foreign objects from the operating zone before starting.

Keep the operating zone free of obstacles that could cause a person to trip or fall.

4111-0013 — June 2010 Aug 2012

SAFETY

Operational Safety Precautions

Learn the safe way to operate this equipment. Read and understand the manufacturer’s instructions. If you have any questions, ask your supervisor.

Stay clear of dock leveling device when freight carrier is entering or leaving area.

Do not move or use the dock leveling device if anyone is under or in front of it.

Keep hands and feet clear of pinch points. Avoid putting any part of your body near moving parts.

Chock/restrain all freight carriers. Never remove the wheel chocks until loading or unloading is finished and truck driver has been given permission to drive away.

Do not use a broken or damaged dock leveling device. Make sure proper service and maintenance procedures have been performed before using.

Make sure lip overlaps onto trailer at least 4 in. (102 mm).

Keep a safe distance from both side edges.

4111-0013 — June 2010

Aug 2012

Do not use dock leveling device if freight carrier is too high or too low.

SAFETY

Do not overload the dock leveling device.

Do not operate any equipment while under the influence of alcohol or drugs.

Do not leave equipment or material unattended on dock leveling device.

4111-0013 — June 2010 Aug 2012

SAFETY

Maintenance Safety Precautions

Always post safety warnings and barricade the work area at dock level and ground level to prevent unauthorized use of the unit before maintenance is complete.

DO NOT grind or weld if hydraulic fluid or other flammable liquid is present on the surface to be ground or welded

DO NOT grind or weld if uncontained hydraulic fluid or other flammable liquid is present. Stray sparks can ignite spills or leaks near the work area. Always clean up the oil leaks and spills before proceeding with grinding or welding.

Always keep a fire extinguisher of the proper type nearby when grinding or welding.

Failure to follow these instructions may result in serious personal injury or death.

The platform maintenance prop must be in the “service” (upright) position when working under the dock leveler. For maximum protection, use an OSHA approved locking device to lock the maintenance prop in the service position. Only the person servicing the equipment should have the key to unlock the device.

PLACARD 1751-0877 MUST PLACED IN CLOSE PROXIMITY AND IN CLEAR VIEW OF THE LEVELER

ALWAYS stand clear of dock leveler lip when working in front of the dock leveler. Failure to do this may result in serious personal injury or death.

4111-0013 — June 2010

Aug 2012

Safety Decals

5.06"

9.12"

1.02"

8.72"

5.05"

5.92"

5.93"

Every 90 days (quarterly) inspect all safety labels and tags to ensure they are on the dock leveler and are easily legible. If any are missing or require replacement, please call 1-800-643-5424 for replacements.

1751-0727

SAFETY

DANGER

CRUSH HAZARD

Maintenance prop must support leveler behind bar. Do not force maintenance prop forward of bar to support lip. Failure to comply will result in death or serious injury. Refer to owner’s/user’s manual for proper use.

1751-0727 Rev A

1751-0730 (x2)

SAFETY INFORMATION

DANGER

Unsupported dock leveler ramps can lower unexpectedly.

Before allowing vehicle to leave the dock always:

 Ensure no equipment,

material or people are on dock leveler.

 Return dock leveler to its

Failure to follow posted instructions will result in death or serious injury.

stored position at dock level.

OPERATION 7. Stay clear of hinges and front and

1. Read and follow all instructions and sides of moving dock leveler. warnings in owner’s/user’s manual. 8. Ne v e r us e d a m a g e d o r

2. Use of dock leveler restricted to malfunctioning dock leveler. Report trained operators problems immediately to supervisor.

3. Always chock trailer wheels or engage truck restraint before operating dock leveler or beginning to load or unload.

4. Never use hands or equipment to move ramp or lip

5. Before activating dock leveler:  Ensure trailer is backed in against bumpers.

 Remove any end loads if required.  Check trailer alignment to avoid lip

interference. If lip does not lower to trailer bed, reposition vehicle.

6. Ensure truck bed supports extended lip or leveler frame supports the ramp before driving on ramp.

Call 262.255.1510 for replacement placards, warning labels, or owner’s/user’s manuals.

(decal placed in same position on both sides)

1751-0329 (x2)

DO NOT

FORK THIS SIDE

(decal placed in same position on both sides)

1751-0330 (x2)

(decal placed in same position on both sides)

1751-0728

CRUSH HAZARD

Do not remove main springs until leveler is securely supported by a suitable lifting device. Main springs contain stored energy. Be sure springs are fully unloaded and ends are loose before removal. Failure to comply will result in death or serious injury. Refer to owner’s/user’s manual for proper maintenance procedure.

DANGER

1751-0788

CRUSH HAZARD

Do not work under dock leveler unless this maintenance prop has been secured in the upright position. Failure to comply will result in death or serious injury. See owner’s/user’s manual for proper procedures.

1751-0789

DANGER

CRUSH HAZARD

Open the pin latch and insert through the maintenance prop housing and prop completely. Close the pin latch to secure prop. Use every time dock leveler is serviced. Failure to comply will result in death or serious injury.

MAINTENANCE/SERVICE

1. Read and follow all instructions, warnings and maintenance schedules in the owner’s/user’s manual.

2. Maintenance/Service of dock leveler restricted to trained personnel.

3. Place barriers on the driveway and dock floor to indicate service work is being performed.

4. DO NOT ENTER PIT unless dock leveler is securely supported by maintenance prop.

5. If electrically powered turn off and use OSHA lockout/tagout procedures.

FORK HERE

1751-0788 Rev A

1751-0728 Rev A

1751-0789

DANGER

CRUSH HAZARD

DO NOT ENTER PIT unless dock leveler is

1751-0726

4111-0013 — June 2010

safely supported by maintenance prop. Place barriers on driveway and dock floor to indicate service work being performed. Failure to comply will result in death or serious injury. Refer to owner’s/user’s manual for proper maintenance procedures.

1751-0726 Rev A

Aug 2012

OWNER’S/USER’S RESPONSIBILITIES

1. The owner/ user should recognize the inherent dangers of the interface between the loading dock and the transportation vehicle. The owner/ user should, therefore, train and instruct all operators in the safe operation and use of the loading dock equipment in accordance with manufacturer’s recommendations and industry standards. Effective operator training should also focus on the owner’s/user’s company policies and operating conditions. Maintaining, updating and re training all operators on safe working habits and operation of the equipment, regardless of previous experience, should be done on a regular basis and should include an understanding and familiarity with all functions of the equipment. Owner’s/ user’s shall actively maintain, update and retrain all operators on safe working habits and operations of the equipment.

2. The manufacturer shall provide to the initial purchaser all necessary information regarding Safety Information, Operation, Installation and Safety Precautions, Recommended Initial and Periodic Inspections Procedures, Planned Maintenance Schedule, Product Specifications, Troubleshooting Guide, Parts Break Down, Warranty Information, and Manufacturers Contact Information, as well as tables to identify the grade(slope) for all variations of length or configuration of the dock leveling device and information identifying the maximum uncontrolled drop encountered when sudden removal of support while in the working range of the equipment.

3. It is recommended that when the transportation vehicle is positioned correctly in the dock opening and in contact with both bumpers, there shall be a minimum of 4.00 inches (100mm) overlap of the leveling device and the transportation vehicle at all times during the loading and unloading process.

4. The Owner/User must review all name plates, placards, decals, instructions and posted warnings and place the same in view of the operator or maintenance personnel for whom such warnings are intended for. Contact manufacturer for any replacements.

5. Manufacturer’s recommended periodic maintenance and inspection procedures in effect at the date of shipment shall be followed at all times. Written documentation of maintenance, replacement parts or damage should be retained. In the event of damage notification to the manufacturer is required.

6. Loading dock equipment that has been structurally damaged or has experienced a sudden loss of main support while under load (such as what might occur when a transport vehicle pulls out from under the leveling device) shall be removed from service, inspected by a manufacturer’s authorized representative, and repaired or replaced as needed before being placed back in service.

7. Any modifications or alterations of loading dock equipment shall only be done with prior written approval from the manufacturer and the same shall be at least as safe as the original equipment was prior to the modification and shall also satisfy all safety requirements of the manufacturer for the particular application of the leveling device.

8. When industrial moving devices are being used in the loading or unloading of product from the transportation vehicle, this vehicle shall have the brakes and wheel chocks applied appropriately or all other positive restraining device shall be fully utilized. It is recommended that trailers with air-ride suspension systems shall have its air exhausted prior to performing loading and unloading operation to minimize trailer bed drop.

9. Loading dock safety equipment should never be used outside of its intended use, vertical working range, or capacity. Please consult the manufacturer if you have any questions as to the use, vertical working range or capacity of the equipment. Only properly trained and authorized personnel should operate the equipment.

10. When selecting loading dock safety equipment, it is important to consider not only present requirements but also future plans and any possible adverse conditions, environmental factors or usage.

4111-0013 — June 2010

Aug 2012

INTRODUCTION

General Information

Congratulations on your choice of a Poweramp dock leveler. This manual covers the LMP-series mechanical dock leveler.

Designed by Poweramp to be a marvel of simplicity and efficiency, your dock leveler, when properly installed, will provide many years of trouble-free performance with an absolute minimum of maintenance. To obtain maximum performance and longest possible use, a simple program of preventive maintenance is recommended.

Dock Leveler Stock Specifications

LMP-Series dock levelers are available in the following sizes, weight capacities, and options:

Width

6 ft (1828.8 mm) 6-1/2 ft (1981.2 mm) 7 ft (2133.6 mm)

Length

5 ft (1424 mm) 6 ft (1828.8 mm) 8 ft (2438 mm) 10 ft (3048 mm)

Capacity (CIR*)

25,000 lb (11 340 kg) 30,000 lb (13 608 kg) 35,000 lb (15 876 kg) 40,000 lb (18 144 kg)

* CIR (Comparative Industry Rating)

Call Poweramp for your specific needs.

Once again, thank you and congratulations on your purchase of a Poweramp mechanical dock leveler.

4111-0013 — June 2010 Aug 2012

INTRODUCTION

Component Identification

A — Lip B — Lip Maintenance Prop C — Platform D — Lip Link E — Lip Assist Rod

F — Platform Release Ring G — Ratchet Pawl H — Ratchet Bar J — Pawl Spring K — Main Frame

L — Platform Maintenance Prop M— Hold-Down Mechanism N — Safety Leg P — Lip (Snubber) Spring Q — Lip Shock Absorber

R— Safety Leg Linkage S — Safety Leg Pull Ring T — Lift Arm Assembly U — Lift (Main) Spring

Assembly

4111-0013 — June 2010

Aug 2012

Prepare Pit

INSTALLATION

A— Distance (Pit Width)

(Front and Rear)

B — Distance (Dock Floor-to-Pit

Floor) (All Four Corners)

Post safety warnings and barricade the work area at dock level and ground level to prevent unauthorized use of the dock leveler before installation has been completed.

Failure to follow the installation instructions can result in damage to dock leveler, the facilities, and/ or serious personal injury or death.

C — Distance (Pit Length) (Both Sides of Pit)

D — Distance (Pit Corner-to-Corner)

(Top, Bottom, and Both Sides)

1. Before lowering the dock leveler into the pit, the following must be performed:

2. Remove all debris from the pit and sweep the pit clean.

3. Check the entire dock leveler pit for proper construction according to approved/certified pit drawings. Make sure pit is square by making the following measurements:

Only trained installation professionals with the proper equipment should install this product.

IMPORTANT

DO NOT remove the shipping bands around the dock leveler lip until instructed to do so.

4111-0013 — June 2010 Aug 2012

• Measure pit width distance (A) at both front and

rear of pit.

• Measure dock floor-to-pit floor distance (B) at all

four corners.

• Measure pit length distance (C) at both sides.

• Measure corner-to-corner (criss-cross) distance

(D) at both sides. Take measurements at dock floor level and at pit floor level.

4. If any measurement is off by more than 1/8 in. (3.18 mm), contact Poweramp Technical Services before proceeding.

INSTALLATION

Prepare Dock Leveler

A— Lifting Bracket (2 used) B — Shipping Bands

The dock leveler is heavy. Use a lifting device and chains with the appropriate lifting capacity and reach.

Always use the lifting brackets provided with the unit whenever lowering or lifting a dock leveler into or out of a pit.

Failure to follow these instructions may result in damage to the dock leveler and/or serious personal injury or death.

Poweramp dock levelers are designed with installation in mind. Each unit is shipped with lifting brackets (A) fastened to the platform side joists.

IMPORTANT

DO NOT remove the shipping bands (B) around the platform lip and leveler frame at this time. The shipping bands are needed to hold the leveler together during the installation process.

4111-0013 — June 2010

Aug 2012

1. Remove any bumpers that may be banded, or bolted to the frame of the dock leveler.

DO NOT remove the shipping bands (B) around

the platform lip and leveler frame at this time.

IMPORTANT

DO NOT over-tighten the lifting bracket hardware. Over-tightening can damage the weather seal, if equipped.

NOTE: Overall width of platform and lifting brackets

(A) must be kept to a minimum to prevent interference between the lifting brackets and the pit walls as the dock leveler is lowered into the pit.

2. Make sure the mounting hardware of lifting brackets (A) is snug. The brackets should pivot relatively freely on the mounting cap screw. DO NOT overtighten.

INSTALLATION

3. Attach lifting chains to lifting brackets (A) and to a lifting device (i.e., hoist or fork truck) having the appropriate lifting capacity and reach.

4. Remove wood blocks that are attached to the

leveler frame before putting the dock leveler into the pit.

4111-0013 — June 2010 Aug 2012

INSTALLATION

Install Dock Leveler

Shim

Stacking Methods

PLACARD

A— Distance (Leveler Frame

Height)

B— Shim Locations (Under

Rear Vertical Supports)

C— Shim Locations (Under

Lip Keepers and Prop) D— Dock Floor E— Rear Pit Curb Angle

F— String G— Rear Hinge Frame Angle H— Distance (Dock Floor-to-

Pit Floor)

J— Distance (Top of Shim

Stack-to-Dock Floor) K— Shim Stack L— Dock Leveler Frame M — Pyramid (Preferred) N— Stepped (Acceptable) P— Offset (Not Acceptable) Q — Straight (Not Acceptable)

4111-0013 — June 2010

Aug 2012

INSTALLATION

NOTE: Poweramp dock levelers are designed with a nominal 1/2 in. (12.7 mm) shimming distance to allow for pit inconsistencies.

1. Determine height of shim stack (K) for each shim location (B) by performing the following:

a. Measure leveler frame height distance (A).

b. Measure dock floor-to-pit floor distance (H) at each

shim location (B). Write down the dimensions obtained at each location.

c. Subtract distance (A) from distance (H) to obtain

the shim height. Repeat for each shim location.

IMPORTANT

The minimum size of the shim that contacts the leveler frame (i.e., the top shim of each shim stack) must be at least 4-1/2 x 4-1/2 in. (114.3 x 114.3 mm) to support the full width of the frame rail and to provide a shelf for a fillet weld.

Use the thickest shim stock possible for stability and weld penetration purposes. DO NOT use multiple layers of 1/8 in. (3.18 mm) or thinner shim stock.

2. Using the results obtained in step 1, create the individual shim stacks on the pit floor at locations (B). Build each shim stack (K) using the pyramid method (M) (preferred) or stepped method (N) with the top shim having a minimum size of 4-1/2 x 4-1/2 in. (114.3 x 114.3 mm) and each successive lower shim being larger so the shims can be welded together using a fillet weld. DO NOT use offset method (P) or straight method (Q).

4. Put a 1/4 in. (6.6 mm) thick shim at locations (C) (under lip keepers/maintenance prop and safety legs). Make sure shims are larger than frame angle iron so pyramid or stepped stacking method can be used.

The dock leveler is heavy. Use chains and a lifting device with the appropriate lifting capacity and reach. Failure to do so may result in damage to dock leveler and/or serious personal injury or death.

NOTE: A 1/4 in. (6.6 mm) thick shim at locations (C) is used only as a starting point. The final shim stack height will be determined after the dock leveler is lowered into the pit.

5. Using an appropriate lifting device connected to the lifting brackets, lower dock leveler into the pit so rear hinge frame angle (G) is tight against rear pit curb angle (E) across full width of the leveler frame.

6. Allow rear of dock leveler to rest on the rear shims while keeping the front of the dock leveler level with the dock floor.

7. Add shims at front shim locations (C) so front of dock leveler will stay level with dock floor when leveler is resting fully on shims.

NOTE: To assist in obtaining an accurate measurement of distance (J), use a string (F) pulled tight across the pit opening, directly over the shim locations.

3. Verify that each shim stack is at the correct height by measuring distance (J) [top of shim stack (K) to dock floor]. Distance (J) must equal the dock leveler height (A).

4111-0013 — June 2010 Aug 2012

INSTALLATION

A— Front of Dock Pit B— Dock Leveler Frame

C— Side Pit Curb Angle D— Gap [3/4 in. (19 mm)

Minimum]

8. With rear hinge frame angle (F) tight against rear pit curb angle (G), perform/check the following:

•Pry between the platform and rear hinge frame angle at locations (E) to make sure rear edge of platform is parallel to the rear hinge frame angle (F).

•Gap (D) must exist equally along both sides of leveler so weather seal (if equipped) will not bind during dock leveler operation.

9. If gap (D) cannot be obtained equally at both sides of leveler, grind or add material at the rear edge of rear hinge frame angle (F) as needed.

E— Pry Locations F— Rear Hinge Frame

Angle

G— Rear Pit Curb Angle H— Flare Bevel Weld, Typical

(To Fit Spacing)

10. Allow the dock leveler to rest fully on the shim stacks. Make sure the leveler is in the cross-traffic (stored) position with lip resting on lip keepers.

11. Check that a smooth and level transition exists between the dock floor and the dock leveler platform. Add or remove shims as necessary until a smooth transition is obtained.

12. If leveler cannot be squared and made level as instructed in steps 8 – 10, contact Poweramp Technical Services.

4111-0013 — June 2010

Aug 2012

DO NOT grind or weld if hydraulic fluid or other flammable liquid is present on the surface to be ground or welded.

Always keep a fire extinguisher of the proper type nearby when grinding or welding.

Failure to follow these instructions may result in serious personal injury or death.

INSTALLATION

14. Remove shipping bands at this time. Allow platform to float. Add/Remove shims as necessary to bring platform level/flush with floor.

Make sure all personnel are outside of the leveler operating zone and stand clear of the platform lip before removing the shipping bands. Failure to do this may result in serious personal injury or death.

15. Weld front of dock leveler frame (B) to shims located under the keepers, then weld the shims to the front pit curb steel.

16. Disconnect lifting device and chains from the lifting brackets.

IMPORTANT

Always ground welding equipment to the dock leveler frame, NEVER to the platform.

DO NOT weld continuously along the full length of the rear hinge frame angle. This can put unnecessary stress on the leveler components, causing the leveler not to function correctly and shortening the lifespan of the affected components.

NOTE: The illustration on the previous page shows a typical weld pattern. The weld pattern will vary slightly depending on size of dock leveler.

13. With the rear hinge frame angle (F) tight against the rear pit curb angle (G), weld the rear hinge frame angle (F) to the rear pit curb angle (G) using a 3/8 in. (9.5 mm) flare bevel skip weld-each weld being 6 in. (152 mm) long.

Start at each end with a 6 in. (152 mm) long weld. Space all the other welds out evenly leaving approximately 6 in. (152 mm) space between each weld.

Alternate welding locations to distribute heat. Welding sequentially from one end to the other may cause warping or distortion.

Make sure all personnel are outside of the leveler operating zone and clear of the platform lip before activating the leveler. Failure to do this may result in serious personal injury or death.

IMPORTANT

When activating the leveler, always pull AND hold the platform release ring until the platform is at the full-raised position. Releasing the ring while the platform is still rising may result in damage to the equipment.

17. Pull and hold the release ring (located in recess at rear of platform) until the platform is fully raised. Check for binding as platform rises.

18. Slowly walk out onto the platform to lower the platform. Allow the platform to lower to the cross-traffic position. Check for binding as platform lowers.

19. If binding occurs, reposition leveler and/ or add or remove shims as necessary. Raise and lower platform again. If platform still binds, contact Poweramp Technical Services for further instructions.

4111-0013 — June 2010 Aug 2012

20. Check that the leveler is flush with the dock floor and that the platform lip contacts both lip keepers evenly.

INSTALLATION

A— Safety Leg Chain Pull Ring E— Lip Support Prop

B— Platform Maintenance Prop F— Platform Release Ring

21. Pull the release ring to raise platform. Engage the platform maintenance prop (B) in the service (upright) position and lock the maintenance prop at this position using an OSHA approved locking device (D). Engage lip maintenance prop.

Make sure the platform is properly supported in the raised position before entering the pit to finish weld the shims. Failure to do this may result in serious personal injury or death.

22. Install shims under lift arm at locations (C) using the pyramid shimming method. The lift arm pivot must be solidly shimmed the entire length of the lift arm pivot. Make sure the lift arm pivot is level from side-to-side.

23. Finish weld all shims using a fillet weld.

C — Shim Location (Under Lift Arm Pivot) D — Locking Device

25. Remove the lifting brackets from the platform side joists.

26. Disengage the platform maintenance prop.

27. Slowly walk out onto the platform to lower the platform until it is at the cross-traffic (stored) position.

28. Check operation of dock leveler by cycling the leveler at least four times.

•When the platform is at full height, lip will be fully extended.

•Lip will begin to drop after full height is reached, taking approximately 12 seconds to fully fold.

29. Check below-dock position by walking platform down before lip folds completely.

•Lip will be over lip keepers.

•Platform safety legs will be resting on frame.

•Weld all shims within each shim stack to each

other, then weld the shim stack to the leveler frame.

•Weld the front leveler frame shim stacks to the front pit curb steel if not done previously.

24. When all welding has been completed, remove all slag then paint all the welds and shims.

30. Check full below-dock position by walking the platform down. Pull and hold safety leg chain (A) before lip folds completely.

31. If the lip does not extend fully or lip folds too quickly, see appropriate symptom in the Troubleshooting section.

32. Install the dock bumpers as required.

4111-0013 — June 2010

Aug 2012

Theory

OPERATION

1 — Lip 2 — Lip Maintenance Prop 3 — Platform 4 — Lip Link 5 — Lip Assist Spring

6 — Hold Down Release Ring 7— Ratchet Pawl 8— Ratchet Bar 9 — Hold down

The LMP-series mechanical dock leveler uses large lift springs (18) to apply force to lift arm (17). The lift arm pushes against the underside of the platform (3), rolling on the cam (not pictured) forcing the platform to rise. The force of the spring tension is just enough to lift the weight of the platform.

IMPORTANT

When activating the leveler, always pull AND hold the platform release ring until the platform is at the full raised position. Releasing the ring while the platform is still rising may result in damage to the equipment.

To actuate the dock leveler platform, the operator pulls and holds the platform release ring (6) located in the recess at the rear of the platform. This causes ratchet pawl (7) to disengage from ratchet bar (8). With the ratchet pawl disengaged, spring tension from lift springs (18) forces the platform to rise.

NOTE: Ratchet pawl (7) and bar (8) are part of the

hold-down mechanism (9)

10 — Platform Maintenance Prop 11— Main Base Frame 12 — Safety Leg Assy. 13 — Snubber Spring 14 — Gas Shock

15 — Safety Leg Below Dock

Control 16— Safety Leg Retract Pull Ring 17 — Lift Arm 18 — Lift Springs

The ratchet pawl disengages only when the platform release ring (6) is pulled AND held. Spring tension from pawl spring causes the ratchet pawl to engage the ratchet bar when the release ring is let go.

When the platform rises to approximately 2 – 3 inches (51 – 76 mm) from its full raised height, the lip spring (5) and a chain pulls the lip link (4) forward. This, in conjunction with the lip assist spring (5), causes the lip linkage to push the lip out and up. The lip assist spring also helps control the amount of time required for the lip to fully fold.

To lower the platform, the operator walks out onto the platform. The platform will lower until the extended lip rests on the truck bed. If the lip did not fully extend or there is no truck at the dock, the platform will lower until one of the following conditions occur:

• Lipisrestingonlipkeepers(cross-trafficposition).

• Lip did not fully foldcausingtheplatformtoreston

safety legs (below-dock position).

• Lip did not fully fold and safety legs are retracted,

causing the platform to rest on the safety stops (full below-dock position).

The hold-down ratchet assembly will keep the platform at the desired position until the platform release ring is pulled again.

4111-0013 — June 2010 Aug 2012

OPERATION

Operating Instructions

Stay clear of dock leveler when freight carrier is entering or leaving dock area.

DO NOT raise or lower the dock leveler if anyone is under or in front of leveler.

Keep hands and feet clear of pinch points. Avoid putting any part of your body near moving parts.

Failure to follow these instructions may result in severe personal injury or death.

DO NOT activate the dock leveler until the truck/ trailer is positioned squarely against the bumpers and the truck wheels are chocked.

Never remove the wheel chocks until loading and unloading is finished and truck driver has been given permission to leave.

DO NOT use the dock leveler if the freight carrier is too high or too low.

12 in. (305 mm)

The HM-series mechanical dock leveler is designed to compensate for ± 12 in. (305 mm) of height difference between the loading dock and the truck bed. DO NOT use the dock leveler if the truck/trailer bed is more than 12 in. (305 mm) higher or lower than the dock floor.

DO NOT overload the dock leveler.

DO NOT operate any equipment while under the influence of alcohol or drugs.

DO NOT leave/store equipment or material unattended on the dock leveler.

Failure to follow these instructions may result in personal injury and/or damage to equipment.

NEVER use a fork truck or any other material handling equipment to lower the dock leveler.

DO NOT drive any equipment onto the dock leveler until platform lip is resting on the truck/trailer with at least 4 in. (102 mm) of overlap.

Always maintain a safe distance from side edges of leveler during the loading and unloading process.

NEVER attempt to walk on an unsupported lip.

NEVER allow untrained personnel to operate the dock leveler.

NEVER attempt to lift any part of the leveler by hand.

Failure to follow these instructions may result in serious personal injury or death.

IMPORTANT

The dock leveler operation instructions are divided into the two methods of loading and unloading:

• Forramploadingandunloading,seeRamp

Loading/Unloading Instructions on page 19.

• Forendloadingandunloading,seeEnd

Loading/Unloading Instructions on page 20.

4111-0013 — June 2010

Aug 2012

Operating Instructions — Continued

Ramp Loading/Unloading Instructions

OPERATION

NOTE: If end unloading is required, see End Loading/

Unloading Instructions on page 20.

1. Check to make sure truck/trailer is positioned squarely against dock bumpers.

2. Instruct driver to remain at the dock until the loading or unloading process has been completed.

3. Chock the truck/trailer wheels or use truck restraint if present.

4. Raise the platform by pulling and holding the platform release ring (A).

7. Make sure that the lip is fully extended and supported on the truck/trailer along the entire width of the platform with at least 4 in. (102 mm) of lip contacting the truck bed.

8. Proceed with loading or unloading.

NOTE: If end loading is necessary, see End Loading/

Unloading Instructions on page 20.

5. Hold the release ring until the platform is at the fully-raised position and lip is fully extended.

6. Walk out onto the platform. The platform will lower until the lip rests on the truck/trailer bed.

9. When the loading or unloading process has been completed, return platform to cross-traffic (stored) position as follows:

a. Raise the platform to the full-raised position by

pulling and holding the platform release ring (A).

b. Lower platform by slowly walking out onto the

platform allowing time for the lip to fully fold and clear the truck/trailer. Continue walking out on platform until platform lowers to the cross-traffic position (lip engages in the lip keepers).

10. Remove chocks from truck/trailer wheels or

release truck restraint if used.

11. Indicate to driver that truck may leave the dock.

4111-0013 — June 2010 Aug 2012

OPERATION

Operating Instructions — Continued

End Loading/Unloading Instructions

NOTE: End loading or unloading can be done with the

dock at the cross-traffic position or below-dock position depending on the height of the truck/ trailer bed.

1. Check to make sure truck/trailer is positioned squarely against dock bumpers.

2. Instruct driver to remain at the dock until the loading or unloading process has been completed.

3. Chock the truck/trailer wheels or use truck restraint if present.

End Loading/Unloading — Platform at Cross-Traffic

Position.

4. If truck/trailer bed is at or above dock floor level, leave leveler at the cross-traffic position and proceed with loading or unloading. When finished, perform steps 9 and 10.

If truck/trailer bed is below the dock floor level,

perform steps 5 – 10.

6. Slowly walk the platform down allowing enough time for the lip to fold. Just before the platform reaches the cross-traffic position, pull and hold the safety leg retract pull ring (B) (located in a recess at front of the platform). The platform will continue lowering to the full below dock position.

End Loading/Unloading — Platform at Below-Dock Position.

7. Proceed with loading or unloading.

NOTE: When end unloading is finished and additional

access to the truck/trailer requires that the platform lip be extended, see Ramp Loading/ Unloading Instructions on page 19 for further instructions.

5. Pull and hold the platform release ring (A) until the platform is at the fully-raised position.

8. When loading or unloading is finished, raise the platform to the full-raised position by pulling and holding the platform release ring. Slowly walk the platform down, allowing enough time for the lip to fold. The platform will lower to the cross-traffic position (lip engages in the lip keepers).

9. Remove chocks from truck/trailer wheels or release truck restraint if used.

10. Indicate to the driver that the truck may leave the

dock.

4111-0013 — June 2010

Aug 2012

Service Dock Leveler Safely

MAINTENANCE

A— Platform Release Ring

B — Platform Maintenance Prop

Always post safety warnings and barricade the work area at dock level and ground level to prevent unauthorized use of the dock leveler before maintenance is complete. Failure to do this may result in serious personal injury or death.

Always stand clear of the dock leveler lip when working in front of the dock leveler. Failure to do this may result in serious personal injury or death.

The platform maintenance prop MUST be in the service position when working under the dock leveler. For maximum protection, use an OSHA approved locking device to lock the maintenance prop in the service position. Only the person servicing the equipment should have the key to unlock the maintenance prop.

C— Lip Maintenance Prop D— Prop Pin and Clip E— Safety Leg Pull Chain

Whenever maintenance is to be performed under the dock leveler platform, support the platform with the platform maintenance prop (B).

Put the platform maintenance prop in the service (upright) position so that the prop is cradled in the u-bracket (C). Lock the platform maintenance prop in this position by inserting the prop pin and clip (D) or attaching an OSHA approved lockout device* and tagout device*, supplied by others.

Only the person servicing the equipment should have the capability to remove the lockout device. The tagout device must inform that repairs are in process and clearly state who is responsible for the lockout condition.

If maintenance requires that the lip be in the extended position, raise the lip by hand and support the lip with the lip maintenance prop (A).

NOTE: Make sure to disengage the lip maintenance

prop and allow the lip to fold fully before disengaging the platform maintenance prop.

Failure to follow these instructions may result in serious personal injury or death.

4111-0013 — June 2010 Aug 2012

* Refer to OSHA regulation 1910.147.

MAINTENANCE

Periodic Maintenance

•

A —Lip Hinge Lug Area B — Lip Maintenance Prop

Pivot

C — Lip Link Pivots

D — Platform Lug Area E — Lift Arm Roller Bushing

Always stand clear of the dock leveler lip when working in front of the dock leveler. Failure to do this may result in serious personal injury or death.

G — Lift Arm Pivot H — Hold-Down Pivot/Pulley J — Safety Leg Linkage Pivots

Failure to follow these instructions may result in serious personal injury or death.

K — Lip Assist Pin L — Hold Down-to-Platform Pin M — Secondary Pulley

4111-0013 — June 2010

Aug 2012

Regular maintenance must be performed on a weekly and quarterly schedule.

MAINTENANCE

Weekly Maintenance

• Operate the dock leveler through the complete

operating cycle to maintain lubrication.

NOTE: To thoroughly inspect the platform hinge area,

position the platform in the full below-dock position.

• Inspect theplatform hingeand the liphinge areas.

The hinge areas must be kept free of dirt and debris. Build-up of foreign material in the hinge areas will increase wear and cause abnormal operation.

IMPORTANT

Failure to properly lubricate the dock leveler will cause abnormal operation of the leveler.

DO NOT lubricate the hold-down ratchet bar and pawl.

Quarterly Maintenance

• Lubricate the following areas with light-weight

machine oil:

(B)— Lip maintenance prop pivot

(C)— Lip banger pivots

(F)— E-Z release bellcrank pivot

(H)— Hold-down pivot/pulley

(J)— Safety leg linkage pivots

(L)— Hold down-to-platform pin

• Lubricate the following areas with white lithium

grease:

(A)— Lip hinge area (inject grease into all the lip

hinge grease fittings)

(D)— Platform hinge area (inject grease into all the

platform hinge grease fittings)

(E)—Lift arm roller bushing

(G)— Lift arm pivot

(K)— Lip assist pin

4111-0013 — June 2010 Aug 2012

ADJUSTMENTS

Adjust Lift Arm Spring and Lip Assist Spring Tension

A — Jam Nut B — Adjustment Nut

C — Lip Assist Spring D — Lift Springs

E — Lift Spring Bolt F — Hold-Down Mechanism

Always stand clear of the dock leveler lip when working in front of the dock leveler. Failure to do this may result in serious personal injury or death.

Failure to follow these instructions may result in serious personal injury or death.

4111-0013 — June 2010

Aug 2012

ADJUSTMENTS

NOTE: Adjusting the tension of lift springs (D) usually

requires that the lip assist spring (C) also be adjusted.

If the platform does not rise fully and/or lip does not extend fully, the lift spring tension may be set too low.

If the platform cannot be walked down or is difficult to walk down, the lift spring tension may be set too high.

IMPORTANT

When using an external lifting device to raise the platform, make sure hold-down mechanism (F) is disengaged. Pull and hold platform release ring during the lifting process to avoid shearing the ratchet pawl and ratchet bar teeth.

1. Raise the platform and engage the platform maintenance prop. Lock the maintenance prop in the service position using an appropriate locking device.

2. Adjust tension of lift springs (D) as follows:

3. After lift spring adjustment is completed, check operation of the lip.

 • Ifthelipfoldsbeforetheplatformcanbewalked

down, tension of lip assist spring (C) may be set too low.

 • Ifthe lip does notfoldfullyortakestoo long to

fold, tension of lip assist spring (C) may be set too high.

4. Adjust lip assist spring tension as follows:

NOTE: Use two-turn increments when adjusting

lip assist spring (C). Check lip operation after each adjustment. Repeat until proper operation is obtained.

a. Loosen jam nut (A).

b. To increase spring tension, turn nut (B) clockwise.

c. To decrease spring tension, turn nut (B)

counterclockwise.

d. Tighten jam nut.(A)

5. Recheck operation of platform and lip. Readjust lift spring tension and lip assist spring tension until proper operation is obtained.

NOTE: Set lip tension first with the unit about 6 inches above dock floor, fully extend the lip. Time the rate of desent of the lip to full pendant position, this time should be approximatly 15-25 seconds.

NOTE: Use 1/2 turn increments when adjusting lift

spring bolt (E). Check platform operation after each adjustment. Repeat until proper operation is obtained.

 • To increase lift spring tension, turn lift spring

bolt (E) clockwise.

 • To decrease lift spring tension, turn lift spring

bolt (E) counterclockwise.

4111-0013 — June 2010 Aug 2012

ADJUSTMENTS

Adjust Lip Stop Bolt

Always stand clear of the dock leveler lip when working in front of the dock leveler. Failure to do this may result in serious personal injury or death.

Failure to follow these instructions may result in serious personal injury or death.

Check that lip (E) is fully resting on the lip keepers (D) and at the lowest part of the lip keepers. If lip is not resting properly in lip keepers, perform the following adjustment.

1. Fully raise platform. Manually raise the lip and engage lip maintenance prop (not shown).

2. Loosen jam nut (B).

3. Adjust stop bolt (C) as necessary.

A— Platform B— Jam Nut C— Stop Bolt

D — Lip Keeper E — Lip

4. Tighten jam nut (B).

5. Disengage lip maintenance prop.

6. Walk platform down to cross-traffic (stored) position.

7. Check lip position in both keepers. Repeat procedure if necessary.

 • Turnstopbolt“in”(clockwise)toallowliptofold

closer to platform (A).

 •Turn stop bolt “out” (counterclockwise) to hold

lip further away from platform (A).

4111-0013 — June 2010

Aug 2012

Troubleshooting

TROUBLESHOOTING

Always stand clear of the dock leveler lip when working in front of the dock leveler. Failure to do this may result in serious personal injury or death.

Symptom Possible Cause Solution

Platform does not rise.

Heavy object(s) on platform. Remove object(s) from platform.

Disconnected or broken release chain.

Failure to follow these instructions may result in serious personal injury or death.

NOTE: For safety reasons, the dock leveler is

designed to lift only the platform’s own weight.

Connect or replace chain.

Platform rises slowly or does not rise to the full raised position.

Dock leveler binds. Check for visible obstructions that could cause

binding. Check weather seal if equipped.

If no obstructions found, call Poweramp Technical Services. See inside back cover for phone number and address.

Heavy object(s) on platform. Remove object(s) from platform.

NOTE: For safety reasons, the dock leveler is

designed to lift only the platform’s own weight.

Dock leveler binds. Check for visible obstructions that could cause

binding. Check weather seal if equipped.

If no obstructions found, call Poweramp Technical Services. See inside back cover for phone number and address.

Insufficient main spring tension.

Damaged or worn hold-down mechanism.

Increase tension on main springs. (See Adjust Lift Arm Spring and Lip Assist Spring Tension in the Adjustments section.)

Clean and inspect hold-down mechanism. NOTE Never lube the ratchet bar and pawl.

4111-0013 — June 2010 Aug 2012

TROUBLESHOOTING

Symptom Possible Cause Solution

Platform rises to full height, but lip does not fully extend.

Lip assist chain disconnected or broken.

Insufficient main spring tension.

Insufficient lip assist force. Increase lip assist spring tension. (See Adjust Lift

Connect or replace chain.

Increase tension on main lift springs. (See Adjust Lift Arm Spring and Lip Assist Spring Tension in the Adjustments section.)

Arm Spring and Lip Assist Spring Tension in the Adjustments section.)

Platform does not lower when operator walks out onto the platform.

Lip folds too fast during normal walk-down.

Platform does not stay down.

Excessive main spring tension.

Damaged or worn hold-down mechanism.

Insufficient lip assist force. Increase lip assist spring tension. (See Adjust Lift

Disconnected, worn, or broken shock absorber.

Entangled release chain. Remove cause of entanglement.

Dirt impacted in ratchet bar teeth.

Broken or damaged ratchet assembly teeth.

Disconnected or broken hold-down pivot pins.

Reduce main spring tension. (See Adjust Lift Arm Spring and Lip Assist Spring Tension in the Adjustments section.)

Clean and inspect hold-down mechanism. DO NOT lube the ratchet bar and pawl.

Arm Spring and Lip Assist Spring Tension in the Adjustments section.)

Inspect shock absorber. Connect or replace shock absorber.

Clean and inspect ratchet bar and ratchet pawl teeth. DO NOT lubricate the ratchet assembly.

Replace ratchet assembly. DO NOT lubricate the ratchet assembly.

Replace hold-down pivot pins.

Lip does not fold after truck departs.

Damaged or worn hold-down mechanism.

Lip hinge binding because of lack of lubrication

Excessive lip assist force. Decrease lip assist spring tension. (See Adjust Lift

Clean and inspect hold-down mechanism.

Spray lithium grease into all of the lip lug area. (See Periodic Maintenance in the Maintenance section.)

Arm Spring and Lip Assist Spring Tension in the Adjustments section.)

4111-0013 — June 2010

Aug 2012

Hold-Down Mechanism

PARTS

Item Quantity Part Number Description

B 1

C 1 1751-0043 Decal, Warning D 1 DOTH-2559 Spring, Release Arm

DOTH-2563 Hold Down Assembly Complete, 31.5” Ratchet Bar DOTH-2564 Hold Down Assembly Complete, 34.5” Ratchet Bar DKIT-2575 Ratchet Bar and Pawl Assembly 31.5” Ratchet Bar DKIT-2576 Ratchet Bar and Pawl Assembly 34.5” Ratchet Bar

4111-0013 — June 2010 Aug 2012

PARTS

Frame Components

4111-0013 — June 2010

Aug 2012

Frame Components

Item Quantity Part Number Description

A 1

B 1 DOTH-2555 Spring, Snubber C 1 DOTH-2418 Hook, S. D 1 DPLA-2128 Chain, Lip Assist Link

E 1 DOTH-2416 Link,Lap

1 DPLA-1218

1 DFRA-0323 1 DFRA-0323 1 DOTH-2222 Washer

1 DOTP-6424 1 DOTP-6423

H 1 9201-0006 Prop Pin and Clip

J 1 DOTH-2401 Roller Assembly, Cam K AR* DOTH-____

L 3 DOTH-2382 Pin, Cotter, 1/4 x 2 in. M 3 9202-0002 Pin, Rear Hinge P 2 DOTH-2418 Hook, S Q 1 DOTH-2423 Ring, Chain

1 5265-0012

1 5265-0013

S 1 DOTP-____

2 8432-0983 Keeper, Lip 16 inch 8’/10 (2)8432-1193 6’Long

2 8432-0984 Keeper, Lip 18 inch 8’/10’ (2)8432-1194 6’Long

2 8432-0985 Keeper, Lip 20 inch 8’/10’ (2)8432-1195 6’ Long U 1 DOTH-2356 Pin, Clevis V 1 DRFA-0350 Roller, Release Chain

W 1 DOTH-2375 Pin, Cotter

X 1

Z 1 DOTH-2205 Washer

AA 1 DFRA-1205 Pin AB 1 DOTH-2211 Washer, Float

AC 1 2101-0216 Link, Quick 1/8 inch

AD 1 DOTH-2061 Bolt, Shoulder 1/2 x 1-1/2 AE 1 DFRA-0349 Tube, Roller ZP AF 1 DOTH-2137 Nut, Jam 3/8-16UNC

DFRA-____ 1 Frame, Welded Assembly DFRA-____

Frame, Clean Sweep, Welded Assembly (Optional)

Bolt, Spring Adjuster 8 foot long

Plate, Spring Tensioner 6 foot long

Plate, Spring Tensioner 8 foot long

Lift Arm, Short, 25” All 6’ long and 6’x8’ -25K

Lift Arm, Long, 27” 6’x8’ 30K to 7’x8’ 40K

Spring, Lift

Chain, Hold-Down Release 6 ft/10ft

Chain, Hold-Down Release 8 ft

Prop, Maintenance

DOTH-2563 Hold-Down Assembly Complete, 31.5” Ratchet Bar (see page 29)6’L

DOTH-2564 Hold-Down Assembly Complete, 34.5” Ratchet Bar (see page 29)8’/10’L

DFRA-0351 Roller Assy,6’ includes AD,AE,AF, and mounting brkt DFRA-0348 Roller Assy,8’ includes AD,AE,AF, and mounting brkt

PARTS

*AR = As Required

Provide dock leveler serial number, platform size, lip size and pit depth when calling or faxing orders.

4111-0013 — June 2010 Aug 2012

PARTS

Platform Components

PLATFORMS(2)

ITEM QTY 6 FOOT LONG 8 FOOT LONG 10 FOOT LONG

AD 1 6.0 FOOT 6.5 FOOT 7.0 FOOT 6.0 FOOT 6.5 FOOT 7.0 FOOT 6.0 FOOT 6.5 FOOT 7.0 FOOT

*AR = As Required

Provide dock leveler serial number, platform size, and lip size when calling or faxing orders.

2)Consult Factory for Platform and Lip part numbers

4111-0013 — June 2010

Aug 2012

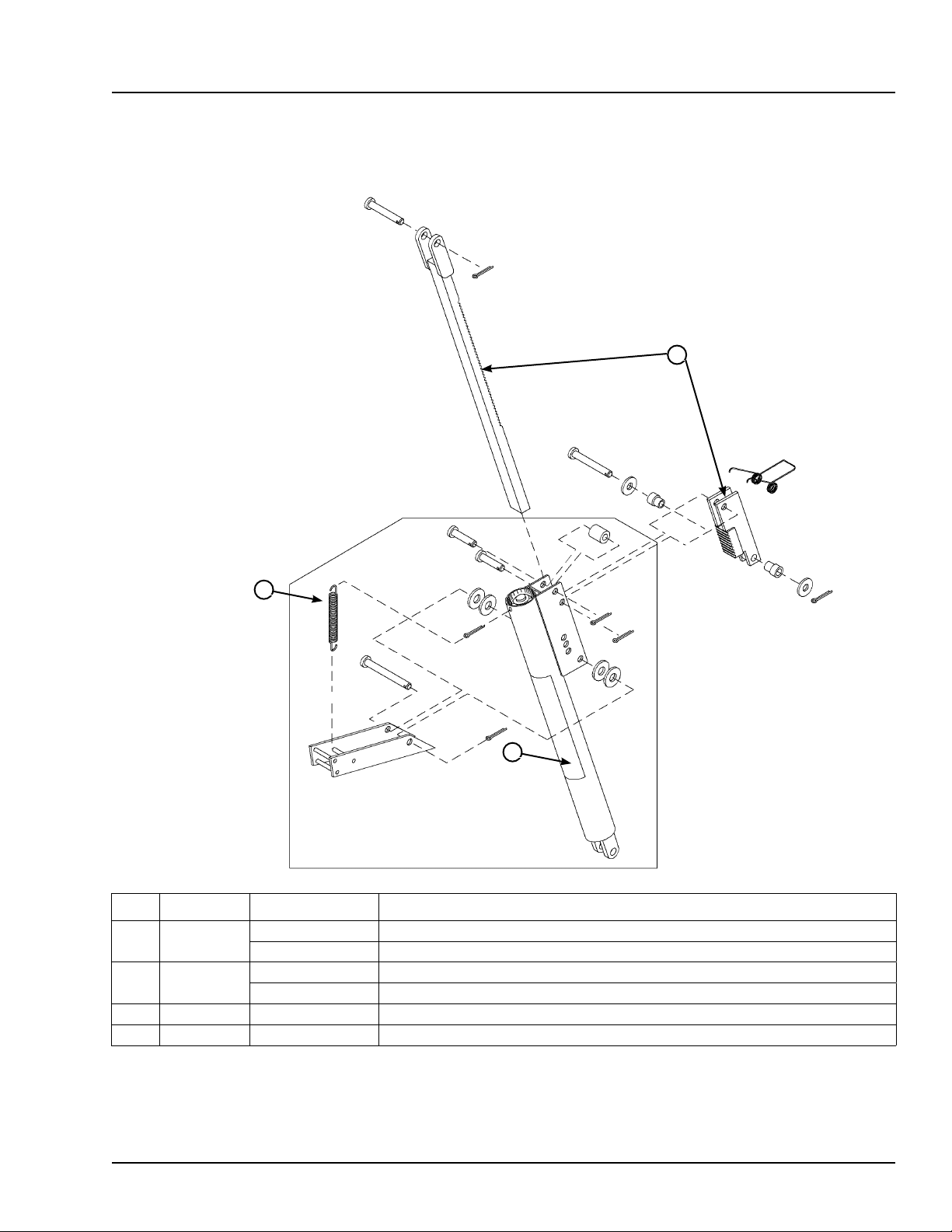

Platform Components

A 1 DPLA-0338 LIP BANGER ASSY.

B 1 DPLA-0341 BAR

C 1 DPLA-0343 BELOW DOCK CONTROL ASSY.

D 2 DOTH-2382 PIN, COTTER

F 1 DPLA-0353 BELOW DOCK CHAIN ASSY.

G 1 DPLA-0360 BDC PUSH ROD ASSY

H 1 DOTH-2060 BOLT SHOULDER

J 1 DOTH-2131 LOCK NUT

K 1 DOTH-6406 LIP ASSIST ROD

L 1 DOTH-2548 SPRING ,LIP ASSIST STD consult factory

M 1 DOTH-2546 SPRING ,LIP ASSIST HEAVY consult factory

N 1 DOTP-2006 LIP PROP BAR

P 1 DOTH-2061 SHOULDER BOLT

Q 1 DOTH-2131 LOCK NUT

R 2 DOTH-2214 WASHER

S 1 DOTH-2547 SPRING COMPRESSION

T 1 DOTH-2582 SHOCK GAS

U 2 DOTH-2351 BOLT CLEVIS

V 2 DOTH-2375 PIN COTTER

W 4 DOTH-2210 WASHER, FLAT

X 2 DOTH-2163 LOCK NUT

LIP SHAFTS

1 DPLA-0316 6.0 FOOT

1 DPLA-0394 6.5 FOOT

1 DPLA-0317 7.0 FOOT

PARTS

AC LIPS (2)

consult factory

*AR = As Required

Provide dock leveler serial number, platform size, and lip size when calling or faxing orders.

2)Consult Factory for Platform and Lip part numbers

4111-0013 — June 2010 Aug 2012

Toe Guard/Weather Seal—Optional

Item Quantity Part Number Description

A 2 DOTH-2818 Channel, Weather Seal, 84” B 2 DOTH-2824 T-Rubber, Weather Seal, 84” C 2 DOTH-2820 Extrusion, Brush Weather Seal, 84”

CC 2 DOTH-2822 Brush Weather Seal, 1.58” x 84”

D 2 DOTH-2043 Cap Screw E 4 DOTH-2207 Washer H 2 DOTH-2131 Nut, Nylon Lock

Toe Guard / Weather Seal Options

DKIT-9178 Full Range Toe Guard Assembly, 5’

E-K 1

DKIT-9179 Full Range Toe Guard Assembly, 6’ DKIT-9180 Full Range Toe Guard Assembly, 8’ DKIT-9181 Full Range Toe Guard Assembly, 10’

1 DKIT-9292 KIT COMPLETE RUBBER WEATHER SEAL 6’-8’

1 DKIT-9293 KIT COMPLETE BRUSH WEATHER SEAL 6’-8’

4111-0013 — June 2010

Aug 2012

PARTS

4111-0013 — June 2010 Aug 2012

This page intentionally left blank

NOTES

This page intentionally left blank

4111-0013 — June 2010

Aug 2012

Customer Information

MISCELLANEOUS

NOTE: Refer to illustration for left/right orientation of

dock leveler.

The model/serial number decal (A) is located

on the right platform joist near the front (lip) of dock leveler.

When you receive your LMP-series dock leveler, write down the dock leveler model and serial number in the form provided. This will help ensure safe keeping of the numbers in the event the model/serial number decal (A) becomes lost or damaged.

Also, write down Poweramp’s job number, the company that installed the dock leveler, and the original owner’s name. This will all help to identify the specific dock leveler if more information is required.

When ordering, use part numbers and description to help identify the item ordered. Do not use “item” numbers. These are only for locating the position of the parts. Always give dock leveler MODEL NUMBER and/or SERIAL NUMBER.

For service, call or contact:

Dock Leveler Information

Model

Serial No.

Poweramp, Job No.

Original Owner Information

Name

Address

Installer Information

Name

Address

Date of Installation

Systems, Inc. P.O. Box 309 Germantown, WI 53022

Phone: (800) 643-5424 Fax: (262) 255-5917

4111-0013 — June 2010 Aug 2012

STANDARD PRODUCT WARRANTY

SYSTEMS, INC. warrants that its products will be free from defects in design, materials and workmanship for a period of one (1) year from the date of shipment. All claims for breach of this warranty must be made within 30 days after the defect is or can with reasonable care, be detected. In no event shall any claim be made more than 30 days after this warranty has expired. In order to be entitled to the benefits of this warranty, the product must have been properly installed, maintained and operated in accordance with all manufacturer’s recommendations and/or specified design parameters and not otherwise have been subject to abuse, misuse, misapplication, acts of nature, overloading, unauthorized repair or modification, application in a corrosive environment or lack of maintenance. Periodic lubrication, adjustment and inspection in accordance with all manufacturers’ recommendations are the sole responsibility of the Owner/User.

In the event of a defect, as determined by SYSTEMS INC., covered by this warranty, SYSTEMS INC. shall remedy such defect by repairing or replacing any defective equipment or parts, bearing the cost for the parts, labor and transportation. This shall be exclusive remedy for all claims whether based on contract, negligence or strict liability.

WARRANTY LIMITATIONS

THE ABOVE WARRANTIES ARE IN LIEU OF ANY OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SYSTEMS INC. AND ITS SUBSIDIARIES SHALL NOT IN ANY EVENT BE LIABLE TO ANYONE, INCLUDING THIRD PARTIES, FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND INCLUDING BUT NOT LIMITED TO, BREACH OF WARRANTY, LOSS OF USE, LOSS OF PROFIT, INTERRUPTION OF BUSINESS OR LOSS OF GOODWILL.

Poweramp LMP SERIES MECHANICAL User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
