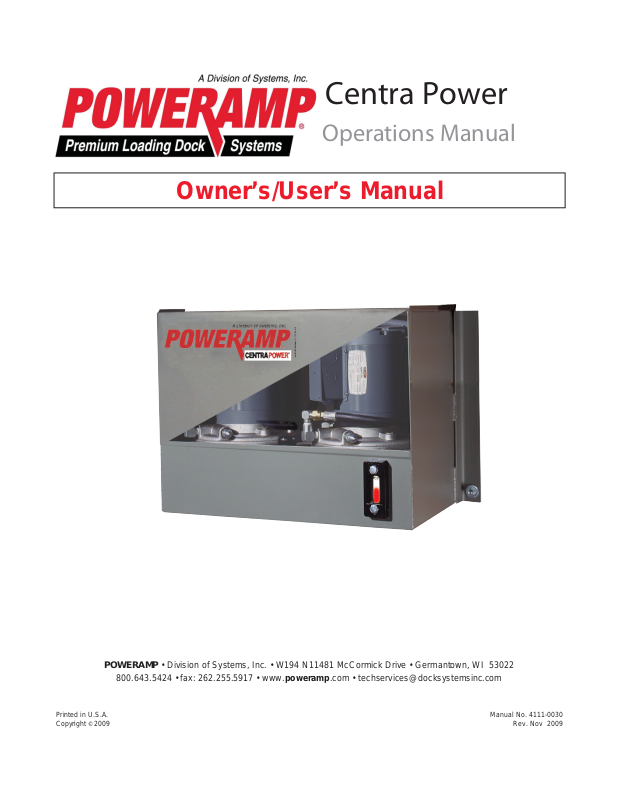

Centra Power
Operations Manual
Owner’s/User’s Manual
Printed in U.S.A.
Copyright © 2009
POWERAMP • Division of Systems, Inc. • W194 N11481 McCormick Drive • Germantown, WI 53022
800.643.5424 • fax: 262.255.5917 • www.poweramp.com • techservices@docksystemsinc.com
Manual No. 4111-0030
Rev. Nov 2009
Table of Contents
Page
Safety
Recognize Safety Information ............................................................. 1
General Operational Safety Precautions ............................................ 1
Operational Safety Precautions ........................................................... 2
Maintenance Safety Precautions ......................................................... 4
Safety Decal’s ........................................................................................ 5
Owner’s User’s Responsibilities ......................................................... 6
Introduction
Theory .................................................................................................... 6
General Information .............................................................................. 6
Component Identification ..................................................................... 8
Installation
Prepare Pit ............................................................................................. 9
Prepare Dock Leveler ..........................................................................10
Operation
Theory ................................................................................................... 21
Operating Instructions ........................................................................ 22
Ramp Loading/Unloading Instructions ........................................ 23
End Loading/Unloading Instructions ........................................... 24
Maintenance
Service Dock Leveler Safely ............................................................... 12
Periodic Maintenance .......................................................................... 13
Adjustments
Adjust Main Pressure Relief ............................................................... 16
Troubleshooting
Troubleshooting ................................................................................... 17
Parts
Pump Station Control Panel ............................................................... 21
Valve Blocks ......................................................................................... 22
Pump Station ....................................................................................... 24
Pump and Motor ................................................................................. 26
Miscellaneous
Customer Information ......................................................................... 29
Warranty ................................................................................ Back Cover
4111-0030 — Nov. 2009
SAFETY
Recognize Safety Information
General Operational Safety
Precautions
Read and understand the operating instructions and
become thoroughly familiar with the equipment and
its controls before operating the dock leveler.
Never operate a dock leveler while a safety device or
guard is removed or disconnected.
Never remove DANGER, WARNING, or CAUTION
signs or Decal’s on the equipment unless replacing
them.
IMPORTANT
The use of the word IMPORTANT is to draw
attention to a procedure that needs to be followed
to prevent machine damage.
e
g Zon
peratin
O
ne
Zo
ting
era
Op

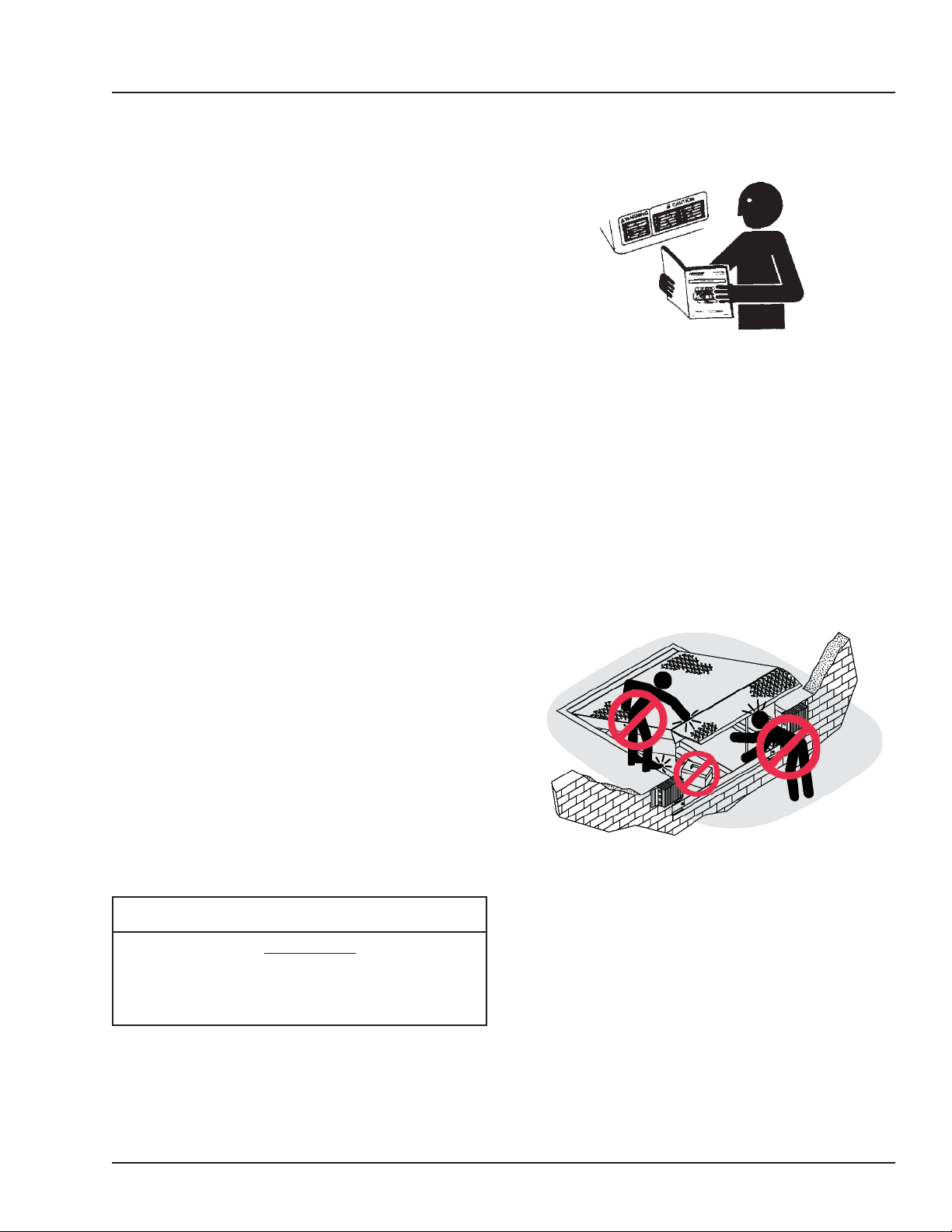

Do not start the equipment until all unauthorized
personnel in the area have been warned and have
moved outside the operating zone.
Remove any tools or foreign objects from the
operating zone before starting.
Keep the operating zone free of obstacles that could
cause a person to trip or fall.
4111-0030 — Nov.2009
1
SAFETY
Operational Safety Precautions
Learn the safe way to operate this equipment. Read and understand the manufacturer’s
instructions. If you have any questions, ask your supervisor.
Stay clear of dock leveling device when freight
carrier is entering or leaving area.
Do not move or use the dock leveling device if
anyone is under or in front of it.
Keep hands and feet clear of pinch points. Avoid
putting any part of your body near moving parts.
Chock/restrain all freight carriers. Never remove
the wheel chocks until loading or unloading
is finished and truck driver has been given
permission to drive away.
Do not use a broken or damage dock leveling
device. Make sure proper service and
maintenance procedures have been performed
before using.
Make sure lip overlaps onto trailer at least 4 in.
(102 mm).
Keep a safe distance from both side edges.
2
4111-0030 — Nov. 2009
Do not use dock leveling device if freight carrier is
too high or too low.
SAFETY
Do not overload the dock leveling device.
Do not operate any equipment while under the
influence of alcohol or drugs.
Do not leave equipment or material unattended on
dock leveling device.
4111-0030 — Nov.2009
3
SAFETY
Maintenance Safety Precautions
Hydraulic and electrical power must be OFF when
servicing the equipment. For maximum protection,
use an OSHA approved locking device to lock
out all power sources. Only the person servicing
the equipment should have the key to unlock the
device.
Always post safety warnings and barricade
the work area at dock level and ground level
to prevent unauthorized use of the unit before
maintenance is complete.

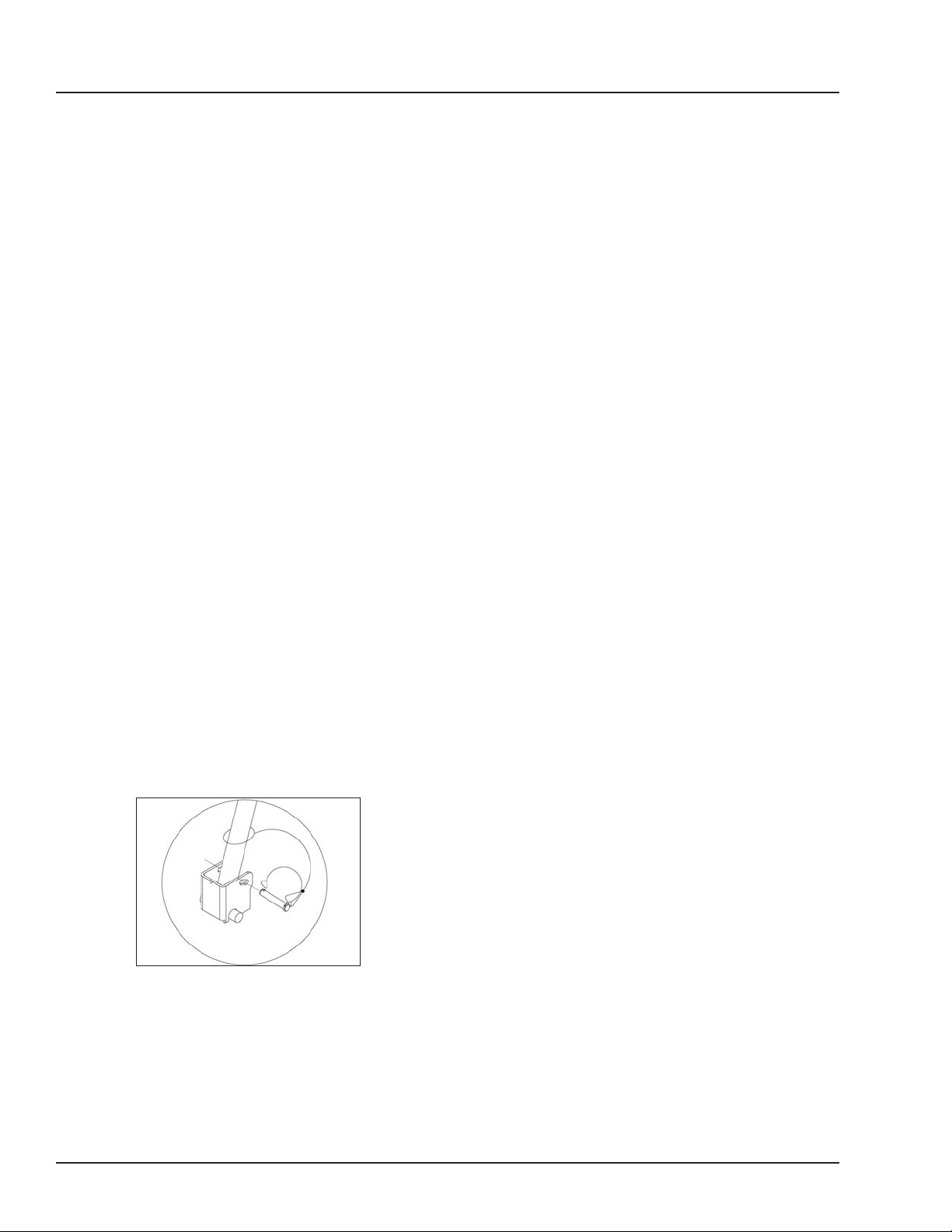

The maintenance prop must be in the upright
“service” position when working under the dock
leveler. For maximum protection, use an OSHA
approved locking device to lock the maintenance
prop in the service position. Only the person
servicing the equipment should have the key to
unlock the device.
4
4111-0030 — Nov. 2009

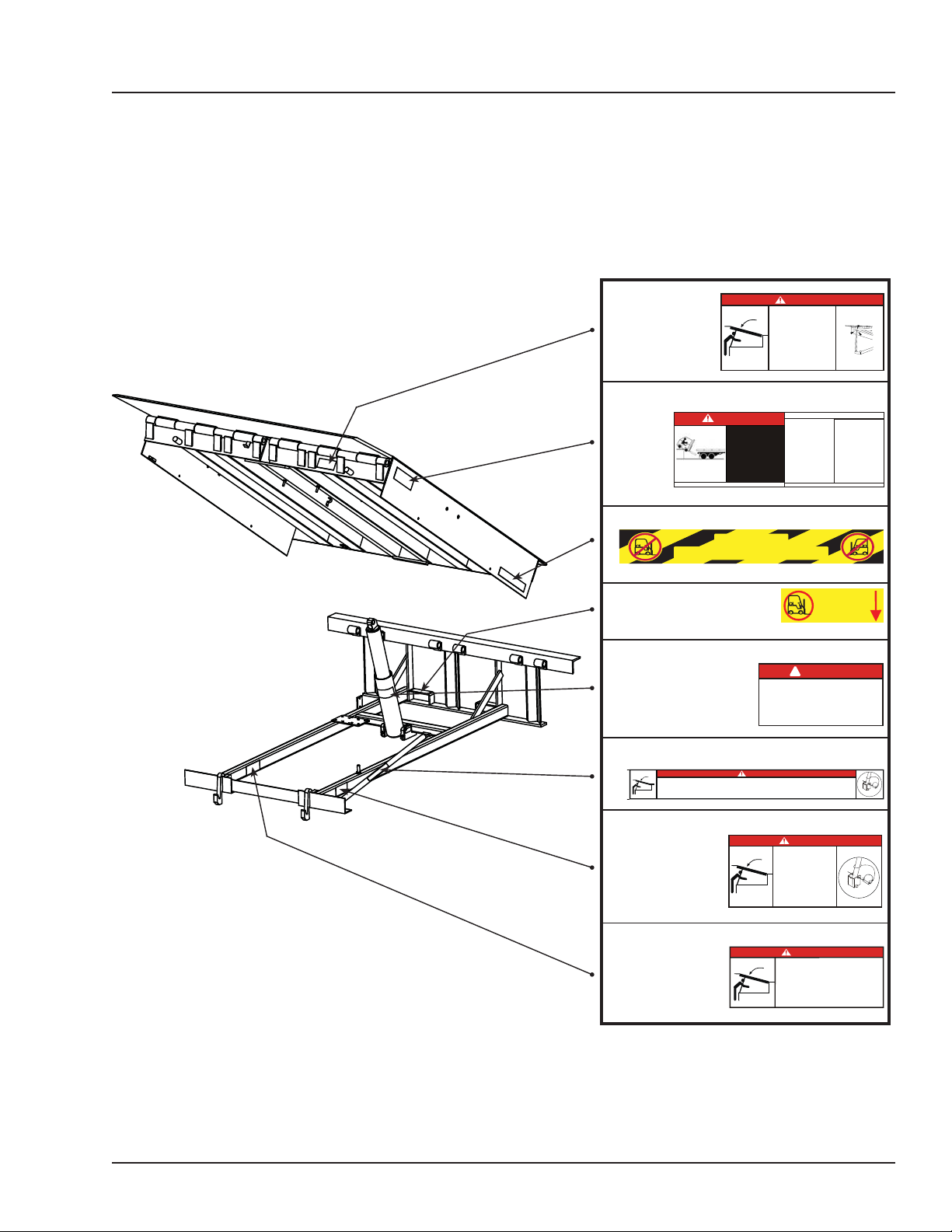

Safety Decal’s
Every 90 days (quarterly) inspect all safety labels and tags
to ensure they are on the dock leveler and are easily legible. If any are missing or require replacement, please call
1-800-643-5424 for replacements.
1751-0727
SAFETY
DANGER
CRUSH HAZARD
Maintenance prop must
support leveler behind bar.
Do not force maintenance
prop forward of bar to
support lip. Refer to
owner’s/user’s manual for
proper use. Failure to
comply will result in
death or serious injury.
1751-0727
1751-0730 (x2)
DANGER
Unsupported dock leveler
ramps can lower unexpectedly.
Before allowing vehicle to leave
the dock always:
! Ensure that no equipment,
material or people are on the
dock leveler.
! Return the dock leveler to its
Failure to follow posted instructions will result in death or serious injury.
stored position at dock level.
(decal placed in same position on both sides)
SAFETY INFORMATION
Operation
1. Read and follow all instructions and
warnings in the owner’s/user’s
manual.
2. Use of dock leveler restricted to
trained operators
3. Always chock trailer wheels or
engage truck restraint before
operating dock leveler or beginning to
load or unload.
4. Never use hands or equipment to
move the ramp or lip
5. Before activating dock leveler:
¥ Ensure trailer is backed in against
bumpers.
¥ Remove any end loads if required.
¥ Check trailer alignment to avoid lip
interference. If lip does not lower to
trailer bed, reposition vehicle.
6. Ensure that truck bed supports
extended lip or the leveler frame
Call 262.255.1510 for replacement placards, warning labels, or owner’s/user’s manuals.
1751-0329 (x2)
DO NOT
FORK THIS SIDE
(decal placed in same position on both sides)
1751-0330 (x2)
(decal placed in same position on both sides)
!
DANGER
CRUSH HAZARD
1751-0138
DO NOT REMOVE hydraulic cylinder until leveler is
safely supported by maintenance prop. Refer to
owner’s/user’s manual for proper maintenance
procedure. Failure to comply will result in death or
serious injury.
1751-0729
CRUSH HAZARD
Do not work under dock leveler unless this maintenance prop has been secured in the
upright position. See owner’s/user’s manual for proper procedures. Failure to comply
will result in death or serious injury.
1751-0731
DANGER
DANGER
CRUSH HAZARD
Rotate prop to maintenance
position.
Open the pin latch
and insert through the
maintenance prop housing.
Close the pin latch to secure
prop. Use every time dock
leveler is serviced. Failure to
comply will result in death
or serious injury.
supports the ramp before driving on
ramp.
7. Stay clear of hinges and front and
sides of moving dock leveler.
8. Never use damaged or
malfunctioning dock leveler. Report
problems immediately to supervisor.
Maintenance/Service
1. Read and follow all instructions,
warnings and maintenance schedules
in the owner’s/user’s manual.
2. Maintenance/Service of dock leveler
restricted to trained personnel.
3. Place barriers on the driveway and on
dock floor to indicate service work is
being performed.
4. DO NOT ENTER PIT unless dock
leveler is securely supported by
maintenance prop.
5. If electrically powered turn off and use
OSHA lockout/tagout procedures.
FORK
HERE
1751-0729
1751-0731
4111-0030 — Nov.2009
1751-0726
DANGER
CRUSH HAZARD
DO NOT ENTER PIT unless dock leveler is
safely supported by maintenance prop. Place
barriers on driveway and dock floor to indicate
service work being performed. Refer to
owner’s/user’s manual for proper maintenance
procedures. Failure to comply will result in death
or serious injury.
1751-0726
5
OWNER’S/USER’S RESPONSIBILITIES
1. The owner/ user should recognize the inherent dangers of the interface between the
loading dock and the transportation vehicle. The owner/ user should, therefore, train and
instruct all operators in the safe operation and use of the loading dock equipment in
accordance with manufacturer’s recommendations and industry standards. Before
operation of the equipment, all operators shall read, understand and be familiar with all
functions of equipment as described in the owner’s/user’s manual.
2. The manufacturer shall provide to the initial purchaser all necessary information with
regards to: Safety Information, Operation, Installation and Safety Precautions,
Recommended Initial and Periodic Inspections Procedures, Planned Maintenance
Schedule, Product Specifications, Troubleshooting Guide, Parts Break Down, Warranty
Information and Manufacturers Contact Information. The owner/ user shall be responsible
to verify that this information is available and received as well as proper instructions,
training and familiarity of the equipment for all operators has been completed. Owner’s/
User’s shall actively maintain, update and re train all operators on safe working habits and
operations of the equipment.
3. It is recommended when the transportation vehicle is positioned correctly in the dock
opening and in contact with both bumpers, there shall be a minimum of 4.00 inches
(100mm) overlap of the leveling device and the transportation vehicle at all times during
the loading and unloading process.
4. Name plates, placards, decals, instructions and posted warnings shall not be obscured
from the view of the operator or maintenance personnel for whom such warnings are
intended for. Contact manufacturer for any replacements.
5. Manufacturer’s recommended periodic maintenance and inspection procedures in effect at
the date of shipment shall be followed at all times. Written documentation of maintenance,
replacement parts or damage should be retained. In the event of damage notification to
the manufacturer is requested.
6. Any modifications or alterations of loading dock equipment shall only be done with prior
written approval from the original equipment manufacturer.
7. When industrial moving devices are being used in the loading or unloading of product
from the transportation vehicle, this vehicle shall have the brakes and wheel chocks
applied appropriately or all other positive restraining device shall be fully utilized.
8. Loading dock safety equipment should never be used outside of its intended use, range,
or capacity. Please consult the manufacturer if you have any questions as to the use,
range or capacity of the equipment.
9. When selecting loading dock safety equipment, it is important to consider not only present
requirements but also future plans and any possible adverse conditions, environments or
use.
6
4111-0030 — Nov. 2009

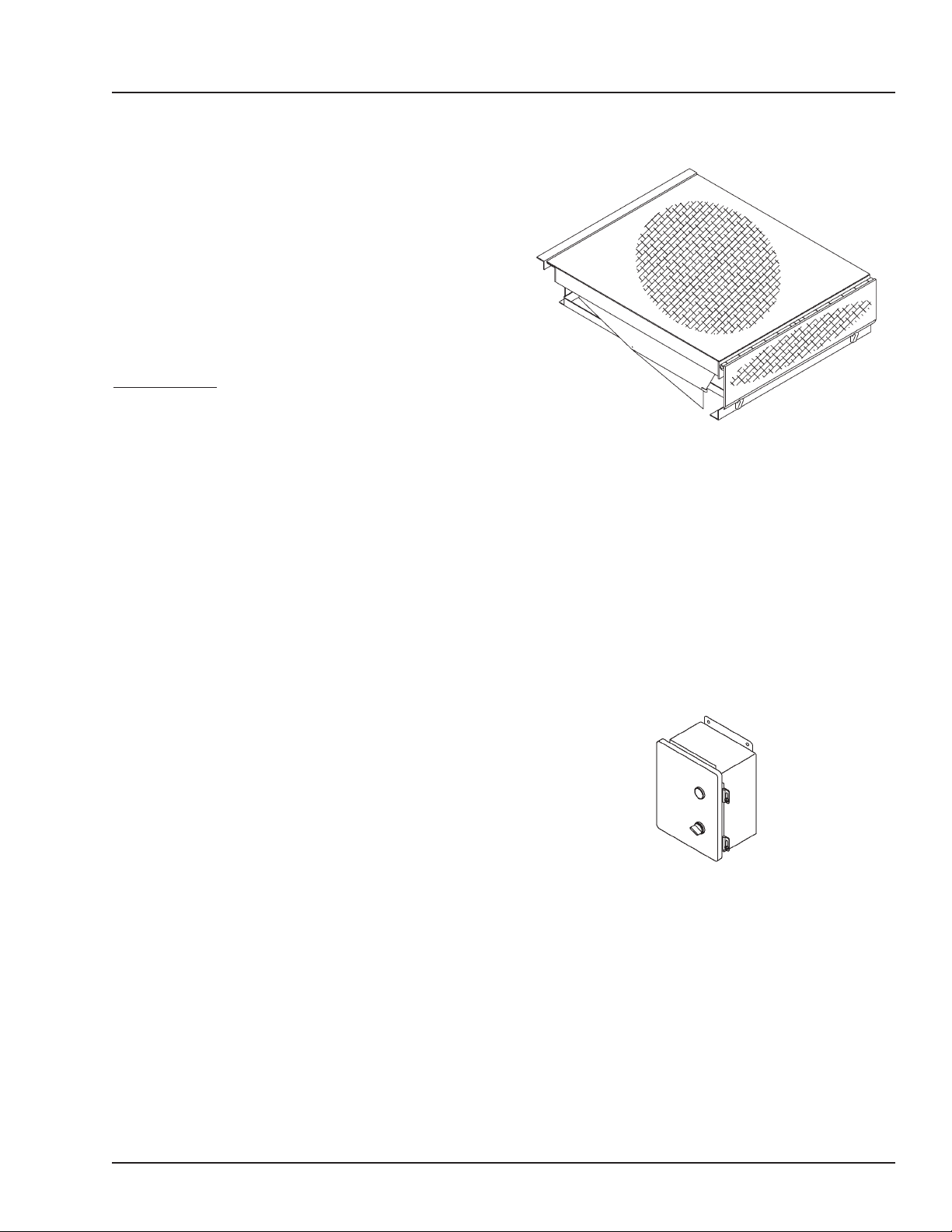

THEORY
INTRODUCTION
General Information
The Centra Power system eliminates individual
hydraulic pumps located on each leveler. The
Centra Power pump station will run multiable
dock levelers and or truck restraints. When
the leveler is raised or when a truck restraint
is engaged a signal is sent to the pump station
to turn on. Also a signal is sent to a valve
assembly located under the leveler. When the
valve is activated and the pump is running the
leveler will raise or the restraint will engage.
The Centra Power Pump station allows more
than one leveler or truck restraint to be run at
the same time.
Congratulations on your choice of a Poweramp
dock leveler. This manual covers the Centra Power
hydraulic system.
Designed by Poweramp to be a marvel of simplicity
and efficiency, your Centra Power hydraulic system
properly installed, will provide many years of troublefree performance with an absolute minimum of
maintenance. Its revolutionary hydraulic system
efficiently controls and operates every function. To
obtain maximum performance and longest possible
use, a simple program of preventive maintenance is
recommended.
The Centra Power System comes equipped with an
electrical control panel, which allows push button
operation of the dock leveler functions. Each dock
leveler and control panel has been factory prewired
and tested to ensure satisfactory operation.
4111-0030 — Nov.2009
To illustrate which connections are to be made
in the field at installation, electrical drawings are
included with each order or by contacting Poweramp
Technical Services.
Once again, thank you and congratulations on your
purchase of a Poweramp Centra Power System.
7
INTRODUCTION

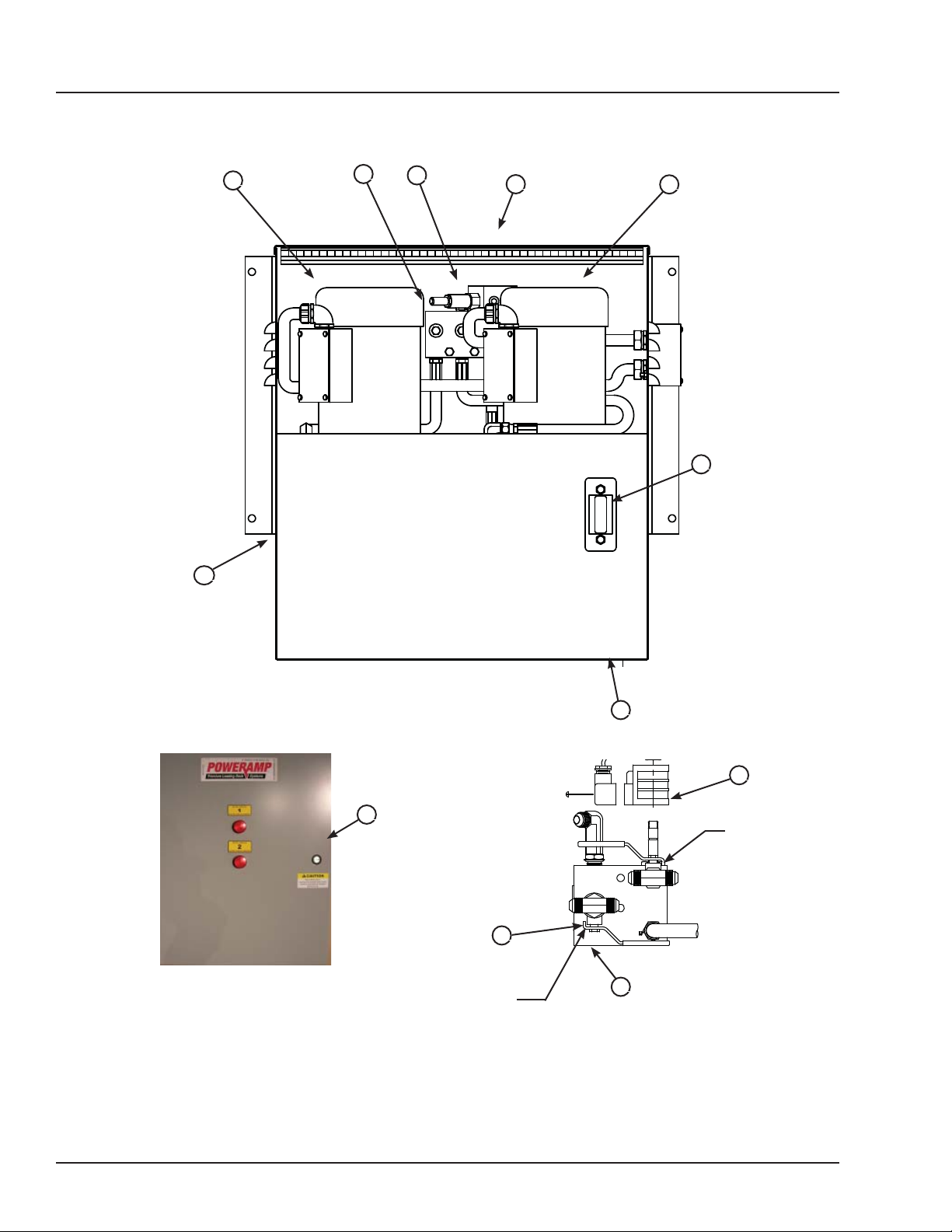

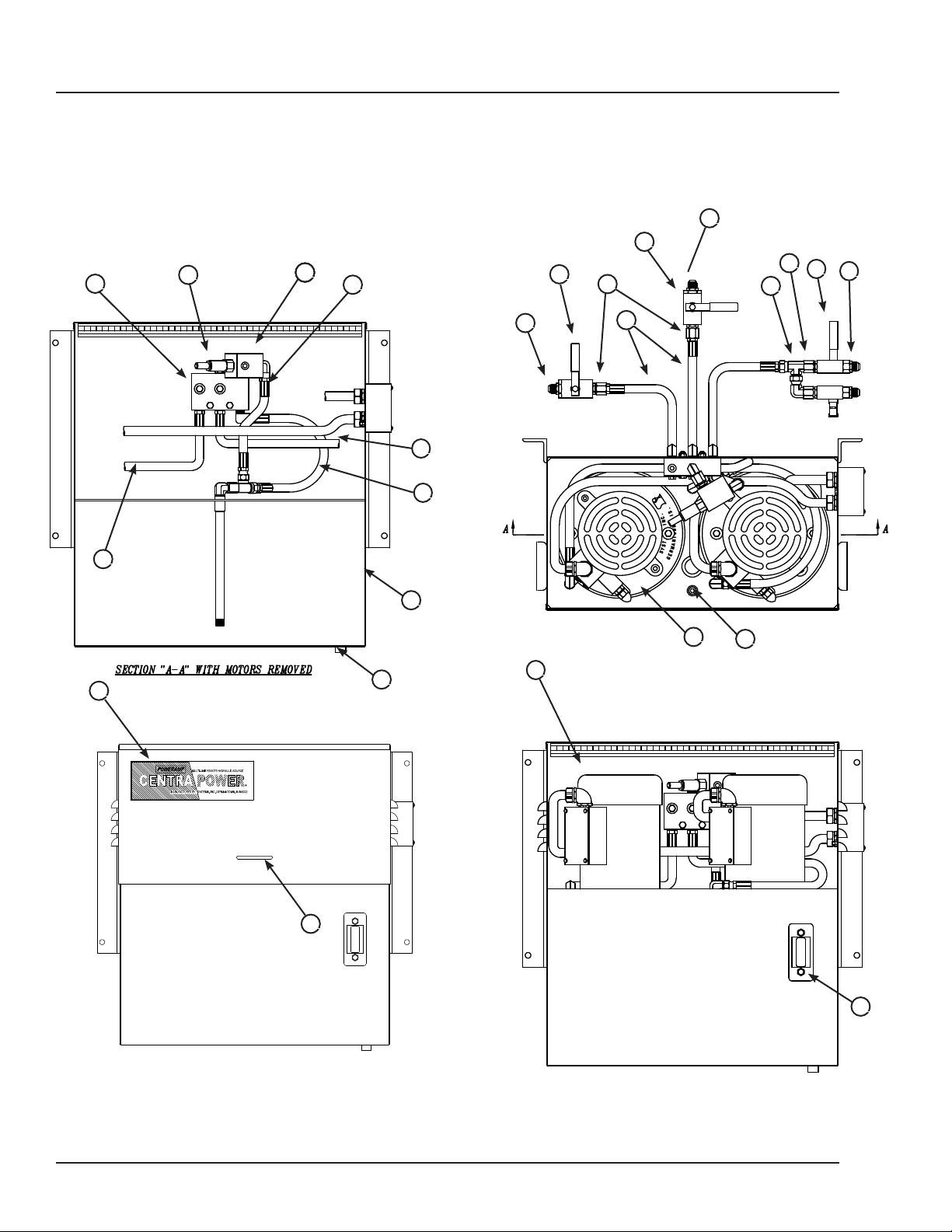

Component Identification
B
A
H
F
G
C
D
A — Pump Station
B — Pump Motor #1
C — Pump Motor #2
D — Site Glass
E — Drain Plug
F — Main System Relief
M
Return Line
(Brass)
L
G — Pump Station Door
H — Distribution Manifold
J — Leveler Manifold
E
K
Pressure Line
(Black
J
K — Coil
L — Ball Valves
M —Control Panel
8
4111-0030 — Nov. 2009
INSTALLATION
Read carefully and under stand the installation manual for the leveler and or the restraint in
to be installed in conjunction with the Centra Power manual.
Read carefully and under stand the Centra Power Lay out drawing. The drawings will have
all the required information on hose charts, fluid capacity and location of the mid run and end
run valve blocks.
The Centra Power pump station is typically located in the center of the dock levelers with
even amount of doors on each side. The pump station should be mounted a minimum of 72”
off the finished floor (out of the way of damage).
The Pump Station Control Box should be mounted a minimum of 72” off the finished floor
next to the Pump Station.
Hose installation can be started at the pump station or at the furthest dock leveler. Note:
when installing hose or valve blocks always keep shipping caps on fittings until hoses are
connected to the .
Typical installation the pressure lines will have #8 JIC fittings and 1/2 dia. lines. The returns
lines if without restraints will be #8 JIC with 1/2 dia. hose. Pay close attention not to allow
lines to be swapped between pressure and return. When levelers with Power Hooks are
installed the return lines will have #10 JIC and 3/4 dia hose.
When all hoses valves and hydraulic connections are made and tight. Fill the reservoir with
oil (see page 15).
Fill the Pump Station reservoir (capacity 12 gals) to the full mark (See page). Starting from
the furthest dock from the pump station, run all the levelers and the restraints through several
cycles to purge all the air out of the system. Once all levelers have been cycled several
times have all the levers in the below dock position. Note: On Centra Power Systems were
both motor must run all the time the rotation must be checked. To check rotation run only one
motor at a time the levelers will work but run slow.
4111-0030 — Nov.2009
9
INSTALLATION

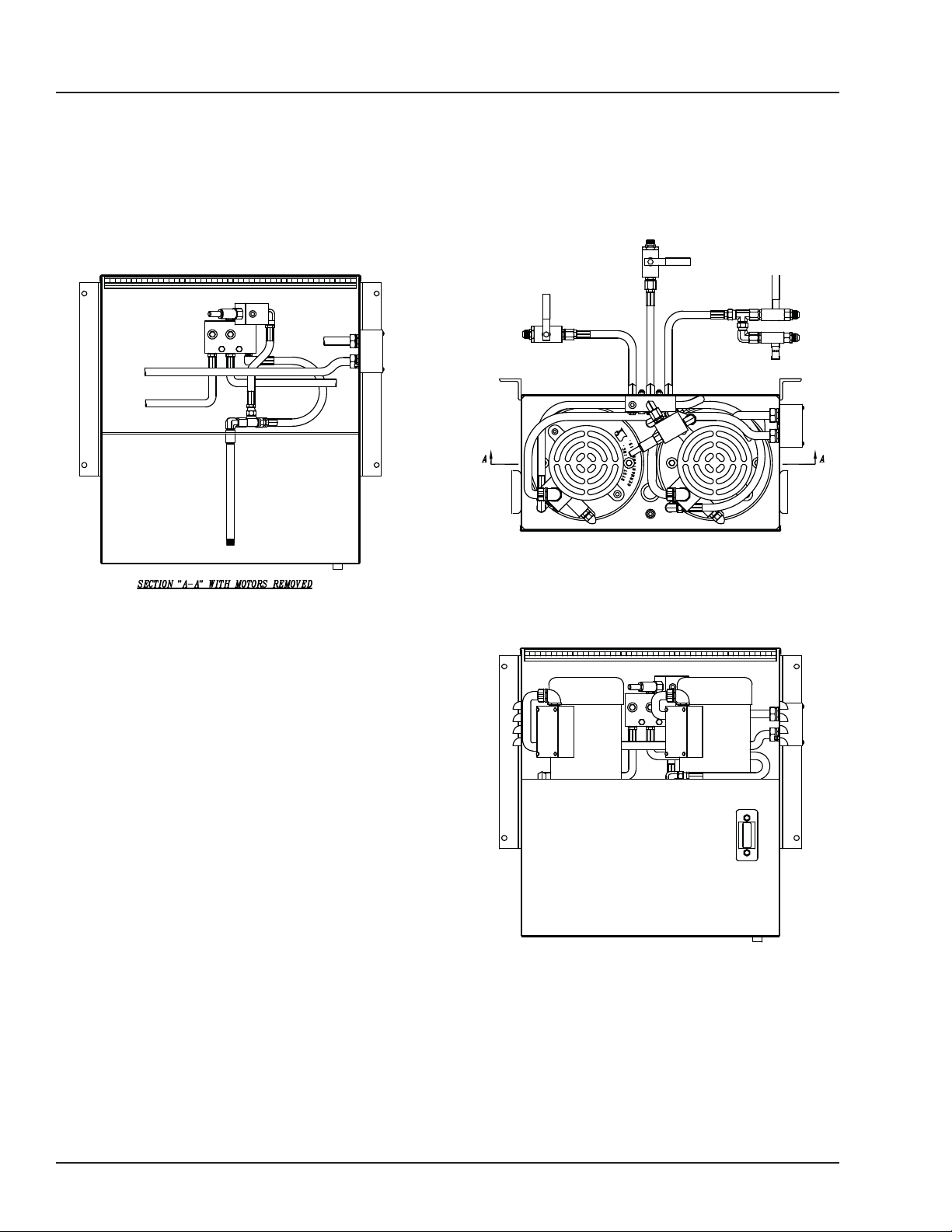

Component Identification
Pump
Pressure
Pump
Return
Pump
Pressure
10
4111-0030 — Nov. 2009

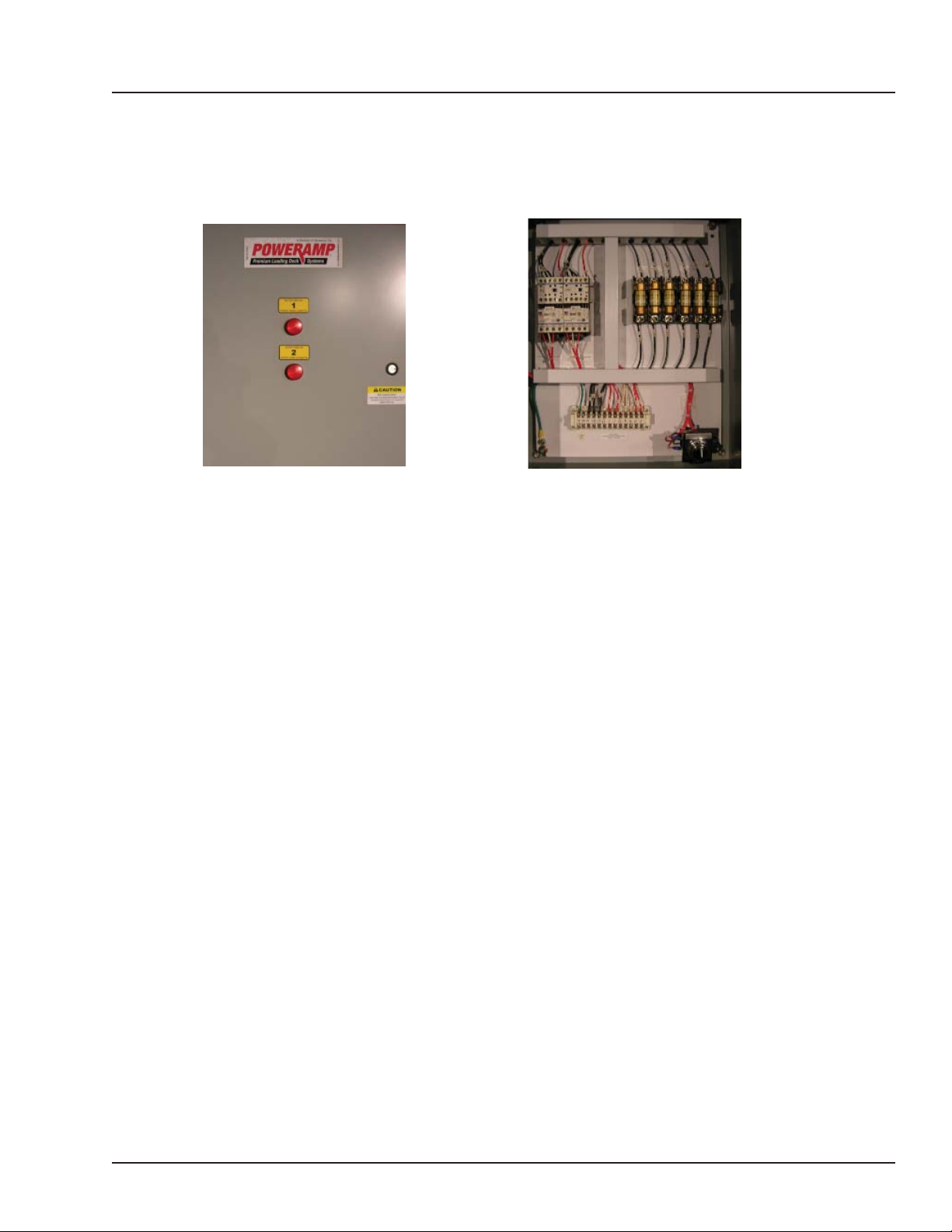

Centra Power main control panel should be located
near the Central Power pump station.
INSTALLATION
The pump control panel has 2 lights located on the
door. There is 3 position switch mounted in side
the door. The switch on the system controls one or
both motors when a leveler has been activated. The
lights on the control indicate if one or both motor
starters have tripped.
If only one pump is being used, rotate motors every
6 months. This will make sure both motors are fresh
and working.
4111-0030 — Nov.2009
11
INSTALLATION
IMPORTANT
DO NOT connect the dock leveler electrical wiring
and ground connections until all welding has been
completed.
DO NOT ground welding equipment to any
hydraulic or electrical components of the dock
leveler. Always ground welding equipment to the
dock leveler frame, NEVER to the platform.
Failure to follow these instructions may damage the
motor, hoist cylinder, wiring, and/or control panel.
12
4111-0030 — Nov. 2009
Service Dock Leveler Safely
Side View
F
A
B
MAINTENANCE
A
E
C
When service under the dock leveler is required,
always lock all electrical disconnects in the OFF
position after raising the platform and engaging the
maintenance prop. Failure to do this may result in
serious personal injury or death.
Always stand clear of the dock leveler lip when
working in front of the dock leveler.
The maintenance prop MUST be in the service
position when working under the dock leveler.
For maximum protection, use an OSHA approved
locking device to lock the maintenance prop in
the service position. Only the person servicing
the equipment should have the key to unlock the
maintenance prop.
Unless the dock leveler is equipped with a tethered
remote, two people are required to engage the
maintenance prop: one person to operate the unit,
the other person to engage the maintenance prop.
Failure to follow these instructions may result in
serious personal injury or death.
Always post safety warnings and barricade the
work area at dock level and ground level to prevent
unauthorized use of the dock leveler before
maintenance is complete. Failure to do this may
result in serious personal injury or death.

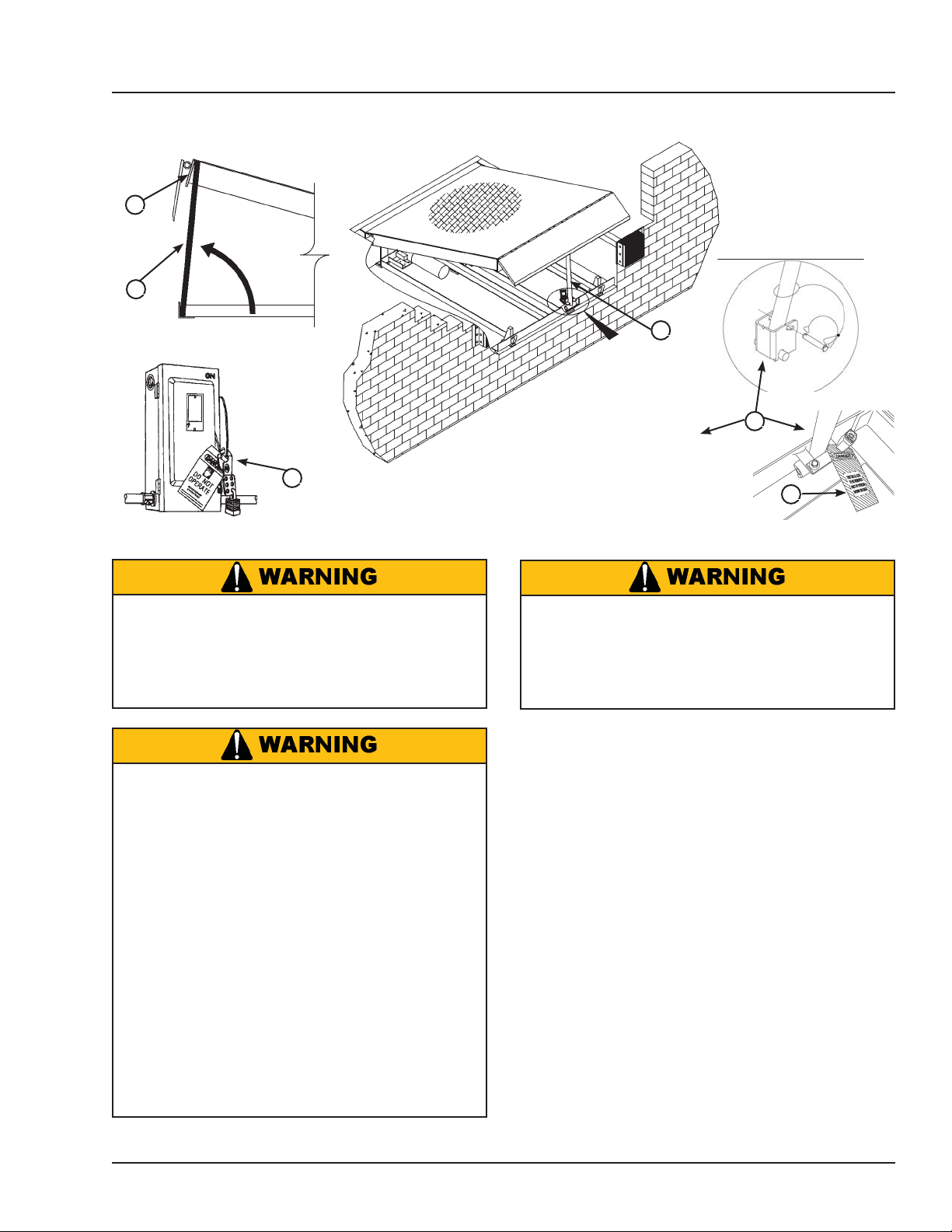

Whenever maintenance is to be performed under
the dock leveler platform, support the platform with
maintenance prop (E). Position the maintenance
prop behind front header plate (F) while staying clear
of the lip. The lip will fold down after the platform
has rested on the maintenance prop. Lock the
maintenance prop in the service (upright) position
using an OSHA approved lockout device* (A) and
tagout device* (B).
Whenever servicing the dock leveler, lock the
electrical power disconnect in the OFF position. Use
only an OSHA approved lockout device* (B) and
tagout device (A).
Only the person servicing the equipment should
have the capability to remove the lockout devices.
The tagout devices* must inform that repairs are in
process and clearly state who is responsible for the
lockout condition.
4111-0030 — Nov.2009
* Refer to OSHA regulation 1910.147.
13
MAINTENANCE
14
This page in intentional left blank
4111-0030 — Nov. 2009
4111-0030 — Nov.2009

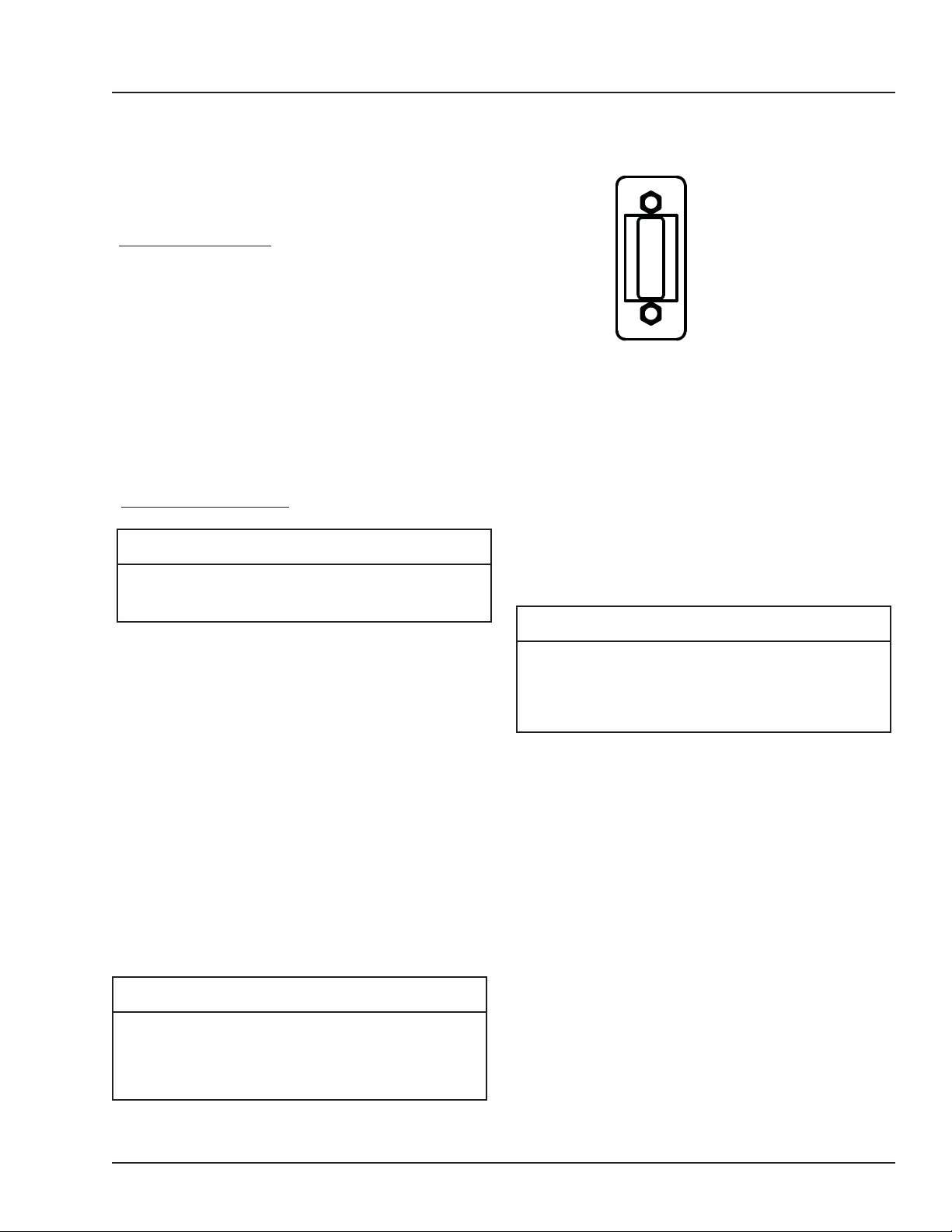

Periodic Maintenance
Regular maintenance must be performed on a weekly
and quarterly schedule. For proper lube points see
owners manual for the equipment to be maintained.
Weekly Maintenance
• Operate the dock leveler through the complete
operating cycle to maintain lubrication.
NOTE: To thoroughly inspect the platform hinge
area, put the platform in the full below-dock
position.
MAINTENANCE
Sight Glass
• Fluid level must be checked periodically.
• Inspect the platform hinge and the lip hinge areas.
The hinge areas must be kept free of dirt and
debris. Build-up of foreign material in the hinge
areas will cause abnormal operation.
Quarterly Maintenance
IMPORTANT
Failure to properly lubricate the dock leveler will
cause abnormal operation of the leveler.
1. Pit levelers with or without restraints. levelers
must be in the below dock/cross-traffic position
level must read in the sight glass area.
2. VS Levelers with or without restraints must be
in the stored positon leveler should level must
be in site glass area.
3. Add hydraulic fluid if necessary. Use only
recommended fluid.
IMPORTANT
A low fluid level or the use of hydraulic fluids not
equivalent to the fluid types recommended, will
cause abnormal operation of the leveler and WILL
void warranty.
To ensure normal operation of the dock leveler,
use only aircraft hydraulic fluid designed to meet
or exceed military specification MIL-L-5606. It is
recommended that the following hydraulic fluids be
used:
• Ultra VIS HVI 15
• Flomite 530 ZF
• Aero Shell Fluid 4 or Fluid 41
• Mobile Aero HFA Mil-HS606A or Aero HF
• Texaco Aircraft Hydraulic Oil 15 or 5606
• Exxon Univis J13
IMPORTANT
Use of fluids that do not have equivalent
specifications to those in the following list will result
in abnormal operation of the dock leveler and
voiding of warranty.
4111-0030 — Nov.2009
These fluid brands can be mixed together. Mixing
with fluids that do not meet or exceed MIL-L-5606
may damage the equipment and WILL void warranty.
Use of hydraulic fluids with equivalent specifications
to those listed here are acceptable.
15

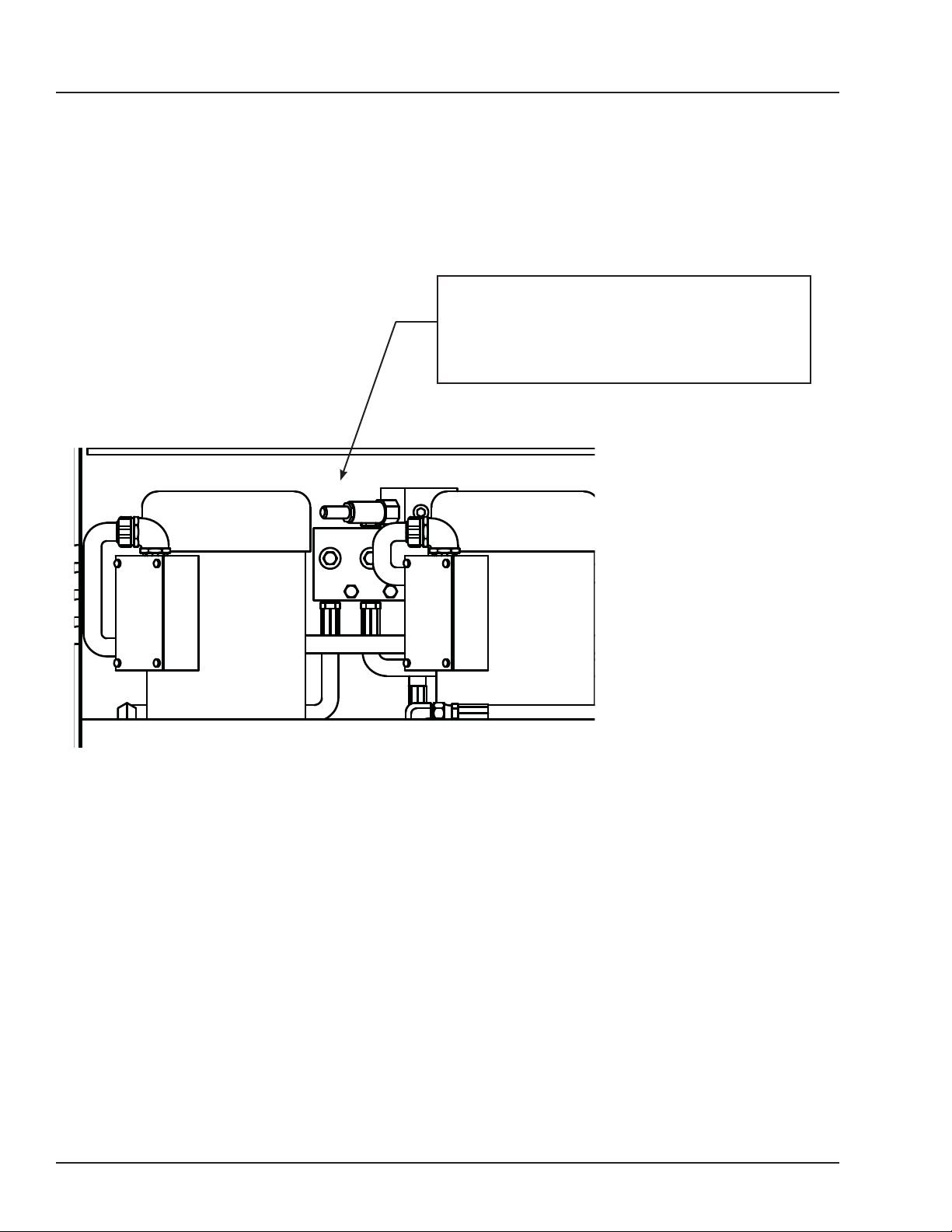

ADJUSTMENTS
Pressure relief:
1. Main pressure relief is pre set from the factory
Call Tech Services before adjustments are made.
16
4111-0030 — Nov. 2009
Troubleshooting
TROUBLESHOOTING
Before performing the detailed troubleshooting procedures, check the following items first:
• Check all fuses inside the control panel(s). Replace
any blown fuse(s) with a fuse of equal specification.
Symptom Possible Cause Solution
Platform or restraint
does work. Motor does
not energize.
Motor overload device
tripped or fuse blown.
No voltage at over loads or
relays
• Make sure the correct voltages are present at the
proper locations inside the control panel(s).
Reset 3phase overload relay (Located next to pump
station) or replace fuse. Reset 120 volt overload
relay or replace fuse in the individual control box’s.
NOTE: When replacing fuse(s), the new fuse must
have the same specification as the old fuse.
Check voltage at starter or relay coil.
• If voltage is present and starter or relay does not
energize, replace starter or relay.
• If voltage is not present, check all components in
series with the starter or relay coil.
4111-0030 — Nov.2009
17
TROUBLESHOOTING
Symptom Possible Cause Solution
Platform or restraint
does not work correctly
but Motor hums, but
does not run.
No voltage is present on
one line.
NOTE: A motor that is
missing voltage on one line
is said to be single-phased.
Check for blown fuses at branch circuit disconnect.
Replace fuse. Determine cause of blown fuse.
Check motor starter as follows:
1. Disconnect wires at load side of starter.
2. Energize the starter.
3. Measure line-to-line voltage at line side of starter.
4. Measure line-to-line voltage at load side of
starter.
5. Line-side and load-side voltages should be
approximately the same. Replace starter if
voltage values are considerably different from
one another.
Check all wiring to motor for high resistance or no
connection.
Platform does not rise to
full height.
Platform or restraint not
work correctly.
Platform rises slowly
Platform or restraint
does not work correctly
and motor runs but
the other units work
correctly.
Platform or restraint
works when other units
have been activated.
Platform does not rise.
Pump runs, Coil and
valve is good.
Low hydraulic fluid. Add fluid as needed. See Periodic Maintenance in
the Maintenance section.
Phase reversed. Reverse any two legs at the branch circuit
disconnect.
Pressure relief set too low. Consult the factory, contact tech before adjustments
are made.
Bad coil on Centra Power
valve block.
Bad Valve on Centra Power
valve block.
Bad Valve on Centra Power
valve block.
See Leveler manual.
Check power to the coil should have a magnetic pull
when energized (Pump Motor must be running)
Remove and clean spool valve or replace with new
or good working valve.
Remove and clean spool valve or replace with new
or good working valve.
Restraint does not work.
Pump runs, Coil and
valve is good.
18
See restraint manual.
4111-0030 — Nov. 2009

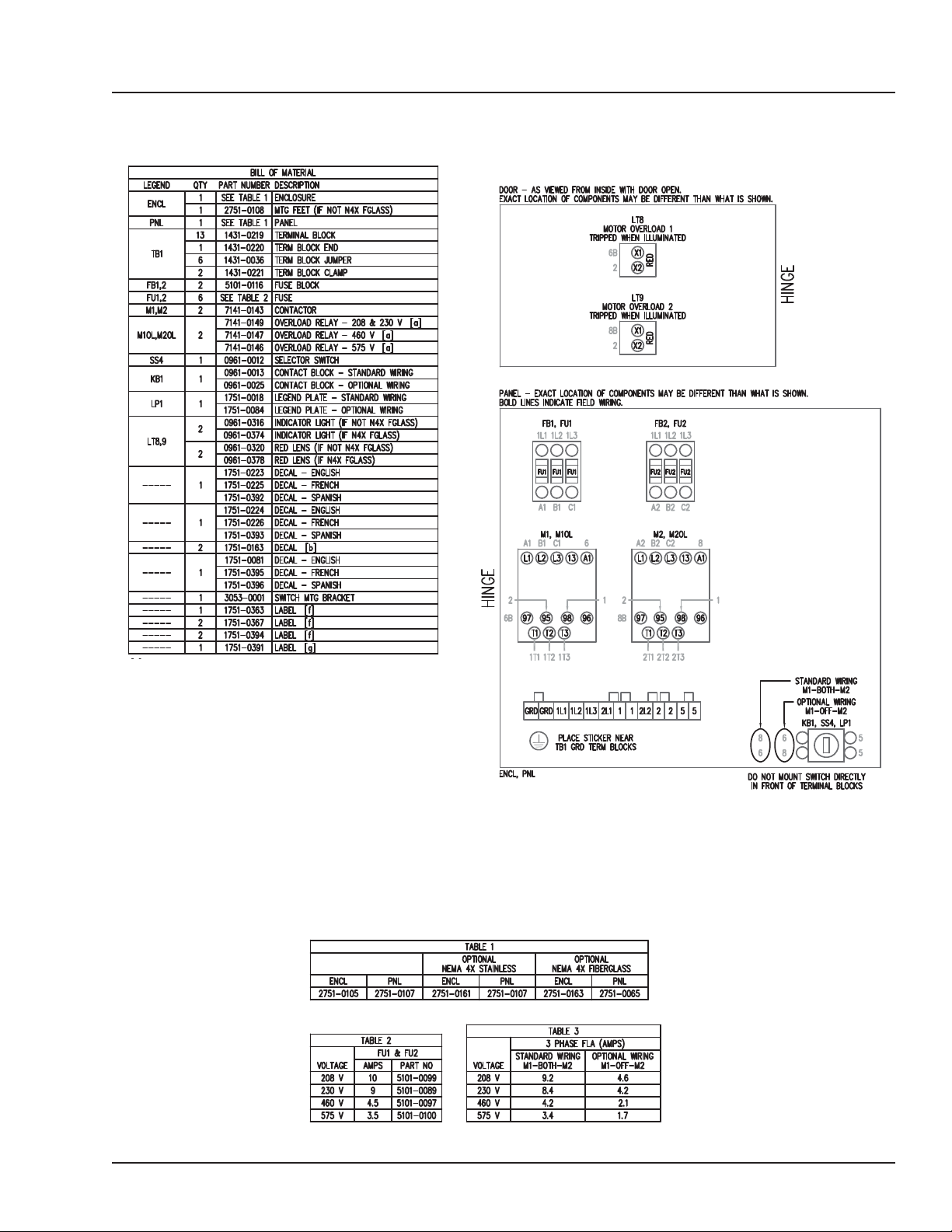

Centra Power Control Panel
PARTS
4111-0030 — Nov.2009
19
PARTS

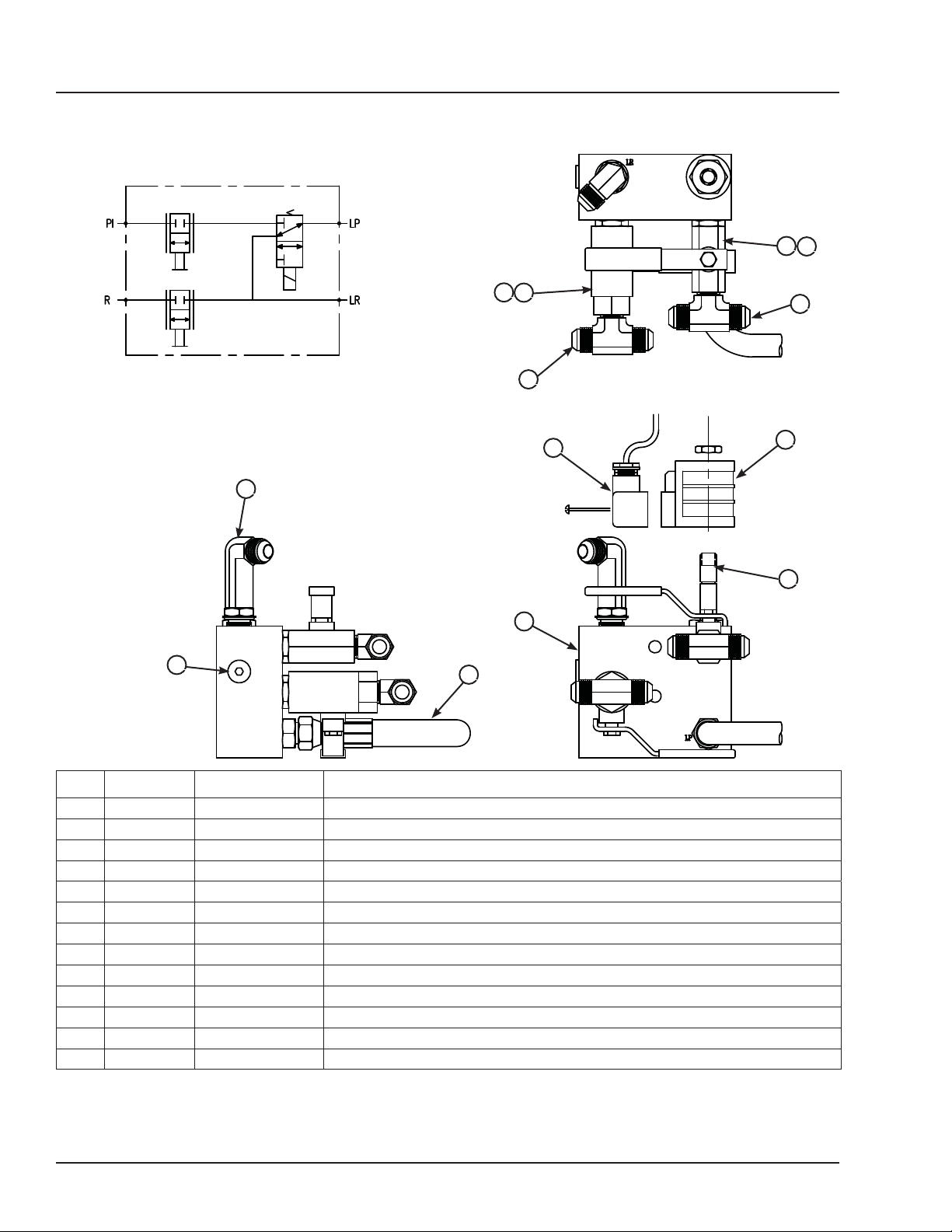

Mid Run Valve W/O Hook
D
E
E
C
H
H
K
G
A
F
I
Item Quantity Part Number Description
A 1 - Valve Manifold
B 1 0581-0005 Valve - Cartridge - 3 way
C 1 8581-0001 Ball Valve - Bronze, Return
D 1 8581-0002 Ball Valve - Steel, Pressure
E 2 9301-0073 Fitting - 3/8 NPT
F 1 0521-0108 Fitting - Pipe Plug
G 1 9301-0201 Fitting - Elbow 90 male #8 JIC
H 2 9301-0054 Fitting - Branch - Tee - Male #8 JIC
I 1 9904-0078 Hyd Hose -3/8 x 35.00 Hose
J
B
L 1 8583-0021 Centra Power Mid Run W/O Restraint
J 1 8581-0004 Delta Coil
*Provide dock leveler serial number when calling or faxing orders.
20
4111-0030 — Nov. 2009

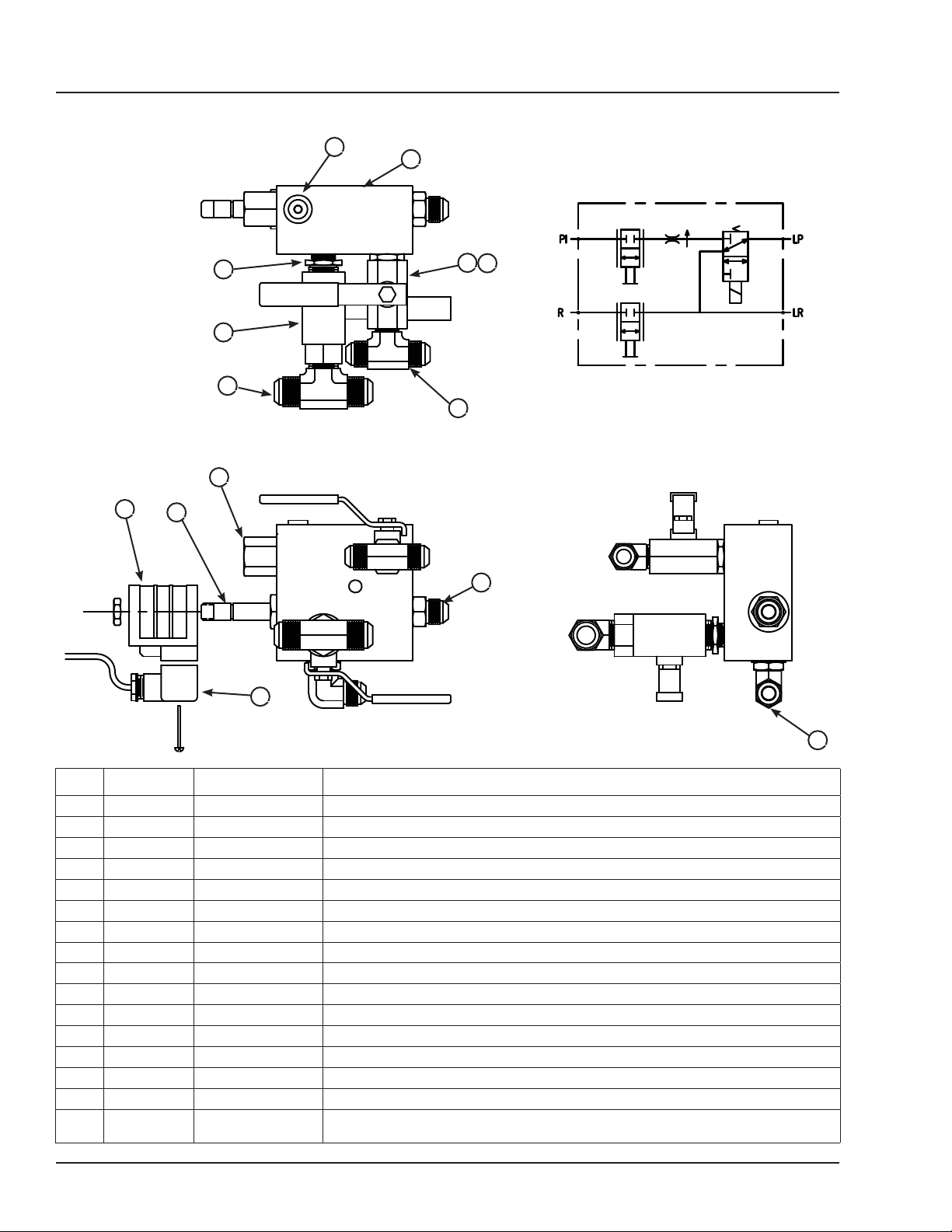

End Run Valve W/O Hook
PARTS
E
C
H
D
E
H
L
G
A
F
I
Item Quantity Part Number Description
A 1 - Valve Manifold
B 1 0581-0005 Valve - Cartridge - 3 way
C 1 8581-0001 Ball Valve - Bronze, Return
D 1 8581-0002 Ball Valve - Steel, Pressure
E 2 9301-0073 Fitting - 3/8 NPT
F 1 0521-0108 Fitting - Pipe Plug
G 1 9301-0201 Fitting - Elbow 90 male
H 2 0521-0017 Fitting - Elbow 90 Deg.
I 1 9904-0014 Hyd Hose -3/8 x 35.00 Hose
K
B
J 1 8583-0026 Centra Power Mid Run W/O Restraint
K 1 8581-0004 Delta Coil
*Provide dock leveler serial number when calling or faxing orders.
4111-0030 — Nov.2009
21
PARTS

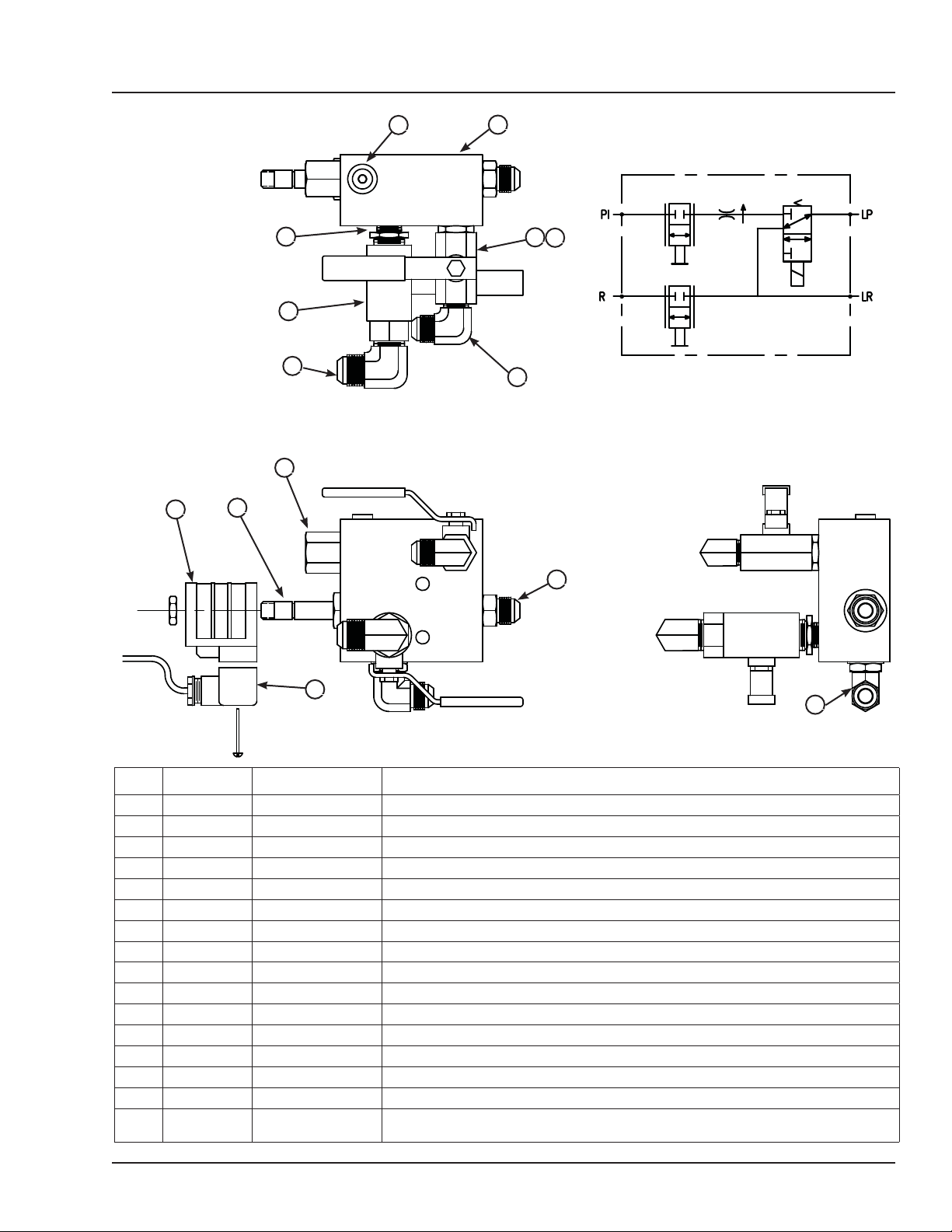

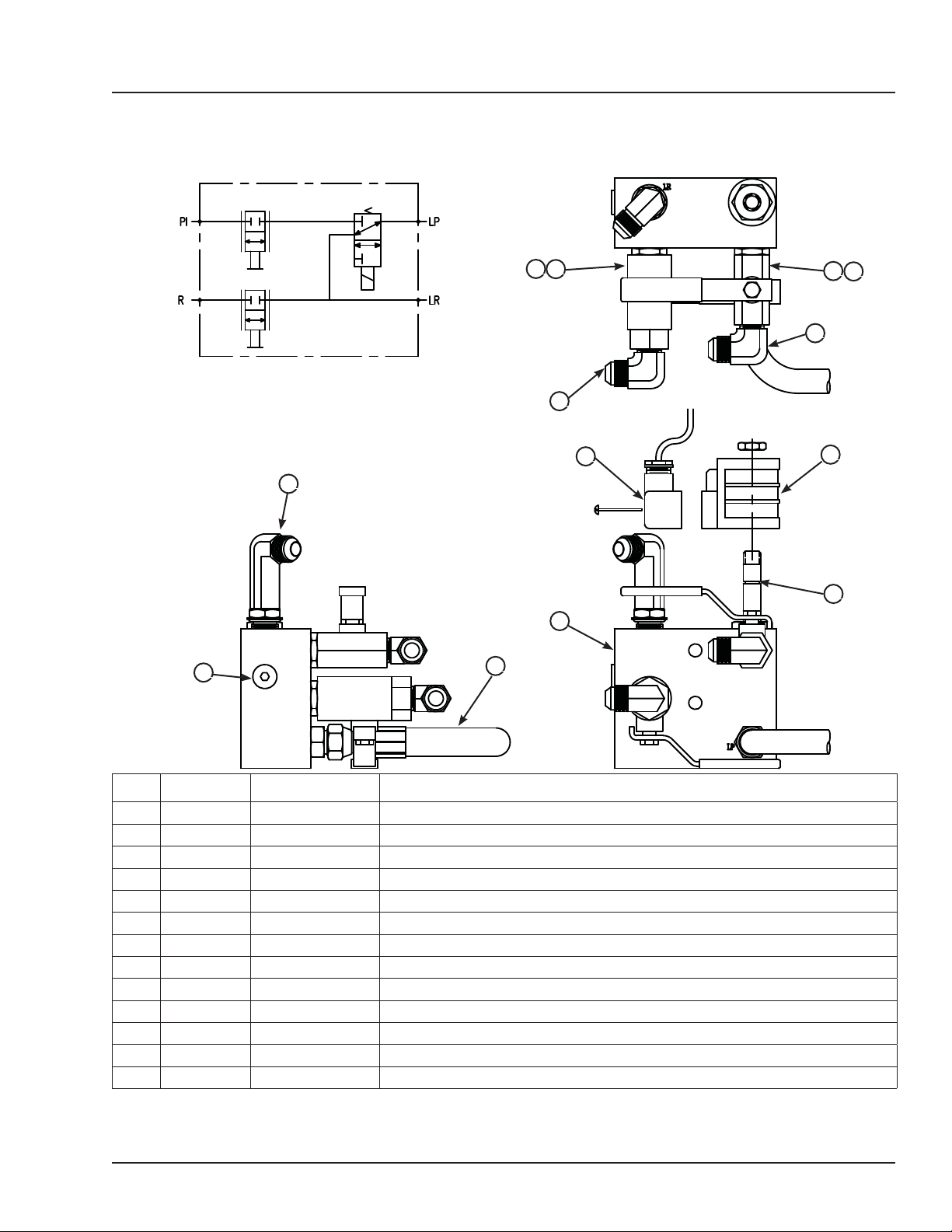

Mid Run Valve W/Hook
F
E
D
G
C
A
I
J
H
N
B
K
O
Item Quantity Part Number Description
A 1 - Valve Manifold
B 1 0581-0005 Valve - Cartridge - 3 way
C 1 9301-0104 Fitting #4 SAE
D 1 9301-0098 Fitting - Male Branch Tee #10 JIC
E 1 8581-0072 Ball Valve - Bronze 1/2 NPT
F 1 9301-0097 Fitting - 3/8 NPT x 1/2 NPT
G 1 8581-0092 Valve - Flow Control - 5 GPM
H 1 9301-0054 Fitting - Branch - Tee - Male #8 JIC
I 1 8581-0002 Ball Valve - Steel
J 1 9301-0073 Fitting - 3/8 NPT
K 1 9301-0112 Fitting - #8 ORB x #8 JIC
L 1 9301-0116 Fitting - Elbow 90 deg #8 ORB x #8 JIC
L
M 1 8583-0031 Centra Power Mid Run With Restraint & Flow Limiter
N 1 8581-0004 Delta Coil
22
4111-0030 — Nov. 2009
4111-0030 — Nov. 2009
PARTS
C
F
E
D
G
N
B
A
I
J
H
End Run Valve W/ Hook
K
O
Item Quantity Part Number Description
A 1 - Valve Manifold
B 1 0581-0005 Valve - Cartridge - 3 way
C 1 9301-0104 Fitting #4 SAE
D 1 9301-0099 Fitting - Elbow 90 deg 1/2 NPT x #10 JIC
E 1 8581-0072 Ball Valve - Bronze 1/2 NPT
F 1 9301-0097 Fitting - 3/8 NPT x 1/2 NPT
G 1 8581-0092 Valve - Flow Control - 5 GPM
H 1 9301-0017 Fitting - Elbow 90 Deg 1/2 Npt x #10 JIC
I 1 8581-0002 Ball Valve - Steel
J 1 9301-0073 Fitting - 3/8 NPT
K 1 9301-0112 Fitting - #8 ORB x #8 JIC
L 1 9301-0116 Fitting - Elbow 90 deg #8 ORB x #8 JIC
L
M 1 8583-0033 Centra Power End Run With Restraint & Flow Limiter
N 1 8581-0004 Delta Coil
4111-0030 — Nov.2009
23
PARTS
Pump Station
J
T
R
U
V
HHH
H
I
O
R
Q
P
W
T
N
L
M
A
B
E
G
K
K
F
24
C
D
4111-0030 — Nov. 2009
Pump Station
Item Quantity Part Number Description
A 1 9394-0003 Enclosure Weldment
B 1 1751-0072 Decal
C1
D 1 9301-0049 Site Glass (Includes O-Ring)
E 1 9571-0005 Drain Plug
F 1 9301-0020 Breather Cap 3/8” NPT
G 2 9301-____ 1 Pump Assembly
H 1 8581-0037 Valve Assembly, Centra Power Relief
I 1 8583-0037 Valve Assembly, Includes Relief and Hose (Item O)
J 1 8585-0001 Valve Assembly, Blending
K 2 9301-0027 0-Ring
L 1 9904-0001 Hose, 17.50” Lg. 3/8 NPTM / #8 JIC Swivel
M 1 9904-0002 Hose, 21.75” Lg. 3/8 NPTM / #8 JIC Swivel
N
1 9904-0003 Hose, 28.00” Lg. 3/8 NPTM / #8 JIC Swivel
O 1 9904-0037 Hose, 9.00” Lg. 3/8 NPTM / #8 JIC Swivel
P1
Q 1 0521-0032 Male Swivel Nut 3/8 NPTM x JIC F Swivel
R 1 8581-0002 Valve, Ball 3/8 NPT (Steel)
S
T 1 0521-0015 Male Connector 3/8 NPTx #8 JIC
U2
V2
9301-0048
Handle
9393-0008 Tee #8 Jic
9393-0009 Tee #10 Jic
0521-0032 Male Swivel Nut 3/8 NPTM x #8 JIC F Swivel
9301-0193 Male Swivel Nut 1/2 NPTM x #10 JIC F Swivel
8581-0001 Bronze Ball Valve 3/8 NPT
8581-0072 Bronze Ball Valve 1/2 NPT
PARTS
1
Provide dock leveler serial number and type of installation when calling or faxing orders.
2
Provide dock leveler serial number, voltage, and phase when calling or faxing orders.
4111-0030 — Nov.2009
25
PARTS
T
U
A

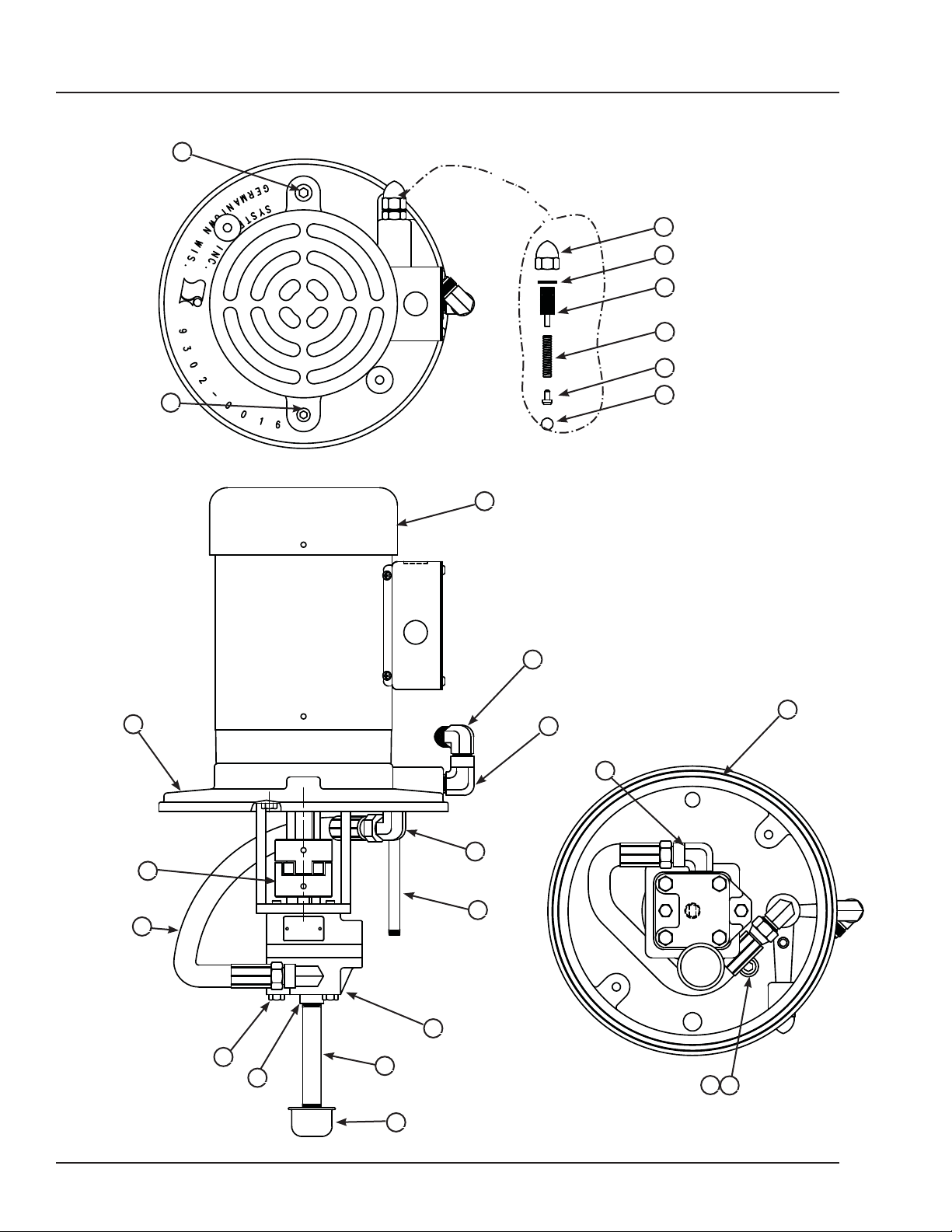

Pump and Motor
O
N
M
L
K
J
V
B
W
D
S
F
E
P
G
H
G
G
R
Q
C
26
I
4111-0030 — Nov. 2009
Pump and Motor
Item Quantity Part Number Description
A
B 1 - Drive Plate
C 1 9301-0027 O-Ring
D 1 9302-0065 Coupler (Love Joy)
E
F 1 9904-0001 Hose Assy - 3/8 17.500 Lg. #6 SAE to #8 JIC
G 3 9301-0007 Fitting Elbow 90 Deg 3/8 NPTM X 3/8
H 1 9301-0206 Fitting 3/8 NPT x 4-1/2
I 1 9301-0009 Strainer
J 1 0521-0014 Ball - Steel
K 1 9301-0024 Guide - Ball Check
L 1 9302-0009 Spring - Pressure Relief
M 1 9303-0003 Screw Adjusting
N 1 9301-0014 Washer - Nylon
O 1 9301-0016 Acorn Nut - High Crown
P 4 2101-0016 Hex Head Capscrew 5/16 UNC x 3-1/2 Lg.
Q 2 9301-0003 Washer - Aluminum
R 2 9301-0004 Socket Head Cap Screw 3/8 UNC x 1-3/4 Lg.
S 1 9301-0069 Fitting Pipe Nipple 1/8 Npt x 5 Lg.
T 1 9301-0106 Fitting, Plug Hollow Hex, Str Thread
U 1 9571-0006 Fitting, 1/4 NPTM
V 1 9301-0145 Fitting, Elbow, 90 Degree, Swivel Nut
1 3411-0043 Motor 460 3 PH 1-1/2 hp
1 3411-0045 Motor 460 3 PH 3 hp
1 9301-0204 Pump 5 GPM
1 9301-0205 Pump 4 GPM
PARTS
*
Provide dock leveler serial number and size of platform when calling or faxing orders
4111-0030 — Nov.2009
.
27
NOTES
28
This page intentionally left blank
4111-0030 — Nov. 2009
Customer Information
MISCELLANEOUS
A

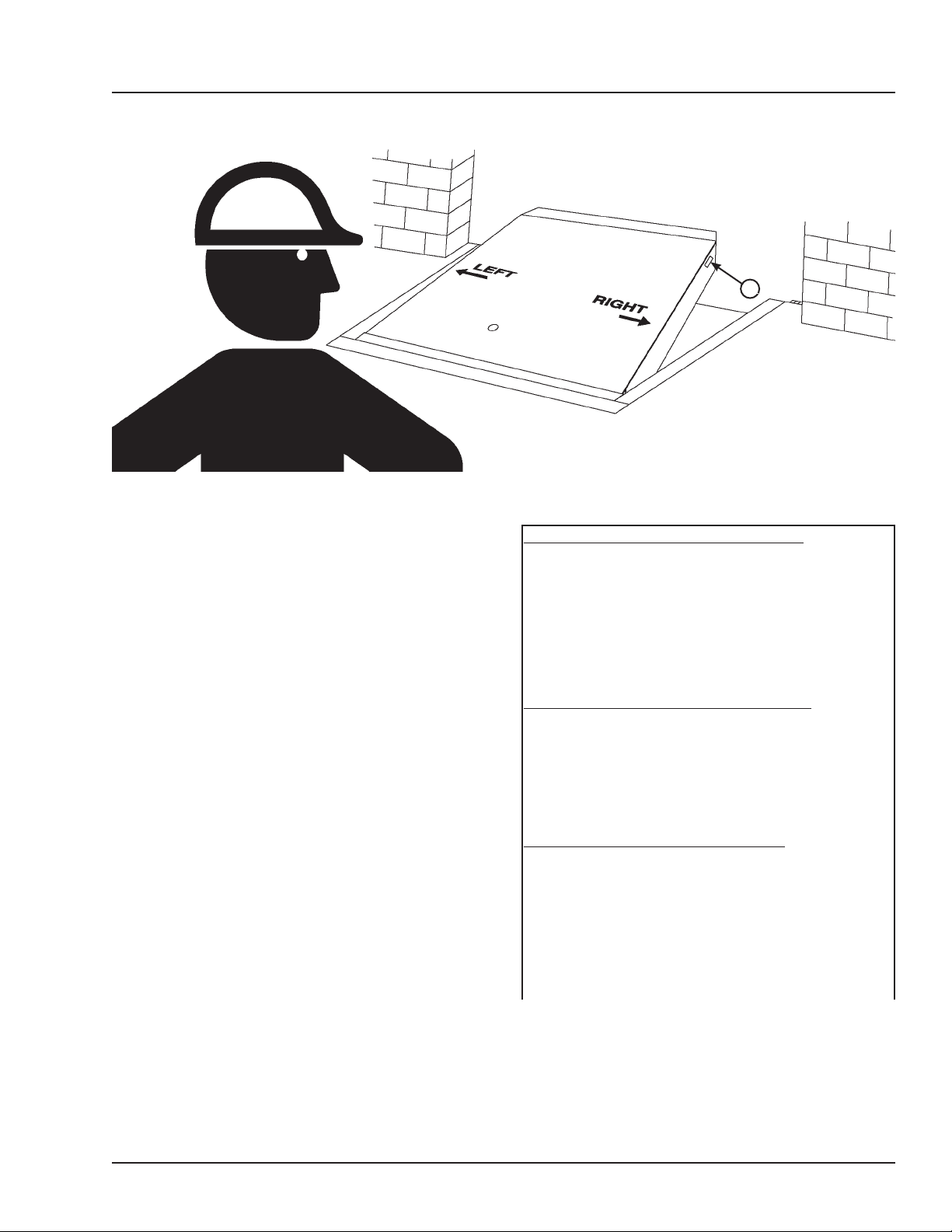

NOTE: Refer to illustration for left/right orientation of
dock leveler.
The model/serial number decal (A) is located
on the right platform joist near the front (lip)
of dock leveler.
When you receive your dock leveler, write down the
dock leveler model and serial number in the form
provided. This will help ensure safe keeping of the
numbers in the event the model/serial number decal
(A) becomes lost or damaged.
Also, write down Systems, Inc.’s job number, the
company that installed the dock leveler, and the
original owner’s name. This will all help to identify the
specific dock leveler if more information is required.
When ordering, use part numbers and description
to help identify the item ordered. Do not use “item”
numbers. These are only for locating the position of
the parts. Always give dock leveler MODEL NUMBER
and/or SERIAL NUMBER.
For service, call or contact:
Dock Leveler Information
Model ___________________________________
Serial No. ________________________________
Systems, Inc., Job No. ______________________
Original Owner Information
Name ___________________________________
Address _________________________________
________________________________
Installer Information
Name ___________________________________
Address _________________________________
_________________________________
Date of Installation ________________________
Systems, Inc.
P.O. Box 309
Germantown, WI 53022
Phone: (800) 643-5424
Fax: (262) 255-5917
4111-0030 — Nov.2009
29
STANDARD PRODUCT WARRANTY
SYSTEMS, INC. warrants that its products will be free from defects in design, materials and workmanship
for a period of one (1) year from the date of shipment. All claims for breach of this warranty must be
made within 30 days after the defect is or can with reasonable care, be detected. In no event shall any
claim be made more than 30 days after this warranty has expired. In order to be entitled to the benefits
of this warranty, the product must have been properly installed, maintained and operated in accordance
with all manufacturer’s recommendations and/or specified design parameters and not otherwise
have been subject to abuse, misuse, misapplication, acts of nature, overloading, unauthorized repair
or modification, application in a corrosive environment or lack of maintenance. Periodic lubrication,
adjustment and inspection in accordance with all manufacturers’ recommendations are the sole
responsibility of the Owner/User.
In the event of a defect, as determined by SYSTEMS INC., covered by this warranty, SYSTEMS INC.
shall remedy such defect by repairing or replacing any defective equipment or parts, bearing the cost
for the parts, labor and transportation. This shall be exclusive remedy for all claims whether based on
contract, negligence or strict liability.
WARRANTY LIMITATIONS
THE ABOVE WARRANTIES ARE IN LIEU OF ANY OTHER WARRANTIES, WHETHER EXPRESSED
OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. SYSTEMS INC. AND ITS SUBSIDARIES SHALL
NOT IN ANY EVENT BE LIABLE TO ANYONE, INCLUDING THIRD PARTIES, FOR INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND INCLUDING BUT NOT LIMITED TO,
BREACH OF WARRANTY, LOSS OF USE, LOSS OF PROFIT, INTERUPTION OF BUSINESS OR
LOSS OF GOODWILL.
.
