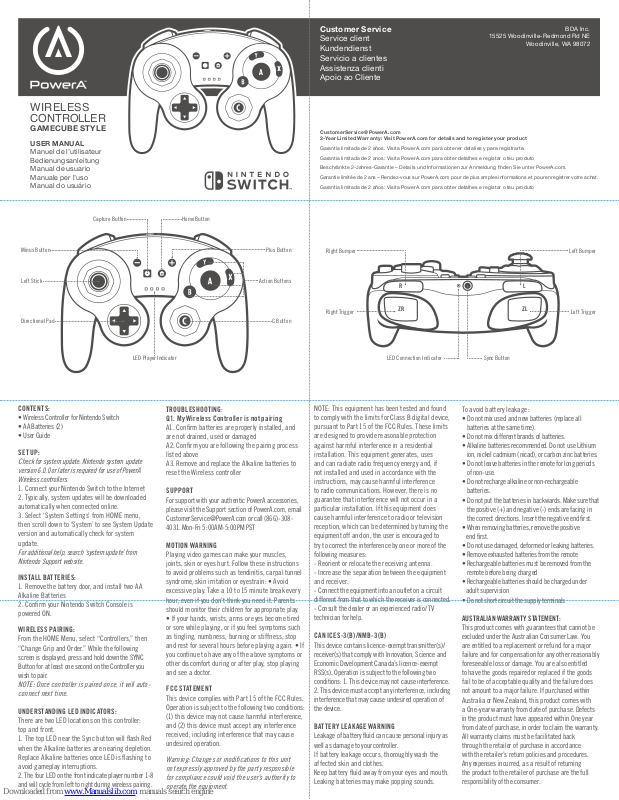

PowerA Wireless Controller Gamecube Style User Manual

WIRELESS
CONTROLLER

GAMECUBE STYLE

USER MANUAL

Manuel de l’utilisateur
Bedienungsanleitung
Manual de usuario
Manuale per l’uso
Manual do usuário

Customer Service

Service client
Kundendienst

15525 Woodinville-Redmond Rd NE

Woodinville, WA 98 072

BDA Inc.

Servicio a clientes
Assistenza clienti
Apoio ao Cliente

[e-mail]
2-Year Limit ed Warr anty : Visit PowerA .com for deta ils and to regi ster your pro duct

Garant ía limitada de 2 año s. Visita PowerA.c om para obtener de talles y para re gistra rte.

Garant ia limitada de 2 ano s: Visita PowerA.c om para ob ter detalhes e re gistar o t eu produ to

Beschr änkte 2-Jahre s-Gar antie – Details u nd Infor mation en zur Anm eldung nden Si e unter PowerA.com.

Garant ie limitée de 2 ans – R endez-vous sur Powe rA.com p our de plus ample s information s et pour enregis trer votre achat .

Garant ia limitada de 2 año s: Visita PowerA.c om para ob ter detalhes e re gistar o t eu produ to

Capture Bu tton

Minus Button

Left Stick Action Buttons

Directional Pad

LED Player Indicator

CONTENTS:

• Wireless Controller for Nintendo Switch

• AA Batteries (2)

• User Guide

SET UP:

Check for system update. Nintendo system update
version 6.0.0 or later is required for use of PowerA
Wireless controllers.

1. Connect your Nintendo Switch to the Internet

2. Typically, system updates will be downloaded
automatically when connected online.

3. Select ‘System Settings’ from HOME menu,
then scroll down to ‘System’ to see System Update
version and automatically check for system
update.

For additional help, search ‘system update’ from
Nintendo Support website.

INSTALL BATTERIES:

1. Remove the batter y door, and install two AA
Alkaline Batteries

2. Confirm your Nintendo Switch Console is
powered ON.

WIRELESS PAIRING:

From the HOME Menu, select “Controllers,” then
“Change Grip and Order.” While the following
screen is displayed, press and hold down the SYNC
Button for at least one second on the Controller you
wish to pair.

NOTE: Once controller is paired once, it will auto­connect next time.

UNDERSTANDING LED INDICATORS:

There are two LED locations on this controller:
top and front.

1. The top LED near the Sync but ton will flash Red
when the Alkaline batteries are nearing depletion.
Replace Alkaline batteries once LED is flashing to
avoid gameplay interruptions.

2. The four LED on the front indicate player number 1-8
and will cycle from lef t to right during wireless pairing.

Home But ton

TROUBLESHOOTING:
Q1. My Wireless Controller is not pairing

A1. Confirm batteries are properly installed, and
are not drained, used or damaged
A2. Confirm you are following the pairing process
listed above
A3. Remove and replace the Alkaline batteries to
reset the Wireless controller

SUPPORT

For support with your authentic PowerA accessories,
please visit the Suppor t section of PowerA.com, email
CustomerService @PowerA.com or call (866)-308-

4031. Mon-Fri 5:00AM-5:00PM PST

MOTION WARNING

Playing video games can make your muscles,
joints, skin or eyes hurt. Follow these instructions
to avoid problems such as tendinitis, carpal tunnel
syndrome, skin irritation or eyestrain: • Avoid
excessive play. Take a 10 to 15 minute break ever y
hour, even if you don’t think you need it. Parents
should monitor their children for appropriate play.

• If your hands, wrists, arms or eyes become tired
or sore while playing, or if you feel symptoms such
as tingling, numbness, burning or stiffness, stop
and rest for several hours before playing again. • If
you continue to have any of the above symptoms or
other discomfor t during or after play, stop playing
and see a doctor.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful inter ference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.

Warning: Changes or modifications to this unit
not expressly approved by the party responsible
for compliance could void the user’s authority to
operate the equipment.

Plus Button

C Button

Right Bumper Left Bump er

R L

Right Trigge r Left Trigger

NOTE: This equipment has been tested and found
to comply with the limits for Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment
and receiver.

- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.

ZR ZL

LED Connection Indicator Sync Button

To avoid battery leakage:

• Do not mix used and new batteries (replace all
batteries at the same time).

• Do not mix different brands of bat teries.

• Alkaline batteries recommended. Do not use Lithium
ion, nickel cadmium (nicad), or carbon zinc batteries.

• Do not leave bat teries in the remote for long periods

of non-use.

• Do not recharge alkaline or non-rechargeable

batteries.

• Do not put the bat teries in backwards. Make sure that
the positive (+) and negative (-) ends are facing in
the correct directions. Insert the negative end first.

• When removing bat teries, remove the positive

end first.

• Do not use damaged, deformed or leaking batteries.

• Remove exhausted batteries from the remote

• Rechargeable batteries must be removed from the
remote before being charged

• Rechargeable batteries should be charged under

adult super vision

• Do not short circuit the supply terminals

- Consult the dealer or an experienced radio/ TV
technician for help.

AUSTRALIAN WARRANT Y STATEMENT:

This product comes with guarantees that cannot be

CAN ICES-3(B)/NMB-3(B)

This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt
RSS(s). Operation is subject to the following two
conditions: 1. This device may not cause interference.

2. This device must accept any interference, including
interference that may cause undesired operation of
the device.

excluded under the Australian Consumer Law. You
are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled
to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does
not amount to a major failure. If purchased within
Australia or New Zealand, this product comes with
a One-year warranty from date of purchase. Defects
in the product must have appeared within One year

BATTERY LEAKAGE WARNING

Leakage of battery fluid can cause personal injury as
well as damage to your controller.
If battery leakage occurs, thoroughly wash the
affected skin and clothes.
Keep battery fluid away from your eyes and mouth.
Leaking batteries may make popping sounds.

from date of purchase, in order to claim the warranty.
All warranty claims must be facilitated back
through the retailer of purchase in accordance
with the retailer’s return policies and procedures.
Any expenses incurred, as a result of returning
the product to the retailer of purchase are the full
responsibility of the consumer.

AU WHOLESALE DISTRIBUTOR:

Level 2, 2 Darling Street South Yarra,
Australia VIC 3141 bluemouth.com.au
Email: support @bluemouth.com.au [phone]

MANUFACTURED BY:

Bensussen Deutsch & Associates, Inc. (BDA, Inc.)
15525 Woodinville-Redmond Rd. NE Woodinville,
WA 98072 BDAINC.com | POWERA.com

SUPPORT/ADDITIONAL LEGAL:

For more FAQs and suppor t, visit support.powera.
com. PowerA , and the PowerA logo are trademarks of
Bensussen Deutsch and Associate s, Inc. TM and ©
Bensussen Deutsch and Associate s, Inc.

CONT ROLLO DEGLI AGGIO RNAMENTI DI SIS TEMA:

Per l’utilizzo dei controller PowerA Wireless è
richiesto l’aggiornamento del sistema Nintendo
alla versione 6.0.0 o successiva.

1. Collega il tuo Nintendo Switch a Internet

2. In genere, gli aggiornamenti di sistema verranno
scaricati automaticamente una volta connessi online.

3. Selezionare “”Impostazioni di sistema”” dal
menu HOME, quindi scorrere verso il basso
fino alla voce “”Sistema”” per visualizzare la
versione di Aggiornamento Sistema e controllare
automaticamente la presenza di un aggiornamento
del sistema.

Per ulteriore assistenza, cercare aggiornamento del
sistema dal sito web del supporto Nintendo.”

GERMAN
INHALT:

• Erweiterter kabelloser Controller für Nintendo Switch

• AA-Batterien (2)

• Bedienungsanleitung

AUF SYSTEMAKTUALISIERUNG PRÜFEN:

Für die Nutzung von kabellosen PowerA-Controllern
wird die Nintendo Systemaktualisierung Version 6.0.0
oder höher benötigt.

1. Verbinden Sie Ihren Nintendo Switch mit dem Internet

2. Im Normalfall werden S ystemaktualisierungen
automatisch heruntergeladen, wenn eine Verbindung mit
dem Internet besteht.

3. Wählen Sie im Home-Menü Systemeinstellungen aus,
und scrollen Sie dann bis zu System nach unten, um
die Version der Systemaktualisierung festzustellen und
automatisch auf Systemaktualisierungen zu prüfen.

Für weitere Hilfe suchen Sie nach Systemaktualisierung
auf der Support-Website von Nintendo.

BATTERIEN EINLEGEN

1. Öffnen Sie die Batteriefachklappe und legen Sie
zwei AA-Alkalibatterien ein

2. Stellen Sie sicher, dass Ihre Nintendo Switch­Konsole eingeschaltet ist.

KABELLOSE KOPPLUNG

Wählen Sie im Home-Menü „Controller”, dann
„Griffweise/Reihenfolge ändern”. Halten Sie,
während der folgende Bildschirm angezeigt wird, die
SYNC-Taste für mindestens eine Sekunde lang an dem
Controller gedrückt, den Sie verbinden wollen.

Wenn der Controller einmal verbunden wurde,
verbindet er sich beim nächsten Mal automatisch.

LED-ANZEIGEN VERSTEHEN

An diesem Controller gibt es zwei LED-Anzeigen :
Oben und vorne.

1. Die obere LED-Leuchte nahe der Sync-Taste
blinkt rot, wenn die Alkalibatterien fast leer
sind. Wechseln Sie die Alkalibatterien, sobald die
LED-Leuchte blinkt, um Spielunterbrechungen zu
vermeiden.

2. Die vier LED-Leuchten an der Vorderseite zeigen
die Spielernummern 1 bis 8 an und werden während
des kabellosen Kopplungsvorgangs von links nach
rechts weitergeschaltet.

INSTALLAZIONE DELLE BATTERIE:

1. Togliere il coperchietto del vano batteria e
installare le due batterie alcaline AA

2. Verificare che la consolle Nintendo Switch sia accesa.

ACCOPPIAMENTO WIRELESS:

Nel menu HOME selezionare “Controllers”
(Controller), quindi “Change Grip and Order”
(Modifica impugnatura e ordine). Durante la
visualizzazione della schermata seguente, tenere
premuto il pulsante SYNC per almeno un secondo
sul controller da accoppiare.

Al termine dell’accoppiamento, la connessione
sarà automatica al successivo utilizzo del
controller.

INFORMA ZIONI SUGLI INDICATORI A LED:

Sono presenti due indicatori a LED su questo
controller: sulla parte superiore e su quella
anteriore.

1. Il LED superiore accanto al pulsante Sync
lampeggia in rosso quando le batterie stanno per
esaurirsi. Sostituire le batterie alcaline quando il
LED lampeggia per evitare interruzioni di gioco.

2. I quattro LED sulla parte anteriore indicano
il numero di giocatori (da 1 a 8) e vengono
attivati ciclicamente da sinistra a destra durante
l’accoppiamento wireless.

RISOLUZIONE DEI PROBLEMI:

D1. Il mio controller senza fili non esegue
l’accoppiamento
R1. Verificare che le batterie siano installate
correttamente
e che non siano scariche, usurate o danneggiate
R2. Verificare di attenersi alla procedura di
accoppiamento sopra illustrata
R3. Rimuovere e sostituire le batterie alcaline per
resettare il controller senza fili

FRENCH
CONTIENT:

• Manette sans fil pour Nintendo Switch

• Piles AA (2)

• Manuel de l’utilisateur

VÉRIFIER LES MISES À JOUR DE LA CONSOLE:

La version 6.0.0 ou supérieure de la console Nintendo
est requise pour pouvoir utiliser les manettes
sans fil PowerA.

FEHLERBEHEBUNG:

F1. Mein kabelloser Controller koppelt sich nicht
A1. Stellen Sie sicher, dass die Batterien richtig
eingelegt und nicht leer, benutzt oder beschädigt sind
A2. Stellen Sie sicher, dass Sie dem oben
beschriebenen Kopplungsprozess folgen
A3. Entnehmen und ersetzen Sie die Alkalibatterien,
um den kabellosen Controller zurückzusetzen

Die aktuelle Liste häufig gestellter Fragen finden Sie
unter PowerA.com/Support/

ITALIAN
CONTENUTO:

• Controller senza fili per Nintendo Switch

• Batterie A A (2)

• Istruzioni per l’uso

1. Connectez votre Nintendo S witch à Internet

2. En général, les mises à jour de la console sont
téléchargées automatiquement dès que vous êtes
connecté en ligne.

3. Dans le menu Home, sélectionnez « Paramètres de la
console », puis faites défiler les options et sélectionnez
Console pour afficher
la mise à jour de la console et vérifier automatiquement
s’il existe une nouvelle version.
Pour plus d’informations, recherchez « mise à jour de
la console »
sur le site Web de l’assistance Nintendo.”

INSTALLATION DES PILES

1. Retirer le couvercle du compartiment des piles, puis
insérer deux piles alcalines AA

2. Vérifier que la console Nintendo Switch est allumée.

CAN ICES-3(B)/NMB-3(B)

L’émetteur/récepteur exempt de licence contenu
dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts
de licence. L’exploitation est autorisée aux deux
conditions suivantes : 1. L’appareil ne doit pas
produire de brouillage; 2. L’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.

SYNCHRONISATION SANS FIL:

Dans le menu « HOME », sélectionner « Manettes
» (Controllers), puis « Changer le style /l’ordre
» (Change Grip and Order). Tandis que l’écran
suivant s’affiche, appuyer sur le bouton SYNC et le
maintenir enfoncé pendant au moins une seconde
sur la manette que vous souhaitez synchroniser.

Lorsque la manette a été synchronisée une fois, elle se
connectera automatiquement la fois suivante.

COMPRENDRE LES VOYANTS LED:

Cette manette est dotée de voyants LED situés:
sur le haut et à l’avant.

1. Le voyant LED du haut, près du bouton SYNC,
clignotera en rouge lorsque les piles alcalines
seront presque déchargées. Afin d’éviter les
interruptions de jeu, remplacer les piles alcalines
dès que le voyant LED clignote.

2. Les quatre voyants LED à l’avant indiquent le numéro
du joueur (1 à 8) et s’allumeront tour à tour de gauche à
droite lors de la synchronisation sans fil.

DÉPANNAGE:

Q1. Ma manette sans fil ne parvient pas à effectuer
la synchronisation
R1. Vérifiez que les piles sont correctement
insérées et qu’elles ne sont pas déchargées, usées
ou endommagées
R2. Vérifiez que vous suivez bien le processus de
synchronisation indiqué ci-dessus
R3. Retirez les piles alcalines, puis remplacez-les
afin de réinitialiser la manette sans fil

Pour consulter les dernières Questions fréquentes,
rendez-vous sur www.PowerA.com/Support/

SPANISH
CONTENIDO:

• Mando inalámbrico para Nintendo Switch

• Pilas AA (2)

• Guía deusuario

COMPROBACIÓN DE LA ACTUALIZACIÓN DEL
SISTEMA:

Es necesaria la actualización del sistema Nintendo
versión 6.0.0 o posterior para el uso de los mandos
inalámbricos PowerA Wireless.

1. Conecta tu Nintendo Switch a Internet

2. Normalmente, las actualizaciones del sistema
se descargan de forma automática al conectar te a
Internet.

3. Selecciona ‘Configuración de la consola’ en el
menú HOME y, a continuación, desplázate hacia
abajo hasta ‘Consola’ para ver la versión de
la Actualización de la consola y buscar nuevas
actualizaciones automáticamente.

Para obtener más ayuda, busca actualizar la
consola en el sitio web de asistencia de Nintendo.

INSTALA LAS PILAS:

1. Retira la tapa de las pilas e instala dos pilas
alcalinas A A

2. Comprueba que la consola Nintendo Switch
esté encendida.

SINCRONIZACIÓN INALÁMBRICA:

En el menú HOME, selecciona “Mandos”, luego
“Cambiar agarre y orden”. Mientras se muestra la
pantalla siguiente, mantén pulsado el botón SYNC
durante un mínimo de un segundo en el mando que
desees sincronizar.

Una vez sincronizado el mando, la próxima vez se
conectará automáticamente.

QUÉ SIGNIFICAN LOS INDICADORES LED:

Hay dos indicadores L ED en este mando: el superior y
el frontal.

1. El LED superior junto al botón Sync parpadea en
color rojo cuando las pilas alcalinas se están agotando.
Sustituye las pilas alcalinas cuando el LED esté
parpadeando para evitar interrupciones en el juego.

2. Los cuatro LED frontales indican los números de
jugador del 1 al 8 y alternan de izquierda a derecha
durante la sincronización inalámbrica.

RESOLUCIÓN DE PROBLEMAS:

P1. El mando inalámbrico no se sincroniza.
R1. Confirma que las pilas estén bien instaladas y
que no estén agotadas, usadas ni dañadas.

R2. Confirma que estás siguiendo el proceso de
sincronización descrito anteriormente.
R3. Extrae y sustituye las pilas alcalinas para
reiniciar el mando inalámbrico.

POTUGUESE
CONTEÚDO:

• Comando sem fios para Nintendo Switch

• Pilhas AA (2)

• Guia do Utilizador

INSTALAR PILHAS:

1. Retire a porta do compartimento de pilhas e instale
duas pilhas alcalinas AA .

2. Confirme que a Consola Nintendo Switch está ligada.

VERIFICAR SE HÁ ATUALIZAÇÕES DO SISTEMA:

É necessária a atualização com a versão 6.0.0
ou posterior do sistema Nintendo para utilizar os
comandos sem fios PowerA.

1. Liga a Nintendo Switch à Internet.

2. Regra geral, as atualizaçõe s do sistema serão
transferidas automaticamente quando estás online.

3. Seleciona Definições do Sistema no menu HOME,
desloca-te para baixo para Sistema para ver a versão
Atualização do Sistema e procura automaticamente se
há atualizações do sistema.

Para ajuda adicional, procura atualização do sistema no
website de Suporte da Nintendo.

EMPARELHAMENTO SEM FIOS:

No menu HOME, selecione “Controllers”, em
seguida, “Change Grip and Order”. Enquanto o ecrã
seguinte é apresentado, prima sem soltar o botão
SYNC durante pelo menos um segundo no comando
que pretende emparelhar.

Assim que o comando seja emparelhado, passará a

ligar-se automaticamente.

NOÇÕES SOBRE INDICADORES LED:

Existem dois indicadores LED neste comando : na parte
superior e à frente.

1. O LED na parte superior, perto do botão Sync, irá
piscar a vermelho quando as pilhas alcalinas estiverem
quase esgotadas. Substitua as pilhas alcalinas assim
que o LED começar a piscar para evitar interrupções
no jogo.

2. Os quatro LEDs à frente indicam os números de
jogador 1-8 e serão percorridos da esquerda para a
direita durante o emparelhamento sem fios.

RESOLUÇÃO DE PROBLEMAS:

P1. O meu comando sem fios não está a emparelhar
R1. Confirme se as baterias estão corretamente
instaladas e se não estão esgotadas, usadas
ou danificadas.
R2. Confirme se seguiu o processo de
emparelhamento indicado anteriormente.
R3. Retire e substitua as pilhas alcalinas para repor
o comando sem fios.
