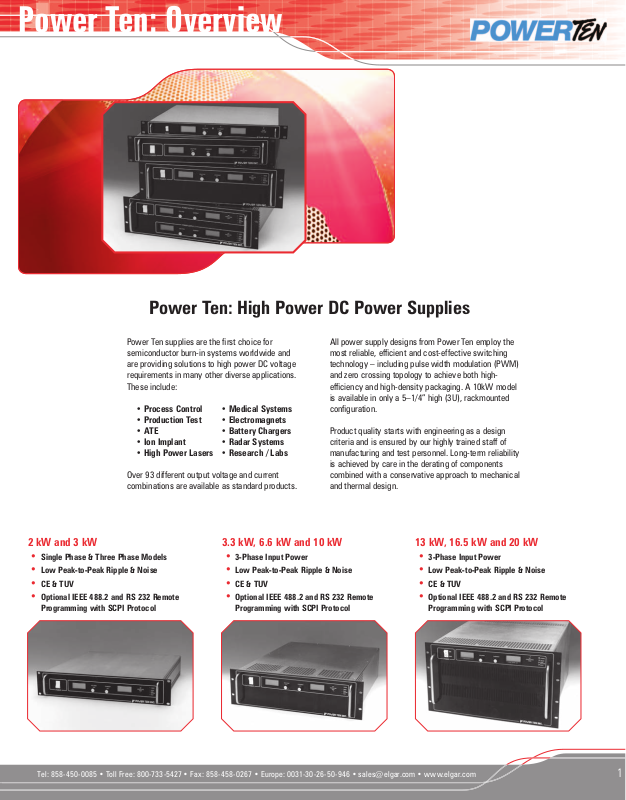

Power Ten: Overview
Power Ten: High Power DC Power Supplies
Power Ten supplies are the fi rst choice for
semiconductor burn-in systems worldwide and
are providing solutions to high power DC voltage
requirements in many other diverse applications.
These include:
• Process Control • Medical Systems
• Production Test • Electromagnets
• ATE • Battery Chargers
• Ion Implant • Radar Systems
• High Power Lasers • Research / Labs
Over 93 different output voltage and current
combinations are available as standard products.
All power supply designs from Power Ten employ the
most reliable, effi cient and cost-effective switching
technology – including pulse width modulation (PWM)
and zero crossing topology to achieve both higheffi ciency and high-density packaging. A 10kW model
is available in only a 5–1/4” high (3U), rackmounted
confi guration.
Product quality starts with engineering as a design
criteria and is ensured by our highly trained staff of
manufacturing and test personnel. Long-term reliability
is achieved by care in the derating of components
combined with a conservative approach to mechanical
and thermal design.
P 62 Series P 63 Series P 66 Series
2 kW and 3 kW
• Single Phase & Three Phase Models
• Low Peak-to-Peak Ripple & Noise
• CE & TUV
• Optional IEEE 488.2 and RS 232 Remote
Programming with SCPI Protocol
3.3 kW, 6.6 kW and 10 kW
• 3-Phase Input Power
• Low Peak-to-Peak Ripple & Noise
• CE & TUV
• Optional IEEE 488.2 and RS 232 Remote
Programming with SCPI Protocol
13 kW, 16.5 kW and 20 kW
• 3-Phase Input Power
• Low Peak-to-Peak Ripple & Noise
• CE & TUV
• Optional IEEE 488.2 and RS 232 Remote
Programming with SCPI Protocol
Tel: 858-450-0085 • Toll Free: 800-733-5427 • Fax: 858-458- 0267 • Europe: 0031-30-26-50-946 • sales @elgar.com • w ww.elgar.com
1
Page 2
Power Ten: Common Specifi cations
Common Specifi cations
Regulation (Line or Load)
0.1% of maximum rated output
Voltage:
Current: 0.5% of maximum rated output
Transient Response
A 30% current step load will recover to within ±2%
of set voltage within 10 msec.
Stability
±0.05% of set point per 8 hours after 30 minutes
warm-up at fi xed line, load and temperature.
Temperature Coeffi cient
0.02%/°C of rated output voltage
0.03%/°C of rated output current
Operating Temperature
0 to +50° C, No derating
Storage Temperature
-20 to +70°C
Cooling
Internal fans
Controls (Front Panel)
On/Off switch, DC volts adjust, DC amps adjust,
OVP preset adjust (limit set)
Meters/Indicators
LCD DC voltmeter, ammeter and OVP limit set. LED
indicators for voltage mode, current mode. OVP
fault and fault
Built-In Protection
Over Voltage, Current limit Fold back, Over
Temperature, Brown Out, Turn On Surge Limit,
Slow Start
Remote Control/Monitor (Rear Panel)
On/Off control via contact closure, 6-120 VDC,
TTL or CMOS switch, output voltage and current
monitor, OVP limit set, summary fault status on
P60 Series.
Remote Programming
Voltage (0 to 100%) Current (0 to 100%)
Resistive: 0-5K ohms 0-5K ohms
Voltage: 0-5 VDC or 10 VDC 0-5 VDC or 10 VDC
Optional IEEE 488.2 and RS 232 Programming with SCPI protocol.
Remote Sensing:
Terminals provided to sense output voltage at load
Operational Features:
Master/Slave, Series, Parallel
Primary Power
P62B Series
190-253 VAC
P63C and P66C
190-253 VAC
(Standard)
1
2
Web Site
For information regarding installation, operation and
maintenance, visit our web site at:
www.elgar.com
1
May be ordered as Single or 3-Phase
(3 phase 3 kW only)
2
Optional Inputs: 360-440 VAC and 432-528 VAC
P 62 Series P 63 Series P 66 Series
Input Voltage
190 – 253 VAC, 47 – 63 Hz
Input Current (Typical)
Single Phase 3-Phase
@ 230 VAC @ 208 VAC
At 2.0 kW Output: 15 A
At 3.0 kW Output: 21 A 15 A
Physical
Weight:
45 Lbs.
Dimensions: 19” (W) X 3-1/2” (H) X 18” (D)
AC Input Interface:
Single Phase: 2 wire + GND
(#8-32 threaded studs)
Three Phase: 3 wire + GND
(#8-32 threaded studs)
DC Output Interface: Bus bars with 0.375” interface
holes for output ≤60 VDC. Two position barrier strip for
output ≥80 VDC
Control/Monitor Interface:
DB 25-pin female connector
Input Voltage
190-253 VAC, 47-63 Hz (Standard)
360-440 VAC, 47-63 Hz (Option)
432-528 VAC, 47-63 Hz (Option)
Input Current @ 208 VAC (Typical)
At 3.3 kW Output: 15 A
At 6.6 kW Output: 28 A
At 10.0 kW Output: 41 A
Operates from Delta or Wye Source
Physical
Weight: 3.3 kW: 40 Lbs.
6.6 kW: 60 Lbs.
10.0 kW: 80 Lbs.
Dimensions: 19” (W) X 5.25” (H) X 22” (D)
AC Input Interface: 3 wire + GND (#10-32
threaded studs) (208 VAC)
DC Output Interface: Bus bars with 0.390” interface
holes for output ≤50 VDC.
Control/Monitor Interface:
DB 25-pin female connector
Input Voltage
190-253 VAC, 47-63 Hz (Standard)
360-440 VAC, 47-63 Hz (Option)
432-528 VAC, 47-63 Hz (Option)
Input Current @ 208 VAC (Typical)
At 13 kW Output: 54 A
At 16.5 kW Output: 67 A
At 20 kW Output: 80 A
Operates from Delta or Wye Source
Physical
Weight:
13 kW: 120 Lbs.
16.5 kW: 140 Lbs.
20 kW: 160 Lbs.
Dimensions: 19” (W) X 10.5” (H) X 22” (D)
AC Input Interface:
3 wire + GND (#1/4-20 threaded studs) (208 VAC)
DC Output Interface: Bus bars with 0.410” interface
holes for output ≤50 VDC.
Control/Monitor Interface:
DB 25-pin female connector
2
Tel: 858-450-0085 • Toll Free: 800-733-0267 • Fax: 858-458- 0267 • Europe: 0031-30-26-50-946 • sales @elgar.com • w ww.elgar.com
Page 3
Power Ten: Data Tables
Model
P62 Series: 2 kW to 3 kW
P62B-5325 0-5 325 50 mV
P62B-8250 0-8 250 50 mV
P62B-8350 0-8 350 50 mV
P62B-10200 0-10 200 50 mV
P62B-10300 0-10 300 50 mV
P62B-15130 0-15 130 50 mV
P62B-15200 0-15 200 50 mV
P62B-20100 0-20 100 75 mV
P62B-20150 0-20 150 75 mV
P62B-3066 0-30 66 75 mV
P62B-30100 0-30 100 75 mV
P62B-4050 0-40 50 75 mV
P62B-4075 0-40 75 75 mV
P62B-5040 0-50 40 75 mV
P62B-5060 0-50 60 75 mV
P62B-6033 0-60 33 75 mV
P62B-6050 0-60 50 75 mV
P62B-8025 0-80 25 100 mV
P62B-8037 0-80 37 100 mV
P62B-10020 0-100 20 125 mV
P62B-10030 0-100 30 125 mV
P62B-12016 0-120 16 135 mV
P62B-12025 0-120 25 135 mV
P62B-15013 0-150 13 150 mV
P62B-15020 0-150 20 150 mV
P62B-20010 0-200 10 175 mV
P62B-20015 0-200 15 175 mV
P62B-2508 0-250 8 200 mV
P62B-25012 0-250 12 200 mV
P62B-3006.6 0-300 6.6 200 mV
P62B-30010 0-300 10 200 mV
P62B-4005 0-400 5 225 mV
P62B-4007.5 0-400 7.5 225 mV
Output DC
Volts Amps
2
Output
P-P Ripple
1
Model
P63 Series: 3.3 kW to 10 kW*
P63C-5500 0-5 500 50 mV
P63C-51000 0-5 1000 50 mV
P63C-51500 0-5 1500 50 mV
P63C-8400 0-8 400 50 mV
P63C-8800 0-8 800 50 mV
P63C-81200 0-8 1200 50 mV
P63C-10330 0-10 330 50 mV
P63C-10660 0-10 660 50 mV
P63C-101000 0-10 1000 50 mV
P63C-12.5265 0-12.5 265 50 mV
P63C-12.5530 0-12.5 530 50 mV
P63C-12.5800 0-12.5 800 50 mV
P63C-15220 0-15 220 50 mV
P63C-15440 0-15 440 50 mV
P63C-15660 0-15 660 50 mV
P63C-20166 0-20 166 75 mV
P63C-20330 0-20 330 75 mV
P63C-20500 0-20 500 75 mV
P63C-25134 0-25 132 75 mV
P63C-25265 0-25 265 75 mV
P63C-25400 0-25 400 75 mV
P63C-30110 0-30 110 75 mV
P63C-30220 0-30 220 75 mV
P63C-30330 0-30 330 75 mV
P63C-4083 0-40 83 75 mV
P63C-40166 0-40 166 75 mV
P63C-40250 0-40 250 75 mV
P63C-5066 0-50 66 75 mV
P63C-50133 0-50 133 75 mV
P63C-50200 0-50 200 75 mV
Output DC
Volts Amps
Output
P-P Ripple
1
Model
P66 Series: 13.3 kW to 20 kW*
P66C-52000 0-5 2000 50 mV
P66C-52500 0-5 2500 50 mV
P66C-53000 0-5 3000 50 mV
P66C-81600 0-8 1600 50 mV
P66C-82000 0-8 2000 50 mV
P66C-82400 0-8 2400 50 mV
P66C-101300 0-10 1300 50 mV
P66C-101650 0-10 1650 50 mV
P66C-102000 0-10 2000 50 mV
P66C-12.51060 0-12.5 1060 50 mV
P66C-12.51325 0-12.5 1325 50 mV
P66C-12.51600 0-12.5 1600 50 mV
P66C-15880 0-15 880 50 mV
P66C-151100 0-15 1100 50 mV
P66C-151320 0-15 1320 50 mV
P66C-20665 0-20 665 75 mV
P66C-20830 0-20 830 75 mV
P66C-201000 0-20 1000 75 mV
P66C-25520 0-25 520 75 mV
P66C-25650 0-25 650 75 mV
P66C-25800 0-25 800 75 mV
P66C-30440 0-30 440 75 mV
P66C-30550 0-30 550 75 mV
P66C-30660 0-30 660 75 mV
P66C-40330 0-40 330 75 mV
P66C-40415 0-40 415 75 mV
P66C-40500 0-40 500 75 mV
P66C-50265 0-50 265 75 mV
P66C-50330 0-50 330 75 mV
P66C-50400 0-50 400 75 mV
Output DC
Volts Amps
Output
P-P Ripple
1
*Note: For high voltage models 60V and above see SGA Series.
1
Peak-to-peak ripple and noise is over the entire range of the power supply as measured in the voltage mode at the
end of a 6-foot cable across a 1µf fi lm capacitor into a resistive load. Low noise option available on ≤60 V models.
Please contact the factory.
2
Available with 3-phase input option (3 kW only).
Tel: 858-450-0085 • Toll Free: 800-733-5427 • Fax: 858-458- 0267 • Europe: 0031-30-26-50-946 • sales @elgar.com • w ww.elgar.com
Elgar Electronics Corporation • Phone: 858-450-0085 • Toll Free: 800-733-5427 • Fax: 858-458-0267 • Europe: 0031 30 26 50 946 • sales@elgar.com • www.elgar.com
3
Page 4
Power Ten: Programming Options
�
Remote Computer
Programming Options
IEEE 488.2 and RS 232 Interface Option enables the power
supply to be operated from a computer with full remote
programming control and monitoring. The slave interface
option allows multichannel control from a single bus
address.
Programming Resolution
Voltage: 0.03% of full scale
Current: 0.03% of full scale
Over voltage Protection: 0.03% of full scale
(full scale is 120% of maximum output voltage)
Programming Accuracy
Voltage: ± (0.1% + 0.1% of maximum output voltage)
Current: ± (0.1% + 0.4% of maximum output voltage)*
Overvoltage Protection:
± (0.5% + 0.5% of maximum output voltage)
Readback Resolution
Voltage and Current: ± 0.03% of full scale
Readback Accuracy
Voltage: ± (0.1% + 0.15% of full scale output voltage)
Current: ± (0.1% + 0.4% of full scale output current)*
* After 30 minutes operation with fi xed line, load and
temperature.
Programmable Functions
• Output Voltage and Current
• Soft Limits for Voltage and Current
• Over Voltage Protection
• Output Enable/Disable
• Maskable Fault Interrupt
• Hold and Trigger
Readback Functions
• Actual Measured Voltage and Current
• Voltage and Current Settings
• Soft Voltage and Current Limits
• Over Voltage Protection Setting
• Status and Accumulated Status Registers
• Programming Error Codes
• Fault Codes
• Manufacturer, Power Supply Model and
Firmware Version Identifi cation
Isolated Analog Option
• Fully Isolates Control Inputs
• Eliminates System Ground-Loops
• Specifi cations
• Input to Output Isolation: 500V
• Linearity Control to Power Output: ±1%
(20-100% of Output)
• Isolation Mode Rejection: 10 KV/µS
• Isolation Mode Rejection Ratio: >100 dB
This control isolation option for all Power Ten power
supply models fully isolates the remote control signals.
This isolation allows users to control power supplies not
connected to a common ground. In addition, in systems
with high ambient noise or with large ground loop currents
the control ground can be isolated from the power ground
eliminating problems.
P 62 Series P 63 Series P 66 Series

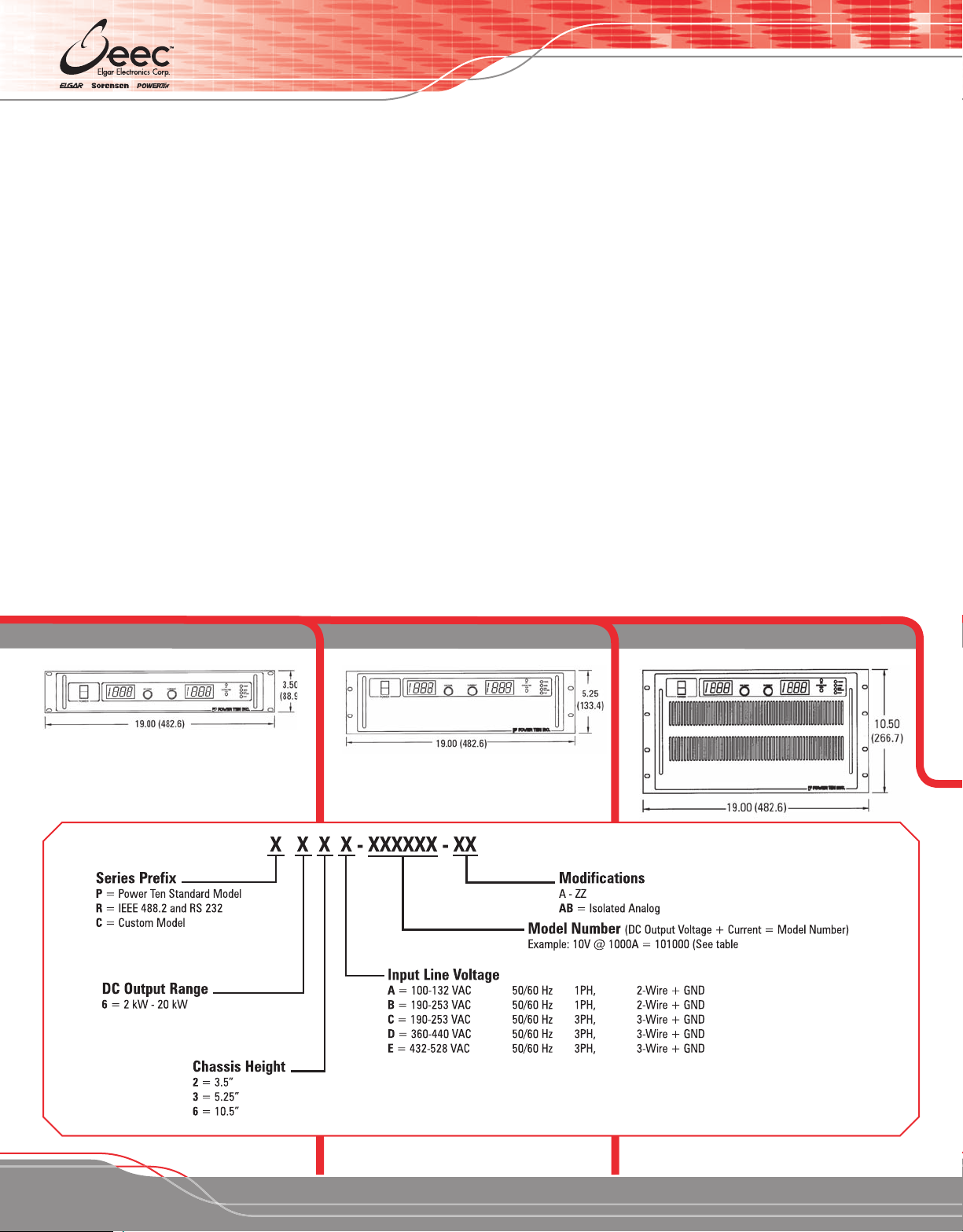

Dimensions in inches (millimeters)
Model Confi guration
4
Tel: 858-450-0085 • Toll Free: 800-733-5427 • Fax: 858-458- 0267 • Europe: 0031-30-26-50-946 • sales @elgar.com • w ww.elgar.com
