Poulan wet2242std Parts List

For Parts Call K&T 606-678-9623 or 606-561-4983

MODEL NO. WET2242STD

22.0 HP 42 Inch Lawn Tractor

For Parts and Service, contact our authorized distributor: call 1-800-849-1297

For Technical Assistance: call 1-800-829-5886

®

www.mymowerparts.com

191087 Rev. 1 2.2.04 RD/MH

PRINTED IN U.S.A.

For Parts Call K&T 606-678-9623 or 606-561-4983

SAFETY RULES

SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE

TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERAL OPERATION

• Read, understand, and follow all instructions in the manual and on the machine before starting.

• Only allow responsible adults, who are familiar with the in struc tions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blade.

• Be sure the area is clear of other people before mow ing. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while back ing.

• Be aware of the mower discharge direction and do not point it at anyone. Do not operate the mower without either the entire grass catcher or the guard in place.

• Slow down before turning.

• Never leave a running machine unattended. Always turn off blades, set parking brake, stop engine, and remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass catcher or un clog ging chute.

• Mow only in daylight or good artiﬁ cial light.

• Do not operate the machine while under the inﬂ uence of alcohol or drugs.

• Watch for trafﬁ c when operating near or crossing road ways.

• Use extra care when loading or unloading the machine into a trailer or truck.

• Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect them selves and others from serious injury.

• Keep machine free of grass , leaves or other debris build-up which can touch hot exhaust / engine parts and burn. Do not allow the mower deck to plow leaves or other debris which can cause build-up to occur. Clean any oil or fuel spillage before operating or storing the machine. Allow machine to cool before storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and tipover accidents, which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could overturn the machine.

• Use slow speed. Choose a low gear so that you will not have to stop or shift while on the slope.

• Follow the manufacturer’s recommendations for wheel weights or counterweights to improve stability.

• Use extra care with grass catchers or other at tach ments. These can change the stability of the machine.

• Keep all movement on the slopes Do not make sudden changes in speed or direction.

Tall grass can hide obstacles.

slow

and

gradual

• Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed slowly down the slope.

DO NOT:

•

Do not

turn slowly and gradually downhill, if possible.

•

Do not

The mower could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.

•

Do not

cause sliding.

•

Do not

on the ground.

•

Do not

turn on slopes unless necessary, and then,

mow near drop-offs, ditches, or embankments.

mow on wet grass. Reduced traction could

try to stabilize the machine by putting your foot

use grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the ma chine and the mowing activity. where you last saw them.

• Keep children out of the mowing area and under the watchful care of another responsible adult.

• Be alert and turn machine off if children enter the area.

• Before and when backing, look behind and small children.

• Never carry children. They may fall off and be seriously injured or interfere with safe machine operation.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

Never

assume that children will remain

IV. SERVICE

• Use extra care in handling gasoline and other fuels. They are ﬂ ammable and vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel container inside where

there is an open ﬂ ame, such as a water heater.

• Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment bolts, tight and keep equipment in good condition.

• Never tamper with safety devices. Check their proper op er a tion regularly.

• Keep machine free of grass, leaves, or other debris build-up. Clean oil or fuel spillage. Allow machine to cool before storing.

• Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.

• Never make adjustments or repairs with the engine run ning.

• Grass catcher components are subject to wear, dam age, and deterioration, which could expose moving parts or allow objects to be thrown. Frequently check com po nents and replace with manufacturer's rec om mend ed parts, when nec es sary.

• Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves, and use extra caution when servicing

.

2

them.

• Check brake operation frequently. Adjust and service as required.

straight

down

for

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SAFETY RULES

SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS

• Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area.

• Never carry passengers or children even with the blades off.

• Do not mow in reverse unless absolutely necessary. Al ways look down and behind before and while backing.

• Never carry children. They may fall off and be seriously injured or interfere with safe machine operation.

• Keep children out of the mowing area and under the watchful care of another responsible adult.

• Be alert and turn machine off if children enter the area.

• Before and when backing, look behind and down for small children.

• Mow up and down slopes (15° Max), not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could overtur n the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not have to stop or shift while on the slope.

• Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed slowly straight down the slope.

• If machine stops while going uphill, disengage blades, shift into reverse and back down slowly.

• Do not tur n on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.

WARNING: In order to prevent ac ci den tal starting when setting up, trans port ing, ad just ing or making repairs, al ways dis con nect spark plug wire and place wire where it can not contact spark plug.

WARNING: Do not coast down a hill in neutral, you may lose control of the tractor.

WARNING: Tow only the attachments that are rec om mend ed by and comply with spec i ﬁ ca tions of the man u fac tur er of your tractor. Use common sense when towing. Operate only at the low est possible speed when on a slope. Too heavy of a load, while on a slope, is dan ger ous. Tires can lose trac tion with the ground and cause you to lose control of your tractor.

WARNING

Engine exhaust, some of its con stit u ents, and cer tain vehicle com po nents contain or emit chem i cals known to the State of Cal i for nia to cause can cer and birth de fects or oth er re pro duc tive harm.

Battery posts, terminals and related ac ces so ries contain lead and lead compounds, chem i cals known to the State of Cal i for nia to cause can cer and birth defects or oth er re pro duc tive harm. Wash hands after handling.

3

www.mymowerparts.com

WARNING

For Parts Call K&T 606-678-9623 or 606-561-4983

PRODUCT SPECIFICATIONS

GASOLINE CAPACITY 2.0 GALLONS

AND TYPE: UNLEADED REGULAR

OIL TYPE (API-SF-SJ): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: W/FILTER 3.9PINTS

W/O FILTER 3.4 PINTS

SPARK PLUG: CHAMPION RN4C

(GAP: .030")

GROUND SPEED (MPH): FORWARD:

1st 1.1

2nd 1.4

3rd 2.2

4th 3.3

5th 4.4

6th 4.9

REVERSE: 1.4

TIRE PRESSURE: FRONT: 14 PSI

REAR: 12 PSI

CHARGING SYSTEM: 16 AMPS @ 3600RPM

BATTERY: AMP/HR: 35

MIN. CCA: 280

CASE SIZE: U1R

BLADE BOLT TORQUE: 27-35 FT. LBS.

CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manu fac tured to give you the best possible dependability and performance.

Should you experience any problem you cannot easily remedy, please contact your nearest authorized service center/ department. We have com pe tent, well-trained tech ni cians and the proper tools to ser vice or repair this tractor.

Please read and retain this manual. The instructions will enable you to assemble and maintain your tractor prop erly. Always observe the “SAFETY RULES”.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and using your tractor.

• Follow the instructions under “Maintenance” and “Stor age” sec tions of this own er’s manual.

WARNING: This tractor is equipped with an internal com bus tion engine and should not be used on or near any un im proved forest-covered, brush-covered or grass-cov ered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

A spark arrester for the mufﬂ er is available through your nearest authorized service center/depar tment (See RE PA I R PARTS section of this manual).

TABLE OF CONTENTS

SAFETY RULES .........................................................2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES................................. 4

ASSEMBLY................................................................. 6-8

OPERATION ............................................................. 9-13

MAINTENANCE SCHEDULE ...................................... 14

www.mymowerparts.com

MAINTENANCE ..................................................... 14-17

SERVICE AND AD JUST MENTS ............................ 18-23

STORAGE .................................................................... 24

TROU BLE SHOOT ING ............................................ 25-26

REPAIR PARTS ...................................................... 28-43

WARRANTY................................................................. 45

4

For Parts Call K&T 606-678-9623 or 606-561-4983

CONTENTS OF HARDWARE PACK

Steering Wheel

Steering Wheel Insert

Steering

Boot

Steering Extension Shaft

Seat

(1) Washer 17/32 x 1-3/16 x 12 Gauge

(1) Lock

Washer 1/2

(1) Bolt

Steering Wheel

Adapter

(1) Large Flat Washer

(1) Hex Bolt 1/4-28 x 1-1/4

(1) Oil Drain Tube

(1) Locknut 1/2-20

Keys

Slope Sheet

(2) Keys

(1) Locknut 1/4-28

5

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

ASSEMBLY

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Stan dard wrench sizes are listed.

(2) 7/16" wrenches Utility knife (2) 3/4" wrench Tire pres sure gauge Pliers When right or left hand is mentioned in this man ual, it means

when you are in the operating po si tion (seated be hind the steer ing wheel).

INSERT

1/2 HEX NUT

LARGE FLAT WASHER

TO REMOVE TRACTOR FROM CAR TON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons from carton.

• Cut along dotted lines on all four panels of carton. Remove end panels and lay side panels ﬂ at.

• Check for any additional loose parts or cartons and remove.

BEFORE REMOVING TRACTOR FROM SKID

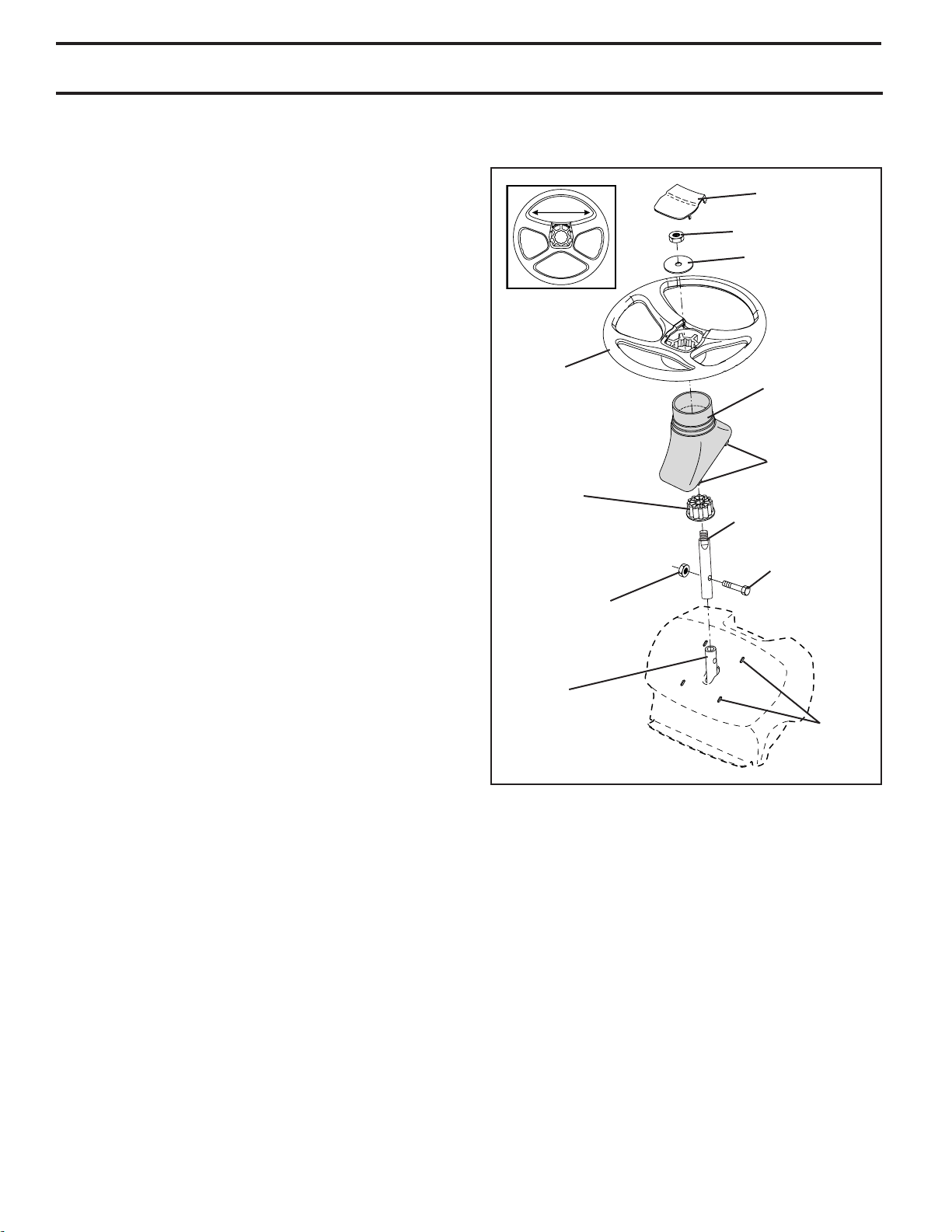

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

• Slide extension shaft onto lower steering shaft. Align mount ing holes in extension and lower shafts and install 1/4 hex bolt and lock nut. Tighten securely.

IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO 10-12 FT. LBS TORQUE.

• Place tabs of steering boot over tab slots in dash and push down to secure.

INSTALL STEERING WHEEL

• Position front wheels of the tractor so they are pointing straight forward.

• Remove steering wheel adapter from steering wheel and slide adapter onto steer ing shaft ex ten sion.

• Position steering wheel so cross bars are hor i zon tal (left to right) and slide inside boot and onto adapt er.

• Assemble large ﬂ at washer, 1/2 hex nut and tighten se cure ly.

• Snap steering wheel insert into center of steer ing wheel.

• Remove protective materials from tractor hood and grill.

IMPORTANT: CHECK FOR AND RE MOVE ANY STA PLES IN SKID THAT MAY PUNC TURE TIRES WHERE TRACTOR IS TO ROLL OFF SKID.

STEERING WHEEL

ADAPTER

1/4 LOCKNUT

LOWER STEERING SHAFT

STEERING BOOT

TABS

EXTENSION SHAFT

1/4 HEX BOLT

TAB SLOTS

FIG. 1

6

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

ASSEMBLY

INSTALL SEAT (See Fig. 2)

Adjust seat before tightening adjustment bolt.

• Remove adjustment bolt, lock washer and ﬂ at washer se cur ing seat to cardboard packing and set aside for as sem bly of seat to tractor.

• Pivot seat upward and remove from the cardboard packing. Remove the cardboard packing and discard.

• Place seat on seat pan so head of shoulder bolts are positioned over the large slotted holes in pan.

• Push down on seat to engage shoulder bolts in slots and pull seat towards rear of tractor.

• Pivot seat and pan forward and as sem ble adjustment bolt, lockwasher and ﬂ at washer loosely. Do not tight en.

• Lower seat into operating position and sit in seat.

• Slide seat until a comfortable position is reached which allows you to press clutch/brake pedal all the way down.

• Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment bolt securely.

SEAT

SEAT PAN

LABEL

TERMINAL

FIG. 3

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the tractor from the skid.

TO ROLL TRACTOR OFF SKID (See Op er a tion section for location and func tion of con trols)

• Press lift lever plunger and raise attachment lift lever to its highest po si tion.

• Release parking brake by depressing clutch/brake ped al.

• Place gearshift lever in neutral (N) po si tion.

• Roll tractor forward off skid.

• Remove banding holding deﬂ ector shield up against tractor.

SHOULDER

02617

FLAT WASHER

LOCK WASHER

02616

ADJUSTMENT BOLT

FIG. 2

BOLTS

CHECK BATTERY (See Fig. 3)

• Lift seat pan to raised position.

• If this battery is put into service after month and year indicated on label (label located between terminals) charge battery for minimum of one hour at 6-10 amps. (See "BATTERY" in MAINTENANCE section of this manual for charging instructions).

TO DRIVE TRACTOR OFF SKID (See Op er a tion sec tion for lo ca tion and func tion of con trols)

WARNING: Before starting, read, un der stand and follow

all in struc tions in the Operation section of this manual. Be sure tractor is in a well-ventilated area. Be sure the area in front of tractor is clear of other people and objects.

• Be sure all the above assembly steps have been completed.

• Check engine oil level and ﬁ ll fuel tank with gasoline.

• Sit on seat in operating position, depress clutch/brake pedal and set the parking brake.

• Place gear shift lever in neutral (N) position.

• Press lift lever plunger and raise attachment lift lever to its highest position.

• Start the engine. After engine has started, move throttle control to idle position.

• Depress clutch/brake pedal into full “BRAKE” position and hold. Move gearshift lever to 1st gear.

• Slowly release clutch/brake pedal and slowly drive tractor off skid.

• Apply brake to stop tractor, set parking brake and place gearshift lever in neutral position.

• Turn ignition key to “OFF” position.

Continue with the instructions that follow.

7

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

ASSEMBLY

CHECK TIRE PRESSURE

The tires on your tractor were overinﬂ ated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance.

• Reduce tire pressure to PSI shown in “PRODUCT SPEC I FI CA TIONS” section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly leveled. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL BELTS

See the ﬁ gures that are shown for replacing motion and mower blade drive belts in the Service and Adjustments sec tion of this manual. Verify that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that the brake is properly adjusted. See “TO ADJUST BRAKE” in the Service and Adjustments section of this manual.

✓

CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW TRAC TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE BEST PER FOR MANCE AND SATISFACTION FROM THIS QUALITY PROD UCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

✓ All assembly instructions have been completed. ✓ No remaining loose parts in carton. ✓ Battery is properly prepared and charged. (Minimum

1 hour at 6 amps).

✓ Seat is adjusted comfortably and tightened securely. ✓ All tires are properly inﬂ ated. (For shipping purposes,

the tires were overinﬂ ated at the factory).

✓ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be properly inﬂ ated for leveling).

✓ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

✓ Check wiring. See that all connections are still secure

and wires are properly clamped.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY EX TRA ATTENTION TO THE FOLLOWING IMPORTANT ITEMS:

✓ Engine oil is at proper level. ✓ Fuel tank is ﬁ lled with fresh, clean, regular unleaded

gas o line.

✓ Become familiar with all controls - their location and

function. Operate them before you start the engine.

✓ Be sure brake system is in safe operating condition.

8

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

OPERATION

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

REVERSE

ENGINE OFF

OVER TEMP

LIGHT

ATTACHMENT

CLUTCH ENGAGED

(Automatic Models only)

LIGHTS ON

FREE WHEEL

NEUTRAL

FUEL

ATTACHMENT

CLUTCH DISENGAGED

HIGH

ENGINE ON

OIL PRESSURE

LOW

ENGINE START

BATTERY

DANGER, KEEP HANDS

AND FEET AWAY

CHOKE

PARKING BRAKE

REVERSE

DANGER indicates a hazard which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury.

FAST

P

FORWARD

KEEP AREA CLEAR

SLOW

PARKING BRAKE

LOCKED

MOWER HEIGHT

15

SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

IGNITION

PARKING BRAKE

UNLOCKED

MOWER LIFT

15

Failure to follow instructions could result in serious injury or death. The safety alert symbol is used to identify safety information about hazards which can result in death, serious injury and/or property damage.

CAUTION when used without the alert symbol, indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which, if not avoided, could result in death, serious injury and/or property damage.

FIRE indicates a hazard which, if not avoided, could result in death, serious injury and/or property damage.

9

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference.

THROTTLE/ CHOKE CONTROL

CLUTCH/ BRAKE PEDAL

ATTACHMENT CLUTCH LEVER

IGNITION SWITCH

GEAR SHIFT LEVER

LIGHT SWITCH POSITION

LIFT LEVER PLUNGER

ATTACHMENT LIFT LEVER

HEIGHT ADJUSTMENT LEVER

PARKING BRAKE

Our tractors conform to the safety standards of the American National Standards Institute.

ATTACHMENT CLUTCH LEVER - Used to engage the mower blades, or other attachments mounted to your tractor.

LIGHT SWITCH POSITION - Turns the headlights on and off.

THROTTLE/CHOKE CONTROL - Used for starting and con trol ling engine speed.

CLUTCH/BRAKE PEDAL - Used for declutching and brak ing the tractor and starting the engine.

PARKING BRAKE - Locks clutch/brake pedal into the brake position.

FIG. 4

GEARSHIFT LEVER - Selects the speed and di rec tion

of the tractor. ATTACHMENT LIFT LEVER - Used to raise, lower, and

adjust the mower deck or other attachments mounted to your tractor.

LIFT LEVER PLUNGER - Used to release attachment lift lever when changing its position.

IGNITION SWITCH - Used for starting and stopping the engine.

10

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

OPERATION

The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any adjustments or repairs. We rec om mend a wide vision safety mask over spectacles or stan dard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 5)

Your tractor is equipped with an operator presence sens ing switch. When engine is running, any attempt by the op er a tor to leave the seat without ﬁ rst setting the parking brake will shut off the engine.

• Depress clutch/brake pedal into full “BRAKE” position and hold.

• Place parking brake lever in “ENGAGED” position and re lease pressure from clutch/brake pedal. Pedal should re main in “BRAKE” position. Make sure parking brake will hold tractor secure.

ATTACHMENT CLUTCH LEVER "ENGAGED" POSITION

THROT TLE/ CHOKE CONTROL LEVER

"BRAKE" POSITION

CLUTCH/BRAKE PEDAL "DRIVE" POSITION

PARKING BRAKE "DISENGAGED" POSITION

FIG. 5

STOPPING (See Fig. 5)

MOWER BLADES -

• To stop mower blades,move attachment clutch lever to “DIS EN GAGED” po si tion.

GROUND DRIVE -

• To stop ground drive, depress clutch/brake pedal into full “BRAKE” po si tion.

• Move gearshift lever to neutral (N) po si tion.

ENGINE -

• Move throttle control to slow po si tion.

NOTE: Failure to move throttle control to slow position and allowing engine to idle before stopping may cause engine to “backﬁ re”.

• Turn ignition key to “OFF” position and remove key. Always remove key when leaving tractor to prevent un au tho rized use.

• Never use choke to stop engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY POSITION OTHER THAN "OFF" WILL CAUSE THE BATTERY TO BE DIS CHARGED, (DEAD).

IGNITION KEY

"DIS EN GAGED" POSITION

PARKING BRAKE "EN GAGED" POSITION

GEAR SHIFT LEVER

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may cause “brown ing” of grass. To eliminate this possibility, always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor com plete ly, as described above, before leav ing the operator's position; to empty grass catch er, etc.

TO USE THROTTLE CONTROL (See Fig. 5)

Always operate engine at full throttle.

• Operating engine at less than full throttle reduces the battery charging rate.

• Full throttle of fers the best bagging and mower per for mance.

TO MOVE FORWARD AND BACKWARD (See Fig. 5)

The direction and speed of movement is controlled by the gearshift lever.

• Start tractor with clutch/brake pedal depressed and gearshift lever in neutral (N) position.

• Move gearshift lever to desired position.

• Slowly release clutch/brake pedal to start movement.

IMPORTANT: BRING TRACTOR TO A COMPLETE STOP BEFORE SHIFTING OR CHANGING GEARS. FAILURE TO DO SO WILL SHORTEN THE USEFUL LIFE OF YOUR TRANSAXLE.

TO ADJUST MOWER CUTTING HEIGHT (See Fig. 5)

The position of the attachment lift lever determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move lever to desired position.

The cutting height range is approximately 1-1/2 to 4". The heights are measured from the ground to the blade tip with the engine not running. These heights are approximate and may vary depending upon soil conditions, height of grass and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2 inches during the cool season and to over 3 inches during hot months. For healthier and better looking lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches in height should be mowed twice. Make the ﬁ rst cut relatively high; the second to desired height.

11

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

OPERATION

TO OPERATE MOWER (See Fig. 6)

Your tractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine. You must remain fully and centrally positioned in the seat to prevent the engine from hesitating or cutting off when operating your equipment on rough, rolling terrain or hills.

• Select desired height of cut.

• Start mower blades by engaging attachment clutch control.

• TO STOP MOWER BLADES - disengage attachment clutch con trol.

CAUTION: Do not operate the mower without either the en tire grass catcher, on mowers so equipped, or the deﬂ ector shield in place.

"ENGAGED" POSITION

ATTACHMENT LIFT LEVER HIGH PO SI TION

LOW POSITION

AT TA CH MENT CLUTCH LEVER "DISENGAGED" PO SI TION

DEFLECTOR SHIELD

FIG. 6

TO OPERATE ON HILLS

WARNING: Do not drive up or down hills with slopes great er than 15° and do not drive across any slope.

TO TRANSPORT

• Raise attachment lift to highest position with at tach ment lift control.

• When pushing or towing your tractor, be sure gearshift lever is in neutral (N) position.

• Do not push or tow tractor at more than ﬁ ve (5) MPH.

NOTE: To protect hood from damage when transporting your tractor on a truck or a trailer, be sure hood is closed and secured to tractor. Use an appropriate means of tying hood to tractor (rope, cord, etc.).

TOWING CARTS AND OTHER AT TAC H MENTS

Tow only the attachments that are recommended by and comply with speciﬁ cations of the manufacturer of your tractor. Use common sense when towing. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

• The engine in your tractor has been shipped, from the factory, already ﬁ lled with sum mer weight oil.

• Check engine oil with tractor on level ground.

• Remove oil ﬁ ll cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a few seconds, remove and read oil level. If necessary, add oil until “FULL” mark on dipstick is reached. Do not overﬁ ll.

• For cold weather operation you should change oil for easier starting (See “OIL VISCOSITY CHART” in the Maintenance sec tion of this manual).

• To change engine oil, see the Maintenance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of ﬁ ller neck. Do not overﬁ ll. Use fresh, clean, regular un lead ed gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline. Purchase fuel in quan ti ties that can be used within 30 days to assure fuel freshness.

• Choose the slowest speed before starting up or down hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to slower position.

• If stopping is absolutely necessary, push clutch/brake pedal quickly to brake position and engage parking brake.

• Move gearshift lever to 1st gear. Be sure you have allowed room for tractor to roll slightly as you restart movement.

• To restart movement, slowly release parking brake and clutch/brake pedal.

• Make all turns slowly.

www.mymowerparts.com

CAUTION: Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open ﬂ ame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE GAS O LINE TO HELP INSURE GOOD COLD WEATHER START ING.

12

For Parts Call K&T 606-678-9623 or 606-561-4983

OPERATION

CAUTION: Alcohol blended fuels (called gas o hol or using ethanol or methanol) can attract moisture which leads to sep a ra tion and for ma tion of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before stor age of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next sea son. See Storage In struc tions for additional information. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

TO START ENGINE (See Fig. 5)

When starting the engine for the ﬁ rst time or if the engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine.

• Sit on seat in operating position, depress clutch/brake pedal and set parking brake.

• Place gear shift lever in neutral (N) position.

• Move attachment clutch to “DISENGAGED” position.

• Move throttle control to choke (

NOTE: Before starting, read the warm and cold starting pro ce dures below.

• Insert key into ignition and turn key clockwise to “START” position and release key as soon as engine starts. Do not run starter continuously for more than ﬁ fteen sec onds per minute. If the engine does not start after several attempts, move throttle control to fast position, wait a few minutes and try again. If engine still does not start, move the throttle control back to the choke (

) position and retry.

WARM WEATHER STARTING (50° F and above)

• When engine starts, move the throttle control to the fast position.

• The attachments and ground drive can now be used. If the engine does not accept the load, restart the engine and allow it to warm up for one minute using the choke as described above.

COLD WEATHER STARTING ( 50° F and below)

• When engine star ts, allow engine to run with the throttle control in the choke ( roughly, then move throttle control to fast position. This may require an engine warm-up period from several seconds to several minutes, depending on the tem per a ture.

• The attachments can also be used during the engine warm-up period.

NOTE: If at a high altitude (above 3000 feet) or in cold tem per a tures (below 32 F) the carburetor fuel mixture may need to be adjusted for best engine performance. See “TO ADJUST CAR BU RE TOR” in the Service and Adjustments section of this manual.

) position until the engine runs

) position.

MOWING TIPS

• Mower should be properly leveled for best mowing per for mance. See "TO LEVEL MOWER HOUSING" in the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim ming.

• Drive so that clippings are discharged onto the area that has been cut. Have the cut area to the right of the machine. This will result in a more even distribution of clippings and more uniform cutting.

• When mowing large areas, start by turning to the right so that clippings will discharge away from shrubs, fences, drive ways, etc. After one or two rounds, mow in the opposite direction making left hand turns until ﬁ nished (See Fig. 7).

FIG. 7

• If grass is extremely tall, it should be mowed twice to reduce load and possible ﬁ re hazard from dried clip pings. Make ﬁ rst cut relatively high; the second to the desired height.

• Do not mow grass when it is wet. Wet grass will plug mower and leave undesirable clumps. Allow grass to dry before mowing.

• Always operate engine at full throttle when mow- ing to assure better mowing performance and proper dis charge of ma te ri al. Regulate ground speed by se lect ing a low enough gear to give the mower cutting per for mance as well as the quality of cut desired.

• When operating attachments, select a ground speed that will suit the terrain and give best performance of the attachment being used.

13

www.mymowerparts.com

g

For Parts Call K&T 606-678-9623 or 606-561-4983

MAINTENANCE

MAINTENANCE SCHEDULE

FILL IN DATES AS YOU COMPLETE REGULAR SERVICE

Check Brake Operation

Check Tire Pressure

Check Operator Presence and Interlock Systems

T

Check for Loose Fasteners

R A

Sharpen/Replace Mower Blades

C

Lubrication Chart

T

Check Battery Level

0

Clean Battery and Terminals

R

Check Transaxle Cooling

Check V-Belts

Check Engine Oil Level

Change Engine Oil (with oil filter)

Change Engine Oil (without oil filter)

E

Clean Air Filter

N

G

Clean Air Screen

I

Inspect Muffler/Spark Arrester

N

Replace Oil Filter (If equipped)

E

Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 - Change more often when operating under a heavy load or in high ambient temperatures. 2 - Service more often when operating in dirty or dusty conditions.

E

B

E

S

U

R

H

U

C

O

A

E

8 H

E

Y

R

O

E

F

V

E

Y

R

E

V

E

3

4

1,2

2

3 - Replace blades more often when mowing in sandy soil. 4 - Not required if equipped with maintenance-free battery. 5 - Tighten front axle pivot bolt to 35 ft.-lbs. maximum. Do not overti

S

R

U

O

H

5

2

EVERY SEASON

EVERY 100 HOURS

EVERY 50 HOURS

5

1,

2

hten.

E

R

O

F

E

B

E

G

A

R

O

T

S

SERVICE DATES

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must main tain tractor as instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your tractor.

At least once a season, check to see if you should make any of the adjustments described in the Service and Adjustments section of this manual.

• At least once a year you should replace the spark plug, clean or replace air ﬁ lter, and check blades and belts for wear. A new spark plug and clean air ﬁ lter assure proper air-fuel mixture and help your engine run better and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and

interlock systems for proper operation.

• Check for loose fasteners.

LUBRICATION CHART

dSPINDLE ZERK

dFRONT WHEEL

BEARING ZERK

cSAE 30 OR 10W30 MOTOR OIL dGENERAL PURPOSE GREASE eREFER TO MAINTENANCE “ENGINE” SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS LU BRI CANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORT EN THE LIFE OF THE SELF-LU BRI CAT ING BEARINGS. IF YOU FEEL THEY MUST BE LU BRI CAT ED, USE ONLY A DRY, POW DERED GRAPHITE TYPE LU BRI CANT SPARINGLY.

dSPINDLE ZERK

dFRONT WHEEL

BEARING ZERK

eENGINE

cGEARSHIFT

PIVOTS

14

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

MAINTENANCE

TRACTOR

Always observe safety rules when performing any main te nance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted. (See “TO ADJUST BRAKE” in the Service and Ad just ments section of this manual).

TIRES

• Maintain proper air pressure in all tires (See “PROD UCT SPECIFICATIONS” section of this man ual).

• Keep tires free of gasoline, oil, or insect control chemi cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent ﬂ at tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock sys tems are work ing properly. If your tractor does not function as described, repair the problem immediately.

• The engine should not start unless the clutch/brake pedal is fully depressed and attachement clutch control is in the disengaged position.

• When the engine is running, any attempt by the op er a tor to leave the seat without ﬁ rst setting the parking brake should shut off the engine.

• When the engine is running and the at tach ment clutch is engaged, any attempt by the operator to leave the seat should shut off the engine.

• The attachment clutch should never operate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be kept sharp. Re place bent or damaged blades.

BLADE REMOVAL (See Fig. 8)

• Raise mower to highest position to allow access to blades.

• Remove blade bolt, lock washer and ﬂ at washer se cur ing blade.

• Install new or resharpened blade with trailing edge up towards deck as shown.

IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL ASSEMBLY.

• Reassemble blade bolt, lock washer and ﬂ at washer in exact order as shown.

• Tight en blade bolt se cure ly (27-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLT IS HEAT TREATED. IF BOLT NEEDS REPLACING, REPLACE ONLY WITH APPROVE BOLT SHOWN IN THE REPAIR PARTS.

TRAILING EDGE UP

FLAT WASHER

LOCK WASHER

BLADE

CENTER HOLE

BLADE BOLT

FIG. 8

MANDREL ASSEMBLY

STAR

TO SHARPEN BLADE (See Fig. 9)

NOTE: We do not recommend sharpening blade - but if

you do, be sure the blade is balanced.

Care should be taken to keep the blade balanced. An un bal anced blade will cause excessive vibration and even tual dam age to mower and engine.

• The blade can be sharpened with a ﬁ le or on a grinding wheel. Do not attempt to sharpen while on the mower.

• To check blade balance, you will need a 5/8" diameter steel bolt, pin, or a cone balancer. (When using a cone balancer, follow the instructions supplied with bal anc er.)

NOTE: Do not use a nail for balancing blade. The lobes of the center hole may appear to be centered, but are not.

• Slide blade on to an unthreaded portion of the steel bolt or pin and hold the bolt or pin parallel with the ground. If blade is balanced, it should remain in a horizontal position. If either end of the blade moves downward, sharpen the heavy end until the blade is balanced.

CENTER HOLE

5/8" BOLT OR PIN

FIG. 9

BATTERY

Your tractor has a battery charging system which is suf ﬁ cient for normal use. However, periodic charging of the battery with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on your tractor is maintenance free. Do not attempt to open or remove caps or covers. Adding or checking level of electrolyte is not nec es sary.

15

BLADE

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

MAINTENANCE

TO CLEAN BATTERY AND TERMINALS Corrosion and dirt on the battery and terminals can cause

the battery to “leak” power.

• Disconnect BLACK battery cable ﬁ rst then RED bat tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See “REPLACING BATTERY” in the Service and Adjustment sec tion of this manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hours and replace if necessary. The belts are not adjustable. Re place belts if they begin to slip from wear.

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt and chaff which can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service classiﬁ cation SF-SJ. Select the oil’s SAE viscosity grade according to your expected operating temperature.

SAE VISCOSITY GRADES

SAE 30

5W-30

-20 0 30 40

F C

-30

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

-20 0

-10

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, these multi-viscosity oils will result in increased oil consumption when used above 32°F. Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

Change the oil after every 50 hours of operation or at least once a year if the tractor is not used for 50 hours in one year.

Check the crankcase oil level before starting the engine and after each eight (8) hours of operation. Tighten oil ﬁ ll cap/dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 10 and 11)

Determine temperature range expected before oil change. All oil must meet API service classiﬁ cation SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil ﬁ ll cap/dipstick. Be careful not to allow dirt to enter the engine when changing oil.

• Remove yellow cap from end of drain valve and install the drain tube onto the ﬁ tting.

32

FIG. 10

10

60

80

20 30 40

100

OIL DRAIN VALVE

CLOSED AND LOCKED POSITION

DRAIN

YEL LOW CAP

TUBE

FIG. 11

• Unlock drain valve by pushing inward and turning coun ter clock wise.

• To open, pull out on the drain valve.

• After oil has drained completely, close and lock the drain valve by pushing inward and turning clockwise until the pin is in the locked position as shown.

• Remove the drain tube and replace the cap onto to the bottom ﬁ tting of the drain valve.

• Reﬁ ll engine with oil through oil ﬁ ll dipstick tube. Pour slowly. Do not overﬁ ll. For approximate capacity see “PRODUCT SPECIFICATIONS” section of this man u al.

• Use gauge on oil ﬁ ll cap/dipstick for checking level. Be sure dipstick cap is tightened securely for accurate reading. Keep oil at “FULL” line on dipstick.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent engine dam age from overheating. Clean with a wire brush or com pressed air to re move dirt and stubborn dried gum ﬁ bers.

AIR FILTER

Your engine will not run properly using a dirty air ﬁ lter. Service air cleaner more often under dusty conditions. See Engine Manual.

ENGINE OIL FILTER

Replace the engine oil ﬁ lter every season or every other oil change if the tractor is used more than 100 hours in one year.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the grass screen, cooling ﬁ ns, and other external surfaces of the engine are kept clean at all times.

Every 100 hours of operation (more often under extremely dusty, dirty conditions), remove the blower housing and other cooling shrouds. Clean the cooling ﬁ ns and external surfaces as necessary. Make sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a blocked grass screen, dirty or plugged cooling ﬁ ns, and/or cooling shrouds re moved will cause engine damage due to overheating.

16

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

MAINTENANCE

MUFFLER

Inspect and replace corroded mufﬂ er and spark arrester (if equipped) as it could create a ﬁ re hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing season or after every 100 hours of use, whichever comes ﬁ rst. Spark plug type and gap setting is shown in "PROD UCT SPECIFICATIONS" section of this manual.

IN-LINE FUEL FILTER (See Fig. 12)

The fuel ﬁ lter should be replaced once each season. If fuel ﬁ lter becomes clogged, ob struct ing fuel ﬂ ow to car bu re tor, re place ment is re quired.

• With engine cool, remove ﬁ lter and plug fuel line sec tions.

• Place new fuel ﬁ lter in position in fuel line with arrow pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are properly positioned.

• Immediately wipe up any spilled gasoline.

CLAMP

FIG. 12

CLAMP

FUEL FILTER

CLEANING

• Clean engine, battery, seat, ﬁ nish, etc. of all foreign matter.

• Keep ﬁ nished surfaces and wheels free of all gasoline, oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose or pressure washer to clean your tractor unless the engine and transmission are covered to keep water out. Water in engine or transmission will shorten the useful life of your tractor. Use compressed air or a leaf blower to remove grass, leaves and trash from tractor and mower.

17

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE AND ADJUSTMENTS

WARNING: TO AVOID SE RI OUS IN JU RY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

• Depress clutch/brake pedal fully and set parking brake.

• Place gearshift lever in neutral (N) position.

• Place attachment clutch in “DISENGAGED” position.

• Turn ignition key to “STOP” and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

TRACTOR

TO REMOVE MOWER (See Fig. 13)

Mower will be easier to remove from the right side of tractor.

• Place attachment clutch in “DIS EN GAGED” position.

• Move attachment lift lever forward to low er mower to its lowest po si tion.

• Roll belt off engine pulley.

• Remove small retainer spring, and remove clutch spring off pulley bolt.

• Remove large retainer spring, slide col lar off and push housing guide out of brack et.

• Disconnect anti-swaybar from chas sis bracket by remov ing re tain er spring.

• Disconnect suspension arms from rear deck brackets by removing retainer springs.

• Disconnect front links from deck by re mov ing retainer springs.

• Raise lift lever to raise suspension arms. Slide mower out from under tractor.

SMALL RETAINER SPRING

CLUTCH SPRING

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE MOWER

DECK IS TO BE MOUNTED ON THE TRAC TOR, REMOVE THE FRONT LINKS AND HOOK THE CLUTCH SPRING INTO SQUARE HOLE IN FRAME.

TO INSTALL MOWER (See Fig. 13)

• Raise attachment lift lever to its high est position.

• Slide mower under tractor with deﬂ ector shield to right side of tractor.

• Lower lift lever to its lowest po si tion.

• Connect front links to mower deck and secure with retainer springs..

• Connect suspension arms to rear deck brackets and secure with retainer springs.

• Connect anti-swaybar to chassis bracket and secure with retainer spring.

• Push clutch cable housing guide into bracket, slide collar onto guide and secure with large retainer spring.

• Place ﬂ at washer and clutch spring on idler pulley bolt and secure with small retainer spring.

• Install belt onto engine pulley.

SMALL RETAINER SPRING

CLUTCH SPRING

RETAINER SPRING

ANTI-SWAY BAR

COLLAR

HOUSING GUIDE

FLAT WASHER

LARGE RETAINER SPRING

BRACKET

FIG. 13

18

SUSPENSION ARMS

SQUARE HOLE

ENGINE PULLEY

FRONT LINK

RETAINER SPRINGS (BOTH SIDES)

DEFLECTOR SHIELD

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE AND ADJUSTMENTS

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or driveway. Make sure tires are properly inﬂ ated (See “PROD UCT SPECIFICATIONS” section of this manual). If tires are over or underinﬂ ated, you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT (See Figs. 14 and 15)

• Raise mower to its highest position.

• At the midpoint of both sides of mower, measure height from bot tom edge of mower to ground. Distance “A” on both sides of mower should be the same or within 1/4" of each other.

• If adjustment is necessary, make adjustment on one side of mower only.

• To raise one side of mower, tighten lift link ad just ment nut on that side.

• To lower one side of mower, loosen lift link ad just ment nut on that side.

NOTE: Each full turn of adjustment nut will change mow er height about 1/8".

• Recheck measurements after adjusting.

BOTTOM EDGE OF MOWER TO GROUND

BOTTOM EDGE

OF MOWER TO

GROUND

• When distance “D” is 1/8" to 1/2" lower at front than rear, tighten nuts “F” against trunnion on both front links.

• To raise front of mower, loosen nut “F” from trunnion on both front links. Tighten nut “E” on both front links an equal number of turns. The two front links must remain equal in length.

• When distance “D” is 1/8" to 1/2" lower at front than rear, tighten nut “F” against trunnion on both front links.

• Recheck side-to-side adjustment.

MAN DREL

“D”

FIG. 16

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

A

GROUND LINE

A

FIG. 14

SUS PEN SION ARM

LIFT LINK ADJUSTMENT NUT

FIG. 15

FRONT-TO-BACK ADJUSTMENT (See Figs. 16 and 17)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS NECESSARY, BE SURE TO AD JUST BOTH FRONT LINKS EQUAL LY S O MOWER WILL STAY LEVEL SIDE-TO-SIDE.

To obtain the best cutting results, the mower housing should be adjusted so that the front is approximately 1/8" to 1/2" lower than the rear when the mower is in its highest position.

Check adjustment on right side of tractor. Measure dis tance “D” directly in front and behind the mandrel at bottom edge of mower housing as shown.

• Before making any necessary adjustments, check that both front links are equal in length.

• If links are not equal in length, adjust one link to same length as other link.

• To lower front of mower loosen nut “E” on both front links an equal number of turns.

NUT “F”

TRUNNION

FRONT LINKS

NUT “E”

FIG. 17

TO REPLACE MOWER BLADE DRIVE BELT (See Fig. 18)

The mower blade drive belt may be replaced without tools. Park the tractor on level surface. Engage parking brake.

BELT REMOVAL -

• Remove mower from tractor (See “TO REMOVE MOW ER” in this section of this manual).

• Work belt off both mandrel pulleys and idler pulleys.

• Pull belt away from mower.

BELT INSTALLATION -

• Install new belt in reverse order of removal.

• Make sure belt is in all pulley grooves and in side all belt guides.

• Install mower in reverse order of removal instructions.

19

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE AND ADJUSTMENTS

IDLER PULLEYS

MANDREL PULLEYS

FIG. 18

TO CHECK AND ADJUST BRAKE (See Fig.

19)

Your tractor is equipped with an ad just able brake system which is mounted on the right side of the transaxle.

If tractor requires more than ﬁ ve (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed.

TO CHECK BRAKE

• Park tractor on a level, dry concrete or paved surface, depress clutch/brake pedal all the way down and engage parking brake.

• Place gear shift lever in neutral (N) position.

The rear wheels must lock and skid when you try to manually push the tractor forward. If the rear wheels rotate, the brake needs to be adjusted or the pads need to be replaced.

TO ADJUST BRAKE

• Depress clutch/brake pedal all the way down and en gage parking brake.

• Measure distance between brake operating arm and nut “A” on brake rod.

• If distance is other than 1-1/2", loos en jam nut and turn nut “A” until dis tance becomes 1-1/2". Re tight en jam nut against nut “A”.

• Road test tractor for proper stopping distance as stated above. Readjust if nec es sary. If stopping distance is still greater than ﬁ ve (5) feet in high est gear, further main te nance is nec es sary. Replace brake pads or contact a qualiﬁ ed service center.

WITH PARKING BRAKE “ENGAGED”

1-1/2"

NUT “A”

JAM NUT

OPERATING ARM

FIG. 19

TO REPLACE MOTION DRIVE BELT (See Fig. 20)

Park the tractor on level surface. En gage parking brake. For as sis tance, there is a belt installation guide decal on bottom side of left footrest.

BELT REMOVAL -

• Remove mower (See “TO RE MOVE MOWER” in this section of manual).

NOTE: Observe entire motion drive belt and position of all belt guides and keepers.

• Remove belt from stationary idler and clutching idler.

• Remove belt downward from around en gine pulley.

• Pull belt slack toward rear of trac tor. Remove belt upwards from transaxle pulley by de ﬂ ect ing belt keep ers.

• Remove belt from center span keeper and pull belt away from tractor.

BELT INSTALLATION -

• Carefully work new belt down be tween transaxle belt keepers and onto the input pulley.

• Slide belt into the center span keeper.

• Pull belt toward front of tractor and roll around the top groove of engine pulley.

• Install belt through stationary idler and clutch ing idler.

• Make sure belt is in all pulley grooves and in side all belt guides and keep ers.

• Install mower (See “TO IN STALL MOWER” in this sec tion of manual).

20

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE AND ADJUSTMENTS

ENGINE PULLEY

CLUTCHING IDLER

STA TION ARY IDLER

CENTER SPAN KEEPER

TRANSAXLE PULLEY

FIG. 20

TRANSAXLE GEAR SHIFT LEVER NEU TRALADJUSTMENT (See Fig. 21)

The transaxle should be in neutral when the gear shift lever is in neutral (N) (lock gate) position. The adjustment is preset at the factory; however, if adjustment is needed, proceed as follows:

• Make sure transaxle is in neutral (N). NOTE: When the tractor rear wheels move freely, the

transaxle is in neutral.

• Loosen adjustment bolt in front of the right rear wheel.

• Position the gear shift lever in the neutral (N) position.

• Tighten adjustment bolt securely.

NOTE: If additional clearance is needed to get to ad just ment bolt, move mower deck height to the lowest position.

NEUTRAL

GEARSHIFT LEVER

LOCK GATE

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right) when wheels are positioned straight forward, remove steer ing wheel and reassemble per instructions in the Assembly section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on your tractor. If damage has occurred to affect the front wheel toe-in or camber, contact your nearest authorized service center/department.

TO REMOVE WHEEL FOR REPAIRS (See Fig. 22)

• Block up axle securely.

• Remove axle cover, retaining ring and washers to allow wheel removal (rear wheel contains a square key - Do not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub and axle. Insert square key.

• Replace washers and snap retaining ring securely in axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent ﬂ at tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

WAS H ERS

RE TAIN ING RING

AXLE COVER

FIG. 21

SQUARE KEY (REAR WHEEL ONLY)

FIG. 22

ADJUSTMENT BOLT

21

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE AND ADJUSTMENTS

TO START ENGINE WITH A WEAK BATTERY (See Fig. 23)

WAR NING: Lead-acid batteries gen er ate ex plo sive gases. Keep sparks, ﬂ ame and smoking ma te ri als away from bat ter ies. Always wear eye pro tec tion when around batteries.

If your battery is too weak to start the engine, it should be recharged. (See "BATTERY" in the Maintenance sec tion of this man u al).

If “jumper ca bles” are used for emer gen cy starting, follow this pro ce dure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12 VOLT SYSTEM. THE OTHER VEHICLE MUST ALSO BE A 12 VOLT SYSTEM. DO NOT USE YOUR TRACTOR BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect one end of the RED cable to the POSITIVE (+) terminal of each battery(A-B), taking care not to short against tractor chassis.

• Connect one end of the BLACK ca ble to the NEGA TIVE (-) terminal (C) of fully charged battery.

• Connect the other end of the BLACK cable (D) to good chassis ground, away from fuel tank and bat tery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable ﬁ rst from chassis and then from the fully charged battery.

• RED cable last from both batteries.

• First connect RED battery cable to positive (+) terminal with hex bolt and keps nut as shown. Tighten securely. Slide terminal cover over terminal.

• Connect BLACK grounding cable to negative (-) ter mi nal with remaining hex bolt and keps nut. Tighten securely.

SEAT PAN

FIG. 24

TER MI NAL COVER

POSITIVE (RED) CABLE

KEPS NUT

HEX BOLT

NEGATIVE (BLACK) CABLE

FIG. 25

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the grill.

• Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill.

• Close hood.

WEAK OR DEAD BATTERY

FULLY CHARGED BATTERY

FIG. 23

REPLACING BATTERY (See Figs. 24 and 25)

WARNING: Do not short battery ter mi nals by allowing a wrench or any other object to contact both terminals at the same time. Before connecting battery, remove metal bracelets, wristwatch bands, rings, etc. Positive terminal must be connected ﬁ rst to prevent sparking from ac ci den tal grounding.

• Lift seat pan to raised position.

• Disconnect BLACK battery cable ﬁ rst then RED battery cable and carefully remove battery from tractor.

• Install new battery with terminals in same position as old battery.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY (See Fig. 26)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at sides, tilt toward engine and lift off of tractor.

• To replace, reverse above procedure.

HEADLIGHT WIRE CONNECTOR

22

HOOD

FIG. 26

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE AND ADJUSTMENTS

ENGINE

TO AD JUST THROTTLE CON TROL CABLE

The throttle control has been preset at the factory and ad just ment should not be necessary. If adjustment is nec es sary, see engine manual.

TO AD JUST CHOKE CON TROL

The choke control has been preset at the factory and ad just ment should not be necessary. If adjustment is necessary, see engne manual.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not operate properly due to suspected carburetor problems, take your tractor to an authorized service center for repair and/or adjustment.

23

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

STORAGE

Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more.

WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open ﬂ ame or spark. Allow the engine to cool before storing in any en clo sure.

TRACTOR

Remove mower from tractor for winter storage. When mower is to be stored for a period of time, clean it thor oughly, remove all dirt, grease, leaves, etc. Store in a clean, dry area.

• Clean entire tractor (See “CLEANING” in the Main te nance section of this manual).

• Inspect and replace belts, if necessary (See belt re place ment instructions in the Service and Adjustments section of this manual).

• Lubricate as shown in the Maintenance section of this man ual.

• Be sure that all nuts, bolts and screws are securely fastened. Inspect moving parts for damage, breakage and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require recharging.

• To help prevent corrosion and power leakage during long periods of storage, battery cables should be dis con nect ed and battery cleaned thoroughly (see “TO CLEAN BATTERY AND TERMINALS” in the Maintenance sec tion of this manual).

• After cleaning, leave cables disconnected and place cables where they cannot come in contact with battery terminals.

• If battery is removed from tractor for storage, do not store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS

FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING ETHANOL OR METHANOL) CAN ATTRACT MOIS TURE WHICH LEADS TO SEPARATION AND FOR MA TION OF ACIDS DURING STOR AGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM OF AN ENGINE WHILE IN STORAGE.

• Empty the fuel tank by starting the engine and let it run until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during stor age. Add stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stabilizer container. Run engine at least 10 minutes after adding stabilizer to allow the stabilizer to reach the carburetor. Do not empty the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil. (See “ENGINE” in the Maintenance section of this man ual).

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into cylinder(s).

• Turn ignition key to “START” position for a few seconds to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust. Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that does not retain moisture. Do not use plastic. Plastic cannot breathe which allows condensation to form and will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE EN GINE AND EXHAUST AREAS ARE STILL WARM.

24

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Will not start 1. Out of fuel. 1. Fill fuel tank.

2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in Operation section.

3. Engine ﬂ ooded. 3. Wait several minutes before attempting to start.

4. Bad spark plug. 4. Replace spark plug.

5. Dirty air ﬁ lter. 5. Clean/replace air ﬁ lter.

6. Dirty fuel ﬁ lter. 6. Replace fuel ﬁ lter.

7. Water in fuel. 7. Empty fuel tank and carburetor, reﬁ ll tank with fresh gasoline and replace fuel ﬁ lter.

8. Loose or damaged wiring. 8. Check all wiring.

9. Carburetor out of adjustment. 9. See “To Adjust Carburetor” in Service Adjustments section.

10. Engine valves out of adjustment. 10. Contact an authorized service center/department.

Hard to start 1. Dirty air ﬁ lter. 1. Clean/replace air ﬁ lter.

2. Bad spark plug. 2. Replace spark plug.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Dirty fuel ﬁ lter. 4. Replace fuel ﬁ lter.

5. Stale or dirty fuel. 5. Empty fuel tank and reﬁ ll tank with fresh, clean gasoline.

6. Loose or damaged wiring. 6. Check all wiring.

7. Carburetor out of adjustment. 7. See “To Adjust Carburetor” in Service Adjustments section.

8. Engine valves out of adjustment. 8. Contact an authorized service center/department.

Engine will not turn over 1. Clutch/brake pedal not depressed. 1. Depress clutch/brake pedal.

2. Attachment clutch is engaged. 2. Disengage attachment clutch.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Blown fuse. 4. Replace fuse.

5. Corroded battery terminals. 5. Clean battery terminals.

6. Loose or damaged wiring. 6. Check all wiring.

7. Faulty ignition switch. 7. Check/replace ignition switch.

8. Faulty solenoid or starter. 8. Check/replace solenoid or starter.

9. Faulty operator presence switch(es). 9. Contact an authorized service center/department.

Engine clicks but will not 1. Weak or dead battery. 1. Recharge or replace battery. start 2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all wiring.

4. Faulty solenoid or starter. 4. Check/replace solenoid or starter.

Loss of power 1. Cutting too much grass/too fast. 1. Raise cutting height/reduce speed.

2. Throttle in “CHOKE” position. 2. Adjust throttle control.

3. Build-up of grass, leaves and trash under mower. 3. Clean underside of mower housing.

4. Dirty air ﬁ lter. 4. Clean/replace air ﬁ lter.

5. Low oil level/dirty oil. 5. Check oil level/change oil.

6. Faulty spark plug. 6. Clean and regap or change spark plug.

7. Dirty fuel ﬁ lter. 7. Replace fuel ﬁ lter.

8. Stale or dirty fuel. 8. Empty fuel tank and reﬁ ll tank with fresh, clean gasoline.

9. Water in fuel. 9. Empty fuel tank and carburetor, reﬁ ll tank with fresh gasoline and replace fuel ﬁ lter.

10. Spark plug wire loose. 10. Connect and tighten spark plug wire.

11. Dirty engine air screen/ﬁ ns. 11. Clean engine air screen/ﬁ ns.

12. Dirty/clogged mufﬂ er. 12. Clean/replace mufﬂ er.

13. Loose or damaged wiring. 13. Check all wiring.

14. Carburetor out of adjustment. 14. See “To Adjust Carburetor” in Service Adjustments section.

15. Engine valves out of adjustment. 15. Contact an authorized service center/department.

Excessive vibration 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Bent blade mandrel. 2. Replace blade mandrel.

3. Loose/damaged part(s). 3. Tighten loose part(s). Replace damaged parts.

25

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Engine continues to run 1. Faulty operator-safety presence control system. 1. Check wiring, switches and connections. If not when operator leaves seat corrected, contact an authorized service center/ with attachment clutch department. engaged

Poor cut - uneven 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Mower deck not level. 2. Level mower deck.

3. Buildup of grass, leaves, and trash under mower. 3. Clean underside of mower housing.

4. Bent blade mandrel. 4. Replace blade mandrel.

5. Clogged mower deck vent holes from buildup of 5. Clean around mandrels to open vent holes. grass, leaves, and trash around mandrels.

Mower blades will not 1. Obstruction in clutch mechanism. 1. Remove obstruction. rotate 2. Worn/damaged mower drive belt. 2. Replace mower drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

Poor grass discharge 1. Engine speed too slow. 1. Place throttle control in “FAST” position.

2. Travel speed too fast. 2. Shift to slower speed.

3. Wet grass. 3. Allow grass to dry before mowing.

4. Mower deck not level. 4. Level mower deck.

5. Low/uneven tire air pressure. 5. Check tires for proper air pressure.

6. Worn, bent or loose blade. 6. Replace/sharpen blade. Tighten blade bolt.

7. Buildup of grass, leaves and trash under mower. 7. Clean underside of mower housing.

8. Mower drive belt worn. 8. Replace mower drive belt.

9. Blades improperly installed. 9. Reinstall blades sharp edge down.

10. Improper blades used. 10. Replace with blades listed in this manual.

11. Clogged mower deck vent holes from buildup of 11. Clean around mandrels to open vent holes. grass, leaves, and trash around mandrels.

Headlight(s) not working 1. Switch is “OFF”. 1. Turn switch “ON”. (if so equipped) 2. Bulb(s) or lamp(s) burned out. 2. Replace bulb(s) or lamp(s).

3. Faulty light switch. 3. Check/replace light switch.

4. Loose or damaged wiring. 4. Check wiring and connections.

5. Blown fuse. 5. Replace fuse.

Battery will not charge 1. Bad battery cell(s). 1. Replace battery.

2. Poor cable connections. 2. Check/clean all connections.

3. Faulty regulator (if so equipped). 3. Replace regulator.

4. Faulty alternator. 4. Replace alternator.

Engine “backﬁ res” when 1. Engine throttle control not set at “SLOW” 1. Move throttle control to “SLOW” position and allow turning engine “OFF” position for 30 seconds before stopping engine. to idle for 30 seconds before stopping engine.

26

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

SCHEMATIC

A

AMMETER

(OPTIONAL)

RED

B

G

L

IGNITION

SWITCH

BLACK

RED

BLACK

BATTERY

RED

FUSE

WHITE

RED

M

STARTER

BLACK

SOLENOID

S

M

A1

CLUTCH / BRAKE

(PEDAL UP)

WHITE

A2

SEAT SWITCH

(NOT OCCUPIED)

WHITE

BLACK

HOUR

ATT'MENT CLUTCH

BLACK

(CLUTCH OFF)

BLACK

GROUNDING

CONNECTOR

METER

ORANGE

BLUE

(OPTIONAL)

FUEL LINE

BLACK

IGNITION

UNIT

SPARK

PLUG

GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

IGNITION SWITCH

CIRCUITPOSITION

OFF

M+G+A1

B+A1RUN/LIGHT

B+A1RUN

B + S + A1START

“MAKE”

NONE

A2+L

NONE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO PROPERLY SECURE YOUR WIRING.

RED

CHARGING SYSTEM OUTPUT 16 AMP DC @ 3600 RPM

REGULATOR

BROWN

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

ALTERNATOR

BLACK

HEADLIGHTS

27

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

ELECTRICAL

24

22

21

42

41

43

27

33

30

8

27

25

27

48

26

40

16

52

29

28

2

1

90

28

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

ELECTRICAL

KEY PART NO. NO. DESCRIPTION

1 144927 Battery 2 74760412 Bolt Hex Hd 1/4-20unc X 3/4 8 176689 Box Battery 16 176138 Switch Interlock Push -In 21 183759 Harness Asm Light W/4152J 22 4152J Bulb Light #1156 24 4799J Cable Battery 6 Ga 11”red 25 146147 Cable Battery 6 Ga w/16 wire,red 26 175158 Fuse 20 AMP 27 73510400 Nut Keps Hex 1/4-20 unc 28 4207J Cable Ground 6 Ga 12” black 29 121305X Switch Plunger Nc Gray 30 175566 Switch Ign 33 140401 Key Ign 40 179720 Harness Ign 41 71110408 Bolt Blk Fin Hex 1/4-20 X 1/2 42 131563 Cover Terminal Red 43 178861 Solenoid 48 140844 Adapter Ammeter 52 141940 Protection Wire Loop 90 180449 Cover Terminal

NOTE: All component dimensions give in U.S. inches

1 inch = 25.4 mm.

29

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

CHASSIS AND ENCLOSURES

30

25

26

31

209

29

212

17

28

24

18

24

25

26

5

39

166

58

208

11

209

2

206

chassis_elite value_stlt_5

209

9

207

26

33

142

209

10

14

142

38

209

208

64

209

35

209

35

14

219

20

219

1

13

37

145

37

208

34

26

30

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

CHASSIS AND ENCLOSURES

KEY PART NO. NO. DESCRIPTION

1 174619 Chassis 2 176554 Drawbar 5 155272 Bumper Hood/Dash 9 168336X010 Dash P/L 10 72140608 Bolt Carriage 3/8-16 x 1 11 174996 Panel Dash Lh 12 145660 Clip Tinnerman 13 179174X010 Panel Dash Rh 14 17490608 Screw Thdrol 3/8-16 x 1-1/4 17 183394X550 Hood 18 126938X Bumper Hood 20 180679 Tray 24 74780616 Bolt Fin Hex 3/8-16 x 1 Gr 5 25 19131312 Washer 13/32 X 13/16 X 12 Ga 26 73800600 Nut Lock Hex W/Ins 3/8-16 Unc 28 183552 Grille Asm. (Incluses Key Nos. 29 and 212) 29 183549X599 Lens 30 169468X550 Fender Footrest LT Pnt 31 136619 Bracket Support Fender 33 179716X550 Footrest Pnt Lh 34 179717X550 Footrest Pnt Rh 35 72110606 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 37 17490508 Screw Thdrol 6/16-18 x 1/2 TYT 38 175710 Bracket Asm. Pivot Mower Rear 39 174714 Bracket Pivot 58 178000 Duct Air 64 154798 Dash Lower STLT 142 175702 Plate Reinforcement STLT 145 156524 Rod Pivot Chassis/Hood 166 171875 Screw 206 170165 Bolt Shoulder 5/16-18 207 17670508 Screw Thdrol 5/16-18 x 1/2 208 17670608 Screw Thdrol 3/8-16 x 1/2 209 17000612 Screw Hex Wsh Thdr. 3/8-16 x 3/4 212 183550 Insert Lens Reﬂ ect 219 17670508 Screw

- - 5479J Plug Btn Blk .359

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

31

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

DRIVE

57

84

13

14

112

197

85

11

96

16

77

15

85

10

80

81

8

52

69

26

21

61

30

89

32

170

169

1

120

63

212

159

14

82

113

158

165

162

83

168

166

156

51

161

198

112

163

18

4

3

59

61

41

38

56

64

65

66

50

70

116

55

202

150

48

5

151 51

53

79

75

6

25

61

32

77

30

26

27

49

27

47

120

36

35

drive-fender.stlt_35

18

52

6

62

35

24

19

2

74

78

76

29

36

39

37

34

28

22

32

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

DRIVE

KEY PART NO. NO. DESCRIPTION

1 - - - - - - Transaxle Peerless (206-545C)

(Order parts from transaxle manu-

facturer) 2 146682 Spring Return Brake T/a Zinc 3 123666X Pulley Transaxle 18" tires 4 12000028 Ring Retainer # 5100-62 5 121520X Strap Torque 30 Degrees 6 17060512 Screw 5/16-18 X 3/4 8 165619 Rod Shift Fender Adjust Lt 10 76020416 Pin Cotter 1/8 X 1 Cad 11 105701X Washer Plate Shf 388 Sq Hole 13 74550412 Bolt 1/4-28 Unf Gr 8 W/Patch 14 10040400 Washer Lock Hvy Helical 15 74490544 Bolt Hex FLGHD 5/16-18 Gr. 5 16 73800500 Nut Lock Hex w/ins 5/16-18 18 74780616 Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5 19 73800600 Nut Lock 3/8-16 Unc 21 106933X Knob 22 130804 Rod Brake Blk Zinc 26 840 24 73350600 Nut Hex Jam 3/8-16 Unc 25 106888X Spring Rod Brake 2 00 Zinc 26 19131316 Washer 13/32 X 13/16 X 16 Ga 27 76020412 Pin Cotter 1/8 X 3/4 Cad 28 175765 Rod Brake Parking LT/YT 29 71673 Cap Brake Parking 30 174973 Bracket Mtg Transaxle 32 74760512 Bolt Hex Hd 5/16-18unc X 3/4 34 175578 Shaft Asm Pedal Foot 35 120183X Bearing Nylon Blk 629 Id 36 19211616 Washer 21/32 X 1 X 16 Ga 37 1572H Pin Roll 3/16 X 1" 38 179114 Pulley Composite Flat 39 72110622 Bolt 3/8-16 unc x 2-3/4 41 175556 Keeper Belt Flat Idler 47 127783 Pulley Idler V Groove Plastic 48 154407 Bellcrank Asm 49 123205X Retainer Belt Style Spring 50 72110612 Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5 51 73680600 Nut Crownlock 3/8-16 Unc 52 73680500 Nut Crownlock 5/16-18 Unc 53 105710X Link Clutch 55 105709X Spring Return Clutch 6 75 56 17060620 Screw 3/8-16 x 1-1/4 57 130801 V-Belt Ground Drive 95 25 59 169691 Keeper Belt Span Ctr 61 17120614 Screw 3/8-16 x .875

KEY PART NO. NO. DESCRIPTION

62 8883R Cover Pedal Blk Round 63 175410 Engine Pulley 64 173937 Bolt Hex 65 10040700 Washer Lock Hvy Hlcl Spr 7/16 66 154778 Keeper Belt Engine Foolproof 69 142432 Screw Hex wsh HiLo 1/4 x 1/2 unc 70 134683 Guide Belt Mower Drive RH 74 137057 Spacer Axle 75 121749X Washer 25/32 X 1 1/4 X 16 Ga 76 12000001 E-ring #5133-75 77 123583X Key Square 2 0 X 1845/ 1865 78 121748X Washer 25/32 X 1-5/8 X 16 Ga 79 2228M Key Woodruff #9 3/16 x 3/4 80 131486 Arm Shift 81 165594 Shaft Asm Cross Tapered PMST/20 82 123782X Spring Torsion T/a 83 19171216 Washer 17/32 X 3/4 X 16 Ga 84 166228 Link Transaxle PMST/18" Zinc 85 150360 Nut Lock Center 1/4 - 28 FNTHD 89 169372X428 Console Shift STLT 96 4497H Retainer Spring 1" 112 19091210 Washer 9/32 x 3/4 x 10 Ga. 113 127285X Strap Torque LT 116 72140608 Bolt Rdhd Sq Neck 3/8-16 x 1 120 73900600 Nut Lock Flg. 3/8-16 Unc 150 175456 Spacer Retainer 151 19133210 Washer 13/32 x 2 x 10 156 166002 Washer Srrted 5/16ID x 1.125 158 165589 Bracket Shift Mount 159 183900 Hub Shift 161 72140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 162 73680400 Nut Crownlock 1/4-20 Unc 163 74780416 Bolt Hex Fin 1/4-20 Unc x 1 Gr 5 165 165623 Bracket Pivot Lever 166 17490510 Screw 5/16-18 x 5/8 168 165492 Bolt Shoulder 5/16-18 x .561 169 165580 Plate Fastening 170 187414 Keeper Belt Transaxle Gear 197 169613 Nyliner Snap-In 198 169593 Washer Nyliner 202 72110614 Bolt RdHd 3/8-16 Unc x 1-3/4 Gr. 5 212 145212 Nut Hexﬂ ange Lock

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

33

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

STEERING ASSEMBLY

38

12

39

1

41

steering_pl.lt_42

42

37

44

51

91

43

68

29

15

37

36

54

88

71

29

17

82

29

15

46

8

6

9

2

7

9

5

3

40

47

11

10

68

13

65

46

32

26

28

30

67

8

6

9

47

7

9

5

4

43

95

8

34

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

STEERING ASSEMBLY

KEY PART NO. NO. DESCRIPTION

1 140044X428 Wheel Steering Auto Black 2 175131 Axle Asm Front 3 169840 Spindle Asm Lh 4 169839 Spindle Asm Rh 5 6266H Bearing Race Thrust Harden 6 121748X Washer 25/32 X 1 5/8 X 16ga 7 19272016 Washer 27/32 X 1 1/4 X 16 Ga 8 12000029 Ring Klip #t5304-75 9 3366R Bearing Col Strg Blk 10 175121 Link Drag Extended 11 10040600 Lockwasher 12 73940800 Nut Hex Jam Toplock 1/2-20 Unf 13 136518 Spacer Bearing Axle Front 15 145212 Hex Flange Lock 17 180641 Shaft Asm Strg 26 126847X Bushing Rod Tie Blk Lt 28 19131416 Washer 13/32 X 7/8 X 16ga 29 17060612 Screw 3/8-16x3/4 30 76020412 Pin 32 130465 Rod Tie Wire Form 19 75 Mech 36 155099 Bushing Strg 5/8 Id Dash 37 152927 Screw TT #10-32 x 5 x 3/8 Flange 38 140045X428 Insert Cap Strg 39 19183812 Washer 9/16 ID x 2-3/8 OD 12 Gr 40 73540600 Nut 41 186737 Adaptor Wheel Strg 42 145054X428 Boot Dash Steering 43 121749X Washer 25/32 X 1 1/4 X 16 Ga 44 180640 Extension Steering 46 121232X Cap Spindle Fr Top Blk 47 183226 Fitting Grease 51 73540400 Nut Crownlock 1/4-28 54 71130420 Bolt Hex 1/4-28unf x 1-1/4 Gr. 8 65 160367 Spacer Brace Axle 67 72110618 Bolt Rdhd Sq 3/8-16 Unc x 2-3/4 68 169827 Brace Axle 71 175146 Steering Asm 82 169835 Bracket Susp Chassis Front 88 175118 Bolt Shoulder 7/16-20 91 175553 Clip Steering 95 188967 Washer Hardened.

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

35

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

ENGINE

2

1

32

25

14

38

105

44

46

3

13

81

105

62

72

8

10

6

5

31

33

37

33

29

OPTIONAL EQUIPMENT

Spark Arrester

45

23

4

engine-tecumseh_14

36

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

ENGINE

KEY PART NO. NO. DESCRIPTION

1 170803 Control Throt /Ch Flag 2 17720408 Screw Hex Thd Cut 1/4-20x1/2 3 - - - - - - Engine Briggs Model TVT691

(Order Parts From Engine Manufacturer) 4 149723 Mufﬂ er 5 174703 Exhaust Tube LH 6 174704 Exhaust Tube RH 8 171877 Bolt 5/16-18unc x 3/4 10 175563 Shield Mufﬂ er 13 - - - - - - Gasket (Order Parts From Engine Manufacturer) 14 148456 Tube Drain Oil Easy 23 169837 Shield Browning/Debris Guard 25 161729 Control Choke 29 137180 Arrestor Spark 31 184900 Tank Fuel 32 140527 Cap Asm Fuel W/sym Vented 33 123487X Clamp Hose Blk 37 137040 Line Fuel 20” 38 - - - - - Plug Drain Oil Easy (Order From Engine Mfgr.) 41 139277 Stem Fuel Tank 44 17670412 Screw Hexwsh Thdrol 1/4-20x3/4 45 17000612 Screw Hex Wsh Thdrol 3/8-16 46 19091416 Washer 9/32 X 7/8 X 16ga 62 10040500 Washer Lock 5/16 72 71070512 Screw Hex Hd Cap 5/16-18 x 3/4 81 73510400 Nut Keps Hex 1/4-20 Unc 105 17120616 Screw Thdrol 3/8-16x1-1 112 3645J Bushing, Outlet

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

For engine service and replacement parts, call the toll free number for your engine manufacturer listed below:

Briggs & Stratton 1-800-233-3723 Kohler Co. 1-800-544-2444 Tecumseh Products 1-800-558-5402 Honda Engines 1-800-426-7701 Kawasaki 1-800-460-5688

37

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

SEAT ASSEMBLY

14

10

1

8

9

7

8

9

7

5

6

22

seat_lt.bolt_8

15

16

13

17

26

24

12

23

25

2

5

4

3

21

KEY PART NO. NO. DESCRIPTION

1 188704 Seat 2 180166 Bracket Pivot Fender 3 71110616 Bolt 4 19131610 Washer 13/32 x 1 x 10 Ga 5 145006 Clip Push-In Hinged 6 73800600 Nut 7 124181X Spring Seat Cprsn 2 250 Blk Zi 8 17000616 Screw 3/8-16 x 1.5 9 19131614 Washer 13/32 x 1 x 14 Ga 10 180186 Pan Seat 12 121246X Bracket Pnt Mounting Switch 13 121248X Bushing Snap Blk Nyl 50 Id

www.mymowerparts.com

KEY PART NO. NO. DESCRIPTION

14 72050412 Bolt Rdhd Sht Nk 1/4-20 x 1-1/2 15 134300 Spacer Split 28 x 96 Yel Zinc 16 121250X Spring Cprsn 1 27 Blk Pnt 17 123976X Nut Lock 1/4 Lge Flg Gr 5 Zinc 21 171852 Bolt Shoulder 5/16-18 Unc Blkz-2A 22 73800500 Nut 23 71110814 Bolt Hex Black 24 19171912 Washer 17/32 x 1-3/16 x 12 Ga 25 127018X Bolt Shoulder 5/16-18 x 62 26 10040800 Lockwasher

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

38

1

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

DECALS

11

13

16

6

2

5

14

3

13

10

20

1

KEY PART NO. NO. DESCRIPTION

1 156368 Decal Oper 2 186906 Decal Tec 3 Yr Warranty 3 191051 Decal Hood LH 4 190827 Decal Chassis 5 64-2197-83 Decal HP Engine 6 179128 Decal Deck "B" 42" 10 157002 Decal Fender Danger

WHEELS & TIRES

1

2

6

5,8

4,10

7

3,9

12

KEY PART NO. NO. DESCRIPTION

11 190028 Decal Ins Strg Whl 12 181249 Decal Footrest 13 190827 Decal Chassis 14 160396 Decal V-Belt Schematic 16 191050 Decal Hood Rh 20 145005 Decal Bat Dan/Psn

- - 138311 Decal Handle Lft Height Adjust

- - 191087 Manual Owner's (English)

KEY PART NO. NO. DESCRIPTION

1 59192 Cap Valve Tire 2 65139 Stem Valve 3 106222X Tire F Ts 15 X 6 0 - 6 Service 4 59904 Tube Front (Service Item Only) 5 106732X624 Rim Asm 6"front Service 6 278H Fitting Grease (Front Wheel Only) 7 9040H Bearing Flange (Front Wheel

1

8 106108X624 Rim Asm 8"rear Service 9 106268X Tire R Ts 18x9.5-8 Service 10 7152J Tube Rear (Service Item Only) 11 104757X428 Cap Axle 1 50 X 1 00

- - 144334 Sealant, Tire ( 10 oz. Tube)

Only)

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

39

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

MOWER LIFT

7

8

5

13

11

19

31 32

13

12

20

5

20

1

4

17

16

15

lift-rh.1piece_3

18

20

3

4

6

13

19

2

6

20

15

40

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

MOWER LIFT

KEY PART NO. NO. DESCRIPTION

1 159461 Wire Asm Inner/Sprg w/Plunger 2 159476 Shaft Asm Lift 3 188822 Pin Groove 4 12000002 E Ring #5133-62 5 19211621 Washer 21/32 x 1 x 21 Ga. 6 120183X Bearing Nylon 7 109413X Grip Handle 8 124526X Button Plunger 11 139865 Link Lift Lh 12 139866 Link Lift Rh 13 4939M Retainer Spring 15 173288 Link Front 16 73350800 Nut Jam Hex 1/2-13 Unc 17 175689 Trunnion Blk Zinc 18 73800800 Nut Lock w/Wsh 1/2-13 Unc 19 139868 Arm Suspension Rear 20 163552 Retainer Spring 31 169865 Bearing Pvt Lift 32 73540600 Nut Crownlock 3/8-24

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

41

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

MOWER DECK

67

158

185

68

40

152

42_clutch_mod_7

34

44

159

46

53

48

147

52

142

56

55

144

40

36

54

40

143

150

184

59

146

32

31

30

45

145

148

33

21

1

147

3

5

6

19

42_deck_man-t-path_3

142

2

21

2

16

15 14

149

4

13

21

10

9

18

11

8

20

18

29

28

21

23

24

25

26

27

42

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER WET2242STD

MOWER DECK

KEY PART NO. NO. DESCRIPTION

1 165892 Mower Deck Assembly, 42" 2 72140506 Bolt 3 138017 Bracket Asm Fr. Sway Bar 3/42 4 165460 Bracket Asm Deck 42" Sway Bar 5 4939M Retainer Spring 6 178024 Bar Sway Deck 8 850857 Bolt 3/8-24 x 25 Grade 8 patched 9 10030600 Washer, Lock 10 140296 Washer, Hardened

(The following blades are available)

11 134149 Blade, 42" Mulching Std (For mulch-

ing mowers only)

- - 139775 Blade, 42" Mulching Premium (For better wear when mulching

- - 138971 Blade, 42" Hi-Lift (For bagging or discharging)

13 137645 Shaft As sem bly, Mandrel, Vented 14 128774 Housing, Mandrel, Vented 15 110485X Bearing, Ball, Mandrel 16 174493 Stripper, Mandrel Deck 18 72140505 Bolt, Carriage 5/16-18 x 5/8 19 132827 Bolt, Shoulder 20 159770 Bafﬂ e, Vortex 21 73680500 Nut 23 177563 Bracket, Deﬂ ector Mower 42" 24 105304X Cap, Sleeve 80 x 112 Blk Mower 25 123713X Spring, Torsion, Deﬂ ector 2 52 26 110452X Nut, Push Phos & Oil 27 130968X428 Shield, Deﬂ ector 42" Blk 28 19111016 Washer 11/32 x 5/8 x 16 Ga. 29 131491 Rod, Hinge 42" 6 75 W/G 30 173984 Screw Thdrol Washer Head 31 187690 Washer, Spacer Mower Vented 32 153535 Pulley, Mandrel 33 178342 Nut, Toplock 9/16 Flange 34 72110612 Bolt

KEY PART NO. NO. DESCRIPTION

36 131494 Pulley, Idler, Flat 40 73900600 Nut 44 140088 Guard, Mandrel, LH 45 4497H Retainer 46 137729 Screw, Thdrol 1/4-20 x 5/8 T 48 133944 Washer, Hardened 52 139888 Bolt, Shoulder 5/16-18 UNC 53 184907 Arm Assembly, Pad, Brake 54 178515 Washer, Hardened 55 155046 Arm, Idler 56 165723 Spacer, Retainer 59 141043 Guard TUV Idler 67 106932X Knob 68 144959 V-Belt, 42" Mower 142 165890 Arm Spring Brake Mower 143 157109 Bracket Arm Idler 42" 144 158634 Keeper Belt 42" Clutch Cable 145 165888 Pulley Idler Flat 146 171977 Bolt Carriage Idler 147 131335 Spring Extension 148 169022 Spring Return Idler 149 165898 Retainer Spring Yellow 150 19091210 Washer 9/32 x 3/4 x 10 Ga. 152 169676 Clutch Cable 42" 158 17720408 Screw Hex Thd Cut 1/4-20 x 1/2 159 72140614 Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4 184 19131410 Washer 13/32 x 7/8 x 10 Ga. 185 188234 Head Asm Cable Clutch

- - 130794 Mandrel Assembly (Includes Housing, Shaft and Shaft Hardware Only-Pulley Not Included)

- - 171639 Replacement Mower, Complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

43

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE NOTES

44

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materials and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we ﬁ nd to be defective due to materials or workmanship. This Warranty is subject to the following limitations and exclusions.

1. This warranty does not apply to the engine, other than EHP manufactured transaxle/transmission components, battery (except as noted below) or components parts thereof. Please refer to the applicable manufacturer's warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the pur chaser. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser unless such return is requested by Electrolux Home Products.

3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we ﬁ nd to be defective in manufacture, during the ﬁ rst ninety (90) days of ownership. After ninety (90) days, we will exchange the Battery, charging you 1/12 of the price of a new Battery for each full month from the date of the original sale. Battery must be maintained in accordance with the instructions furnished.

4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original purchase.

5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and main tained in ac cor dance with the instructions furnished. This Warranty does not apply to any product which has been subjected to alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.

6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, stan dard hardware and normal maintenance.

7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please contact:

Electrolux Home Products, Inc. Outdoor Products Customer Service Dept. 250 Bobby Jones Expressway Augusta, GA 30909 USA

In Canada contact:

Electrolux Canada Corp. 7075 Ordan Drive Mississauga, Ontario L5T 1K6

giving the model number, serial number and date of purchase of your product and the name and address of the authorized dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WAR RAN TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limitations or exclusions may not apply to you. This Warranty gives you speciﬁ c legal rights, and you may have other rights which vary from locale to locale.

This is a limited Warranty within the meaning of that term as deﬁ ned in the Magnuson-Moss Act of 1975.

45

www.mymowerparts.com

POLICY

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE

M

®

H

E

S

®

T

E

C

U

Issued January 1980 Revised January 1991

M

H

E

S

POLICY

WARRANTY

T

E

C

U

LIMITED WARRANTIES

FOR

NEW PEERLESS GEAR POWER TRAIN COMPONENTS

A. Products Warranted

Peerless Gear and Machine Division of Tecumseh Products Company (“Tecumseh”), subject to the limitations contained below,will, at its option, repair or replace, without charge for parts or labor only, any part of a new Power Train Component (which as used here in means and includes the transaxle, gear box, transmission, differential and right angle drives, and any part of the Power Train Component), EXCEPT any new Power Train Component incorporated in equipment used for commercial or rental purposes, which is found upon examination by any Tecumseh Authorized Service Outlet or by Tecumseh’s factory in Grafton, Wisconsin, to be DE FEC TIVE IN MATERIAL AND/OR WORKMANSHIP if received by Tecumseh or a Tecumseh Authorized Service Outlet for such ex am i na tion within TWO YEARS from the date of sale to the original consumer purchaser of Peerless Series 820, 900, 910, 915, 920, 930 transaxles and Series 1100 angle drive and ONE YEAR for all other Peerless products. New Power Train Components in cor po rat ed in equipment used for commercial purposes are warranted in the same manner and to the same extent EXCEPT such Power Train Components are warranted for NINETY (90) DAYS ONLY, and must be received by Tecumseh or by a Tecumseh Authorized Service Outlet for such examination within 90 days from the date of sale to the original purchaser. New Power Train Components In cor po rat ed in equipment used for rental purposes are warranted in the same manner and to the same extent EXCEPT such Power Train Components are warranted for THIRTY (30) DAYS ONLY, and must be received by Tecumseh or a Tecumseh Authorized Ser vice Outlet within 30 days from the date of sale to the original purchaser.

B. Products And Items Not Warranted

1. Alterations or Modiﬁ cations of Power Train Components.

2. Accidents, Normal Maintenance, Failure to follow the Original Equipment Man u fac tur er’s Manual. This warranty covers only parts of new Power Train Components which are found upon examination to be defective in material or workmanship as delivered to the original purchaser. This warranty does not cover defects caused by depreciation or damage caused by normal wear, accidents, improper main te nance, improper use or abuse of the product, failure to follow the instructions con tained in an Instruction Manual for the operation of the Power Train Component and parts. The cost of normal maintenance and replacement of service items which are not defective shall be paid for by the original purchaser.

C. Securing Warranty Service

Warranty service can be arranged for by contacting either a Tecumseh Authorized Service Outlet (any Tecumseh Registered Ser-

vice Dealer, Tecumseh Authorized Service Distributor, or Tecumseh Central Warehouse Distributor) or by contacting Tecumseh, c/o Service Manager, Engine and Transmission Group Service Division, 900 North Street, Grafton, Wisconsin 53024. Warranty ser vice can only be performed by a Tecumseh Authorized Service Outlet or by Tecumseh at its factory in Grafton, Wisconsin. At the time of requesting warranty service, evidence must be presented of the date of sale to the original purchaser. The purchaser shall pay any charges for making service calls and/or for transporting the product to and from the place where the inspection and/or warranty work is performed. The purchaser shall be responsible for any damage or loss incurred in connection with the transportation of Pow er Train Components and/or part(s) of the Power Train Components submitted for inspection and/or warranty work.

D. Limitation of Damages and Implied Warranties

The foregoing EXPRESSED WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. Neither Tecumseh nor any of its afﬁ liates makes any warranties, representations or promises, written or oral, as to the quality of the Power Train Component or any of its parts, other than as set forth herein. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, TO THE EXTENT THAT EI THER MAY APPLY TO ANY PART(S) OF POWER TRAIN COMPONENTS, SHALL BE LIMITED IN DURATION TO THE PERIODS OF THE EXPRESSED WARRANTIES DEFINED IN PARAGRAPH A HEREOF. IN NO EVENT WILL TECUMSEH BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES AND/OR EXPENSES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation(s) or exclusion(s) may not apply to you. This warranty gives you speciﬁ c legal rights and you may also have other legal rights which vary from state to state.

E. No Dealer Warranty

Tecumseh neither assumes nor authorizes any other person, natural or corporate, to assume for Tecumseh any other ob li ga tions or liabilities in connection with or with respect to any part(s) of a Power Train Component. The seller or dealer of part(s) of a Pow er Train Component has no authority, whatsoever, to make any representations or promises on behalf of Tecumseh or to modify the terms or limitations of Tecumseh’s warranty in any way.

46

www.mymowerparts.com

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

www.mymowerparts.com

47

For Parts Call K&T 606-678-9623 or 606-561-4983

FOLD ALONG DOTTED LINE

THIS IS A 15 DEGREE SLOPE

ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL

15 DEGREES MAX.

WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control. Exercise extreme caution when changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

For Parts Call K&T 606-678-9623 or 606-561-4983

www.mymowerparts.com

®

Poulan wet2242std Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual
