Parts List No.
Date
4/22/09
545103465
Replaces
545103465 - 3/27/09
R

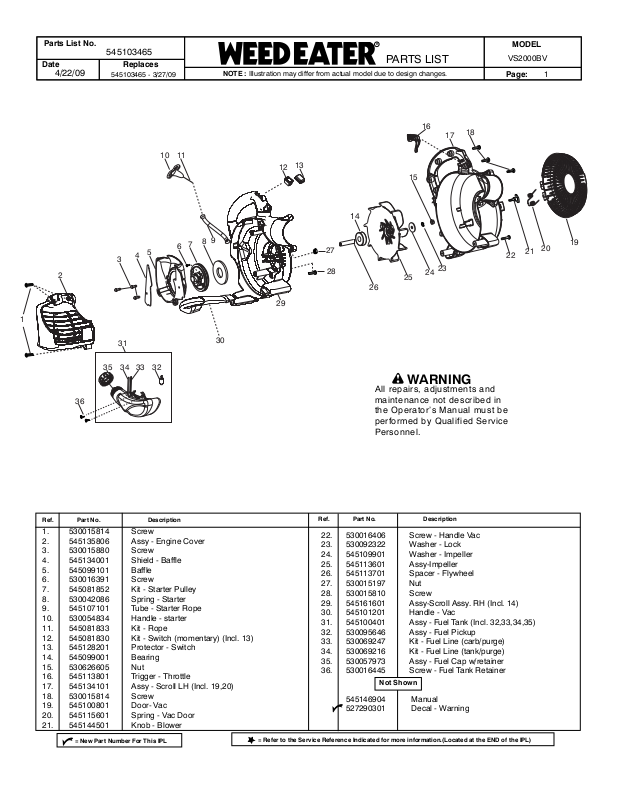

PARTS LIST
NOTE : Illustration may differ from actual model due to design changes.
MODEL
VS2000BV
Page:
1
10
11
12
16
13
15
17
18
14
9
8
7
6
5
4
3
2
29
1
30
35
31
34
33
32
27
28
26
25
24
23
22
21
20
19
WARNING
All repairs, adjustments and
36
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
Ref. Part No. Description
1. 530015814 Screw
2. 545135806 Assy - Engine Cover
3. 530015880 Screw
4. 545134001 Shield - Baffle
5. 545099101 Baffle
6. 530016391 Screw
7. 545081852 Kit - Starter Pulley
8. 530042086 Spring - Starter
9. 545107101 Tube - Starter Rope
10. 530054834 Handle - starter
11. 545081833 Kit - Rope
12. 545081830 Kit - Switch (momentary) (Incl. 13)
13. 545128201 Protector - Switch
14. 545099001 Bearing
15. 530626605 Nut
16. 545113801 Trigger - Throttle
17. 545134101 Assy - Scroll LH (Incl. 19,20)
18. 530015814 Screw
19. 545100801 Door- Vac
20. 545115601 Spring - Vac Door
21. 545144501 Knob - Blower
= New Part Number For This IPL
Ref. Part No. Description
22. 530016406 Screw - Handle Vac
23. 530092322 Washer - Lock
24. 545109901 Washer - Impeller
25. 545113601 Assy-Impeller
26. 545113701 Spacer - Flywheel
27. 530015197 Nut
28. 530015810 Screw
29. 545161601 Assy-Scroll Assy. RH (Incl. 14)
30. 545101201 Handle - Vac
31. 545100401 Assy - Fuel Tank (Incl. 32,33,34,35)
32. 530095646 Assy - Fuel Pickup
33. 530069247 Kit - Fuel Line (carb/purge)
34. 530069216 Kit - Fuel Line (tank/purge)
35. 530057973 Assy - Fuel Cap w/retainer
36. 530016445 Screw - Fuel Tank Retainer
Not Shown
545146904 Manual
527290301 Decal - Warning
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
Parts List No.
Date
4/22/09
545103465
Replaces
545103465 - 3/27/09
R
PARTS LIST
NOTE : Illustration may differ from actual model due to design changes.
MODEL
VS2000BV
Page:
2
17
16
15
14
13
18
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
12
19
11
20
10
21
8
7
9
34
23
22
24
28
33
6
32
5
23
25
31
3
4
1
27
26
29
2
37
38
GASKET
KIT
Ref. Part No. Description
40
39
1. 545090001 Assy - Muffler (Incl. 2,3,4,5)
2. 530015241 Screw
3. 545081845 Kit - Spark Screen
4. 530058982 Bolt
5. 545081832 Gasket-Muffler (gasket kit)
6. 545115301 Cylinder
7. 530015953 Bolt
8. 952030249 Spark Plug (RCJ-6Y)
9. 545084901 Adapter - Carb.
10. 530016441 Screw
11. 545115501 Linkage - Throttle
12. 545081831 Kit - Carb. Assy (WT847) (Incl. 13,18)
13. 545157101 Lever- Choke (Yellow)
14. 545112601 Base - Airbox
15. 530016429 Screw
16. 545116801 Filter
17. 545112702 Cover - Air Box Filter
18. 530035497 Bulb - Purge (walbro 188-16)
19. 545081832 Gasket (Carb / Adapter) (gasket kit)
20. 545081832 O-Ring (Adapter / Cylinder) (gasket kit)
35
36
Ref. Part No. Description
30
21. 545081864 Kit - Piston / Connecting Rod (Incl. 22,23,24)
22. 530012472 Ring - Piston
23. 530015162 Retainer - Wrist Pin
24. 545081865 Kit - Assy. Connecting Rod
25. 545158001 Module - Ignition
26. 530016357 Screw
27. 545127601 Assy - Wire Harness
28. 545081832 O-Ring (Cyl/Crankcase) (gasket kit)
29. 530015828 Washer
30. 530054115 Assy - Flywheel
31. 530015941 Retainer - Crankshaft
32. 530055728 Bearing - Outer
33. 530019264 Seal
34. 530032125 Bearing - Inner
35. 530012582 Assy - Crankcase (Incl. 32,33,34)
36. 545102102 Assy - Crankcase & Crankshaft (Incl. 31,35)
37. 545081832 O-Ring (Rear Plug) (gasket kit)
38. 530057954 Assy - Rear Plug (Incl. 37)
39. 530016386 Screw
40. 545081832 Kit - Gasket (Incl. 5,19,20,28,37)
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
