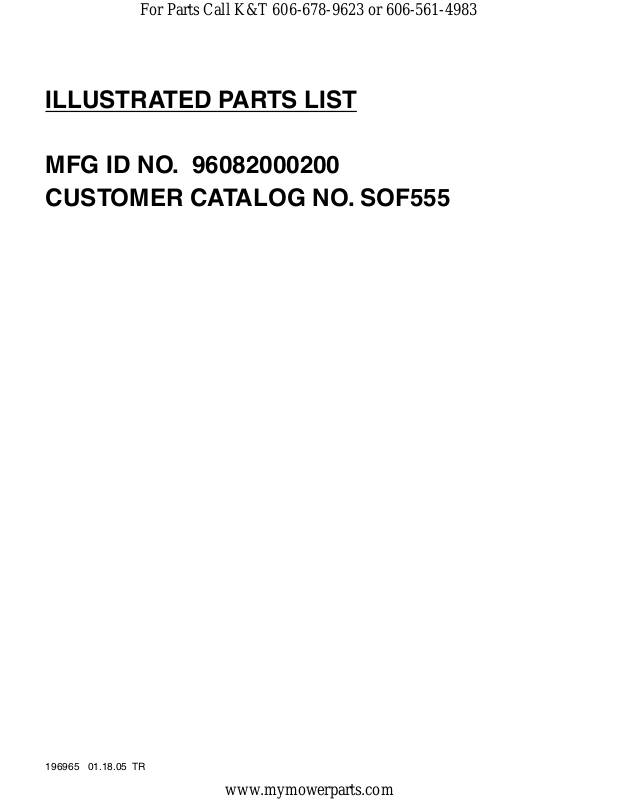

ILLUSTRATED PARTS LIST
MFG ID NO. 96082000200
CUSTOMER CATALOG NO. SOF555
196965 01.18.05 TR
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER SOF555 (96082000200)
HANDLE ASSEMBLY
44
16
14
3
5
6
10
11
1
2
3
4
28
29
21
18
43
7
8
9
19
20
13
handle_assy_34
KEY PART
NO. NO. DESCRIPTION
1 187820X505 Bracket Handle
2 72140512 Bolt, Carriage 5/16-18 unc x 1-1¦2
3 9266R Grip, Handle
4 166376 Handle, L.H.
5 73680500 Locknut, Crown 5/16-18
6 19111116 Washer 11/32 x 11/16 x 16 Ga.
7 19121414 Washer 3/8 x 7/8 x 14 Ga.
8 74760516 Bolt, Hex Hd. 5/16-18 x 1
9 74760512 Bolt, Hex Hd 5/16-18 x 3/4
10 10040500 Washer, Lock 5/16
11 73220500 Nut, Hex 5/16-18
12 98000129 Nut, Flanged 5/16-18
13 180847 Bolt, Carriage 5/16-18 x 3/4 Gr. 5
12
KEY PART
NO. NO. DESCRIPTION
14 181452X505 Panel, Handle
16 166377 Handle, R.H.
18 166868 Cable, Control, Tine
19 151229 Lever, Control, Tine
20 154805 Pin, Pivot
21 12000027 Ring, Klip
28 19131312 Washer 13/32 x 13/16 x 12 Ga.
29 12000059 Retaining, Ring
43 188177 Cable Assembly, Reverse
44 181580 Clip
NOTE: All component dimensions are given in U.S.
inches. 1 inch = 25.4 mm
2
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER SOF555 (96082000200)
BELT GUARD AND PULLEY ASSEMBLY
41
17
5
31
30
29
11
28
27
1
2
3
4
42
7
6
8
11
9
29
10
11
12
11
12
13
14
19
26
20
24
23
belt_guard_14
25
22
21
KEY PART
NO. NO. DESCRIPTION
1 180377 Assembly, Bracket, Belt Guard
2 9484R Clip, Cable
3 86777 Screw, Hex, Washer Hd., Slotted,
Thd. Cutting #10-24 x 1/2 Type D
4 74610812 Bolt, Hex 1/2-20 x 3/4
5 73680600 Nut, Hex Lock 3/8-16
6 19131316 Washer 13/32 x 13/16 x 16 Ga.
7 2009J Pulley, Idler, Reverse
8 180323 Assembly, Arm, Reverse Idler
9 74760628 Bolt, Hex 3/8-16 x 1-3/4
10 194630X505 Guard, Belt
11 19091016 Washer 9/32 x 5/8 x 16 Ga.
12 104213X Nut, Cap 1/4- 20
13 72140406 Bolt, Carriage 1/4-20 x 3/4
14 133035 V-Belt (Forward Motion)
15 2614J V-Belt (Reverse)
16 12000028 Ring, Retainer
17 2649M Key, Square
18 151236 Pulley, Flat, Trans.
15
16
32
18
KEY PART
NO. NO. DESCRIPTION
19 188502 Bolt, Belt Guard
20 12000036 Ring, Klip
21 73350600 Nut, Hex, Jam 3/8-16
22 161806 Pulley, Idler
23 175377 Arm, Idler
24 74760620 Bolt, Hex 3/8-16 x 1-1/4
25 106968X Shaft, Idler Arm
26 73350500 Nut, Hex, Jam 5/16-18
27 73220400 Nut, Fin Hex 1/4-20
28 10040400 Washer LK Hvy Helical 1/4
29 109227X Pad, Idler
30 23200404 Screw, Set , Socket, Headless
C.P. 1/4-20 x 1 /4
31 101189L Sheave, Engine
32 151223 Pulley, V-Groove, Trans.
41 180307 Spring
42 138909 Spacer
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
3
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER SOF555 (96082000200)
WHEEL AND DEPTH STAKE ASSEMBLY
16
17
18
21
19
1
20
7
9
6
8
2
3
13
10
2
11
22
3
15
24
5
4
7
24
18
17
5
4
20
19
wheel_d.stake_2
KEY PART
NO. NO. DESCRIPTION
1 9194R Pin, Clevis
2 74760520 Bolt, Hex 5/16-18 x 1-1/4
3 74760512 Bolt, Hex 5/16-18 x 3/4
4 73220500 Nut, Hex 5/16-18
5 10040500 Washer, Lock 5/16
6 73800600 Locknut, w/washer 3/8-16
7 4921H Clip, Hairpin
8 1952J Support, Depth Stake, R.H.
9 122233X Stake, Depth
10 326J Pin, Clevis
11 74780628 Bolt, Hex, Fin 3/8-16 x 1-3/4
13 1951J Support, Depth Stake, L.H.
16
KEY PART
NO. NO. DESCRIPTION
15 5388J Spring, Stake
16 121117X Bolt, Shoulder
17 9188R Wheel
18 19131311 Washer 13/32 x 13/16 x 11 Ga.
19 9190R Bracket, Wheel
20 73680600 Locknut, Crown 3/8-16
21 74760516 Bolt, Hex 5/16-18 x 1
22 73800500 Locknut, w/insert 5/16-18
24 73970500 Nut Lock Hex Flange
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
4
www.mymowerparts.com
3
1
6
4
5
6
2
2
tine_ipb_3
For Parts Call K&T 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER SOF555 (96082000200)
TINE ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 156934 Tine, Outer, R.H.
2 3146R Retainer, Spring
3 156932 Tine, Inner, R.H.
KEY PART
NO. NO. DESCRIPTION
4 156931 Tine, Inner, L.H.
5 156933 Tine, Outer, L.H.
6 4929H Pin, Clevis
5
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER SOF555 (96082000200)
TRANSMISSION
20
1
2
3
5
11
19
18
17
16
11
7
10
12
KEY PART
NO. NO. DESCRIPTION
1 74760524 Bolt, Hex 5/16-18 x 1-1/2 Gr. 2
2 74780652 Bolt, Hex, Fin 3/8-16 x 3-1/4
3 19131311 Washer 13/32 x 13/16 x 11
5 73900600 Nut Lock Flg 3/8-16 unc
6 9057R505 Shield, Tine
7 188195 Bracket, Engine, R.H.
8 165834 Bracket, Engine, L.H.
10 73970500 Nut Lock Hex Flg
11 187912 Bolt, Shoulder
12 151222 Transmission
6
8
14
10
14
10
transmission_12
KEY PART
NO. NO. DESCRIPTION
14 9173R Spacer, Split
16 19091412 Washer 9/32 x 7/8 x 12 Ga.
17 19092016 Washer 9/32 x 1-1/4 x 16 Ga.
18 10040400 Washer, Lock 1/4
19 74610412 Bolt, Hex 1/4-28 x 3/4 Gr. 5
20 - - - - - - - Engine, Briggs Model 126302
Order parts from engine manufac-
turer
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
6
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER SOF555 (96082000200)
DECALS
3
1
2
9
5
6
7
8
11
10
KEY PART
NO. NO. DESCRIPTION
1 190482 Decal, Logo
2 190483 Decal, Logo
3 139936 Decal, Control Panel
5 141907 Decal, Hand Placement
6 194689 Decal, Eng. Tiller
7 171077 Decal, OHV. N-I/C
8 141906 Decal, Warning, Rotating Tines
9 190484 Decal, Tine Shield
10 171078 Decal, Rewind Intek
11 162215 Decal, Tine Shield Wrng. Dom
- - 196964 Manual, Owner’s (English/Spanish)
- - 196965 Manual, Parts
7
