MODEL NO. SO17H42STA

17.0 HP 42 INCH LAWN TRACTOR

• Assembly

• Operation

• Maintenance

• Service and Adjustments

• Storage

• Troubleshooting

• Repair Parts

For Parts and Service, contact our authorized distributor:

call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886

185644 Rev. 3 9.19.03 RD/MH

www.mymowerparts.com

PRINTED IN U.S.A.

For Parts Call K&T 606-678-9623 or 606-561-4983

TABLE OF CONTENTS

Warranty................................................ 2

Safety Rules .......................................... 3

Product Speciﬁ cations ........................... 6

Assembly/Pre-Operation ....................... 8

Operation............................................. 11

Maintenance ....................................... 17

Maintenance Schedule........................ 17

Service and Adjustments..................... 21

Storage................................................ 26

Troubleshooting ................................... 27

Repair Parts......................................... 32

WARRANTY

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materials and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we ﬁ nd to be defective due to materials or workmanship. This Warranty is subject to the following limitations and exclusions.

1. This warranty does not apply to the engine, other than EHP manufactured transaxle/ transmission components, battery (except as noted below) or components parts thereof. Please refer to the applicable manufacturer's warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the pur chaser. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser unless such return is requested by Electrolux Home Products.

3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we ﬁ nd to be defective in manufacture, during the ﬁ rst ninety (90) days of ownership. After ninety (90) days, we will exchange the Battery, charging you 1/12 of the price of a new Battery for each full month from the date of the original sale. Battery must be maintained in accordance with the instructions furnished.

4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original purchase.

5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and main tained in ac cor dance with the instructions furnished. This Warranty does not apply to any product which has been subjected to alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.

6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, stan dard hardware and normal maintenance.

7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please contact:

Electrolux Home Products, Inc. Outdoor Products Customer Service Dept. 250 Bobby Jones Expressway Augusta, GA 30909 USA

In Canada contact: Electrolux Canada Corp. 7075 Ordan Drive Mississauga, Ontario L5T 1K6

giving the model number, serial number and date of purchase of your product and the name and address of the authorized dealer from whom it was purchased. THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WAR RAN TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limitations or exclusions may not apply to you. This Warranty gives you speciﬁ c legal rights, and you may have other rights which vary from locale to locale. This is a limited Warranty within the meaning of that term as deﬁ ned in the MagnusonMoss Act of 1975.

2

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SAFETY RULES

IMPORTANT: This cutting machine is ca pa ble of amputating hands and feet and throw-

ing objects. Failure to observe the fol low ing safety instructions could result in serious injury or death.

WARNING: In order to prevent accidental starting when setting up, trans port ing, ad just ing or making repairs, always dis con nect spark plug wire and place wire where it can not contact spark plug.

WARNING: Do not coast down a hill in neutral, you may lose control of the tractor.

WARNING: Tow only the attachments that are rec om mend ed by and comply with spec i ﬁ ca tions of the man u fac tur er of your tractor. Use common sense when towing. Operate only at the lowest possible speed when on a slope. Too heavy of a load, while on a slope, is dan ger ous. Tires can lose trac tion with the ground and cause you to lose control of your tractor.

WARNING: Engine exhaust, some of its constituents, and certain vehicle com po nents contain or emit chem i cals known to the State of Cal i for nia to cause can cer and birth defects or oth er re pro ductive harm.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of Cal i for nia to cause can cer and birth defects or oth er re pro duc tive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine before starting.

• Only allow responsible adults, who are

familiar with the in struc tions, to operate the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked up and thrown by the blade.

• Be sure the area is clear of other people

before mow ing. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless ab so -

lute ly necessary. Always look down and behind before and while back ing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do not operate the mower without either the entire grass catcher or the guard in place.

• Slow down before turning.

• Never leave a running machine unattended. Always turn off blades, set parking brake, stop engine, and remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass catcher or un clog ging chute.

• Mow only in daylight or good artiﬁ cial light.

• Do not operate the machine while under the inﬂ uence of alcohol or drugs.

• Watch for trafﬁ c when operating near or crossing road ways.

• Use extra care when loading or un load ing the machine into a trailer or truck.

• Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect them selves and others from serious injury.

• Keep machine free of grass , leaves or other debris build-up which can touch

hot exhaust / engine parts and burn . Do

not allow the mower deck to plow leaves or other debris which can cause buildup to occur. Clean any oil or fuel spillage before operating or storing the machine . Allow machine to cool before storage.

II. SLOPE OPERATION

Slopes are a major factor related to lossof-control and tipover accidents, which can re sult in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could overturn the machine.

Tall grass can hide ob sta cles.

• Use slow speed. Choose a low gear so that you will not have to stop or shift while on the slope.

3

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SAFETY RULES

• Follow the manufacturer’s rec om men da tions for wheel weights or coun ter weights to improve stability.

• Use extra care with grass catchers or other at tach ments. These can change the stability of the machine.

slow

• Keep all movement on the slopes

gradual

and changes in speed or direction.

• Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed slowly slope.

DO NOT:

Do not

•

sary, and then, turn slowly and grad u al ly downhill, if possible.

Do not

• or embankments. The mower could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.

Do not

• traction could cause sliding.

Do not

• putting your foot on the ground.

Do not

• slopes.

. Do not make sudden

straight

turn on slopes unless nec es -

mow near drop-offs, ditches,

mow on wet grass. Reduced

try to stabilize the machine by

use grass catcher on steep

down the

III. CHILDREN

Tragic accidents can occur if the op er a tor is not alert to the presence of children. Children are often attracted to the ma-

Never

chine and the mowing activity. sume that children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful care of another responsible adult.

• Be alert and turn machine off if children enter the area.

• Before and when backing, look behind

down

and

• Never carry children. They may fall off and be seriously injured or interfere with safe machine operation.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

for small children.

as-

IV. SERVICE

• Use extra care in handling gasoline and other fuels. They are ﬂ ammable and vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling. Do not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel container inside where there is an open ﬂ ame, such as a water heater.

• Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment bolts, tight and keep equipment in good condition.

• Never tamper with safety devices. Check their proper op er a tion regularly.

• Keep machine free of grass, leaves, or other debris build-up. Clean oil or fuel spillage. Allow machine to cool before storing.

• Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.

• Never make adjustments or repairs with the engine run ning.

• Grass catcher components are subject to wear, dam age, and deterioration, which could expose moving parts or allow objects to be thrown. Frequently check com po nents and replace with manufacturer's rec om mend ed parts, when nec es sary.

• Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service as required.

4

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SAFETY RULES

• Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area.

• Never carry passengers or children even with the blades off.

• Do not mow in reverse unless ab so lute ly necessary. Al ways look down and behind before and while backing.

• Never carry children. They may fall off and be seriously injured or interfere with safe machine operation.

• Keep children out of the mowing area and under the watchful care of another responsible adult.

• Be alert and turn machine off if children enter the area.

• Before and when backing, look behind and down for small children.

• Mow up and down slopes (15° Max), not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not have to stop or shift while on the slope.

• Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed slowly straight down the slope.

• If machine stops while going uphill, disengage blades, shift into reverse and back down slowly.

• Do not turn on slopes unless nec es sary, and then, turn slowly and grad u al ly downhill, if possible.

5

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

PRODUCT SPECIFICATIONS

Gasoline 1.25 Gallons Capacity Unleaded and Type: Regular

Oil Type SAE 30 (Above 32°F) (API-SF-SJ): SAE 5W-30 (Below 32°F)

Oil Capacity: 3.0 Pints Spark Plug: Champion RC12YC

(GAP: .030") Ground Speed Forward: 5.2

(MPH): Reverse: 2.7

Tire Pressure: Front: 14 PSI Rear: 12 PSI

Charging 3 Amps Battery System: 5 Amps Headlights

Battery: Amp/Hr: 28 Min. CCA: 230 Case Size: U1R

Blade Bolt 27–35 Ft. Lbs. Torque:

CUSTOMER RE SPON SI BIL I TIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

tain ing, caring for and using your tractor.

• Follow the instructions under “Main te -

nance” and “Stor age” sec tions of this own er’s manual.

WARNING: This tractor is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the op er a tor. In the state of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the mufﬂ er is available through your nearest authorized service center/department (See REPAIR PARTS section of this manual).

CONGRATULATIONS on your pur chase of a new tractor. It has been designed, en gi neered and man u fac tured to give you the best pos si ble de pend abil i ty and per for mance. Should you experience any problem you cannot easily remedy, please con tact your nearest authorized service center/ department . We have competent, welltrained tech ni cians and the prop er tools to service or repair this trac tor. Please read and retain this manual. The instructions will enable you to as sem ble and maintain your tractor prop er ly. Always observe the “SAFE TY RULES”.

6

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

(1) Large Flat Washer

UNASSEMBLED PARTS

Steering Wheel

Steering Wheel Adapter

Steering Sleeve

Steering Wheel Insert

Steering Extension Shaft

(1) Locknut 1/2-20

(1) Hex Bolt 1/4-28 x 1-1/4

Seat

(1) Washer 17/32 x 1-3/16 x 12 Gauge

(1) Lock

Washer 1/2

(1) Bolt

(1) Locknut

1/4-28

Keys

(2) Keys

Slope Sheet

(1) Oil Drain Tube For Future Use

7

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

ASSEMBLY/PRE-OPERATION

Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you as sem ble must be tightened securely. Use the correct tools as nec es sary to in sure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Stan dard wrench sizes you need are listed below. (1) 3/4" wrench (1) Pliers (2) 7/16" wrench (1) Utility knife (1) Tire pressure gauge When right or left hand is mentioned in this man ual, it means, from your point of view, when you are in the op er at ing po si tion (seat ed be hind the steer ing wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

1. Remove all accessible loose parts and parts boxes from carton.

2. Cut along dotted lines on all four panels of carton. Remove end panels and lay side panels ﬂ at.

3. Check for any additional loose parts or cartons and remove.

BEFORE REMOVING TRACTOR FROM SKID

ATTACH STEERING WHEEL

Steering Wheel

Adapter

1/4 Locknut

Lower Steering Shaft

Insert

1/2 Hex Nut

Large Flat Washer

Steering Boot

Tabs

Extension Shaft

1/4 Hex Bolt

Ta b Slots

ASSEMBLE EXTENSION SHAFT AND BOOT

1. Slide extension shaft onto lower steering shaft. Align mount ing holes in extension and lower shafts and install 1/4 hex bolt and lock nut. Tighten securely.

IMPORTANT: Tighten bolt and nut securely to 10-12 ft. lbs torque.

2. Place tabs of steering boot over tab slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so they are pointing straight forward.

4. Remove steering wheel adapter from steering wheel and slide adapter onto steer ing shaft ex ten sion.

5. Position steering wheel so cross bars are hor i zon tal (left to right) and slide inside boot and onto adapt er.

6. Assemble large ﬂ at washer, 1/2 hex nut and tighten se cure ly.

7. Snap steering wheel insert into center of steer ing wheel.

8. Remove protective materials from trac tor hood and grill.

IMPORTANT: Check for and remove any staples in skid that may puncture tires where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

INSTALL SEAT

Adjust seat before tightening adjustment bolt.

1. Remove adjustment bolt, lock washer and ﬂ at washer se cur ing seat to cardboard packing and set aside for as sem bly of seat to tractor.

2. Pivot seat upward and remove from the cardboard packing. Remove the cardboard packing and discard.

3. Place seat on seat pan so head of shoulder bolt is positioned over large slotted hole in pan.

4. Push down on seat to engage shoulder bolt in slot and pull seat towards rear of tractor.

5. Pivot seat and pan forward and as sem ble adjustment bolt, lockwasher and ﬂ at washer loosely. Do not tighten.

8

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

6. Lower seat into operating position and sit in seat.

7. Slide seat until a comfortable position is reached which allows you to press clutch/brake pedal all the way down.

8. Get off seat without moving its adjusted position.

9. Raise seat and tighten adjustment bolt securely.

Seat

Shoulder Bolt

Seat Pan

Flat Washer

Lock Washer

Adjustment Bolt

CHECK BATTERY

1. Lift seat pan to raised position. NOTE: If this battery is put into service after month and year indicated on label (label located between terminals) charge battery for minimum of one hour at 6-10 amps. (See "BATTERY" in Maintenance section of this manual for charging instructions).

Seat pan

Label

Terminal

NOTE: You may now roll or drive your tractor off the skid. Follow the appropriate instruction below to remove the tractor from the skid.

TO ROLL TRACTOR OFF SKID (See Op er a tion section for location and function of con trols)

1. Press lift lever plunger and raise attachment lift lever to its highest po si tion.

2. Release parking brake by de press ing clutch/brake ped al.

3. Place freewheel control in “trans mis sion disengaged” position (See “TO TRANS PORT” in the Op er a tion section of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deﬂ ector shield up against tractor.

TO DRIVE TRAC TOR OFF SKID (See Op er a tion section for location and function of con trols)

WARNING: Before start ing, read, un-

der stand and fol low all in struc tions in the Op er a tion section of this man u al. Be sure tractor is in a well-ventilated area. Be sure the area in front of tractor is clear of other peo ple and objects.

1. Be sure all the above assembly steps have been completed.

2. Check engine oil level and ﬁ ll fuel tank with gasoline.

3. Place freewheel control in "trans mis sion engaged" position. (See “TO TRANS PORT” in the Op er a tion section of this manual).

4. Sit on seat in operating position, depress clutch/brake pedal and set the parking brake.

5. Place motion control lever in neutral (N) position.

6. Press lift lever plunger and raise attachment lift lever to its highest position.

7. Start the engine. After engine has started, move throttle control to idle position.

8. Release parking brake.

9. Slowly move the mo tion control lever for ward and slowly drive tractor off skid.

10.Apply brake to stop trac tor, set park ing brake and place motion con trol lever in neutral po si tion.

11.Turn ignition key to "STOP" position.

Continue with the in struc tions that follow.

9

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

CHECK TIRE PRESSURE

The tires on your tractor were overinﬂ ated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance.

• Reduce tire pressure to PSI shown in “PRODUCT SPEC I FI CA TIONS” section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly leveled. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL BELTS

See the ﬁ gures that are shown for replacing motion and mower blade drive belts in the Service and Adjustments sec tion of this manual. Verify that the belts are routed cor rect ly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that the brake is properly adjusted. See “TO ADJUST BRAKE” in the Service and Adjustments section of this manual.

✔

CHECKLIST

Before you operate your new trac tor, we wish to as sure that you re ceive the best performance and sat is fac tion from this quality product. Please review the following checklist: ✓ All assembly instructions have been

com plet ed.

✓ No remaining loose parts in carton. ✓ Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

✓ Seat is adjusted comfortably and tight-

ened securely.

✓ All tires are properly inﬂ ated. (For ship-

ping purposes, the tires were over in ﬂ ated at the factory).

✓ Be sure mower deck is properly lev eled

side-to-side/front-to-rear for best cutting results. (Tires must be properly in ﬂ at ed for leveling).

✓ Check mower and drive belts. Be sure

they are routed prop er ly around pul leys and inside all belt keepers.

✓ Check wiring. See that all connections

are still secure and wires are properly clamped.

✓ Before driving tractor, be sure free wheel

control is in “transmission engaged” position (see “TO TRANS PORT” in the

Operation section of this man u al). While learning how to use your tractor, pay extra attention to the following im por tant items:

✓ Engine oil is at proper level. ✓ Fuel tank is ﬁ lled with fresh, clean, reg-

u lar unleaded gas o line. ✓ Become familiar with all controls - their

location and func tion. Operate them

be fore you start the engine. ✓ Be sure brake system is in safe op er -

at ing condition. ✓ It is important to purge the trans mis sion

before op er at ing your tractor for the ﬁ rst

time. Follow proper starting and trans-

mis sion purg ing instructions (See “TO

START EN GINE” and “PURGE TRANS-

MIS SION” in the Op er a tion sec tion of

this man u al).

10

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

OPERATION

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

REVERSE

ENGINE OFF

OVER TEMP

LIGHT

ATTACHMENT

CLUTCH ENGAGED

FREE WHEEL

(Automatic Models only)

NEUTRAL

LIGHTS ON

FUEL

OIL PRESSURE

ATTACHMENT

CLUTCH DISENGAGED

HIGH

ENGINE ON

LOW

ENGINE START

BATTERY

DANGER, KEEP HANDS

AND FEET AWAY

CHOKE

PARKING BRAKE

REVERSE

DANGER indicates a hazard which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury.

FAST

P

FORWARD

KEEP AREA CLEAR

SLOW

PARKING BRAKE

LOCKED

MOWER HEIGHT

15

SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

IGNITION

PARKING BRAKE

UNLOCKED

MOWER LIFT

15

Failure to follow instructions could result in serious injury or death. The safety alert symbol is used to identify safety information about hazards which can result in death, serious injury and/or property damage.

CAUTION when used without the alert symbol, indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which, if not avoided, could result in death, serious injury and/or property damage.

FIRE indicates a hazard which, if not avoided, could result in death, serious injury and/or property damage.

11

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference.

Light Switch Position

Lift Lever Plunger

Attachment Lift Lever

Throttle/Choke Control

Clutch/Brake Pedal

Attachment Clutch Lever

Ignition

Switch

Free Wheel Control

Our tractors conform to the safety standards of the

American National Stan dards Institute.

ATTACHMENT CLUTCH LEVER - Used to engage the mower blades, or other attachments mounted to your trac tor. ATTACHMENT LIFT LEVER - Used to raise, lower, and adjust the mower deck or other attachments mounted to your tractor. CLUTCH/BRAKE PEDAL - Used for declutching and brak ing the tractor and starting the engine. MOTION CONTROL LEVER - Selects the speed and direction of tractor. IGNITION SWITCH - Used for starting and stopping the engine.

Parking Brake Lever

Motion Control Lever

LIFT LEVER PLUNGER - Used to re lease attachment lift lever when chang ing its position. LIGHT SWITCH POSITION - Turns the head lights on and off. PARKING BRAKE LEVER - Locks clutch/ brake pedal into the brake position. THROTTLE/CHOKE CONTROL - Used for starting and controlling engine speed. FREEWHEEL CONTROL - Disengagages transmission for pushing or slowly towing the tractor with the engine off.

12

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide vision safety mask worn over spectacles.

HOW TO USE YOUR TRAC TOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator presence sens ing switch. When engine is running, any attempt by the op er a tor to leave the seat without ﬁ rst setting the parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way down and hold.

2. Pull parking brake lever up and re lease pres sure from clutch/brake pedal. Pedal should re main in brake po si tion. Make sure parking brake will hold tractor secure.

Throttle/ Choke Control

Clutch/ Brake Pedal

“Disengaged” Position

STOPPING

MOWER BLADES -

• To stop mower blades, move at tach ment

clutch lever to disengaged position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move motion control lever to neutral (N)

position. IMPORTANT: The motion control lever does not return to neutral (N) position when the clutch/brake pedal is de pressed.

ENGINE -

• Move throttle control to slow po si tion. NOTE: Failure to move throttle control to slow position to allow engine to idle before stopping may cause engine to “backﬁ re”.

• Turn ignition key to “STOP” position and

remove key. Always remove key when

leaving tractor to pre vent un au tho rized

use.

• Never use choke to stop engine.

Attachment Clutch Lever

“Engaged” Position

Ignition Key

“Disengaged”

Position Motion Control Lever

Parking Brake

“Brake” Position

“Engaged”

Position

IMPORTANT: Leaving the ignition switch in any position other than “STOP” will cause the battery to discharge and go dead. NOTE: Under certain conditions when tractor is standing idle with the engine running, hot engine exhaust gases may cause “browning” of grass. To eliminate this possibility, always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor com plete ly, as de scribed above, be fore leav ing the op er a tor’s position.

TO USE THROTTLE CON TROL

Always operate engine at full throttle.

• Operating engine at less than full throttle reduces the battery charg ing rate.

• Full throttle of fers the best bagging and mower per for mance.

TO MOVE FORWARD AND BACK WARD

The direction and speed of movement is controlled by the motion control lever.

1. Start tractor with motion control le ver in neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to desired position.

TO ADJUST MOWER CUT TING HEIGHT

The po si tion of the at tach ment lift le ver de ter mines the cut ting height.

• Grasp lift le ver.

• Press plunger with thumb and move lever to desired position.

The cutting height range is ap prox i mate ly 1-1/2 to 4". The heights are measured from the ground to the blade tip with the engine not running. These heights are approximate and may vary depending upon soil conditions, height of grass and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2 inches during the cool season and to over 3 inches during hot months. For healthier and better looking lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches in height should be mowed twice. Make the ﬁ rst cut relatively high; the second to de sired height.

13

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TO OPERATE MOWER

Your tractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine. You must remain fully and centrally positioned in the seat to prevent the engine from hesitating or cutting off when operating your equipment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at tach ment clutch control.

TO STOP MOWER BLADES disengage at tach ment clutch con trol.

CAUTION: Do not operate the mower without either the en tire grass catcher, on mowers so equipped, or the deﬂ ector shield in place.

Attachment Clutch Lever “Engaged” Position

Attachemnt Lift Lever High Position

TO TRANSPORT

When pushing or towing your tractor, be sure to disengage transmission by placing freewheel control in free wheel ing po si tion. Freewheel control is located at the rear drawbar of tractor.

1. Raise attachment lift to highest position with at tach ment lift control.

2. Pull freewheel control out and down into the slot and release so it is held in the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

Transmission Engaged

Low Position

“Disengaged” Position

Deﬂ ector Shield

TO OPERATE ON HILLS

WARNING: Do not drive up or down

hills with slopes greater than 15° and do not drive across any slope. Use the slope guide at the back of this manual.

• Choose the slowest speed before starting up or down hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throt tle control lever to slower position.

• If stopping is absolutely necessary, push clutch/brake pedal quickly to brake position and engage parking brake.

• Move motion control lever to neutral (N) position.

IMPORTANT: The motion control lever does not return to neutral (N) position when the clutch/brake pedal is de pressed.

• To restart movement, slowly re lease parking brake and clutch/brake ped al.

• Slowly move motion control lever to slowest setting.

• Make all turns slowly.

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck or a trailer, be sure hood is closed and secured to tractor. Use an appropriate means of tying hood to tractor (rope, cord, etc.).

TOWING CARTS AND OTHER AT TACH MENTS

Tow only the attachments that are rec om mend ed by and comply with spec i ﬁ ca tions of the manufacturer of your tractor. Use common sense when tow ing. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped, from the factory, already ﬁ lled with sum mer weight oil.

1. Check engine oil with tractor on level ground.

2. Remove oil ﬁ ll cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a few seconds, remove and read oil level. If nec es sary, add oil until “FULL” mark on dipstick is reached. Do not overﬁ ll.

14

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

• For cold weather operation you should change oil for easier starting ((See the oil viscosity chart in the Main te nance sec tion of this manual).

• To change engine oil, see the Main te nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank ﬁ ller neck. Do not overﬁ ll. Use fresh, clean, reg u lar un lead ed gasoline with a min i mum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide de pos its and reduce valve life). Do not mix oil with gasoline. Purchase fuel in quan tities that can be used within 30 days to assure fuel freshness.

CAUTION: Wipe off any spilled oil or fuel. Do not store, spill or use gas o line near an open ﬂ ame. IMPORTANT: When operating in tem per a tures below 32°F(0°C), use fresh, clean win ter grade gas o line to help in sure good cold weather start ing. CAUTION: Alcohol blended fuels (called gasohol or us ing ethanol or methanol) can attract mois ture which leads to separation and for ma tion of acids during storage. Acid ic gas can damage the fuel system of an en gine while in storage. To avoid en gine prob lems, the fuel system should be emp tied before stor age of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are emp ty. Use fresh fuel next season. See Stor age In struc tions for additional in for ma tion. Never use engine or car bu re tor clean er prod ucts in the fuel tank or per ma nent dam age may occur.

TO START ENGINE

When starting the engine for the ﬁ rst time or if the engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine.

1. Be sure freewheel control is in the

trans mis sion en gaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to dis en gaged

position.

5. Move throttle control to choke po si tion. NOTE: Before starting, read the warm and cold starting procedures below.

6. Insert key into ignition and turn key clock wise to start position and release key as soon as engine starts. Do not run starter continuously for more than ﬁ fteen sec onds per minute. If the engine does not start after several attempts, move throt tle control to fast position, wait a few minutes and try again. If engine still does not start, move the throttle control back to the choke position and retry.

WARM WEATHER STARTING (50° F and above)

7. When engine starts, move the throt tle control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not accept the load, restart the en gine and allow it to warm up for one minute using the choke as de scribed above.

COLD WEATHER STARTING ( 50° F and below)

7. When engine starts, leave throttle control in choke position until engine warms up and begins to run roughly. Once rough running begins, im me di ate ly move the throttle control to the fast position. Engine warm-up may take from several seconds to several minutes (the colder the tem per a ture, the longer the warm-up).

AUTOMATIC TRANSMISSION WARM UP Before driving the unit in cold weath er,

the trans mis sion should be warmed up as follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in neutral. Release the parking brake and let the clutch/brake slowly re turn to operating po si tion.

3. Allow one minute for trans mis sion to warm up. This can be done during the engine warm up period.

• The attachments can also be used dur-

ing the engine warm-up period after the

trans mis sion has been warmed up. NOTE: If at a high altitude (above 3000 feet) or in cold temperatures (below 32 F) the carburetor fuel mixture may need to be adjusted for best engine performance (see “TO ADJUST CARBURETOR” in the Service and Adjustments section of this manual).

15

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

PURGE TRANSMISSION

CAUTION: Never engage or dis-

en gage freewheel lever while the engine is run ning. To ensure proper operation and per for mance, it is rec om mend ed that the trans mis sion be purged before operating trac tor for the ﬁ rst time. This procedure will remove any trapped air inside the trans mis sion which may have de vel oped dur ing shipping of your tractor. IMPORTANT: Should your transmission require removal for service or re place ment, it should be purged after re in stal la tion before operating the tractor.

1. Place tractor safely on level surface with engine off and parking brake set.

2. Disengage transmission by placing freewheel control in “transmission disengaged” po si tion (See “TO TRANS PORT” in this section of manual).

3. Sitting in the tractor seat, start en gine. After the engine is running, move throttle control to slow position. With motion control lever in neutral (N) po si tion, slowly disengage clutch/brake pedal.

4. Move motion control lever to full for ward position and hold for ﬁ ve (5) seconds. Move lever to full reverse position and hold for ﬁ ve (5) seconds. Repeat this procedure three (3) times.

NOTE: During this step there will be no movement of drive wheels. The air is being removed from hydraulic drive sys tem.

5. Move motion control lever to neutral (N) position. Shutoff engine and set parking brake.

6. Engage transmission by placing free wheel control in “transmission engaged” position (See “TO TRANS PORT” in this sec tion of manual).

7. Sitting in the tractor seat, start en gine. After the engine is running, move throttle control to half (1/2) speed. With motion control lever in neutral (N) position, slowly dis en gage clutch/brake pedal.

8. Slowly move motion control lever forward, after the tractor moves ap prox i mate ly ﬁ ve (5) feet, slowly move motion control lever to reverse po si tion. After the tractor moves ap prox i mate ly ﬁ ve (5) feet return the motion control lever to the neutral (N) position. Repeat this pro ce dure with the motion control lever three (3) times.

Your transmission is now purged and ready for normal operation.

MOWING TIPS

• Mower should be properly leveled for best mowing performance. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments sec tion of this manual.

• The left hand side of mower should be used for trim ming.

• Drive so that clippings are dis charged onto the area that has already been cut. Have the cut area to the right of the tractor. This will result in a more even dis tri bu tion of clippings and more uniform cutting.

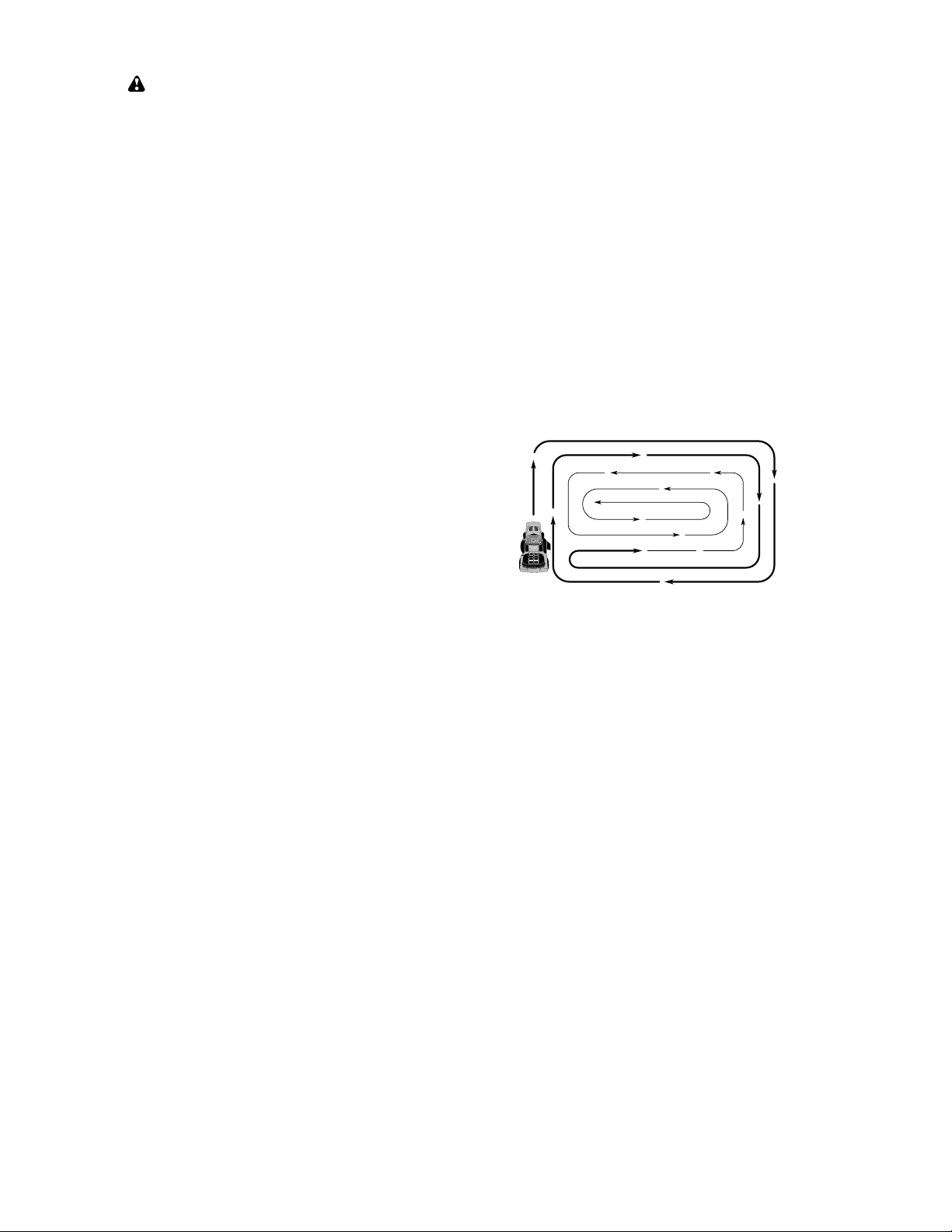

• When mowing large areas, start by turning to the right so that clippings will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction making left hand turns until ﬁ nished.

• If grass is extremely tall, it should be mowed twice to reduce load and possible ﬁ re hazard from dried clip pings. Make ﬁ rst cut relatively high; the second to the desired height.

• Do not mow grass when it is wet. Wet grass will plug mower and leave undesirable clumps. Allow grass to dry before mowing.

• Always operate engine at full throt tle when mowing to assure better mow ing

performance and proper dis charge of material. Regulate ground speed by se lect ing a low enough gear to give the mower cut ting per for mance as well as the quality of cut desired.

• When operating attachments, se lect a ground speed that will suit the terrain and give best performance of the at tach ment being used.

16

www.mymowerparts.com

g

For Parts Call K&T 606-678-9623 or 606-561-4983

MAINTENANCE

MAINTENANCE SCHEDULE

FILL IN DATES AS YOU COMPLETE REGULAR SERVICE

Check Brake Operation

Check Tire Pressure

Check Operator Presence and Interlock Systems

T

Check for Loose Fasteners

R A

Sharpen/Replace Mower Blades

C

Lubrication Chart

T

Check Battery Level

0

Clean Battery and Terminals

R

Check Transaxle Cooling

Check V-Belts

Check Engine Oil Level

Change Engine Oil (with oil filter)

Change Engine Oil (without oil filter)

E

Clean Air Filter

N G

Clean Air Screen

I

Inspect Muffler/Spark Arrester

N

Replace Oil Filter (If equipped)

E

Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 - Change more often when operating under a heavy load or in high ambient temperatures. 2 - Service more often when operating in dirty or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must main tain tractor as instructed in this manual. Some adjustments will need to be made periodically to properly maintain your tractor. At least once a season, check to see if you should make any of the adjustments described in the Service and Adjustments section of this manual.

• At least once a year you should replace the spark plug, clean or replace air ﬁ lter, and check blades and belts for wear. A new spark plug and clean air ﬁ lter assure proper air-fuel mixture and help your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper op er a tion.

5. Check for loose fasteners.

BEFORE EACH USE

BEFORE STORAGE

EVERY 8 HOURS

EVERY 25 HOURS

EVERY 50 HOURS

3

4

1,2

2

3 - Replace blades more often when mowing in sandy soil. 4 - Not required if equipped with maintenance-free battery. 5 - Tighten front axle pivot bolt to 35 ft.-lbs. maximum. Do not overti

EVERY SEASON

EVERY 100 HOURS

5

1

,

2

hten.

SERVICE DATES

LUBRICATION CHART

Spindle

➀

Zerk

➀Front Wheel

Bearing

➀

Bearing Zerk

Zerk

➁Engine

➀ General Purpose Grease ➁ REFER TO Maintenance “ENGINE” SECTION

IMPORTANT: Do not oil or grease the pivot points which have special nylon bearings. Viscous lu bri cants will attract dust and dirt that will short en the life of the self-lu bri cat ing bearings. If you feel they must be lu bri cat ed, use only a dry, pow dered graphite type lu bri cant spar ing ly.

17

➀ Spindle

Zerk

Front Wheel

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR

Always observe safety rules when per form ing any main te nance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance at high speed in high est gear, then brake must be ad just ed. (See “TO ADJUST BRAKE” in the Ser vice and Ad just ments section of this manual).

TIRES

• Maintain proper air pressure in all tires (See “PROD UCT SPEC I FI CA TIONS” section of this man ual).

• Keep tires free of gasoline, oil, or insect control chemi cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tire damage.

NOTE: To seal tire punctures and pre vent ﬂ at tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

OPERATOR PRESENCE SYS TEM

Be sure operator presence and interlock sys tems are working properly. If your tractor does not function as described, repair the problem immediately.

• The engine should not start unless the brake pedal is fully de pressed and attachement clutch control is in the disengaged po si tion.

• When the engine is running, any attempt by the op er a tor to leave the seat without ﬁ rst setting the parking brake should shut off the engine.

• When the engine is running and the at tach ment clutch is engaged, any attempt by the operator to leave the seat should shut off the engine.

• The attachment clutch should nev er operate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be kept sharp. Re place bent or damaged blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

ﬂ at washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown. IMPORTANT: To ensure proper as sem bly, center hole in blade must align with star on mandrel assembly.

4. Reassemble blade bolt, lock washer

and ﬂ at washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft. Lbs. torque).

IMPORTANT: Blade bolt is heat treated. If bolt needs replacing, replace only with approve bolt shown in the Repair Parts.

Trailing Edge Up

Flat Washer

Lock Washer

Blade

Center Hole

Blade Bolt

Mandrel Assembly

Star

TO SHARPEN BLADE NOTE: We do not recommend sharp-

en ing blade - but if you do, be sure the blade is balanced. Care should be taken to keep the blade balanced. An unbalanced blade will cause excessive vibration and even tual damage to mower and engine.

• The blade can be sharpened with a ﬁ le

or on a grinding wheel. Do not attempt to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone balancer. (When using a cone bal anc er, follow the in struc tions supplied with

bal anc er.) NOTE: Do not use a nail for balancing blade. The lobes of the center hole may appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal po si tion. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

Blade

5/8” Bolt or Pin

Center Hole

BATTERY

Your tractor has a battery charging sys tem which is suf ﬁ cient for normal use. How ev er, periodic charging of the battery with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour. NOTE: The original equipment battery on your tractor is maintenance free. Do not attempt to open or remove caps or cov ers. Adding or checking level of elec tro lyte is not necessary.

18

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TO CLEAN BATTERY AND TER MI NALS Corrosion and dirt on the battery and

terminals can cause the battery to “leak” power.

1. Disconnect BLACK battery cable ﬁ rst then RED bat tery cable and remove battery from tractor.

2. Rinse the battery with plain water and dry.

3. Clean terminals and battery cable ends with wire brush until bright.

4. Coat terminals with grease or pe tro leum jelly.

5. Reinstall battery (See “REPLACING BATTERY" in the SERVICE AND ADJUSTMENTS section of this manual).

TRANSAXLE COOLING

The transmission fan and cooling ﬁ ns should be kept clean to assure proper cooling. Do not attempt to clean fan or trans mis sion while engine is running or while the transmission is hot. To prevent pos si ble damage to seals, do not use high pres sure water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades are intact and clean.

• Inspect cooling ﬁ ns for dirt, grass clippings and other materials. To prevent damage to seals, do not use com pressed air or high pressure sprayer to clean cool ing ﬁ ns.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and ﬂ uid main te nance is not required for the life of the transaxle. Should the transaxle ever leak or require servicing, contact our authorized service center/department.

V-BELTS

Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. The belts are not ad just able. Re place belts if they begin to slip from wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service classiﬁ cation SF-SJ. Select the oil’s SAE viscosity grade according to your expected operating tem per a ture.

SAE VISCOSITY GRADES

5W-30

-20 0 30 40

F C

-20 0

-30

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

32

-10

SAE 30

60

10

20 30 40

100

80

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, they will result in increased oil consumption when used above 32°F. Check your en gine oil level more frequently to avoid pos si ble engine damage from running low on oil. Change the oil after every 25 hours of op er a tion or at least once a year if the trac tor is not used for 25 hours in one year. Check the crankcase oil level before start ing the engine and after each eight (8) hours of operation. Tighten oil ﬁ ll cap/ dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL Determine temperature range expected

before oil change. All oil must meet API service classiﬁ cation SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil ﬁ ll cap/dipstick. Be careful not to allow dirt to enter the engine when changing oil.

2. Remove yellow cap from end of drain valve and install the drain tube onto the ﬁ tting.

Oil Drain Valve

Closed and Locked Position

Yellow Cap

Drain Tube

3. Un lock drain valve by pushing inward slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close and lock the drain valve by pushing inward and turning clock wise until the pin is in the locked position as shown.

6. Remove the drain tube and replace the cap onto the end of the drain valve.

7. Reﬁ ll engine with oil through oil ﬁ ll dipstick tube. Pour slowly. Do not overﬁ ll. For approximate capacity see “PRODUCT SPEC I FI CA TIONS” section of this man u al.

8. Use gauge on oil ﬁ ll cap/dipstick for checking level. For accurate reading, tighten dipstick cap securely onto the tube before removing dipstick. Keep oil at “FULL” line on dipstick. Tighten cap onto the tube securely when ﬁ nished.

19

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

AIR FILTER

Your engine will not run properly using a dirty air ﬁ lter. Replace pre-cleaner after every 25 hours of operation or every season. Service paper cartridge every 100 hours of operation or every season, whichever occurs ﬁ rst. Service air cleaner more often under dusty conditions.

1. Pull up on air ﬁ lter cover handle and rotate towards engine.

2. Remove cover.

3. Carefully remove air ﬁ lter cartridge and pre-cleaner from base.

4. Clean base carefully to prevent debris from falling into carburetor.

NOTE: If very dirty or damaged, replace cartridge.

5. Place new pre-cleaner and cartridge ﬁ rmly in base.

6. Align tabs on cover with slots in blower housing and replace cover.

7. Hook handle on cover and push down on handle to close.

IMPORTANT: Petroleum solvents, such as kerosene, are not to be used to clean the cartridge. They may cause de te ri o ra tion of the cartridge. Do not oil cartridge. Do not use pressurized air to clean cartridge.

Handle

Cover

Cartridge

ENGINE COOLING SYSTEM

Debris may clog the engine’s air cooling system. Remove blower housing and clean area shown to prevent overheating and engine damage.

Air Screen

Clean out chaff and debris

02744

MUFFLER

Inspect and replace corroded mufﬂ er and spark arrester (if equipped) as it could create a ﬁ re hazard and/or dam age.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of each mowing season or after every 100 hours of operation, whichever occurs ﬁ rst. Spark plug type and gap setting are shown in “PROD UCT SPEC I FI CA TIONS” section of this manual.

IN-LINE FUEL FILTER

The fuel ﬁ lter should be replaced once each season. If fuel ﬁ lter becomes clogged, ob struct ing fuel ﬂ ow to car bu re tor, re place ment is re quired.

1. With engine cool, remove ﬁ lter and plug fuel line sec tions.

2. Place new fuel ﬁ lter in position in fuel line with arrow pointing towards carburetor.

3. Be sure there are no fuel line leaks and clamps are properly positioned.

4. Immediately wipe up any spilled gasoline.

Clamp

Pre-cleaner

Base

Tabs

Slots

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent engine dam age from overheating. Clean with a wire brush or compressed air to re move dirt and stub born dried gum ﬁ bers.

www.mymowerparts.com

Fuel Filter

CLEANING

• Clean engine, battery, seat, ﬁ nish, etc. of all foreign matter.

• Keep ﬁ nished surfaces and wheels free of all gasoline, oil, etc.

• Protect painted surfaces with au to mo tive type wax.

We do not recommend using a garden hose or pressure washer to clean your tractor unless the engine and transmission are covered to keep water out. Water in engine or transmission will shorten the useful life of your tractor. Use compressed air or a leaf blower to remove grass, leaves and trash from tractor and mower.

20

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE AND ADJUSTMENTS

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR AD JUST MENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3. Place attachment clutch in “DISENGAGED” position.

4. Turn ignition key to “STOP” and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the right side of tractor.

1. Place attachment clutch in “DIS ENGAGED” position.

2. Move attachment lift lever forward to low er mower to its lowest po si tion.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide col lar off and push housing guide out of brack et.

6. Disconnect anti-sway bar from chas sis bracket by re mov ing re tain er spring.

7. Disconnect suspension arms from rear deck brackets by removing retainer springs.

8. Disconnect front links from deck by re mov ing retainer springs.

9. Raise lift lever to raise suspension arms. Slide mower out from under tractor.

IMPORTANT: If an attachment other than the mower deck is to be mounted on the trac tor, remove the front links and hook the clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its high est position.

2. Slide mower under tractor with deﬂ ector shield to right side of tractor.

3. Lower lift lever to its lowest po si tion.

4. Connect front links to mower deck and secure with retainer springs.

5. Connect suspension arms to rear deck brackets and secure with retainer springs.

6. Connect anti-sway bar to chassis bracket and secure with retainer spring.

7. Push clutch cable housing guide into bracket, slide collar onto guide and secure with large retainer spring.

8. Place ﬂ at washer and clutch spring on idler pulley bolt and secure with small retainer spring.

9. Install belt onto engine pulley.

Retainer Spring

Anti-Sway Bar

Collar

Housing Guide

Small Retainer Spring

Clutch Spring

Small Retainer

Clutch Spring

Spring

Large Re tain er Spring

Flat Washer

Suspension Arms

Bracket

21

www.mymowerparts.com

Square Hole

Engine Pulley

Front Link

Retainer Springs (Both Sides)

Deﬂ ector Shield

For Parts Call K&T 606-678-9623 or 606-561-4983

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or driveway. Make sure tires are properly inﬂ ated (See “PROD UCT SPECIFICATIONS” section of this man u al). If tires are over or underinﬂ ated, you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower, measure height from bot tom edge of mower to ground. Distance “A” on both sides of mower should be the same or within 1/4" of each other.

• If adjustment is necessary, make adjustment on one side of mower only.

• To raise one side of mower, tighten lift link ad just ment nut on that side.

• To lower one side of mower, loosen lift link ad just ment nut on that side.

NOTE: Each full turn of adjustment nut will change mower height about 1/8".

• Recheck measurements after ad just ing.

Bottom edge of Bottom edge of mower to ground

mower to ground

• When distance “D” is 1/8" to 1/2" lower at front than rear, tighten nuts “F” against trunnion on both front links.

• To raise front of mower, loos en nut “F” from trunnion on both front links. Tighten nut “E” on both front links an equal number of turns.The two front links must remain equal in length.

• When distance “D” is 1/8" to 1/2" lower at front than rear, tighten nut “F” against trun nion on both front links.

• Recheck side-to-side ad just ment.

Mandrel

“D”

Both Front Links Should be Equal in Length

Nut “F”

“D”

Nut “E”

A

Lift Link Adjustment Nut

Ground Line

Suspension Arm

A

FRONT-TO-BACK ADJUSTMENT IMPORTANT: Deck must be level side-to side. If the following front-to-back ad just ment is necessary, be sure to adjust both front links equally so mower will stay level side-to-side. To obtain the best cutting results, the mower housing should be adjusted so that the front is approximately 1/8" to 1/2" lower than the rear when the mower is in its highest position. Check adjustment on right side of trac tor. Measure dis tance “D” directly in front and behind the mandrel at bottom edge of mower housing as shown.

• Before making any necessary ad just ments, check that both front links are equal in length.

• If links are not equal in length, adjust one link to same length as other link.

• To lower front of mower loosen nut “E” on both front links an equal number of turns.

Trunnion

Front Links

TO REPLACE MOWER BLADE DRIVE BELT

The mower blade drive belt may be replaced without tools. Park the tractor on level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See “TO REMOVE MOW ER” in this sec tion of manual).

2. Work belt off both mandrel pulleys and idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys and idler pulleys

2. Make sure belt is in all pulley grooves and inside all belt guides.

3. Install mower (See “To Install Mower” in this section of this manual).

22

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

Mandrel Pulley

Idler Pulleys

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an ad just able brake system which is mounted on the right side of the transaxle. If tractor requires more than ﬁ ve (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or paved surface, depress clutch/brake pedal all the way down and engage parking brake.

2. Disengage transmission by placing freewheel control in “transmission disengaged” position. Pull freewheel control out and into the slot and release so it is held in the disengaged position.

The rear wheels must lock and skid when you try to manually push the tractor forward. If the rear wheels rotate, the brake needs to be adjusted or the pads need to be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way down and engage parking brake.

2. Measure distance between brake operating arm and nut “A” on brake rod.

3. If distance is other than 1-9/16", loosen jam nut and turn nut “A” until distance becomes 1-9/16". Retighten jam nut against nut “A”.

4. Engage transmission by placing free wheel control in “trans mis sion en gaged” position.

5. Road test tractor for proper stopping distance as stated above. Readjust if nec es sary. If stopping distance is still greater than ﬁ ve (5) feet in high est gear, further main te nance is nec es sary. Replace brake pads or contact our authorized service center/department.

With Parking Brake “Engaged”

1-9/16”

Do Not touch this nut. If further brake ad just ment is necessary contact an authorized service center/department.

Nut “A”

Jam Nut

Operating Arm

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. En gage parking brake. For as sis tance, there is a belt installation guide decal on bottom side of left footrest.

BELT REMOVAL -

1. Remove mower (See “TO RE MOVE MOWER” in this section of manual).

NOTE: Observe entire motion drive belt and position of all belt guides and keepers.

2. Remove belt from stationary idler and clutching idler.

3. Remove belt downward from around en gine pulley.

4. Pull belt slack toward rear of trac tor. Carefully remove belt upwards from transmission input pulley and over cooling fan blades.

5. Remove belt from center span keeper and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down around transmission cooling fan and onto the input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll around the top groove of engine pulley.

4. Install belt through stationary idler and clutch ing idler.

5. Make sure belt is in all pulley grooves and in side all belt guides and keep ers.

6. Install mower (See “TO IN STALL MOWER” in this sec tion of manual).

23

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

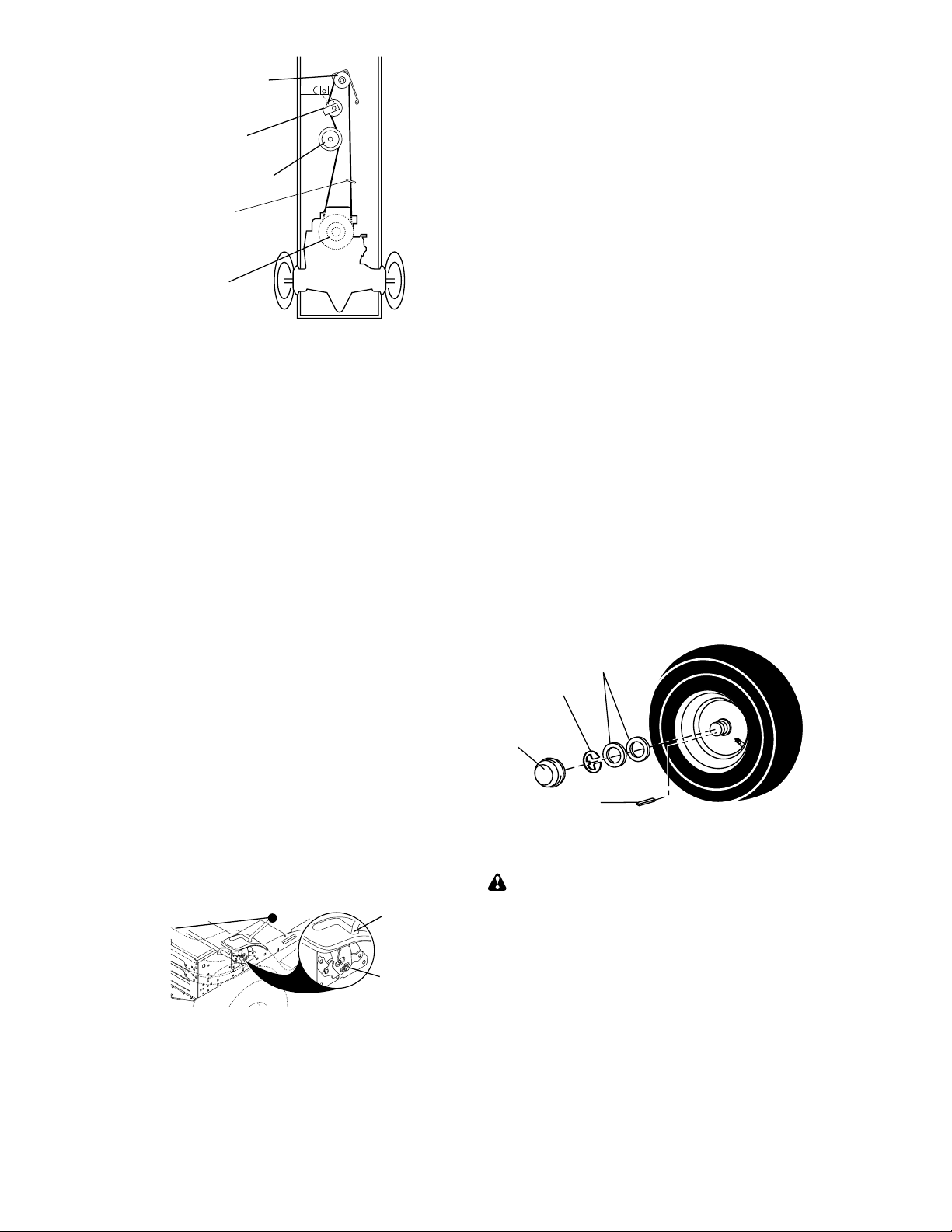

Engine Pulley

Clutching Idler

Stationary Idler

Center Span Keeper

Transmission Input Pulley

TRANSAXLE MOTION CON TROL LEVER NEUTRAL AD JUST MENT

The motion control lever has been pre set at the factory and adjustment should not be necessary.

1. Loosen adjustment bolt in front of the right rear wheel, and lightly tight en.

2. Start engine and move motion con trol lever until tractor does not move forward or backward.

3. Hold motion control lever in that position and turn engine off.

4. While holding motion control lever in place, loosen the adjustment bolt.

5. Move motion control lever to the neutral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed to get to ad just ment bolt, move mower deck height to the lowest position. After above adjustment is made, if the tractor still creeps forward or backward while motion control lever is in neutral position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to 1/2 inch in the direction it is trying to creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above steps until satisﬁ ed.

Motion Control Lever

TRANSMISSION REMOVAL/ RE PLACE MENT

Should your transmission require re mov al for service or re place ment, it should be purged after reinstallation and before operating the tractor. See “PURGE TRANS MIS SION” in the Op er a tion section of this manual.

Neutral Lock Gate

Adjustment Bolt

TO AD JUST STEER ING WHEEL ALIGN MENT

If steering wheel crossbars are not hor i zon tal (left to right) when wheels are positioned straight forward, remove steer ing wheel and reassemble with crossbars horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAM BER

The front wheel toe-in and camber are not adjustable on your tractor. If dam age has occurred to affect the front wheel toe-in or camber, contact our authorized service center/department.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and washers to allow wheel removal (rear wheels have a square key - Do not lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align grooves in rear wheel hub and axle. Insert square key.

4. Replace washers and snap retaining ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and pre vent ﬂ at tires due to slow leaks, purchase and use tire sealant from an authorized service center/department. Tire sealant also pre vents tire dry rot and corrosion.

Washers

Retaining Ring

Axle Cover

Square Key (Rear Wheel Only)

TO START ENGINE WITH A WEAK BAT TERY

WARNING: Lead-acid batteries

gen er ate ex plo sive gases. Keep sparks, ﬂ ame and smoking ma te ri als away from bat ter ies. Always wear eye pro tec tion when around batteries. If your battery is too weak to start the engine, it should be recharged. (See "BATTERY" in the MAINTENANCE section of this man u al). If “jumper ca bles” are used for emer gen cy starting, follow this pro ce dure: IMPORTANT: Your tractor is equipped with a 12 volt system. The other vehicle must also be a 12 volt system. Do not use your tractor battery to start other vehicles.

24

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable to the POSITIVE (+) terminal of each battery(A-B), taking care not to short against tractor chassis.

2. Connect one end of the BLACK ca ble to the NEGA TIVE (-) terminal (C) of fully charged battery.

3. Connect the other end of the BLACK cable (D) to good chassis ground, away from fuel tank and bat tery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable ﬁ rst from chassis and then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Battery

Fully Charged Battery

REPLACING BATTERY

WARNING: Do not short bat tery

ter mi nals by al low ing a wrench or any other object to contact both terminals at the same time. Before con nect ing battery, remove metal bracelets, wrist watch bands, rings, etc. Positive terminal must be connected ﬁ rst to prevent spark ing from ac ci den tal grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable ﬁ rst then RED battery cable and carefully remove battery from trac tor.

3. Install new battery with terminals in same position as old battery.

4. First connect RED battery cable to positive (+) terminal with hex bolt and keps nut as shown. Tighten securely. Slide terminal cover over terminal

5. Connect BLACK grounding cable to negative (-) ter mi nal with remaining hex bolt and keps nut. Tighten se cure ly.

Seat Pan

Terminal Cover

Positive (Red) Cable

Keps Nut

Hex Bolt

Negative (Black) Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the backside of the grill.

3. Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL AS SEM BLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at sides, tilt toward engine and lift off of tractor.

4. When replacing hood, be sure to reconnect the headlight wire con nec tor.

Hood

Headlight Wire Connector

ENGINE

TO AD JUST THROT TLE CON TROL CABLE

The throt tle con trol has been pre set at the fac to ry and ad just ment should not be necessary. If adjustment is necessary, see eingine manual.

TO ADJUST CARBURETOR

The carburetor has been preset at the factory and adjustment should not be necessary. However, minor adjustment may be required to compensate for differences in fuel, temperature, altitude or load. If the carburetor des need adjustment, see engine manual.

25

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

STORAGE

Immediately prepare your tractor for stor age at the end of the season or if the tractor will not be used for 30 days or more.

WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open ﬂ ame or spark. Allow the engine to cool before storing in any en clo sure.

TRACTOR

Remove mower from tractor for winter storage. When mower is to be stored for a period of time, clean it thor oughly, remove all dirt, grease, leaves, etc. Store in a clean, dry area.

1. Clean entire tractor (See “CLEAN ING”

in the Maintenance section of this manual).

2. Inspect and replace belts, if nec es sary

(See belt re place ment in struc tions in the Service and Ad just ments section of this manual).

3. Lubricate as shown in the Main te -

nance section of this man ual.

4. Be sure that all nuts, bolts and screws

are securely fastened. In spect moving parts for damage, break age and wear. Replace if nec es sary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before paint ing.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of stor age, battery cables should be dis con nect ed and battery cleaned thor ough ly (see “TO CLEAN BATTERY AND TER MI NALS” in the Maintenance section of this man u al).

• After cleaning, leave cables dis con -

nect ed and place cables where they cannot come in contact with battery terminals.

• If battery is removed from tractor for

storage, do not store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM IMPORTANT: It is important to prevent

gum deposits from forming in essential fuel system parts such as carburetor, fuel hose, or tank during storage.

Also, alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.

• Empty the fuel tank by starting the engine and letting it run until the fuel lines and carburetor are empty.

• Never use engine or carburetor clean er products in the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in min i miz ing the formation of fuel gum deposits during stor age. Add stabilizer to gasoline in fuel tank or stor age container. Always follow the mix ratio found on stabilizer container. Run engine at least 10 minutes after adding stabilizer to allow the sta bi liz er to reach the carburetor. Do not empty the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil. (See “ENGINE” in the Maintenance section of this man ual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start po si tion for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one sea son to another.

• Replace your gasoline can if your can starts to rust. Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor in doors and cover it to give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that does not retain moisture. Do not use plastic. Plas tic cannot breathe which allows con den sa tion to form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while en gine and exhaust areas are still warm.

26

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TROUBLESHOOTING CHART:

PROBLEM CAUSE CORRECTION

Will not start 1. Out of fuel. 1. Fill fuel tank.

2. Engine not “CHOKED” 2. See “TO START ENGINE” in properly. Operation section.

3. Engine ﬂ ooded. 3. Wait several minutes before attempting to start.

4. Bad spark plug. 4. Replace spark plug.

5. Dirty air ﬁ lter. 5. Clean/replace air ﬁ lter.

6. Dirty fuel ﬁ lter. 6. Replace fuel ﬁ lter.

7. Water in fuel. 7. tor, reﬁ ll tank with fresh gaso line and replace fuel ﬁ lter.

8. Loose or damaged wiring. 8. Check all wiring.

9. Carburetor out of adjustment. 9. See “To Adjust Carburetor” in Service and Adjustments section.

10. Engine valves out of 10. Contact our authorized adjustment. service center/department.

Hard to start 1. Dirty air ﬁ lter. 1. Clean/replace air ﬁ lter.

2. Bad spark plug. 2. Replace spark plug.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Dirty fuel ﬁ lter. 4. Replace fuel ﬁ lter.

5. Stale or dirty fuel. 5. Empty fuel tank and reﬁ ll tank with fresh, clean gasoline.

6. Loose or damaged wiring. 6. Check all wiring.

7. Carburetor out of adjustment. 7. See “To Adjust Car bu re tor” in Service and Ad just ments sec tion.

8. Engine valves out of 8. Contact our authorized adjustment. service center/department.

Empty fuel tank and carbure-

Engine will not 1. Brake pedal not depressed. 1. Depress brake pedal. turn over 2.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Blown fuse. 4. Replace fuse.

5. Corroded battery terminals. 5. Clean battery terminals.

6. Loose or damaged wiring. 6. Check all wiring.

7. Faulty ignition switch. 7.

8. Faulty solenoid or starter. 8. Check/replace solenoid or starter.

9. Faulty operator presence 9. Contact our authorized switch(es). service center/department.

Engine clicks but 1. Weak or dead battery. 1. Re charge or replace battery. will not start 2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all wiring.

4. Faulty solenoid or starter. 4. Check/replace solenoid or starter.

Loss of power 1. Cutting too much grass/too 1. Raise cutting height/reduce fast. speed.

2. Throttle in “CHOKE” position. 2. Adjust throttle control.

3. Build-up of grass, leaves and 3. Clean underside of mower trash under mower. housing.

4. Dirty air ﬁ lter. 4. Clean/replace air ﬁ lter.

At tach ment clutch is engaged.

2.

Disengage attachment clutch.

Check/replace ignition switch.

27

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TROUBLESHOOTING CHART:

PROBLEM CAUSE CORRECTION

Loss of power 5. Low oil level/dirty oil. 5. Check oil level/change oil. (continued) 6. Faulty spark plug. 6. Clean and regap or change

spark plug.

7. Dirty fuel ﬁ lter. 7. Replace fuel ﬁ lter.

8. Stale or dirty fuel. 8. with fresh, clean gas o line.

9. Water in fuel. 9. buretor, reﬁ ll tank with fresh gasoline and replace fuel ﬁ lter.

10. Spark plug wire loose. 10. Connect and tighten spark plug wire.

11. Dirty engine air screen/ﬁ ns. 11. Clean engine air screen/ﬁ ns

12. Dirty/clogged mufﬂ er. 12. Clean/replace mufﬂ er.

13. Loose or damaged wiring. 13. Check all wiring.

14. Carburetor out of adjustment. 14. See “To Adjust Carburetor” in Service and Adjustments section.

15. Engine valves out of 15. Contact our authorized adjustment. service center/department.

Empty fuel tank and reﬁ ll tank

Empty fuel tank and car-

Excessive 1. Worn, bent or loose blade. 1. Replace blade. Tighten vibration blade bolt.

2. Bent blade mandrel. 2. Contact our authorized service center/department.

3. Loose/damaged part(s). 3. Tighten loose part(s). Replace damaged parts.

Engine continues 1. Faulty operator-safety 1. Check wiring, switches and to run when oper- presence control system. connections. If not cor rect ed, ator leaves seat contact our authorized with attachment service center/department. clutch engaged

Poor cut - uneven 1. Worn, bent or loose blade. 1. Replace blade. Tighten

blade bolt.

2. Mower deck not level. 2. Level mower deck.

3. Buildup of grass, leaves, and 3. Clean underside of mower trash under mower. housing.

4. Bent blade mandrel. 4. Contact our authorized service center/department.

5. Clogged mower deck vent 5. Clean around man drels to

and trash around mandrels.

Mower blades will 1. Obstruction in clutch 1. Remove obstruction. not rotate mechanism.

2. Worn/damaged mower drive 2. Replace mower drive belt.

belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Contact our authorized service center/department.

from build-up of grass, leaves,

open vent holes.

28

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TROUBLESHOOTING CHART:

PROBLEM CAUSE CORRECTION

Poor grass 1. Engine speed too slow. 1. discharge position.

2. Travel speed too fast. 2. Shift to slower speed.

3. Wet grass. 3. Allow grass to dry before mowing.

4. Mower deck not level. 4. Level mower deck.

5. Low/uneven tire air pressure. 5. Check tires for proper air pressure.

6. Worn, bent or loose blade. 6. Replace/sharpen blade. Tighten blade bolt.

7. Buildup of grass, leaves and 7. Clean underside of mower trash under mower. housing.

8. Mower drive belt worn. 8. Replace mower drive belt.

9. Blades improperly installed. 9. Reinstall blades sharp edge down.

10. Improper blades used. 10. Replace with blades listed in this manual.

11. Clogged mower deck vent 11. Clean around man drels to holes from buildup of grass, open vent holes. leaves, and trash around mandrels.

Headlight(s) not 1. Switch is “OFF”. 1. Turn switch “ON”. working 2. (if so equipped) 3. Faulty light switch. 3. Check/replace light switch.

4. Loose or damaged wiring. 4.

5. Blown fuse. 5. Replace fuse.

Bulb(s) or lamp(s) burned out.

Place throttle control in

2. Replace bulb(s) or lamp(s).

Check wiring and connections.

“FAST”

Battery will not 1. Bad battery cell(s). 1. Replace battery. charge 2. Poor cable connections. 2. Check/clean all connections.

3. Faulty regulator 3. Replace regulator. (if so equipped).

4. Faulty alternator. 4. Replace alternator.

Loss of drive 1. Freewheel control in 1. Place freewheel control in “disengaged” position. “engaged” position.

2. Motion drive belt worn, 2. Re place motion drive belt. damaged, or broken.

3. Air trapped in transmission 3. Purge transmission. during shipment or servicing.

Engine “backﬁ res” 1. Engine throttle control not 1. Move throttle control to when turning set at “SLOW” position for 30 “SLOW” position and allow engine “OFF” seconds before stopping to idle for 30 seconds before

engine. stopping engine.

29

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE NOTES

30

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

SCHEMATIC

A

AMMETER

(OPTIONAL)

RED

B

G

L

IGNITION

SWITCH

BLACK

RED

BLACK

BATTERY

RED

FUSE

WHITE

RED

M

STARTER

BLACK

SOLENOID

S

M

A1

A2

CLUTCH / BRAKE

(PEDAL UP)

BLACK

HOUR

METER

(OPTIONAL)

FUEL

BLUE

FUEL SHUT-OFF SOLENOID

(IF SO EQUIPPED)

LINE

ORANGE

WHITE

ATT'MENT CLUTCH

(CLUTCH OFF)

BLACK

CHARGING SYSTEM OUTPUT 3 AMP DC @ 3600 RPM

RED

LIGHTING SYSTEM OUTPUT 5 AMP AC @ 3600 RPM

WHITE

IGNITION

UNIT

SEAT SWITCH

(NOT OCCUPIED)

BLACK

GROUNDING

CONNECTOR

SPARK

PLUG

GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

28 VOLTS AC MIN. @ 3600 RPM (CHARGING SYSTEM DISCONNECTED)

DIODE

ALTERNATOR

BLACK

IGNITION SWITCH

CIRCUITPOSITION

OFF

M+G+A1

B+A1RUN/LIGHT

B+A1RUN

B + S + A1START

“MAKE”

NONE

A2+L

NONE

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

NOTE

YOUR TRACTOR IS EQUIPPED WITH A SPECIAL

BROWN

ALTERNATOR SYSTEM. THE LIGHTS ARE NOT CONNECTED TO THE BATTERY, BUT HAVE THEIR OWN ELECTRICAL SOURCE.

HEADLIGHTS

BECAUSE OF THIS, THE BRIGHTNESS OF THE LIGHTS WILL CHANGE WITH ENGINE SPEED. AT IDLE THE LIGHTS WILL DIM. AS THE ENGINE IS SPEEDED UP, THE LIGHTS

NON-REMOVABLE

CONNECTIONS

WILL BECOME THEIR BRIGHTEST.

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO PROPERLY SECURE YOUR WIRING.

BLACK

31

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

ELECTRICAL

22

21

42

24

41

43

27

33

30

8

25

27

26

48

52

40

16

29

27

2

1

28

90

32

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

ELECTRICAL

KEY PART NO. NO. DESCRIPTION

1 163465 Battery 12 Volt 25 Amp 2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4 8 176689 Box Battery 16 176138 Switch Interlock Push -In 21 175685 Harness Asm Light W/4152J 22 4152J Bulb Light #1156 24 4799J Cable Battery 6 Ga. 11"red 25 146147 Cable Battery 6 Ga. w/16 wire, red 26 175158 Fuse 20 AMP 27 73510400 Nut Keps Hex 1/4-20 unc 28 4207J Cable Ground 6 Ga. 12" black 29 121305X Switch Plunger Nc Gray 30 175566 Switch Ign 33 140401 Key Ign 40 179720 Harness Ign 41 71110408 Bolt Blk Fin Hex 1/4-20 x 1/2 42 131563 Cover Terminal Red 43 178861 Solenoid 48 140844 Adapter Ammeter 52 141940 Protection Wire Loop 90 180449 Cover Terminal

NOTE: All component dimensions give in U.S. inches 1 inch = 25.4 mm.

33

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

CHASSIS AND ENCLOSURES

212

17

208

26

30

11

25

31

209

24

18

12

28

24

25

26

5

9

209

207

26

208

53

64

51

52

55

57

54

29

206

3

35

3

2

33

3

142

3

10

37

3

142

14

38

3

35

14

34

145

37

1

13

26

chassis-pl.lt_stlt_50

208

34

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

CHASSIS AND ENCLOSURES

KEY PART NO. NO. DESCRIPTION

1 174619 Chassis 2 176554 Drawbar 3 17060612 Screw 3/8-16 x 3/4 5 155272 Bumper Hood/Dash 9 168336X010 Dash 10 72140608 Bolt RdHd Sqnk. 3/8-16 unc x 1 11 174996 Panel Asm. Dash Lh 12 145660 Clip Tinnerman Grile P/L 13 172105X010 Panel Dash Rh 14 17490608 Screw Thdrol 3/8-16 x 1/2 17 159639X417 Hood 18 184921 Bumper Hood 24 74780616 Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 25 19131312 Washer 13/32 x 13/16 x 12 Ga. 26 73800600 Nut Lock Hex w/Insert 3/8-16 unc 28 179101 Grill/Lens Asm 29 140273X599 Lens Grille Private label 30 169468X417 Fender Asm 31 136619 Bracket Fender 33 179716X417 Footrest LH 34 179717X417 Footrest RH 35 72110606 Bolt RdHd Sht. Sqnk. 3/8-16 x 3/4 37 17490508 Screw Thdrol 5/16-18 x 1/2 Tyt 38 175710 Bracket Asm. Pivot Mower Rear 51 73800400 Nut Lock Hex W/Ins. 1/4-20 52 19091416 Washer 9/32 x 7/8 x 16 Ga. 53 144697 Bracket Grille LH 54 161464 Screw Hex Wshd 8-18 x 7/8 55 144696 Bracket, Grille RH 57 74780412 Bolt Fin Hex 1/4-20 x .75 64 154798 Dash Lower 142 175702 Plate Reinforcement 145 156524 Rod Pivot Chassis/Hood 206 170165 Bolt shoulder 5/16-18 207 17670508 Screw Thdrol 5/16-18 x 1/2 208 17670608 Screw Thdrol 3/8-16 x 1/2 209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4 212 156229 Insert Lens Reﬂ ector

- - 5479J Plug Btn Blk

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

35

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

GROUND DRIVE

16

197

32

89

69

30

81

52

169

10

57

21

198

164

8

161

14

163

82

159

52

165

158

162

83

156

62

32

59

168

61

166

36

35

38

41

56

51

34

39

37

64

66

63

65

27

49

47

120

212

50

36

35

70

116

202

150

48

151 51

77

15

96

26

95

1

103

28

30

205

16

77

74

26

25

75

26

19

24

29

250

78

76

22

71

73

36

www.mymowerparts.com

200

16

26

84

53

27

55

199

250

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

GROUND DRIVE

KEY PART NO. NO. DESCRIPTION

1 - - - - - - Transaxle Hydro Gear Model 322 0510 (Order parts from the trans axle manufacturer) 8 165619 Rod, Shift 10 76020416 Pin, Cotter 1/8 x 1 14 10040400 Washer Lock 1/4 15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 16 73800500 Nut, Lock Hex w/Ins 5/16-18 unc 19 73800600 Nut, Lock Hex w/Wsh 3/8-16 unc 21 106933X Knob Rd. 1/2-13 Plstc. Thds. Blk. 22 169498 Rod, Brake 24 73350600 Nut 25 106888X Spring, Rod, Brake 26 19131316 Washer 13/32 x 13/16 x 16 Ga. 27 76020412 Pin, Cotter 1/8 x 3/4 28 175765 Rod, Parking Brake 29 71673 Cap, Parking Brake 30 174973 Bracket, Transmission 32 74760512 Bolt Hex 5/16-18 unc x 3/4 34 175578 Shaft, Foot Pedal 35 120183X Bearing, Nylon 36 19211616 Washer 37 1572H Pin, Roll 38 179114 Pulley, Idler, Composite 39 74760648 Bolt 41 175556 Keeper, Belt, Idler 47 127783 Pulley, Idler, V-Belt 48 154407 Bellcrank Clutch Grnd Drustl 49 123205X Retainer, Belt 50 72110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 51 73680600 Nut 52 73680500 Nut Crownlock 5/16-28 53 105710X Link, Clutch 55 105709X Spring, Return, Clutch 56 17060620 Screw 3/8-16 x 1-1/4 57 140294 V-Belt, Drive 59 169691 Keeper, Belt, Center 61 17120614 Screw, 3/8-16 x .875 62 8883R Cover, Pedal 63 175410 Pulley, Engine 64 71170764 Bolt Hex 7/16 x 4 Gr. 5 65 10040700 Washer 66 154778 Keeper, Belt Engine Hydro 69 142432 Screw Hex Wsh Hi-Lo 1/4-1/2 Unc 70 134683 Guide, Belt, Mower Drive RH 71 169183 Strap, Torque, Lh

KEY PART NO. NO. DESCRIPTION

73 169182 Strap, Torque, Rh 74 137057 Spacer, Axle 75 121749X Washer 25/32 x 1-1/4 x 16 Ga. 76 12000001 Ring, E 77 123583X Key, Square 78 121748X Washer 25/32 x 1-5/8 x 16 Ga. 81 165596 Shaft Asm Cross 82 123782X Spring, Torsion 83 19171216 Washer 17/32 x 3/4 x 16 Ga. 84 169843 Link Transaxle 89 169373X428 Console, Shift 95 170201 Control Asm Bypass Hydro 96 4497H Spring, Retainer 1” 103 73940800 Nut, Hex Jam Toplock 1/2-20 unf 116 72140608 Bolt 3/8-16 x 1 120 73900600 Bolt Hex 3/8-16 x 1-1/2 150 175456 Spacer Retainer 151 19133210 Washer 13/32 x 2 x 10 156 166002 Washer 5/16 x 1.0 x 1.25 158 165589 Bracket Shift Mount 159 183900 Hub Tapered Flange Shift 161 72140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 162 73680400 Nut Crownlock 1/4-20 unc 163 74780416 Bolt Hex Fin 1/4-20 x 1 164 19091010 Washer 5/8 x .281 x 10 Ga. 165 165623 Bracket Pivot Lever 166 166880 Screw 5/16 x 1.0 x .125 168 165492 Bolt Shoulder 5/16-18 x .561 169 165580 Plate Fastening LT 197 169613 Nyliner Snap-in 5/8” ID 198 169593 Washer Nyl 7/8ID x .105” HYD 199 169612 Bolt Shoulder 5/16-18 unc 200 72140508 Bolt Rdhd Sqnk 5/16-18 unc x 1 202 72110614 Bolt Car SH 3/8-16 x 1-1/2 Gr. 5 205 19171616 Washer 17/32 x 1 x 16 Ga. 212 145212 Nut Hex Flange Lock 250 17060612 Screw 3/8-16 x .75

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

37

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

STEERING ASSEMBLY

38

12

39

1

41

42

37

36

44

51

54

91

43

68

29

15

88

71

29

17

82

29

46

8

6

9

2

7

9

5

3

40

47

65

85

11

10

68

13

46

8

85

32

26

28

30

67

6

9

47

7

9 5

4

43

6

8

38

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

STEERING ASSEMBLY

KEY PART NO. NO. DESCRIPTION

1 140044X428 Wheel Steering Auto Black 2 175131 Axle Asm Front 3 169840 Spin dle Asm Lh 4 169839 Spin dle Asm Rh 5 6266H Bear ing Race Thrust Harden 6 121748X Wash er 25/32 x 1 5/8 x 16 Ga. 7 19272016 Wash er 27/32 x 1 1/4 x 16 Ga. 8 12000029 Ring Klip #t5304-75 9 3366R Bear ing Col Strg Blk 10 175121 Link Drag Extended 11 10040600 Lock wash er 12 73940800 Nut Hex Jam Toplock 1/2-20 unf 13 136518 Spac er Bearing Axle Front 15 145212 Hex Flange Lock 17 180641 Shaft Asm Strg 26 126847X Bushing Rod Tie Blk Lt 28 19131416 Washer 13/32 x 7/8 x 16 Ga. 29 17060612 Screw 3/8-16 x 3/4 30 76020412 Pin 32 130465 Rod Tie Wire Form 19 75 Mech 36 155099 Bushing Strg 5/8 Id Dash 37 152927 Screw TT #10-32 x 5 x 3/8 Flange 38 140045X428 Insert Cap Strg 39 19183812 Washer 9/16 ID x 2-3/8 OD 12 Ga. 40 7810H Locknut Center 41 100711L Adaptor Wheel Strg 640/635id 42 145054X428 Boot Dash Steering 43 121749X Washer 25/32 x 1 1/4 x 16 Ga. 44 180640 Extension Steering 46 121232X Cap Spindle Fr Top Blk 47 183226 Fitting Grease 51 73540400 Nut Crownlock 1/4-28 54 71130420 Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8 65 160367 Spacer Brace Axle 67 72140618 Bolt Rdhd Sq 3/8-16 unc x 2-3/4 68 169827 Brace Axle 71 175146 Steering Asm 82 169835 Bracket Susp Chassis Front 85 133835 Fastener Christmas Tree 88 175118 Bolt Shoulder 7/16-20 91 175553 Clip Steering

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

39

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

ENGINE

2

32

3

72

1

31

78

44

46

37

33

16

81

38

14

78

13

4

33

40

29

OPTIONAL EQUIPMENT

Spark Arrester

KEY PART NO. NO. DESCRIPTION

1 170551 Control Throttle/Choke Flag 2 17720408 Screw Hex Thd Cut 1/4-20 x 1/2 3 - - - - - - Engine Briggs Model 31C707 (Order Parts From Engine Manufacturer) 4 137352 Mufﬂ er Exhaust B&S Lt 13 165291 Gasket 1 313 Id Tin Plated 14 148456 Tube Drain Oil Easy 16 11050600 Washer Lock Ext Tooth 3/8 23 169837 Shield Browning/Debris Guard 29 137180 Arrestor Spark 31 184900 Tank Fuel 1 25 Fr 32 140527 Cap Asm Fuel W/sym Vented 33 123487X Clamp Hose Blk 37 137040 Line Fuel 20" 38 181654 Plug Drain Oil Easy 40 124028X Bushing Snap Nyl Blk Fuel Line 44 17670412 Screw Hexwsh Thdrol 1/4-20 x 3/4 45 17000612 Screw Hex Wsh Thdrol 3/8-16

45

23

KEY PART NO. NO. DESCRIPTION

46 19091416 Washer 9/32 x 7/8 x 16 Ga. 72 183906 Screw Socket Head 5/16-18 x 1 78 17060620 Screw Thdrol 3/8-16x1-1/4 81 73510400 Nut Keps Hex 1/4-20 unc

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

For engine service and replacement parts, call the toll free number for your engine manufacturer listed below:

Briggs & Stratton 1-800-233-3723 Kohler Co. 1-800-544-2444 Tecumseh Products 1-800-558-5402 Honda Engines 1-800-426-7701 Kawasaki 1-949-460-5688

40

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

SEAT ASSEMBLY

1

8

9

7

5

6

22

14

9

7

10

24

26

16

15

23

13

17

KEY PART NO. NO. DESCRIPTION

12

25

2

5

4

3

KEY PART NO. NO. DESCRIPTION

21

1 140116 Seat 2 140551 Brack et Pnt Pivot Seat (blk ) 3 71110616 Bolt 4 19131610 Wash er 13/32 x 1 x 10 Ga. 5 145006 Clip Push-In Hinged 6 73800600 Nut 7 124181X Spring Seat Cprsn 2 250 Blk Zi 8 17000616 Screw 3/8-16 x 1.5 9 19131614 Wash er 13/32 x 1 x 14 Ga. 10 182493 Pan Pnt Seat (blk ) 12 121246X Brack et Pnt Mounting Switch 13 121248X Bush ing Snap Blk Nyl 50 Id

www.mymowerparts.com

14 72050412 Bolt Rdhd Sht Nk 1/4-20 x 1-1/2 15 134300 Spac er Split 28 x 96 Yel Zinc 16 121250X Spring Cprsn 1 27 Blk Pnt 17 123976X Nut Lock 1/4 Lge Flg Gr. 5 Zinc 21 171852 Bolt Shoulder 5/16-18 Unc Blkz-2A 22 73800500 Nut 23 71110814 Bolt Hex Black 24 19171912 Wash er 17/32 x 1-3/16 x 12 Ga. 25 127018X Bolt Shoulder 5/16-18 x 62 26 10040800 Lockwasher

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

41

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

DECALS

5

9

2

1

34

7

20

14

10

16

KEY PART NO. NO. DESCRIPTION

1 156811 De cal Instruction Operat English/French 2 186193 Decal Ins Strg Whl Statesman 186232 Decal Ins Strg Whl Agway 3 186190 Decal Hood RH Statesman 186230 Decal Hood RH Agway 4 186191 Decal Hood LH Statesman 186231 Decal Hood LH Agway 5 185411 Decal Final Replacement 7 179128 Decal Deck “B” 42” 9 186198 De cal Fender Statesman 186209 Decal Fender Agway

WHEELS & TIRES

1

2

6

5,8

4,10

7

3,9

KEY PART NO. NO. DESCRIPTION

10 156439 De cal Danger English 14 160396 De cal V-belt Schematic 42" 16 145005 Decal Battery Danger/Poison 20 184851 Decal HP Engine

- - 181249 Decal Footrest

- - 186208 Decal Chassis 17/42 Hydro

Statesman

- - 186235 Decal Chassis 17/42 Hydro Agway

- - 138311 Decal Lift Handle

- - 169210 Decal By-Pass

- - 185644 Manual Owner’s English

- - 185645 Manual Owner’s Spanish

KEY PART NO. NO. DESCRIPTION

1 59192 Cap Valve Tire 2 65139 Stem Valve 3 106222X Tire F Ts 15 x 6 0 - 6 Service 4 59904 Tube Front (Service Item Only) 5 106732X624 Rim Asm 6"front White Service 6 278H Fit ting Grease (Front Wheel Only) 7 9040H Bear ing Flange (Front Wheel Only) 8 106108X624 Rim Asm 8"rear White Service 9 106268X Tire R Ts 18x9.5-8 C Service 10 7152J Tube Rear (Service Item Only)

11

11 104757X428 Cap Axle Blk 1 50 x 1 00

- - 144334 Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

42

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

LIFT ASSEMBLY

7

8

5

13

11

19

31 32

13

12

3

4

2

1

6

5

4

13

18

20

19

20

15

20

16

17

15

KEY PART NO. NO. DESCRIPTION

1 159460 Wire Asm Inner/Sprg w/Plunger 2 159471 Shaft Asm Lift 3 105767X Pin Groove 4 12000002 E Ring #5133-62 5 19211621 Washer 21/32 x 1 x 21 Ga. 6 120183X Bearing Nylon 7 109413X Grip Handle 8 124526X Button Plunger 11 139865 Link Lift Lh 12 139866 Link Lift Rh

www.mymowerparts.com

KEY PART NO. NO. DESCRIPTION

13 4939M Retainer Spring 15 173288 Link Front 16 73350800 Nut Jam Hex 1/2-13 unc 17 175689 Trunnion Blk Zinc 18 73800800 Nut Lock w/Wsh 1/2-13 unc 19 139868 Arm Suspension Rear 20 163552 Retainer Spring 31 169865 Bearing Pvt Lift 32 73540600 Nut Crownlock 3/8-24 NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

43

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

MOWER DECK

68

152

151

158

153

157

154

153

44

67

156

155

159

46

53

48

147

52

142

56

55

40

37

144

40

36

54

40

143

59

146

31

30

45

150

37

145

184

148

33

32

34

1

147

142

2

16

15 14

3

149

4

5

6

19

21

13

10

9

18

21

2

21

20

29

18

11

8

21

23

28

42_deck_man-t-path_3

24

25

26

27

44

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TRACTOR - - MODEL NUMBER SO17H42STA PRODUCT NO. 954 57 03-69

MOWER DECK

KEY PART NO. NO. DESCRIPTION

1 165892 Mower Deck Assembly, 42" 2 72140506 Bolt 3 138017 Bracket Asm Fr. Sway Bar 3/42 4 165460 Bracket Asm Deck 42" Sway Bar 5 4939M Retainer Spring 6 178024 Bar Sway Deck 8 850857 Bolt 3/8-24 x 25 Gr. 8 patched 9 10030600 Washer, Lock 10 140296 Washer, Hardened (The following blades are available) 11 134149 Blade, 42" Mulching Std (For mulching mowers only)

- - 139775 Blade, 42" Mulching Premium (For better wear when mulching)

- - 138971 Blade, 42" Hi-Lift (For bagging or discharging) 13 137645 Shaft As sem bly, Mandrel, Vented 14 128774 Housing, Mandrel, Vented 15 110485X Bearing, Ball, Mandrel 16 174493 Stripper, Vented Mower Deck 18 72140505 Bolt, Carriage 5/16-18 x 5/8 19 132827 Bolt, Shoulder 20 159770 Bafﬂ e, Vortex 21 73680500 Nut 23 177563 Bracket, Deﬂ ector Mower 42" 24 105304X Cap, Sleeve 80 x 112 Blk Mower 25 123713X Spring, Torsion, Deﬂ ector 2 52 26 110452X Nut, Push Phos & Oil 27 130968X428 Shield, Deﬂ ector 42" Blk 28 19111016 Washer 11/32 x 5/8 x 16 Ga. 29 131491 Rod, Hinge 42" 6 75 W/G 30 173984 Screw Thdrol Washer Head 31 129963 Washer, Spacer Mower Vented 32 153535 Pulley, Mandrel 33 178342 Nut, Toplock Flange 34 72110614 Bolt 36 131494 Pulley, Idler, Flat 37 19131316 Washer 13/32 x 13/16 x 16 Ga.

KEY PART NO. NO. DESCRIPTION

40 73680600 Nut 44 140088 Guard, Mandrel, LH 45 4497H Retainer 46 137729 Screw, Thdrol 1/4-20 x 5/8 T 48 133944 Washer, Hardened 52 139888 Bolt, Shoulder 5/16-18 unc 53 184907 Arm Assembly, Pad, Brake 54 178515 Washer, Hardened 55 155046 Arm, Idler 56 165723 Spacer, Retainer 59 141043 Guard TUV Idler 67 106932X Knob 68 144959 V-Belt, 42" Mower 142 165890 Arm Spring Brake Mower 143 157109 Bracket Arm Idler 42" 144 158634 Keeper Belt 42" Clutch Cable 145 165888 Pulley Idler Flat 146 171977 Bolt Carriage Idler 147 131335 Spring Extension 148 169022 Spring Return Idler 149 165898 Retainer Spring Yellow 150 19091216 Washer 9/32 x 3/4 x 16 Ga. 151 169670 Bracket Clutch Cable 152 169676 Clutch Cable 42" 153 169674 Washer Flat 3/8" Type B 154 169675 Spring Retainer 155 169671 Spring Retention LVR CLTCH CAB 156 169672 Spacer Clutch Cable 157 169669 Rod Clutch Cable 3/8" 158 17720408 Screw Hex Thd Cut 1/4-20 x 1/2 159 72140614 Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 184 19131410 Washer 13/32 x 7/8 x 10 Ga.

- - 130794 Mandrel Assembly (Includes Housing, Shaft and Shaft Hard ware Only-Pulley Not Included)

- - 171639 Replacement Mower, Complete

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

45

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE NOTES

46

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

15 DEGREES MAX.

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

FOLD ALONG DOTTED LINE

THIS IS A 15 DEGREE SLOPE

WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

47

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

www.mymowerparts.com

Poulan so17h42sta Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual
