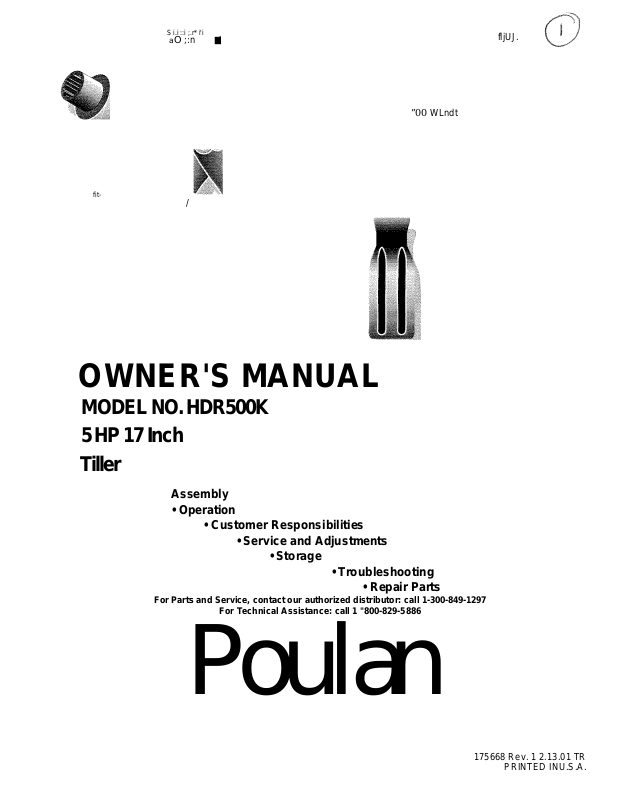

OWNER'S MANUAL

MODEL NO. HDR500K

5 HP 17 Inch

Tiller

Assembly

• Operation

• Customer Responsibilities

• Service and Adjustments

• Storage

• Troubleshooting

• Repair Parts

For Parts and Service, contact our authorized distributor: call 1-300-849-1297

For Technical Assistance: call 1 "800-829-5886

Poulan

175668 Rev. 1 2.13.01 TR

PRINTED INU.S.A.

A SAFETY RULES ^

TRAINING

Safe Operation Practices for Walk-

• Read the Owner’s Manual carefully. Be thoroughly
familiar with the controls and the proper use of the
equipment. Know how to stop the unit and disengage the
controls quickly.

• Never allow children to operate the equipment. Never
allow adults to operate the equipment without proper
instruction.

• Keep the area of operation clear of all persons, particu

larly small children, and pets.

PREPARATION

• Thoroughly inspect the area where the equipment is to

be used and remove all foreign objects.

• Disengage all dutches and shift into neutral before

starting the engine (motor).

• Do not operate the equipment without wearing adequate

outer garments. Wearfootwearihatwill improve footing
on slippery surfaces.

• Handle fuel with care; it is highly flammable,

• Use an approved fuel container.

• Never add fuel to a running engine or hot engine.

• Fill fuel tank outdoors with extreme care. Never fill fuel
tank indoors.

• Replace gasoline cap securely and clean up spilled fuel

before restarting.

• Use extension cords and receptacles as specified by
the manufacturerfor all units with electric drive motors

or electric starting motors.

• Never attempt to make any adjustments while the

engine (motor) is running (except where specifically
recommended by manufacturer).

OPERATION

• Do not put hands or feet near or under rotating parts.

• Exercise extreme caution when operating on or crossing

gravel drives, walks, or roads. Stay alert for hidden
hazards or traffic. Do not carry passengers.

• After striking a foreign object, stop the engine (motor),

remove the wire from the spark plug, thoroughly inspect

the tiller for any damage, and repair the damage before

restarting and operating the tiller.

» Exercise caution to avoid slipping or falling.

• If the unit should start to vibrate abnormally, stop the
engine (motor) and check immediately for the cause.
Vibration is generally a warning of trouble.

• Stop the engine (motor) when leaving the operating
position.

• Take all possible precautions when leaving the machine
unattended. Disengage the tines, shift into neutral, and
stop the engine.

• Before cleaning, repairing, or Inspecting, shut off the
engine and make certain all moving parts have stopped,
Disconnect the sparkplug wire, and keep the wire away
from the plug to prevent accidental starting. Disconnect
the cord on electric motors.

• Do not run the engine indoors; exhaust fumes are

Behind Powered Rotary Tillers

dangerous.

• Neveroperatethetillerwithoutproperguards, plates, or
other safety protective devices In place.

Keep children and pets away.
Do not overload the machine capacity by attempting to

till too deep at too fast a rate.
Never operate the machine at high speeds on slippery

surfaces. Look behind and use care when backing.
Never allow bystanders near the unit.
Use only attachments and accessories approved by the

manufacturer of the tiller.
Never operate the tiller without good visibility or light.
Be careful when tilling in hard ground. The tines may

catch in the ground and propel the tiller forward. If this
occurs, let go of the handlebars and do not restrain the
machine.

MAINTENANCE AND STORAGE

• Keep machine, attachments, and accessories in safe
working condition.

• Check shear pins, engine mounting bolts, and other
bolts atfrequent intervals forpropertightnesstobe sure

the equipment is in safe working condition.

• Never store the machine with fuel In the fuel tank inside

a building where Ignition sources are present, such as
hot water and space heaters, clothes dryers, and the
like. Allow the engine to cool before storing in any
enclosure.

• Always refer to thé operator’s guide instructions for

important details if the tiller is to be stored for an
extended period.

- IMPORTANT-

CAUTIONS, IMPORTANTS, AND NOTES ARE A MEANS
OF ATTRACTING ATTENTION TO IMPORTANT OR
CRITICAL INFORMATION IN THIS MANUAL.

IMPORTANT: USED TO ALERT YOU THAT THERE IS A

POSSIBILITY OF DAMAGING THIS EQUIPMENT.

NOTE: Gives essential Information that will aid you to better
understand, incorporate, or execute a particular set of
Instructions.

PRODUCT SPECIFICATIONS

GASOLINE CAPACITY;

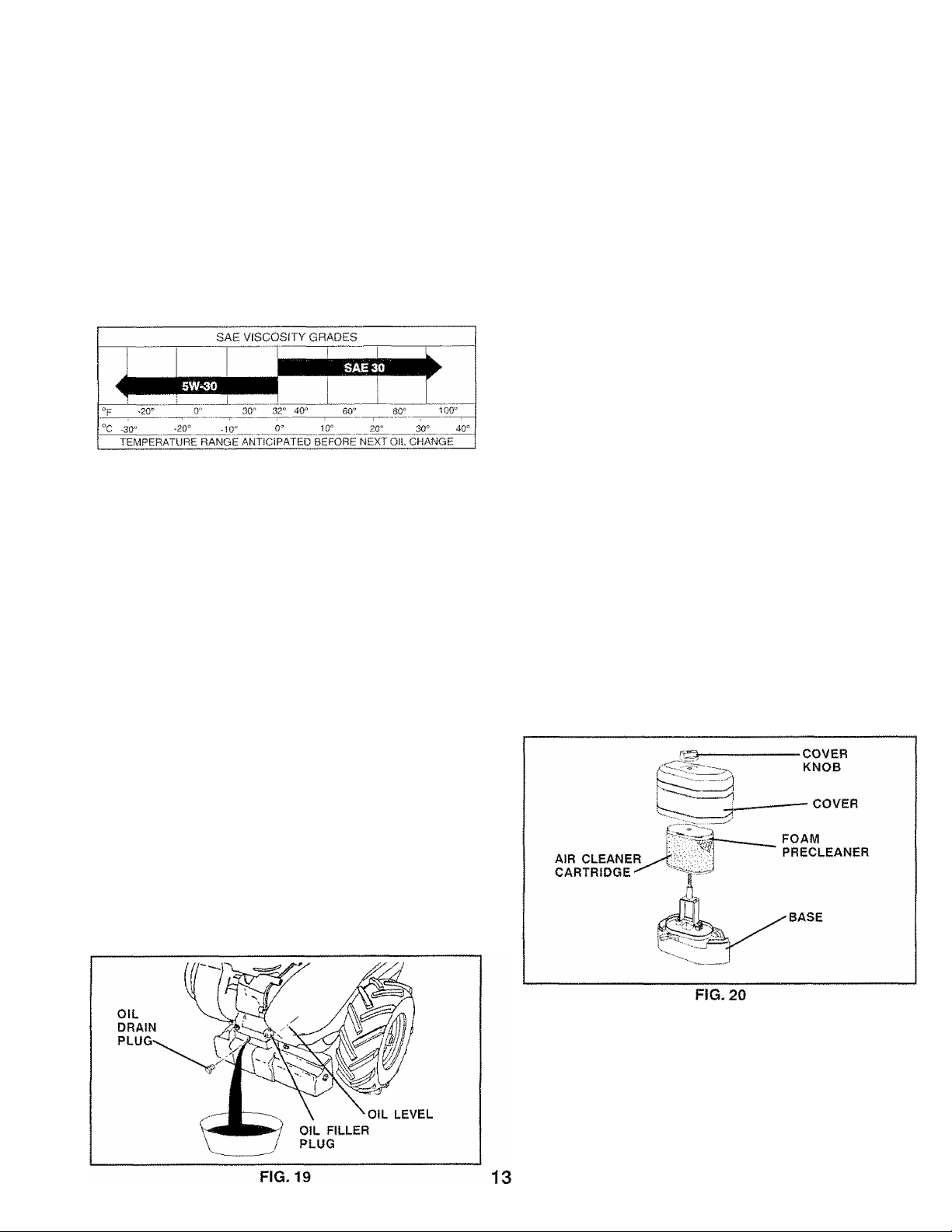

OIL(API-SF-SJ):
(Capacity; 20 oz.I0.6L)
SPARK PLUG :
(GAP; ,03070.76mm)

CONGRATULATIONS on your purchase of a new tiller. It

has been designed, engineered and manufactured to give
you the best possible dependability and performance.

Should you experience any problems you cannot easily
remedy, please contact your nearest authorized service
center. We have competent, well-trained technicians and
the proper tools to service or repair this unit.

Please read and retain this manual. The instructions will
enable you to assemble and maintain your tiller properly.
Always observe the “SAFETY RULES”.

3 Quarts (2.8L)
Unleaded Regular
SAE 30 (Above 32°F/0^C)
SAE 5W-30 (Below 32"F/0°C)
Champion
RJ19LM

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a reguiarschedule in maintaining, caringforand
using your tiller.

• Follow instructions under “Customer Responsibilities”
and “Storage” sections of this Owner’s Manual.

IMPORTANT; THIS UNIT IS EQUIPPED WITH AN

INTERNAL COMBUSTION ENGINE AND SHOULD NOT
BE USED ON OR NEAR ANY UNIMPROVED FOREST­COVERED, BRUSH-COVERED OR GRASS COVERED
LAND UNLESS THE ENGINE'S EXHAUST SYSTEM IS
EQUIPPED WITH A SPARK ARRESTER MEETING
APPLICABLE LOCAL LAWS (IF ANY). IF A SPARK
ARRESTER IS USED, IT SHOULD BE MAINTAINED IN
EFFECTIVE WORKING ORDER BY THE OPERATOR.

INTHESTATEOFCALIFORNIA, A SPARK ARRESTER IS
REQUIRED BY LAW (SECTION 4442 OF THE CALIFORNIA
PUBLIC RESOURCES CODE). OTHER STATES MAY
HAVE SIMILAR LAWS. FEDERAL LAWS APPLY ON
FEDERAL LANDS. SEE YOUR AUTHORIZED SERVICE
CENTER FOR SPARK ARRESTER.

TABLE OF CONTENTS

SAFETY RULES ......................................................

CUSTOMER RESPONSIBILITiES

PRODUCT SPECIFICATIONS......................

ASSEMBLY................................................................... 4-6

OPERATION.....................

.......................................

.........................

..................

2

3,12-14

3

7-11

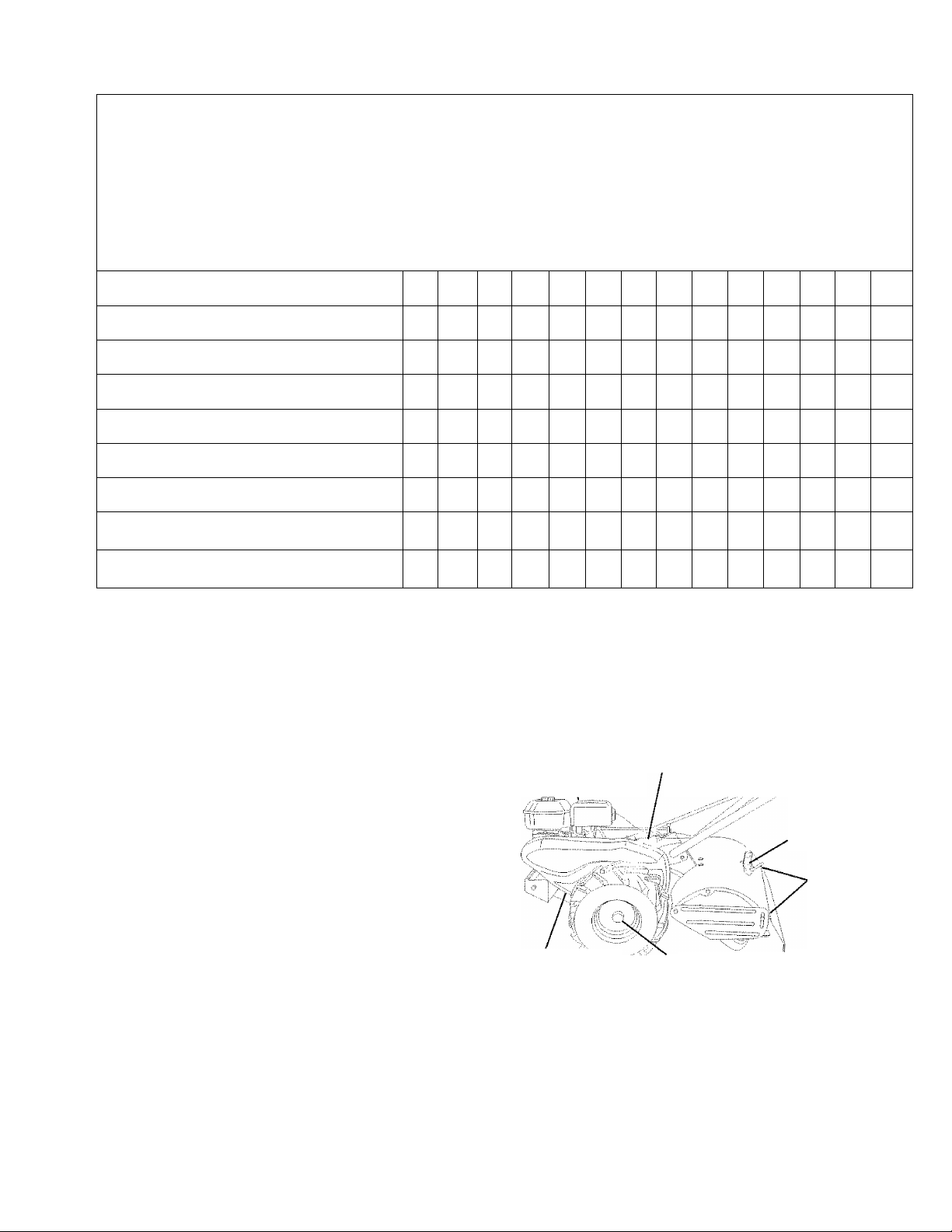

MAINTENANCE SCHEDULE...................................... 12

SERVICE & ADJUSTMENTS ................................ 14-17

STORAGE

TROUBLESHOOTING

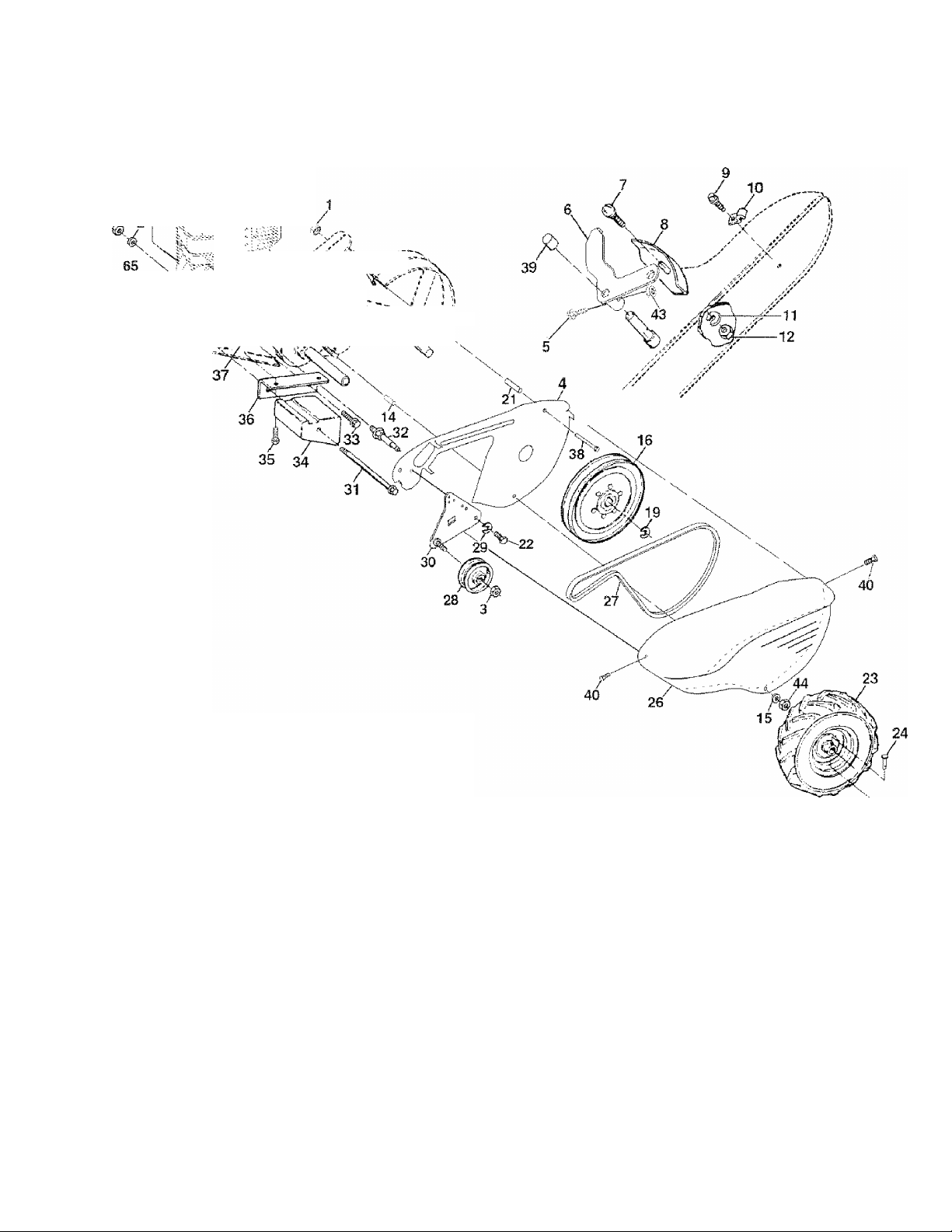

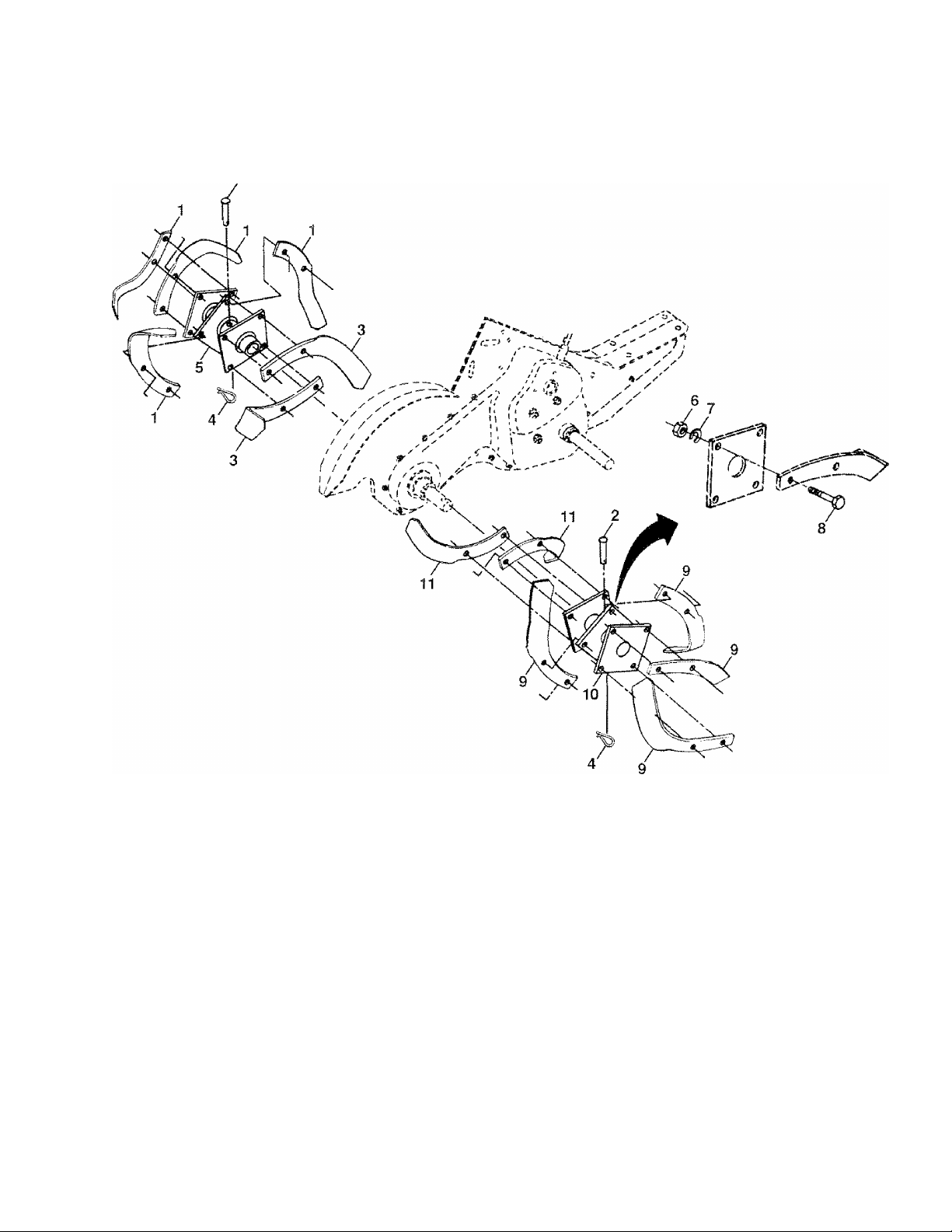

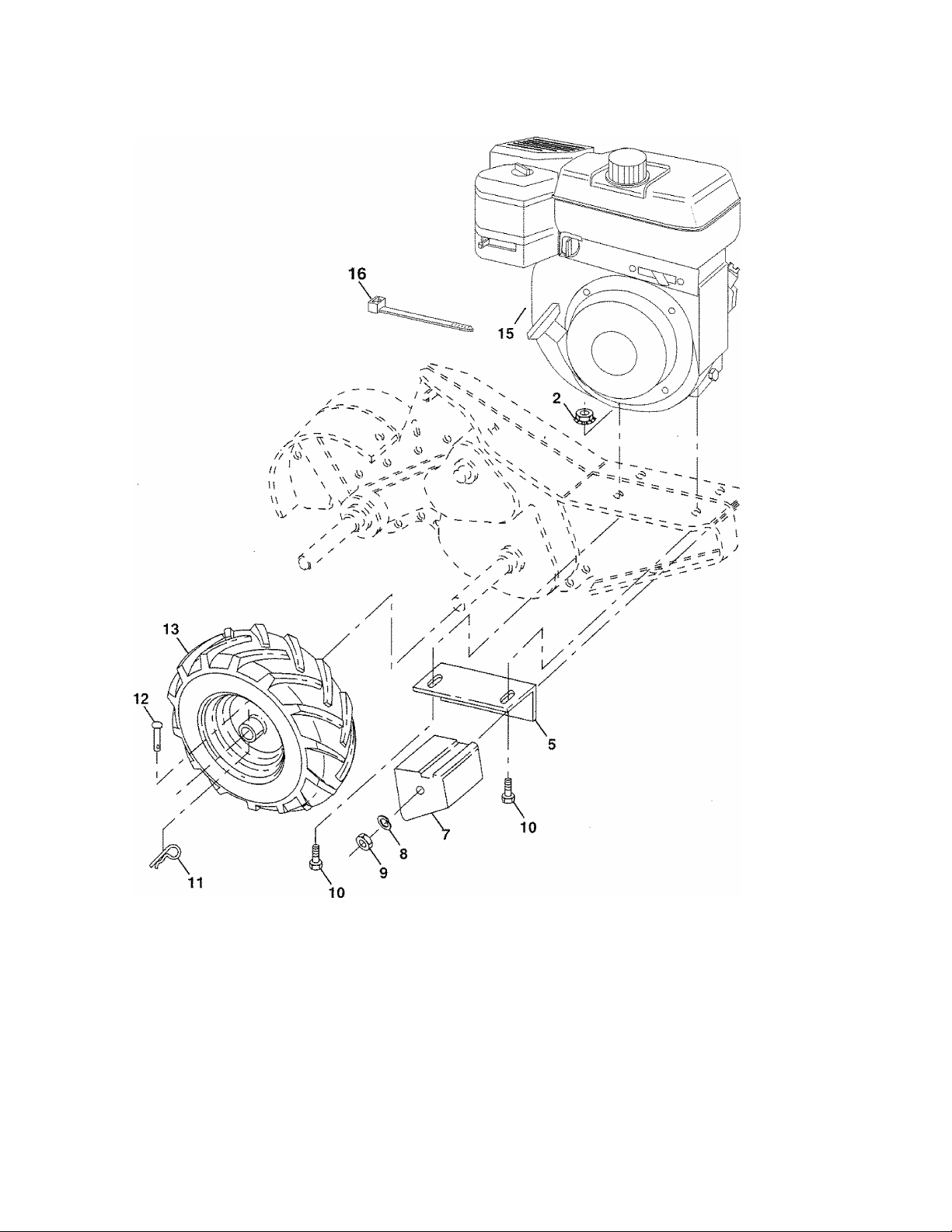

REPAIR PARTS-TILLER.......................................

WARRANTY .............................................................. 27

..................................................................

.................................................

20-26

18

19

ASSEMBLY

Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To
ensure safe and proper operation of yourtiller, ail parts and hardware you assemble must be tightened securely. Use the correct
tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard
wrench sizes are listed.

(1) Utility knife
(1) Tire pressure gauge
(1) Pair of pliers
(1)9/16" wrench

OPERATOR’S POSITION (See Fig. 1)

When right or left hand is mentioned in this manual, it means
when you are in the operating position (standing behind tiller

handles).

FIG. 1

ASSEMBLY

UNPACKING CARTON (See Fig. 2)

CAUTION: Be careful of exposed staples
when handlingordisposingofcartoning

A

IMPORTANT: WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
CABLES.

• While holding handle assembly, cut cable ties securing
handle assembly to top frame. Let handle assembly rest
on tiller.

• Remove top frame of carton.

• Slowly ease handle assembly up and place on top of
carton.

• Cut down right hand front and right hand rear corners of
carton, lay side carton wall down.

• Remove packing material from handle assembly.

material.

INSTALL HANDLE (See Figs. 3, 4, and 5)

• Insert one handle lock (with teeth facing outward) in
gearcase notch. (Apply grease on smooth side of

handle lock to aid in keeping lock in place until handle

assembly is lowered into position.)

Grasp handle assembly. Hold in “up” position. Be sure
handle lock remains in gearcase notch. Slide handle
assembly into position.

Rotate handle assembly down. Insert rear carriage bolt
first, with bolt head on L.H. side of tiller and loosely
assemble locknut (See Fig. 5).

Insert pivot bolt in front part of plate and tighten.
Cut down remaining corners of carton and lay panelsflat.
Lowerthe handle assembly. Tighten nut on carriage bolt

bolt so handle moves with some resistance. This will
allow for easier adjustment.

Place fiat washer on threaded end of handle lock lever.
Insert handle lock leverthrough handle base and gearcase.

Screw In handle lock lever just enough to hold lever in
place.

insert second handle lock (with teeth inward) in the slot
of the handle base (just inside of washer).

With handle assembly in lowest position, securely
tighten handle lock leverby rotating clockwise. Leaving
handle assembly in lowest position will make it easier
to remove tiller from carton.

ASSEMBLY

ATTACH CLUTCH CABLE (See Fig. 6)

• Hook end of clutch cable through hole in control bar
bracket if necessary.

CONNECT SHIFT ROD (See Fig. 7)

♦ insert end of shift rod into hole of shift lever indicator.

• Insert hairpin clip through hole of shift rod to secure.

FIG. 7

REMOVE TILLER FROM CRATE

• Make sure shift lever indicator is in “N” position (See Fig.

7)

• Tilt tiller forward by lifting handle. Separate cardboard
cover from leveling shield.

• Rotate tiller handle to the right and pull tillerout of carton.

CHECK TIRE PRESSURE

The tires on your unit were overinflated at the factory for
shipping purposes. Correct and equal tire pressure is
important for best tilling performance.

• Reduce tire pressure to 20 PSI (1.4 kg/cm^).

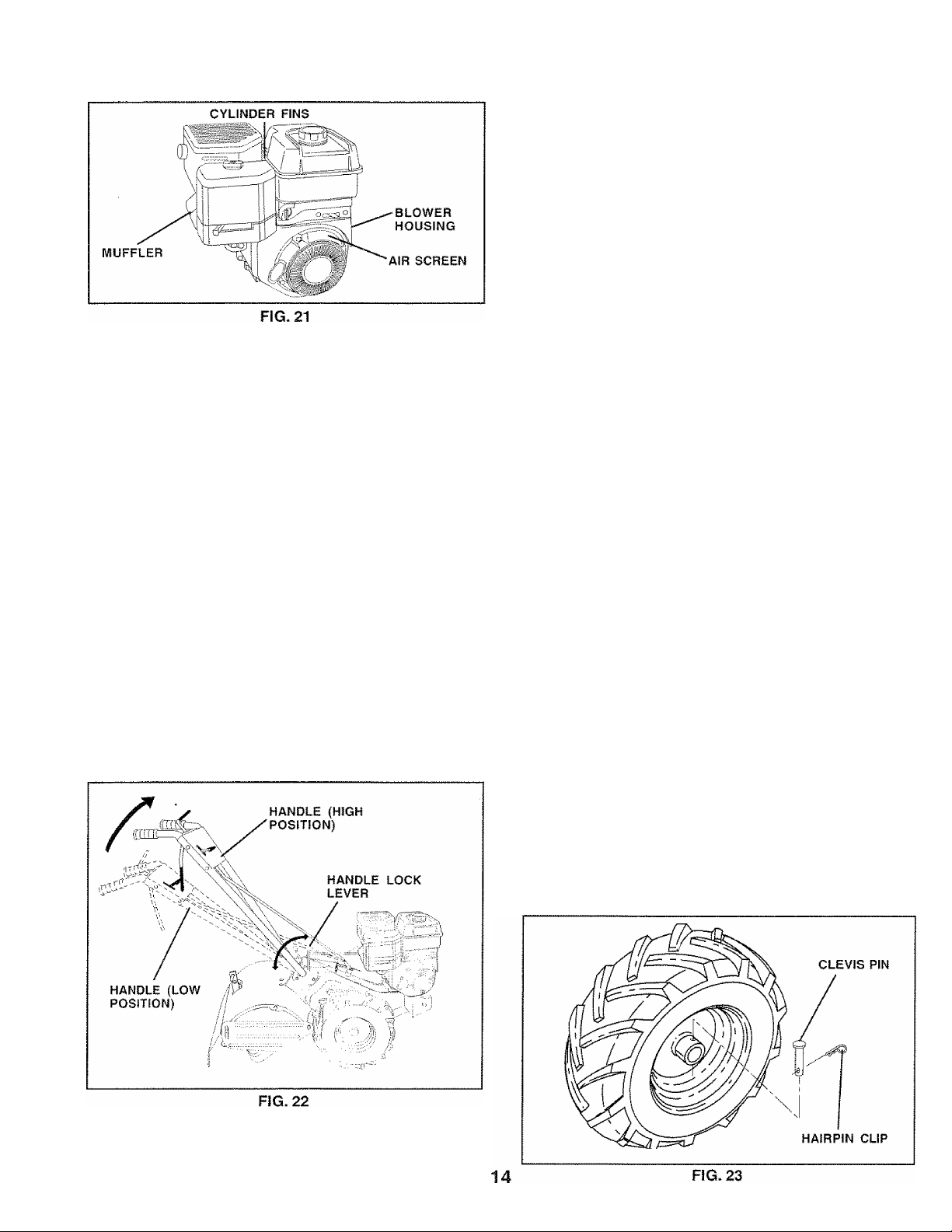

HANDLE HEIGHT

• Handle height may be adjusted to better suit operator.
(See “TO ADJUST HANDLE HEIGHT” in the Service
and Adjustments section of this manual).

OPERATION

KNOW YOUR TILLER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.

Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save this
manual forfuture reference.

These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their
meaning.

RUN

FNRA©©-^-*l\ia^

TiLLING FORWARD NEUTRAL REVERSE CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL

OR WARNING ON OFF

STOP

o

MEETS ANSI SAFETY REQUIREMENTS

Our tillers conform to the safety standards of the American National Standards Institute.

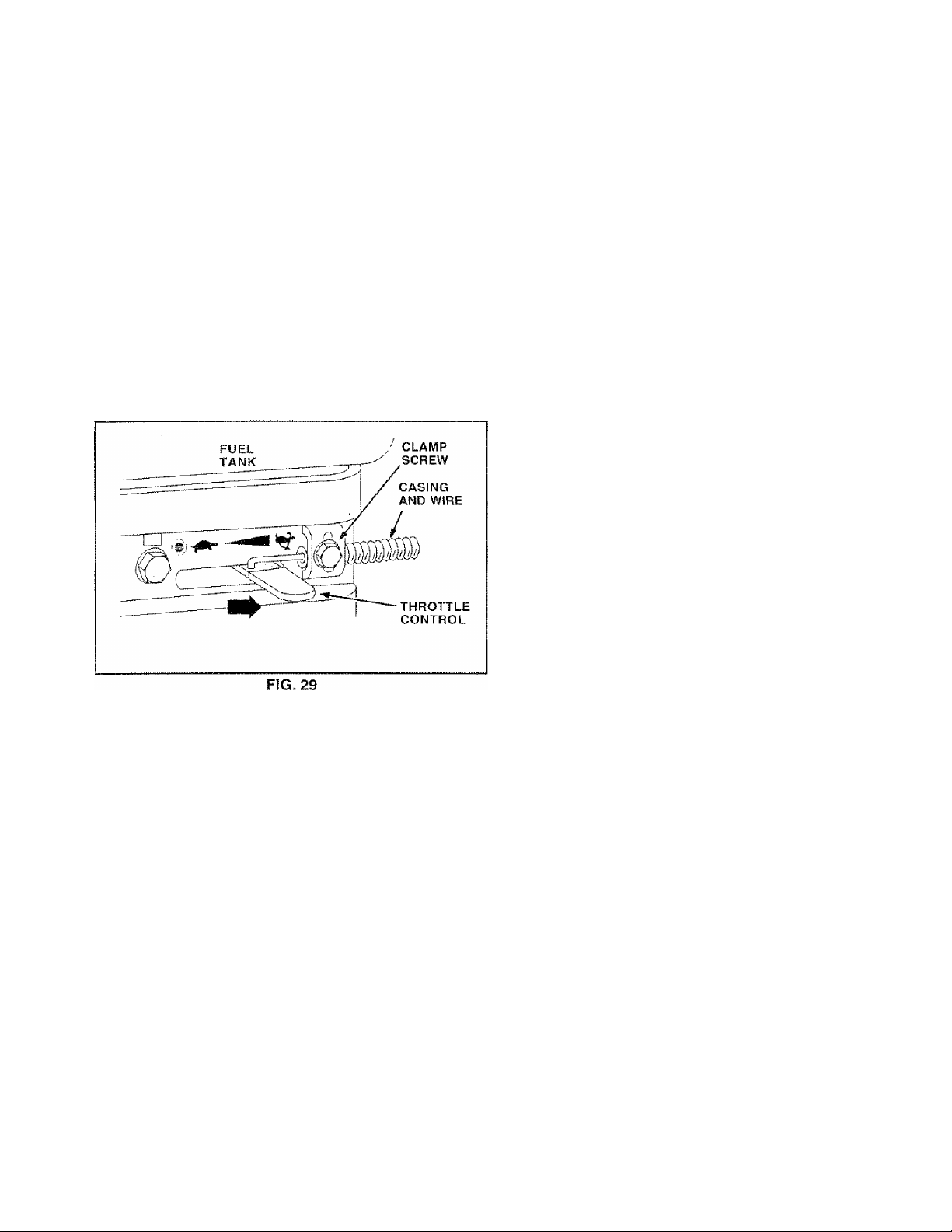

THROTTLE CONTROL ~ Used to control engine speed.

DRIVE CONTROL BAR - Used to engage tiller.

depth stake - Controls depth at which tiller will dig.

LEVELING SHIELD - Levels tilled soil,

OUTER SIDE SHIELD - Adjustable to protect small plants

from being buried.

SHIFT LEVER - Used to shift transmission gears,
SHIFT LEVER INDICATOR - Shows which gear the trans

mission is in.

RECOIL STARTER HANDLE - Used to start the engine.
CHOKE CONTROL - Used when starting a cold engine.

FORESK^iSBEnit!

THAK^SIGHT

OPERATION

The operation of any tiller can result in foreign objects thrown into the eyes, which can result
in severe eye damage. Always wear safety glasses or eye shields before starting your tiller
and while tilling. We recommend a wide vision safety mask over spectacles or standard
safety glasses.

HOW TO USE YOUR TILLER

Know how to operate all controls before adding fuel and oil
or attempting to start engine.

STOPPING (See Fig. 9)

TINES AND DRIVE

• Release drive control bar to stop movement.

• Move shift lever to “N" (neutral) position.

ENGINE

• Move throttle control to “STOP” position. If equipped
with stop switch, move switch to “STOP” position.

• Never use choke to stop engine.

TINE OPERATION - WITH WHEEL DRIVE

• Always release drive control bar before moving shift
lever into another position.

• Tine movement is achieved by moving shift leverto {^)

till position and engaging drive control bar.

DEPTH STAKE (See Fig. 10)

The depth stake can be raised or lowered to allow you more
versatile tilling and cultivating, or to more easily transport
your tiller.

TILLING (See Fig. 11)

• Release depth stake pin. Put! the depth stake up for
increased tilling depth. Place depth stake pin in hole of
depth stake to lock in position.

• Place shift lever indicator in till position.

• Hold the drive control bar against the handle to start

tilling movement. Tines and wheels will both turn.

• Move throttle control to “FAST” position for deep tilling.

To cultivate, throttle control can be set at any desired

speed, depending on how fast or slow you wish to

cultivate,

IMPORTANT: ALWAYS RELEASE DRIVE CONTROL BAR
BEFORE MOVING SHIFT LEVER INTO ANOTHER

POSITION.

FORWARD- WHEELS ONLYA'INES STOPPED

• Release drive control bar and move shift lever indicator
to “F” (forward) position. Engage drive control bar and
tiller will move forward.

REVERSE - WHEELS ONLYmNES STOPPED

DO NOT STAND DIRECTLY BEHIND TILLER.
Release the drive control bar.
Move throttle control to “SLOW” position.
Move shift lever indicator to “R” (reverse) position.
Hold drive control bar against the handle to start tiller

movement.

HARD TO SHIFT GEARS

• Briefly engage drive control bar and release or rock tiller
forward and backward until are able to shift gears.

8

OPERATION

TURNING

• Release the drive control bar,

• Move throttle control to “SLOW” position.

• Place shift lever indicator in “F” (forward) position. Tines
will not turn.

• Lift handle to raise tines out of ground.

• Swing the handle in the opposite direction you wish to
turn, being careful to keep feet and legs away from tines.

• Whenyouhavecompletedyourturn-around, release the
drive control bar and lower handle. Place shift lever in
till position and move throttle control to desired speed.
To begin tilling, hold drive control baragainstthe handle.

OUTER SIDE SHIEUDS (See Fig. 11)

The back edges of the outer side shields are slotted so that

the shields can be raised for deep tilling and lowered for
shallow tilling to protect small plants from being buried.
Loosen nut “A” in slot and nut “B”, Move shield to desired
position (both sides). Retighten nuts.

TO TRANSPORT

CAUTION; Before lifting or transport
ing, allow tiller engine and muffler to

A

AROUNDTHEYARD

• Release the depth stake pin. Move the depth stake

down to the top hole for transporting the tiller. Place
depth stake pin in hole of depth stake to lock in position.
This prevents tines from scuffing the ground.

• Place shift lever indicator in “F” (forward) position for
transporting.

• Hold the drive control baragainstthe handle to starttilier

movement. Tines will not turn.

• Move throttle control to desired speed.

AROUNDTOWN

• Disconnect spark plug wire.

• Drain fuel tank.

• Transport in upright position to prevent oil leakage.

cool. Disconnect spark plug wire. Drain
gasoline from fuel tank.

BEFORE STARTING ENGINE

IMPORTANT; BE VERY CAREFUL NOT TO ALLOW D/RT

TO ENTER THE ENGINE WHEN CHECKING OR ADDING

OIL OR FUEL, USE CLEAN OIL AND FUEL AND STORE
IN APPROVED, CLEAN, COVERED CONTAINERS. USE
CLEAN FILL FUNNELS.

For cold weather operation you should change oil for
easier starting (See oil viscosity chart in the Customer
Responsibilities section of this manual).

T0 change engine oil, seethe Customer Responsibilities

section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular unleaded
gasoline. (Use of leaded gasoline will increase carbon
and lead oxide deposits and reduce valve life.)

IMPORTANT: WHEN OPERATING IN TEMPERATURES
BELOW32“F(0“C), USE FRESH, CLEAN, WINTER GRADE
GASOLINE TO HELP INSURE GOOD COLD WEATHER
STARTING.

WARNING; Experience indicates that alcohol blended fuels

(called gasohol or using ethanol or methanol) can attract
moisture which leads to separation and formation of acids
during storage. Acidic gas can damage the fuel system of
an engine while In storage. To avoid engine problems, the

fuel system should be emptied before storage of 30 days
or longer. Drain the gas tank, start the engine and let it run
until the fuel lines and carburetor are empty. Use fresh fuel

next season. See Storage section of this manual for

additional information. Never use engine or carburetor
cleaner products in the fuel tank or permanent damage may
occur.

CAUTION: Fill to within 1/2 inch of top
of fuel tank to prevent spills and to allow

A

for fuel expansion. If gasoline is acci
dentally spilled, move machine away
from area of spill. Avoid creating any
source of ignition until gasoline vapors

have disappeared.

Do not overfill. Wipe off any spilled oil
or fuel. Do not store, spill or use gaso
line near an open flame.

CHECK ENGINE OIL LEVEL (See Fig. 12)

• The engine In your unit has been shipped, from the
factory, already filled with SAE 30 summer weight oil.

• With engine level, clean area around oil filler plug and
remove plug.

• Engine oil should be to point of overflowing when engine
is level. For approximate capacity see “PRODUCT
SPECIFICATIONS” on page 3 of this manual. All oil
must meet A.P.I. Service Classification SF-SJ.

TO START ENGINE (See Fig. 13)

CAUTION: Keep drive control bar in

A

When starting engineforthefirsttime or if engine has runout
of fuel, it will take extra pulls of the recoil siarterto move fuel
from the tank to the engine.

• Make sure spark plug wire is properly connected.

• Move shift lever indicator to “N” (neutral) position.

“DISENGAGED” position when starting
engine.

OPERATION

• Place throttle control in “FAST” position.

• Turn fuel shut-off valve 1 /4 turn to open position.

• Move choke control to choke position.

• Grasp recoil starter handle with one hand and grasp tiller
handle with other hand. Pull rope out slowly until engine
reaches start of compression cycle (rope will pull slightly
harder at this point).

• Pull recoil starter handle quickly. Do not let starter
handle snap back against starter.

• If engine fires but does not start, move choke control to
half choke position. Pull recoil starter handle until engine
starts.

• When engine starts, slowly move choke control to
"RUN“ position as engine warms up.

NOTE: A warm engine requires less choking to start.

• Move throttle control to desired running position.

• Allow engine to warm up for a few minutes before

engaging tines.

NOTE: if at a high altitude (3000 feet) or in cold

temperatures (below 32°F), the carburetorfuel mixture

may need to be adjusted for best engine performance.
See "TO ADJUST CARBURETOR" in the Service and

Adjustments section of this manual.

NOTE: If engine does not start, see troubleshooting

points.

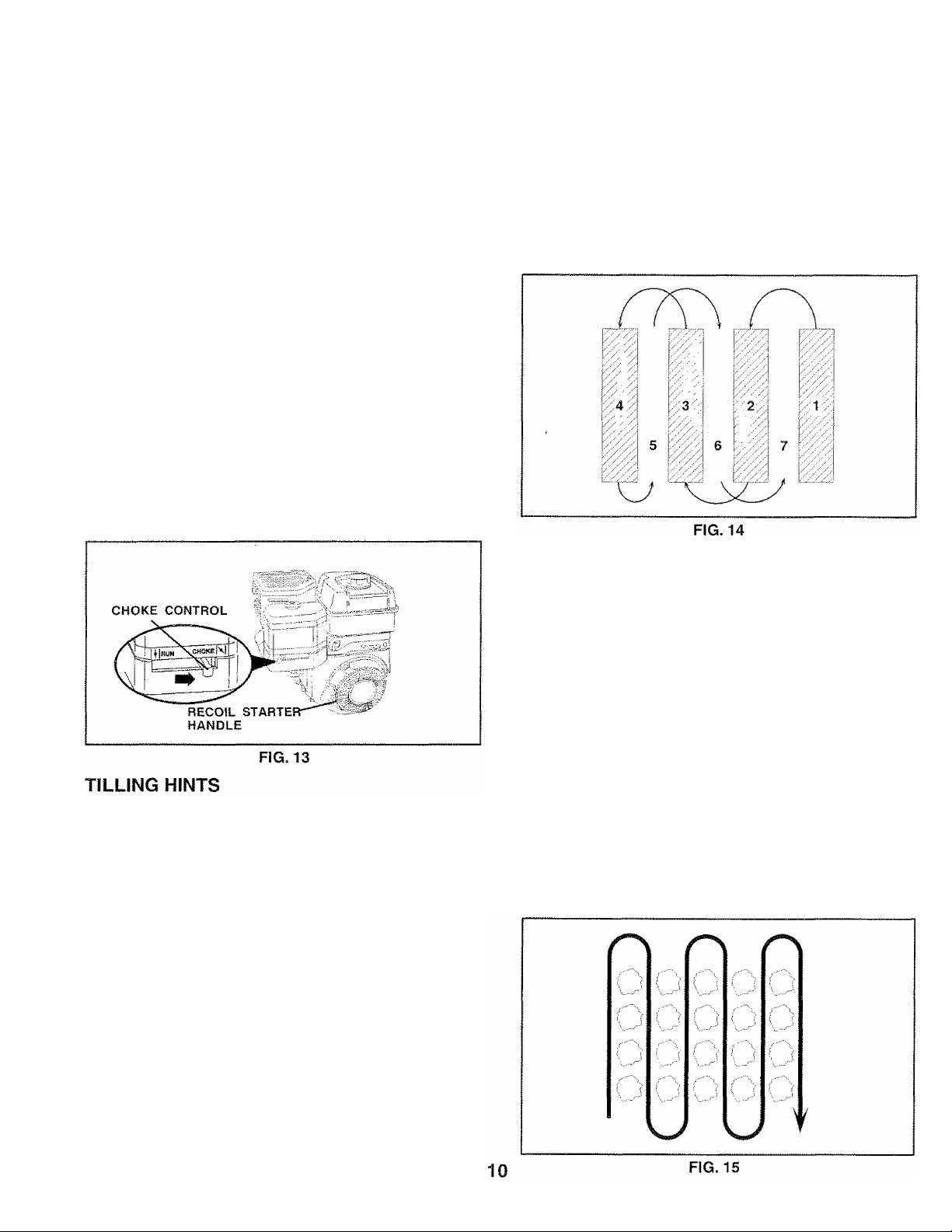

You will find tilling much easier if you leave a row unfilled
between passes. Then go back between tilled rows.
(See Fig. 14) There are two reasons for doing this. First,
wide turns are much easier to negotiate than about­faces. Second, the tiller won’t be pulling itself, and you,
toward the row next to it.

Do not lean on handle. This takes weight off the wheels
and reduces traction. To get through a really tough
section of sod or hard ground, apply upward pressure on
handle or lower the depth stake.

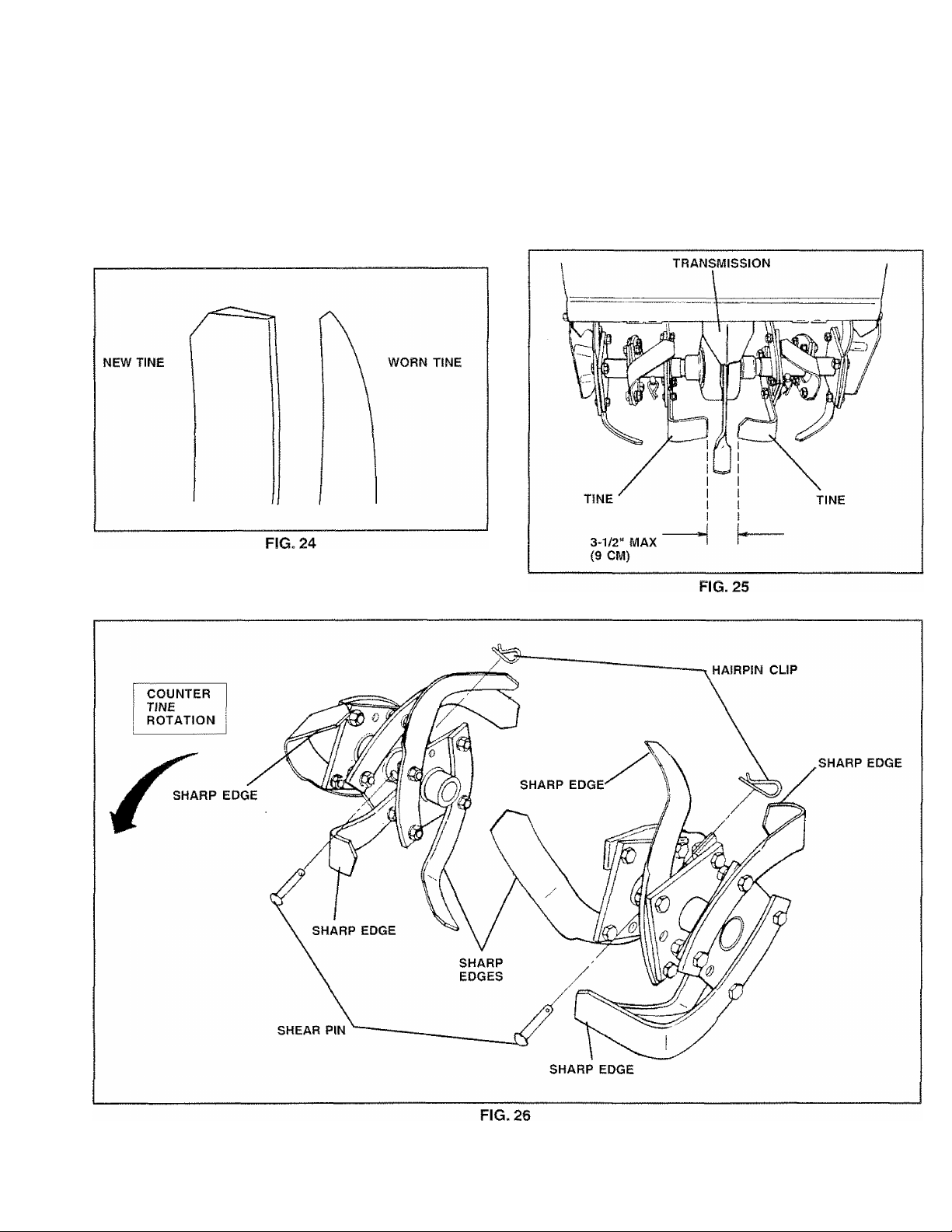

TINE SHEAR PINS

The tine assemblies on your tiller are secured to the tine
shaft with shear pins (See “TINE REPLACEMENT” In the
Service and Adjustments section of this manual).

if the tiller is unusually overloaded or jammed, the shear pins
are designed to break before interna) damage occurs to the

transmission.
* If shear pin(s) break, replace only with those shown in

the Repair Parts section of this manual.

CAUTION: Untilyouareaccustomedto
handling your tiller, start actual field use
with throttle in slow position (mid-way
between "FAST” and “IDLE”).

Tilling is digging into, turning over, and breaking up
packed soil before planting. Loose, unpacked soil helps

root growth. Best tilling depth is 4" to 6" (10-15 cm). A
tiller will also clearthe soil of unwanted vegetation. The
decomposition of this vegetable matter enriches the
soil. Depending on thecllmate (rainfall and wind), it may
be advisable to tit! the soil at the end of the growing
season to further condition the soil.

Soil conditions are importantforpropertilling. Tines will
not readily penetrate dry, hard soil which may contribute
to excessive bounce and difficult handling of your tiller.
Hard soil should be moistened before tilling; however,
extremely wet soil will “ba!i~up” or clump during tilting.
Wait until the soil is less wet in order to achieve the best
results. When tilling in the fall, remove vines and long
grass to prevent them from wrapping around the tine
shaft and stowing your tilling operation.

CULTIVATING

Cultivating is destroying the weeds between rows to prevent
them from robbing nourishment and moisture from the
plants. At the same time, breaking up the upper layer of soil
crust will help retain moisture in the soil. Best digging depth
is 1" to 3" (2.5-7.5 cm). Lower the outer side shields to
protect small plants from being buried.

• Cultivate up and down the rows at a speed which will
allow tines to uproot weeds and leave theground in rough
condition, promoting no further growth of weeds and
grass (See Fig. 15).

OPERATION

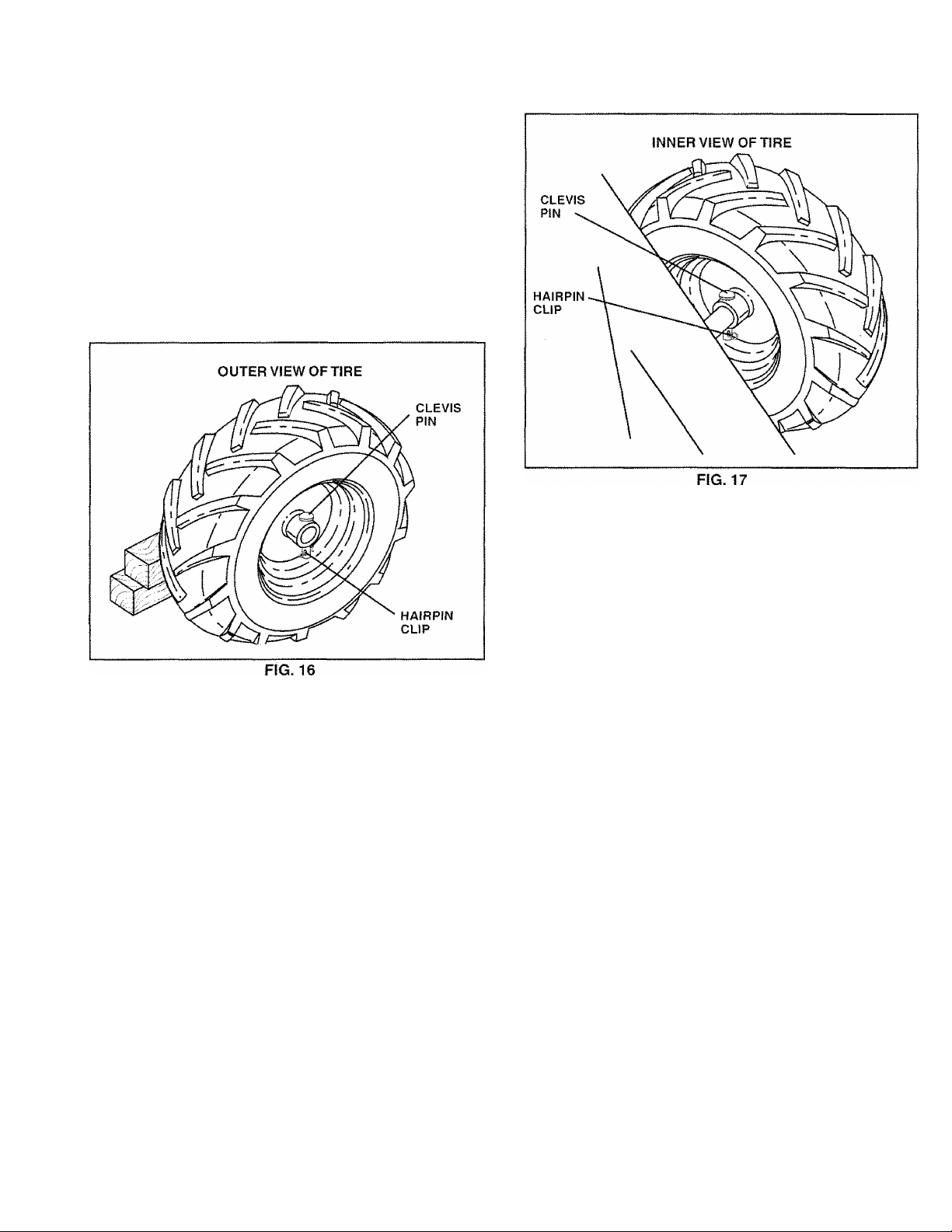

ADJUST WHEELS FOR CULTIVATING (See Figs. 16 and 17)

• Place blocks under right hand side of tiller and remove
hairpin clip and clevis pin from right hand wheel.

• Move wheel outward approximately 1 inch {2.5 cm) until
hole in inner wheel hub lines up with inner hole in axle.

• Replace clevis pin and hairpin clip on inside of wheel and

remove blocks.

• Repeat preceding steps on left hand side.

NOTE; in extremely rough conditions and while cultivating,
the wheels should be moved outward on the axle for
increased stability.

11

CUSTOMER RESPONSIBJLITIES

MAINTENANCE
SCHEDULE

/ / Cq / Co / /

/c

FILL IN DATES /
AS YOU COMPLETE /<
REGULAR SERVICE /

Check Engine Oil Level
Change Engine Oil

Oil Pivot Points

inspect Spark Arrester / Muffler

inspect Air Screen
Clean or Replace Air Cleaner Cartridge
Clean Engine Cylinder Fins
Replace Spark Plug

RH Gear Case Grease Fitting (1oz.)

1 - Change more often when operating under a heavy load or in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

</i

✓

✓

X / X / X /x /

f/SERVICE DATES

/ A/ / A/ / A/ /

✓

L2

✓

GENERAL RECOMMENDATIONS

The warranty on this tiller does not cover Items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, the operator must maintain tiller

as instructed in this manual.
Some adjustments will need to be made periodically to

properly maintain your tiller,
Ail adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

• Once a year you should replace the spark plug, clean or
replace air filter, and check tines and belts for wear. A
new spark plug and dean airfilter assure proper air-fuel
mixture and help your engine run better and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check tine operation.

• Check for loose fasteners.

✓

✓

✓

✓

LUBRICATION CHART

* THROTTLE

CONTROL

ENGINE *** RH GEAR CASE

\ GREASE FITTING ( 10Z.)

IDLER

BRACKET

WHEEL

HUB

* DEPTH STAKE PIN

LEVELING
SHIELD
HINGES

LUBRICATION

Keep unit well lubricated {See “LUBRICATION CHART”).

* SAE 30 OR 5W-30 MOTOR OIL
** REFER TO CUSTOMER RESPONSIBILITIES “ENGINE"

SECTION

***EP #1 GREASE

12

A

CUSTOMER RESPONSIBILITIES

Disconnect spark plug wire before performing any maintenance {except carburetor adjustment) to prevent
accidental starting of engine.

Prevent fires! Keep the engine free of grass, leaves, spiffed oif, or fuef. Remove fuel from tank before tipping unit

for maintenance. Clean muffler area of all grass, dirt, and debris.

Do not touch hot muffler or cylinder fins as contact may cause burns.

ENGINE

LUBRICATION

Use only high quality detergent oi! rated with API service
classification SF-SJ. Select the oil’s SAE viscosity grade
according to your expected temperature.

FIG. 18

NOTE: Although multi-viscosity oils (5W-30,10W-30, etc.)

improve starting in cold weather, these multi-viscosity oils
will result in increased oil consumption when used above
32°F (0°C). Check your engine oil level more frequently to
avoid possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least
once a year if the tiller is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine and
after each five (5) hours of continuous use. Add SAE 30
motor oil or equivalent. Tighten oil filler plug securely each
time you check the oi! level.

TO CHANGE ENGINE OIL (See Figs. 18 and 19)

Determine temperature range expected before oil change.
Ail oil must meet API service classification SF-SJ.

• Be sure tiller is on level surface.

• Oil will drain more freely when warm.

• Use a funnel to prevent oil spill on tiller, and catch oil in

a suitable container.

• Remove drain plug.

• Tip tiller forward to drain oil.

• After oil has drained completely, replace oil drain plug

and tighten securely,

• Remove oil filler plug. Be careful nottoallowdirtio enter

the engine.

• Refill engine with oil. See “CHECK ENGINE OIL LEVEL”
in the Operation section of this manual.

AIR FILTER (See Fig. 20)

Your engine will not run properly using a dirty airfiiter. Clean
the foam pre-cleaner after every 25 hours of operation or
every season. Service paper cartridge every 100 hours of
operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

• Remove cover screw and cover.
TO SERVICE PRE-CLEANER

• Remove foam pre-cieaner from air cleaner cover.

• Wash it in liquid detergent and water.

• Squeeze It dry in a clean cloth.

• If very dirty or damaged, replace pre-cleaner.

• Reinstall pre-cleaner into air cleaner cover.

• Reinstall cover and secure screw.
TO SERVICE CARTRIDGE

• Carefully remove cartridge to prevent debris from enter
ing carburetor. Clean base carefully to prevent debris

from entering carburetor.

• Clean cartridge bytapping gently on flat surface, if very
dirty or damaged, replace cartridge,

• Reinstall cartridge, cover with pre-cleaner and secure
with screw.

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS
KEROSENE, ARE NOT TO BE USED TO CLEAN THE
CARTRIDGE. THEY MAY CAUSE DETERIORATION OF
THE CARTRIDGE. DO NOT OIL CARTRIDGE. DO NOT
USE PRESSURIZED AIR TO CLEAN OR DRY
CARTRIDGE.

COOLING SYSTEM (See Fig. 21)

Your engine is air cooled. For proper engine performance
and long life keep your engine clean.

• Clean air screen frequently using a stiff-bristled brush.

• Remove blower housing and clean as necessary,

• Keep cylinder fins free of dirt and chaff.

CUSTOMER RESPONSIBILITIES

MUFFLER

Do not operate tiiler without muffler. Do not tamper with
exhaust system. Damaged mufflers orsparkarresters could
create a fire hazard, inspect periodically and replace if
necessary. If your engine is equipped with a spark arrester
screen assembly, remove every 50 hours for cleaning and
inspection. Replace if damaged.

SERVICE AND ADJUSTMENTS

SPARK PLUG

Replace spark plugs at the beginning of each tilling season
orafter every 50 hours of use, whichever comes first. Spark
plug type and gap setting is shown in “PRODUCT SPECIFI
CATIONS” on page 3 of this manual.

TRANSMISSION

Once a season, lubricate the right hand side gear case
grease fitting with oz. of EP #1 grease,

CLEANING

Do not clean yourtliler when the engine and transmission are
hot. We do not recommend using pressurized water (garden
hose, etc.) to clean your unit unless the gasket area around
the transmission and the engine muffler, air filter and
carbúrete rare cove red to keep water out. Water in engine will
shorten the useful life of your tiller.

• Clean engine, wheels, finish, etc. of all foreign matter.

• Keep finished surfaces and wheels free of all gasoline,
oil, etc.

• Protect painted surfaces with automotive type wax.

CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come into

A

contact with plug.

TILLER

TO ADJUST HANDLE HEIGHT (See Fig. 22)

Select handle height best suited for your tilling conditions.
Handle height will be different when tiller digs into soil.

• First loosen handle lock lever.

• Handle can be positioned at different settings between
“HIGH” and “LOW” positions.

• Retighten handle lock lever securely after adjusting.

TIRE CARE

CAUTION: When mounting tires, unless
beads are seated, overinf lation can cause

A

• Maintain 20 PSi (1.4 kg/cm^) of tire pressure, if tire
pressures are not equal, tiller will pul! to one side.

• Keep tires free of gasoline or oil which can damage
rubber.

TO REMOVE WHEEL (See Fig. 23)

• Place blocks under transmission to keep tiller from
tipping.

• Remove hairpin clip and clevis pin from wheel.

• Remove wheel and tire.

• Repairtireand reassemble.

an explosion.

SERVICE AND ADJUSTMENTS

TINE REPLACEMENT (See Figs. 24,25 and 26)

CAUTION: Tines are sharp. Wear gloves

A

A badly worn tine causes your tiller to work harder and dig
more shallow. Most important, worn tines cannot chop and
shred organic matter as effectively nor bury It as deeply as
good tines, A tine this worn needs to be replaced.

or other protection when handling tines.

To maintain the superb tilling performance of this ma
chine the tines should be checked for sharpness, wear,
and bending, particularly the tines which are next to the
transmission, if the gap between the tines exceeds 3­1/2 inches (9 cm), they should be replaced or straight
ened as necessary.

New tines should be assembled as shown in Fig. 28.
Sharpened tine edges will rotate rearward from above.

15

SERVICE AND ADJUSTMENTS

TO REMOVE BELT GUARD (See Fig. 27)

NOTE: For ease of removal, remove hairpin clip and clevis

pin from left wheel. Pull wheel outfromiillerabouil inch(2.5

cm).

• Remove two (2) screws from side of belt guard.
♦ Remove hex nut and washer from bottom of belt guard

{located behind wheel).

• Pull belt guard out and away from unit.
* Replace belt guard by reversing above procedure.

TO REPLACE GROUND DRIVE BELT (See Figs. 27 and 28)

• Remove belt guard as described in “T O REMOVE BELT
GUARD".

• Remove old belt by slipping off engine pulley first then
remove from transmission pulley.

• Place new belt in groove of transmission pulley and into
engine pulley. BELT MUST BE IN GROOVE ON TOP
OF IDLER PULLEY. NOTE POSITION OF BELT TO
GUIDES.

• Check belt adjustment as described below.

• Replace beitguard.

• Reposition wheel and replace clevis pin and hairpin clip.

GROUND DRIVE BELT ADJUSTMENT (See Fig. 28)

For proper belt tension, the extension spring should have
about 5/8 inch (16 mm) stretch when drive control bar is in
“ENGAGED” position. This tension can be attained as
follows:

• Loosen cable clip screw securing the drive control cable.

• Slide cable forward for less tension and rearward for

more tension until about 5/8 inch (16 mm) stretch is
obtained while the drive control bar is engaged.

• Tighten cable clip screw securely.

FiG. 28

16

SERVICE AND ADJUSTMENTS

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 29)

The throttle control has been preset at the factory and

adjustment should not be necessary. If adjustment is
necessary, proceed as follows:

• With engine not running, move remote throttle control
lever to “FAST” position.

• if throttle lever on engine touches high speed stop, no
further adjustment Is necessary. If throttle lever does
not touch high speed stop, continue with adjustment
procedure.

® Loosen cable clamp screw.

• Move throttle lever up until it touches high speed stop,
and hold in this position.

« Tighten cable clamp screw securely.

TO ADJUST CARBURETOR

The carburetor has been preset at the factory and adjust
ment should not be necessary. However, engine perfor
mance can be affected by differences in fuel, temperature,
altitude or load. If the carburetor does need adjustment,
contact your nearest authorized service center/department

IMPORTANT: NEVER TAMPER WITH THE ENGINE
GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED
HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR
NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS THE PROPER EQUIPMENT
AND EXPERIENCE TO MAKE ANY NECESSARY
ADJUSTMENTS.

17

STORAGE

Immediately prepare your tiller for storage at the end of the

season or if the unit will not be used for 30 days or more.

CAUTION: Never store the tiller with
gasoline in the tank inside a building
where fumes may reach an open flame

A

or spark. Allow the engine to cool
before storing in any enclosure.

Ti LLER

• Clean entire tiller (See “CLEANING” in the Customer
Responsibilities section of this manual).

• inspect and replace belts, if necessary (See belt re­piacement instructions in the Service and Adjustments
section of this manual).

• Lubricate as shown in the Customer Responsibilities

section of this manual.

• Be sure that ail nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage
and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand
lightly before painting.

ENGINE

ENGINE OIL

Drain oil (with engine warm) and replace with clean oil. (See
“ENGINE” in the Customer Responsibilities section of this
manual).

CYLINDER(S)

• Remove spark plug.

• Pour 1 ounce (29 ml) of oil through spark plug hole into
cylinder.

• Puli starter handle slowly several times to distribute oil.

• Replace with new spark plug.

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.
Rust and/or dirt in your gasoline will cause problems.

• If possible, store your unit indoors and cover it to give

protection from dust and dirt.

• Cover your unit with a suitable protective coverthat does

not retain moisture. Do not use plastic. Plastic cannot
breathe which allows condensation to form and will
cause your unit to rust.

IMPORTANT: NEVER COVER TILLER WHILE ENGINE
AND EXHAUST AREAS ARE STILL WARM.

FUEL SYSTEfV!

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL SYSTEM
PARTS SUCH AS THE CARBURETOR, FUEL FILTER,
FUEL HOSE, OR TANK DURING STORAGE. ALSO,
EXPERIENCE INDICATES THAT ALCOHOL BLENDED
FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS
TO SEPARATION AND FORMATION OF ACIDS DURING
STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL
SYSTEM OF AN ENGINE WHILE IN STORAGE.

• Drain the fuel tank.

• Start the engine and let It run until the fuel lines and

carburetor are empty.

• Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits during stor
age. Add stabilizer to gasoline in fuel tank or storage
container. Always follow the mix ratio found on stabilizer
container. Run engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach the carburetor. Do
not drain the gas tank and carburetor if using fuel stabilizer.

18

TROUBLESHOOTING POINTS

PROBLEn/l

Will not start

Hard to start

Loss of power

CAUSE

1. Out of fuel.

2. Engine not “CHOKED” properly.

3. Engine flooded,

4. Dirty air cleaner.

5. Water in fuel.

6. Clogged fuel tank,

7. Loose spark plug wire.

8. Bad spark plug or improper gap,

9. Carburetor out of adjustment.

1. Throttle control not set properly.

2. Dirty air cleaner.

3. Bad spark plug or improper gap.

4. Stale or dirty fuel.

5. Loose spark plug wire.

6. Carburetor out of adjustment.

1. Engine is overloaded.

2. Dirty air cleaner.

3. Low oil level/dirty oil,

4. Faulty spark plug.

5. Oil in fuel.

6. Stale or dirty fuel.

7. Water in fuel.

8. Clogged fuel tank,

9. Spark plug wire loose.

10. Dirty engine air screen.

11. Dirty/ciogged muffler.

12. Carburetor out of adjustment.

13. Poor compression.

CORRECTION

1. Fill fuel tank.

2. See “TO START ENGINE” in Operation section.

3. Wait several minutes before attempting to start.

4. Clean or replace air cieaner cartridge.

5. Drain fuel tank and carburetor, and refill tank with
fresh gasoline,

6. Remove fuel tank and clean.

7. Make sure spark plug wire is seated properly on

plug.

8. Replace spark plug or adjust gap.

9. Make necessary adjustments.

1. Place throttle control in “FAST” position.

2. Clean or replace air cleaner cartridge.

3. Replace spark plug or adjust gap,

4. Drain fuel tank and refill with fresh gasoline,

5. Make sure spark plug wire is seated properly on

plug.

6. Make necessary adjustments.

1. Set depth stake for shallower tilling,

2. Clean or replace air cleaner cartridge.

3. Check oil levei/change oil.

4. Clean and regap or change spark plug.

5. Drain and dean fuel tank and refill, and clean

carburetor.

6. Drain fuel tank and refill with fresh gasoline.

7. Drain fuel tank and carburetor, and refill tank with
fresh gasoline.

8. Remove fuel tank and clean.

9. Connect and tighten spark plug wire,

10. Clean engine air screen,

11. Clean/replace muffler.

12. Make necessary adjustments.

13. Contact an authorized service center/department.

Engine overheats

Excessive bounce/
difficult handling

Soil balls up or clumps
Engine runs but tiller

won’t move

Engine runs but labors
when tilling

Tines will not rotate

Hard to shift into gear

Tiller shuts off when
drive control bar
engaged

1. Low oil level/dirty oil.

2. Dirty engine air screen.

3. Dirty engine.

4. Partially plugged muffler.

5. Improper carburetor adjustment.

1. Ground too dry and hard.

1. Ground too wet.

1. Drive control bar is not engaged.

2. V-belt not correctly adjusted.

3. V-belt is off pulley(s).

1. Tilling too deep.

2. Throttle control not properly adjusted.

3. Carburetor out of adjustment.

1. Shear pin{s) broken.

1, Gears not timed.

1. Shift lever set in between counter rotating til!

position and forward rotating till position.

2. Tines jammed.

1. Check oil ievel/change oil.

2. Clean engine air screen.

3. Clean cylinder fins, air screen, and muffler area.

4. Remove and clean muffler.

5. Adjust carburetor to richer position.

1. Moisten ground or wait for more favorable soil

conditions.

1. Wait for more favorable soil conditions.

1. Engage drive control.

2. inspect/adjust V-belt.

3. Inspect V-belt.

1. Set depth stake for shallower tilling,

2. Check throttle control setting.

3. Make necessary adjustments.

1. Replace shear pin(s).

1. Briefly engage drive control bar and release or rock

tiller forward and backward until are able to shift
gears.

1. Shift to either counter rotating till position or forward

rotating till position.

2. Clear tines.

19

REPAIR PARTS

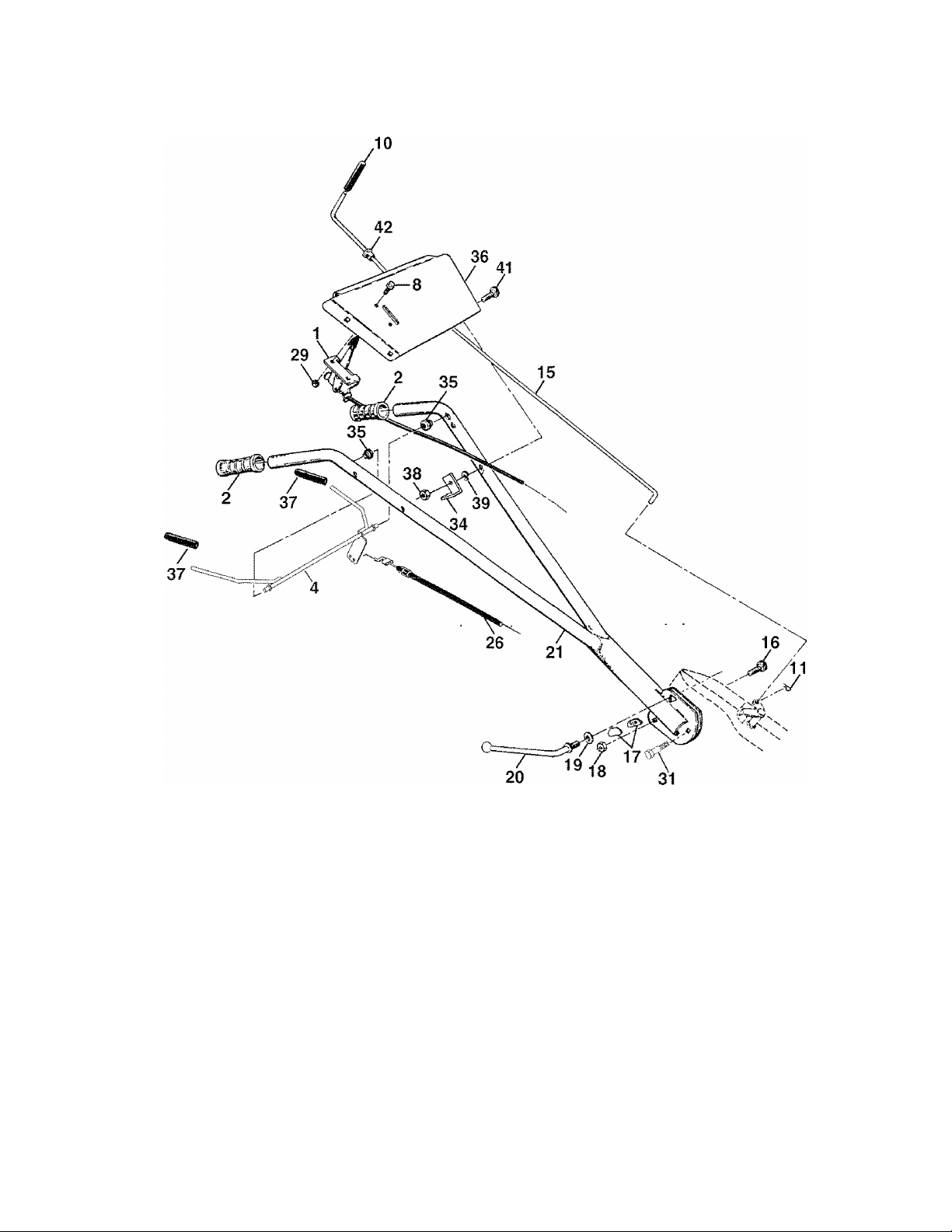

HANDLE ASSEMBLY

TILLER » - MODEL NUMBER HDR500K

KEY PART
NO. NO.

1

175250

10

11

15
16
17
18
19

150744

159227
72110514
71191008
8389J
4497H

108281X
72110608

109229X
73680600
19131611
109228X

2
4
5
8

20

DESCRIPTION

Control, Throttle
Grip, Handle
Bar, Control
Bolt, Carriage 5/16-18x1 -3/4
Screw, Pan Hd. #10-24
Grip, Handle
Clip, Hairpin
Rod, Shift
Bolt, Carriage 3/8-16 x 1 Gr. 5
Lock, Handle
Nut, Crowniock 3/8-16 UNC
Washer 13/32 x 1 x 11 Ga,
Lever, Lock, Handle

KEY PART
NO, NO. DESCRIPTION

21 150217 Handle
26 159232 Cable, Clutch
29 73731000 Nut, Keps #10-24 UNC
31 150696 Bolt, Pivot
34 145821 Bracket, Clutch Cable
35 146480 Grommet, Handle
36 126949X428 Bracket, Handle
37 102604X Grip, BarControl
38 73800500 Locknut 5/16-18
39 10040500 Washer, Lock 5/16

42 121248X Bushing, Snap

NOTE: All component dimensions given in U.S. inches.

1 Inch - 25.4 mm

20

REPAIR PARTS

MAINFRAME, LEFT SIDE

3

4 '*■

TILLER - - MODEL NUMBER HDR500K

Y

KEY PART
NO. NO.

1

73510500
10040600

2

73220600

3
5

6
7
8
9

10
11

12

13
14
15
16
19

21
22

23

24
25
26

170127
154734
110111X
72110404
8700J

36777

9484R
10040400
73220400
23230506
156117
19111116
145102
12000028
110652X
74770508
102190X
150750
795R
126875X

4497H

165501X428

4

'■'v4 ! I

"■ /xv/z ■"

DESCRIPTION

Nut, Keps 5/16-18
Washer, Lock 3/8
Nut, Hex 3/8-16
Shield, inner Belt Guard
Screw, Shift Lever
Lever, Shift
Bolt, Carriage 1/4-20 x 1/2 Gr. 5
Plate, Shift indicator
Screw, Hex, Washer Head, Slotted

#10-24x1/2
Clip
Washer, Lock 1/4

Nut, Hex 1/4-20
Screw, Set, Hex 5/16-18 x 3/8
Spacer, Split 0.327x0.42x 1.220

Washer 11/32 x 11/16 x 16 Ga.
Sheave, T ransmission

Ring, Retainer
Spacer, Split 0.327x0.42x2.09
Bolt, Fin Hx 5/16-24x1/2

Tire

Rim

Tire Valve

Rivet, Drilled

Clip, Hairpin
Guard, Belt

KEY PART
NO. NO. DESCRIPTION

27 132801 Belt, V
28
29 12000032
30 159229 Bracket, idler
31 102384X Bolt, Hex 5/16-16 X 12
32 102141X Shaft, Idler Arm
33 74760616 Bolt, Hex 3/8-16 x 1
34 102383X Counterweight, L. H.
35
36 102331X Bracket, Reinforcement, L. H.
37 130812 Sheave, Engine
38
39 140062
40 170488 Screw Hx Wsh Sit #10-24 x 1/2
43 69180 Nut, Lock #10-24

44

65 73970500 Nut, Lock Hex Fig
NOTE: All component dimensions given in U.S. inches.

104679X

74760524

74760544 Bolt, Fin Hx 5/16-18x2-3/4

73800500 Nut, Lock 5/16-18 PI

1 inch = 25.4 mm

Pulley, idler
Ring, Klip

Bolt, Hex 5/16-18x1-1/2

Cap, Plunger

21

25-^

REPAIR PARTS

TILLER - - MODEL NUMBER HDR500K

MAINFRAME, RIGHT SIDE

KEY PART
NO. NO.

2

73970500

5 102332X Bracket, Reinforcement 150750 Rim
7

102173X
8 10040600
9 73220600 Nut, Hex 3/8-16 (Orderpartsfrom engine

10 74760524
11 4497H
12 126875X Rivet, Drilled

DESCRIPTION NO. NO. DESCRIPTION

Nut, Lock Hex Fig 13 102190X Tire
Counterweight, R.H.

Washer, Lock 3/8 15

Bolt, Hex 5/16-18 x 1-1/2

Clip, Hairpin

KEY

795R

16 7192J Tie Cable

NOTE: All component dimensions given in U.S. in

Tire Valve
Engine, Briggs Model 110402

manufacturer)

22

REPAIR PARTS

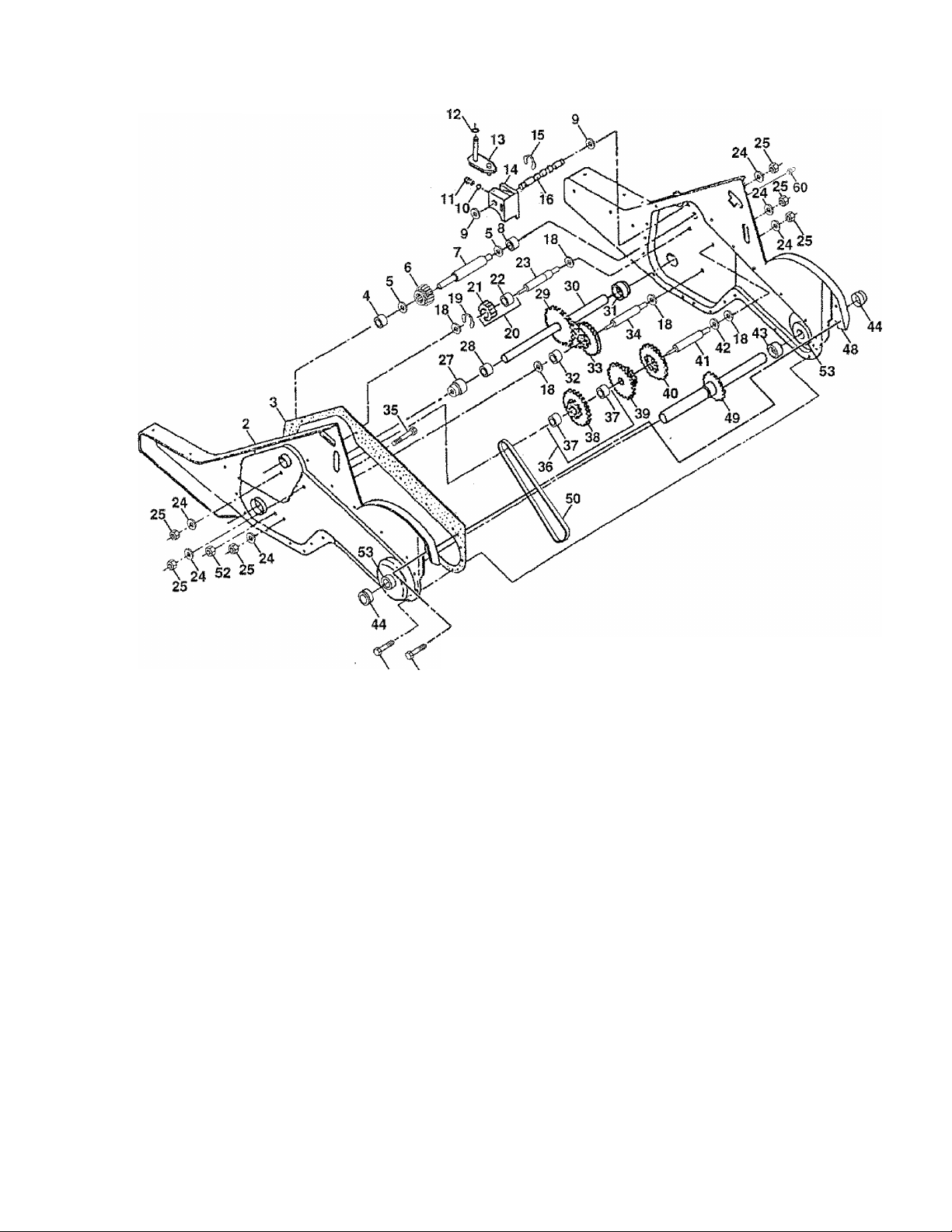

TRANSMISSION

TILLER - - MODEL NUMBER HDR500K

KEY PART

NO. NO.

170337

1

165729

2
3 161963

4 5020J

1370H

5

137335

6
7

145101

4895H Bearing, Needle

8

154467

9

7392M Bail, Steel

10

100371K

11

106160X

12
13 142145
14 8353J

12000039

15

154466

16

18 4358J

12000040 Ring, Klip

19

102114X

20

102115X

21

6803J

22

10211IX

23

10040700

24

73610700

25
27 143009

DESCRIPTION

Transmission Assembly

(Includes Key Nos. 2-52)

Gearcase, L.H. w/Bearing

(includes Key No. 4)
Gasket, Gearcase
Bearing, Needle

Washer, Thrust 5/8 x 1.10 x 1/32

Pinion, input

Shaft, Input
Washer, Seal

Spring, Shift, Fork
O-Ring
Arm,. Shift

Fork, Shift

Ring, Klip
Shaft, Shift
Washer

Gear, Assembly, Reverse Idler

(includes Key Nos. 21 and 22)

Gear, Reverse idler

Bearing, Needle
Shaft, Reverse Idler
Washer, Lock 7/16
Nut, Hex 7/16-20

Bearing, Shaft, Ground Drive L.H.

51 58

PART

NO.

106390X
102134X

150737

143008
1063S8X
102121X

102112X

102101X

154355

37 4422J Bearing, Needle
38 154356 Sprocket, Tine
39 105345X Gear, Cluster, Red 1 st & 2nd
40 105346X Gear, Reverse
41 8358J Shaft, Reduction (1 st)
42 4220R Washer, Thrust
43 1 06146X Spacer 1,01 x1.75x0.760
44 155236 Seal Asm. Oil
48 170338 Gearcase, R.H. w/Bearing

49 132688 Shaft, Tine
50 106147X Chain, Roller #50-50 Pitch
51 17720408 Screw 1/4-20x1/2
52 73220500 Nut, Hex 5/16-18
53 165140 Kit, Bearing, Tine Shaft
58 17720412 Screw 1/4-20 x 3/4
60 6855M Fitting Grease

6066J Grease, Plasiiiube #1

NOTE: All component dimensions given in U.S. inches.

23

1 inch - 25.4 mm

DESCRIPTION

Spacer 0.765 x 1.125 x 1,23
Chain #35-50 Pitch
Ground Shaft Assembly
Bearing, Shaft, Ground Drive R.H.
Spacer 0.70 X 1.00 X 1.150
Sprocket and Gear Assembly
Shaft, Reduction (2nd)
Screw, Whiz, Lock 5/16-18x3-1/2
Sprocket Assembly w/Bearing
(includes Key Nos. 37 and 38)

(includes Key No. 8)

REPAIR PARTS

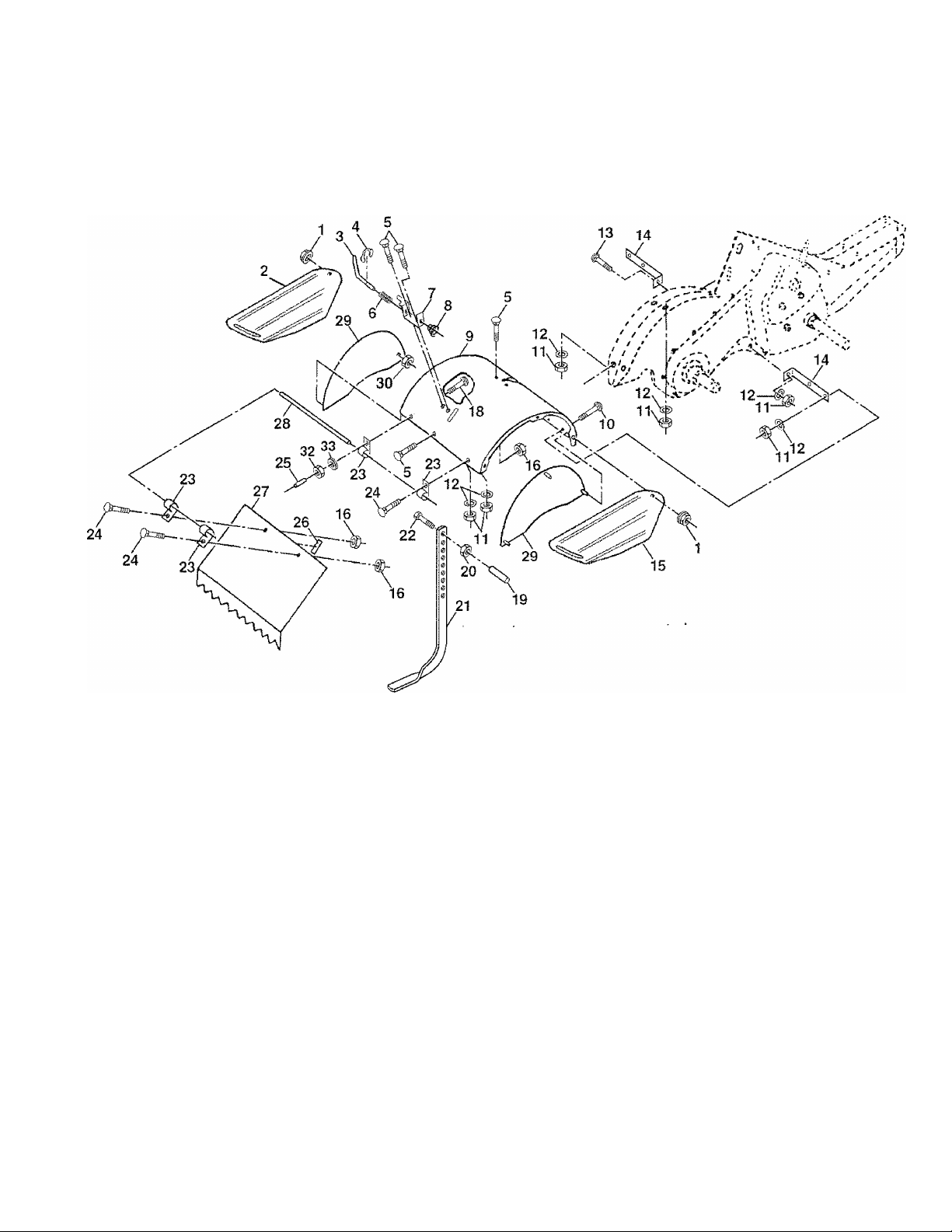

TINE SHIELD

TILLER - - MODEL NUMBER HDR500K

KEY
NO.

1
2 161415X428
3 8393J
4 12000036 Ring, Kiip
5 72140506
6
7 8392J Bracket, Latch
8 109230X
9 102326X428 Shield, Tine

10 72140508

11 73220500

12 10040500

13 72110510

14 124343X

15 161414X428
16 73900400

PART
NO.

73900500

8394J Spring

DESCRIPTION

Nut, Lock Hex Flange 5/16-18
Shield, Side, Outer L. H.
Pin, Stake, Depth

Bolt, Carriage 5/16-18 x 3/4 Gr 5

Spring, Depth Stake 25 6712J
Bolt, Carriage 5/16-18 x 1

Nut, Hex 5/16-18
Washer, Lock 5/16
Bolt,Carriage 5/16-18x1-1/4
Bracket, Shield Tine
Shield, Side, Outer R,H.
Nut, Hex Flange 1/4-20 UNC

KEY

NO.

18 72040410
19 102701X
20

21 102156X

22 74930632
23 4440J
24 72140404

26 109227X

27
28 120588X Pin, Hinge
29
32

33 10040400 Washer Lock Hvy Helical 1/4

PART
NO.

73220600

102695X428
104085X428

73220400

NOTE: All component dimensions given in U.S, inches.

1 inch = 25,4 mm

DESCRIPTION

Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
Grip
Nut, Hex 3/8-16
Stake, Depth
Bolt, Hex 3/8-16x2
Hinge
Bolt, Carriage 1/4-20 x 1/2 Gr. 5

Cap, Vinyl

Pad, Idler

Shield, Leveling
Shield, Side

Nut Fin Hex 1/4-20 UNC

24

REPAIR PARTS

TINE ASSEMBLY

TILLER - - MODEL NUMBER HDR500K

KEY
NO.

1
2 132673
3 6554J

4 3146R

5
6

PART
NO.

4459J

132727

73610600

10040600

DESCRIPTION

Tine, Outer, LH.
Clevis Pin
Tine, Inner, LH.

Retainer, Spring

Assembly, Hub and Plate, LH.

Nut, Hex 3/8-24

Washer, Lock 3/8

KEY

NO.

8 74610616 Bolt, Hex 3/8-24 x 1
9
10

11 6555J Tine, Inner, R.H.

PART
NO. DESCRIPTION

4460J Tine, Outer, R.H.

132728

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

Assembly, Hub and Plate, R.H.

25

REPAIR PARTS

DECALS

TILLER - - MODEL NUMBER HDR500K

KEY
NO.

1
2 157387 Decaí, Description
3 167386
4
5 141907 Decal, Hand Placement
6 102180X Decal, Shift Indicator
7 175643
8
9
10 156199
11 171078
12

PART
NO. DESCRIPTION

157384 Decaí, Logo

Decal, Logo

143678 Decal, instruction, Tilling

Decal, Briggs & Stratton

171077

141906 Decal, Warning, Rotating Tines

162215 Decat, Tine Shield Wrng Dorn

175668
175669 Manual, Owner’s (Spanish)

Decal OHVN4C
Decal, Reverse

Decal, Rewind Intek
Manual, Owner’s (English)

.11

26

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects
in materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser,
we will repairer replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find
to be defective due to materials or workmanship. This Warranty is subject to the following limitations and exclusions.

1. This warranty does not apply to the engine, other than EHP manufactured iransaxie/transmisslon components,
battery (except as noted below) orcomponents parts thereof. Please refertothe applicable manufacturer's warranty
on these items.

2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the
purchaser. Transportation charges for any parts submitted for replacement under this warranty must be paid by the
purchaser unless such return is requested by Electrolux Home Products.

3. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of
original purchase.

4. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained
in accordance with the instructions furnished. This Warranty does not apply to any product which has been subjected
to alteration, misuse, abuse, improper assembly or installation, delivery damage, orto normal wear of the product.

5. Exclusions: Excluded from this Warranty are belts, tines, tine adapters, normal wear, normal adjustments, standard

hardware and normal maintenance.

6. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please contact:

Electrolux Home Products
a division of WC! Outdoor Products, Inc.
Outdoor ProductsCustomerService Dept.
250 Bobby Jones Expressway
Augusta, GA 30909 USA

giving the model number, serial number and date of purchase of your product and the name and address of the authorized
dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED
WARRANTIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED
WARRANTIES. Some areas do not allow the limitation of consequential damages or limitations of how long an implied
Warranty may last, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal

rights, and you may have other rights which vary from locale to locale.

This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.

in Canada contact:
Electrolux Home Products
a division of WC! Outdoor Products, Inc,
7075 Ordan Drive
Mississauga, Ontario
L5T1K6

27

Poulan
