Instruction Manual
Manual de Instrucciones
Manuel d’Instructions
PP5500P
R
ENGLISH ESPAÑOL
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury. Refer
to your original manual for additional Warnings and Operating
Instructions.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones graves. Refiera a su manual original para las Instrucciones
de Funcioniamiento y las Advertencias adicionales.
AVERTISSEMENT:
Lire le manuel d’instructions et bien respecter tous les avertissements et toutes les instructions de sécurité. Tout défaut de le
faire pourrait entraîner des blessures graves. Référez--vous à
votre manuel original pour des Avertissements et des Instructions d’Utilisation additionnels.
Poulan PRO
7349 Statesville Road
Charlotte, NC 28269
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
115261226 Rev. 2 6/15/10 BRW
Poulan PRO
FRANÇAIS
IDENTIFICATION OF SAFETY SYMBOLS
DANGER: To prevent electrocution, do
not use near electrical wires or power lines. Keep
pruner at least 30 feet (10 meters) away from all
power lines.
DANGER: Falling objects can cause severe
head injury. Wear head protection when operating
this unit. Do not stand beneath branch being cut.
WARNING: Avoid kickback which can result in serious injury. Kickback is the back-
ward, upward or sudden forward motion of the guide bar occurring when the chain near the
upper tip of the guide bar contacts any object such as a log or branch, or when the wood
closes in and pinches the chain in the cut. Contacting a foreign object in the wood can also
result in loss of control.
WARNING: Do not operate pruner from a ladder
or unstable support. Always cut with both feet on solid
ground to prevent being pulled off balance.
WARNING: This unit can be dangerous! Careless or improper
use can cause serious injury.
Read the operator’s manual before use. Failure to follow instructions
could result in serious injury. Save operator’s manual.
Wear protective gear. Always use steel-toed safety footwear with non-slip soles; snug-fitting clothing; heavy, long pants, and long sleeves; heavy-duty, non-slip gloves; eye protection marked Z87 such as non-fogging, vented goggles or face screen; an approved safety
hard hat; and sound barriers (ear plugs or mufflers) to protect your hearing. Regular users
should have hearing checked regularly as engine noise can damage hearing. Always use
shoulder strap when operating unit.
2
IDENTIFICATION OF SAFETY SYMBOLS
Hazard zone. Keep children, bystanders, and animals
a minimum of 50 feet (15 meters) away from the work
area. Do not allow other people or animals to be near
when starting or operating the pruner.
Carefully plan your pruning operation in advance. Do not
start cutting until you have a clear work area, secure
footing, and a planned retreat path.
Do not operate a pruner with one hand. Serious injury to the
operator, helpers, bystanders or any combination of these
persons may result from one-handed operation. A pruner is
intended for two-handed use.
SAFETY RULES
WARNING: When using an electric
pruner or any other electric gardening appliance, basic safety precautions must always be followed to reduce the risk of fire,
electric shock, and serious injury. Read and
follow all instructions.
WARNING: Always disconnect spark
plug wire and place wire where it cannot contact
spark plug (or disconnect unit from power
source) to prevent accidental starting when setting up, transporting, adjusting or making repairs
except carburetor adjustments.
Because a pruner is a high-speed wood-cutting
tool, special safety precautions must be observed to reduce the risk of accidents. Careless
or improper use of this tool can cause serious or
even fatal injury.
PLAN AH EAD
S Read this manual carefully until you com-
pletely understand and can follow all safety
rules, precautions, and operating instructions
before attempting to use the unit.
S Restrict the use of your pruner to adult users
who understand and can follow safety rules,
precautions, and operating instructions found
on the unit and in this manual.
INSTRUCTION
MANUAL
SAFETY INFORMATION
ON THE UNIT
S Keep all parts of your body away from the
chain when the engine is running.
S Do not handle or operate a pruner when you
are fatigued, ill, or upset, or if you have taken
alcohol, drugs, or medication. You must be in
good physical condition and mentally alert. If
you have any condition that might be aggravated by strenuous work, check with doctor
before operating a pruner.
FUEL SAFETY (for gas engines)
S Mix and pour fuel outdoors.
S Keep away from sparks or flames.
S Use a container approved for fuel.
S Do not smoke or allow smoking near fuel or
the unit.
S Avoid spilling fuel or oil. Wipe up all fuel spills
before starting the unit.
S Move at least 10 feet (3 meters) away from
fueling site before starting engine.
S Stop engine and allow to cool before remov-
ing fuel cap.
S Remove fuel cap slowly.
ELECTRICAL SAFETY (for electric
units)
WARNING: Avoid a dangerous envi-
ronment. To reduce the risk of electrical shock,
do not use in rain, in damp or wet locations, or
around swimming pools, hot tubs, etc. Do not
expose to snow, rain, or water to avoid the possibility of electrical shock. Do not use on wet
surfaces. Do not handle extension cord plug or
unit with wet hands.
S Use only a voltage supply as shown on the
nameplate of the unit.
3
S Avoid dangerous situations. Do not use in
presence of flammable liquids or gases to
avoid creating a fire or explosion and/or
causing damage to unit.
S Avoid dangerous environments. Do not use
in unventilated areas or where dust or explosive vapors can build up.
S To reduce the risk of electric shock, the unit
may have a polarized plug (one blade is
wider than the other); if so, it will require the
use of a polarized extension cord. The appliance plug will fit into a polarized extension cord only one way. If the plug does not
fit fully into the extension cord, reverse the
plug. If the plug still does not fit, obtain a
correct polarized extension cord. A polarized extension cord will require the use of a
polarized wall outlet. This plug will fit into
the polarized wall outlet only one way. If
plug does not fit fully into the wall outlet, reverse the plug. If it still does not fit, contact a
qualified electrician to install the proper wall
outlet. Do not change the equipment plug,
extension cord receptacle, or extension
cord plug in any way.
S To reduce risk of electrical shock, use exten-
sion cords specifically marked as suitable for
outdoor appliances having electrical rating not
less than the rating of unit. Cord must be
marked with suffix “W- -A” (in Canada “W”).
Make sure your extension cord is in good
condition. Inspect extension cord before use
and replace if damaged. Do not use a damaged cord. Cord insulation must be intact with
no cracks or deterioration. Plug connectors
must be undamaged. The extension cord
used to reach the power source must be
heavy enough to carry current from the power
source the full length of the extension cord to
the unit. An undersized extension cord will
cause a drop in line voltage resulting in loss of
power and overheating. If in doubt, use the
next heavier gauge. The lower the gauge
number, the heavier the cord.
S Do not use multiple cords.
S Do not abuse cord. Never carry the unit by
the extension cord or yank extension cord
to disconnect unit. To unplug, grasp the
plug, not the cord. Do not use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not expose cords to heat, oil, or water.
S Keep the extension cord clear of operator and
obstacles at all times.
S Tie cord to cord retainer and connect to re-
cessed plug as shown in this manual to prevent damage to unit and/or extension cord
and to reduce the possibility of the extension corddisconnecting from the unit during
operation.
S Do not attempt to repair unit. Inspect the insu-
lation and connectors on the unit and extension cord before each use. If there is any
damage, do not use until damage is repaired
by your authorized service dealer.
S Do not use the unit if the switch does not
turn the unit on and off properly. Have the
unit repaired by your authorized service
dealer.
S Do not use with damaged cord or plug. If
unit is not working as it should, has been
dropped, damaged, left outdoors, or
dropped into water, return it to your authorized service deal er for repair.
S Avoid unintentional starting of the unit. Nev-
er carry unit with your finger on the switch.
Be sure the switch is in the off position and
never touch the switch when connecting
extension cord.
S Unplug the unit from the power source when
not in use, before servicing, and when changing accessories and/or attachments.
S Avoid any body contact with any grounded
conductor, such as metal fences, or pipes,
to avoid the possibility of electric shock.
S Ground Fault Circuit Interrupter (GFCI)
protection should be provided on the circuit
or outlet to be used for the unit. Receptacles
are available having built-in GFCI protection and may be used for this measure of
safety.
UNIT/MAINTENANCE SAFETY
WARNING: Always stop unit and dis-
connect spark plug wire (or disconnect unit
from power source) before perf orming maintenance.
S Inspect entire unit before each use. Replace
damaged parts. Check for fuel leaks. Make
sure all fasteners are in place and securely
fastened.
S Maintain unit according to recommended pro-
cedures.
S Use only recommended Poulan PRO parts
and accessories.
S Be sure chain stops moving when engine
idles (see CARBURETOR ADJUSTMENTS section of original manual).
S Keep others away when making carburetor
adjustments.
S Never start the unit with the clutch housing re-
moved. The clutch can fly off and cause serious injury.
S Keep the handles driy, clean, and free of oil or
fuel mixture.
S Keep fuel and oil caps, screws, and fasteners
securely tightened.
S Have all maintenance and service not ex-
plained in this manual performed by an authorized service dealer.
OPERATE YOUR PRUNER SAFELY
S Operate the pruner only in a well-ventilated
outdoor area.
S Do not use a pruner to cut down trees or any
portion of the tree trunk.
S Only use for pruning limbs or branches
overhead not greater than 6 inches (15 cm)
in diameter.
S Do not cut small brush and saplings with the
pruner. Slender matter may catch in the chain
and be whipped toward you, pulling you off
balance.
S Make sure the chain will not make contact
with any object while starting the engine.
Never try to start the unit when the guide
bar is in a cut.
4
S Do not put pressure on the pruner at the end
of the cut. Applying pressure can cause you
to lose control when the cut is completed.
S Do not run the unit at high speed when not
pruning.
S If you strike or become entangled with a for-
eign object, stop the engine immediately and
check for damage. Have any damage repaired by an authorized service dealer before
attempting further operations.
S Do not operate a pruner that is damaged, im-
properly adjusted, or not completely and securely assembled. Always replace bar and
chain immediately if it becomes damaged,
broken or is otherwise removed.
S Always stop the unit when work is delayed or
when walking from one cutting location to
another. Stop the engine before setting the
unit down.
S Use only in daylight or good artificial light.
S Use only for jobs explained in this manual.
KICKBACK
WARNING: Avoid kickback which
can result in serious injury. Kickback is the
backward, upward or sudden forward motion
of the guide bar occurring when the chain
near the upper tip of the guide bar contacts
any object such as a log or branch, or when
the wood closes in and pinches the chain in
the cut. Contacting a foreign object in the
wood can also result in loss of control.
S Rotational Kickback can occur when the
moving chain contacts an object at the upper
tip of the guide bar. This contact can cause
the chain to dig into the object, which stops
the chain for an instant. The result is a lightning fast, reverse reaction which kicks the
guide bar up and back toward the operator.
S Pinch-Kickback can occur when the wood
closes in and pinches the moving chain in
the cut along the top of the guide bar and the
chain is suddenly stopped. This sudden
stopping of the chain results in a reversal of
the chain force used to cut wood and
causes the pruner to move in the opposite
direction of the chain rotation. The pruner is
driven straight back toward the operator.
S Pull-In can occur when the moving chain
contacts a foreign object in the wood in the cut
along the bottom of the guide bar and the
chain is suddenly stopped. This sudden stopping pulls the pruner forward and away from
the operator and could easily cause the operator to lose control of the pruner.
REDUCE THE CHANCE OF
KICKBACK
S Recognize that kickback can happen. With
a basic understanding of kickback, you can
reduce the element of surprise which contributes to accidents.
S Never let the moving chain contact any ob-
ject at the tip of the guide bar.
S Keep the working area free from obstruc-
tions such as other trees, branches, rocks,
stumps, etc. Eliminate or avoid any
obstruction that your chain could hit while
you are cutting. When cutting a branch, do
not let the guide bar contact branch or other
objects around it.
S Keep your chain sharp and properly ten-
sioned. A loose or dull chain can increase
the chance of kickback occurring. Follow
manufacturer’s chain sharpening and
maintenance instructions. Check tension
at regular intervals with the engine stopped,
never with the engine running. Make sure
the bar clamp nut is securely tightened after
tensioning the chain.
S Begin and continue cutting at full speed. If
the chainis moving at a slower speed, there
is greater chance of kickback occurring.
S Cut one branch at a time.
S Use extreme caution when re-entering a
previous cut.
S Do not attempt cuts starting with the tip of
the bar (plunge cuts).
S Watch for shifting of wood or other forces that
could close a cut and pinch or fall into chain.
S Use the Reduced--Kickback Guide Bar and
Low- -Kickback Chain specified for your unit.
MAINTAIN CONTROL
S Keep a good, firm grip on the pruner with both
hands when the engine is running and don’t
let go. A firm grip will help you reduce kickback and maintain control. Keep the fingers of
your left hand encircling and your left thumb
under the assist handle. Keep your right hand
completely around the throttle handle whether
your are right handed or left handed.
S Stand with your weight evenly balanced on
both feet.
S Stand slightly to the left side of the pruner to
keep your body from being in a direct line
with the cutting chain.
KICKBACK SAF ETY FEATURES
The following features are included on your
pruner to help reduce the hazard of kickback;
however, such features will not totally eliminate
this danger. As a pruner user, do not rely only
on safety devices. You must follow all safety
precautions, instructions, and maintenance in
this manual to help avoid kickback and other
forces which can result in serious injury.
S Reduced--Kickback Guide Bar, designed
with a small radius tip which reduces the
size of the kickback danger zone on the bar
tip.
5
Reduced Kickback Symmetrical Guide Bar
Small Radius Tip
Symmetrical Guide Bar
S Low-- Kickback Chain, designed with a con-
toured depth gauge and guard link which
deflect kickback force and allow wood to
gradually ride into the cutter.
L o w --- K i c k b a c k
Not a Low --- Kickback Cha in
TRANSPORTING AND STORAGE
S Do not grasp or hold exposed blade.
S Stop unit before leaving work area.
Contoured Depth Gauge
Chain
Can Obstruct Ma terial
Large Ra dius Tip
Elongated Gua rd Link
Deflects
kickback f orce
and allows woo d
to gradually ride
into cutter
ASSEMBLY
S Allow unit and gearbox to cool before storing
or transporting it in a vehicle.
S Store unit and fuel in area where fuel vapors
cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc.
S Store attachment so blade cannot accidental-
ly cause injury.
S Store attachment indoors, out of reach of chil-
dren.
If situations occur which are not covered in
this manual, use care and good judgment. If
you need assistance, call 1-800-554-6723.
SPECIAL NOTICE: E xposure to vibrations
through prolonged use of gasoline powered
hand tools could cause blood vessel or nerve
damage in the fingers, hands, and joints of
people prone to circulation disorders or abnormal swellings. Prolonged use in cold weather
has been linked to blood vessel damage in
otherwise healthy people. If symptoms occur
such as numbness, pain, loss of strength,
change in skin color or texture, or loss of feeling
in the fingers, hands, or joints, discontinue the
use of this tool and seek medical attention. An
anti-vibration system does not guarantee the
avoidance of these problems. Users who operate power tools on a continual and regular basis
must monitor closely their physical condition
and the condition of this unit.
SAVE THESE INSTRUCTIONS
WARNING: If received assembled,
repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
Examine parts for damage. Do not use damaged parts.
NOTE: If you need assistance or find parts
missing or damaged, call 1-800-554-6723.
TOOLS REQUIRED
S Hex wrench (provided)
INSTALLING PRUNER ATTACHMENT
CAUTION:
tachments, place the unit on a flat surface for
stability.
NOTE: The pruner attachment connects to
the engine end shaft through use of a coupler
system. For extra reach, the extension shaft
(included) can be used.
1. Loosen the couplers on the extension
shaft and on the engine end shaft by turning the knobs counterclockwise.
When removing or installing at-
Coupler
Attachment
LOOSEN
Knob
TIGHTEN
2. Remove the shaft cap from the pruner attachment (if present).
3. Position locking/release button of attachment into guide recess of coupler on
extension shaft.
4. Push the attachment into the coupler until
the locking/release button snaps into the
primary hole.
Upper
Shaft
Primary Hole
Guide Recess
Locking/
Release
Button
Attachment
Coupler
5. Repeat steps to attach extension shaft to
coupler on engine end shaft.
6
6. Before using the unit, tighten both knobs
securely by turning clockwise.
WARNING: Make sure the locking/
release button is locked in the primary hole of
both couplers and the knobs are securely
tightened before operating the unit. Using the
wrong holes could lead to serious injury or damage to the unit.
Locking/Release
Button in Primary Hole
SHOULDER STRAP ASSEMBLY
WARNING: Proper shoulder strap and
handle adjustments are required before use.
The shoulder strap clamp must be installed as
shown above the assist handle on the engine
end shaft.
NOTE: The lower shoulder strap clamp has
two spacer tabs attached. These tabs are
provided to adapt this attachment for use with
units that have a 1 inch (2,5 cm) diameter
shaft (the shoulder strap clamp will not tighten
down securely on the 1 inch (2,5 cm) diameter
shaft without using these spacer tabs). The
tabs must be broken off completely before
use and placed over the screw holes on the
lower shoulder strap clamp. These tabs are
not needed for units with a 7/8″ (2,2 cm) shaft.
LOWER SHOUL D ER STRAP
CLAMP
Upper Shoulder
Strap Clamp
ENGINE/MOTOR
END
Screws
ATTACH ME NT
END
Lower Shoulder
Strap Clamp
3. Insert two screws into the screw holes.
4. Secure shoulder strap clamp by tightening screws with the hex wrench.
5. Try on shoulder strap and adjust for fit and
balance before starting the engine or beginning a cutting operation.
6. Insert your right arm and head through the
shoulder strap and allow it to rest on your
left shoulder. Make sure the danger sign
is on your back and the hook is to the right
side of your waist.
NOTE: A one-half twist is built in the shoul-
der strap to allow the strap to rest flat on the
shoulder.
7. Adjust the strap, allowing the hook to be
about 3 - - 6 inches (8 -- 15 cm) below the
waist.
8. Fasten the strap hook to the upper clamp
and lift the tool to the operating position.
Shoulder Strap
Spacer Tabs
Spacer Tabs
positioned for use
on 1 inch (2,5 cm)
diameter shaft
1. Place the upper shoulder strap clamp
over the shaft above the handlebar.
2. Position the lower shoulder strap clamp
under the upper shaft and align the upper
and lower clamp screw holes (use spacer
tabs between upper and lower clamps if
necessary to secure clamp, i.e. for 1″ diameter upper shaft).
Shoulder
Strap
Clamp
ADJUSTING THE ASSIST HANDLE
WARNING: When adjusting the as-
sist handle, be sure it remains directly above
the coupler on the engine end shaft to ensure
proper balancing of unit.
Assist Handle
Coupler
7
OPERATION
KNOW YOUR PRUNER ATTACHMENT
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERAT ING YOUR
PRUNER ATT ACHMENT . Compare the illustrations with your attachment to familiarize yourself with
the location of the various controls and adjustments. Save this manual for future reference.
Pruner
Hanger
Shaft
Extension Shaft
PRUNER
The PRUNER is designed for removal of
limbs and branches overhead not greater
than 6 inches (15 cm) in diameter.
OPERATING THE COUPLER
Yourunit is equipped with a coupler which enables optional attachments to be installed.
The optional attachments are:
Edger PP1000E.......................
Cultivator PP2000T....................
Blower PP3000B......................
Pruner PP5000P......................
Brushcutter* PP4000C.................
*not designed for use with electric-powered
motors.
WARNING: Always stop unit and dis-
connect spark plug wire (or disconnect unit
from power source) before removing or installing attachments.
MODEL:
REMOVING PRUNER ATTACHMENT
(OR OTHER OPTIONAL ATTACHMENTS)
CAUTION:
tachments, place the unit and attachment on
a flat surface for stability.
1. Loosen the coupler by turning the knob
counterclockwise.
When removing or installing at-
Coupler
Bar Oil Fill Cap
Chain
Bar
CHAIN TENSION
It is normal for a new chain to stretch during
first 15 minutes of operation. You should
check your chain tension frequently. See
CHAIN TENSION in the SERVICE AND ADJUSTMENTS section.
Locking/Release
Button
Attachment
3. While securely holding the engine end shaft
and extension shaft, pull the attachment
straight out of the extension shaft coupler.
4. Repeat steps to remove extension shaft
from coupler on engine end shaft.
Bar Nut
Coupler
Upper Shaft
INSTALLING OPTIONAL ATTACHMENTS
CAUTION:
with other optional attachments.
1. Remove the shaft cap from the attachment
(if present) and discard.
2. Position locking/release button of attachment into guide recess of coupler on engine
end shaft.
3. Push the attachment into the coupler until
the locking/release button snaps into the
primary hole.
4. Before using the unit, tighten the knob securely by turning clockwise.
DO NOT use extension shaft
Coupler
Primary Hole
Guide Recess
Attachment
2. Press and hold the locking/release button.
LOOSEN
Knob
TIGHTEN
Upper
Shaft
Locking/
Release
Button
Attachment
8
WARNING: Make sure the locking/
release button is locked in the primary hole
and the knob is securely tightened before operating the unit. Using the wrong hole could
lead to serious injury or damage to the unit.
Locking/Release
Button in Primary Hole
BAR AND CHAIN LUBRICATION
The bar and chain require lubrication. The
chain oiler provides continuous lubrication to
the chain and guide bar. Be sure to fill the bar
oil tank before use (Capacity = 4.6 fl. oz.).
Lack of oil will quickly ruin the bar and chain.
Too little oil will cause overheating shown by
smoke coming from the chain and/or discoloration of the bar. The oil output is automatically
metered during operation.
Genuine Poulan or Poulan PRO bar and
chain oil is recommended to protect your unit
against excessive wear from heat and friction. Poulan or Poulan PRO oil resists high
temperature thinning. If Poulan or Poulan
PRO bar and chain oil is not available, use a
good grade SAE 30 oil.
S Never use waste oil for bar and chain lubri-
cation.
S Always stop the engine before removing
the oil cap.
INSTALLING ATTACHMENT
HANGER
An attachment hanger is provided for storage
when attachment is not in use.
To install hanger on attachment:
1. Remove the shaft cap from the attachment
(if present) and discard.
2. Press and hold the locking/release button.
3. Push hanger onto the attachment until the
locking/release button snaps into the hole.
OPERATING POSITION
ALWAYS WEAR:
Head
Protection
Eye
Protection
DANGER: Do not extend arms above
shoulders while pruning. Do not stand beneath branch being cut.
WARNING: Always wear head, eye,
hearing, foot and body protection to reduce
the risk of injury when operating this unit.
When operating unit, clip shoulder strap onto
clamp, stand as shown and check for the following:
S Extend your left arm and hold assist handle
with your left hand.
S Hold throttle grip with your right hand with
finger on throttle trigger.
S Keep engine end below waist level.
S Keep shoulder strap pad centered on your
left shoulder and danger sign centered on
your back.
S Maintain full weight of tool on your left
shoulder.
PRUNING
WARNING: B e alert for and guard
against kickback. Do not allow the moving chain
to contact any other branches or objects at the
nose of the guide bar when pruning. Allowing
such contact can result in serious injury.
IMPORTANT POINTS
S Work slowly, keeping both hands firmly
gripped on the pruner. Maintain secure footing and balance.
S Plan cut carefully. Check direction branch
will fall.
S Watch out for springpoles. Springpoles are
small size limbs which can catch the chain
and whip toward you or pull you off balance.
Use extreme caution when cutting small size
limbs or slender material.
S Watch out for branches immediately behind
the branch being pruned. If the chain hits the
rear branch, damage to the unit may occur.
S Be alert for springback. Watch out for
branches that are bent or under pressure.
Avoid being struck by the branch or the
pruner when the tension in the wood fibers
is released.
S Keep a clear work area. Frequently clear
branches out of the way to avoid tripping
over them.
S Long branches should be removed in sev-
eral pieces.
PRUNING TECHNIQUE
When ready to cut, accelerate to full throttle
and apply a light cutting pressure. DO NOT
use back and forth sawing action.
Long Pants
Heavy Shoes
9

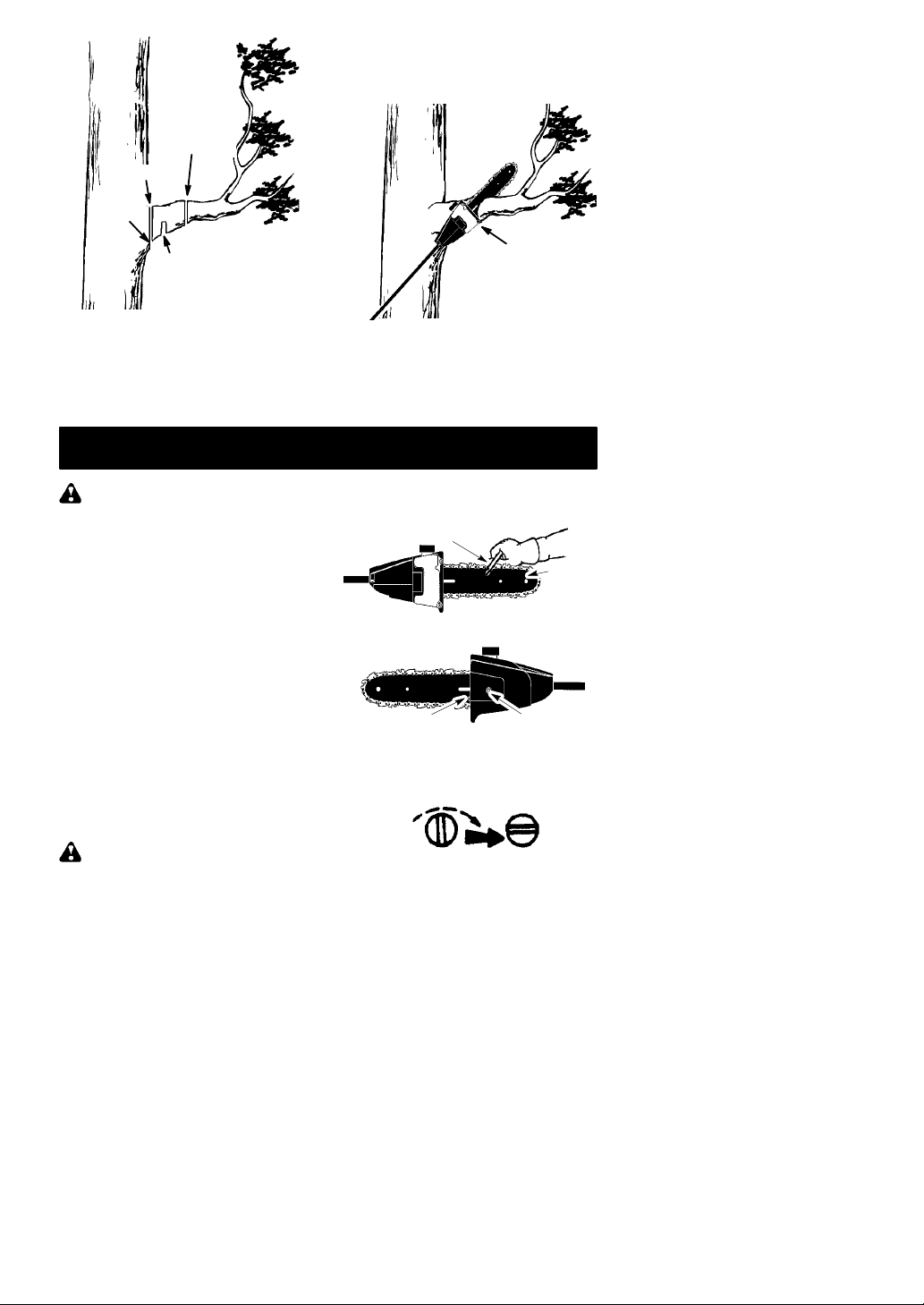

Third cut
Collar
Second cut
NOTE: When making the second and third
cuts, rest the foot of the pruner against the
tree limb that is being cut to prevent whipping
of the branch.
First cut
Pruning technique
1. Make the first cut 6 inches from the tree
trunk on the bottom of the limb. Use top of
guide bar to make this cut. Cut 1/3
through the diameter of the limb.
MAINTENANCE
WARNING: Always stop unit and dis-
connect spark plug wire (or disconnect unit
from power source) before performing maintenance.
CHECK FOR DAMA GED OR
WORN PARTS
Contact an authorized service dealer for replacement of damaged or worn parts.
S Oil tank - - Discontinue use of pruner attach-
ment if oil tank shows signs of damage or
leaks.
CHECK FOR LOOSE
FASTENERS AND PARTS
S Bar clamp nut
S Fasteners
INSPECT AND CLEAN UNIT AND
DECALS
S After each use, inspect complete unit for
loose or damaged parts. Clean the unit and
decals using a damp cloth with a mild detergent.
S Wipe off unit with a clean dry cloth.
CHECK CH AIN TENSION
WARNING: Wear protective gloves
when handling chain. The chain is sharp and
can cut you even when it is not moving. Make
chain adjustments with lower end supported.
Chain tension is very important. Chains
stretch during use. This is especially true during the first few times you use your pruner. Always check chain tension each time you use
and refuel your unit.
Foot
2. Next, move 2 -- 4 inches farther out on the
limb and make a second cut all the way
through the limb.
3. Then, make a final cut leaving a 1 -- 2 inch
collar from the trunk of the tree to avoid
damage to the tree.
1. Use a screwdriver to move chain around
guide bar to ensure kinks do not exist. The
chain should rotate freely.
Chain Adjustment Tool
Guide
2. Loosen bar clamp nut until it is finger tight
against the bar clamp.
Adjusting Screw
3. Turn adjusting screw clockwise until
chain solidly contacts bottom of guide bar
rail. Then, turn adjusting screw an additional 1/4 turn.
Adjusting Screw -- 1/4 Turn
4. Using a screwdriver, roll chain around
guide bar to ensure all links are in bar
groove.
5. Lift up tip of guide bar to check for sag.
Release tip of guide bar, then turn adjusting screw 1/4 turn clockwise. Repeat until
sag does not exist.
6. While lifting tip of guide bar, tighten bar
clamp nut securely with a wrench.
Bar clamp nut
10
Bar
7. Use a screwdriver to move chain around
guide bar.
8. If chain does not rotate, it is too tight.
Slightly loosen bar clamp nut and loosen
chain by turning the adjusting screw 1/4
turn counterclockwise. Retighten bar
clamp nut.
9. If chain is too loose, it will sag below the
guide bar and needs to be tightened following above procedure.
WARNING: DO NOT operate the
pruner if the chain is loose. If the pruner is operated with a loose chain, the chain could
jump off the guide bar and result in serious injury.
CHECK CHAIN SHARPNESS
A sharp chain makes wood chips. A dull chain
makes a sawdust powder and cuts slowly.
See CHAIN SHARPENING in the SERVICE
AND ADJUSTMENTS section.
BAR MAINTENANCE
If your pruner cuts to one side, has to be
forced through the cut, or been run with an improper amount of bar lubrication it may be
necessary to service your bar. A worn bar will
damage your chain and make cutting difficult.
After each use, ensure ON/STOP switch is in
the STOP position, then clean all sawdust
from the guide bar and sprocket hole.
To maintain guide bar:
S Move ON/STOP switch to the STOP posi-
tion and disconnect spark plug (or disconnect unit from power source).
S Loosen and remove bar clamp nut and chain
brake. Remove bar and chain from pruner.
S Clean the oil holes and bar groove after
each 5 hours of operation.
Remove Sawdust From
Guide Bar Groove
Oil Holes
S Burring of guide bar rails is a normal
process of rail wear. Remove these burrs
with a flat file.
S When rail top is uneven, use a flat file to re-
store square edges and sides.
File Rail Edges
and Sides
Square
Correct GrooveWorn Groove
Replace guide bar when the groove is worn, the
guide bar is bent or cracked, or when excess
heating or burring of the rails occurs. If replacement is necessary, use only the guide bar specified for your pruner in the repair parts list.
LUBRICA TION
Bar Oil
Fill Cap
S See GUIDE BAR AND CHAIN OIL under
the OPERATION section.
SERVICE AND ADJUSTMENTS
WARNING: Always stop unit and dis-
connect spark plug wire (or disconnect unit
from power source) before performing maintenance, service, or adjustments except for
carburetor adjustments.

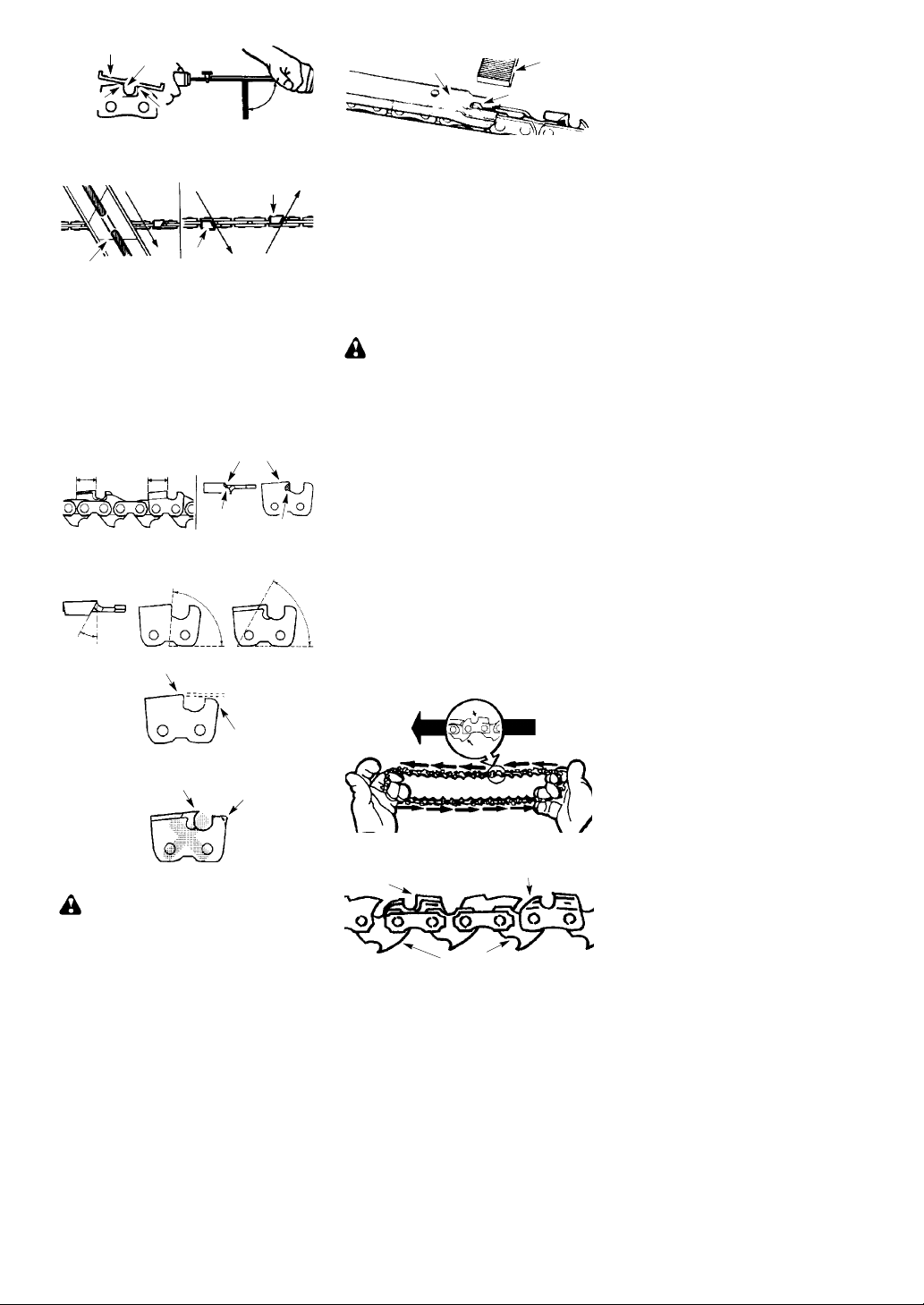

CHAIN SHARPENING
WARNING: Improper chain sharpen-
ing techniques and/or depth gauge maintenance will increase the chance of kickback
which can result in serious injury.
WARNING: Wear protective gloves
when handling chain. The chain is sharp and
can cut you even when it is not moving.
Conditions which indicate the need for chain
sharpening:
S Reduction in size of wood chips. The size of
the wood chip will decrease as the chain
gets duller until it becomes more like a powder than a chip. Note that dead or rotted
wood will not produce a good chip.
S Saw cuts to one side or at an angle.
S Saw has to be forced through the cut.
Tools required:
S 3/16 inch (4,5 mm) diameter round file and
file holder
S Flat file
S Depth gauge tool
TO SHARPEN CHAIN:
1. Move ON/STOP switch to the STOP position and disconnect spark plug (or disconnect powerhead from power source).
2. Check chain for proper tension. Adjust
chain tension if necessary. See CHECK
CHAIN TENSION section.
3. Sharpen cutters.
S To sharpen the cutters, position the file
holder level (90˚) so that it rests on the
top edges of the cutter and depth gauge.
NOTE: The chain has both left and
right hand cutters.
11
File Holder
A
v
f
f
Cutter
S Align the 30˚ file holder marks parallel
30˚
File Holder Line
S Sharpen cutters on one side of the chain
S File on the forward stroke only. Use 2
S Keep all cutters the same length when
S File enough to remove any damage to
Same Length
S File chain to meet the specifications
30˚
Too Much HookAngle
File
90˚
Depth Gauge
with the bar and to the center of the
chain.
Cutter
Cutter
first. File from the inside of each cutter to
the outside. Then, turn the chain saw
around and repeat the process for the
other side of the chain.
or 3 strokes per cutting edge.
filing.
cutting edges (side plate and top plate
of cutter).
ll Cutters
as shown.
Hook Angle
Right
Remo
Top Plate
75˚
Rounded
Corner
e Damage
Side Plate
0.025 inch
(0.65 mm)
Squared O
Corner
4. Check and lower depth gauges.
Depth Gauge T ool
S Place gauge tool on cutter.
S If the depth gauge is higher than the
depth gauge tool, file it level to the top of
the depth gauge tool.
S Maintain rounded front corner of depth
gauge with a flat file.
NOTE: The very top of the depth
gauge should be flat with the front half
rounded off with a flat file.
If you require further assistance or are unsure
about performing this procedure, contact your
authorized service dealer or call our customer
assistance help line at 1- -800--554--6723.

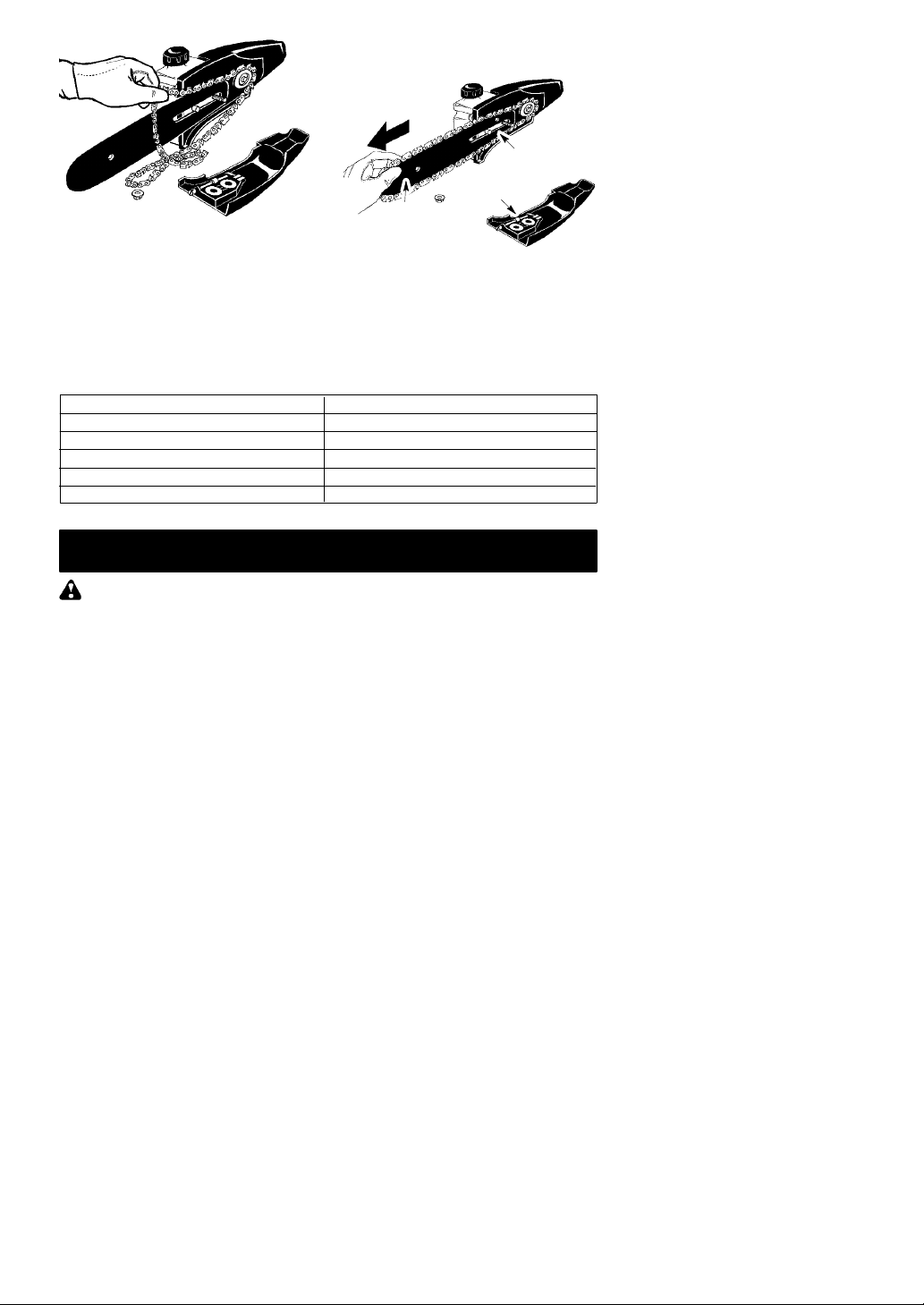

CHAIN REPLACEMENT
WARNING: Wear protective gloves
when handling chain. The chain is sharp and
can cut you even when it is not moving.
It is normal for a new chain to stretch during the
first 15 minutes of operation. You should recheck your chain tension frequently and adjust
the chain tension as required. See CHAIN TENSION section.
Replace the old chain when it becomes worn or
damaged. Use only the Low-Kickback replacement chain specified in the repair parts list.
TO REPLACE CHAIN:
1. Move ON/STOP switch to the STOP posi-
tion and disconnect spark plug (or disconnect unit from power source).
2. Remove bar clamp nut.
3. Remove bar clamp.
4. Turn adjusting screw by hand counter-
60˚
clockwise until adjusting pin just touches
the stop.
5. Slide guide bar behind sprocket until
guide bar stops against sprocket.
6. Remove the old chain.
7. Carefully remove new chain from pack-
age. Hold chain with the drive links as
shown.
Tip of
Bar
Cutter
Drivelink
File
Depth Gauge
CUTTERS MUST FACE IN
DIRECTION OF ROTATION
Wrong
WARNING: Maintain the proper hook
angle according to the manufacturer’s specifications for the chain you are using. Improper hook
angle will increase the chance of kickback
which can result in serious injury.
Cutters
Drive Links
Depth Gauge
12
12. Now, install bar clamp making sure the
adjusting pin is positioned in the lower
hole in the guide bar.
Lower Hole
Adjusting Pin
Guide Bar
8. Place chain over sprocket, fitting thedrive
links in the sprocket.
9. Fit bottom of drive links between the teeth in
the sprocket in the nose of the guide bar.
10. Fit chain drive links into bar groove.
11. Pull guide bar forward until chain is snug
in guide bar groove. Ensure all drive links
are in the bar groove.
13. Install bar clamp nut and finger tighten
only. Do not tighten any further at this
point. Proceed to the CHAIN ADJUSTMENT section.
CHAIN ADJ UST MENT
See CHECK CHAIN TENSION in MAINTENANCE section.
USER REPLACEABLE SERVICE PARTS
Use only recommended user replaceable service parts as listed below:
REPLACEMENT PART PART NUMBER
Bar 530044908
Chain 952051549
Hex Nut 530015917
Oil Cap 530053072
Bar Adjusting Screw/Pin Kit 530069611
STORAGE
If your pruner attachment is to be stored for a
WARNING: Perform the following
steps after each use:
S Allow attachment to cool before storing or
transporting.
S Store attachment with all guards in place.
Position attachment so that any sharp object cannot accidentally cause injury.
S Store the attachment in a dry, well venti-
lated area out of the reach of children.
SEASONAL STORAGE
Prepare attachment for storage at end of season or if it will not be used for 30 days or more.
period of time:
S Clean the entire attachment.
S Lightly oil external metal surfaces and
guide bar.
S Oil the chain and wrap it in heavy paper or
cloth.
S Check entire attachment for loose screws
or nuts. Replace any damaged, worn or
broken parts.
S At the beginning of the next season, use
only fresh fuel having the proper gasoline to
oil ratio.
13
LIMITED WARRANTY
Poulan PRO, a division of Husqvarna Consumer Outdoor Products N.A., Inc., warrants to the
original consumer purchaser that each new
Poulan PRO brand gasoline tool or attachment
is free from defects in material and workmanship and agrees to repair or replace under this
warranty any defective gasoline product or attachment as follows from the original date of
purchase.
2YEARS--Parts and Labor, when used for
household purposes.
90 DAYS - - Parts and Labor, when used for
commercial, professional, or income producing
purposes.
30 DAYS -- Parts and Labor, if used for rental
purposes.
This warranty is not transferable and does not
cover damage or liability caused by improper
handling, improper maintenance or alteration, or
the use of accessories and/or attachments not
specifically recommended by Poulan PRO for
this tool. This warranty does not cover bars,
chains or parts that will wear and require replacement with reasonable use during the warranty period. This warranty does not cover pre-delivery setup or normal adjustments explained
in the instruction manual. This warranty does
not cover transportation costs.
In the event you have a claim under this warranty, you must return the product to an authorized
service dealer.
Should you have any unanswered questions
concerning this warranty, please contact:
Poulan PRO, a division of Husq varna
Consumer Outdoor Products N.A., Inc.
7349 Statesville Road
Charlotte, NC 28269
1--800--554- -6723
In Canada, contact:
Poulan PRO
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
Giving the model number, serial number and
date of purchase of your product and the name
and address of the authorized dealer from
whom it was purchased.
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVEOTHER RIGHTS WHICH VARY FROM STA TE TO
STATE.
NO CLAIMS FOR CONSEQUENTIAL OR
OTHER DAMAGES WILL BE ALLOWED,
AND THERE ARE NO OTHER EXPRESS
WARRANTIES EXCEPT THOSE EXPRESSLY STIPULATED HEREIN.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATI ON S O F I NC IDENTA L OR C ON SEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY
TO YOU.
This is a limited warranty within the meaning of
that term as defined in the Magnuson--Moss Act
of 1975.
The policy of Poulan PRO is to continuously
improve its products. Therefore, Poulan
PRO reserves the right to change, modify, or
discontinue models, designs, specifications,
and accessories of all products at any time
without notice or obligation to any purchaser.
14
