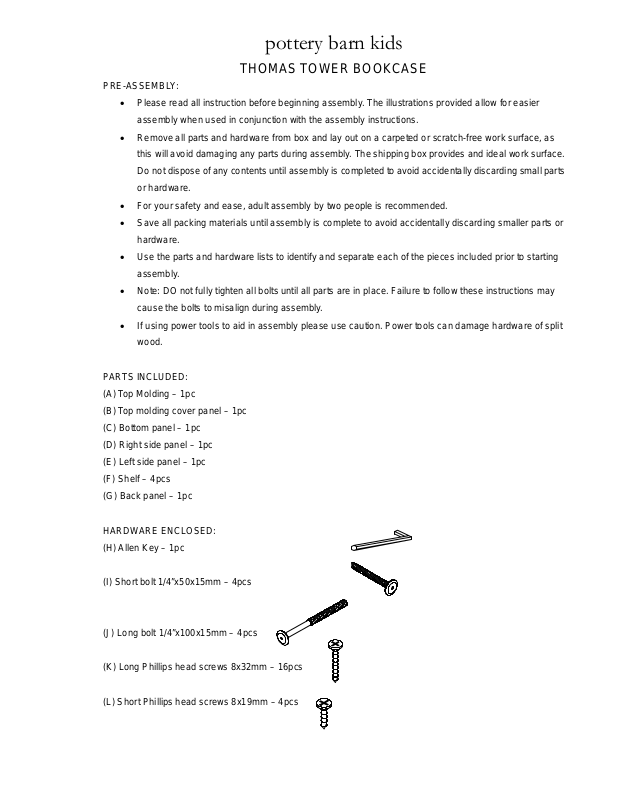

THOMAS TOWER BOOKCASE

PRE-ASSEMBLY:

• Please read all instruction before beginning assembly. The illustrations provided allow for easier
assembly when used in conjunction with the assembly instructions.

• Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface, as
this will avoid damaging any parts during assembly. The shipping box provides and ideal work surface.
Do not dispose of any contents until assembly is completed to avoid accidentally discarding small parts
or hardware.

• For your safety and ease, adult assembly by two people is recommended.

• Save all packing materials un til assembly is complete t o avoid accidentally discarding smaller parts or

hardware.

• Use the parts and hardware lists to identify and separate each of the pieces included prior to starting
assembly.

• Note: DO not fully tighten all bolts until all parts are in place. Failure to follow these instructions may
cause the bolts to misalign during assembly.

• If using power tools to aid in assembly please use caution. Power tools can damage hardware of split
wood.

P ARTS INCLUDED:
(A) Top Molding – 1pc
(B) Top molding cover panel – 1pc
(C) Bottom panel – 1pc
(D) Right side panel – 1pc
(E) Left side panel – 1pc
(F) Shelf – 4pcs
(G) Back panel – 1pc

HARDWARE ENCLOSED:
(H) Allen Key – 1pc

(I) Short bolt 1/4”x50x15mm – 4pcs

(J) Long bolt 1/4”x100x15mm – 4pcs

(K) Long Phillips head screws 8x32mm – 16pcs

(L) Short Phillips head screws 8x19mm – 4pcs

(M) Pan Head screws 8x17mm – 8pcs

(N) Bracket 48x21x10mm – 2pcs

(O) Long screw 6x32mm – 2pcs

(P) Short screw 6x19mm – 2pcs

(Q) Nylon strap 300x12x8mm – 1pc

TOOLS REQUIRED:
Phillips head screwdriver (not included)

Allen Key

ASSEMBLY INSTRUCTIONS:

1. Lay the Right side panel (D) down as shown in the illustration below.

2. Attach 4pcs Shelf (F) to Right side panel (D) using the Long Phillips head screws 8x32mm (K). Insert
the Back panel (G) as shown.

3. Attach each of the 4 Shelves (F) to Left side

panel (E) using Phillips head screws 8x32mm (K)
