THOMAS ARMOIRE
PRE-ASSEMBLY:
• Please read all instruction before beginning assembly.
• We recommend adult assembly with (2) people for maximum safety.
• On a soft, scratch-free surface, such as a carpet or rug, remove the armoire from box.
• Save all packing materials until assembly is complete to avoid accidentally discarding small er parts
or hardware. One extra knob is included for your convenience.
TOOLS NEEDED:
Phillips head screwdriver (not included)
PARTS INCLUDED:
A – Turning Feet (x4)
HARDWARE:
B - Shelf support pegs (x12)
C – Bracket 48x21x10mm (x2)
D – Long screw 6x32mm (x2)
E –Short screw 6x19mm (x2)
F – Nylon strap 300x12x8mm (x1)
ASSEMBLY:
1. Thread the Feet (A) into the pre-drilled holes at the bottom of Armoire and tighten firmly.
2. Carefully raise the Armoire upright onto its feet.
3. Determine the desired height for the shelves using the corresponding peg holes on the interior of the
Armoire walls.
4. Insert the Shelf support pegs (B) into the pre-drilled holes until fully secure. Place shelf on the
support pegs ensuring the shelf is stable.
Thank you for your purchase
stores | catalog |
www.potterybarnkids.com
FURNITURE TIPPING RESTRAINT
Young children may be injured by tipping furniture. The use of a tip ping restraint is highly recommended.
When properly installed, this restraint could provide protection a gainst the unexpected tipping of furniture
due to small tremors, bumping or climbing. We recommend mounting this re straint to a wall stud.
WARNING: This product is only a deterrent. It is not a substitute for proper adult supervision.
Hardware Included:
C – Brackets (x2)
D - Long screws (x2)
E - Short screws (x2)
F - Nylon strap (x1)
INSTALLATION INSTRUCTIONS:
1. Locate a wall stud behind your furniture, Position a Bracket (C) on the stud approximately 1”
below the top of the furniture. Mark and drill pilot hole into the center of the stud with a 3/32” drill bit.
Attach a Bracket (C) to the stud with the Long screws (D) provided.
2. On the back of the furniture, a Bracket (C) will need to be attached to the furniture frame at the top.
To do this, temporarily move the furniture into its final position and mark the location of the wall
bracket on the furniture frame. Move the furniture away from the wall and place a bracket on the
mark. Mark and drill holes for screws with a 3/32” drill bit. Attach the bracket to the furniture with
the Short screws (E) provided.

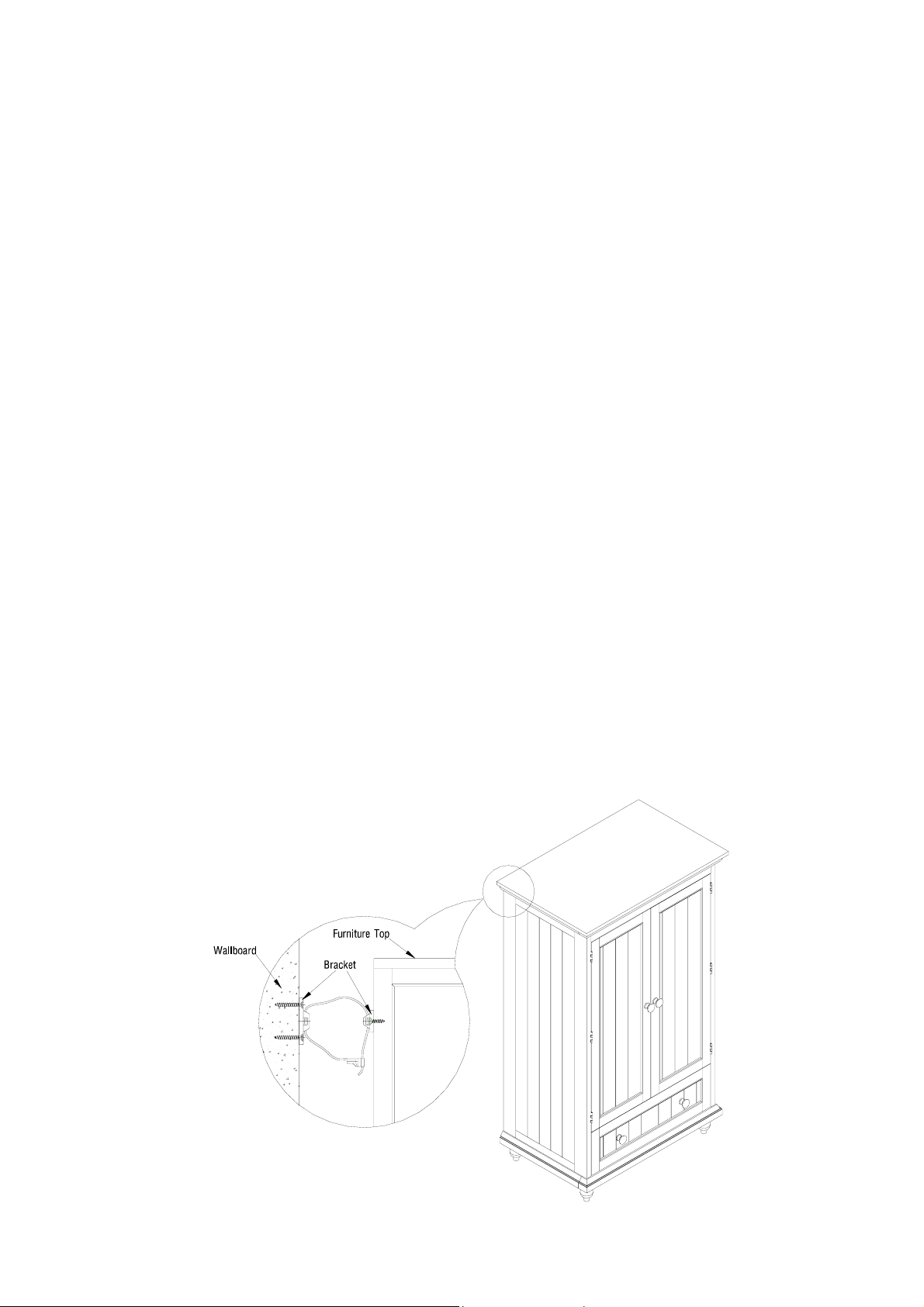

3. Move the furniture into its final position, taking care to line up the wall bracket with the furniture
bracket. Thread strap through the bracket as shown in the illustration. T ighten S trap (F) until snug.
Do not over tighten.
