pottery barn kids
NEWPORT BUNK BED
! WARNING: Failure to follow these warnings and assembly
instructions could result in serious injury or death. To help prevent serious or fatal injuries
from entrapment or falls:
• Read all instructions before assemblin g bunk bed. KEEP INSTRUCTIONS FOR
FUTURE USE.
• Before each usage or assembly, inspect bunk bed for damaged hardware, loose joints,
missing parts or sharp edges. DO NOT use bunk bed if any part s are missing or broken.
Telephone or write to Pottery Barn Kids for replacement parts and instructio nal literature if
needed. DO NOT substitute parts.
• Follow the information on the warnings appearing on the upper bunk end structure and on
the carton. DO NOT REMOVE WARNING LABEL FROM THE BED.
• Always use the recommended size mattress or mattress support, or both, to help prevent
the likelihood of entrapment or falls.
• Ensure thickness of mattress does not exceed 9” and the surface of the mattress is at
least 5" (127 mm) below the upper edge of guardrails.
• Use only mattress which is 74"-75" long and 37.5"-38.5" wide on upper bunk.
• Surface of mattress must be at least 5 inches (127 mm) below the upper edge of the
guardrails.
• The use of water or sleep flotation mattress is prohibited.
• Periodically check and ensure that the guardrail, ladder and other components are in their
proper position, free from damage, and that all connectors are tight.
• Never allow children under 6 years of age to use the upper bunk.
• Do not allow horseplay on or under the bed and prohibit jumping on the bed.
• Always use the ladder for entering and leaving the upper bunk.
• Use of a night light may provide added safety precautions for a child using the upper
bunk.
• Prohibit more than one person on the upper bunk.
• Always use guardrails on both long sides of the upper bunk.
• If the bunk bed will be placed next to a wall, the guardrail that runs the full length of the
bed should be placed against the wall to prevent entrapment between the bed and the
wall.
• If refinishing, use a non-toxic finish specified for children’s products.
• STRANGULATION HAZARD – Never attach or hang items to any part of the bunk bed
that are not designed for use with the bed; for example, but not limited to, hooks, belts,
and jump ropes.
04-000044-4
Page 1/7
P ARTS INCLUDED:
A – Tall End Board (Head board)-Lower bed (2)
B – Short End Board (Foot board)-Upper bed (2)
C – Side rails (4)
D – Long Guardrail (1)
E – Short Guardrail (1)
F – Slat Rolls (2)
G – Ladder (1)
H – Middle finia l (4 )
I – Feet (8)
J – Ball Finial (4) - (For when assembling
as 2 twin beds)
TOOLS REQUIRED:
Phillips Head Screwdriver (not included)
HARDWARE
:
K – Allen Wrench (x 1)
L – Long Bolts- M8x110mm (x 16)
M – Threaded Dowels- 10x80mm (x 4)
N – Barrel Nut- M8x15mmx12mm (x 16)
O – Small Phillips Head Screws- 8x20mm (x20)
P – Large Phillips Head Screws- 8x30mm (x 56)
PRE-ASSEMBLY:
• Read all instructions before beginning assembly. The illustrations provided allow for easier assembly when
used in conjunction with the assembly instructions.
• For your safety and ease, assembly by two adult s is re com mended .
• Remove all parts and hardware from the box and lay out on a clean, carpeted, or scratch-free work surface.
Use care as some parts or hardware may have sharp points or edges.
• Do not dispose of any contents until assembly is completed to avoid accidentally discarding small parts or
hardware.
• Use the parts and hardware lists to identify and separate each of the pieces included.
• Note: Do not fully tighten all bolts until all parts are in place. Failure to follow these instructions may cause the
bolts to misalign during assembly.
• The use of power tools for assembly is not recommended. Power tools can damage hardware or split wood.
Page 2/7
ASSEMBLY INSTRUCTION
Steps #1 through 3 (assembly of the lower bed):
1. Assemble lower bunk first using the Tall End boards (A) as both headboard and footboard for the bed.
Screw Feet (I) to the post of lower bunk Tall End boards (A) as shown.
2. Insert 4pcs Threaded Dowels (M) into the top of each post of the lower bunk as shown.
3. Install Barrel nuts (N) to each end of side rails (C). Insert dowels of side rails (C) into center pre-drilled
holes as shown below of one end. Then insert Allen bolts (L) from the outside of that end into the
Barrel nuts (N). Tighten with Allen key (K) provided. Repeat with the other end and the sides. (Note:
if you decide to use the bunk bed set as 2 single beds use the Tall End boards (A) as the headboard and
the Short E nd boards (B) as the footboard for each single bed.)
Page 3/7

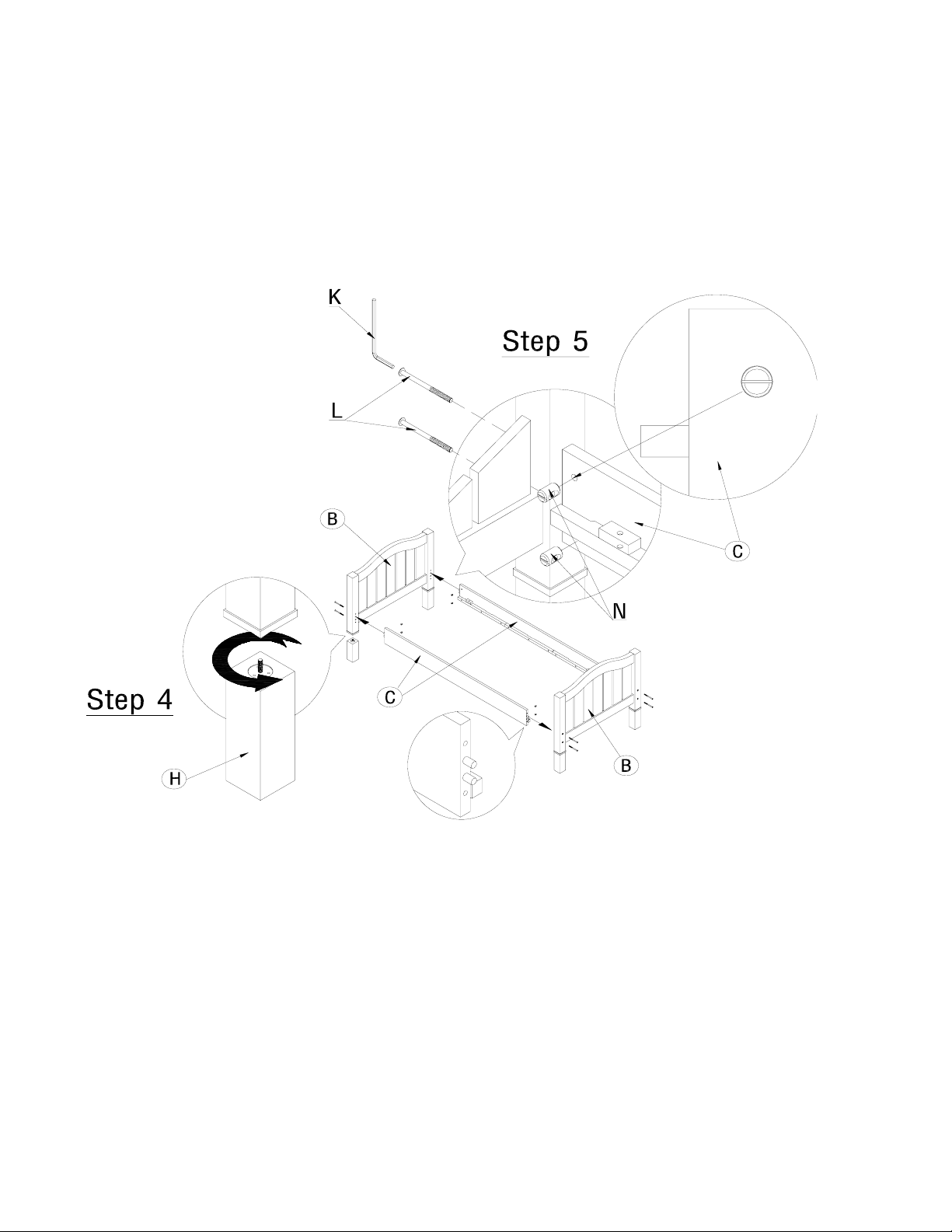

Steps #4 through 5 (assembly of the upper bed):
4. Assemble the upper bunk using the Short End boards as both the head board and foot board. Screw
in the Middle Finial (H) to the bottom of the post of upper bunk; make sure they align with the bed post.
DO NOT over tighten.
5. Install Barrel nuts (N) to each end of side rails (C). Insert dowels of side rails (C) into center pre-drilled
holes as shown below of one end. Then insert Allen bolts (L) from the outside of that end into the
Barrel nuts (N). Tighten with Allen key (K) provided. Repeat with the other end and the sides.
Page 4/7
Step #6 (attaching the slat roll):
6. Lay the slat roll in between the side rails (C) and use Large Phillips Head Screws 8x30mm (P) to
fasten slats to the side rails with Phillips head screwdriver for both upper bunk and lower bunk (or
each of the twin beds).
NOTE: Ball Finials (J) are to be used on Tall End boards / lower bunk bed end ONL Y when set up as two beds as
shown or when set up using one tall and one short end on each bed. Be sure to store whichever Ball finials,
Mid finials, Feet, & threaded dowels are not used so that they can be utilized at a later date if needed.
Lower bunk Upper bunk
Page 5/7
Step #7(attaching guardrail to Upper bunk):
7. Install the long guardrail (D) onto the backside of the bed by placing the metal brackets over the
side rail. Make sure there are no gaps in between end of long guardrail and bed end structure
before you start fastening the part s. Turn the brackets on the bottom of the guardrail end under the
side rail. Use small Phillips head screws (O) to fasten guardrail brackets to side rail.
Place short guardrail with one end firm against the upper bunk bed end depending on which end
the ladder will be placed. Repeat fastening procedure with short guardrail as described/shown for
the long guardrail.
Step #8 (assembling the bunk bed)
8. After both bunks are assembled, set the upper bunk on top of the lower bunk by placing the
pre-drilled holes in the bottom of upper bunk bed posts (mid finials) over Thread dowels (M) in
bottom bed.
Page 6/7
Step #9(securing the ladder)
9. Place the ladder (G) in the opening between the short guardrail and the end by hooking it over
topside rail and bottom side rail as shown. Fasten the ladder with the remaining Small Phillips
Head Screws8x20mm (O) as shown. Retighten all bolts and screws to make sure all are tight and
bunk bed structures is rigid. It is recommended all bolts and screws be checked from time to time
for safety.
‘
Finally: Retighten all bolts and screws to make sure all are tight and bunk bed structures is rigid. It is
recommended all bolts and screws be checked from time to time for safety.
CARE INSTRUCTIONS:
• Dust often using a clean, soft, dry lint-free cloth.
• B lot spills immediately, and wipe with a clean, damp, cloth.
• We do not recommend the use of chemical cleansers, abrasives, or furniture polish on our lacquered
finish.
• Check fasteners periodically for tightness. DO NOT over tighten. This may cause distortion or
breakage.
• Parents should ensure a safe environment for the child by checking regularly, before placing the child in
the product, that every component is properly and securely in place.
Thank you for your purchase
Stores | catalog | www.potterybarnkids.com
USA 1.800.290.8181
Page 7/7
