Pottery Barn Madison Platform Bed Assembly Instruction
Pottery barn kids
Platform Bed
Page
1/3
Thank you for your purchase
stores | catalog | www.potterybarnkids.com
F

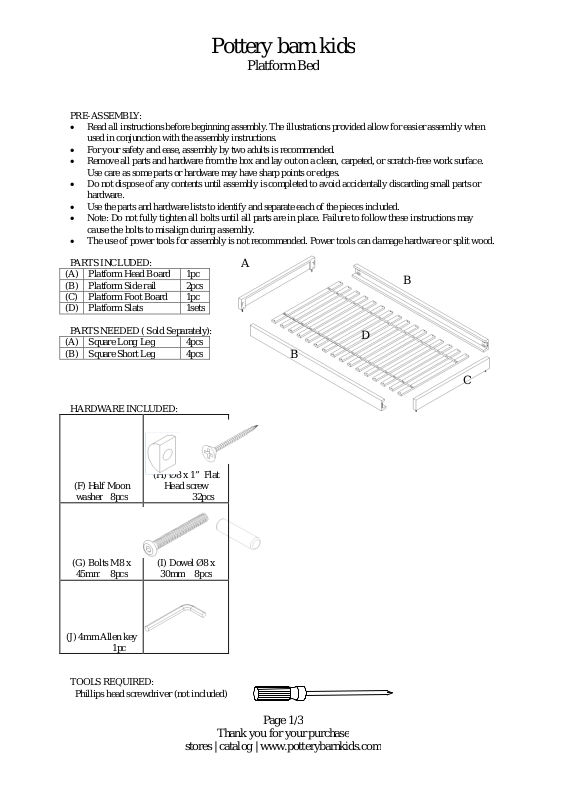

PRE-ASSEMBLY:
Read all instructionsbefore beginning assembly.The illustrationsprovided allow for easier assembly when
used in conjunction with the assembly instructions.
For your safetyand ease, assemblyby two adults is recommended.
Remove all
parts and hardware fromthe box and lay out on a clean,carpeted,or scratch
-
free work surface.
Use care as some parts or hardware mayhave sharp pointsor edges.
Do not disposeof any contents until assembly is completedto avoidaccidentally discarding s
mall parts or
hardware.
Use the parts and hardware lists to identify and separate each of the pieces included.
Note: Do not fully tighten all bolts until all parts are in place. Failure to follow these instructions may
cause the bolts to misalign during a
ssembly.
The use of power tools for assembly is not recommended. Power tools can damage hardware or split wood.
PARTS INCLUDED:
(A)
Platform Head Board
1pc
(B)
Platform Side rail
2pcs
(C)
Platform Foot Board
1pc
(D)
Platform Slats
1sets
PARTS NEEDED ( Sold Separately)
:
(A)
Square Long Leg
4pcs
(B)
Square Short Leg
4
pcs
HARDWARE INCLUDED:
(F) Half Moon
washer
8pcs
(H) Ø8 x 1” Flat
Head screw
32
pcs
(G) Bolts M8 x
45mm
8pcs
(I) Dowel Ø8 x
30mm
8pcs
(J) 4mm Allen key
1pc
TOOLS REQUIRED:
Phillips head screwdriver (not included)
BCADB
Pottery barn kids
Platform Bed
Page
2/3
Thank you for your purchase
stores | catalog | www.potterybarnkids.com
ASSEMBLY INSTRUCTIONS:
1.
Headboard & Footboard Installation
-
Insert 2pcs dowels (I) into Side Rails (B)
predrilled holes.
-
Attach the dowel already attached on side rail (B) into headboard (A) predrilled holes.
-
Place half
-
moon washer (F) onto the bolt (G), from the oval cut out of side rail (B) insert the bolts
into side rail (B) predrilled holes. Tight
en using supplied Allen Key (J). Repeat same procedure to
the other side rail and Footboard (C).
2.
Leg installation ( Sold separately )
Lay upside down the platform assembly. Insert the attached bolt on platform assembly onto
Leg
predrilled holes. Turn the leg clock wise to tighten. Repeat same procedure to the others Leg.
3.
Slats Installation
Attach the platform slat (D) into the platform assembly. Tighten with screw (H) using screwdriver.
I
F
G
D
H
