pottery barn kids

JANIE TRUNDLE

PRE-ASSEMBLY:

• Read all instructions before beginning assembly. The illustrations provided allow for easier assembly when used in
conjunction with the assembly instructions.

• For your safety and ease, assembly by two adults is recommended.

• Remove all parts and hardware from the box and lay out on a clean, carpeted, or scratch-free work surface. Use care

as some parts or hardware may have sharp points or edges.

• Do not dispose of any contents until assembly is completed to avoid accidentally discarding small parts or hardware.

• Use the parts and hardware lists to identify and separate each of the pieces included.

• Note: Do not fully tighten all bolts until all parts are in place. Failure to follow these instructions may cause the bolts

to misalign during assembly.

• The use of power tools for assembly is not recommended. Power tools can damage hardware or split wood.

PARTS INCLUDED:

A. Back Panel (solid)= 1 pc
B. Front Panel (with frame) = 1 pc
C. Side Panel = 2 pcs
D. Side Bottom Board with protruding edge (and caster holes) = 2 pc
E. Center Bottom Board with Sunken Edge = 1 pc
F. Wooden Bottom Board Support = 2 pcs

HARDWARE INCLUDED:

G. Cam lock Casing Ø15x25 mm = 8 pcs

H. Cam lock Bolt Ø6x62 mm = 8 pcs

I. Wooden Dowel Ø8x35 mm = 22 pcs

TOOLS REQUIRED:
Phillips screwdriver (not included)

A

D

E

C

F

J. Short Screw PCS Ø7x7/8 Inch = 34 pcs

K. Long Screw PCS Ø7x1¼ Inch = 12 pcs

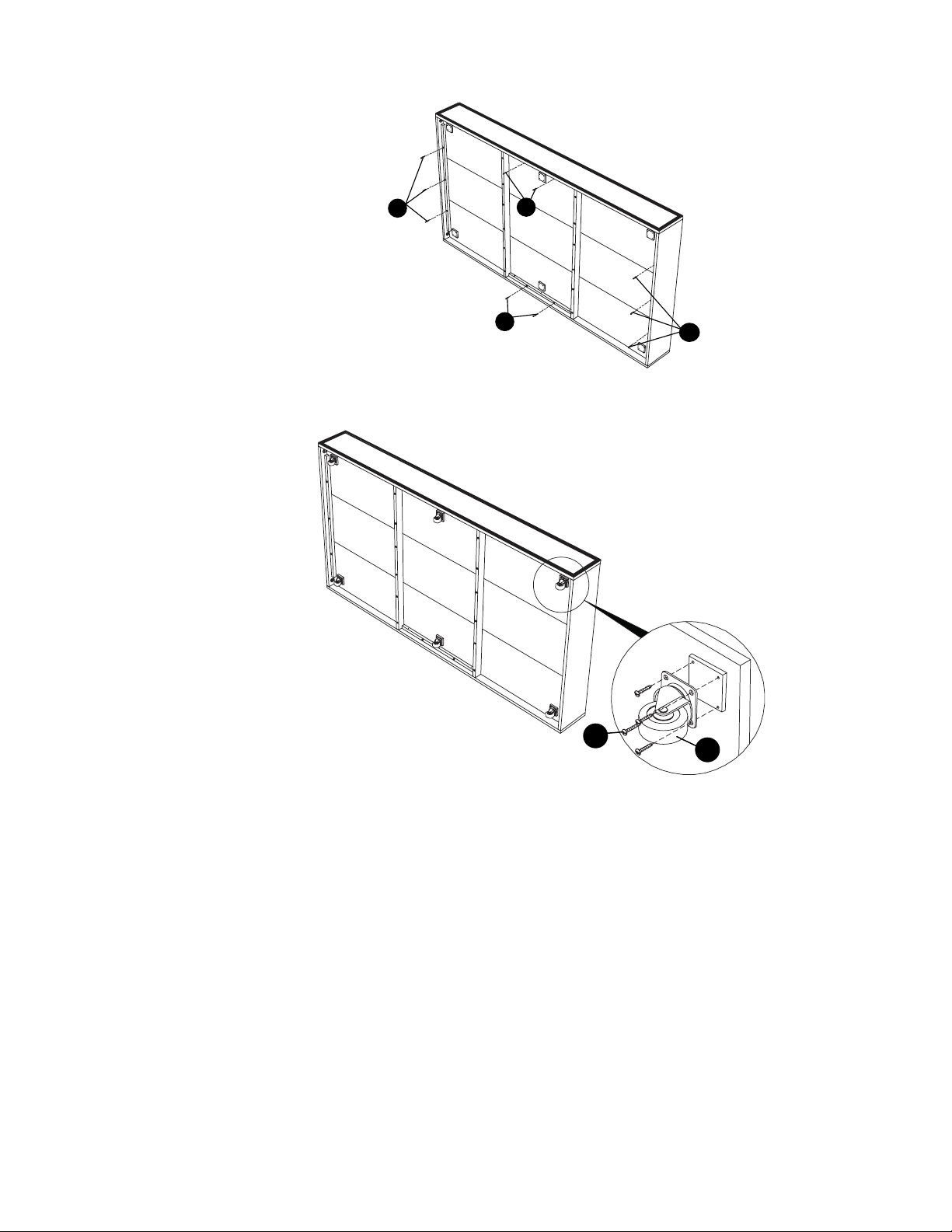

L. Caster = 6 pcs

M. Allen Key = 1 pc

D

C

B

Page 1/4

ASSEMBLY INSTRUCTIONS:

D

E

D

F

K

F

A

1. Insert (7) Wo oden Dowels ( I ) into the pre-drilled holes on both ends and top of each Wooden Bottom Board

Support (F).

I

(fig.1)

F

F

2. Position the Side Bottom Boards (D) on either side of the Center Bottom Board (E) as shown. Attach the

wooden bottom board support (F) by aligning the exposed dowels onto the predrilled holes. Then, insert the 12
Long Screws (K) through the Cross Bars (F) & secure using a screwdriver (not included ).

(fig.2)

3. Insert (4) Ca m lock Bolts (H) into the pre-drilled holes in the Front and Back Panels (A and B), and screw

clockwise to tighten using screwdriver. (Figure 3).

(fig.3)

H

B

Page 2/4
