A30
Operation Guidance
http://www.ipotensic.com
Overview of drone and transmitter
Drone
Front
LED Light
Propeller A
Drone cover
Propeller B
Drone body
Power switch
Rear
Battery
Rear
2
Propeller B
Propeller A
Main parameter
Drone Size
Weight of drone
Flight time 6~7 mins
Drone battery 3.7V x 500mAh
140x140x43.5mm
63g
Exploded View
http://www.ipotensic.com
Flying Distance/Radius
Charging time
of drone battery
50m
~80 mins
Frequency 2.4Ghz
1
3
14
2
4
6
7
8
9
10
11
4
2
3
14
5
12
13
3
http://www.ipotensic.com
NO. NO.
1
2
3
4
5
6
7
Name
Drone cover
Propeller A
Propeller B
Clockwise Motor
Battery
Drone body
Buckle
Transmitter
Non
function
Left Stick
One button
Taking Off /
Landing /
Emergency
Stop Button
Power indicator
Back cover of light
8
Front cover of light
9
Light Board
10
11
Light Organic Board
Receiver Board
12
Inner box of battery
13
Counterclockwise Motor
14
4
Name
Headless Mode
High / Medium/
Low Speed
button
Right Stick
Power Switch
http://www.ipotensic.com
Trimmer Mode button
(Press down the left stick)
Left Stick
Right Stick
Power
Switch
Headless
High / Medium/
Low Speed Button
Take O /
Landing
/Emergency
Button
Trimmer
Button
Move the Stick forward / backward / left / right to fly
the droneto up / down / turn left / turn right.
Move the Stick forward / backward / left / right to fly
the drone to forward / backward / left / right.
Pull right the power switch key to power on the
transmitter, power off when returns.
Press the key to enter the headless mode;
Mode
Press again to exist.
Press the key to switch to High /Medium/ Low
Speed.
After frequency pairing, press once and the drone
will take off automatically. Press again and the
drone will land automatically. Press and hold the
Stop
button for more than 1 second for an emergency
landing. The drone propellers will stop and land.
Press this button and move the right stick to the
required trimmer direction, then it will adjust the
Mode
direction accordingly. Release the stick to end
trimmer mode.
5
http://www.ipotensic.com
Open the battery cover of the transmitter, insert 3 AAA batteries
following the polarity indicators ( Picture below, battery is not
included) and then close it.
Battery Cover
3X1.5V
Alkaline Battery
1. Make sure the electrodes are correct.
Notice:
2. Do not mix new with old batteries.
3. Do not mix different kinds of batteries.
4. Do not charge the non rechargeable battery.
6
http://www.ipotensic.com
Parts installation
Charging Instruction for Drone Battery
1. Connect the drone battery with USB cable first and then choose one
of the method as below picture shown to connect with USB plug.
2.The indicator light on drone battery will become red and it will turn
green when fully charged.
* For faster charging, it is recommended to use an adapter with 5V
2A output
Drone Battery
Power BankPhone Charger Computer Charging Car Charger
Li-Po Battery Disposal & Recycling
Wasted Lithium-Polymer batteries must not be placed
with household trash. Please contact local
environmental or waste agency or the supplier of
your model or your nearest Li-Po battery recycling center.
7
http://www.ipotensic.com
Assemble/Disassemble the Propellers
To disassemble, press the motor and gently pull the propeller
upward with another hand.
To install the propeller, align and snap on the propeller blade
to the motor.
Picture 7
Note: Align propeller A with the motor marked A, and align propeller B
with the motor marked B.
8
http://www.ipotensic.com
Drone battery installation
When installing, insert the battery into the drone as per diagram
(on picture 8) and the battery sticker should be facing upward.
When removing, pull up the drone buckle and pull out the
battery buckle (Picture 9).
Stickers up
Picture 8
Battery buckle
Picture 9
9
http://www.ipotensic.com
Precautions before flying
1. Make sure the transmitter and the battery of the drone are
fully charged.
2. Before starting, please confirm that the left stick of the
transmitter is in the middle position.
3. Please follow the correct steps to turn on the drone/transmitter. Before flight, turn on transmitter and then the the
drone. After flight, turn off the drone and then transmitter.
Turning ON/OFF incorrectly may cause the drone to lose
control.
4. Make sure to correctly install the battery, motor, etc.
5. Check the rotation direction of the propellers. The left front &
right rear propeller A should rotate clockwise. The left rear &
right front should rotate counterclockwise.
6. Improper operation may cause drone crash, which may
cause a motor defect, prevent you from flying, and other
issues. Please go to the local distributor to buy new parts
for replacement so that the drone will return to its best
10
http://www.ipotensic.com
Flying steps
Syncing Frequencies
Turn on the transmitter and the power indicator light on
it flashes rapidly.
Pull the left stick to the lowest position and then release.
The power indicator on transmitter will flash slowly and the
controller is ready for pairing.
Turn on the drone. The drone body lights will stop flashing
and turn a solid color, indicating successful frequency
pairing and then enter the remote control mode.
It must be placed on a surface！
11
http://www.ipotensic.com
Take off
After calibration successfully, press this button, the drone will
fly up and keep flying at an altitude of approximately 1.2 meters
automatically.
Landing
Press it to land the drone automatically. (In this mode, DO NOT
touch the left stick, otherwise it might not work).
Emergency Landing
In an emergency situation, such as if it is about to hit people or
obstacles, press the Taking Off/ Landing / Emergency Stop
Button and hold it for more than 1 second. The propellers will
stop immediately and the drone will fall.
Note: Do not activate this function unless in emergency
situation. Because the drone will fall when the
motors stop working.
12
http://www.ipotensic.com
Calibration
Push the right stick as picture shown after successful
frequency pairing. Please
loose it when the drone
body light flash quickly ,
indicating that gyro
calibration is completed.
Tips: Crashing the drone may cause the connection to fail,
(This action is operated when flying abnormally)
making the drone hard to control. If this occurs, try
to repair and recalibrate . It must be placed on a
surface！
Unlocking/locking the motor
Unlock the motor:
Move the left stick and right stick at the same time 45
degrees inward.
Lock the motor:
When the motor is working, it could be used to stop the motor
urgently(Move the left stick and right stick at the same time
45 degrees inward).
13
http://www.ipotensic.com

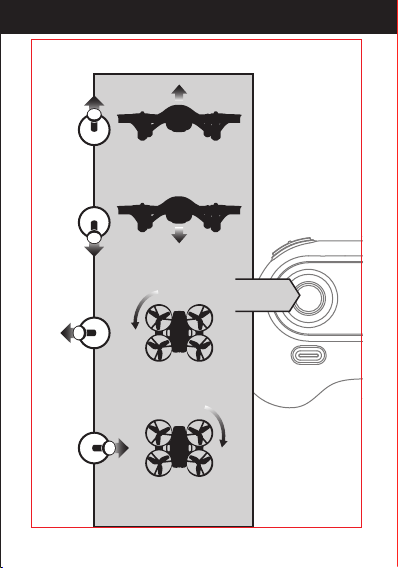

Flight Control
Push the stick, then
the drone flies up.
the drone goes down.
Move the stick to the left, the
drone rotates counterclockwise
Move the stick to the
right, the drone rotates
Pull the stick,
Left stick
clockwise.
14
the drone flies forward.
Right stick
Move the stick to the left, the
drone moves to the left
Move the stick to the right,
the drone moves to the right
http://www.ipotensic.com
Push the stick,
Pull the stick,
the drone goes
backward.
15
http://www.ipotensic.com
Forward/Backward Trimmer
When flying, if the drone tilts forward , press the trimmer button,
and push the right stick backward. Otherwise push forward.
Left/Right Tilts Trimmer
When flying, if the drone tilts to the left, press the trimmer button,
and push the right stick to the right. Otherwise push to the left.
Left/Right Rotates Trimmer
When flying, if the drone head rotates to the left, press the trimmer
button, and push left stick to right. Otherwise push to the left.
Functions Instruction
Altitude Hold Mode
Intelligent flight control system calculates the Altitude Hold Mode,
makes it easier for beginners to control. Release the stick, the
drone will keep hovering.
Note: If there’s propeller or motor is damaged, the constant height function
will not work. Due to atmospheric pressure instability or unsuitable
weather, the high altitude hold function will not work either.
16
http://www.ipotensic.com
High / Medium/Low Speed Mode Switch
Press down on the key, it will beep, this indicates the low speed
mode ”L”; Press down again, it will beep twice, for the middle
speed mode “M”; Press down again ,it'll beep three times, for
the high speed mode “H”.
High / Medium/
Low Speed Mode
Low Speed Mode “L”
It’s suitable for the beginners to operate
in calm weather, with no breeze.
Medium speed Mode “M”
It’s suitable for those practicing
(hobbyists) to operate, with or
without breeze.
High Speed Mode “H”
It’s suitable for the professionals
in most outdoor wind conditions.
Note: The default setting is Medium Speed.
Headless Mode
The default setting is NOT Headless Mode.
Under headless mode, the users can operate the drone without worrying
about the orientation (left is left and right is right all the time, regardless
of where your drone is pointing at)
You can activate the headless mode function before taking off or in
flight. Flying under headless mode, your drone direction should be
aligned with you. DO NOT change the direction of your transmitter, keep
it flying in front of you at all the times. (See below picture).
WARNING: THE DRONE SHOULD BE IN FRONT OF YOUR TRANSMITTER
BEFORE ENTERING THIS MODE AND KEEP IT. OR THE DRONE
MIGHT LOSE CONTROL OR FLY AWAY.
.
17
http://www.ipotensic.com
Front
Front
Left Right
Rear
* Press headless mode button to activate the function, at this time the
LED light on the rear of drone keeps shiny for three times and stops
for 1s;
To exit the Headless Mode, press
the button again, at this time the
LED light on the rear of drone will
turn a solid color.
Left Right
Rear
Heading Hold
Mode
Low Battery Alarm
When the transmitter or drone has a low battery, It will beep to
remind the user to land the drone and replace the batteries as
soon as possible Or it might be out of control.
Out of Range Alarm
When the drone is out of range or almost at the max remote
control distance, it will beep to alert the user to fly back ASAP.
Otherwise, the drone might be out of control or fly away.
18
http://www.ipotensic.com
Stuck Protection
1. When the propeller is stuck, the LED light of the drone
will have quick flash. Then the Stuck Protection will be
activated and motors will stop working.
2. Pull down the left stick to the lowest position and then
release it, the drone LED will become a solid color and
stuck protection will be released and the drone can fly
again.
Assembly Parts List
There are components for choice below. For your convenient
purchase, we list each part for you, you can purchase ones you
want from local distributor.
Drone cover Drone body Propeller A
Propeller B front cover of light back cover of light
(Sold separately)
19
http://www.ipotensic.com
Buckle Light board Receiver board
Clockwise motor
(red/black line)
Drone battery
Counterclockwise motor
(blue/white line)
Transmitter
USB Charger
Statement
Our products are constantly improved,so designs and
specifications are ready to change without notice.
All the information on this guidebook is carefully proofread, we
make every effort to be accurate. If any wrong printing, our
company reserves the right of final interpretation.
20
2. Install the battery in accordance with
the user manual.
3. Clean the dirt between the battery and
the battery slice.
Troubleshooting
1. Low battery. 1. Replace the transmittery battery.
2. The battery positive pole and
Problem Problem Cause SolutionNo.
The
1. Indicator light is off. 1. The same as above 1.2.3.
negative pole are in reverse order.
3. Poor Connection.
transmitter
indicator
light is off.
1
21
http://www.ipotensic.com
2. Turn off and turn on the drone and
transmitter again.
3. Operate the drone step by step in
accordance with the user manual.
4. To buy spare parts from local seller and
replace damaged parts.
3. Install the propeller in accordance with
the user manual.
2. There is interfering signal nearby.
3. Mis-operation.
4. The electronic component is damaged
for frequent crash.
1. The propeller deformed seriously. 1. Replace the propeller.
2. Low battery. 2. Recharge the drone battery.
3. Incorrect installation of propellers.
Fail to pair
the drone
with
transmitter
The drone
is under -
powered or
cna not fly.
2
3
http://www.ipotensic.com
3. Put the drone on the flat ground for
about 10s or restart the the drone to
calibrate again.
1. The propeller deformed seriously. 1. Replace propeller.
2. The motor holder deformed. 2. Replace the motor holder.
3. The gyro did not reset after violent
crash.
4. The motor is damaged. 4. Replace motor.
The drone
could not
hover and
tilts to
one side.
4
2. Buy a new battery from local seller to
replace the battery or charge the battery
in accordance with the use manual.
1. Low battery. 1. Recharge the drone battery.
2. The battery is expired or over
discharge protection.
The drone
indicator
light is off.
5
22
http://www.ipotensic.com
FCC Note
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
● Reorient or relocate the receiving a ntenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
WARNING: Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
23
http://www.ipotensic.com
FCC Notice
The equipment may generate or use radio frequency energy.
Changes or modifications to this equipment may cause
harmful interference unless the modifications are expressly
approved in the instruction manual. Modifications not
authorized by the manufacturer may void user’s authority to
operate this device.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired operation.
MADE IN CHINA
Loading...
