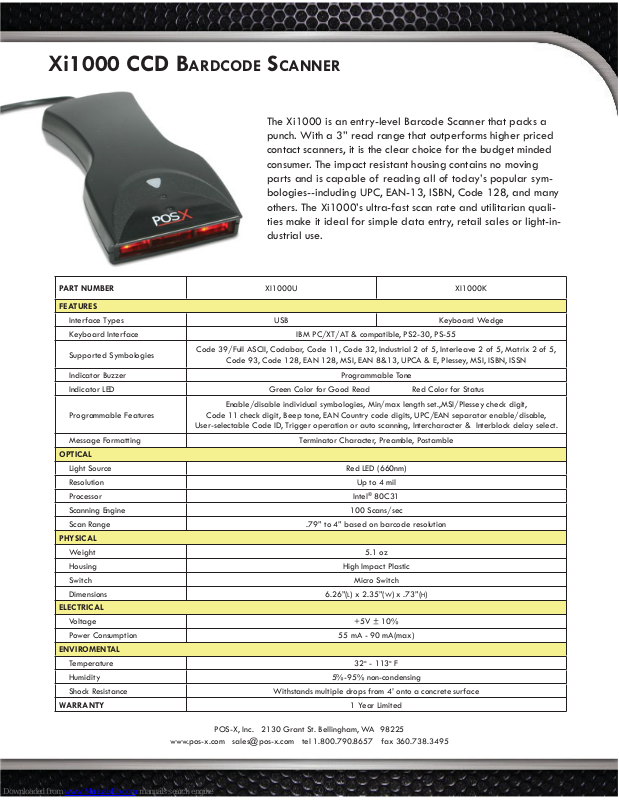

POS-X Xi1000, XI1000U, XI1000K Specifications

Xi1000 CCD BARDCODE SCANNER

The Xi1000 is an entry-level Barcode Scanner that packs a
punch. With a 3” read range that outperforms higher priced
contact scanners, it is the clear choice for the budget minded
consumer. The impact resistant housing contains no moving
parts and is capable of reading all of today’s popular sym­bologies--including UPC, EAN-13, ISBN, Code 128, and many
others. The Xi1000’s ultra-fast scan rate and utilitarian quali­ties make it ideal for simple data entry, retail sales or light-in­dustrial use.

PART NUMBER XI1000U XI1000K

FEATURES

Interface Types USB Keyboard Wedge

Keyboard Interface IBM PC/XT/AT & compatible, PS2-30, PS-55

Supported Symbologies

Indicator Buzzer Programmable Tone

Indicator LED Green Color for Good Read Red Color for Status

Programmable Features

Message Formatting Terminator Character, Preamble, Postamble

OPTICAL

Light Source Red LED (660nm)

Resolution Up to 4 mil

Processor Intel

Scanning Engine 100 Scans/sec

Scan Range .79” to 4” based on barcode resolution

PHYSICAL

Weight 5.1 oz

Housing High Impact Plastic

Switch Micro Switch

Dimensions 6.26”(

ELECTRICAL

Voltage +5V ± 10%

Power Consumption 55 mA - 90 mA(max)

ENVIROMENTAL

Temperature 32

Humidity 5%-95% non-condensing

Shock Resistance Withstands multiple drops from 4’ onto a concrete surface

WARRANTY 1 Year Limited

Code 39/Full ASCII, Codabar, Code 11, Code 32, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5,

Code 93, Code 128, EAN 128, MSI, EAN 8&13, UPCA & E, Plessey, MSI, ISBN, ISSN

Enable/disable individual symbologies, Min/max length set.,MSI/Plessey check digit,

Code 11 check digit, Beep tone, EAN Country code digits, UPC/EAN separator enable/disable,

User-selectable Code ID, Trigger operation or auto scanning, Intercharacter & Interblock delay select.

®

80C31

L) x 2.35”(W) x .73”(H)

o

- 113o F

www.pos-x.com [e-mail] tel [phone] fax [phone]

POS-X, Inc. 2130 Grant St. Bellingham, WA 98225
