POS-X EVO 2D User Manual

™

EVO 2D

Area-Imaging Scanner

User’s Guide

POINT OF SALE SIMPLIFIED

Disclaimer

POS-X reserves the right to make changes in specifications and other informa­tion contained in this document without prior notice, and the reader should in all
cases consult POS-X to determine whether any such changes have been made.
The information in this publication does not represent a commitment on the part
of POS-X.

POS-X shall not be liable for technical or editorial errors or omissions contained
herein; nor for incidental or consequential damages resulting from the furnish­ing, performance, or use of this material.

This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied, repro­duced, or translated into another language without the prior written consent of
POS-X.

Copyright 2012. All rights reserved.
Microsoft® Windows® is a trademark or registered trademark of Microsoft Cor-

poration.
Other product names or marks mentioned in this document may be trademarks

or registered trademarks of other companies and are the property of their
respective owners.

Product Agency Compliance

Europe

The CE marking indicates compliance to 2004/108/EC EMC Direc­tive with Standards EN55022 CLASS B, EN55024, EN61000-3-2,
EN61000-3-3. In addition, complies to 2006/95/EC Low Voltage
Directive, when shipped with recommended power supply.

POS-X shall not be liable for use of our product with equipment (i.e., power
supplies, personal computers, etc.) that is not CE marked and does not
comply with the Low Voltage Directive.

Waste Electrical and Electronic Equipment
Information

POS-X complies with Directive 2002/96/EC OF THE EUROPEAN PARLIA­MENT AND OF THE COUNCIL of 27 January 2003 on waste electrical and
electronic equipment (WEEE).

This product has required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health
and the environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment
and to diminish the pressure on the natural resources, we encourage you to
use the appropriate take-back systems for product disposal. Those sys­tems will reuse or recycle most of the materials of the product you are dis­posing in a sound way.

The crossed out wheeled bin symbol informs you that the product
should not be disposed of along with municipal waste and invites you to
use the appropriate separate take-back systems for product disposal.

If you need more information on the collection, reuse, and recycling sys­tems, please contact your local or regional waste administration.

You may also contact your supplier for more information on the environ­mental performances of this product.

Russia

Gost-R certificate

International

LED Safety Statement

The LED has been tested and classified as “EXEMPT RISK GROUP” to
the standard: IEC 62471:2006.

CB Scheme

Certified to CB Scheme IEC 60950-1, Second Edition.

Solids and Water Protection

The POS-X 2D has a rating of IP40, immunity of foreign particles and dripping
water.

Warning

To reduce the possibility of heat-related injuries, avoid touching sec­tions of the scanner that feel warm.

!

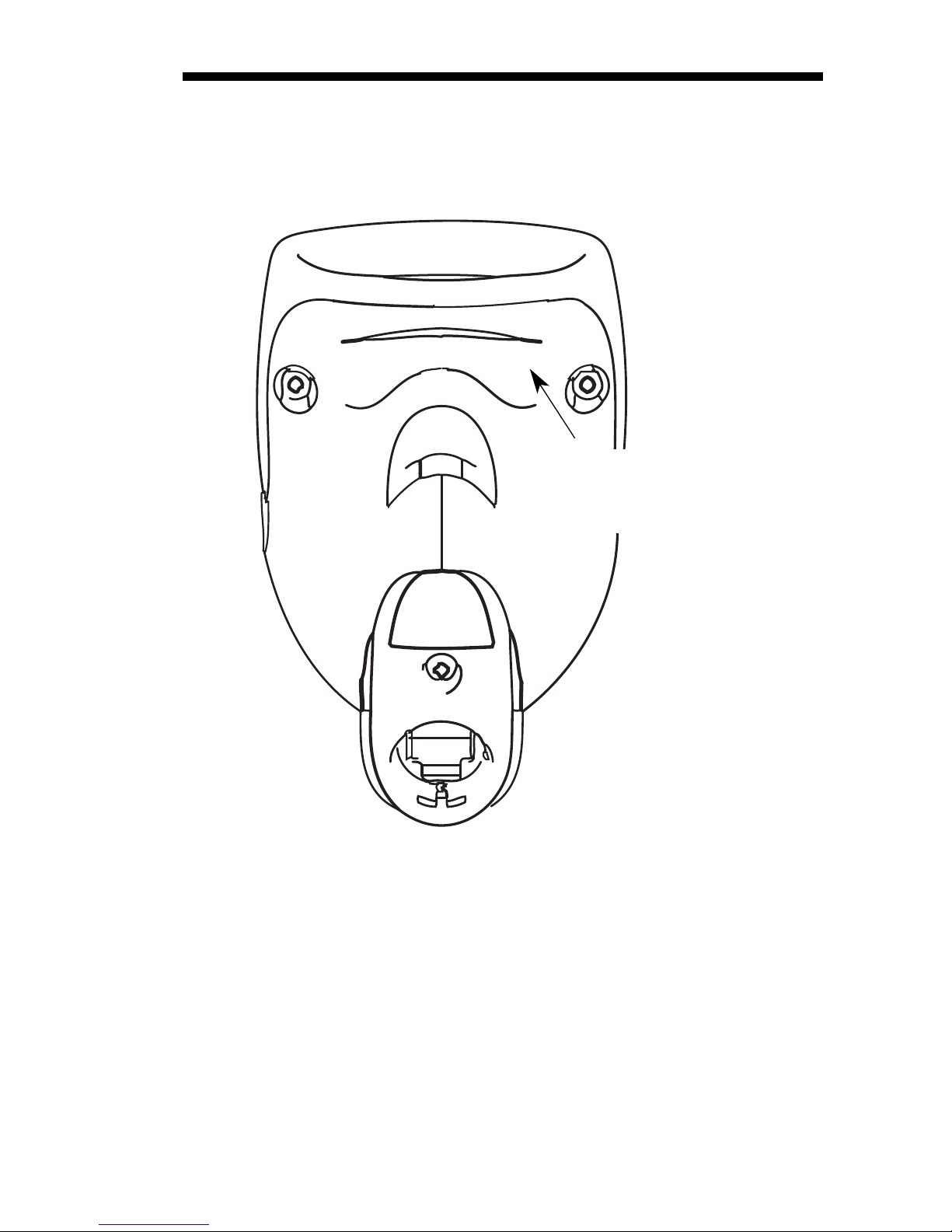

Required Safety Labels

Compliance Markings
information, Part Number,
and Serial Number
information

i

Chapter 1 - Getting Started

About This Manual ...................................................... 1-1

Unpacking Your Device............................................... 1-1

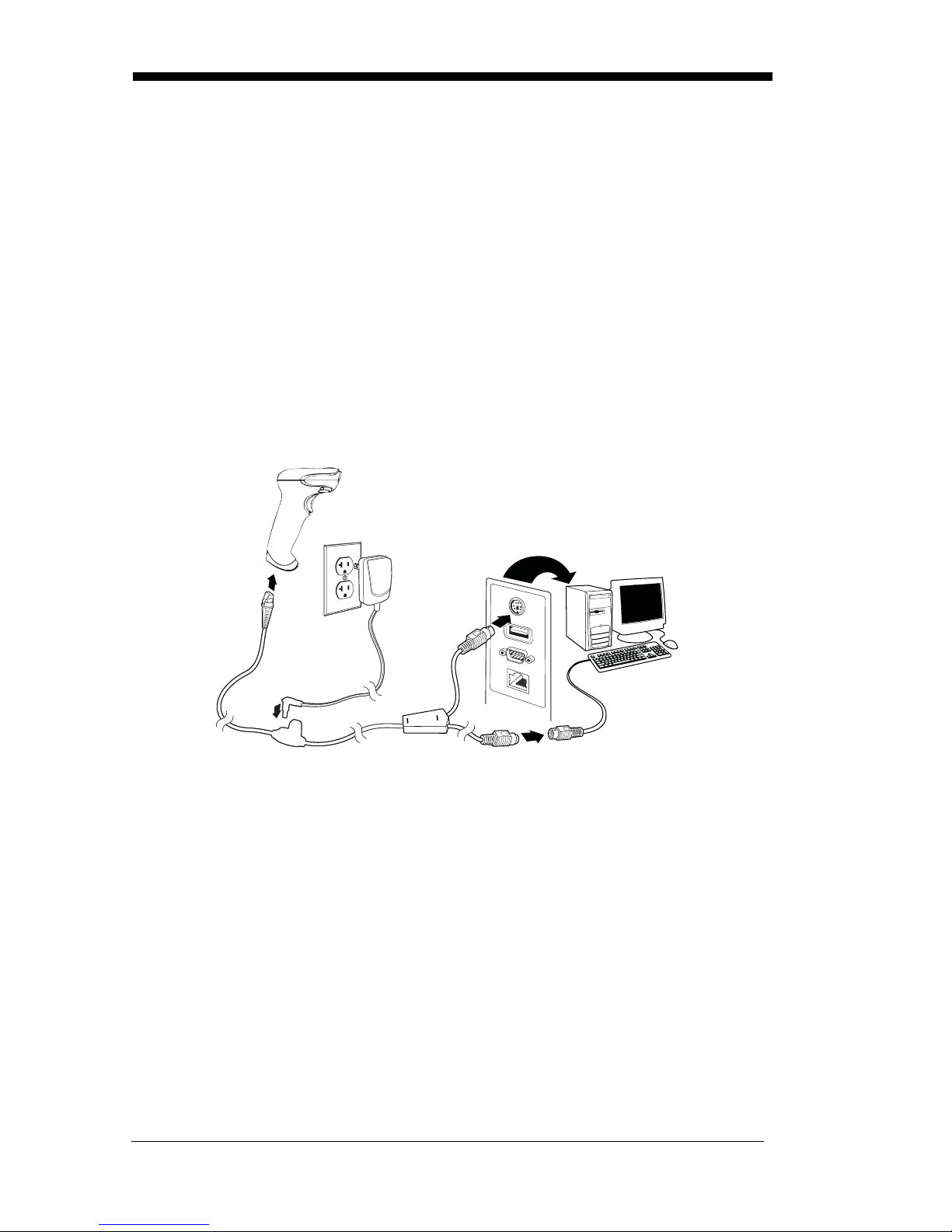

Connecting the Device ................................................ 1-1

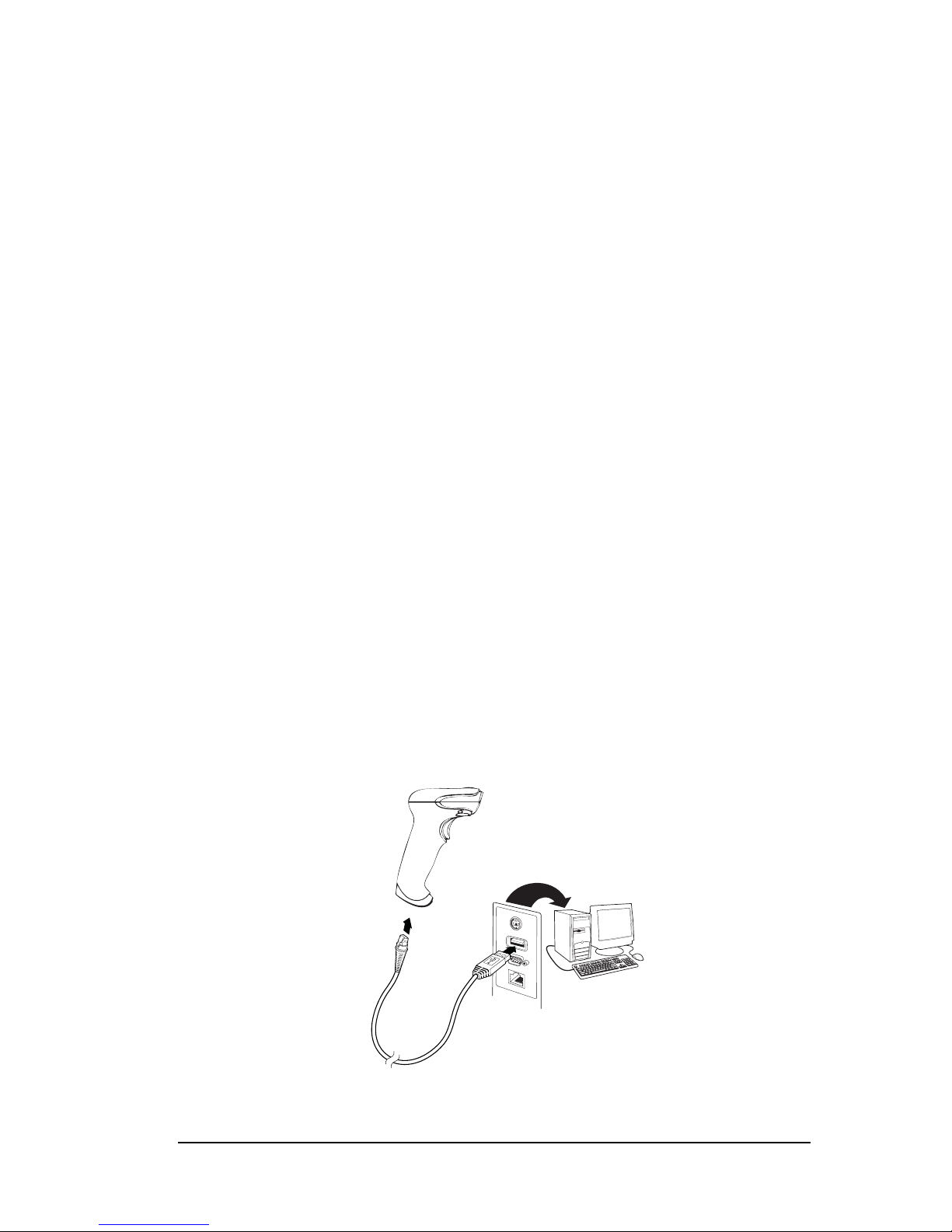

Connecting with USB ............................................ 1-1

Connecting with Keyboard Wedge........................ 1-2

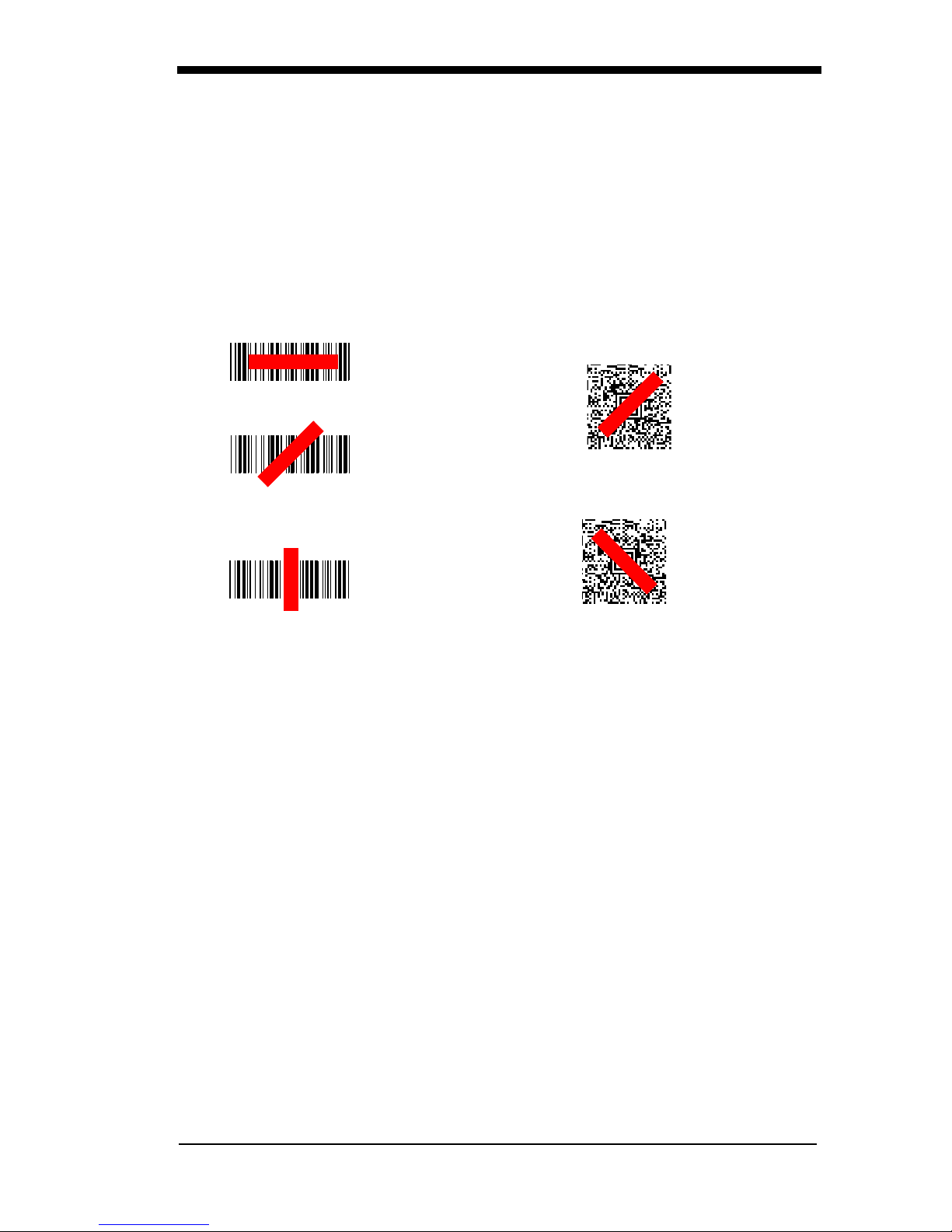

Reading Techniques ................................................... 1-3

Menu Bar Code Security Settings ............................... 1-3

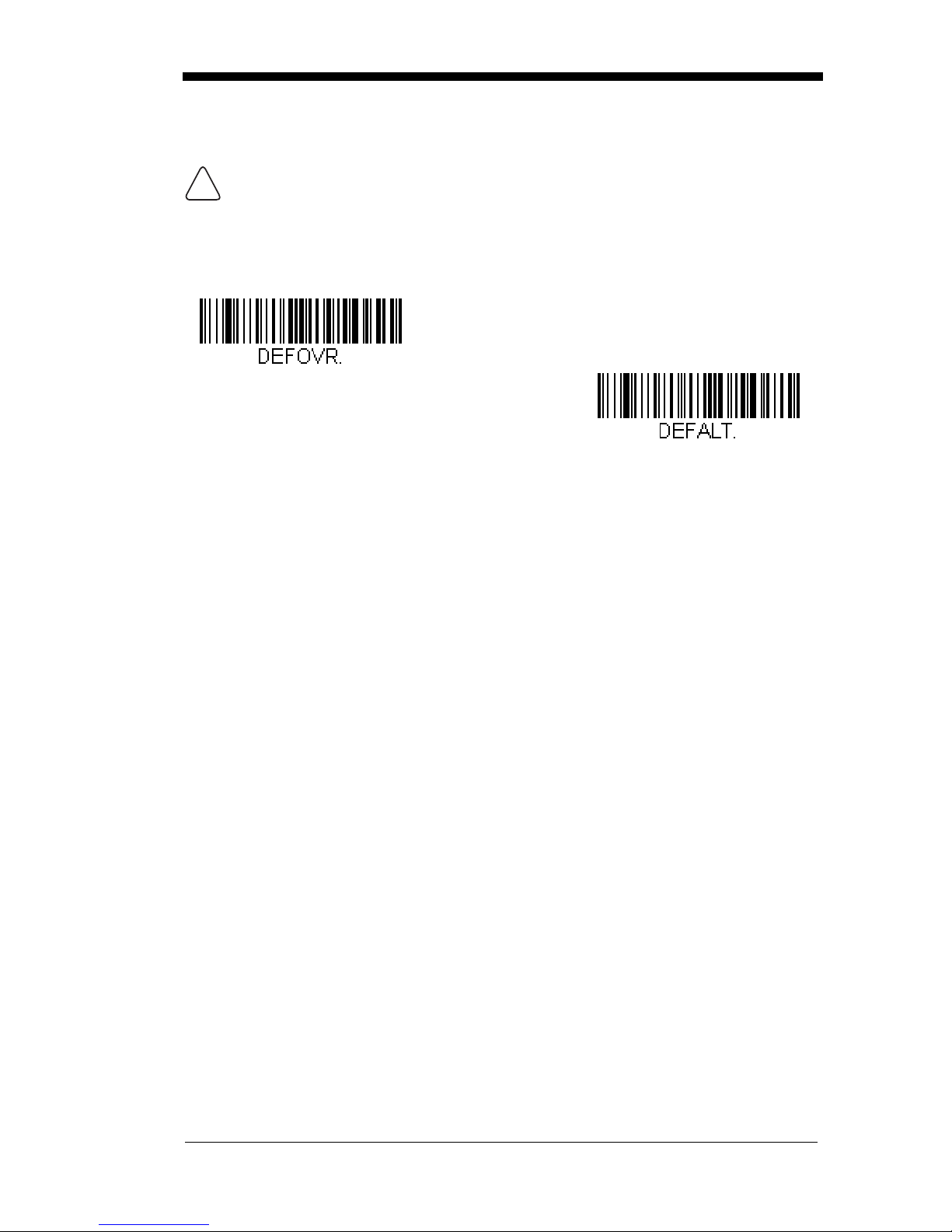

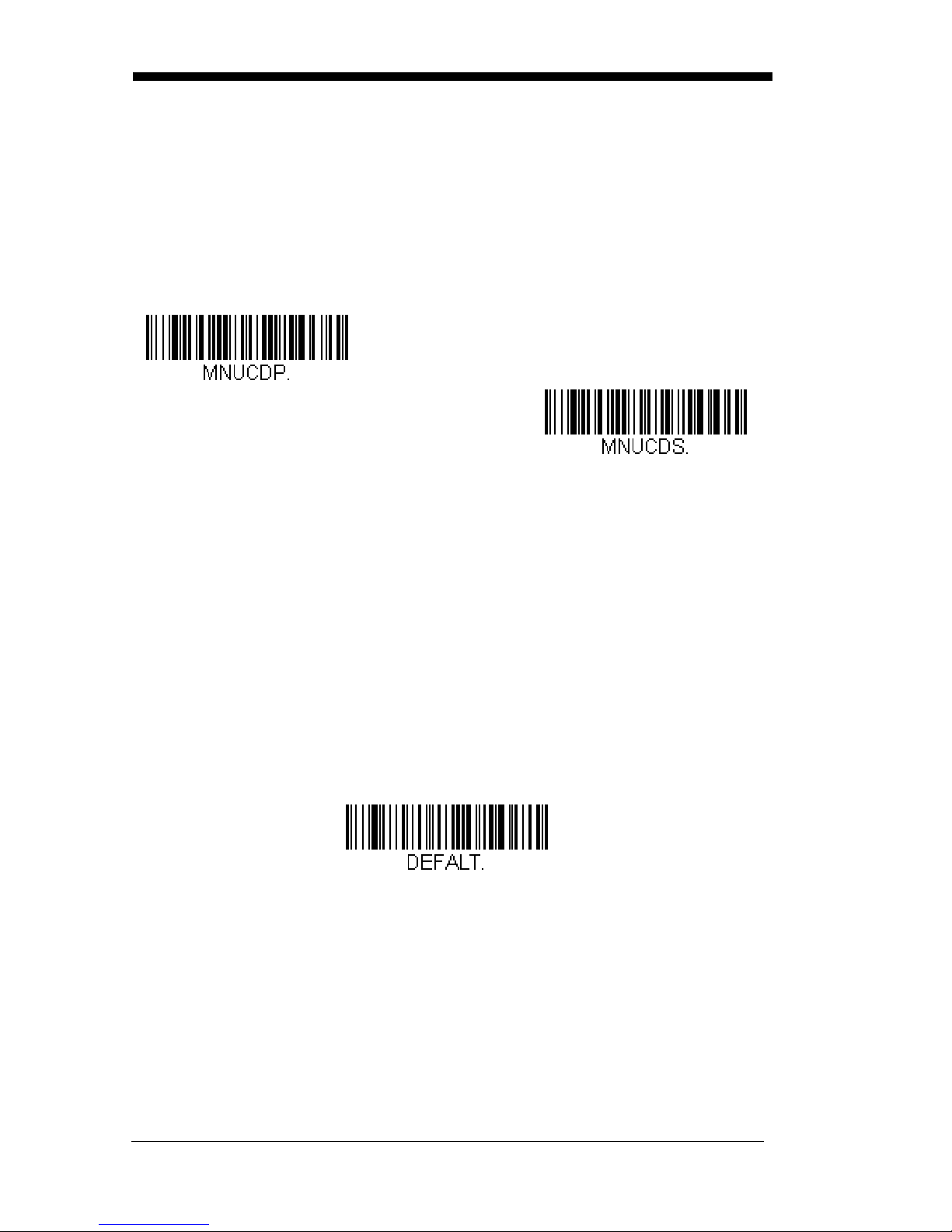

Setting Custom Defaults ............................................. 1-4

Resetting the Custom Defaults ................................... 1-4

Resetting the Factory Defaults.................................... 1-5

Chapter 2 - Programming the Interface

Introduction ................................................................. 2-1

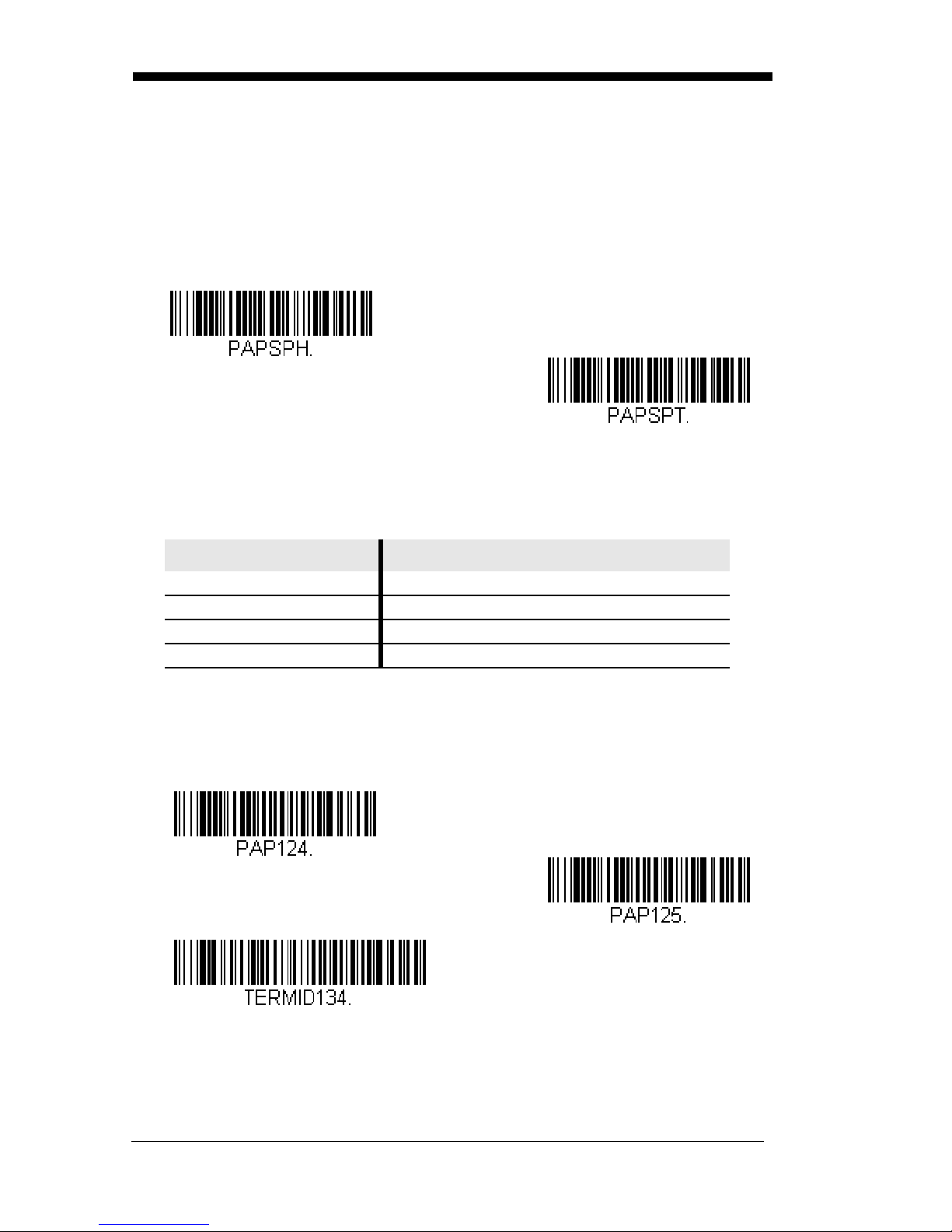

Programming the Interface - Plug and Play ................ 2-1

Keyboard Wedge ........................................................ 2-1

Laptop Direct Connect ................................................ 2-1

USB IBM SurePos....................................................... 2-2

USB PC or Macintosh Keyboard................................. 2-2

USB HID...................................................................... 2-3

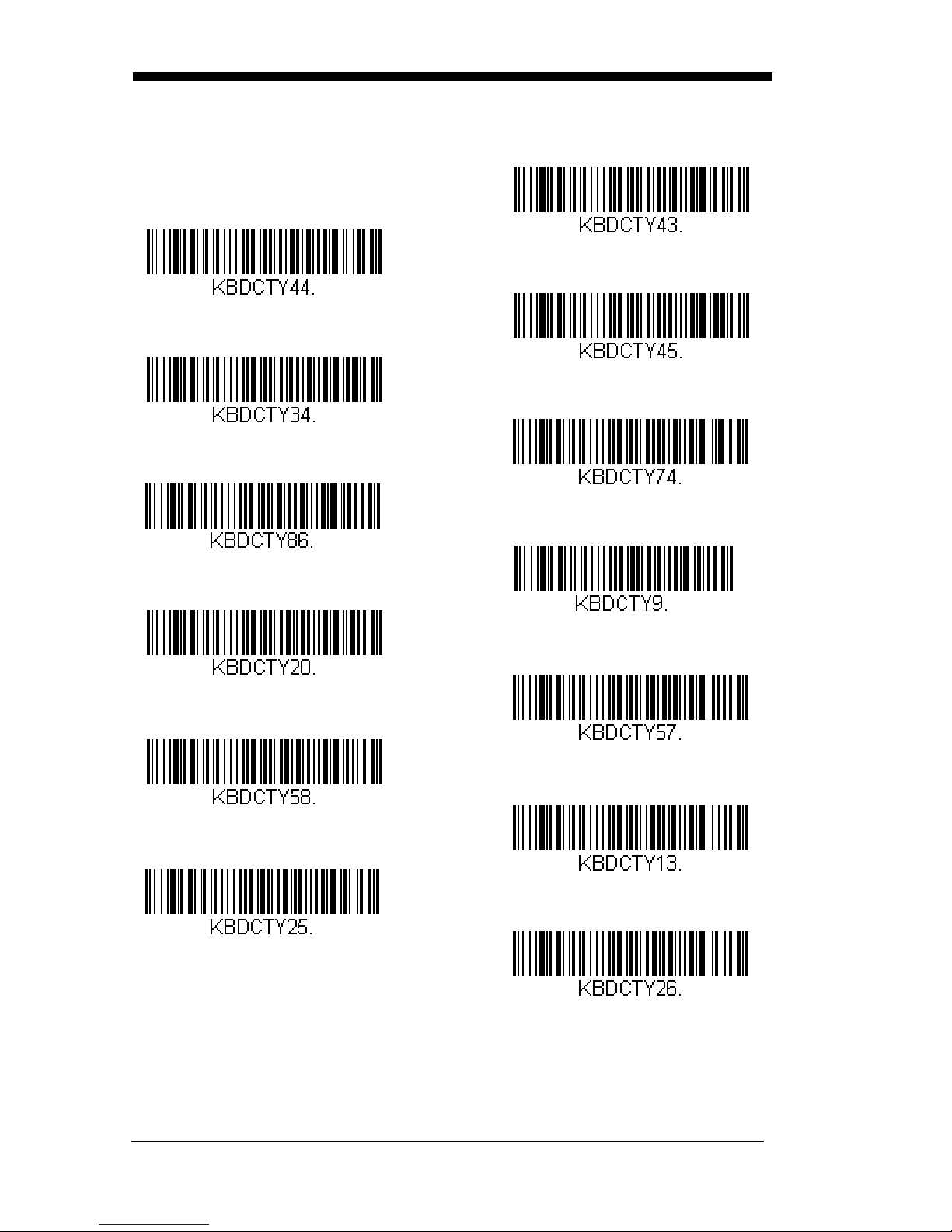

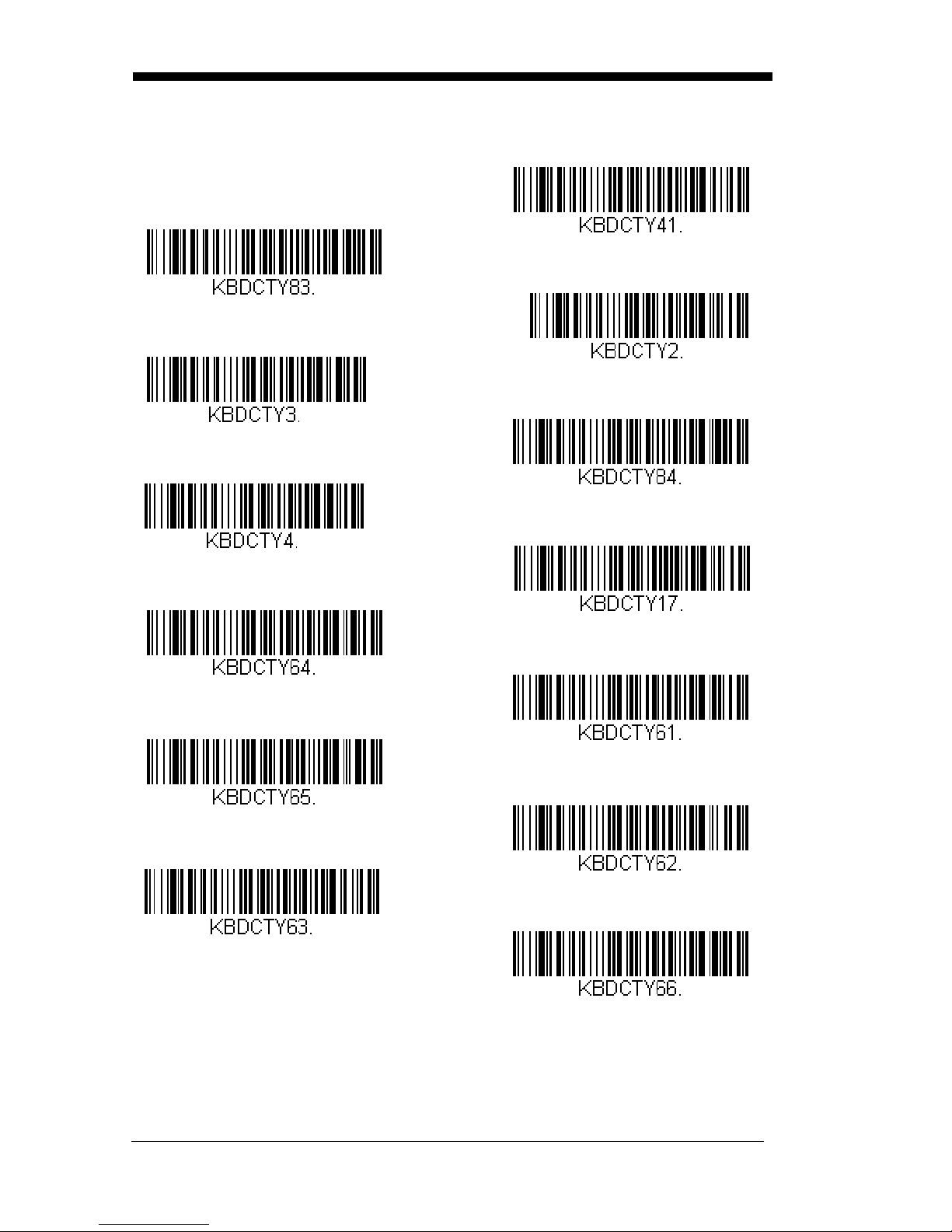

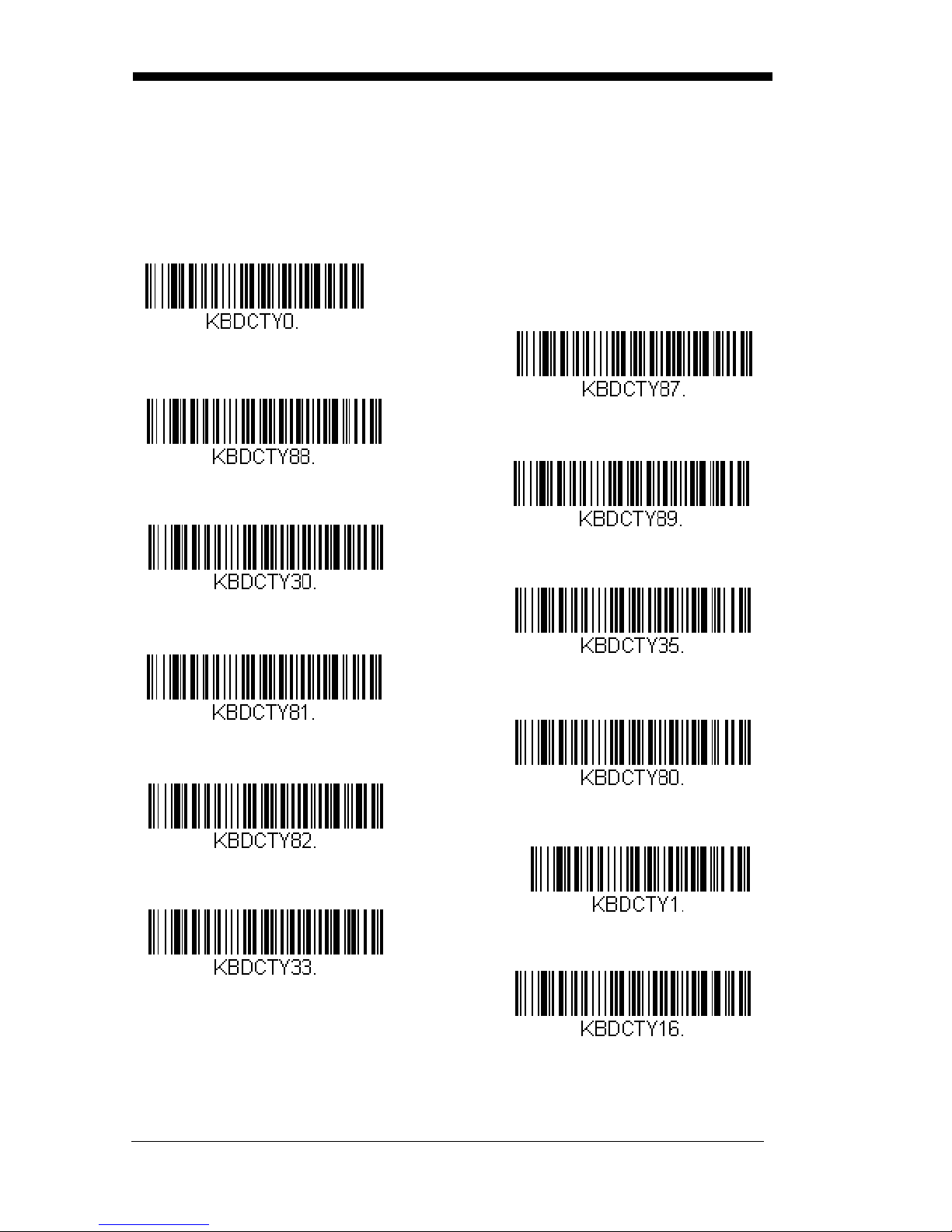

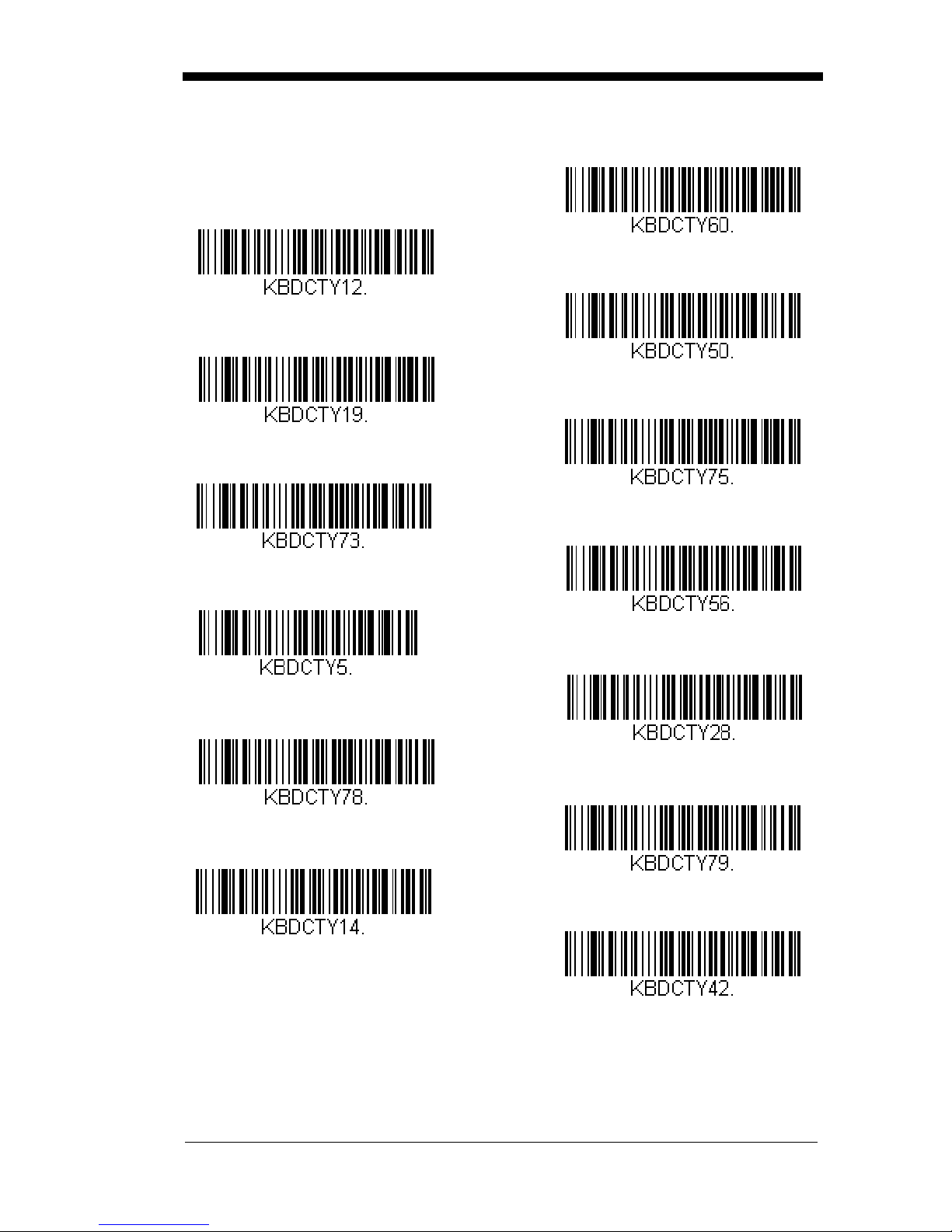

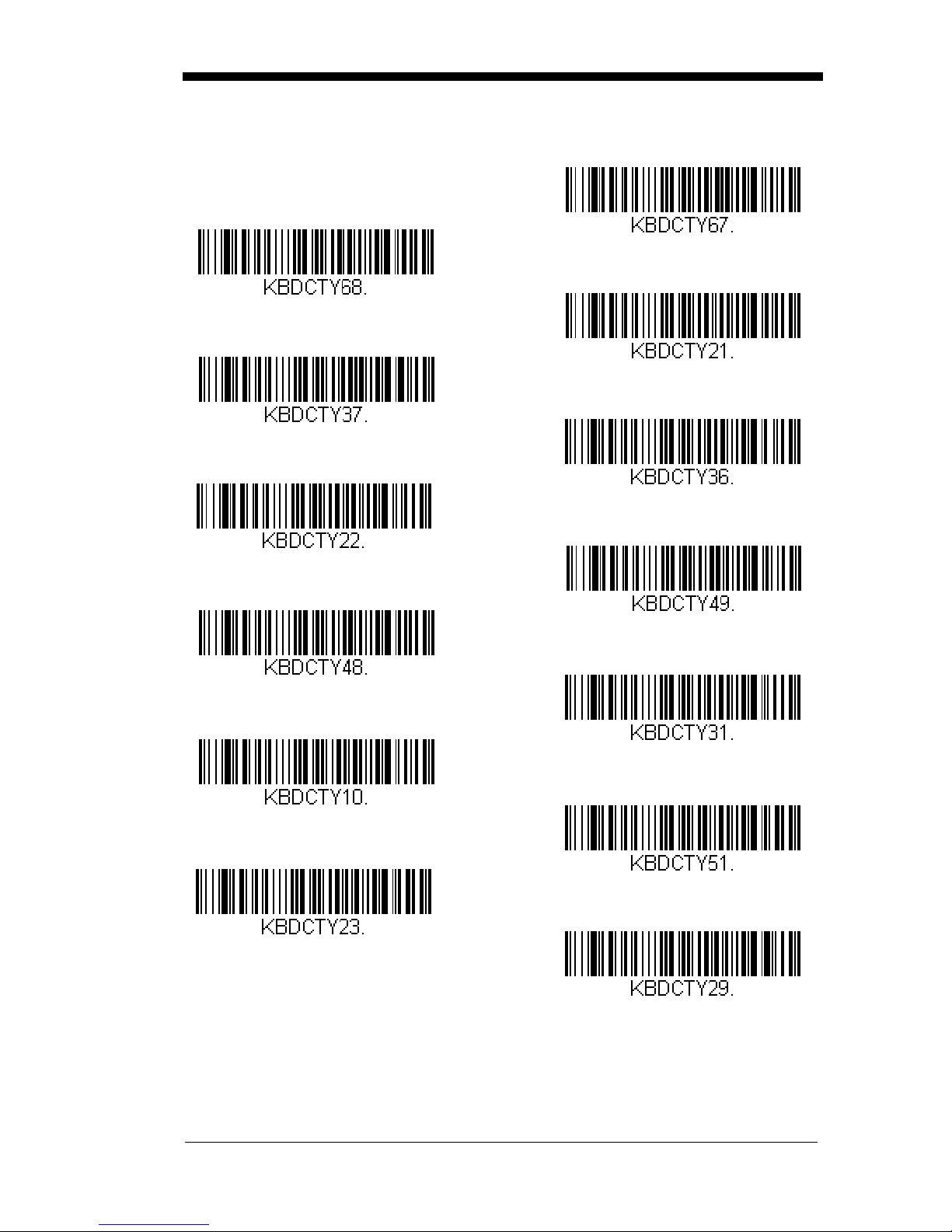

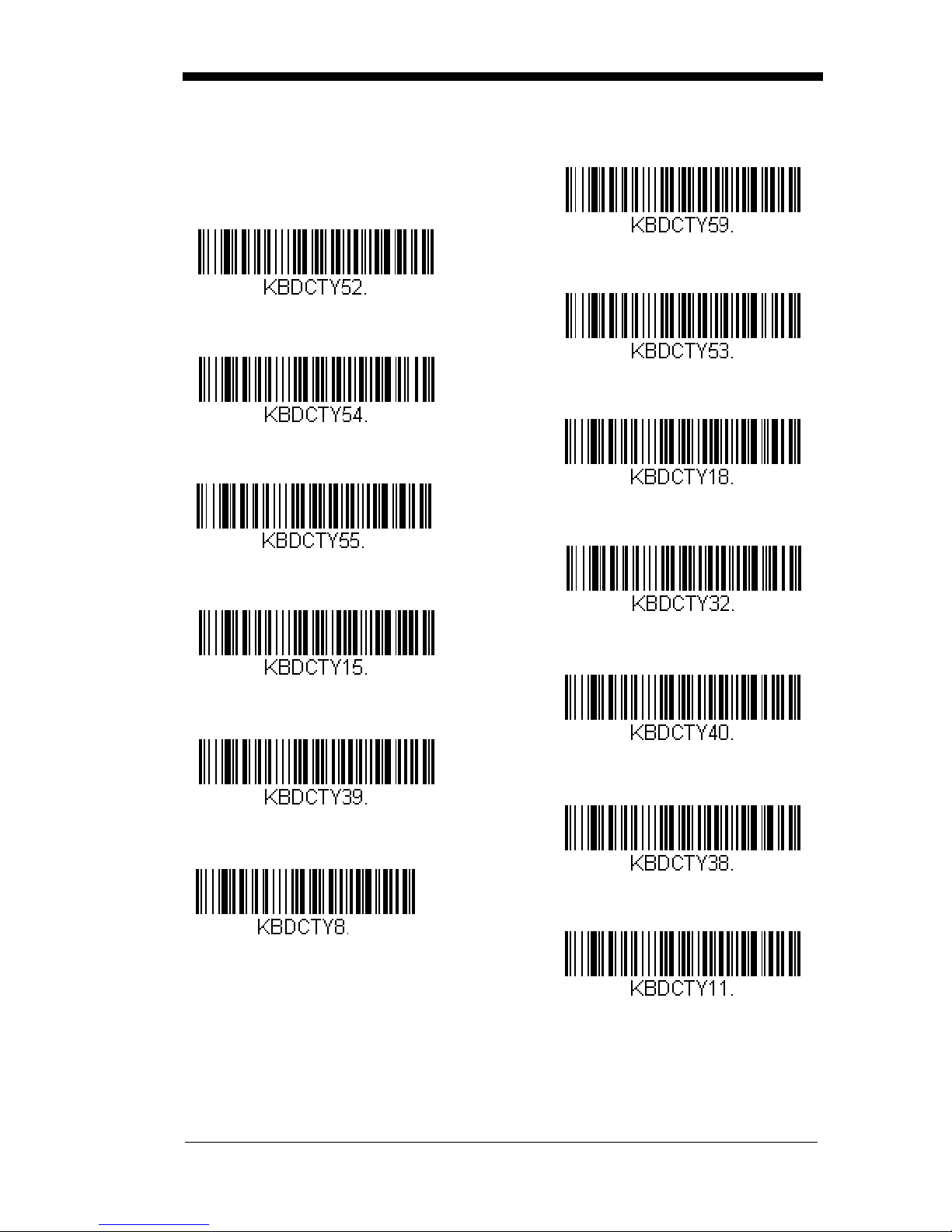

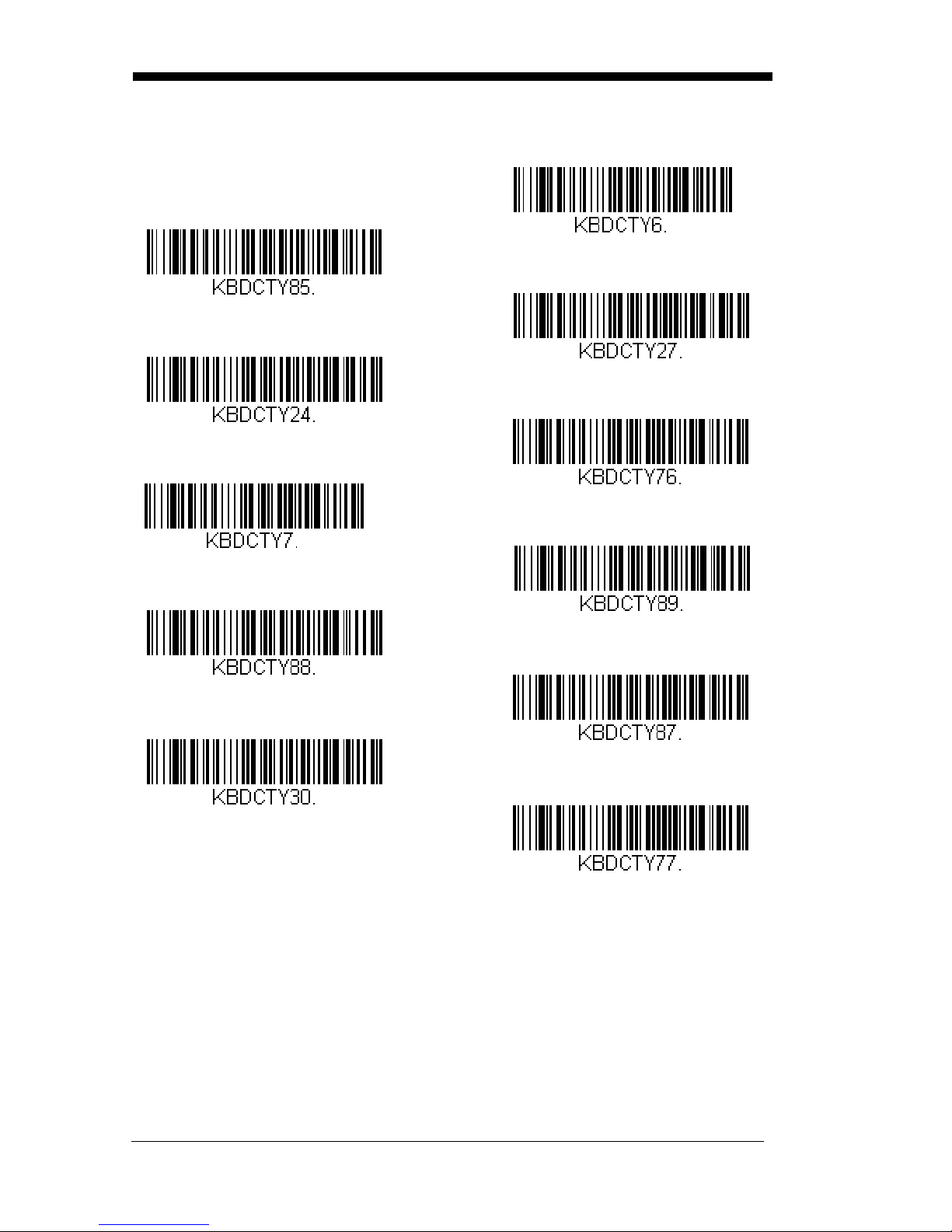

Keyboard Country Layout ........................................... 2-4

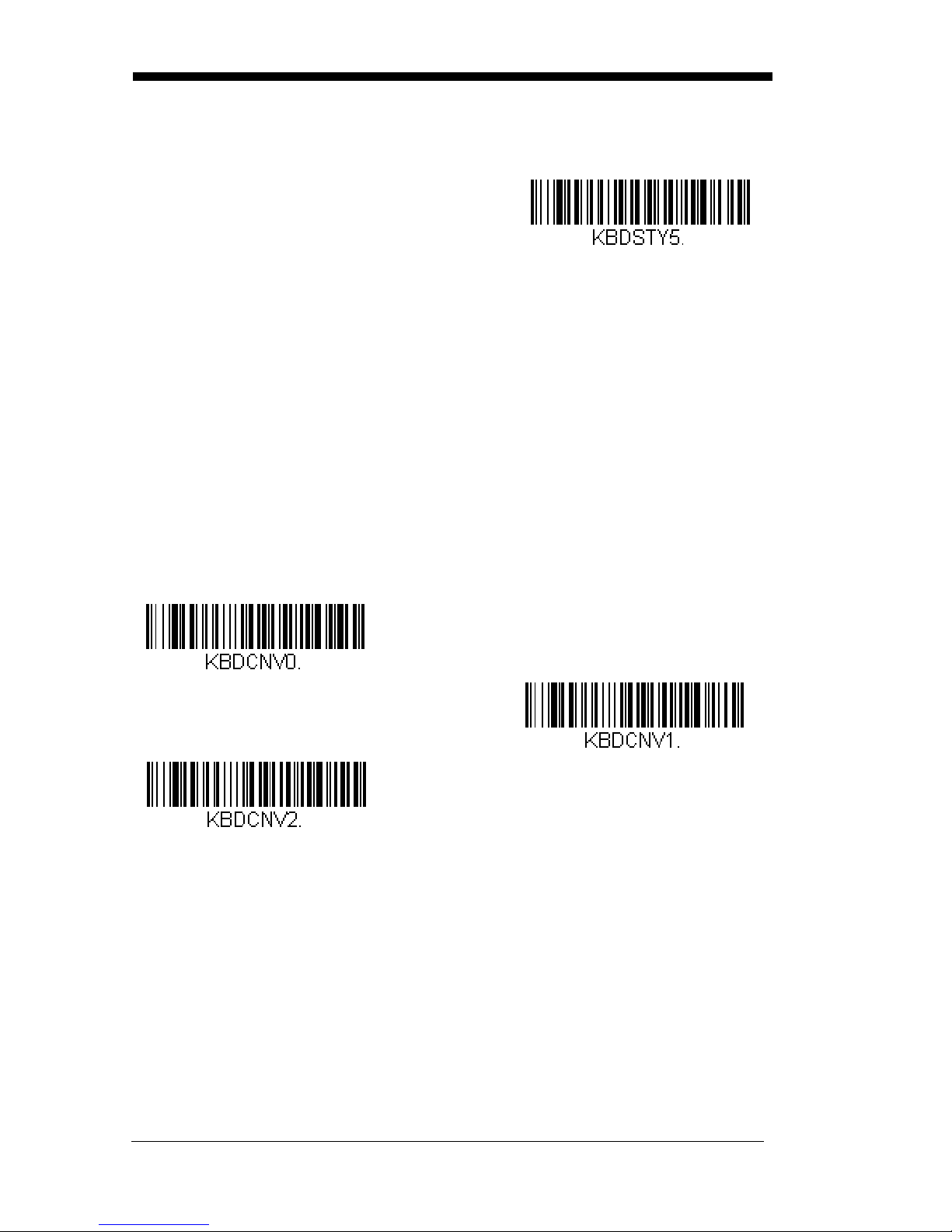

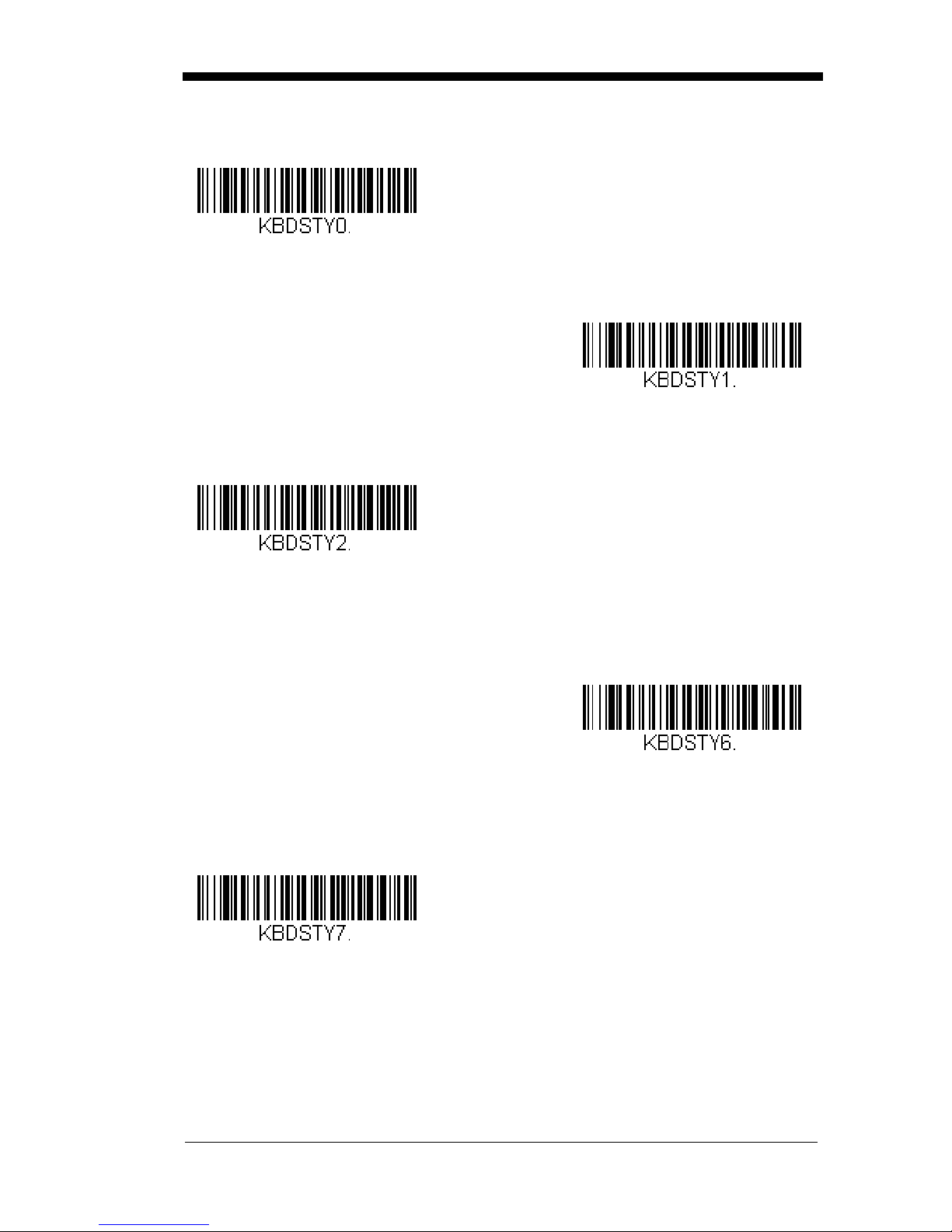

Keyboard Style.......................................................... 2-10

Keyboard Conversion................................................ 2-12

Control Character Output .......................................... 2-12

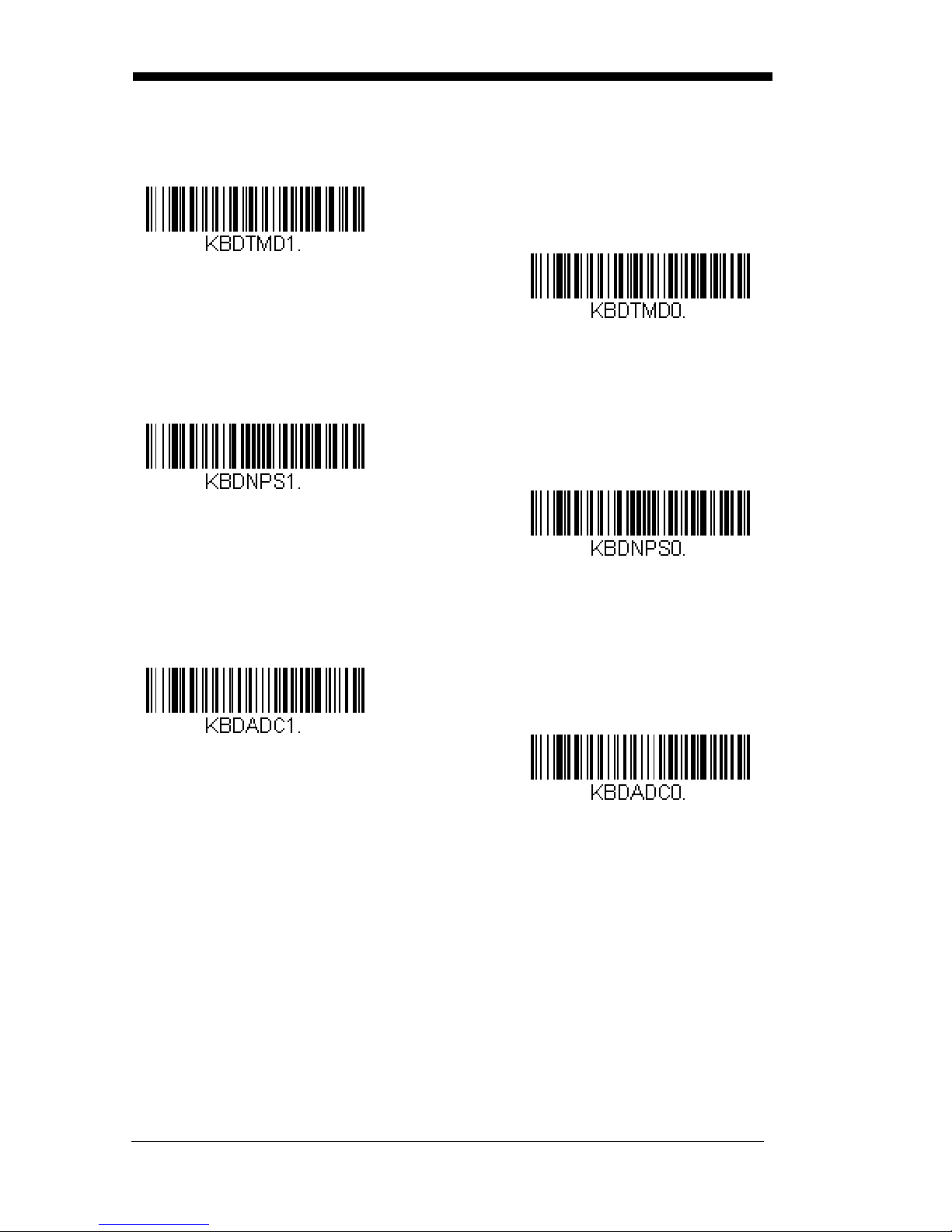

Keyboard Modifiers ................................................... 2-13

Chapter 3 - Input/Output Settings

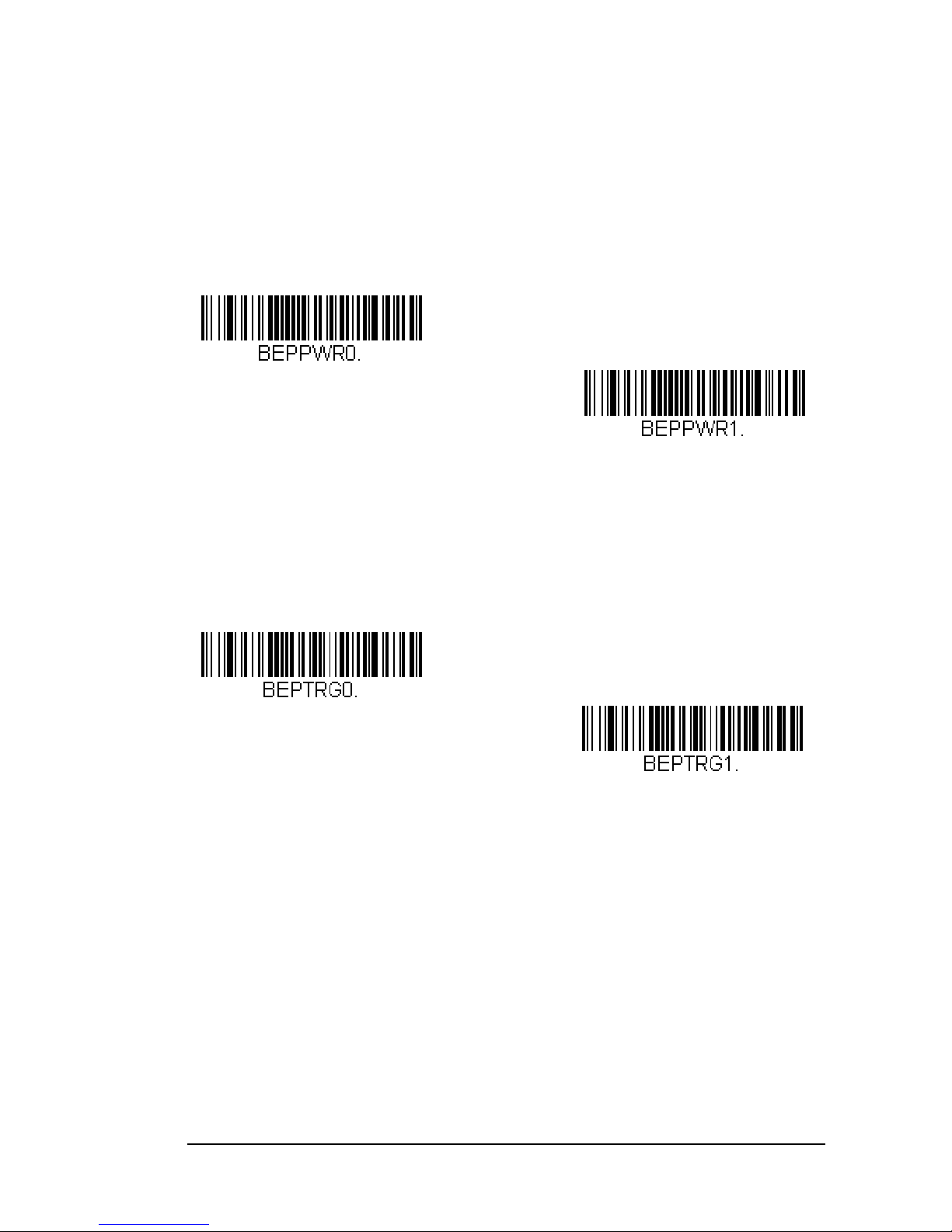

Power Up Beeper........................................................ 3-1

Trigger Click ................................................................ 3-1

Good Read and Error Indicators ................................. 3-2

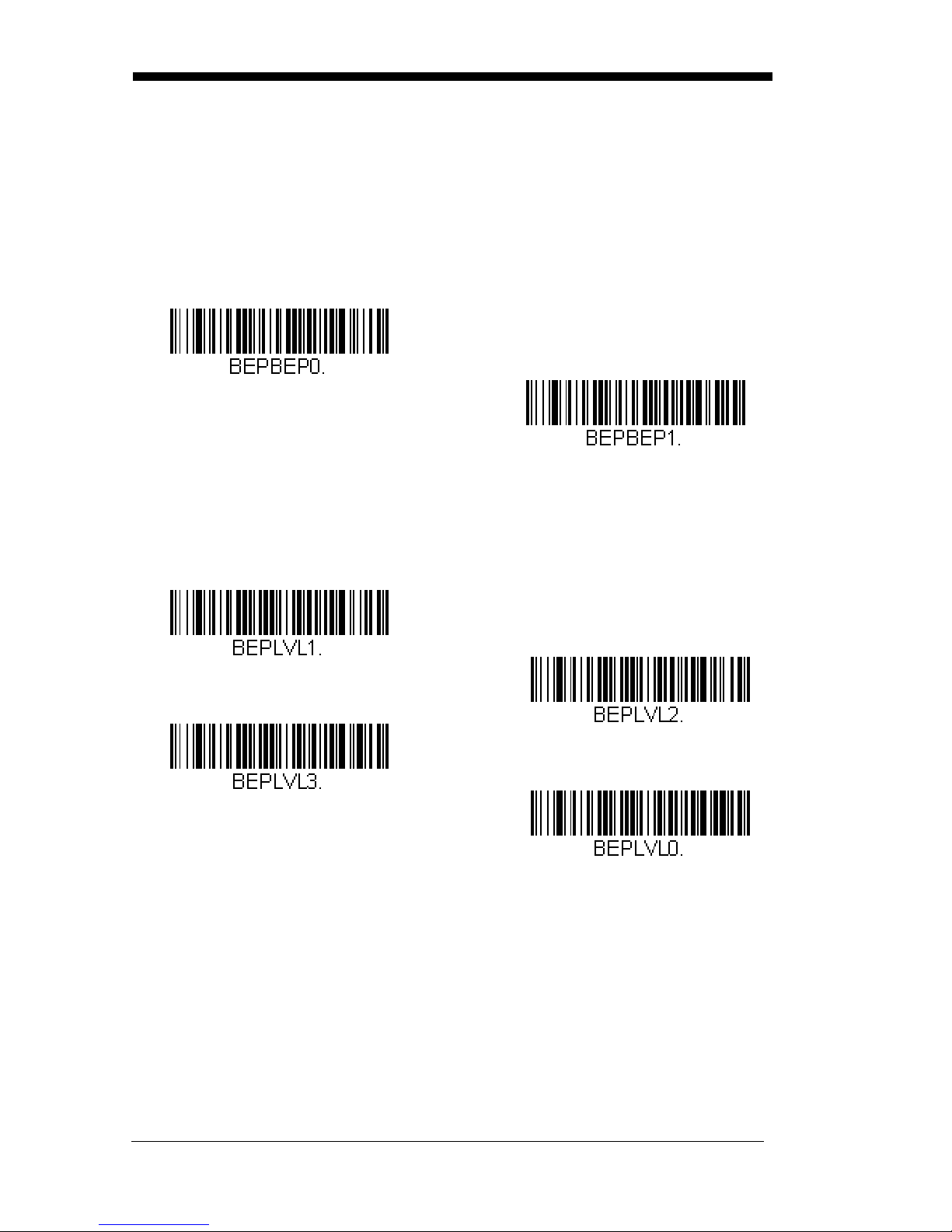

Beeper – Good Read ............................................ 3-2

Beeper Volume – Good Read ............................... 3-2

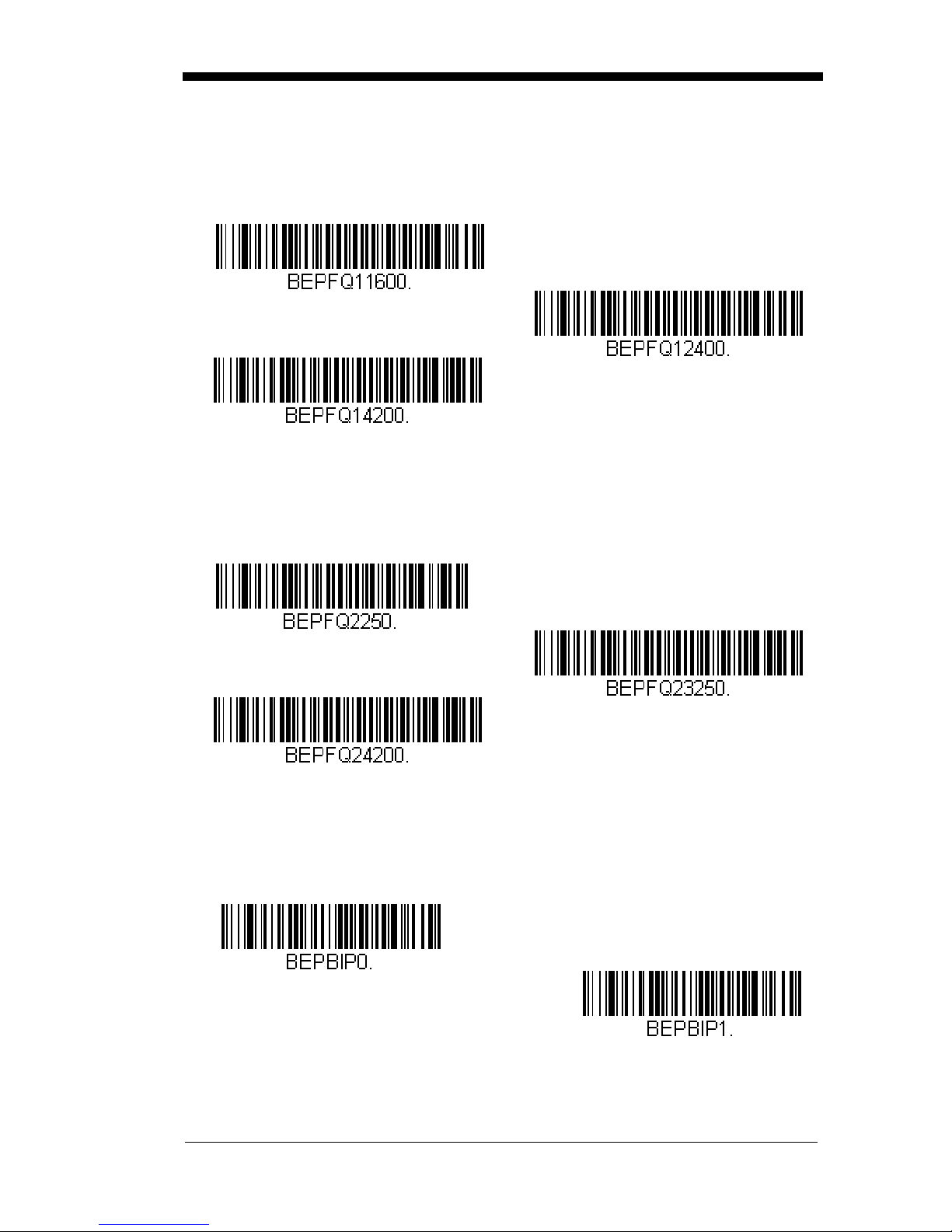

Beeper Pitch – Good Read ................................... 3-3

Table of Contents

Beeper Pitch – Error ..............................................3-3

Beeper Duration – Good Read ..............................3-3

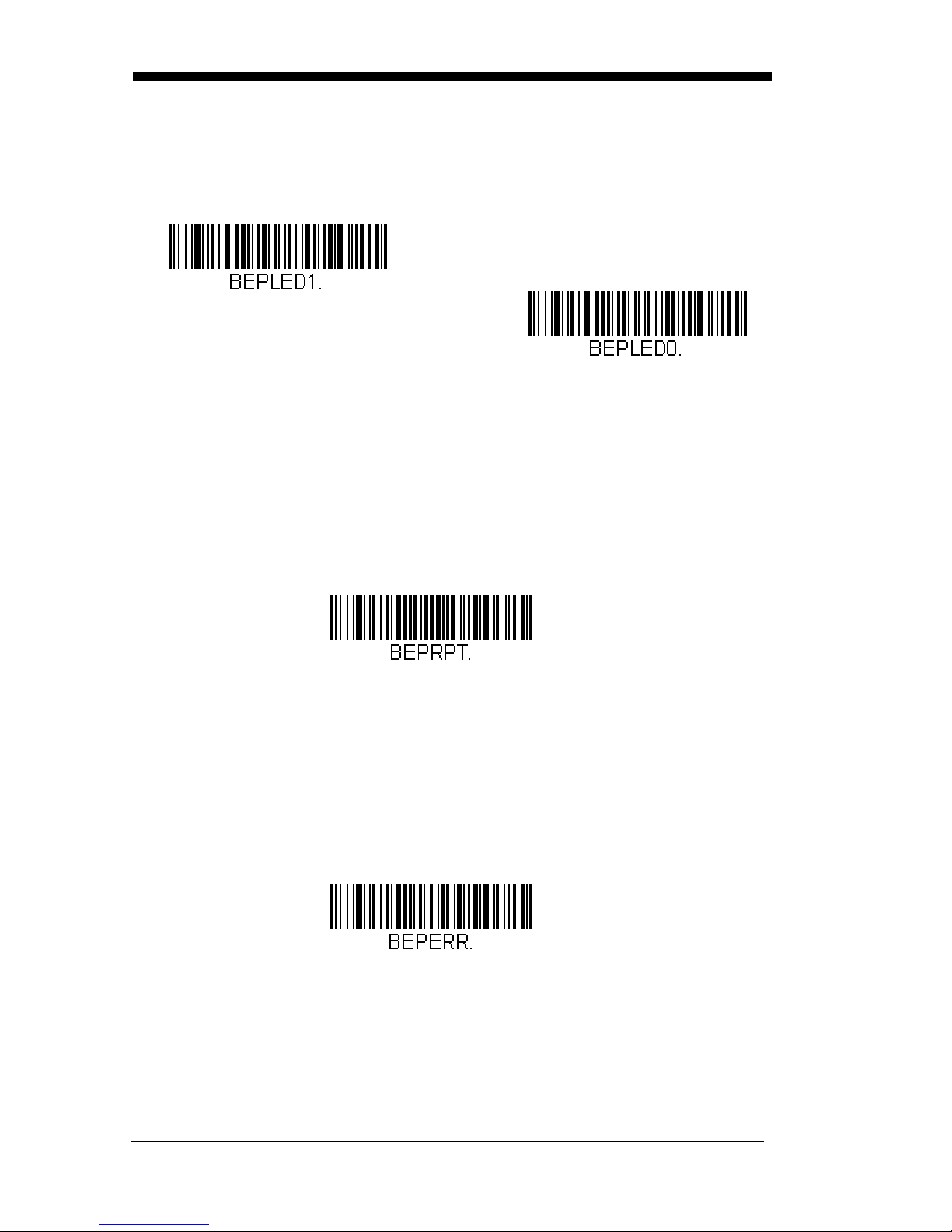

LED – Good Read .................................................3-4

Number of Beeps – Good Read ............................3-4

Number of Beeps – Error.......................................3-4

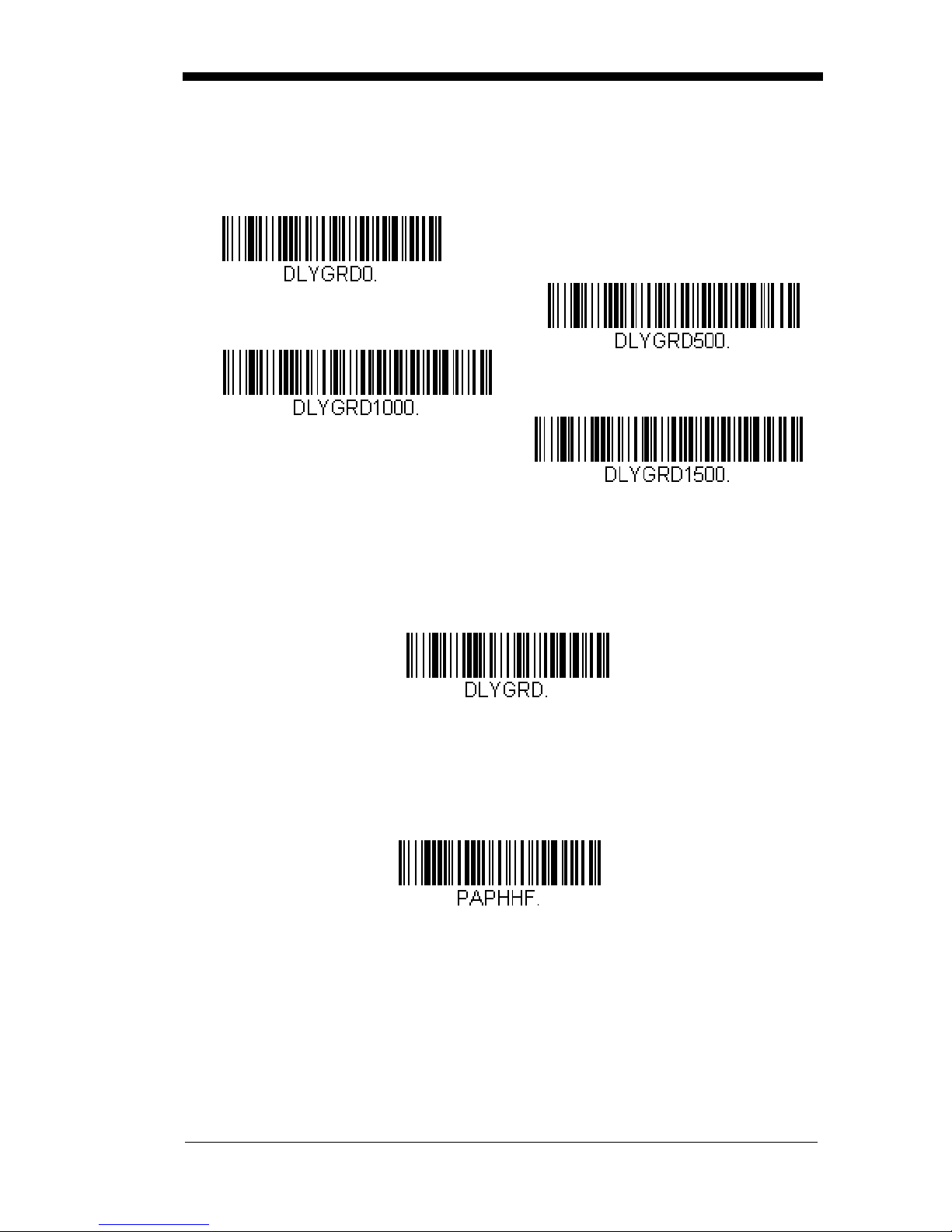

Good Read Delay ..................................................3-5

User-Specified Good Read Delay..........................3-5

Manual Trigger Mode...................................................3-5

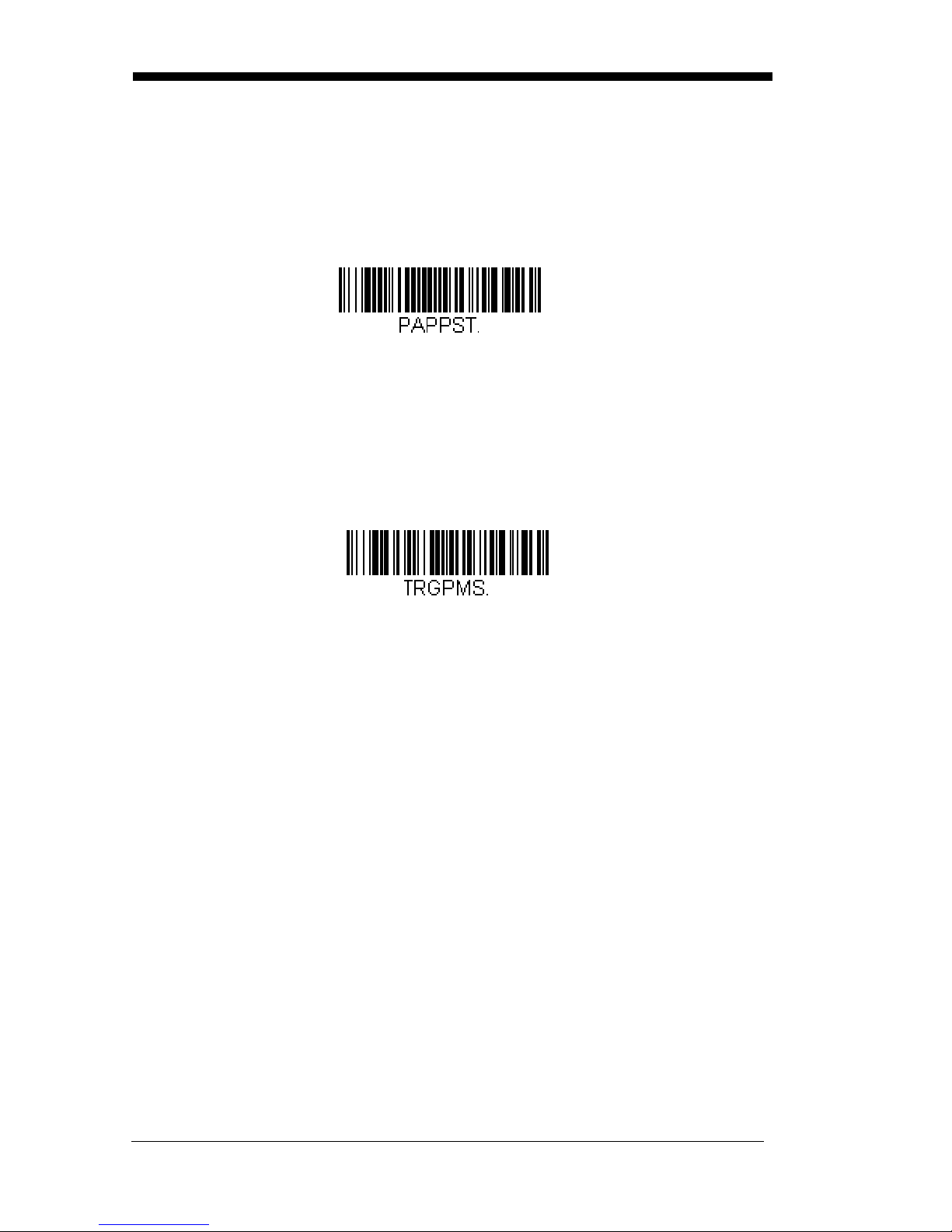

Presentation Mode.......................................................3-6

Presentation Sensitivity .........................................3-6

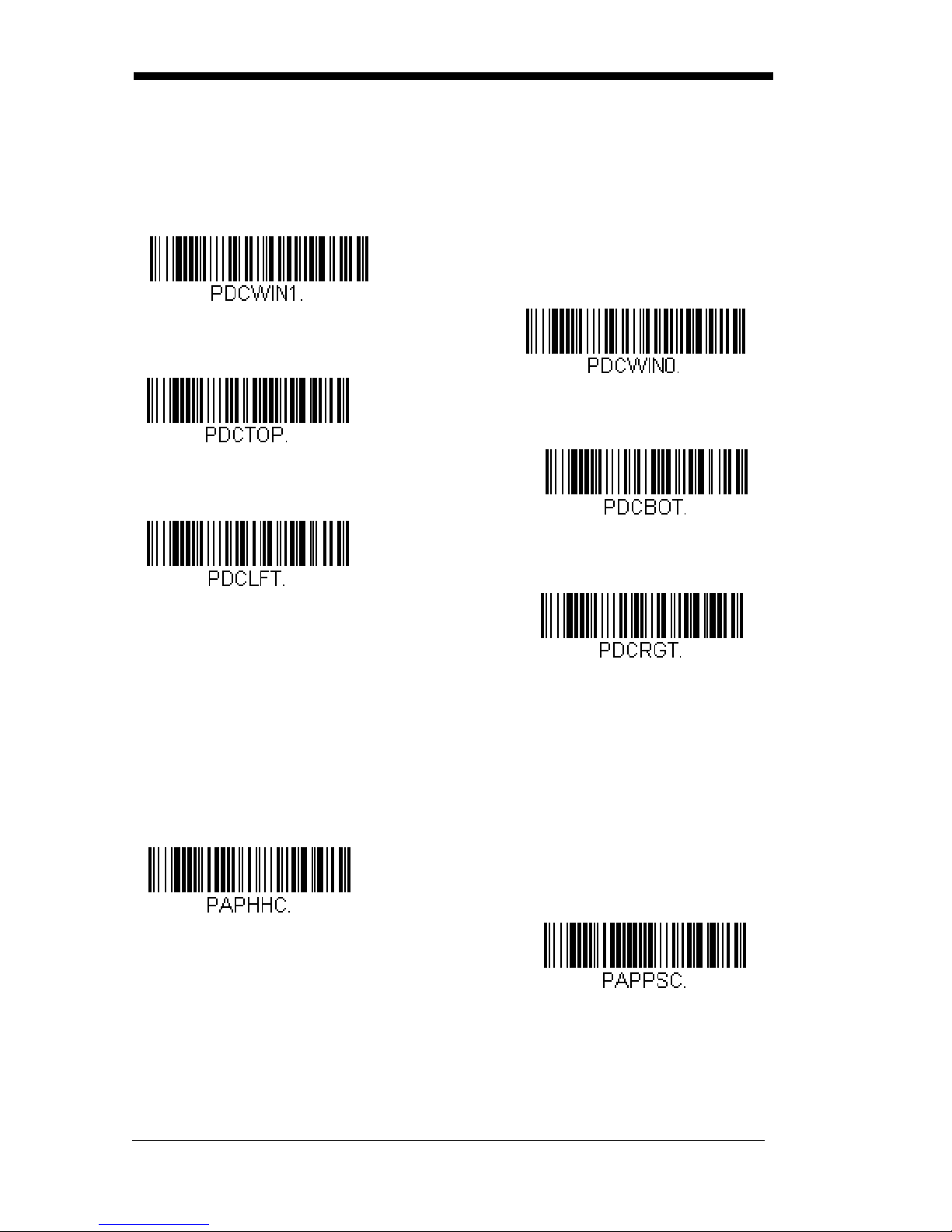

Presentation Centering ..........................................3-6

Mobile Phone Read Mode ...........................................3-8

Hands Free Time-Out..................................................3-9

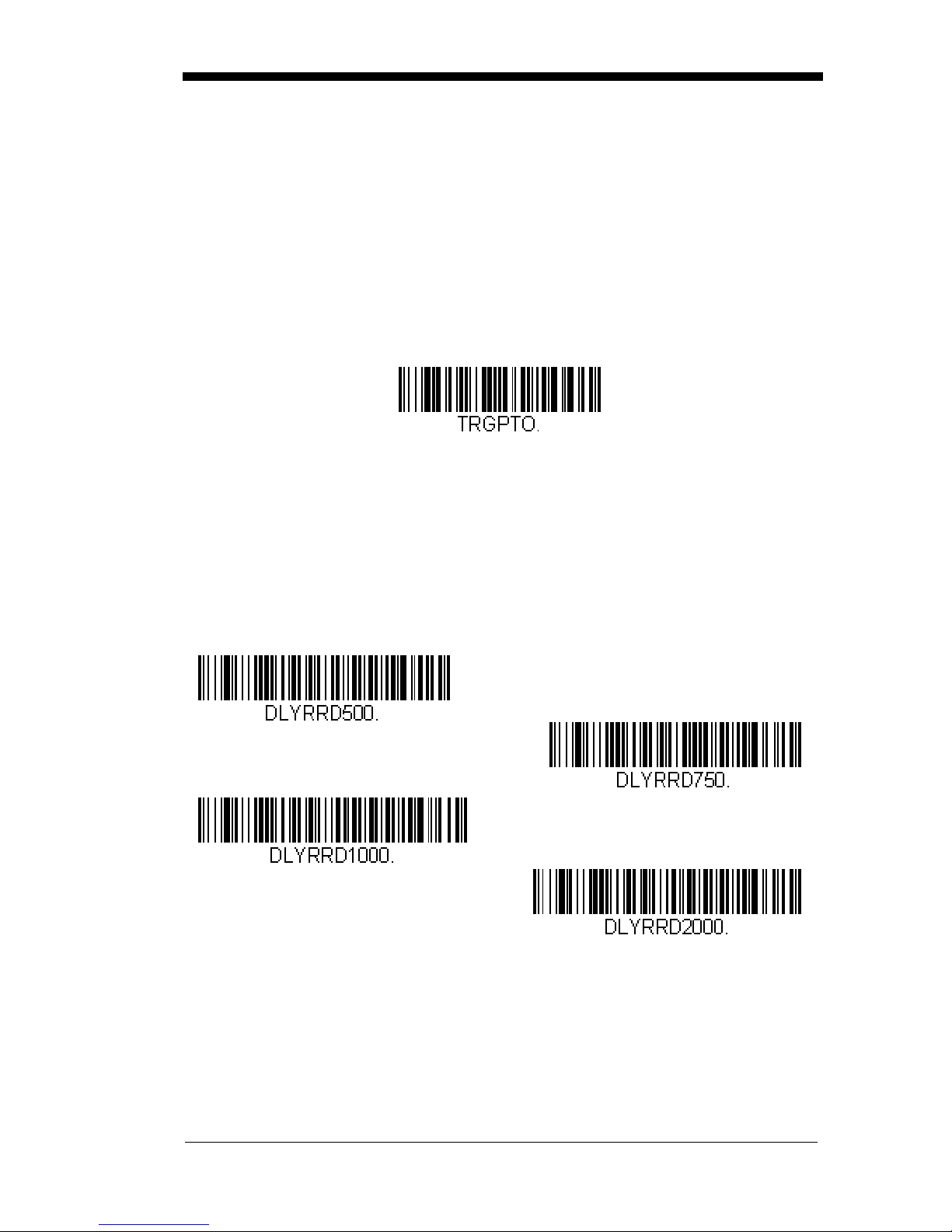

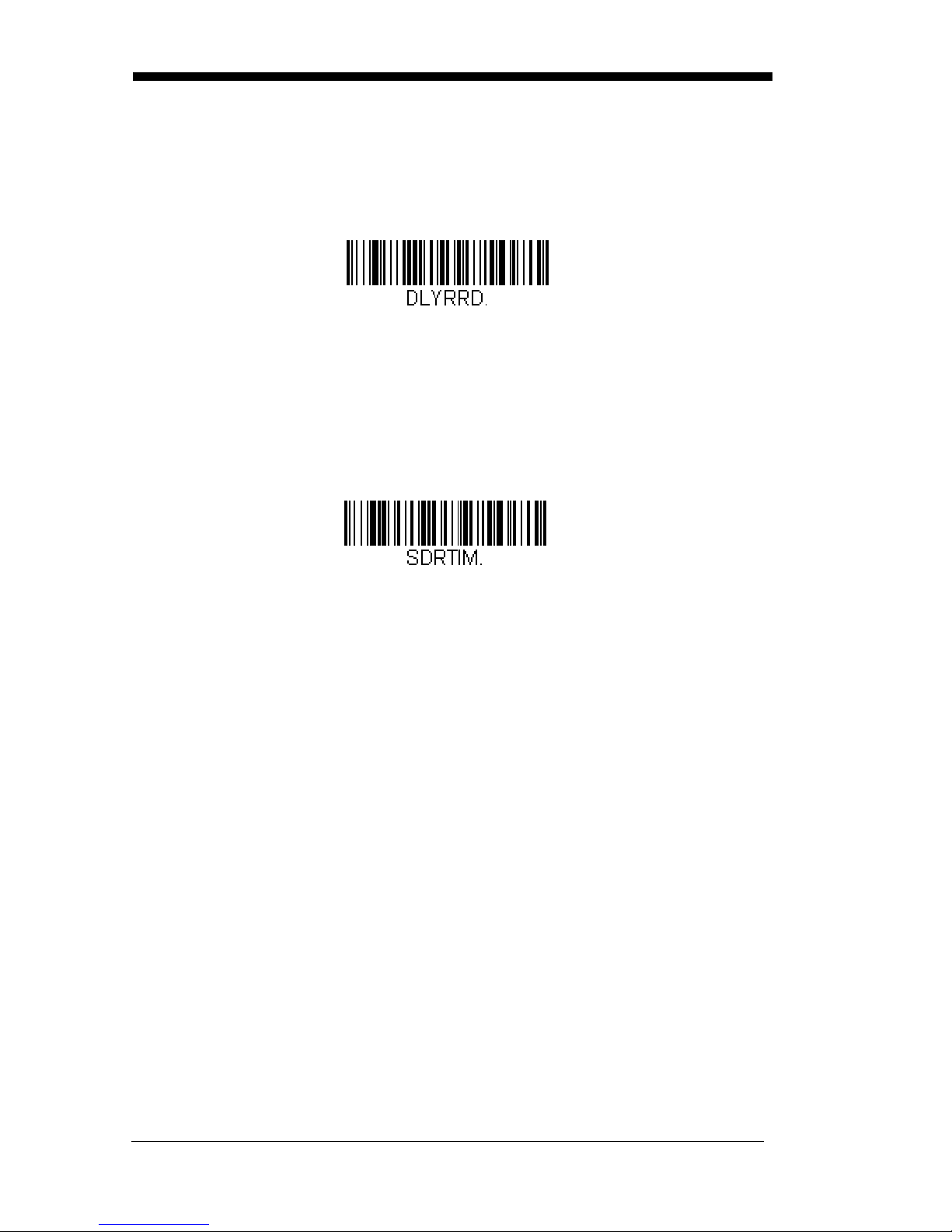

Reread Delay...............................................................3-9

User-Specified Reread Delay ....................................3-10

Scanner Time-Out .....................................................3-10

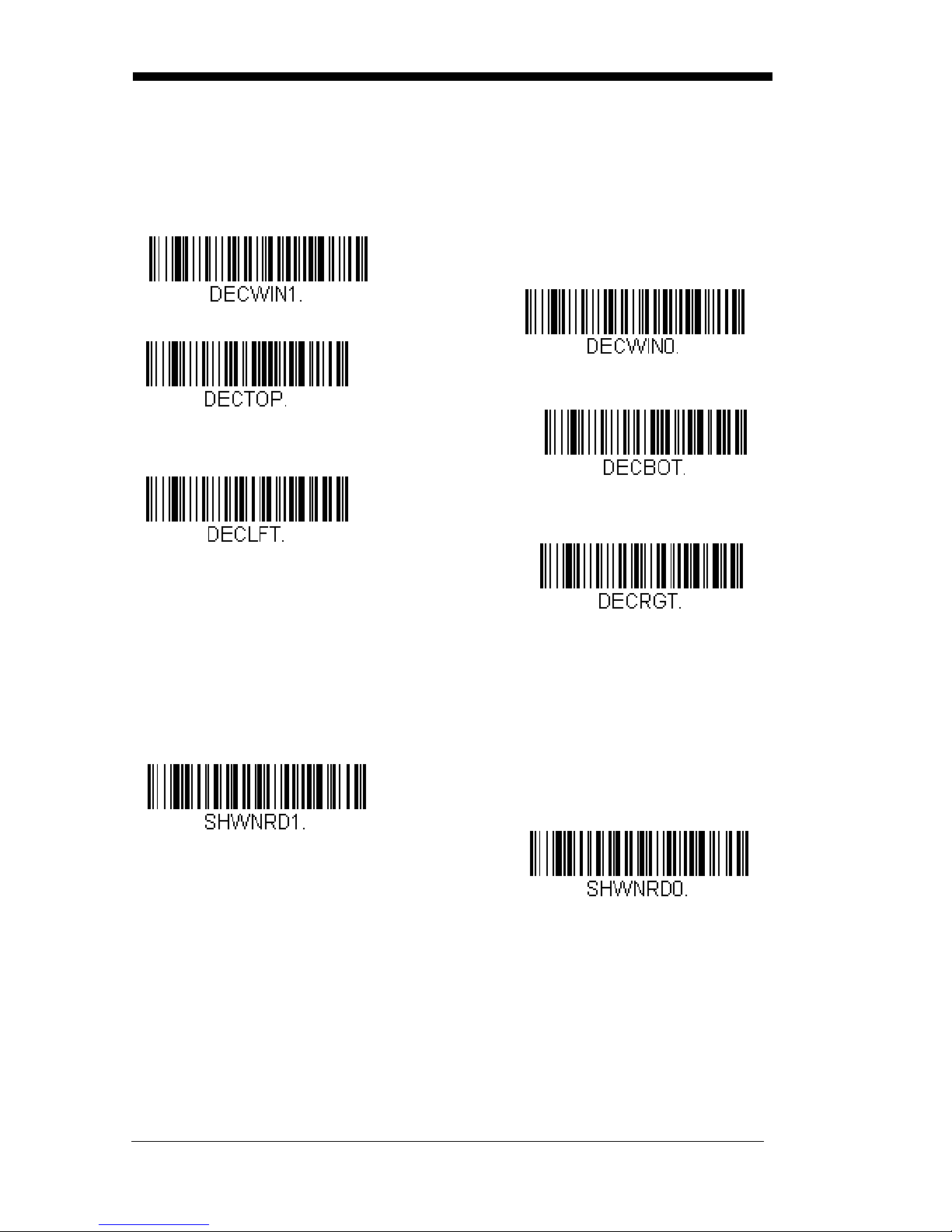

Centering ...................................................................3-10

No Read.....................................................................3-12

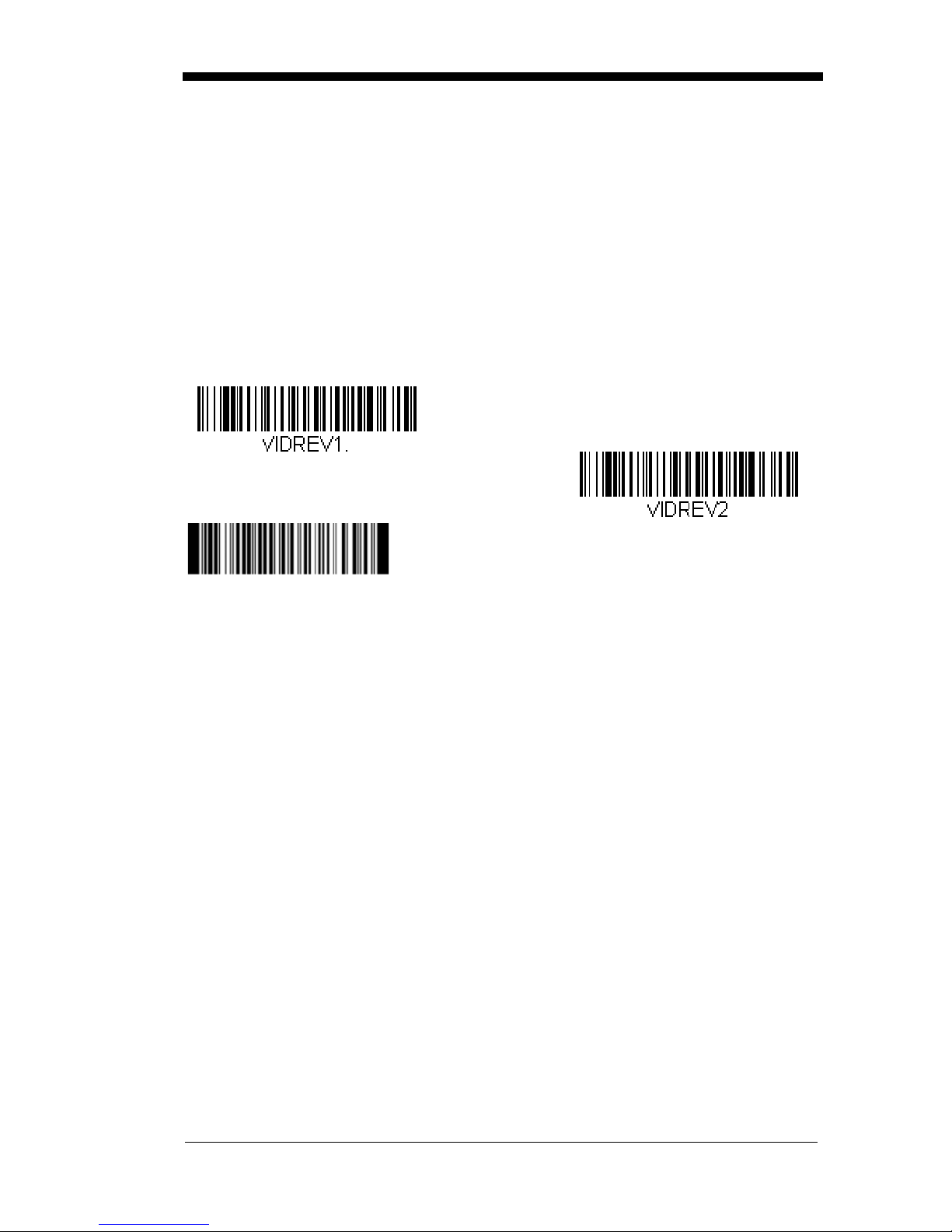

Video Reverse ...........................................................3-13

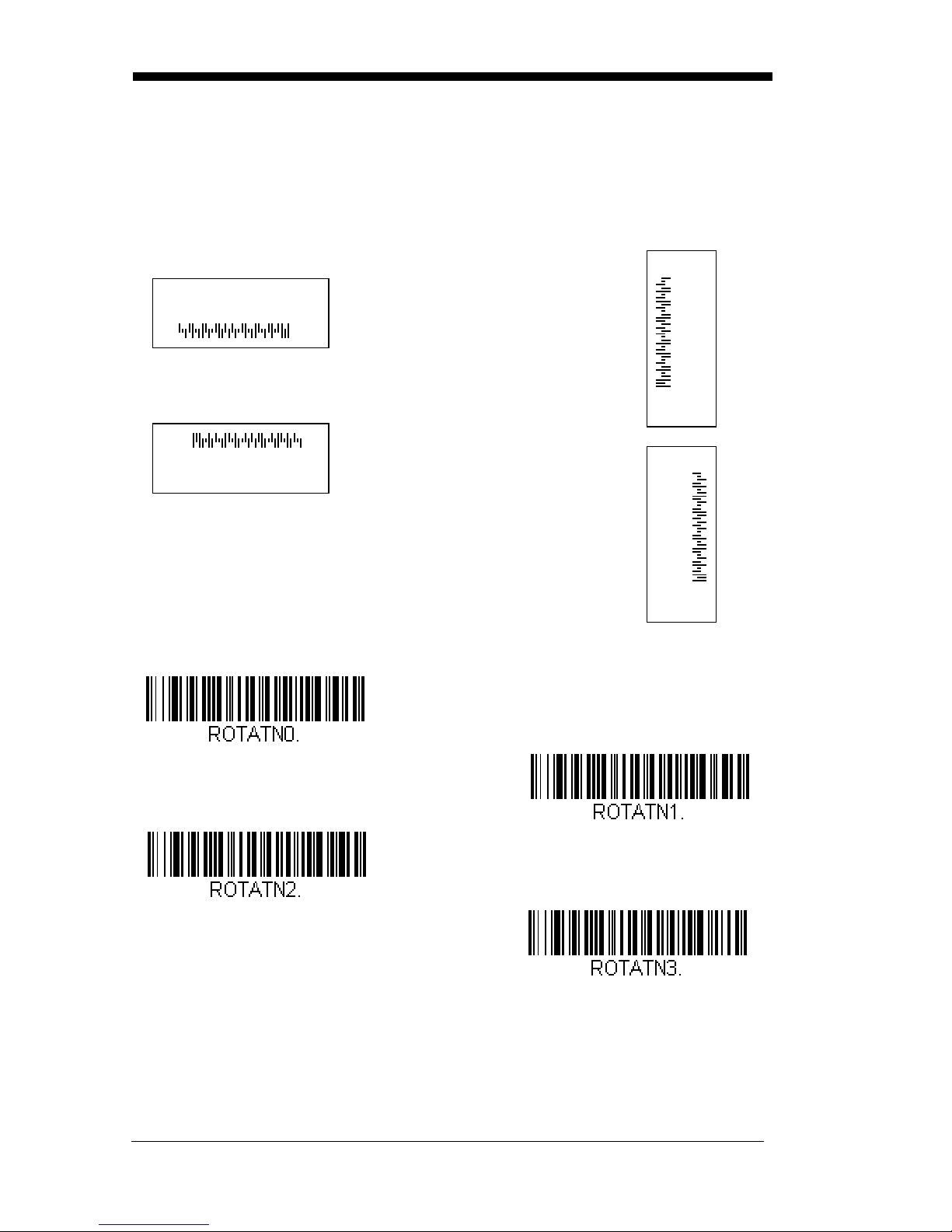

Working Orientation...................................................3-14

Chapter 4 - Data Editing

Prefix/Suffix Overview..................................................4-1

To Add a Prefix or Suffix:.......................................4-1

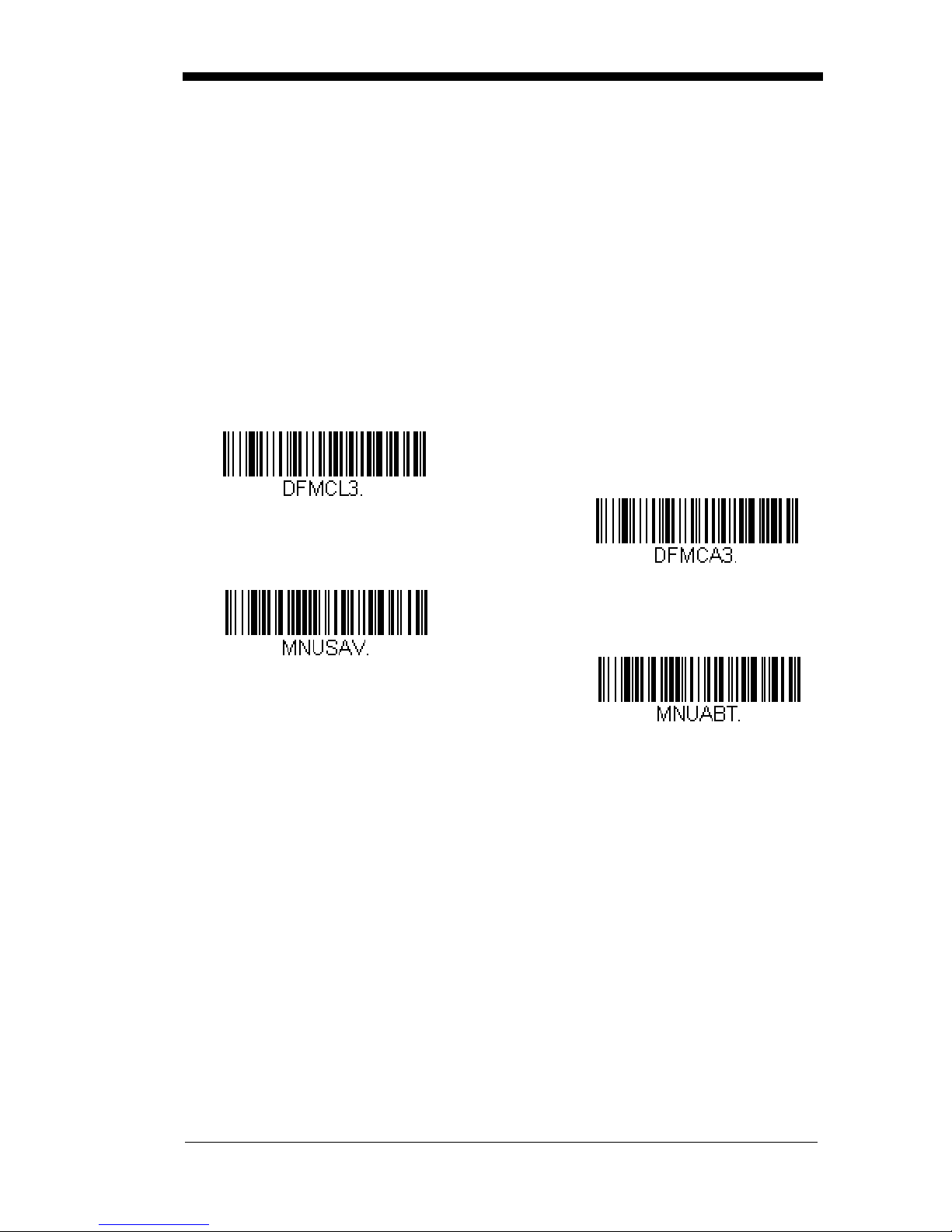

To Clear One or All Prefixes or Suffixes ................4-2

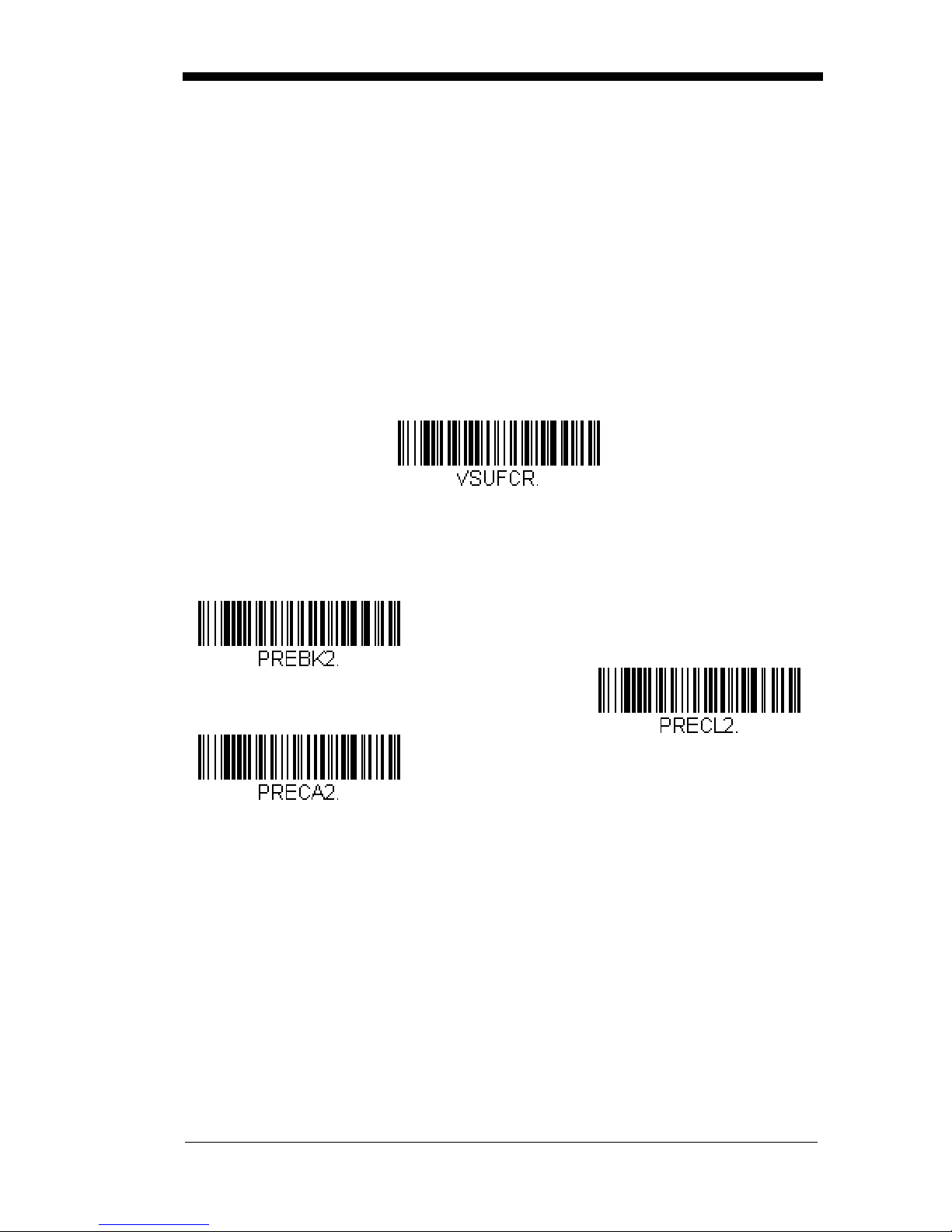

To Add a Carriage Return Suffix

to All Symbologies............................................ 4-3

Prefix Selections..........................................................4-3

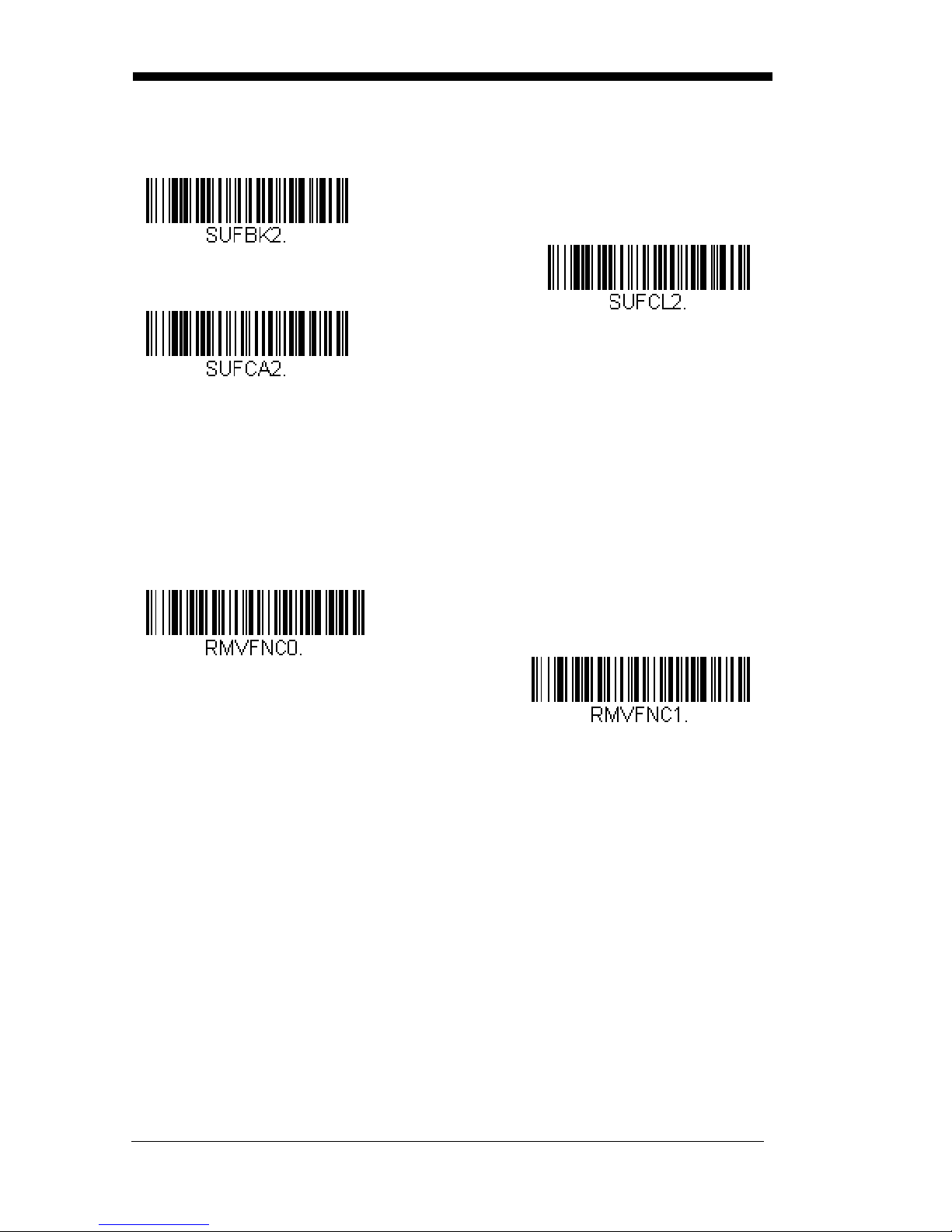

Suffix Selections ..........................................................4-4

Function Code Transmit ..............................................4-4

Intercharacter, Interfunction,

and Intermessage Delays..........................................4-4

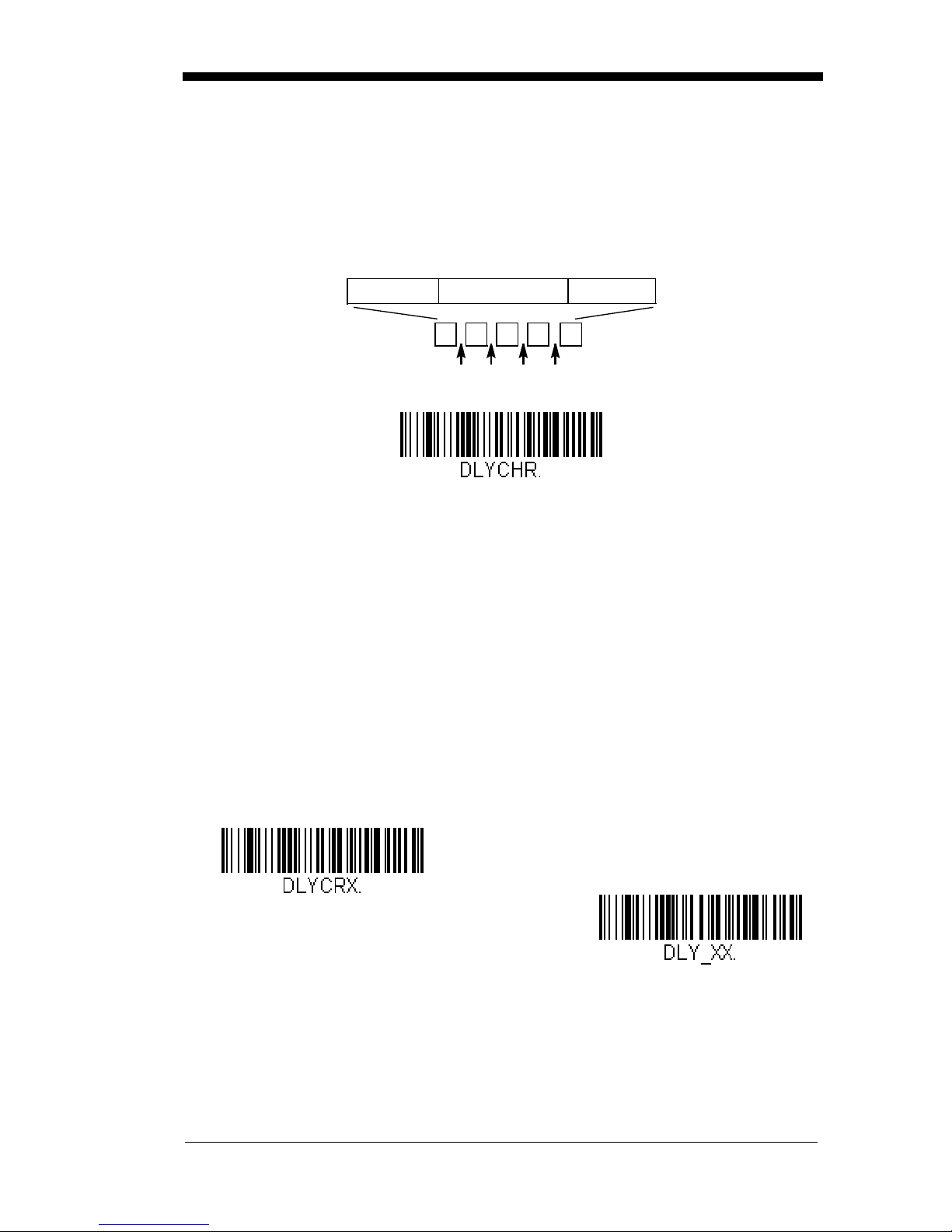

Intercharacter Delay ..............................................4-5

User Specified Intercharacter Delay ......................4-5

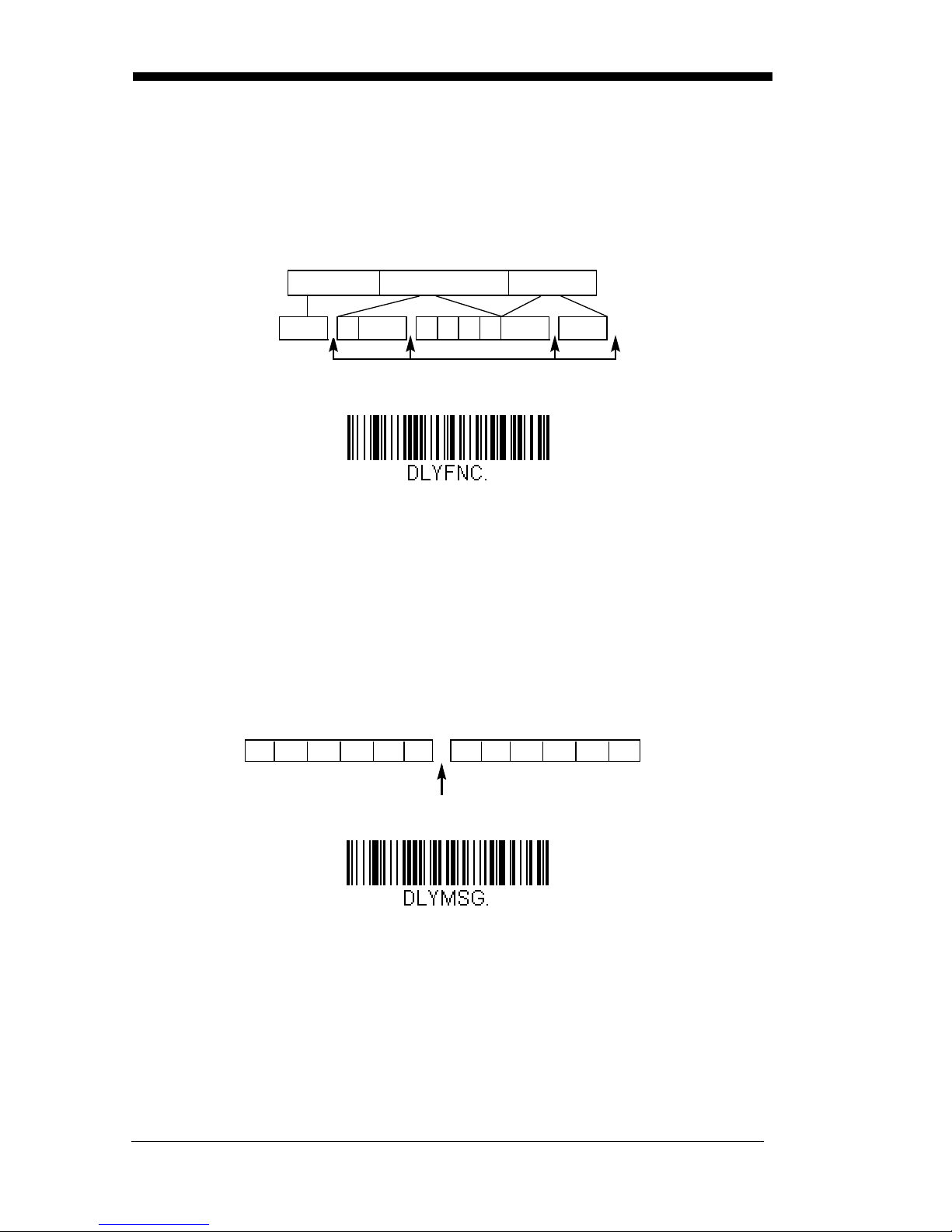

Interfunction Delay.................................................4-6

Intermessage Delay...............................................4-6

ii

Chapter 5 - Data Formatting

Data Format Editor Introduction .................................. 5-1

Add a Data Format...................................................... 5-1

Other Programming Selections ............................. 5-3

Terminal ID Table........................................................ 5-4

Data Format Editor Commands .................................. 5-4

Move Commands .................................................. 5-5

Search Commands................................................ 5-5

Miscellaneous Commands .................................... 5-6

Data Formatter ............................................................ 5-7

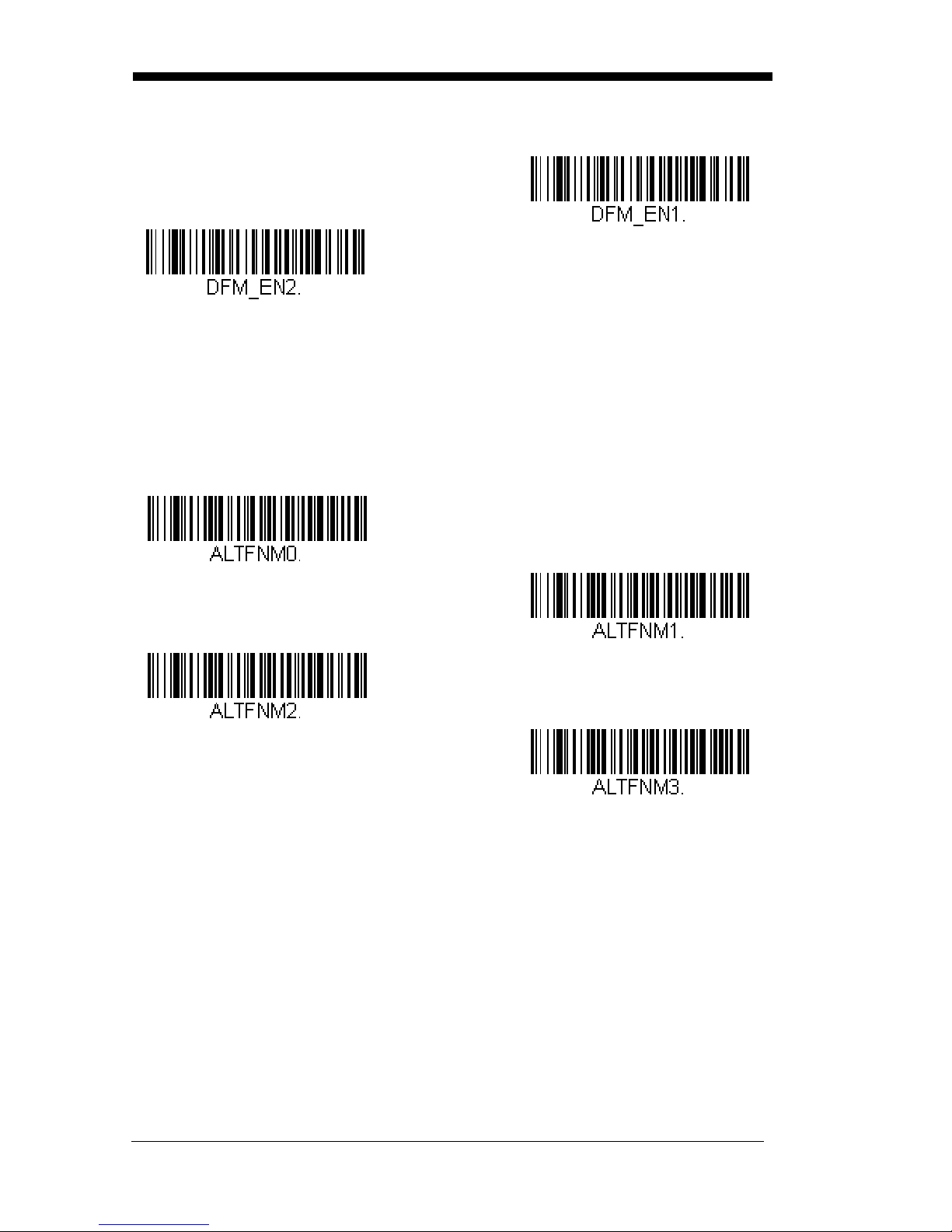

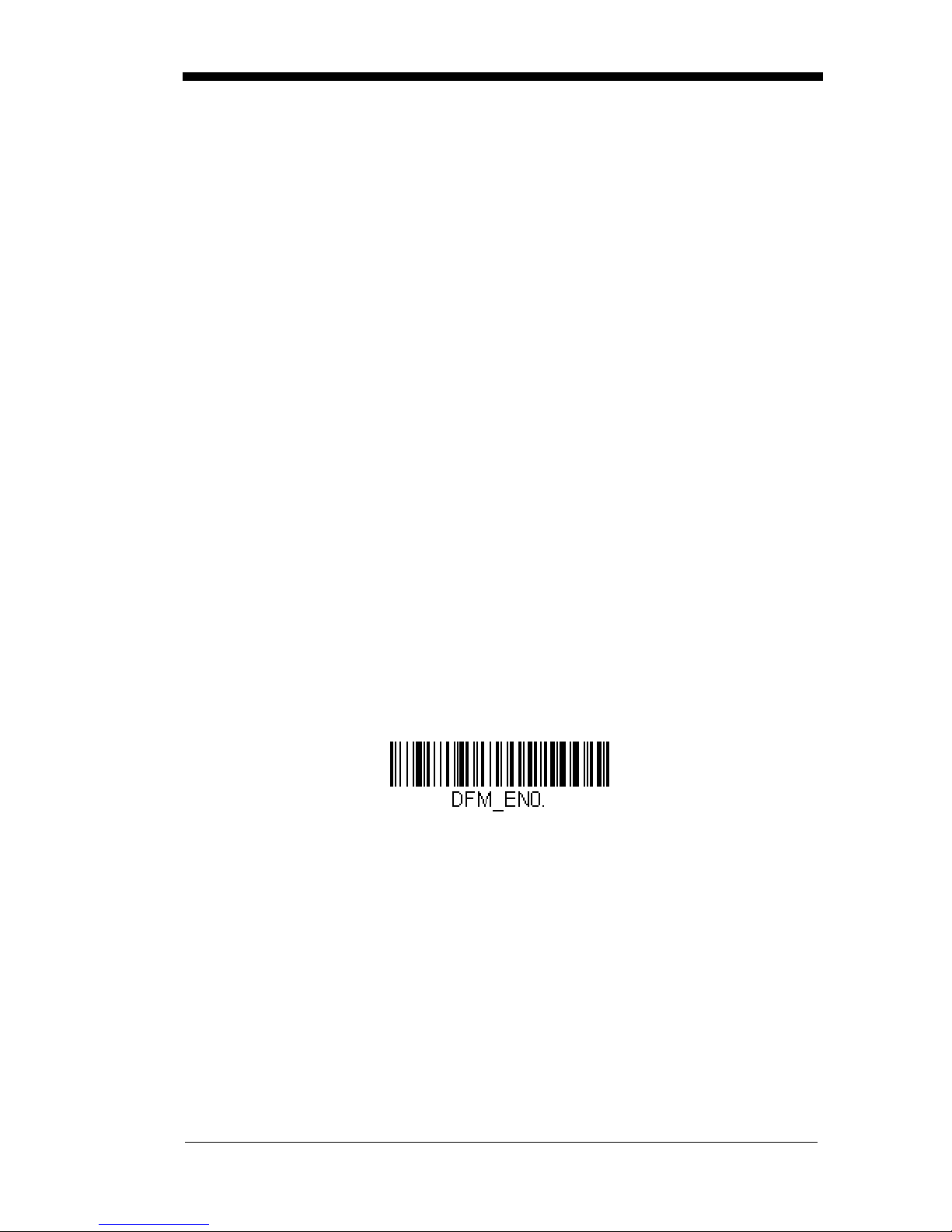

Primary/Alternate Data Formats.................................. 5-8

Chapter 6 - Symbologies

All Symbologies........................................................... 6-2

Message Length Description....................................... 6-2

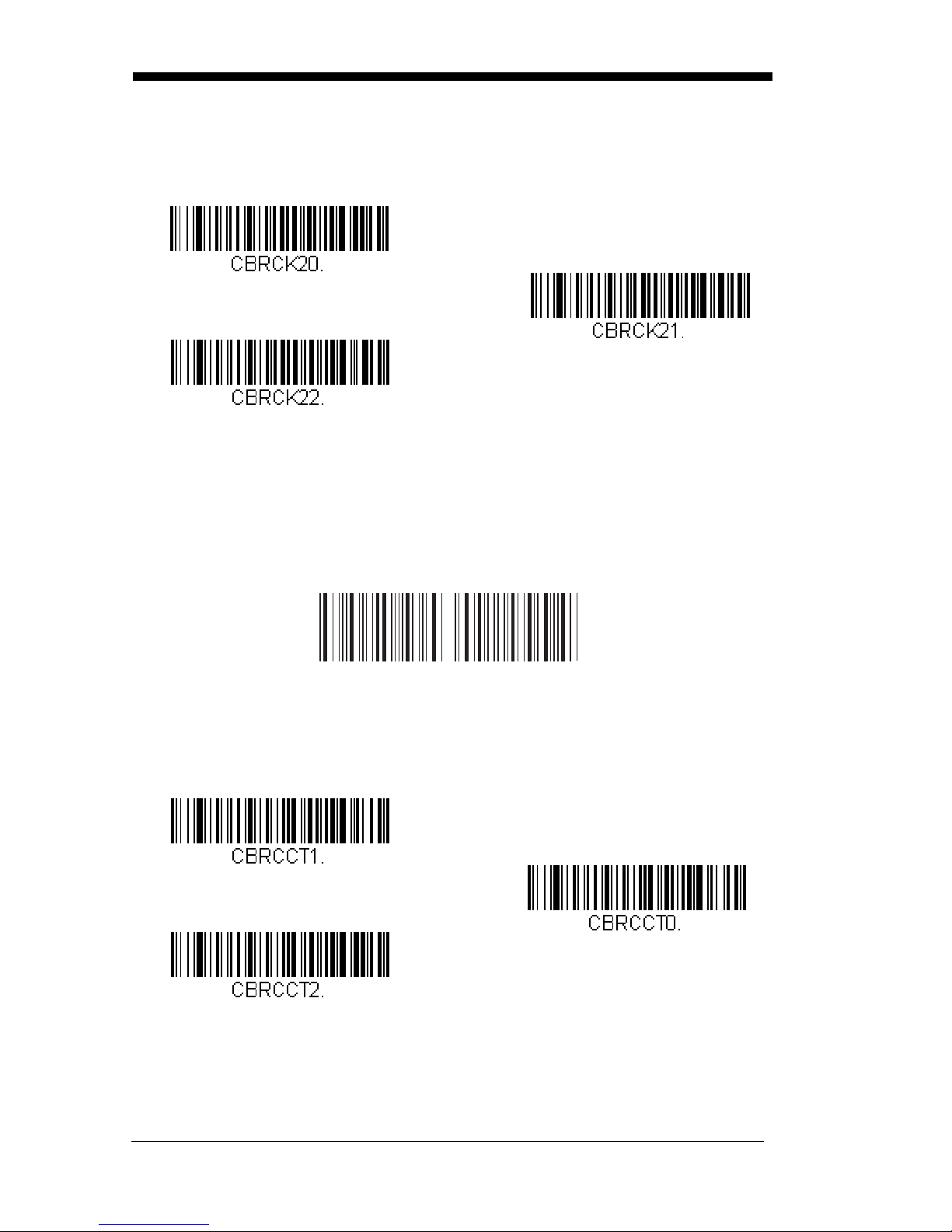

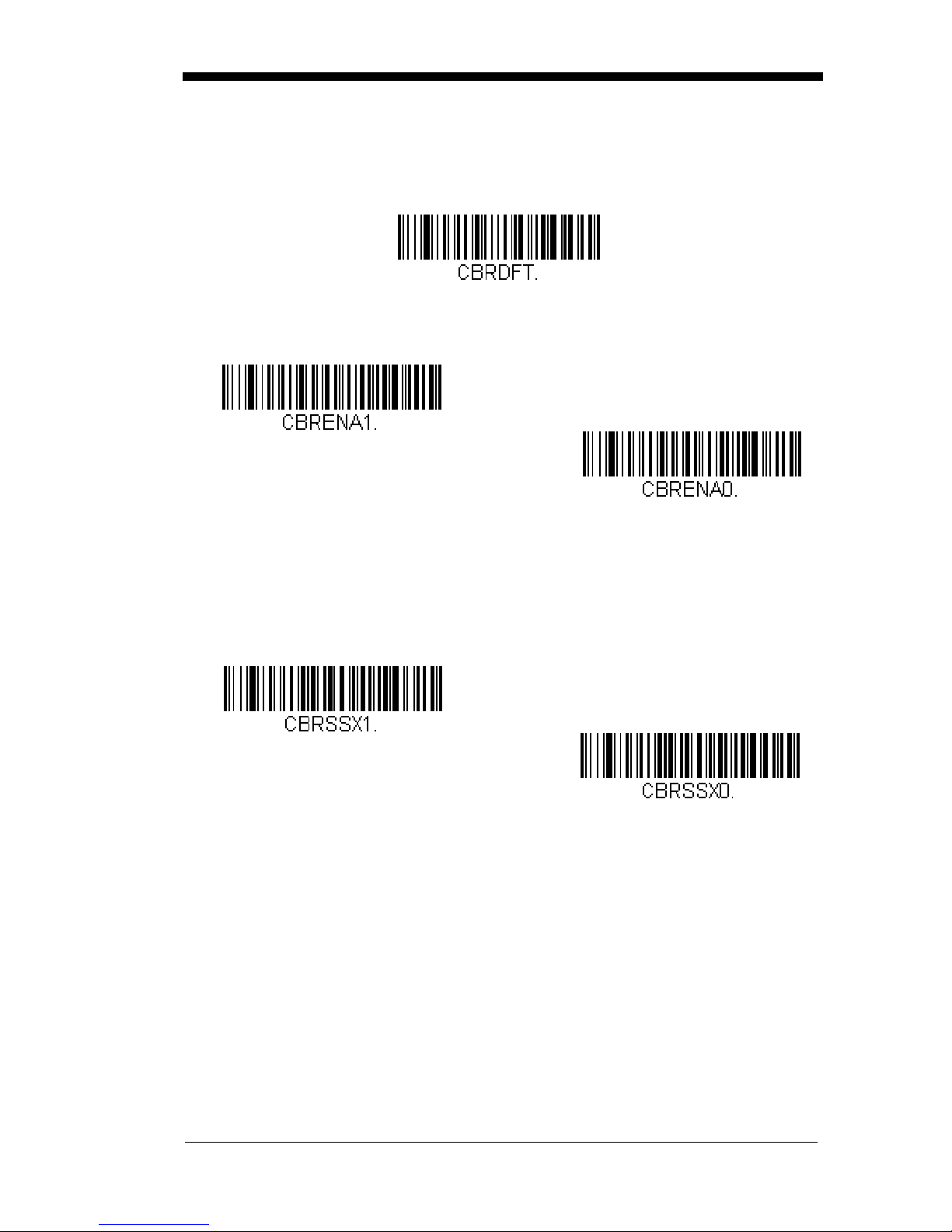

Codabar ...................................................................... 6-3

Codabar Concatenation ........................................ 6-4

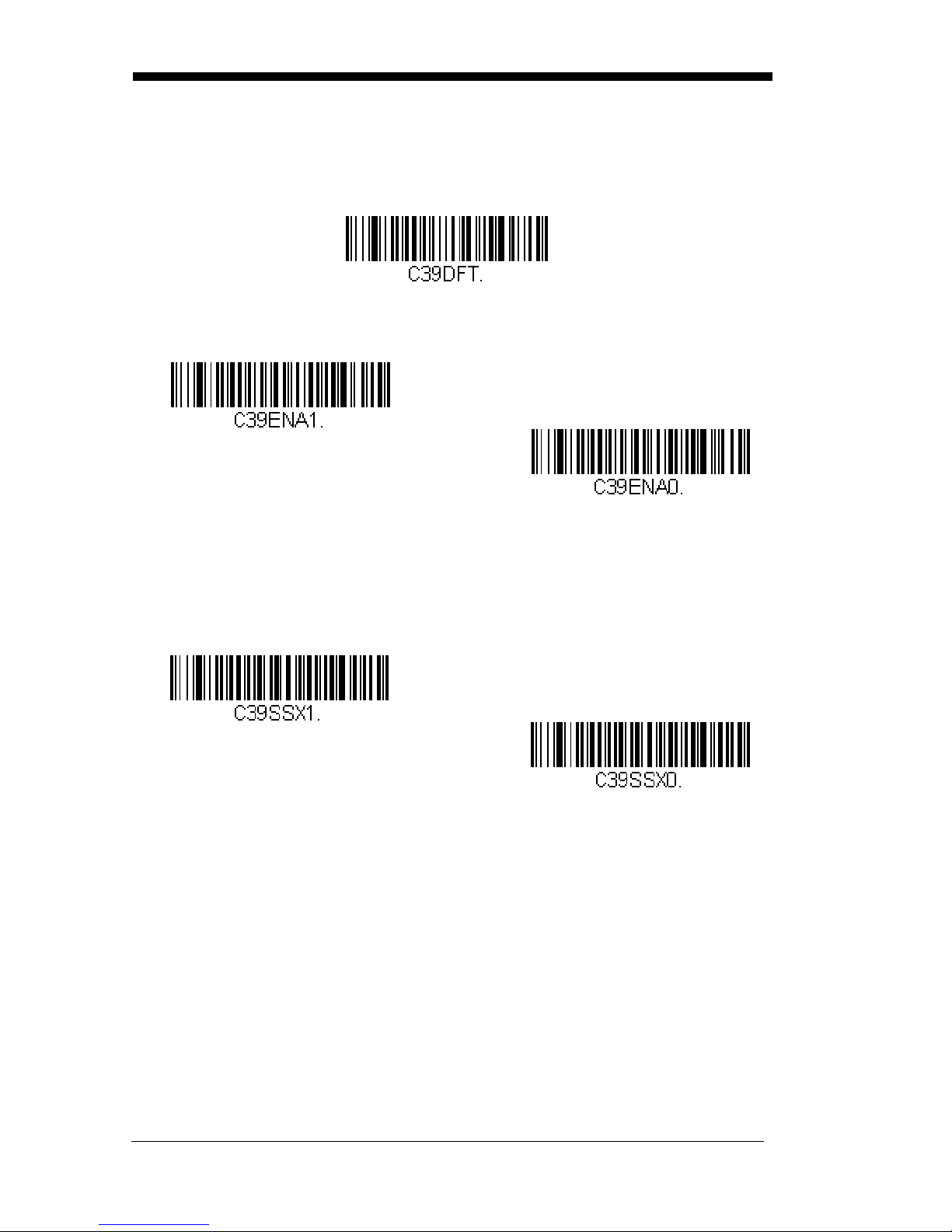

Code 39....................................................................... 6-6

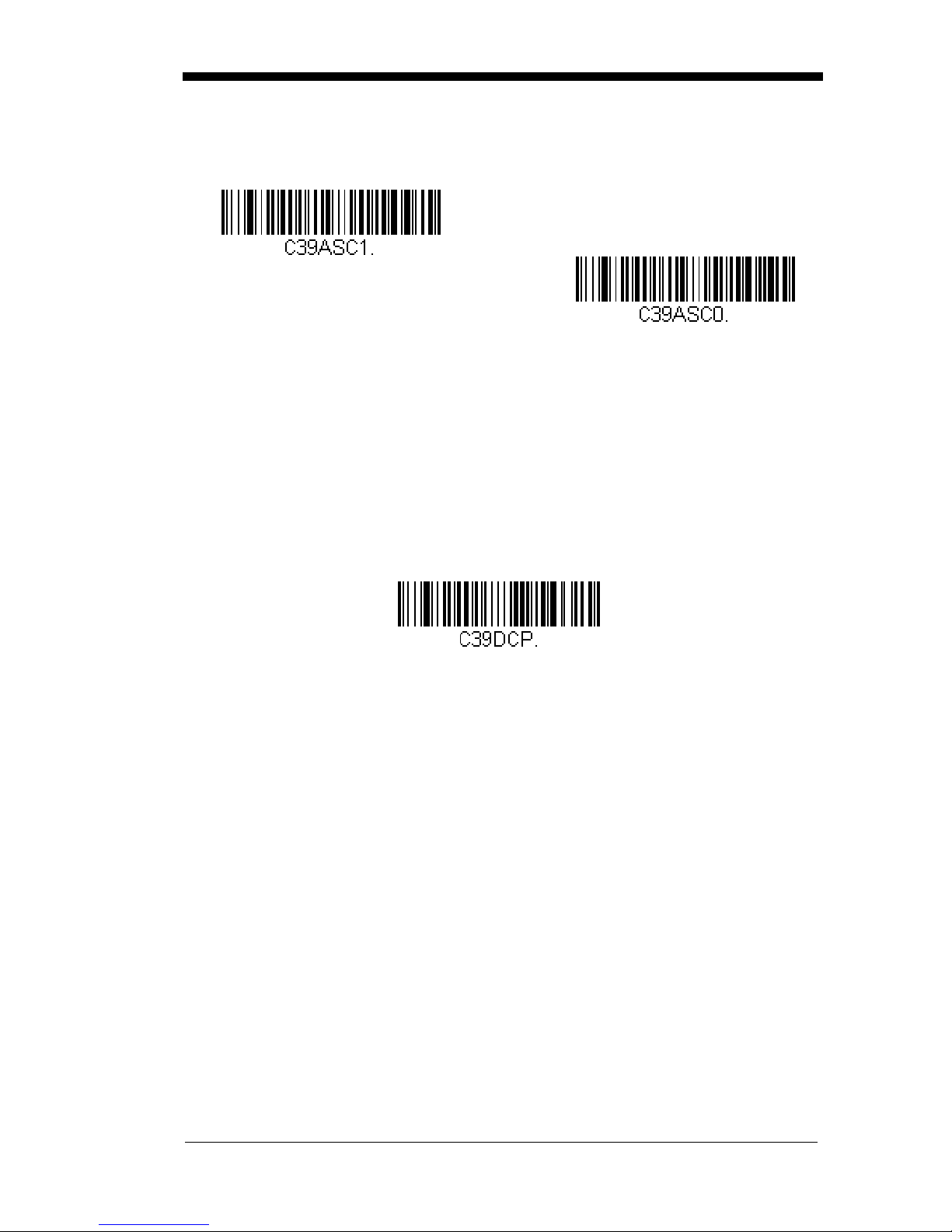

Full ASCII .............................................................. 6-8

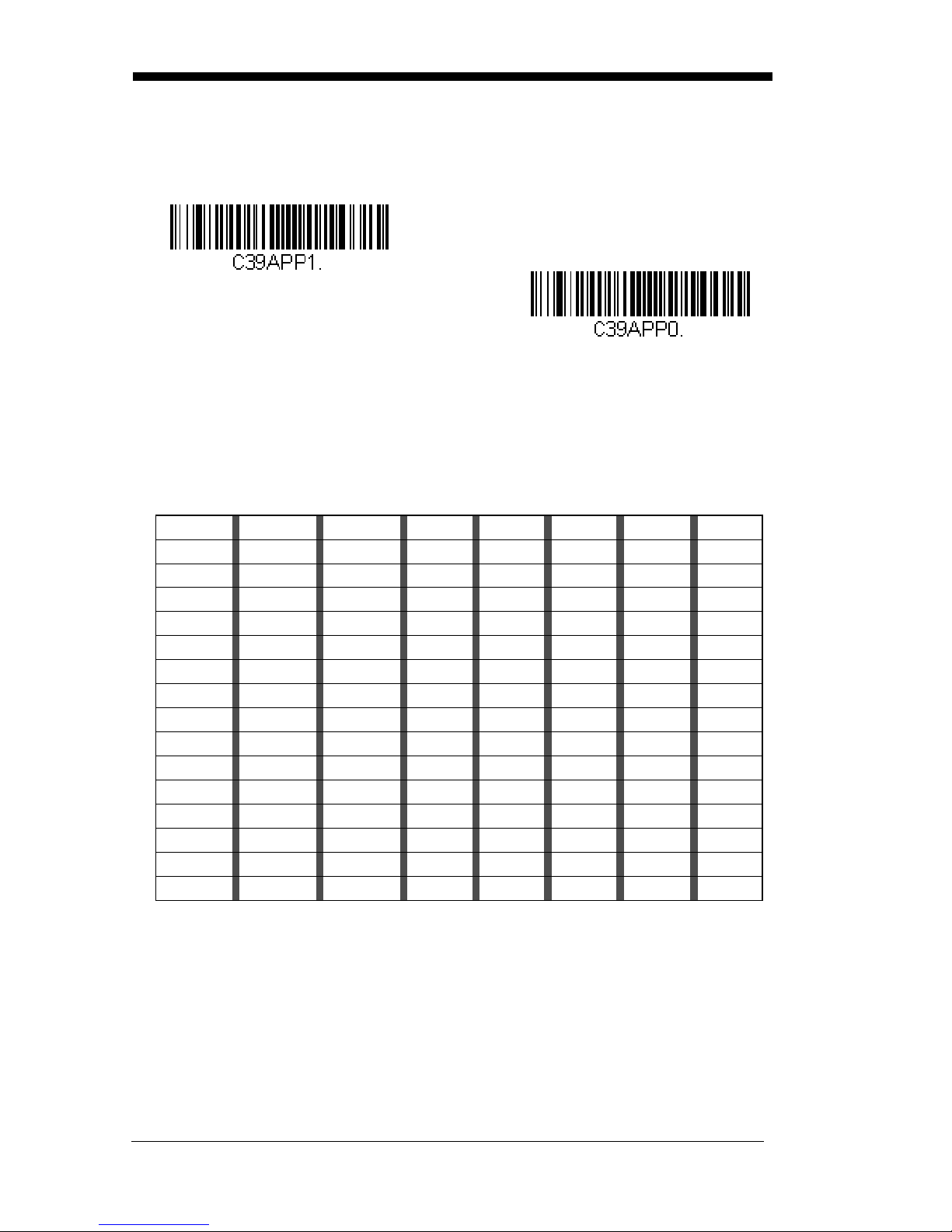

Code 39 Code Page.............................................. 6-9

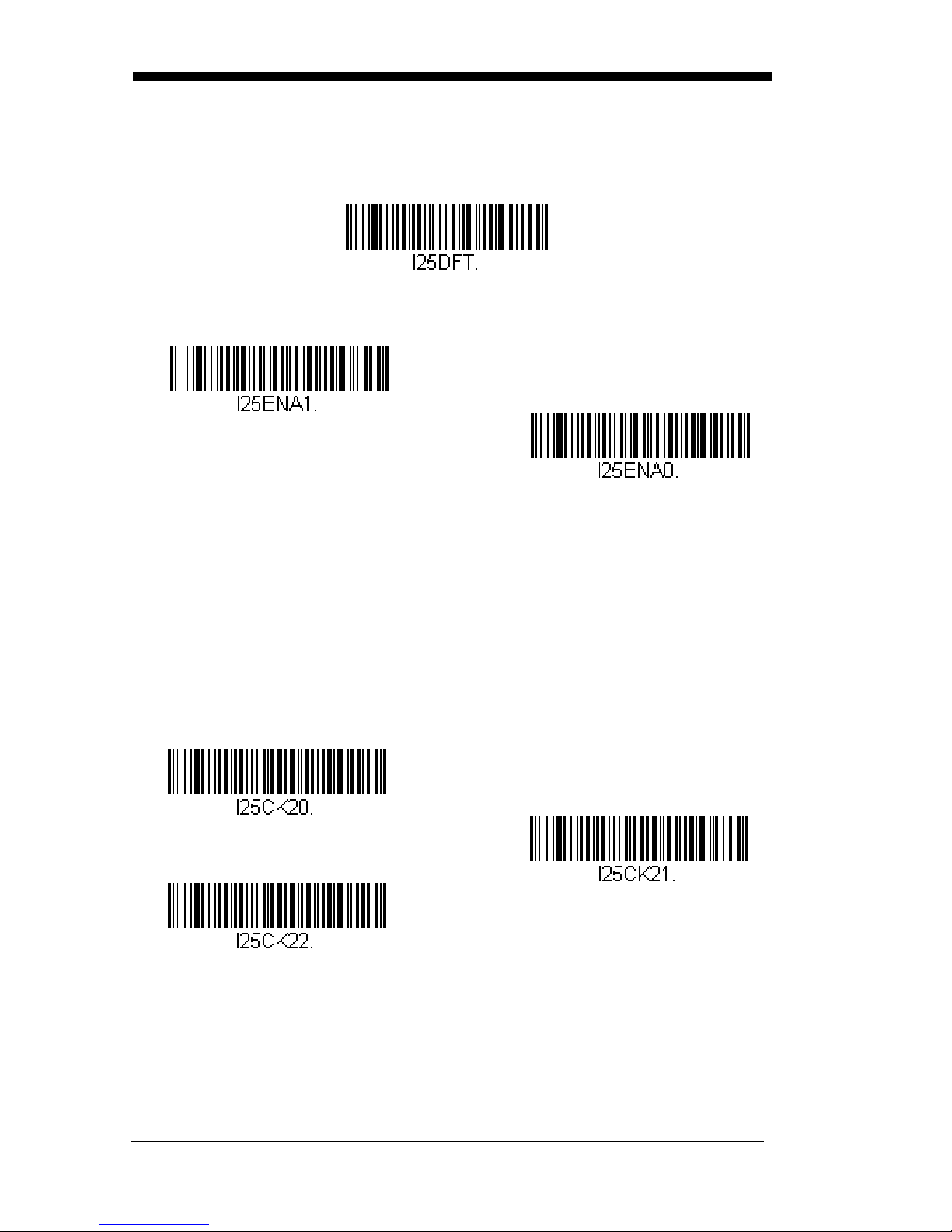

Interleaved 2 of 5 ...................................................... 6-10

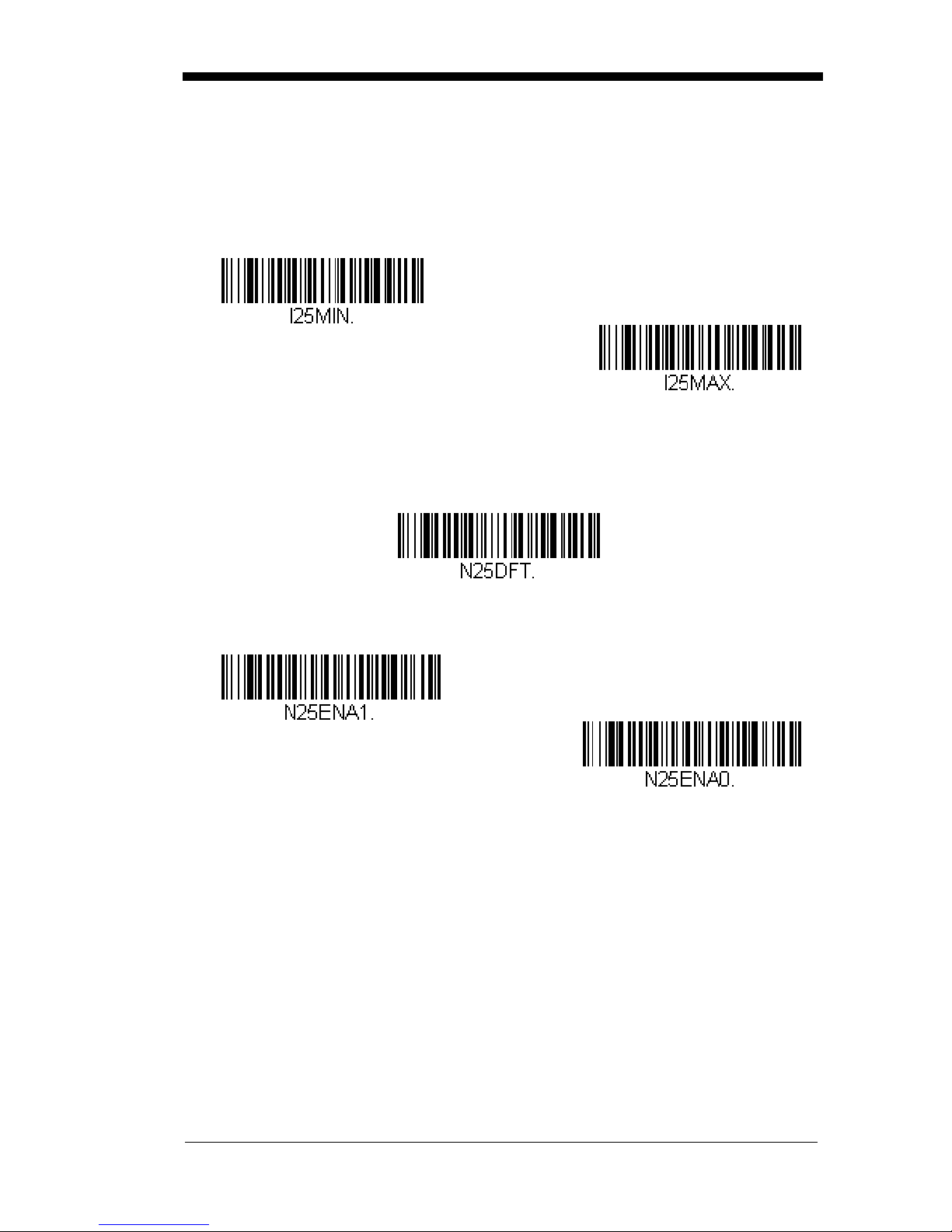

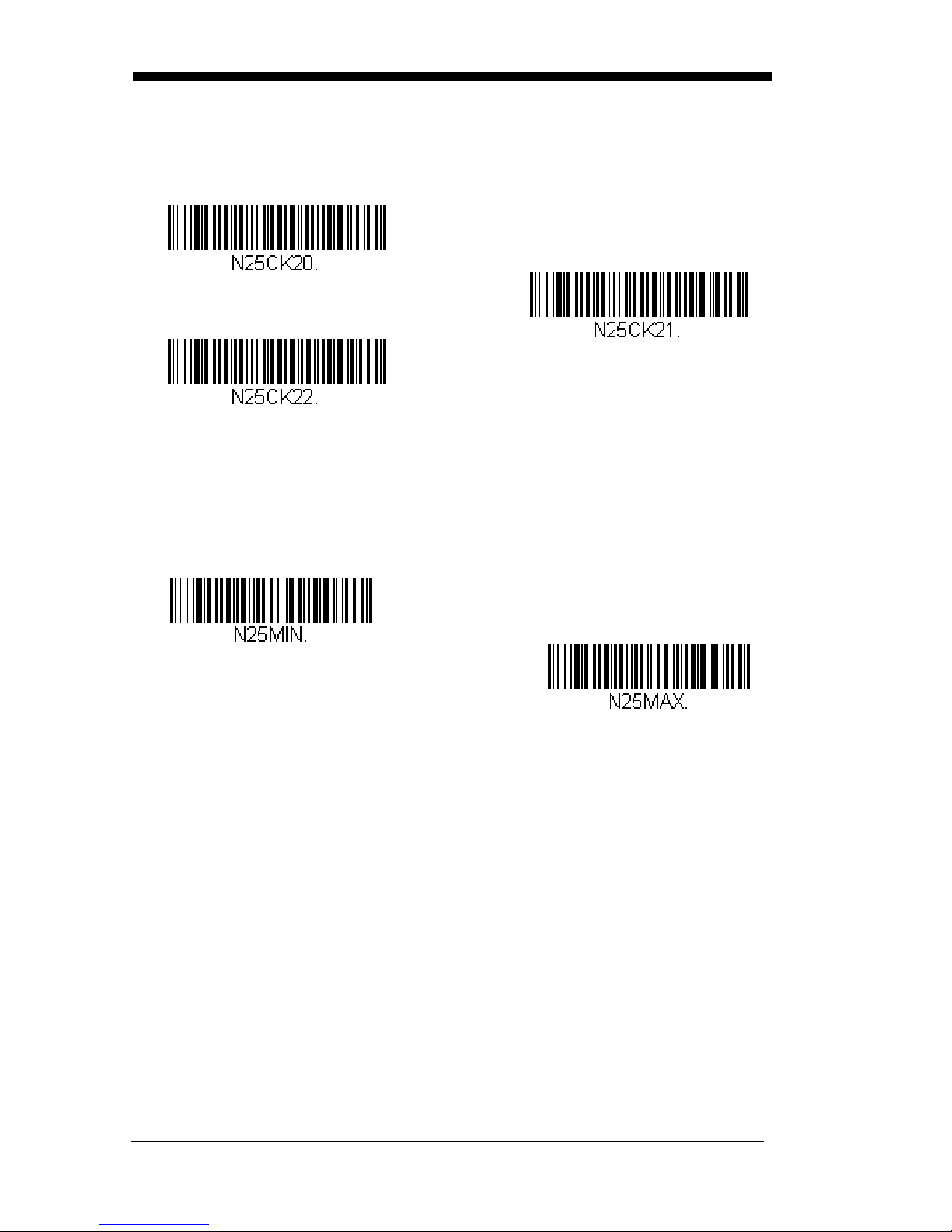

NEC 2 of 5................................................................. 6-11

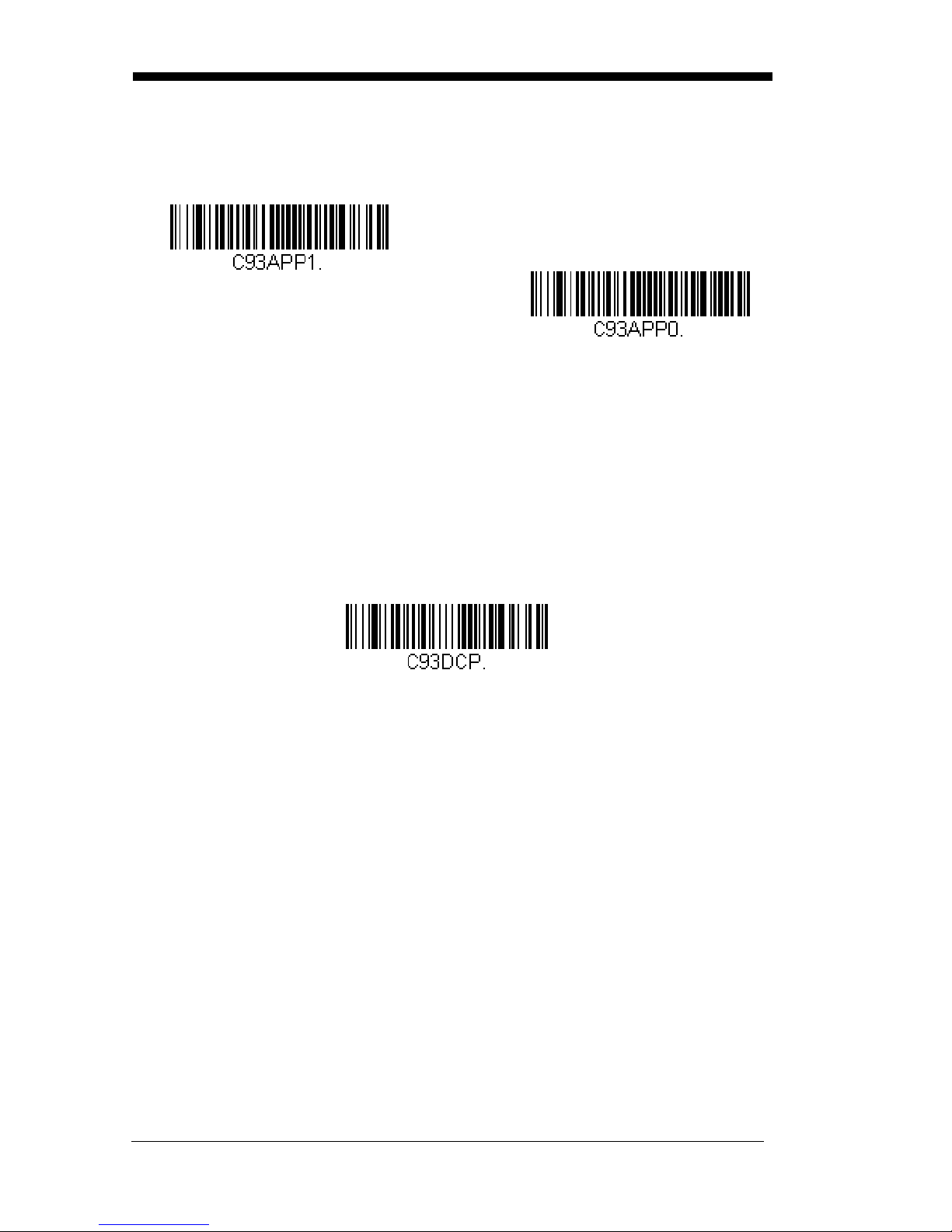

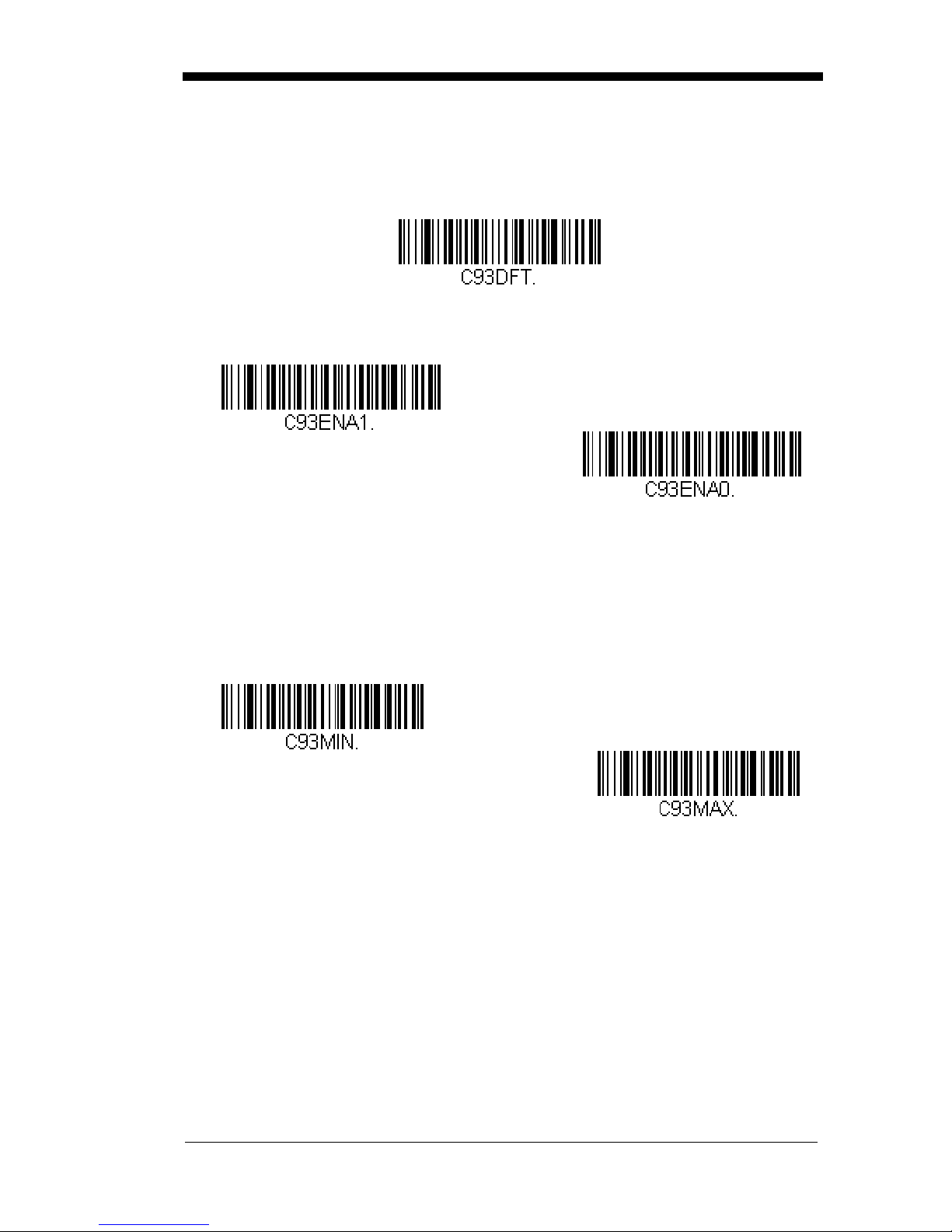

Code 93..................................................................... 6-13

Code 93 Code Page............................................ 6-14

Straight 2 of 5 Industrial (three-bar start/stop) .......... 6-15

Straight 2 of 5 IATA (two-bar start/stop).................... 6-16

Matrix 2 of 5 .............................................................. 6-17

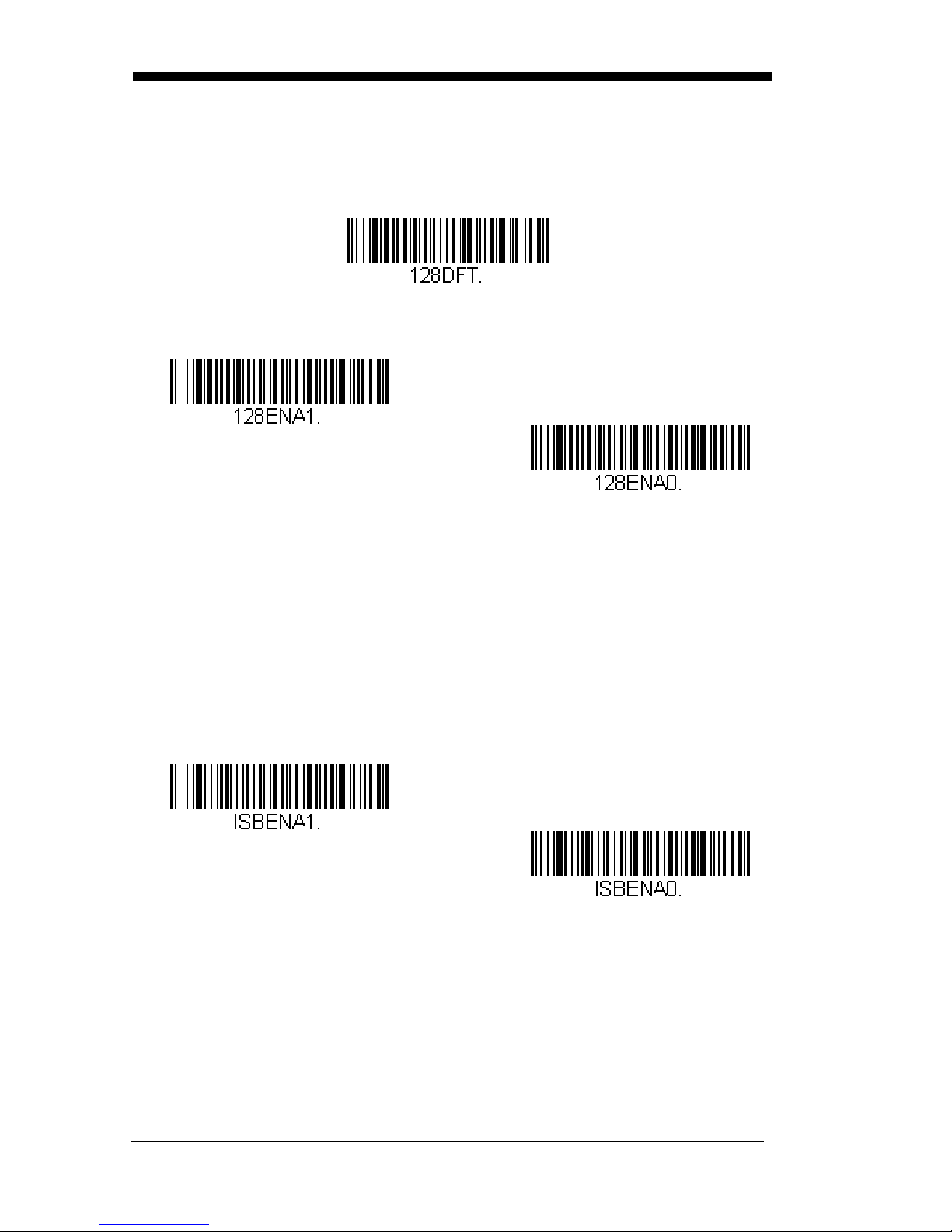

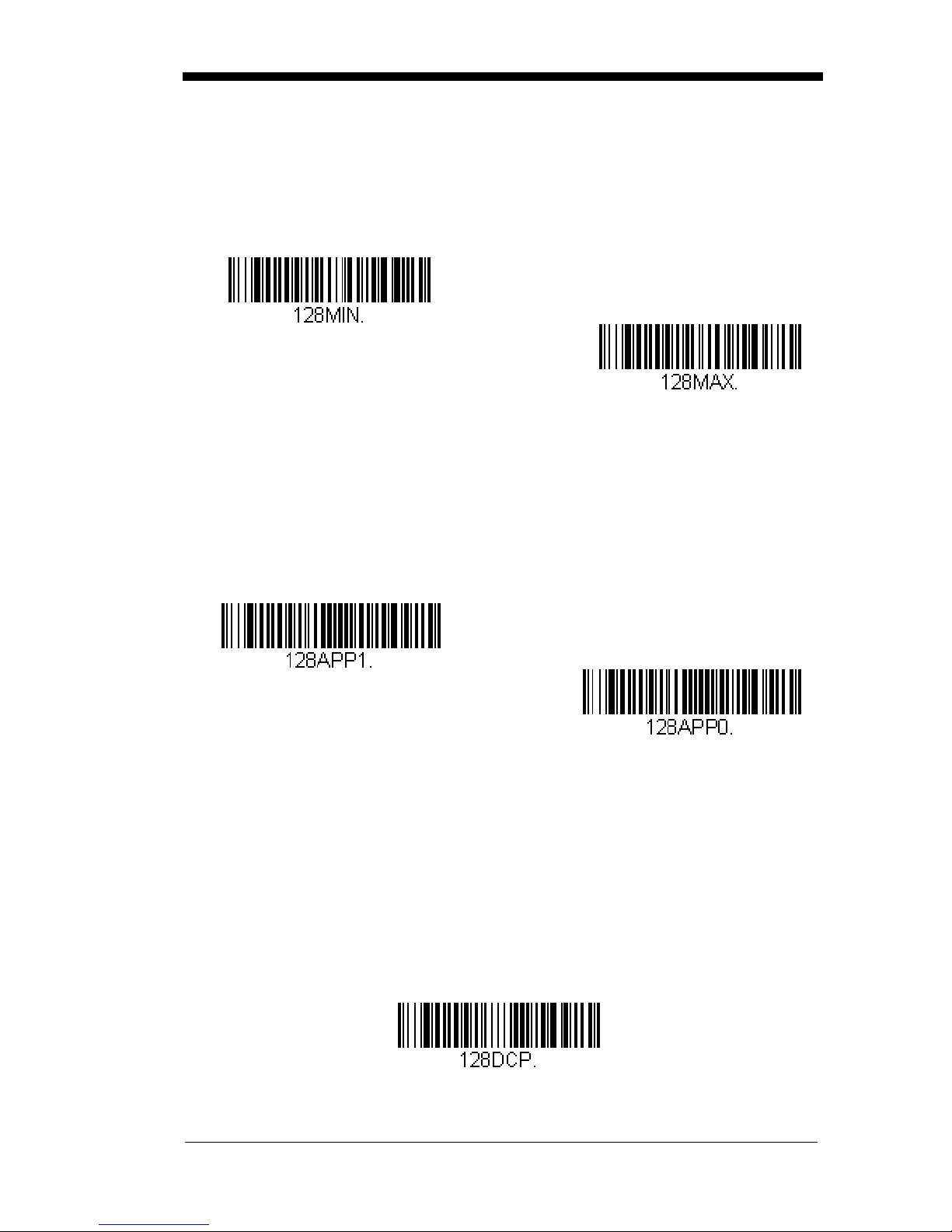

Code 128................................................................... 6-18

ISBT 128 Concatenation ..................................... 6-18

Code 128 Code Page.......................................... 6-19

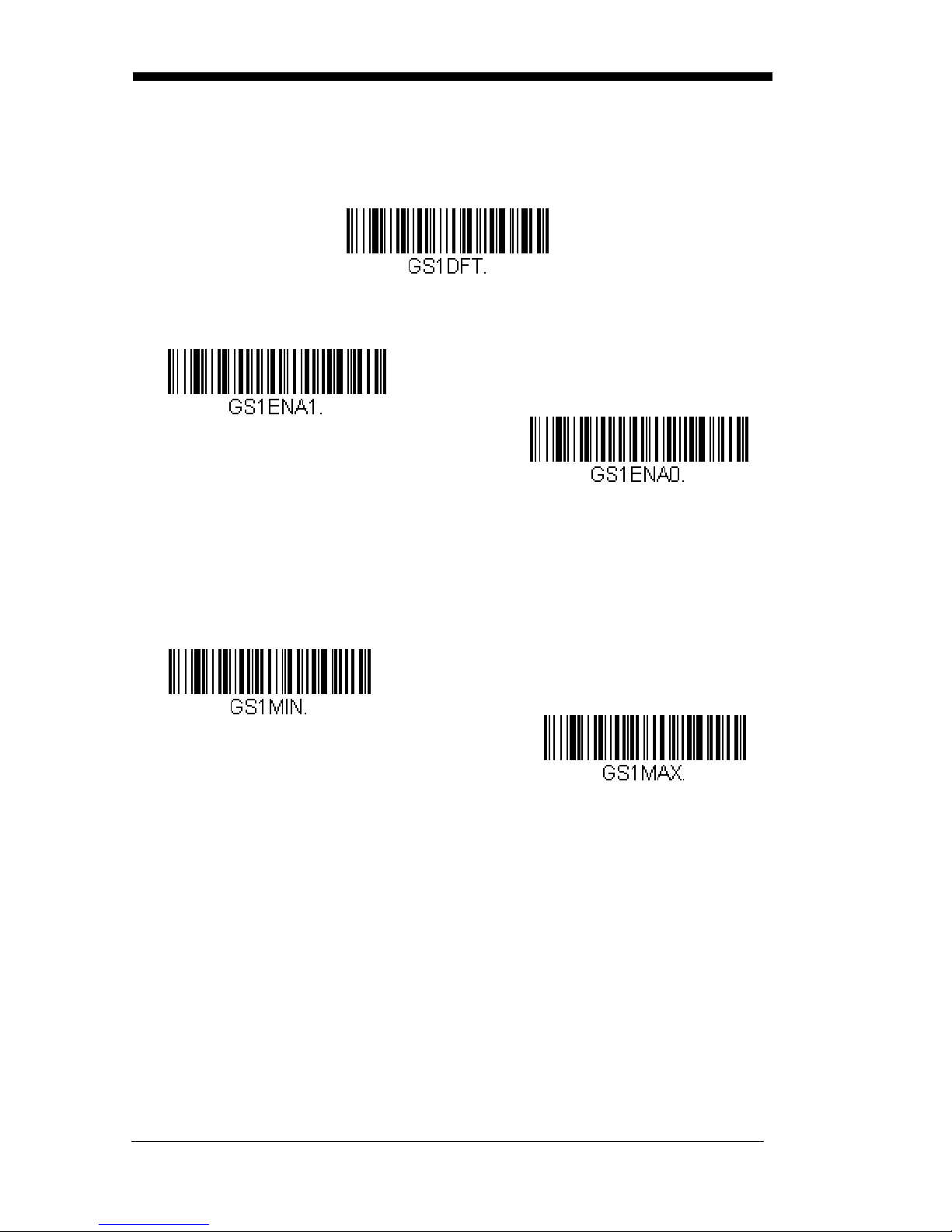

GS1-128.................................................................... 6-20

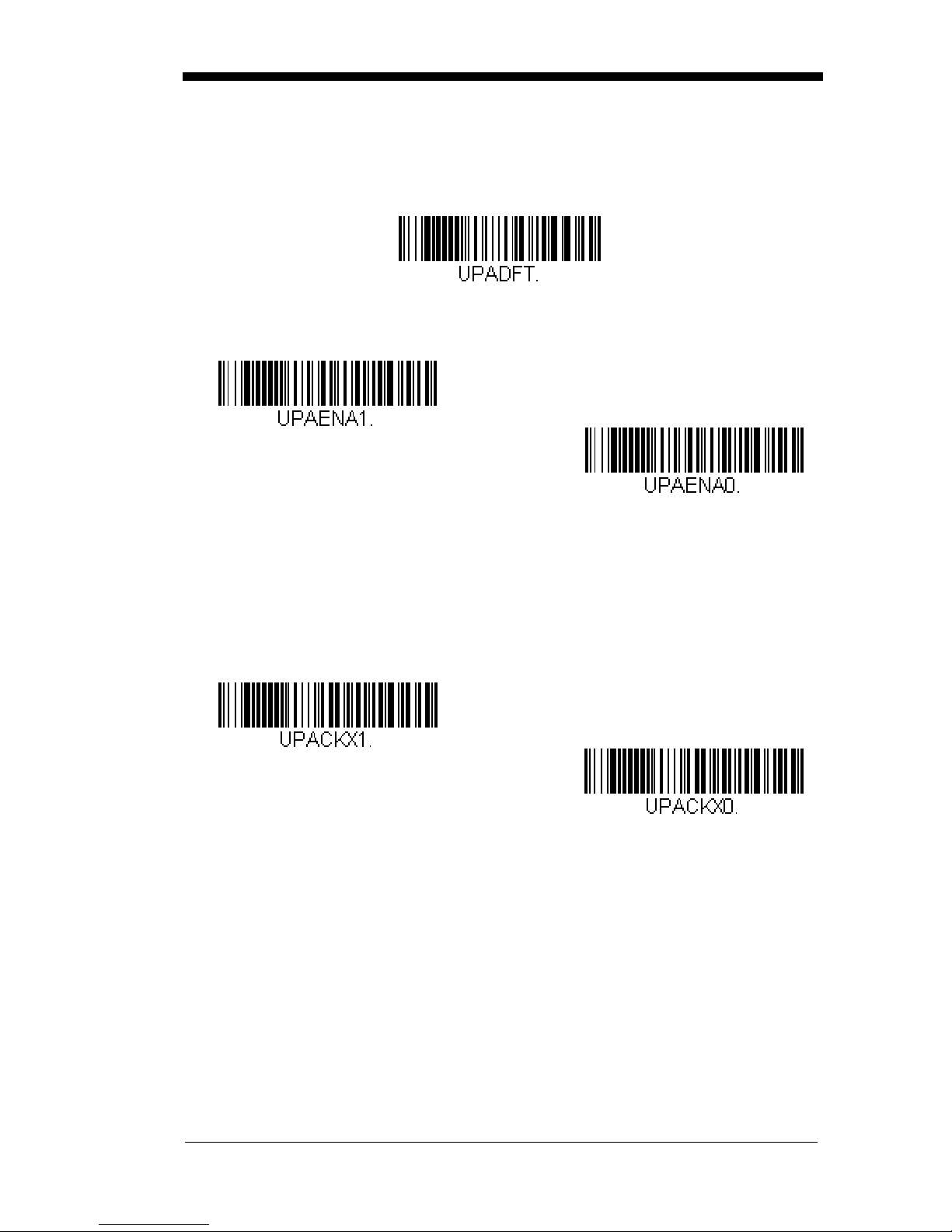

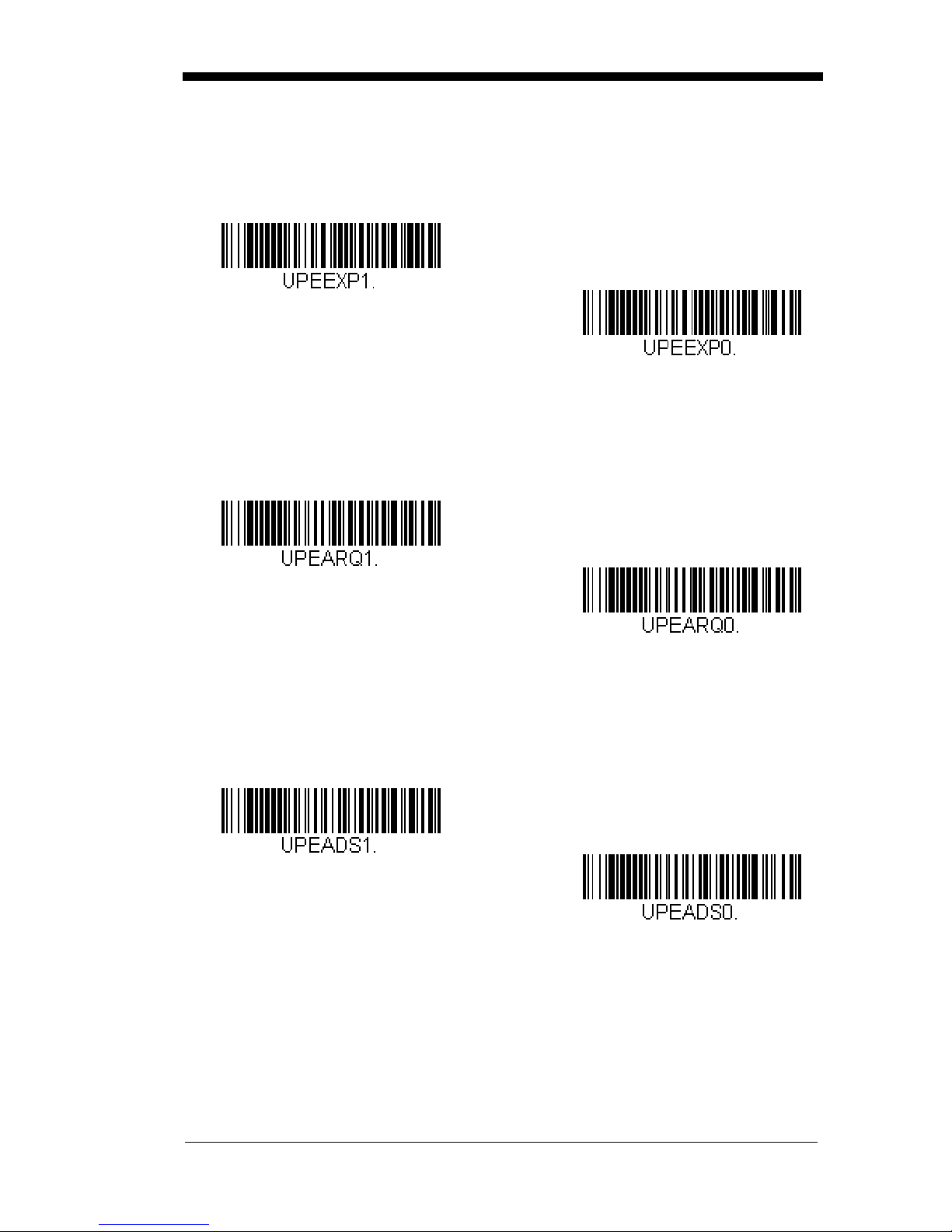

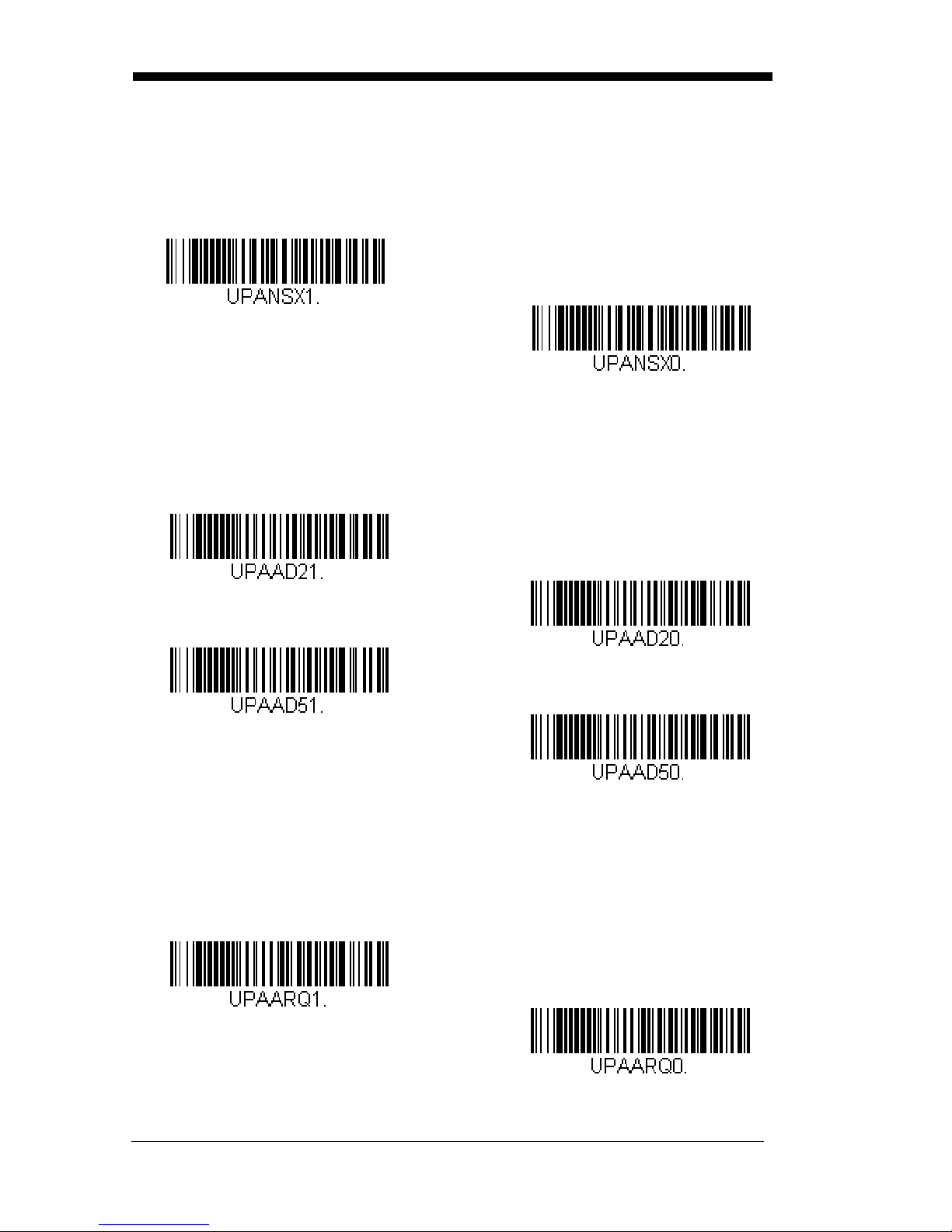

UPC-A ....................................................................... 6-21

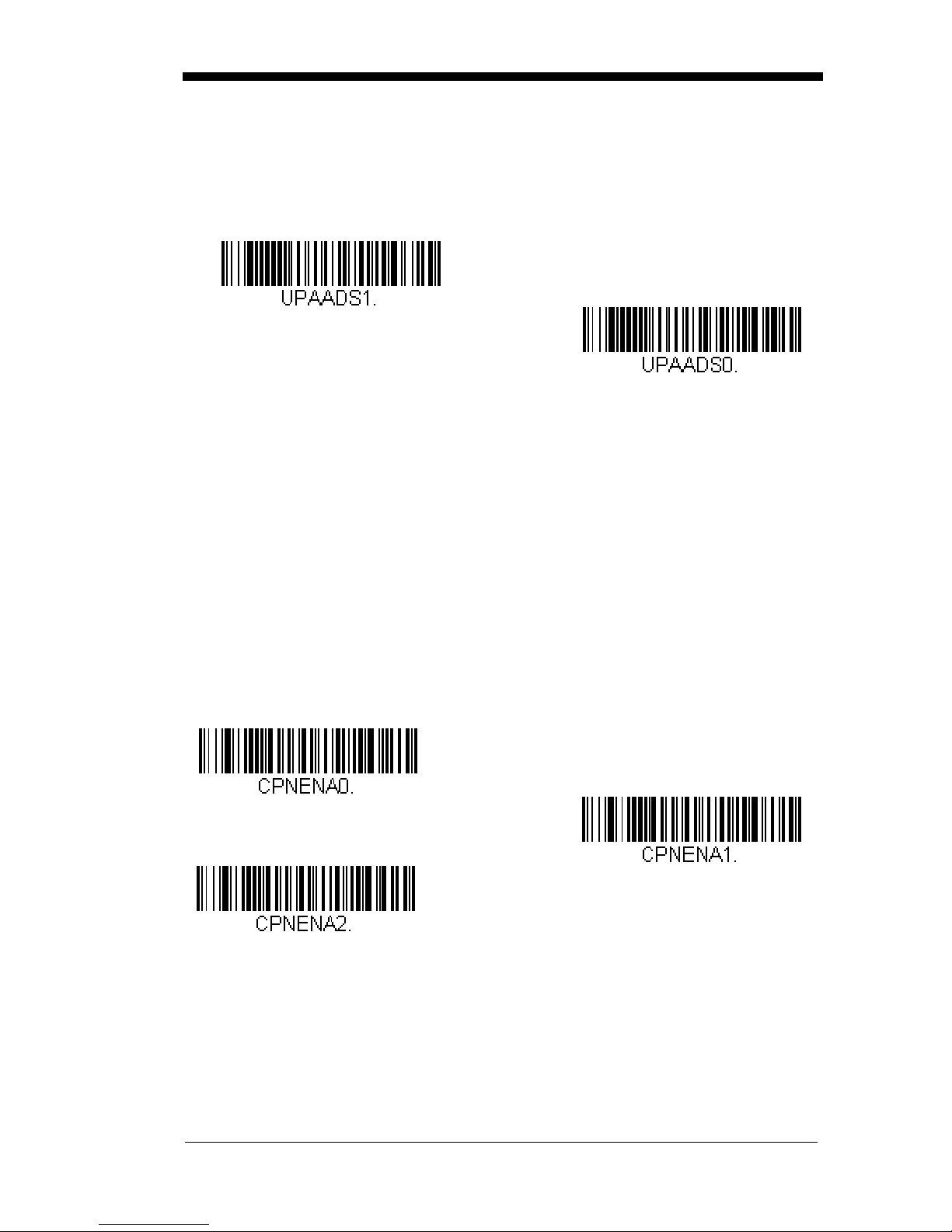

UPC-A/EAN-13

with Extended Coupon Code .................................. 6-23

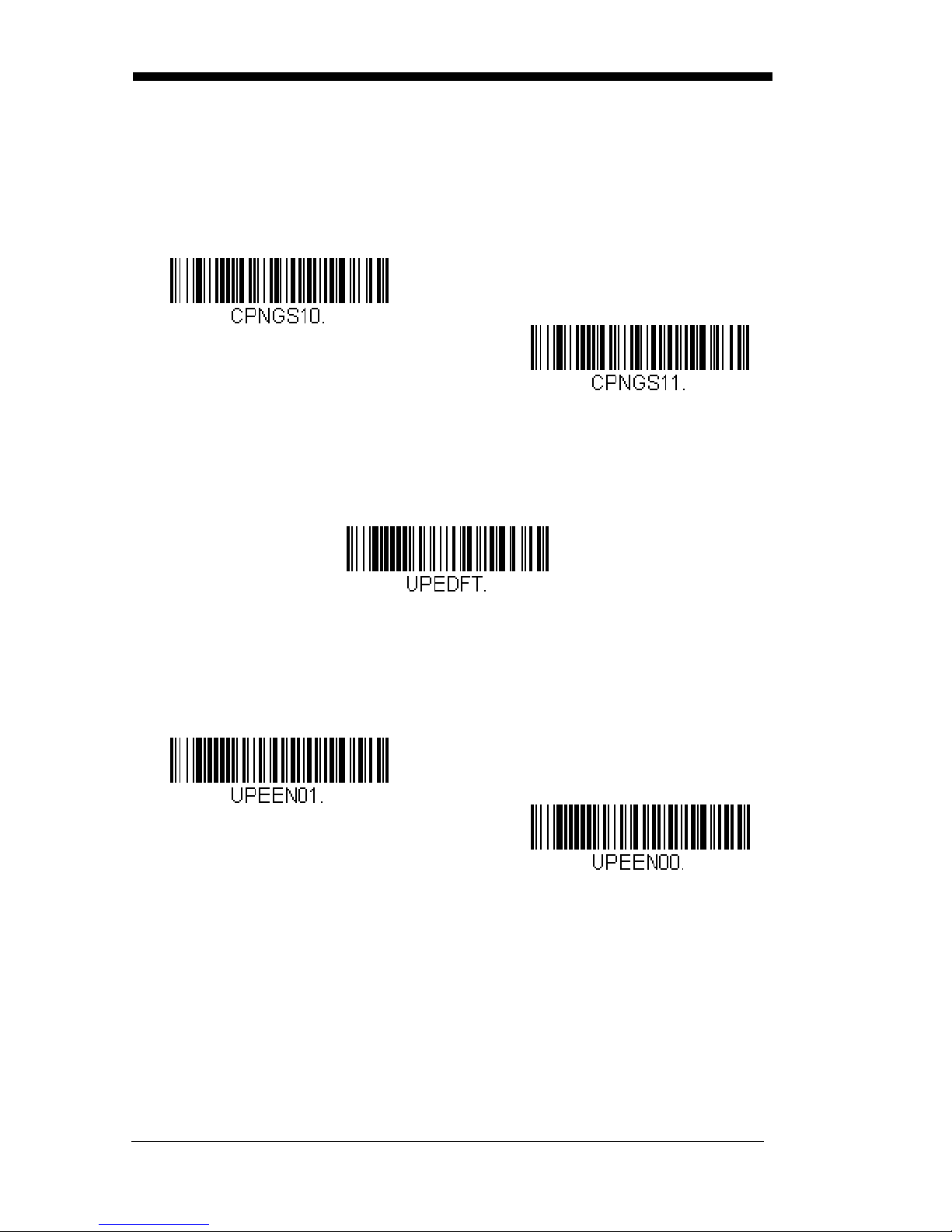

Coupon GS1 DataBar Output ................................... 6-24

UPC-E0 ..................................................................... 6-24

iii

UPC-E1......................................................................6-27

EAN/JAN-13 ..............................................................6-27

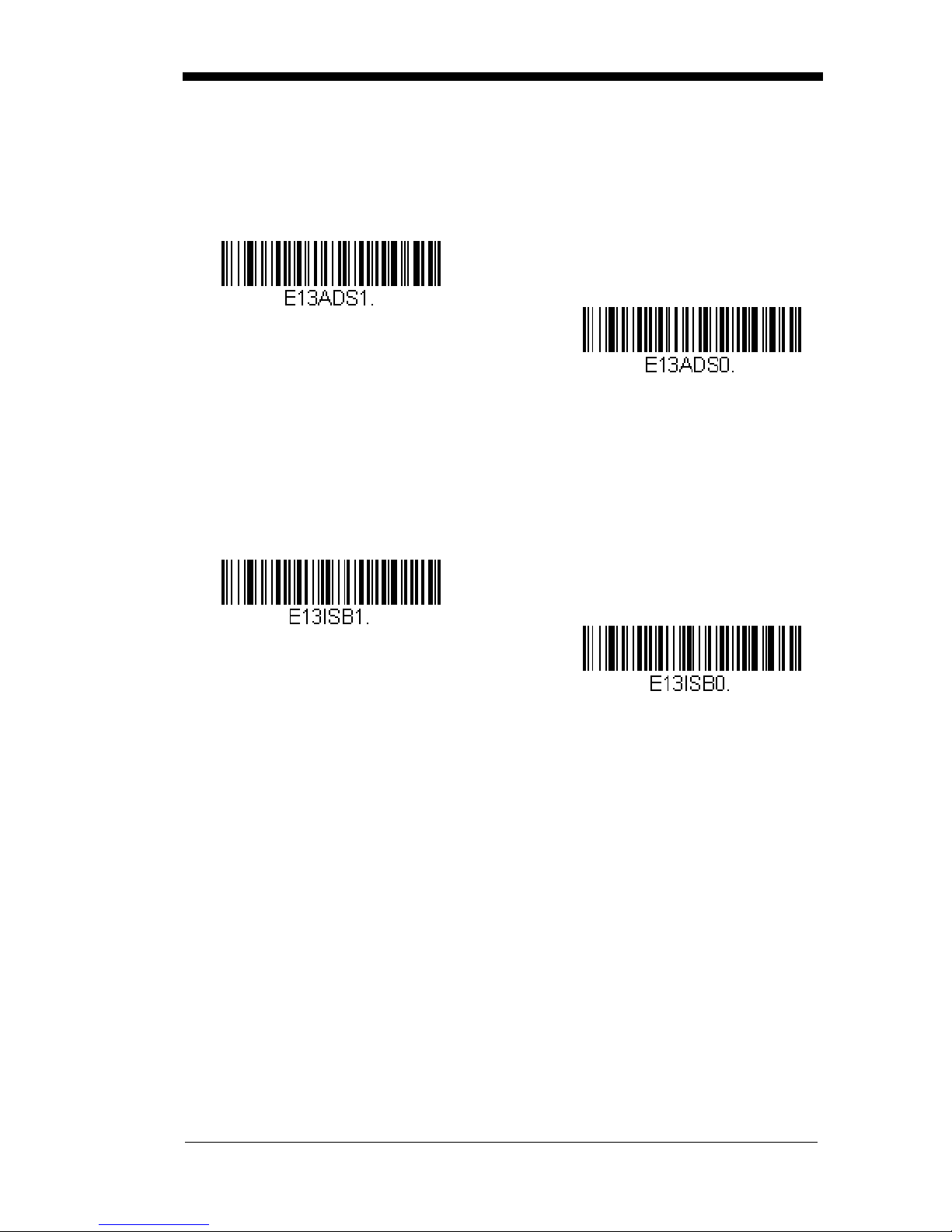

ISBN Translate ....................................................6-29

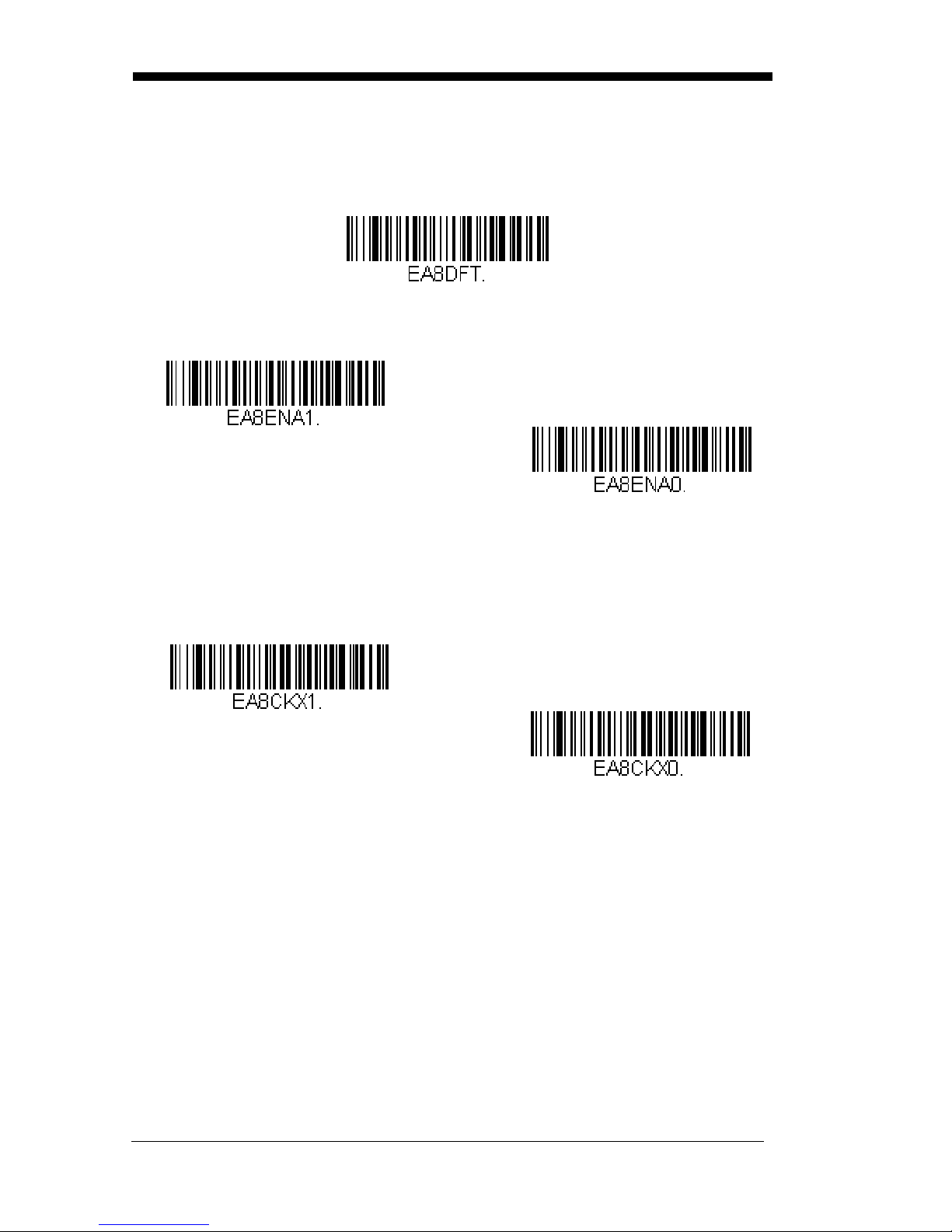

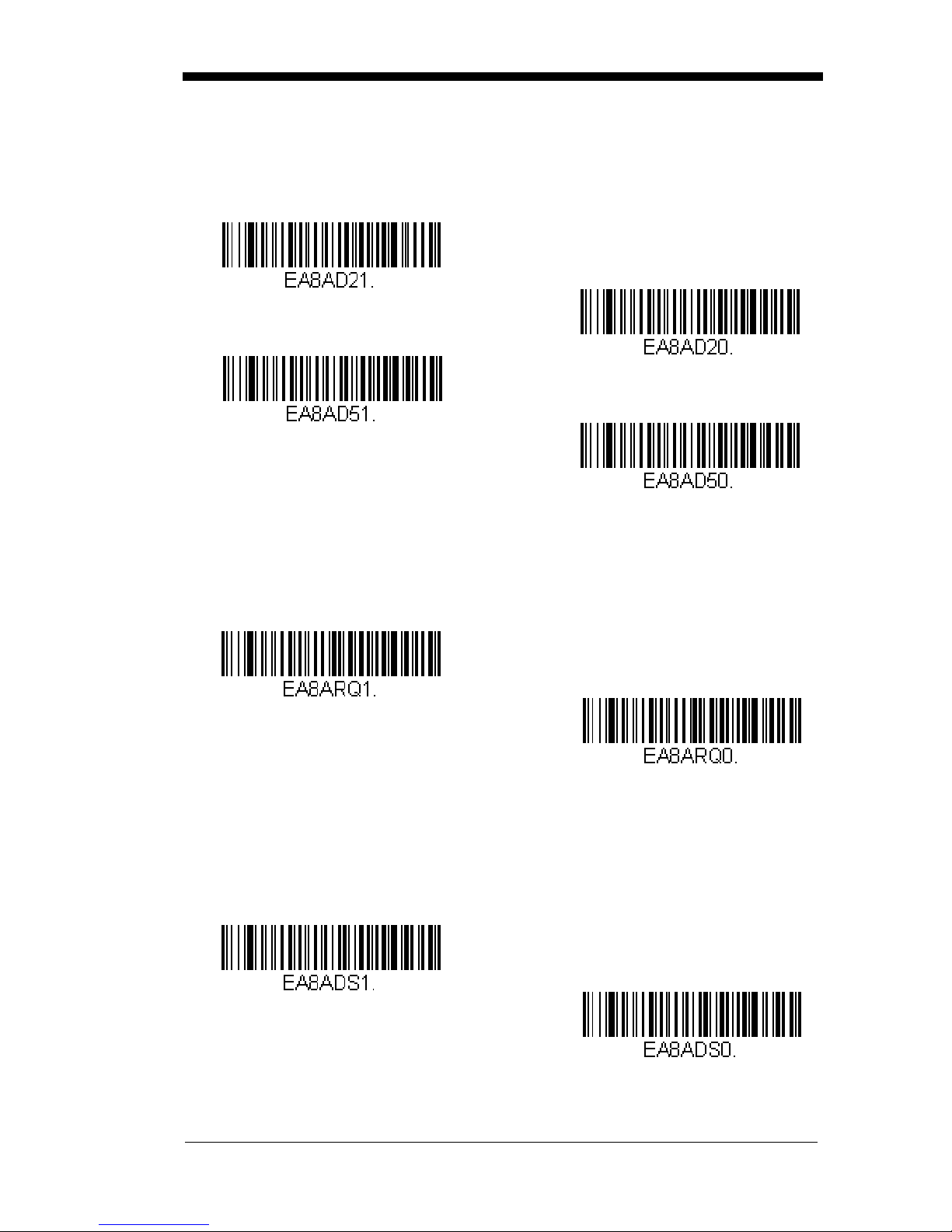

EAN/JAN-8 ................................................................6-30

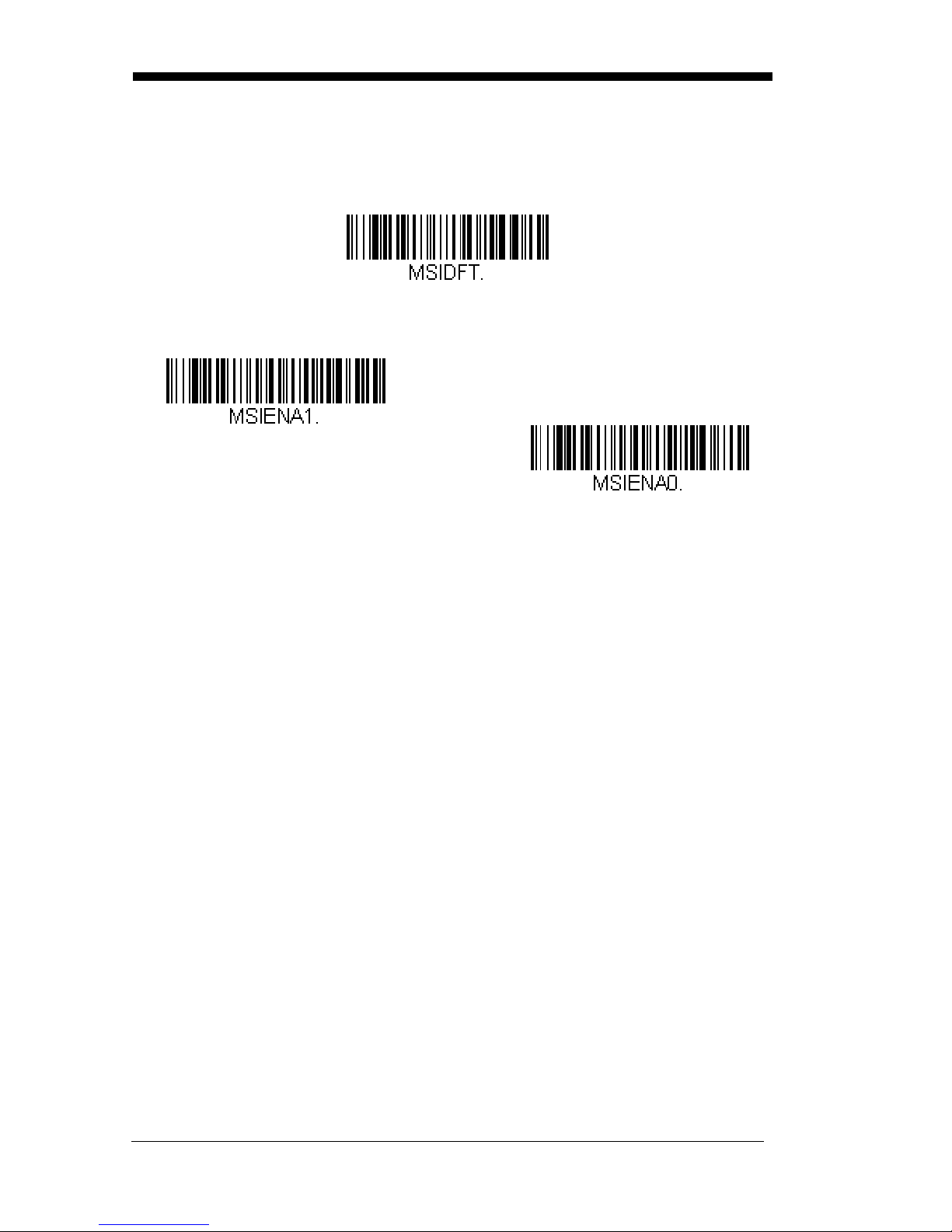

MSI ............................................................................6-32

GS1 DataBar Omnidirectional ...................................6-34

GS1 DataBar Limited.................................................6-34

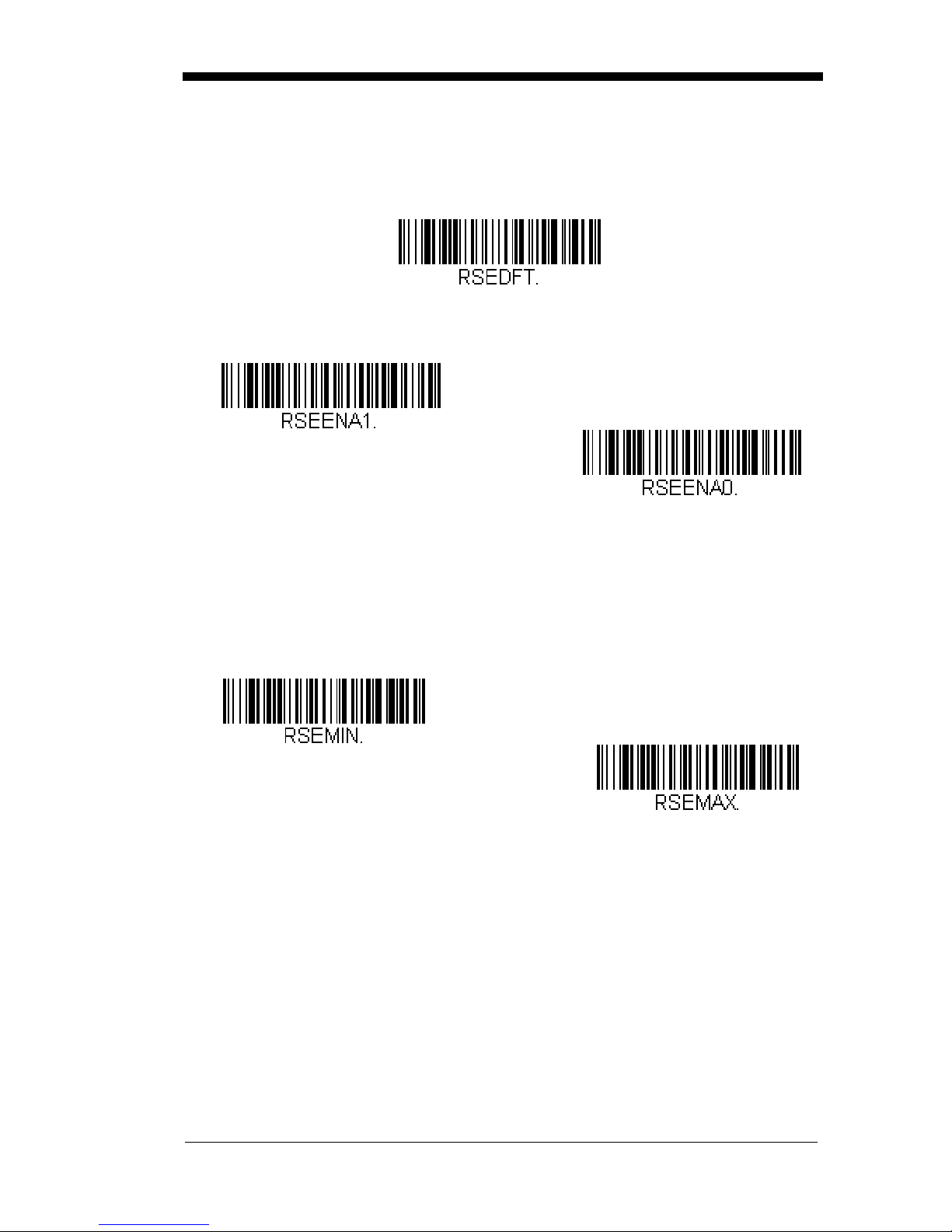

GS1 DataBar Expanded ............................................6-35

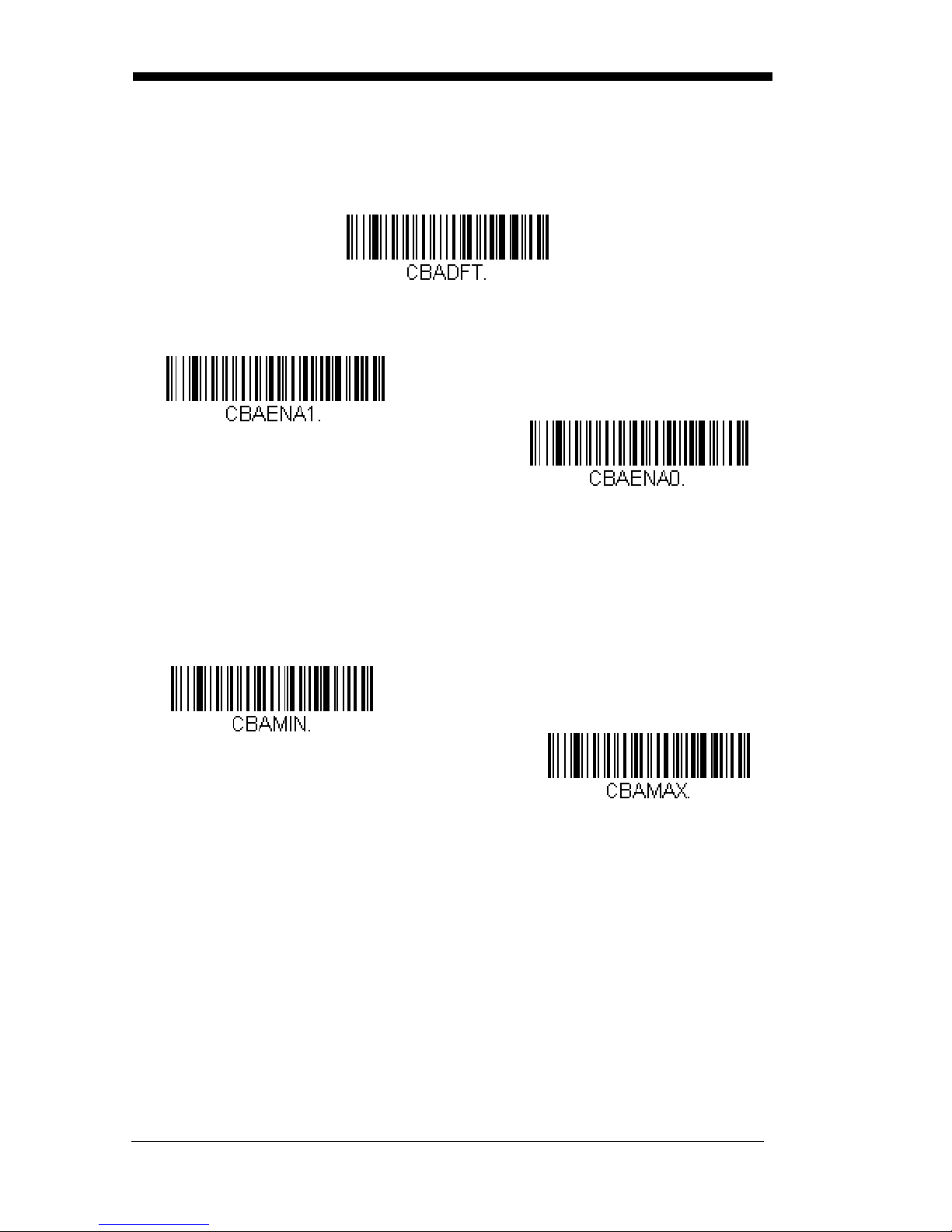

Codablock A ..............................................................6-36

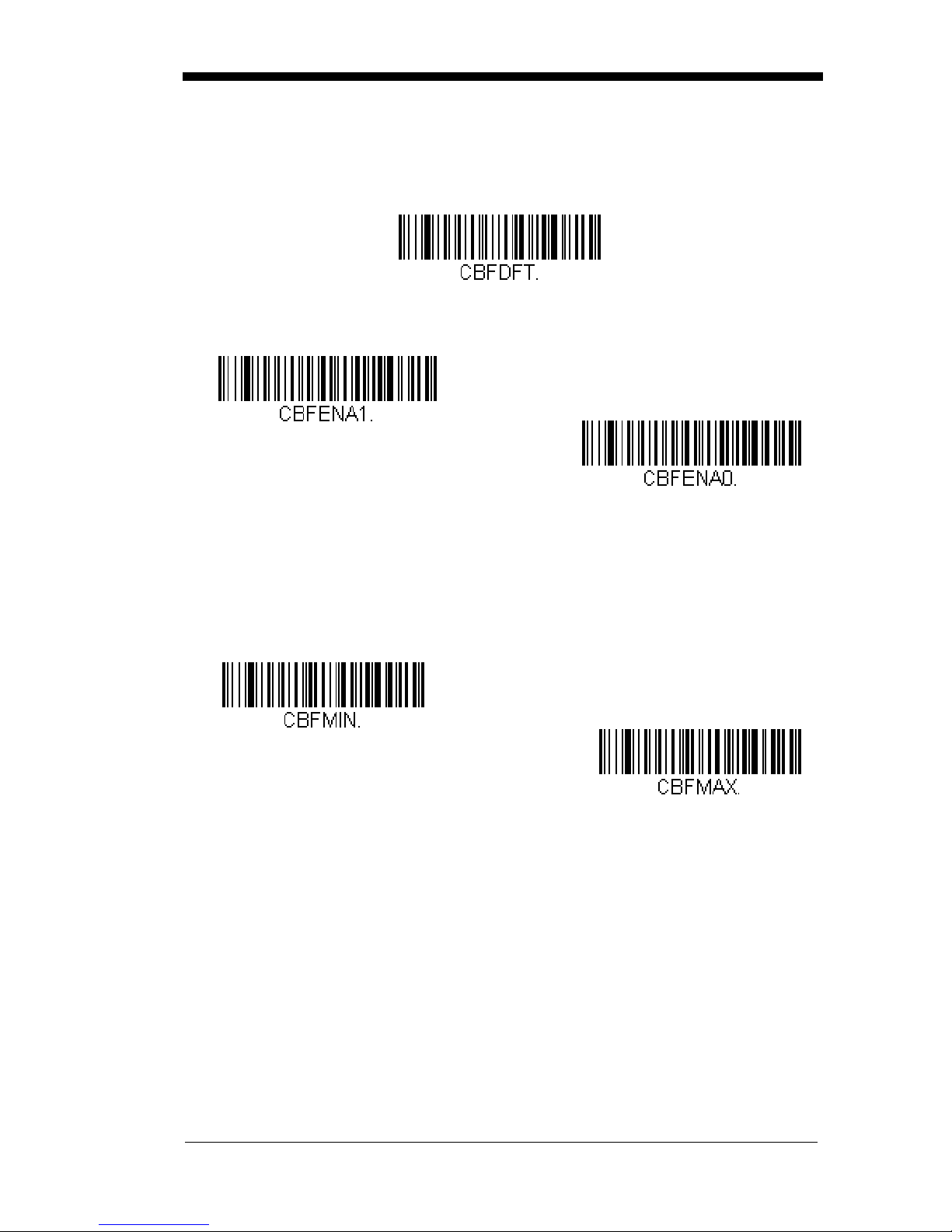

Codablock F...............................................................6-37

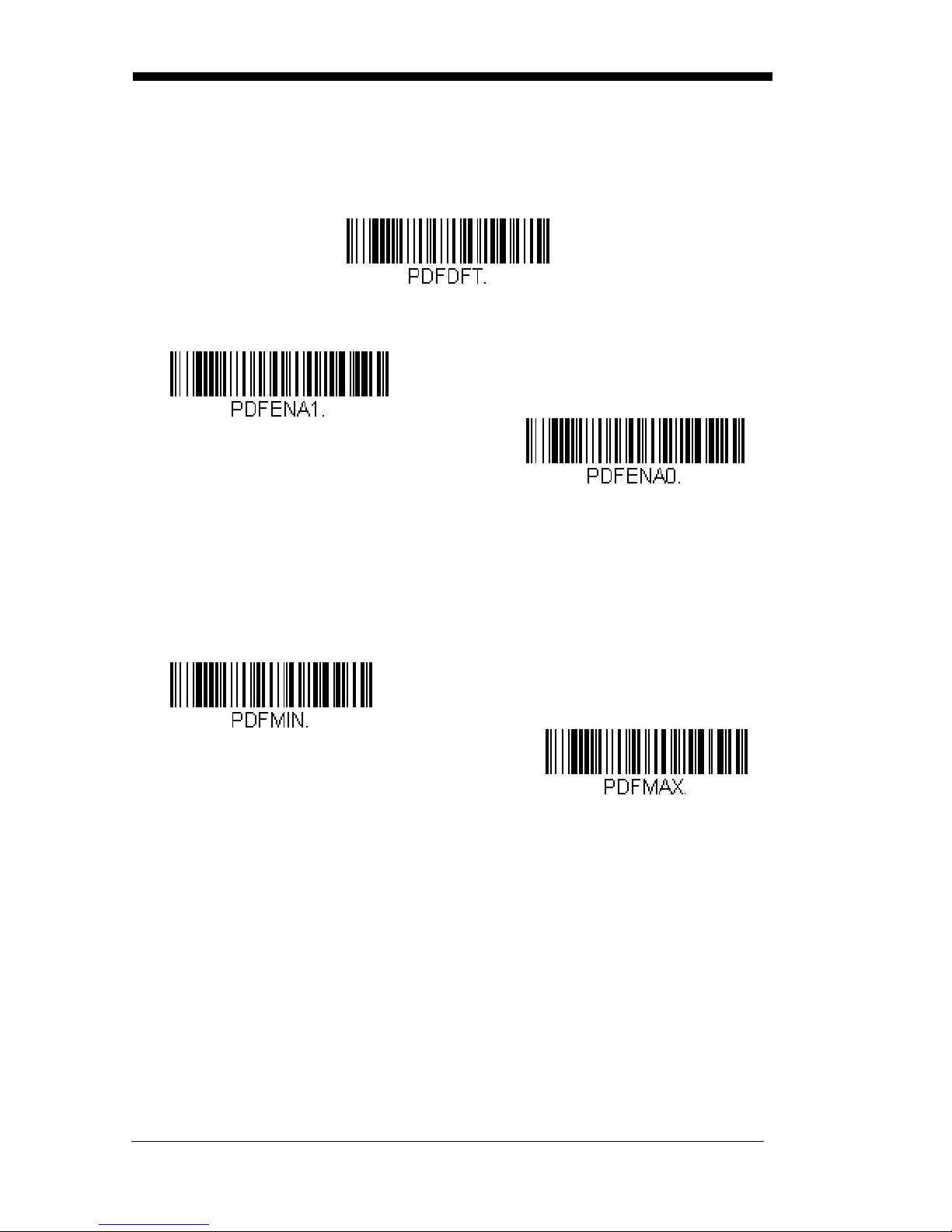

PDF417......................................................................6-38

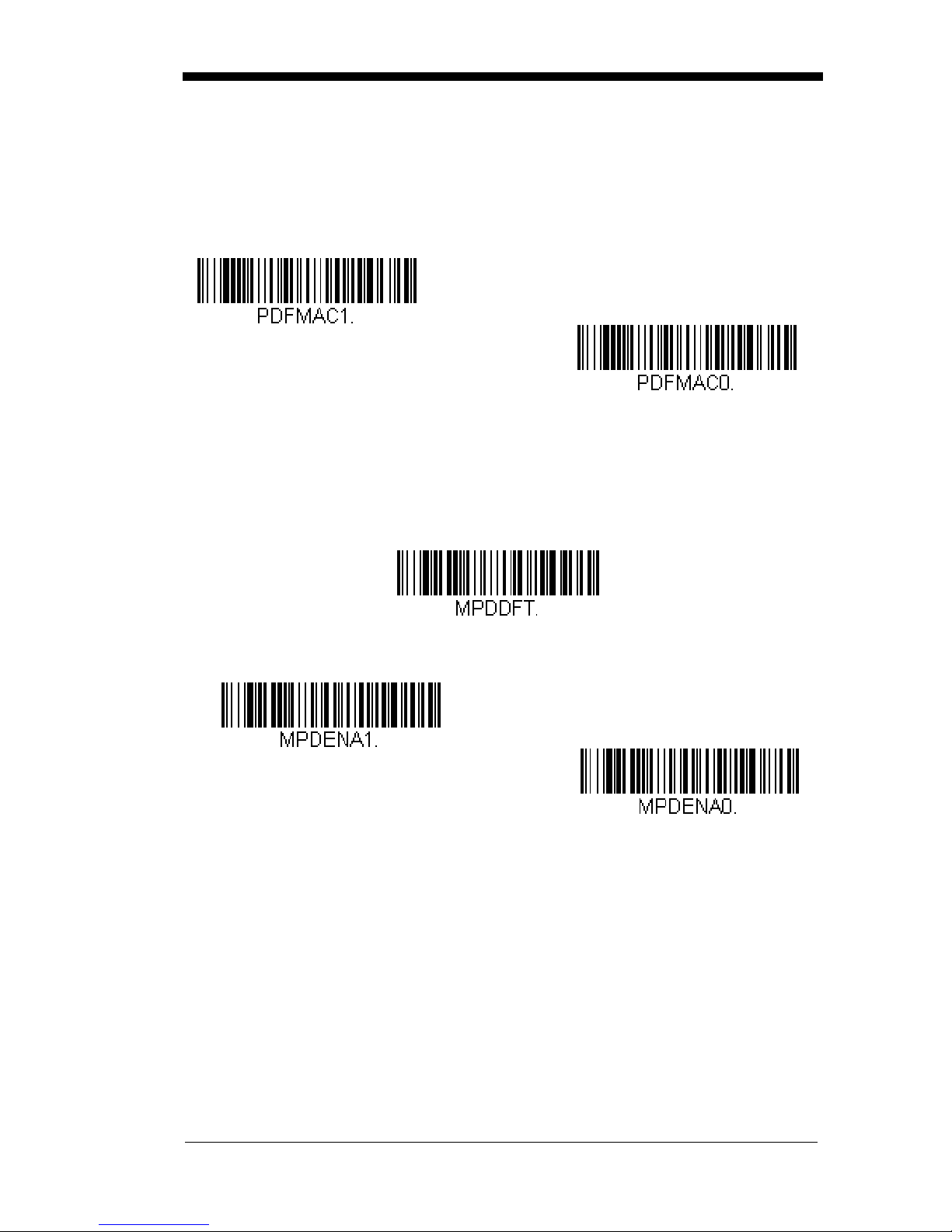

MacroPDF417............................................................6-39

MicroPDF417.............................................................6-39

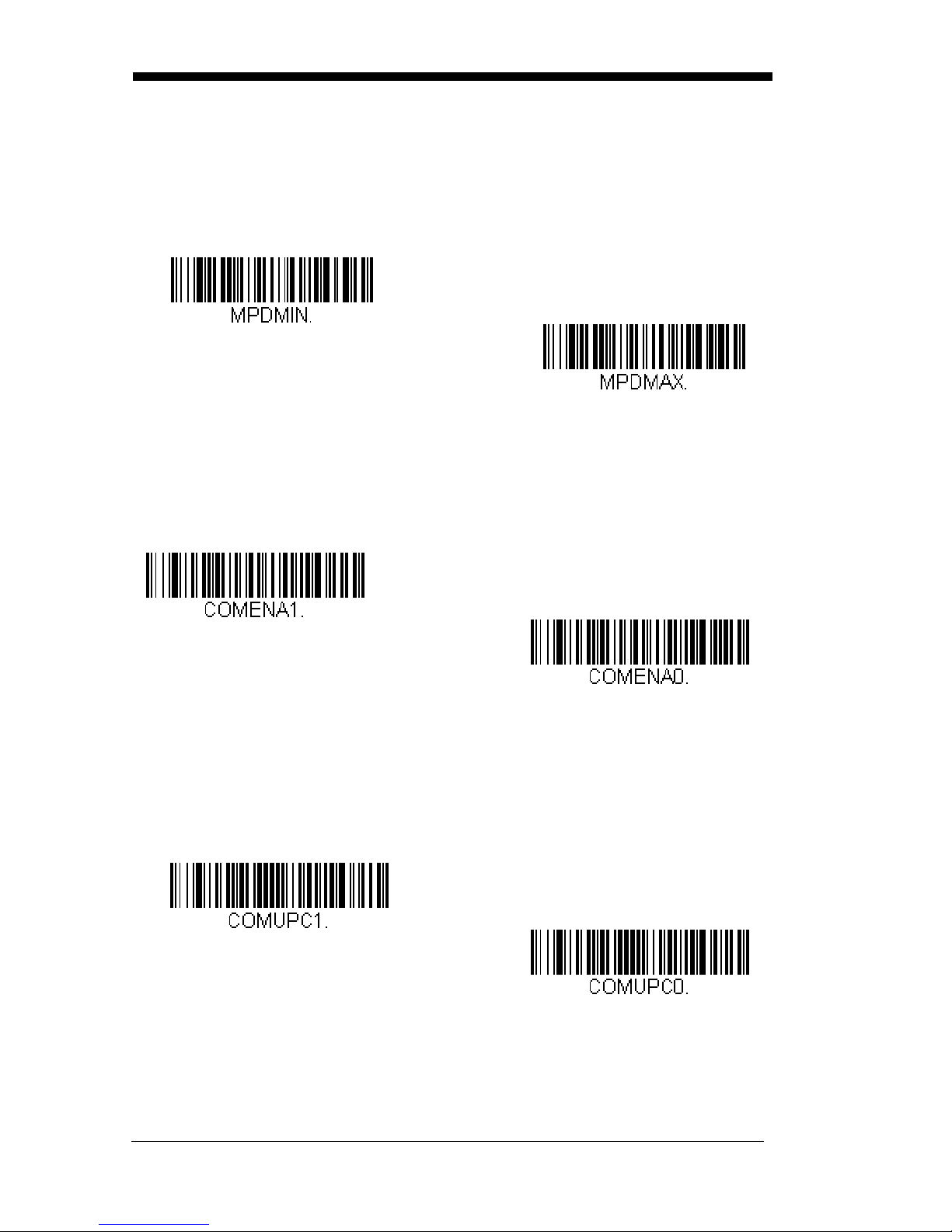

GS1 Composite Codes..............................................6-40

UPC/EAN Version................................................6-40

GS1 Emulation...........................................................6-41

TCIF Linked Code 39 (TLC39) ..................................6-42

QR Code....................................................................6-43

QR Code Page ....................................................6-44

Data Matrix ................................................................6-45

Data Matrix Code Page .......................................6-46

Aztec Code ................................................................6-47

Aztec Code Page.................................................6-48

Chinese Sensible (Han Xin) Code.............................6-49

Postal Codes - Linear ................................................6-49

China Post (Hong Kong 2 of 5)............................6-49

Korea Post ...........................................................6-51

Chapter 7 - Interface Keys

Keyboard Function Relationships................................7-1

Supported Interface Keys ............................................7-3

Chapter 8 - Utilities

To Add a Test Code I.D. Prefix to All

Symbologies..............................................................8-1

Show Decoder Revision ..............................................8-1

iv

v

Show Scan Driver Revision......................................... 8-1

Show Software Revision ............................................. 8-1

Show Data Format ...................................................... 8-2

Test Menu ................................................................... 8-2

Chapter 9 - Product Specications

POS-X 2D Scanner Product Specifications ................ 9-1

Standard Cable Pinouts .............................................. 9-2

Keyboard Wedge................................................... 9-2

USB....................................................................... 9-3

.............................................................................. 9-4

Chapter 10 - Maintenance

Repairs...................................................................... 10-1

Maintenance.............................................................. 10-1

Cleaning the Device ............................................ 10-1

Inspecting Cords and Connectors....................... 10-1

Replacing Cables ...................................................... 10-1

Replacing an Interface Cable.............................. 10-2

Troubleshooting a POS-X 2D Scanner ..................... 10-2

Chapter 11 - Customer Support

Technical Assistance ................................................ 11-1

Appendix A - Reference Charts

Symbology Chart.........................................................A-1

ASCII Conversion Chart (Code Page 1252) ...............A-4

Code Page Mapping of Printed Bar Codes .................A-6

Unicode Key Maps ......................................................A-8

vi

1 - 1

1

Getting Started

About This Manual

This User’s Guide provides installation and programming instructions for

Product specifications, dimensions,

warranty, and customer support information are also included.

POS-X barcode scanners are factory programmed for the most common termi­nal and communications settings. If you need to change these settings, pro­gramming is accomplished by scanning the bar codes in this guide.

An asterisk (*) next to an option indicates the default setting.

Unpacking Your Device

After you open the shipping carton containing the product, take the following
steps:

• Check for damage during shipment. Report damage immediately to the
carrier who delivered the carton.

• Make sure the items in the carton match your order.

• Save the shipping container for later storage or shipping.

Connecting the Device

Connecting with USB

A scanner can be connected to the USB port of a computer.

1. Connect the appropriate interface cable to the device first, then to the
computer.

2. The scanner beeps.

POS-X EVO 2D area-imaging scanner.

the

3. Verify the scanner operation by scanning a bar code from the Sample

Symbols in the back of this manual.

The unit defaults to a USB PC Keyboard. Refer to page 2-2 for other USB
terminal settings.

Connecting with Keyboard Wedge

A scanner can be connected between the keyboard and PC as a “keyboard
wedge,” where the scanner provides data output that is similar to keyboard
entries. The following is an example of a keyboard wedge connection:

1. Turn off power and disconnect the keyboard cable from the back of the
terminal/computer.

2. Connect the appropriate interface cable to the device and to the
terminal/computer.

3. Turn the terminal/computer power back on. The scanner beeps.

4. Verify the scanner operation by scanning a bar code from the Sample

Symbols in the back of this manual. The scanner beeps once.

The unit defaults to an IBM PC AT and compatibles keyboard wedge inter­face with a USA keyboard. A carriage return (CR) suffix is added to bar
code data.

1 - 2

1 - 3

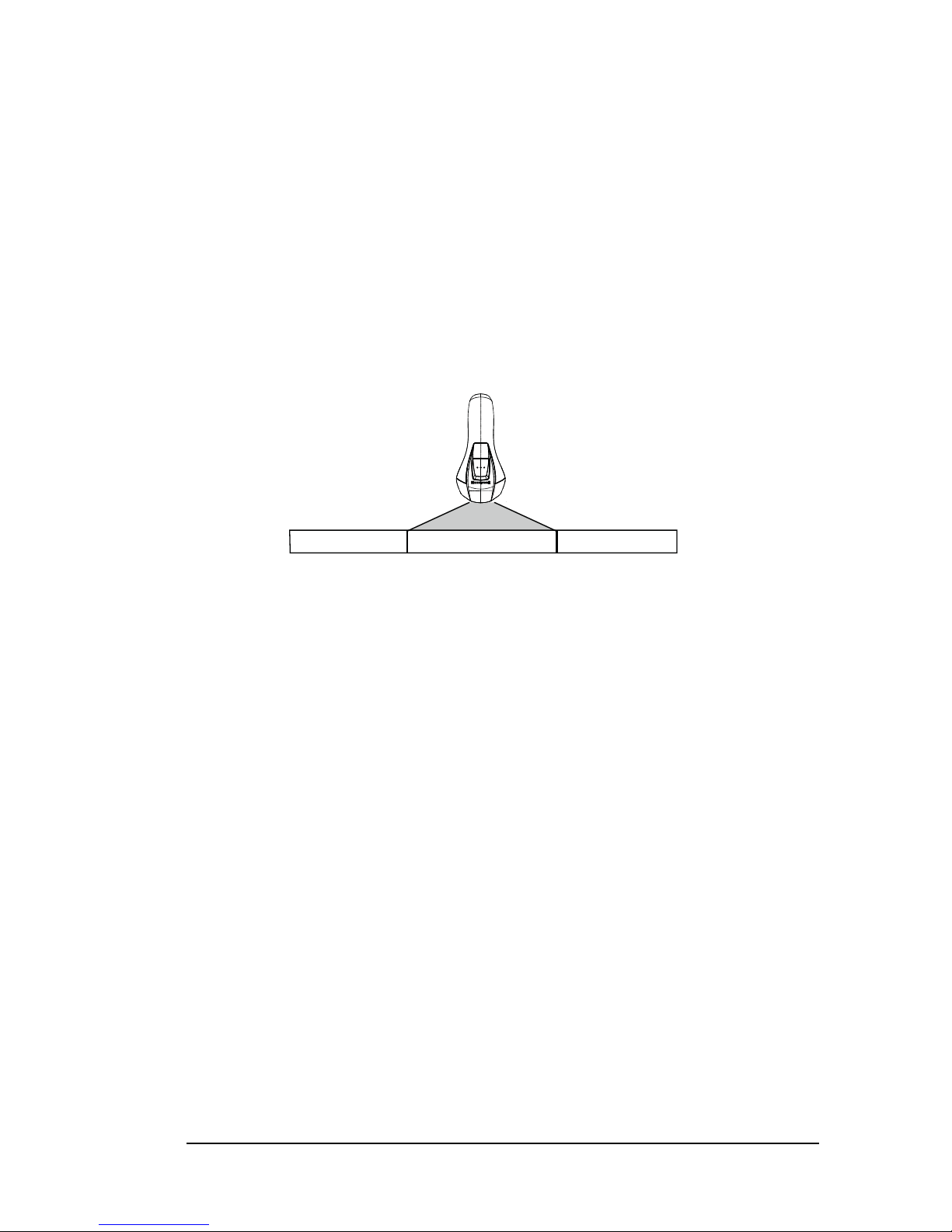

Reading Techniques

The scanner has a view finder that projects a bright red aiming beam that corre­sponds to the scanner’s horizontal field of view. The aiming beam should be
centered over the bar code, but it can be positioned in any direction for a good
read.

The aiming beam or pattern is smaller when the scanner is closer to the code
and larger when it is farther from the code. Symbologies with smaller bars or
elements (mil size) should be read closer to the unit. Symbologies with larger
bars or elements (mil size) should be read farther from the unit. To read single
or multiple symbols (on a page or on an object), hold the scanner at an appro­priate distance from the target, press the button, and center the aiming beam or
pattern on the symbol. If the code being scanned is highly reflective (e.g., lami­nated), it may be necessary to tilt the code up 15° to 18° to prevent unwanted
reflection.

Menu Bar Code Security Settings

POS-X scanners are programmed by scanning menu bar codes or by sending
serial commands to the scanner. If you want to restrict the ability to scan menu
codes, you can use the Menu Bar Code Security settings. Please contact the
nearest technical support office (see Customer Support on page 11-1) for fur­ther information.

Linear bar code

2D Matrix symbol

Setting Custom Defaults

Save Custom Defaults

Set Custom Defaults

Activate Custom Defaults

You have the ability to create a set of menu commands as your own, custom
defaults. To do so, scan the Set Custom Defaults bar code below before
scannning the menu commands for your custom defaults. If a menu command
requires scanning numeric codes from the back cover, then a Save code, that
entire sequence will be saved to your custom defaults. When you have entered
all the commands you want to save for your custom defaults, scan the Save
Custom Defaults bar code.

You may have a series of custom settings and want to correct a single setting.
To do so, just scan the new setting to overwrite the old one. For example, if you
had previously saved the setting for Beeper Volume at Low to your custom
defaults, and decide you want the beeper volume set to High, just scan the Set
Custom Defaults bar code, then scan the Beeper Volume High menu code,
and then Save Custom Defaults. The rest of the custom defaults will remain,
but the beeper volume setting will be updated.

Resetting the Custom Defaults

If you want the custom default settings restored to your scanner, scan the Acti­vate Custom Defaults bar code below. This is the recommended default bar

code for most users. It resets the scanner to the custom default settings. If
there are no custom defaults, it will reset the scanner to the factory default set­tings. Any settings that have not been specified through the custom defaults
will be defaulted to the factory default settings.

1 - 4

Resetting the Factory Defaults

!

Remove Custom Defaults

Activate Defaults

This selection erases all your settings and resets the scanner to the
original factory defaults. It also disables all plugins

If you aren’t sure what programming options are in your scanner, or you’ve
changed some options and want to restore the scanner to factory default set­tings, first scan the Remove Custom Defaults bar code, then scan Activate
Defaults. This resets the scanner to the factory default settings.

.

1 - 5

1 - 6

2 - 1

2

Programming the Interface

Introduction

This chapter describes how to program your system for the desired interface.

Programming the Interface - Plug and Play

Plug and Play bar codes provide instant scanner set up for commonly used
interfaces.

Note: After you scan one of the codes, power cycle the host terminal to have

the interface in effect.

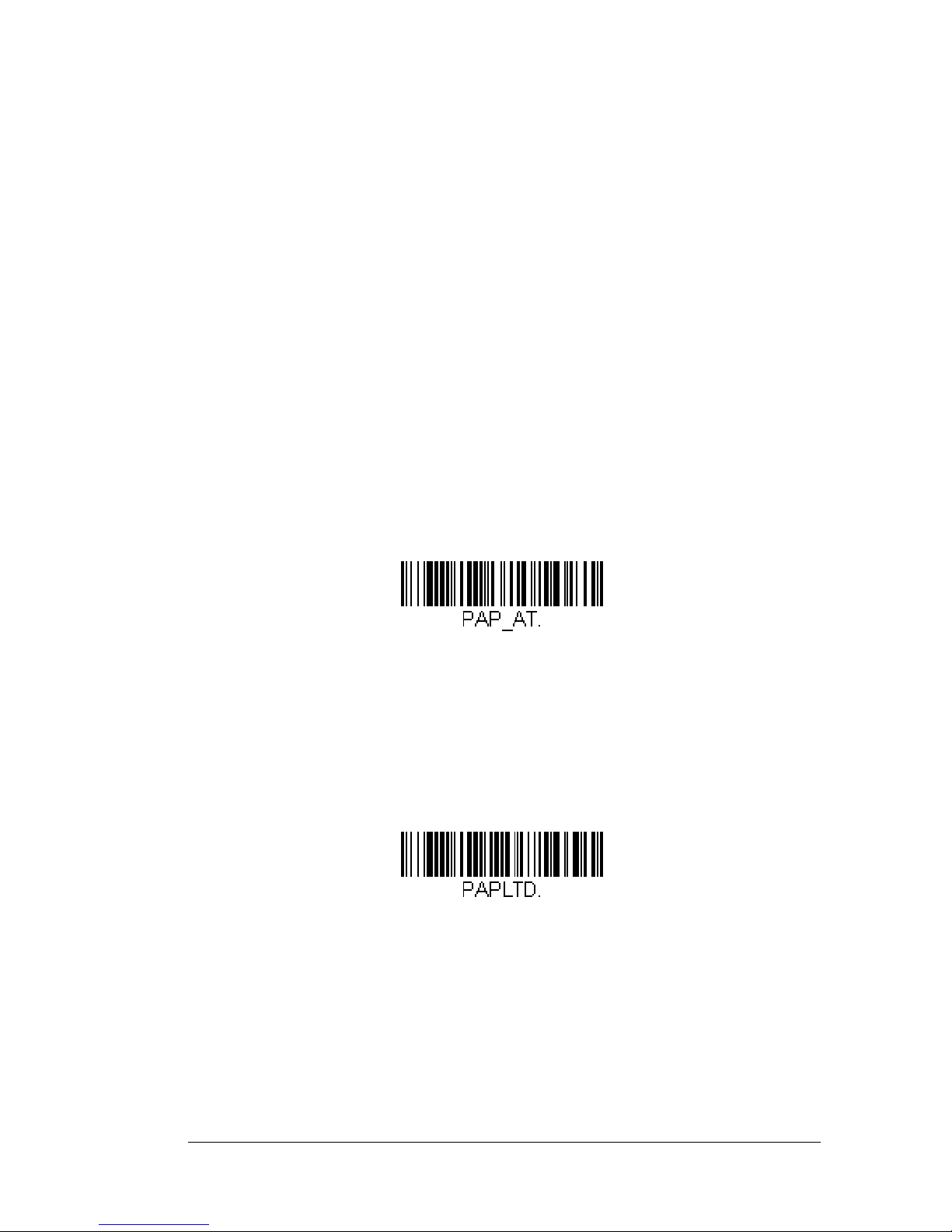

Keyboard Wedge

If you want your system programmed for an IBM PC AT and compatibles key­board wedge interface with a USA keyboard, scan the bar code below. Key­board wedge is the default interface.

Note: The following bar code also programs a carriage return (CR) suffix.

Laptop Direct Connect

For most laptops, scanning the Laptop Direct Connect bar code allows opera­tion of the scanner in parallel with the integral keyboard. The following Laptop
Direct Connect bar code also programs a carriage return (CR) suffix and turns
on Emulate External Keyboard (page 2-12).

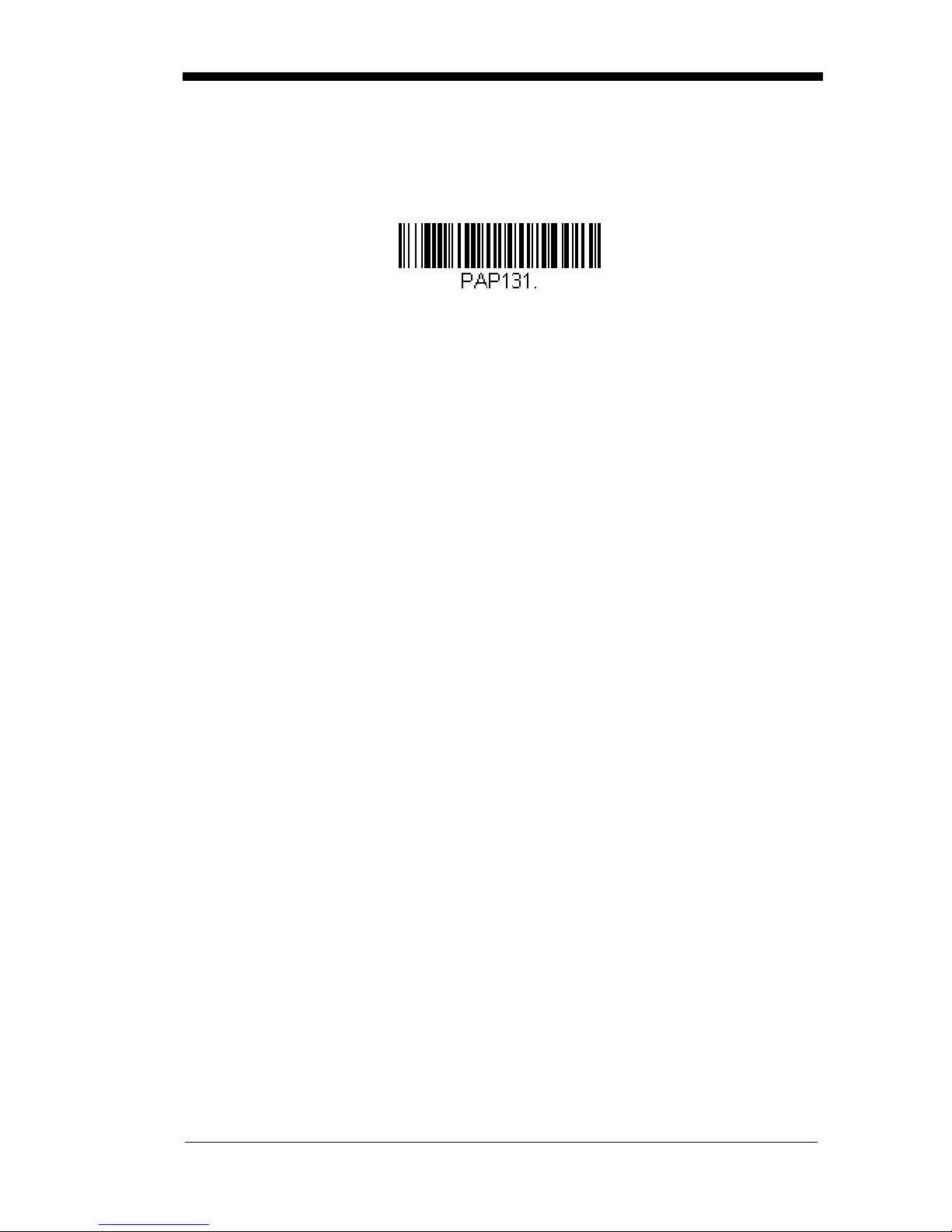

IBM PC AT and Compatibles with

CR suffix

Laptop Direct Connect

with CR suffix

USB IBM SurePos

USB IBM SurePos

(USB Handheld Scanner)

Interface

USB IBM SurePos

(USB Tabletop Scanner)

Interface

U

S

B

K

e

y

b

o

a

r

d

(

P

C

)

USB Keyboard (Mac)

USB Japanese Keyboard (PC)

Scan one of the following “Plug and Play” codes to program the scanner for an
IBM SurePos (USB handheld scanner) or IBM SurePos (USB tabletop scanner)
interface.

Note: After scanning one of these codes, you must power cycle the cash

register.

Each bar code above also programs the following suffixes for each symbology:

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B
EAN 13 16 Interleaved 2 of 5 00 0D 0B
UPC A 0D Code 128 00 18 0B
UPC E 0A Code 39 00 0A 0B

USB PC or Macintosh Keyboard

Scan one of the following codes to program the scanner for USB PC Keyboard
or USB Macintosh Keyboard. Scanning these codes also adds a CR and LF.

2 - 2

USB HID

USB HID Bar Code Scanner

Scan the following code to program the scanner for USB HID bar code scan­ners.

2 - 3

Keyboard Country Layout

* United States

United States (Dvorak left)

United States (International)

Albania

Azeri (Cyrillic)

Azeri (Latin)

Belarus

Belgium

United States (Dvorak)

United States (Dvorak right)

Bosnia

Brazil

Scan the appropriate country code below to program the keyboard layout for
your country or language. As a general rule, the following characters are sup­ported, but need special care for countries other than the United States:
@ | $ # { } [ ] = / ‘ \ < > ~

2 - 4

Keyboard Country (continued)

Bulgaria (Latin)

Canada (French)

Canada (Multilingual)

Croatia

Czech

Czech (Programmers)

Czech (QWERTY)

Czech (QWERTZ)

Bulgaria (Cyrillic)

Canada (French legacy)

Brazil (MS)

Denmark

Dutch (Netherlands)

2 - 5

Keyboard Country (continued)

Finland

Gaelic

Germany

Greek

Greek (220 Latin)

Greek (220)

Greek (319 Latin)

Greek (319)

Faeroese

France

Estonia

Greek (Latin)

Greek (MS)

2 - 6

Italian (142)

Hungarian (101 key)

Iceland

Irish

Italy

Japan ASCII

Kazakh

Kyrgyz (Cyrillic)

Hebrew

Hungary

Greek (Polytonic)

Latin America

Latvia

Keyboard Country (continued)

2 - 7

Keyboard Country (continued)

Lithuania (IBM)

Malta

Mongolian (Cyrillic)

Norway

Poland

Polish (214)

Polish (Programmers)

Portugal

Lithuania

Macedonia

Latvia (QWERTY)

Romania

Russia

2 - 8

Keyboard Country (continued)

SCS

Serbia (Latin)

Slovakia

Slovakia (QWERTY)

Slovakia (QWERTZ)

Slovenia

Spain

Spanish variation

Russian (Typewriter)

Serbia (Cyrillic)

Russian (MS)

Sweden

Switzerland (French)

2 - 9

Keyboard Country (continued)

Turkey F

Ukrainian

United Kingdom

United Stated (Dvorak right)

United States (Dvorak left)

United States (Dvorak)

United States (International)

Uzbek (Cyrillic)

Tatar

Turkey Q

Switzerland (German)

Keyboard Style

This programs keyboard styles, such as Caps Lock and Shift Lock. If you have
used Keyboard Conversion settings, they will override any of the following Key-
board Style settings.

Default = Regular.

2 - 10

Regular is used when you normally have the Caps Lock key off.

* Regular

Caps Lock

Shift Lock

Automatic Caps Lock

Autocaps via NumLock

Caps Lock

Shift Lock

is used when you normally have the Caps Lock key on.

is used when you normally have the Shift Lock key on (not common

to U.S. keyboards).

Automatic Caps Lock is used if you change the Caps Lock key on and off.
The software tracks and reflects if you have Caps Lock on or off . This selection
can only be used with systems that have an LED that notes the Caps Lock sta­tus (AT keyboards).

Autocaps via NumLock

many, France) where the Caps Lock key cannot be used to toggle Caps Lock.
The NumLock option works similarly to the regular Autocaps, but uses the Num­Lock key to retrieve the current state of the Caps Lock.

bar code should be scanned in countries (e.g., Ger-

2 - 11

Emulate External Keyboard should be scanned if you do not have an external

Emulate External Keyboard

* Keyboard Conversion Off

Convert All Characters

to Upper Case

Convert All Characters

to Lower Case

keyboard (IBM AT or equivalent).

Note: After scanning the Emulate External Keyboard bar code, you must power

cycle your computer.

Keyboard Conversion

Alphabetic keyboard characters can be forced to be all upper case or all lower­case. So if you have the following bar code: “abc569GK,” you can make the
output “ABC569GK” by scanning Convert All Characters to Upper Case, or to
“abc569gk” by scanning Convert All Characters to Lower Case.

These settings override Keyboard Style selections.

Note: If your interface is a keyboard wedge, first scan the menu code for

Automatic Caps Lock (page 2-11). Otherwise, your output may not be as

expected.

Default = Keyboard Conversion Off

Control Character Output

This selection sends a text string instead of a control character. For example,
when the control character for a carriage return is expected, the output would
display [CR] instead of the ASCII code of 0D. Refer to ASCII Conversion Chart

(Code Page 1252) on page A-4. Only codes 00 through 1F are converted (the

first column of the chart).

.

Note: Control + ASCII Mode overrides this mode.

2 - 12

Default = Off.

Control Character Output On

* Control Character Output Off

Windows Mode Control + ASCII

Mode On

* Control + ASCII Mode Off

DOS Mode Control + ASCII Mode

On

Windows Mode Prefix/Suffix Off

Keyboard Modifiers

This modifies special keyboard features, such as CTRL+ ASCII codes and
Turbo Mode.

Control + ASCII Mode On: The scanner sends key combinations for ASCII
control characters for values 00-1F. Windows is the preferred mode. All key­board country codes are supported. DOS mode is a legacy mode, and it does
not support all keyboard country codes. New users should use the Windows
mode. Refer to Keyboard Function Relationships, page 7-1 for CTRL+ ASCII
Values.

Windows Mode Prefix/Suffix Off: The scanner sends key combinations for
ASCII control characters for values 00-1F, but it does not transmit any prefix or
suffix information.

Default = Control + ASCII Mode Off.

2 - 13

Turbo Mode: The scanner sends characters to a terminal faster. If the termi-

Turbo Mode On

* Turbo Mode Off

Numeric Keypad Mode On

* Numeric Keypad Mode Off

Automatic Direct Connect Mode

On

* Automatic Direct Connect

Mode Off

nal drops characters, do not use Turbo Mode.

Default = Off

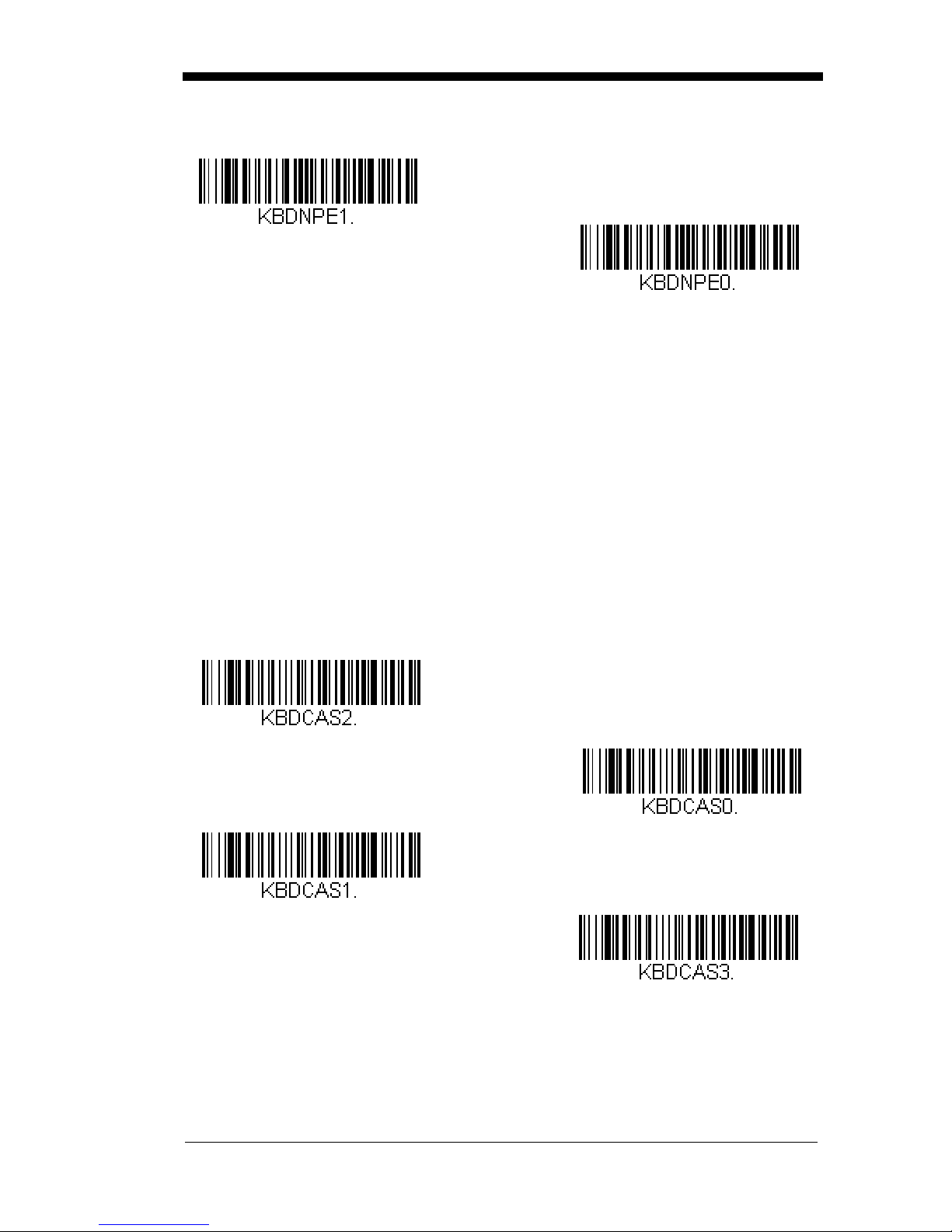

Numeric Keypad Mode: Sends numeric characters as if entered from a
numeric keypad.

Default = Off

Automatic Direct Connect Mode: This selection can be used if you have an
IBM AT style terminal and the system is dropping characters.

Default = Off

2 - 14

3 - 1

3

Input/Output Settings

Power Up Beeper

The scanner can be programmed to beep when it’s powered up. Scan the Off
bar code(s) if you don’t want a power up beep.

Default = Power Up Beeper On

- Scanner.

Trigger Click

To hear an audible click every time the scanner button is pressed, scan the Trig­ger Click On bar code below. Scan the Trigger Click Off code if you don’t

wish to hear the click. (This feature has no effect on serial or automatic trigger­ing.)

Default = Trigger Click Off.

Power Up Beeper Off -

Scanner

* Power Up Beeper On -

Scanner

Trigger Click On

*Trigger Click Off

Good Read and Error Indicators

* Beeper - Good Read On

Beeper - Good Read Off

* High

Medium

Off

Low

Beeper – Good Read

The beeper may be programmed On or Off in response to a good read.
Turning this option off, only turns off the beeper response to a good read
indication. All error and menu beeps are still audible.

Good Read On.

Beeper Volume – Good Read

The beeper volume codes modify the volume of the beep the scanner
emits on a good read.

Default = High.

Default = Beeper -

3 - 2

Beeper Pitch – Good Read

Low (1600 Hz)

* Medium (2400 Hz)

High (4200 Hz)

* Razz (250 Hz)

Medium (3250 Hz)

High (4200 Hz)

* Normal Beep

Short BeepShort Beep

The beeper pitch codes modify the pitch (frequency) of the beep the scan­ner emits on a good read.

Default = Medium.

Beeper Pitch – Error

The beeper pitch codes modify the pitch (frequency) of the sound the scan­ner emits when there is a bad read or error.

Default = Razz.

Beeper Duration – Good Read

The beeper duration codes modify the length of the beep the scanner emits
on a good read.

Default = Normal.

3 - 3

LED – Good Read

* LED - Good Read On

LED - Good Read Off

Number of Good Read Beeps/LED Flashes

Number of Error Beeps/LED Flashes

The LED indicator can be programmed On or Off in response to a good
read.

Default = On.

Number of Beeps – Good Read

The number of beeps of a good read can be programmed from 1 - 9. The
same number of beeps will be applied to the beeper and LED in response
to a good read. For example, if you program this option to have five beeps,
there will be five beeps and five LED flashes in response to a good read.
The beeps and LED flashes are in sync with one another. To change the
number of beeps, scan the bar code below and then scan a digit (1-9) bar
code and the Save bar code on the Programming Chart inside the back
cover of this manual.

Default = 1.

Number of Beeps – Error

The number of beeps and LED flashes emitted by the scanner for a bad
read or error can be programmed from 1 - 9. For example, if you program
this option to have five error beeps, there will be five error beeps and five
LED flashes in response to an error. To change the number of error beeps,
scan the bar code below and then scan a digit (1-9) bar code and the Save
bar code on the Programming Chart inside the back cover of this manual.

Default = 1.

3 - 4

Good Read Delay

* No Delay

Short Delay (500 ms)

Medium Delay (1,000 ms)

Long Delay (1,500 ms)

User-Specified Good Read Delay

* Manual Trigger - Normal

This sets the minimum amount of time before the scanner can read another
bar code.

Default = 0 ms (No Delay).

User-Specified Good Read Delay

If you want to set your own length for the good read delay, scan the bar
code below, then set the delay (from 0-30,000 milliseconds) by scanning
digits from the inside back cover, then scanning Save.

Manual Trigger Mode

When in manual trigger mode, the scanner scans until a bar code is read, or
until the button is released.

Default = Manual Trigger-Normal.

3 - 5

Presentation Mode

Presentation Mode

Sensitivity

Presentation Mode uses ambient light to detect bar codes. The LED dims until
a bar code is presented to the scanner, then the LED brightens to read the
code. If the light level in the room is not high enough, Presentation Mode may
not work properly.

Presentation Sensitivity

Presentation Sensitivity is a numeric range that increases or decreases the
scanner's reaction time to bar code presentation. To set the sensitivity,
scan the Sensitivity bar code, then scan the degree of sensitivity (from 0-

20) from the inside back cover, and Save. 0 is the most sensitive setting,

and 20 is the least sensitive.

Default = 1.

Presentation Centering

Use Presentation Centering to narrow the scanner’s field of view when it is
in the stand to make sure the scanner reads only those bar codes intended
by the user. For instance, if multiple codes are placed closely together,
Presentation Centering will insure that only the desired codes are read.

Note: To adjust centering when the scanner is hand-held, see

Centering (page 3-10).

If a bar code is not touched by a predefined window, it will not be decoded
or output by the scanner. If Presentation Centering is turned on by scan­ning Presentation Centering On, the scanner only reads codes that pass
through the centering window you specify using the Top of Presentation
Centering Window, Bottom of Presentation Centering Window, Left,
and Right of Presentation Centering Window bar codes.

3 - 6

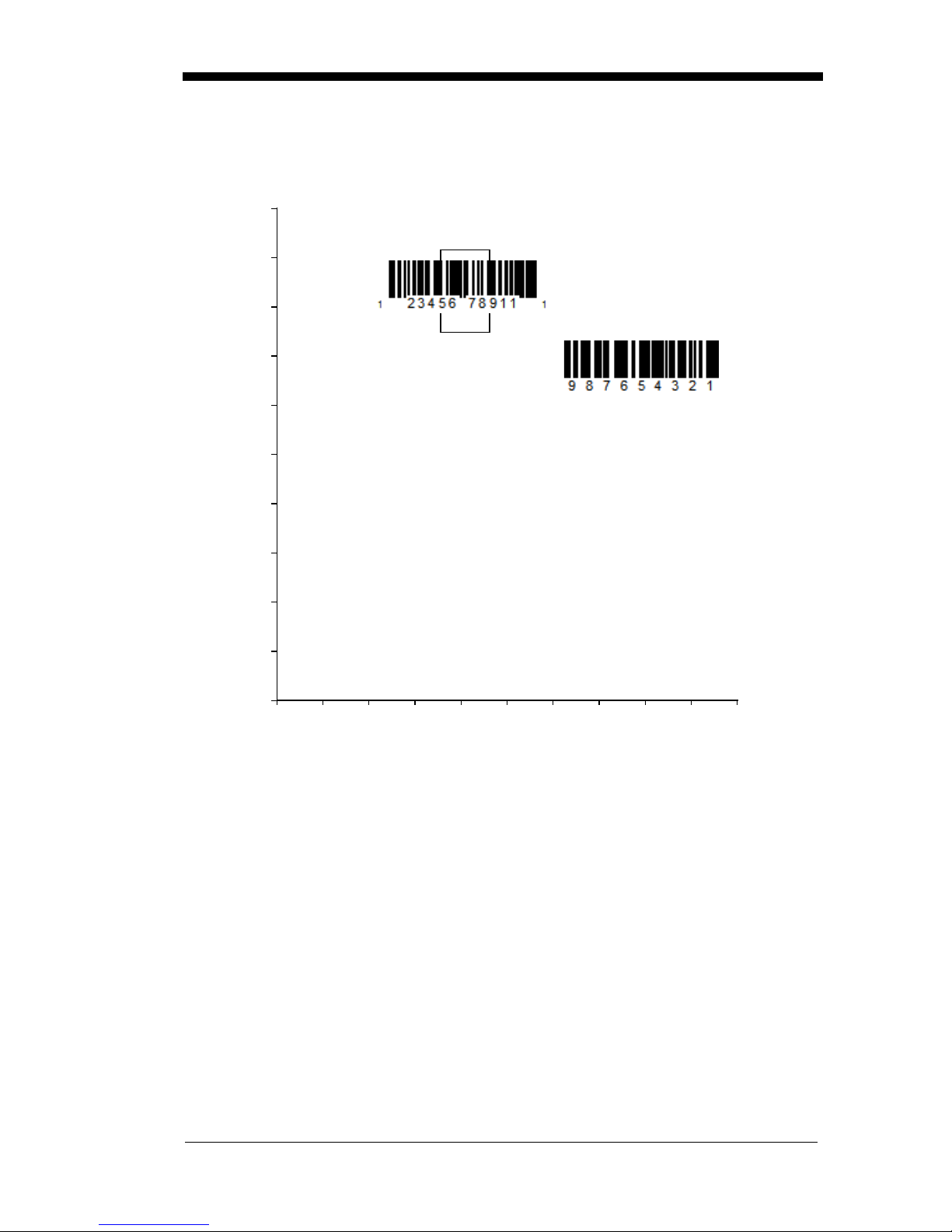

In the example below, the white box is the centering window. The centering

0

Bar Code 1

Bar Code 2

10 20 30 40 50 60 70 80 90 100%

100

90

80

70

60

50

40

30

20

10

0%

window has been set to 20% left, 30% right, 8% top, and 25% bottom.
Since Bar Code 1 passes through the centering window, it will be read. Bar
Code 2 does not pass through the centering window, so it will not be read.

Note: A bar code needs only to be touched by the centering window in

order to be read. It does not need to pass completely through the
centering window.

3 - 7

3 - 8

Scan Presentation Centering On, then scan one of the following bar codes to
change the top, bottom, left, or right of the centering window. Then scan the
percent you want to shift the centering window using digits on the inside back
cover of this manual. Scan Save.

Default Presentation Centering = 40% for

Top and Left, 60% for Bottom and Right.

Mobile Phone Read Mode

When this mode is selected, your scanner is optimized to read bar codes from
mobile phone or other LED displays. However, the speed of scanning printed
bar codes may be slightly lower when this mode is enabled.

Note: To turn off Mobile Phone Read Mode, scan the Manual Trigger Mode bar

code (see page 3-5).

Left of

Presentation Centering

Window

Top of Presentation Centering

Window

Right of Presentation

Centering

Window

Bottom of Presentation

Centering Window

* Presentation Centering Off

Presentation Centering On

Hand Held Scanning - Mobile

Phone

Presentation Scanning -

Mobile Phone

Hands Free Time-Out

Hands Free Time-Out

Short (500 ms)

* Medium (750 ms)

Long (1000 ms)

Extra Long (2000 ms)

The Scan Stand and Presentation Modes are referred to as “hands free”
modes. If the scanner’s button is pressed when using a hands free mode, the
scanner changes to manual trigger mode. You can set the time the scanner
should remain in manual trigger mode by setting the Hands Free Time-Out.
Once the time-out value is reached, (if there have been no further button
presses) the scanner reverts to the original hands free mode.

Scan the Hands Free Time-Out bar code, then scan the time-out duration
(from 0-300,000 milliseconds) from the inside back cover, and Save.

Default =

5,000 ms.

Reread Delay

This sets the time period before the scanner can read the
ond time. Setting a reread delay protects against accidental rereads of the
same bar code. Longer delays are effective in minimizing accidental rereads.
Use shorter delays in applications where repetitive bar code scanning is
required. Reread Delay only works when in Presentation Mode (see page 3-6).

same

bar code a sec-

Default = Medium.

3 - 9

User-Specified Reread Delay

User-Specified Reread Delay

Scanner Time-Out

If you want to set your own length for the reread delay, scan the bar code below,
then set the delay (from 0-30,000 milliseconds) by scanning digits from the
inside back cover, then scanning Save.

Scanner Time-Out

Scanner Time-Out powers down the scanner after the unit has been idle for the
specified time. To prevent the scanner from powering down, set this time-out to
0, or no timer. Scan Scanner Time-Out, then set the time-out by scanning dig­its (from 0 - 999,999 ms) from the inside back cover, then scanning Save.

Default = 1 ms.

Centering

Use Centering to narrow the scanner’s field of view to make sure that when the
scanner is hand-held, it reads only those bar codes intended by the user. For
instance, if multiple codes are placed closely together, centering will insure that
only the desired codes are read.

Note: To adjust centering when the scanner is in the stand, see Presentation

Centering (page 3-6).

If a bar code is not touched by a predefined window, it will not be decoded or
output by the scanner. If centering is turned on by scanning Centering On, the
scanner only reads codes that pass through the centering window you specify
using the Top of Centering Window, Bottom of Centering Window, Left, and
Right of Centering Window bar codes.

3 - 10

In the example below, the white box is the centering window. The centering win-

0

Bar Code 1

Bar Code 2

10 20 30 40 50 60 70 80 90 100%

100

90

80

70

60

50

40

30

20

10

0%

dow has been set to 20% left, 30% right, 8% top, and 25% bottom. Since Bar
Code 1 passes through the centering window, it will be read. Bar Code 2 does
not pass through the centering window, so it will not be read.

Note: A bar code needs only to be touched by the centering window in order to

be read. It does not need to pass completely through the centering
window.

3 - 11

Scan Centering On, then scan one of the following bar codes to change the

Left of Centering Window

Top of Centering Window

Right of Centering Window

Bottom of Centering Window

* Centering Off

Centering On

On

* Off

top, bottom, left, or right of the centering window. Then scan the percent you
want to shift the centering window using digits on the inside back cover of this
manual. Scan Save.

Default Centering = 40% for Top and Left, 60% for Bot-

tom and Right.

No Read

With No Read turned On, the scanner notifies you if a code cannot be read.

Default = Off.

If you want a different notation than “NR,” for example, “Error,” or “Bad Code,”
you can edit the output message (see Data Formatting beginning on page 5-1).
The hex code for the No Read symbol is 9C.

3 - 12

Video Reverse

Video Reverse Only

* Video Reverse Off

VIDREV0.

Video Reverse and Standard Bar

Codes

Video Reverse is used to allow the scanner to read bar codes that are inverted.
The Video Reverse Off bar code below is an example of this type of bar code.

only

Scan Video Reverse Only to read
Reverse and Standard Bar Codes to read both types of codes.

Note: After scanning Video Reverse Only, menu bar codes cannot be read.

You must scan Video Reverse Off or Video Reverse and Standard Bar
Codes in order to read menu bar codes.

Note: Images downloaded from the unit are not reversed. This is a setting for

decoding only.

inverted bar codes. Scan Video

3 - 13

Working Orientation

Upright:

Vertical, Top to Bottom:

(Rotate CW 90°)

Upside Down:

Vertical, Bottom to Top:

(Rotate CCW 90°)

* Upright

Upside Down

Vertical, Top to Bottom

Vertical, Bottom to Top

Some bar codes are direction-sensitive. For example, KIX codes and OCR can
misread when scanned sideways or upside down. Use the working orientation
settings if your direction-sensitive codes will not usually be presented upright to
the scanner.

Default = Upright.

Default = Upright.

3 - 14

4 - 1

4

Data Editing

Prefix/Suffix Overview

When a bar code is scanned, additional information is sent to the host computer
along with the bar code data. This group of bar code data and additional,
user-defined data is called a “message string.” The selections in this section
are used to build the user-defined data into the message string.

Prefix and Suffix characters are data characters that can be sent before and
after scanned data. You can specify if they should be sent with all symbologies,
or only with specific symbologies. The following illustration shows the break­down of a message string:

Points to Keep In Mind

• It is not necessary to build a message string. The selections in this
chapter are only used if you wish to alter the default settings.

Default

prefix = None. Default suffix = None

.

• A prefix or suffix may be added or cleared from one symbology or all
symbologies.

• You can add any prefix or suffix from the ASCII Conversion Chart (Code

Page 1252), beginning on page A-4, plus Code I.D. and AIM I.D.

• You can string together several entries for several symbologies at one
time.

• Enter prefixes and suffixes in the order in which you want them to appear
on the output.

• When setting up for specific symbologies (as opposed to all
symbologies), the specific symbology ID value counts as an added prefix
or suffix character.

• The maximum size of a prefix or suffix configuration is 200 characters,
which includes header information.

To Add a Prefix or Suffix:

Step 1. Scan the Add Prefix or Add Suffix symbol (page 4-3).
Step 2. Determine the 2 digit Hex value from the Symbology Chart

(included in the Symbology Chart, beginning on page A-1) for the

Prefix

Scanned Data

Suffix

1-11
alpha numeric &
control characters

variable length1-11
alpha numeric &
control characters

symbology to which you want to apply the prefix or suffix. For
example, for Code 128, Code ID is “j” and Hex ID is “6A”.

Step 3. Scan the 2 hex digits from the Programming Chart inside the back

cover of this manual or scan 9, 9 for all symbologies.

Step 4. Determine the hex value from the ASCII Conversion Chart (Code

Page 1252), beginning on page A-4, for the prefix or suffix you wish

to enter.

Step 5. Scan the 2 digit hex value from the Programming Chart inside the

back cover of this manual.

Step 6. Repeat Steps 4 and 5 for every prefix or suffix character.
Step 7. To add the Code I.D., scan 5, C, 8, 0.

To add AIM I.D., scan 5, C, 8, 1.
To add a backslash (\), scan 5, C, 5, C.

Note: To add a backslash (\) as in Step 7, you must scan 5C twice – once

to create the leading backslash and then to create the backslash
itself.

Step 8. Scan Save to exit and save, or scan Discard to exit without saving.
Repeat Steps 1-6 to add a prefix or suffix for another symbology.

Example: Add a Suffix to a specific symbology

To send a CR (carriage return)Suffix for U.P.C. only:

Step 1. Scan Add Suffix.
Step 2. Determine the 2 digit hex value from the Symbology Chart

(included in the Symbology Chart, beginning on page A-1) for
U.P.C..

Step 3. Scan 6, 3 from the Programming Chart inside the back cover of this

manual.

Step 4. Determine the hex value from the ASCII Conversion Chart (Code

Page 1252), beginning on page A-4, for the CR (carriage return).

Step 5. Scan 0, D from the Programming Chart inside the back cover of this

manual.

Step 6. Scan Save, or scan Discard to exit without saving.

To Clear One or All Prefixes or Suffixes

You can clear a single prefix or suffix, or clear all prefixes/suffixes for a
symbology. If you have been entering prefixes and suffixes for single sym­bologies, you can use Clear One Prefix (Suffix) to delete a specific char-
acter from a symbology. When you Clear All Prefixes (Suffixes), all the
prefixes or suffixes for a symbology are deleted.

4 - 2

Step 1. Scan the Clear One Prefix or Clear One Suffix symbol.

Add CR Suffix

All Symbologies

Add Prefix

Clear One Prefix

Clear All Prefixes

Step 2. Determine the 2 digit Hex value from the Symbology Chart

(included in the Symbology Chart, beginning on page A-1) for the
symbology from which you want to clear the prefix or suffix.

Step 3. Scan the 2 digit hex value from the Programming Chart inside the

back cover of this manual or scan 9, 9 for all symbologies.

Your change is automatically saved.

To Add a Carriage Return Suffix to All Symbologies

Scan the following bar code if you wish to add a carriage return suffix to all
symbologies at once. This action first clears all current suffixes, then pro­grams a carriage return suffix for all symbologies.

Prefix Selections

4 - 3

Suffix Selections

Add Suffix

Clear One Suffix

Clear All Suffixes

* Enable

Disable

Function Code Transmit

When this selection is enabled and function codes are contained within the
scanned data, the scanner transmits the function code to the terminal. Charts
of these function codes are provided in Supported Interface Keys starting on

page 7-3. When the scanner is in keyboard wedge mode, the scan code is con-

verted to a key code before it is transmitted.

Default = Enable.

Intercharacter, Interfunction, and
Intermessage Delays

Some terminals drop information (characters) if data comes through too quickly.
Intercharacter, interfunction, and intermessage delays slow the transmission of
data, increasing data integrity.

4 - 4

Intercharacter Delay

1 2345

Intercharacter Delay

Prefix Scanned Data Suffix

Intercharacter Delay

Delay Length

Character to Trigger Delay

An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may
be placed between the transmission of each character of scanned data.
Scan the Intercharacter Delay bar code below, then scan the number of
5ms delays, and the Save bar code using the Programming Chart inside
the back cover of this manual.

To remove this delay, scan the Intercharacter Delay bar code, then set the
number of delays to 0. Scan the Save bar code using the Programming

Chart inside the back cover of this manual.

Note: Intercharacter delays are not supported in USB serial emulation.

User Specified Intercharacter Delay

An intercharacter delay of up to 5000 milliseconds (in 5ms increments)
may be placed after the transmission of a particular character of scanned
data. Scan the Delay Length bar code below, then scan the number of
5ms delays, and the Save bar code using the Programming Chart inside
the back cover of this manual.

Next, scan the Character to Trigger Delay bar code, then the 2-digit hex
value for the ASCII character that will trigger the delay ASCII Conversion

Chart (Code Page 1252), beginning on page A-4.

To remove this delay, scan the Delay Length bar code, and set the number
of delays to 0. Scan the Save bar code using the Programming Chart
inside the back cover of this manual.

4 - 5

Interfunction Delay

Interfunction Delays

Prefix Scanned Data Suffix

1 2345STX HT CR LF

Interfunction Delay

2nd Scan Transmission1st Scan Transmission

Intermessage Delay

Intermessage Delay

An interfunction delay of up to 5000 milliseconds (in 5ms increments) may
be placed between the transmission of each segment of the message
string. Scan the Interfunction Delay bar code below, then scan the num­ber of 5ms delays, and the Save bar code using the Programming Chart
inside the back cover of this manual.

To remove this delay, scan the Interfunction Delay bar code, then set the
number of delays to 0. Scan the Save bar code using the Programming

Chart inside the back cover of this manual.

Intermessage Delay

An intermessage delay of up to 5000 milliseconds (in 5ms increments)
may be placed between each scan transmission. Scan the Intermessage
Delay bar code below, then scan the number of 5ms delays, and the Save
bar code using the Programming Chart inside the back cover of this man-
ual.

To remove this delay, scan the Intermessage Delay bar code, then set the
number of delays to 0. Scan the Save bar code using the Programming

Chart inside the back cover of this manual.

4 - 6

5 - 1

5

Data Formatting

Data Format Editor Introduction

You may use the Data Format Editor to change the scanner’s output. For exam­ple, you can use the Data Format Editor to insert characters at certain points in
bar code data as it is scanned. The selections in the following pages are used
only if you wish to alter the output.

Default Data Format setting = None.

Normally, when you scan a bar code, it gets outputted automatically; however
when you create a format, you must use a “send” command (see Send

Commands on page 5-4) within the format program to output data.

Multiple formats may be programmed into the scanner. They are stacked in the
order in which they are entered. However, the following list presents the order
in which formats are applied:

1. Specific Terminal ID, Actual Code ID, Actual Length

2. Specific Terminal ID, Actual Code ID, Universal Length

3. Specific Terminal ID, Universal Code ID, Actual Length

4. Specific Terminal ID, Universal Code ID, Universal Length

5. Universal Terminal ID, Actual Code ID, Actual Length

6. Universal Terminal ID, Actual Code ID, Universal Length

7. Universal Terminal ID, Universal Code ID, Actual Length

8. Universal Terminal ID, Universal Code ID, Universal Length

The maximum size of a data format configuration is 2000 bytes, which includes
header information.

If you have changed data format settings, and wish to clear all formats and
return to the factory defaults, scan the Default Data Format code below.

Add a Data Format

Step 1. Scan the Enter Data Format symbol (page 5-2).
Step 2. Select Primary/Alternate Format

Determine if this will be your primary data format, or one of 3 alternate
formats. This allows you to save a total of 4 different data formats. To
program your primary format, scan 0 using the Programming Chart
inside the back cover of this manual. If you are programming an
alternate format, scan 1, 2, or 3, depending on which alternate format

* Default Data Format

you are programming. (See Primary/Alternate Data Formats on page

Enter Data Format

Save

Discard

5-8 for further information.)

Step 3. Terminal Type

Refer to Terminal ID Table (page 5-4) and locate the Terminal ID
number for your PC. Scan three numeric bar codes on the inside back
cover to program the scanner for your terminal ID (you must enter 3
digits). For example, scan 0 0 3 for an AT wedge.

Note: The wildcard for all terminal types is 099.

Step 4. Code I.D.

In the Symbology Chart, beginning on page A-1, find the symbology to
which you want to apply the data format. Locate the Hex value for that
symbology and scan the 2 digit hex value from the Programming Chart
inside the back cover of this manual.

Note: If you are creating a data format for Batch Mode Quantity, use 35

for the Code I.D.

Step 5. Length

Specify what length (up to 9999 characters) of data will be acceptable
for this symbology. Scan the four digit data length from the

Programming Chart inside the back cover of this manual. (Note: 50

characters is entered as 0050. 9999 is a universal number, indicating
all lengths.)

Step 6. Editor Commands

Refer to Data Format Editor Commands (page 5-4). Scan the symbols
that represent the command you want to enter. 94 alphanumeric
characters may be entered for each symbology data format.

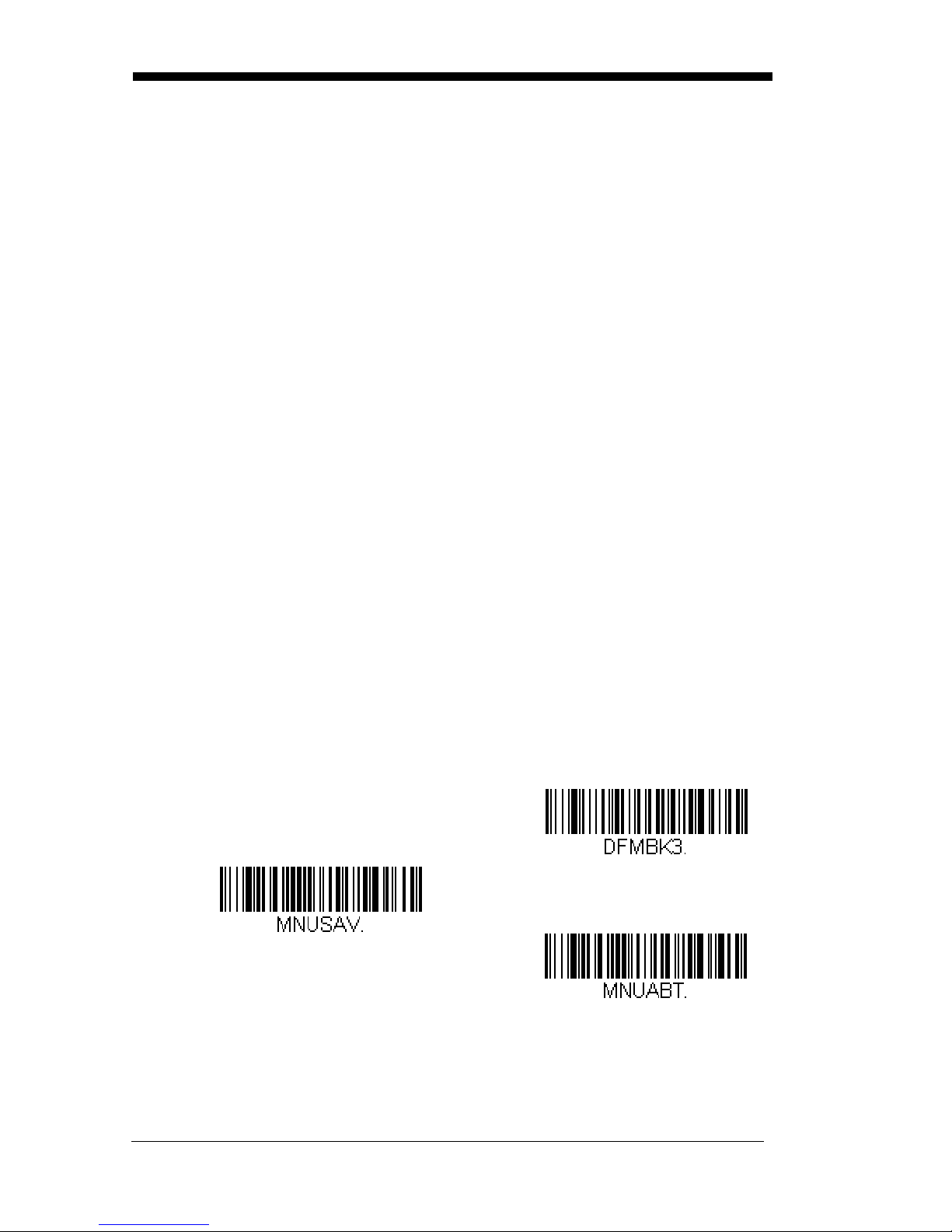

Step 7. Scan Save to save your data format, or Discard to exit without saving

your changes.

5 - 2

Other Programming Selections

Clear One Data Format

Clear All Data Formats

Save

Discard

Clear One Data Format

This deletes one data format for one symbology. If you are clearing the
primary format, scan 0 from the Programming Chart inside the back
cover of this manual. If you are clearing an alternate format, scan 1, 2,
or 3, depending on the format you are clearing. Scan the Terminal Type
and Code I.D. (see Symbology Chart on page A-1), and the bar code
data length for the specific data format that you want to delete. All other
formats remain unaffected.

Clear all Data Formats

This clears all data formats.

Save to exit and save your data format changes.
Discard to exit without saving any data format changes.

5 - 3

Terminal ID Table

Terminal Model(s)

IBM PC/AT and compatibles

USB SurePOS Handheld
Scanner

USB SurePOS Tabletop
Scanner

USB PC Keyboard

Mac Keyboard
Japanese Keyboard (PC)
HID POS

Data Format Editor Commands

Send Commands

Send all characters

F1 Include in the output message all of the characters from the input

message, starting from current cursor position, followed by an insert
character.
value for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252), beginning on
page A-4 for decimal, hex and character codes.

Syntax = F1xx

where xx stands for the insert character’s hex

Terminal

ID

003
128

129

124
125
134
131

Send a number of characters

F2 Include in the output message a number of characters followed by an

insert character. Start from the current cursor position and continue for
“nn” characters or through the last character in the input message,
followed by character “xx.”
numeric value (00-99) for the number of characters, and xx stands for
the the insert character’s hex value for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252), beginning on
page A-4 for decimal, hex and character codes.

Syntax = F2nnxx

where nn stands for the

Send all characters up to a particular character

F3 Include in the output message all characters from the input message,

starting with the character at the current cursor position and continuing
to, but not including, the search character “ss,” followed by an insert
character. The cursor is moved forward to the “ss” character.

= F3ssxx

ASCII code, and xx stands for the insert character’s hex value for its
ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252), beginning on
page A-4 for decimal, hex and character codes.

where ss stands for the search character’s hex value for its

Syntax

5 - 4

Send all but the last characters

E9 Include in the output message all but the last “nn” characters, starting

from the current cursor position. The cursor is moved forward to one
position past the last input message character included.
where nn stands for the numeric value (00-99) for the number of
characters that will not be sent at the end of the message.

Syntax = E9nn

Insert a character multiple times

F4 Send “xx” character “nn” times in the output message, leaving the

cursor in the current position.
insert character’s hex value for its ASCII code, and nn is the numeric
value (00-99) for the number of times it should be sent.
Refer to the ASCII Conversion Chart (Code Page 1252), beginning on
page A-4 for decimal, hex and character codes.

Syntax = F4xxnn

where xx stands for the

Move Commands

Move the cursor forward a number of characters

F5 Move the cursor ahead “nn” characters from current cursor position.

Syntax = F5nn

of characters the cursor should be moved ahead.

Move the cursor backward a number of characters

where nn is the numeric value (00-99) for the number

F6 Move the cursor back “nn” characters from current cursor position.

Syntax = F6nn

of characters the cursor should be moved back.

where nn is the numeric value (00-99) for the number

Move the cursor to the beginning

F7 Move the cursor to the first character in the input message.

F7.

Syntax =

Move the cursor to the end

EA Move the cursor to the last character in the input message.

EA.

Syntax =

Search Commands

Search forward for a character

F8 Search the input message forward for “xx” character from the current

cursor position, leaving the cursor pointing to the “xx” character.

= F8xx

ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252), beginning on
page A-4 for decimal, hex and character codes.

where xx stands for the search character’s hex value for its

Syntax

5 - 5

Search backward for a character

F9 Search the input message backward for “xx” character from the current

cursor position, leaving the cursor pointing to the “xx” character.

Syntax = F9xx

its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252), beginning on
page A-4 for decimal, hex and character codes.

where xx stands for the search character’s hex value for

Search forward for a non-matching character

E6 Search the input message forward for the first non-“xx” character from

the current cursor position, leaving the cursor pointing to the non-“xx”
character.
hex value for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252), beginning on
page A-4 for decimal, hex and character codes.

Syntax = E6xx

where xx stands for the search character’s

Search backward for a non-matching character

E7 Search the input message backward for the first non-“xx” character

from the current cursor position, leaving the cursor pointing to the non­“xx” character.
character’s hex value for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252), beginning on
page A-4 for decimal, hex and character codes.

Syntax = E7xx

where xx stands for the search

Miscellaneous Commands

Suppress characters

FB Suppress all occurrences of up to 15 different characters, starting at the

current cursor position, as the cursor is advanced by other commands.
When the FC command is encountered, the suppress function is
terminated. The cursor is not moved by the FB command.
Syntax = FBnnxxyy . .zz where nn is a count of the number of
suppressed characters in the list, and xxyy .. zz is the list of characters
to be suppressed.

Stop suppressing characters

FC Disables suppress filter and clear all suppressed characters.

FC.

Replace characters

E4 Replaces up to 15 characters in the output message, without moving

the cursor. Replacement continues until the E5 command is
encountered.

total count of of the number of characters in the list (characters to be
replaced plus replacement characters); xx

replaced and xx
zz

and zz2.

1

Syntax = E4nnxx1xx2yy1yy2...zz1zz

defines characters to be

1

defines replacement characters, continuing through

2

where nn is the

2

Syntax =

5 - 6

Stop replacing characters

Data Formatter Off

E5 Terminates character replacement.

Syntax = E5.

Compare characters

FE Compare the character in the current cursor position to the character

“xx.” If characters are equal, move the cursor forward one position.

Syntax = FExx

value for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252), beginning on
page A-4 for decimal, hex and character codes.

where xx stands for the comparison character’s hex

Check for a number

EC Check to make sure there is an ASCII number at the current cursor

position. The format is aborted if the character is not numeric.

Check for non-numeric character

ED Check to make sure there is a non-numeric ASCII character at the

current cursor position. The format is aborted if the character is
numeric.

Insert a delay

EF Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting

from the current cursor position. Syntax = EFnnnn where nnnn stands
for the delay in 5ms increments, up to 9999. This command can only
be used with keyboard emulation.

Data Formatter

When Data Formatter is turned Off, the bar code data is output to the host as
read, including prefixes and suffixes.

You may wish to require the data to conform to a data format you have created
and saved. The following settings can be applied to your data format:

Data Formatter On, Not Required, Keep Prefix/Suffix

Scanned data is modified according to your data format, and prefixes and
suffixes are transmitted.

Data Format Required, Keep Prefix/Suffix

Scanned data is modified according to your data format, and prefixes and
suffixes are transmitted. Any data that does not match your data format
requirements generates an error tone and the data in that bar code is not
transmitted.

5 - 7

Default = Data Formatter On, Not Required, Keep Prefix/Suffix.

* Data Formatter On,

Not Required,

Keep Prefix/Suffix

Data Format Required,

Keep Prefix/Suffix

Primary Data Format

Data Format 1

Data Format 2

Data Format 3

Primary/Alternate Data Formats

You can save up to four data formats, and switch between these formats. Your
primary data format is saved under 0. Your other three formats are saved under
1, 2, and 3. To set your device to use one of these formats, scan one of the bar
codes below.

5 - 8

6 - 1

6

Symbologies

This programming section contains the following menu selections.

• All Symbologies • Interleaved 2 of 5
tsoP aeroK•edoC cetzA•

• China Post (Hong Kong 2 of 5) • Matrix 2 of 5

• Chinese Sensible (Han Xin) Code • MicroPDF417

ISM•rabadoC•

5 fo 2 CEN•A kcolbadoC•

raeniL - sedoC latsoP•F kcolbadoC•

714FDP•821 edoC•

lanoitceridinmO raBataD 1SG•93 edoC•

edoC RQ•39 edoC•

• Data Matrix

• Straight 2 of 5 IATA (two-bar start/

stop)

• EAN/JAN-13

• Straight 2 of 5 Industrial (three-bar

start/stop)

)93CLT( 93 edoC dekniL FICT•8-NAJ/NAE•

• GS1 Composite Codes

• GS1 DataBar Expanded • UPC-A

• GS1 DataBar Limited

• UPC-A/EAN-13 with Extended

Coupon Code

• GS1 DataBar Omnidirectional • UPC-E0

• GS1 Emulation • UPC-E1

• GS1-128

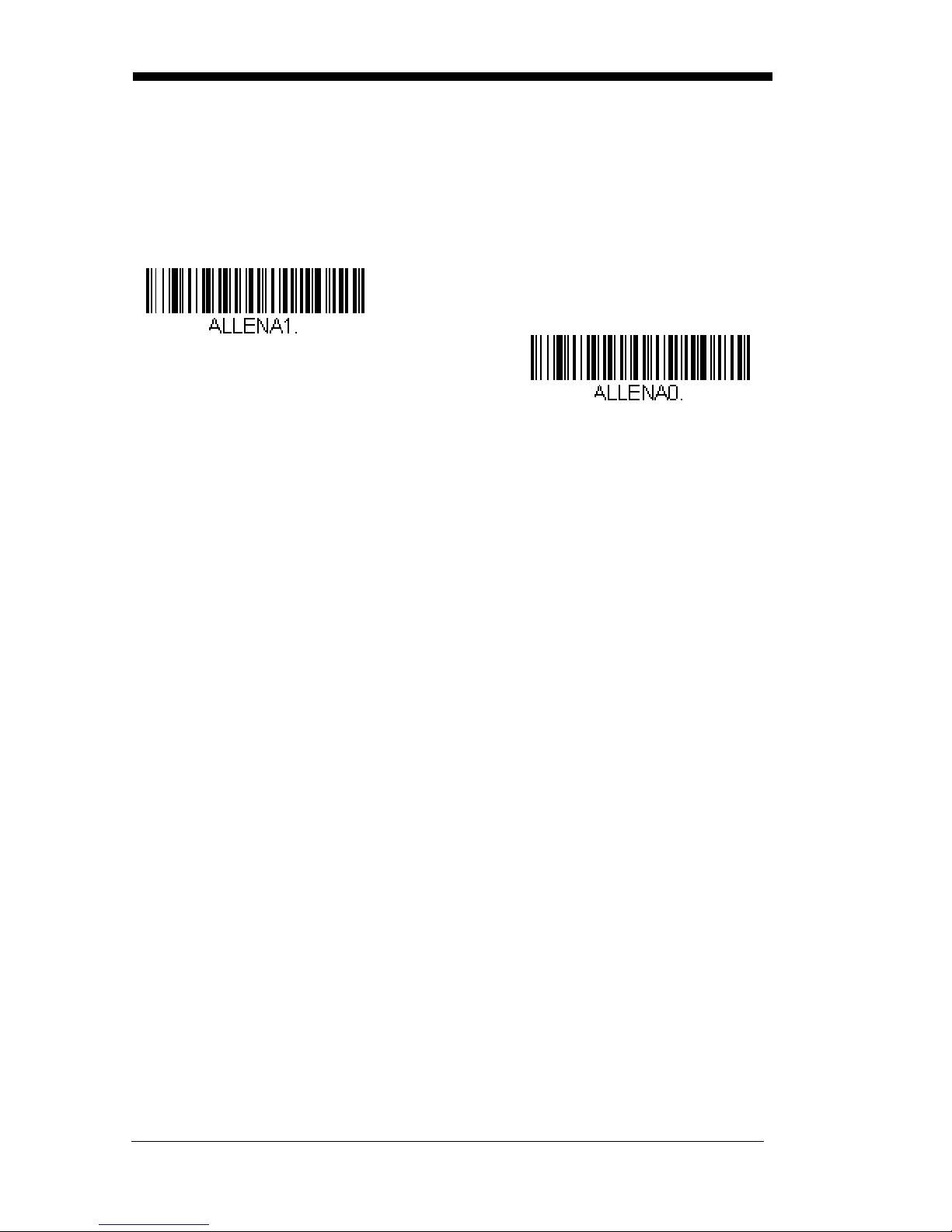

All Symbologies

All Symbologies On

All Symbologies Off

If you want to decode all the symbologies allowable for your scanner, scan the

All Symbologies On

particular symbology, scan All Symbologies Off followed by the On symbol for
that particular symbology.

Note: When All Symbologies On is scanned, 2D Postal Codes are not enabled.

2D Postal Codes must be enabled separately.

code. If on the other hand, you want to decode only a

Message Length Description

You are able to set the valid reading length of some of the bar code symbolo­gies. If the data length of the scanned bar code doesn’t match the valid read­ing length, the scanner will issue an error tone. You may wish to set the same
value for minimum and maximum length to force the scanner to read fixed
length bar code data. This helps reduce the chances of a misread.

EXAMPLE: Decode only those bar codes with a count of 9-20 characters.

Min. length = 09Max. length = 20

EXAMPLE: Decode only those bar codes with a count of 15 characters.

Min. length = 15Max. length = 15

For a value other than the minimum and maximum message length defaults,
scan the bar codes included in the explanation of the symbology, then scan the
digit value of the message length and Save bar codes on the Programming

Chart inside the back cover of this manual. The minimum and maximum

lengths and the defaults are included with the respective symbologies.

6 - 2

Codabar

* On

Off

Transmit

* Don’t Transmit

<Default All Codabar Settings>

Codabar On/Off

Codabar Start/Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code.
You may either transmit, or not transmit Start/Stop characters.

Default = Don’t Transmit

.

Codabar Check Character

Codabar check characters are created using different “modulos.” You can
program the scanner to read only Codabar bar codes with Modulo 16 check
characters.

No Check Character

code data with or without a check character.
When Check Character is set to

only read Codabar bar codes printed with a check character, and will trans­mit this character at the end of the scanned data.

Default = No Check Character.

indicates that the scanner reads and transmits bar

Validate and Transmit

, the scanner will

6 - 3

When Check Character is set to

* No Check Character

Validate Modulo 16

and Transmit

Validate Modulo 16, but

Don’t Transmit

On

* Off

Require

only read Codabar bar codes printed

Validate, but Don’t Transmit

with

a check character, but will not

, the unit will

transmit the check character with the scanned data.

Codabar Concatenation

Codabar supports symbol concatenation. When you enable concatena­tion, the scanner looks for a Codabar symbol having a “D” start character,
adjacent to a symbol having a “D” stop character. In this case the two mes­sages are concatenated into one with the “D” characters omitted.

Select Require to prevent the scanner from decoding a single “D” Codabar
symbol without its companion. This selection has no effect on Codabar
symbols without Stop/Start D characters.

A123 4D

D5 6 7 8 A

6 - 4

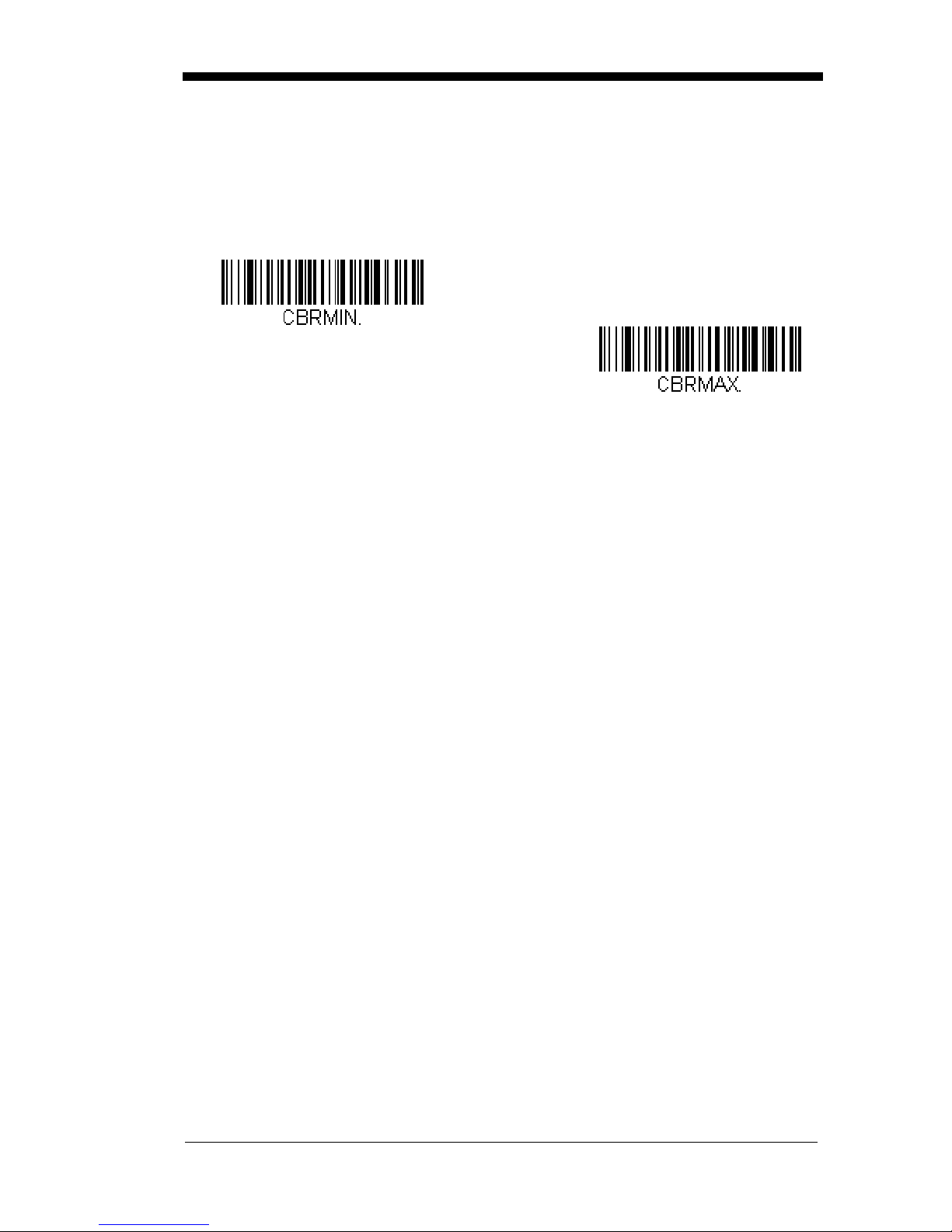

Codabar Message Length

Minimum Message Length

Maximum Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 2-60. Minimum Default = 4, Maximum
Default = 60.

6 - 5

Code 39

* On

Off

Transmit

* Don’t Transmit

< Default All Code 39 Settings >

Code 39 On/Off

Code 39 Start/Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code.
You may either transmit, or not transmit Start/Stop characters.

Don’t Transmit.

Default =

Code 39 Check Character

No Check Character indicates that the scanner reads and transmits bar

code data with or without a check character.
When Check Character is set to Validate, but Don’t Transmit, the unit

only reads Code 39 bar codes printed with a check character, but will not
transmit the check character with the scanned data.

6 - 6

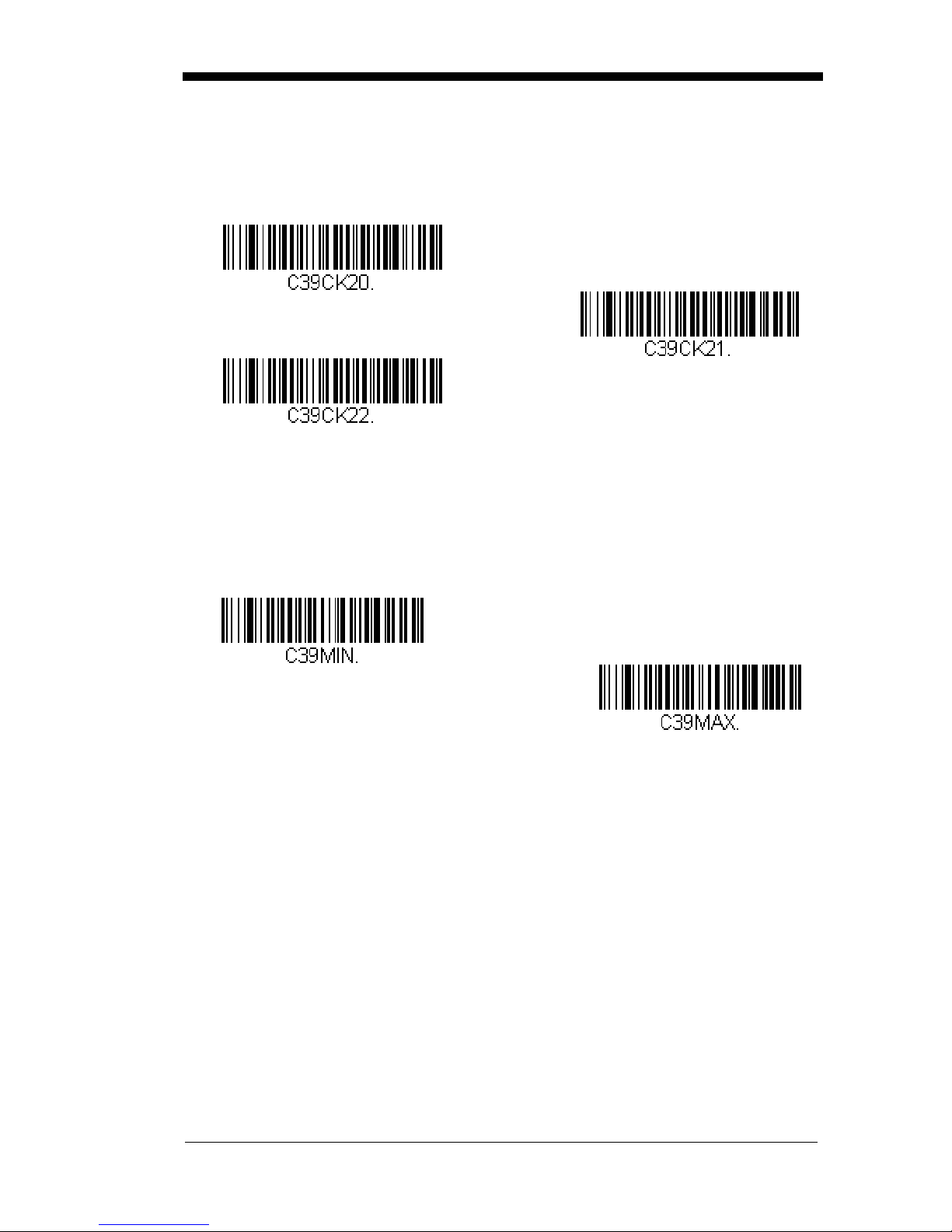

When Check Character is set to Validate and Transmit, the scanner only

* No Check Character

Validate and Transmit

Validate, but Don’t Transmit

Minimum Message Length

Maximum Message Length

reads Code 39 bar codes printed with a check character, and will transmit
this character at the end of the scanned data.

Default = No Check Charac-

ter.

Code 39 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 0-48. Minimum Default = 0, Maximum
Default = 48.

Code 39 Append

This function allows the scanner to append the data from several Code 39
bar codes together before transmitting them to the host computer. When
the scanner encounters a Code 39 bar code with the append trigger char-

6 - 7

acter(s), it buffers Code 39 bar codes until it reads a Code 39 bar code that

* Off

On

does not have the append trigger. The data is then transmitted in the order
in which the bar codes were read (FIFO).

Default = Off.

Full ASCII

If Full ASCII Code 39 decoding is enabled, certain character pairs within
the bar code symbol will be interpreted as a single character. For example:
$V will be decoded as the ASCII character SYN, and /C will be decoded as
the ASCII character #.

Default = Off

.

NUL %U DLE $P
SOH $A
STX $B
ETX $C
EOT $D
ENQ $E
ACK $F
BEL $G
BS $H
HT $I
LF $J
VT $K
FF $L
CR $M
SO $N
SI $O

DC1 $Q !/A 11AAQQ a+Aq+Q
DC2 $R “/B 22BBRR b+Br+R
DC3 $S #/C 33CCSS c+Cs+S
DC4 $T $/D 44 DDTTd+Dt+T
NAK $U %/E 55EE UUe+Eu+U
SYN $V &/F 66FFVV f+Fv+V
ETB $W ‘/G77GG WWg+Gw+W
CAN $X (/H 88 HHXXh+Hx+X
EM $Y )/I 99II YYi+Iy+Y
SUB $Z */J :/ZJJ ZZ j+Jz+Z
ESC %A +/K ;%FKK[%Kk+K{%P
FS %B ,/L <%GLL\%Ll+L|%Q
GS %C -- =%HMM]%Mm+M}%R
RS %D .. >%INN^%Nn+N~%S
US %E //O ?%JOO_%Oo+ODEL %T

SP SPACE

00@%VPP‘%Wp+P

6 - 8

Character pairs /M and /N decode as a minus sign and period respectively.

* Full ASCII Off

Full ASCII On

Code 39 Code Page

Character pairs /P through /Y decode as 0 through 9.

Code 39 Code Page

Code pages define the mapping of character codes to characters. If the
data received does not display with the proper characters, it may be
because the bar code being scanned was created using a code page that
is different from the one the host program is expecting. If this is the case,
scan the bar code below, select the code page with which the bar codes
were created (see Code Page Mapping of Printed Bar Codes on page A-6),
and scan the value and the Save bar code from the Programming Chart on
the inside the back cover of this manual. The data characters should then
appear properly.

6 - 9

Interleaved 2 of 5

* On

Off

Validate, but Don’t Transmit

* No Check Digit

Validate and Transmit

< Default All Interleaved 2 of 5 Settings >

Interleaved 2 of 5 On/Off

Check Digit

No Check Digit indicates that the scanner reads and transmits bar code

data with or without a check digit.
When Check Digit is set to Validate, but Don’t Transmit, the unit only

reads Interleaved 2 of 5 bar codes printed with a check digit, but will not
transmit the check digit with the scanned data.

When Check Digit is set to Validate and Transmit, the scanner only reads
Interleaved 2 of 5 bar codes printed with a check digit, and will transmit this
digit at the end of the scanned data.

Default = No Check Digit.

6 - 10

Interleaved 2 of 5 Message Length

Minimum Message Length

Maximum Message Length

* On

Off

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 2-80. Minimum Default = 4, Maximum
Default = 80.

NEC 2 of 5

< Default All NEC 2 of 5 Settings >

NEC 2 of 5 On/Off

Check Digit

No Check Digit indicates that the scanner reads and transmits bar code

data with or without a check digit.
When Check Digit is set to Validate, but Don’t Transmit, the unit only

reads NEC 2 of 5 bar codes printed with a check digit, but will not transmit
the check digit with the scanned data.

6 - 11

When Check Digit is set to Validate and Transmit, the scanner only reads

* No Check Digit

Validate and Transmit

Validate, but Don’t Transmit

Minimum Message Length

Maximum Message Length

NEC 2 of 5 bar codes printed with a check digit, and will transmit this digit
at the end of the scanned data.

Default = No Check Digit.

NEC 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 2-80. Minimum Default = 4, Maximum
Default = 80.

6 - 12

Code 93

* On

Off

Minimum Message Length

Maximum Message Length

< Default All Code 93 Settings >

Code 93 On/Off

Code 93 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 0-80. Minimum Default = 0, Maximum
Default = 80.

Code 93 Append

This function allows the scanner to append the data from several Code 93
bar codes together before transmitting them to the host computer. When
this function is enabled, the scanner stores those Code 93 bar codes that
start with a space (excluding the start and stop symbols), and does not
immediately transmit the data. The scanner stores the data in the order in

6 - 13

which the bar codes are read, deleting the first space from each. The

* Off

On

Code 93 Code Page

scanner transmits the appended data when it reads a Code 93 bar code
that starts with a character other than a space.

Default = Off.

Code 93 Code Page

Code pages define the mapping of character codes to characters. If the
data received does not display with the proper characters, it may be
because the bar code being scanned was created using a code page that
is different from the one the host program is expecting. If this is the case,
scan the bar code below, select the code page with which the bar codes
were created (see Code Page Mapping of Printed Bar Codes on page A-6),
and scan the value and the Save bar code from the Programming Chart on
the inside the back cover of this manual. The data characters should then
appear properly.

6 - 14

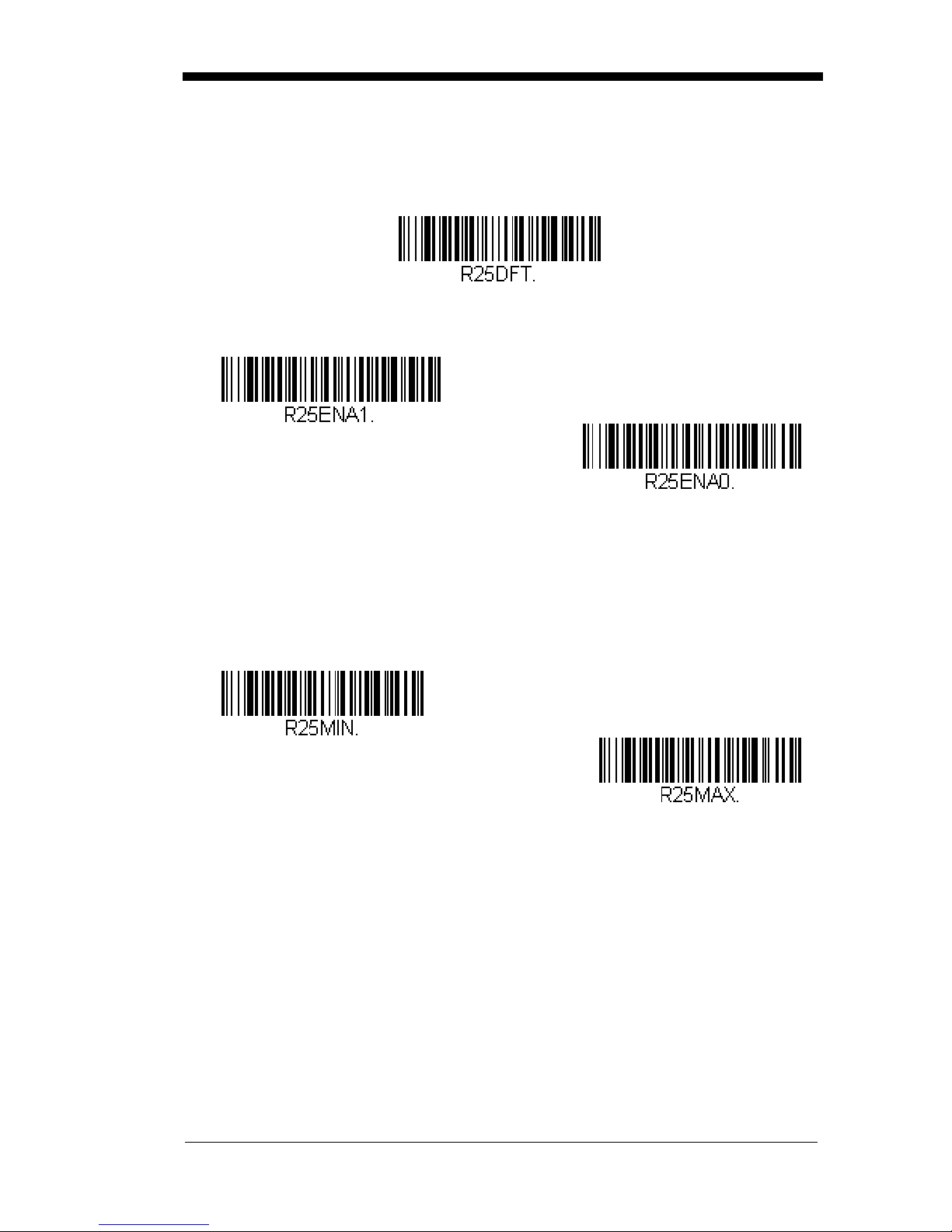

Straight 2 of 5 Industrial (three-bar start/stop)

On

* Off

Minimum Message Length

Maximum Message Length

<Default All Straight 2 of 5 Industrial Settings>

Straight 2 of 5 Industrial On/Off

Straight 2 of 5 Industrial Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 1-48. Minimum Default = 4, Maximum
Default = 48.

6 - 15

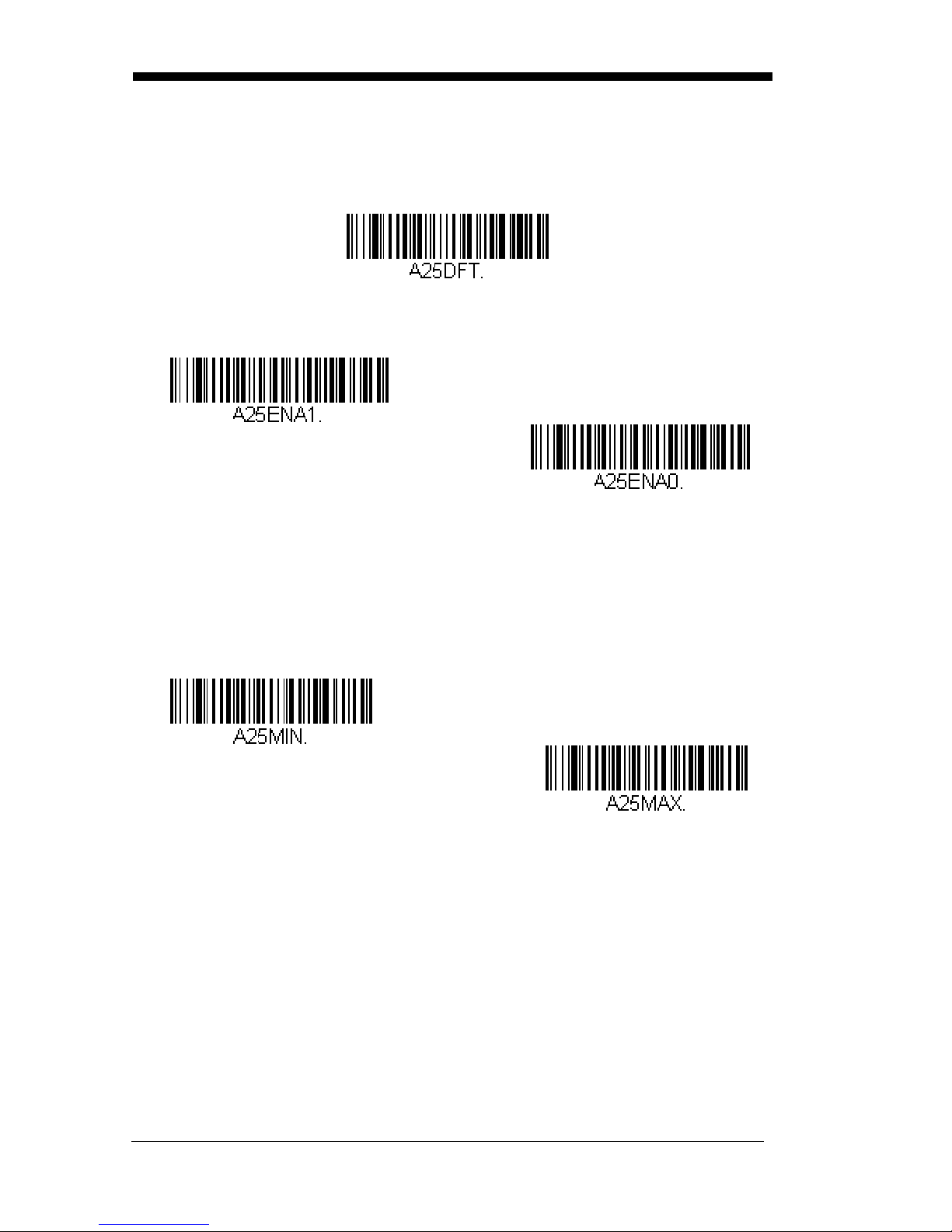

Straight 2 of 5 IATA (two-bar start/stop)

* Off

On

Minimum Message Length

Maximum Message Length

<Default All Straight 2 of 5 IATA Settings>

Straight 2 of 5 IATA On/Off

Straight 2 of 5 IATA Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 1-48. Minimum Default = 4, Maximum
Default = 48.

6 - 16

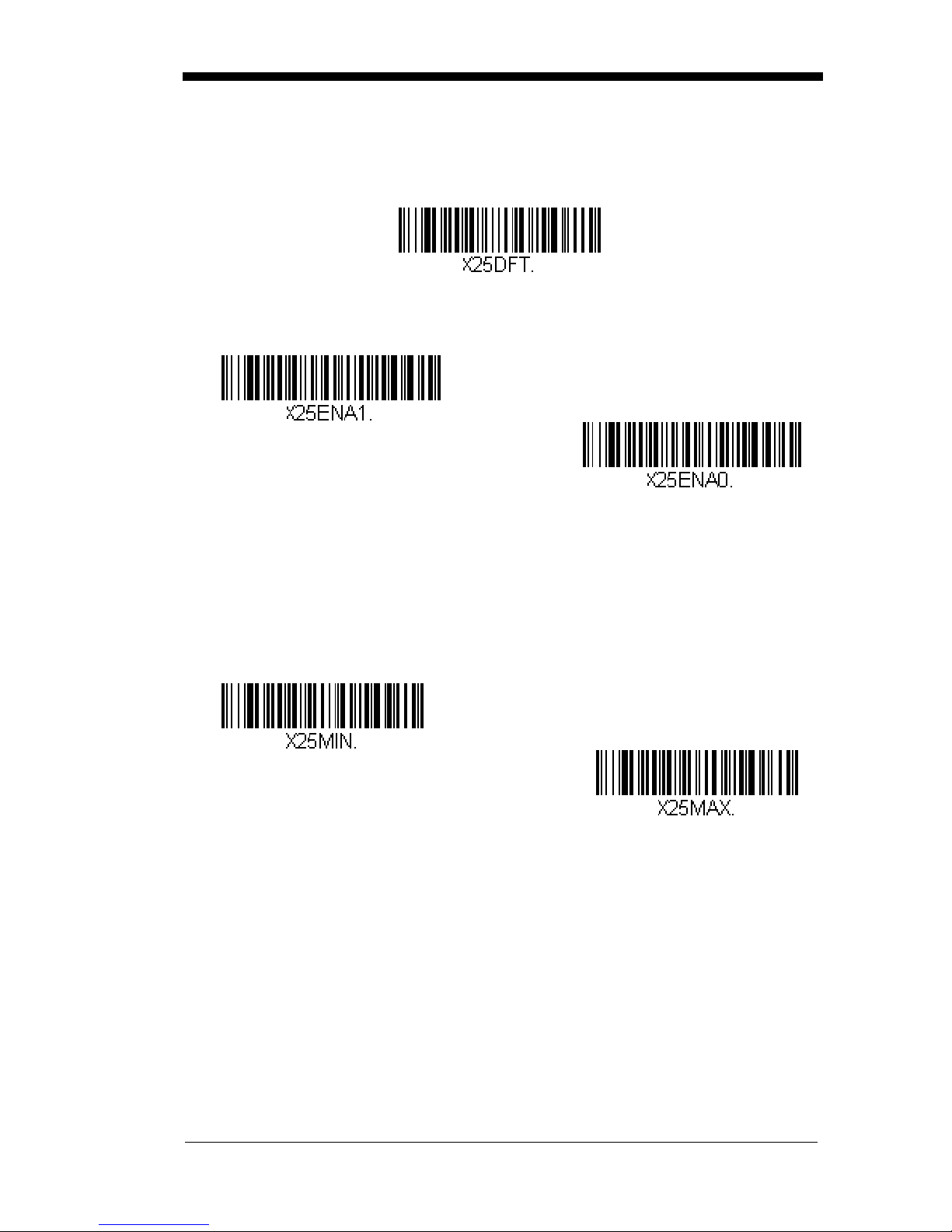

Matrix 2 of 5

On

* Off

Maximum Message Length

Minimum Message Length

<Default All Matrix 2 of 5 Settings>

Matrix 2 of 5 On/Off

Matrix 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 1-80. Minimum Default = 4, Maximum
Default = 80.

6 - 17

Code 128

* On

Off

* Off

On

<Default All Code 128 Settings>

Code 128 On/Off

ISBT 128 Concatenation

In 1994 the International Society of Blood Transfusion (ISBT) ratified a
standard for communicating critical blood information in a uniform manner.
The use of ISBT formats requires a paid license. The ISBT 128 Application
Specification describes 1) the critical data elements for labeling blood prod­ucts, 2) the current recommendation to use Code 128 due to its high
degree of security and its space-efficient design, 3) a variation of Code 128
that supports concatenation of neighboring symbols, and 4) the standard
layout for bar codes on a blood product label. Use the bar codes below to
turn concatenation on or off.

Default =Off.

6 - 18

Code 128 Message Length

Minimum Message Length

Maximum Message Length

* Off

On

Code 128 Code Page

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 0-80. Minimum Default = 0, Maximum
Default = 80.

Code 128 Append

This function allows the scanner to append the data from several Code 128
bar codes together before transmitting them to the host computer. When
the scanner encounters a Code 128 bar code with the append trigger char­acter(s), it buffers Code 128 bar codes until it reads a Code 128 bar code
that does not have the append trigger. The data is then transmitted in the
order in which the bar codes were read (FIFO).

Default = Off.

Code 128 Code Page

Code pages define the mapping of character codes to characters. If the
data received does not display with the proper characters, it may be
because the bar code being scanned was created using a code page that
is different from the one the host program is expecting. If this is the case,
scan the bar code below, select the code page with which the bar codes
were created (see Code Page Mapping of Printed Bar Codes on page A-6),
and scan the value and the Save bar code from the Programming Chart on
the inside the back cover of this manual. The data characters should then
appear properly.

6 - 19

GS1-128

* On

Off

Minimum Message Length

Maximum Message Length

<Default All GS1-128 Settings>

GS1-128 On/Off

GS1-128 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 1-80. Minimum Default = 1, Maximum
Default = 80.

6 - 20

UPC-A

* On

Off

* On

Off

<Default All UPC-A Settings>

UPC-A On/Off

Note: When UPC-A Off is scanned, UPC-A bar codes are transmitted as EAN-

13.

UPC-A Check Digit

This selection allows you to specify whether the check digit should be
transmitted at the end of the scanned data or not.

Default = On

.

6 - 21

UPC-A Number System

Off

* On

* 5 Digit Addenda Off

5 Digit Addenda On

* 2 Digit Addenda Off

2 Digit Addenda On

* Not Required

Required

The numeric system digit of a U.P.C. symbol is normally transmitted at the
beginning of the scanned data, but the unit can be programmed so it will
not transmit it.

Default = On.

UPC-A Addenda

This selection adds 2 or 5 digits to the end of all scanned UPC-A data.

Default = Off for both 2 Digit and 5 Digit Addenda.

UPC-A Addenda Required

When
that have addenda. You must then turn on a 2 or 5 digit addenda listed on

page 6-22.

6 - 22

Required

is scanned, the scanner will only read UPC-A bar codes

Default = Not Required.

UPC-A Addenda Separator

Off

* On

Allow Concatenation

* Off

Require Concatenation

When this feature is on, there is a space between the data from the bar
code and the data from the addenda. When turned off, there is no space.

Default = On.

UPC-A/EAN-13
with Extended Coupon Code

Use the following codes to enable or disable UPC-A and EAN-13 with Extended
Coupon Code. When left on the default setting (Off), the scanner treats Cou­pon Codes and Extended Coupon Codes as single bar codes.

If you scan the Allow Concatenation code, when the scanner sees the coupon
code and the extended coupon code in a single scan, it transmits both as sepa­rate symbologies. Otherwise, it transmits the first coupon code it reads.

If you scan the Require Concatenation code, the scanner must see and read
the coupon code and extended coupon code in a single read to transmit the
data. No data is output unless both codes are read.

Default = Off.

6 - 23

Coupon GS1 DataBar Output

* GS1 Output Off

GS1 Output On

* UPC-E0 On

UPC-E0 Off

If you scan coupons that have both UPC and GS1 DataBar codes, you may
wish to scan and output only the data from the GS1 DataBar code. Scan the
GS1 Output On code below to scan and output only the GS1 DataBar code
data.

Default = GS1 Output Off.

UPC-E0

<Default All UPC-E Settings>

UPC-E0 On/Off

Most U.P.C. bar codes lead with the 0 number system. To read these
codes, use the UPC-E0 On selection. If you need to read codes that lead
with the 1 number system, use UPC-E1 (page 6-27).

Default = On.

6 - 24

UPC-E0 Expand

On

* Off

* Not Required

Required

Off

* On

UPC-E Expand expands the UPC-E code to the 12 digit, UPC-A format.

Default = Off.

UPC-E0 Addenda Required

When Required is scanned, the scanner will only read UPC-E bar codes
that have addenda.

Default = Not Required.

UPC-E0 Addenda Separator

When this feature is On, there is a space between the data from the bar
code and the data from the addenda. When turned Off, there is no space.

Default = On.

6 - 25

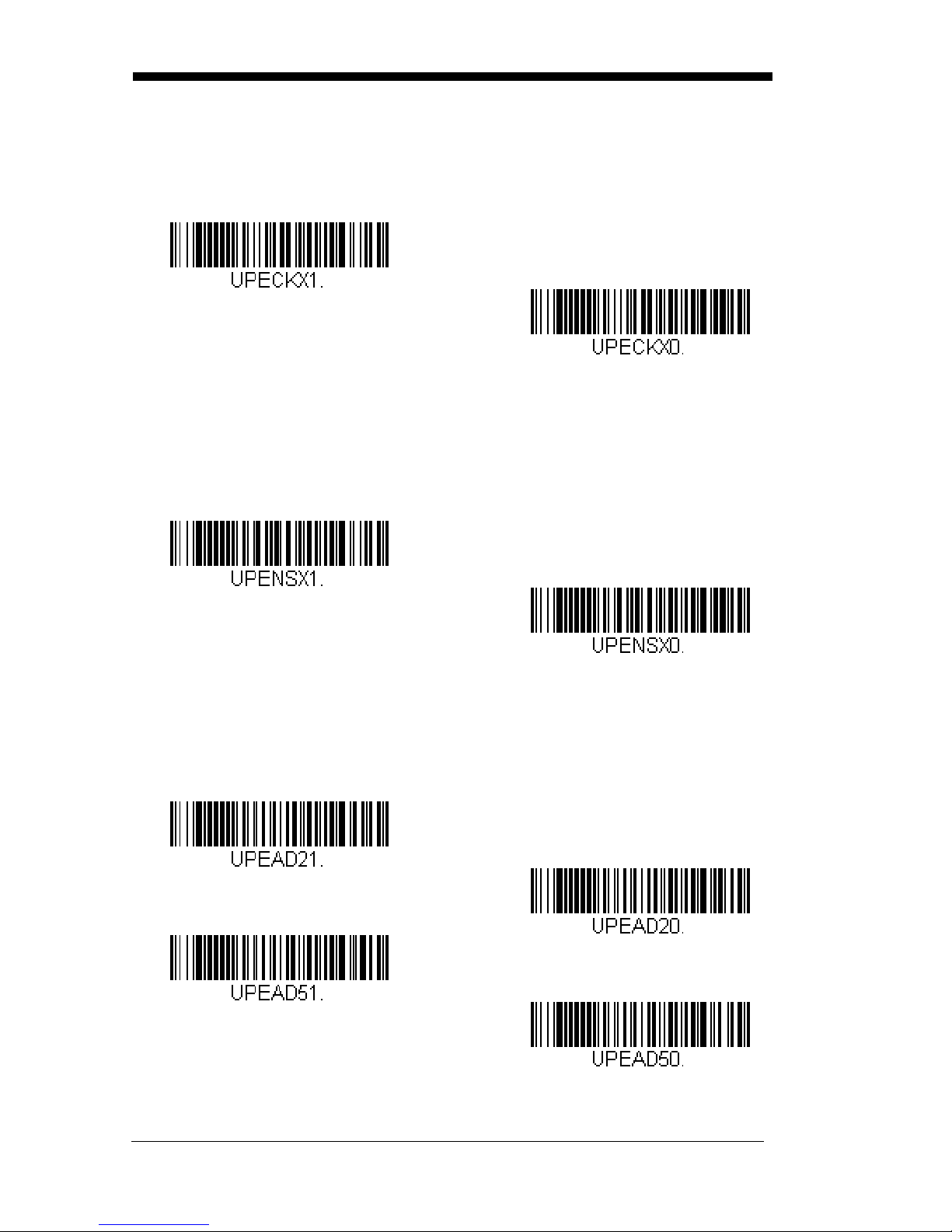

UPC-E0 Check Digit

Off

* On

Off

* On

* 5 Digit Addenda Off

5 Digit Addenda On

* 2 Digit Addenda Off

2 Digit Addenda On

Check Digit specifies whether the check digit should be transmitted at the
end of the scanned data or not.

Default = On.

UPC-E0 Number System

The numeric system digit of a U.P.C. symbol is normally transmitted at the
beginning of the scanned data, but the unit can be programmed so it will
not transmit it. To prevent transmission, scan Off.

Default = On.

UPC-E0 Addenda

This selection adds 2 or 5 digits to the end of all scanned UPC-E data.

Default = Off for both 2 Digit and 5 Digit Addenda.

6 - 26

UPC-E1

UPC-E1 On

* UPC-E1 Off

* On

Off

Most U.P.C. bar codes lead with the 0 number system. For these codes, use

UPC-E0 (page 6-24). If you need to read codes that lead with the 1 number

system, use the UPC-E1 On selection.

Default = Off.

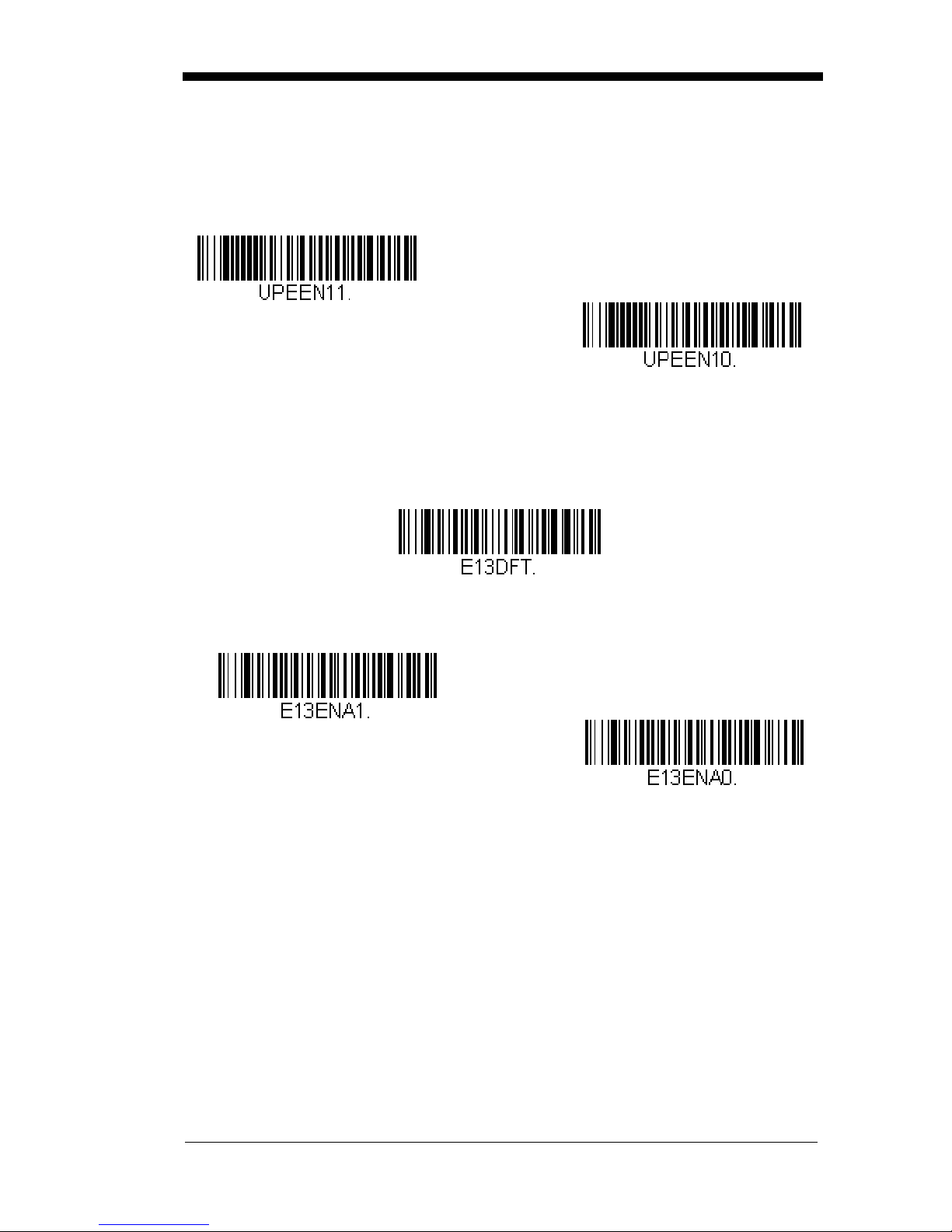

EAN/JAN-13

<Default All EAN/JAN Settings>

EAN/JAN-13 On/Off

Note: If you want to convert UPC-A bar codes to EAN-13 format, scan the UPC-

A Off bar code on page 6-21.

6 - 27

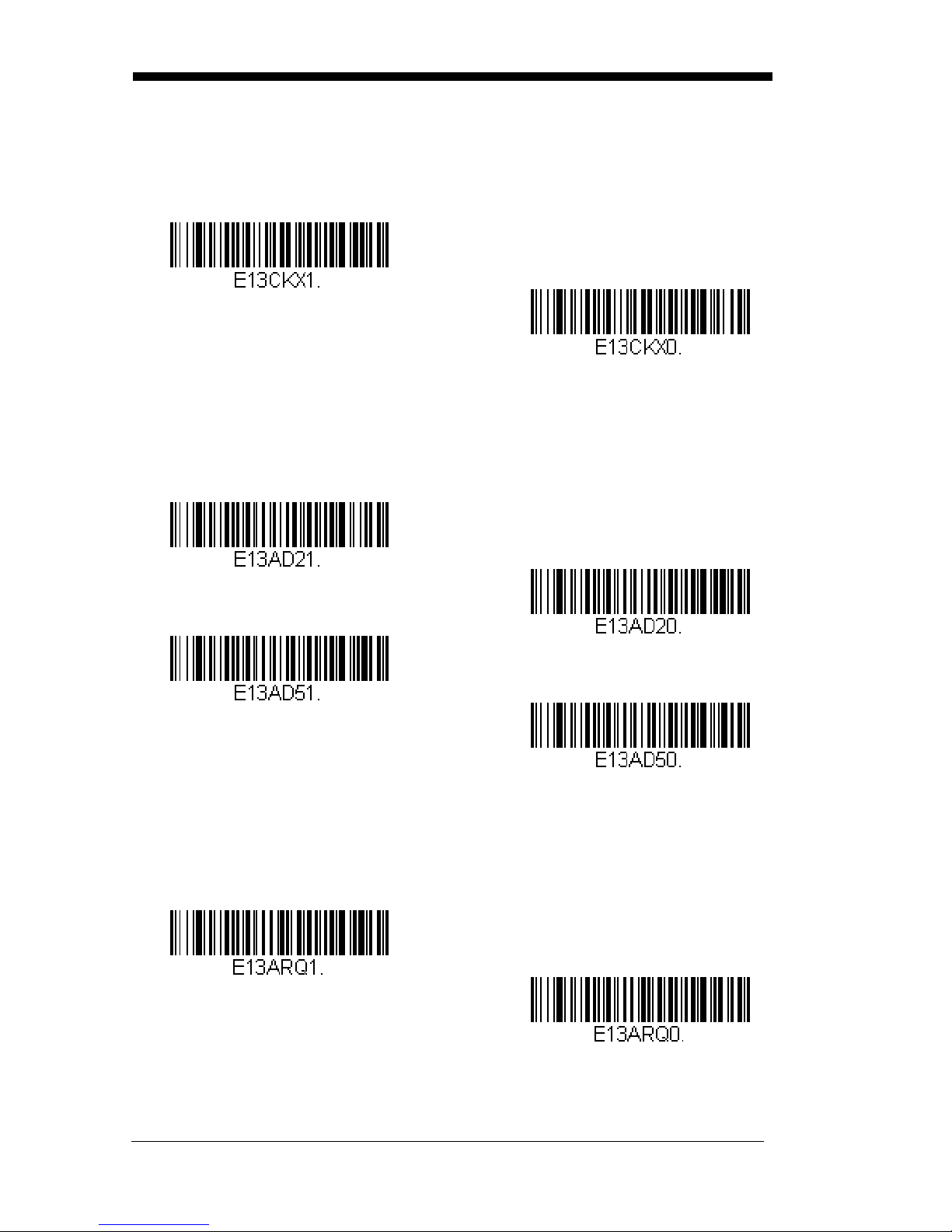

EAN/JAN-13 Check Digit

Off

* On

* 5 Digit Addenda Off

5 Digit Addenda On

* 2 Digit Addenda Off

2 Digit Addenda On

* Not Required

Required

This selection allows you to specify whether the check digit should be
transmitted at the end of the scanned data or not.

Default = On.

EAN/JAN-13 Addenda

This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-13
data.

Default = Off for both 2 Digit and 5 Digit Addenda.

EAN/JAN-13 Addenda Required

When Required is scanned, the scanner will only read EAN/JAN-13 bar
codes that have addenda.

6 - 28

Default = Not Required.

EAN/JAN-13 Addenda Separator

Off

* On

* Off

On

When this feature is On, there is a space between the data from the bar
code and the data from the addenda. When turned Off, there is no space.

Default = On.

Note: If you want to enable or disable EAN13 with Extended Coupon Code,

refer to UPC-A/EAN-13 with Extended Coupon Code (page 6-23).

ISBN Translate

When On is scanned, EAN-13 Bookland symbols are translated into their
equivalent ISBN number format.

Default = Off.

6 - 29

EAN/JAN-8

* On

Off

Off

* On

<Default All EAN/JAN-8 Settings>

EAN/JAN-8 On/Off

EAN/JAN-8 Check Digit

This selection allows you to specify whether the check digit should be
transmitted at the end of the scanned data or not.

Default = On.

6 - 30

EAN/JAN-8 Addenda

* 5 Digit Addenda Off

5 Digit Addenda On

* 2 Digit Addenda Off

2 Digit Addenda On

* Not Required

Required

Off

* On

This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-8 data.

Default = Off for both 2 Digit and 5 Digit Addenda.

EAN/JAN-8 Addenda Required

When Required is scanned, the scanner will only read EAN/JAN-8 bar
codes that have addenda.

Default = Not Required.

EAN/JAN-8 Addenda Separator

When this feature is On, there is a space between the data from the bar
code and the data from the addenda. When turned Off, there is no space.

Default = On.

6 - 31

MSI

On

* Off

<Default All MSI Settings>

MSI On/Off

MSI Check Character

Different types of check characters are used with MSI bar codes. You can
program the scanner to read MSI bar codes with Type 10 check charac-

Default = Validate Type 10, but Don’t Transmit.

ters.
When Check Character is set to Validate Type 10/11 and Transmit, the

scanner will only read MSI bar codes printed with the specified type check
character(s), and will transmit the character(s) at the end of the scanned
data.

6 - 32

When Check Character is set to Validate Type 10/11, but Don’t Transmit,

Validate Type 10 and Transmit

* Validate Type 10, but Don’t

Transmit

Validate 2 Type 10 Characters,

but Don’t Transmit

Validate 2 Type 10 Characters

and Transmit

Validate Type 10 then Type 11
Character, but Don’t Transmit

Validate Type 10 then

Type 11 Character and Transmit

Disable MSI Check Characters

Minimum Message Length

Maximum Message Length

the unit will only read MSI bar codes printed with the specified type check
character(s), but will not transmit the check character(s) with the scanned
data.

MSI Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 4-48. Minimum Default = 4, Maximum
Default = 48.

6 - 33

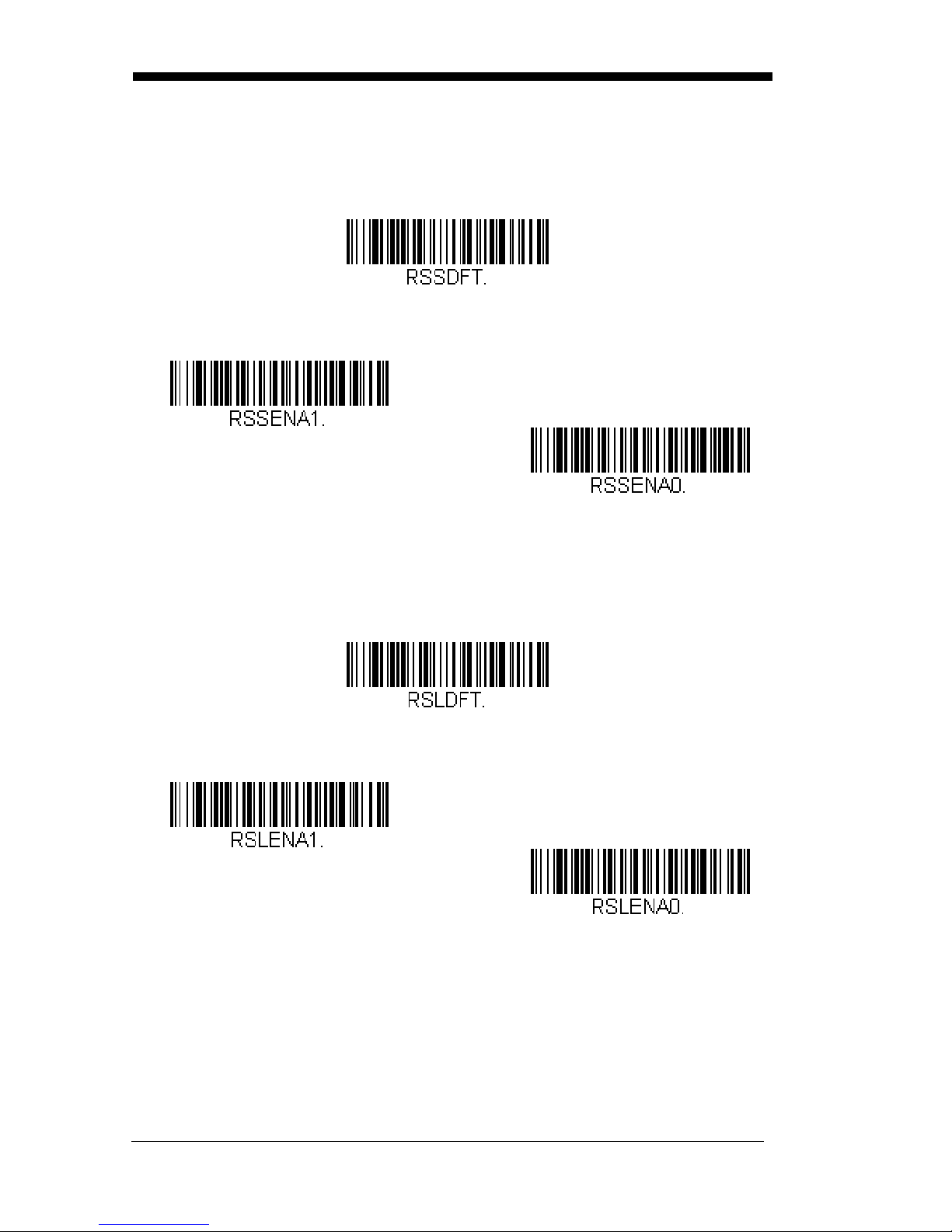

GS1 DataBar Omnidirectional

* On

Off

* On

Off

< Default All GS1 DataBar Omnidirectional Settings >

GS1 DataBar Omnidirectional On/Off

GS1 DataBar Limited

< Default All GS1 DataBar Limited Settings >

GS1 DataBar Limited On/Off

6 - 34

GS1 DataBar Expanded

* On

Off

Minimum Message Length

Maximum Message Length

< Default All GS1 DataBar Expanded Settings >

GS1 DataBar Expanded On/Off

GS1 DataBar Expanded Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 4-74. Minimum Default = 4, Maximum
Default = 74.

6 - 35

Codablock A

On

* Off

Minimum Message Length

Maximum Message Length

<Default All Codablock A Settings>

Codablock A On/Off

Codablock A Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 1-600. Minimum Default = 1, Maximum
Default = 600.

6 - 36

Codablock F

On

* Off

Minimum Message Length

Maximum Message Length

<Default All Codablock F Settings>

Codablock F On/Off

Codablock F Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 1-2048. Minimum Default = 1, Maximum
Default = 2048.

6 - 37

PDF417

* On

Off

Maximum Message Length

Minimum Message Length

< Default All PDF417 Settings >

PDF417 On/Off

PDF417 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 1-2750. Minimum Default = 1, Maximum
Default = 2750.

6 - 38

MacroPDF417

* On

Off

* Off

On

MacroPDF417 is an implementation of PDF417 capable of encoding very large
amounts of data into multiple PDF417 bar codes. When this selection is
enabled, these multiple bar codes are assembled into a single data string.

Default = On.

MicroPDF417

< Default All MicroPDF417 Settings >

MicroPDF417 On/Off

6 - 39

MicroPDF417 Message Length

Maximum Message Length

Minimum Message Length

On

* Off

UPC/EAN Version On

* UPC/EAN Version Off

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 1-366. Minimum Default = 1, Maximum
Default = 366.

GS1 Composite Codes

Linear codes are combined with a unique 2D composite component to form a
new class called GS1 Composite symbology. GS1 Composite symbologies
allow for the co-existence of symbologies already in use.

Default = Off.

UPC/EAN Version

Scan the
bols that have a U.P.C. or an EAN linear component. (This does not affect
GS1 Composite symbols with a GS1-128 or GS1 linear component.)

Default = UPC/EAN Version Off.

Note: If you scan coupons that have both UPC and GS1 DataBar codes, you

may wish to scan and output only the data from the GS1 DataBar code.
See Coupon GS1 DataBar Output (page 6-24) for further information.

6 - 40

UPC/EAN Version On

bar code to decode GS1 Composite sym-
