Posx ECO TP6 User Manual

EVO TP6

All in One POS Terminal

User Manual

v1.0

The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced or translated to another language without the prior written consent of the manufacturer.

TRADEMARK

ntel®, Pentium® and MMX are registered trademarks of Intel® Corporation.

Microsoft® and Windows® are registered trademarks of Microsoft Corporation. Other trademarks mentioned herein are the property of their respective owners.

Safety

IMPORTANT SAFETY INSTRUCTIONS

1. To disconnect the machine from the electrical power supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine.

2. Read these instructions carefully. Save these instructions for future reference.

3. Follow all warnings and instructions marked on the product.

4. Do not use this product near water.

5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register or in a built-in installation unless proper ventilation is provided.

7. This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

8. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

9. Never push objects of any kind into this product through cabinet slots as they may

touch dangerous voltage points or short out parts that could result in a re or electric

shock. Never spill liquid of any kind on the product.

CE MARK

This device complies with the requirements of the EEC directive 2014/30/EU with regard to “Electromagnetic compatibility” and 2014/35/EU “Low Voltage Directive”.

FCC

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

CAUTION ON LITHIUM BATTERIES

There is a danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Battery Caution

Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery according to the local disposal instructions.

Safety Caution

Note: To comply with IEC60950-1 Clause 2.5 (limited power sources, L.P.S) related

legislation, peripherals shall be 4.7.3.2 “Materials for re enclosure” compliant.

4.7.3.2 Materials for re enclosures

For MOVABLE EQUIPMENT having a total mass not exceeding 18kg.the material of a

FIRE ENCLOSURE, in the thinnest signicant wall thickness used, shall be of V-1 CLASS

MATERIAL or shall pass the test of Clause A.2. For MOVABLE EQUIPMENT having a total mass exceeding 18kg and for all STATIONARY EQUIPMENT, the material of a FIRE ENCLOSURE, in the thinnest significant wall thickness used, shall be of 5VB CLASS MATERIAL or shall pass the test of Clause A.1

iii

LEGISLATION AND WEEE SYMBOL

2012/19/EU Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components.

The crossed dust bin symbol on the device means that it should not be disposed of with other household wastes at the end of its working life. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product,

or their local government ofce, for details of where and how they can take this item for

environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

Revision History

Changes to the original user manual are listed below:

Revision Description Date

1.0 • Initial release

June 2018

Table of Contents

1. Packing List .................................. 1

1. Standard Contents..........................................................1

1-2. Optional Accessories .......................................................2

2. System View .................................. 3

2-1. Front & Side View ............................................................3

2-2. Rear View ......................................................................... 3

2-3. IO Ports View....................................................................4

2-4. System Dimensions ........................................................5

3. System Assembly & Disassembly 6

3-1. Disassemble the Stand ..................................................6

3-2. Remove the Cable Cover ................................................6

3-3. Install the Power Adapter ................................................7

3-4. Replace HDD ...................................................................7

4. Peripheral Installation ................. 8

1. MSR Installation........... ..................................................8

2. Fingerprint Reader Installation...................................... 9

3. 2-Line Customer Display Installation................

4. Second Display Installation...........................................11

5. Cash Drawer Installation ...............................................12

............10

5. Specification ................................ 14

6. Configuration

6-1. D36 Motherboard ..........................................................16

6-1-1. Motherboard Layout ........................................................ 16

6-1-2. Connectors & Functions .................................................17

6-1-3. Jumper Setting ................................................................18

6-2. D86U Motherboard ........................................................20

6-2-1. Motherboard Layout ........................................................20

6-2-2. Connectors & Functions .................................................21

6-2-3. Jumper Setting ................................................................22

............................... 16

vii

1. Packing List

1-1.

Standard Contents

a. System b. Power adapter

c. Power cord

d. RJ45-DB9 cable (x2)

1-2.

Optional Accessories

a. MSR b. Fingerprint reader

c. 8.4" 2nd display

d. 2-line Customer display

2. System View

2-1.

Front & Side View

No. Description

1 Fingerprint (option) 2 Touch screen 3 MSR (option) 4 Power button 5 Stand 6 VESA bottom cover 7 Stand front cover

2-2.

Rear View

No. Description

1 2 VESA top cover 3 Cable cover

HDD cover

2-3.

IO Ports View

D36 Motherboard

a b c

No. Description

a b c d e

f g h

D86U Motherboard

Power button

COM 1, 2, 3 USB 2.0 x 4

Cash drawer

USB 3.0 x 1

DC 19V in

VGA

LAN

a b c

No. Description

a b c d e

f g h

Power button

DC 19V in

VGA

COM 1, 2, 3

LAN

USB 2.0 x 2

Cash drawer

USB 3.0 x 4

2-4.

System Dimensions

15.94"

14.14"

11.4"

62°

8.7"

105°

8.05"

3. System Assembly & Disassembly

3-1.

3-2.

Disassemble the Stand

1. Slide the VESA bottom cover outwards.

2. Loosen the thumb screw (x1) and slide the stand towards the IO panel to release it from the system.

3. Reverse the steps above to attach stand to the system.

Remove the Cable Cover

1. Slide the VESA bottom cover outwards.

2. Pull the cable cover upwards to release it from the system.

3-3.

Install the Power Adapter

The system is equipped with a 65W or 90W power adapter. Please follow the steps to install the power adapter.

1. The stand is designed to allow for clean cable management. There is a cable channel through the stand, which has a quick access cover. Please pull the front cover of the stand outwards.

2. Place the system face down. Making sure not to scratch the touchscreen.

3. Connect the power adapter to the 19V DC IN port and then route the cable as

shown in the picture.

4. Replace the front cover.

3-4.

Replace HDD

1. Remove the HDD dummy cover retaining a screw and sliding the drive out.

2. Remove the screws (x2)

that x the HDD to the

bracket.

4. Peripheral Installation

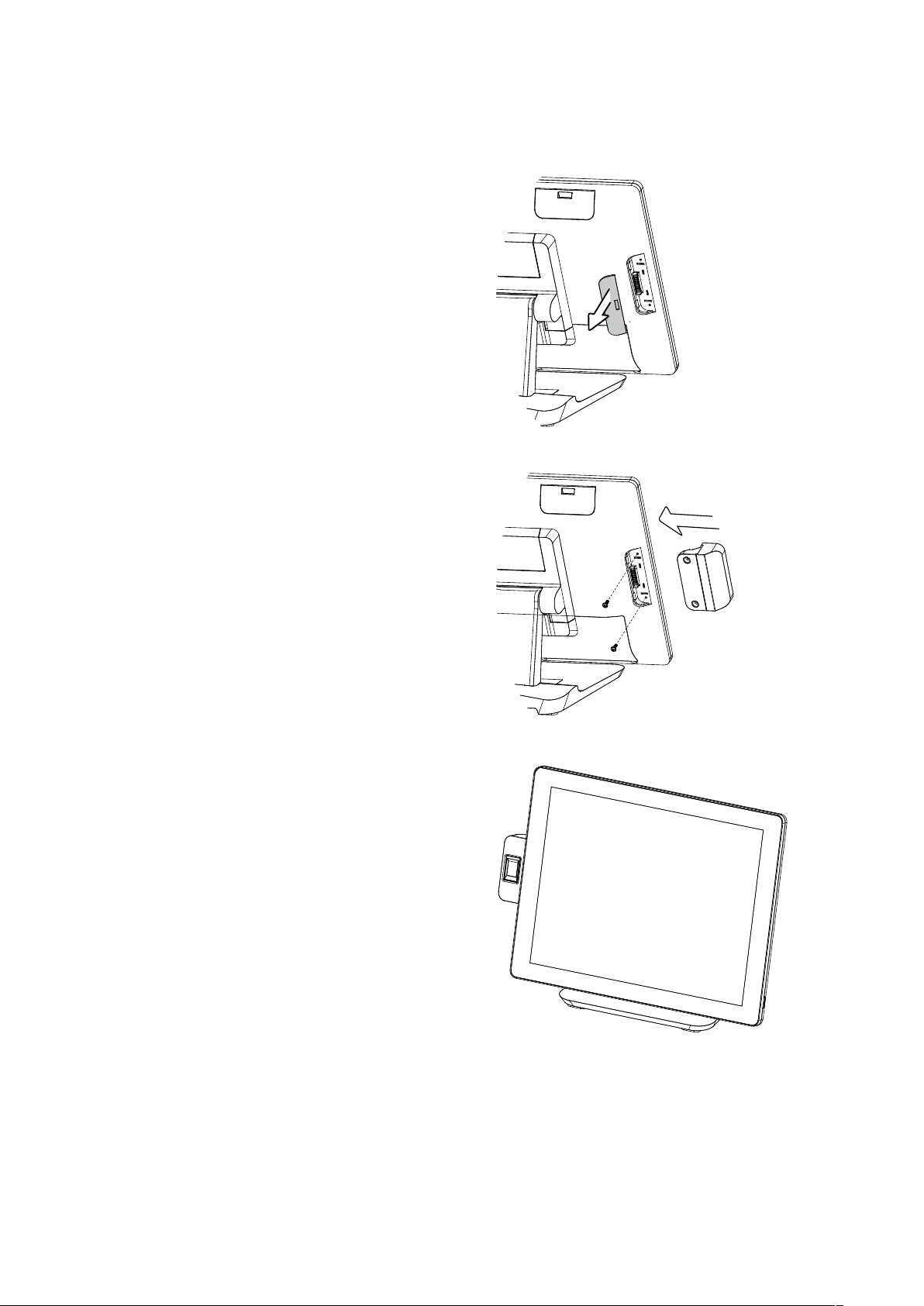

4-1.

MSR Installation

1. Remove the cover.

2. Insert the MSR in place and fasten the screws (x2) on the back to secure the module.

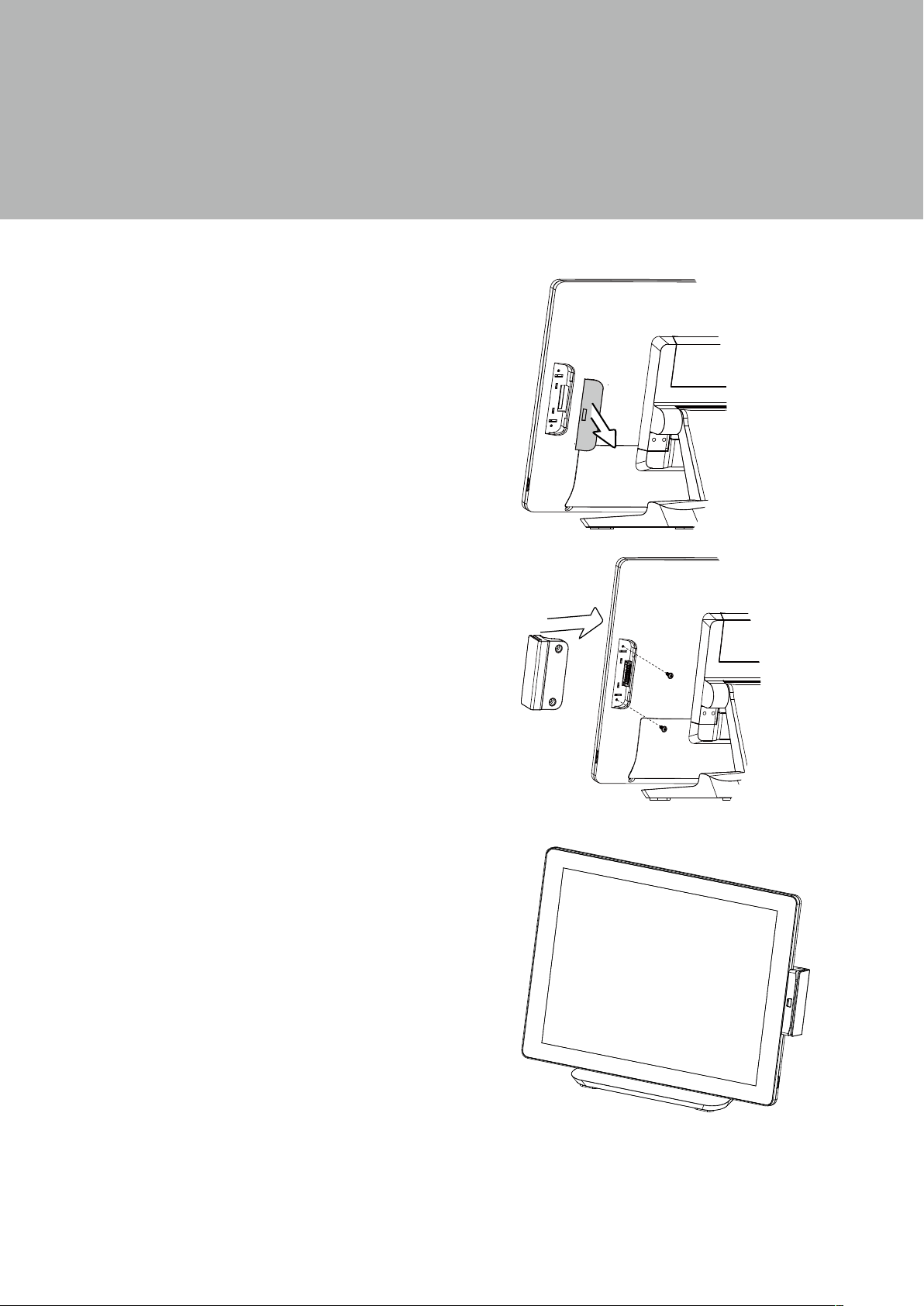

4-2.

Fingerprint Reader Installation

1. Remove the cover.

2. Insert the Fingerprint module in place and fasten the screws (x2) on the back to secure the module.

4-3.

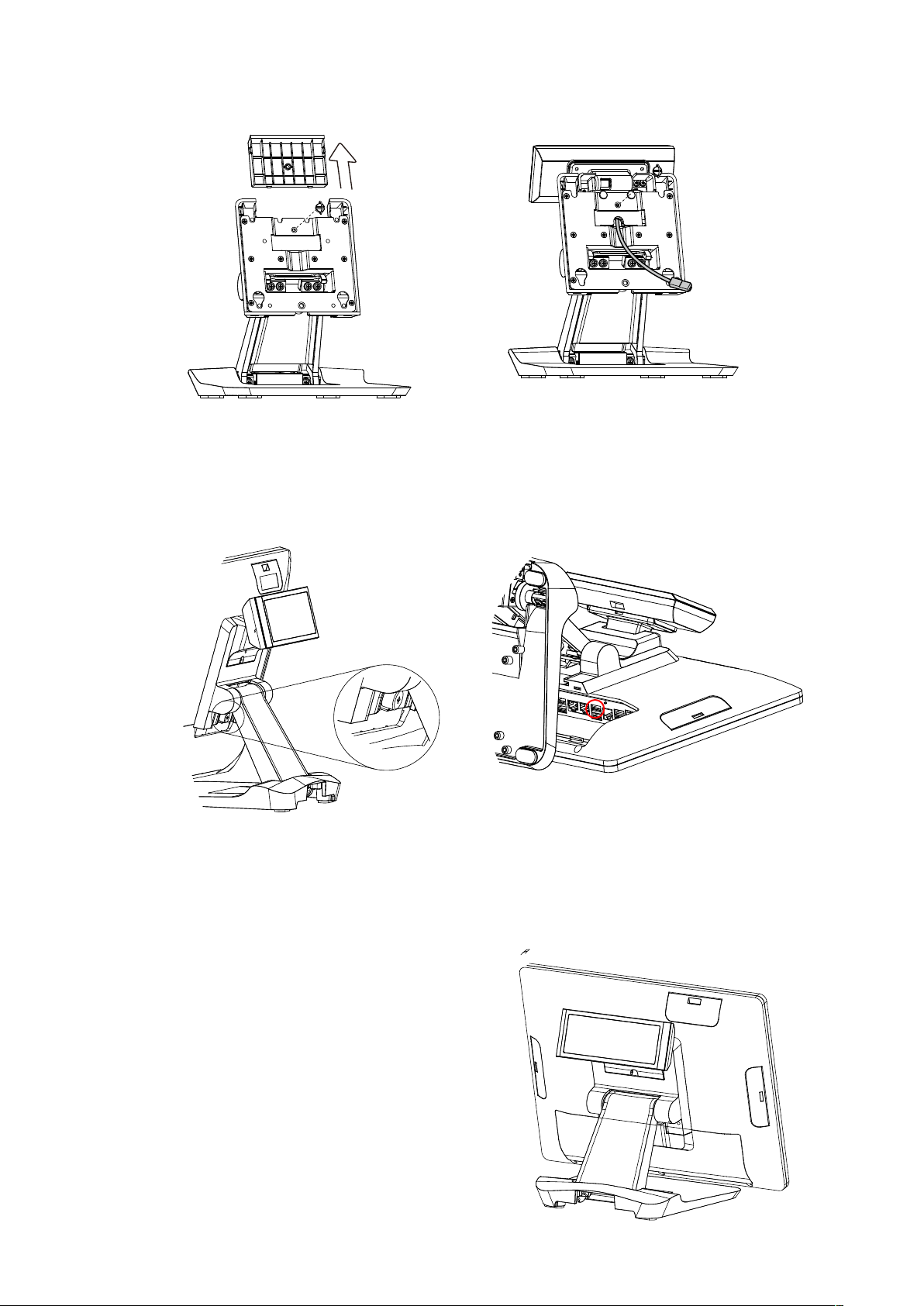

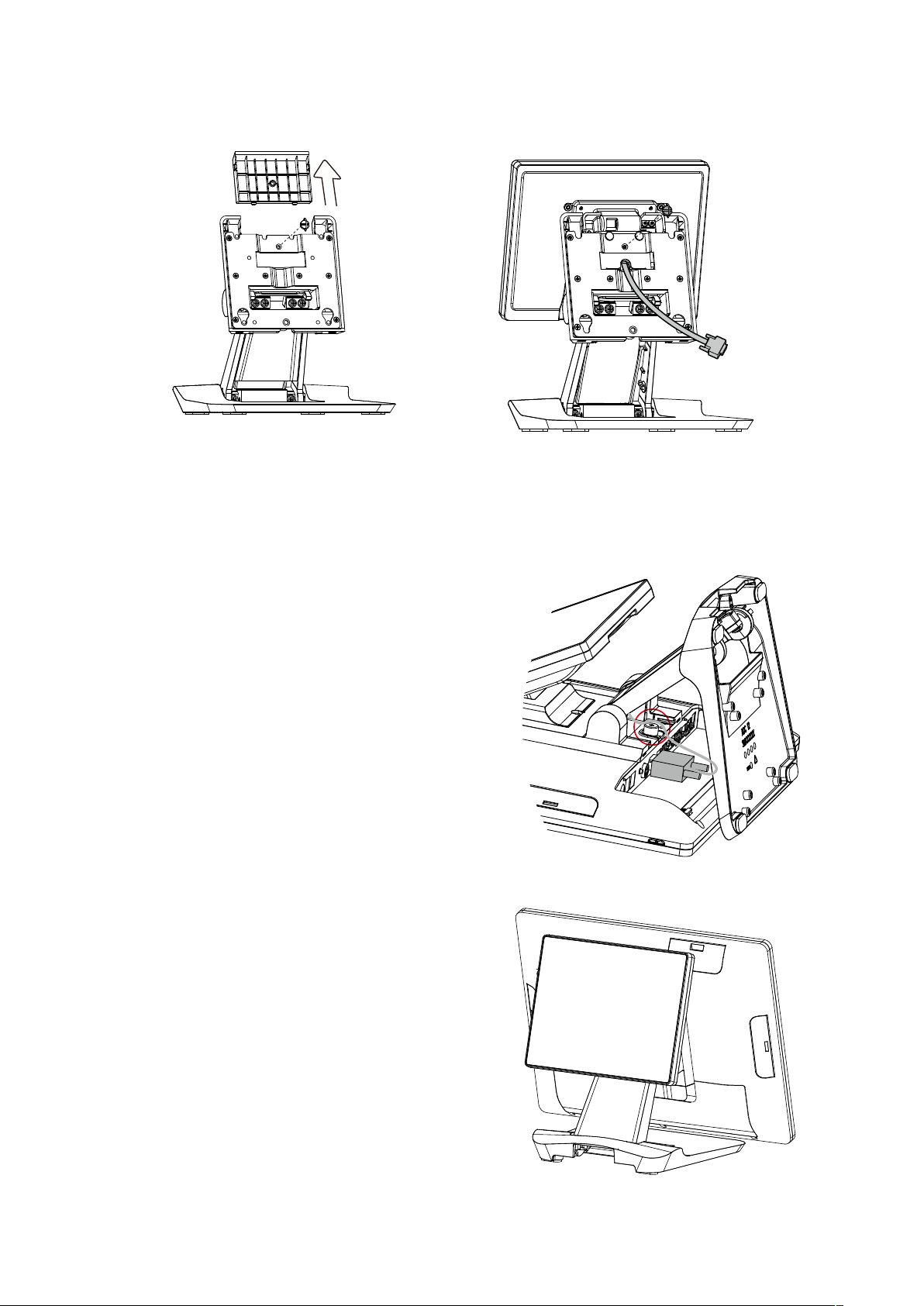

2-Line Customer Display Installation

1. Follow the steps in Chapter 3-1 to diassemble the stand from the LCD panel.

2. Remove the thumb screw (x1) from the VESA top cover and then pull the cover up.

3. Attach the LCM module to system by fastening the thumb screw (x1).

4. Route the cable through the hole of the stand as picture shown.

5. Attach the stand to the LCD panel and fasten the thumb screw (x1).

6. Connect the USB cable to a USB port on the systems IO panel.

* Please note the cable cover and the stand front cover (refer to Chapter 2-1 and 2-2)

have to be removed before routing the cable.

4-4.

Second Display Installation

1. Follow the steps in Chapter 3-1 to diassemble the stand from the LCD panel.

2. Remove the thumb screw (x1) from the VESA top cover and then pull the cover up.

3. Attach the 8.4"' 2nd display module to system by fastening the thumb screw (x1).

4. Route the 2

display cable through the hole of the stand as picture shown.

5. Attach the stand to the LCD panel and fasten the thumb screw (x1).

6. Connect the 2 port on the systems IO panel. Make sure the system is powered off.

* Please note the cable cover and the

stand front cover (refer to Chapter 2-1 and 2-2) have to be removed before routing the cable.

display cable to VGA

4-5.

Cash Drawer Installation

You can install a cash drawer through the cash drawer port. Please verify the pin assignment before installation. NOTE: POS software must be specially

programmed to work with the built in cash drawer port.

Cash Drawer Pin Assignment

Pin Signal

1 Cash drawer 2 In 2 Cash drawer 1 Out 3 Cash drawer 1 In 4 12V / 19V (or 24V)

Cash Drawer Controller Register

The Cash Drawer Controller uses one I/O address to control the Cash Drawer.

5 Cash drawer 2 Out 6 GND

Attribute: Read / Write

Size: 8bit

BIT BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

Attribute

7 6 5 4 3 2 1 0

Reserved

X X

CD1 Out CD1 In Reserved

Reserved

Cash Drawer 1 pin input control

Cash Drawer 1 pin output control

Reserved

Bit 7: Reserved

Bit 6: Reserved Bit 5: Reserved Bit 4: Cash Drawer 1 pin output control. = 1: Open the Cash Drawer = 0: Allow Cash Drawer to close Bit 3: Cash Drawer 1 pin input control. = 1: Cash Drawer closed or no Cash Drawer = 0: Cash Drawer opened Bit 2: Reserved Bit 1: Reserved Bit 0: Reserved

Note: Please follow the Cash Drawer control signal design to control the Cash Drawer.

Cash Drawer Control Command Example

Use Debug.EXE program from the command line

Command Cash Drawer

O 482 10 O 482 00 Allow to close ► Set the I/O address 482h

bit4 =1 for opening Cash Drawer by “DOUT bit0” pin

control.

► Set the I/O address 482h bit4 = 0 to allow closing the Cash Drawer.

Open

Command Cash Drawer

I 482 Check status ► The I/O address 482h bit3 =1

Cash Drawer is opened or does not exist.

► The I/O address 482h bit3 =0 Cash Drawer is closed.

5. Specication

Model Name Mainboard D36 D86U

Intel Bay Trail CPU BGA-1170 22nm

CPU support

System memory

Graphic memory Intel HD G

LCD Touch Panel

LCD size 15” TFT LED Panel (LVDS) 15” LED ( eDP) Brightness (cd/m²) Maximal resolution 1024 x 768 Touch screen type Tilt angle 0~90

Storage

Storage 1 x 2.5” SATA HDD bay FlashMemory Option SATA SSD ash card

Expansion

Mini PCI-E socket 1 m.2 1 (M.2 2230 or M.2 1216)

I/O Ports

USB port 5 (1 x USB3.0/2.0；4 x USB2.0) 6 (4 x USB3.0/2.0；2 x USB2.0) Serial / COM 3 (RJ45 type, COM1 & COM2 0V/5V, COM3 0V/12V, power enabled by BIOS) LAN (10/100/1000) 1 x RJ45 VGA 1 (12V powered enable by BIOS ) Cash drawer 1 x RJ11 (12V /24V) DC jack 1 Power switch 1

Power

Power adapter

Peripherals (optional)

MSR 1 (USB) Fingerprint 1 (USB) Second display 8.4” LED Second display, resolution 800 *600 Customer display Flush mount LCM display 2 x 20 characters (COM)

Intel Bay Trail CPU

Celeron J1900 2.4GHz, L2 2M

1x DDR3 SO-DIMM up to 8GB,

1066/1333MHz

raphics DX11 and OCL1.1

250 nits

65W /19V 90W /19V

EVO TP6

Intel SKYLAKE U CPU CPUBGA-1296 14nm

Pentium 4405U LLC 2M (15W,EIA)

I3-6100U 2.3GHz, LLC 3M(15W, EIA) i5-6200U 2.4GHz, LLC 3M (15W,EIA)

1x DDR3 SO-DIMM up to 8GB,

1600MHz

Intel HD Graphics (Gen 9 ) DX12 and OCL4.2

350 nits

True flat PCAP

Model Name

EVO TP6

Mainboard D36 D86U

Certicate

EMC & Safety FCC, Class A, CE, LVD ESD 4 kV Contact discharge, 8 kV Air discharge

Environment

Sealing IP54 (front side) Operating temperature Storage temperature

32°F ~ 95°F (0°C ~ 35°C)

-4°F ~ 140°F (-20°C ~ 60°C)

Humidity 20% ~ 85% RH non-condensing

Dimension (W x D x H) Weight

OS supported

Windows 7, POSReady7, Windows

Embedded 8.1 Industry, Windows 10 IOT

Enterprise, Linux Kernel

14.14" x 8" x 11.4" (359.36 x 204.47 x 289.61mm)

9.5 lb (4.3kg)

Windows 10 IOT Enterprise (64-bit)

Linux: Fedora 25

Ubuntu16.10 Desktop

3.8 or above

Kernel 4.7 above

* Thisspecicationissubjecttochangewithoutpriornotice.

USB2

RJ45_1

USB1

RJ45_2

USB3

RJ48_1

VGA1

PWR1/PWR2

SW1

CN20

CN19

JP7

CN25

CN18

CN17

CN15

SATA1/SATA2

CN14

CN13

JP6

CN24

CN12

SATA1

CN8

MINI_PCIE1

CN23

CN11

CN9

JP4

CN7

CN10

JP1

CN1

CN2

CN5

CN6

JP2

JP3

CN3

DDR3_A1

BAT1

6. Conguration

6-1.

D36 Motherboard

6-1-1.

Motherboard Layout

6-1-2.

Connectors & Functions

Connector Function

CN1 Front I/O board CN2 Inverter connector CN3 LVDS connector CN6 System FAN connector CN7 LPT port connector CN8 Speaker & MIC connector CN9 40pin external connector CN10 HDD LED connector CN11 Power LED connector CN12 SATA power connector CN13/14 USB port (internal) CN15 PS2 keyboard connector CN17 MSR connector CN18 COM5 (touch) connector CN19 Wide Range CN20 Power button (internal) CN21 LCM connector CN25 S5/S0 Status LED PWR1/PWR2 DC Jack RJ45_1 LAN connector RJ45_2 COM1/ COM2 RJ48_1 COM3 DDR3_A1 DDR3 SO-DIMM SATA0/SATA2 SATA USB1/USB2 USB2.0 USB3 USB3.0 VGA1 CRT connector SW1 Power button MINI_PCIE1 MINI PCIE JP1 Inverter select JP4 LCD ID setting JP7 Touch connector

6-1-3.

Jumper Setting

Inverter Selection

Function JP1

▲LED

CCFL

1 3 2

COM1/COM2/COM3 Power Setting

COM1, COM2 and COM3 can be set to provide power to your serial device. The voltage can be set to +5V or +12V in the BIOS.

1. Power on the system, and press the <DEL> key when the system is booting up to enter the BIOS Setup utility.

2. Select the Advanced tab.

3. Select VGA/COM Power Conguration Ports and press <Enter> to go to display the available options.

4. To enable the power, select COM1 ,COM2 or COM3 Power setting and press <Enter>. Select Power and press <Enter>. Save the change by pressing F10.

▲ = Manufacturer Default Setting

LCD ID Setting

Panel# Resolution

LVDS

Bits Channel

Output

Interface

JP3

1 800 x 600 18 Single

2 800 x 600 24 Single

3 1024 x 768 18 Single

4 1024 x 768 24 Single

5 1366 x 768 18 Single

6 1366 x 768 24 Single

7 1024 x 600 18 Single

LVDS

Panel

LVDS

Panel

LVDS

Panel

LVDS

Panel

LVDS

Panel

LVDS

Panel

LVDS

Panel

1 3 2

1 2

1 3 2

1 2

3421

3 4

345

5 7 64

5 7 6

5 6

8 1280 x 1024 24 Dual

9 1440 x 900 24 Dual

10 1028 x 800 18 Dual

15 1920 x 1080 24 Dual

1 2

Jumper open

1 2

Jumper short

LVDS

Panel

LVDS

Panel

LVDS

Panel

LVDS

Panel

CRT

1 2

1 3 2

1 2

9107

3 4

9107

634

9107

6-2.
