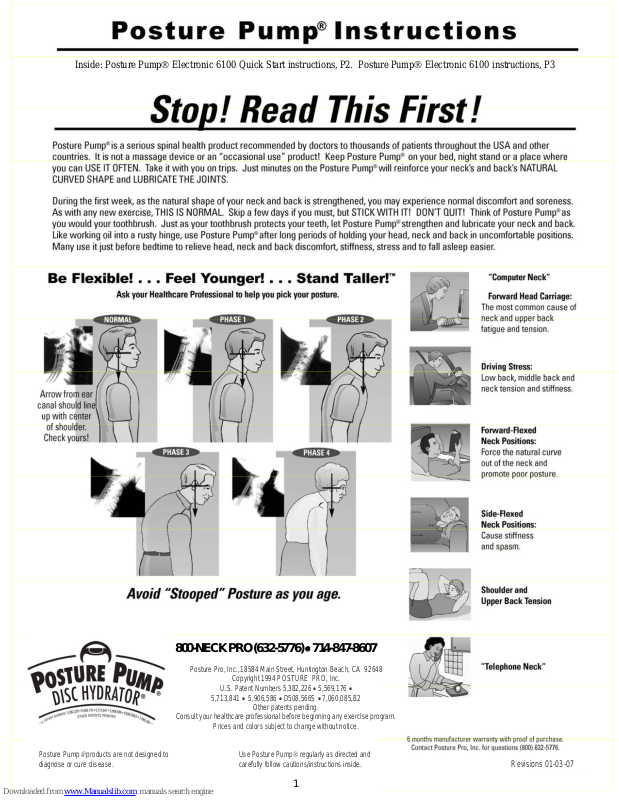

Posture Pump 6100 Instructions Manual

t

Inside: Posture Pump® Electronic 6100 Quick Start instructions, P2. Posture Pump® Electronic 6100 instructions, P3

Posture Pump
diagnose or cure

®

products are not designed to

disease.

800-NECK PRO (632-5776) • 714-847-8607

Posture Pro, Inc., 18584 Main Street, Huntington Beach, CA 92648

Consult your healthcare professional befo re begi nning any exercise program.

Copyright 1994 POSTURE PRO, Inc.

U.S. Patent Numbers 5,382,226

5,713,841

•

5,906,586 • D508,566S • 7,060,085,B2

Other patents pending.

Prices and colors subject to change without not i ce.

Use Posture Pump® regularly as directed and
carefully follow cautions/instruction s inside.

•

5,569,176 •

1

Revisions 01-03-07

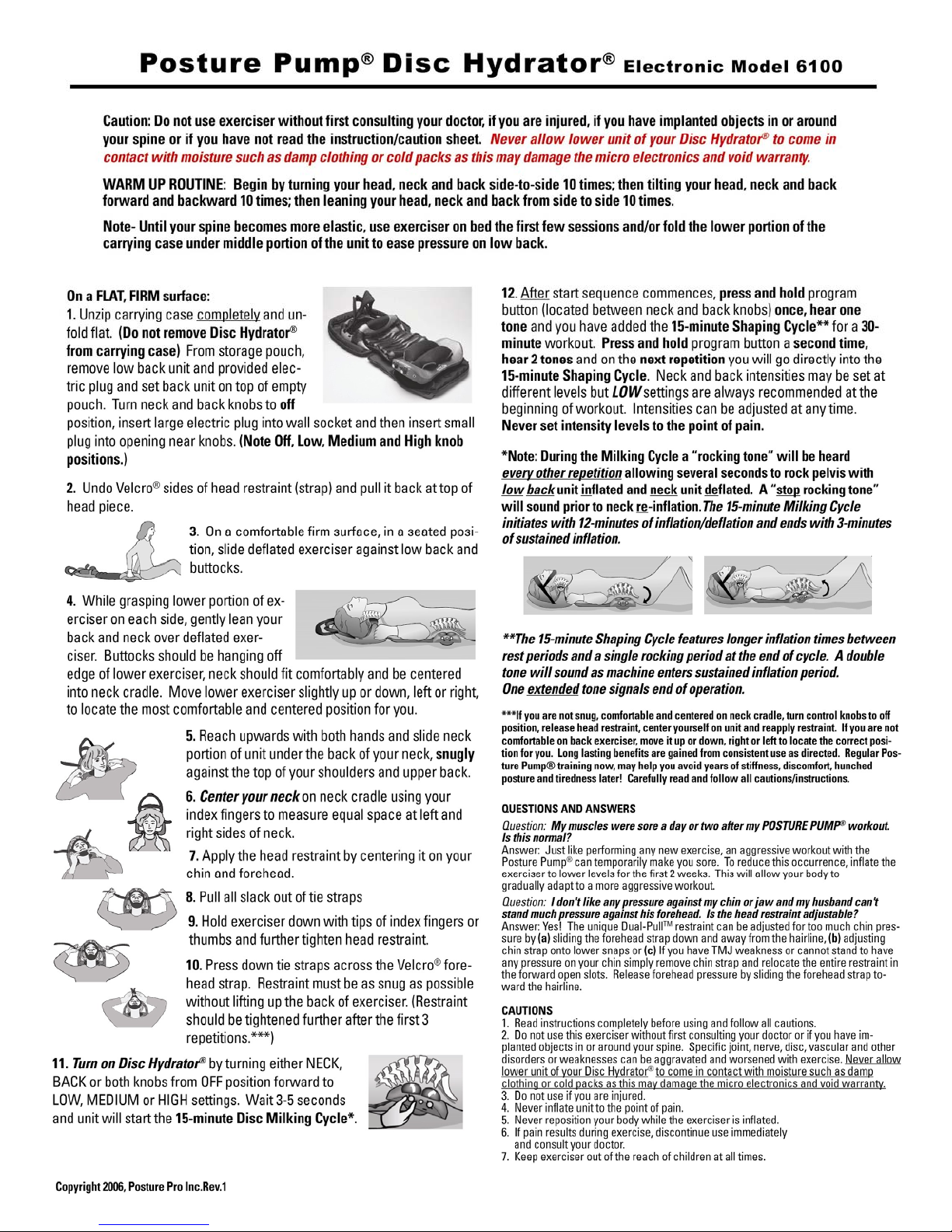

QUICK START INSTRUCTIONS

Electronic Model 6100

After carefully reading all cautions and positioning your body on the exerciser per the
enclosed detailed instructions and illustrations:

1. Turn on Disc Hydrator® by turning either NECK, BACK or both knobs from OFF position

forward to LOW, MEDIUM or HIGH settings. Wait 3-5 seconds and the exerciser will
start the 15-minute Disc Milking Cycle*.

2. After the start sequence commences, you can press and hold the program button once
(located between neck and back knobs) and you will hear one tone, indicating you have
added the 15-minute Shaping Cycle** for a total 30-minute workout.

3. If you press and hold the program button a second time you will hear 2 tones and on the
next repetition you will go directly into the 15-minute Shaping Cycle. Neck and back
intensities may be set at different levels but LOW settings are always recommended at
the beginning of workout. Intensities can be adjusted at any time. Never set intensity
levels to the point of pain.

It is recommended that you use the Posture Pump® Disc Hydrator® while it is in its opened
carrying case to utilize the elastic return (spring back of the unit) which occurs during
rocking. Until your spine becomes more elastic, use exerciser on bed the first few
sessions and/or fold the lower portion of the carrying case under middle portion of the unit
to ease pressure on low back. (Refer to detailed illustrations) Always rock pelvis several
times and raise knees toward chest before getting off exerciser.

CYCLES/PROGRAMS

*MILKING CYCLE: Air cell(s) inflate and deflate individually and simultaneously in a
proprietary rhythm designed to activate the intervertebral disc’s “sponge-like bellows
action,” facilitating nutrient rich fluid exchange. A ‘start rocking tone’ will be heard every
other repetition allowing several seconds to rock pelvis with low back unit inflated and
neck unit deflated. A “stop rocking tone” will sound prior to neck re-inflation.

**SHAPING CYCLE
rest periods and a single rocking period at the end of cycle. One extended tone signals
end of operation. This cycle is designed to Decompressively Shape
posture.

Note: A short double tone will sound as machine enters sustained inflation period near end
of Milking Cycle or beginning of Shaping Cycle.

: The 15-minute Shaping Cycle features longer inflation times between

the spine, improving

Copyright 2006, Posture Pro Inc.Rev.2

2
