Postium OBM-U240, OBM-U170 User Manual

Professional Video Monitor

Operational Instructions

OBM-U240
OBM-U170

User Manual

03. 2017

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

2

Table of Contents

1. Precaution

2. Main Features

3. Location and Function of Parts and Controls
Front Panel
Rear Panel

4. Using the Menu

5. Adjustment Using the Menus

6. OSD Menu Operations

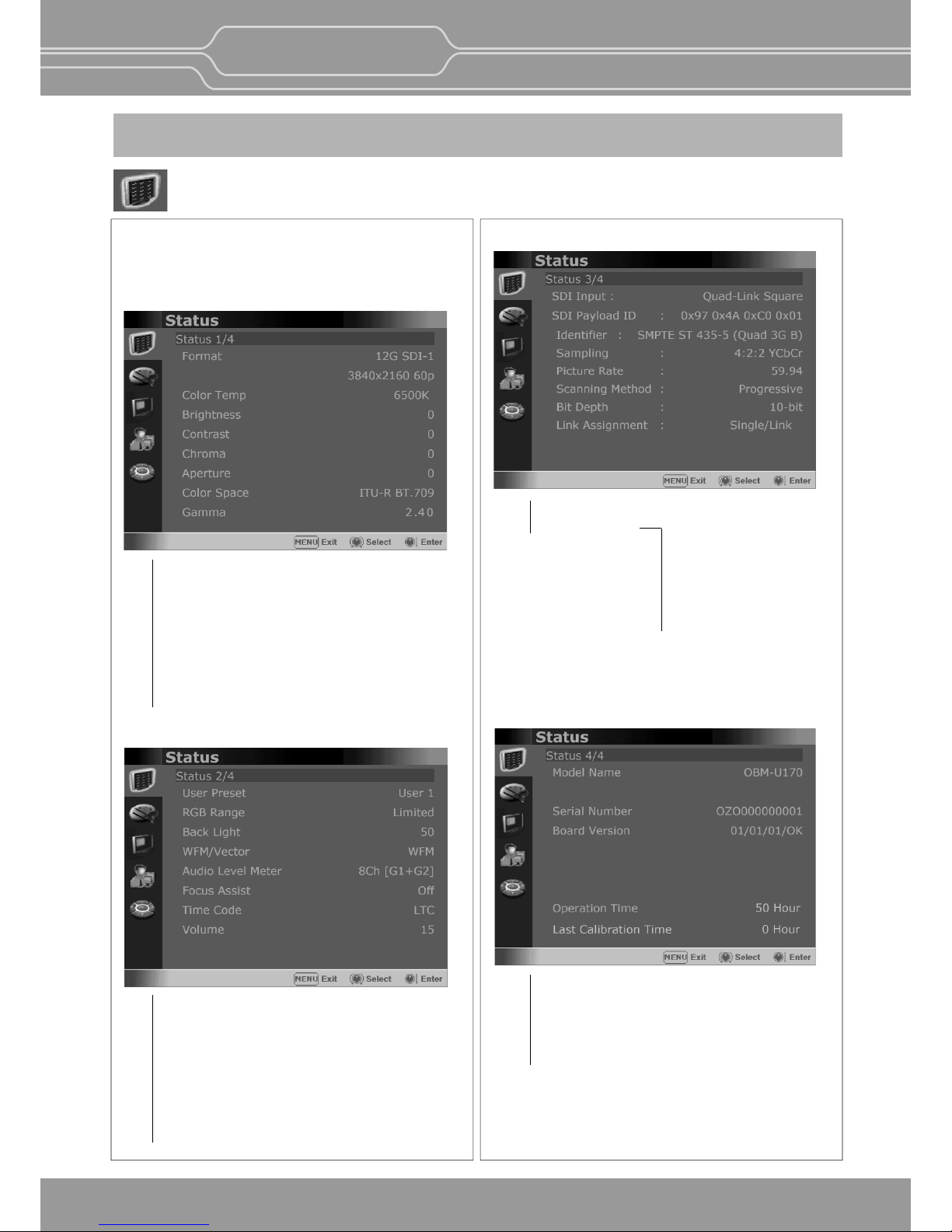

Status Menu

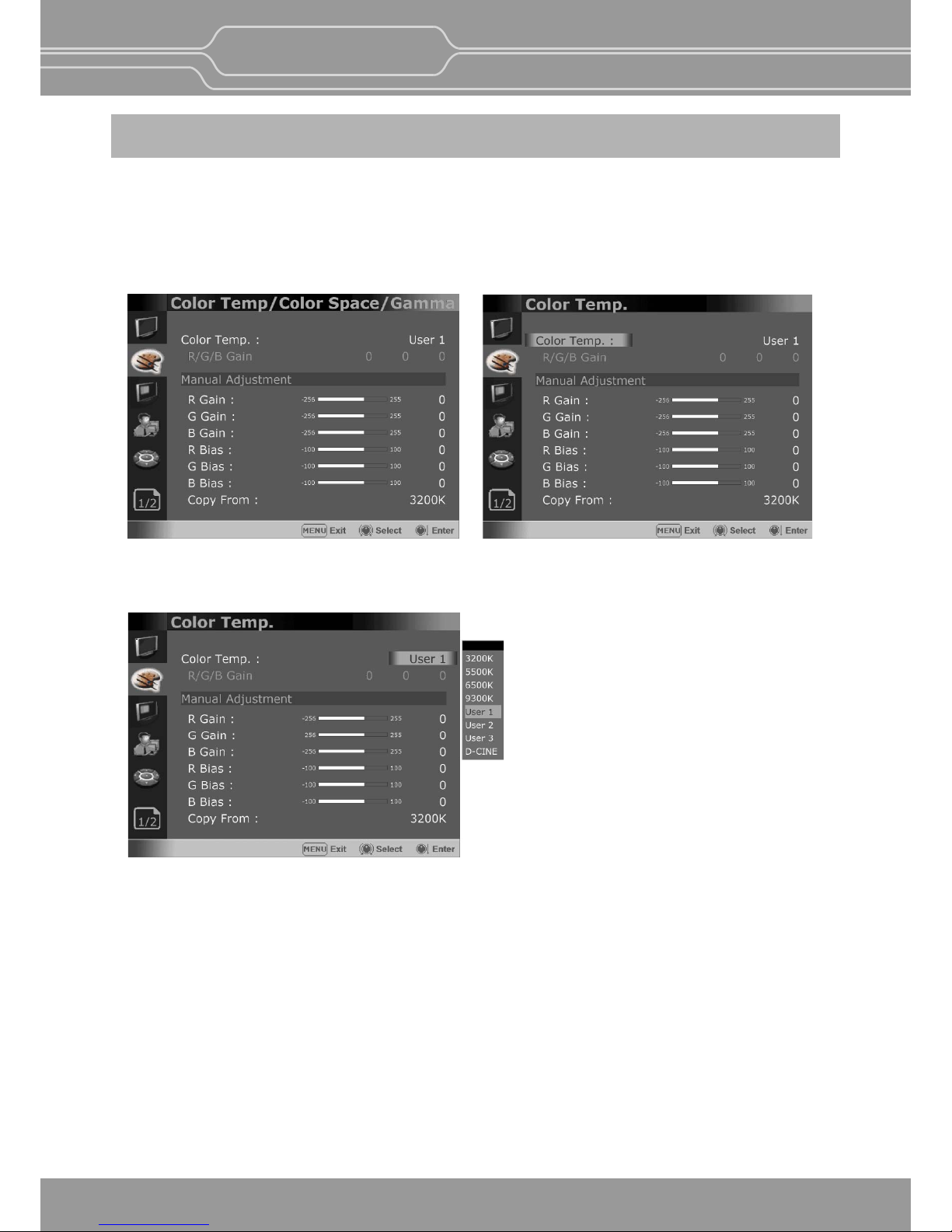

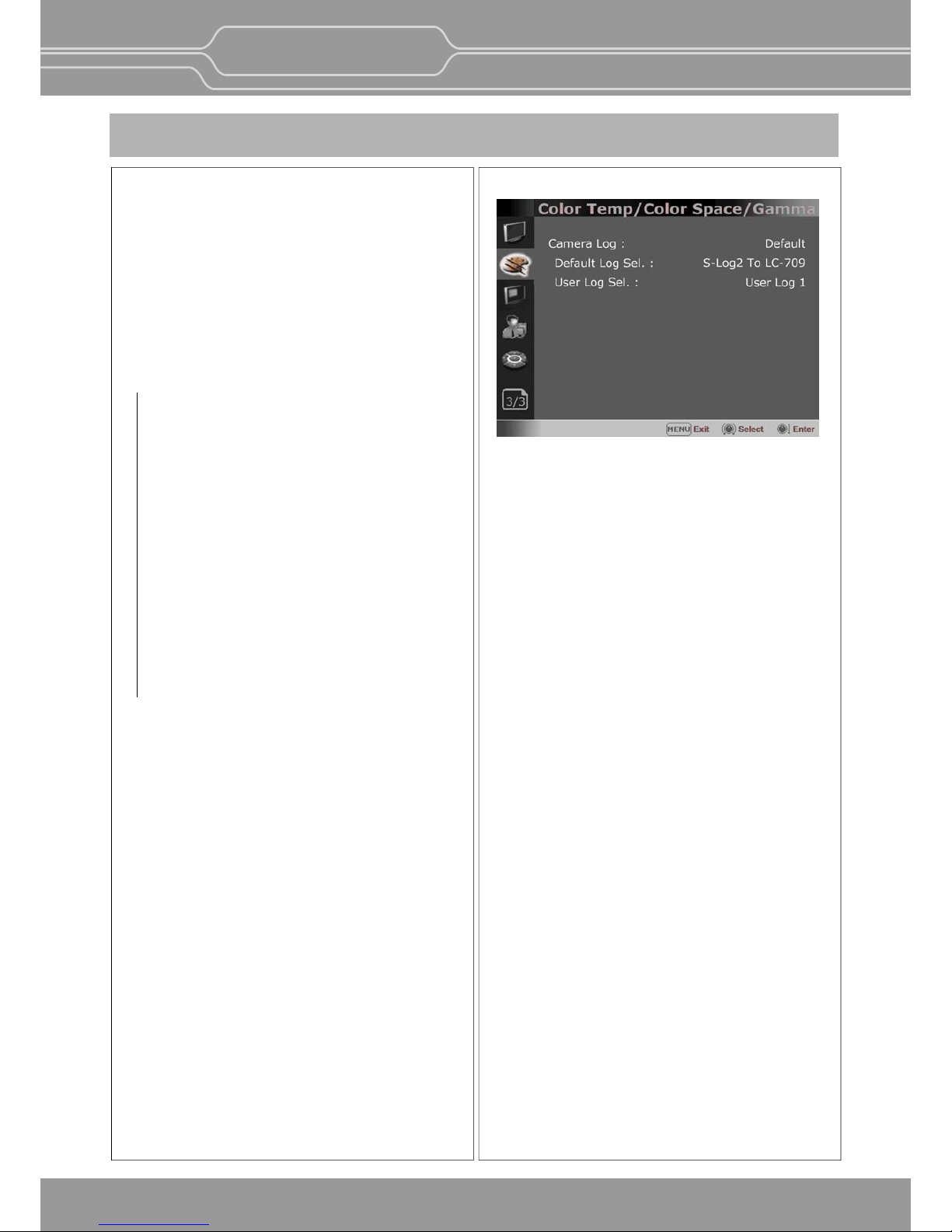

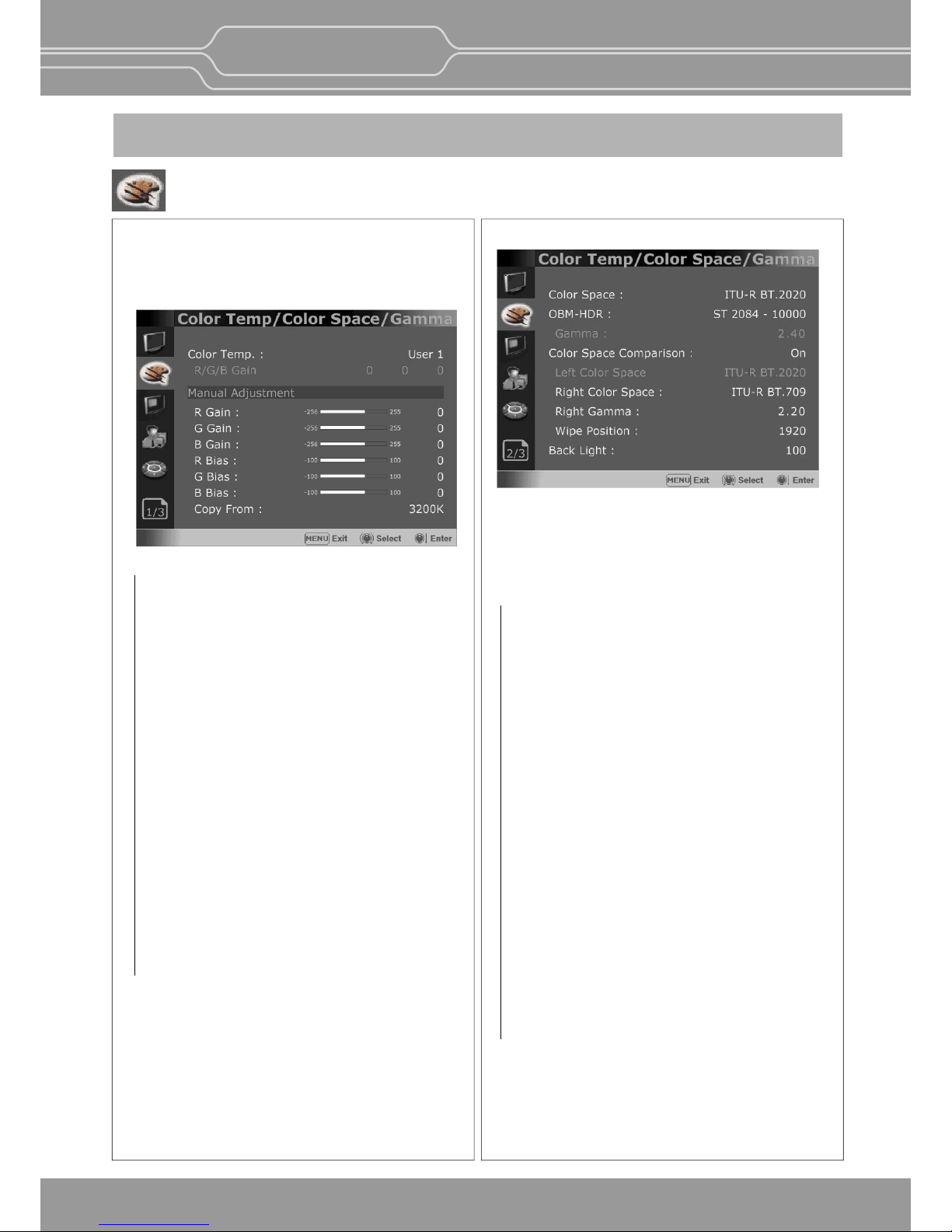

Color Temp/Color Space/Gamma Menu

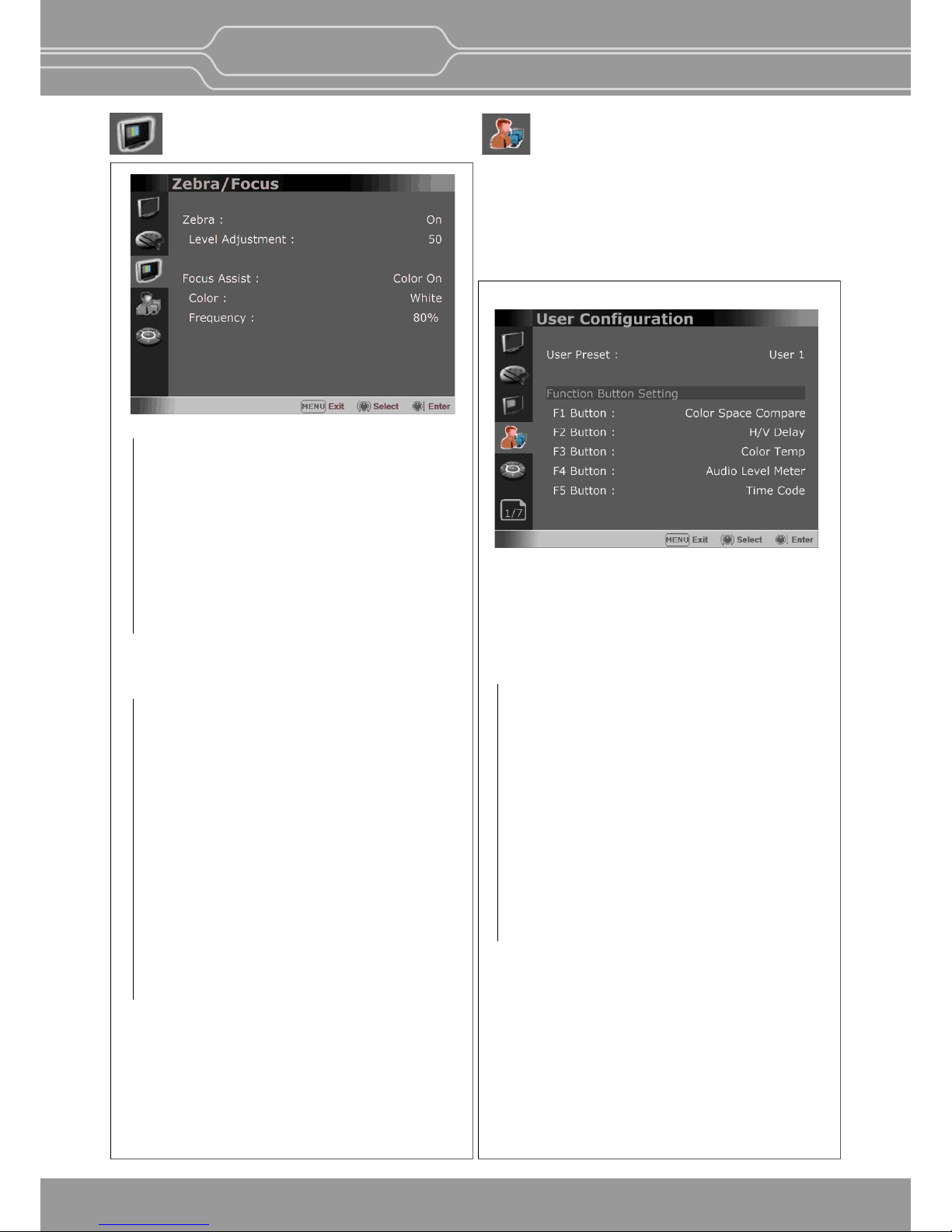

Zebra/Focus Menu

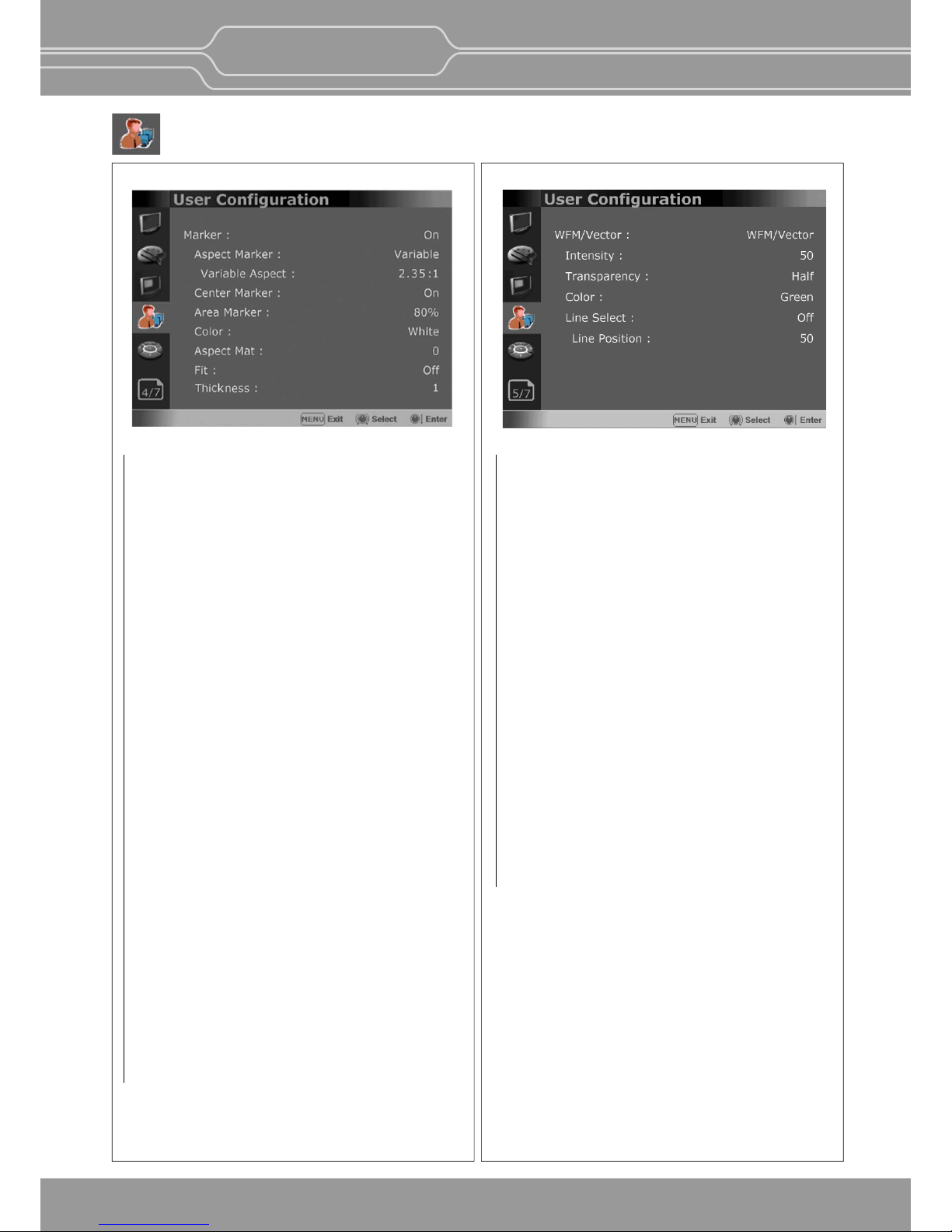

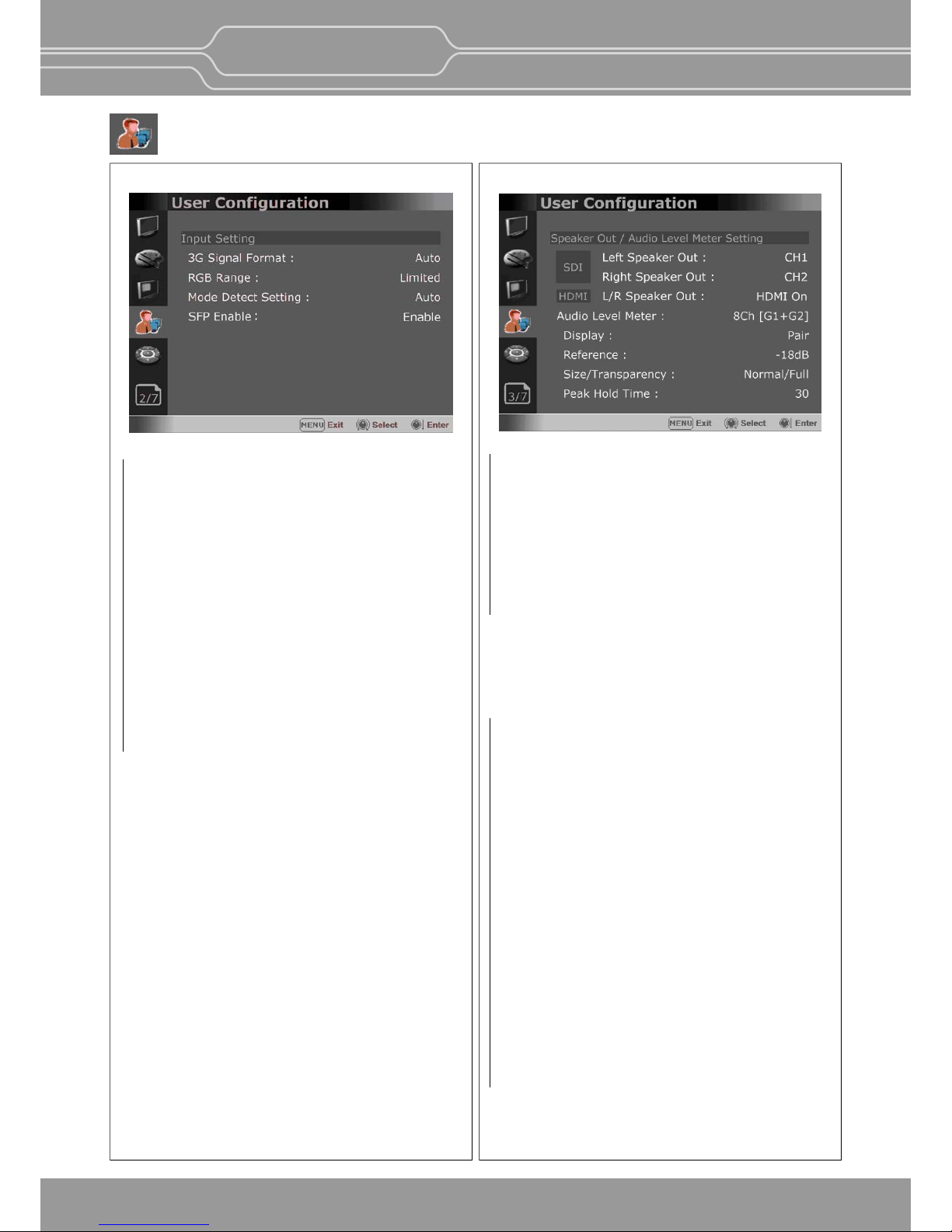

User Conguration Menu

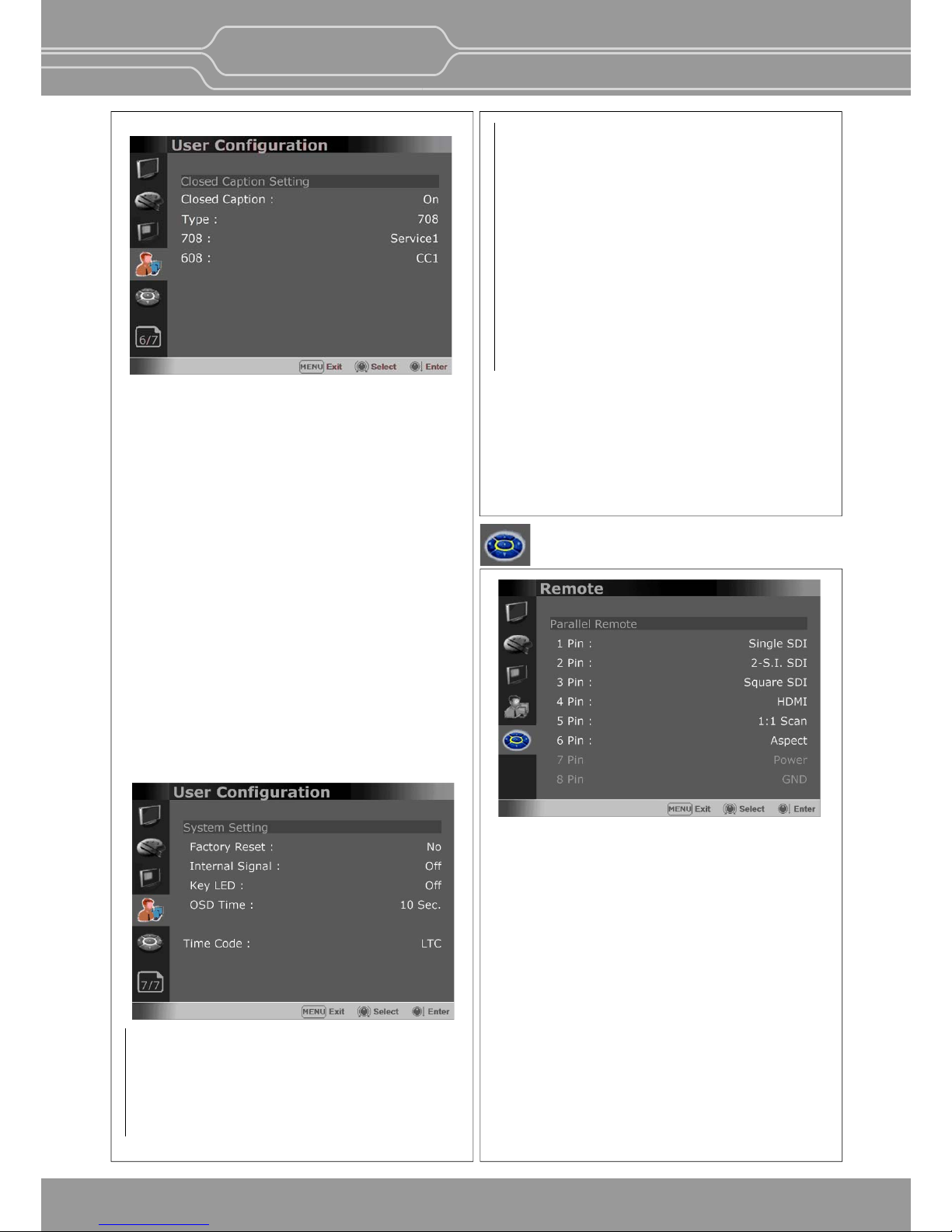

Remote Menu

7. Scan Mode Image (OBM-U240)

8. Scan Mode Image (OBM-U170)

9. Connecting the SDI Signals

10. Available Signal Formats

11. Other Functions

12. Product Specication

3
5

6

8
10
11

12
13
15
15
18
19
20
21
22
24
25

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

3

1. Precaution

Always use set voltage.
AC 100 ~ 230V, 50/60Hz

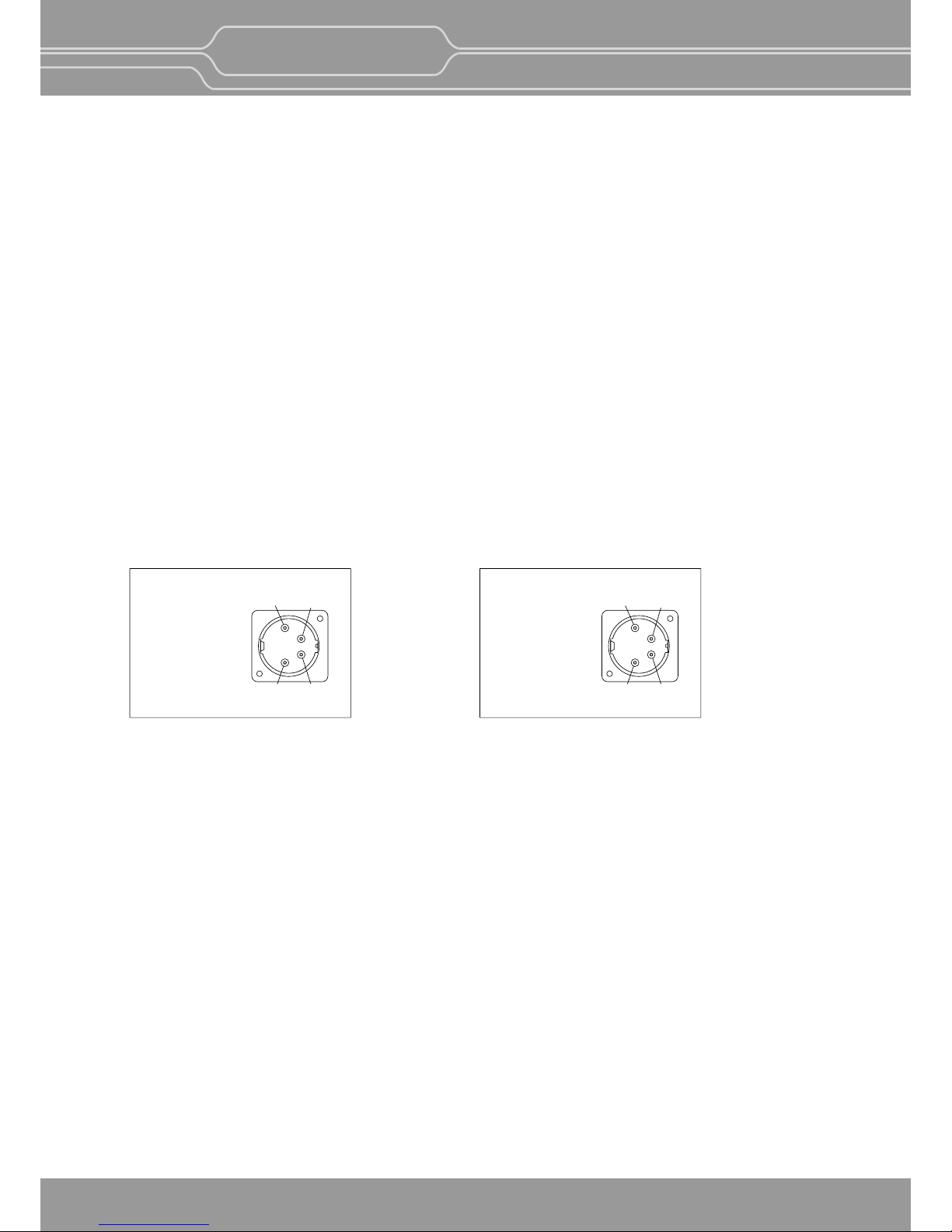

DC 12V(OBM-U170) or DC 24V(OBM-U240)

All these instrucons should be read and understood before operang the unit.

If liquid is spilled on or impacts this product, please disconnect the product immediately
and seek professional help before connued use.

Unplug the unit from the wall outlet if it is not to be used for several days or more.

Keep unit in a well-venlated place to prevent overheang.

Do not install the product near any heat-generang equipment. Also, keep the product out of direct sunlight
or dusty areas.

Protect the power cord from being walked on or pinched parcularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.

When using other DC 12V(OBM-U170) or DC 24V(OBM-U240) adapters instead of the standard adapter
provided by the manufacturer, please check the proper load capacity or current capacity and use an adapter
with stable voltage.

Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.

A very small proporon of pixels may be stuck, either always off (black), always on (red, green, or blue), or
flashing. In addion, over a long period of use, because of the physical characteriscs of the liquid crystal
display, such stuck pixels may appear spontaneously. These problems are not a malfuncon.

If a fixed picture such as a frame of a divided picture or me code, or a sll picture is displayed for a long me,
an image may remain on the screen and be superimposed as a ghosng image.

The permanent burn-in may occur for LCD panel if sll images are displayed in the same posion on the
screen connuously, or repeatedly over extended periods.
To reduce the risk of burn-in,
a. Turn off the character displays.
b. Turn off the power when not in use.
c. Turn off the power if the monitor is not to be used for a prolonged period of me.

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

4

1. Precaution

Do not aempt to service the product yourself. Removing covers can expose you to high voltage and other
dangerous condions. Request a qualified service person to perform servicing.

When the product needs replacement parts, make sure that the service person uses replacement parts
specified by the manufacturer, or those with the same characteriscs and performance as the original parts.
Use of unauthorized parts may result in fire, electric shock and/or other danger.

Only clean the product with a noncommercial, mild and neutral detergent.

Do not throw away the carton and packing materials. When transporng the product, make use of its original
packaging for safer carriage.

FCC (Federal Communications Commission)

This equipment has been tested and found to comply with the limits for class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if not installed and used in accordance with the
instrucon manual, may cause harmful interference to radio communicaons. Operaon of this
equipment in a residenal area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.

Warning!! : Changes or modificaons not expressly approved by the manufacturer could void the

user’s authority to operate the equipment.

Disposal of Old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries
with separate collecon systems)
This symbol on the product or on its packing indicates that this product shall not be treated as
household waste. Instead it shall be handed over to the applicable collecon point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potenal negave consequence for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. The recycling of materials will help to

conserve natural resources.

!

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

5

2. Main Features

4K professional monitor OBM-U170/U240 Series unit has the following features:

· Versale 4K/QFHD Input Capability
This monitor is equipped with standard 12G-SDI input interface(x2), 3G/HD-SDI input interface(x2)
and support 4K 2-sample interleave signals and 4K square division signals.
This monitor accepts up to 3840x2160 23.98/24/25/29.97/30/50/59.94/60p and
4096x2160 23.98/24/25/29.97/30/50/59.94/60p

· Supporng 12G/6G-SDI(4K) 2 Channel, 3G/HD-SDI (Level A/B) 2 Channel

· Quad Link Square Division

· Quad Link 2 Sample Interleave (2SI)

· 3D-LUT for Accurate Color Reproducon (ITU-R BT.709, SMPTE-C, EBU, Nave, D-CINEMA, ITU-R BT.2020)

· Gamma Selecon (1.0 ~ 3.0)

· Color Temperature(3200K, 5500K, 6500K, 9300K, USER 1/2/3, D-CINEMA)

· Support 4096x2160 Aspect

· Compare Color Space & Gamma (Side by side, Wipe posion)

· Monitor Update/Control via Ethernet, USB / RS-422

· Focus Assist

· Zebra

· Waveform, VectorScope (Wave + Vector, Waveform Wide)

· Exposure Range Check

· Camera Log Conversion

· Firmware Update via USB Flash Memory

· Various Markers (EBU, 4:3, 16:9, 1.85:1, 2.35:1, Variable etc.)

· Zero Scan / Over Scan /1:1 Scan

· H/V Delay

· Blue/Mono

· Time Code Display

· De-embedded 8~16ch Audio Level Meter

· Remote Control via GPI(RJ-45) Port

· White Internal Paerns Display for Color Test

· 3 Color TALLY Lamp

· Rack & VESA Mount (Opon)

· SFP opcal connector

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

6

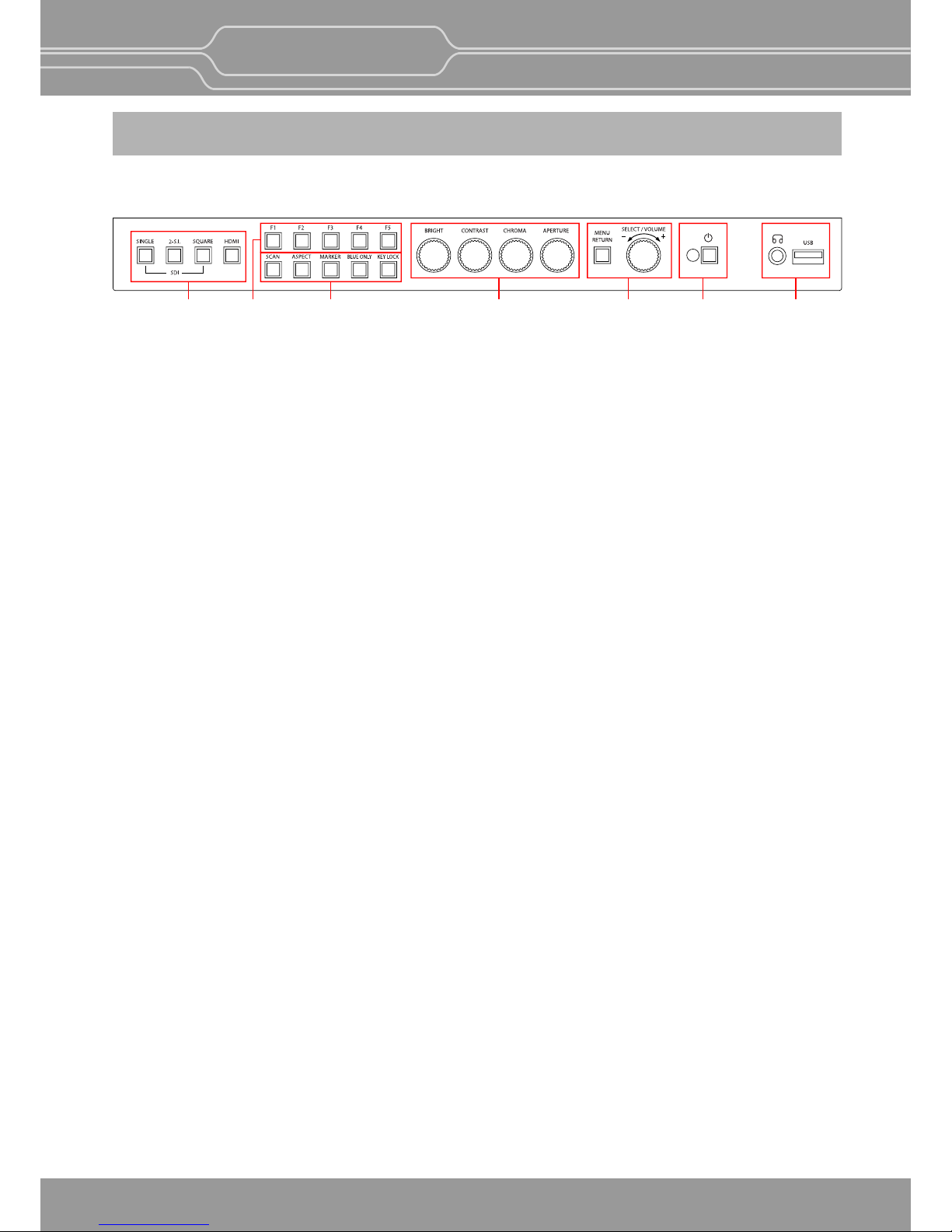

3. Location and Function of Parts and Controls

Front Panel

A : Input select Buons/Lamp

Press to monitor the signal input to each connector.

[SINGLE] Buon/Lamp

- Press the buon to select SDI input or SFP input for one channel.

- Mode changes in the order of [12G SDI-1], [12G SDI-2], [3G SDI-3], [3G SDI-4], [SFP]*.
*When a SFP module is inserted, [SFP] input can be selected.
[2-S.I.] Buon/Lamp

- Press the buon to select 2-SAMPLE Interleave SDI input signal through two or four SDI inputconnectors.

- Mode changes in the order of [Dual-Link 2-S.I.], [Quad-Link 2-S.I.].

[SQUARE] Buon/Lamp - Press the buon to select [Quad-Link Square Division] mode.
[HDMI] Buon/Lamp - Press the buon to select HDMI input.

B : F1 ~ F5 Buon/Lamp

Press to adjust or turn on/off the assigned funcon.
The following funcons are assigned at the factory.
[F1]: Color Space Compare

[F2]: H/V Delay
[F3]: Color Temp
[F4]: Audio Level Meter
[F5]: Time Code

C : Funcon Buon/Lamp
Press to adjust or turn/off each funcon.
[SCAN] Buon - Press the buon to adjust the scan mode. (Zero Scan, 1:1 Scan).
[ASPECT] Buon

- Press the buon to select the Aspect Rao of the signal.

- Mode changes in the order of [16:9] [4:3] [2.35;1] [1.85:1] [15:9] [16:10] [AUTO].
[MARKER] Buon - Press the buon to acvate and deacvate the Marker.
[BLUE ONLY] Buon

- Press the buon to acvate and deacvate the Blue Only funcon.

- You may remove R(red) and G(green) from the input signal and play the screen only with B(blue) signal.
This funcon is convenient to adjust Chroma and Phase and to observe the signal noise.

- The buon may be pressed twice to change the screen to MONO mode.
(This mode uses only Luminance value)
[KEY LOCK] Buon - Press the buon to lock all buons except Power.

D : Rotary encoder

[BRIGHT] knob
Press this knob to display the adjustment screen and adjust the picture brightness. Press again to hide the
adjustment screen. Turn the knob right to increase the brightness and turn le to decrease it.
[CONTRAST] knob
Press this knob to display the adjustment screen and adjust the picture contrast. Press again to hide the
adjustment screen. Turn the knob right to increase the contrast and turn le to decrease it.

AB C D E F G

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

7

[CHROMA] knob
Press this knob to display the adjustment screen and adjust the color intensity. Press again to hide the
adjustment screen. Turn the knob right to increase the color intensity and turn le to decrease it.
[APERTURE] knob
Press this knob to display the adjustment screen and adjust the picture sharpness. Press again to hide
the adjustment screen. Turn the knob right to make the picture sharper and turn it le to make the
picture soer.

E : Menu Operaon Buons

Displays or sets the on-screen menu.
[MENU/RETURN]

- Acvates and deacvates the display of the Main Menu.

- When the on-screen menu is not displayed, if this buon is pressed the main menu is display.
When the menu is displayed, press the buon to return to the previous menu.
[SELECT/VOLUME] knob (Menu selecon control)

- When the menu is displayed, turn the knob to select a menu item or seng value, and then press the
knob to confirm the seng.

- If the menu is not displayed and this knob is pressed, the adjustment screen of [VOLUME] is displayed
to adjust the audio volume.

- Press this knob to change the modes in the order of [Focus Frequency] [Zebra Level] [Line Posion]
[Variable Marker] and adjust each mode’s value.
[Focus Frequency]: When Focus Assist funcon is acvated, this mode is displayed.
[Zebra Level]: When Zebra funcon is acvated, this mode is displayed.
[Line Posion]: When WFM/Vector funcon and Line Select funcon is acvated, this mode isdisplayed.
[Variable Marker]:

When Marker funcon is acvated and Aspect Marker is set Variable, this mode is displayed.

F : (Standby) switch and indicator

- Press to turn the power on when this monitor is in standby mode. Aer being turned on, the monitor
performs Inializaon and the indicator flashes in green.

- Press the switch again for a second to set the monitor in standby mode. Then, the indicator flashes in
orange and then turns red. The indicator in orange means that the monitor goes into the standby
mode.
When the indicator flashes in orange, this buon doesn’t work.

G : (headphone) jack & Speaker and USB connector
Headphone jack & Speaker

- The audio signal which is selected using the input select buon is output in stereo sound.

- When SDI signals are input, the audio signals of the channels selected with SDI Audio Seng in the User
Configuraon menu are output.

- When the headphones are connected to the jack, audio signals will not be output.
[USB] Connector

- To update CPU, GPU, FPGA program.

- To connect the monitor with the Color Calibraon program provided by the manufacturer and perform
the color calibraon.

- To connect the monitor with the control program provided by the manufacturer and control funcons

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

8

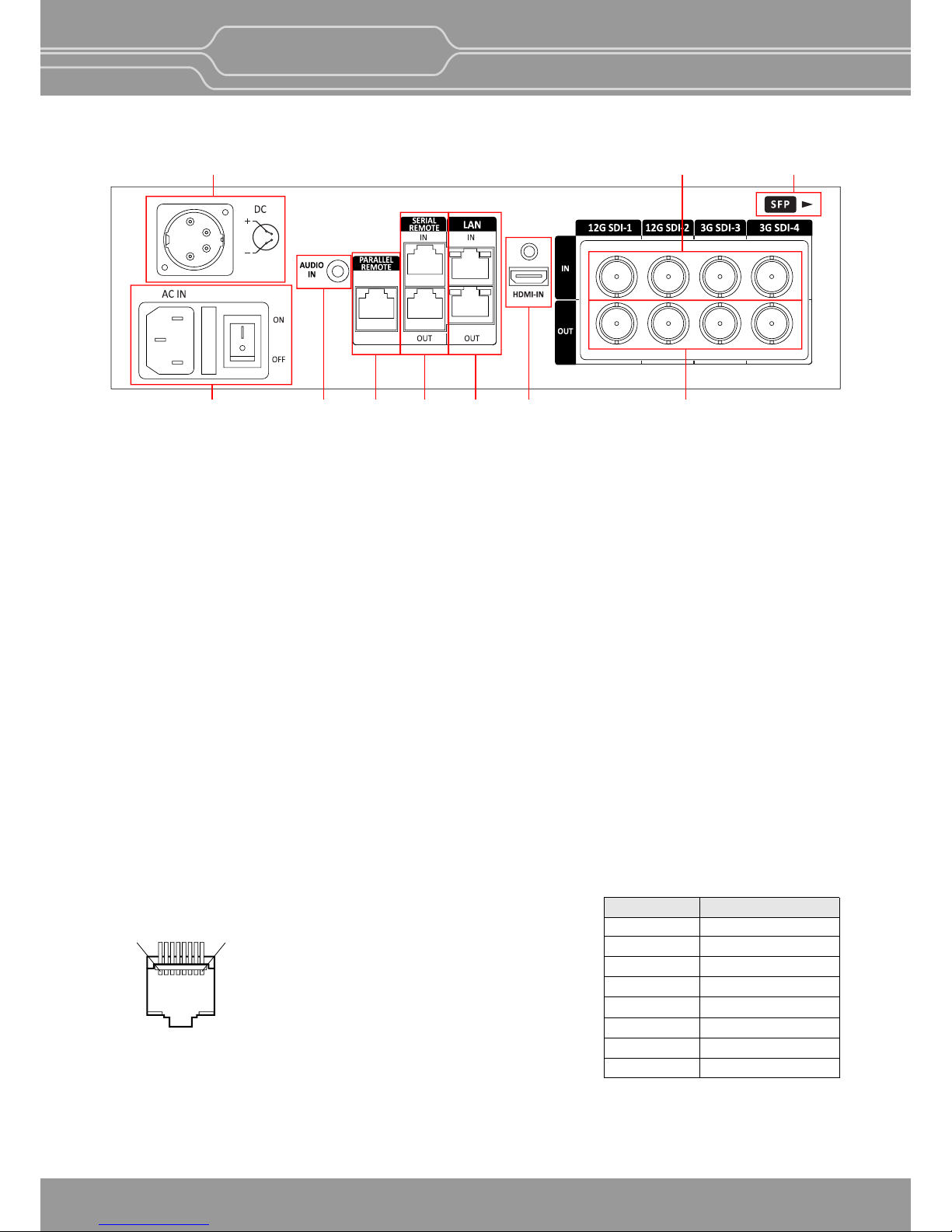

Rear Panel

A : SDI IN (SDI Input) connectors (BNC)

Input connectors for SDI signals. For details, see “Connecng the SDI Signals” (page 21).

B : SDI OUT (SDI Output) connectors (BNC)

Output connectors for SDI signals.
Each connector outputs the signal which is input to the corresponding SDI IN connector.
**Note - Output is acvated only when the power is on. Output is not acvated in standby mode.

C : HDMI input connectors

Input connectors for HDMI signals.

-

For an HDMI cable, High Speed HDMI Cable with the cable type logo or HDMI 2.0 Cable is recommended.

- When inpung 4K resoluon(3840 x 2160 or 4096 x 2160) signal, use a cable of 3m or less.

D : SFP Input connector

Input connector for SFP opcal signal.

E : PARALLEL REMOTE connector(RJ-45, 8-pin)

Forms a parallel switch and controls the monitor externally.

**Note - For safety, do not connect the connector for peripheral device wiring that might have excessive
voltage to this port. Follow the instrucons about this port.

[Pin Assignment]

Funcons can be changed in [Remote] secon of the menu.

DAI

BCGFEHJ

1

2

Pin Number Funcon

Single SDI

Square SDI

2-S.I. SDI

HDMI

1:1 Scan

Aspect

Power

GND

1
2
3
4
5
6
7
8

IN

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

9

F : SERIAL REMOTE IN/OUT connector (RJ-45)

Used for the future funcon expansion.
Connects the monitor to the control program provided by the manufacturer by using RS-422/485
communicaon or the external UMD(IMD) equipment and controls the monitor.

G : LAN(10/100) IN/OUT connector

Used for the future funcon expansion.
Connects to the LAN (10/100) connector of the network by using 10BASE-T/100BASE-TX LAN cable.

A daisy chain connecon using the LAN input/output connectors enables the control of mulple monitors in

sequence.

H : AUDIO IN connector (Stereo mini jack)

Connector for analog audio input.
Analog input can be selected with SDI Audio Seng in User Configuraon menu.

I : DC IN terminal

Connects the DC power supply to the monitor.

- OBM-U170: 12V

- OBM-U240: 24V

Make sure to use DC 12V power supply for OBM-U170 and DC 24V power supply for OBM-U240.

OBM-U170 OBM-U240

J : AC IN terminal
AC power input connector.
Connects the provided AC power cord.

DC IN Socket

1 : GND

4 : +12V

4

12

3

DC IN Socket

1 : GND

4 : +24V

4

12

3

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

10

4. Using the Menu

This monitor is equipped with an OSD menu to make various adjustments and sengs such as picture control,
input seng, set seng change, etc.

1. Press the MENU buon.

The menu appears.
The menu presently selected is shown in gray.

3. Select an item.

Turn SELECT/VOLUME knob to select the item, then press the knob.
The item to be changed is shown highlighted, and the sub menu is displayed on the right.

4. Make the seng or adjustment on an item.

How to change the adjustment level:

To increase the level, turn the SELECT/VOLUME knob right.
To decrease the level, turn the SELECT/VOLUME knob le.

How to change the seng:

Turn the SELECT/VOLUME knob to change the seng, then press the knob to confirm the seng.

**Note - An item displayed in gray cannot be accessed. The item is accessible if it is displayed in white.

To return the display to the previous screen
Press the MENU buon.

To clear the menu

Press the MENU buon.

2. Turn SELECT/VOLUME knob to select a menu,
then press the knob.

The menu icon presently selected is shown highlighted.

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

11

5. Adjustment Using the Menus

Color Temp./Color Space/Gamma menu
Color Temp. R/G/B Gain
Manual Adjustment

Color Space
OBM-HDR Gamma
Color Space Compare

Back Light
Camera Log
Default Log Sel.
User Log Sel.

User Configuraon menu

User Preset
Funcon Buon Seng

Input Seng

Camera Log
Speaker Out / Audio Level Meter Seng
SDI Le Speaker Out
SDI Right Speaker Out
HDMI L/R Speaker Out
Audio Level Meter

Marker Seng
Marker
Aspect Marker
Center Marker
Area Marker
Color
Aspect Mat
Fit
Thickness
WFM/Vector Seng
WFM/Vector

Closed Capon Seng
Closed Capon

System Seng

TimeCode

Format
Color Temp
Brightness
Contrast
Chroma
Aperture
Color Space
Gamma
User Preset
RGB Range
WFM/Vector
Audio Level Meter
Focus Assist
Time Code
Volume
SDI Payload ID

Model Name
Serial Number
Board Version
Operaon Time
Last Calibraon Time

Idenfier
Sampling
Picture Rate
Scanning Method
Bit Depth
Link Assignment

R Gain
G Gain
B Gain
R Bias
G Bias
B Bias
Copy From

Le Color Space
Right Color Space
Right Gamma
Wipe Posion

The OSD menu of this monitor consists of the following items.

F1 Buon
F2 Buon
F3 Buon
F4 Buon

F5 Buon
3G Signal Format
RGB Range
Mode Detect Seng
SFP Enable

Log Select

Display
Reference
Size/Transparency
Peak Hold Time

Variable Aspect

Intensity
Transparency
Color
Line Select Line Posion

Factory Reset
Internal Paern
Key LED
OSD Time

1 Pin ~ 8 Pin

Status menu

(To indicate the current sengs)

Zebra/Focus menu
Zebra Level Adjustment
Focus Assist Color
Frequenc

Remote menu

Parallel Remote

Type
708
608

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

12

6. OSD Menu Operations

Status Menu

The Status menu displays the current status of the
monitor. The following items are displayed.

Page 1/4

Page 2/4

Page 3/4

Page 4/4

Format
Color Temp
Brightness
Contrast
Chroma
Aperture
Color Space
Gamma

User Preset
RGB Range
Back Light
WFM/Vector
Audio Level Meter
Focus Assist
Time Code
Volume

SDI Input
SDI Payload ID

*** When the SDI signal is connected,
these items are displayed.

Idenfier
Sampling
Picture Rate
Scanning Method
Bit Depth
Link Assignment

Model Name
Serial Number
Board Version
Operaon Time
Last Calibraon Time

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

13

6. OSD Menu Operations

Color Temp/Color Space/Gamma Menu

These menus are used for adjusng or seng the color
temperature, color space or gamma of the picture.

Page 1/3

**Note - If Color Space is set to [D-CINE], Color
Temp. is fixed to [D-CINE].

Page 2/3

Color Space

- Selects the color space from among
[ITU-R BT.709] [SMPTE-C] [D-CINE]
[ITU-R BT.2020] [Nave].

OBM-HDR

Selects 4 modes of HDR gamma.

- ST-2084 10000 : The characteriscs of LCD
panel doesn’t allow to produce the ideal
brightness required by this standard, so the
gamma is displayed in the relave brightness.

- ST-2084 1000: This mode displays the relave
brightness up to 1000cd/m². The part exceeding

1000cd/m² is clipped.

- ST-2084 300: This mode displays the absolute

brightness up to 300cd/m². So, the highlights
over 300cd/m² are clipped.

- HLG 1000 (Hybrid Log Gamma): This mode can
be selected when the White is 1000 cd/m² in
HLG gamma.

- HLG 0.98(300) (Hybrid Log Gamma) : This mode

can be selected when the White is 300 cd/m² in

HLG gamma.

- HLG -1.0 / 1.1 / 1.2 / 1.3 / 1.4 / 1.5 : These modes

allow the user to apply HLG gamma from 1.0 up

to 1.5.

-

HLG -SG(1.2): HLG gamma is applied to 1.2 and

then displayed in the absolute value up to 300cd/m².

Color Temp

- Selects the color temperature from among
[3200K] [5500K] [6500K] [9300K] [User1]
[User2] [User3] [D-CINE].

R/G/B Gain

- Displays the R/G/B Gain of the current
Color Temperature.

Manual Adjustment

- If you set the Color Temp. to User 1/2/3,
the item is changed from black to white,
which means you can adjust the color
temperature.

R/G/B Gain/Bias

- Adjusts the color balance(Gain, Bias).

Copy From

- The Gain and Bias data of each Color Temp.
are restored to User adjustment.

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

14

6. OSD Menu Operations

Le Color Space

- Displays the color space which is set in Color
Space menu.
Right Color Space

- Selects the color space of the right half which
will be compared with the le half of the picture.

Right Gamma

- Adjust the gamma of the right half which will

be compared with the le half of the picture.
Wipe Posion

- Adjust the boundary line of the le and right

area. Allowed to adjust the boundary line by
using the SELECT/VOLUME knob

Back Light

- Adjusts the level of the back light level.
If the back light value is increased, the screen
becomes brighter.

** If the seng in Color Temp. menu and
Color Space menu is changed, the value of
Back Light returns to the default value of
the color calibraon in the factory.

Color Space Comparison

- Allows you to divide the picture side by side,
adjust the color space and gamma on the right

half of the picture, and compare the color
space and gamma between right half and le
half.

Gamma

- Selects the appropriate gamma mode from

1.00 to 3.00.

**Note - When the OBM-HDR is set Off, this
menu becomes acvated.

- When the color space is set to
Nave, this menu becomes
deacvated.

Page 3/3

Camera Log

Selects a camera log for the input signal.
[Off]: Sets off the camera log.
[Default]:

The log which is selected in [Default Log Sel.]
menu is applied.
[User]: The log which is selected in [User Log Sel.]
menu is applied.
[Import Log Data]: Allows the user to save the Log
LUT in USB memory sck to the monitor.
The saved LUT can be used in User Log.

Default Log Sel.

Allows the user to select a camera log among
C-Log, Log-C EI 160~3200, S-Log2 To LC-709,
S-Log2 To LC-709TypeA, S-Log2 To Slog2-709,
S-Log2 To Cine+709, S-Log2 To LC-709, S-Log3
To LC-709TypeA, S-Log3 To Slog2-709, S-Log3
To Cine+709, J-Log1.

User Log Sel.

Selects User Log 1 to 4.

**Note

-

If you insert the USB memory sck which
contains the user log data to the monitor and
push Enter in [Import Log Data] menu, the
data is saved to the monitor.

-

The log data should have the following file
name, and should be placed on the top folder
of the USB.
The file format is cube, and the two types of
size 33 and 65 are supported.

OBM-UserLOG1.cube
OBM-UserLOG2.cube
OBM-UserLOG3.cube
OBM-UserLOG4.cube

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

15

User Conguration Menu

User Configuraon consists of the adjustment
menus such as [User Preset], [Funcon Buon
Seng], [Input Seng], [Camera Log], [SDI Audio
Seng], [Audio Level Meter Seng], [Marker],
[WFM/Vector], [System Seng].

Page 1/7

User Preset

- Allows to check the adjustment status which
each user presets.

- All the adjustments the user sets are
automacally save.

Funcon Buon Seng

- Assigns the funcon for F1 to F5 buons on
the front panel.
The following funcons can be assigned.
: [Color Space Compare], [H/V Delay],
[Color Temp.], [Audio Level Meter],
[Time Code], [Zebra], [Focus Assist],
[WFM/Vector], [Camera Log],
[Closed Capon],
[OBM-HDR].

-

The following funcons are assigned in the
factory.
[F1 Buon]: Color Space Compare
[F2 Buon]: H/V Delay
[F3 Buon]: Color Temp
[F4 Buon]: Audio Level Meter
[F5 Buon]: Time Code

Zebra/Focus Menu

Zebra

- Evaluates the Luma(Y’) level of the input image.
If the certain Y’ level is set, the pixels with the
d esignat ed Luma(Y’) level are displayed in
zebra paern.

** Pixels with Y’ level over 100% turn to red
zebra paern, and pixels with Y’ level under
0% turn to green zebra paern.

Level Adjustment

- Adjusts the Y’ level as the user wants.

Focus Assist

- Controls the aperture level of a video signal
and displays images on screen with sharpened
edges to help camera focus operaon.

Available types are [Color On] and [Mono On].

- [Color On]: The background image is the
original color type.

- [Mono On]: The background image is the
mono type.

Color

- Selects a color for Focus Assist among [RED],
[Green], [Blue], [White], [Yellow], [Cyan].

Frequency

- Adjusts the edge difference level between the
edges in an image.

- Available values are from 0% to 100%.

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

16

User Conguration Menu

Page 3/7

Speaker Out / Audio Level Meter Seng

- Selects the audio channel of the SDI & HDMI
input signal.
SDI : Le Speaker Out / Right Speaker Out

- Selects the embedded audio channel for the
le

and right audio out of the Headphone jack

on the

front panel of the monitor.
Audio channel can be selected among Ch1 ~
Ch16, Analog.

HDMI : L/R Speaker Out

- Selects the embedded audio channel of the

HDMI signal. The available models are [Off],
[HDMI On], [Analog On].

Audio Level Meter
Selects the embedded audio mode.
: [Off], [8Ch [G1+G2]], [8Ch [G2+G3]],
[8Ch [G3+G4]],
[8Ch [G1+G3]], [8Ch [G1+G4]], [8Ch [G2+G4]],
[16Ch [G1~G4]]
** In HDMI input, either [Off] or [HDMI 2Ch]
can be selected.
Display

Selects the display method for Audio Level Meter.
Available modes are [Group] and [Pair].
** In HDMI input, the mode is fixed to [Pair].
Reference
Selects the default value of Audio Level Meter.
Available opons are [-18dB] and [-20dB].
Size/Transparency
Selects the size and transparency of Audio Level
Meter.
Available opons are [Normal/Full],
[Normal/Half], [Large/Full], [Large/Half].

Peak Hold Time

Controls the speed rate of Peak Hold Decay

Time occurring when the audio volume decreases.

Input Seng
3G Signal Format

- Selects the format of 3G SDI input signal.
: [Auto], [A 4:4:4 YUV 10b], [A 4:4:4 GBR 10b],
[A 4:4:4 YUV 12b], [A 4:4:4 GBR 12b],
[A 4:2:2 YUV 12b], [B DL 4:4:4 YUV 10/12b],
[B DL 4:4:4 GBR 10/12b], [B DL 4:2:2 YUV 12b],
[B DL 4:2:2 YUV 10b 60p]

RGB Range

-

Selects Black Level and White Level of RGB format

.
*Limited : 64(10bit)/256(12bit) ~
1023(10bit)/4095(12bit)
*Full: 0(Black Level) ~ 1023(10bit)/4095(12bit)

SFP Enable

- Allows for SFP input to be selected
by pushing [SINGLE] buon on the front.

Page 2/7

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

17

Page 4/7

Marker

- Selects On to display the marker, and Off to
deacvate it.
Aspect Marker
Selects the aspect rao of the marker.
You can select from among [Off], [16:9], [4:3],
[4:3 ON AIR], [15:9], [14:9], [13:9], [1.85:1],
[2.35:1], [2.39:1], [1.85:1 & 4:3], [1.66:1],
[1.896:1], [Variable].
*Variable Aspect
Allows the user to select the aspect rao from
the range between 1.00:1 and 3.00:1.
Center Marker
Selects On to display the center marker and Off
not to display it.
Area Marker
Selects the size of the area marker.
You can select from among [Off], [80%], [85%],
[88%], [90%], [93%], [100%], [EBU Acon 16:9],
[EBU Graphic 16:9], [EBU Acon 14:9],
[EBU Graphic 14:9], [EBU Acon 4:3],
[EBU Graphic 4:3].
Color
Selects the color of the marker.

You can select from among [White], [Gray], [Red],

[Green], [Blue], [Yellow], [Cyan], [Magenta].

Aspect Mat

Darkens the outside of the area of the Aspect
Marker. You can select from 0 to 7.
Fit
With Fit On, the Area Marker is displayed relave
to the Aspect Marker in use.
With Fit Off, the Area Marker is displayed relave
to the incoming video source.
Thickness
Adjusts the thickness of the marker lines.
You can select it from 1 to 7.

** This menu is acvated in OBM-U170 model only.

Page 5/7

WFM/Vector

- Sets to acvate and deacvate Waveform
monitor and Vectorscope.
You can select from among [WFM],
[VectorScope], [WFM+Vector], [WFM Wide].
*This funcon doesn’t work when RGB format
signal is input.
Intensity
Adjusts the brightness of Waveform and
Vectorscope display.
You can select from 1 to 64.
Transparency
Adjusts the transparency level of Waveform and
Vectorscope.
[Black]:

The background is black. Displayed image
is hidden behind the background.
[Half]: The background is transparent. Displayed
image can be seen indisnctly behind the
Waveform and Vectorscope display.
Color
Selects the color of Waveform monitor.
Available colors are [Green] and [White].
Line Select
Selects [On] to display the Waveform of the line
assigned in [Line Posion] below.
*Line Posion
Selects the specific horizontal line for
Waveform and Vectorscope.
Increases the value to move the line upwards
and decreases the value to move the line
downwards.

** [WFM Wide] feature is disable on U240 model

User Conguration Menu

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

18

Remote Menu

[--], [Single SDI], [2-S.I. SDI], [Square SDI], [HDMI],
[Scan], [1:1 Scan], [Aspect], [H/V Delay], [Blue Only],
[Mono], [A 16:9], [A 4:3], [A 4:3OnAir], [A 15:9],
[A 14:9], [A 13:9], [A 1.85:1], [A 2.35:1],
[A 1.85:1&4:3], [Center M.], [Area 80%], [Area 85%],
[Area 88%][Area 90%], [Area 93%], [Area 100%],
[TALLY R], [TALLY G]

** [--]: No funcon is assigned.
*7 Pin: For Power On and Off only

*8 Pin: For Ground only

Parallel Remote

Selects the Parallel Remote connector pins for
which you want to change the funcon.
Various funcons can be assigned to pin 1 to 6.
The following lists the funcons which can be
assigned to the pins.

Page 6/7

Page 7/7

Closed Capon

Selects [On] to display the Closed Capon and
[Off] not to display.

Type

Sets the Closed Capon type
[708]: Selects this mode to display 708 when
HD-SDI signal is input.
[608(VBI)]: Selects this mode to display 608(VBI)
when SD-SDI signal is input.
[608(708)]:

Selects this mode to display

608(708)

when D-SDI signal is input.

708

Sets the Closed Capon type for 708.
Selects from [Service1] to [Service6].

608

Sets the Closed Capon type for 608(708) and
608(VBI). Selects from [CC1] to [CC4].

Factory Reset

Inializes OSD values to the factory default.

Internal Signal

Generates the White Paern internally.
The selectable range is from 100%(White) to
0%(Black).

Key LED
Sets On to turn on the LED of the keys, and sets
Off to turn off the LED of the keys.
OSD Time
Adjusts the display me of the OSD menu.
[10 Sec.]: The OSD menu will be disappeared
aer 10 seconds.
[20 Sec.]: The OSD menu will be disappeared
about 20 seconds.
[30 Sec.]: The OSD menu will be disappeared
about 30 seconds.
[On]: The OSD menu will not be disappeared.
OSD Posion
Sets the posion of OSD. Selects [Center] to
[Le Boom].

Time Code

-

Selects the type of the me code to be displayed.
[VITC]: To display the VITC me code
[LTC]: To display the LTC me code

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

19

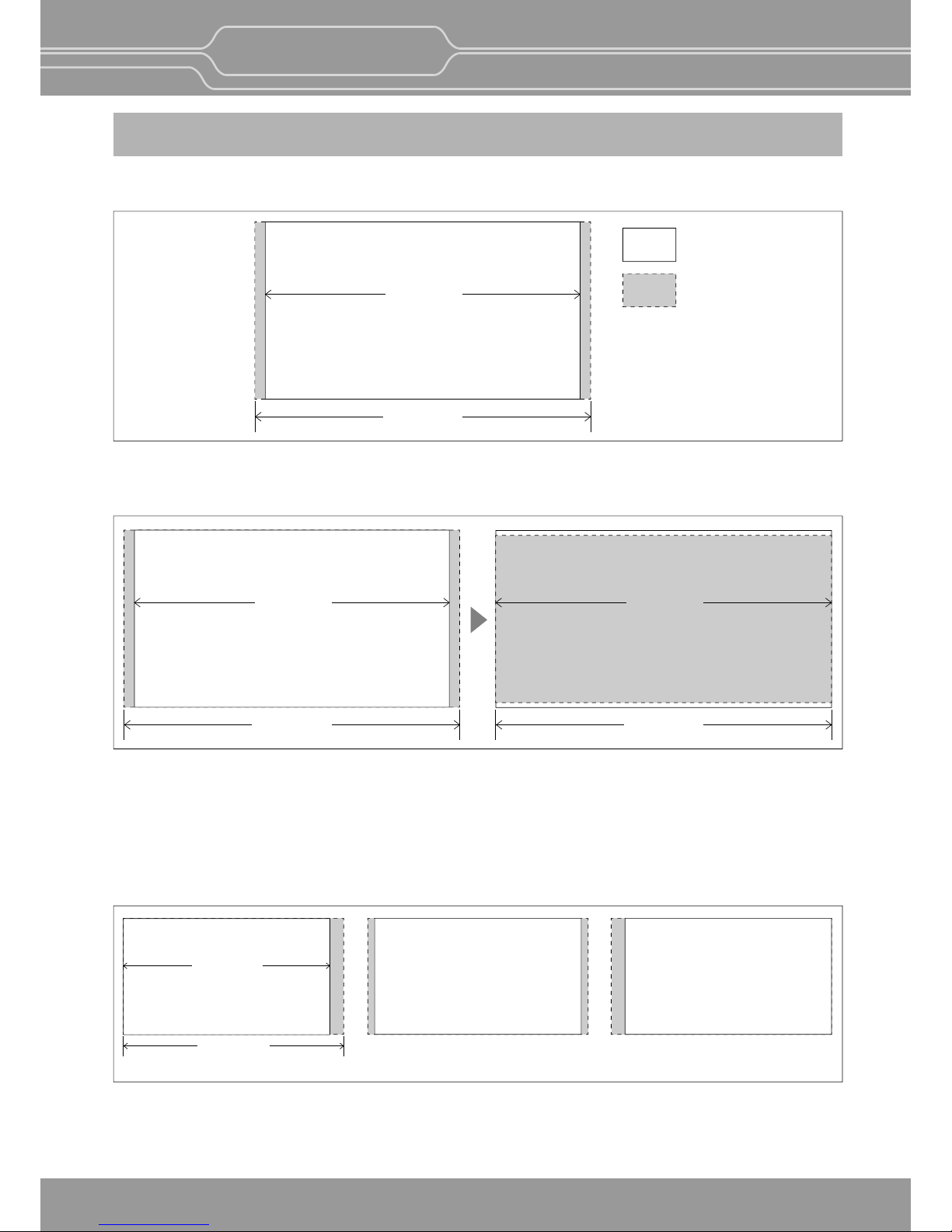

7. Scan Mode Image (OBM-U240)

OBM-U240

4K/QFHD Mode

When the 4096x2160 signal is fed, if you select Zero Scan using [Scan] buon on the front panel, the picture is
scaled to be displayed on the panel of 3840x2048 resoluon with maintaining 1.89:1 rao.

If you press [Scan] buon once more, [1:1 Scan] mode is selected.
To see the image on the right-end and the le-end area, the locaon of the image can be moved by rotang
the [SELECT/VOLUME] knob.

**Note -When QFHD/DCI 4K signal is fed, [Aspect] buon is not acvated.

The LCD panel resoluon of OBM-U240 is QFHD(16:9) 3840x2160, so if the input signal is 3840x2160,
1:1 mapping is supported. If the input signal is DCI 4K(1.89:1) 4096x2160, 1:1 mapping is not supported.

3840 x 2160

4096 x 2160

[Le]

[Center]

[Right]

3840 x 2160

4096 x 2160

3840 x 2028

3840 x 2160

[Zero Scan]

[1:1 Scan]

Panel

Input image

3840 x 2160

4096 x 2160

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

20

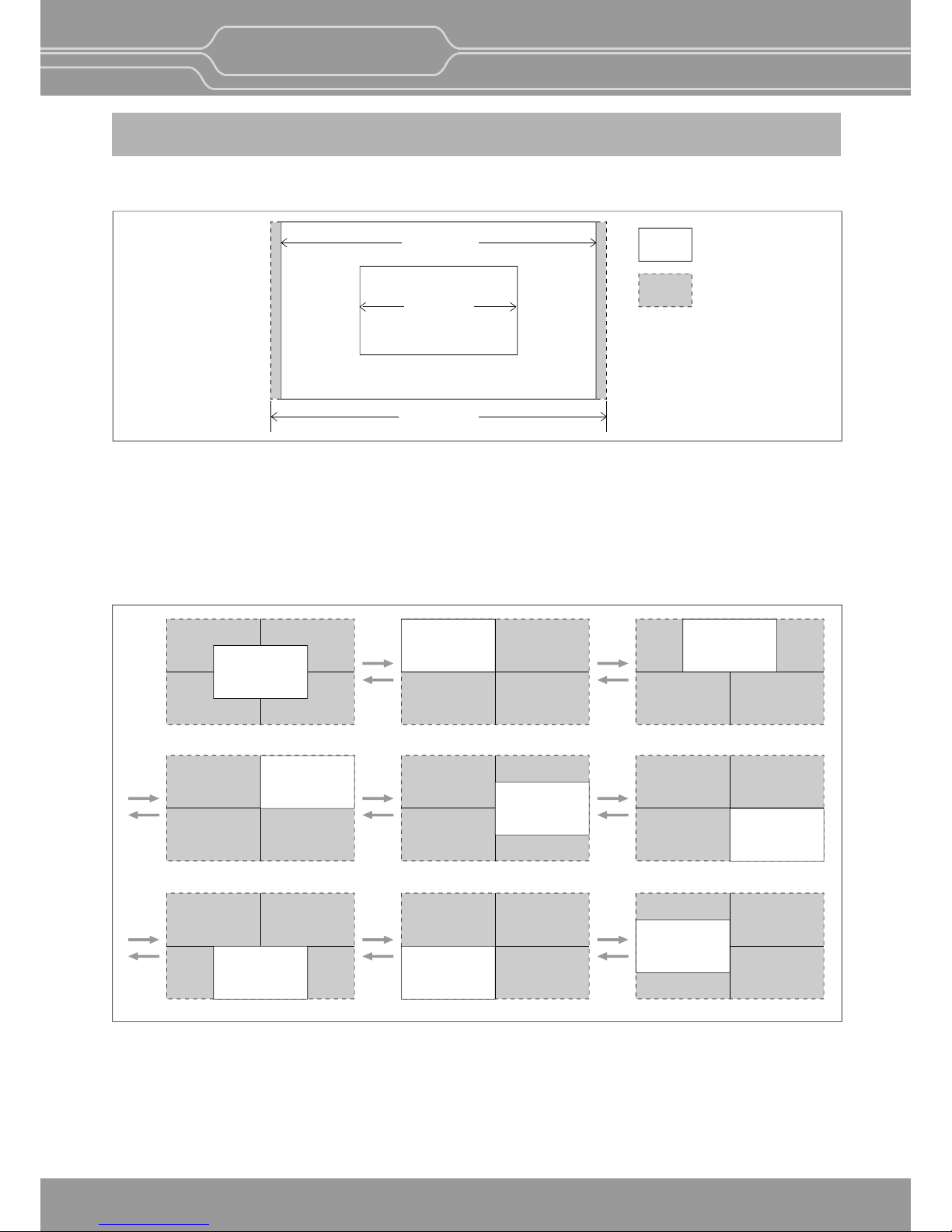

8. Scan Mode Image (OBM-U170)

OBM-U170

4K/QFHD Mode

The LCD panel resoluon of OBM-U170 is FHD(16:9) 1920x1080. So, when Zero Scan is selected, if the input
signal is QHD(3840x2160) it is scaled to 1920x1080(16:9), and if the input signal is DCI 4K(1.89:1) 4096x2160
it is scaled to1920x1012(1.89:1).

If you press [Scan] buon and select [1:1 Scan] mode, 1:1 pixel mapping of the original image is displayed.
The locaon of the image can be changed by rotang the [SELECT/VOLUME] knob.

**Note -When QFHD/DCI 4K signal is fed, [Aspect] buon is not acvated.

[UP]

[DOWN]

[UP]

[DOWN]

[UP]

[DOWN]

[UP]

[DOWN]

[UP]

[DOWN]

[UP]

[DOWN]

[UP]

[DOWN]

[UP]

[DOWN]

[Posion change in 1:1 Scan]

Panel

Input image

3840 x 2160

1920 x 1080

4096 x 2160

Center Le Top Mid Top

Right Top Right Mid Right Boom

Mid Boom Le Boom Le Mid

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

21

9. Connecting the SDI Signals

Single Link 12G/6G/3G/HD-SDI, Dual-Link 3G-SDI, and Quad-Link 3G-SDI signals can be input to the SDI IN
connectors of this monitor.
Up to 2-channel Single Link 12-SDI signals, up to 4-channel 3G/HD-SDI signals, 1-channel Dual-Link 3G-SDI or
1-channel Quad-Link 3G-SDI signals can be input. Use the appropriate input connectors depending on the
input signal, referring to the tables below.

Single-Link 12G –SDI Signal

Dual-Link 3G –SDI Signal

* 2-sample interleave division signals

Quad-Link 3G/HD –SDI Signal

* 2-sample interleave division signals

* Square division signals

Image of Square division signals

Sub-Image1
(upper-left screen)

Sub-Image2
(upper-right screen)

Sub-Image1
(lower-left screen)

Sub-Image1
(lower-right screen)

Connector Input signal

12G SDI -1 12G SDI

12G SDI 12G SDI -2

Connector

Input signal

12G SDI -1 3G SDI Link1

3G SDI Link2 12G SDI -2

Connector

Input signal

12G SDI -1 3G SDI Link1

3G SDI Link2

3G SDI Link3
3G SDI Link4

12G SDI -2

3G SDI -3
3G SDI -4

Connector

Input signal

12G SDI -1 Sub-Image 1 (upper-le screen)

Sub-Image 2 (upper-right screen)

Sub-Image 3 (upper-le screen)
Sub-Image 4 (upper-right screen)

12G SDI -2

3G SDI -3
3G SDI -4

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

22

10. Available Signal Formats

This monitor is applicable to the following signal formats

Signal System Signal Format

Signal System Signal Format

Signal System Signal Format

Signal System Signal Format

HD-SDI

3G-SDI

12G-SDI

Dual-Link (4K) 3G-SDI

1920x1080 /

23.98, 24, 25, 29.97, 30p/Psf, 50, 59.94, 60i

4:2:2 YCbCr 10bit

4:2:2 YCbCr 10bit

4:2:2 YCbCr 10bit

4:2:2 YCbCr 10bit

4:2:2 YCbCr 10bit

4:2:2 YCbCr 10bit

4:2:2 YCbCr 10bit

4:2:2 YCbCr 10bit

4:2:2 YCbCr 10bit

2048 x 1080 /

23.98, 24, 25, 29.97, 30p/Psf

1280x 720 /

23.98, 24, 25, 29.97, 30, 50, 59.94, 60p

1920 x1080 /
50, 59.94, 60p

Level A / Level B-DL

Level A / Level B-DL

Level A / Level B-DL

Level A / Level B-DL

Level A

1920 x1080 /

23.98, 24, 25, 29.97, 30p/Psf, 50, 59.94, 60i

4:4:4 RGB 10bit
4:4:4 YCbCr 10bit
4:4:4 RGB 12bit
4:4:4 YCbCr 12bit

4:4:4 RGB 10bit
4:4:4 YCbCr 10bit
4:4:4 RGB 12bit
4:4:4 YCbCr 12bit

1280x 720 /

23.98, 24, 25, 29.97, 30, 50, 59.94, 60p

4:4:4 RGB 10bit
4:4:4 YCbCr 10bit

2048 x1080 /
48, 50, 60p

2048 x 1080 /

23.98, 24, 25, 29.97, 30p/Psf

3840 x2160 /
50, 59.94, 60p

4096 x2160 /

47.95, 48, 50, 59.94, 60p

3840 x2160 /

23.98, 24, 25, 29.97, 30p

4096 x2160 /

23.98, 24, 25, 29.97, 30p

Level B-DS 2-sample interleave division

Level B-DS 2-sample interleave division

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

23

10. Available Signal Formats

Signal System Signal Format

Quad-Link (4K) 3G-SDI

4:2:2 YCbCr 10bit

4:2:2 YCbCr 10bit

3840 x2160 /
50, 59.94, 60p

Level A / Level B-DL

Level A / Level B-DL

Level A / Level B-DL

Level A / Level B-DL

Level A / Level B-DL

Level A / Level B-DL

3840 x2160 /

23.98, 24, 25, 29.97, 30p

4:4:4 RGB 10bit
4:4:4 YCbCr 10bit
4:4:4 RGB 12bit
4:4:4 YCbCr 12bit

4:4:4 RGB 10bit
4:4:4 YCbCr 10bit
4:4:4 RGB 12bit
4:4:4 YCbCr 12bit

4:4:4 RGB 8 / 10 / 12bit
4:4:4 YCbCr 8 / 10 / 12bit
4:2:2 YCbCr 12bit

4:4:4 RGB 8 / 10 / 12bit
4:4:4 YCbCr 8 / 10 / 12bit
4:2:2 YCbCr 12bit

4:4:4 RGB 8bit
4:4:4 YCbCr 8bit
4:2:2 YCbCr 12bit

4:4:4 RGB 10bit
4:4:4 YCbCr 10bit
4:4:4 RGB 12bit
4:4:4 YCbCr 12bit

4:4:4 RGB 10bit
4:4:4 YCbCr 10bit
4:4:4 RGB 12bit
4:4:4 YCbCr 12bit

3840 x2160 /

23.98, 24, 25, 29.97, 30Psf

4096 x 2160 /

23.98, 24, 25, 29.97, 30p

4096 x 2160 /

23.98, 24, 25, 29.97, 30Psf

2-sample interleave division/
Square division

2-sample interleave division/
Square division

Square division

Square division

4096 x 2160 /

47.95, 48, 50, 59.94, 60p

Signal System

HDMI

640 x 480p@59.94 / 60

1280 x 720p@50 / 59.94 / 60

1920 x 1080i@50 / 59.94 / 60

1920 x 1080p@23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60

3840 x 2160p@23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60

4096 x 2160p@23.98 / 24 / 25 / 29.97 / 30

800 x 600p@60

1024 x 768p@60

2048 x 1080p@23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60

720 x 480p@59.94 / 60

720 x 576p@50

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

24

11. Other Functions

Versale 4K/QFHD Input Capability

The OBM-U170 and OBM-U240 are equipped with
standard 12G-SDI input interace(x2) , 3G/HD-SDI
input interface(x2) and support 4K Quad Link 2-Sample
Interleave signals and 4K Quad Link Square Division
signals.
The OBM-U170 and OBM-U240 can accept up to
3840x2160/24,25,30,50,60p and
4096x2160/24.25.30,50,60p signals.

Various 4K/12G Display Modes

Mode 1 : Single Link 12G

Mode 2 : Quad Link Square Division

Each link contains one square of the original image.

Mode 3 : Quad Link 2 Sample Interleave (2SI)

Each link contains a full image at 1/4 resoluon.
2SI mode uses four Sub-image and alternates the
samples every two pixels and every line instead of
sling the image into four quadrants.

4K Waveform Monitor and Vector Scope Display
These features enable users to monitor sources
using the internal Waveform and Vector Scope.
Waveform Wide mode is supported, and both
Waveform and Vector Scope can be displayed
simultaneously.

SFP opcal connector

The OBM-U240 and OBM-U170 have the SFP interface,
which allows to use the various SFP modules which
can fit any possible broadcast applicaons.

Adjustable Gamma

Gamma value is adjustable from 1.0 to 3.0 as user's
preference to monitor in the dark area of the picture.
Any pictures taken in either light or dark environment
can be easily watched or analyzed.

Focus Assist

This funcon controls the aperture level of a video
signal, and displays images on screen with sharpened
edges to help camera focus operaon.

Supports DCI P3 and ITU-R BT.2020 Wide
Color Spaces

The wide color gamut and the advanced 3D LUT
funcon enable OBM-U240 and OBM-U170 to
reproduce various color spaces accurately and the
excellent grayscale.
You can select from color gamuts such as DCI-P3,
ITU-R BT.2020, ITU-R BT.709, SMPTE-C, EBU, Nave.

Color Space & Gamma Comparison

(Side by Side, Wipe posion)
This unique funcon allows users to compare
the two difference color spaces and gammas
side by side simultaneously.
The area of the two pictures to be displayed can
be selected using a vercal WIPE paern.

Zebra

This funcon displays the Luma(Y') level of the input
image in zebra paern.

Various Markers

The OBM-U240 and OBM-U170 can display various
markers, including aspect marker, area marker, and
center marker. In addion, the detailed display
sengs of each marker are allowed. For example,
the color, brightness, horizontal/vercal posion,
and thickness of aspect markers can all be adjusted.

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

25

12. Product Specications

ITEM OBM-U240OBM-U170

12G-SDI-1/2, 3G/HD-SDI-3/4

HDMI 2.0

Opcal

12G-SDI-1/2, 3G/HD-SDI-3/4 Acve Loop Output

2160p(60/59.94/50/30/29.97/25/24)

2160p(30/29.97/25/24)

1080p(60/59.94/50/30/29.97/25/24/23.98/30sF

29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
1080i (60/59.94/50)

1080p(30/29.97/25/24/24sF/23.98/23.98sF)

720p(60/59.94/50)

1035i(60/59.94)

480i(60/59.94), 576i(50)

2048 x 1080p(24/24sF/23.98/23.98sF)

576i(50)

~ 2160p(60)

2.970Gbps, 1.485Gbps, 270Mbps
Line In(Stereo)

H/P Out(Front, Stereo)

Stereo

Control/Update In/Out, GPI-7 Port, RJ-45P Jack

GPI-7 Port, RJ-45P Jack

RS-422 In/Out, RJ-11P Jack

For firmware update, Color Calibraon

AC(100-230V, 50/60Hz) / DC 12V AC(100-230V, 50/60Hz) / DC 24V

0°C ~ 40°C(32°F~104°F)

20% ~ 80% RH

Power Cable

Rack Mount Kit / Carrying Case / V-Mount / Acrylic Protector / Sun Hood(17” only)

4 x BNC
1 x HDMI
1 x SFP
4 x BNC
SMPTE ST 2082M
SMPTE ST 2081M
SMPTE 425M AB

SMPTE 274M/292M

SMPTE 296M
SMPTE 260M
SMPTE 125M/259M
2K, SMPTE 428M
ITU R-BT.656
HDMI 2.0
SFP
1 x Phone Jack In
1 x Phone Jack Out
2 x Speaker Out
Size
Resoluon
Pixel Pitch
Color
Viewing Angle
Luminance of White
Contrast
Display Area (H x V)
1 x Ethernet
1 x GPIO
2 x Serial
1 x USB
Power Requirements
Power Consumpon
Operang Temperature
Operang Humidity
Weight
Dimension(WxHxD)
Accessories
Opon

LCD

General

Audio In/Out

Input Signal
Format

Output

Input

23.8”

3840 x 2160 (16:9)

0.137mm

10 bit, 1.073G colors

178(H), 178(V)

350d/m²

1000 : 1

527 x 296 (mm)

17.3”

1920 x 1080 (16:9)

0.199mm

10 bit, 1.073G colors

178(H), 178(V)

350d/m²

1000 : 1

381.9 x 214.8 (mm)

40W

6.5kg / 14.33lbs

412 x 325 x 84.5mm (with stand)

100W

10.5kg / 23.14lbs

570 x 402 x 85mm (with stand)

* Specificaons are subject to change without prior noce for the product quality improvement.

BM-U170/U24

0

4K LCD Professional Monitor

with 12G-SDI, Quad Link 4K

26

208, Building A, Samsong Techno Valley, 140, Tongil-ro,

Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594

Tel : [phone] / Fax : [phone]

E-mail : [e-mail]

www.postium.com
