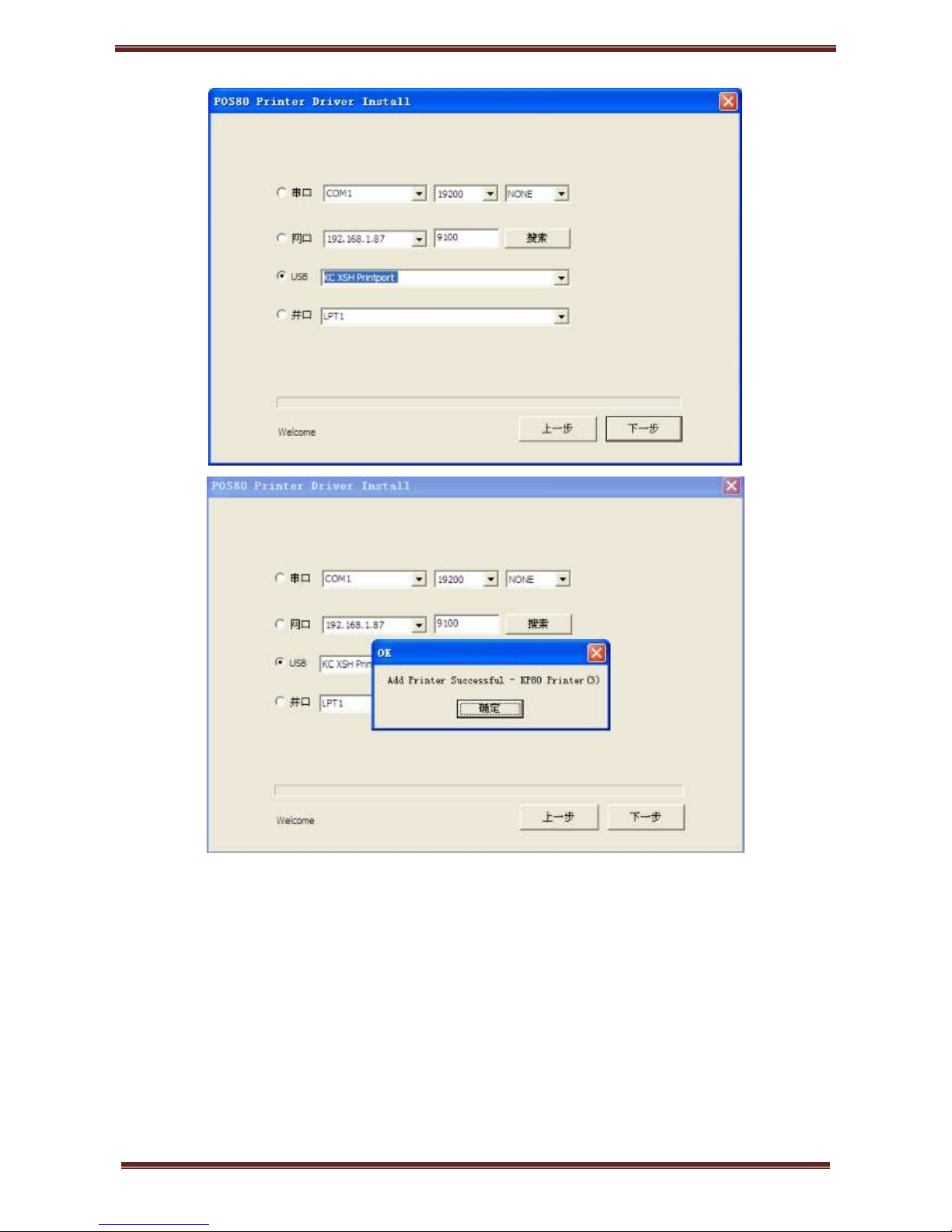

4.9.1 USB/serial port/Ethernet port/WiFi driver installation ..............................................................13

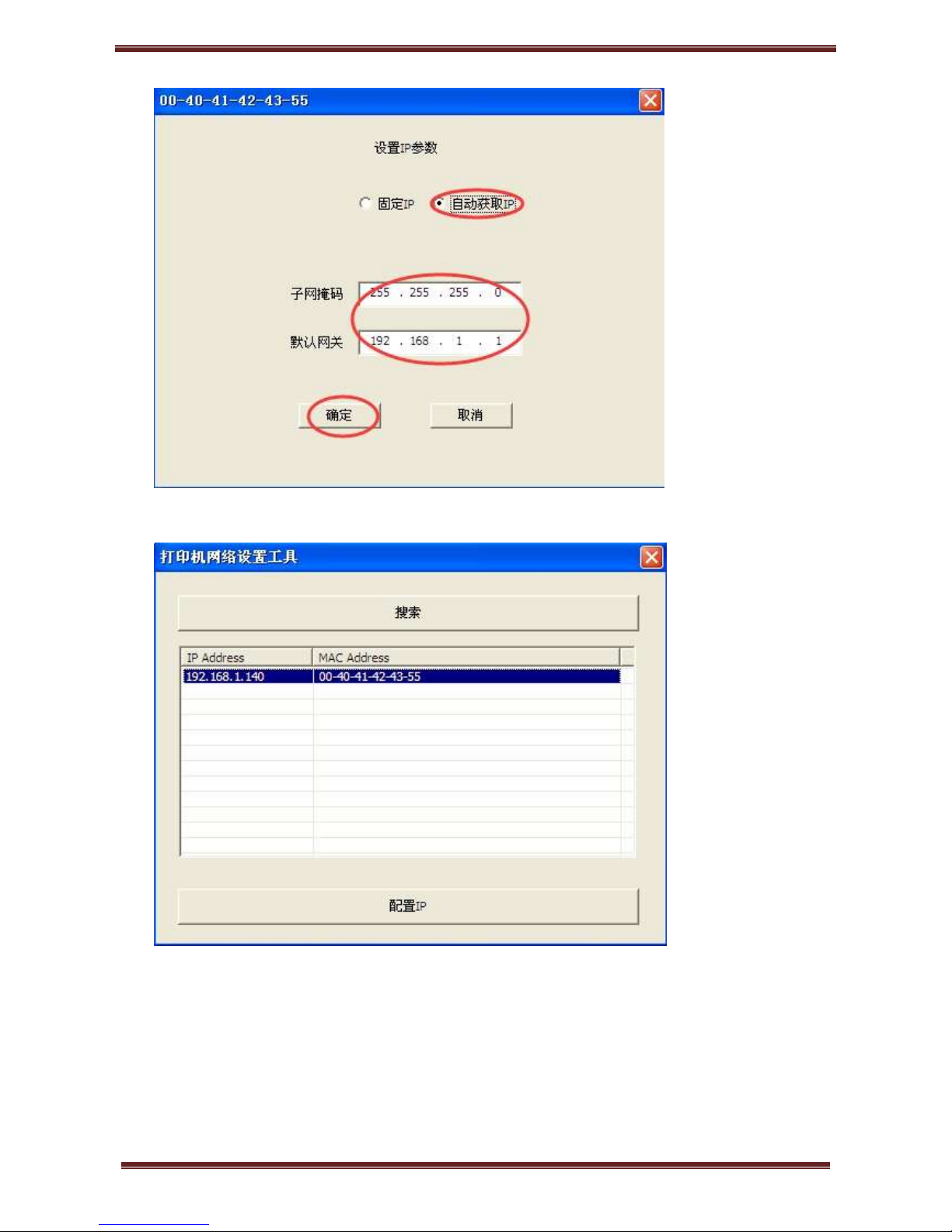

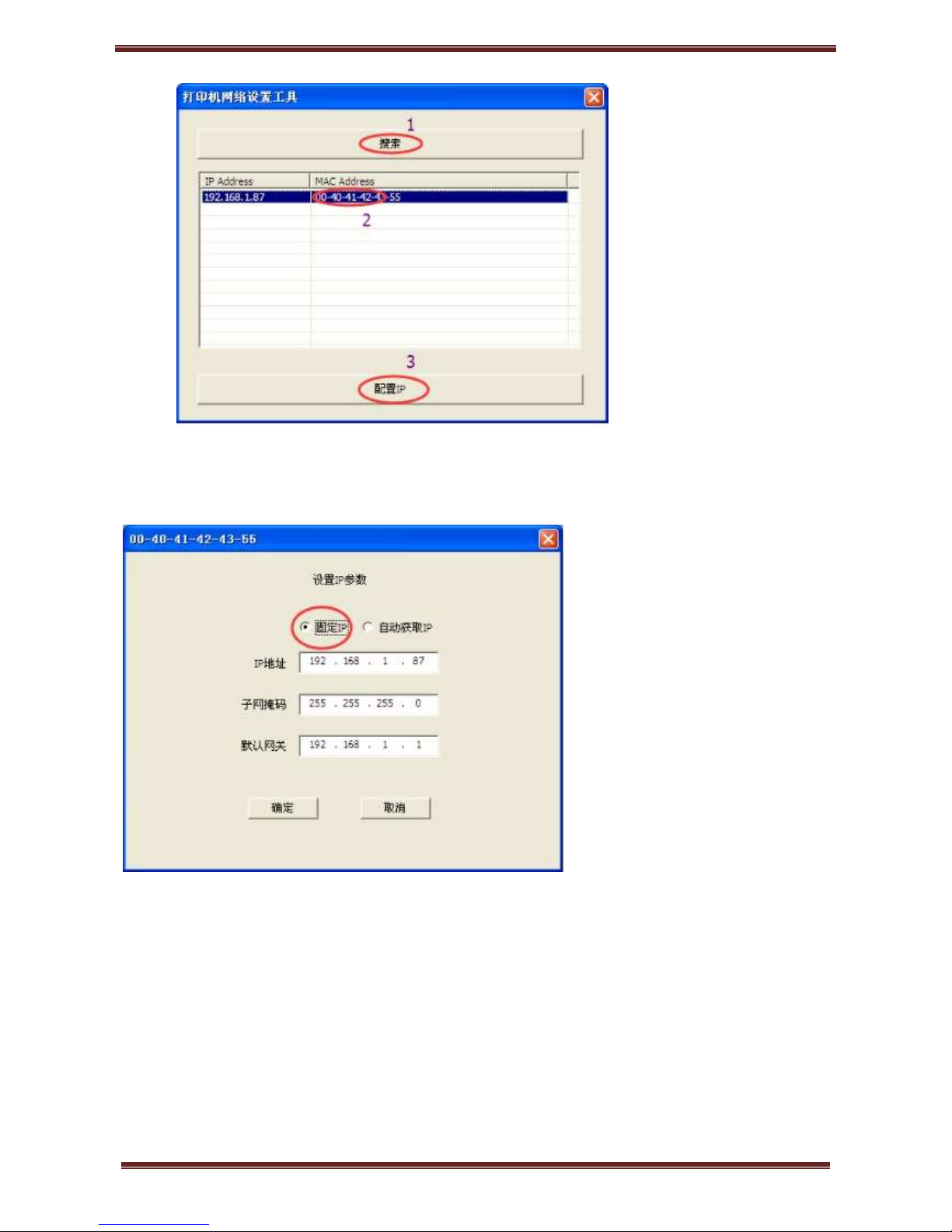

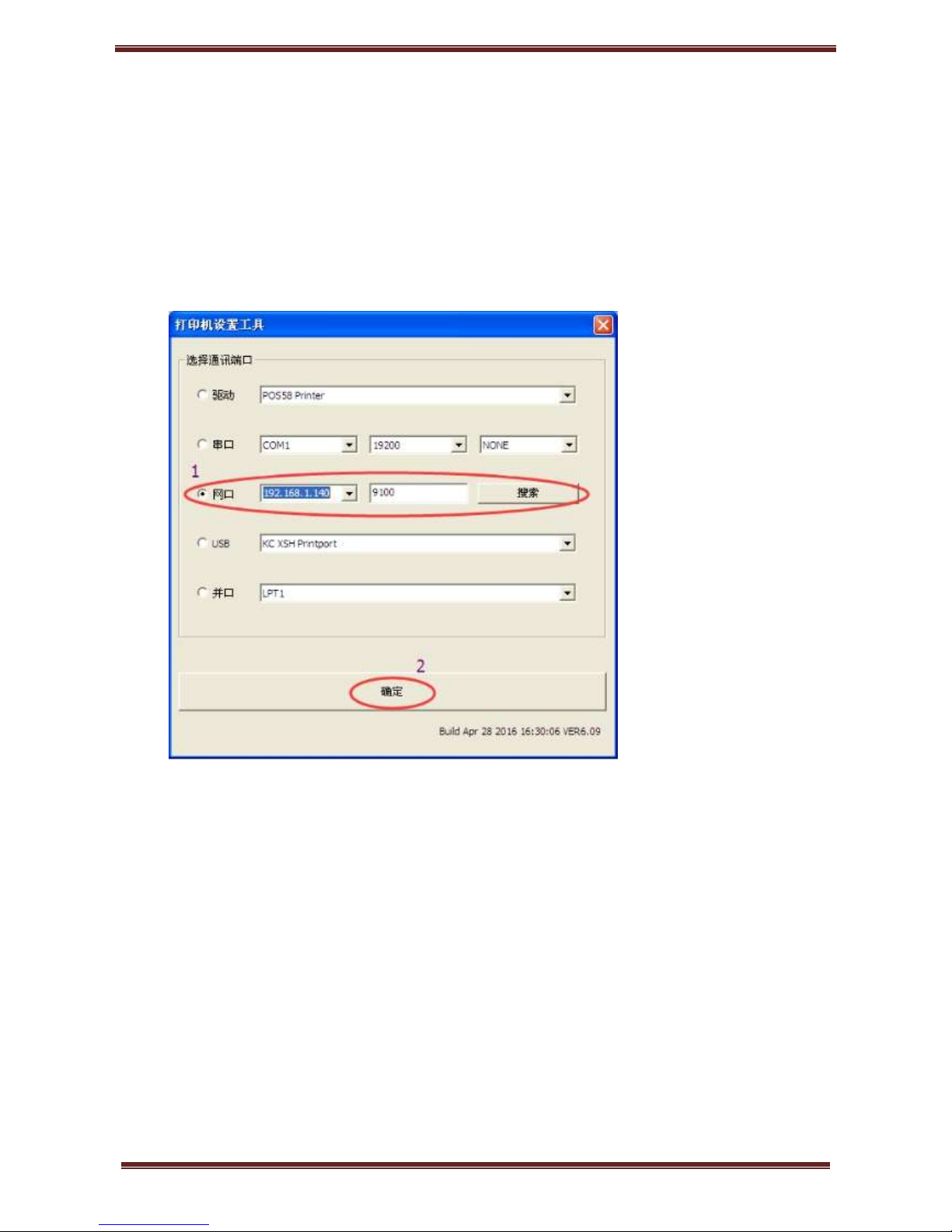

4.9.2 Set Ethernet port IP Address. ...........................................................................................................19

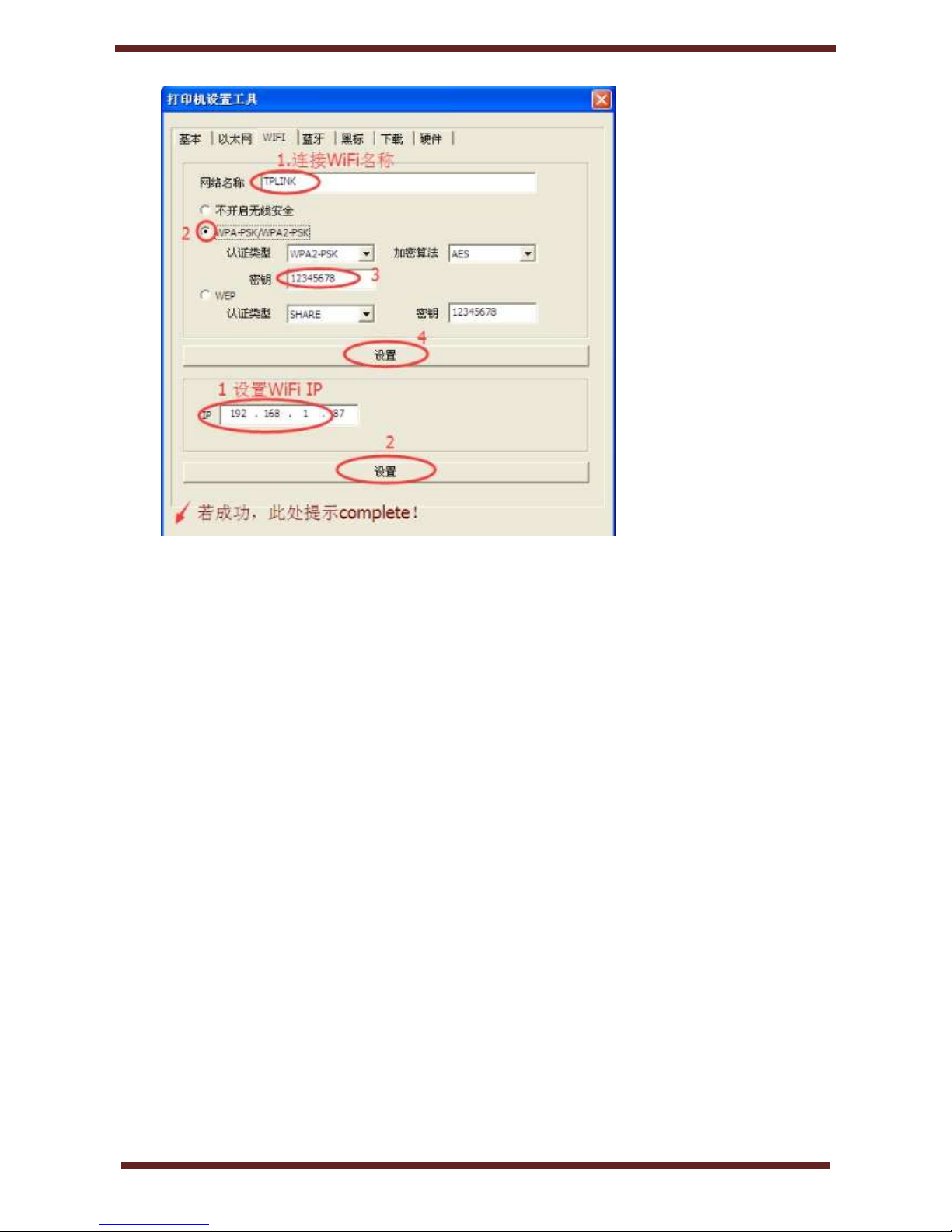

4.9.3 WIFI CONNECT .............................................................................................................................22

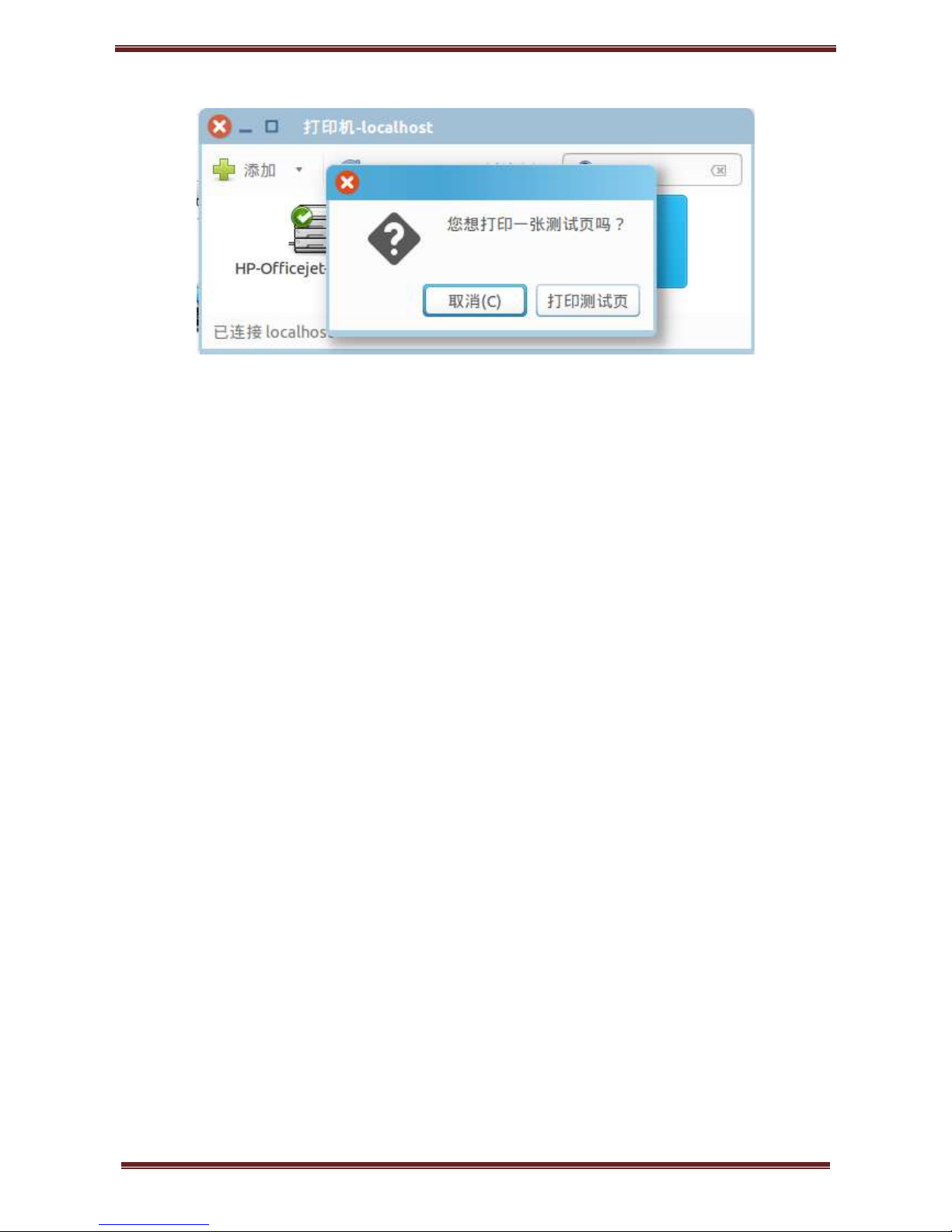

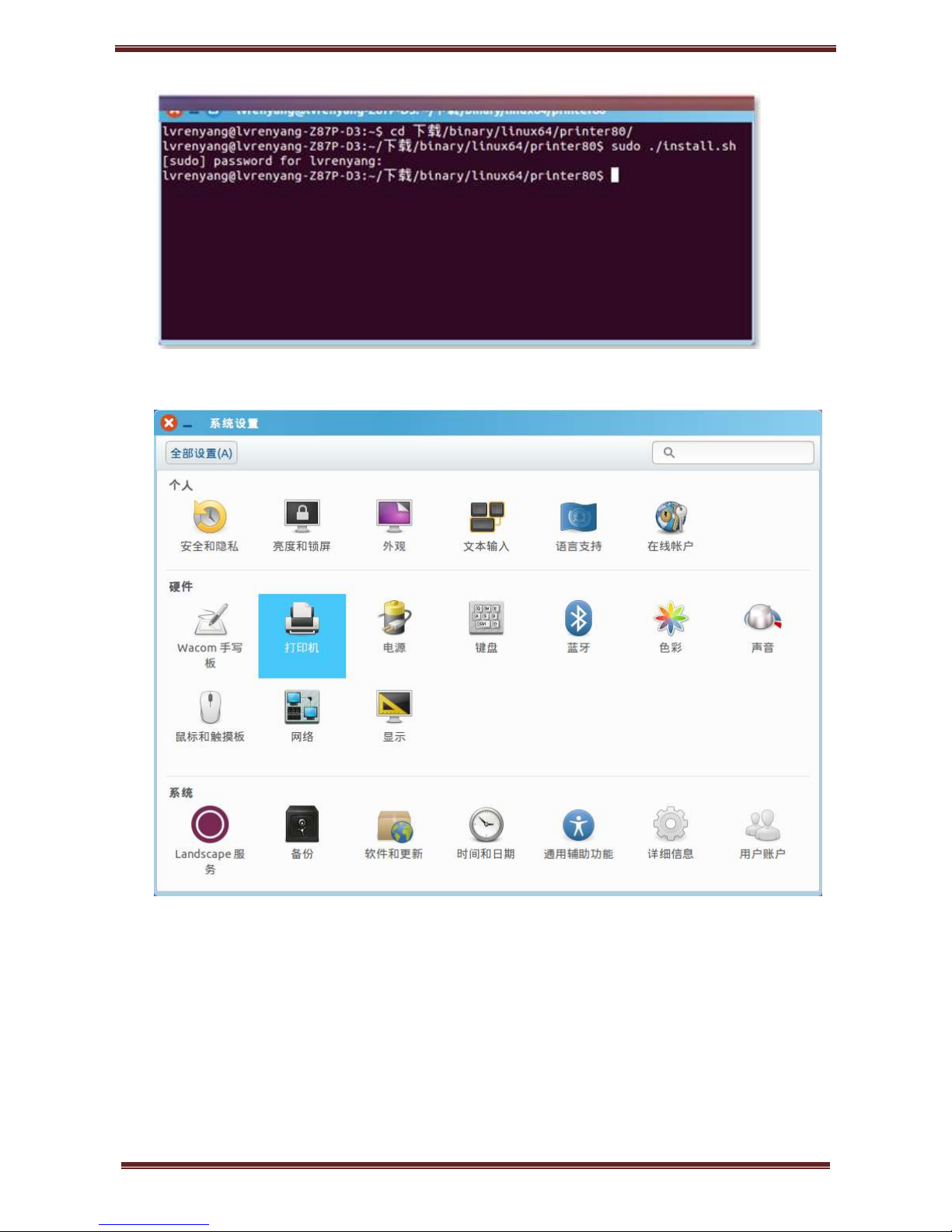

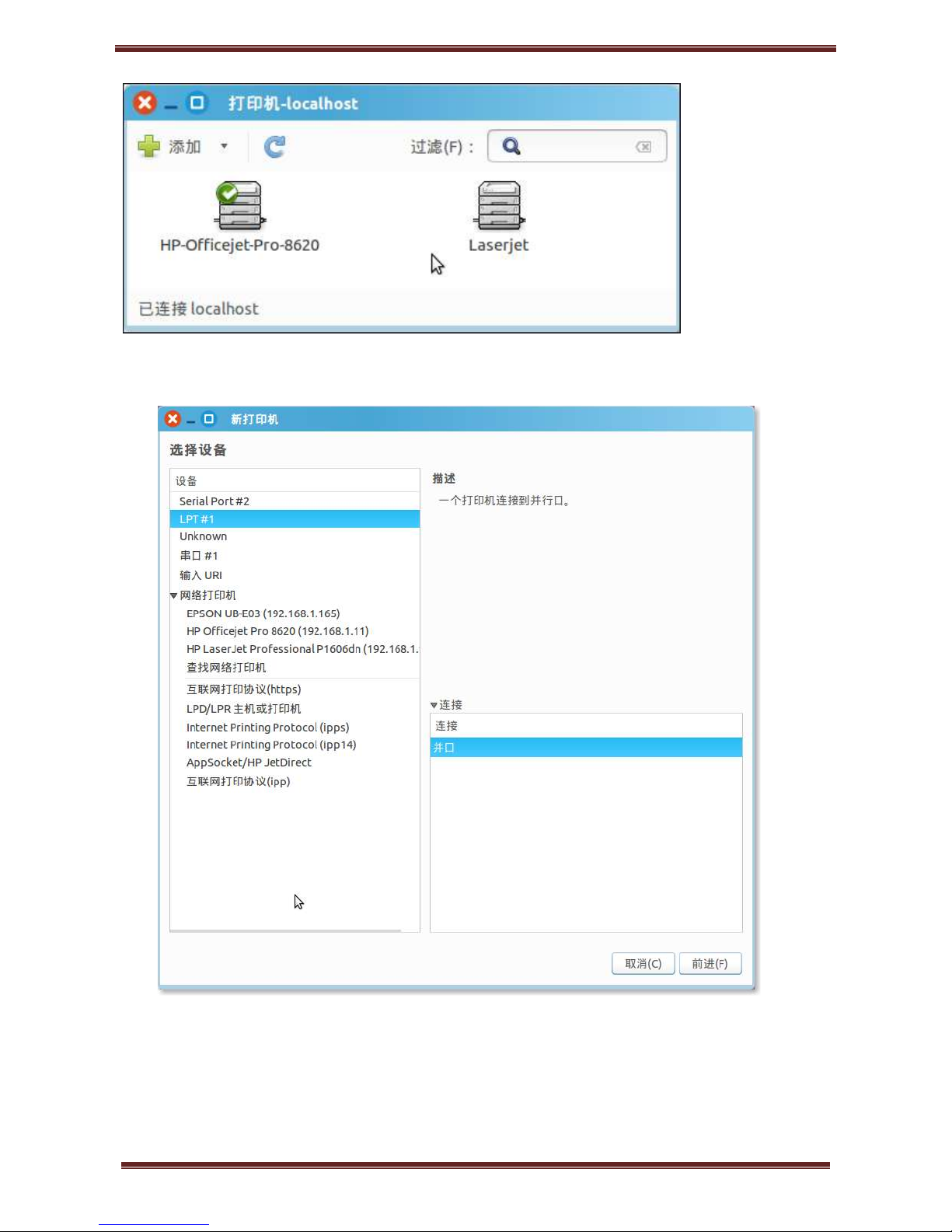

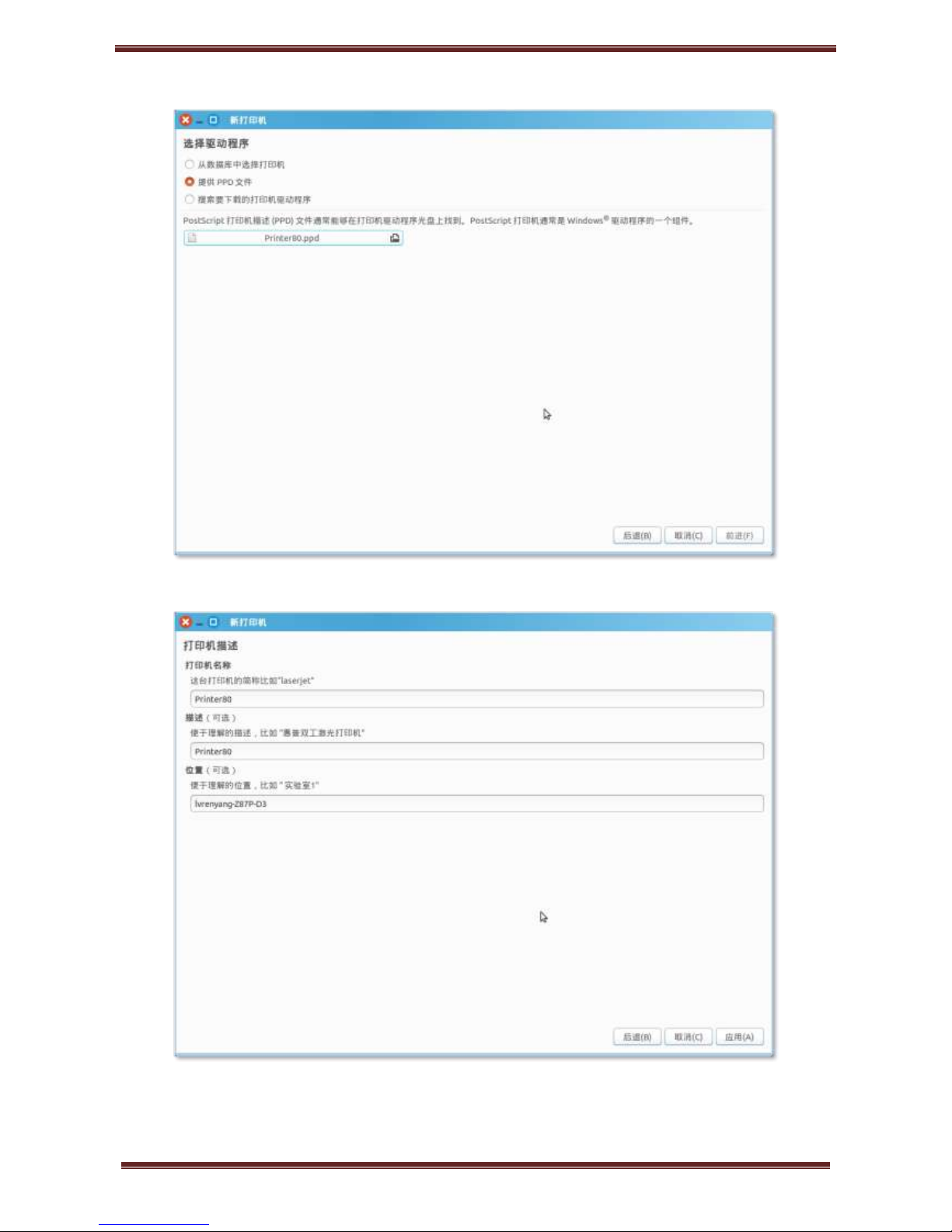

4.10 LINUX driver installation .........................................................................................................................23
4.10.1 USB/serial port/parallel port/Ethernet port driver installation ................................................23
5 Interface pin definitions .........................................................................................................................................32

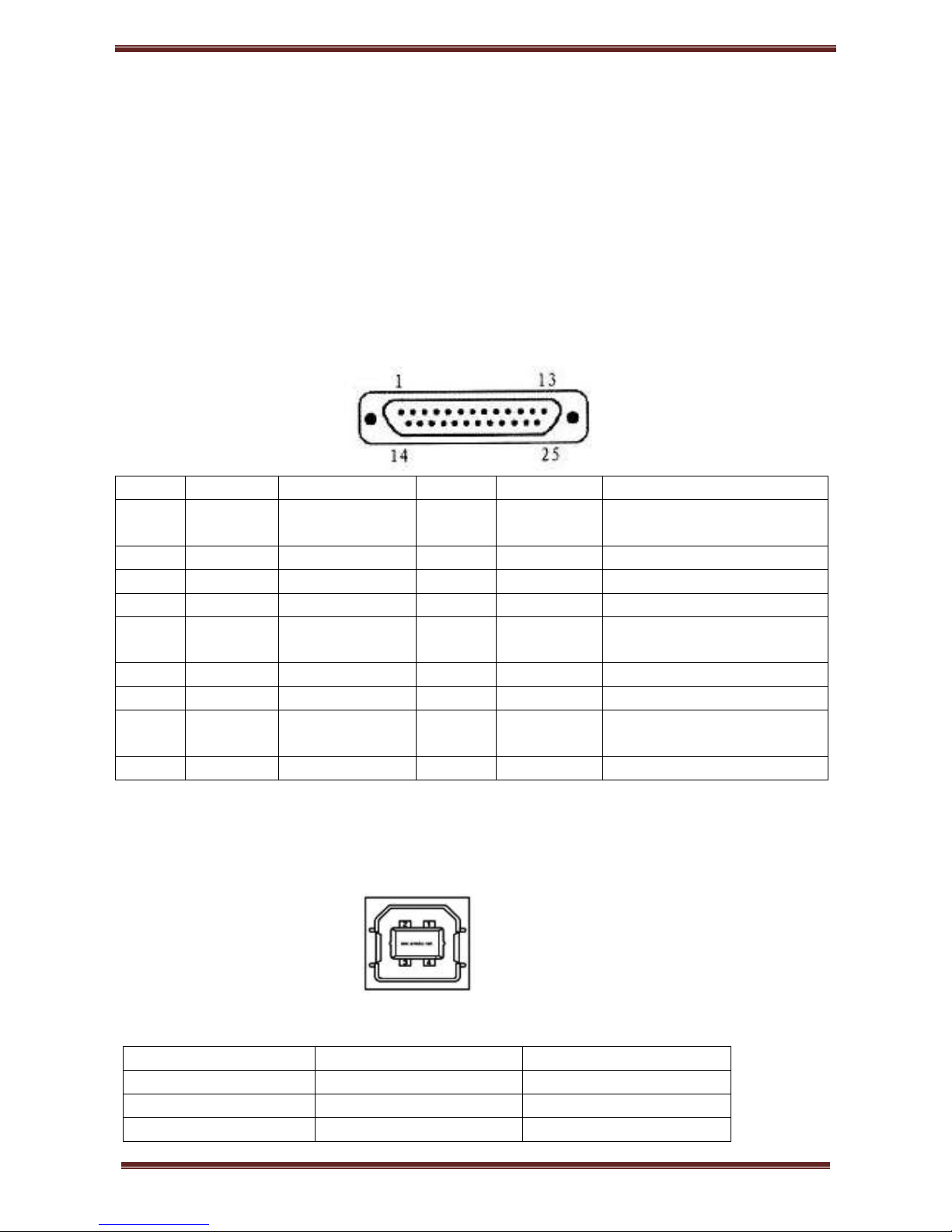

5.1 Parallel interface pin definition（DB25M） ..............................................................................................32
5.2 USB interface pin definition（standard B type female base) .....................................................................32

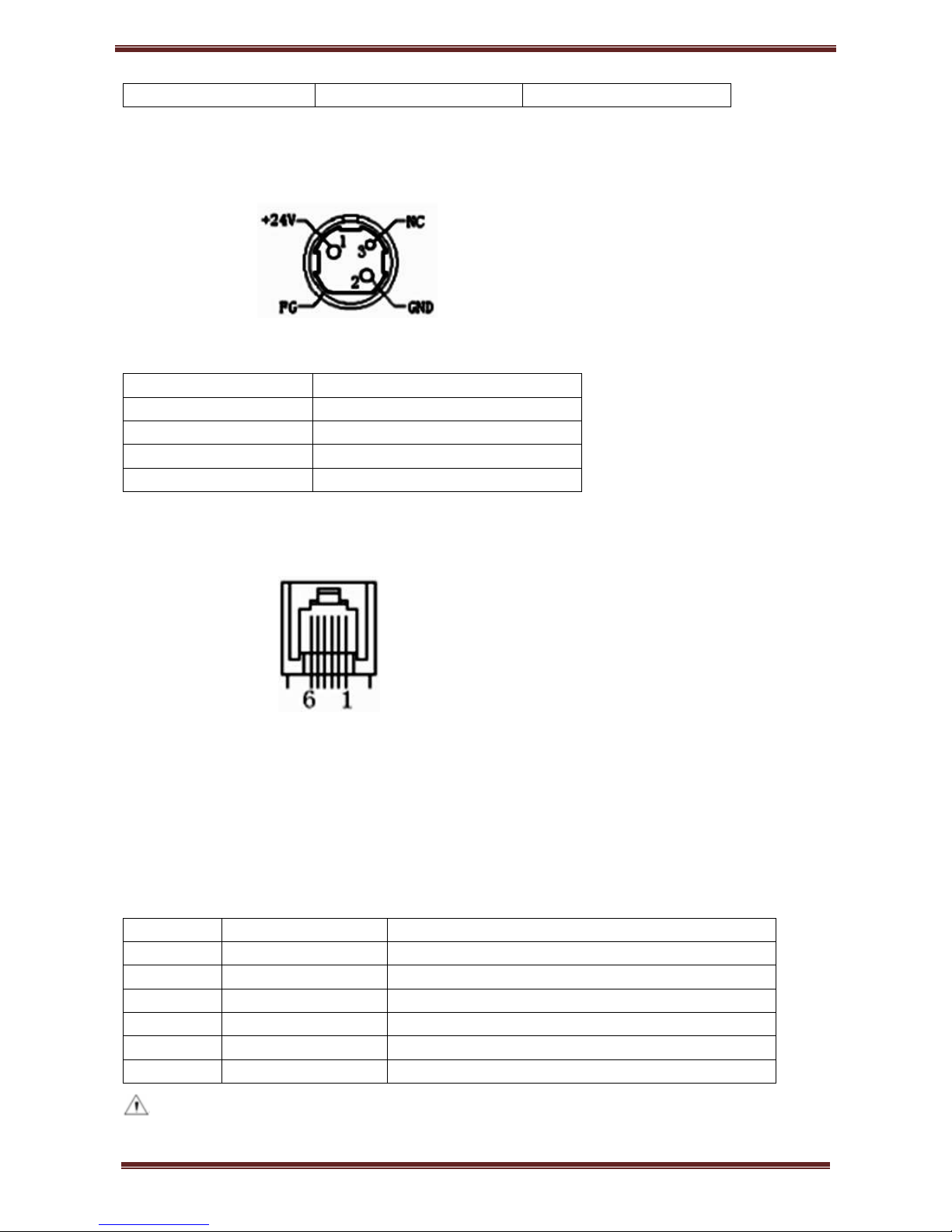

5.3 Power interface pin definition（MPC-3-001B） .......................................................................................33
5.4 Cash drawer interface pin definition（RJ11-6P6C） .................................................................................33
5.5 Serial port pin definition（DB9F） ...........................................................................................................34
5.6 Ethernet interface pin definition（RJ45） .................................................................................................34
6 Faults handling ......................................................................................................................................................35
6.1 Printer does not work ..................................................................................................................................35
PT80USEWB Thermal POS printer User’s manual
6.2 Indicator error and buzzer warning .............................................................................................................35
6.3 Problems when it is printing .......................................................................................................................35
6.4 Problems when cutting paper ......................................................................................................................36
6.5 Paper jam and cutter retraction troubles removal .......................................................................................36
1
1 Introduction
1.1 Brief introduction
PT80 is a thermal POS printer with auto-cutter. It has good printing quality, high printing speed and high
stability, which is widely used in POS system, food service industry and many other fields.
PT80 connects other devices WiFi, Ethernet ,serial or USB port. It offers drivers for Android ,WINDOWS
and LINUX operating systems.
The supported operating systems are as below:
WINDOWS XP
WINDOWS 7 32/64
WINDOWS 8
UBUNTU 12.04 32/64
UBUNTU 14.04 32/64
Android 2.0 above
1.2 Main features
1) With auto-cutter
2) Low noise and high printing speed
3) Easy paper loading
4) Easily use and maintain
5) Support mark paper and continuous paper printing
6) Compatible with many kinds of paper width
7) With cash drawer interface
8) Optional communication interfaces
9) Support Wireless communication function(Optional wifi and bluetooth)
PT80USEWB Thermal POS printer User’s manual
2
2 Specification
2.1 Specification
Item
Parameter
Printing parameter
Printing method
Thermal printing
Resolution
203DPI,8 dots/mm
Printing width
72mm(576 dots)
Printing speed
200-220 mm/s
Interfaces
Standard: cash drawer /USB/WiFi/Ethernet/serial interface
Optional Wireless Communication: Wi-Fi or Bluetooth
Page mode
/
Support(Optional)
Command set
/
ESC/POS compatible commands
Storage
RAM
RAM 8M bytes, receive buffer area 1M bytes
FLASH
FLASH 4M bytes, NV bitmap 64K bytes
characters
Chinese
GB18030 24×24
Words, figures
ASCII 9×17,12×24
User-defined
Support
Code pages
Optional international character sets 45
TRADITIONAL CHINESE
CHINESE
CP437 [U.S.A., Standard Europe]
Katakana
CP850 [Multilingual]
CP860 [Portuguese]
CP863 [Canadian-French]
CP865 [Nordic]
WCP1251 [Cyrillic]
CP866 Cyrillic #2
MIK[Cyrillic /Bulgarian]
CP755 [East Europe，Latvian 2]
Iran
CP862 [Hebrew]
WCP1252 Latin I
WCP1253 [Greek]
CP852 [Latina 2]
CP858 Multilingual Latin Ⅰ+Euro)
Iran II
Latvian
CP864 [Arabic]
ISO-8859-1 [West Europe]
CP737 [Greek]
WCP1257 [Baltic]
Thai
CP720[Arabic]
CP855
PT80USEWB Thermal POS printer User’s manual
3
CP857[Turkish]
WCP1250[Central Europe]
CP775
WCP1254[Turkish]
WCP1255[Hebrew]
WCP1256[Arabic]
WCP1258[Vietnam]
ISO-8859-2[Latin 2]
ISO-8859-3[Latin 3]
ISO-8859-4[Baltic]
ISO-8859-5[Cyrillic]
ISO-8859-6[Arabic]
ISO-8859-7[Greek]
ISO-8859-8[Hebrew]
ISO-8859-9[Turkish]
ISO-8859-15 [Latin 3]
Thai2
CP856
Chart
/
Supports different density dots and images printings
Supports grating bitmap printing
Supports download bitmap printing, every bitmap size should less
than 256K, and the total capacity of download bitmap is 256K.
Bar codes
1D
UPC-A、UPC-E、EAN-8、EAN13、CODE39、ITF、CODEBAR、
CODE128、CODE93
2D
PDF417、QR Code
Detection function
Sensor
Paper out, cover opened, paper will be lack(optional),un-take out
printed paper(optional)
LED indicator
Power indicator
Green
Paper out indicator
Red
Error indicator
Red
Paper Requirement
Type
Standard thermal receipt paper
Width
79.5±0.5mm
Thickness
0.056~0.1mm
Diameter
80mm(Max.)
Physical
characteristics
Paper loading
Easy paper loading
Paper cutting
Manual or automatically cut paper
Operating condition
-10℃ ~ 50℃，25% ~ 80%RH
Storage condition
~40℃ ~ 70℃，≤93%RH（40℃）

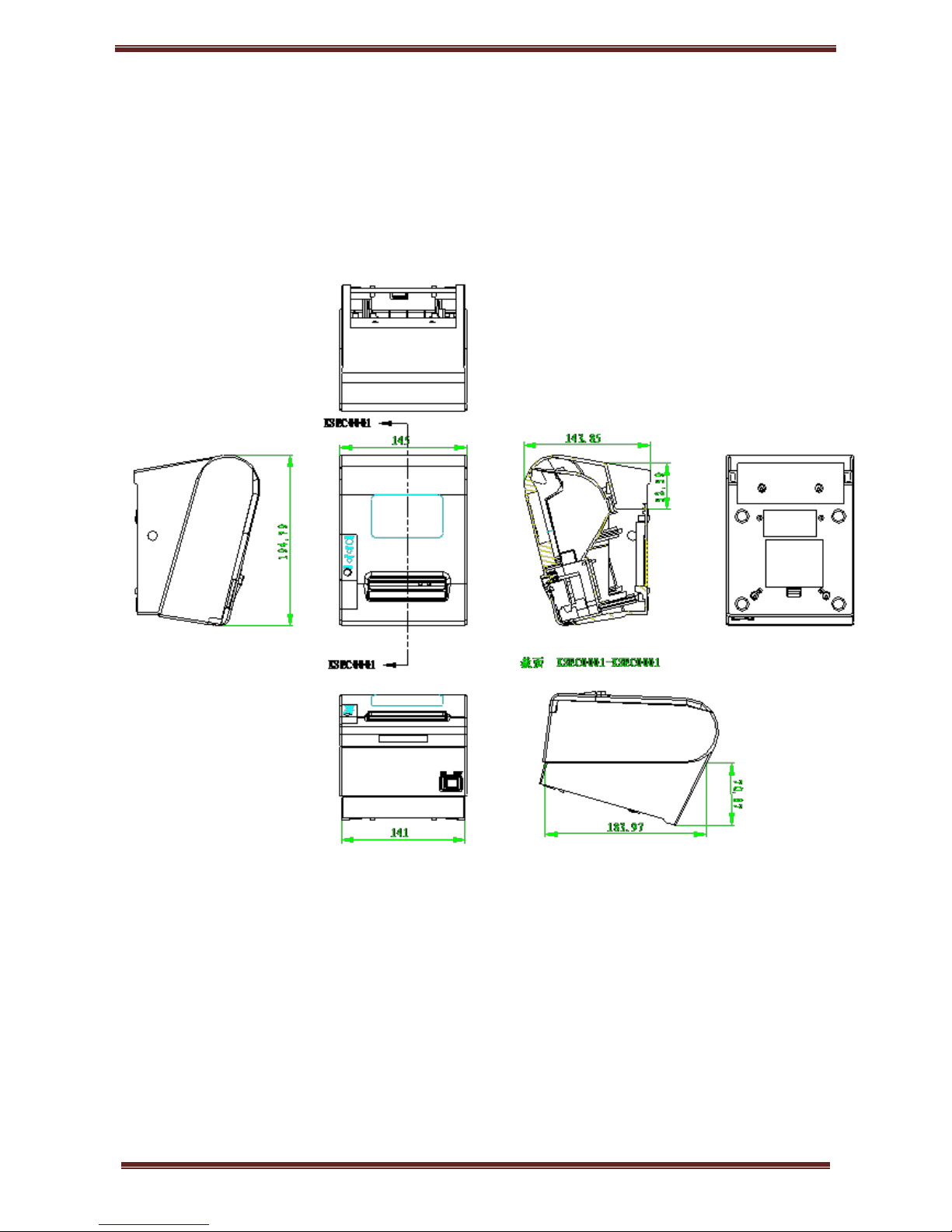

Outline dimension
145mm×195mm×144mm（W×L×H）
Weight
1.1Kg
Reliability
TPH life
150km
Cutter life
2,000,000 times
Motor life
360,000 hours
PT80USEWB Thermal POS printer User’s manual
4
Software function
Driver procedure
Windows（WIN7/WIN8/Vista/XP/2000）
Ubuntu 12.04 32/64, Ubuntu 14.04 32/64
PT80USEWB Thermal POS printer User’s manual
5
2.2 Printing material requirements
2.2.1 Paper parameters
1) Paper type: thermal receipt paper/thermal black mark paper
2) Paper width:80±0.5 mm
3) Paper roll diameter: 80 mm (Max.)
4) Paper thickness:0.065 ~ 0.10mm

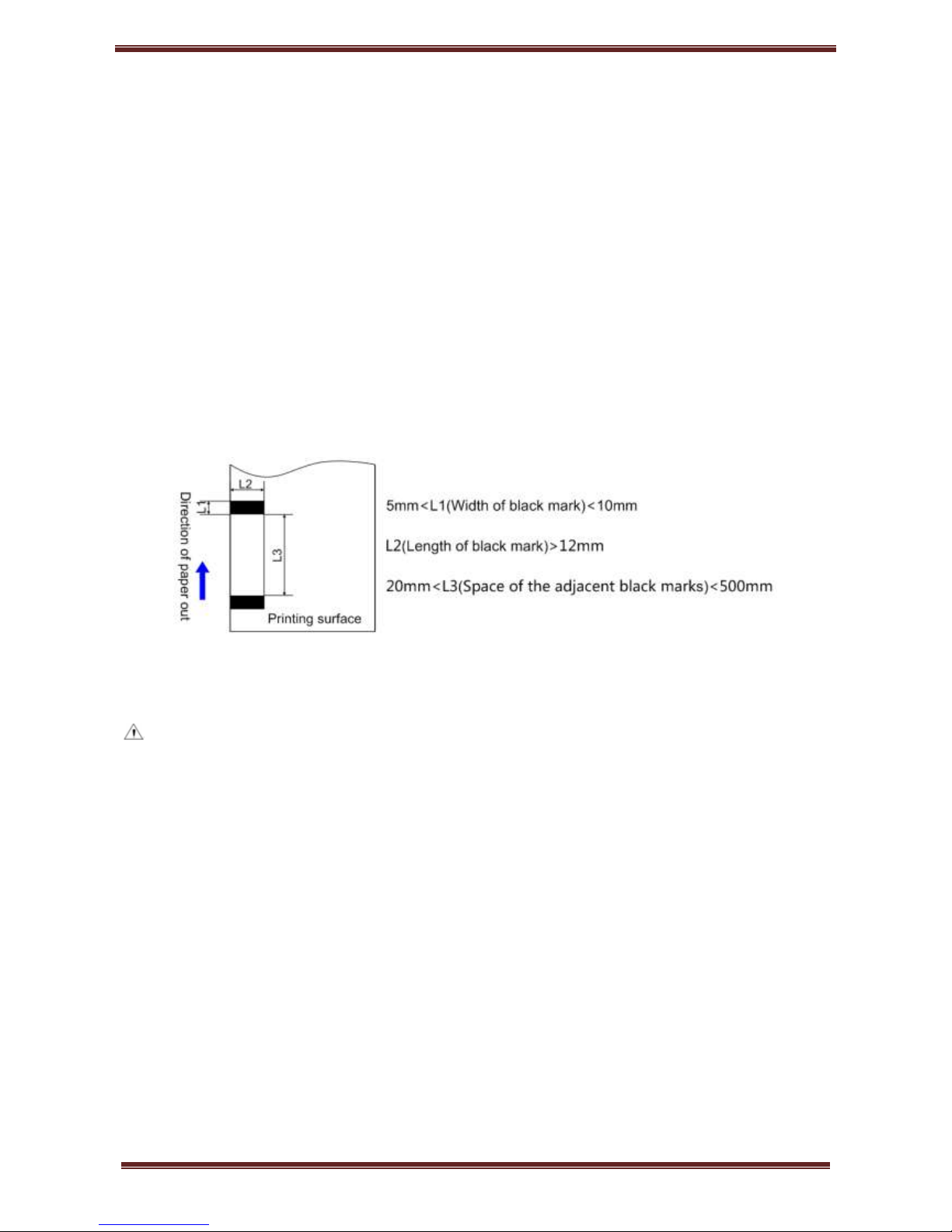

2.2.2 Mark paper parameters
Black mark imprint position is on the front side of the receipt when using mark paper. The black mark
reflectivity is no more than15%, the other parts of paper reflectivity should be more than 85%.There are not any
patterns in black mark area, such as ad, and the mark size shall be satisfied with requirements as below:
2.2.3 Printing paper using attention
Note:
1) Please use good quality paper, otherwise, it will effect printing quality and even reduce printer head life.
2) Don’t make the paper stick on axis.
3) Paper will be fading out or reduced thermal sensitivity if it is polluted by chemical or oil, which will affect
printing effects.
4) Don’t use nail or hard things to clash printing paper, otherwise, it will be fade out.
5) Paper will be fading out if the environment temperature exceeds 70°C. So please take note the temperature,
humidity and illumination effects.
PT80USEWB Thermal POS printer User’s manual
6

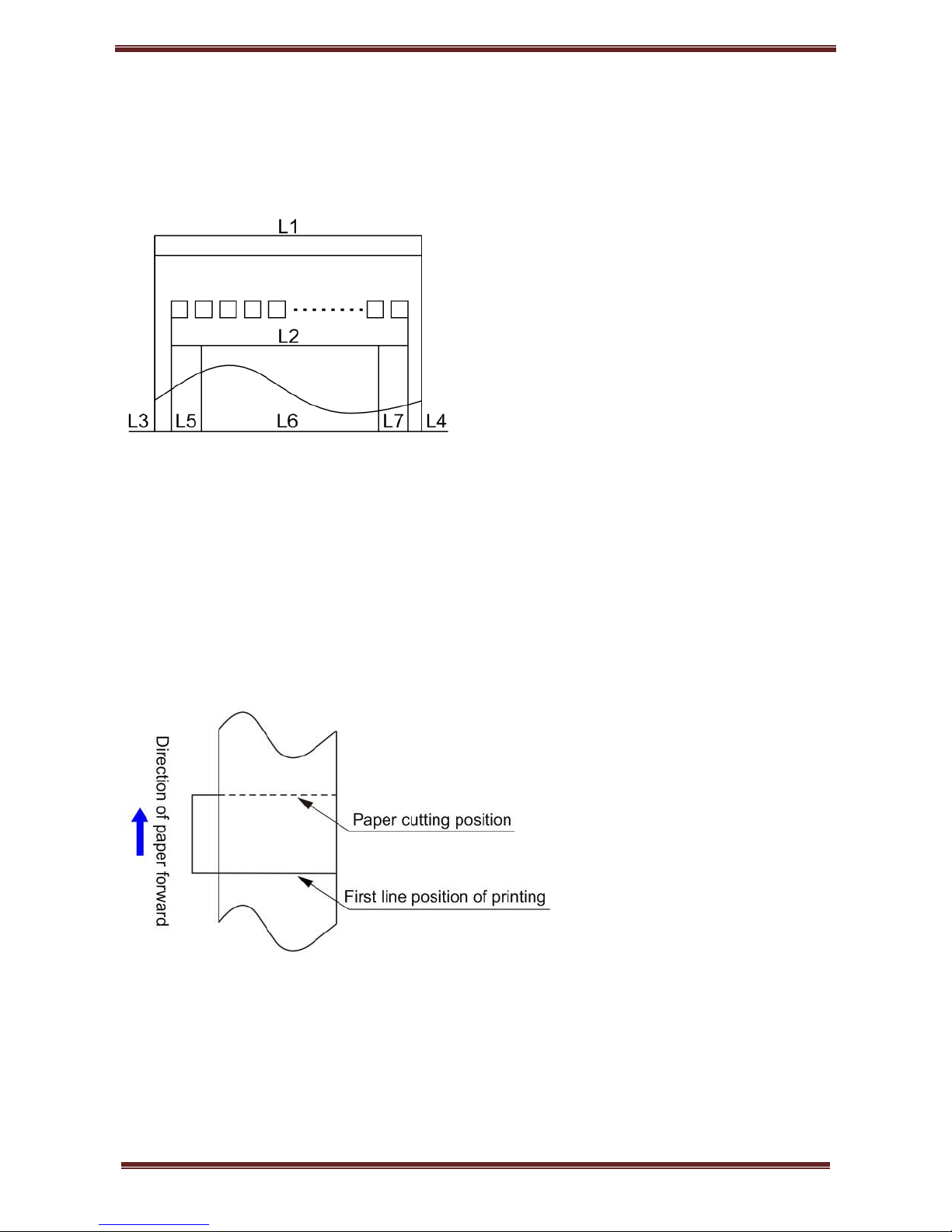

2.3 Printing and paper cutting position
2.3.1 Printing position
L1-Paper storehouse’s width: 82±0.5mm
L2-Effective printing width: 80mm
L3-Distance between print head to paper storehouse’s left edge (fixed width): 3±0.3mm
L4-Distance between print head to paper storehouse’s right edge (fixed width): 3±0.3mm
L5-Left margin: Default is 4mm
L6-Printing area width: it is set by commands (refer to programming manual). Default is 72mm.
L7-Right margin: Default is 4mm.
2.3.2 Paper cutting position
The distance between print head to cutter: 12.5mm
PT80USEWB Thermal POS printer User’s manual
7

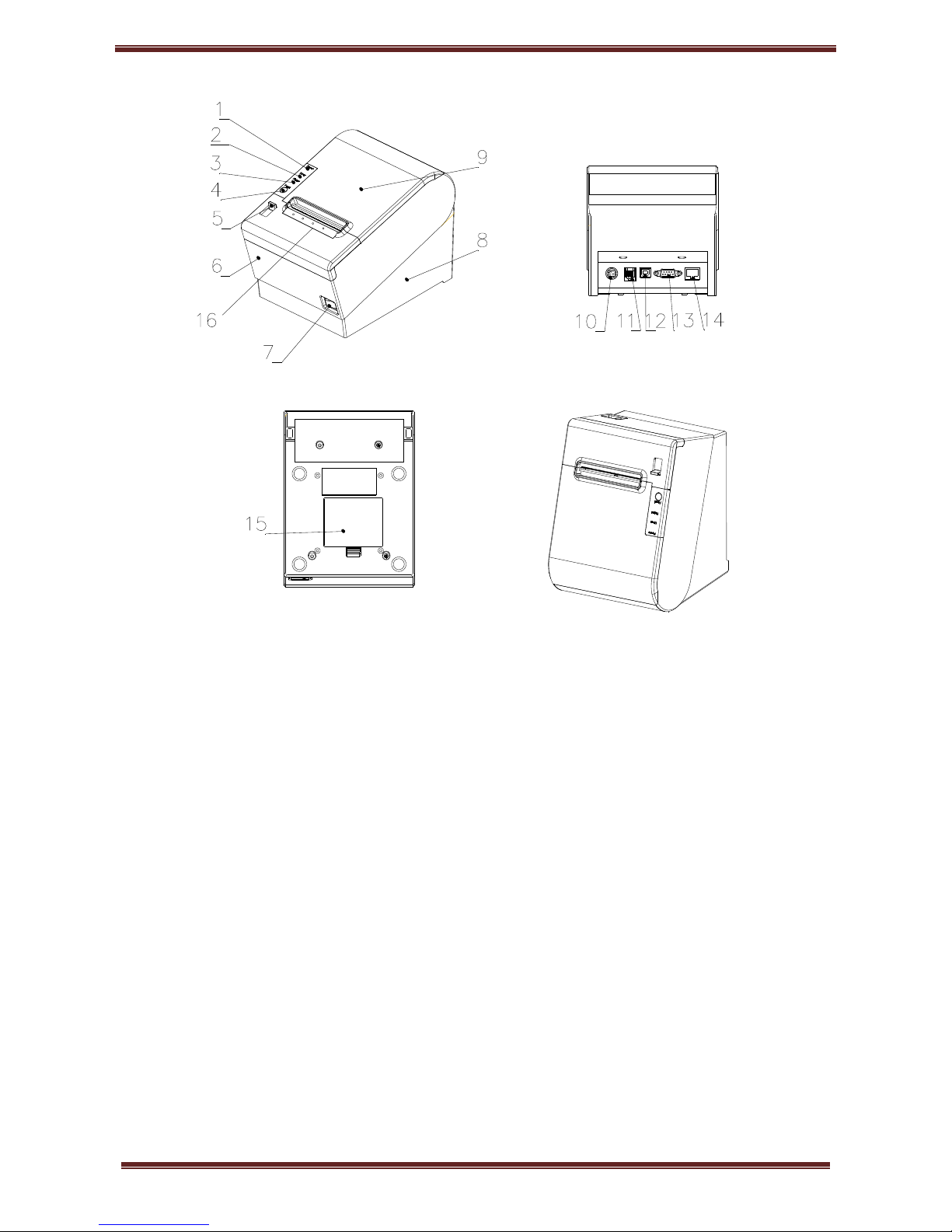

3 Appearance and components
3.1 Appearance and components
PT80USEWB Thermal POS printer User’s manual
8
1.Power light
2.Erorr light
3.Out of paper light
4.Paper feeding button
5.Paper cover's opening button
6.Cover of cutter
7.Power switch
8.Bttom of printer
9. Cover of paper warehouse
10.Power port
11.Ethernet interface
12.USB interface
13.Serial interface
14.Cash interface
15.Cover of DIP switch
16. LED alarm
Function instruction of components
1）Power switch
Press “O” side to power off, press “I” side to power on.
2）Power indicator(green)
The indicator is on when power on, and it is off when power off.
3）Error indicator (Red)
Error indicator is on when it detects error. Such as: paper out, upper cover is open and cutter is stocked.
4）Paper indicator(red)
Paper out indicator is on when it detects the paper is out. Please put a new paper roll to printer inside then.
PT80USEWB Thermal POS printer User’s manual
9
5）alarm LED(blue)
LED back and forth shining,wifi connect normal; LED Off, wifi disconnected; LED shining on both
sides,un-take out printed paper.
3.2 Indicator and buzzer instruction
1）Function instruction of indicators and buzzer
Name
Status
Instruction
Power indicator (Power)
On
Printer is power on
Off
Printer is power off
Error indicator (Error)
On
Printer is in error status
Off
Printer is in normal status
Paper out indicator
（Paper）
On
Printer is in paper out status
Off
Printer is in normal status
Alarm LED
Back and forth shining
WIFI connect normal
Off
WIFI disconnected
Shining on both sides
un-take out printed paper
Description
Power Indicator
Error Indicator
Paper Indicator
Buzzer
Open printer cover
On
On
On
It rings 6 times by 1.5s.
Paper is enough
On
Off
Off
Silent
Paper out
On
On
On
It rings 3 times by 1.5s.
Note: Printer detects printer head temperature via thermal resistance. It will cut off print head power
and stop printing if print head is overheat. The print head protection temperature is 80℃.
PT80USEWB Thermal POS printer User’s manual
10
4 Printer installation
4.1 Open the package
Please make sure everything is in good status when you open the package. Otherwise, please contact to distributor
in time.
4.2 Requirements of installation position
1) Put the printer on a stably place.
2) Let the printer far away from water, fire, and sunlight.
3) Avoid to put it on oscillatory and impassive place.
4) Make sure to connect printer with ground safety

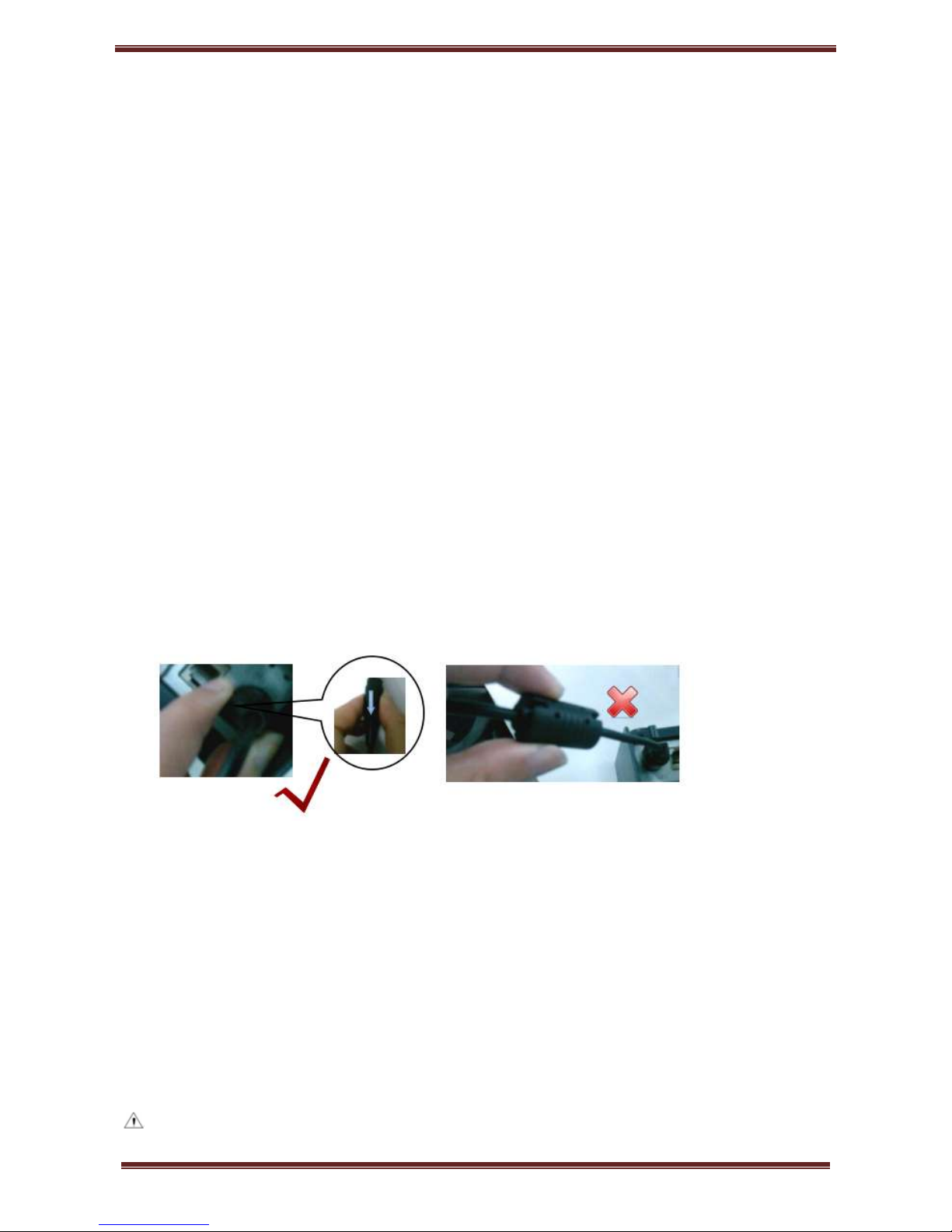

4.3 Connect to power adapter
1) Make sure the printer is power off.
2) Connect power adapter’s DC output plug to the printer.
3) Connect power adapter’s AC input plug to a power outlet.
4) Please be careful to operate correctly when plug out the plug of power cord to avoid damage.
4.4 Connect Communication cables
1) Make sure the printer is power off.
2) Connect communication cable to the printer’s port, and fix it as plug lag spike (or snap spring).
3) Connect communication cable to the other side host.
4.5 Connect to cash drawer
1) Make sure the printer is power off.
2) Connect cash drawer to cash drawer port behind the printer.
Warning: The Voltage of cash drawer port is 24V. (It cannot connect to telephone cable.)
PT80USEWB Thermal POS printer User’s manual
11
4.6 Paper roll loading
4.6.1 Printing paper type confirmation
You can load paper roll to print after connecting power adapter and communication cables. Please make sure the
printing paper type before printing. The default paper type is continuous thermal receipt paper.

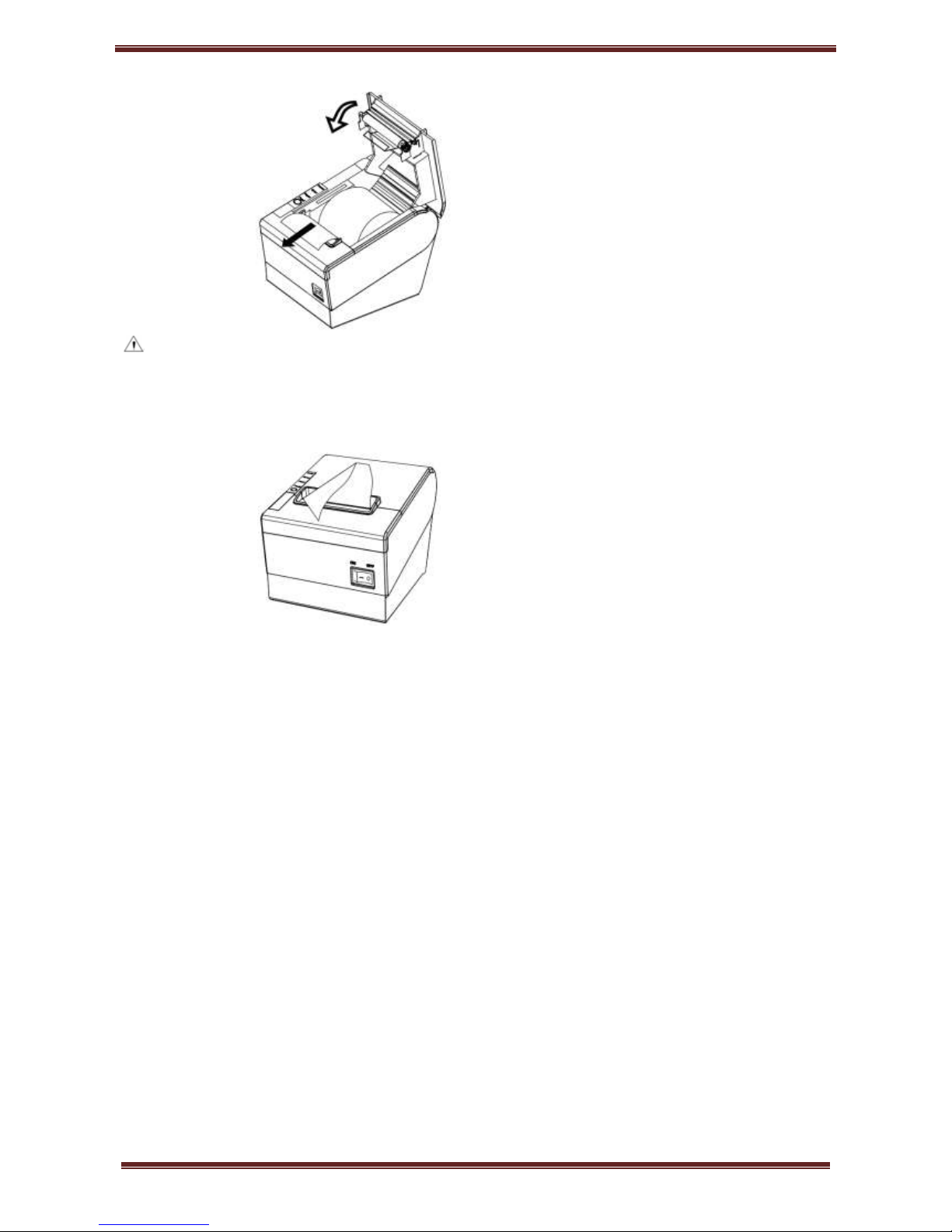

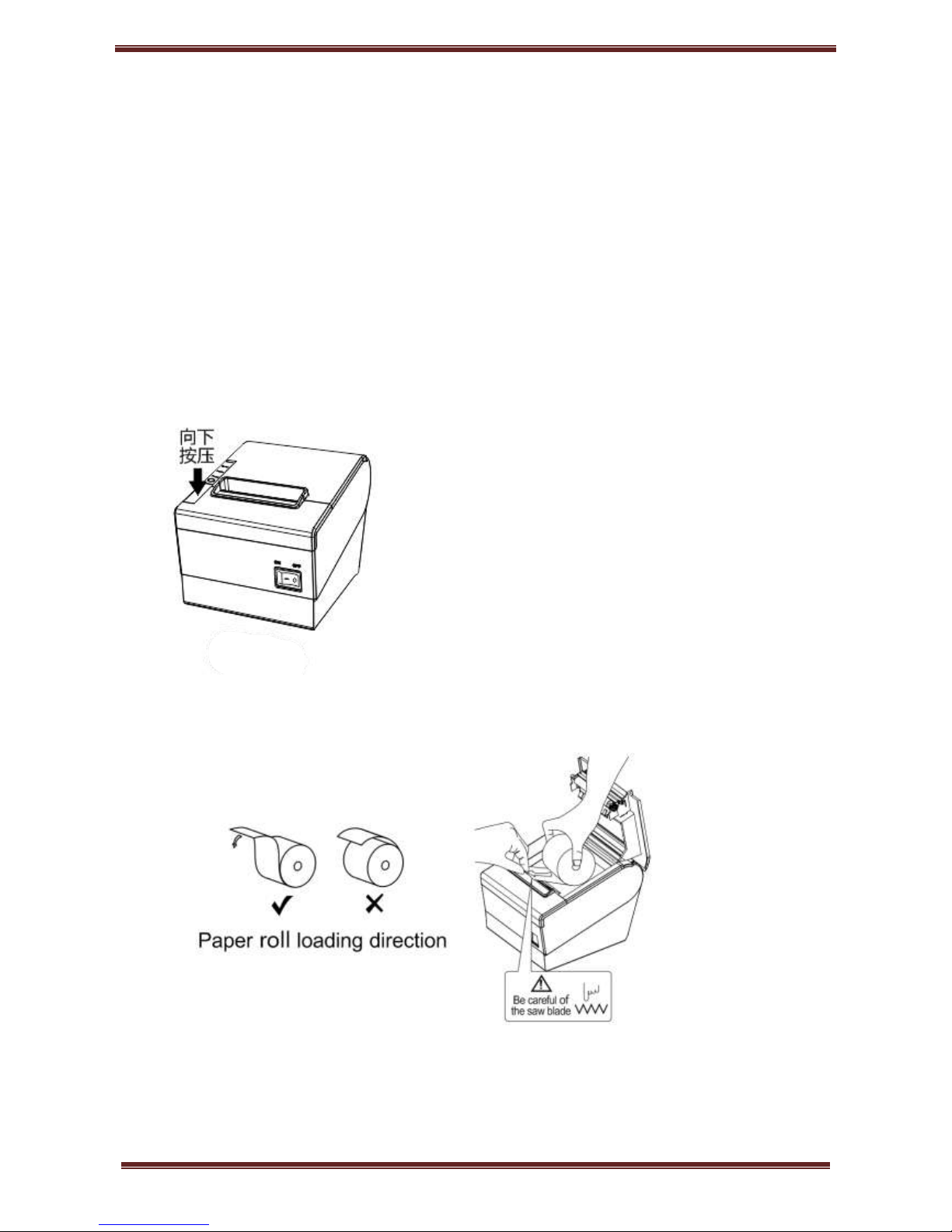

4.6.2 Loading or change paper roll
1) Power off the printer.
2) Slide or press paper roll storehouse button, and then open storehouse cover.
3) Draw out paper roll tap, and load paper roll as below.
4) Draw out a printing paper, and leave some on the paper out month, then close the storehouse cover.
PT80USEWB Thermal POS printer User’s manual
12
Warning: Please make sure the paper roll in tense status, if not, it maybe cause paper jam or other
problems.
5) The status after paper loading
PT80USEWB Thermal POS printer User’s manual
13
4.7 DIP switch setting
DIP switch
Switch
Function
On
Off
Default
1
Cutter
Forbidden
Enable
Off 2 Buzzer
Enable
Forbidden
On 3 Printing density
Dark
Light
Off
4
un-take out printed paper Buzzer
Forbidden
Enable
Off
5
Max. number of Printing
characters in each line
42
48
Off
6
Cash drawer
Enable
Forbidden
On
7
Baud rate options (bps)
Ref. Chart 1
Off 8 Off
Chart 1：Baud rate options
Baud rate
Switch 7
Switch 8
Default
9600
On
Off
19200
19200
Off
Off
38400
On
On
115200
Off
on
4.8 Printing self-test page
1) Make sure the printer loaded paper roll correctly.
2) Press down [FEED] button and hold on, then power on the printer, the printer will print a self-test page.
4.9 WINDOWS driver installation
The printer CD has WINDOWS driver procedure ,the position is :Drivers\Windows file.
4.9.1 USB/serial port/Ethernet port/WiFi driver installation

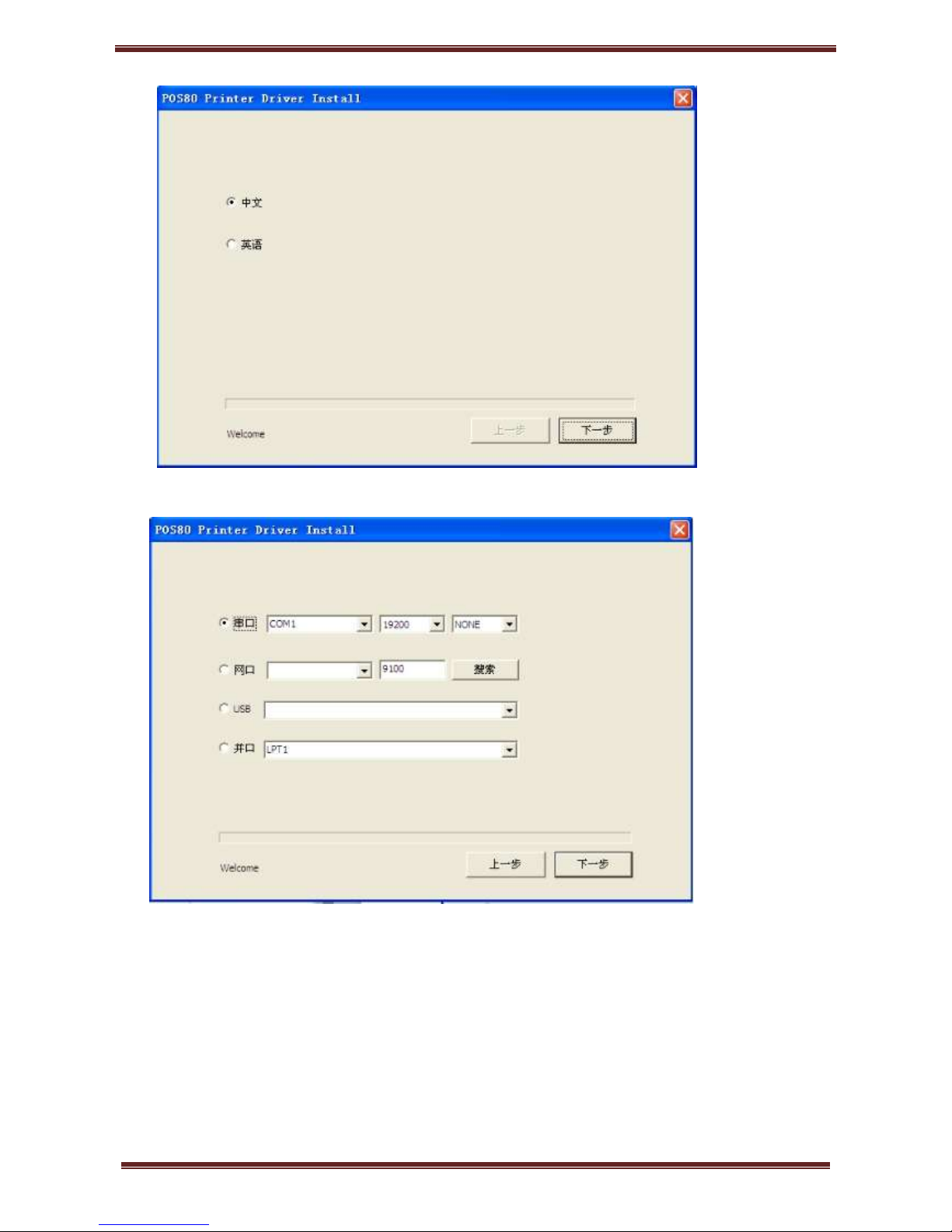

1） Right click “PT80Setup.exe”,and run as administrator.(Double click to run in XP system,and it needs
administrator to run in WIN7/WIN8)
2) Double click will automatically start the drive installation wizard, Choose language as “Simplified Chinese”
PT80USEWB Thermal POS printer User’s manual
14
3) Choose printer to connect PC port.,
4) Ensure that all communications cables are connected to the printer. For wireless WiFi, USB and network port,
if the printer is not connected, is not found in the device.
Printer print a self-test paper

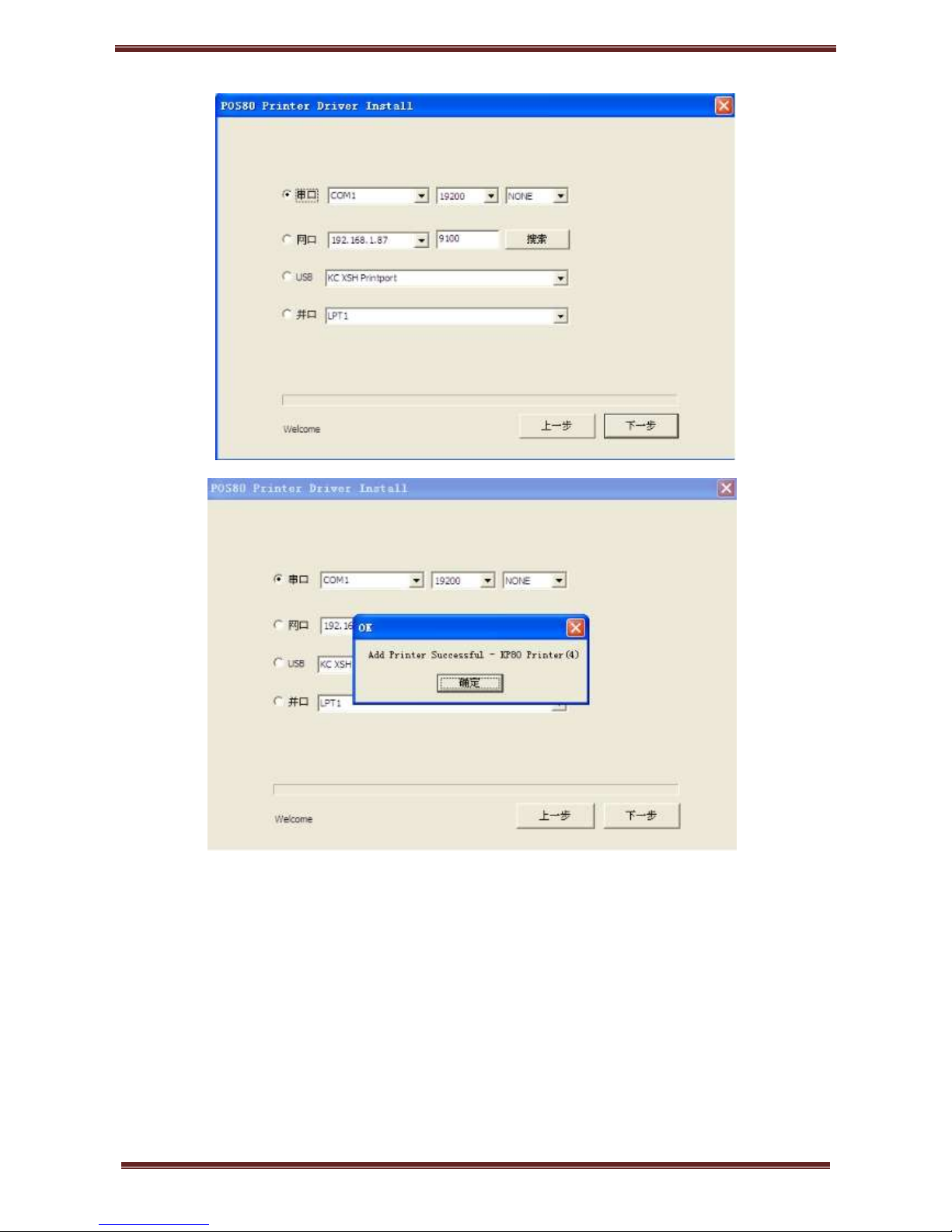

①serial port
Serial port is COMx, and choose printer corresponding baud rate and parity type (can be learned in
self-test paper), click the next step of the installation can be completed.
PT80USEWB Thermal POS printer User’s manual
15

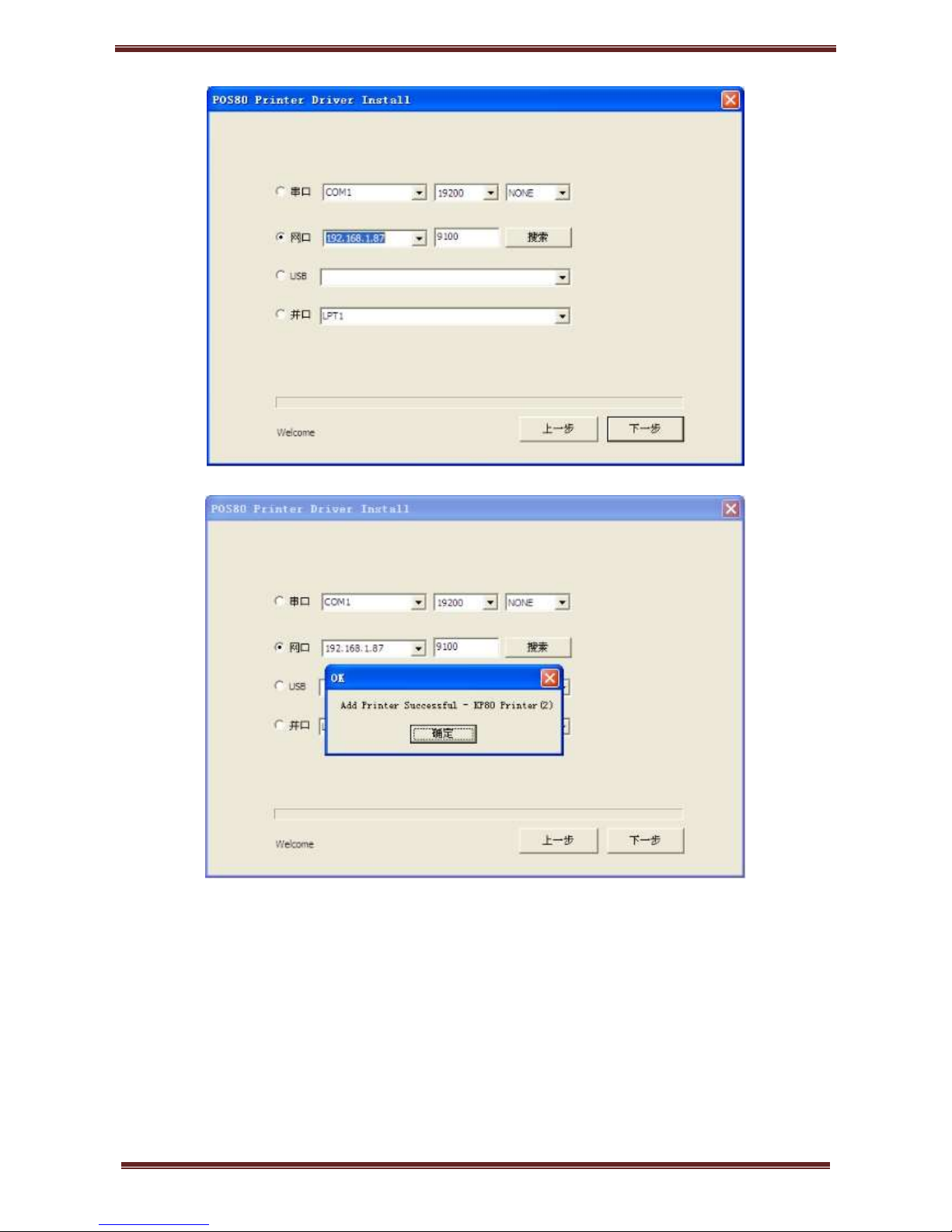

②Wired networks and wireless WiFi
Search is connected to a network printer, select the printer corresponding wired IP and wireless
WiFi IP (can be learned in self-test paper) and click next. Installation success will be prompted, click
OK to complete the installation.
PT80USEWB Thermal POS printer User’s manual
16
③USB
Every physical USB port on the computer is corresponding to a print port, if the only access to a
USB printer driver will automatically recognizes the USB printer, the replacement of the USB port will
not affect the print, or need to select the corresponding port.
PT80USEWB Thermal POS printer User’s manual
17
Click on the next step will be automatically installed, the installation will be show successful after
successful installation

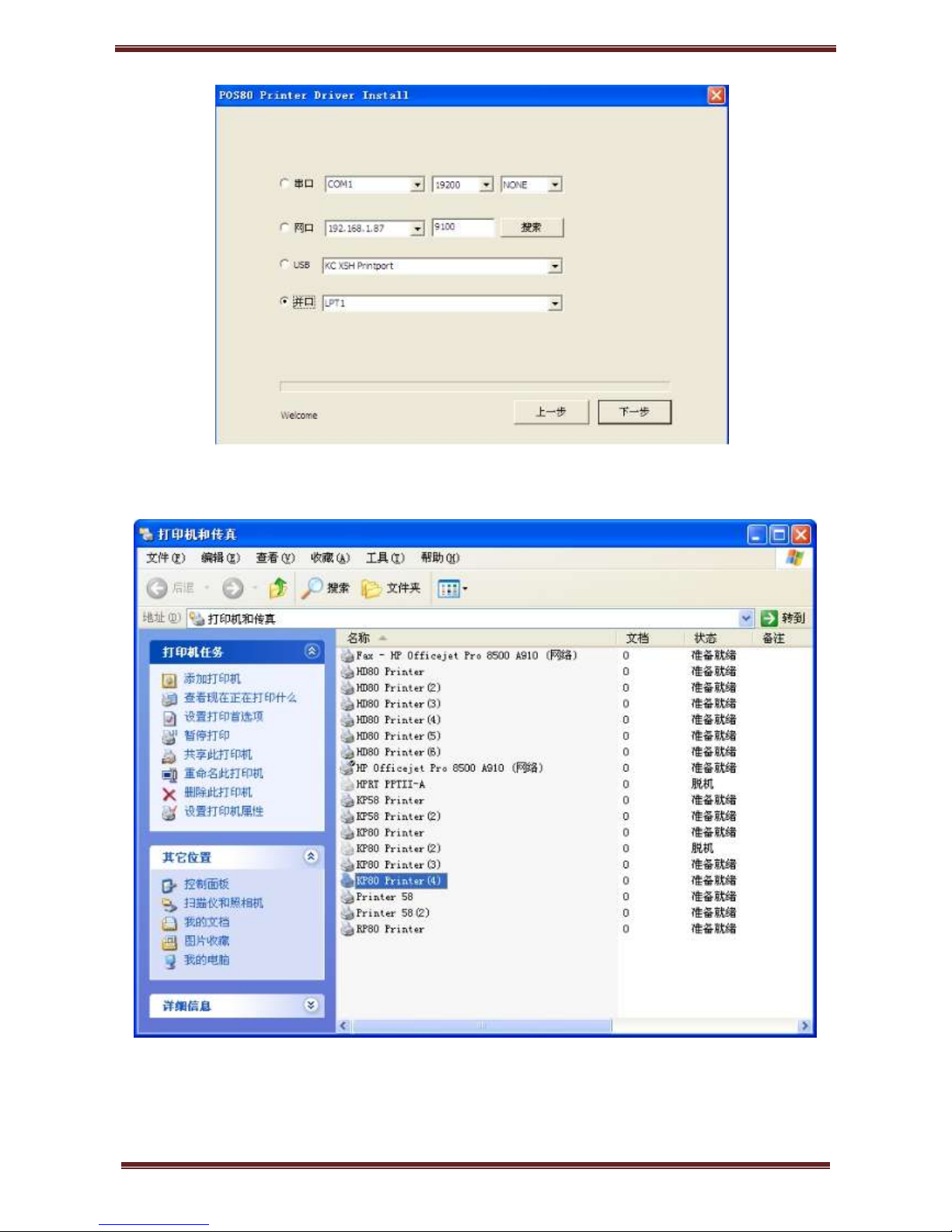

④parallel port
Parallel port is LPTx , select the corresponding port and click next to install.
PT80USEWB Thermal POS printer User’s manual
18

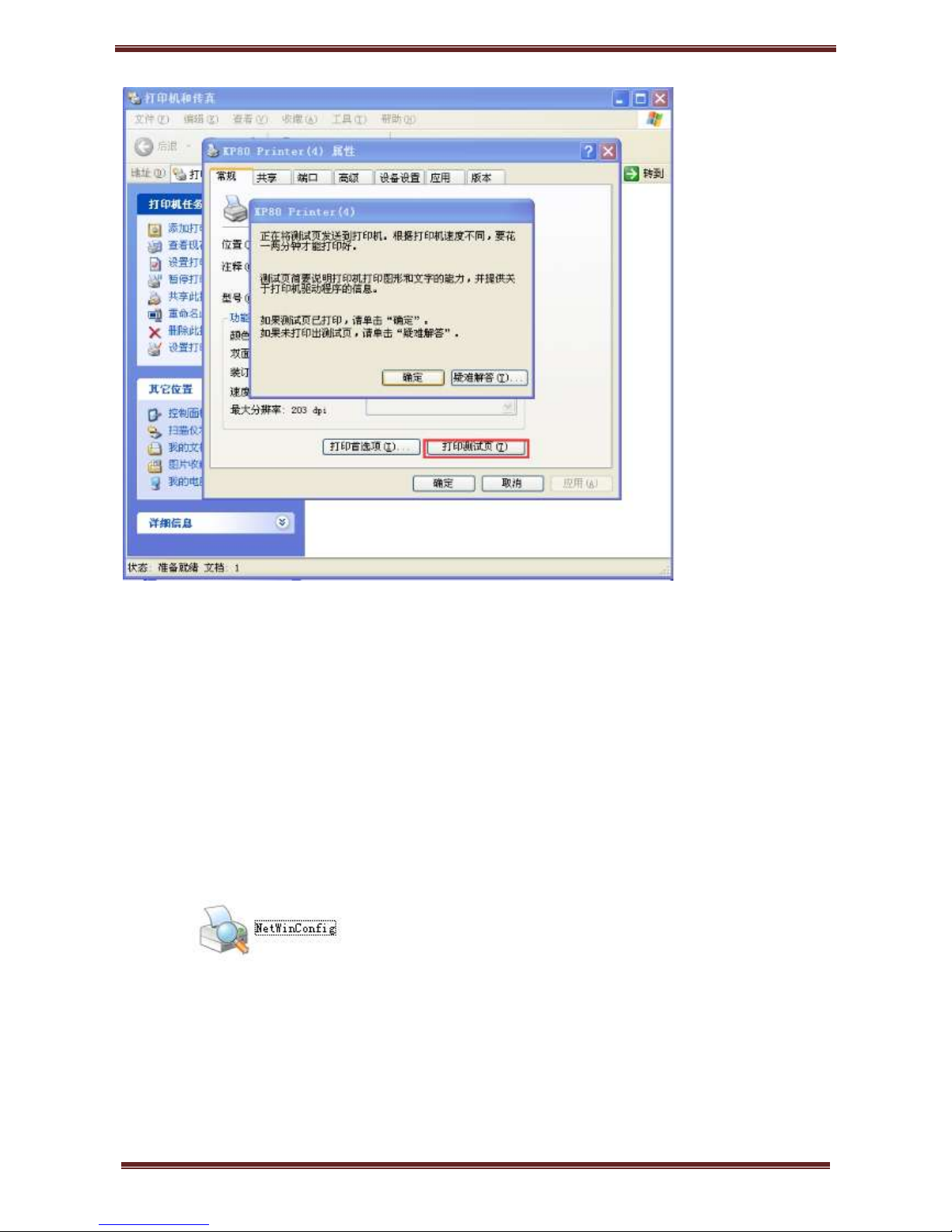

After installation, the printer will appear in the device and printer.
Right click on the printer properties--print test-paper , Drive the test page to print the instructions to drive the
installation success
PT80USEWB Thermal POS printer User’s manual
19
4.9.2 Set Ethernet port IP Address.
The printer’s Ethernet IP address can be set directly via printer inserted web setting page. The operation steps are
as below:
1. Connect printer and PC in a same Ethernet LAN.
2. Print a printer self-test page to get printer recent IP address (self-test page printing operation method refers
to “4.8 printer self-test” instruction):
You can find the printer’s IP address is same as 192.168.1.87 in self-test page“IP address: 192.168.1.87”
3、Make sure the printer had connected to Ethernet, double click NetWinConfig tool
4、As shown in figure（If there are more than one IP, then the MAC address is distinguished.),enter
configuration IP.
PT80USEWB Thermal POS printer User’s manual
20
5、Enter configuration IP
Modify the fixed IP parameters:
①In the printer self-test page, if IP is a fixed IP address,click fixed IP.
Modify the DHCP IP parameters:
②In the printer self-test page, if IP is a DHCP IP ,click automatically get IP.
PT80USEWB Thermal POS printer User’s manual
21
After click ok, it will jump back to the home page, reseach IP, Step by ① to modify the settings IP
parameters.
6、Reprint self-test paper,make sure IP whether successful modification.
PT80USEWB Thermal POS printer User’s manual
22
4.9.3 WIFI CONNECT
1.Printer boot status
2.Connect the printer and computer to the network port as an example, with the Setting Printer tool set WiFi
connection
3.Click on the WiFi module, set the WiFi name and password to connect to WiFi.
PT80USEWB Thermal POS printer User’s manual
23
After set, print self-test paper,make sure WIFI whether successful modification.
After the printer is connected to the WiFi, the printer LED light will back and forth shining, which indicates
that the printer WiFi can be used normally. The Internet search can be found WiFi IP.(can be learned in self-test
paper ). （WIFI driver installation details see 4.9.1）
LED Off, check whether the WiFi signal is unstable or WiFi closed.
4.10 LINUX driver installation
4.10.1 USB/serial port/parallel port/Ethernet port driver
installation
1.Copy commandtokc，rastertokc，texttokc in the catalogue to the filter catalogue of cups.This catalogue normally
is /usr/lib/cups/filter/.The installation procedure has been written in shell for installing expediently.Pls run shell
script in terminal,the run command is :sudo ./install.sh. If script can not run permission,pls run :sudo chmod
a+rwx install.sh in terminal,and add permission for it.
PT80USEWB Thermal POS printer User’s manual
24
2.Click system setting after installing filter.
3.Click printer
PT80USEWB Thermal POS printer User’s manual
25

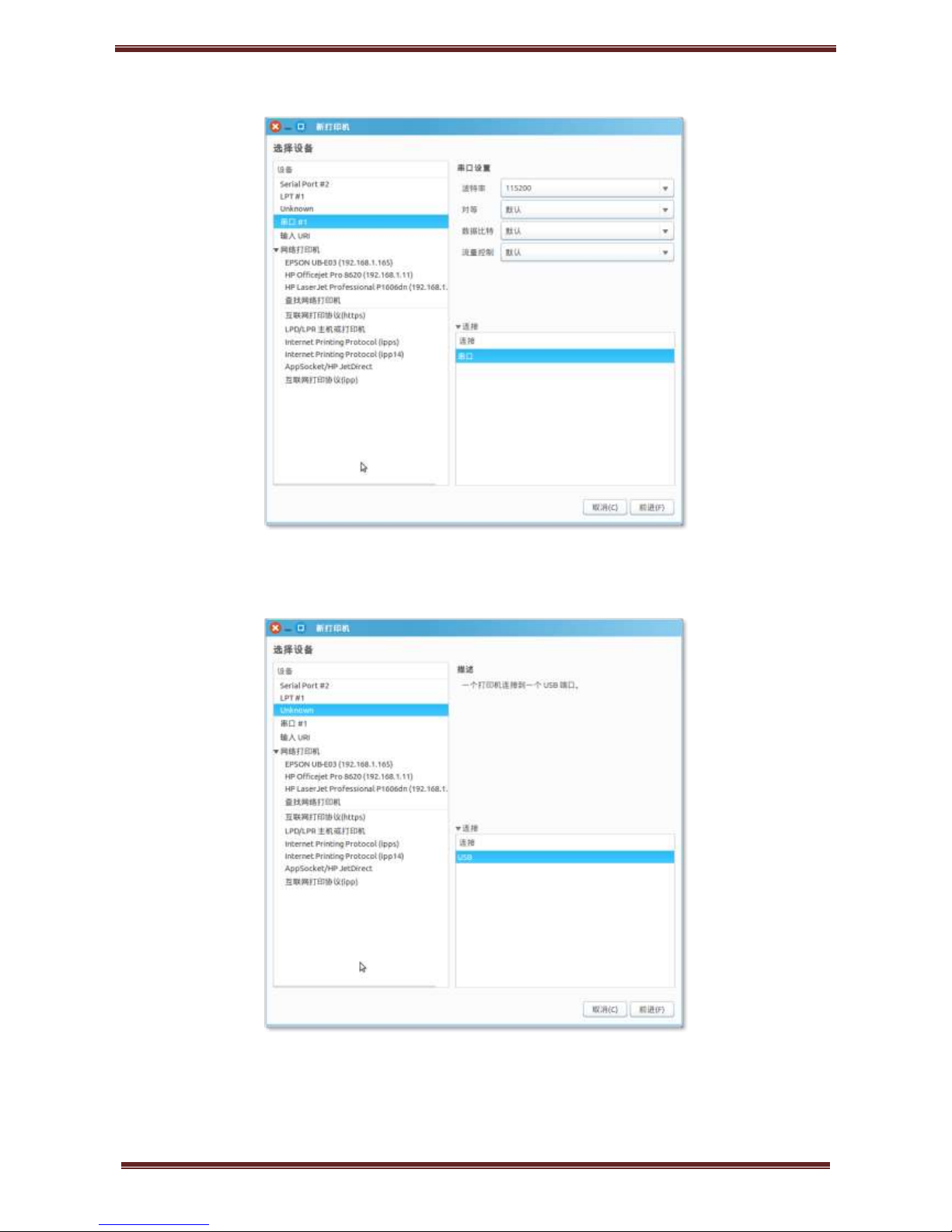

4. Add printer
Choose the corresponding port,then click enter.E.g.:serial port printer choose LPT#1,or LPT#2.
Serial port printer chooses serial port #1,or serial port #n.It is permission denied if it does not show serial
port.Please modify serial port device file access right as all people can read and write,or input command in the
terminal:sudo chmod a+rw /dev/ttyS0;com1 in windows corresponds /dev/ttyS0 in Linux;com2corresponds
s/dev/ttyS1;by parity of reasoning.Wait for a few minutes after modifying permission,you will find serial port in
“Add printer”.Choose baud rate the same as printer’s baud rate,no parity,data bit 8, flow control
PT80USEWB Thermal POS printer User’s manual
26
hardware(RTS,DTR are okay).
USB printer needs to connect PC first,and then click “add printer”.You will find there is a extra Unknown in
choice devices.It describes a printer connects to USB port.This is the USB printer what it just connected.
PT80USEWB Thermal POS printer User’s manual
27

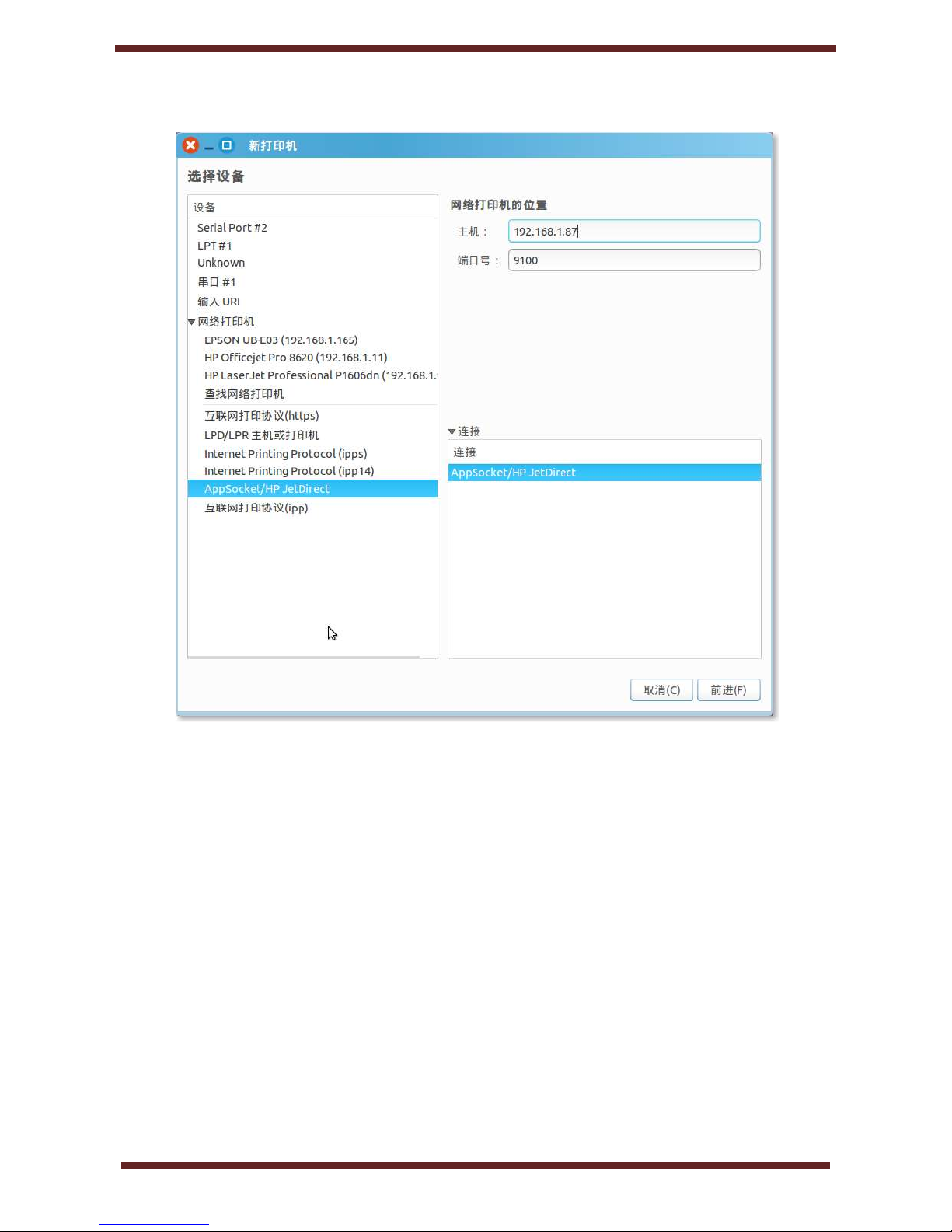

Click network printer in Add printer page for network printer,choose printing protocol as AppSocket/HP
JetDirect Please fill in printer IP address in host blank,such as 192.168.1.87,and port is 9100.
PT80USEWB Thermal POS printer User’s manual
28

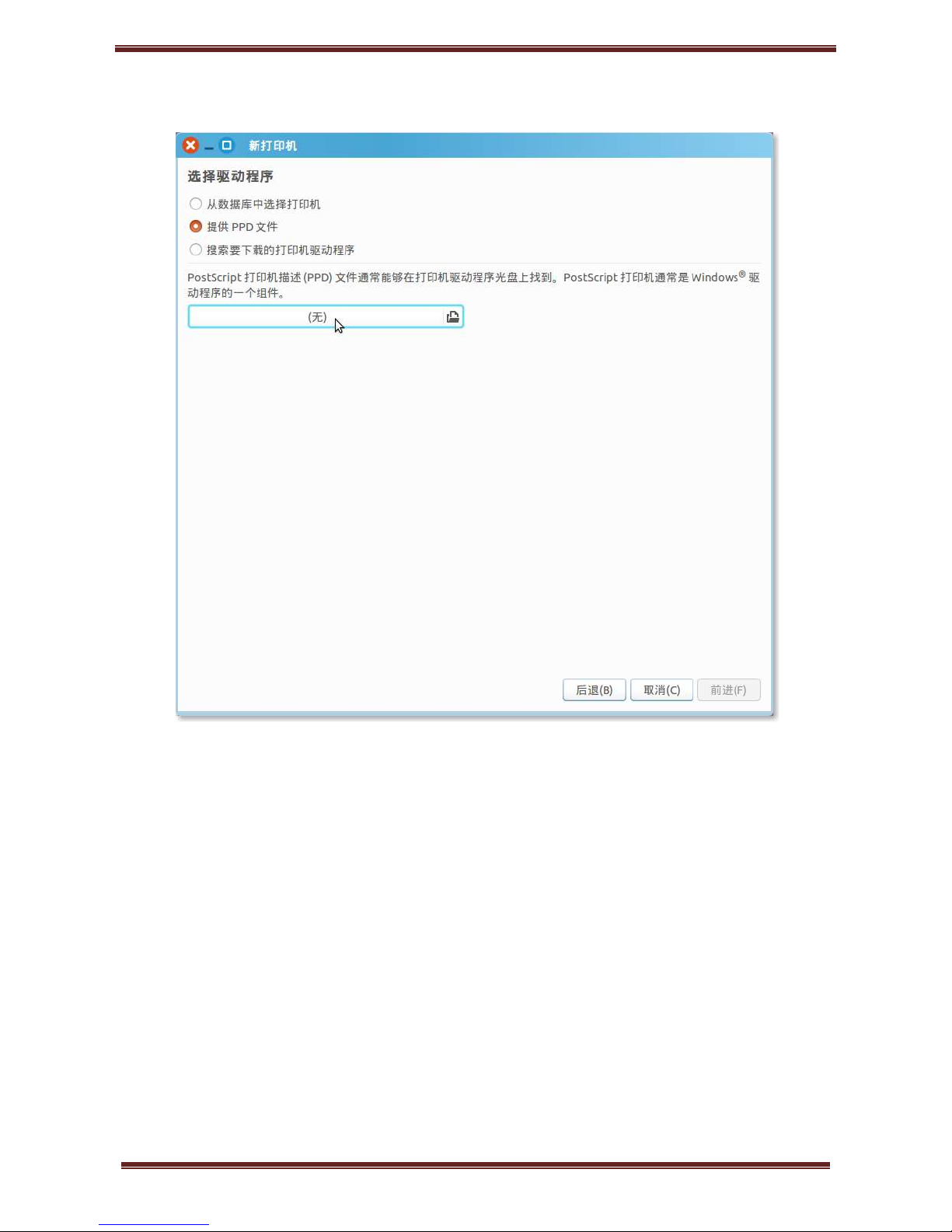

5. You will realize a searching driver hint when click forward after selecting the port.Choose PPD file in the page
of choosing driver procedure.
PT80USEWB Thermal POS printer User’s manual
29

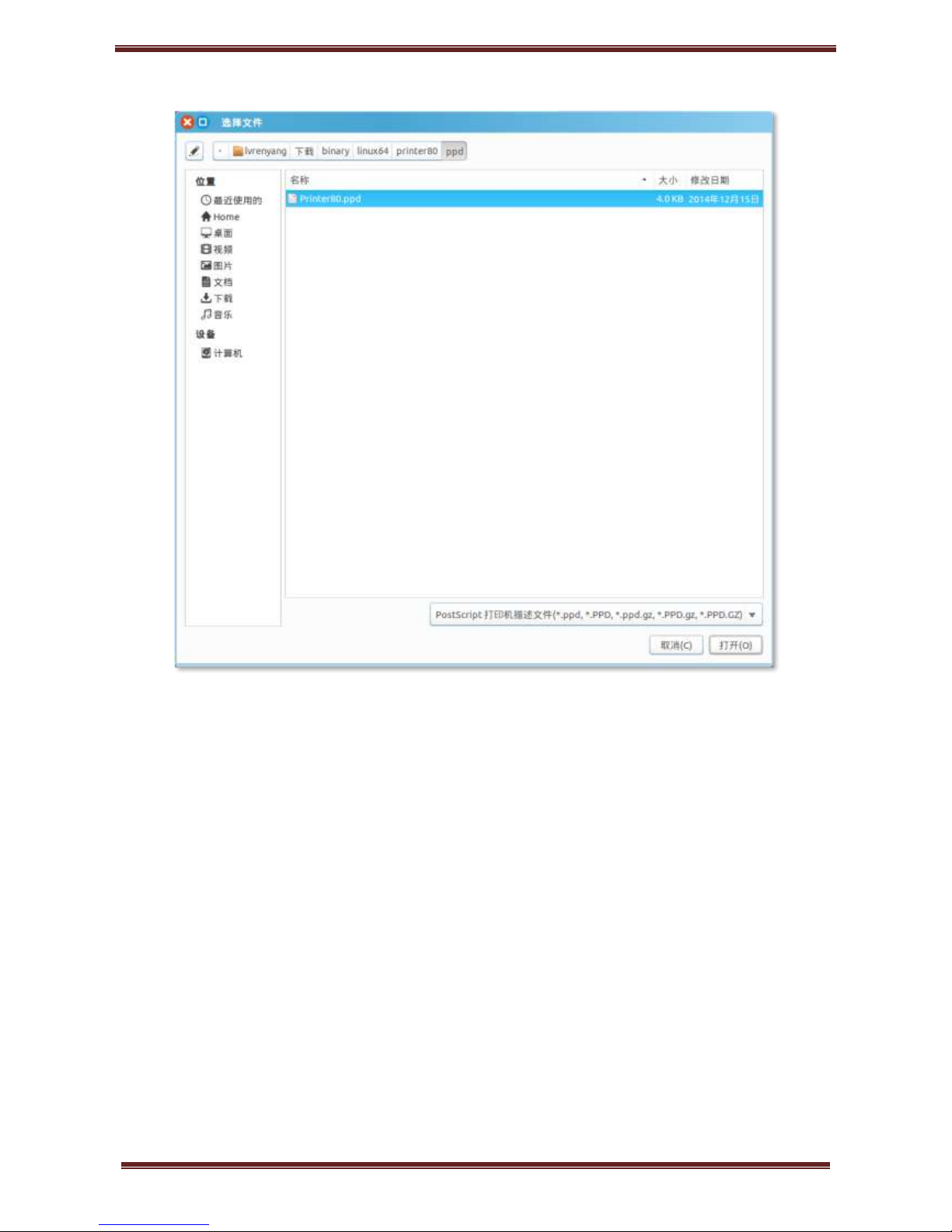

6. Choose Printer80.ppd in the catalogue
PT80USEWB Thermal POS printer User’s manual
30
7. Click “Forward” button
8. Click “apply” button.
PT80USEWB Thermal POS printer User’s manual
31
9. Print self-test page
The driver installs correctly if it can print self-test page.
PT80USEWB Thermal POS printer User’s manual
32
5 Interface pin definitions
The printer has a cash drawer driver interface and many kinds of communication interfaces: parallel, serial
(RS-232), USB and Ethernet ports. USB port and cash drawer interfaces are standard interfaces, and it has
Ethernet, serial and parallel ports as optional.
5.1 Parallel interface pin definition（DB25M）
Number
Signal
Function
Number
Signal
Function
1
/STROBE
Gate. Low level is
effective
10
/ACK
Confirm. Low level is effective
2
DATA0
Data bit is 0
11
BUSY
Busy
3
DATA1
Data bit is 1
12
PE
Paper out
4
DATA2
Data bit is 2
13
SEL
Choose
5
DATA3
Data bit is 3
14
/AUTOFEED
Change line automatically. Low
level is effective
6
DATA4
Data bit is 4
15
/ERROR
Error. Low level is effective
7
DATA5
Data bit is 5
16
/INIT
Initialize. Low level is effective
8
DATA6
Data bit is 6
17
/SELIN
Choose input. Low level is
effective
9
DATA7
Data bit is 7
18-25
GND
Ground wire
5.2 USB interface pin definition（standard B type female base)
1） Pin definition
Pin Number
Signal name
Typical wire color
1
VBUS
Red 2 D-
White
3
D+
Green
PT80USEWB Thermal POS printer User’s manual
33
4
GND
Black
5.3 Power interface pin definition（MPC-3-001B）
1）Pin definition
Pin number
Signal name
1
+24V
2
GND
3
N.C
SHELL
F.G
5.4 Cash drawer interface pin definition（RJ11-6P6C）
1）Electrical specification
Driver voltage: DC24V
Driver current: Max. 0.8A (within 510ms)
Cash drawer status tests signal: “L” = 0～0.5 V ; “H” = 3～5 V
2) Cash drawer interface socket uses RJ-11 6P type connector;
3) Interface signal definition
Pin number
Signal
function
1
FG
Printer cover
2
DRAWER 1
Cash drawer 1 driver signal
3
DRSW
Cash drawer status detection signal
4
VDR
Cash drawer driver power
5
DRAWER 2
Cash drawer 2 driver signal
6
GND
Common ground circuit
Notes:
PT80USEWB Thermal POS printer User’s manual
34
1) Prohibit socket with power to pull out communication wire plug.
2) Please avoid to parallel with strong power when wring communication cables av 通讯线布线时应避免和强电
并行；
3) Communication cables use with shielded cables.
5.5 Serial port pin definition（DB9F）
Printer serial port is compatible with RS-232, the interface socket is DB9 female socket.
User can check interface setting status via printing setting self-test page. Printer default serial interface is set as:
baud rate 19200bps, 8 bit data bits, no parity,1 bit stop bit, and the handshakes method is DTR/DSR。
Pin number
Definition
1
CD 2 TD 3 RD 4 DSR
5
GND
6
DTR
7
CTS
8
RTS 9 RI
5.6 Ethernet interface pin definition（RJ45）
Pin number
Definition
1
TX+
2
TX- 3 RX+
4
n/c 5 n/c 6 RX- 7 n/c 8 n/c
PT80USEWB Thermal POS printer User’s manual
35
6 Faults handling
Please refer to the methods as below when printer can’t work normally. Please contact your supplier directly
if it still can’t work normally.
6.1 Printer does not work
Problems
Probably reasons
Solutions
The Power indicator is not light.
Printer does not work
Printer is not power on.
Power on printer
Printer switch is not on.
Press down the “O” side of printer button
PCB is damaged
Contact with agents or factory directly
6.2 Indicator error and buzzer warning
Problems
Probably reasons
Solutions
Paper indicator is on constantly
Buzzer warns
Paper maybe out
Load a new paper roll
Paper out indicator light is on
constantly
Error indicator is on constantly
Buzzer warns
Paper roll warehouse cover
maybe lit up
Close paper roll warehouse cover
correctly
Error indicator is blinking
Buzzer warns
Print head is overheated
Power off printer power, and wait that
print head temperature returns normal.
Voltage is too high
Use assigned voltage to print
Voltage is too low
Use assigned voltage to print
LED back and forth shining
WIFI connect normal
Normal
LED Off
WIFI disconnected
Check the WiFi signal
LED shining on both sides
Un-take out printed paper
Take out printed paper
6.3 Problems when it is printing
Problems
Probably reasons
Solutions
Color strips occur on
the paper
Paper maybe out
Load a new paper roll.
Printing is not clear or
have dirty spots
Paper roll loading incorrectly
Check paper roll loading correctly or not
Paper can’t meet the requirements
Use the recommended thermal paper
Print head or printer rubber roller is
dirty
Clean print head or printer rubber roller
Printing density sets too light
Increase printing density to satisfy the
requirements.
Paper can output
normally
Paper jam
Open upper cover or check paper feed
channel to get to know paper jam.
Vertical printing
contents get lost
Print head or printer rubber roller is
dirty
Clean print head or printer rubber roller
Print head error
Contact supplier or factory directly
PT80USEWB Thermal POS printer User’s manual
36
6.4 Problems when cutting paper
Problems
Probably reasons
Solutions
Cutter blocked or cutter
does not returned back.
Cutter is worn or cannot cut
paper completely
Change cutter
Turbine and worm are worn
Change turbine and worm
Motor is burned-out
Change motor
Too many paper scraps
Eliminate scraps between all the spare parts.
Cutting paper is not so
good.
Cutter month is worn or paper is
too thick
Change cutter
Paper jam
The head piece is overheated
Reduce driver head piece heating power
Driver moves too fast
Adjust the printing speed to allowable
specification of TPH.
Paper feeds position is not right
Put in the paper channel between rubber covered
roller and TPH to Make paper parallel with it
6.5 Paper jam and cutter retraction troubles removal
Please power off if it is paper jam, and eliminate paper jam in correct method.
1. Press the paper cover and open it to eliminate paper jam. Then re-install paper roll to power on.
2. Please use the method as below if step 1 cannot open paper cover:
Warning: Do not open the paper roll warehouse cover forcibly when you cannot open it normally if
it is paper jam, which to avoid damaging the printer.
1） Make sure the printer power is off.

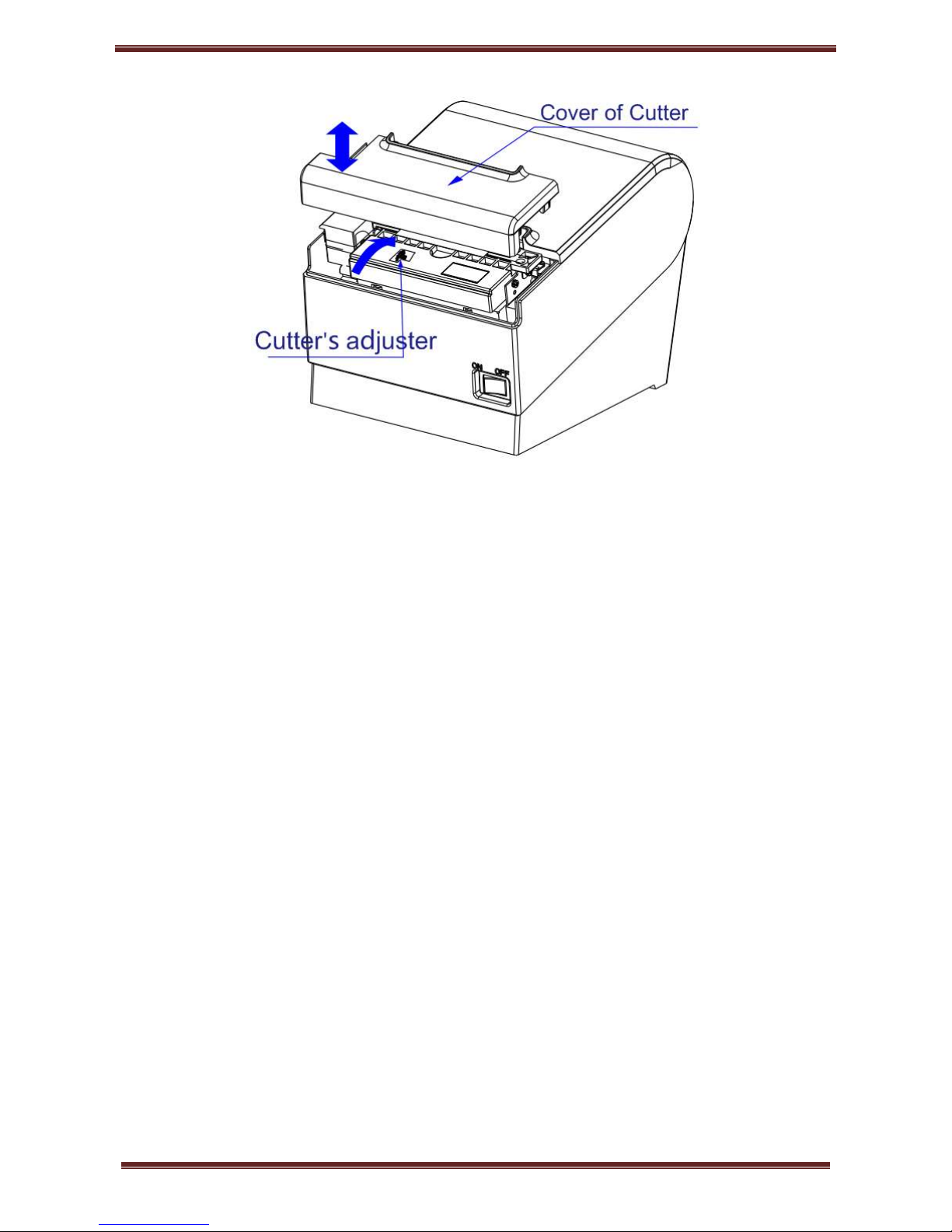

2） Take off the cutter adjusting cover in vertical direction as photo.
3） Adjust paper-cutter to make the cutter set back to print mechanism completely as photo direction
4） Open paper cover and eliminate paper jam.
5） Install cutter adjusting cover vertically down.
6） Re-loading paper, close the paper cover and then power on.
PT80USEWB Thermal POS printer User’s manual
37
Loading...
