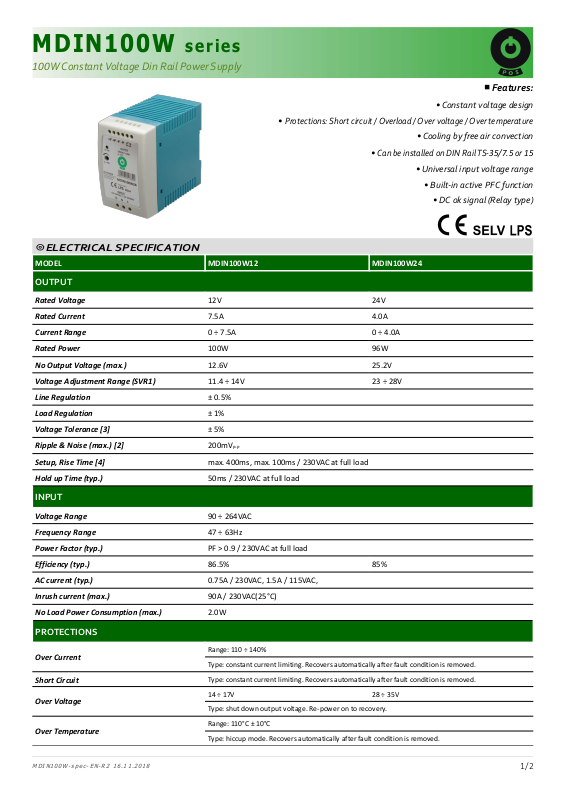

⦾⦾ ELECTRICAL SPECIFICATION
ELECTRICAL SPECIFICATION
MODEL
MDIN100W12
MDIN100W24
OUTPUT
Rated Voltage
12V
24V
Rated Current 7.5A 4.0A
Current Range 0 ÷ 7.5A 0 ÷ 4.0A
Rated Power 100W 96W
No Output Voltage (max.) 12.6V 25.2V
Voltage Adjustment Range (SVR1) 11.4 ÷ 14V 23 ÷ 28V
Line Regulation ± 0.5%
Load Regulation ± 1%
Voltage Tolerance [3] ± 5%
Ripple & Noise (max.) [2] 200mV
P-P
Setup, Rise Time [4] max. 400ms, max. 100ms / 230VAC at full load
Hold up Time (typ.) 50ms / 230VAC at full load
INPUT
Voltage Range
90 ÷ 264VAC
Frequency Range 47 ÷ 63Hz
Power Factor (typ.) PF > 0.9 / 230VAC at full load
Efficiency (typ.) 86.5% 85%
AC current (typ.) 0.75A / 230VAC, 1.5A / 115VAC,
Inrush current (max.) 90A / 230VAC(25°C)
No Load Power Consumption (max.) 2.0W
PROTECTIONS
Over Current
Range: 110 ÷ 140%
Type: constant current limiting. Recovers automatically after fault condition is removed.
Short Circuit
Type: constant current limiting. Recovers automatically after fault condition is removed.
Over Voltage
14 ÷ 17V 28 ÷ 35V
Type: shut down output voltage. Re-power on to recovery.
Over Temperature
Range: 110°C ± 10°C
Type: hiccup mode. Recovers automatically after fault condition is removed.
1/2
M D I N 100 W-s pe c -EN - R2 16. 1 1. 2 0 18
MDIN100W
s e r i e s
100W Constant Voltage Din Rail Power Supply
■ Features:
• Constant voltage design
•
Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection
• Can be installed on DIN Rail TS-
35/7.5
or
15
• Universal input voltage range
• Built-in active PFC function
• DC ok signal (Relay type)
WORKING ENVIRONMENT
Working Temperature
-20°C ÷ +50°C
Working Humidity 45 ÷ 85% RH non-condensing
Storage Temperature and Humidity -30°C ÷ +70°C, 10 ÷ 95% RH non-condensing
SAFETY AND EMC REGULATIONS
Safety Standards
Compliance to EN62368-1
Withstand Voltage IN/OUT: 3kVAC, IN/GND: 2kVAC, OUT/GND: 0.5kVAC
EMC Emission Compliance to EN55032
EMC Immunity Compliance to EN55024
Harmonic Current Compliance to EN61000-3-2, EN61000-3-3
OTHERS
Dimensions
100 x 90 x 40mm (L x W x H)
Weight and Packing 0.41kg; 24pcs./box; box weight and dimensions: 11kg; 45 x 22 x 22cm
EAN Code
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF i 47μF parallel capacitor.
3. Tolerance includes set up tolerance, line regulation and load regulation.
4. Setup and rise time is measured from 0 to 90% rated output voltage.
5.Power supply is considered as component not indented to apply by end-user. Power supply meets safety and EMC standards however the final equipment with power supply must be
re-quality to comply with EMC Directives.
⦾⦾ MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
PIN ASSIGNMENT
No. Assignment No. Assignment
1 Input: GND 4,5 Output: U
OUT
+
2 Input: AC/N 6,7 Output: U
OUT
-
3 Input: AC/L 8,9 Relay DC OK signal
10 SVR1: Output Voltage Adjustment
11 LED DC OK signal
2/2
M D I N 100 W-s pe c -EN - R2 16. 1 1. 2 0 18
MDIN100W
s e r i e s
100W Constant Voltage Din Rail Power Supply
5 90 2 13 5 12 6 24 0
5 90 2 13 5 12 3 69 0
