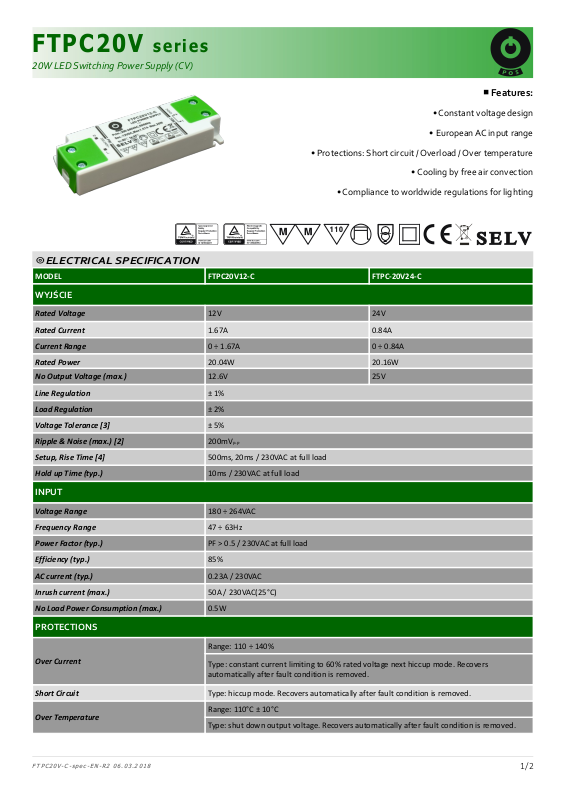

⦾⦾ ELECTRICAL SPECIFICATION
ELECTRICAL SPECIFICATION
MODEL
FTPC20V12-C
FTPC-20V24-C
WYJŚCIE
Rated Voltage
12V
24V
Rated Current
1.67A
0.84A
Current Range
0 ÷ 1.67A
0 ÷ 0.84A
Rated Power
20.04W
20.16W
No Output Voltage (max.)
12.6V
25V
Line Regulation
± 1%
Load Regulation
± 2%
Voltage Tolerance [3]
± 5%
Ripple & Noise (max.) [2]
200mV
P-P
Setup, Rise Time [4]
500ms, 20ms / 230VAC at full load
Hold up Time (typ.)
10ms / 230VAC at full load
INPUT
Voltage Range
180 ÷ 264VAC
Frequency Range
47 ÷ 63Hz
Power Factor (typ.)
PF > 0.5 / 230VAC at full load
Efficiency (typ.)
85%
AC current (typ.)
0.23A / 230VAC
Inrush current (max.)
50A / 230VAC(25°C)
No Load Power Consumption (max.)
0.5W
PROTECTIONS
Over Current
Range: 110 ÷ 140%
Type: constant current limiting to 60% rated voltage next hiccup mode. Recovers
automatically after fault condition is removed.
Short Circuit
Type: hiccup mode. Recovers automatically after fault condition is removed.
Over Temperature
Range: 110°C ± 10°C
Type: shut down output voltage. Recovers automatically after fault condition is removed.
1/2
FTPC20V
s e r i e s
20W LED Switching Power Supply (CV)
F T P C 2 0 V- C- sp e c- E N-R2 0 6 . 03. 2 01 8
■ Features:
• Constant voltage design
• European AC input range
• Protections: Short circuit / Overload / Over temperature
• Cooling by free air convection
• Compliance to worldwide regulations for lighting
WORKING ENVIRONMENT
Working Temperature
-20°C ÷ +45°C
Working Humidity
45 ÷ 85% RH non-condensing
Storage Temperature and Humidity
-30°C ÷ +70°C, 10 ÷ 95% RH non-condensing
SAFETY AND EMC REGULATIONS
Safety Standards
Compliance to EN61347-1, EN61347-2-13 , EN 62493
Withstand Voltage
IN/OUT: 3.75kVAC
EMC Emission
Compliance to EN55015
EMC Immunity
Compliance to EN61547
Harmonic Current
Compliance to EN61000-3-3; EN61000-3-2
OTHERS
Dimensions
103 x 35.5 x 16.5mm (L x W x H)
Weight and Packing
0.06kg; 200pcs./box; box dimensions: 38.5 x 21.6 x 21.5cm
EAN Code
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF i 47μF parallel capacitor.
3. Tolerance includes set up tolerance, line regulation and load regulation.
4. Setup and rise time is measured from 0 to 90% rated output voltage.
5.Power supply is considered as component not indented to apply by end-user. Power supply meets safety and EMC standards however the final equipment with power supply must be
re-quality to comply with EMC Directives.
⦾⦾ MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
PIN ASSIGNMENT
No. Assignment No. Assignment
1 Input: AC/N 3 Output: U
OUT
-
2 Input: AC/L 4 Output: U
OUT
+
2/2
FTPC20V
s e r i e s
20W LED Switching Power Supply (CV)
F T P C 2 0 V- C- sp e c- E N-R2 0 6 . 03. 2 01 8
5 90 21 35 1 1 897 9
