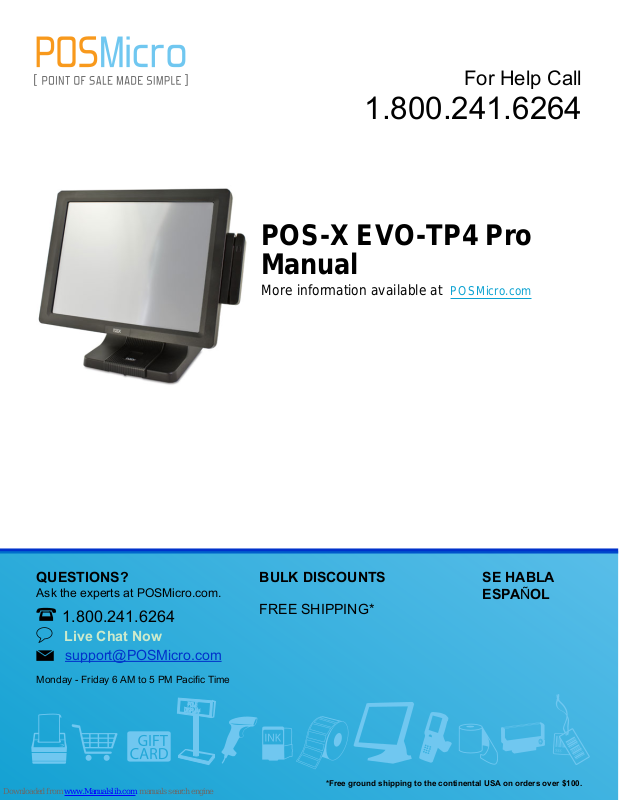

POSMicro POS-X EVO-TP4 Pro User Manual

Download

For Help Call

1.800.241.6264

POS-X EVO-TP4 Pro Manual

More information available at POSMicro.com

QUESTIONS?

Ask the experts at POSMicro.com.

1.800.241.6264

Live Chat Now

support@POSMicro.com

Monday - Friday 6 AM to 5 PM Pacic Time

BULK DISCOUNTS

FREE SHIPPING*

*Free ground shipping to the continental USA on orders over $100.

SE HABLA ESPAñOL

USER MANUAL

EVO-TP4 Hardware System

VERSION 1.1 November 2011

The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced or translated to another language without the prior written consent of the manufacturer.

TRADEMARK

Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation. Microsoft® and Windows® are registered trademarks of Microsoft Corporation. Other trademarks mentioned herein are the property of their respective owners.

Safety

IMPORTANT SAFETY INSTRUCTIONS

To disconnect the machine from the electrical power supply, turn off the power 1. switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. Read these instructions carefully. Save these instructions for future reference.2. Follow all warnings and instructions marked on the product.3. Do not use this product near water.4. Do not place this product on an unstable cart, stand, or table. The product may fall, 5. causing serious damage to the product. Slots and openings in the cabinet and the back or bottom are provided for 6. ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register or in a built-in installation unless proper ventilation is provided. This product should be operated from the type of power indicated on the marking 7. label. If you are not sure of the type of power available, consult your dealer or local power company. Do not allow anything to rest on the power cord. Do not locate this product where 8. persons will walk on the cord. Never push objects of any kind into this product through cabinet slots as they 9.

may touch dangerous voltage points or short out parts that could result in a re or

electric shock. Never spill liquid of any kind on the product.

iii

CE MARK

This device complies with the requirements of the EEC directive 2004/108/EC with regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive”.

FCC

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

CAUTION ON LITHIUM BATTERIES

There is a danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Battery Caution

Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery according to the local disposal instructions.

Safety Caution

Note: To comply with IEC60950-1 Clause 2.5 (limited power sources, L.P.S) related legislation, peripherals shall be 4.7.3.2 “Materials for fire enclosure” compliant.

4.7.3.2Materialsforreenclosures

For MOVABLE EQUIPMENT having a total mass not exceeding 18kg.the material

of a FIRE ENCLOSURE, in the thinnest signi cant wall thickness used, shall be of

V-1 CLASS MATERIAL or shall pass the test of Clause A.2. For MOVABLE EQUIPMENT having a total mass exceeding 18kg and for all STATIONARY EQUIPMENT, the material of a FIRE ENCLOSURE, in the thinnest

signi cant wall thickness used, shall be of 5VB CLASS MATERIAL or shall pass the

test of Clause A.1

LEGISLATION AND WEEE SYMBOL

2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components.

The crossed dust bin symbol on the device means that it should not be disposed of with other household wastes at the end of its working life. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

Revision History

Changes to the original user manual are listed below:

Revision Description Date

1.0 Initial release• November 2010

1.1 C68 MB added• November 2011

Table of Contents

1. PackingList .............................. 1

1-1. Standard Accessories ..............................................1

1-2. Optional Accessories ...............................................2

2. System View ............................. 3

2-1. Front & Side View ....................................................3

2-2. Rear View with stand ...............................................3

2-3. I/O Ports View ..........................................................4

2-4. System Dimension ...................................................5

3. System Assembly & Disassembly 6

3-1. Stand Disassembly ..................................................6

3-2. Power Adapter Replacement ...................................6

3-3. HD Replacement .....................................................7

3-4. Open the System .....................................................8

3-5. RAM Replacement ..................................................9

4. Peripheral Installation ............ 10

4-1. MSR Installation .....................................................10

4-2. VFD Installation ...................................................... 11

4-3. Second Display Installation ....................................12

4-4. Wall Mounting Kit Installation .................................13

4-5. Cable Cover Installation .........................................14

4-6. Cash Drawer Installation ........................................15

5. Specications ......................... 17

vii

6. JumperSetting ........................ 19

6-1. C48 Motherboard ....................................................19

6-1-1. Motherboard Layout ................................................ 19

6-1-2. Connectors & Functions .......................................... 21

6-1-3. Jumper & BIOS/Utility Setting .................................22

6-2. B68 Motherboard ....................................................27

6-2-1. Motherboard Layout ................................................ 27

6-2-2. Connectors & Functions .......................................... 28

6-2-3. Jumper Setting ........................................................ 29

6-3. C68 Motherboard ....................................................32

6-3-1. Motherboard Layout ................................................ 32

6-3-2. Connectors & Functions .......................................... 33

6-3-3. Jumper Setting ........................................................ 34

Appendix: Drivers Installation .... 39

viii

The page is intentionally left blank.

PackingList1.

StandardAccessories

1-1.

System (with stand)a. Driver CDb. Power adapterc. Power cordd. RJ45-DB9 cable (x3)e. Cable coverf.

OptionalAccessories

1-2.

MSR modulea. VFD module (with RJ-45 cable)b. Second display (with VGA cable)c. Wall mount kitd.

System View2.

Front & Side View

2-1.

Item No. Description

1 Touch screen 2 MSR module (optional) 3 Rugged footprint 4 Ventilation 5 HDD door

Rear View with stand

2-2.

Item No. Description

6 VFD dummy cover 7 MSR dummy cover

I/O Ports View

2-3.

Item No. Description

a Power button b Parallel c VGA out d USB x 4 e COM 1, 2, 3, 4 (from right to left)

f Line-out g Cash drawer h LAN x 2

i Power switch

j DC-IN k Cable strap

C68 Motherboard

C48 / B68 Motherboard

i j

Item No. Description

a Power button b 2nd VGA c Parallel d USB x 4 e COM 1, 2, 3, 4 (from right to left)

f Line-out g Mic-in h Cash drawer

i LAN

j Power switch k DC-IN

System Dimension

2-4.

248mm

361mm

337mm

System Assembly & Disassembly3.

Stand Disassembly

3-1.

Loosen the thumb screw (x1) and 1. slide the stand towards the IO panel to release it from the system.

Reverse the steps above to attach 2. stand to the system.

PowerAdapterReplacement

3-2.

Power adapter is secured to the system stand by a holding bracket and screws. To attach power adapter, please follow the steps below.

Route the cable as shown in the 1. picture.

Connect the cable to the DC-IN 2. port on system IO panel.

To remove the HDD from the System

Power the system down.1.

Remove the screw(x1) from the HDD door.2.

Open the HDD door.3.

While pinching the HDD bracket 4. tabs pull the HDD from the system. For easier removal pull the plastic puller (see picture) at the same time.

Please remove the current HDD rst.

Disassemble HDD

To release the HDD from the bracket gently pull it open until the four pins 5. are removed.

HDReplacement

3-3.

Open the System

3-4.

Place the system face down. 1. Making sure not to scratch the screen.

Remove the screws (x4) on system 2. rear cover to open the system.

note: If the system is equipped

with a MSR. The MSR must be removed first.(refer to Chapter 4-1 and reverse the steps to remove the MSR)

To install a new HDD. Attach the 6. HDD to the bracket until it clicks in place. Make sure to press the edges of the drive not the center to avoid damaging the drive.

Finally slide the HDD into the slot till 7. it clicks.

RemovingaRAMmodule

To remove the module pull the 3. ejector clips out of the side of the module.

Slide the memory out of the slot.4.

RAMReplacement

3-5.

Follow the steps in Chapter 3-4 to 1. open the system.

The RAM is located on the right 2. side of the system (see picture).

InstallingaRAMmodule

Slide the memory module into the 3. memory slot and press down until it locks in place.

Peripheral Installation4.

MSR Installation

4-1.

Remove the screws (x2) to 1. release the MSR dummy cover.

MSR module can be installed to either side of the system. Choose one side and follow the steps below. Make sure the unit is powered down before starting.

Connect MSR cable to the 2. connector on system side.

Insert MSR module in place and 3. fasten the screws (x2) on the back to secure the module.

VFD Installation

4-2.

Follow steps in Chapter 3-1 to disassemble the system stand.1.

Attach the VFD module to system by fastening the screws (x2).2.

Route the cable through cable mangement on the system stand.3.

Connect the RJ-45 cable to COM 4 on the systems IO panel. Make sure the 4. system is powered off.

SecondDisplayInstallation

4-3.

Follow steps in Chapter 3-1 to disassemble the system stand.1.

Connect one end of the VGA cable to 2nd Display. Route the cable through 2. cable mangement on the system stand.

Attach the 2nd Display to system by fastening the screws (x2).3.

Connect the other end of the VGA cable to 2nd VGA port on system IO panel. 4. Make sure the system is powered off.

WallMountingKitInstallation

4-4.

Secure the wall plate to the wall by 1. fastening screws (x4).

2. Attach the metal bracket to the back of the system by fastening the screw (x1) as shown.

3. Align the large end of the teardrop mounting holes (x4) on the wall plate with the screws (x4) on the systems rear cover. Slide the wall plate until the screws are even with the narrow end.

The Wall mounting Kit includes a wall plate, a metal bracket, and one screw. (refer to Chapter 1-2 item d) Please follow the steps below.

Cable Cover Installation

4-5.

Slide the covers on the IO panel, if 1. using both covers the large cover needs to be installed before the smaller one.

Fasten the screws (x3, two for the 2. larger one and one for the smaller one) to secure the covers.

There are two different cable covers. These can be utilized separately or together. When both are needed, please take care that they are installed in the correct order.

4. Fasten the screw (x1) through the metal bracket to secure the wall mount kit.

You can install a cash drawer through the cash drawer port. Please verify the pin assignment before installation.

CashDrawerPinAssignment

Pin Signal

1 GND 2 DOUT bit0 3 DIN bit0 4 12V / 19V 5 DOUT bit1 6 GND

CashDrawerControllerRegister

The Cash Drawer Controller use one I/O addresses to control the Cash Drawer.

Attribute: Read / Write

Size: 8bit

BIT BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

Attribute Reserved Read Reserved Write Reserved

7 6 5 4 3 2 1 0

X X X X

Reserved

Cash Drawer “DOUT bit0” pin output control

Cash Drawer “DOUT bit1” pin output control

Reserved

Cash Drawer “DIN bit0” pin input status

Reserved

Cash Drawer Installation

4-6.

Bit 7: Reserved Bit 6: Cash Drawer “DIN bit0” pin input status. = 1: the Cash Drawer closed or no Cash Drawer = 0: the Cash Drawer opened Bit 5: Reserved Bit 4: Reserved Bit 3: Cash Drawer “DOUT bit1” pin output control. = 1: Opening the Cash Drawer = 0: Allow close the Cash Drawer Bit 2: Cash Drawer “DOUT bit0” pin output control. = 1: Opening the Cash Drawer = 0: Allow close the Cash Drawer Bit 1: Reserved Bit 0: Reserved

Note: Please follow the Cash Drawer control signal design to control the Cash Drawer.

Cash Drawer Control Command Example

Use Debug.EXE program under DOS or Windows98

Command Cash Drawer

O 48C 04 Opening O 48C 00 Allow to close

Set the I/O address 48Ch bit2 =1 for opening Cash Drawer by “DOUT bit0” pin ► control. Set the I/O address 48Ch bit2 = 0 for allow close Cash Drawer. ►

Command Cash Drawer

I 48C Check status

The I/O address 48Ch bit6 =1 mean the Cash Drawer is opened or not exist. ► The I/O address 48Ch bit6 =0 mean the Cash Drawer is closed. ►

Speciﬁcations5.

Model Name EVO-TP4A / EVO-TP4C Motherboard C48

B68 C68

CPU Support

Intel Pinevew D525 1.8G L2 1M, dual core 13W

Intel Atom N270 processor

1.6GHz L2 512K

Intel Sandy Bridge CPU

i3-2120 3.3G, L2 3M, 65W Pentium G850 2.9G, L2 3M, 65W Celeron G530 2.4G, L2 2M, 65W

Chipset

CPU with Graphic built-in+

ICH 8M

Intel 945GSE Express +

ICH7M

Intel Q67 PCH (Processor Controller

Hub, AMT supported_highend)

Intel H61 PCH (Processor Controller

Hub, no AMT suport_mainstream)

System Memory

2 x SO-DIMM slot up to

4GB DDR3 800MHz

2 x SO-DIMM slot up to 2GB

DDR2 533MHz

1 x Long DIMM slot up to 8GB DDR3

1066/1333 MHz

Graphic Memory

Shared system memory up

to 256MB

Shared system memory up to

224MB

Intel HD Graphics 3000/2000,

integrated in CPU, frequency 850MHz,

(dynamic up to 1.1GHz)

LCD Touch Panel

LCD Size 15” TFT LCD Brightness 250nits Maximal Resolution 1024 x 768 Touch Screen Type Resistive Tilt Angle 0° ~ 90°

Storage

HDD One 2.5” SATA HDD bay

Expansion

PCI-E Socket 1

External I/O Ports

USB 4 ports (V2.0)

Serial / COM

4 x RJ45 COM

(COM1~COM3 standard

RS-232 without power,

COM4 +12V enable/disable

by BIOS setting)

4 x RJ45 COM (COM1~COM3 standard RS-232; COM4 pin9 with

12V power by jumper)

Parallel 1 LAN (10/100/1000) 1 x RJ45 2 x RJ45 DC Jack 1 2nd VGA 1 (Female) Cash Drawer Port 1 x RJ 11 (12V /24V) 1 x RJ 11 (12V /24V) Audio Jack 1 x Line-out, 1 x Mic-in 1 x Line-out

Audio

Built in Speaker 2 x 2W speakers

Power

Power Adapter 19V / 90W 19V / 120W

Control / Indicator

Power Button 1 Indicator LED 1

Peripheral

MSR 3 Tracks MSR ( PS/2 ) Bio Reader 1 (USB) Second Display (optional) 8.4” / 15” 2nd display without touch Customer Display Flush mount VFD display 2 x 20 characters (COM)

Environment

EMC & Safety FCC, Class A, CE, LVD Operating Temperature 5°C ~ 35°C (41°F ~ 95°F) Storage Temperature -20°C ~ 55°C (-4°F ~ 140°F)

Operating Humidity 20% ~ 80% RH non condensing Storage Humidity 20% ~ 85% RH non condensing

4 x RJ45 COM

(COM1~COM3 standard

RS-232 without power,

COM4 +12V enable/disable

by BIOS setting)

Dimension (WxDxH) LCD 90 degree : 361 x 248 x 337 mm Weight (N.W./G.W.) 7kgs / 8kgs Mounting 100mm x100mm VESA mounting holes for Panel PC type

OS Support

Windows® XP Professional, Windows

Embedded POSReady 2009, Windows XP

Embedded, Windows XP Professional for

Embedded, WinCE, Vista, Windows 7, Linux

Windows® XP Professional, Windows

Embedded POSReady 2009, Windows XP

Embedded, Windows XP Professional for

Embedded, POSready 7, Vista, Windows 7,

Linux

* This speciﬁcation is subject to change without prior notice.

AF AD

AB YW

V T

K H

F D

282726

242322

181716 141312

11 987

6 432

AEJ

AAAEAJ

30292827262524232221201918171615141312111098765432

DDR3_A1

CN24

MINI_PCIE

RJ45_2

PWR1

RJ11_1

CN18

CN14

RJ45_1

JP5

JP4

JP18

CN23

USB2

USB1

CN29

JP19

CN21

CN16

CN17

SKT1

JP8

JP1

FAN_CPU1

CN4

CN3

CN1

CN28

CN25

SW1

JP21

JP3

JP6

CN7

JP12

CN22

JP10

JP9

CN20

CN13

CN19

CN15

JP14

JP20

CN31

CN27

CN8

CN5

CN26

CN11

SATA2

SATA1

PRN1

JP1

JP3

JP4

JP5

JP6

JP8

JP9

JP10

JP12

JP14

JP18

JP19

JP20

JP21

C48 V2.1 TOP LAYER

JumperSetting6.

C48 Motherboard

6-1.

6-1-1.

Motherboard Layout

DDR3_A2

C48 V2.1 BOTTOM LAYER

Connector Purpose

CN1 Power Button Connector CN3 Printer Port Reset CN4 Printer Port CN5/8 HDD Power CN11 COM5 For Touch CN13 Card Reader Connector CN14 Line out CN15 HDD LED CN16 Speaker & MIC CN18 MIC IN CN20/JP10 System Indicator CN22 USB Port CN23 PS2 KEYBOARD CN26 LVDS CN27 Inverter Connector CN29 System Fan DDR3_A1 DDR3 SO-DIMM1 DDR3_A2 DDR3 SO-DIMM2 PRN1 Parallel Port PWR1 +19V DC Jack RJ11_1 Cash Drawer Connector RJ45_1 COM1, COM2, COM3, COM4 RJ45_2 LAN SATA1 SATA Connector SATA2 SATA Connector USB1 USB1, USB2 USB2 USB3, USB4 SW1 Power Button JP1 CMOS Operation Mode JP3/6 VGA Port JP4/5 COM2 RS232/485/422 Setting JP8 LCD ID Setting JP12 System Reset JP14 Inverter Selection JP18 COM3/4 Power Setting JP19 Cash Drawer Power Setting

6-1-2.

Connectors&Functions

COM2RS232/485/422Setting

Function JP5 JP4

▲RS232

1 3 5 7 9 2 6 8 104

5 7 9 11

1 3

6 8 10 124

RS485

8 10

5 7 9

11 128 10

5 7 9

1 3

RS422

8 10

5 7 9

1 3

5 7 9 11

1 3

6 8 124

CashDrawerPowerSetting

Function JP19

+19V

1 3

▲+12V

1 3

System Reset

Function JP12

▲System Normal

System Reset

▲ = Manufacturer Default Setting

6-1-3.

Jumper&BIOS/UtilitySetting

SystemIndicator

Function JP10

▲Disable

5 7

1 3

Enable

5 7

1 3

InverterSelection

Function JP14

▲ CCFL

LED

CMOS Operation Mode

CMOS Reset

To clear the CMOS,

1. Remove the power cable from the system.

2. Open the system, and set the ‘CMOS Operation jumper’ from ‘CMOS Normal’ to ‘CMOS Reset’. (refer to the jumper shown below)

3. Connect the power cable to the system, and power on the system: in ATX mode: press the power button and it will fail power on in AT mode: turn on system power

4. Remove the power cable from the system.

5. Return the "CMOS Operation mode" jumper setting from "CMOS Reset" to "CMOS normal".

6. Connect the power cable and power on the system.

Function JP1

▲CMOS Normal

CMOS Reset

▲ = Manufacturer Default Setting

1 3

COM3&COM4PowerSetting

For C48, COM3/COM4 power adjustment must be made by BIOS/Utility and Jumper. Since COM3/COM4 default is “None“ meaning no power, power must be on through BIOS prior to physical jumper change.

Jumper Setup

Function JP18

COM3

▲+5V

5 7

1 3

+12V

5 7

1 3

COM4

+5V

5 7

1 3

▲+12V

5 7

1 3

▲ = Manufacturer Default Setting

BIOS/Utility setup

Press <DEL> key to enter BIOS 1. SETUP UTILITY when system boot up. Find tab "Advanced".2. Select "Power Conguration 3. COM/VGA Ports" and press <Enter> to go to sub screen.

4. To switch on the power, select "Power". Please save the change before exiting BIOS so as to go for physical jumper adjustment.

LCDIDSetting

Several congurations are applied to different sizes of panel. Please refer to the

followings to complete relevant settings.

•JumperSetup

Resolution

LVDS

Output Interface JP8

Bits Channel

800 x 600 24 Single

1st: LCD Panel

2nd: VGA port

5 7

1 3

1024 x 768 24 Single

5 7

1 3

1366 x 768 24 Single

5 7

1 3

800 x 600 18 Single

5 7

1 3

*800 x 600 18 Single

5 7

1 3

1024 x 768 18 Single

5 7

1 3

*remark: specialized for Sharp 12.1” LQ121S1LG41/LQ121S1LG42 panel.

Jumper open

Jumper short

•2ndVGAPowerSetting

VGA port power must be on through BIOS/Utility for default is “No Power“.

BIOS/Utility setup

Press <DEL> key to enter BIOS 1. SETUP UTILITY when system boot up. Find tab "Advanced".2. Select "Power Conguration 3. COM/VGA Ports" and press <Enter> to go to sub screen.

•IntelGraphicsDriverSetting

No. Output Interface Connector & Jumper

Intel Graphics Driver

Device Name

1st LCD Panel CN26 Notebook

2nd VGA Port JP3/6 Monitor

4. To switch on the power, select "+12V". Please save the change before exiting BIOS to avoid data lost.

Right click Desktop. Select the 1. "Graphics Properties" and enter the menu.

2. Make sure the Display Device matches the image.

Version: B68 v1.1

6-2-1.

Motherboard Layout

B68 Motherboard

6-2.

FAN_CPU1

CN1

CN23

CN22

SW1 PRN1

USB1 USB2

RJ45-1

CN11 CN13

RJ11-1

RJ45-2

CN19

CN20

CN15CN14

CN17

PWR1

CPU1

DRR2_A1

U12

CN21/JP2

JP10

JP12

BZ1

MINI_PCIE1

CN16

CN18

CN10

CN6

CN4

CN8

CN12

CN9CN7

CN3

CN5

SATA2SATA1

JP1

CN2

SKT1

U37

BAT1

JP3

JP4

JP9

JP7

JP5

JP6

JP11

JP8

JP3

JP4

JP7

JP9

JP5 JP6

JP11

JP1

JP12

Connector Purpose

BAT1 CMOS Battery Base ( Use CR2023) CN1 Power On Button CN3 Power LED CN4 SATA1 HDD Power Connector CN5 SATA2 HDD Power Connector CN6 LCD Interface Connector CN8 For External Touch Connector CN9 Inverter Connector CN10 Card Reader Connector CN12 LAN LED CN14 Speaker & MIC Connector CN15 CD-IN Connector CN18 USB5 CN20 PS2 KEYBOARD DDR2_A1 DDR2 SO-DIMM1 DDR2_A2 DDR2 SO-DIMM2 SATA1 SATA Connector SATA2 SATA Connector SW1 Power On Button JP1 CRT Connector JP3 Power Option for COM3/COM4 JP4 2nd Display Power JP5/JP6 COM2 RS232/422/485 Setting JP7 LCD ID Setting JP11 Cash Drawer Power Setting JP12 Hardware Reset

6-2-2.

Connectors&Functions

COM2RS232/485/422Setting

Function JP6 JP5

▲RS232

5 7 9

1 3

6 8 104

5 7 9 11

1 3

6 8 10 124

RS485

8 10

5 7 9

11 128 10

5 7 9

1 3

RS422

8 10

5 7 9

1 3

64 10

5 7 9 11

1 3

6 8 124

COM3&COM4PowerSetting

Function JP3

COM3 Pin10

▲RI

5 7 9 11

1 3

6 8 10 124

+5V

128 10

5 7 9

1 3

+12V

128 10

5 7 9

1 3

COM4 Pin10

▲RI

128 10

5 7 9

1 3

+5V

128 10

5 7 9

1 3

+12V

128 10

5 7 9

1 3

▲ = Manufacturer Default Setting

6-2-3.

JumperSetting

CashDrawerPowerSetting

Function JP11

+12V

1 3

▲+19V

(for 24V Cash Drawer)

1 3

VGAPowerSetting

Function JP4

▲No Power

+12V

System Reset

Function JP12

▲System Normal

System Reset

▲ = Manufacturer Default Setting

LCDIDSetting

Panel# Resolution

LVDS

Output

Interface

JP7

Bits Channel

1 1366 x 768 24 Single

LVDS Panel

5 7

1 3

2 1440 x 900 24 Dual

LVDS Panel

5 7

1 3

4 1920 x 1080 24 Dual

LVDS Panel

5 7

1 3

5 1024 x 768 24 Single

LVDS Panel

5 7

1 3

6 1280 x 1024 24 Dual

LVDS Panel

5 7

1 3

7 800 x 600 24 Single

LVDS Panel

5 7

1 3

9 1024 x 768 18 Single

LVDS Panel

5 7

1 3

11 800 x 600 18 Single

LVDS Panel

5 7

1 3

12 800 x 600 18 Single

LVDS Panel

5 7

1 3

CRT

5 7

1 3

Remark: Panel ID#12 is specialized for Sharp 12.1" LQ121S1LG41/LQ121S1LG42 panel.

Jumper open

Jumper short

Version: C68 v1.0

6-3-1.

Motherboard Layout

C68 Motherboard

6-3.

MINI_PCIE1

CN18

PWR1

PWR3

RJ45_1

CN19

RJ11_1

CN15

CN21

JP14

CN16

JP13

CN8

JP10

CN7

JP7

RJ45_2

CN9

CN10

CN11

JP12

JP11

USB1

USB2

CN14

CN12

CN17

PRN1

JP15

CN20

SW1

DDR3_A1

SKT1

JP9

JP8

CN6

JP5

JP4

JP3

CN4

FAN_CPU1

SATA2

SATA1

CN1

CN2

CN3

CN5

JP2

JP1

FAN_SYS1

CN13

Connector Purpose

CN1/2 SATA power Connector CN3 LVDS Connector CN4 LVDS INVERTER Connector CN5 SATA HDD LED Connector CN6 DVI Connector CN7 BATTERY Connector CN9 FT STATUS INTERFACE CN10/11 USB Port(Internal) CN12 Card Reader Connector(COM6) CN13 RF Connector CN14 COM5 for Touch CN15 SPEAKER & MIC Connector (Internal) CN16 PS2 Keyboard Connector CN17 Power On LED Connector CN18/CN19 LAN1/2 LED(Internal) CN20 Power button(Internal) CN21 Line out JACK DDR3_A1 DDR3 LONG-DIMM FAN_CPU1 CPU FAN Connector FAN_SYS1 System FAN Connector PRN1 PARALLEL PORT PWR3 +19V DC JACK RJ11_1 CASH DRAWER Connector RJ45_1 LAN1/LAN2 Connector RJ45_2 COM1/ COM2/ COM3/ COM4 SATA1/2 SATA Connector USB1 USB4 USB2 USB2 USB3 USB4 JP2 LCD ID Setting JP3 INVERTER Select JP4/5 VGA JP7 CMOS Operation Mode JP8 ME Update JP9 H/W Reset JP10/13 COM2 RS232/485/422 Setting JP11 USB Touch Power Setting(CN11) JP12 COM3/COM4 Power Setting JP14 CASH DRAWER Power Setting SW1 Power button

6-3-2.

Connectors&Functions

PowerModeSetting

Function JP1

▲ATX Power

AT Power

COM2RS232/485/422Setting

Function JP10 JP13

▲RS232

1 3 5 7 9 2 6 8 104

5 7 9 11

1 3

6 8 10 124

RS485

8 10

5 7 9

11 128 10

5 7 9

1 3

RS422

8 10

5 7 9

1 3

64 10

5 7 9 11

1 3

6 8 124

CashDrawerPowerSetting

Function JP14

▲+19V

1 3

+12V

1 3

▲ = Manufacturer Default Setting

6-3-3.

JumperSetting

InverterSelection

Function JP3

▲ CCFL

LED

ME Update

Function JP8

▲Lock

Un-lock

Hardware Reset

Function JP9

▲System Normal

System Reset

USBTouchPowerSettingforCN11Connector

Function JP11

▲+5VSB

+5V

▲ = Manufacturer Default Setting

1 3

CMOS Operation Mode

CMOS Reset

To clear the CMOS,

1. Remove the power cable from the system.

2. Open the system, and set the ‘CMOS Operation jumper’ from ‘CMOS Normal’ to ‘CMOS Reset’. (refer to the jumper shown below)

3. Connect the power cable to the system, and power on the system: in ATX mode: press the power button and it will fail power on in AT mode: turn on system power

4. Remove the power cable from the system.

5. Return the "CMOS Operation mode" jumper setting from "CMOS Reset" to "CMOS normal".

6. Connect the power cable and power on the system.

Function JP7

▲CMOS Normal

CMOS Reset

COM3&COM4PowerSetting

COM3 and COM4 can be set to provide power to your serial device. The voltage can be set to +5V or 12V by setting jumper JP18 on the motherboard. When enabled, the power is available on pin 10 of the RJ45 serial connector. If you use the serial RJ45 to DB9 adapter cable, the power is on pin 9 of the DB9 connector.

By default, the power option is disabled in the BIOS.

▲ = Manufacturer Default Setting

BIOS/Utility setup

Press <DEL> key to enter BIOS 1. SETUP UTILITY when system boot up. Find tab "Advanced".2. Select "Power Conguration 3. COM/VGA Ports" and press <Enter> to go to sub screen.

Function JP12

COM3

▲+5V

5 7

1 3

+12V

5 7

1 3

COM4

+5V

5 7

1 3

▲+12V

5 7

1 3

4. To switch on the power, select "Power". Please save the change before exiting BIOS so as to go for physical jumper adjustment.

COM3/COM4 Jumper setup

LCDIDSetting

Panel# Resolution

LVDS

Output

Interface

JP7

Bits Channel

1 800 x 600 18 Single

LVDS Panel

3 800 x 600 24 Single

LVDS Panel

5 1024 x 768 18 Single

LVDS Panel

7 1024 x 768 24 Single

LVDS Panel

9 1280 x 1024 24 Dual

LVDS Panel

11 1366 x 768 24 Single

LVDS Panel

13 1440 x 900 24 Dual

LVDS Panel

15 1920 x 1020 24 Dual

LVDS Panel

CRT

Remark: Panel ID#12 is specialized for Sharp 12.1" LQ121S1LG41/LQ121S1LG42 panel.

Jumper open

Jumper short

5 7

1 3

5 7

3 4

1 3

5 6

345

1 3

9107

3 4

7 8

1 3

9107

5 6

9107

5 6

3 4

9107

5 6

Appendix: Drivers Installation

The shipping package includes a Driver CD in which you can nd every individual

driver and utility that enables you to install the drivers on the system. Please insert the Driver CD into the drive and double click on the “index.htm” to select the models. You can refer to the drivers installation guide for each driver in the “Driver/Manual List”.

POSMicro POS-X EVO-TP4 Pro User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
