POSIFLEX XP-2000 User Guide

XP-2000 Series

Fan Free Touch Terminal

User’s Manual

Rev.: A0

FCC Notes:

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions manual, may cause interference to radio communications.
It has been tested and found to comply with limits for a Class A digital device pursuant to subpart
J of Part 15 of FCC Rules, which are designed to provide reasonable protection against
interference when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference in which case the user at his own expense will be
required to take whatever measures to correct the interference.

Warranty Limits:

Warranty terminates automatically when any person other than the authorized technicians opens
the machine. The user should consult his/her dealer for the problem happened. Warranty voids if
the user does not follow the instructions in application of this merchandise. The manufacturer is by
no means responsible for any damage or hazard caused by improper application.

About This Manual:

Posiflex has made every effort for the accuracy of the content in this manual. However, Posiflex
Technology, Inc. will assume no liability for any technical inaccuracies or editorial or other errors
or omissions contained herein, nor for direct, indirect, incidental, consequential or otherwise
damages, including without limitation loss of data or profits, resulting from the furnishing,
performance, or use of this material.

This information is provided “as is” and Posiflex Technology, Inc. expressly disclaims any
warranties, expressed, implied or statutory, including without limitation implied warranties of
merchantability or fitness for particular purpose, good title and against infringement.
The information in this manual contains only essential hardware concerns for general user and is
subject to change without notice. Posiflex Technology, Inc. reserves the right to alter product
designs, layouts or drivers without notification. The system integrator shall provide applicative
notices and arrangement for special options utilizing this product. The user may find the most up
to date information of the hardware from: http://www.posiflex.com
or http://www.posiflexusa.com

All data should be backed-up prior to the installation of any drive unit or storage peripheral.
Posiflex will not be responsible for any loss of data resulting from the use, disuse or misuse of this
or any other Posiflex product.

All rights are strictly reserved. No part of this documentation may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying,
or otherwise, without prior express written consent from Posiflex Technology, Inc. the publisher of
this documentation.

or http://www.posiflex.com.tw

© Copyright Posiflex Technology, Inc. 2009

All brand and product names and trademarks are the property of their respective holders.

P/N:

ALERT TO OUR HONORABLE CUSTOMERS:

Please always read thoroughly all the instructions and documents delivered
with the product before you do anything about it. Don’t take any premature
action before you have a full understanding of the consequences.

DAILY MAINTENANCE GUIDE

For regular cleaning of the XP systems, please use only soft haired brush or
dry soft cloth. You may use moist soft cloth to remove stains when necessary.
Apply only suitable amount of mild neutral cleaner for obstinate stains. Please
note that never use Acryl dissolving solvent or Polycarbonate dissolving
solvent. You may apply ammonia-based glass cleaner only on the screen
surface.

ABOUT THIS PRODUCT

Posiflex XP-2000 series presents a whole new generation POS terminal, which
is a combination of touch screen, printer, MSR, and the most reliable FanFree
structure. This integrated solution of XP-2000 series not only less cable
connection, but also carrying a brilliant performance to user in order to face
the busiest situation.

XP-2000 Series applies Intel Celeron M technology; fast speed Ethernet as
well as plenty of connects ports of USB, Serial, VGA and CR ports. It also
integrated with thermal printer, touch screen and MSR, as well as designed
with gorgeous appearance and small footprint for counter space saving. The
small and fully integrated system is suitable for many kinds of segments, such
as general retailer, hospitality and restaurant. In addition, XP-2000 series
terminal assist small and medium business to serve customer effectively,
speedy and precise.

 All-in-one integrated system including touch screen, thermal printer and

MSR which is the best choice of ECR Replacement.

 Integrated thermal printer with paper jams easy to fix design.
 One touch power ON/OFF design provides convenience control for

terminal and printer.

 The most reliable Fanfree structure for harsh environment.
 Support Win XP Pro, POSReady, WEPOS, Windows CE and Linux

environment

 Vertical type LCD panel with easy tilt angle adjustment
 Supports SSD (Solid-State Drive) Data Storage Device or HDD

Page 1

INTRODUCTION

2

467

8910

111415

16

17

9

12

13

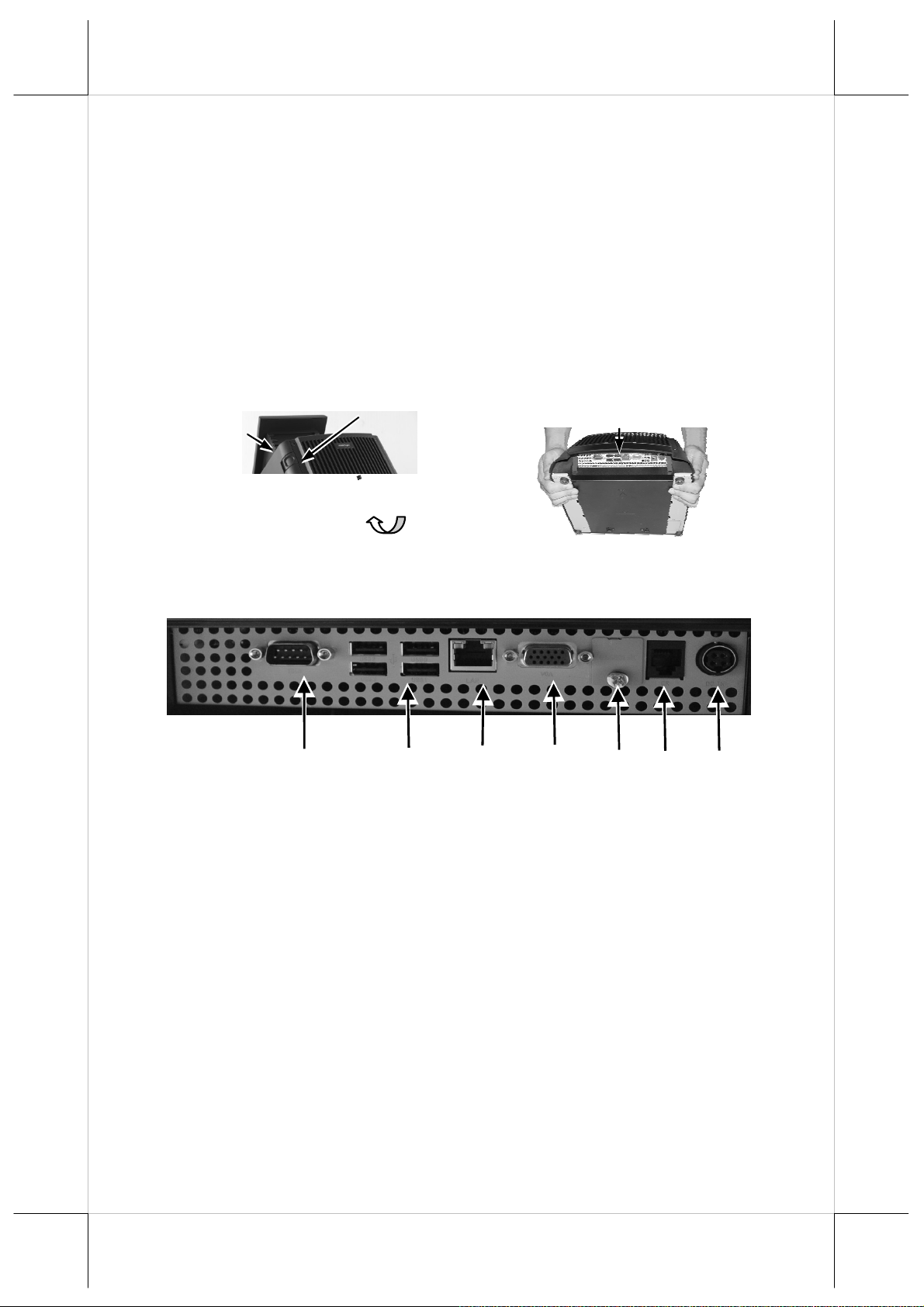

PRODUCT PICTURES

Front Views

Side Views

Rear & Bottom Views

Page 2

PARTS IDENTIFICATION

1. LCD display with or without touch panel

2. Printed paper exit

3. LED indicator for power and printer status

4. Paper feed button

5. Power switch

6. Magnetic Stripe Reader(Option)

7. Base Stand

8. LCD adjustable Holder

9. Lock/Release button for tilt angle adjust

10. Printer cover

11. Printer cover release button

12. Three screw holes in back cover for customer pole display
integration

13. Cable Exit

14. Bottom plate compression lock

15. Bottom plate tenon

16. Rubber foot with bottom plate fixing screw

17. Bottom plate

PRODUCT FEATURES

Standard Features:

Item

CPU Intel Celeron M 600Mhz
VGA port D-SUB 15Pin
LCD DISPLAY(TFT
LCD Panel )

DRAM Memory
Serial port 1, DB9 X 1 on the I/O Plate
CR PORT X1
Standard USB PORT 4 port on the I/O plate
AUDIO PORT buzzer only
ETHERNET port 10/100 MB
TOUCH function N/A USB Interface
TOUCH SENSOR N/A 5 Wire Touch Pad

Models

XP-2007 XP-2008H XP-2010H XP-2012H

Digital 7"
(800x600
resolution)

Digital 8"
(800x600
resolution)

DDR-II(SO-DIMM X 1)

Digital 10. 4"
( 800x600
resolution)

Digital 12.1"
( 1024x768
resolution)

Page 3

Storage device DOM (Optional SSD HDD or SATA HDD)
Power switch On the front bezel
Power saving Suspension mode

Power supply power adaptor, 60W
Indicator LED and
Control panel switch

Power ON/ standby, Printer Error /Paper Out (RED),

paper feed and power ON switch.

Fan-Free system Yes

OS support Linux, Window CE. WEPOS. POSReady
Printer build in 2" thermal printer (60mm/sec, MAX)

Printer auto cutter Option (Upgradeable

Yes

auto cutter)

Paper Width 58mm

LCD panel tilt angle 14~55 (degree)

Table: Summary of features

Option Items:

Note: The underlined items in the following list means that option must be

set prior to shipment from the factory. The rest items can be set by the
dealers.

a) DDR2 SODIMM memory expansion up to 2GB max.
b) HDD kit or SSD kit (SSD can’t coexist with HDD in main unit).
c) Integrated upgrade kit:

 2 or 3 track MSR.
 PD-330, 2x20 LCD customer display.
 PD-2606, 2x20 VFD customer display.
 PD-7630, LCD pole display.

d) Integrated 2

nd

LCD monitor 8”(LM-2208)

e) Preload OS Windows XP Pro WEPOS, POS Ready, Windows CE or

Linux

f) Wireless LAN adaptor in USB interface

Page 4

INSTALLATION GUIDES

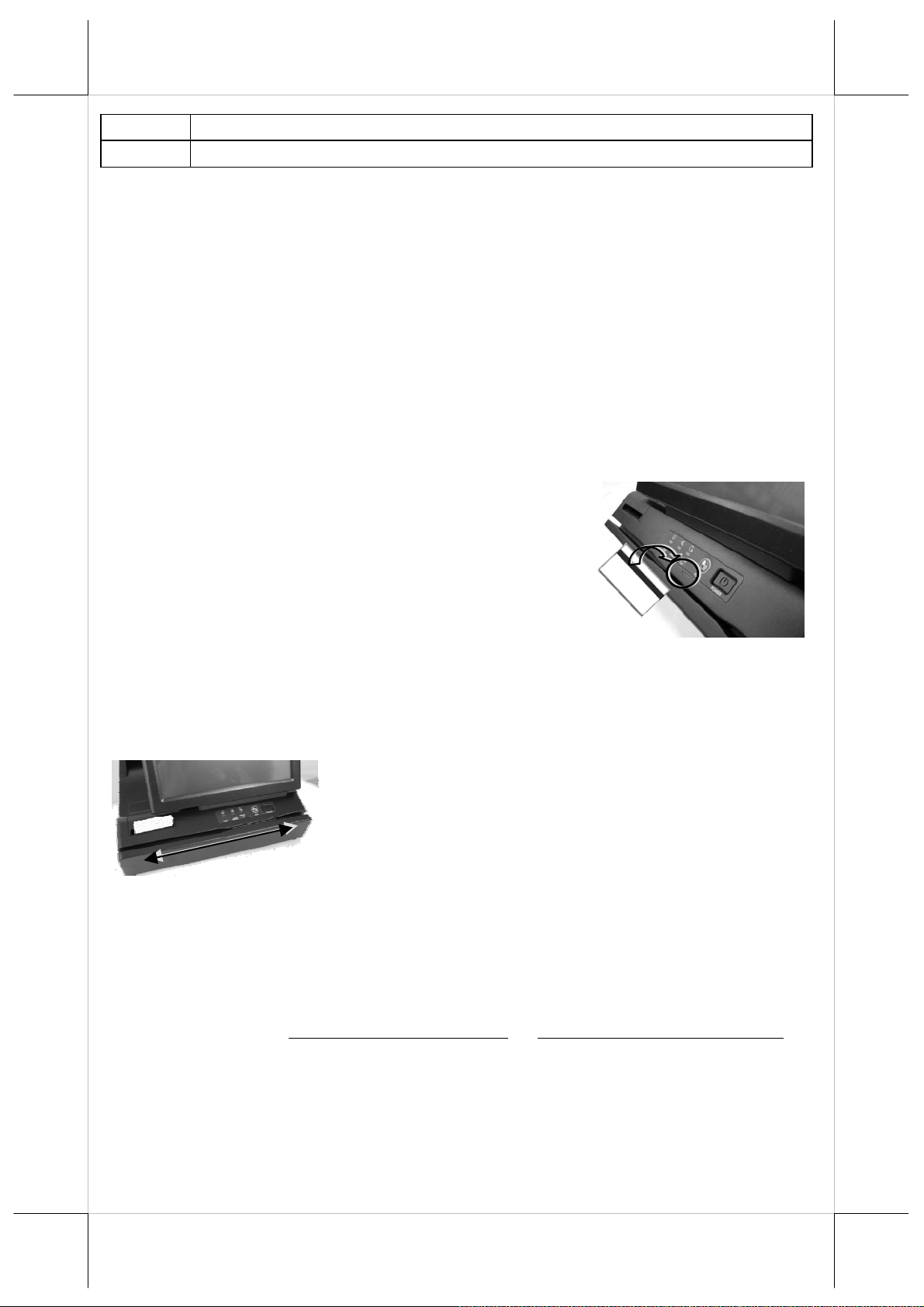

Hardware Power Switch and printer paper feed

The power switch located in the front bezel of main unit.
It is a pushbutton switch and controls the power on/off of
the system. Also, next to the power switch is the paper
feed button for integrated printer.

This power switch turns the system on when pushed only. This switch turns
the system off when pushed again during power on status. However, if the
system hangs due to any reason such as software resource conflict, a simple
push on the switch in 10 sec may turn off the power.

For build-in auto-cutter model, it will cut paper once when the top cover
closed. For manual cutter model, please press FEED button and rip the
unnecessary paper manually after paper loading. For more information about
printer operation, please refer to following chapter “Printer operation”.

Note: There must always be at least 10 seconds waiting before switching
on again once the system is powered off successfully.

Indicators of power and status

There is an indicator LED module serving for
several purposes at front bezel. The relationship
between the indicator status and other conditions is
summarized in following table:

Indicator Terminal Status LED colour

Standby Orange

Power Status

Power On Blue

Printer Error

Printer Paper Out

Error Red

Paper Out Red

CAUTION: Before any installation or cable connection to the set, please

always make sure that the system is turned off and the
external power source to the set is removed to prevent electric

Page 5
