Posiflex TX-2000 User Manual
TX-2000
Fanfree POS Box
User Manual

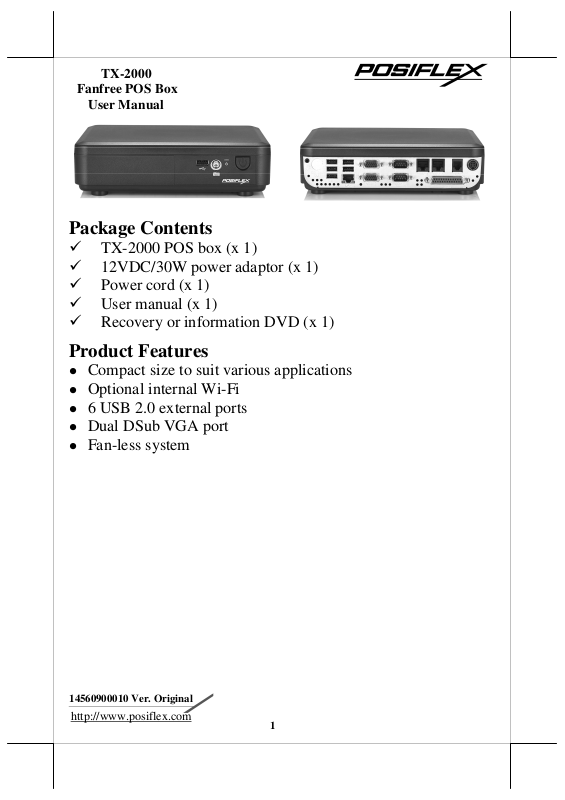

Package Contents
TX-2000 POS box (x 1)
12VDC/30W power adaptor (x 1)
Power cord (x 1)
User manual (x 1)
Recovery or information DVD (x 1)
Product Features
Compact size to suit various applications
Optional internal Wi-Fi
6 USB 2.0 external ports
Dual DSub VGA port
Fan-less system
14560900010 Ver. Original
http://www.posiflex.com
1
Rubber Pad
Rubber Pad
DRAM
Cover
Views of the TX-2000
Front View
Power Status LED Indicator
Power Button
Rear View
Bottom View
USB 2.0 Port
PS2 Port for Keyboard
I/O Interface
2
2
3 4 5 6 7
1
8
9
View of Rear I/O Interface of TX-2000
1 Line out 2 USB 2.0 port
3 RJ45 LAN port 4 Dual DSub VGA port
COM (DB9) port
5
(COM 1 / COM 2)
7 LPT Port 8
9 RJ11 cash drawer (CR) port
COM (RJ50) port
6
(COM 3 / COM 4)
12VDC-IN power jack
Connecting Power Adapter and I/O Cables
To have the terminal ready for operation, please connect the
connector of power adapter and all of the connectors of required
I/O cables respectively to the 12VDC-IN power jack and
appropriate I/O ports. Please make sure that each of the cables is
fully connected to the correct port. Damages due to incorrect
connection or orientation are not covered by product warranty!
Some cable connectors like the connectors of COM (RJ50) or
LAN or cash drawer (CR) cables have to be gently inserted until
a click sound is given. It is recommended that the I/O ports, such
as COM (DB9) port and VGA port, should be fastened with
connector thumb screws after the I/O cable connectors are
completely connected. And please make sure that each connector
has to be connected to the right peripheral device in the right way.
