POSIFLEX TM-30 Series, LM-30 Series, LM-3010E, LM-3014E, LM-3015E User Manual

...
Package Contents
LM-3010E
LM-3014E
LM-3015E
LM-3210E
LM-3215E
Display
LCD Panel
9.7" TFT LCD
14" TFT LCD
15.0" TFT LCD
9.7" TFT LCD
15.0" TFT LCD
Resolution (H) x (V)
1024 x 768
1366 x 768
1024 x 768
Touch
Touch type
N/A
Interface
N/A
General Specification
Display Interface
VGA
Power Supply
12V from Posiflex terminal VGA port
TM-3010E
TM-3014E
TM-3015E
TM-3215E
Display
LCD Panel
9.7" TFT LCD
14" TFT LCD
15.0" TFT LCD
Resolution (H) x (V)
1024 x 768
1366 x 768
1024 x 768
Touch
Touch type
Bezel-free P-CAP touch panel
Resistive touch panel
Interface
USB
General Specification
Display Interface
VGA
Power Supply
12V from Posiflex terminal VGA port
19610903010 Ver. Original
http://www.posiflex.com

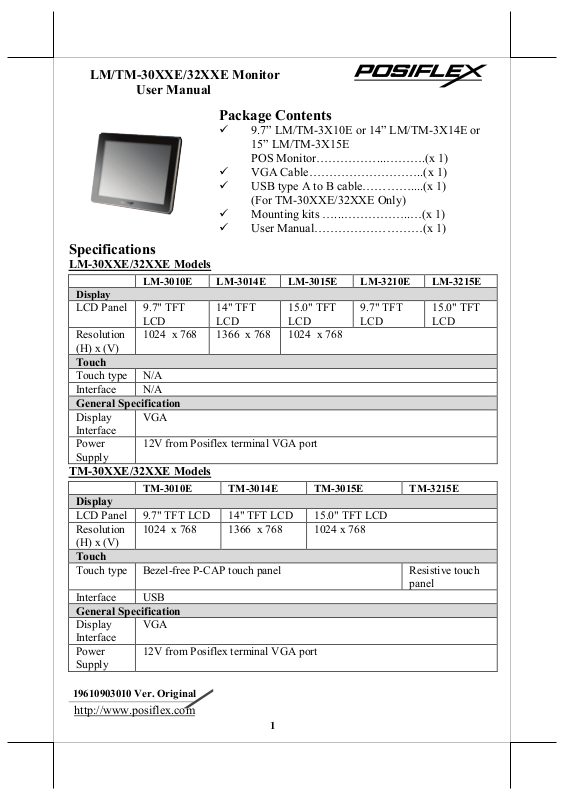

LM/TM-30XXE/32XXE Monitor
User Manual
Specifications
LM-30XXE/32XXE Models
9.7” LM/TM-3X10E or 14” LM/TM-3X14E or
15” LM/TM-3X15E POS Monitor……………...……….(x 1)
USB type A to B cable…………....(x 1)
(For TM-30XXE/32XXE Only)
Mounting kits …...……………..…(x 1) User Manual………………………(x 1)
TM-30XXE/32XXE Models
1
9.7” LM-3210E LCD Panel VGA Port
DC-IN Power Jack
Power LED Indicator
9.7” LM-3010E LCD Panel
VGA Port
USB (Type B) Port
DC-IN Power Jack
Power LED Indicator
Mounting Bracket Mounting Bracket
for KS series Terminals
Mounting Bracket
OSD button
EXT button
button
button/ Power button
OSD Control Button
Views of LM/TM-3X10E Front View
Rear View
for HS series Terminals
9.7” TM-3010E P-Cap Touch Panel
for XT series Terminals
I/O Ports of LM-3X10E
I/O Ports of TM-3010E
2
Side Mount Cover
14” LM-3014E LCD Panel
VGA Port
USB (Type B) Port
DC-IN Power Jack
USB Port
Power LED Indicator
Mounting Bracket
Mounting Bracket
OSD button
EXT button
button
button/ Power button
OSD Control Button
Views of the LM/TM-3014E Front View
Rear View
14” TM-3014E P-Cap Touch Panel
for KS series Terminals
for XT series Terminals
I/O Ports
3
15” LM-3215E LCD Panel 15” TM-3215E Resistive Touch Panel
15” LM-3015E LCD Panel
VGA Port
USB (Type B) Port
DC-IN Power Jack
LED Indicator
LED Indicator
USB Port
Side Mount Cover
Mounting Bracket
Mounting Bracket for
OSD button
EXT button
button
button/ Power button
OSD Control Button
Views of the LM/TM-3015E/3215E Front View
15” TM-3015E P-Cap Touch Panel
Rear View
I/O Ports
for KS series Terminals
XT series Terminals
4
1. Lay your POS terminal on a flat surface with
2. Press down the release tab of top I/O interface
3. Pull the top I/O cover in the direction shown
4. Position the monitor on a flat surface. While
5. Support your monitor to align its mounting
Installing LM/TM-30XXE/32XXE
According to the model type of your monitor and terminal, the relevant instructions are provided below to help you mount your monitors onto your Posiflex terminals. During installation, please ensure the terminal is properly turned off and disconnected from the power sources to avoid potential hazards.
Mounting to HS series Terminals
its rear facing towards you.
cover.
by the arrow in the figure to remove the cover.
keeping it steady with one hands, pull the rear mounting bracket upright as shown in the figure.
bracket with four screw holes at the back of your terminal. Secure the mounting bracket with four #6-32-10L fixing screws.
5
6. Connect the monitor to the terminal using VGA cable.
6.1 Connect one end of the VGA cable to
6.2 Take the other end of VGA cable to
7. For TM series users, connect the monitor to the terminal using USB
7.1 Grab Type-B connector of USB
7.2 Properly attach Type-A connector of
8. Break the release tab of the top I/O interface
9. After tucking the extra cable into the I/O
10. After ensuring the monitor is well installed, tilt
Cable Exit
the VGA port at the bottom I/O plate of your monitor.
insert it into the VGA port of your terminal.
type A to B cable to enable touch function for your monitor. If the monitor you are using isn’t TM series, please skip this step.
cable, and then insert it into Type-B USB port of your monitor
USB cable to your POS terminal.
cover for HS series terminal.
compartment and thread the cable through the cable exit, push the back cover into place.
your monitor up or down to your desired angle. While setting up the tilting adjustment, be careful not to press on the LCD panel.
6
