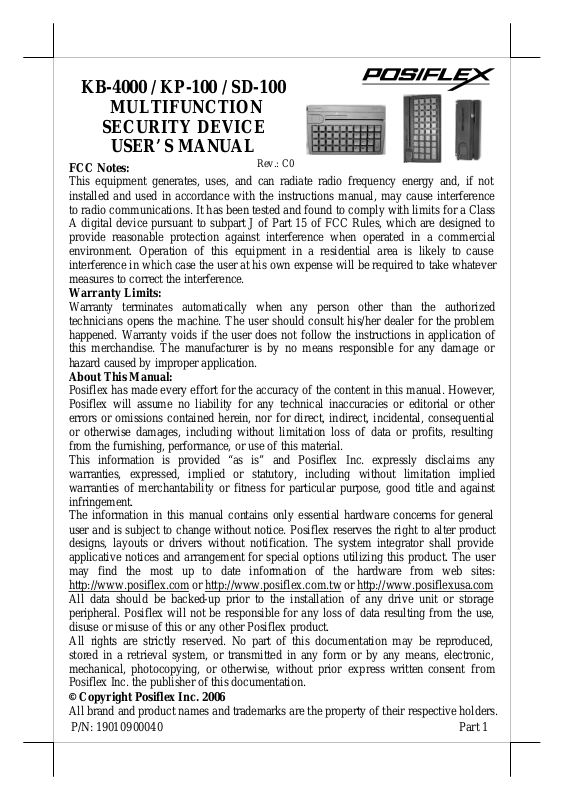

POSIFLEX KP-100, SD-100 User's Manual

KB-4000 / KP

-

100 / SD

-

100

MULTIFUNCTION

SECURITY DEVICE

FCC Notes:

This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions manual, may cause interference
to radio communications. It has been tested and found to comply with limits for a Class
A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against interference when operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause
interference in which case the user at his own expense will be required to take whatever
measures to correct the interference.

Warranty Limits:

Warranty terminates automatically when any person other than the authorized
technicians opens the machine. The user should consult his/her dealer for the problem
happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.

About This Manual:

Posiflex has made every effort for the accuracy of the content in this manual. However,
Posiflex will assume no liability for any technical inaccuracies or editorial or other
errors or omissions contained herein, nor for direct, indirect, incidental, consequential
or otherwise damages, including without limitation loss of data or profits, resulting
from the furnishing, performance, or use of this material.
This information is provided “as is” and Posiflex Inc. expressly disclaims any
warranties, expressed, implied or statutory, including without limitation implied
warranties of merchantability or fitness for particular purpose, good title and against
infringement.
The information in this manual contains only essential hardware concerns for general
user and is subject to change without notice. Posiflex reserves the right to alter product
designs, layouts or drivers without notification. The system integrator shall provide
applicative notices and arrangement for special options utilizing this product. The user
may find the most up to date information of the hardware from web sites:
http://www.posiflex.com or http://www.posiflex.com.tw or http://www.posiflexusa.com
All data should be backed-up prior to the installation of any drive unit or storage
peripheral. Posiflex will not be responsible for any loss of data resulting from the use,
disuse or misuse of this or any other Posiflex product.
All rights are strictly reserved. No part of this documentation may be reproduced,
stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, or otherwise, without prior express written consent from
Posiflex Inc. the publisher of this documentation.
© Copyright Posiflex Inc. 2006
All brand and product names and trademarks are the property of their respective holders.

USER’S MANUAL

P/N: 19010900040

Rev.: C0

Part 1

GENERAL DESCRIPTION

OVERVIEW

Table below indicates construction of this series of security devices.

KB-4000

Structure Stand alone

Programmable keypad
Magnetic stripe reader

Smart card reader Optional

iButton reader N. A. Optional

Horizontal

layout

KP-100

/ KP-110

Upgrade kit for Jiva (TP/LT or

TM-4115) series

Vertical layout

Optional

OPTIONS

Items underlined below means that this item must be installed by Posiflex
authorized distributor only and never by average user. Items in Italic printing
below means that this item must be installed prior to delivery from the factory.

• Magnetic Stripe Reader (PS2 KB interface for KB-4000, KP-100 and

KP-110)

∗ ISO 7811 reader head for tracks 1 and 2
∗ ISO 7811 reader head for tracks 2 and 3
∗ ISO 7811 reader head for tracks 1, 2 and 3 + AAMVA + CA DMV
∗ JIS/II reader head

• Magnetic Stripe Reader (USB interface for SD-100 and SD-110)
∗ ISO 7811 reader head for tracks 1 and 2
∗ ISO 7811 reader head for tracks 1, 2 and 3 + AAMVA + CA DMV
∗ JIS/II reader head

• Smart card reader

• Case color charcoal for KP-100, KP-110, SD-100 and SD-110. Color

selection between ivory and charcoal for KB-4000.

• iButton receptor

• iButton key

Note: if all devices utilizing a specific interface are omitted from the product,
that interface will not be installed in the product. Ex. For KP-100, KP-110 or
KB-4000 with only keypad, there will be no USB interface installed; For SD­100 without the iButton reader, there will be no 9 pin D connector.

SD-100

/SD-110

N. A.

Part 2

Screw Holes

Cable Entry

INSTALLATION

UNPACKING CONTENTS

Items packed in for KB-4000

The multifunction security device itself Yes Yes Yes
Screws to hold the upgrade kit to Jiva
TP/LT series or TM-4115 series
24 pcs transparent key caps for single key Yes Yes No
1 pc of key clip Yes Yes No
Legend sheets Yes Yes No
This manual Yes Yes Yes
Utility drivers stored in form of CD ROM Yes No No
iButton key (only when iButton receptor
installed)

Note: Utility drivers for KP-100 / KP-110 and SD-100 / SD-110 can be found

in the Posiflex Product Information CD ROM packed together with the
Jiva series Posiflex touch terminal system or TM-4115 monitor that these
upgrade kits are to be applied to. Or please visit our web site for latest
updates: http: www.posiflex.com or http: www.posiflex.com.tw

No Yes Yes

No No 2 pcs

KP-100

/KP-110

MECHANICAL FIXATION

For KB-4000 the stand alone security device, there is little concern
about the mechanical fixation as long as the security device (keyboard) is
placed in a horizontal flat surface not subject to extreme environmental
conditions. For SD-100 ordered with the Jiva TP / LT series or SD-110
ordered with TM-4115 series, it is installed on the system or monitor on
delivery. For separately ordered SD-100 / SD-110 or KP-100 / KP-110, it is
delivered separately from the system or monitor and needs to be fixed onto the
system or monitor per following instructions before use.

You may find two screw holes on
back of the right side of the main unit of
Jiva TP/LT series or TM-4115 series as

in the right picture.
Just align the
upgrade unit on the
right edge of the
main unit after removing these 2 screws then replace
them with the attached 2 screws with washers and fasten
them as indicated in the picture at left.

Upgrade Unit

Back of Jiva
TP/LT Series

SD-100

/SD-110
