Part 1
BRIEF INTRODUCTION
THE PRODUCT
The PD-2601 is a pole mount customer display option designed for
Posiflex HT series POS terminals and also the PB series discrete systems. The
PD-2602 is a pole mount customer display option designed for Posiflex KS or
TP series touch POS terminals. It is delivered in separate carton for HT / PB /
KS / TP series and shall be installed per instruction in this manual.
FEATURES
• Bright VFD (vacuum fluorescent display) with green or blue filter
• Rear mount Pole Display for Posiflex HT series hybrid terminals or
PB series discrete systems or KS series fanless touch POS terminals
or TP series touch POS terminals
• Two-line display with 20 characters per line
• Adequately large characters for easy viewing (9.03 mm by 5.25
mm)
• Long life and trouble free operation
• 15°, 30° and 45° adjustable viewing angles
• Total height 486 (or 386) mm (PD-2601 on HT and PB series)
• Total height 330 mm (PD-2602 on base of KS and TP series)
• Display frame can rotate horizontally 270° freely
• Various command emulation modes selectable by DIP switch
• Support 12 Code Pages of 128 characters each
• Support 12 international character sets of 12 characters each
• Simple installation
• Selectable between Serial (RS232) interface model and USB
interface model
• Supports UPOS 1.8 and is WEPOS ready
• Case color choices: ivory, charcoal for HT and TP terminals or
ivory, black for KS terminals
Part 2
Pix. 1
A
C
Pix. 2
INSTALLATION GUIDES
HOST SYSTEM PREPARAION
For serial interface (RS232) PD-2601or PD-2602 to be used in HT or
PB or KS or TP series, you have to adjust during power off the internal jumper
of the host system to supply 5 V DC to the COM port selected for the serial
interface pole display. This adjustment has to be done by a qualified electronic
technician following guide from relevant technical manual. The default
communication protocol should be set to 9600 bps, none parity, 8 data bits, 1
stop bit with hardware handshaking on CTS. The power for the USB interface
type pole display is supported through the USB connection.
INSTALLING PD-2601
Opening the back cover on system
For ease of PD-2601 installation operation, the HT
main unit or PB system has to be opened with sufficient
precautions. First push in the circled knobs on both sides as
in Pix. 1 to remove the back cover. Take out the arrow
pointed pole cover from it.
Opening the top cover of system
Prepare a piece of clean soft clothe of appropriate
size in front of the HT system to prevent damage. Turn the
display panel to straight up position. For both HT and PB
system, push in the rectangular marked spring button in Pix. 1 on both sides of
chassis and raise the rear edge of the top cover. The COM port DC support can
be set at this moment.
Find joining points on system
A
Refer to Pix. 2 that is a picture of the HT or PB chassis near the right
bottom corner (as you are facing the HT or PB system from its back) with
several portions enlarged around, please find 2 rectangular PD installation
holes A on the bottom chassis; 2 circular locating holes B on I/O plate; and 2
circular screw holes C on metal sidewall.
B B
C
Part 3
A’ B’ B’ C’ C’
Pix. 3
Pix. 4

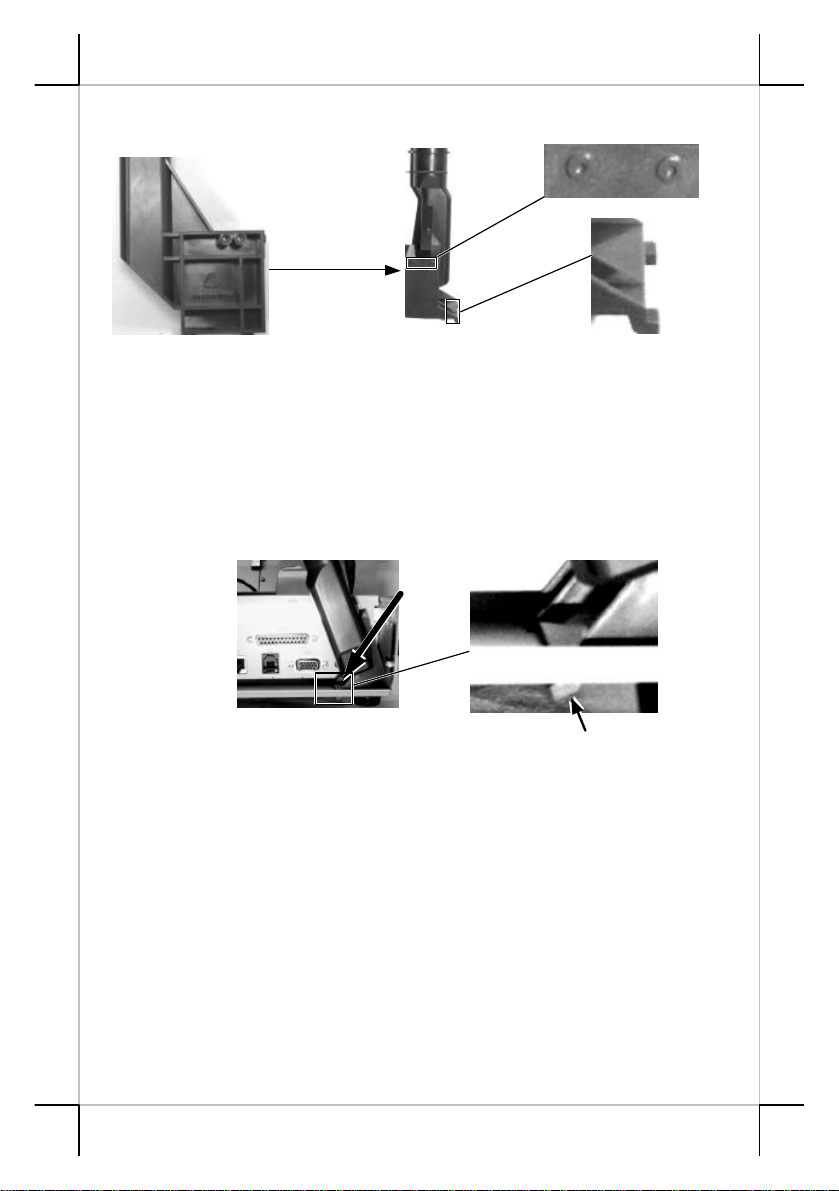

Find joining points on pole display base
A’
Take PD-2601 out of its box and refer to Pix. 3 that is a picture of the
pole display base unit (lowest part of the PD) with 2 enlarged portions to the
right and a slightly enlarged side view picture to the left to find 2 bottom
locking lugs A’; 2 short cylindrical locating bosses B’ to fit into I/O plate; and
2 plastic screw bosses C’ on side. Please note that the PD cable comes out of
the bottom end of the base tube yet in the illustration pictures the cable is
eliminated for sake of minimum visual confusion.
Insert bottom locking lugs
A
A’
Turn the pole display base unit opposite to have the bottom locking
lugs A’ in Pix. 3 facing left and now insert the 2 bottom locking lugs A’ on
base unit into the 2 rectangular installation holes A on bottom of HT or PB
chassis from the right corner with the pole display slightly inclined to the left
as in Pix. 4. Please note that both bottom locking lugs A’ should be completely
inserted and come out of the bottom plate of HT or PB system as emphasized
by an arrow in the enlarged portion.

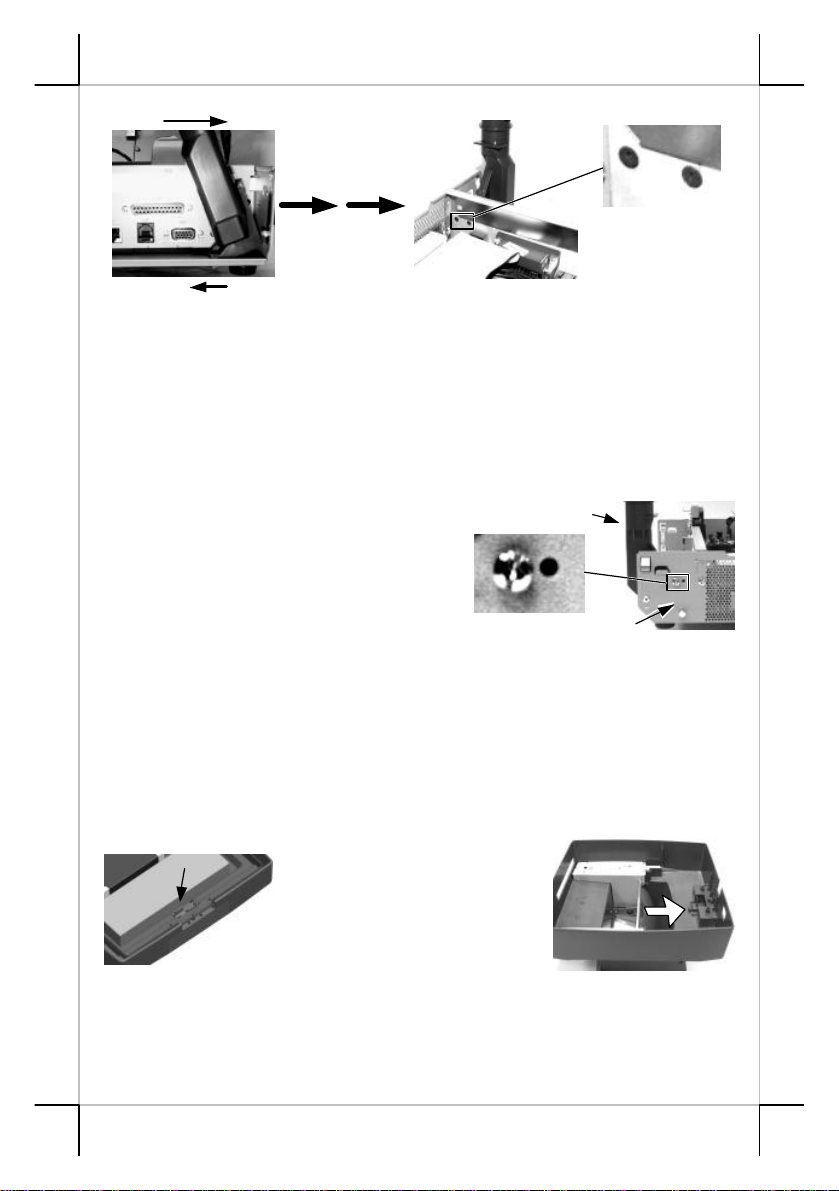

Fit in locating bosses
Please always keep a gentle pressure at the bottom end of pole base
(bottom locking lugs A’) to the left (away from the sidewall of system chassis)
when moving the upper part of pole toward sidewall and matching the 2 short
cylindrical locating bosses B’ into 2 round holes B in the I/O plate. Please refer
to Pix. 5 to see the 2 locating bosses B’ from inside of HT or PB system.
Part 4
A’
Pix. 5
B+B’
B+B’
Pix. 6
C+C
’
Pix. 8
Pix. 7
Please note the importance of keeping the leftward pressure on
bottom end of pole display during the process of turning the pole upright and
inserting the locating bosses B’ or even when you want to release the locating
bosses B’ away from I/O plate B and turn the upper end of pole display to left
to remove the locking lugs A’ from bottom chassis A. Ignorance of this point
may damage or even break off the locking lugs A’ due to improper torque
applied.
Apply sidewall screw
The screw bosses of PD-2601 base
should now align with the screw holes on
PD-2601 Base
sidewall of system chassis. Only 1 screw
needs to be applied. Use the self-tapping
screw that comes with PD-2601 to fix from
external side of sidewall as demonstrated in
Pix. 6.
Outside of sidewall
Connect interface cable
Carefully close back the top cover of HT or PB system and connect
the interface cable of PD-2601 to appropriate port in system connector area.
Then close the back cover of the system.
INSTALLING PD-2602
Opening the rear connect cover on system
To install PD-2602 to the base of KS or TP systems, the rear connect
cover on its base has to be removed as described in
the user’s manual. The plastic
hook plate to remove the rear
connect cover in slim base is
indicated in Pix. 7 and theat
for universal base is indicated
in Pix. 8.
Part 5
Pix. 9
Pix. 10
Pix. 11
Fixing pole display base to system
To fix the PD-2602 to base of KS or TP systems, please connect the
interface cable of PD-2602 through the cable exit
in base as in Pix. 9 a
peeping view of pole
display joint base bottom
to the appropriate port in
main unit passing the
inside of system base as indicated in the top-view
picture Pix. 10. Match the pole base (joint mechanism)
to the system rear connect area Fit 2 screws through
washers at arrowed points to hold the joint tight.
COMMAND EMULATION MODE SETUP
DIP switch
window

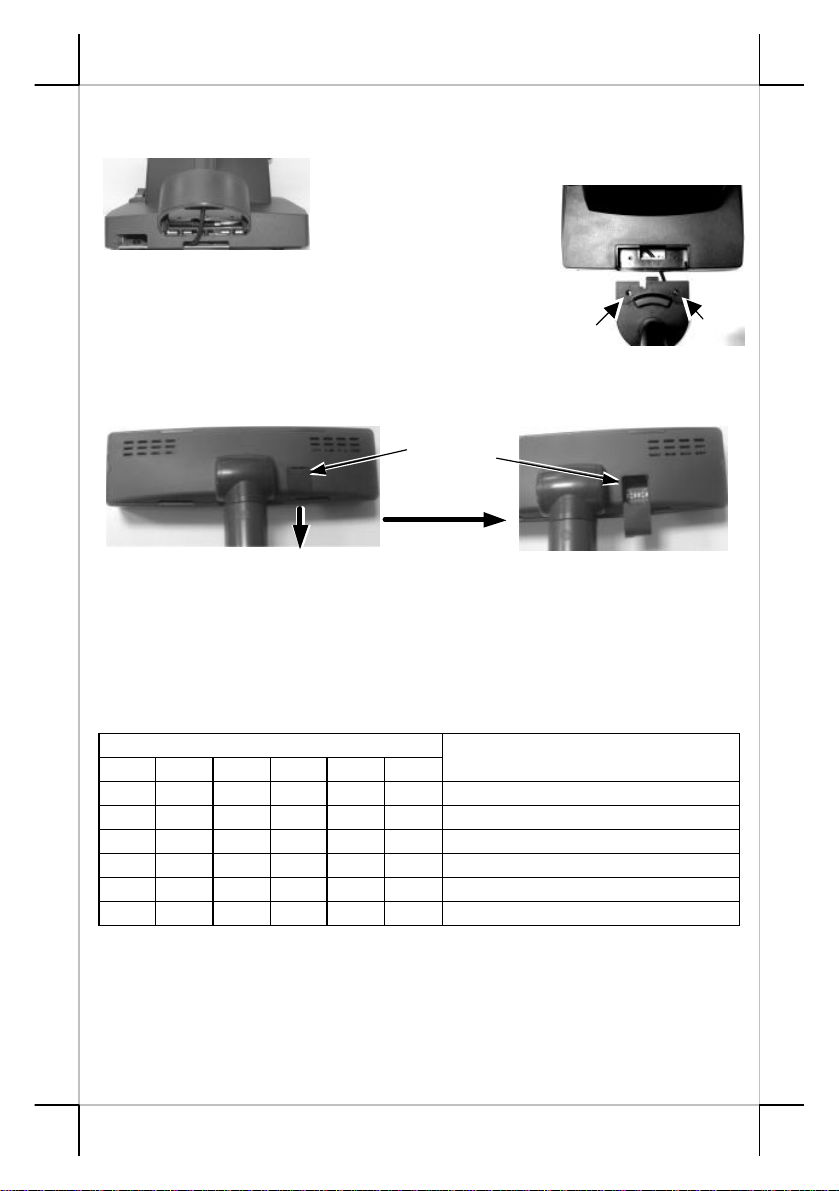

Now please check the back of PD-2601 / 2602 display head as in the
left picture in Pix. 11. There is a small piece of plastic cover for the “DIP
switch window”. Slide the cover downward but don’t pull it off otherwise you
may have to practice for inserting it back. You can find 6 positions of DIP
switches in this window. Adjust for the appropriate command mode used by
the application program according to below table. Switch position counts from
left to right and “ON” means pushed up as indicated in the right part in Pix. 11.
Switch Position
1 2 3 4 5 6
ON OFF OFF ON OFF OFF
ON OFF ON ON OFF OFF
ON OFF ON OFF OFF OFF
ON OFF OFF ON ON OFF
ON OFF ON OFF ON OFF
ON OFF ON ON ON OFF
Command Mode
ADM
Aedex
Epson
Futaba
Noritake
UTC
The factory default command mode is set to Noritake mode for
normal delivery. Please change it to Epson mode if OPOS or UPOS driver is
used for the application program.
Part 6
POWER ON SIGN
With interface cable connection well installed (and with COM port
power set for serial models), turn on the HT or KS or TP Posiflex POS system,
a firmware identifier as power on sign will appear on the pole display screen
for a while to indicate that pole display is self-tested O.K. and ready to work.
Part 7
Blinking
USING THE CUSTOMER DISPLAY
INTERRFACE SELECTION
This series of customer display is designed to serve in HT / KS / TP
series Posiflex POS systems with RS232 interface models and with USB
interface models. It is advisable to well study the I/O port availability of the
host system before determining which interface model to be used.
When a RS232 (serial) interface model of PD-2601 / 2602 is used, the
jumper on main board of HT / KS / TP system must be modified to supply
power to the COM port designated for PD-2601 / 2602. Whenever the RS232
interface PD-2601 / 2602 is to be removed from the HT / KS / TP system,
consequently the jumper has to be changed back to neutralize the COM port,
otherwise damage could occur!
The USB interface model of PD-2601 / 2602 should be connected
directly to an USB port and must not be through any USB HUB to get power
through the USB port itself and there is no need for other special arrangement.
COMMAND MODE SELECTION GUIDE
The below table provides some comparison for selection on command
mode to be used in the application program if it is not yet determined.
Mode ADM Aedex Epson Futaba Noritake UTC
Cursor N.A. N.A. Invisible
Default mode N.A. N.A. Over/W V. scroll Over/W PT
User defined font N.A. N.A. 2 chars N.A. 2 chars
Brightness control NO NO YES YES YES YES (DP)
Leading code change NO YES NO YES YES YES (PT)
Code page select NO NO YES YES YES YES
Auto scroll message NO NO NO YES YES YES (PT)
Timer clock NO NO YES NO NO YES (PT)
Block
Blinking
Block
Blinking
Block
(DP)
2 chars
(PT)
DRIVER INSTALLATION
For application software to use RS232 interfaced PD-2601 / 2602,
there is no direct need for any driver. The OPOS (OLE POS) driver or the
JPOS (Java POS) driver would be required for OPOS or JPOS programs and
the PD-2601 would have to be set to “Epson” command mode. These drivers
are available from our web: http://www.posiflex.com
For USB interfaced PD-2601 / 2602, please visit our web site and find
the driver from the class “PD23_26U”. The guidance for each function call in
the library “USBPD.dll” is covered in the “ReadMe” file in that class.
Part 8
SPECIFICATION
OPTICAL
Number of digits 20 digits/row, 2 rows
Dot matrix 5 X 7 dots
Digit height 9.03 mm
Digit width 5.25 mm
Display color Green (505 nm)
MECHANICAL
Total Height (PD-2601) 486 mm
Total Height (PD-2602) 330 mm
Display Head Height 28.2 mm
Display Head Width 196.6 mm
Display Head Depth 28.2 mm
Case color Black or Charcoal or Ivory
ELECTRICAL
Power from interface port of HT / KS / TP system:
+ 5VDC 1A
ENVIRONMENTAL
Operating temperature 0° to + 40°C
Storage temperature -20° to + 70°C
Operating humidity 20% to 85%, non-condensing
Storage humidity 5% to 90%, non-condensing
WARNING: If the user opens the pole display housing to make any
modification, all the product warranty will be voided.
NOTE: Please refer to Posiflex Product Information CD or visit our
web http://www/posiflex.com.tw for further information when
needed.
Weight 1.3 kgs (2.86 lbs) (excl. power
adaptor)
Vibration resistance 4 G max. (half amplitude 0.15mm)
Impact resistance 40 G, 11 ms wave, 5 times for each of the
X, Y and Z directions
Part 9
可能會造成射頻干
T31454
APPENDIX
FONT PAGES
Hex code Deci-code Code page number Language
00 0 PC437 English-European
01 1 Katakana (English-Japanese)
02 2 PC850 Multi-lingual
03 3 PC860 Portuguese
04 4 PC863 Canadian-French
05 5 PC865 Nordic
06 6 Russian
07 7 Albic
13 19 PC858 Euro
FD 253 PC437G Greek
FE 254 Win1257 Windows Baltic
FF 255 Win1253 Windows Greek
The list of commands available in each mode can be found in the
appendix.
警告使用者
這是甲類的資訊產品，在居住的環
境中使用時，
擾，在這種情況下，使用者會被要
求採取某些適當的對策。
Part 10
Loading...
