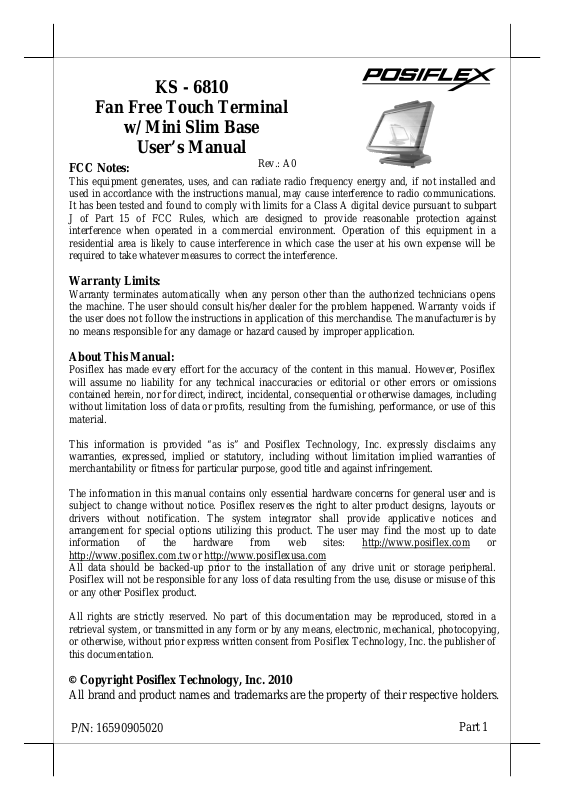

KS - 6810

Fan Free Touch Terminal

w/ Mini Slim Base

User’s Manual

FCC Notes:

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions manual, may cause interference to radio communications.
It has been tested and found to comply with limits for a Class A digital device pursuant to subpart
J of Part 15 of FCC Rules, which are designed to provide reasonable protection against
interference when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference in which case the user at his own expense will be
required to take whatever measures to correct the interference.

Warranty Limits:

Warranty terminates automatically when any person other than the authorized technicians open s
the machine. The user should consult his/her dealer for the problem happened. Warranty voids if
the user does not follow the instructions in application of this merchandise. The manufacturer is by
no means responsible for any damage or hazard caused by improper application.

About This Manual:

Posiflex has made every effort for the accuracy of the content in this manual. However, Posiflex
will assume no liability for any technical inaccuracies or editorial or other errors or omissions
contained herein, nor for direct, indirect, incidental, consequential or otherwise damages, including
without limitation loss of data or profits, resulting from the furnishing, performance, or use of this
material.

Rev.: A0

This information is provided “as is” and Posiflex Technology, Inc. expressly disclaims any
warranties, expressed, implied or statutory, including without limitation implied warranties of
merchantability or fitness for particular purpose, good title and against infringement.

The information in this manual contains only essential hardware concerns for general user and is
subject to change without notice. Posiflex reserves the right to alter product designs, layouts or
drivers without notification. The system integrator shall provide applicative notices and
arrangement for special options utilizing this product. The user may find the most up to date
information of the hardware from web sites: http://www.posiflex.com
http://www.posiflex.com.tw
All data should be backed-up prior to the installation of any drive unit or storage peripheral.
Posiflex will not be responsible for any loss of data resulting from the use, disuse or misuse of this
or any other Posiflex product.

All rights are strictly reserved. No part of this documentation may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying,
or otherwise, without prior express written consent from Posiflex Technology, Inc. the publisher of
this documentation.

or http://www.posiflexusa.com

or

© Copyright Posiflex Technology, Inc. 2010

All brand and product names and trademarks are the property of their respective holders.

P/N: 16590905020

Part 1

ALERT TO OUR HONORABLE CUSTOMERS:

z Please always read thoroughly all the instructions and documents

delivered with the product before you do anything about it. Don’t
take any premature action before you have a full understanding of
the consequences.

z This product contains inside a Lithium battery. Please always

follow local environmental protection laws / regulations for disposal
of used batteries and always replace only with battery of same type.

DAILY MAINTENANCE GUIDE

For regular cleaning of the KS systems, please use only soft haired brush or
dry soft cloth. You may use moist soft cloth to remove stains when necessary.
Apply only proper amount of mild neutral detergent for obstinate stains. Please
note that never use Acryl dissolving solvent or Polycarbonate dissolving
solvent. You may apply ammonia-based glass cleaner only on the screen
surface.

Part 2

INTRODUCTION

PRODUCT PICTURES

Front View Rear View

1
2
3

4
5

9

6

10

Side Views

11

1
6
7
8

12

13

6

10

14
15

Bottom View Inside Base

16
17
18
19
20

PARTS IDENTIFICATION

1. Optional MSR kit

2. Main unit

3. Touch panel / LCD panel

4. Power indicator

5. Undetachable mini Slim base stand

6. Hinge

Part 3

7. Base back cover

8. Cable exit

9. Power switch in recessed side

10. Base back cover hook

11. Sundries trough for pencils, paper clips etc.

12. CF memory card reader slot in recessed side

13. USB port in recessed side

14. Rubber feet with fixing screw

15. HDD fixing screw

16. Oval cable passage on base trunk

17. Cable tie holder for HDD cables

18. Cable tie holder for external cables

19. HDD

20. HDD conversion card

PRODUCT FEATURES

Standard Features:

a) CPU: Intel Atom CPU, N270 1.6G, FSB 533MHz, Cache 512K
b) Fan free structure for harsh environment
c) Data storage device: SATA HDD in base stand, C F card or SSD HDD

in main unit.

d) An advanced mini slim base design that supports storage room for 2 .5”

HDD.

e) Support WEPOS, POSReady, Windows XP P r o and Linux OS
f) High quality 10.4” TFT active matrix LCD panel
g) Vertical type LCD panel with easy tilt angle adjustment from 20° to

90°

h) Durable resistive type touch panel that endures 35 million touches min.

at same spot

i) Various I/O ports supported, including:

1. 3 serial ports with 2 in form of DB9 connectors and 1 in form of 10
pin RJ45 type modular connectors. COM1/2 are with capability for
+5V DC support through software setting.

2. 5 standard USB 2.0 ports

3. One SATA data port plus one HDD power connector for SATA
HDD in base stand.

4. One LAN port Ethernet 10/100/1000 Base T with LAN status
indicators on jack (green for link, orange for data transmission)

5. One 2 pin type DC 12 V power input connector

6. One CR Port supports control 2 Cash Drawers

j) Touch control functions: left/right button, double click, drag & draw

Part 4
