CYKLON USER MANUAL
Table of Contents
Table of Contents ...............................................................................................1
Conventions Used in this Guide ........................................................................3
Introduction .........................................................................................................5
Approvals/Certications .....................................................................................6
Denitions/Abbrevations ....................................................................................7
Cyklon 5000 .......................................................................................................8
General safety regulations .................................................................................9
Preparations ................................................................................................ 11
Regular maintenance service on your regulator ........................................ 12
Assembly ................................................................................................ 13
Mounting the regulator on a tank ............................................................... 14
During a Dive .......................................................................................... 15
After Diving ............................................................................................. 16
Product Markings .................................................................................... 18
Other ...................................................................................................... 18
Accessories ................................................................................................. 19
Support ........................................................................................................ 19
Technical data .............................................................................................. 20
1
2
CYKLON USER MANUAL
Conventions Used in this Guide
This User’s Guide is NOT intended for use as a training manual, or in any way as
a substitute for proper training through a legitimate training agency approved by
Poseidon AB. It is only intended to provide basic information concerning the
Poseidon Cyklon Regulators.
Throughout this Guide, special alert boxes have been inserted to draw attention to
critical information. Two levels of alerts are used in conjunction with color-coded
symbols, as follows:
DANGER:
Alert boxes that are RED contain extremely critical information
related to the safety and well-being of the diver. Failure to comply
with information contained in these boxes could lead to serious
injury or death.
WARNING:
Alert boxes that are YELLOW contain vital information that may
impact a diver’s safety and/or proper function of the Poseidon
Cyklon. Though generally not life-threatening, information contained
in these boxes should not be ignored.
IMPORTANT!
Alert boxes that are BLUE contain important information about the
proper care and maintenance of the Poseidon Cyklon, and that may
increase diver comfort or enhance enjoyment during dives.
3
CYKLON USER MANUAL
No part of this book may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying, recording or by any
information storage retrieval system, without permission in writing from an
authorized representative of Poseidon Diving Systems AB.
Text, photographs and gures copyright © 2019
by Poseidon Diving Systems AB
ALL RIGHTS RESERVED
Manual Version 4.0 - February 2019
DANGER:
Do not attempt to use the Poseidon Cyklon without proper
professional instruction from an authorized Poseidon Cyklon
dealer, or without a thorough and complete working knowledge of
the material contained in this manual. Careless can cause serious
injury or death. It is the user’s responsibility to attentively monitor
the Poseidon Cyklon and to have a working knowledge of the
procedures if a problem should arise.
4
CYKLON USER MANUAL
Introduction
Welcome, to the world of Poseidon divers. Here at POSEIDON we are very
pleased that you have chosen one of the world’s foremost diving regulators.
POSEIDON has been developing regulators for divers since 1958. Professional
divers, military divers, and techdivers choose POSEIDON equipment because of
the high demands they place on our products - the same demands you have!
Your new regulator has been designed to provide you with a life time of pleasure as a
POSEIDON diver. Our objective is that the equipment you use should not be noticeable,
instead it should be at one with the experience and give you total freedom to achieve
what every diver dreams about, the ultimate dive. To be at one with the water. To have
full control and at the same time feel the weightlessness when, meter by meter you
descent into a world of your own.
Nothing shall disturb your concentration. No wheels or knobs that need adjusting. No
regulators that resist your breathing when you have reached your target depth. No
suits that limit your freedom of movement or get damaged at the slightest encounter.
This vision has accompanied Poseidon since the legendary diving enthusiast and
engineer, Ingvar Elfström started the company in the late 50’s. The same ideas motivate
us now.
The name Poseidon represents constant development and improvement of diving
equipment where everything is positioned correctly and everything functions, even in
the most extreme situations.
Products developed in cold Scandinavian waters that are among the toughest you can
dive in. If they work here, they will work anywhere. Poseidon’s devoted followers are
convincing proof of that. Thank you for your condence.
Yours faithfully
5
CYKLON USER MANUAL
Approvals/Certications
Cyklon 5000 / Cyklon Metal is approved according to the EU Directive for
Personal Protective Equipment, 89/686/EEC and meets or exceeds the applicable
(see Technical Data for full detail).
Type approvement certicate 955599S01 is issued by:
Finnish Institute of Occupational Health
Department of Physics
Topeliuksenkatu, 41a A
00250 HELSINKI
Finland
Notied body 0403
Production quality assessment according to article
11 B of 89/686/EEC is assessed by:
SGS United Kingdom Ltd.,
Ellesmere Port,
CH65 3EN,
UK.
Notied body number 0120
Poseidon Diving Systems AB is certied according to ISO 9001
6
CYKLON USER MANUAL
Denitions/Abbrevations
Oxygen: any gas mixture containing greater than 21% oxygen up to 99.95%
oxygen.
Trimix: a gaseous mix containing Oxygen, Nitrogen and Helium.
EAN 40: any gas mixture containing greater than 21% oxygen up to 40%.
Enriched Air Nitrox.
IP: Interstage pressure; the pressure existing between the 1st stage and the 2nd
stage valve.
HP: High pressure; the pressure inside the SCUBA cylinders, normally ranging
between 300 bar (4351 psi) to 10 bar (145 psi)
Scfm: standard cubic feet per minute.
l/min STPD: standard temperature and pressure dry gas.
T.D.A: Thermo Dynamic Anti-Freeze.
7
CYKLON USER MANUAL

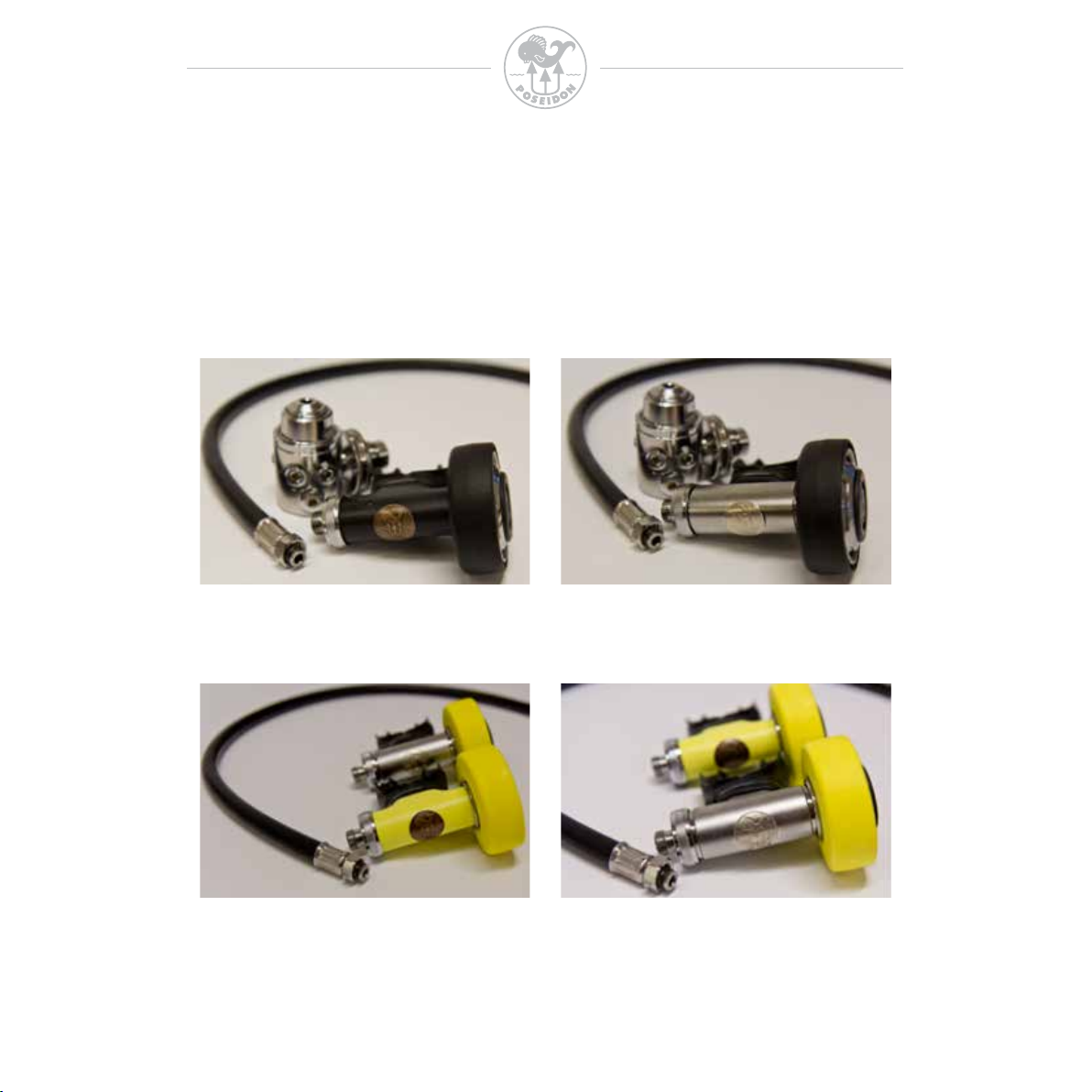

Cyklon 5000
POSEIDON CYKLON 5000 (ART. NR 3950 / 3950 10) /
CYKLON METAL (ART. NR 3950 M / 3950 M10)
The rst thing you should do, when you’ve bought a new Cyklon 5000 / Cyklon Metal
regulator, is to check and make sure that all parts are included in the package.
Save all reciepts, as you will need those for any future warranty claim.
Cyklon 5000 (art. nr 3950 / 3950 10)
• 1 pcs rst stage (art. nr 3720 / 3720 10)
• 1 pcs second stage (art. nr 3354)
• 1 pcs low pressure hose, 70 cm/27,5 inch (art. nr 2946)
• 1 pcs user guide
Cyklon Octopus (art. nr 2981)
• 1 pcs second stage (art. nr 3536)
• 1 pcs low pressure hose, 90 cm/35,4 inch (art. nr 2947)
Cyklon Metal (art. nr 3950 M/ 3950 M10)
• 1 pcs rst stage (art. nr 3720 10)
• 1 pcs second stage (art. nr 3354 M)
• 1 pcs low pressure hose, 70 cm/27,5 inch (art. nr 2946)
• 1 pcs user guide
Cyklon Octopus (art. nr 2981)
• 1 pcs second stage (art. nr 3536)
• 1 pcs low pressure hose, 90 cm/35,4 inch (art. nr 2947)
If any of the above mentioned items are missing from the box, immediatly contact
the shop where you bought the regulator.
8
CYKLON USER MANUAL
General Safety Instructions
Poseidon only warrants the regulator performance as specied herein, and
cannot be held responsible for improper preparations, incorrect gas mixing and
planning, or diving beyond individual medical, psychological and physical
limitations.
LIMITATIONS OF USAGE:
Cyklon 5000 / Cyklon Metal / Cyklon Octopus / Cyklon Metal
Octopus only for use with air or Trimix with a maximum oxygen content of 21%.
The oxygen partial pressure must normally not exceed 1.4 bar (20.3 psi), under
the foreseeable maximum diving depth. Only if established oxygen exposure
tables are strictly adhered to, and a responsible organisation is planning dives
with increased exposures, elevated levels can be accepted for a shorter period
of time. The oxygen partial pressure must never be lower than 0.2bar (2.9 psi),
under the foreseeable minimum diving depth.
The nitrogen partial pressure must not exceed 3.2 bar (46.4 psi), under the
foreseeable maximum diving depth.
Inhaling cold gas and exhaling warmed gas, represents energy losses of the
human body (thermal imbalance, hypothermia). This effect increases with
increasing depth and can result in a sudden unconsciousness. Diving to extreme
depths this effect must be considered, calculated and planned for and preventive
actions must be taken, such as proper thermal protection and pre-heated gas.
Cyklon 5000 / Cyklon Metal / Cyklon Octopus / Cyklon Metal
Octopus is for unlimited use in water temperatures from water freezing
temperature +1°C to +50°C (122°F). The freezing temperature depends on salt
content. When diving in waters with a temperature of +10C/+50F or lower, the
rst stage should be tter with the freeze protection cap (art. nr 1286).
Diving with gas blends other than air, or deeper than 18 m (59 ft), or in overhead
environment, requires special training regarding practices, equipment, physical
9
CYKLON USER MANUAL
and medical understanding. This manual assumes the reader has some basic
knowledge in those respects.
Diving is a strenuous physical activity. Its difculty may be increased by
conditions such as cold water, poor visibility, hard work, and increased depth.
Always try to exercise prudent judgement when determining whether or not to
dive. Never dive when tired or in poor health.
Diving deeper than 50m (164 ft) using gasses other than air is more demanding
on the equipment. Most equipment on the market is only approved for use within
EN 250 limits.

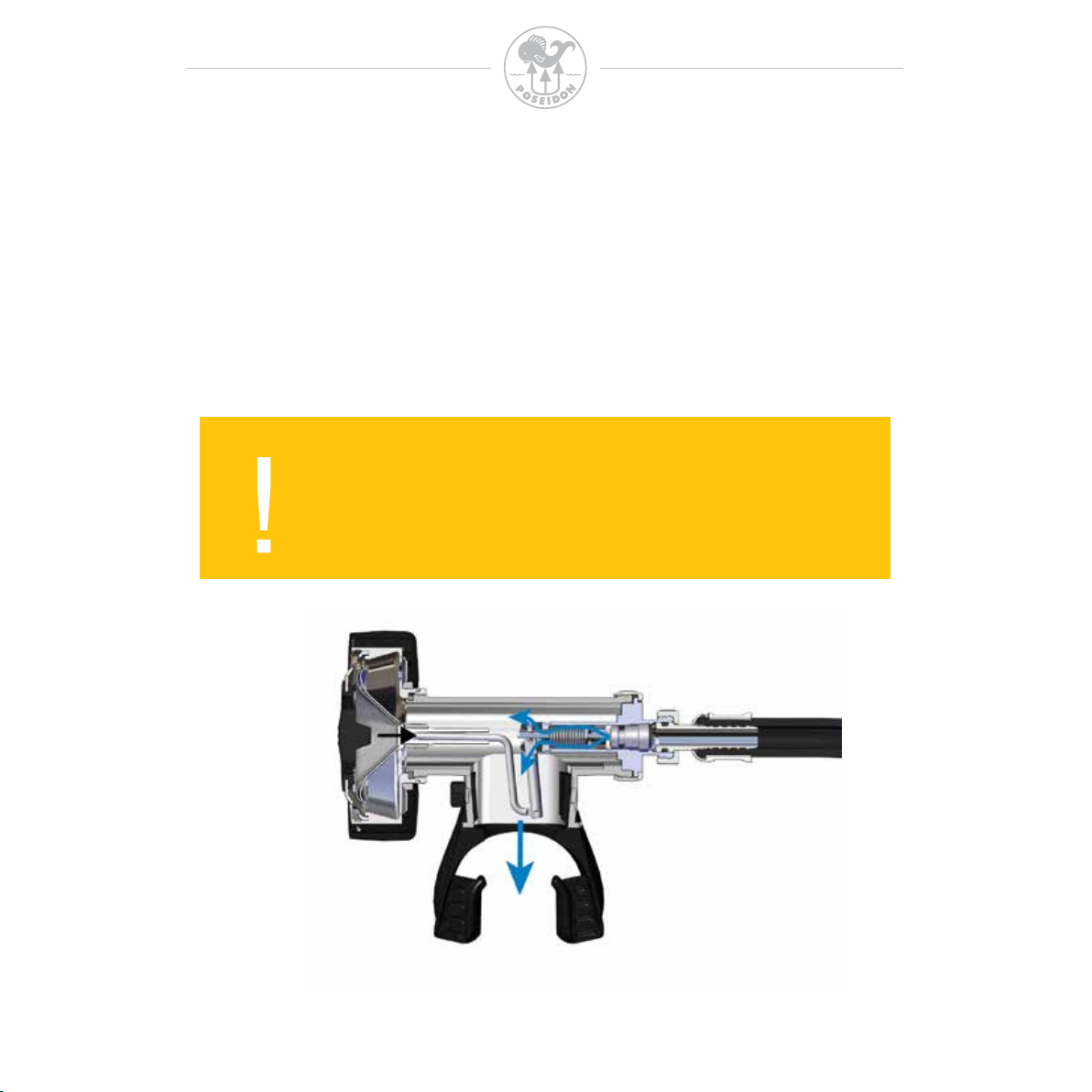

WARNING:
The Cyklon regulators are not designed to be breathed up on
by more then one person at a time. If you congure your Cyklon
regulator for more then one diver to breath from it at a time, the
cold water performance may not meet minimum safety standards.
10
CYKLON USER MANUAL
Preparations
Your regulator is life support equipment and it should be handled with care and
maintained and checked regularly.
Before each dive, we recommend that you check the following things on your
regulator:
• Perform a visual inspection of your equipment to make sure there are no
damage or defects. If damage or defects are detected, or you suspect that the
equipment is damaged or defective, do NOT use the equipment until it has been
checked, and if needed, repaired by a service technician certied to service/
repair Poseidon equipment.

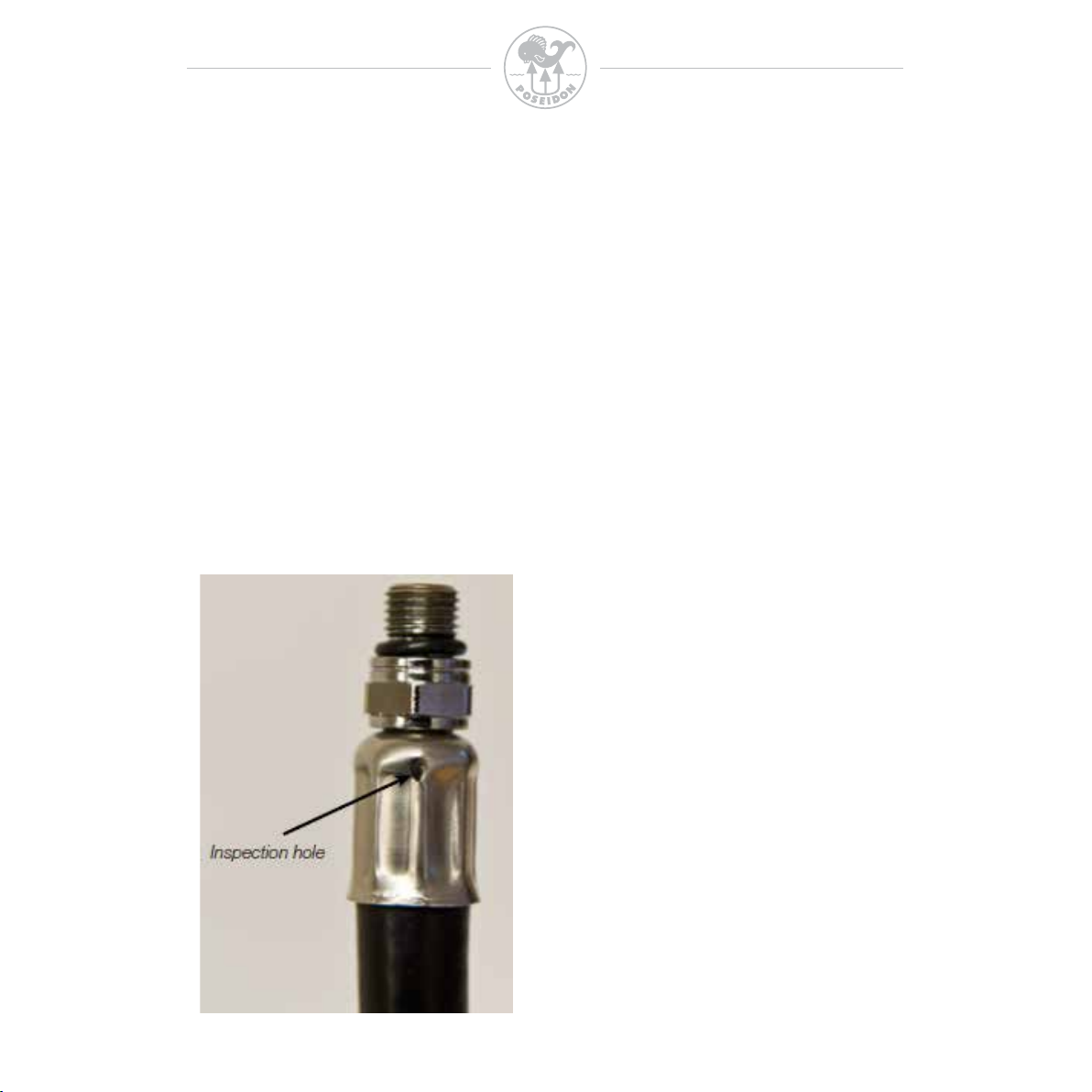

• The Poseidon Low pressure hoses are equipped with an inspection hole, allowing
you to verify that the hose and connection are properly assembled. Before each
use, verify that you can see the rubber hose in the inspection hole. If you do not
see any rubber in the inspection hole, the hose should be discarded IMMEDIATLY
and NOT used, as it will pose an immediate risk of a hose failure/ accident. Diving
with a hose where rubber isn’t visible in the inspection hole can be life threatening!
• We recommend that you regularly
replace your low pressure hoses to avoid
situations where your safety is jeopardized
by using worn out hoses. It is often
difcult/impossible to tell from the outside
of a hose, if it is about to fail. Rubber, the
material the hose is made out of, ages
over time and do not last forever.
Replacing your LP hoses every 5 - 6 years
is advisable.

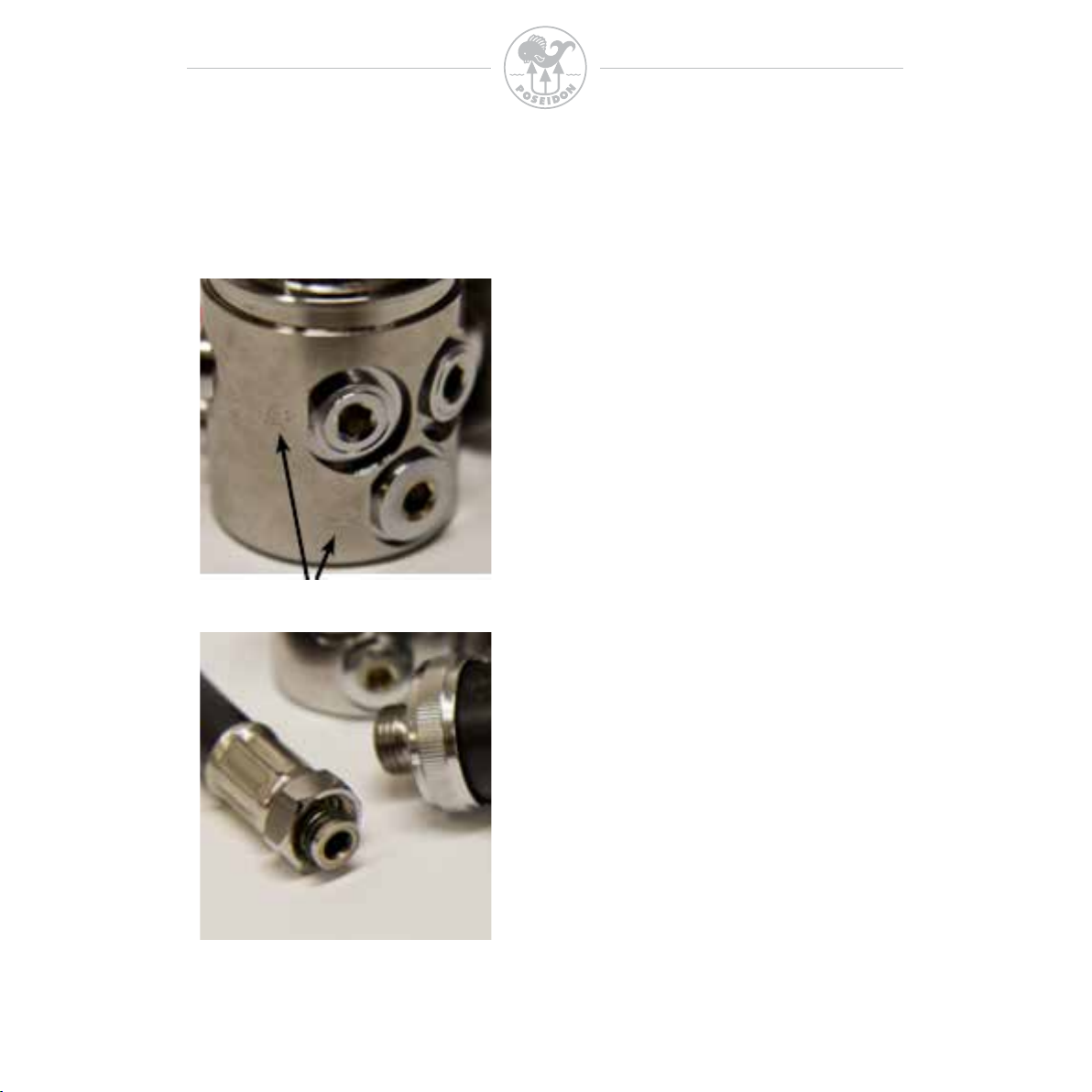

• Make sure all visible o-rings (hose
connections and DIN connection) are
properly assembled and without any
damage. To minimize the number of times
where you have to abort a dive due to bad
o-rings, we recommend that you always
keep a spare set of o-rings in your dive
bag. Note that o-rings over time dry out
and their functionality is reduced, thus
these should be replaced periodically.
11
CYKLON USER MANUAL
Regular maintenance service on your regulator
Your regulator is life support equipment and it should regularly undergo
maintenance service to minimize the risk of failure, accidents and injury.
We recommend that maintenance service should be performed about once
every 100 dives or biannual, whatever comes rst. Maintenance service should
be performed by a service technician that is certied to service Poseidon
equipment and only Poseidon original parts should be used.
It’s recommended that you keep a record of the dates when service has been
performed, in the Notes section of this user manual, so that you can keep track
of when the next service is due.
12
CYKLON USER MANUAL
Assembly
Before you assemble your Cyklon regulator, please pay attention to the following:
• The rst stage has four (4) low
pressure ports and two (2) high
pressure ports. These different types
of ports are marked with R/LP for the
low pressure ports and HP for the
high pressure ports. The port marked
with R has a slightly higher ow rate
then the other low pressure ports and
this is theport where you preferably
mount your primary second stage.
• Low and high pressure ports have
different thread size to avoid
accidently mounting components in
Low- and high pressure ports
the wrong port. If a hose connection
does NOT t in a port, do not use
force/violence to connect the hose to
the port. This could lead to accidents
and injury.
Hose connections
• The connection thread on the Cyklon
second stage, where the low pressure
hose connects to the second stage, is
not the same sizes as on m any other
brand/model second stages. That’s
why it’s important that you use an
original Poseidon low pressure hose
to your Cyklon second stage and do
not use force or modications to
attach other brand’s low pressure
hoses to a Cyklon second stage. This
could lead to accidents and injuries.
13
CYKLON USER MANUAL
MOUNTING THE REGULATOR
ON A TANK
The procedure below only describes the way you mount the regulator and it
does not replace all the steps you’ve learnt during your dive training.
• Carefully open the tank valve and clear any dirt/debris/water in the valve
connection. Then close the valve.
• Remove the protective cap from the rst stage DIN connection.
• Make sure the o-ring on the rst stage DIN connection is mounted and
without any damage. Then mount the rst stage on the valve. Turn the
connection wheel until you can feel that the rst stage is rmly attached to
the valve.
• Carefully open the tank valve completely and then turn the valve knob half a
turn in reverse.
• Purge the second stage a couple of times, to clear the second stage of any
debris left from the previous dive.
• Check the pressure gauge to make sure the tank is full.
• Breath on the primary second stage and the octopus to make sure they work
(provide air). If the inhalation air smell or taste bad, the air in the tank should
be replaced.
• The regulator is now ready to dive with.
14
CYKLON USER MANUAL
During a Dive
What is most distinctive about the Cyklon is that they are easy to use – there
aren’t any valves or switches to change the ow of air, breathing resistance, etc.
You can leave the function and performance of the regulator in our hands and
concentrate on what you want to do - dive.
The Cyklon allows for ease of breathing and supplies air in a reliable manner.
A few things worth noticing:
• There’s no ”up or down” on the Cyklon second stage. Regardless of which
way you place the mouthpiece in your mouth, the second stage will always
work and provide all the air you need.
• There are no functionality- or construction differences between a primary
second stage and an Octopus. The only difference is the color.
• Water in the tank is the most common cause of freezing regulators. The
Cyklon should be used with gas according to EN 132, Annex A.
15
CYKLON USER MANUAL
After Diving
The regulator should always be rinsed while it is still mounted on the tank. The
regulator should beunder pressure, otherwise water can enter either the rst or
the second stage and cause the build up of ice during your next dive!
If water enters your rst stage, corrosion could form inside the rst stage leading
to loss in performance and/or failure. If you suspect water has entered the rst
stage we recommend that you let a service technician, certied to service/repair
Poseidon equipment, disassemble your rst stage to dry and clean it.
• The regulator should be rinsed in fresh water after every dive so as to avoid
salt crystal formation around the functional parts. Purge the second stage
while you rinse it, to allow fresh water to access all parts of the second stage.
• Blow the equipment dry by using air pressure.
• After rinsing, close the cylinder valve and purge the regulator.
• Unscrew the regulator from the tank and mount the protective cap onto the
connection.
• Pack and store your regulator in your regulator bag. This protects the
regulator from damage. It is especially important to protect the connection areas.
The regulator should not be stored in direct sunlight and/or at high temperatures.
WARNING:
Never use the 1st stage housing to unscrew the regulator from the
tank. This can fully or partly unscrew the connection stem from the
housing, and create a future hazard. Always use the handwheel.
16
CYKLON USER MANUAL
WHAT YOU DO YOUR SELF
What is most distinctive about the After every dive the equipment should be
cleaned according to the instructions in ”After diving.” The regulator does not
have to be lubricated beyond what is done by Poseidon or when serviced.
It is, however, recommended that you regularly lubricate the o-rings located on
the low- and high pressure hoses and the rst stage DIN connection. This will
reduce the risk of leakage and prolong the lifetime of the o-rings.
IMPORTANT
When opening the cylinder valve, do not direct the stream of air
at anyone. It can cause serious injury. Always exercise caution
with diving equipment. Remember that pressure at 200 bar on a
surface the size of a ngernail has the power of approximately
350 kg/770 lb.
Diving is a strenuous physical activity. Its difculty may be
increased by conditions such as cold water, poor visibility,
hard work, and increased depth. Always try to exercise prudent
judgement when determining whether or not to dive. Never dive
when tired or in poor health.
17
CYKLON USER MANUAL
Product Markings
Cyklon och Cyklon Octopus are marked with CE 0120 and EN 250. The markings
show that the product meets or exeeds the requirements of the Personal
Protective Equipment Directive 89/686/EEC and the harmonized standard EN
250:2014 for SCUBA equipment.
Other
• A regulator is primarialy constructed of brass and recyclable plastic, both of
which can be recycled.
• Do not use cleaning chemicals of any kind to clean the regulator. Neither
may silicone or any other lubricant be poured or sprayed into the regulator.
• Interstage pressure (IP) and safety valve opening pressure is preset by
Poseidon and readjustment is prohibited. Readjustment of IP will never
boost performance.
• The use of accessories which have not been recommended can seriously
impair the function of your equipment.
• Pressure-gauge hoses without a restriction in the connection can, if the hose
is punctured, allow a powerful jet of air to escape.
• Self-made and/or by Poseidon unauthorized changes/modications to the
product may lead to reduced functionality and failure, resulting in personal
injury or death. Poseidon are NOT responsible for equipment where
modications beyond product specications have been made and any/all
warranty claims will be turned down.
• Poseidon is NOT responsible for any parts/components manufactured by
any party/company other then Poseidon, mounted on Poseidon equipment.
WARNING:
The use of accessories which have not been recommended, can
seriously impair the function of your equipment.
Pressure-gauge hoses without a restriction in the connection can,
if the hose is punctured, allow a powerful jet of gas to escape.
18
CYKLON USER MANUAL
Accessories
Cyklon 5000 (art. nr 3950) / Cyklon Metal (art. nr 3950 M) can be used
with the following accessories:
• All Cyklon Octopus (art. nr 2981 and 2981 M).
• Yoke connections (for rst stage 3720 with DIN connection).
• Swiveling connection 90° 3/8” for low pressure hoses.
• Banjo connection 90° 7/16” for pressure gauges.
• Poseidons anti-freeze cap (art. nr 1286).
• All EN250 approved pressure gauge hoses.
• Pressure gauges and dive computers, as long as they are connected using
an EN250 approved pressure gauge hose.
• EN250 approved low pressure hoses.
• Poseidon original connections for adapting to different thread sizes.
• EN250 approved inator hoses.
Support
When you purchase a POSEIDON product you receive access to thousands of
authorized service outlets world wide. More information can be found and the latest
manual is available for download on POSEIDON’s homepage www.poseidon.com.
Poseidon’s goal is to resolve errors/problems, covered by our warranty terms,
as close to the end consumers as possible, thus resolving these issues as
quickly and easy as possible. Thus Poseidon has created a working
infrastructure for warranty case handling,
If you have a warranty claim on a Poseidon product, please contact the dive
shop where you purchased your product. If this isn’t possible, contact the
Poseidon representative in the country/market where you reside. When
claiming warranty, proof of purchase must be submitted.
Contact information to our partners around the world can be found at
www.poseidon.com.
19
CYKLON USER MANUAL

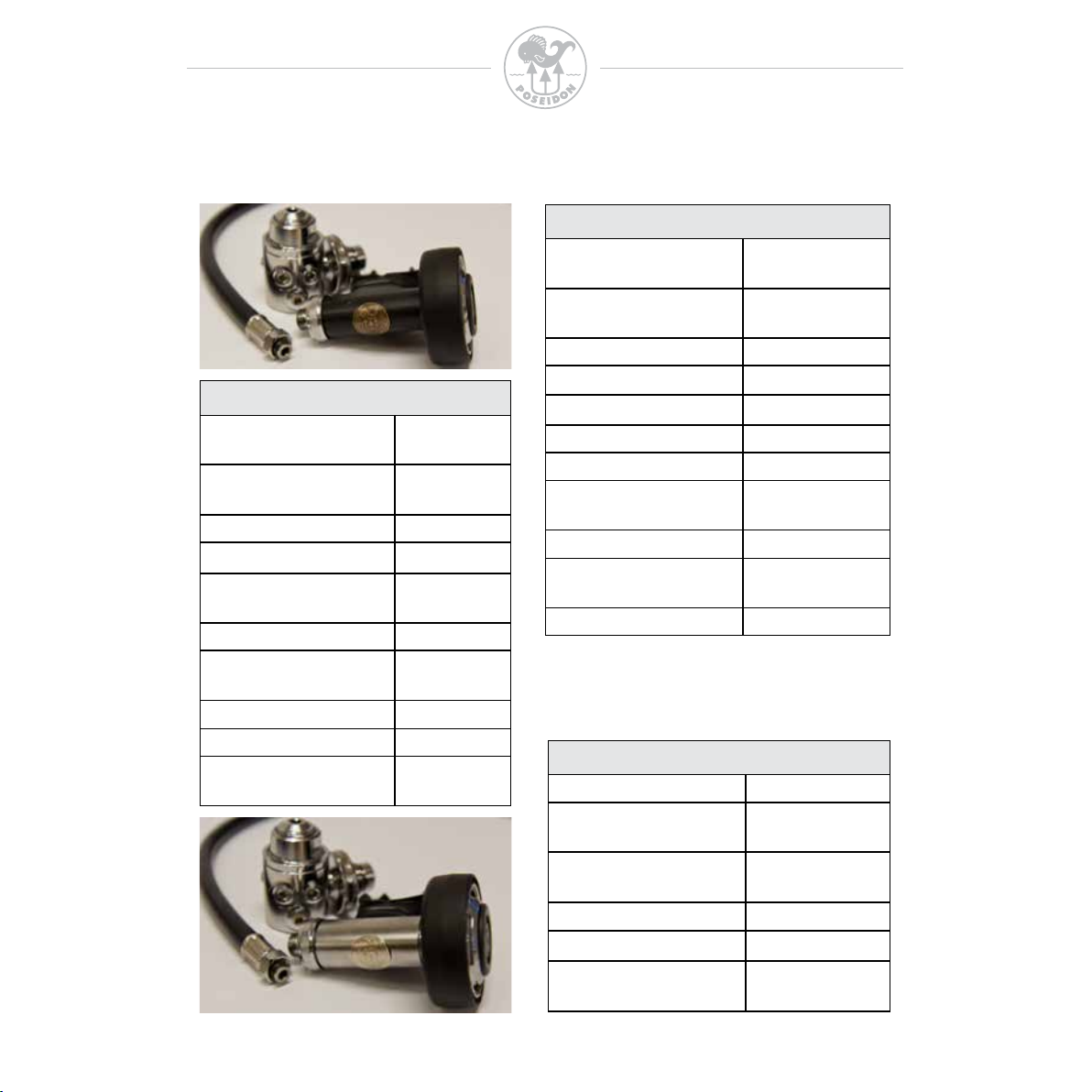

Technical data
First stage 3720 / 3720 10
Connection DIN: Yes
(art. nr 3720)
Connection xed Yoke: Yes
(art. nr 3720 10)
Technology: Membrane
Regulator 3950 / 3950 M
Approved to depth
(m/ft):
Intermediate pressure
(bar / psi):
Nitrox: No
100% oxygen: No
Trimix
(max 21% oxygen):
Compressed air: Yes
Working pressure
300 bar / 4350 psi:
EN250 approved: Yes
CE approved: Yes
LP hose length
standard (cm / inch):
50 m / 164 ft
11,5 bar /
166,7 psi
Yes
Yes
70 cm
27,5 inch
Valve technology: Piston
Wheel mounted: Side
Low pressure ports: 4
High pressure ports: 2
Flow rate
(l / min / cft/min):
Oxygen clean: No
Built-in over pressure
valve:
Anti-freez protection: Accessory (1286)
5100 / 180
Yes
Second stage 3354 / 3354 M
Color: Black / metal
Material: ASA, Stainless
steel, Brass
Weight (gram/oz): 200 gr / 7,0 Oz
250 gr / 8,8 Oz
VVolyme (ml / . oz) 60 ml / 2,0 . oz
Valve technology: Downstream
Flow rate
(l / min / cft/min):
1250 l/min
44 cft/min
20
CYKLON USER MANUAL

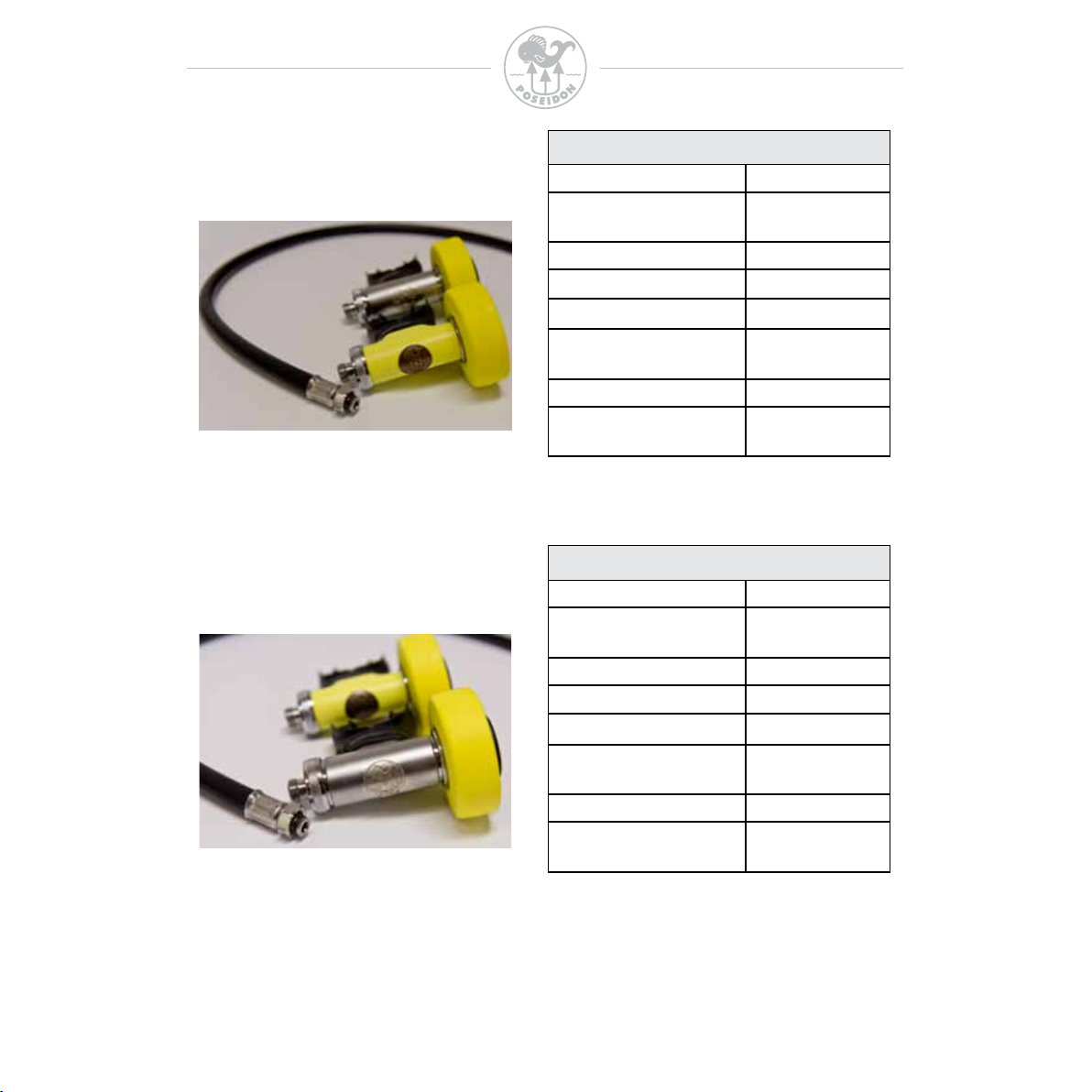

Cyklon Octopus
Color: Yellow
Material: ASA, Stainless
steel, Brass
Weight (gram/oz): 200 gr / 7,0 Oz
VVolyme (ml / . oz) 60 ml / 2,0 . oz
Valve technology: Downstream
Cyklon Octopus (art. nr 2981)
Flow rate
(l / min / cft/min):
Oxygen clean: No
LP hose length
standard (cm / inch):
1250 l/min
44 cft/min
90 cm
35,4 inch
Cyklon Metal Octopus
Cyklon Metal Octopus (art. nr 2981 M)
Color: Yellow / Metal
Material: ASA, Stainless
steel, Brass
Weight (gram/oz): 250 gr / 8,8 Oz
VVolyme (ml / . oz) 60 ml / 2,0 . oz
Valve technology: Downstream
Flow rate
(l / min / cft/min):
Oxygen clean: No
LP hose length
standard (cm / inch):
1250 l/min
44 cft/min
90 cm
35,4 inch
21
Poseidon Diving Systems AB
Åkeredsvägen 1, SE-421 63 Västra Frölunda, Sweden
Phone: +46 31 734 29 00
E-mail: info@poseidon.com
www.poseidon.com
Loading...
