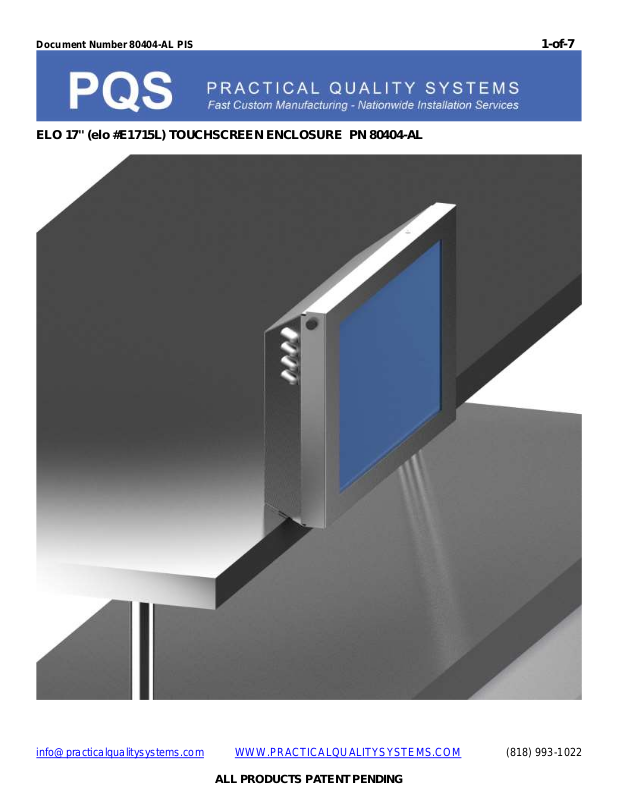

POS 80404-AL Instructions Manual

Document Number 80404-AL PIS 1-of-7

ELO 17'' (elo #E1715L) TOUCHSCREEN ENCLOSURE PN 80404-AL

[e-mail] WWW.PRACTICALQUALITYSYSTEMS.COM [phone]

ALL PRODUCTS PATENT PENDING

Document Number 80403-AL PIS 2-of-7

ELO 17'' (elo #E1715L) TOUCHSCREEN ENCLOSURE PN 80404-AL

[e-mail] WWW.PRACTICALQUALITYSYSTEMS.COM [phone]

ALL PRODUCTS PATENT PENDING

Document Number 80403-AL PIS 3-of-7

ELO 17'' (elo #E1715L) TOUCHSCREEN ENCLOSURE PN 80404-AL

PRODUCT SPECIFICATIONS:

 Enclosure supports elo 17” Touchscreen Monitors Model # E1715L;

Width 18.6 in (472mm) x Depth 5.3 in (135mm) x Height: 13.7 in (348mm)

[e-mail] WWW.PRACTICALQUALITYSYSTEMS.COM [phone]

ALL PRODUCTS PATENT PENDING

Document Number 80403-AL PIS 4-of-7

ELO 17'' (elo #E1715L) TOUCHSCREEN ENCLOSURE PN 80404-AL

PRODUCT SPECIFICATIONS

General Features

 This Shelf Edge or Countertop Enclosure mount can be used as a universal support system for the elo

E1715L touchscreen for Point of Sale / POS, Kitchen Display Systems / KDS in commercial kitchens,

retail, restaurants, offices, industry, shops, medical, maritime, schools, laboratory and many other
applications.

 Meets NEMA Type 2 rating - Enclosures constructed for indoor use to provide a degree of protection to personnel

against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure
against ingress of solid foreign objects (falling dirt); and to provide a degree of protection with respect to harmful
effects on the equipment due to the ingress of water (dripping and light splashing).

 No modification to the terminal’s power cables associated hardware or to the terminal itself is required for

installation.

 A heavy duty hinged back panel opens without tools and allows full access to the interior without removing the

enclosure from the mounting system.

 A slot on the bottom allows access to the monitor controls.
 Ventilation slots on the bottom allow for plenty of air to enter the enclosure.
 Downward facing louvers are located along both sides to keep falling liquids and dust from entering while allowing

for passive ventilation.

 Close fitting neoprene gaskets surround the entire edge of the terminal’s screen to seal it against liquid entry.
 Includes an internal mounting plate to hold the power supplies, display controllers, and all extra cabling.
 To order the enclosure in Aluminum with a chrome metallic powder coated finish use PN 80403-AL.
 The enclosure can be secured closed with either tool less thumbscrews or security screws and the included

wrench.

[e-mail] WWW.PRACTICALQUALITYSYSTEMS.COM [phone]

ALL PRODUCTS PATENT PENDING

Document Number 80403-AL PIS 5-of-7

ELO 17'' (elo #E1715L) TOUCHSCREEN ENCLOSURE PN 80404-AL

INSTALLATION INSTRUCTIONS

[e-mail] WWW.PRACTICALQUALITYSYSTEMS.COM [phone]

ALL PRODUCTS PATENT PENDING

Document Number 80403-AL PIS 6-of-7

WARNING: If using any PQS mounting product, please refer to that product’s installation instructions

to correctly install the mount. PQS recommends installation by a professional.

ELO 17'' (elo #E1715L) TOUCHSCREEN ENCLOSURE PN 80404-AL

MOUNTING OPTIONS:

 Enclosures mount to any 100mm VESA compatible pan and tilt head (note: because of the combined weight of

the enclosure and terminal (24lbs) we recommend mounting to one of our PQS 35LB Mounting Systems).

 This assembly can also be integrated to any of our 35lb Mounting Products to create a support solution for any

mounting location.

 PQS offers several mounting options for our AnyPlace Kiosk Monitor Enclosures and other medium duty 35LB

mounting products.

[e-mail] WWW.PRACTICALQUALITYSYSTEMS.COM [phone]

ALL PRODUCTS PATENT PENDING

Document Number 80403-AL PIS 7-of-7

ELO 17'' (elo #E1715L) TOUCHSCREEN ENCLOSURE PN 80404-AL
