GPS Tracker
User Manual
For Auto, scooter and motorcycle
Please read the manual carefully before use the GPS Tracker so that you can
install the device correctly and ac tivate it quickly on the internet. The outlook and
true color are subject to the actual product.
1．Accessories：
2. Technical parameter
1）.GSM
：850/900/1800/1900 Quad band
2）.GPRS
: Class12, TCP/IP
3）.Working Voltage
：9-24V DC
4）.Working current
：≈22mA (12vDC)
5）.Working current
：≈12mA (24vDC)
6）.GPS locating time
：Cold start≈38s（Open sky）
Warm start≈32s
Hot start≈2s（Open sky）
7）.GPS Precision
：10m（2D RM）
8）.Working temperature
：-20℃～+70℃
9）.Working humidity
：20%～80%RH
10）.Measurement
：87（L）×43（W）×14（H）mm
3.Out look
4.Device status indicators
4.1
Connect DC 9-24V power supply and the red LED will light continuously.
4.2
The green LED glistens when searching the GPS signals. When GPS works,
the LED lights continuously.
4.3
The intermediate blue LED (GSM signal state)
GSM signal is normal, blue LE D light long bright. No GSM signal, the blue LED
flashes.
GPS LED not fixed, flashes（0.2 sec/2 sec），Positioning long bright；
GSM LED no signal, flashes（0.2 sec/2 sec），Signal normal long bright；
Power LED: long bright;
All LEDS will turn off after 5 minutes. When there is a new call, the LEDs will relight and turn
off 5 minutes later.
5.Installation
5.1
Preparation for the installation
5.1.1
Product Check. Open the packing box and check the device‘s model and accessories.
If the model is wrong or the accessories not complete, please contact the dealer.
5.1.2
Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice
as reference.
5.1.3
SIM card installation. Discharge the cover of the device and uncover the SIM card
holder. Then insert the SIM card and cover SIM card holder (as follows).
5.1.4
Put back the front cover and screw it up.
5.1.5
Connect the device to the 9-24Vpower supply.（the red LED constant glow）
5.1.6
Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your SIM card need
input PIN when power on, please cancel it.
5.2 Installation
The GPS tracker must be installed under professional personnel.
Note：
1) Please install the device in the hidden place as followings：
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the
receiving side of the device is face up and without metal cover.
Note：The metal cover will lessen the receiving of GPS signals.6. The device
connecting requirements.

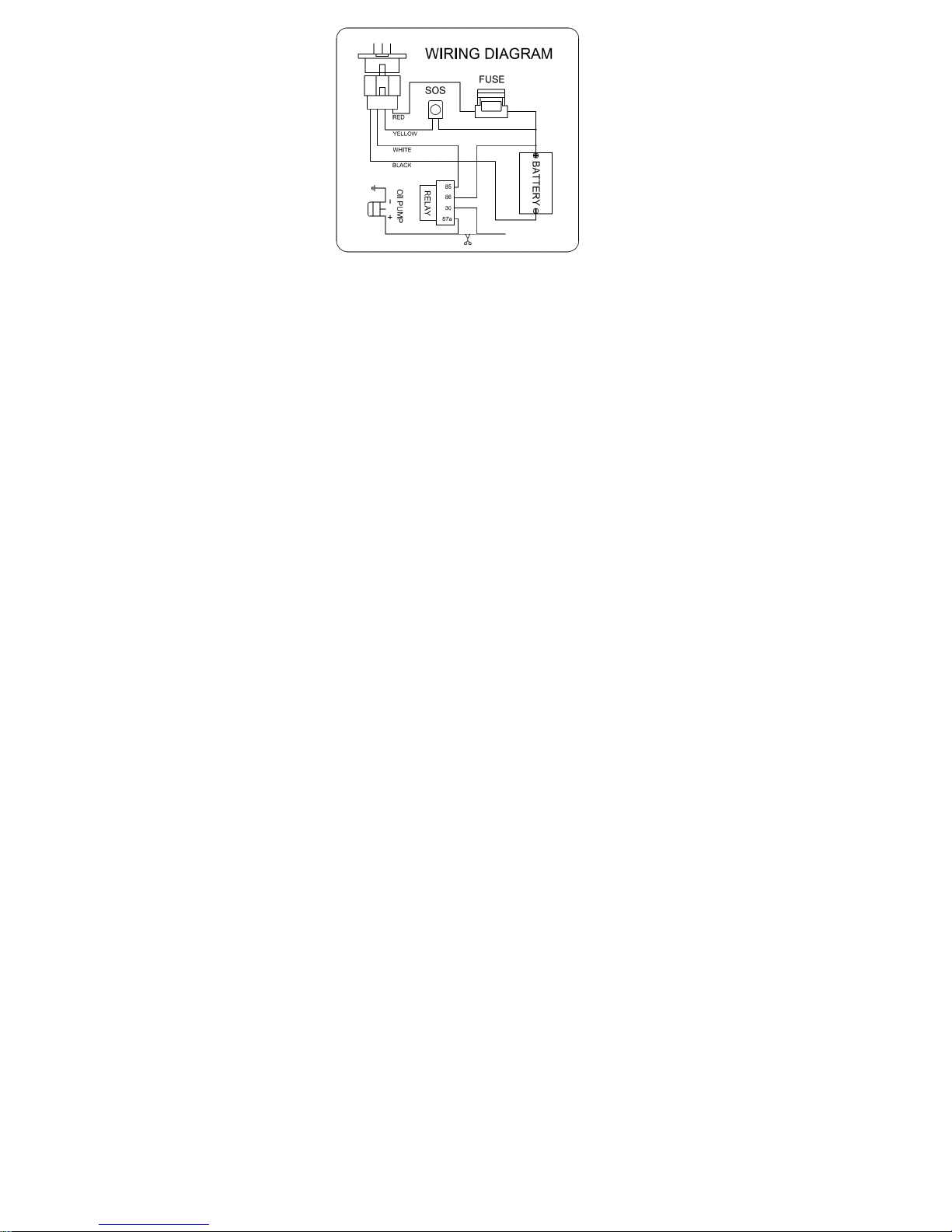

6. Device wiring requirements
6.1
The device power supply is DC 9-24V. The red line is positive pole while the
black line is negative pole.
6.2
The negative pole of power supply connects with ground or the metals. Please
do not connect with other ground lines.
6.3
When finishing the power supply wire connection, please make the plug of
power supply to the device.
7.The Device Working
7.1
Power
on:
the device will be power on when connecting to the current. Then the three
LED indicators will light continuously. The device will upload the data to the online
platform (the default interval of uploading data is 10seconds). When the car is in
static state for a long time, the device will be in energy saving mode and it will be
more smart and precise.
7.2Power off
：Pull off the power plug then power off the device.
8.User Settings
8.1 Set class instruction
Note:
1: the equipment the default password is 123456
2: when close monitor function ,use center number call the
device ,it will reply google map link
1)
CENTER
Text
command
Parameter Sample
CENTER Add
#admin#password#n
umber1#number2#n
umber3
#admin#123456#13713720011#
13813800001#13555588801
CENTER Del
#deladmin#password
#number1#
#deladmin#123456#137137200
11#
Command
Description
1)Center n umber can control the o il and power and
resume factory settings
2) Center number can receive the call and text of vibration
alarm and over speeding alarm.
3) SIM must display the income call number to control oil
and power.
4) Change center number must resend the command
Command
Feedback
Successful Setting：admin ok
delalladmin ok
2)
APN
Text
command
Parameter Sample
APN Setting
1.
#apn#123456#APN
name#
2.
#apn#123456#APN
1.#apn#123456#cmnet#
2.#apn#123456#cmnet#cmn
et01#666666#
name#usename#pa
ssword
Command
Description
APN differs according to the local telecom operators.
For example：APN request password， please refer to
Sample2，and Sample1 for no password.
Command
Feedback
set apn：******** ok”
3)
IP/PORT
Text
command
Parameter Sample
IP Setting
1.#ip#123456#ip#p
ort
2.#ip#123456#DNS
#port#
#ip#123456#58.61.154.247#
7018#
#ip#123456#www.18gps.net
Command
Description
If set ip please refer sameple1
If set DNS, please refer sameple2
Command
Feedback
set ip：******** ok
4)
GMT
Text
command
Parameter Sample
GMT
#timezone#1234
56#location’time#
#timezone#123456#E8#
Command
Description
The default time zone is Beijing time. If time zone need
revised, please operate according to the above command.
Command
Feedback
Successful Setting：Set time zone ok!
5)
TIME
Text
command
Parameter Sample
TIMEER
Parameter
setting
#uptime#uploading interval#
#uptime#20#
Command
Description
Time scope：0，10~60 seconds； 0,no data uploading；
10~60,means time interval ； the default value is 15
seconds！
Command
Feedback
Successful Setting：SET TIMER OK！
6)
VIBRATION
Text command Parameter Sample
VIBRATION Parameter #vibrate#123456#5#2#
5 is value of
the vibration
2 is alarm way
close vibration
alarm
#novibrate#123456# Close vibration
Command Description
the sensitivity value of the vibration is from 1
to10 ，1 is the most sensitive Alarming ways:
1,platform 2,platform and texting, 3 platform and
calling.
Must set the center number and receiving number.
Command Feedback
set vibration alarm level，OK!
7)
SPEEDING
Text
command
Parameter Sample
SPEEDING
Parameter
#speed#123456#0
80#
More than speed-80 km/h alarm
Close
speeding
alarm
#nospeed#123456
#
Close speeding alarm
Command
Description
The speed scope is form 60-220, if the speed is no this
scope, the alarm is off.
Must set the center number and receiving number.
Command
Feedback
Successful Setting：
set speed-80 km/h ok
set nospeed ok
8)
RELAY
Text
command
Parameter Sample
RELAYParam
eter1
#stopoil#123456
#
cut off oil and power
RELAYParam
eter2
#supplyoil#12345
6#
recover oil and power
Command
Description
1)RELAY control the start and closeness of the relay
2) Only the center number can operate.
3）the device only cut off the oil circuit on the condition of
the driving speed below 20KM/H or in static state.
4)When send the command, the device will reply “please
waiting “When the vehicle speed is over 20KM/H, the
device will cut off the oil or the power when the speed
below 20KM/H.
Command
Feedback
Successful Setting：
stop oil ok
supply oil ok
9)
WHERE
Text
command
Parameter Sample
WHERE #position# Get adress
#123#
Command
Description
Check information of the device
Command
Feedback
IMEI:35455565000000000Speed:0km/h Address:**********
11:58
10)monitor（Option）
Text
command
Parameter Sample
monitor
#monitor#123456
#
Open monitor
monitor
#nomonitor#1234
56#
Close monitor
Command
Description
Only center number is available
Command
Feedback
open monitor ok
close monitor ok
10)
cut off power alarm
Text
command
Parameter Sample
Cut off
power
#power2#
Cut off power alarm for SMS and
platform
cut off
power
#power3#
Cut off power alarm for calling and
platform
Close #power0# Close alarm
Note Default power2
Command
Feedback
open power warning-2 ok
open power warning3 ok
close power warning ok
11)sos（Option）
Text
command
Parameter Sample
Sos1
#sos2#
Sms alarm and platform
Sos2(default)
#sos3# Calling alarm and platform
Close sos
#sos0#
Command
Feedback
Successful Setting：
open sos warning-2 ok
open sos warning-3 ok
close sos warning ok
12)
PARAM
Text
command
Parameter Sample
PARAM #param#123456#
Command
Description
The command is to check the settings and the default
parameter.
Command
Feedback
IMEI:351190012535936
APN : cmnet
IP:IP and port
TIMER: moving uploading interval
LANG: language(CN/EN)
GMT: time zone (E/W8)
13)
STATUS
Text
command
Parameter Sample
STATUS #status#123456#
Command
Description
The command is designed for checking the device’s
working status.
Command
Feedback
External power:ON/OFF
GSM Signal:HIGH/MIDDLE/LOW
GPS:FIXED/UNFIXED
RELAYER:DISABLE/ENABLE
LISTENING:OFF
Outside battery
14)
REBOOT
Text
command
Parameter Sample
Reboot #reboot#123456#
Command
Description
The command is to remote reboote device
Command
Feedback
Reboot ok
9.
Trouble shooting
9.1
The device is not online or offline on the web platform
9.1.1
First, please check the three LED working state. Ifpossible. Yo u
can call the device’s number to check.
●
If not connected, the device is out of signal. If the GSM signals
cannot reach your location, pleasedrive to the open sky.
If reminding the device SIM card is out of deposit, please make
deposit by the telecom operator.
● If you can connect to the device when calling, the SIM card has deposited
and please check with your operator for GPRS function. You also can
check by searching the internet on your mobile phone.
● If reminding the device is power off, please turn back the device and
proceed as followings:
a)Check if the red LED is in constant glow. If the LED is dark, please
check the power connecting. If fuse is broken, please return the
device to the seller.
b)If the blue GSM LED is not in constant glow, please check the
installation of SIM card.
9.1.2
Please check the offline area in order to judge if the network problem of
operators.
9.2
When GPS cannot receive the signals, please drive in the open sky and
ensure there is no metal thins on the device.
9.3
When the device cannot receive the GSM signal, please check the SIM
card installation. If the GSM signals cannot reach your location (such as
the basement), please drive to the open sky.
9.4
The red LED is not glow when power on. Check the fuse of the power
line. If the fuse is fused, please change the fuse with the seller.
