Portwell WISP User Manual

WiSP - Wireless Service Platform

User’s Manual

Version 1.2

1

Contents

Copyright Notice......................................................................3

Declaration of Conformity.........................................................3

Introduction...........................................................................4

Chapter 1- General Information

1.1 Packing Contents................................................................4

1.2 System Specifications ........................................................5

1.3 System Overview...............................................................6

1.3.1 Front Side.................................................................6

1.3.2 Rear Side..................................................................6

1.3.3 Left Side...................................................................7

1.4 Dimensions.......................................................................8

1.5 Cleaning and Disinfecting…………………………………………………………….9

1.6 Additional Information and Assistance………………………………………10

1.7 System Setting…………………………………………………………………………..11

1.8 Wireless Antenna Location..……………………………………………………..11

Chapter 2- Locating Controls and Driver Installations

2.1 Locating Controls……………………………………………………………………….12

2.1.1 Front Panel..............................................................12

2.1.2 Rear I/O..................................................................13

2.2 Driver Installation.............................................................14

2.2.1 Chipset Component Driver Installation.........................14

2.2.2 Intel Graphics GMCH Chip Driver Installation................18

2.2.3 Realtek Gigabit Ethernet Controller Driver Installation….21

2.2.4 MCS7832 USB Ethernet Controller Driver Installation…….23

2.2.5 Wireless Driver Installation........................................26

Chapter 3- BIOS Setup Information

3.1 Entering Setup…………………………………………………………………………..29

3.2 Main Menu………………………………………………………………………………….31

3.3 Advanced……………………………………………………………………………………32

3.4 PCIPnP…………………………………………..…………………………………………..46

3.5 Boot…………………………………….…………………………………………………….50

2

3.6 Security………………………………………………………………………………………53

3.7 Chipset……………………………………………………………………………………….54

3.8 Exit……………………………………………………………………………………………..59

Chapter 4- Appendex

4.1 Protective Packing………………………………………………………………………61

3

Copyright Notice

The material in this document is the intellectual property of
Portwell ,Inc. We take every care in the preparation of this
document, but no guarantee is given as to the correctness of its
contents. Our product is under continual improvement and we shall
reserve the right to make changes without notice.

Is herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member
States relating to Electromagnetic Compatibility (2004/108/EC),
Low-voltage Directive (2006/95/EC), the procedures given in
European Council Directive 99/5/EC and 2004/104/EC.

The equipment was passed. The test was performed according to the
following European standards:

 EN300 328 V1.7.1 (2006)
 EN301 489-1 V1.8.1: 2008, EN301 489-17 V2.1.1: 2009
 EN62311︰2008
 EN 60950-1: 2006 (2nd Edition); A11:2009+A1:2010+A12:2011

Regulatory statement (R&TTE)

 European standards dictate maximum radiated transmit power of

100mW EIRP and frequency range 2.400-2.4835GHz;

 In France, the equipment must be restricted to the

2.4465-2.4835GHz frequency range and must be restricted to indoor
use.
Operation of this device is subjected to the following National
regulations and may be prohibited to use if certain restriction should
be applied.

4

Introduction___ ______

The Wireless Service Platform (WiSP) is a computing device capable
of processing, storing, retrieving and sending data electronically. It is
presumed that the WiSP assembly including power supply, storage
media, user interface, WiSP UPS battery and PCBs will be contained
within one enclosure that will be mounted to the side of the
operational machine (workstation).

The WiSP shall be in the power on state when power is applied from
the workstation. The WiSP shall have an internal power source
capable of sustaining operation for a minimum of 100 seconds if A/C
power is lost, to allow the operating system to shutdown. Its intent is
to wirelessly enable archiving and documentation capabilities to the
workstation and support USB user downloads.

The WiSP conforms to the following wireless networking
communication standards: IEEE 802.11B, IEEE 802.11G and IEEE

802.11N. The WiSP can make image of the workstation transfer easily
into the data center and recording simpler than ever.

Chapter 1

General Information

1.1 Packing Contents

Following illustration displays the package contents of WiSP. If any of the
following items is damaged or missed out please contact us right away.

WiSP

Driver & Utility

5

Battery Pack

(Option)

Classification

1. Level of production against electric shock: not classified

2. Level of protection against the ingress of water: IPX0

3. Type of protection against: Power by Class I

4. Mode of operation: Continuous Operation

1.2 System Specifications

System
CPU Intel® Atom™ CPU Z510 1.10GHz FSB:533MHz L2:512K
Chipset Intel® System Controller Hub US15W
Graphics Controller Intel Graphics Media Accelerator 500
Memory Transcend DDR2 533 1GB SODIMM
Storage Transcend 16GB CF
Operation System Windows Embeddad 2009
Peripherals & Devices
USB Port USB 2.0 x1
Connectivity

Power Source Internal SNP-Z057 (60W, Medical Level)
Power Input 100-240 Vac, 47-63 Hz, Max. 60 W
Button Wireless on/off button
Mechanical & Environmental
Operating Temp
Vibration
Shock
Regulatory CE, FCC Class-B, Type B Applied Part

Dimensions 530x41x155
Net Weight 10.5Kg

RTL 8111C GbE LANs
WLAN 802.11 b/g/n support
MCS7830 USB Enternet support

0 ~ 45°C (32 ~ 113°F)

5 grms/5 ~ 500Hz/random operation

10G/peak (11ms)

EN60601-1, EN60601-1-2,UL60601-1

6

1.3 System Overview

1.3.1 Front Side

1.3.2 Rear Side

1.3.3 Left Side

7

1.4 Dimensions

8

1.5 Cleaning and Disinfecting

Do not use sharp tools.

Never immerse electrical connectors in water or other liquids.
Such actions may damage the device.
If you accidentally spill liquid on a device, disconnect the unit
from the power source.
Contact your service personnel regarding the continued
safety of the unit before placing it back in operation.
Do not spray cleaning agent on the chassis.
Do not use disinfectants that contain phenol.
Do not autoclave or clean the device or its peripherals with
strong aromatic, chlorinated, ketene, ether, or Esther
solvents, sharp tools or abrasives.

During normal use of the WiSP may become soiled and should,
therefore, be cleaned regularly.

Cleaning instructions follow:

1. Wipe the WiSP with a clean cloth that has been moistened
in the cleaning solution.

2. Prepare agent per manufacturer’s instructions or hospital
protocol. Wipe thoroughly with a clean cloth.

9

1.6 Additional Information and Assistance

Contact your distributor, sales representative, or Portwell’s
customer service center for technical support if you need
additional assistance.
Please have the following information ready before you call:

1. Product name and serial number

2. Description of your peripheral attachments

3. Description of your software (operating system, version,

application software, etc.)

4. A complete description of the problem

5. The exact wording of any error messages

6. This equipment is a source of electromagnetic waves.

Before use please, make sure that there are not EMI
sensitive devices in its surrounding which may malfunction
therefore.

Manufacturer
Portwell, Inc.
Add: No. 242, Bo-Ai Street, Shu-Lin Dist., New Taipei City 238,
Taiwan.
Tel: [phone]
Fax: [phone]

10

1.7 System Setting ___________________________

WiSP is terminal control system of the network none has VGA
display. Must be connected via Ethernet cable to the internal
system.

Must be to trained service personnel of the install and

setting.

1.8 Wireless Antenna Location__________________

Portwell is not responsible for any radio or television interference caused by

unauthorized changes or modifications to this equipment. Unauthorized changes
or modifications could void the user's authority to operate the equipment.

11

Chapter 2

Locating Controls and Driver installations

2.1 Location Controls

2.1.1 Front Panel

The front panel contains one USB Port, USB Status LED, Wireless Status LED and
Data Transmission LED

12

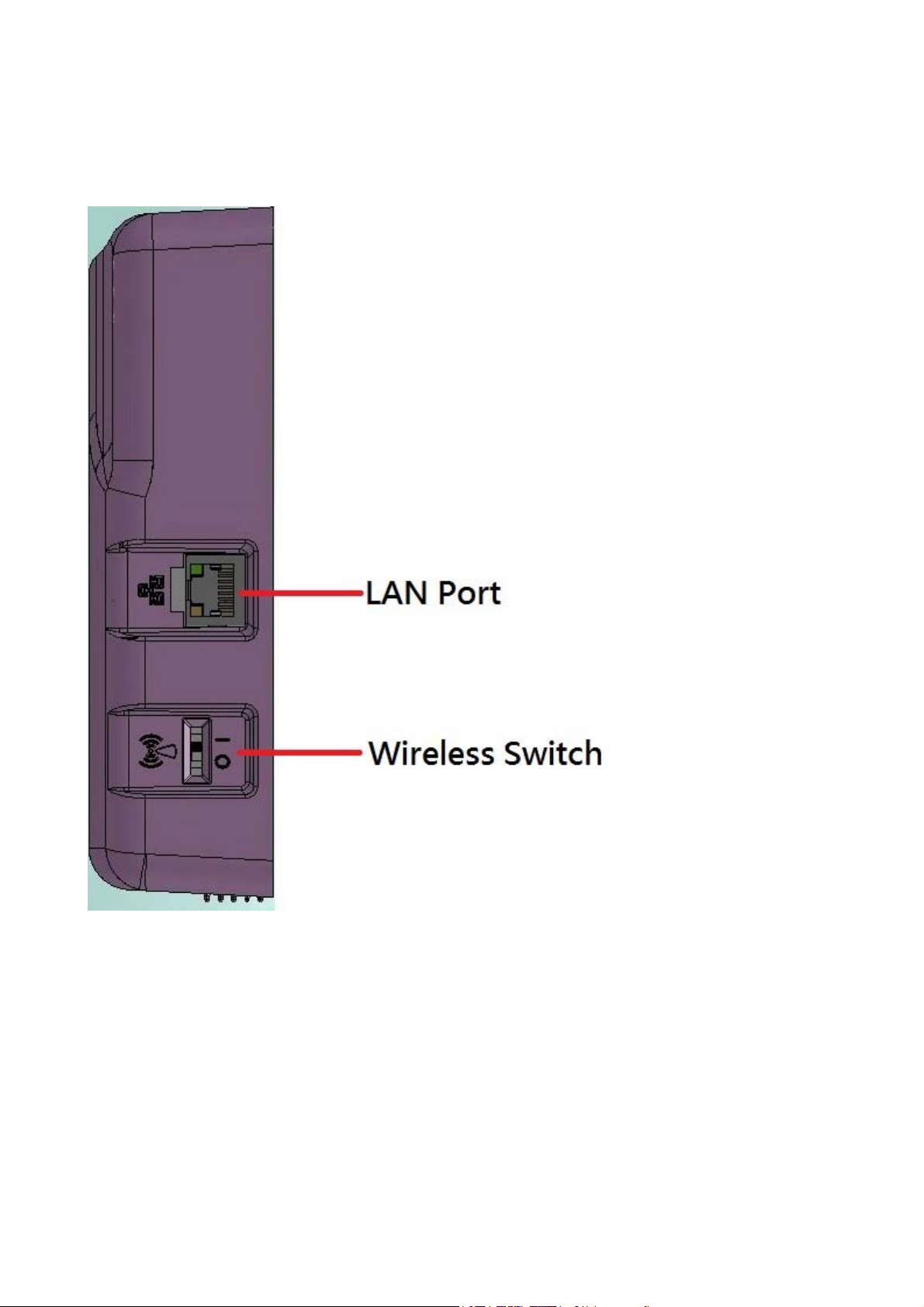

2.1.2 Rear I/O

The Rear I/O side contains one LAN port and Wireless Switch.

13

2.2 Driver Installation

Before you install the drivers, you must make sure the Operating System, in this
case, Windows XP) is installed first.

2.2.1 Chipset Component Driver Installation

1. Put the CD ROM into the CD-ROM drive, Click Chipset directory to

install the device driver.

14

2. Make sure you have closed all programs running and then click

Next to continue

3. Please read the license agreement first, and click Yes to continue.

15

4. Please read the Readme file for system requirements and

installation information, and click Next to continue.

5. The chipset device driver installation is completed. Click Next to

continue.

16

6. To have the installation take effect, select the Yes radio button and

click Finish to restart your computer.

17

2.2.2 Intel Graphics GMCH Chip Driver Installation

1. Click VGA directory to install the device driver.

2. Make sure you have closed all programs running and then click

Next to continue.

18

3. Please read the license agreement first, and click Yes to continue.

4. Please read the Readme file for system requirements and

installation information, and click Next to continue.

19

5. Please wait for a while for the data extracting and file copying.

6. After installing the graphics device driver, click Finish with Yes

radio button selected to restart your computer.

20

2.2.3 Realtek Gigabit Ethernet Controller Driver Installation

1. Click Realtek_LAN_WinDriver directory to install the device

driver.

2. Click Next to continue.

21

3. Click Install to start installation.

4. Click Finish to close the wizard window.

22

2.2.4 MCS7832 USB Ethernet Controller Driver Installation

1. Click MCS7832 directory to install the device driver.

2. Auto install for USB Ethernet

23

3. After the driver is installed, the USB Ethernet device information in
Device Manager may appear with an exclamation mark. To solve this
problem, please go through the following few steps to manually
update the driver for this device on the Device Manager”. You just
need to do it once.
Double left-click the mouse on the “USB Device” icon under the
“USB –MAC Controller” icon to update driver.

24

4. You will see the “Hardware Update Wizard” appearing on your
desktop. Please select “Yes, now and every time I connector a
device” and then click “Next”.

5. The driver is now completed updated. Click “Finish”.

25

2.2.5 Wireless Driver Installation

1. Click RTL2870_USB_Wireless directory to install the device
driver.

2. Please read the license agreement first, and click Next to continue.

26

3. Select the setup type, click Next to continue. The default setting is
“Install driver and Ralink WLAN Utility”.

4. Select the configuration Tools type, click Next to continue. The
default setting is “Ralink Configuration Tool”.

27

5. The WLAN driver is being installed. When the progress bar reaches
the end, the installation is done.

6. Once the installation is completed, a Wireless LAN window as the

figure shown below will pop up (for installing it the first time). This

28

windows displays the status of wireless signals and provides setting
options.

Chapter 3
BIOS Setup Information

WISP is equipped with the AMI BIOS stored in Flash ROM. These BIOS has a
built-in Setup program that allows users to modify the basic system configuration
easily. This type of information is stored in CMOS RAM so that it is retained during
power-off periods. When system is turned on, NANO-8045L communicates with
peripheral devices and checks its hardware resources against the configuration
information stored in the CMOS memory. If any error is detected, or the CMOS
parameters need to be initially defined, the diagnostic program will prompt the
user
to enter the SETUP program. Some errors are significant enough to abort the
start-up.

3.1 Entering Setup

Turn on or reboot the computer. When the message, “Hit <DEL> if you want to
run
SETUP” appears, press <Del> key to enter BIOS setup program.

If the message disappears before you respond, but you still wish to enter Setup,
please restart the system to try “COLD START” again by turning it OFF and then

29

ON, or touch the "RESET" button. You may also restart from “WARM START” by
pressing <Ctrl>, <Alt>, and <Delete> keys simultaneously. If you do not press
the
keys at the right time and the system will not boot, an error message will be
displayed
and you will again be asked to,

Press <F1> to Run SETUP or Resume
The BIOS setup program provides a General Help screen. You can call up this
screen
from any menu by simply pressing <F1>. The Help screen lists the appropriate
keys
to use and the possible selections for the highlighted item. Press <Esc> to exit
the
Help screen.

30

3.2 Main Menu

Use this menu for basic system configurations such as time, date etc.

AMI BIOS, Processor, System Memory

These items show the firmware and hardware specifications of your system. Read
only.

31

System Time

The time format is <Hour> <Minute> <Second>. Use [＋] or [－] to configure
system
Time.

System Date

The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to
configure
system Date.

3.3 Advanced

Use this menu to set up the items of special enhanced features.

32

CPU Configuration

These items show the advanced specifications of your CPU. Read only.

Max CPUID Value Limit

Disable for Windows XP.

33

Execute-Disable Bit Capability

When disable, force the XD feature flag to always return 0.

Hyper Threading Technology

Enable for Windows XP and Linux4 (OS optimized for Hyper Threading
Technology)
and disabled for other OS (OS not optimized for Hyper-Threading Technology)

Intel(R) SpeedSetup(™) tech

Disable: Disable GV3
Enable: Enable GV3

IDE Configuration

The IDE Configuration the IDE devices, such as hard disk drive or CD-ROM drive.
It
uses a separate sub menu to configure each hard disk drive (Master and Slave).

ATA/IDE Configuration

The choice: Disabled, Compatible.

34

Primary IDE Master/Slave

While entering setup, BIOS auto detects the presence of IDE devices. This display
shows the status of auto detection of IDE devices.

[Type] Press PgUp/<＋> or PgDn/<－> to select [Manual], [None] or [Auto]
type.

35

You can use [Manual] to define your own drive type manually.

[LBA/Large Mode] Enabling LBA causes Logical Block Addressing to be used in
place of Cylinders, Heads and Sectors.

[Block (Multi-Sector Transfer)] Any selection except Disabled determines the
number
of sectors transferred per block.

[PIO Mode] Indicates the type of PIO (Programmed Input/Output).

[DMA Mode] Indicates the type of Ultra DMA.

[S.M.A.R.T.] This allows you to activate the S.M.A.R.T. (Self-Monitoring Analysis
&
Reporting Technology) capability for the hard disks. S.M.A.R.T is a utility that
monitors your disk status to predict hard disk failure. This gives you an
opportunity
to move data from a hard disk that is going to fail to a safe place before the hard
disk
becomes offline.

[32 Bit Data Transfer] Enable/Disable 32-bit Data Transfer.

Hard Disk Write Protect

Disabled/Enabled device write protection, this will be effective only if device is
accessed through BIOS.

The choice: Disabled, Enabled.

IDE Detect Time Out (Sec)

Select the time out value for detecting ATA/ATAPI device (s).

The choice: 0, 5, 10, 15, 20, 25, 30, 35.

ATA (PI) 80Pin Cable Detection

36

Select the mechanism for detecting 80Pin ATA (PI) cable.

The choice: Host & Device, Host, Device.

Super IO Configuration

Serial Port 1 Address

Allows BIOS Select Serial Port1 Base Addresses.

The choice: Disabled, 3F8/IRQ4.

Watch Dog Timer Set

This BIOS testing option is able to reset the system according to the selected
table.

The choice: Disabled, 10, 20, 30, 40 Sec, 1Min, 2Min, 4Min.

Hardware Health Configuration

Configuration / monitor the Hardware Health.

37

SYSFAN Mode Setting

Fan configuration mode setting.

The choice: Manual Mode, Thermal Cruise Mode.

SYSFAN PWM Control

The PWM duty cycle control.

The choice: 0 to 255.

ACPI Configuration

Select for Advanced ACPI Configuration.

38

General ACPI Configuration

Suspend mode

This item specifies the power saving modes for ACPI function. If your operating
system supports ACPI, you can choose to enter the Standby mode in S3 (STR)
function through the setting of this field. Option is:

[S3 (STR)] The S3 sleep mode is a lower power state where the information of

39

system
configuration and open applications/ files is saved to main memory that remains
powered while most other hardware components turn off to save energy. The
information stored in memory will be used to restore the system when a “wake
up”
event occurs.

Repost Video on S3 Resume

Determines whether to invoke VGA BIOS post on S3/STR resume.

The choice: No, Yes

Advanced ACPI Configuration

Advanced ACPI Configuration settings, Use this section to configure additional
ACPI options.

ACPI Version Features

Enable RSDP pointers to 64-bit Fixed System Description Tables.

40

The choice: ACPI v1.0 / ACPI v2.0 / ACPI v3.0.

ACPI APIC support

Include ACPI APIC table pointer to RSDT pointer list.

The choice: Disabled, Enabled.

AMI OEMB table

Include OEMB table pointer to R(X) SDT pointer list.

The choice: Disabled, Enabled.

Headless mode

Enable / Disable Headless operation mode through ACPI.

The choice: Disabled, Enabled.

Chipset ACPI Configuration

Chipset ACPI related Configuration settings, Use this section to configure
additional
ACPI options.

41

APIC ACPI SCI IRQ

Enable / Disable APIC ACPI SCI IRQ.

The choice: Disabled, Enabled.

USB Device Wakeup From S3/S4

Enable / Disable USB device Wake from S3/S4 mode.

The choice: Disabled, Enabled.

MPS Configuration

Configure the Multi-Processor Table.

42

MPS Revision

This field allows you to select which MPS (Multi-Processor Specification) version
to
be used for the operating system. You need to select the MPS version supported
by
your operating system. To find out which version to use, consult the vendor of
your
operating system.

The choice: 1.1, 1.4.

PCI Express Configuration

Configure PCI Express Support.

43

Active State Power-Management

PCI Express L0s and L1 link power states.

The choice: Disabled, Enabled.

Smbios Configuration

SMBIOS Configuration Menu.

44

Smbios Smi Support

SMBIOS SMI Wrapper supports for PnP Func 50h-54h.

The choice: Disabled, Enabled.

USB Configuration

45

Legacy USB Support

Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating
system
that does not support or have any USB 1.1/2.0 driver installed, such as DOS and
SCO
Unix.

The choice: Disabled, Enabled, Auto.

USB 2.0 Controller Mode

This setting specifies the operation mode of the onboard USB 2.0 controller.
The choice: FullSpeed, HiSpeed.

BIOS EHCI Hand-Off

This is a workaround for OSes without EHCI hand-off support. The EHCI
ownership
change should claim by EHCI driver.

The choice: Disabled, Enabled.

3.4 PCIPnP

46

Advanced PCI/PnP setting wrong values in below sections may cause system to
malfunction.

Clear NVRAM

Clear NVRAM during System Boot.

The choice: No, Yes.

Plug & Play O/S

No: lets the BIOS configure all the devices in the system.
Yes: lets the operating system configure Plug and Play (PnP) devices not required
for
boot if your system has a Plug and Play operating system.

The choice: No, Yes.

PCI Latency Timer

Select value in units of PCI clocks for PCI device latency timer register.

The choice: 32, 64, 96, 128, 160, 192, 224, 248.

Allocate IRQ to PCI VGA

Yes: Assigns IRQ to PCI VGA card if card requests an IRQ.

47

No: Does not assign IRQ to PCI VGA card even if card requests an IRQ.

The choice: No, Yes.

Palette Snooping

Enabled: informs the PCI devices that an ISA graphics device is installed in the
system so the card will function correctly.

The choice: Disabled, Enabled.

PCI IDE BusMaster

Enabled: Uses PCI bus mastering for reading / writing to IDE drives.

The choice: Disabled, Enabled.

OffBoard PCI/ISA IDE Card

Some PCI IDE cards may require this to be set to the PCI slot number that is
holding
the card. AUTO: Works for most PCI IDE cards.

The choice: Auto, PCI Slot1, PCI Slot2, PCI Slot3, PCI Slot4, PCI Slot5, PCI Slot6.

IRQ 3 / IRQ 4 / IRQ5 / IRQ7 / IRQ 9 / IRQ 10 / IRQ 11 / IRQ 14 / IRQ
15

Available: Specified IRQ is available to be used by PCI/PnP devices.
Reserved: Specified IRQ is reserved for used by Legacy ISA devices.

The choice: Available, Reserved.

Reserved Memory Size

Select Size of memory block to reserve for legacy ISA devices.

The choice: Disabled, 16K, 32K, 64K

3.5 Boot

48

Use this menu to specify the priority of boot devices.

Boot Settings Configuration

49

Quick Boot

Enabling this setting will cause the BIOS power-on self test routine to skip some
of its
tests during boot up for faster system boot.

The choice: Disabled, Enabled.

Quiet Boot

This BIOS feature determines if the BIOS should hide the normal POST messages
with the motherboard or system manufacturer's full-screen logo. When it is
enabled,
the BIOS will display the full-screen logo during the boot-up sequence, hiding
normal POST messages.
When it is disabled, the BIOS will display the normal POST messages, instead of
the
full-screen logo.

Please note that enabling this BIOS feature often adds 2-3 seconds of delay to the
booting sequence. This delay ensures that the logo is displayed for a sufficient
amount of time. Therefore, it is recommended that you disable this BIOS feature
for a

50

faster boot-up time.

The choice: Disabled, Enabled.

AddOn ROM Display Mode

This item is used to determine the display mode when an optional ROM is
initialized
during POST. When set to [Force BIOS], the display mode used by AMI BIOS is
used.
Select [Keep Current] if you want to use the display mode of optional ROM.

The choice: Force BIOS, Keep Current.

Bootup Num-Lock

This setting is to set the Num Lock status when the system is powered on.
Setting to [On] will turn on the Num Lock key when the system is powered on.
Setting to [Off] will allow users to use the arrow keys on the numeric keypad.

The choice: Off, On.

PS/2 Mouse support

Select [Enabled] if you need to use a PS/2-interfaced mouse in the operating
system.

The choice: Disabled, Enabled, Auto.

Wait For ‘F1’ If Error

When this setting is set to [Enabled] and the boot sequence encounters an error,
it
asks you to press F1. If disabled, the system continues to boot without waiting for
you
to press any keys.

The choice: Disabled, Enabled.

Hit ‘DEL’ Message Display

Set this option to [Disabled] to prevent the message as follows:
Hit Del if you want to run setup
It will prevent the message from appearing on the first BIOS screen when the

51

computer boots. Set it to [Enabled] when you want to run the BIOS Setup Utility.

The choice: Disabled, Enabled.

Interrupt 19 Capture

Interrupt 19 is the software interrupt that handles the boot disk function. When
enabled, this BIOS feature allows the ROM BIOS of these host adaptors to
"capture"
Interrupt 19 during the boot process so that drives attached to these adaptors
can
function as bootable disks. In addition, it allows you to gain access to the host
adaptor's ROM setup utility, if one is available.

When disabled, the ROM BIOS of these host adaptors will not be able to "capture"
Interrupt 19. Therefore, you will not be able to boot operating systems from any
bootable disks attached to these host adaptors. Nor will you be able to gain
access to
their ROM setup utilities.

The choice: Disabled, Enabled.

Boot Device Priority

52

1st Boot Device

The items allow you to set the sequence of boot devices where BIOS attempts to
load
the disk operating system. First press <Enter> to enter the sub-menu. Then you
may
use the arrow keys (↑↓) to select the desired device, then press <＋>, <－> or
<PageUp>, <PageDown> key to move it up/down in the priority list.

The choice: (Network:IBA GE Slot 0200 v1324), Disabled.

3.6 Security

Use this menu to set supervisor and user passwords.

53

Supervisor Password / Change Supervisor Password

Supervisor Password controls access to the BIOS Setup utility. These settings
allow

you to set or change the supervisor password.

User Password / Change User Password

User Password controls access to the system at boot. These settings allow you to
set or
change the user password.

Boot Sector Virus Protection

Boot Sector Virus Protection.

The choice: Disabled, Enabled.

3.7 Chipset

This menu controls the advanced features of the onboard Northbridge and

54

Southbridge.

North Bridge Chipset Configuration

55

Primary Graphics Adapter

Select which graphics controller to use as the primary boot device.

The choice: IGD, PCIe/IGD.

Integrated Graphics Mode Selec

Select the amount of system memory used by the internal graphics device.

The choice: Disabled, Enabled, 1MB, Enabled, 4MB, Enabled, 8MB.

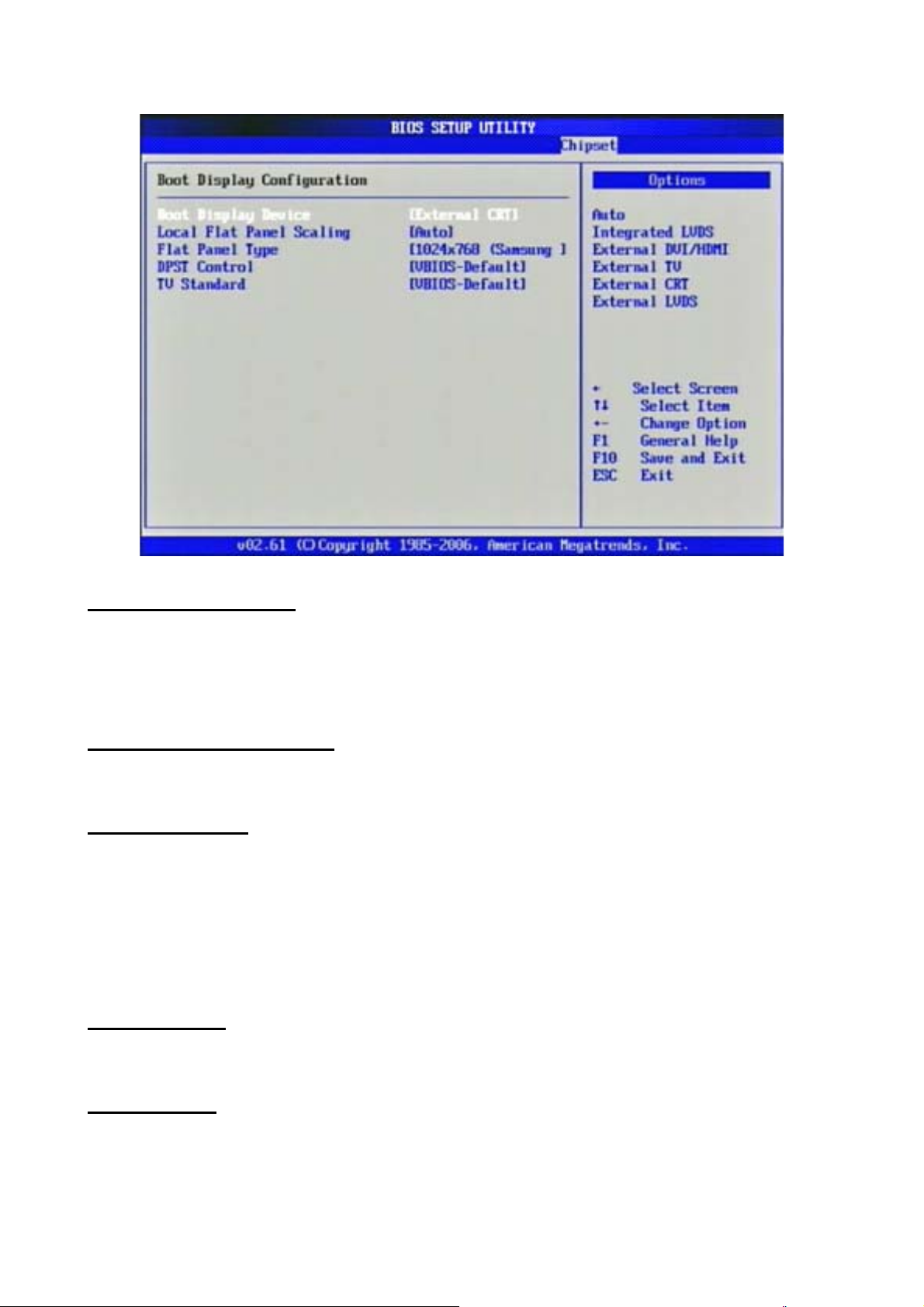

Boot Display Configuration

56

Boot Display Device

The choice: Auto, Integrated LVDS, External DVI/HDMI, External TV, External
CRT
External LVDS.

Local Flat Panel Scaling

The choice: Auto, Forced Scaling, Disabled.

Flat Panel Type

The choice: 640x480 (generic), 800x600 (generic), 1024x768 (generic),
640x480 (NEC

8.4”), 800x600 (NEC 9”), 1024x600 (TMD 5.61”), 1024x600 (Samsung

4.8”), 1024x768 (Samsung 15”), 1280x768 (Sharp 7.2”), 1280x800
(Samsung 15.4”), 1366x768 (TMD 11.1”).

DPST Control

The choice: VBIOS-Default, DPST Disabled, DPST Enabled at Level 1~Level 5.

TV Standard

The choice: VBIOS-Default, NTSC, PAL, SECAM, SMPTE240M, ITU-R television,
SMPTE295M, SMPTE296M, CEA 7702, CEA 7703.

57

South Bridge Chipset Configuration

USB Functions

This setting specifies the function of the onboard USB controller.

The choice: Disabled, 2 USB Ports, 4 USB Ports, 6 USB Ports.

USB 2.0 Controller

Set to [Enabled] if you need to use any USB 2.0 device in the operating system
that
does not support or have any USB 2.0 driver installed, such as DOS.

The choice: Enabled, Disabled.

USB Client Controller

The choice: Enabled, Disabled.

SDIO controller

The choice: Enabled, Disabled.

Audio Controller Codec

58

The choice: Auto, Azalia, Disabled.

SLP_S4# Min. Assertion Width

The choice: 4 to 5 seconds, 3 to 4 seconds, 2 to 3 seconds, 1 to 2 seconds.

Restore on AC Power Loss

This item allows user to configure the power status of using ATX power supply
after
a serious power loss occurs.

The choice: Power Off, Power On, Last State.

Serial IRQ Mode

The choice: Continuous, Quiet.

PCIE Port 0

The choice: Auto, Enabled, Disabled.

PCIE Port 1

The choice: Auto, Enabled, Disabled.

3.8 Exit

59

This menu allows you to load the BIOS default values or factory default settings
into
the BIOS and exit the BIOS setup utility with or without changes.

Save Changes and Exit

Exit System Setup and save your changes to CMOS. Pressing <Enter> on this
item
asks for confirmation: Save changes to CMOS and exit the Setup Utility.

Discard Changes and Exit

Abandon all changes and exit the Setup Utility.

Discard Changes

Abandon all changes and continue with the Setup Utility.

Load Optimal Defaults

Use this menu to load the default values set by the SBC manufacturer specifically
for
optimal performance of the SBC.

Load Failsafe Defaults

Use this menu to load the default values set by the BIOS vendor for stable system
performance.

60

15.105 Federal Communications Commission (FCC) Requirements, Part 15

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:

---Reorient or relocate the receiving antenna.

---Increase the separation between the equipment and receiver.

---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

---Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference. and (2) This device must accept any interference
received, including interference that may cause undesired operation.

You are cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada a pplicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.

Industry Canada - Class B
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the interference-causing equipment standard
entitled “Digital Apparatus,” ICES-003 of Industry Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables
aux appareils numériques de Classe B prescrites dans la norme sur le matérial
brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie.

To comply with FCC, Industry Canada and other national regulatory guidelines for RF exposure
statement:

1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment
should be installed and operated with a minimum distance of 20 centimeters between the radiator and your
body.

Pour se conformer à la FCC, à l'industrie Canada et à d'autres directives de normalisation nationales
pour le rapport d'exposition de rf :

1. Cet émetteur ne doit pas n'être coïmplanté ou opération en même temps qu'aucune autre antenne ou
émetteur.

2. Cet équipement est conforme aux limites d'exposition de rayonnement de la FCC rf déterminées pour un
environnement non contrôlé. Cet équipement devrait être installé et actionné avec une distance minimum de
20 centimètres entre le radiateur et votre corps.

61

Chapter 4 Appendix

4.1 Protective Packing

Carefully packing your "WiSP" System (save the box and packing materials for
future use).
See the picture below for packing the "WiSP" System:

62
