Portwell WEBS-1108A, WEBS-1108B, WEBS-1108C User Manual

Download

:(%6$User Manual

:(%6$?%?& Box PC

User Manual

Release Date Revision

Sep. 2009 V1.0

:(%6$ User Manual

Warning!_______________________________

This equipment generates, uses and can radiate radio frequency energy and if not installed and

used in accordanc e with the instructions m anual, it may cause interference to radi o

communications.

It has been tested and found to comply with the limits for a Class A computing device pursuant to

FCC Rules, which are designed to provide reasonable protection against such interference when

operated in a commercial environment. Operation of this equipment in a residential area is likely

to cause interference in which case the user at his own expense will be required to take whatever

measures may be required to correct the interference.

Electric Shock Hazard – Do not operate the machine with its back cover removed. There are

dangerous high voltages inside.

:(%6$ User Manual

Table of Contents______________________

Warning!…………………………………………………………………………….……..….2 Disclaimer………………………………………………………………….…………………2

Chapter 1 Getting Started

1.1 Features…....………………….………………………….…………..…...…5

1.2 Specifications………………………………………….………….……...…..5

1.3 Dimensions…………………………………...……………….…………......6

1.4.Mainboard overview………… ………………………….……………..…...9

1.5 Safety Precautions……….………………….………….……….……….….9

1.6 Brief Description of

:(%6$…………………….…………………10

Chapter 2 Hardware Installation

2.1 Inst allation of Memory .…...………………………………….……………11

2.2 Inst allation of HDD...…...………………………………….……………12

2.3 Inst allation of PCI... …...………………………………….……………13

2.4 Inst alling the Jum per….………………………………….……………15

2.5 Connectors………….………………………….………….……………19

2.6 APO/ATX Power Mode Selection…..……………………….……………25

Chapter 3 BIOS Setup

3.1 Managing and updating your BIOS…………………….……………30

3.1.1 Creating a boot able floppy disk…………………….……………30

3.2 O S setup program………………………….…………….……………31

3.2.1 Legend Box………………........………..…….……………34

3.2.2 List Box..………………........………...…….……………..……32

3.2.3 Sub-menu………..………........………..…….……………32

3.3 B IOS menu screen ………..………........………..…….……………33

3.3.1 S tandard CMOS Features . . . . . . … … … . . ……………………25

3.3.2 Advanced BIOS Features ......………..……………………36

3.3.3 Advanced Chipset Features ......………..……...………..………41

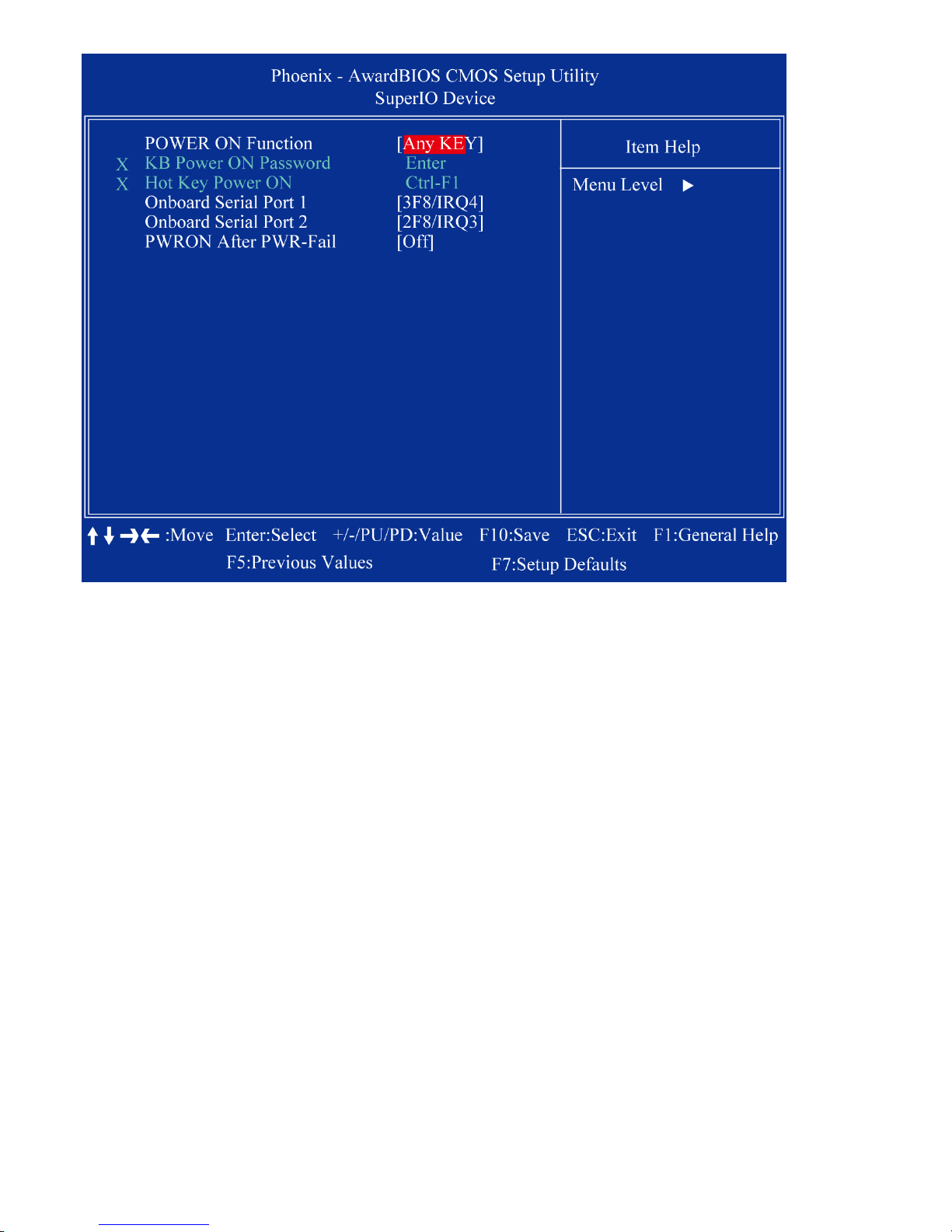

3.3.4 I ntegrated Peripherals ......………..………….….…..……….……43

:(%6$User Manual

3.3.5 Security Chip Configuration ......………..……………… ……48

3.3.6 Power Management Setup ......………..…….…..…… … …48

3.3.7 PnP/PCI Configurations ......………..…….…..…… … …51

3.3.8 PC Health Status ......………..…….………………..… ……52

3.3.9 Frequency/Voltage Control......…… …..…….………..… ……53

3.3.10 Load Optimized Defaults ......………..…….…………. ……54

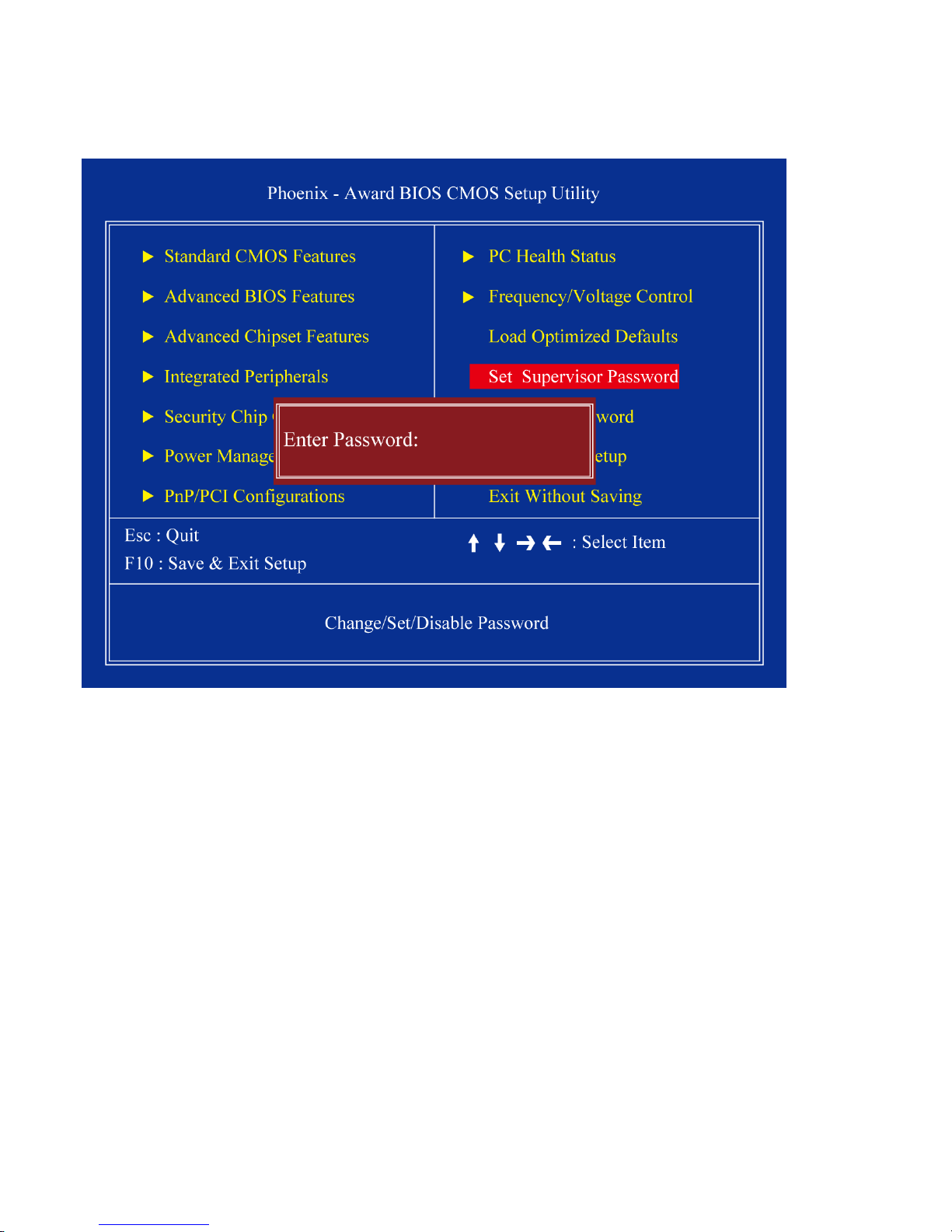

3.3.11 Set Supervisor Password ......………..…….……….. ……55

3.3.12 Set User Password ......………..…….……… ……56

3.3.13 Save & Exit Setup ......………..…….………… …57

3.3.14 Exit Without Saving .....………..…….………………………….…58

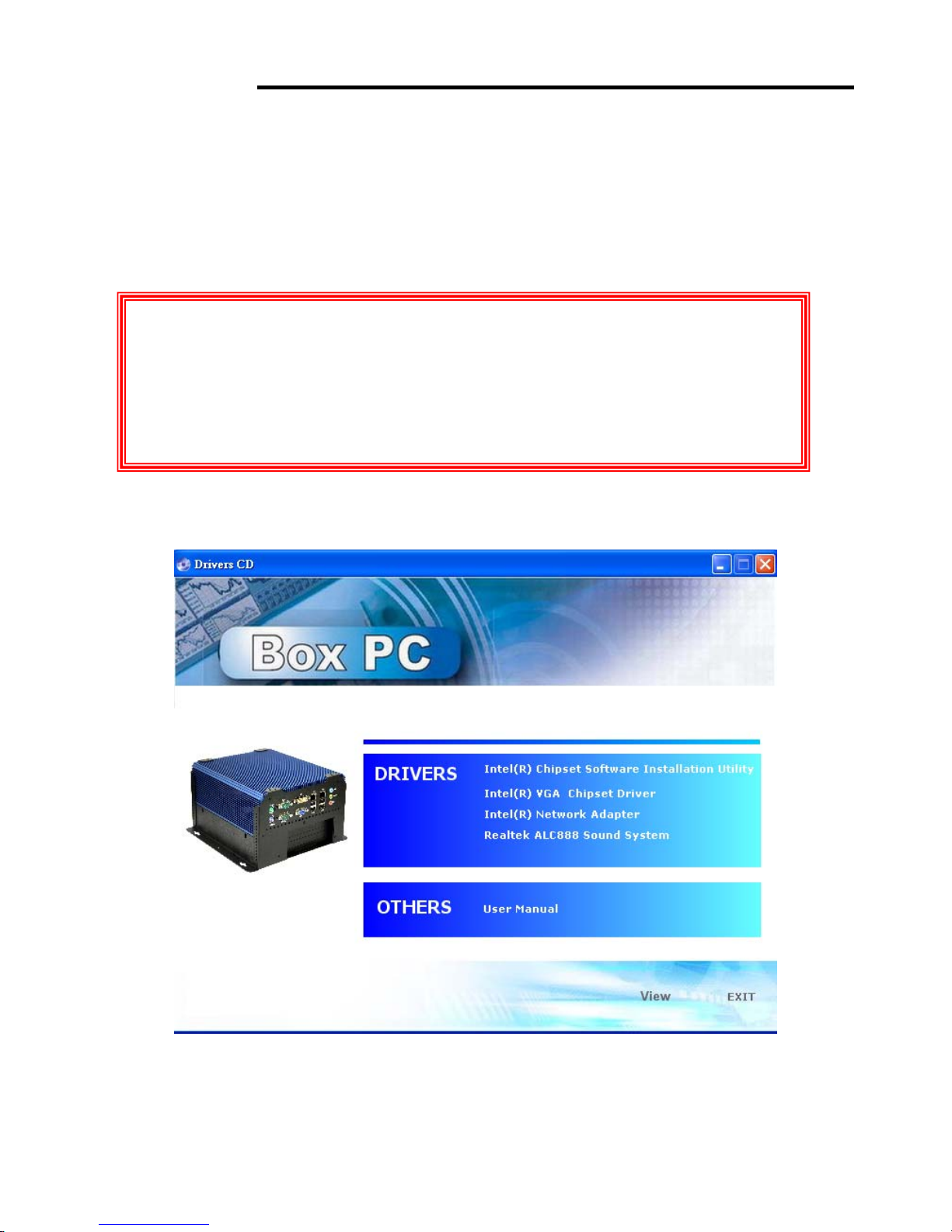

Chapter 4 Installation of Drivers

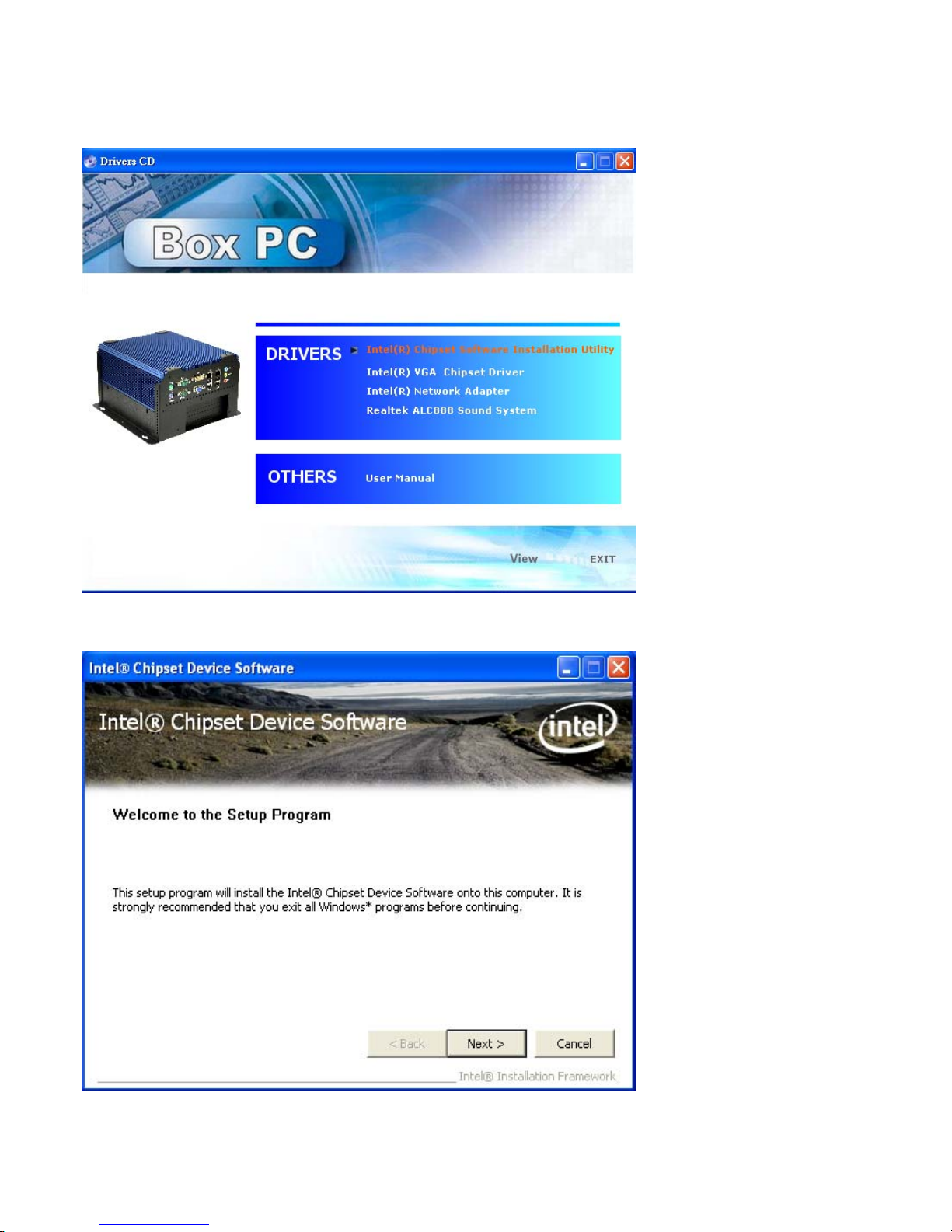

4.1 Intel Chip set Driver .…………………………...…………………………60

4.2 Intel Graphics Driver ...…..............................……………………..63

4.3 Intel LAN D evice Driver……………………..……………………….68

4.4 Realtek HD Audio Driver Installation…….…………..…………………71

Figures

Figure 1.1: Dimensions of the :(%6$…..……………………...6 Figure 1.2: Dimensions of the :(%6%…..……………………...7 Figure 1.3: Dimensions of the :(%6&…..……………………...8

Figure 1.4: Mainboard Overvi ew …………………… ……………………...9 Figure 1.5: Front V iew ………………………………………………………10 Figure 1.6: Rear V iew…..………………………..….………………………10

:(%6$ User Manual

Chapter 1_____________________________

1.1 Specifications

z Supports Intel® FCBGA8 45nm Atom™ N270 Processor 533 MHz z Intel® 945GSE + ICH7-M Chipset z Fanless design z 1 x DDR2 SO-DIMM Socket, Support DDR2 533 up to 2GB z 2 x 10/100 Ethernet LAN, 1 x VGA connector z 3 x COM ports & 4 x USB ports z 1 x 2.5” HDD space & 1 x CF External Slot z Support 11~32V/DC Input, support AT/ATX mode

1.2 Specifications

Model No.

Specs

:(%6$:(%6% :(%6&

CPU

Supports Intel® FCBGA8 45nm Atom™ N270 Processor 533 MHz

Chipset

Intel® 945GSE + ICH7-M Chipset

System Memory

1 x DDR2 SO-DIMM Socket, Support DDR2 533 up to 2GB

Storage support

1 x 2.5” SATA HDD space and 1 x External CF Slot

VGA

1x VAG port

DVI

1 x 24pin DVI port

Keyboard & Mouse

2 x PS/2 for Keyboard and Mouse Connectors

Serial Port

2 x RS-232

Ethernet

2 x Gigabit LAN

USB Port

4 x USB port on the I/O side and 2 x USB on the front side

Audio

1 x Line-in, 1 x Line-out, 1 x MIC in

Expansion Slots

None 1 x PCI slot 2 x PCI slots

Power Input

DC 11~32V

Watchdog Timer

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

OS support

XP Pro, XP Embedded

Construction

Alumina Molding & Heavy-duty steel chassis

Color

Blue Heat sink and Black Chassis

Mounting

Wall mount

Dimensions (WxHxD)

203.5 x 230 x 80 mm 203.2 x 226.5 x 103.3 mm 203.5 x 230 x 125 mm

Net Weight

4.5kgs 4.5kgs 5kgs

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

10%~95% (non-condensing)

Certificate

Meet CE / FCC Class A

:(%6$ User Manual

1.3 Dimensions

Figure 1.1: Dimensions of the :(%6$

:(%6$ User Manual

Figure 1.2: Dimensions of the

:(%6%

:(%6$

Figure 1.3: Dimensions of the

:(%6&

:(%6$ User Manual

1.4 Mainboard

Figure 1.4: Mainboard Overview

1.5 Safety Precautions

Follow the messages below to avoid your systems from damage:

* Avoid your system from static electricity on all occasions.

* Prevent electric shock. Don‘t touch any components of this card when the card is power-on.

Always disconnect power when the system is not in use.

*Disconnect power when you change any hardware devices. For instance, when you connect

a jumper or inst all any cards, a surge of power may damage the electronic c omponents or

the whole system.

WEBS-1108A User Manual

1.6 Brief Description of the :(%6

The :(%6 is a power-optimized and delivers robust performance-per-watt for

cost-effective embedded Box PC, powered by an Atom™ N270 processor, implemented in 45nm

technology. The system supporting 6 USB 2.0 ports, 2x COM Ports, 1 x VGA, 1 x DVI, 1 x PCI slots

(WEBS-1108B only) or 2x PCI slots ( WEBS-1108C only), 1 x SATA HDD, 1 x external CF slot etc. It is ideal for

for kiosks, POS systems, airport terminal controllers, digital entertainments, etc. and running factory

operations from small visual interface and maintenance applications to large control process

applications. The WEBS-1108 works very well along with any of our Display Monitor series. It absolutely

can provide an easy way to perform control and field maintenance. It comes with a DC11~32V

wide-ranging power input.

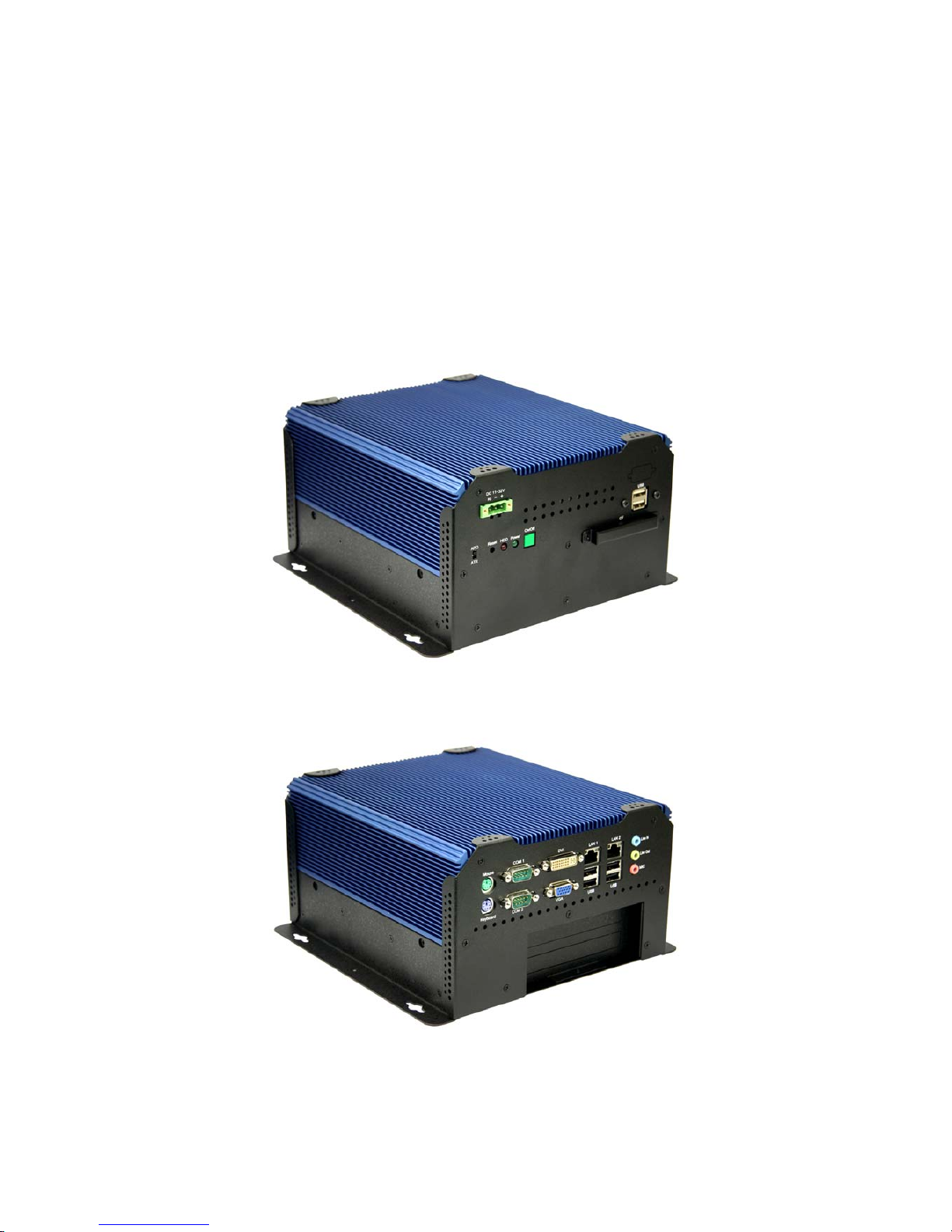

Figure 1.5: Front View of WEBS-1108C

Figure 1.6: Rear View of WEBS-1108C

WEBS-1108A User Manual

Chapter 2__________Hardware Installation

2.1 Installing the Memory

The motherboard comes with one 200- pin Double Dat a Rate 2 (DDR2) Small Outline Dual Inline

Memory Modules (SO-DIMM) sockets.

A DDR2 module has the same ph ysical dimensions as a DDR DI MM but has a 200-pin footprint

compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched differently to prevent installation on a

DDR DIMM socket. The following figure illustrates the location of the sockets:

200-Pin DDR2 SO-DIMM sockets

Memory Configurations

You may install 64 MB, 128 MB, 256 MB, 512 MB and up to 2 GB unbuffered ECC or non-ECC DDR

SO-DIMMs into the SO-DIMM sockets using the memory configurations in this section.

Installing a DIMM

Make sure to unplug the power supply before adding or removing

SO-DIMMs or other system components. Failure to do so may cause

severe damage to both the motherboard and the components.

WEBS-1108A User Manual

1. Unlock a SO-DIMM socket by pressing the retaining clips outward

2. Align a SO-DIMM on the socket such that the notch on the SO-DIMM matches the

break on the socket.

3. Firmly insert the SO-DIMM into the socket until the retaining clips snap back in place

and the SO-DIMM is properly seated.

z A DDR2 SO-DIMM is keyed with a notch so that it fits in only one

direction. DO NOT force a SO-DIMM into a socket to avoid

damaging the SO-DIMM.

z The DDR2 SO-DIMM sockets do not support DDR SO-DIMMs. DO

NOT install DDR SO-DIMMs to the DDR2 SO-DIMM socket.

Removing a SO-DIMM

1. Simultaneously press the retaining clips outward to unlock the SO-DIMM.

Support the SO-DIMM lightly with your fingers when pressing the

retaining clips. The SO-DIMM might get damaged when it flips out with

extra force.

2. Remove the SO-DIMM from the socket.

WEBS-1108A User Manual

2.2 Inst allation of HDD

2.2.1 Removing bottom cover

Use screwdriver to remove the bottom cover screws.

Keep the safely for later use. As shown.

2.2.2 Removing HDD Bracket

Disengage the housing of Ha rd disk drive. Just

unscrew the 4 screws , you can easily fin d the HDD. As

shown.

2.2.3 Connecting Cable to HDD

Connect the cable to the HDD, making sure that the red

stripe of the cable is on the right side (if connected with

the top of the HDD facing upward).

** Onboard one

Compact Flash slot as circled in the


2.2.4 Tightening HDD

Tightly fasten the four screws as circled to secure the

HDD.

2.2.5 Installing HDD

Get the 4 screws tightened onto the chassis as shown in

the picture.

WEBS-1108A User Manual

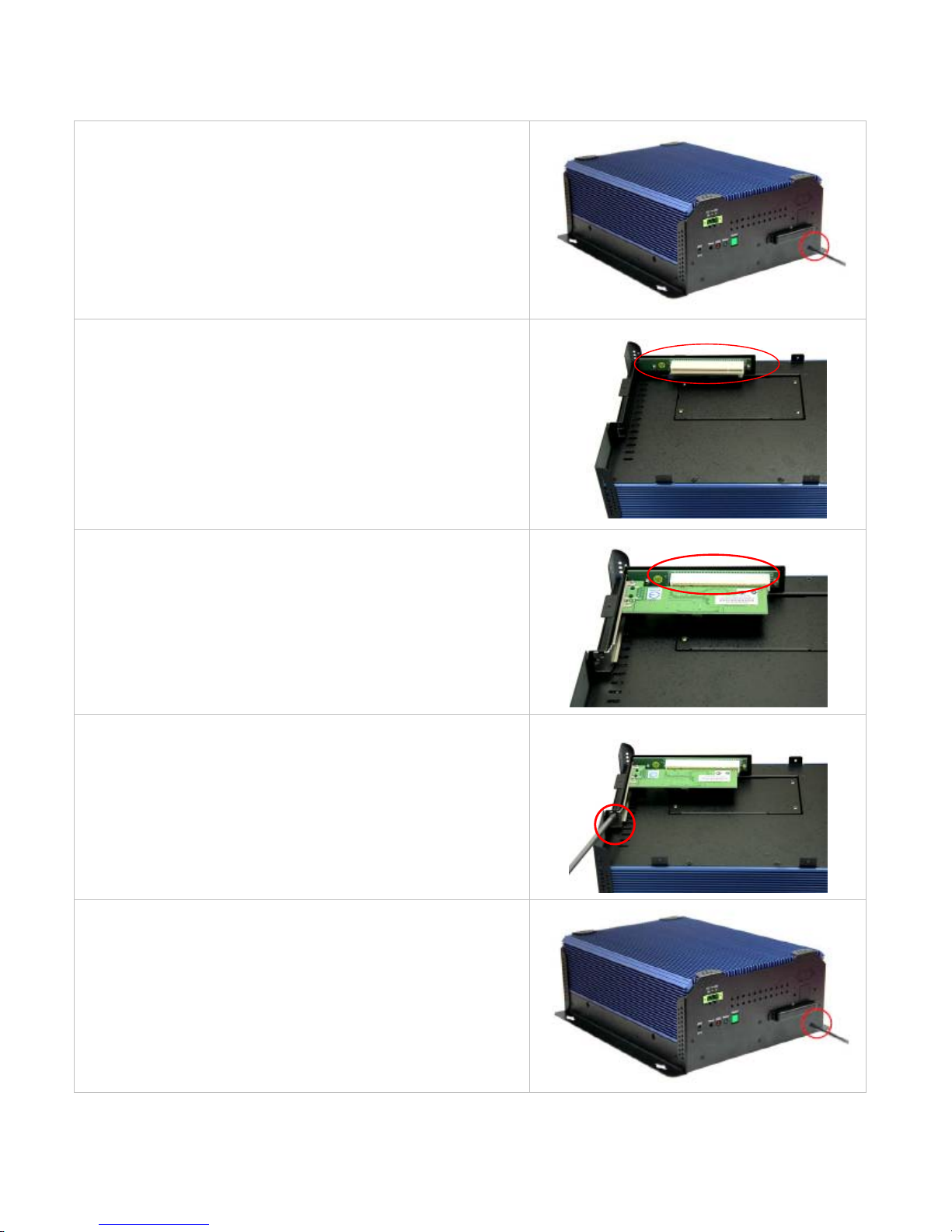

2.3 Installation of PCI Expansion Add on Cards

2.3.1 Removing bottom cover

Use screwdriver to remove the bottom cover 27 screws.

Keep the safely for later use. As shown.

2.3.2 Support 1 x PCI slot (WEBS-1108B only) Support 2 x PCI slots (WEBS-1108C only)

Shown in the picture are the one PCI expansion slots for

addon. The location of the 1 x PCI expansion slot card is

found by the side of the rail.

2.3.3 Insert the PCI Card

Now slide an addon into the slot of the PCI as circled in

the picture and making sure the golden part of the card is

evenly aligned with the slot of the PCI. Then carefully

push the card deep into the slot.

2.3.4 Tightening PCI bracket

Now get the addon secured by tightening the screw as

circled in the picture.

** Support Card size of PCI : 115 mm x 210mm

2.3.5 finish the installation

To finish the job, get the 27 screws tightened onto the

chassis as shown in the picture.

WEBS-1108A User Manual

2.4 Installing the Jumpers

2.4.1. Clear RTC RAM (CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS

memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The

onboard button cell battery powers the RAM data in CMOS, which include system setup information

such as system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Remove the onboard battery.

3. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5~10

seconds, then move the cap back to pins 1-2.

4. Re-install the battery.

5. Plug the power cord and turn ON the computer.

6. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data.

Except when clearing the RTC RAM, never remove the cap on CLRTC

jumper default position. Removing the cap will cause system boot failure!

You do not need to clear the R TC when the system hangs due to

overclocking. For system failure due to overclocking, use the C.P .R.

(CPU Parameter Recall) feature. Shut down and reboot the system so

the BIOS can automatically reset parameter settings to default values.

WEBS-1108A User Manual

2.4.2. COM1 RI, +12V and +5V Power Select (JCOMPWR1, JCOMPWR2)

This jumper allows you to select COM1 RI, +5V and +12V power. Set JCOMPWR1 to pins

1-3 and JCOMPWR2 to pins 1-3 to select +5V power. And set JCOMPWR1 to pins 3-5 and

JCOMPWR2 to pins 1-3 to select +12V power. Then set JCOMPWR2 to pins 3-5 and

JCOMPWR1 to open for RI selection.

2.4.3. COM2 RI, +12V and +5V Power Select (JCOMPWR1, JCOMPWR2)

This jumper allows you to select COM2 RI, +5V and +12V power. Set JCOMPWR1 to pins

2-4 and JCOMPWR2 to pins 2-4 to select +5V power. And set JCOMPWR1 to pins 4-6

and JCOMPWR2 to pins 2-4 to select +12V power. Then set JCOMPWR2 to pins 4-6 and JCOMPWR1 to open for RI selection.

2.4.4. COM3 RI, +12V and +5V Power Select (JCOMPWR3, JCOMPWR4)

This jumper allows you to select COM3 RI, +5V and +12V power. Set JCOMPWR3 to pins

1-3 and JCOMPWR4 to pins 1-3 to select +5V power. And set JCOMPWR3 to pins 3-5

WEBS-1108A User Manual

and JCOMPWR4 to pins 1-3 to select +12V power. Then set JCOMPWR4 to pins 3-5 and JCOMPWR3 to open for RI selection.

2.4.5. COM4 RI, +12V and +5V Power Select (JCOMPWR3, JCOMPWR4)

This jumper allows you to select COM3 RI, +5V and +12V power . Set JCOMPWR3 to

pins 2-4 and JCOMPWR4 to pins 2-4 to select +5V power. And set JCOMPWR3 to pins

4-6 and JCOMPWR4 to pins 2-4 to select +12V power. Then set JCOMPWR4 to pins 4-6 and JCOMPWR3 to open for RI selection.

2.4.6. System Panel Connector

(F_PANEL1)

This connector supports several chassis-mounted functions. z System Power LED (2-pin PWRLED)

This 2-pin connector is for the system power LED. Connect the chassis power LED

cable to this connector. The system power LED lights up when you turn on the system

WEBS-1108A User Manual

power, and blinks when the system is in sleep mode. z ATX Power Button/Soft-off Button (2-pin PWRSW)

This connector is for the system power button. Pressing the power button turns the

system on or puts the system in sleep or soft-off mode depending on the BIOS settings.

Pressing the power switch for more than four seconds while the system is ON turns the

system OFF. z Hard Disk Drive Activity LED (2-pin HDLED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable

to this connector. The IDE LED lights up or flashes when data is read from or written to

the HDD. z Reset Button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

WEBS-1108A User Manual

2.5 Connectors

Rear panel connectors

1. PS/2 mouse port (green). This port is for a PS/2 mouse.

2. Serial connector. This 9-pin COM1 port is for serial devices.

3. DVI connector—for EMX-945GSE-A1-DVIR only.

This 24-pin DVI port connects to a DVI monitor.

4 & 5. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)

through a network hub. Refer to the table below for the LAN port LED indications.

LAN port LED indications

6. Line In port (light blue). This port connects a tape, CD, DVD player, or other audio sources.

7. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel, 6-channel, and

8-channel configuration, the function of this port becomes Front Speaker Out.

8. Microphone port (pink). This port connects a microphone.

9. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are available for

connecting USB 2.0 devices.

10. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are available for

connecting USB 2.0 devices.

ACT/ LINK LED SPEED LED

Status Description Status Description

OFF No link OFF 10Mbps connection

Orange Linked Orange 100Mbps connection

Blinking Data activity Green 1Gbps connection

WEBS-1108A User Manual

11. VGA port. This 15-pin VGA port connects to a VGA monitor.

12. Serial connector. This 9-pin COM2 port is for serial devices.

13. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.

1.9.2 Internal connectors

1. Front panel audio connector (10-pin AAFP1)

This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or

legacy AC’97 audio standard.

It is recommended that you connect a high-definition front p anel audio

module to this connector to avail of the motherboard’ s high ‑definition

audio capability.

WEBS-1108A User Manual

2. Serial Port connectors (9-pin COM3, COM4)

This connector is for a serial (COM) port. Connect the serial port module cable to this connector, then

install the module to a slot opening at the back of the system chassis.

3. CPU, Power and Chassis fan connectors (3-pin CHA_FAN)

The fan connectors support cooling fans of 350mA~740mA (8.88W max.) or a total of 1A~2.22A

(26.64W max.) at +12V. Connect the fan cables to the fan connectors on the motherboard, making

sure that the black wire of each cable matches the ground pin of the connector.

Do not forget to connect the fan cables to the fan connectors. Insufficient

air flow ins ide the sys tem may damage the motherboard component s.

These are not jumpers! DO NOT place jumper cap s on t he fan

connectors.

WEBS-1108A User Manual

4. Digital Audio connector (4-1 pin SPDIF_OUT)

This connector is for the S/PDIF audio module to allow digital sound output.

Connect one end of the S/PDIF audio cable to this connector and the other end to the S/PDIF module.

The S/PDIF out module is purchased separately.

5. USB connectors (10-1 pin USB45)

This connector is for USB 2.0 ports. Connect the optional USB module cable to any of these

connectors, then install the module to a slot opening at the back of the system chassis. These USB

connectors comply with USB 2.0 specification that supports up to 480 Mbps connection speed.

WEBS-1108A User Manual

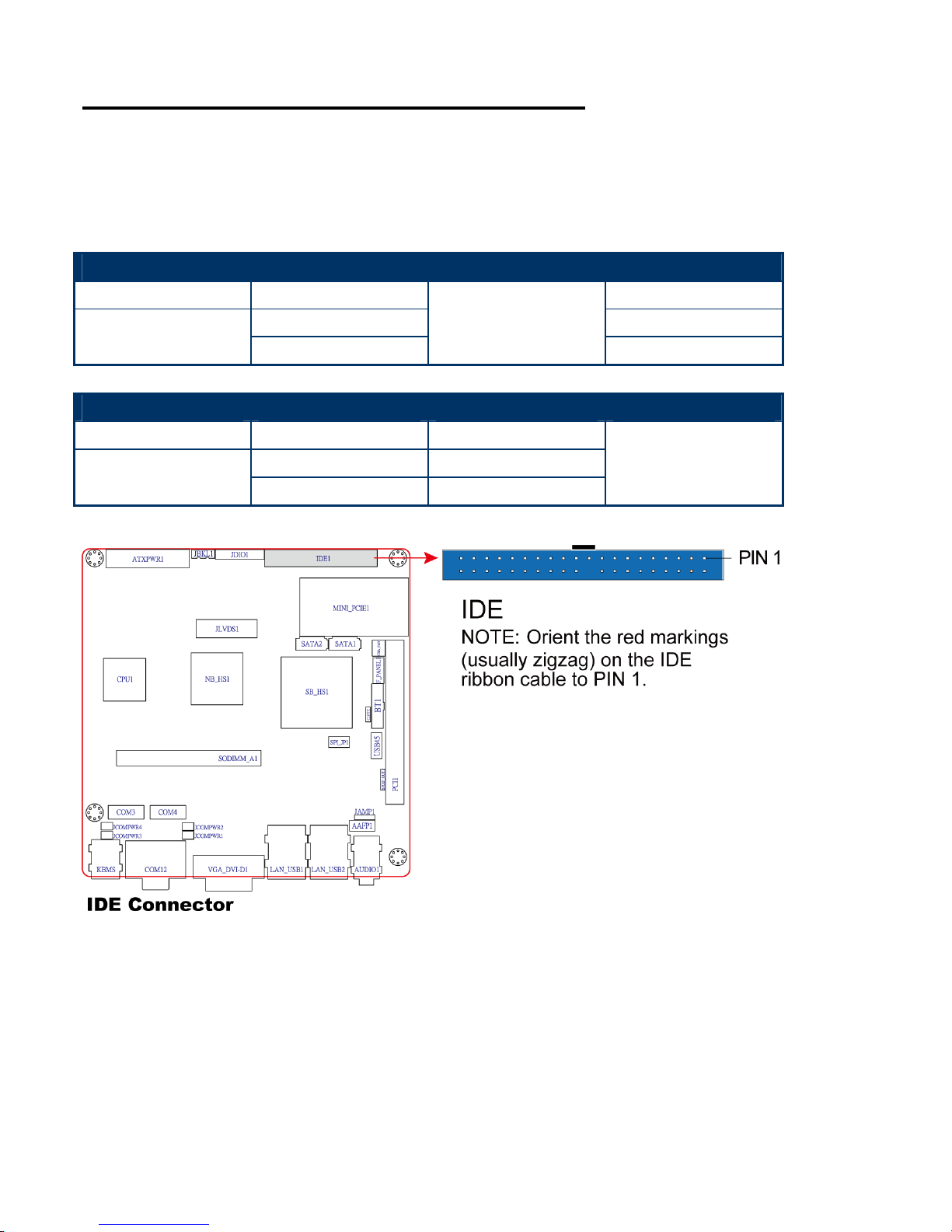

6. Primary IDE connector (40-1 pin IDE1)

These connectors are for Ultra DMA 133/100/66 signal cables. There are three interfaces on each

Ultra DMA 133/100/66 signal cable: blue, black, and gray.

Connect the blue interface into the motherboard’s IDE connector, then select one of the following

modes to configure your hard disk drive(s).

Cable Select Mode - use this mode to select the operating mode by cable connectors.

No. of drives Drive type Drive jumper Cable connector

1 With OS black

With OS black

Without OS

Cable select

gray

Jumper Select Mode - use this mode to select the operating mode by hard disk drive jumper.

No. of drives Drive type Drive jumper Cable connector

1 With OS Master

With OS Master

Without OS Slave

black or gray

WEBS-1108AUser Manual

7. Serial ATA connectors

(7-pin SATA1, SATA2)

These connectors are for the Serial ATA signal cables for Serial ATA hard disk drives.

Install the Windows ® 2000 Service Pack 4 or the Windows® XP Service Pack1 or later before using Serial ATA.

8. ATX power connectors (20-pin ATXPWR1)

The connector is for A TX power supply plugs. The power supply plugs ar e design ed to fit these

connectors in only one orient ation. Find the pr oper orient ation and pus h down fir mly until t he

connectors completely fit.

y Use of a PSU with a higher power output is recommended when

configuring a system with more power-consuming devices. The

system may become unstable or may not boot up if the power is

inadequate.

y Make sure that your power supply unit (PSU) can provide at

least the minimum power required by your system. See the table

below for details.

WEBS-1108A User Manual

9. Audio Amplifier connectors (4-pin JAMP1)

An amplifier connector is an electronic amplifier that amplifies low-power audio signals (signals

composed primarily of frequencies between 20 hertz to 20,000 hertz, the human range of hearing) to a

level suitable for driving loudspeakers and is the final stage in a typical audio playback chain.

WEBS-1108A User Manual

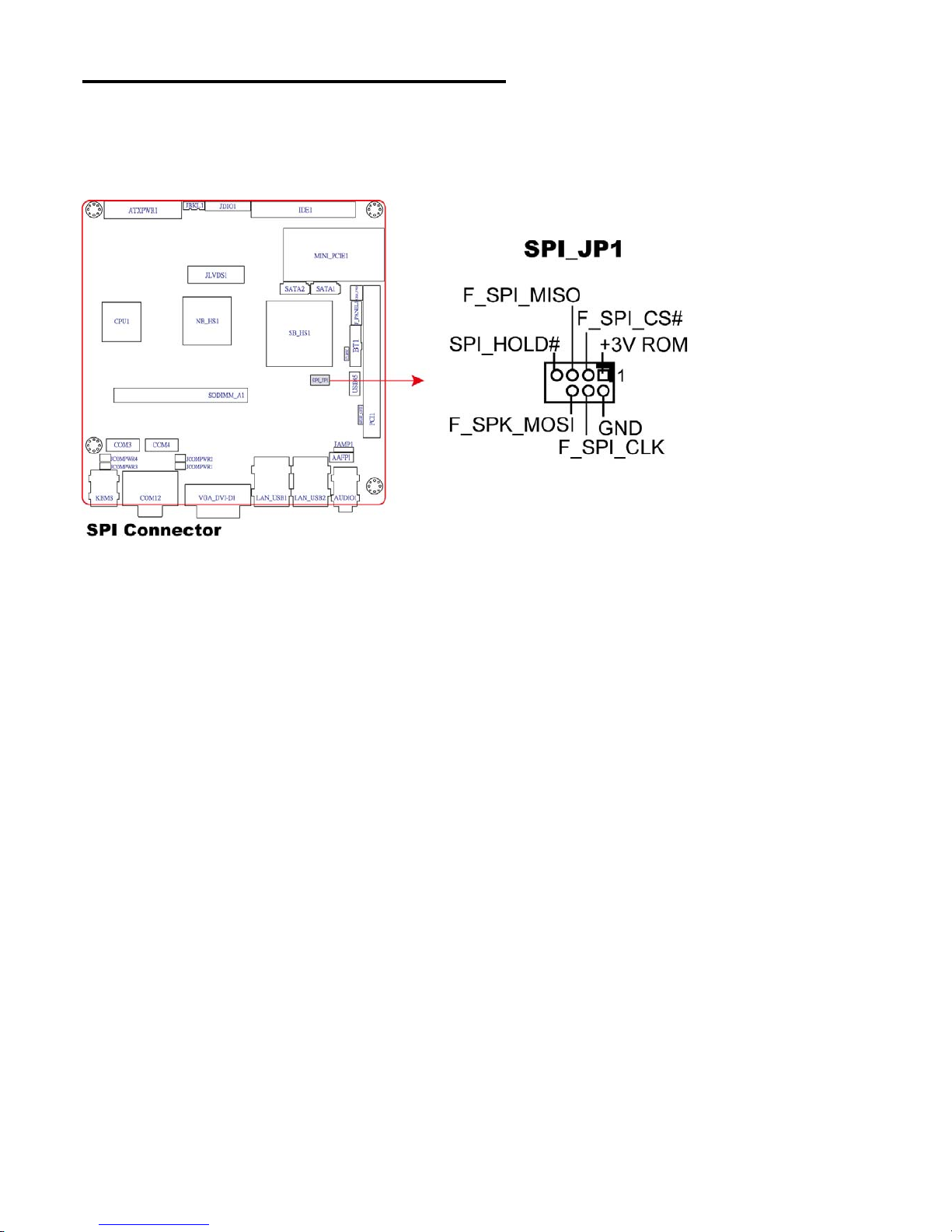

10. SPI Connector (7-pin SPI_JP1)

It is a point-to-point interface standard, allows network equipment designers to develop an array of

next-generation multi-service switches and routers to support multi-service traffic with aggregate

bandwidths up to OC-192 (10 Gb/s) and beyond, enabling them to dramatically increase system

performance.

WEBS-1108A User Manual

11. LCD Inverter Connector (5-pin JBKL)

12. Digital IO Connector (12-pin JDIO)

WEBS-1108AUser Manual

13. LVDS Connector (40-pin JLVDS)

z For EMX-945GSE-A1-DVIR : support 18bit x 2CH LVDS.

WEBS-1108A User Manual

2.6 APO/ATX Power Mode Selection

APO and ATX power modes can use on the Box PC series. Power mode flexibility allows you to select

the most suitable power mode for your unique application requirements. (Default: APO)

APO Mode (Auto Power On)

ATX Mode

WEBS-1108A User Manual

Chapter 3 BIOS Setup

3.1 Managing and updating your BIOB

3.1.1 Creating a bootable floppy disk

1. Do either one of the following to create a bootable floppy disk.

DOS environment

a. Insert a 1.44MB floppy disk into the dirve.

b. At the DOS prompt, type format A:/S then press <Enter>.

Windows® XP environment

a. Insert a 1.44 MB floppy disk to the floppy disk drive.

b. Click Start from the Windows® desktop, then select My Computer.

c. Select the 3 1/2 Floppy Drive icon.

d. Click File from the menu, then select Format. A Format 3 1/2 Floppy Disk window

appears.

e. Select Create an MS-DOS startup disk from the format options field, then click Start.

Windows® 2000 environment

To create a set of boot disks for Windows® 2000:

a. Insert a formatted, high density 1.44 MB floppy disk into the drive.

b. Insert the Windows® 2000 CD to the optical drive.

c. Click Start, then select Run.d. From the Open field, type

D:\bootdisk\makeboot a:

assuming that D: is your optical drive.

d. Press <Enter>, then follow screen instructions to continue.

2. Copy the original or the latest motherboard BIOS file to the bootable floppy disk.

WEBS-1108A User Manual

3.2 BIOS setup program

This motherboard supports a programmable firmware chip that you can update using the provided

utility described in section “2.1 Managing and updating your BIOS.”

Use the BIOS Setup program w hen you are installing a motherboard, reconfiguring your system,

or prompted to “Run Setup”. This section explains how to configure your system using this utility.

Even if you are not prompted to use the Setup program, you can change the configuration of your

computer in the future. For example, you can enable the security password feature or change the

power management settings. This requires you to reconfigure your system using the BIOS Setup

program so that the computer can recognize these changes and record them in the CMOS RAM

of the firmware hub.

The firmware hub on the motherboard stores the Setup utility . When you st art up the computer,

the system provides you with the opportunity to run this program.

Press <Del> during the Power-On-Self-T est (POST) to enter the Setup util ity; otherwise, POST

continues with its test routines.

If you wish to ente r Setup af ter POST, rest art t he system by pre ssing <Ctrl+Alt+Delet e>, or by

pressing the reset button on the syst em chassis. You can also rest art by tu rning the system of f

and then back on. Do this last option only if the first two failed.

The Setup program i s designed to make it as easy to use as possible. Being a menu-driven

program, it let s you scroll through the various sub-menus and make your selections from the

available options using the navigation keys.

z The default BIOS setti ngs for this motherboard apply for most

conditions to ensure optimum performance. If the syste m

becomes unst able af ter changing any BIOS settings, load the

default settings to ensure system comp atibility and st ability.

Select the Load Default Settings item under the Exit Menu.

See section “2.7 Exit Menu.”

z The BIOS setup screens shown in this section are for reference

purposes only , and may not exactly match what you see on

your screen.

z Visit the Avalue website to download the latest BIOS file for this

motherboard.

3.2.1 Legend Box

The keys in the legend bar allow you to navigate through the various setup menus.

WEBS-1108A User Manual

Key(s) Function Description

F1 General help, only for Status Page Setup Menu and Option Page

Setup Menu

Esc Return to the main menu from a sub-menu or prompts you to quit

the setup program

I, J Move to the item in the left or right hand

K, L Move to previous or next item

Enter Brings up a selection menu for the highlighted field

+ or PgUp Moves the cursor to the first field

- or PgDn Moves the cursor to the last field

F5 Loads the previous values

F6, F7 Loads the fail-safe / optimized defaults

F10 Saves changes and exits Setup

3.2.2 List Box

This box appears only in the opening screen. The box displays an initial list of configurable items

in the menu you selected.

3.2.3 Sub-menu

Note that a right pointer symbol (X) appears to the left of certain fields. This pointer indicates that

you can display a sub-menu from this field. A sub-menu contains additional options for a field

parameter. T o display a sub-menu, move the highlight to the field and press <Enter>. The

sub-menu appears. Use the legend keys to enter val ues and move from fi eld to field within a

sub-menu as you would within a menu. Use the <Esc> key to return to the main menu.

Take some time to fa miliarize yourself with the lege nd keys and their correspond ing functions.

Practice navigating through t he various menus and submenus. If you accident ally make

unwanted changes to any of the fields, press <F6> to load the fail-safe default values. While

moving around through the Setup pr ogram, note that expl anations appear in the Item S pecific

Help window located to the ri ght of each menu. This windo w displays the help text for the

currently highlighted field.

WEBS-1108A User Manual

3.3 BIOS menu screen

When you enter the B IOS, the following scr een appears. The BIOS menu screen displays the items

that allow you to make changes to the system configuration. T o access the menu items, press the

up/down/right/left arrow key on the keyboard until the desired item is highlighted, then press [Enter] to

open the specific menu.

WEBS-1108A User Manual

3.3.1 Standard CMOS Features

The Standard CMOS Features screen gives you an overview of the basic system.

Date [Day, xx/xx/xxxx]

The date format is <week>, <month>, <day>, <year>.

Time [xx:xx:xx]

The time format is <hour> <minute> <second>, based on the 24-hour clock.

IDE Channel 0/1 Master / Slave

y IDE HDD Auto-Detection

[Press Enter] to select this option for automatic device detection.

y IDE Device Setup

[Auto]: Automatically detects IDE devices during POST

[None]: Select this when no IDE device is used. The system will skip the auto-detection setup to

make system start up faster.

[Manual]: User can manually input the correct settings.

WEBS-1108A User Manual

9 Access Mode: The options are CHS/LBA/Large/Auto 9 Capacity: Capacity of currently installed hard disk 9 Cylinder: Number of cylinders 9 Head: Number of heads 9 Precomp: Write precomp 9 Landing Zone: Landing zone 9 Sector: Number of sectors

Video

This category detects the type of adapter used for the primary monitor that must match your video

display card and monitor.

y EGA / VGA: Enhanced Graphics Adapter/Video Graphics Array. For EGA, VGA, SVGA, or PGA

monitor adapters.

y CGA 40: Color Graphics Adapter, power up in 40 column mode.

y CGA 80: Color Graphics Adapter, power up in 80 column mode.

y MONO: Monochrome adapter, includes high resolution monochrome adapters.

Halt On

Sets the system to halt on errors according to the system functions specified in each option.

Configuration options: [All Errors] [No Errors] [All, But Keyboard]

Memory

This category displays base memory, extended memory, and total memory detected during

POST (Power On Self Test).

WEBS-1108A User Manual

Advanced BIOS Features

The “Advanced BIOS Features” screen appears when c hoosing the “Advanced BIOS Features” item

from the “Initial Setup Screen” menu. It allows t he user to configure the RX945G according to his

particular requirement s. Below are some major items that are provided in the Advanced BIOS

Features screen. A quick booting f unction is provided for your convenience. Simply enable the Quick

Booting item to save yourself valuable time.

WEBS-1108A User Manual

CPU Feature

y Delay Prior to Thermal

The Delay Prior To Thermal BIOS feature controls the activation of the Thermal Monitor's

automatic mode. It allows you to determine when the Pentium 4's Thermal Monitor should be

activated in automatic mode after the system boots. For example, with the default value of 16

Minutes, the BIOS activates the Thermal Monitor in automatic mode 16 minutes after the system

starts booting up.

y Limit CPUID MaxVal

Set Limit CPUID MaxVa1 to 3. This should be disabled for WinXP

y C1E Function

CPU C1E function select

y Execute Disable Bit

When disabled, forces the XD feature flag to always return 0

WEBS-1108A User Manual

Hard Disk Boot Priority

Set hard disk boot device priority.

y CH0 S.

Primary SATA channel with Master Device. It will show the device model / type when SATA HDD or CD

ROM connected.

y Boot able Add-in Cards

"Bootable add-in cards" is an item on the HDD boot priority list.

Virus Warning

Enables or disables the virus warning.

Item Description

Enable

Activates automatically when the system boots up causing a warning

message to appear when anything attempts to access the boot sector

or hard disk partition table.

Disable

No warning message will appear when anything attempts to access the

boot sector or hard disk partition table.

CPU L1 & L2 Cache

Enabling this feature speeds up memory access.

Item Description

Enable Enable cache

WEBS-1108A User Manual

Disable Disab le cache

Hyper Threading Technology

System will detect automatically and show up when you installed the Intel® Pentium® 4 processor

with HT Technology. Set to “Enabled” for faster system performance.

Quick Power On Self Test

This allows the system to skip certain tests to speed up the boot-up procedure.

Item Description

Enable Enable quick POST

Disable Normal POST

First / Second / Third Boot Device

The BIOS tries to load the OS from the devices in the sequence set here. The options are:

Item Description

LS120 LS120 Device

HDD Hard Disk Device

CDROM CDROM Device

ZIP100 ZIP-100 Device

USB-FDD USB Floppy Device

USB-ZIP USB ZIP Device

USB-CDROM USB CDROM Device

USB-HDD USB Hard Disk Device

Legacy LAN Network Device

Disabled Disabled any boot device

Boot Other Device

Use this to boot another device. The options are “Enabled” and “Disabled”.

Boot Up NumLock Status

Sets the boot up Num Lock status. The options are “On” and “Off”.

Item Description

On Enable NumLock

Off Disab le NumLock

Gate A20 Option

Item Description

Normal A pin in the keyboard controller controls GateA20

Fast Lets chipset control GateA20 (Default)

Security Option

This category determines whether the password is required when the sys- tem boots up or only when

entering setup. The options are:

Item Description

System

The system will not boot and access to Setup will be denied if the

correct password is not entered at the prompt.

Setup The system will boot, but access to Setup will be denied if the correct

WEBS-1108A User Manual

password is not entered at the prompt.

To disable security, select PASSWORD SETTING at Main Menu and

then you will be asked to enter password. Do not type anything and just

press <Enter>, it will disable security. Once the security is disabled, the

system will boot and you can enter Setup freely.

APIC Mode

This setting allows you to enable the APIC mode. The choices are “Disabled” or “Enabled.”

MPS Version Control for OS

This option is only valid for multiprocessor motherboards as it specifies the version of the

Multiprocessor Specification (MPS) that the motherboard will use. The MPS is a specification by which

PC manufacturers design and build Intel architecture systems with two or more processors.

MPS 1.1 was the original spec ification. MPS version 1.4 adds ex tended configurat ion t ables for

improved support of multiple PCI bus configurations and greater expandability in the future. In addition,

MPS 1.4 introduces support for a secondary PCI bus without requiring a PCI bridge.

Small Logo (EPA) Show

This item allows you enabled/disabled the small EPA logo show on screen at the POST step.

Item Description

Enabled EPA Logo shows is enabled

Disabled EPA logo show is disabled

WEBS-1108A User Manual

3.3.3 Advanced Chipset Features

DRAM Clock/Drive Control

When select to “BySPD”, the DRAM timing parameters are set according to DRAM SPD (Serial

Presence Detect). When disabled, one can manually set the DRAM timing parameters through the

sub items below. Set to “BySPD” if not sure.

CAS Latency Time

Controls the latency between the SDRAM Read command and the time data actually becomes

available.

DRAM RAS# to CAS# Delay

Controls the latency between the DDR SDRAM active command and the read/write command.

DRAM RAS# Precharge

Controls the idle clocks after issuing a precharge command to the DDRSDRAM.

Precharge delay (tRAS)

Precharge Delay This setting controls the prechar ge delay , whic h determines the timing delay f or

DRAM precharge.

System Memory Frequency

Allow to choose different frequency of memory module.

WEBS-1108A User Manual

System BIOS Cacheable

Selecting “Enabled” allows cachi ng of the system BIOS ROM at F0000h- F FFFFh, resulting in better

system performance. However, if any pro-gram writes dat a to this memory area, a system error may

occur.

Video BIOS Cacheable

Selecting Enabled allows caching of the video BIOS ROM at F0000h-FFFFFh, resulting in better video

performance. However, if any program writes to this memory area, a system error may result.

Memory Hole At 15M-16M

Enabling this feature reserves 15 MB to 16 MB memory address sp ace for ISA expansion cards that

specifically require this setting. T his makes me mory from 15 MB and up unavailable to the syste m.

Expansion cards can only access memory up to 16 MB. The default setting is “Disabled”.

On-Chip Frame Buffer Size

The On-Chip Frame Buffer Size can be set as 1MB or 8MB. This memory is shared with the system

memory.

DVMT Mode

Use this field to select the memory to allocate for video memory. The choices are “Fixed”,

“DVMT” and “BOTH”.

DVMT/FIXED Memory Size

Specify the size of DVMT/system memory to allocate for video memory.

Boot Display

Panel Number

WEBS-1108A User Manual

3.3.4 Integrated Peripherals

WEBS-1108A User Manual

OnChip IDE Device

y IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your

IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection

of the optimal number of block read/writes per sector the drive can support

y IDE DMA transfer access

To Enable/Disable the IDE DMA transfer access

y OnChip Primary PCI IDE

The integrated peripheral controller contains an IDE interface with support for two IDE channels.

Select Enabled to activate each channel separately

y IDE Primary/Secondary Master/ Slave PIO

The four IDE PIO fields allow you to set a PIO mode (0-4) for each of the four IDE devices that

the onboard IDE interface support s. Modes 0 through 4 provide succes sively incr eased

performance. In Auto mode, the system autom atically deter mines the best mode for each

device.

y IDE Primary/Secondary Master/ Slave UDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating

environment includes a DMA driver (Windows 95 OS R2 or a third-party IDE bus master driver).

If you hard drive and your syste m sof tware both support Ultra D MA/33, select Auto to enable

WEBS-1108A User Manual

BIOS support

y On-Chip Secondary PCI IDE

Enable the secondary IDE channel

y On-Chip SATA Controller

To select Serial ATA mode. The choices are “Native IDE” / “RAID” / “AHCI” / “Legacy IDE”.

y SATA Port Speed Settings

y PATA IDE Mode

y SA TA Port

Onboard Device

y Azalia Audio Select

Select [Disabled] if you do not want to us e Azalia audio. Configuration opt ions:

[Auto] [Disabled]

y Audio Amplifier

y Amplifier Gain(dB)

y Onboard LAN1 Device

y Onboard LAN2 Device

SuperIO Device

WEBS-1108A User Manual

y POWER ON Function

y KB Power ON Password

The system will ask for a password, after entering the correct password the keyboard can then be

used.

y Hot Key Power ON

Awaken the system by pressing the hot key button. The choices are “Ctrl-F1”, “Ctrl-F2”, “Ctrl-F3”

to “Ctrl-F8”.

y Onboard Serial Port 1/2

The settings are “3F8/IRQ4”, “2F8/IRQ3”, “3E8/IRQ4”, “2E8/IRQ3”, and “Disabled” for the

on-board serial connector.

y PWRON After PWR-Fail

This item allows you to select if you want to power on the system after power failure. The choice:

Off, On, Former-Sts.

Onboard Lan1/2 Boot ROM

The choices: Enable, Disable.

Watch Dog Timer Select

This option will determine watch dog timer. The choices: Disabled, 10, 20, 30, 40 Sec. 1, 2, 4 Min.

Onboard Serial Port 3/4

The settings are “3F8/IRQ4”, “2F8/IRQ3”, “3E8/IRQ4”, “2E8/IRQ3”, and “Disabled” for the on-board

serial connector.

WEBS-1108A User Manual

Serial Port 3/4 Use IRQ

USB Device Setting

y USB Controller

This should be enabled if your system has a USB installed on the system board and you want to

use it. Even when so equipped, if you add a higher performance controller, you will need to

disable this feature

y USB 2.0 Controller

Enable the USB 2.0 controller

y USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a

USB keyboard.

y USB Mouse Support

Select an address and corresponding interrupt for the first and second serial ports

WEBS-1108A User Manual

3.3.5 Security Chip Configuration

TPM Support

The choices are “Enabled” and “Disabled”.

TPM Current Status

This item shows you the current TPM status.

TPM Status

The choices are “No Change” / “Clear” / “Enable & Activate” / “Deactivate & Disable”.

3.3.6 Power Management Setup

The power management setup controls the single board computer's “green” features to save power.

The following screen shows the manufacturer’s defaults.

WEBS-1108A User Manual

ACPI Function

The choices are “Enabled” and “Disabled”.

ACPI Suspend Type

This item allows you to set ACPI suspend type to S1/POS(Power On Suspend) or

S3/STR(Suspend To RAM).

Run VGABIOS if S3 Resume

Select “Auto” to run VGA BIOS if S3 resume automatically. The “Yes” enables running VGA

BIOS if S3 resume. The “No” disables this function.

Power Management

There are three selections for Power Management, and each of them has fixed mode settings.

Item Description

Min. Power Saving Minimum power management, HDD Power Down = 15 Min

Max. Power Saving Maximum power management, HDD Power Down =1 Min

User Defined

Allows you to set each mode individually. When not disabled, each

of the ranges are from 1 min. to 1 hr. except for HDD Power Down

which ranges from 1 min. to 15 min. and disable.

Video Off Method

Use this to select the method to turn off the video. The choices are “Blank Screen”, “V/H SYNC+

Blank”, and “DPMS”.

Video Off In Suspend

WEBS-1108A User Manual

When the system is in suspend mode, the video will turn off. The choices are “No” and

“Yes”.

Suspend Mode

Item Description

Min. Power Saving Minimum power management, HDD Power Down = 15 Min

Max. Power Saving Maximum power management, HDD Power Down =1 Min

User Defined

Allows you to set each mode individually. When not disabled, each

of the ranges are from 1 min. to 1 hr. except for HDD Power Down

which ranges from 1 min. to 15 min. and disable.

Soft-Off by PWR-BTTN

If you choose “Inst ant-Off”, then pushing t he ATX so ft power switch but- ton once will switch the

system to “system off” power mode. You can choose “Delay 4 sec”. If you do, then pushing the button

for more than 4 seconds will turn of f the system, whereas pushing the button moment arily (for less

than 4 seconds) will switch the system to “suspend” mode.

Wake-up by PCI Card

The choices are “Enabled” and “Disabled”.

Power On by Ring

USB KB Wake-up From S3

Resume by Alarm

When Enabled, your can set the date and time at which the RTC (real-time clock) alarm awakens the

system from Suspend mode.

WEBS-1108A User Manual

3.3.7 PnP/PCI Configurations

Imit Display First

Reset Configuration Data

The default is “Disabled”. Select Enabled to reset Extended System Configuration Data (ESCD) if you

have installed a new add-on card, and system configuration is in such a state that the OS cannot boot.

Resources Controlled By

The commands here are “Auto(ESCD)” or “Manual”. Choosing “Manual” requires you to choos e

resources from the fol lowing sub -menu. “Auto(ESCD)” automatically configures all of the boot an d

Plug and Play devices, but you must be using Windows 95 or above.

PCI/VGA Palette Snoop

This is set to “Disabled” by default.

Maximum Payload Size

This allows you to set the maximum TLP payload size for PCI Express devices. The options are [128

bytes], [256 bytes], [512 bytes], [1024 bytes], [2048 bytes], and [4096 bytes].

WEBS-1108A User Manual

3.3.8 PC Health Status

Shutdown Temperature

CPU Warning Temperature

Current SYSTEM Temperature

This item shows you the current system temperature.

Current CPU1 Temperature

This item shows you the current CPU temperature.

CPU Fan Speed

This item shows you the current CPU fan speed.

System Fan Speed

This item shows you the current system fan speed.

Vcore

This item shows you the current Vcore voltage value.

+12V

This item shows you the current +12V voltage value.

+5V

This item shows you the current +5V voltage value.

WEBS-1108A User Manual

3.3.9 Freque ncy/Voltage Control

Auto Detect PCI Clk

This allows you to enable or disable auto detect PCI clock. The choices are “Enabled” and “Disabled”.

Spread Spectrum

This setting allows you to reduce EMI by modulating the signals the CPU generates so that the spikes

are reduced to flatter curves. This is achieved by varying the frequency slightly so that the signal does

not use any particular frequency for more than a moment. The choices are “Disabled” and “Enabled”.

CPU/Host/SRC/PCI Clock

The choice: 100

WEBS-1108A User Manual

3.3.10 Load Optimized Defaults

Use this menu to load the BIOS default values for the minimal/stable performance for your system to

operate. Press <Y> to load the BIOS default values for the most stable, minimal-performance system

operations.

WEBS-1108A User Manual

3.3.11 Set Supervisor Password

You can set password to be able to enter/change the options of setup menus.

Follow these steps to change the password.

y Choose the “Set Password” option from the “Initial Setup Screen” menu and press <Enter>. The

screen displays the following message:

y Please Enter Your Password

y Press <Enter>.

y If the CMOS is good and this option has been used to change the default password, the user is

asked for the password stored in the CMOS. The screen displays the following message:

Please Confirm Your Password

y Type the current password and press <Enter>.

y After pressing <Enter> (ROM password) or the current password (user-defined), you can change

the password stored in the CMOS. The password must be no longer than eight (8) characters.

Remember, to enable the password setting feature, you must first select either “Setup” or

“System” from the “Advanced BIOS Features” menu.

WEBS-1108A User Manual

3.3.12 Set User Password

You can set password to be able to enter/change the options of setup menus.

Follow these steps to change the password.

y Choose the “Set Password” option from the “Initial Setup Screen” menu and press <Enter>. The

screen displays the following message:

y Please Enter Your Password

y Press <Enter>.

y If the CMOS is good and this option has been used to change the default password, the user is

asked for the password stored in the CMOS. The screen displays the following message:

Please Confirm Your Password

y Type the current password and press <Enter>.

y After pressing <Enter> (ROM password) or the current password (user-defined), you can change

the password stored in the CMOS. The password must be no longer than eight (8) characters.

Remember, to enable the password setting feature, you must first select either “Setup” or

“System” from the “Advanced BIOS Features” menu.

WEBS-1108A User Manual

3.3.13 Save & Exit Setup

If you select this and press <Enter >, the values entered in the set up utili- ties will be recorded in the

CMOS memory of the chipset. The processor will check this every time you turn your system on and

compare this to what it finds as it checks the system. This record is r equired for the sys- tem to

operate.

WEBS-1108A User Manual

3.3.14 Exit Without Saving

Selecting this option and pressing <Enter> lets you exit the setup program without recording any new

values or changing old ones.

WEBS-1108A User Manual

Chapter 4 Inst allation of Drivers

This chapter describes the installation procedures for software and drivers under the windows XP. The

software and drivers are included with the motherboard. The contents include Intel chipset driver

VGA driver LAN drivers Audio driver

Installation instructions are given below.

Important Note:

After installing your Windows operating system (Windows XP), you must install

first the Intel Chipset Software Installation Utility before proceeding with the

installation of drivers.

WEBS-1108A User Manual

4.1 Intel Chipset Driver

To install the Intel chipset driver, please follow the steps below.

Step 1: Select Chipset from the list

Follow the step-by-step installation process to install the Chipset driver.

WEBS-1108A User Manual

Click Finish, when the installation process is complete, the Setup Complete screen appears. See as

picture.

4.2 Intel Graphics Driver

To install the VGA drivers, follow the steps below to proceed with the installation.

1. Click Intel(R) Chipset Graphics Driver.

WEBS-1108A User Manual

Follow the step-by-step installation process to install the Graphics Media Accelerator driver.

WEBS-1108A User Manual

Click FINISH; A Driver Installation Complete.

WEBS-1108A User Manual

4.3 REAL TEK Ethernet PCI-E NIC LAN Device Driver

To install the Gigabit LAN connect device driver, please follow the steps below.

Select LAN from the list

Follow the step-by-step installation process to install the LAN driver.

WEBS-1108A User Manual

WEBS-1108AUser Manual

Click FINISH; A Driver Installation Complete.

WEBS-1108A User Manual

4.4 Realtek HD Audio Driver Installation

To install the Realtek High Definition (HD) Audio driver, please follow the steps below.

Select Audio from the list

Follow the step-by-step installation process to install the Realtek HD Audio driver.

WEBS-1108A User Manual

Click FINISH; A Driver Installation Complete.

Portwell WEBS-1108A, WEBS-1108B, WEBS-1108C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
