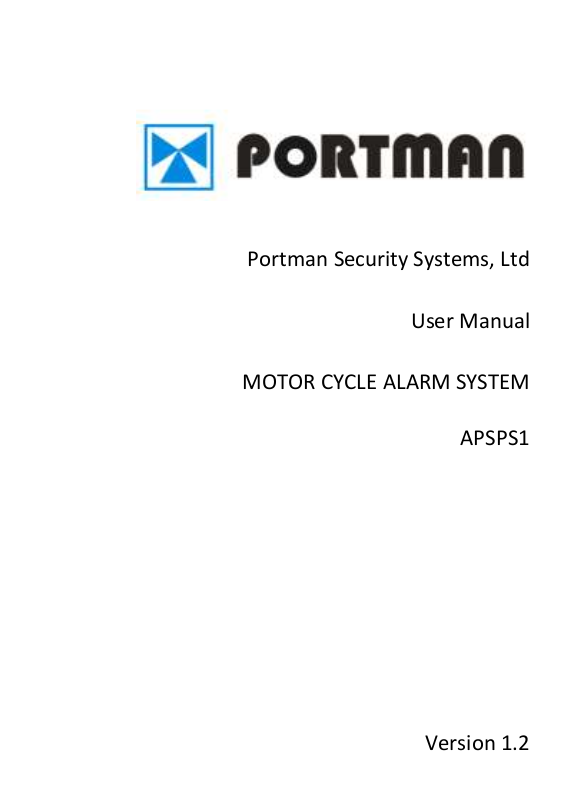

PORTMAN ELECTRONICS T53 AM1W User Manual

Portman Security Systems, Ltd

User Manual

MOTOR CYCLE ALARM SYSTEM

APSPS1

Version 1.2

1

STANDARD CONFIGURATION FOR TRANSMITTER

Function

Button

Action

System input/state

Arm 1 Tap

Ign off& disarmed

Arm/tilt bypass

1

Tap1 (arm) ->

(<5s)Tap1

Ign off & disarmed

Arm/all sensor
bypass

1

Tap1 (arm) -> Tap1-

>(<5s) Tap1

Ign off & disarmed

Panic 1 Hold

Any

Disarm 2 Tap

Ign off & armed

Anti-jacking
On/ Off

2

Hold

Anti-jacking Off/On

Valet mode (on
& off)

1 ,1,1

Ign on -> Ign off ->

Ign on (<5s)Tap

Disarmed

Aux output

1 & 2

Tap1&2

armed or Ign off& disarmed

Feature
programming
enter

1 & 2

Ign on ->

(<5s)Hold1&2

Disarmed

Feature
menu list

1

Tap (toggle menu

circular)

Disarmed

Feature
option
change

2

Tap (toggle setting

circular)

Disarmed

2-BUTTON TRANSMITTER

FEATURES:
CODE LEARNING

In case the transmitter is lost, or you want to add more transmitters (up to 4 most).
Please refer to following procedures:
a. In disarming mode, turn ignition ON/OFF 5 times within 15 sec, and stay in ON

position, 3 seconds later Siren will chirp 1 times to indicate system entered code
learning mode.

Version1.1 APSPS1

2

b. Press any button on the transmitter; siren will chirp the times of transmitter’s

sequence. E.g. once for the first transmitter, twice for the second, three times for
the third.

c. Up to 4 transmitters can be learned to each unit, each transmitter must be finished

in 8 seconds. if you want to learn 5th transmitter, the 1st transmitter will be
cleared, also when you learn 6th transmitter, the 2nd transmitter will be cleared.

d. After 30 sec or turn ignition OFF for 5 seconds, the Siren will long chirp once,

system will automatically exit code learning and store the code.

ARMING

a. In disarmed mode, turn ignition OFF, press button I once, siren will chirp once,

parking light will flash once. After 8 sec., system will armed automatically, LED flash
slowly and disable engine.

b. In arming mode, to turn on the key will trigger the siren, parking light will flash 30

seconds. The siren will keep 30 sec-cycle sounding till key turned to OFF. After the
key is turned to OFF, siren will keep sounding till cycle end.

Tilt/Shock Sensor defense area

1. Sensitivity for Tilt/Shock sensors are adjustable, please see FUNCTION SELECT

MENU 4&9.

2. If motorcycle is tilted/moved:

Sleep mode: first siren and parking light will trigger 10 times, then will trigger
continuously for 30 seconds.
Wake mode: Siren and Parking lights will trigger continuously for 30 seconds.

Note: up to 8 times to alarm per arming cycle.

ARMING AND BYPASS TILT SENSOR

When system entered arming mode, press button 1 once within 5 sec, system will long
chirp once to indicate that the Tilt sensor is bypassed.
In the mode, LED will flash twice interval 2 seconds.

Version1.1 APSPS1

3

ARMING AND BYPASS ALL SENSOR

Parking light flash 4 times

Tilt/Shock sensor triggered

Parking light flash 5 times

TG- triggered

Parking light flash 6 times

Loop wire triggered

Parking light flash 7 times

Ignition trigger triggered

When system entered arming mode, press button 1 twice within 5 sec, system will chirp
three times to indicate that the sensor is bypassed.

DISARMING

1. In arming mode, press button 2 once, siren will chirp twice, parking lights will

flash 2 times then system will be disarmed and enable the engine starter.

a. If the alarm is triggered during arming mode, siren will chirp 4 times when

disarming. Parking light will flash which indicates the alarm has been activated.

AUTO RE-ARMING

After disarming, 60 sec later if driver hasn’t start engine, system will be rearmed
automatically. LED will flash slowly.
(During rearm count down, LED will flash quickly, sire will chirp once, and parking light
will flash once.)

PANIC

If you are threatened near your motorcycle, you can attract attention by triggering the
system with your transmitter. Just press button 1 for 2 secs to enter panic mode. The siren
will sound for 10 sec, and parking lights will flash for 10 seconds. Press button 2 to stop.

ANTI MOTORCYCLE-JACKING

1. When key has been turned ON, press and hold button 2 for 2 seconds, LED will

flash quickly，then motorcycle-jacking mode is activated. Siren will chirp once

Version1.1 APSPS1
