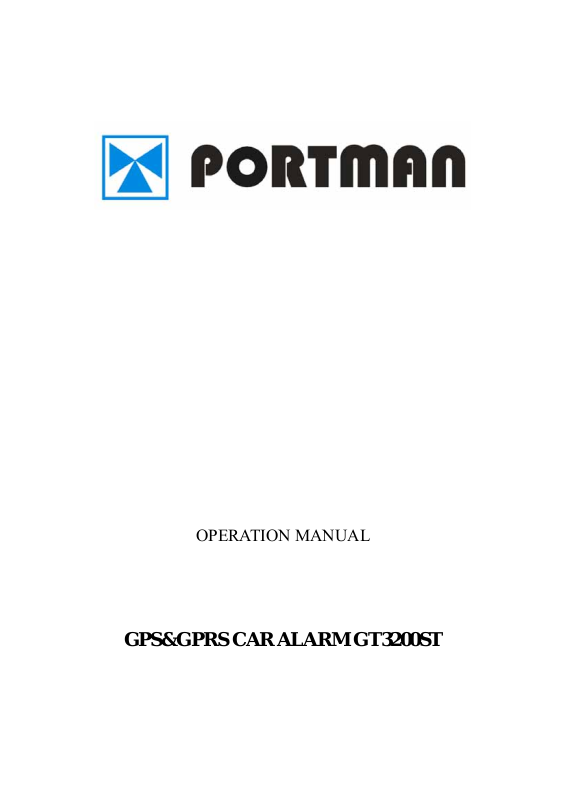

OPERATION MANUAL
GPS&GPRS CAR ALARM GT3200ST
I. INTRODUCTION
GPS GPRS Tracking and Alarm System utilize the GPS and car alarm functions in one unit. You can
monitor the vehicle location and control the car alarm remotely. In addition, the unit will send event report if
any trigger occurs. It has built-in 8 outputs and 9 inputs to perform essential alarm functions.
1.1 Report structure
The standard report sent by the unit includes the information: (1) unit’s ID, (2) status, (3) time, (4)GPS’s
latitude and longitude, (5)speed, (6) direction, (7)temperature, (8)device’s status, (9)event number, and (10)
report configuration parameters.
(1) Unit’s ID: each device has its own unique ID and must be registered in the server in order to perform
monitoring or controlling.
(2) Status: ‘A’ mean the number of satellite is more than 4 or equal to 4; ‘B’ mean the number of satellite is
equal to 3, ‘L’ mean the number of satellite is less than 3.
(3) Time: report time in Greenwich Mean time zone.
(4) GPS’s latitude and longitude.
(5) Speed: in km/H
(6) Direction: in degree to the North.
(7) Temperature: in Celsius. If the temperature is not connected, ‘NA’ will be shown in this field.
(8) Device’s status: there are 32 states to represent the I/O and working modes for the both the device and
the build in alarm.
(9) Event number: all the generated reports will include a unique event number to indicate why it has been
sent.
(10) Report configuration parameters: user can remotely change the report configuration, and the
configuration parameters will be shown in this field.
1.2 Report Setup
GT3200ST must be initialized by PC setup program in order to make communication with the remote server
/call center. There are seven main sections that allow users to program the device, (1) User detail (Device ID,
server IP, and port, SMS number, GPRS APN…) (2) In-built Geofence definition (up to 5 circular, 5
rectangular and 20 point Geofence shapes can be set in the device) (3) Local Report setting (Time, Distance,
Intelligent mode, Temperature, Low battery, Course change…) (4) Roam Report setting (Time, Distance,
Intelligent mode, Temperature, Low battery, Course change…) (5) ALARM report (to enable or disable the
event generated by the inputs or build in ALARM, e.g. ACC, DOOR, ALARM...) (6)Roam alarm setting
(Sleep mode, internal alarm report, external alarm report..) (7) Roam setting (Roaming GPRS mode select,
prefer operators setting, compress setting…) Those data is saved in device’s EEPROM and will not be lost
even if the power is failure.
Note that the device ID, GPRS APN name, GPRS login name and password need to be set in initial PC setup
in order to make the connection to the server. All the reports configuration or Geofence setup can be
changed at anytime via over the air commands.
The automatic reporting mode can be categorized as ‘time’ report, ‘distance’ report, or ‘time & velocity’
report. User can choose the reporting mode and related parameters via the PC setup program or the remote
sever.
1
The event trigger report is also configurable. User can turn on or off any event generated report from the PC
setup program or via the air command. The event triggered report include (1) In-vehicle Door close/open (2)
In-vehicle ignition on/off (3) Temperature range in/out the preset range (4) In-vehicle shock sensor trigger.
The build in alarm (optional) trigger reports are also configurable and can be set from PC setup program or
air command.
The server can not only configure the device just like the PC setup program does, but it also can send the
command to control the device. The server can control both the device and the build in alarm.
1.3 Geofence function
The device has built-in 30 Geofence sets (1 immediate geofence, 4 circular, 5 rectangular and 20 point), it
will send the report to the server if the Geofence event is triggered. User can setup the Geofence area from
the PC setup program or sending the define.
A unique immediate Geofence function:
‘Immediate-Geofence function’ is a circular type Geofence which can be activated or deactivated from a
single button. When activated, the system will record the current position and use the pre-defined radius as a
circular Geofence to guard the vehicle. If the vehicle moves out of the preset Geofence zone, a report will be
generated to the server. User can deactivate the self-Geofence at any time by pressing the button again. If the
GPS cannot be located when the Immediate Geofence function is been executed, GT3200ST will used the
last known position as the origin of the circular Geofence zone to perform the protection.
1.4 Store and forward ability
When there is no GPRS service or the server close. The unit will send short message to the server if defined
SMS number. All the stored report will be forward to the server when GPRS connection is completed next
time.
1.5 TCP and UDP socket support
GT3200ST supports both UDP and TCP socket communication. The server IP, port number and socket type
can be selected from the PC-setup program or remote server command. In addition, the connection can be
swap over to any server IP or port (either UDP or TCP) via the air command.
1.6 The server can send the command to control the device and the build in alarm.
Command for in-vehicle control:
We design 7 commands which can be integrated into the server, so that the users can control their vehicles.
Those commands are: (1) Door lock, (2) Door unlock, (3) Arming, (4) Panic, (5) Enable anti-car jacking, (6)
Emergency release, (7) Trunk output
Notes:
1. Arming (this command is valid only if when ACC is off): If ACC Off, Server send arming command.
The door will lock and the Engine will be Disable starter (if the starter cut relay connected), after the
unit received the command.
2. Panic: (can be performed at any time) If Server send panic command, the horn will sound and parking
lights will flash for 30 seconds after the unit received the command.
3. Enable anti-car jacking: (can be performed at any time) If Server send anti-car jacking command, the
system will enter anti-carjacking mode after the unit received the command. Enter the anti-carjacking
2
mode, the first 30 seconds countdown, The horn will sound once and parking lights will flash once
every 10 seconds, after 30 seconds, horn will sound once and parking lights will flash once every 5
seconds, 30 seconds later, horn will sound and parking lights will flash once every 1 second. 60
seconds later, engine will not be able to start again (if starter cut relay connected).
4. Emergency release: (can be performed at any time) If Server send Emergency release command while
at Arming mode, panic mode, anti-car jacking mode. Then system will exit ‘Arming’ ‘Anti-carjacking’
‘Panic’ mode. The ‘Arming’, ‘parking light’ and ‘horn’ outputs will back to normal (Disarm) status.
1.7 IRKP-20
External wireless 20- key keypad to used for calling
1.8 Valet switch operation
User can use the supplied Valet switch to perform 7 essential tasks, including (1) sending help report (2)
activate or deactivate Immediate Geofence (3) Activate panic mode (4) sending ‘Duty on’ or ‘Duty off’
report to the server (5) Emergency release to exit ‘ARM’, ‘Anti-carjacking’ or ‘Panic’ modes (6) code
learning for build in alarm, (7) set valet mode for build in alarm
1.9 handset operation (Optional)
User can use the supplied handset (HS200) to perform the function such as send/receive SMS, phone in/out,
main unit status display etc. For detail, refer to the user manual of HS200.
1.10 History report
Flash memory for recording reports up to 6000 reports. It can be read out from the PC setup program via
serial port.
1.11 Internal battery
The system has a built-in rechargeable battery (4.8V 80mA/H) for emergency use. The system will send a
power cut report when all the external power are disconnected.
1.12 LED indication
Three LED indicate the status of the POWER, GPRS signal and GPS signal.
1.13 Keep alive procedure
Keep alive procedure (in order keep connection in GPRS network, the unit can be set to send short keep
alive report to the server in order to prevent the disconnection from the mobile service provider)
1.14 Sleep Mode
The Sleep Mode:
For long periods of inactivity user have the options to set the unit in sleep mode this will enable the unit to
save electric power.
GT3200ST Can go to sleep mode when ACC goes off, Shock-sensor not be trigger for 5minuts and this
feature is configurable. “GPS” can be power off. User can setup the automatically wakeup time during the
sleep mode to ensure the device is working. The system can send out a diagnostic report to the server after
waking up.
3
During the sleep mode, if any of the inputs are triggered, the system will wake up and send relevant reports
to the server. The input triggers for waking the device up are selectable. When ACC is on, the system will
back to working mode and stay connected to the TCP/UDP server in GPRS network.
1.15 2-STAGE SHOCK SENSOR (Optional)
If car is lightly vibrated, siren will sound five times and parking light will flash five times to warn. If car
receives a heavy shock, siren will sound and parking light will flash for 30 seconds.
1.16 Monitor mode
There is two way enter the monitor mode: 1. Password way, you sent the password of preset in PC-setup by
SMS, if the password is right, then you will receive the PASS message, and system will enter the monitor
mode; 2. Valet switch way, if you press Valet switch once within one second anytime, then system will enter
the monitor mode. After the system enter the monitor mode, unit will auto answer the phone in the following
10 minutes. The system will auto exit monitor mode after 10 minutes.
II. BASIC FUNCTIONS
FUNCTIONS APPLICATIONS
GPS
GPRS, SMS
9 input
8 output
GPS receiver will output a complete position, velocity, and time (PVT) solution in the
NMEA Version 3.0 protocol
GPRS use standard TCP or UDP communicate protocol. If the GPRS service is failed,
the SMS mode will be turned on for emergency use.
In-vehicle Door -
In-vehicle door +
In-vehicle ACC
Temperature sensor /AD port (Optional)
Shock-sensor port
Crash sensor port
Valet switch port
Wireless 20- key keypad
RF-receive port (Optional)
1. Parking light
2. Door Lock
3. Door Unlock
4. ARM
5. Horn
6. Audio port (microphone and hand free)
7. Handset port (Optional)
8. Trunk output
(1) Send help report and enter the monitor mode (2) activate or deactivate Immediate
Geofence (3) Activate panic mode (4) sending ‘Duty on’ or ‘Duty off’ report to the
Valet Switch
server (5) Emergency release to exit ‘ARM’, ‘Anti-carjacking’ or ‘Panic’ modes (6)
code learning for build in alarm, (7) set valet mode for build in alarm
wireless keypad (1) “II” Hang up a phone (2) “I” Answer a phone or redial a phone
4
1. SMS send/receive
2. phone call
3. main unit information display
Handset (Optional)
PC-setup
Build in ALARM
(Optional)
Standard Report
Event Report
4. Immediate Geofence activate/deactivate
5. Help report sending
6. Duty on/off report
7. Emergency release
Initialize the unit and program the device, including Network APN, server IP address,
user message, report control, and Geogence setting, etc …
Note that Network APN and server IP details must be set before the installation.
If build in alarm is installed, the system will gather all the alarm information for the
remote monitoring. The server also has the ability to control the build in alarm.
Automatic report for AVL tracking purpose:
Fixed time report
Fixed distance report
Intelligent report (combine time and distance)
Keep alive report
Temperature report
Speeding report
Low battery report
Geofence trigger report
Wake up report
ALARM trigger report, e.g. PANIC mode, ARM, ACC inputs, etc …
History data store 6000 report can be saved in unit, and read from server and pc-setup
III. IRKP-20 CONTROL
5
Anytime the unit can call out and pick up phone call as well. to dial the number directly through the keypad.
a. After dialing the telephone number, press button once or button〝Ⅰ〞of two button valet
switch once dial out. If the dialing is successful, HAND FREE will ring, each time the button is
pressed, the HANDFREE will chirp once as indication. Once the dialogist picks up the phone, the
user can start talk with that person. Press button once or button〝Ⅱ〞of two button valet
switch once will hang up the phone call.
b. If phone call comes in, HANDFREE will ring. User can either press button
〝Ⅰ〞of two button valet switch once to pick up the phone or press button
once or button
once or button
〝Ⅱ〞of two button valet switch once to hang up.
c. On the above operation, the interval between pressing each two buttons must be finished within 5
seconds, otherwise the unit will exit current mode automatically. If phone number is entered
incorrect, user can press button once clear all the input, and then user needs to restart
entering.
IV. Valet switch OPERATION
(1) Sending help report
Press the button once, The LED will flash once and a help report will be generated and the system will enter
the monitor mode
(2) Activate or deactivate Immediate Geofence
Press the button and release it when the LED flashes once. After releasing it, the LED will stay continuously
on to indicate the ‘Immediate Geofence’ is on. To deactivate: Press the button (the LED will be temporally
off), and release it when the LED flashes once. After releasing it, the LED will then stay continuously off. A
report will be sent out if the vehicle goes out/in to the Geofence zone.
(3) Activate/Deactivate panic mode and send ‘panic’ report
Press the button (the LED will be temporally stay off) and release it when the LED flashes twice. After
releasing it, the panic mode is been triggered and the panic report is sent out. In panic mode, the horn will
sound and the parking light will flash. To exit panic mode: press the button (the LED will be temporally stay
off), and release it when the LED flashes twice. After releasing it, the horn and parking light will stop.
(4) ‘Duty on’ or ‘Duty off’ reports / ‘Status on’ Status off’ reports
Press the button (the LED will be temporally stay off) and release it when the LED flashes 3 times. After
releasing it, a ‘Duty on’ report will be sent out. To deactivate: Press the button (the LED will be temporally
stay off) and release it when the LED flashes 3 times. After releasing it, a ‘Duty off’ report will be sent out.
(5) Emergency release to exit ‘ARM’, ‘Anti-carjacking’ or ‘Panic’ modes.
ACC ON, press the button (the LED will be temporally stay off) and release it when the LED flashes 5 times.
After releasing it, ‘ARM’, ‘parking light’, and ‘horn’ outputs will back to normal (Disarm) status.
6
(6) Enter code learn mode or exit.
ACC on and then press the button (the LED will be temporally stay off) and release it when the LED flashes
4 times. After releasing it, the horn will chirp three times to indicate system entered code learn mode; Turn
ACC off to exit code learn mode and there is no sound for indication.
(7) Enter valet mode or exit.
ACC on and then press the button (the LED will be temporally stay off) and release it when the LED flashes
8 times. After releasing it, the horn will chirp two times to indicate system entered or exit valet mode.
V. STATUS INDICATOR
System LED:
RED: Power indicator. When the unit power on, the led will light all the time. When power cut off the unit
works with internal battery, the led will flash until all the report is sent to server.
YELLOW: GSM/GPRS indicator. Yellow LED will flash when the device is connected to the server with
valid GPRS connection. It will stay continuously on when it is in GSM mode. It will stay off if there is no
GSM reception.
Green: GPS indicator. This LED will be ON when the unit received a valid GPS data.
Note that the Green LED indication will not be valid until the system goes to the working mode, normally
30 seconds after power on.
VI. BUILD IN ALARM OPERATION (Optional)
User can use the BUILD IN ALARM to perform all the car alarm function. For detail, refer to the BUILD
IN ALARM OPERATION manual.
VII. PC SETUP AND SYSTEM INITIATION
PC setup Procedure:
(1.) Connect the 4pin to RS232 cable to the DB9 port.
(2.) Open the PC setup program.
(3.) Select the correct COM port for communication.
(4.) Click “ok” to start the program
(5.) Power on the device or press the reset button until red LED turn off.
Note that, if the connection fails, please check the cable connection is secured correctly. Press the reset
button for a longer time, e.g. another 3 seconds.
A. LOGIN dialog window
Select the correct COM port number, then “reset” the unit by pressing the reset button, and next click “OK”.
Note that: it is necessary to power on and reset the device soon after click the “ok” button.
PC setup program will detect the hardware for 60 seconds. If no hardware is detected, it will exit.
During the opening up screen shown as below, user can press “Esc” key to terminate the program.
7
B. Version No. Checking
The below interface will last until correct UNIT Version No. is checked. (You should run this program
before turn on power of UNIT)
C. MAIN INTERFACE
1. [User detail:]
8
Loading...
