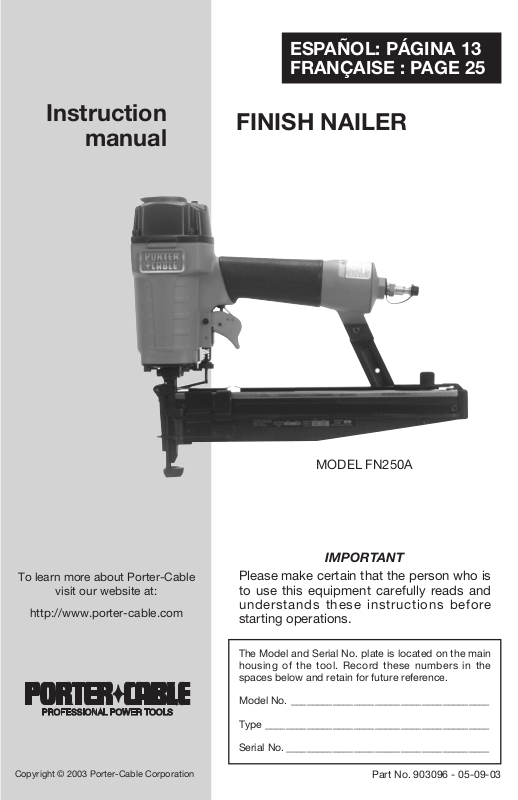

porter cale FN250A Instruction Manual

Instruction

manual

The Model and Serial No. plate is located on the main housing of the tool. Record these numbers in the spaces below and retain for future reference.

Model No. ______________________________________

Type ___________________________________________

Serial No. _______________________________________

IMPORTANT

Please make certain that the person who is to use this equipment carefully reads and understands these instructions before starting operations.

Part No. 903096 - 05-09-03

ESPAÑOL: PÁGINA 13 FRANÇAISE : PAGE 25

To learn more about Porter-Cable

visit our website at:

http://www.porter-cable.com

FINISH NAILER

MODEL FN250A

PORTER✦✦CABLE

Porter-Cable Corporation 4825 Highway 45 North Jackson, TN 38305

Date of Manufacture:___________________________

Fecha de fabricación:, Date de fabrication:

Serial No:______________________________________

Número de serie:, Nombre d'ordre

ENGLISH EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in conformity with the regulations EN292-2: section 3 of 1992 EN292-1: section 5 of 1992 EN1050: 1993 EN792 13: 2000

ESPANOL DECLARACION DE CONFORMIDAD ”CE”

Declaramos bajo nuestra sola responsabilidad que est e producto está en conformidad con las regulaciones EN292-2: section 3 of 1992 EN292-1: section 5 of 1992 EN1050: 1993 EN792 13: 2000

FRANÇAISE

DÉCLARATION DE CONFORMITÉ CE

Nous declarons sous notre propre responsabilite que ce produit est conforme aux reglementations EN292-2: section 3 of 1992 EN292-1: section 5 of 1992 EN1050: 1993 EN792 13: 2000

indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage.

This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these sections.

SAFETY GUIDELINES / DEFINITIONS

SAVE THESE INSTRUCTIONS!

IMPORTANT SAFETY INSTRUCTIONS

Improper operation or maintenance of this product could result in serious injury and property damage. Read and understand all warnings and operating instructions before using this tool. When using pneumatic tools, basic safety precautions should always be followed to reduce the risk of personal injury.

READ AND FOLLOW ALL INSTRUCTIONS.

There are certain applications for which this tool was designed. Porter-Cable strongly recommends that this tool NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the tool until you have written PorterCable and we have advised you.

Technical Service Manager Porter-Cable Corporation 4825 Highway 45 North Jackson, TN 38305

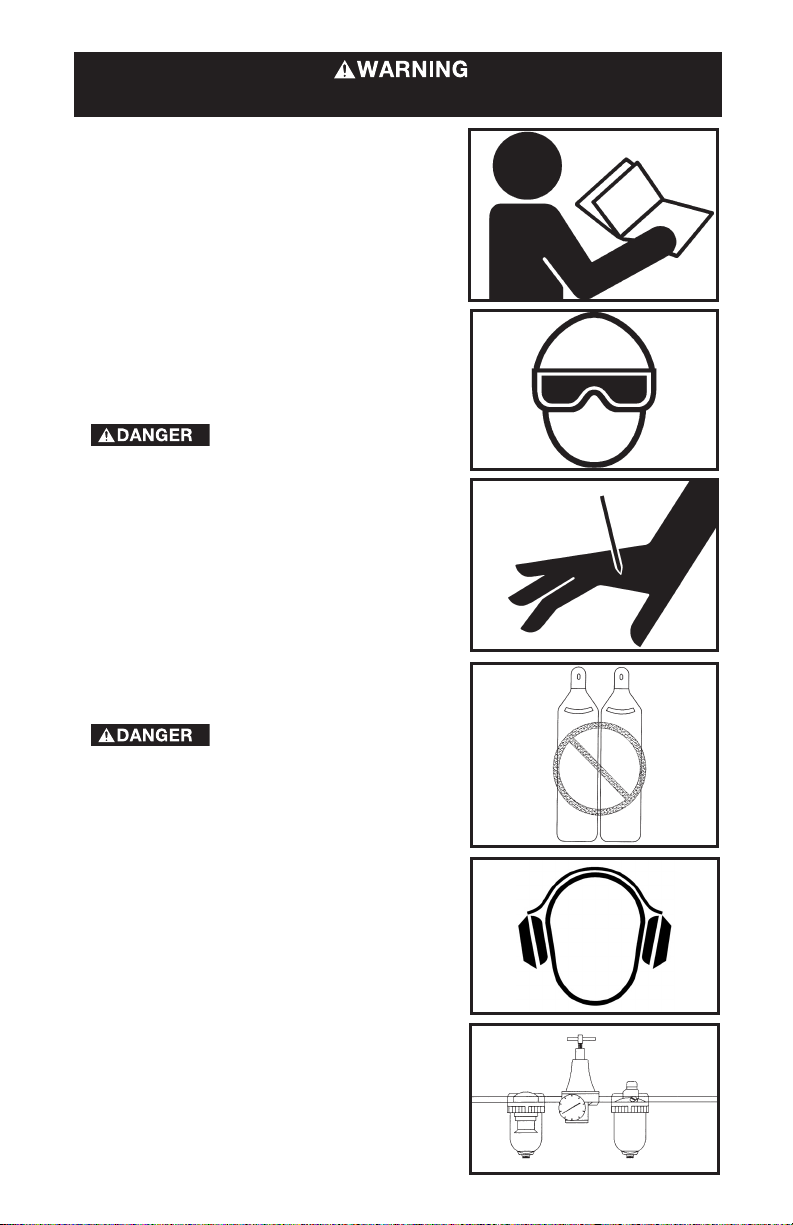

1. Read and understand tool labels and manual. Failure to follow warnings could result in DEATH or SERIOUS INJURY. Fig. 1.

2. Operator and others in work area MUST wear safety glasses with side shields.

These safety glasses must conform to ANSI Z87.1 requirements (approved glasses have “Z87” printed or stamped on them). Fig. 2.

3. Keep fingers AWAY from trigger when not driving fasteners to avoid accidental firing.

4. Choice of triggering method is important. Check manual for triggering

options. See “Using the Tool with Selectable Triggering Options” section of this manual.

5. Never point tool at yourself or others in work area. Fig. 3

6. Never use oxygen or other bottled gasses. Explosion may

occur. Never use combustible gases or any other reactive gas as a power source for this tool: explosion and serious personal injury could result. Fig. 3 & Fig. 4.

7. Wear ear protection to safe-guard against possible hearing loss. Ear protection equipment must conform to ANSI S3.19 requirements. Fig. 5.

8. Use clean, dry, regulated, compressed air at 70 to 120 PSI, (4.8 to 8.3 BAR). Fig. 6.

Fig. 6

Fig. 5

Fig. 2

Fig. 3

Fig. 4

Fig. 1

GENERAL SAFETY RULES

Fig. 8

Fig. 9

Fig. 10

Fig. 7

Fig. 11

Fig. 12

Fig. 13

9. Do not connect tool to pressure which

potentially exceeds 200 PSI (13.7 BAR).

10. Only use air hose that is rated for a maximum working pressure of at least 150 PSI (10.3 BAR) or 150% of the maximum system pressure, which ever is greater.

11. Connect tool to air supply hose with a coupling that automatically removes all pressure from the tool when the coupling is disconnected. Fig. 7.

12. Disconnect tool from air supply hose

before doing tool maintenance, clearing a jammed fastener, leaving work area, moving tool to another location, or handing the tool to another person. Fig. 7.

13. Never use a tool that is leaking air, has missing or damaged parts, or requires repair. Make sure all screws and caps are securely tightened. Fig. 8.

14. Never use tool if safety, trigger or springs are inoperable, missing or damaged.

Do not alter or remove safety, trigger, or springs. Make daily inspections for free movement of trigger and safety mechanism. Fig. 8.

15. Do not use tool without safety warning label. If label is missing, damaged

or unreadable, contact your Porter-Cable Service Center for a replacement. Fig. 9.

16. Only use parts, fasteners and accessories approved by Porter-Cable.

17. Connect tool to air supply before

loading fasteners, to prevent a fastener from being fired during connection. The tool driving mechanism may cycle when tool is connected to the air supply. Fig. 10.

18. Always assume the tool contains fasteners. No horseplay. Respect the tool as

a working implement. Fig. 11.

19. Operator and bystanders wear hard hat

to safeguard against possible injuries. Fig.

12.

20. Do not load fasteners with trigger or safety depressed, to prevent unintentional firing of a fastener. Fig. 13

21. Remove finger from trigger when not

driving fasteners. Never carry tool with finger on trigger. In “Contact Actuation Mode” tool will fire a fastener if safety is bumped while trigger is depressed. Fig. 14.

22. Do not overreach. Keep proper footing and balance at all times when using or handling the tool.

23. Fire fasteners into work surface only:

never into materials too hard to penetrate. Fig. 15.

24. Grip tool firmly to maintain control while allowing tool to recoil away from work surface as fastener is driven. In

“Contact Actuation Mode” if safety element is allowed to recontact work surface before trigger is released an unwanted fastener will be fired.

25. Do not drive fasteners on top of other fasteners, or with the tool at too steep an

angle: the fasteners can ricochet causing personal injury. Fig. 15.

26. Do not drive fasteners close to the edge of the workpiece. The workpiece is

likely to split allowing the fastener to fly free or ricochet causing personal injury. Fig. 16.

27. FOR TOOLS SET FOR CONTACT ACTUATION MODE, Do not use on scaffoldings or ladders or for tasks in

which changing location involves the use of scaffoldings, stairs, ladders, and the like. Do not use for specific tasks such as closing boxes or crates or fitting transportation safety systems on vehicles and wagons. Fig. 17

Fig. 14

Fig. 15

Fig. 16

Fig. 17

TECHNICAL SPECIFICATIONS

Noise level . . . . . . . . . . . . . . . . . . Typical Mean

A - Weighted sound impulse . . . effective Acceleration . . . 3.91 m/s

power level . . . . . . 95.1 dBA

P - Emission sound pressure

pressure level . . . . 86.3 dBA

Employer must enforce compliance with the safety warnings

and all other instructions contained in this manual. Keep this manual available for use by all people assigned to use this tool. For personal safety and proper operation of this tool, read and understand

tool labels and manual. Failure to follow warnings could result in DEATH or SERIOUS INJURY. Read and follow all of these instructions carefully.

FOREWORD

Porter-Cable Model FN250A is a heavy duty pneumatic finish nailer. It is designed to install 16 ga. finish nails of various lengths (from

/4" to 2-1/2"

long).

Fastener Guide (furnished with FN250A) must be

used when driving fasteners that are less than 1-

/2" long (see

FASTENER GUIDE Section of this manual). Use approved PorterCable fasteners only.

POWER SOURCE

This tool is designed to operate on clean, dry, compressed air at regulated pressures between 70 and 120 PSI (Pounds per Square Inch)

(4.8 to 8.3 BAR)

. The preferred system would include a filter, a pressure regulator, and an automatic oiler located as close to the tool as possible, within 15 ft/4.6 m is ideal.

All compressed air contains moisture and other contaminates that are detrimental to internal components of the tool. An air line filter will remove most of these contaminates and significantly prolong the life of the tool. If an in-line oiler is not available: place five or six drops of Porter-Cable Air Tool Oil into the tool’s air inlet at the beginning of each workday.

The tool is equipped with a

4" male “quick connector”. A

8" male “quick

connector” is available from Porter-Cable and may be used in situations where a

4" supply line is not available. A

8" supply line (and fittings) are required for

maximum tool performance. The tool must always be connected to the air supply with a coupling such that all pressure is removed from the tool when the coupling is disconnected.

All air line components (hoses, connectors, filters, regulators, etc.) must have a minimum working pressure rating of at least 150 PSI (10.3 BAR) or 150% of maximum system potential, whichever is

greater

Do not connect tool to pressure which potentially exceeds 200 PSI (13.7 BAR).

Only connect tool to air supply hose with a coupling that automatically removes all pressure from the tool when the coupling is disconnected.

Disconnect tool from air supply before performing maintenance, clearing a jammed fastener, leaving work area, moving tool to another location, or handing the tool to another person.

PREPARING THE TOOL

1. After reading and understanding this entire manual, connect tool to air supply (Fig. 18).

EMPLOYER’S RESPONSIBILITIES

FUNCTIONAL DESCRIPTION

Never point tool at yourself or others. Always connect tool to air supply before loading fasteners (Fig. 18). Do not load fasteners with trigger or safety depressed. Only use approved Porter-Cable fasteners. Operator and others in work area MUST wear safety glasses with side

shields. Always wear ANSI Z87.1 approved safety glasses, and ANSI

S3.19 approved hearing protection when preparing or operating the tool.

Never use a tool that is leaking air, has missing or damaged parts, or requires repair.

2. Pull follower (A) Fig. 19, all the way to the rear, until it latches.

3. Insert a strip of approved fasteners, see Fig. 20. Orient fasteners with points down. Slide fasteners forward to the front of the magazine. The magazine will hold two full strips of fasteners.

4. Depress follower release lever (A) Fig. 21, allowing the follower to slide forward against the fasteners.

5. Adjust directional exhaust deflector (A) Fig. 22, so that the exhaust air blast will be directed away from the operator. The exhaust deflector provides seven detented positions for directing the exhaust blast away from the operator. Grasp the deflector and rotate it to the desired position for the current application.

Fig. 18

Fig. 19

Fig. 21

Fig. 22

Fig. 20

FASTENER GUIDE

A Fastener Guide (A) Fig. 23 and 24, is factory installed on Model FN250A. The Guide is held in place with a bolt and nut (B) Fig. 23 and

24. The Fastener Guide must be used whenever driving fasteners that are less than 1

/2" long. The Fastener

Guide must be removed when driving fasteners that are 1

/2" or

more in length. When not in use, the fastener guide may be stored by attaching it to the rear bracket as shown in Fig. 25.

USING THE TOOL

Complete all steps of PREPARING THE TOOL before using the tool. To fire, grip tool firmly, position nose of tool onto work surface, push forward

on tool to depress safety, and squeeze trigger to fire a fastener. This “trigger fire” method provides the most accurate fastener placement. This tool is shipped from the factory with a “restrictive fire trigger” that only allows the tool to be fired this way and is less likely to fire an unwanted fastener.

An alternate “bottom fire trigger” is available. The “bottom fire” trigger allows the tool to be fired in two different ways.

1. The tool can be fired using the “trigger fire” method described above. OR

2. Grip tool firmly, depress and hold trigger while pushing the tool firmly

against work surface. The tool will fire a fastener each time the safety is depressed. This method is known as “bottom fire” and allows very fast repetitive fastener placement.

The “bottom fire trigger” is available free-of-charge by calling 1-800-321-9443 in the United States and Canada or 001-901-660-9374 outside the United States and Canada, and providing tool model and serial number. For identification purposes: the Bottom Fire Trigger is black and the Restrictive Fire Trigger is red.

OPERATING INSTRUCTIONS

Fig. 23

Fig. 24

Fig. 25

Remove finger from trigger when not driving fasteners. Never carry tool with finger on trigger: tool will fire a fastener if safety is bumped.

Keep fingers AWAY from trigger when not driving fasteners to avoid accidental firing. Never carry tool with finger on trigger. In “Contact Actuation Mode” tool will fire a fastener if safety

is bumped while trigger is depressed. Never point tool at yourself or others. Never attempt to drive a fastener into material that is too hard, or at

too steep an angle, or near the edge of the workpiece. The

fastener can ricochet causing personal injury.

Disconnect tool from air supply before performing maintenance, clearing a jammed fastener, leaving work area, moving tool to another location, or handing the tool to another person.

Clean and inspect tool daily. Carefully check for proper

operation of trigger and safety mechanism. Do Not use the tool unless both the trigger and the safety mechanism are functional, or if the tool is leaking air or needs any other repair.

The depth to which a fastener is driven is controlled by the depth adjustment knob (A) Fig. 26. The depth of drive is factory adjusted to a nominal setting. Test fire a fastener and check depth. If a change is desired, rotate the adjustment knob (A) Fig. 26: the adjustment knob has detents every

/4 turn.

Rotate the knob clockwise (see Fig. 26), to increase the depth of drive, rotate the knob counterclockwise to decrease the depth of drive. Test fire another fastener and check depth. Repeat as necessary to achieve desired results. The amount of air pressure required will vary depending on the size of the fastener and the material being fastened. Experiment with the air pressure setting to determine the lowest setting that will consistently perform the job at hand. Air pressure in excess of that required can cause premature wear and/or damage to the tool.

CLEARING A JAMMED FASTENER

Disconnect tool from air supply.

2. Open magazine and remove any remaining fasteners.

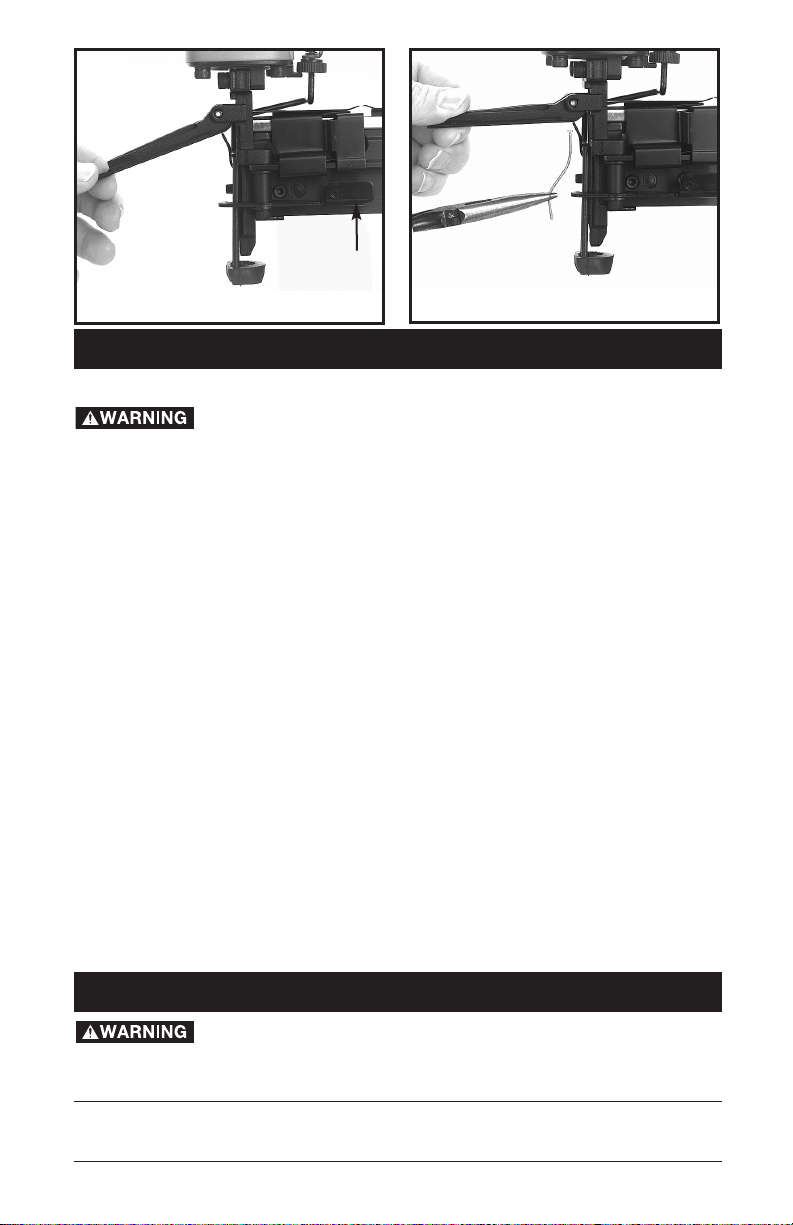

3. Depress the quick release latch lever (A) Fig. 27, and hinge the fastener guide plate open.

4. Remove the jammed fastener (see Fig. 28).

5. Close the fastener guide plate and secure with the quick release latch.

Fig. 26

CLEAN AND INSPECT DAILY

Disconnect tool from air supply before cleaning and

inspection. Correct all problems before placing the tool back in use. Wipe tool clean and inspect for wear or damage. Use non-flammable

cleaning solutions to wipe exterior of tool only if necessary. DO NOT SOAK tool with cleaning solutions. Such solutions can damage internal parts.

Inspect trigger and safety mechanism to assure system is complete and functional: no loose or missing parts, no binding or sticking parts.

Keep all screws tight. Loose screws can cause personal injury or damage tool.

If tool is used without an in-line oiler: place 5 or 6 drops of Porter-Cable Air Tool Oil into the air inlet of the tool at the beginning of each workday.

SERVICE AND REPAIRS

All quality tools will eventually require servicing or replacement of parts due to wear from normal use. These operations should ONLY be performed by either an AUTHORIZED PORTER-CABLE SERVICE STATION or a PORTERCABLE•DELTA FACTORY SERVICE CENTER. All repairs made by these agencies are fully guaranteed against defective material and workmanship. We cannot guarantee repairs made or attempted by anyone other than these agencies.

Should you have any questions about your tool, feel free to write us at any time. In any communications, please give all information shown on the nameplate of your tool (model number, type, serial number, etc.).

Disconnect tool from air supply before performing any Service

Procedure.

SYMPTOM PROBLEMS SOLUTIONS

1. Air leak near top of Loose screws. Tighten screws. tool or in trigger area. Worn or damaged Install Overhaul Kit.

o-rings or seals.

Fig. 27

Fig. 28

MAINTENANCE

TROUBLESHOOTING

2. Tool does nothing or Inadequate air supply. Verify adequate air supply. operates sluggishly. Inadequate lubrication. Put 5 or 6 drops of oil into air inlet.

Worn or damaged Install Overhaul Kit. o-rings or seals.

3. Air leak near bottom Loose screws. Tighten screws. of tool. Worn or damaged Install Overhaul Kit.

o-rings or bumper.

4. Tool jams frequently. Incorrect fasteners. Verify approved fasteners of

correct size. Damaged fasteners. Replace w/undamaged fasteners. Magazine or nose Tighten screws. screws loose. Magazine is dirty. Clean magazine. Driver is worn or damaged. Install “DRIVER” Maintenance Kit.

5. Other. Contact a Porter-Cable Service Facility.

A complete line of accessories is available from your Porter-Cable • Delta Supplier, Porter-Cable • Delta Factory Service Centers, and Porter-Cable Authorized Service Stations. Please visit our Web Site www.porter-cable.com for a catalog or for the name of your nearest supplier.

Since accessories, other than those offered by PorterCable • Delta, have not been tested with this product, use of such accessories could be hazardous. For

safest operation, only Porter-Cable

• Delta recommended accessories should be used with this product.

ACCESSORIES

PORTER-CABLE LIMITED

ONE YEAR WARRANTY

Porter-Cable warrants its nailing and stapling tools for a period of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period. For repair or replacement return the complete tool or accessory, transportation prepaid, to your nearest Porter-Cable Service Center or Authorized Service Station. Proof of purchase may be required. This warranty does not apply to O-rings and Driver Blades or to repair or replacement required due to misuse, abuse, normal wear and tear or repairs attempted or made by other than our Service Centers or Authorized Service Stations.

ANY IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WILL LAST ONLY FOR ONE (1) YEAR FROM THE DATE OF PURCHASE.

To obtain information on warranty performance please write to: PORTER-CABLE CORPORATION, 4825 Highway 45 North, Jackson, Tennessee 38305; Attention: Product Service. THE FOREGOING OBLIGATION IS PORTER-CABLE’S SOLE LIABILITY UNDER THIS OR ANY IMPLIED WARRANTY AND UNDER NO CIRCUMSTANCES SHALL PORTER-CABLE BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.

The following are trademarks of PORTER-CABLE •DELTA (Las siguientes son marcas registradas de PORTER-CABLE •DELTA S.A.) (Les marques suivantes sont des marques de fabriquant de la PORTER-CABLE

•

DELTA): Auto-Set®, BAMMER®, B.O.S.S.®, Builder’s Saw®,

Contractor’s Saw

, Contractor’s Saw II™, Delta®, DELTACRAFT®, DELTAGRAM™, Delta Series 2000™, DURATRONIC™, Emc²™, FLEX®,

Flying Chips™, FRAME SAW

, Homecraft®, INNOVATION THAT WORKS®, Jet-Lock®, JETSTREAM®, ‘kickstand®, LASERLOC®, MICRO-SET®,

Micro-Set

, MIDI LATHE®, MORTEN™, NETWORK™, OMNIJIG®, POCKET CUTTER®, PORTA-BAND®, PORTA-PLANE®, PORTER-

CABLE

&(design), PORTER-CABLE®PROFESSIONAL POWER TOOLS, Posi-Matic®, Q-3®&(design), QUICKSAND®&(design), QUICKSET™,

QUICKSET II

, QUICKSET PLUS™, RIPTIDE™&(design), SAFE GUARD II®, SAFE-LOC®, Sanding Center®, SANDTRAP®&(design), SAW BOSS®,

Sawbuck™, Sidekick

, SPEED-BLOC®, SPEEDMATIC®, SPEEDTRONIC®, STAIR EASE®, The American Woodshop®&(design), The Lumber

Company

&(design), THE PROFESSIONAL EDGE®, THE PROFESSIONAL SELECT®, THIN-LINE™, TIGER®, TIGER CUB®, TIGER SAW®,

TORQBUSTER

, TORQ-BUSTER®, TRU-MATCH™, TWIN-LITE®, UNIGUARD®, Unifence®, UNIFEEDER™, Unihead®, Uniplane™, Unirip®,

Unisaw

, Univise®, Versa-Feeder®, VERSA-PLANE®, WHISPER SERIES®, WOODWORKER’S CHOICE™.

Trademarks noted with ™ and ® are registered in the United States Patent and Trademark Office and may also be registered in other countries. Las Marcas Registradas con el signo de ™ y ® son registradas por la Oficina de Registros y Patentes de los Estados Unidos y también pueden estar registradas en otros países. Marques déposées, indiquées par la lettre ™ et ®, sont déposées au Bureau des brevets d’invention et marques déposées aux Etats-Unis et pourraient être déposées aux autres pays.

PORTER-CABLE • DELTA SERVICE CENTERS

(CENTROS DE SERVICIO DE PORTER-CABLE • DELTA)

(CENTRE DE SERVICE PORTER-CABLE • DELTA)

Parts and Repair Service for Porter-Cable •Delta Power Tools are Available at These Locations

(Obtenga Refaccion de Partes o Servicio para su Herramienta en los Siguientes Centros de Porter-Cable

•

Delta)

(Locations où vous trouverez les pièces de rechange nécessaires ainsi qu’un service d’entretien)

Authorized Service Stations are located in many large cities. Telephone 800-487-8665 or 731-541-6042 for assistance locating one. Parts and accessories for Porter-Cable

•

Delta products should be obtained by contacting any Porter-Cable •Delta Distributor, Authorized Service

Center, or Porter-Cable

•

Delta Factory Service Center. If you do not have access to any of these, call 888-848-5175 and you will be directed to

the nearest Porter-Cable

•

Delta Factory Service Center. Las Estaciones de Servicio Autorizadas están ubicadas en muchas grandes ciudades.

Llame al 800-487-8665 ó al 731-541-6042 para obtener asistencia a fin de localizar una. Las piezas y los accesorios para los productos PorterCable

•

Delta deben obtenerse poniéndose en contacto con cualquier distribuidor Porter-Cable •Delta, Centro de Servicio Autorizado o Centro

de Servicio de Fábrica Porter-Cable

•

Delta. Si no tiene acceso a ninguna de estas opciones, llame al 888-848-5175 y le dirigirán al Centro de

Servicio de Fábrica Porter-Cable

•

Delta más cercano. Des centres de service agréés sont situés dans beaucoup de grandes villes. Appelez au

800-487-8665 ou au 731-541-6042 pour obtenir de l’aide pour en repérer un. Pour obtenir des pièces et accessoires pour les produits PorterCable

•

Delta, s’adresser à tout distributeur Porter-Cable •Delta, centre de service agréé ou centre de service d’usine Porter-Cable •Delta. Si

vous n’avez accès à aucun de ces centres, appeler le 888-848-5175 et on vous dirigera vers le centre de service d’usine Porter-Cable

•

Delta le

plus proche.

Printed in U.S.A. PC-0303-151

CANADIAN PORTER-CABLE • DELTA SERVICE CENTERS

ALBERTA

Bay 6, 2520-23rd St. N.E. Calgary, Alberta T2E 8L2 Phone: (403) 735-6166 Fax: (403) 735-6144

BRITISH COLUMBIA

8520 Baxter Place Burnaby, B.C. V5A 4T8 Phone: (604) 420-0102 Fax: (604) 420-3522

MANITOBA

1699 Dublin Avenue Winnipeg, Manitoba R3H 0H2 Phone: (204) 633-9259 Fax: (204) 632-1976

ONTARIO

505 Southgate Drive Guelph, Ontario N1H 6M7 Phone: (519) 836-2840 Fax: (519) 767-4131

QUÉBEC

1515 Ave. St-Jean Baptiste, Québec, Québec G2E 5E2 Phone: (418) 877-7112 Fax: (418) 877-7123

1447, Begin St-Laurent, (Montréal), Québec H4R 1V8 Phone: (514) 336-8772 Fax: (514) 336-3505

ARIZONA

Tempe 85282 (Phoenix) 2400 West Southern Avenue Suite 105 Phone: (602) 437-1200 Fax: (602) 437-2200

CALIFORNIA

Ontario 91761 (Los Angeles) 3949A East Guasti Road Phone: (909) 390-5555 Fax: (909) 390-5554 San Leandro 94577 (Oakland) 3039 Teagarden Street Phone: (510) 357-9762 Fax: (510) 357-7939

COLORADO

Arvada 80003 (Denver) 8175 Sheridan Blvd., Unit S Phone: (303) 487-1809 Fax: (303) 487-1868

FLORIDA

Davie 33314 (Miami) 4343 South State Rd. 7 (441) Unit #107 Phone: (954) 321-6635 Fax: (954) 321-6638 Tampa 33609 4538 W. Kennedy Boulevard Phone: (813) 877-9585 Fax: (813) 289-7948

GEORGIA

Forest Park 30297 (Atlanta) 5442 Frontage Road, Suite 112 Phone: (404) 608-0006 Fax: (404) 608-1123

ILLINOIS

Addison 60101 (Chicago) 400 South Rohlwing Rd. Phone: (630) 424-8805 Fax: (630) 424-8895

Woodridge 60517 (Chicago) 2033 West 75th Street Phone: (630) 910-9200 Fax: (630) 910-0360

MARYLAND

Elkridge 21075 (Baltimore) 7397-102 Washington Blvd. Phone: (410) 799-9394 Fax: (410) 799-9398

MASSACHUSETTS

Braintree 02185 (Boston) 719 Granite Street Phone: (781) 848-9810 Fax: (781) 848-6759

Franklin 02038 (Boston) Franklin Industrial Park 101E Constitution Blvd. Phone: (508) 520-8802 Fax: (508) 528-8089

MICHIGAN

Madison Heights 48071 (Detroit) 30475 Stephenson Highway Phone: (248) 597-5000 Fax: (248) 597-5004

MINNESOTA

Minneapolis 55429 5522 Lakeland Avenue North Phone: (763) 561-9080 Fax: (763) 561-0653

MISSOURI

North Kansas City 64116 1141 Swift Avenue Phone: (816) 221-2070 Fax: (816) 221-2897

St. Louis 63119 7574 Watson Road Phone: (314) 968-8950 Fax: (314) 968-2790

NEW YORK

Flushing 11365-1595 (N.Y.C.) 175-25 Horace Harding Expwy. Phone: (718) 225-2040 Fax: (718) 423-9619

NORTH CAROLINA

Charlotte 28270 9129 Monroe Road, Suite 115 Phone: (704) 841-1176 Fax: (704) 708-4625

OHIO

Columbus 43214 4560 Indianola Avenue Phone: (614) 263-0929 Fax: (614) 263-1238

Cleveland 44125 8001 Sweet Valley Drive Unit #19 Phone: (216) 447-9030 Fax: (216) 447-3097

OREGON

Portland 97230 4916 NE 122 nd Ave. Phone: (503) 252-0107 Fax: (503) 252-2123

PENNSYLVANIA

Willow Grove 19090 520 North York Road Phone: (215) 658-1430 Fax: (215) 658-1433

TEXAS

Carrollton 75006 (Dallas) 1300 Interstate 35 N, Suite 112 Phone: (972) 446-2996 Fax: (972) 446-8157

Houston 77055 West 10 Business Center 1008 Wirt Road, Suite 120 Phone: (713) 682-0334 Fax: (713) 682-4867

WASHINGTON

Auburn 98001(Seattle) 3320 West Valley HWY, North Building D, Suite 111 Phone: (253) 333-8353 Fax: (253) 333-9613

Parts List for FN250A Type 1

Item Number Part Number Description Qty Required

99 904673 WARNING LABEL 1

100 000000-00 No Longer Available 1

102 883827 SPRING WASHER 10

103 903143 CYLINDER CAP ASSY 1

104 883912 SET SCREW 10

105 898306 BOLT 10

106 886186 WASHER 10

107 883849 O-RING 10

108 886112 DEFLECTOR 1

109 886188 RUBBER PAD 1

110 886101 BALL 1

111 886189 SPRING 10

112 886114 GASKET 1

113 886115 BRG WASHER 10

114 886113 PISTON STOP 1

115 886116 SPRING 10

116 886085 O-RING 10

117 886555 O-RING 10

118 892774 HD. VALVE PISTON 1

119 884585 O-RING 10

120 886118 CYLINDER PRESS RING 1

121 908890 O-RING 10

122 903767 DRIVER MAINT KIT 1

122 60030 DRIVER MAINT KIT 1

Page 1

Parts List for FN250A Type 1

Item Number Part Number Description Qty Required

123 886079 O-RING 10

124 891022 CYLINDER 1

125 886119 CHECK SEAL 1

126 886122 BUMPER 1

127 886121 CYLINDER SPACER 1

128 886098 O-RING 10

130 886123 DRIVER GUIDE 1

131 897480 BASE 1

134 903505 MUFFLER 1

134 890245 MUFFLER 1

200 A08368 SS/A TRIGGER VALVE K 1

201 883831 O-RING 10

201 897340 O-RING 10

202 883934 BREATHER VALVE 1

202 897342 CAP 1

203 897341 O-RING 10

203 883935 O-RING 10

204 883936 O-RING 10

205 897374 PIN (3X12) 1

206 883937 TRIGGER VALVE 1

207 883938 O-RING 10

208 883939 PLUNGER SPRING 1

209 897346 PLUNGER 1

209 883940 PLUNGER 1

210 883848 O-RING 10

211 897347 VALVE 1

211 883941 TRIGGER CAP 1

Page 2

Parts List for FN250A Type 1

Item Number Part Number Description Qty Required

212 883942 O-RING 10

214 5140030-09 BOTTOM FIRE TRIGGER 1

214 893077 RESTRICTIVE TRIGGER 1

214 893930 BOTTOM FIRE TRIGGER 1

214 5140030-10 RESTRICTIVE TRIGGER 1

215 883945 ROLLED PIN 1

216 884404 ROLLED PIN 1

217 890722 TRIGGER PIVOT PIN 1

217 884404 ROLLED PIN 1

218 890725 URETHANE RETAINER 1

219 898323 PIN 1

301 901386 HOUSING 1

302 886099 O-RING 10

303 886124 END CAP 1

304 883859 MALE QUICK COUPLER 1

305 884443 PROTECTIVE COVER 1

403 886542 GUIDE COVER B 1

404 907270 GUIDE PLATE 1

405 886075 ROLLED PIN 1

406 886618 GUIDE COVER A 1

407 886256 BOLT 10

408 888792 LATCH UNIT 1

409 886136 MAGAZINE SPACER 1

411 886140 LOCK SPRING 10

411 888794 LOCK SPRING 10

412 886543 SPRING FASTNER 10

Page 3

Parts List for FN250A Type 1

Item Number Part Number Description Qty Required

413 886109 SPRING 10

414 886069 E-RING 1

415 893809 PUSHER 1

416 886135 CHANNEL 1

417 886261 BOLT 10

418 893810 MAGAZINE COVER 1

419 886126 SPRING 10

420 883882 LOCK NUT 10

423 886447 DRIVER GUIDE SAFETY 1

424 883898 BOLT 10

424 883866 BOLT 10

425 883867 SPRING WASHER 10

426 893811 BRACKET 1

427 886259 BOLT 10

428 883971 WASHER-FLAT 10

429 883970 NUT-LOCK 10

430 887922 SAFETY ASSY 1

432 888919 END PLATE 1

433 5140030-57 SAFETY GUIDE 1

434 887969 SAFETY SPRING 1

435 886218 RING 10

436 886128 SAFETY 1

437 886561 THUMB WHEEL 1

438 887914 SAFETY UNIT 1

439 886137 NOSE CUSHION 1

440 886139 NAIL GUIDE 1

441 884592 BOLT 10

Page 4

Parts List for FN250A Type 1

Item Number Part Number Description Qty Required

443 883864 BOLT 10

450 893812 MAGAZINE ASSY. 1

450 898283 DRIVER GDE/MAG. ASSY 1

451 884541 SCREW 10

451 894745 BOLT 10

455 891903 HEX WRENCH 2.5MM 1

455 884298 HEX WRENCH (4MM) 1

455 884297 HEX WRENCH (3MM) 1

800 884293 AIR TOOL OIL (18CC) 1

836 903789 OVERHAUL KIT 1

836 60075 OVERHAUL KIT 1

856 893579 SAFETY GLASSES 1

861 890687 CARRYING CASE 1

861 896004 SOFT CARRYING CASE 1

861 887712 LATCH CARRYING CASE 1

Page 5

porter cale FN250A Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
