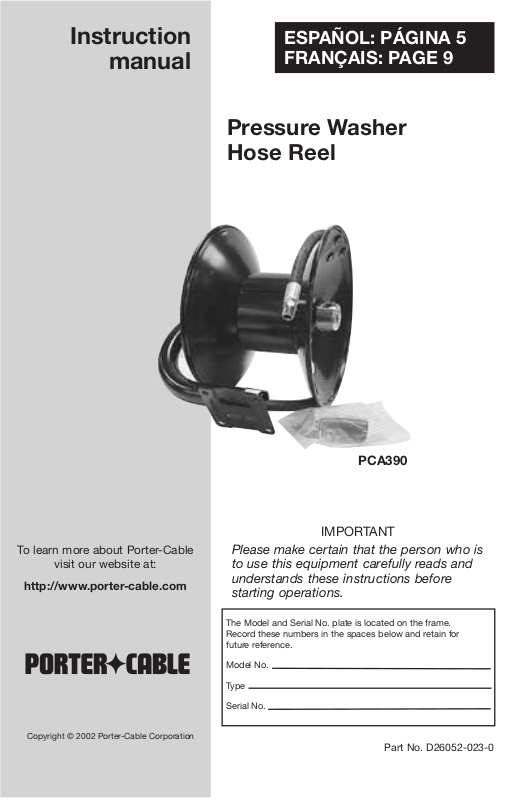

Porter-Cable D26052-023-0, PCA390 User Manual

Pressure Washer Hose Reel
Instruction
manual
IMPORTANT
Please make certain that the person who is to use this equipment carefully reads and understands these instructions before starting operations.
Part No. D26052-023-0
ESPAÑOL: PÁGINA 5 FRANÇAIS: PAGE 9
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
PCA390
Copyright © 2002 Porter-Cable Corporation
The Model and Serial No. plate is located on the frame. Record these numbers in the spaces below and retain for future reference.
Model No.
Type
Serial No.
2- ENG
D26052
BEFORE ASSEMBLY
1. Shut off the pressure washer and turn off the water supply.
2. Pull trigger on gun handle to relieve any water pressure.
3. Disconnect the high pressure hose from the gun.
TO ASSEMBLE HOSE REEL
1. Attach handle to flange assembly. NOTE: Screws must be inserted from the inside of hose reel and secured with nuts on the outside as shown. Tighten securely.
2. Remove quick connect plug from high pressure hose.
3. Apply sealant tape to hose reel inlet hose and assemble quick connect to hose reel inlet hose.
4. Bolt hose reel to reel bracket as shown. Tighten securely. NOTE: If unit is not equipped with hose reel bracket order hose reel bracket (part number D23163).
5. Apply sealant tape to swivel end of
high pressure hose. IMPORTANT: The high pressure hose has a swivel end and fixed end. The swivel end must be used to attach high pressure hose to hose reel, see below to determine fixed and swivel ends. If quick connect socket is assembled on swivel end, remove and connect it to fixed end of hose.
6. Feed high pressure hose through slot (1) in flange assembly and connect to swivel (2). Tighten securely.
7. Make a loop in hose as shown. Place hose into hose clamp (3), squeeze hose clamp together, slide onto long screw post, and secure with nut (4). Tighten securely. NOTE: Do not
overbend or kink hose.
1
2
4
3
hose end with swivel
hose end without swivel
