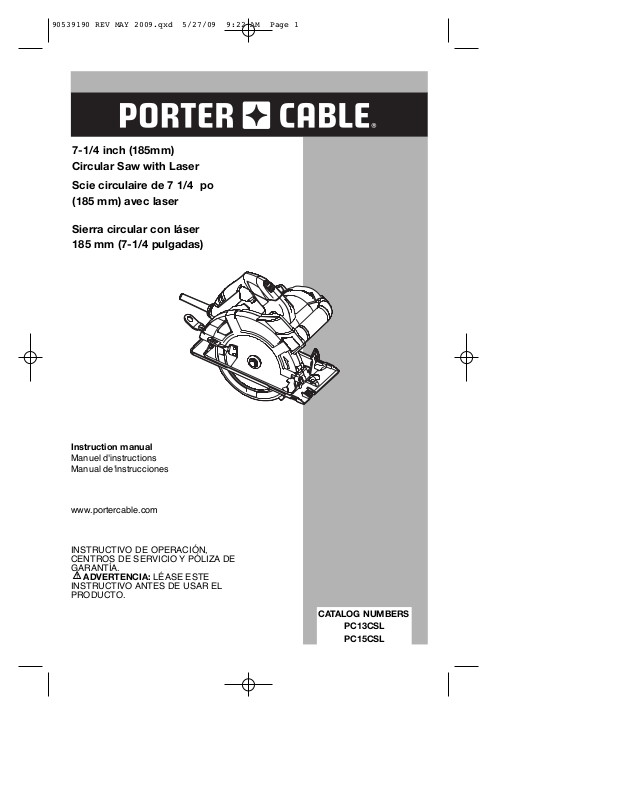

Porter-Cable PC13CSL, PC15CLS User Manual

7-1/4 inch (185mm) Circular Saw with Laser

Instruction manual

Manuel d'instructions Manual de'instrucciones

www.portercable.com

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA.

ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

Scie circulaire de 7 1/4 po (185 mm) avec laser

Sierra circular con láser 185 mm (7-1/4 pulgadas)

CATALOG NUMBERS

PC13CSL PC15CSL

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 1

General Power Tool Safety Warnings

Read all safety warnings and instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases or dust. Power tools create sparks which

may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions

can cause you to lose control.

2) Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do

not use any adapter plugs with earthed (grounded) power tools. Unmodified

plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric shock if

your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging

the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for

outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric

shock.

f) If operating a power tool in a damp location is unavoidable, use a ground fault

circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of

electric shock.

3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating

a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while

operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective

equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before

connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools

that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A

wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables

better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,

clothing and gloves away from moving parts. Loose clothes, jewellery or long

hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 2

facilities, ensure these are connected and properly used. Use of dust collection

can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power

tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the

power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power

tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons

unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many

accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp

cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these

instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could

result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is

suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any

other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like

paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals

together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery, avoid

contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause

irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only

identical replacement parts. This will ensure that the safety of the power tool is

maintained.

ADDITIONAL SPECIFIC SAFETY RULES

SAFETY INSTRUCTIONS FOR ALL SAWS

a. Keep hands away from cutting area and the blade. Keep your second hand on

auxiliary handle, or motor housing. If both hands are holding the saw, they

cannot be cut by the blade.

b. Do not reach underneath the workpiece. The guard cannot protect you from the

blade below the workpiece.

c. Adjust the cutting depth to the thickness of the workpiece. Less than a full

tooth of the blade teeth should be visible below the workpiece.

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 3

d. Never hold piece being cut in your hands or across your leg. Secure the

workpiece to a stable platform. It is important to support the work properly to

minimize body exposure, blade binding, or loss of control.

e. Hold power tool by insulated gripping surfaces when performing an operation

where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator.

f. When ripping always use a rip fence or straight edge guide. This improves the

accuracy of cut and reduces the chance of blade binding.

g. Always use blades with correct size and shape (diamond versus round) of

arbor holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.

h. Never use damaged or incorrect blade washers or bolt. The blade washers and

bolt were specially designed for your saw, for optimum performance and safety of operation.

CAUSES AND OPERATOR PREVENTION OF KICKBACK:

• Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing

an uncontrolled saw to lift up and out of the workpiece toward the operator.

• When the blade is pinched or bound tightly by the kerf closing down, the blade stalls

and the motor reaction drives the unit rapidly back toward the operator.

• If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the

blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below: a. Maintain a firm grip with both hands on the saw and position your arms to

resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but

kickback forces can be controlled by the operator, if proper precautions are taken.

b. When blade is binding, or when interrupting a cut for any reason, release the

trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate

and take corrective actions to eliminate the cause of blade binding.

c. When restarting a saw in the workpiece, center the saw blade in the kerf and

check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.

d. Support large panels to minimize the risk of blade pinching and kickback.

Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.

e. Do not use dull or damaged blades. Unsharpened or improperly set blades

produce narrow kerf causing excessive friction, blade binding and kickback.

f. Blade depth and bevel adjusting locking levers must be tight and secure

before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback.

g. Use extra caution when making a "plunge cut" into existing walls or other

blind areas. The protruding blade may cut objects that can cause kickback.

LOWER GUARD SAFETY INSTRUCTIONS

a. Check lower guard for proper closing before each use. Do not operate the

saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower

guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.

b. Check the operation of the lower guard spring. If the guard and the spring are

not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.

c. Lower guard should be retracted manually only for special cuts such as

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 4

"plunge cuts" and "compound cuts." raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released.

For all other sawing, the lower guard should operate automatically.

d. Always observe that the lower guard is covering the blade before placing saw

down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.

SAFETY INSTRUCTIONS - LASERS

Laser radiation, avoid direct eye exposure, serious eye injury can result.

• Do not use optical tools such as a telescope or transit to view the laser beam.

• Position the laser so unintentional eye contact will be avoided.

• Do not operate the laser around children or allow children to operate the laser / power tool.

• Do not disassemble. Modifying the product in any way can increase the risk of laser radiation.

Use of controls or adjustments or performance of procedures other than

those specified in this manual may result in hazardous laser radiation exposure.

• Do not adjust the laser, when the battery is inserted in the circular saw.

• Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.

• Store idle product out of reach of children and other untrained persons. Lasers / power tools are dangerous in the hands of untrained users.

• Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one laser / power tool, may create a risk of injury when used on another laser / power tool.

• Repairs and servicing MUST be performed by a qualified repair facility. Repairs performed by unqualified personnel could result in serious injury.

• Do not remove or deface warning labels. Removing labels increases the risk of exposure to radiation.

• For indoor use only.

• This product is intended for use in a temperature range of 41°F(5°C) - 104°F(40°C).

Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities contains chemicals known to the state of

California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the

skin may promote absorption of harmful chemicals.

Use of this tool can generate and/or disperse dust, which may

cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA

approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

Always wear proper personal hearing protection that conforms to

ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from

this product may contribute to hearing loss.

ALWAYS use safety glasses. Everyday eyeglasses are NOT safety

glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

:::

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 5

• ANSI Z87.1 eye protection (CAN/CSAZ94.3),

• ANSI S12.6 (S3.19) hearing protection,

• NIOSH/OSHA/MSHA respiratory protection.

SAFETY GUIDELINES - DEFINITIONS

It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.

Indicates an imminently hazardous situation which, if not avoided, will

result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could

result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may

result in minor or moderate injury.

Used without the safety alert symbol indicates a potentially hazardous

situation which, if not avoided, may result in property damage.

SYMBOLS

• The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V..................volts A ..................amperes

Hz................hertz W..................watts

min ..............minutes ................alternating current

............direct current

o ................no load speed

................Class I Construction ..................earthing terminal

(grounded) ................safety alert symbol

................Class II Construction .../min or rpm..revolutions or reciprocation

(double insulated) per minute

The label on your laser may include the following symbols.

V ................................volts mW......................milliwatts

nm..............................wavelength in

nanometers

IIIa..............................Class IIlA Laser

• When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.

Recommended Minimum Wire Size for Extension Cords

Total Length of Cord

25 ft. 50 ft. 75 ft. 100 ft. 125 ft. 150 ft. 175 ft.

7.6 m 15.2 m 22.9 m 30.5 m 38.1 m 45.7 m 53.3 m

Wire Size AWG

18 18 16 16 14 14 12

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 6

For your convenience and safety, the following labels are on your laser.

FUNCTIONAL DESCRIPTION Figure A

1. On/off switch

2. Laser on/off switch

3. Main handle

4. Secondary handle

5. Spindle lock button (PC15CSL only)

6. Shoe

7. Saw blade

8. Saw blade guard 8a. Blade guard retracting lever

9. Laser

10. Saw blade wrench

11. Bevel adjustment knob Rip fence not shown (PC15CSL only)

Pour plus de commodité et de sécurité, les étiquettes suivantes sont apposées sur le laser.

Para su comodidad y seguridad, el láser incluye las siguientes etiquetas.

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 7

Support work near cut

Soutenir la pièce près de la ligne de coupe.

Apoye la pieza cerca del corte

Wrong

Incorrect

Incorrecto

Material bends on blade causing heavy loads or kickback Le matériau plie au contact de la lame causant de lourdes

surcharges ou des rebonds.

El material oprime el disco ocasionando sobrecarga o

contragolpe

Tip of tooth Pointe en bois Punta de la madera

Surface of wood Surface de bois Superficie de la madera

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 8

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 9

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 10

SUPPORTING LARGE PANELS / SECURING WORKPIECE

Support large panels to minimize the risk of blade pinching and kickback. Large panels tend to sag under their own weight as shown in figure B. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel (figure C).

Never hold piece being cut in your hands or across your leg (figure D). Secure the workpiece to a stable platform as shown in figure E. It is important to support the work

properly to minimize body exposure, blade binding, or loss of control.

ASSEMBLY/ SET-UP

Always unplug saw from power supply before any of the following

operations.

ADJUSTING THE DEPTH OF CUT (FIGURE F & G)

The depth of cut should be set according to the thickness of the workpiece.

• Loosen the lever (12) to unlock the saw shoe (figure F).

• Move the saw shoe (6) into the desired position. The corresponding depth of cut can be read from the scale (13).

• Tighten the lever to lock the saw shoe in place.

• Set depth adjustment of saw such that one tooth of the blade projects below the workpiece as shown in figure G. Setting the saw at the proper cutting depth keeps blade friction to a minimum, removes sawdust from between the blade teeth, results in cooler, faster sawing and reduces the chance of kickback.

ADJUSTING THE BEVEL ANGLE (FIGURE H)

This tool can be set to bevel angles between 0° and 45°.

• Loosen the locking knob (14) to unlock the saw shoe.

• Move the saw shoe (6) into the desired position. The corresponding bevel angle can be read from the scale (15).

• Tighten the locking knob to lock the saw shoe in place.

ATTACHING AND REMOVING THE BLADE

REMOVING THE BLADE (PC15CSL) (FIGURE I & J)

• Keep the spindle lock button (5) depressed and rotate the blade until the spindle lock engages.

• Loosen and remove the blade retaining screw (16) by turning it counterclockwise using the wrench (10) supplied.

• Remove the outer washer (17).

• Remove the saw blade (7).

ATTACHING THE BLADE (PC15CSL)

• Place the saw blade (7), on the spindle shaft, making sure that the arrow on the blade points in the same direction as the arrow on the tool.

• Fit the outer washer (17) on the spindle, with the raised part pointing away from the saw blade.

• Insert the blade retaining screw (16) into the hole.

• Keep the spindle lock button (5) depressed.

• Securely tighten the blade retaining screw by turning it clockwise using the wrench (10) supplied.

NOTE: The inner flange (18), should not be removed. If it is removed, replace it as shown in figure J.

REMOVING THE BLADE (PC13CSL) (FIGURE K & J)

• Prevent spindle rotation by engaging the teeth of the saw blade into a piece of scrap wood.

• Loosen and remove the blade retaining screw (16) by turning it counterclockwise using the wrench (10) supplied.

• Remove the outer washer (17).

• Remove the saw blade (7).

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 11

ATTACHING THE BLADE (PC13CSL)

• Place the saw blade (7), on the spindle shaft, making sure that the arrow on the blade points in the same direction as the arrow on the tool.

• Fit the outer washer (17) on the spindle, with the raised part pointing away from the saw blade.

• Insert the blade retaining screw (16) into the hole.

• Prevent spindle rotation by engaging the teeth of the saw blade into a piece of scrap wood.

• Securely tighten the blade retaining screw by turning it clockwise using the wrench (10) supplied.

NOTE: The inner flange (18), should not be removed. If it is removed, replace it as shown in figure J.

To reduce the risk of serious personal injury, read, understand and follow

all important safety warnings and instructions prior to using tool.

GENERAL CUTS (IMPORTANT: READ SAFETY WARNINGS AND INSTRUCTIONS. ) GUARD AGAINST KICKBACK

With unit unplugged, follow all assembly, adjustment and set up instructions. Make sure lower guard operates. Select the proper blade for the material to be cut.

• Measure and mark work for cutting.

• Support and secure work properly (See Safety Rules and Instructions).

• Use appropriate and required safety equipment (See Safety Rules).

• Secure and maintain work area (See Safety Rules).

• With plug inserted and guard closed, make sure switch turns saw on and off. It is important to support the work properly and to hold the saw firmly to

prevent loss of control which could cause personal injury. Figure E illustrates recommended hand position.

ATTACHING AND REMOVING THE RIP FENCE (INCLUDED WITH PC15CSL) FIG. L)

The rip fence is used to saw in a straight line parallel to the edge of the workpiece.

ATTACHING

• Loosen the locking knob (19).

• Insert the rip fence (20) through the openings (21).

• Slide the rip fence into the desired position.

• Tighten the locking knob.

REMOVING

• Loosen the locking knob.

• Pull the rip fence out of the tool.

NOTE: If you do not have a proper fitting fence, use a straight edge guide in contact with the edge of the shoe to improve accuracy of cut and reduce the possibility of binding and kickback.

OPERATION

SWITCH

• To operate the tool, depress the trigger switch (1). The tool will continue to run as long

as the trigger is depressed.

• To turn the tool off, release the trigger switch (1). There is no provision for locking the

tool on, and the switch should never be locked on by any other means.

KERF PLATE ADJUSTMENT (FIGURE M)

The tool is equipped with a sight guide for straight cutting (22) and for 45° miter cutting (23).

• Be sure the saw is unplugged.

• Adjust the kerf plate as described below.

• Align the left edge of the guides (22) or (23) with the cutting line.

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 12

• Keep the kerf plate aligned with the cutting line while sawing.

• Work with the shoe pressed against the workpiece.

ADJUSTING THE KERF PLATE

• Plug in the saw.

• Make a test cut halfway through a piece of scrap wood.

• Withdraw the saw so the cutting line becomes visible.

• While keeping the saw in this position, unplug the saw and loosen the kerf plate on the saw shoe.

• Align the 0° mark (22) on the kerf plate with the cutting line. When adjusting for 45° miter cuts, align the 45° mark (23) on the kerf plate with the cutting line.

• Secure the kerf plate using the screw (24).

LASER LINE

LASER RADIATION. Never aim the beam at a workpiece with a

reflective surface. Bright shiny reflective sheet steel or similar reflective surfaces are

not recommended for laser use. Reflective surfaces could direct the beam back toward the operator.

LASER RADIATION. AVOID DIRECT EYE EXPOSURE. Do not stare

into the laser light source. Never aim light at another person or object other than the workpiece. Laser light can damage your eyes.

DO NOT use tinted glasses to enhance the laser light. Tinted glasses

will reduce overall vision for the application and interfere with the normal operation of the tool.

LASER SWITCH (FIGURE N)

To turn the laser on, push forward on the laser on/off switch (2) to activate the laser line (25) as shown in figure N.

TO USE THE LASER LINE

• Mark the line that you intend to cut on the workpiece.

• Adjust the depth and angle of cut as required.

• Push the laser on/off switch (2) to the forward “ON” position and project the laser beam.

• Depress the saw trigger switch (1) and allow the blade to reach maximum speed.

• Place the saw shoe on the workpiece. Align the laser line with the mark on the workpiece and slowly push the saw forward keeping the laser line on the mark.

• Upon completion of the cut, release the trigger and allow the saw blade to come to a complete stop before switching off the laser.

SAWING

To reduce the risk of serious personal injury, always hold the tool with

both hands.

• Let the blade run freely for a few seconds before starting the cut.

• Apply only a gentle pressure to the tool while performing the cut.

• Work with the shoe pressed against the workpiece.

HINTS FOR OPTIMUM USE

• As some splintering along the line of cut on the top side of the workpiece cannot be avoided, cut on the side where splintering is acceptable.

• Where splintering is to be minimized, e.g. when cutting laminates, clamp a piece of plywood onto the top of the workpiece.

POCKET CUTTING (FIGURE O)

POCKET CUTTING IS USED TO CUTA HOLE IN A PIECE OF MATERIAL WITHOUT CUTTING FROM THE SIDE.

• Measure and mark work.

:::

90539190 REV MAY 2009.qxd 5/27/09 9:22 AM Page 13

• Tilt saw forward and rest front of the shoe on material to be cut. Align so that cut will begin at the back of the drawn rectangle shown in figure O.

• Using the retracting lever, retract blade guard to an upward position, with the blade just clearing the material, start motor and gradually lower the saw into the material.

As blade starts cutting the material, release the retracting lever immediately.

• Never tie the blade guard in a raised position.

• When the shoe rests flat on the material being cut, complete the cut in forward direction.

• Allow the blade to come to a complete stop before lifting saw from material.

• When starting each new cut, repeat the above steps.

WRENCH STORAGE (FIGURE P)

The blade wrench (10) can be stored on the saw shoe as shown in figure P.

MAINTENANCE

Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

REPLACEMENT PARTS

Use only identical replacement parts. For a parts list or to order parts, visit our service website at www.portercable.com. You can also order parts from your nearest Porter-Cable Factory Service Center or Porter-Cable Authorized Warranty Service Center. Or, you can call our Customer Care Center at (888) 848-5175.

SERVICE AND REPAIRS

All quality tools will eventually require servicing and/or replacement of parts. For information about Porter-Cable, its factory service centers or authorized warranty service centers, visit our website at www.portercable.com or call our Customer Care Center at (888) 848-5175. All repairs made by our service centers are fully guaranteed against defective material and workmanship. We cannot guarantee repairs made or attempted by others. You can also write to us for information at PORTER-CABLE, 4825 Highway 45 North, Jackson, Tennessee 38305 - Attention: Product Service. Be sure to include all of the information shown on the nameplate of your tool (model number, type, serial number, etc.).

ACCESSORIES

Since accessories, other than those offered by Porter-Cable, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only Porter-Cable recommended accessories should be used with this product.

A complete line of accessories is available from your Porter-Cable Factory Service

TROUBLESHOOTING

Problem Possible Cause Possible Solution

• Unit will not start. • Cord not plugged in. • Plug tool into a working outlet.

• Circuit fuse is blown. • Replace circuit fuse. (If the product repeatedly causes the circuit fuse to blow, discontinue use immediately and have it serviced at a Porter Cable service center or authorized servicer.)

• Circuit breaker is tripped. • Reset circuit breaker. (If the product repeatedly causes the circuit breaker to trip, discontinue use immediately and have it serviced at a Porter Cable service center or authorized servicer.)

• Cord or switch is damaged. • Have cord or switch replaced at a Porter Cable Service Center or Authorized Servicer

For assistance with your product, visit our website at www.porter-cable.com for a list of service centers, or call the Porter-Cable Customer Care Center at (888) 848-5175.
