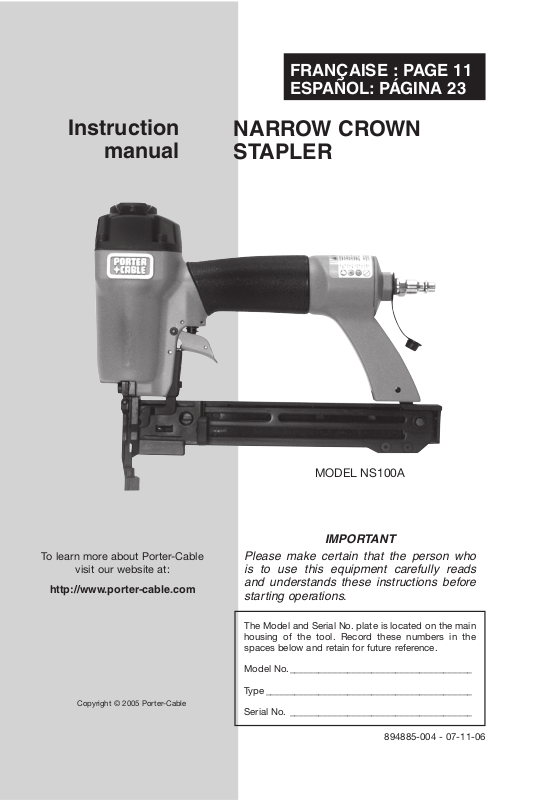

Porter-Cable NS100A User Manual

FRANÇAISE : PAGE 11
ESPAÑOL: PÁGINA 23

Instruction

manual

NARROW CROWN
STAPLER

MODEL NS100A

To learn more about Porter-Cable

visit our website at:

http://www.porter-cable.com

Copyright © 2005 Porter-Cable

IMPORTANT

Please make certain that the person who
is to use this equipment carefully reads
and understands these instructions before
starting operations.

The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.

Model No. ______________________________________

Type ___________________________________________

Serial No. ______________________________________

894885-004 - 07-11-06

PORTER✦✦CABLE

Porter-Cable Corporation
4825 Highway 45 North
Jackson, TN 38305

Date of Manufacture:___________________________

Fecha de fabricación:, Date de fabrication:

Serial No:______________________________________

Número de serie:, Nombre d'ordre

GB

ENGLISH
EC-DECLARATION OF
CONFORMITY

We declare under our sole
responsibility that this product is in
conformity with the regulations
EN292-2: section 3 of 1992
EN292-1: section 5 of 1992
EN1050: 1993
EN792 13: 2000

E

ESPANOL
DECLARACION DE
CONFORMIDAD ”CE”

Declaramos bajo nuestra sola
responsabilidad que est e producto está en
conformidad con las regulaciones
EN292-2: section 3 of 1992
EN292-1: section 5 of 1992
EN1050: 1993
EN792 13: 2000

F

FRANÇAISE

DÉCLARATION DE CONFORMITÉ CE

Nous declarons sous notre propre
responsabilite que ce produit est conforme
aux reglementations
EN292-2: section 3 of 1992
EN292-1: section 5 of 1992
EN1050: 1993
EN792 13: 2000

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using pneumatic tools, basic safety precautions should

always be followed to reduce the risk of personal injury, including the
following:

READ AND FOLLOW ALL INSTRUCTIONS.

There are certain applications for which this tool was designed. Porter-Cable
strongly recommends that this tool NOT be modified and/or used for any
application other than for which it was designed. If you have any questions
relative to its application DO NOT use the tool until you have written Porter­Cable and we have advised you.

Technical Service Manager
Porter-Cable Corporation
4825 Highway 45 North
P. O. Box 2468
Jackson, TN 38302-2468

1. USE SAFETY GLASSES. To pr eve nt
eye injuries, the tool operator and all persons
in the work area must wear safety glasses
with permanently attached, rigid, plastic side
shields. These safety glasses must conform to
ANSI Z87.1 requirements (approved glasses
have “Z87” printed or stamped on them). Fig.

1.

Fig. 1

2. WEAR EAR PROTECTION to safe-

guard against possible hearing loss. Fig. 1.

3. USE CLEAN, DRY, REGULATED com­pressed air at 70 to 120 PSI. Fig. 2.

4. DO NOT CONNECT TOOL TO pressure
which potentially exceeds 200 PSI (13.7
BAR).

5. ONLY USE AIR HOSE THAT IS RATED
for a minimum working pressure of 150 PSI
or 150% of the maximum system pressure,
which ever is greater.

6. NEVER USE OXYGEN, CARBON
DIOXIDE, combustible gases or any other

bottled gas as a power source for this tool:
explosion and serious personal injury could
result. Fig. 3.

7. CONNECT TOOL TO AIR SUPPLY
HOSE with a coupling that removes all

pressure from the tool when the coupling is
disconnected. Fig. 4.

Fig. 2

Fig. 3

Fig. 4

2

8. DISCONNECT TOOL FROM AIR
SUPPLY HOSE before doing tool

maintenance, clearing a jammed fastener,
leaving work area, moving tool to another
location, or handing the tool to another
person. Fig. 5.

9. NEVER USE A TOOL that is leaking air,
has missing or damaged parts, or requires
repair. Make sure all screws and caps are
securely tightened. Fig. 5.

10. NEVER USE TOOL IF SAFETY,
trigger or springs are inoperable, missing
or damaged. Do not alter or remove safety,
trigger, or springs. Make daily inspections
for free movement of trigger and safety
mechanism. Fig. 5.

Fig. 5

Fig. 6

11. DO NOT USE TOOL WITHOUT SAFETY
WARNING LABEL. If label is missing,

damaged or unreadable, contact your Porter­Cable Service Center for a replacement. Fig.

6.

12. ONLY USE PARTS, FASTENERS, AND
ACCESSORIES recommended by Porter-

Cable. Fig. 7.

13. CONNECT TOOL TO AIR SUPPLY
BEFORE loading fasteners, to prevent a

fastener from being fired during connection.
The tool driving mechanism may cycle when
tool is connected to the air supply. Fig. 8.

14. ALWAYS ASSUME THE TOOL
CONTAINS FASTENERS. Keep the tool

pointed away from yourself and others at all
times. No horseplay. Respect the tool as a
working implement.

15. DO NOT LOAD FASTENERS with trigger
or safety depressed, to prevent unintentional
firing of a fastener. Fig. 9.

Fig. 7

Fig. 8

Fig. 9

3

Fig. 10

Fig. 11

16. REMOVE FINGER FROM TRIGGER

when not driving fasteners. Never carry tool
with finger on trigger: tool may fire a fastener
if safety is bumped while trigger is depressed.
Fig. 10.

17. DON’T OVERREACH. Keep proper
footing and balance at all times when using
or handling the tool. Fig. 11.

18. FIRE FASTENERS INTO WORK
SURFACE ONLY: never into materials too

hard to penetrate. Fig. 12.

19. GRIP TOOL FIRMLY TO MAINTAIN
CONTROL WHILE allowing tool to recoil

away from work surface as fastener is driven.
If safety element is allowed to recontact
work surface before trigger is released, an
unwanted fastener may be fired.

20. DO NOT DRIVE FASTENERS on top of
other fasteners, or with the tool at too steep
an angle: the fasteners can ricochet causing
personal injury. Fig. 13.

21. DO NOT DRIVE FASTENERS CLOSE
to the edge of the workpiece. The workpiece
is likely to split allowing the fastener to fly free
or ricochet causing personal injury. Fig. 13.

Fig. 12

Fig. 13

Fig. 13A

22. KEEP HANDS AND BODY PARTS away

from area shown in Fig. 13A, to avoid injury.

23. DO NOT USE ON SCAFFOLDINGS OR
LADDERS or for tasks in which changing

location involves the use of scaffoldings,
stairs, ladders, and the like. Do not use
for specific tasks such as closing boxes or
crates or fitting transportation safety systems
on vehicles and wagons. Fig. 13B.

4

Fig. 13B

TECHNICAL SPECIFICATIONS

Noise level . . . . . . . . . . . . . . . . . . . . . Typical Mean

A - Weighted sound impulse

power level . . . . . . . . . 101 dBA

P - Emission sound

pressure level . . . . . . . . 88 dBA

. . . . . effective Acceleration . . . . . . . 2.5 m/s2

EMPLOYER’S RESPONSIBILITIES

Employer must enforce compliance with the safety warnings and all other
instructions contained in this manual.

Keep this manual available for use by all people assigned to use this tool.
For personal safety and proper operation of this tool, read and follow all of

these instructions carefully.

OPERATING INSTRUCTIONS

FOREWORD

Porter-Cable Model NS100A is a heavy duty pneumatic stapler. It is designed
to install narrow crown (

1

/2" to 1" long), see ACCESSORIES Listing in back of this manual.

CAUTION: Use approved Porter-Cable staples only (see ACCES­SORIES Listing in back of this manual).

POWER SOURCE

This tool is designed to operate on clean, dry, compressed air at regulated
pressures between 70 and 120 PSI (Pounds per Square Inch). The preferred
system would include a filter, a pressure regulator, and an automatic oiler
located as close to the tool as possible (within 15 feet is ideal).

All compressed air contains moisture and other contaminates that are
detrimental to internal components of the tool. An air line filter will remove most
of these contaminates and significantly prolong the life of the tool. If an in-line
oiler is not available: place five or six drops of Porter-Cable Air Tool Oil (see
ACCESSORIES), into the tool’s air inlet at the beginning of each workday.

The tool is equipped with a male “quick connector”. The tool must always be
connected to the air supply with a coupling such that all pressure is removed
from the tool when the coupling is disconnected.

CAUTION: All air line components (hoses, connectors, filters,
regulators, etc.) must have a minimum working pressure rating of 150
PSI (10.3 BAR) or 150% of maximum system potential, whichever is
higher.

Do not connect this tool to a system with maximum potential pressure
greater than 200 PSI (13.7 BAR).

Only connect tool to air supply with a coupling that will release all
pressure from the tool when disconnected.

Disconnect tool from air supply before performing maintenance,
clearing a jammed fastener, leaving work area, moving tool to another
location, or handing the tool to another person.

1

/4" wide), 18 ga. wire staples of various lengths (from

5

Fig. 14 Fig. 15

A

Fig. 16

B

C

Fig. 17

C

B

A

PREPARING THE TOOL

1. After reading and understanding this entire manual, connect tool to
air supply.

CAUTION: Keep tool pointed away from yourself and others at all
times.

Always connect tool to air supply before loading fasteners.
Do not load fasteners with trigger or safety depressed.
Only use approved Porter-Cable fasteners (see ACCESSORIES).
Always wear Z87 approved safety glasses, and hearing protection

when preparing or operating the tool.
Never use a tool that leaks air or needs repair.

2. Pull fastener follower (A) Fig. 14, back until hole (B) Fig. 14, catches on
latch (C) Fig. 14 and release fastener follower (see Fig. 15).

3. Insert a strip of approved fasteners, see Fig. 16.

4. While holding fastener follower (A) Fig. 14,
press latch (C) Fig. 14, and allow fastener follower
to slide forward against fasteners (see Fig. 17).

5. Adjust directional exhaust deflector (A) Fig. 18,
so that the exhaust air blast will be directed away
from the operator. The exhaust deflector provides
8 detented positions for directing the exhaust blast
away from the operator. Grasp the deflector and
rotate it to the desired position for the current
application.

A

Fig. 18

6

USING THE TOOL

Complete all steps of PREPARING THE TOOL before using the tool.
To fire, grip tool firmly, position nose of tool onto work surface, push forward on

tool to depress safety, and squeeze trigger to fire a fastener. This “trigger fire”
method provides the most accurate fastener placement. This tool is shipped
from the factory with a “restrictive fire trigger” that only allows the tool to be
fired this way and is less likely to fire an unwanted fastener.

An alternate “bottom fire trigger” is available. The “bottom fire” trigger allows the
tool to be fired in two different ways.

1. The tool can be fired using the “trigger fire” method described above.
OR

2. Grip tool firmly, depress and hold trigger while pushing the tool firmly

against work surface. The tool will fire a fastener each time the safety is
depressed. This method is known as “bottom fire” and allows very fast repetitive
fastener placement.

The “bottom fire trigger” is available free-of-charge by calling 1-800-321-9443 in
the United States and Canada or 001-901-660-9374 outside the United States
and Canada, and providing tool model and serial number. For identification
purposes: the Bottom Fire Trigger is black and the Restrictive Fire Trigger is
red.

CAUTION: Remove finger from trigger when not driving fasteners.
Never carry tool with finger on trigger: tool may fire a fastener if safety
is bumped.

Keep tool pointed in a safe direction at all times.
Never attempt to drive a fastener into material that is too hard, or at

too step an angle, or near the edge of the workpiece. The fastener can
ricochet causing personal injury.

Disconnect tool from air supply before performing maintenance,
clearing a jammed fastener, leaving work area, moving tool to another
location, or handing the tool to another person.

Clean and inspect tool daily. Carefully check for proper operation of
trigger and safety mechanism. Do Not use the tool unless both the
trigger and the safety mechanism are functional, or if the tool is leaking
air or needs any other repair.

The depth to which a fastener is driven is
controlled by the depth adjustment knob
(A) Fig. 19. The depth of drive is factory
adjusted to a nomimal setting. Test fire
a fastener and check depth. If a change

A

is desired, rotate the adjustment knob
(A) Fig. 19: the adjustment knob has
detents every

1

/4 turn. Rotate the knob

clockwise (see Fig. 19), to increase
the depth of drive, rotate the knob
counterclockwise to decrease the depth of drive. Test fire another fastener and
check depth. Repeat as necessary to achieve desired results. The amount of air
pressure required will vary depending on the size of the fastener and the material
being fastened. Experiment with the air pressure setting to determine the lowest
setting that will consistently perform the job at hand. Air pressure in excess of that
required can cause premature wear and/or damage to the tool.

7

Fig. 19

Fig. 20

Fig. 21

CLEARING A JAMMED FASTENER

1. CAUTION: Disconnect tool from air supply.

2. Open magazine and remove any remaining fasteners.

CAUTION: Remove fasteners from tool before opening the fastener
guide plate. Fasteners are under pressure and may shoot out of
magazine which could cause injury.

3. Depress the quick release latch and open the fastener guide plate (see
Fig. 20).

4. Remove the jammed fastener (see Fig. 21).

5. Depress the quick release latch, close the fastener guide plate, and
release the latch.

NOSE CUSHION

This tool is equipped with a rubber
nose cushion (A) Fig. 22, that prevents
marring of finished surfaces by the
metal safety during normal operation.
The nose cushion can be removed
and stored in the rear area of the tool
(B) Fig. 22, when it is not required.

CAUTION: Disconnect tool from
air supply before removing or
reinstalling rubber nose cushion.

A

B

Fig. 22

MAINTENANCE

CLEAN AND INSPECT DAILY

CAUTION: Disconnect tool from air supply before cleaning and

inspection.Correct all problems before placing the tool back in use.

Wipe tool clean and inspect for wear or damage. Use non-flammable cleaning
solutions to wipe exterior of tool only if necessary. DO NOT SOAK tool with
cleaning solutions. Such solutions can damage internal parts.

Inspect trigger and safety mechanism to assure system is complete and
functional: no loose or missing parts, no binding or sticking parts.

Keep all screws tight. Loose screws can cause personal injury or damage
tool.

8

If tool is used without an in-line oiler: place 5 or 6 drops of Porter-Cable Air Tool
Oil into the air inlet of the tool at the beginning of each workday.

SERVICE AND REPAIRS

All quality tools eventually require servicing or replacement of parts due to
wear from normal use. Some user serviceable components are described in
the TROUBLESHOOTING Section. Complete product Service is available from
either an AUTHORIZED PORTER-CABLE SERVICE STATION or a PORTER­CABLE SERVICE CENTER. All repairs made by these agencies are fully
guaranteed against defective material and workmanship. We cannot guarantee
repairs made or attempted by anyone other than these agencies.

Should you have any questions about your tool, feel free to write us at any time.
In any communications, please give all information shown on the nameplate of
your tool (model number, type, serial number, etc.).

TROUBLESHOOTING

CAUTION: Disconnect tool from air supply before performing any

Service Procedure.

SYMPTOM PROBLEMS SOLUTIONS

1. Air leak near top of Loose screws. Tighten screws.
tool or in trigger area. Worn or damaged Install “OVERHAUL” Maintenance Kit.
o-rings or seals.

2. Tool does nothing or Inadequate air supply. Verify adequate air supply.
operates sluggishly. Inadequate lubrication. Put 5 or 6 drops of oil into air inlet.
Worn or damaged Install
“DRIVER” Maintenance Kit.
o-rings or seals.

3. Air leak near bottom Loose screws. Tighten screws.
of tool. Worn or damaged Install “OVERHAUL” Maintenance Kit.
o-rings or bumper.

4. Tool jams frequently. Incorrect fasteners. Verify approved fasteners of
correct size.

Damaged fasteners. Replace w/undamaged fasteners.

Magazine or nose Tighten screws.
screws loose.
Magazine is dirty. Clean magazine.
Driver is worn or damaged. Install “DRIVER” Maintenance Kit.

5. Other. Contact a Porter-Cable
Service Facility.

9

ACCESSORIES

The testing of this tool has been accomplished with the following accessories.
For safest operation, it is recommended that only these accessories be used
with this product.

WARNING: Since accessories other than those listed have not
been tested with this product, use of such accessories could be
hazardous.

CATALOG NO. DESCRIPTION LENGTH GAUGE QUAN/BOX

NS18050 Narrow Crown Staple
NS18063 Narrow Crown Staple
NS18075 Narrow Crown Staple
NS18088 Narrow Crown Staple
NS18088-1 1000 Pk. of NS18088

1

/2" 18 5000

5

/8" 18 5000

3

/4" 18 5000

7

/8" 18 5000

7

/8" 18 1000

NS18100 Narrow Crown Staple 1" 18 5000
NS18100-1 1000 Pk. of NS18100 1" 18 1000

60061 “OVERHAUL” Maintenance Kit
60064 “DRIVER” Maintenance Kit
884293 Oil (for Air Tools)
893579 Safety Glasses
893933 Bottom Fire Trigger

PORTER-CABLE LIMITED

ONE YEAR WARRANTY

Porter-Cable warrants its nailing and stapling tools for a period of one year from the date of original
purchase. We will repair or replace at our option, any part or parts of the product and accessories
covered under this warranty which, after examination, proves to be defective in workmanship or
material during the warranty period. For repair or replacement return the complete tool or accessory,
transportation prepaid, to your nearest Porter-Cable Service Center or Authorized Service Station.
Proof of purchase may be required. This warranty does not apply to O-rings and Driver Blades or to
repair or replacement required due to misuse, abuse, normal wear and tear or repairs attempted or
made by other than our Service Centers or Authorized Service Stations.

ANY IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, WILL LAST ONLY FOR ONE (1) YEAR FROM THE
DATE OF PURCHASE.

To obtain information on warranty performance please write to: PORTER-CABLE CORPORATION,
4825 Highway 45 North, P.O. Box 2468, Jackson, Tennessee 38302-2468; Attention: Product Service.
THE FOREGOING OBLIGATION IS PORTER-CABLE’S SOLE LIABILITY UNDER THIS OR ANY
IMPLIED WARRANTY AND UNDER NO CIRCUMSTANCES SHALL PORTER-CABLE BE LIABLE
FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations
on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights and you may also have other legal rights which vary from
state to state.

10

Manuel

d’utilisation

ENGLISH: PAGE 1
ESPAÑOL: PÁGINA 23

AGRAFEUSE POUR
AGRAFES ÉTROITES

Pour de plus amples renseignements

concernant Porter-Cable, consultez
notre Website à l’adresse suivante :

http://www.porter-cable.com

MODÈLE NS100A

IMPORTANT

Veuillez vous assurer que la personne qui
utilise cet outil lit attentivement et comprend
ces instructions avant de commencer à
utiliser l’outil.

La plaque des numéros de modèle et de série est
située sur le boîtier principal de l’outil. Prenez note de
ces numéros dans les espaces ci-après et conservez­les pour référence future.

No. de modèle __________________________________

Type ___________________________________________

No. de série ____________________________________

No. de pièce 894885-004 - 07-11-06
