Porter-Cable BSI525 User Manual
Instruction
manual
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
Part No. D26082-023-0
ESPAÑOL: PÁGINA 21
FRANÇAIS: PAGE 41
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
Copyright © 2002 Porter-Cable Corporation
The Model and Serial No. plate is located on the frame.
Record these numbers in the spaces below and retain for
future reference.
Model No.
Type
Serial No.

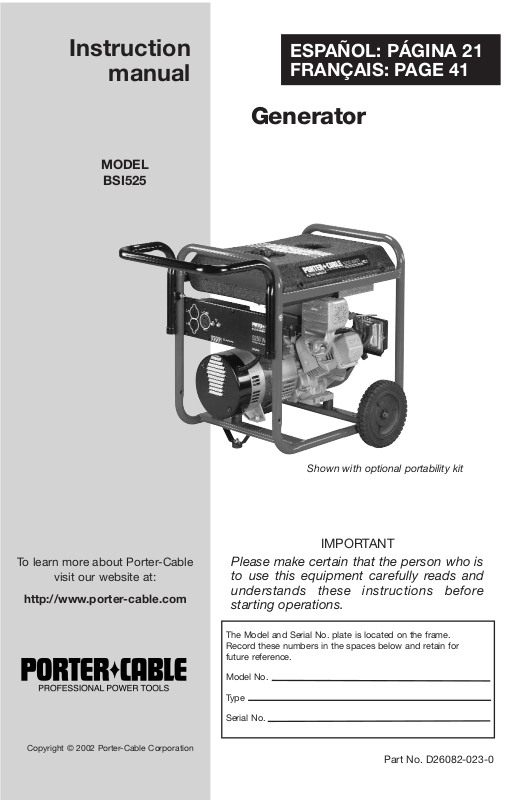

MODEL
BSI525
Generator
Shown with optional portability kit
2- ENG
D26082
Read Operators Manual. Do not operate equipment until you have read
operators Manual for Safety, Assembly, Operation, and Maintenance
Instructions.
This product may not be equipped with a spark arresting muffler. If the
product is not equipped and will be used around flammable materials,
or on land covered with materials such as agricultural crops, forest, brush, grass, or other
similar items, then an approved spark arrester must be installed and is legally required in the
state of California. It is a violation of California statutes section 130050 and/or sections 4442
and 4443 of the California Public Resources Code, unless the engine is equipped with a spark
arrester, as defined in section 4442, and maintained in effective working order. Spark arrester
are also required on some U.S. Forest Service land and may also be legally required under
other statutes and ordinances.
Engine exhaust contains chemicals known, in certain quantities, to
cause cancer, birth defects or other reproductive harm.
CONSUMER SAFETY INFORMATION
SPECIFICATIONS
MODEL BSI525
HORSE POWER 10.0
RATED/SURGE WATTS 5250/6500
VOLTAGE 120/240
AMPERAGE 43.7/21.8A
PHASE SINGLE
FREQUENCY 60 Hz
ENGINE SPEED 3600 RPM
MAX. AMBIENT TEMP. 104° F
FUEL CAPACITY 7 GALLONS
RUN TIME @ 50%/100% 13.2/8.1 HRS
3- ENG
D26082
indicates an imminently hazardous situation which, if not avoided, will result
in death or serious injury.
indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
indicates a potentially hazardous situation which, if not avoided,may result
in minor or moderate injury
used without the safety alert symbol indicates potentially hazardous
situation which, if not avoided, may result in property damage.
This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To
help you recognize this information, we use the symbols below. Please read the manual and
pay attention to these sections.
SAFETY GUIDELINES / DEFINITIONS
IMPORTANT SAFETY INSTRUCTIONS
Improper operation or maintenance of this product could result in
serious injury and property damage. Read and understand all
warnings and operating instructions before using.
RISK OF ELECTROCUTION AND FIRE
HAZARD
WHAT CAN HAPPEN
HOW TO PREVENT IT
Attempting to
connect generator
directly to the
electrical system
of any building
structure.
Back feeding electricity through
a building’s electrical system to
the outside utility feed lines
could endanger repair persons
attempting to restore service.
Never backfeed electricity
through a structure's electrical
system.
Attempting to connect to the incoming utility service could result
in electrocution.
Restoration of electrical service
while the generator is connected
to the incoming utility could
result in a fire or serious damage
if an isolator switch is not
installed.
Failure to use a double throw
transfer switch when connecting
to a structure's electrical system
can damage appliances and
WILL VOID the manufacturer's
warranty.
To connect to a structure's electrical system in a safe manner,
always have a Double-Throw
Transfer Switch installed by a
qualified electrician and in compliance with local ordinances.
(When installing a DoubleThrow Transfer Switch, a minimum of 10 gauge wiring must
be used.)
4- ENG
D26082
Operation of unit
when damaged,
or with guards or
panels removed.
Removal of guarding could
expose electrically charged
components and result in
electrocution.
Do not operate generator with
protective guarding removed.
Improper
connection of
items to
generator.
Exceeding the load capacity of
the generator by attaching too
many items, or items with very
high load ratings to it could
result in overheating of some
items or their attachment wiring
resulting in fire or electrical
shock.
Attempting to use the unit
when it has been damaged, or
when it is not functioning
normally could result in fire or
electrocution.
Read the load rating chart and
instructions in the Wattage Calculation section. Make sure that
the summation of electrical
loads for all attachments does
not exceed the load rating of the
generator.
Do not operate generator with
mechanical or electrical
problem. Have unit repaired by
an Authorized Service Center.
Operation of
generator in rain,
wet, icy, or
flooded
conditions.
Water is an excellent conductor
of electricity! Water which comes
in contact with electrically
charged components can
transmit electricity to the frame
and other surfaces, resulting in
electrical shock to anyone contacting them.
Operate generator in a clean, dry,
well ventilated area. Make sure
hands are dry before touching
unit.
Use of worn,
damaged, undersized or ungrounded extension cords.
Use of ungrounded cordsets
could prevent operation of
circuit breakers and result in
electrical shock.
Always use a cordset having a
grounding wire with an
appropriate grounding plug. DO
NOT use an ungrounded plug.
Use proper size (wire gauge)
cordset for application see chart
in the Assembly section of this
manual.
Contact with worn or damaged
extension cords could result in
electrocution.
Use of undersize extension
cords could result in overheating
of the wires or attached items,
resulting in fire.
Inspect extension cords before
use and replace with new cord if
required.
Placing generator
on or against
highly conductive
surface, such as a
steel walkway or
metal roof.
Place generator on low conductivity surface such as a concrete
slab.
Accidental leakage of electrical
current could charge conductive
surfaces in contact with the
generator.
RISK OF ELECTROCUTION AND FIRE
(Continued)
HAZARD
WHAT CAN HAPPEN
HOW TO PREVENT IT
ALWAYS operate generator a
minimum of six feet from any
conductive surface.
5- ENG
D26082
RISK OF FIRE
HAZARD
WHAT CAN HAPPEN
HOW TO PREVENT IT
Improper storage
of fuel
Improperly stored fuel could
lead to accidental ignition. Fuel
improperly secured could get
into the hands of children or
other unqualified persons.
Store fuel in a OSHA approved
container designed to hold
gasoline. Store container in secure location to prevent use by
others.
Attempting to
fill the fuel tank
while the engine
is running.
Gasoline and gasoline vapors
can become ignited by coming
in contact with hot components
such as the muffler, engine
exhaust gases, or from an
electrical spark.
Cigarettes, sparks, fires, or
other hot objects can cause
gasoline or gasoline vapors to
ignite.
Turn engine off and allow it to
cool before adding fuel to the
tank. Equip area of operation
with a fire extinguisher certified
to handle gasoline or fuel fires.
Add fuel to tank in well
ventilated area. Make sure there
are no sources of ignition near
the generator.
Operate generator in a clean, dry,
well ventilated area a minimum of
four feet from any building, object
or wall. DO NOT OPERATE
UNIT INDOORS OR IN ANY
CONFINED AREA.
Materials placed against or near
the generator or operating the
generator in areas where the
temperature exceeds 104° F. ambient (such as storage rooms or
garages) can interfere with its
proper ventilation features causing overheating and possible ignition of the materials or buildings.
Sparks, fire, hot
objects
Inadequate
ventilation for
generator
Tampering with
factory set
engine speed
settings.
Engine speed has been factory
set to provide safe operation.
Tampering with the engine speed
adjustment could result in
overheating of attachments and
could cause a fire.
Spilled fuel and its vapors can
become ignited from hot
surfaces or sparks.
Never attempt to “speed-up”
the engine to obtain more performance. Both the output
voltage and frequency will be
thrown out of standard by this
practice, endangering
attachments and the user.
Use care in filling the tank to
avoid spilling fuel. Make sure
fuel cap is secured tightly and
check engine for fuel leaks
before starting engine. Move
generator away from refueling
area or any spillage before
starting engine. Allow for fuel
expansion. Keep maximum fuel
level ¼ inch below the tip of the
fuel tank. Never refuel with the
engine running.
Overfilling the fuel
tank – fuel
spillage.
6- ENG
D26082
RISK OF UNSAFE OPERATION
HAZARD
WHAT CAN HAPPEN
HOW TO PREVENT IT
Operation of
generator in
careless manner
All sources of energy include the
potential for injury. Unsafe
operation or maintenance of your
generator could lead to serious
injury or death to you or others.
• Review and understand all of
the operating instructions and
warnings in this manual.
• Become familiar with the operation and controls of the
generator. Know how to shut it
off quickly.
• Equip area of operation with a
fire extinguisher certified to
handle gasoline or fuel fires.
• Keep children or others away
from the generator at all times.
RISK OF BREATHING - INHALATION
HAZARD
HAZARD
WHAT CAN HAPPEN
HOW TO PREVENT IT
Breathing exhaust fumes will
cause serious injury or death.
Operate generator in clean, dry,
well ventilated area. Never
operate unit in enclosed areas
such as garages, basements,
storage, sheds, or in any
location occupied by humans or
animals. Keep children, pets and
others away from area of operating unit.
Gasoline
engines produce
toxic carbon
monoxide
exhaust fumes.
RISK OF INJURY AND PROPERTY
DAMAGE WHEN TRANSPORTING
GENERATOR
HAZARD
WHAT CAN HAPPEN
HOW TO PREVENT IT
Fire, Inhalation,
Damage to
Vehicle Surfaces
Fuel or oil can leak or spill and
could result in fire or breathing
hazard, serious injury or death
can result. Fuel or oil leaks will
damage carpet, paint or other
surfaces in vehicles or trailers.
If generator is equipped with a
fuel shut-off valve, turn the valve
to the off position before
transporting to avoid fuel leaks.
If generator is not equipped with
a fuel shut-off valve, drain the
fuel from tank before transporting. Transport fuel only in an
OSHA approved container.
Always place generator on a
protective mat when transporting to protect against damage to
vehicle from leaks. Remove
generator from vehicle immediately upon arrival at your destination.
