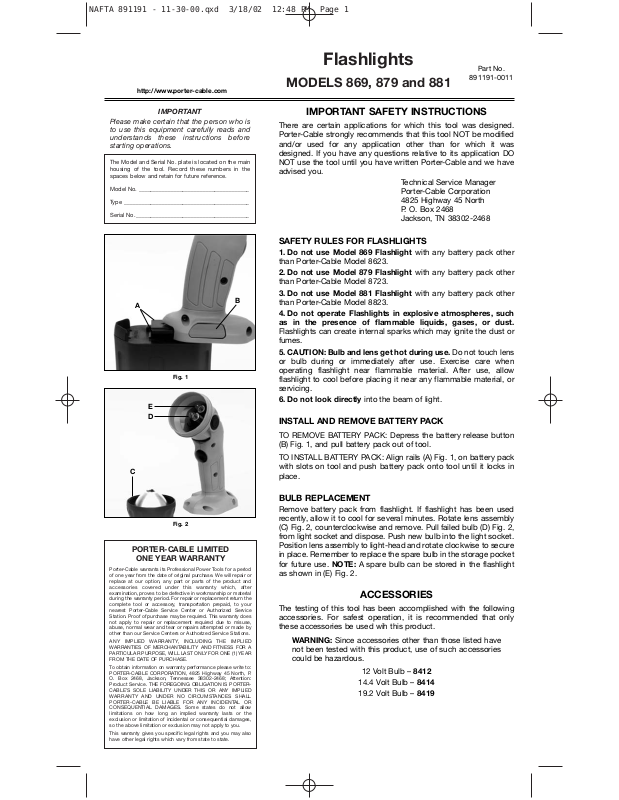

Porter-Cable 869, 879, 881 User guide
PORTER-CABLE LIMITED
ONE YEAR WARRANTY
Porter-Cable warrants its Professional Power Tools for a period
of one year from the date of original purchase. We will repair or
replace at our option, any part or parts of the product and
accessories covered under this warranty which, after
examination, proves to be defective in workmanship or material
during the warranty period. For repair or replacement return the
complete tool or accessory, transportation prepaid, to your
nearest Porter-Cable Service Center or Authorized Service
Station. Proof of purchase may be required. This warranty does
not apply to repair or replacement required due to misuse,
abuse, normal wear and tear or repairs attempted or made by
other than our Service Centers or Authorized Service Stations.
ANY IMPLIED WARRANTY, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, WILL LAST ONLY FOR ONE (1) YEAR
FROM THE DATE OF PURCHASE.
To obtain information on warranty performance please write to:
PORTER-CABLE CORPORATION, 4825 Highway 45 North, P.
O. Box 2468, Jackson, Tennessee 38302-2468; Attention:
Product Service. THE FOREGOING OBLIGATION IS PORTERCABLE’S SOLE LIABILITY UNDER THIS OR ANY IMPLIED
WARRANTY AND UNDER NO CIRCUMSTANCES SHALL
PORTER-CABLE BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow
limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights and you may also
have other legal rights which vary from state to state.
Flashlights
MODELS 869, 879 and 881
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
http://www.porter-cable.com
Part No.
891191-0011
Fig. 1
A
IMPORTANT SAFETY INSTRUCTIONS
There are certain applications for which this tool was designed.
Porter-Cable strongly recommends that this tool NOT be modified
and/or used for any application other than for which it was
designed. If you have any questions relative to its application DO
NOT use the tool until you have written Porter-Cable and we have
advised you.
Technical Service Manager
Porter-Cable Corporation
4825 Highway 45 North
P. O. Box 2468
Jackson, TN 38302-2468
SAFETY RULES FOR FLASHLIGHTS
1. Do not use Model 869 Flashlight with any battery pack other
than Porter-Cable Model 8623.
2. Do not use Model 879 Flashlight with any battery pack other
than Porter-Cable Model 8723.
3. Do not use Model 881 Flashlight with any battery pack other
than Porter-Cable Model 8823.
4. Do not operate Flashlights in explosive atmospheres, such
as in the presence of flammable liquids, gases, or dust.
Flashlights can create internal sparks which may ignite the dust or
fumes.
5. CAUTION: Bulb and lens get hot during use. Do not touch lens
or bulb during or immediately after use. Exercise care when
operating flashlight near flammable material. After use, allow
flashlight to cool before placing it near any flammable material, or
servicing.
6. Do not look directly into the beam of light.
INSTALL AND REMOVE BATTERY PACK
TO REMOVE BATTERY PACK: Depress the battery release button
(B) Fig. 1, and pull battery pack out of tool.
TO INSTALL BATTERY PACK: Align rails (A) Fig. 1, on battery pack
with slots on tool and push battery pack onto tool until it locks in
place.
BULB REPLACEMENT
Remove battery pack from flashlight. If flashlight has been used
recently, allow it to cool for several minutes. Rotate lens assembly
(C) Fig. 2, counterclockwise and remove. Pull failed bulb (D) Fig. 2,
from light socket and dispose. Push new bulb into the light socket.
Position lens assembly to light-head and rotate clockwise to secure
in place. Remember to replace the spare bulb in the storage pocket
for future use. NOTE: A spare bulb can be stored in the flashlight
as shown in (E) Fig. 2.
ACCESSORIES
The testing of this tool has been accomplished with the following
accessories. For safest operation, it is recommended that only
these accessories be used wih this product.
WARNING: Since accessories other than those listed have
not been tested with this product, use of such accessories
could be hazardous.
12 Volt Bulb – 8412
14.4 Volt Bulb – 8414
19.2 Volt Bulb – 8419
B
Fig. 2
C
E
D
