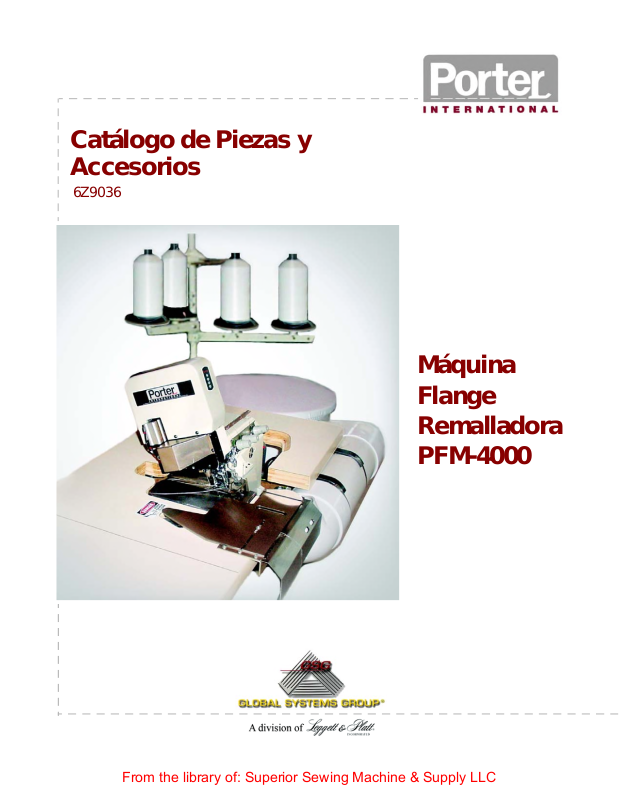

Catálogo de Piezas y
Accesorios
6Z9036
Máquina
&$%!#"""
Flange
"*$+'&!#$%()+&!
Remalladora
PFM-4000
© 2003 Porter® Internacional, Incorporated. Derechos reservados.
Porter es una marca registrada de Porter Internacional, Inc. El logotipo estilizado de Porter es una
marca registrada de Porter Internacional, Inc.
Leggett & Platt y el logotipo estilizado de Leggett & Platt son marcas registradas de Leggett & Platt,
Inc.
Global Systems Group y el logotipo estilizado triangular de GSG son marcas registradas de Gribetz
International, Inc.
Algunas ilustraciones utilizadas en este catálogo son provistas por cortesía de Pegasus® Sewing
Machine Manufacturing Company, Limited.
Porter International, Inc.
388 Newburyport Turnpike
Rowley, Massachusetts 01969
1-978-948-8288
www.gsgcompanies.com
Este catalogo no podrá, ni completa ni parcialmente, ser copiado, fotocopiado, reproducido, traducido
o convertido en cualquier forma electrónica sin el consentimiento escrito previo de Porter
International, Inc.
Los detalles aquí contenidos están sujetos a cambio sin notificación.
Impreso en los Estados Unidos de América.
número de parte 6Z9036
CONTENIDO
Introducción . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Para Conseguir Ayuda Adicional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Cómo Comunicarnos sus Opiniones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Ensamblaje de la Máquina Flange PFM-4000 . . . . . . . . . . . . .3
Mecanismo de Pie Andante . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Ensamblaje de Resortes, 6Z8207 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Máquina para Marco de Cama . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Mecanismo de Tensión de Hilo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cubiertas (1 de 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Cubiertas (2 de 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Mecanismo de Impulsión de Cigüeñal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Guía del Hilo y enrollado del Hilo (1 de 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Guía del Hilo y enrollado del Hilo (2 de 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Mecanismo de Impulsión de la Aguja (1 de 2) . . . . . . . . . . . . . . . . . . . . . . . . . .28
Mecanismo de Impulsión de la Aguja (2 de 2) . . . . . . . . . . . . . . . . . . . . . . . . . .30
Ensamblaje de Impulsión de la Aguja . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Mecanismo de Impulsión del Looper Inferior . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Mecanismo de Impulsión del Separador . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Mecanismo de Impulsión del Looper de Puntada en Cadena (1 de 2) . . . . . . .38
Mecanismo de Impulsión del Looper de Puntada en Cadena (2 de 2) . . . . . . .40
Mecanismo de Alimentación (1 de 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Mecanismo de Alimentación (2 de 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Barra de Monoalimentación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Mecanismo de Impulsión de Cuchillas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Mecanismo de Lubricación (1 de 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Mecanismo de Lubricación (2 de 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Sujetador de Hilo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Ensamblaje del control neumático, 6Z8278 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Índice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
CONTENIDO
Introducción
Este catálogo ilustra partes y ensamblajes de la Máquina Flange PFM-4000. Para obtener
instrucciones de pedido, favor de comunicarse con el departamento de Servicio al Cliente
en Porter International.
Para Conseguir Ayuda Adicional
Reconocemos que puede haber ocasiones en las que usted necesite ayuda. Nuestra línea
especial del Centro de Piezas está disponible de lunes a viernes, de las 8:00 a.m. a las 5:00
p.m., EST [hora de la costa este de EEUU]. Nuestro personal capacitado podrá ayudarle
con la identificación de piezas y sus precios. Antes de llamar, tenga siempre el número de
modelo de su máquina, el número de serie, el número de la pieza y la descripción de la
pieza y su número de cliente.
Línea Especial del Centro de Piezas de Porter International
Desde Massachussets: (978) 948-8288
Fuera del estado: (800) 343-8138
Cómo Comunicarnos sus Opiniones
Nos interesa saber sus comentarios. Por favor, díganos lo que le gusta de este catálogo, al
igual que lo que no le gusta. Díganos las cosas que le gustaría ver o lo que le gustaría ver
presentado de una manera diferente. Esperamos su pronta comunicación.
Favor de dirigir sus comentarios a:
Porter International
Documentación Técnica/Ingeniería
388 Newburyport Turnpike
Rowley, MA 01969
O a través del Internet: www.gsgcompanies.com
Ensamblaje de la Máquina Flange PFM-4000
Mecanismo de Pie Andante
artículo cantidad número de parte descripción
1 1 6Z2762 SCREW
2 1 6Z8217 ARM, WALKING DRIVE
3 1 6Z1407 PIN, LONG PIVOT
4 1 802682 GUIDE, LINKAGE INNER
5 2 93070A141 LOW-HEAD SCS M6 × 10
6 1 6Z4048 PIN, PRESSER FOOT ARM
7 1 6Z2796 SS 8-32 × 3/8
8 1 802769 HOLDER, PRESSER FOOT ARM
9 1 802453 BEAM, CONNECTOR, ULTRA HIGH LIFT
10 1 6Z4220 WASHER, SET SPHERE, 1/4,” #4015037
11 1 802687 COVER, CHAMBER
12 1 802696 SEAL, CHAMBER BOTTOM
13 1 6Z5310 PIN, TOP FEED
14 1 6Z7003 BEAM, TOP FEED
15 1 6Z4052 ARM, PRESSER FOOT
16 1 6Z8520 LINK, WALKING FOOT
17 1 6Z1947 PIN, LONG PIVOT
18 1 6Z3554 LINK, TOP FEED
19 1 6Z4050 PIN, UPPER PIVOT
20 2 6Z2755 SHCS 8-32 × 1/2
21 1 6Z4051 FOOT, TOP FEED
22 1 6Z4054 T-HANDLE TORX KEY, T25 (NOT SHOWN)
23 1 6Z5271 TORX BH 10-32 × 1/2
24 1 6Z7175 PRESSER FOOT
27 1 6Z5284 EXTENSION, PRESSER FOOT
28 1 6Z4049 PIN, LIFTER
29 1 802598 GUIDE, LINKAGE OUTER
30 1 802694 SPACER, LINKAGE OUTER, .030" THICK
31 1 6Z6484 SPACER, LINKAGE OUTER, .020" THICK
32 1 6Z7002 SPACER, LINKAGE OUTER, .010" THICK
33 1 802688 COLLAR, LIFTING
34 2 SHCS6-32 × 3/8 SHCS 6-32 × 3/8
36 1 6Z5855 HOLDER, TOP FEED
38 1 6Z2765 SCREW (NOT SHOWN)
39 1 801026 LOCATING STUD, PRESSER FOOT ARM (NOT
SHOWN)
40 3 6Z4202 BELLVIEW WASHER, #8
artículo cantidad número de parte descripción (continuado)
41 1 6Z4203 BELLVIEW WASHER # 10
42 1 6Z1946 PIN, CONNECTING LINK
43 1 801257 PRESSER FOOT ROD
44 1 4027004 BEARING
45 2 6Z2790 SET SCREW 6-32 × 1/4
N O T A S
Ensamblaje de Resortes, 6Z8207
número de
artículo cantidad tamaño
1 1 C 6Z8370 COVER ASSEMBLY, SPRING HOUSING
2 1 B 6Z8208 SPRING ASSEMBLY UNIT
3 8 6Z8232 E-RING, 5/16 SHAFT, 41010009
4 1 B 6Z8228 CLEVIS PIN, TOGGLE
5 1 B 6Z8231 CLEVIS PIN, SPRING UNIT
6 1 C 6Z8223 PLATE, BRACKET EXTENSION
7 1 6Z8233 BEARING, BALL JOINT, 4049020
8 2 6Z6533 PIN, GROOVE, 4003021
9 1 B 6Z8220 BRACKET, PIVOT SPRING UNIT
10 1 C 6Z8221 LINK, SPRING TOGGLE
11 4 6Z8234 BEARING, THRUST, 4047016
12 2 6Z8239 BEARING, NEEDLE, 4047011
13 2 6Z8235 FITTING, GREASE, 4073003
14 4 6Z8236 E-RING, 3/16 SHAFT, 4101007
15 1 B 6Z8215 CLEVIS PIN, LINK ROLLER
16 1 B 6Z8216 ROLLER, LINK TOGGLE
17 1 B 6Z8219 CLEVIS PIN, LINK PIVOT
18 1 C 6Z8222 BRACKET, BASE SPRING PIVOT
19 1 B 6Z8227 CLEVIS PIN, ROD MOUNT
20 1 6Z8362 CATCH PAN
21 1 B 6Z8225 PLATE, CYL MOUNT
22 1 B 6Z8211 BUTTON, PRESSER BAR CAP
23 1 B 6Z8212 BRACKET, CYL MOUNT
24 2 KQL03-34S FITTING, AIR, 90 DEG. ELBOW, 1/8 NPT ×
25 2 4019015 BUSHING, SINTERED BRONZE
26 1 B 6Z8226 CLEVIS PIN, CYL MOUNT
27 1 B 6Z8218 DOUBLE CLEVIS, CYL
28 1 6Z8237 AIR CYL 40B, 15S, 4001088
29 1 90567A031 NUT, JAM, HEX, 3/8-24
30 1 B 6Z8214 ROD END, SPRING TILT CYL
31 2 6Z0173 FITTING, AIR, 90 DEG. ELBOW, 10-32 × 5/32
32 1 6Z8416 AIR CYL, FOOT LIFT
33 1 JN5/16-24 JAM NUT, 5/16-24UNF
34 1 B 6Z8224 STANDOFF EXTENSION MOUNT
35 1 6Z2794 SCREW, SET SOC, 8-32 × 1/8
parte descripción
5/32 TU
número de
artículo cantidad tamaño
36 1 B 6Z8213 ROD END, CYL ROD
37 1 6Z4049 PIN, LIFTER, 802771
38 4 6Z0489 SCREW, BH SOC CAP, #8-32 × 3/8
39 3 6Z2780 SCREW, SH CAP, 1/4-20 × 3/4
40 3 6Z2762 SCREW, SH CAP, 10-32 × 1/2
41 2 SHCS1/4-20 ×
42 2 6Z2751 SCREW, SH CAP, 10-32 × 5/8
43 4 6Z2755 SCREW, SH CAP, 8-32 × 1/2
44 2 6Z2782 SCREW, SH CAP, 10-32 × 3/8
45 4 6Z0478 SCREW, BH SOC CAP, 1/4-20 × 1/2
46 1 6Z2826 WASHER, LOCK, SPLIT, #10
47 1 6Z0994 WASHER, FLAT, #10
parte descripción (continuado)
SCREW, SH CAP, 1/4-20 × 3/8
3/8
N O T A S
Máquina para Marco de Cama
artículo cantidad número de parte descripción
1 1 660279 ROD
2 1 660274 PIN
3 1 660275 INDICATOR GUIDE
4 2 660277 PIPE
5 1 660276 PLUG
6 1 6Z3653 CASTING, MODIFIED
7 2 6Z3643 SCREW
8 4 6Z0041 BED PIN
Mecanismo de Tensión de Hilo
artículo cantidad número de parte descripción
1 1 730056 THREAD TENSION, COMPLETE
2 1 6Z1824 POST NUT
3 1 6Z2870 SPRING BUSHING
4 1 6Z2871 CUP
5 2 730061 TENSION DISC
6 1 6Z0709 FELT
7 1 6Z1998 SCREW STUD
8 1 6Z1161 SPRING, HEAVY
9 1 730057 THREAD TENSION COMPLETE
10 1 6Z1568 SPRING, MEDIUM
11 1 730058 THREAD EYELET
12 1 660082 SCREW
13 1 730059 THREAD EYELET
14 1 730095 TENSION GUIDE
Cubiertas (1 de 2)
artículo cantidad número de parte descripción
1 1 730000 TOP COVER
2 4 6Z3640 SCREW
3 1 6Z0038 GASKET
4 3 730030 CUSHION RUBBER
5 1 730045 OIL SIGHT WINDOW
6 1 730031 PLUG
7 1 801443 SIDE COVER
8 5 BHCS 8-32 × 1/2 SCREW
9 1 730003 BELT COVER ASSEMBLY
10 1 730004 BELT COVER
11 1 730030 CUSHION RUBBER
12 3 660075 SCREW
13 1 730005 FAN COVER
14 2 6Z0024 SCREW
15 1 730006 FRONT COVER
16 1 730007 HINGE
17 3 6Z3639 SCREW
18 1 730032 PIN
19 2 6Z2576 SCREW
20 1 6Z2912 SPRING
21 1 730008 LATCH
22 1 660078 SCREW
23 1 660079 SCREW
24 1 660080 SCREW
25 1 730009 LATCH
26 1 6Z0015 SCREW
27 1 730050 FLAT SPRING
28 1 6Z0015 SCREW
29 1 730034 FRONT COVER, LEFT
30 2 660082 SCREW
31 1 730010 COVER
32 2 6Z0024 SCREW
33 1 660083 SCREW
34 1 6Z3639 SCREW
35 1 802388 GASKET
36 4 BHCS 10-32 × 3/8 SCREW
37 1 BHCS 8-32 × 1/4 SCREW
Cubiertas (2 de 2)
artículo cantidad número de parte descripción
1 1 801546 CLOTH PLATE
2 1 730012 BUSHING
3 1 6Z2576 SCREW
4 1 730051 WASHER
5 1 6Z2113 COLLAR
6 1 6Z2576 SCREW
7 2 730030 CUSHION RUBBER
8 1 660084 SCREW
9 1 640005 SPRING WASHER
10 2 660082 SCREW
11 2 730036 WASHER
13 1 730013 LATCH
14 1 6Z0376 SCREW
15 1 730014 LATCH
16 1 660086 SCREW
17 1 730011 PLATE
18 2 660087 SCREW
19 1 730015 LEVER
20 1 660090 SCREW
21 1 6Z0016 SPRING
22 1 730017 BRACKET
23 1 6Z7126 COVER, LINKAGE TUBE ASSEMBLY
24 2 BHCS 4MM ×
12MM
25 2 6Z0393 SCREW
26 2 6Z0215 WASHER
27 1 6Z3686 BRACKET
28 1 660089 SCREW
29 2 730051 WASHER
30 1 802687 CHAMBER COVER
31 5 6Z3641 SCREW
32 1 6Z1077 GASKET
33 1 6Z8558 COVER PLATE
34 4 660083 SCREW
SCREW
artículo cantidad número de parte descripción (continuado)
35 1 6Z0023 SCREW
36 1 660099 NUT
37 1 730023 SIDE COVER
38 1 6Z3687 EYE GUARD
39 1 6Z1855 BOOT
N O T A S
Mecanismo de Impulsión de Cigüeñal
artículo cantidad número de parte descripción
1 1 730027 CRANKSHAFT
2 5 660092 SCREW
3 2 730028 BALANCE WEIGHT
4 4 660093 SCREW
5 1 730029 PIN
6 1 6Z0025 SCREW
7 1 730038 O-RING
8 1 730039 BALL BEARING, COMPLETE
9 2 660095 SCREW
10 1 660096 SCREW
11 1 730040 RING
12 1 730046 BALL BEARING
13 1 730047 BALL BEARING
14 1 730041 WASHER
15 1 730049 OIL SEAL
16 1 730048 O-RING
17 1 730038 O-RING
18 1 730053 BALL BEARING RETAINER
19 3 660083 SCREW
20 1 730042 FAN, COMPLETE
21 1 730043 MACHINE PULLEY
22 2 6Z0025 SCREW
23 1 660097 BOLT
24 1 6Z0551 SPRING WASHER
25 1 730044 PIN
26 1 730054 COVER
27 2 660074 SCREW
28 1 660083 SCREW
Guía del Hilo y enrollado del Hilo (1 de 2)
artículo cantidad número de parte descripción
1 1 730063 BRACKET
2 2 6Z0614 SCREW
3 1 730064 THREAD GUIDE
4 1 6Z2576 SCREW
5 1 730065 BRACKET
6 1 6Z0015 SCREW
7 1 730066 THREAD GUIDE
8 1 6Z2576 SCREW
9 1 730067 THREAD EYELET
10 1 6Z0015 SCREW
11 1 730068 THREAD EYELET
12 1 6Z0015 SCREW
13 1 730071 THREAD TAKE-UP
14 1 6Z0433 SCREW
15 1 6Z0393 SCREW
Guía del Hilo y enrollado del Hilo (2 de 2)
artículo cantidad número de parte descripción
1 1 730072 BRACKET
2 2 730075 THREAD GUIDE, RIGHT
3 2 6Z0376 SCREW
4 2 6Z0215 WASHER
5 1 730073 THREAD TAKE-UP
6 1 6Z0024 SCREW
7 1 730074 THREAD EYELET
8 1 6Z0376 SCREW
9 1 730076 THREAD EYELET
10 1 730077 THREAD EYELET
11 1 730078 THREAD TAKE-UP
12 1 660104 SCREW
Mecanismo de Impulsión de la Aguja (1 de 2)
artículo cantidad número de parte descripción
1 1 6Z2163 CONNECTION
2 2 6Z0023 SCREW
3 1 6Z0042 PIN
4 1 6Z0027 SCREW
5 1 801356 SHAFT
6 1 730081 COLLAR
7 2 6Z2576 SCREW
8 1 615390 WASHER
9 1 730094 RING
10 1 730105 LINK
11 2 730106 PIN
12 1 801356 NEEDLE DRIVE SHAFT
13 1 730108 PIN
14 2 6Z3415 OIL WICK
15 1 6Z2494 SCREW
16 1 6Z3556 BUSHING ASSEMBLY
17 1 6Z3556 * BUSHING
18 1 6Z3556 * NEEDLE BAR
19 1 660110 SCREW
20 1 6Z0061 O-RING
21 1 6Z0052 OIL FELT
22 1 730112 RING
23 1 660063 SCREW
24 1 730082 PLUG
25 1 6Z1725 NEEDLE HOLDER ASSEMBLY
26 2 6Z0031 SCREW
27 2 6Z3650 THREAD GUIDE
28 4 6Z1631 SCREW
29 2 6Z0129 PSM-1160 #23 NEEDLE
30 1 6Z4046 NEEDLE HOLDER ASSEMBLY
* Artículos que son combinados.
Artículos en negrilla representan piezas de reemplazo de alto volumen.
Mecanismo de Impulsión de la Aguja (2 de 2)
artículo cantidad número de parte descripción
1 1 6Z6372 THROAT PLATE
2 1 6Z0526 CHAIN FINGER
3 1 6Z0947 SCREW, CHAIN FINGER
4 2 6Z1742 SCREW
5 1 800978 BRACKET, FRONT
6 2 6Z0024 SCREW
7 2 730030 CUSHION RUBBER
8 1 800983 BRACKET, REAR
9 2 6Z0024 SCREW
10 1 6Z0024 SCREW
11 1 6Z1048 OVEREDGE NEEDLE GUARD, FRONT
12 2 6Z0017 SCREW
13 1 6Z2156 OVEREDGE NEEDLE GUARD, REAR
14 1 660065 BOLT
15 1 6Z2892 SPRING WASHER
16 1 6Z0022 SCREW
17 1 6Z7345 SAFETY STITCH NEEDLE GUARD, FRONT
18 1 6Z2774 SCREW
19 1 6Z0409 BRACKET
20 2 6Z3642 SCREW
21 1 6Z6373 THROAT PLATE ASSEMBLY
22 4 6Z0017 SCREW
23 1 6Z7340 BRACKET, REAR NEEDLE GUARD
24 4 6Z4201 BELLVIEW WASHER, #6
25 1 6Z7339 SAFETY STITCH NEEDLE GUARD, REAR
26 1 6Z7341 PLATE, REAR NEEDLE GUARD
Artículos en negrilla representan piezas de reemplazo de alto volumen.
Ensamblaje de Impulsión de la Aguja
artículo cantidad número de parte descripción
1 1 802599 CLEVIS, MAIN SHAFT
2 1 6Z2781 SCREW
3 1 802685 SHAFT, NEEDLE DRIVE
4 1 802592 ARM, NEEDLE DRIVER
5 1 6Z2780 SCREW
6 1 802593 DRIVER, NEEDLE BAR
7 2 SHCS8-32 × 3/8 SHCS 8-32 × 3/8
8 1 802594 MOUNT, BEARING
9 1 6Z5872 GUARD, NEEDLE HOUSING
10 1 40150031 WAVE WASHER
11 1 402502 COLLAR
12 1 6Z5272 SHAFT, NEEDLE DRIVE PIVOT
13 2 4047009 NEEDLE BEARING
14 1 802596 SPACER, NEEDLE BEARING
15 1 802597 COVER, NEEDLE DRIVE BEARING
16 1 6Z5921 BEARING
17 1 802683 HOUSING COVER
18 1 801276 HOUSING, NEEDLE DRIVE
19 2 SHCS1/4-20 × 1-1/2 SHCS 1/4-20 × 1-1/2
20 1 802848 BRACKET, MODIFIED
21 1 6Z4046 HOLDER, LEFT HAND NEEDLE
22 1 6Z0565 RING
23 1 6Z3556 NEEDLE BAR
24 1 802827 GUARD, THREAD
25 1 802828 BRACKET, EYELET, MODIFIED
26 2 FH2-56 × 1/4 FH2-56 × 1/4
27 1 4015032 SPACER, SHAFT
28 1 660063 SCREW
29 1 660108 SCREW
30 1 6Z5273 WASHER
Mecanismo de Impulsión del Looper Inferior
artículo cantidad número de parte descripción
1 1 730084 CONNECTION
2 2 6Z0023 SCREW
3 2 6Z3640 SCREW
4 1 730085 GUIDE
5 2 6Z0433 SCREW
8 1 730087 SHAFT
9 1 730080 WASHER
10 1 660114 SCREW
11 1 730097 SPRING WASHER
12 1 730123 WASHER
13 1 6Z1852 OIL SEAL
14 1 6Z1532 LOWER LOOPER
15 1 6Z1455 SCREW
16 1 6Z0014 LOWER LOOPER HOLDER ASSEMBLY
17 1 6Z0021 SCREW
18 1 660120 SCREW
19 1 730170 CRANK
20 1 6Z0026 SCREW
21 1 660096 SCREW
Artículos en negrilla representan piezas de reemplazo de alto volumen.
Mecanismo de Impulsión del Separador
Estos artículos son combinados
venden solo ensamblajes.
y se
No están disponibles para
venta individual.
artículo cantidad número de parte descripción
1 1 730125 CONNECTION
2 2 6Z0023 SCREW
3 2 6Z3640 SCREW
4 1 730085 GUIDE
5 2 6Z0433 SCREW
6 1 730129 CRANK
7 1 6Z0026 SCREW
8 1 730087 SHAFT
9 1 730080 WASHER
10 1 660114 SCREW
11 1 730097 SPRING WASHER
12 1 730088 PLUG
13 1 730089 FILTER
14 1 730098 SPACER
15 1 730122 WASHER
16 1 6Z1852 OIL SEAL
17 1 802739 SPREADER HOLDER ASSEMBLY, COMPLETE
18 1 730126 *LEVER
19 1 6Z0016 *BOLT
20 1 730402 *PIN ASSEMBLY
21 1 730117 *PIN
22 2 6Z3430 *OIL WICK
23 1 660109 *SCREW
24 1 802739 *SPREADER HOLDER ASSEMBLY
26 1 730118 *GUIDE, SPREADER HOLDER
27 1 730119 *OIL FELT
28 1 6Z5270 SCREW
29 1 6Z2869 SPREADER
30 1 730127 BASE, SPREADER HOLDER
31 2 660116 SCREW
32 1 730128 COVER
33 1 660118 SCREW
34 1 6Z0021 SCREW
35 1 660122 SCREW
* Artículos que son combinados.
Artículos en negrilla representan piezas de reemplazo de alto volumen.
Mecanismo de Impulsión del Looper de Puntada en Cadena (1 de 2)
artículo cantidad número de parte descripción
1 1 660229 CONNECTION
2 1 6Z1678 NEEDLE BEARING
3 1 660192 CRANK
4 1 660230 BUSHING
5 1 660265 SCREW
6 1 660144 WASHER
7 1 6Z3615 SLIDER
8 1 6Z0028 BOLT
9 1 660145 WASHER
10 1 730097 SPRING WASHER
11 1 660159 PIN
12 1 660131 O-RING
13 1 660194 SHAFT
14 1 6Z3621 HOLDER
15 1 6Z0026 SCREW
16 1 660247 CRANK
17 1 6Z0026 SCREW
18 1 660169 LINK
19 1 660230 BUSHING
20 1 660265 SCREW
21 1 660193 WASHER
22 1 660195 SHAFT
23 1 6Z1033 OIL SEAL
24 1 6Z1444 DOUBLE CHAIN STITCH LOOPER
25 1 6Z1455 SCREW
26 1 6Z3647 LOOPER HOLDER
27 1 6Z0021 SCREW
28 1 6Z0035 SPACER
29 1 660120 SCREW
Artículos en negrilla representan piezas de reemplazo de alto volumen.
Mecanismo de Impulsión del Looper de Puntada en Cadena (2 de 2)
artículo cantidad número de parte descripción
1 1 6Z8558 PLATE, YOKE MOUNT
2 2 6Z2576 SCREW,
3 1 6Z0053 BRACKET
4 1 660089 SCREW
5 2 730051 WASHER
6 1 6Z0020 SCREW
7 2 6Z0039 TENSION DISC
8 1 6Z0060 SPRING
9 1 6Z0054 KNOB
10 1 6Z3594 THREAD GUIDE
11 1 6Z0015 SCREW
12 1 6Z0224 THREAD GUIDE
13 1 6Z0376 SCREW
14 1 6Z0207 THREAD GUIDE
15 1 6Z0376 SCREW
16 1 6Z1880 LOOPER THREAD TAKE-UP ASSEMBLY
17 2 6Z1631 SCREW
18 1 660216 SPRING
19 1 6Z0178 THREAD GUIDE
20 4 SHCS 10-32 × 5/8 SCREW, 10-32 × 5/8
21 4 #10 WASHER WASHER, #10
22 1 6Z0317 THREAD GUIDE
23 2 660129 HOLDER
Mecanismo de Alimentación (1 de 2)
artículo cantidad número de parte descripción
1 1 660161 CONNECTION
2 1 6Z0042 PIN
3 1 6Z0027 SCREW
4 1 730034 NEEDLE BEARING
5 1 660162 ECCENTRIC
6 1 6Z0905 GUIDE, FEED ECCENTRIC
7 1 6Z0854 FLAT SPRING
8 2 660256 SCREW
9 1 660238 REGULATOR
10 2 660096 SCREW
11 1 6Z8607 ECCENTRIC ASSEMBLY, MOD, DUAL-SPRING
12 2 6Z6173 SPRING
13 1 660264 SCREW
14 1 660163 RATCHET
15 1 660181 LINK
16 1 660266 SCREW
17 1 6Z2382 RING
18 1 660240 LEVER
19 1 6Z0026 SCREW
20 1 660182 LEVER
21 1 660269 SCREW
22 1 660241 SHAFT
23 1 6Z1833 O-RING
24 1 660183 SPRING
25 1 660184 REGULATOR PLATE
26 2 6Z3639 SCREW
27 2 660150 SPACER
28 2 660160 STOPPER
29 2 6Z5908 SCREW
30 2 660227 WASHER
31 1 6Z5320 FLANGE, STITCH REGULATOR
32 1 6Z5321 COVER, STITCH REGULATOR
33 1 6Z5319 PUSH BUTTON, STITCH REGULATOR,
MODIFIED
Mecanismo de Alimentación (2 de 2)
Ver el ensamblaje de la barra de monoalimentación.
Ref: YOKE, FEED BAR SUPPORT
Vea la página 40.
See page 40.
artículo cantidad número de parte descripción
1 1 660168 SHAFT
2 1 660128 RING
3 1 6Z1254 PLUG
4 2 730123 WASHER
5 1 6Z3646 CRANK
6 1 660165 CRANK
7 1 660080 SCREW
8 1 660166 CRANK PIN
9 1 660167 CRANK PIN
10 2 6Z0017 SCREW
11 1 660170 BLOCK
12 1 6Z0046 PIN
13 1 6Z0018 SCREW
14 1 6Z0032 GASKET
15 1 6Z0033 RING
16 1 6Z0061 O-RING
17 1 6Z3644 GUIDE, FEED BAR
18 4 6Z3649 SCREW
19 1 6Z0074 GUIDE, FEED BAR, LEFT
20 1 6Z0045 GUIDE, FEED BAR OIL SEAL, REAR
21 2 6Z0043 OIL SEAL
22 1 6Z4185 GUIDE, FEED BAR OIL SEAL, EX
23 2 6Z3648 SCREW
24 2 6Z8557 YOKE, FEED BAR SUPPORT
25 2 6Z2576 SCREW
Artículos en negrilla representan piezas de reemplazo de alto volumen.
Barra de Monoalimentación
artículo cantidad número de parte descripción
1 1 6Z5906 CRANK, MAIN FEED BAR
2 1 6Z5919 FEED BAR, MONO, 4000
3 1 SHCSM6 × 16 SCREW, SH CAP, M6 × 16
4 1 6Z5855 HOLDER, TOP FEED
5 1 6Z5856 KEY, TOP FEED HOLDER
6 1 6Z5923 RETAINER, LOWER FEED
7 1 M3.5 × 8 SCREW, SH CAP
8 1 6Z6713 PIN, CRANK
9 2 6Z6715 WASHER, CRANK
10 1 6Z1827 NUT, CRANK
11 1 6Z7028 LINK, CRANK
12 1 660265 SCREW, LINK
13 1 6Z6762 WASHER
14 1 6Z2762 SCREW
15 1 SHCS10-32 × 3/4 SCREW, SH CAP, 10-32 × 3/4
16 2 6Z1174 NUT, HEX, 10-32
17 1 6Z7029 BUSHING, LINK
18 1 6Z3585 MAIN FEED DOG
19 1 6Z0047 BLOCK
20 1 660176 BLOCK
21 1 6Z9058 SCREW, M3.5 × 10 FILLISTER HEAD
22 1 6Z4201 BELLVIEW WASHER, #6
Mecanismo de Impulsión de Cuchillas
artículo cantidad número de parte descripción
1 1 660243 CONNECTION
2 2 6Z0023 SCREW
3 1 660244 CRANK
4 1 660245 CRANK
5 1 6Z0026 SCREW
6 1 6Z0042 PIN
7 1 6Z0027 SCREW
8 1 660236 COLLAR
9 1 660260 SCREW
10 1 660185 TOP KNIFE LEVER
11 1 6Z0048 PIN
12 1 6Z3645 TOP KNIFE CLAMP
13 1 6Z3639 SCREW
15 2 6Z6360 TOP KNIFE, SERRATED
16 1 6Z3538 SCREW
17 1 801548 BOTTOM KNIFE HOLDER
18 1 6Z0024 SCREW
19 1 660190 GUIDE, BOTTOM KNIFE HOLDER
20 2 6Z0024 SCREW
21 1 6Z0034 SPRING
22 1 6Z7341 PLATE
23 1 6Z0024 SCREW
24 1 6Z0386 BOTTOM KNIFE, THICK
25 1 6Z0050 BOTTOM KNIFE CLAMP
26 1 730293 SCREW
27 1 800926 NEEDLE PLATE KNIFE SUPPORT, REWORK
Artículos en negrilla representan piezas de reemplazo de alto volumen.
Mecanismo de Lubricación (1 de 2)
artículo cantidad número de parte descripción
1 1 660250 PUMP
2 1 6Z3544 WORM WHEEL
3 2 6Z3149 SCREW
4 1 660200 PUMP BODY
5 1 6Z2278 ROTOR SHAFT, INSIDE
6 1 6Z1850 ROTOR, OUTSIDE
7 1 660201 CASING PLATE
8 1 6Z1845 FILTER
9 1 660140 GUIDE
10 3 6Z3538 SCREW
11 2 660257 SCREW
12 1 660202 TANK
13 2 6Z3639 SCREW
14 1 6Z1843 OIL FILTER
15 1 660203 COVER
16 3 660082 SCREW
17 1 6Z3622 O-RING
18 2 6Z1857 JOINT
19 2 660154 SCREW
20 2 6Z3234 CLAMP
21 1 660153 TUBE
22 2 6Z1857 JOINT
23 2 660154 SCREW
24 2 6Z3234 CLAMP
25 1 660146 TUBE
26 1 6Z1857 JOINT
27 1 660154 SCREW
28 2 6Z3234 CLAMP
29 1 660156 TUBE
30 1 660205 JOINT
31 1 660142 O-RING
32 1 6Z3639 SCREW
33 1 660227 WASHER
34 1 660251 OIL DISTRIBUTOR, COMPLETE
35 1 660204 OIL DISTRIBUTOR
Artículos en negrilla representan piezas de reemplazo de alto volumen.
artículo cantidad número de parte descripción (continuado)
36 2 660133 PLUG
37 1 6Z0023 SCREW
38 1 660227 WASHER
39 1 660154 SCREW
N O T A S
Mecanismo de Lubricación (2 de 2)
artículo cantidad número de parte descripción
1 1 6Z3615 OIL SIGHT GAUGE
2 1 660141 O-RING
3 1 660132 INDICATOR, COMPLETE
4 1 660134 INDICATOR SUPPORT
5 2 6Z3639 SCREW
6 2 660227 WASHER
7 1 660249 OIL RESERVOIR ASSEMBLY
8 1 660196 OIL RESERVOIR
9 1 6Z0057 SCREW
10 1 6Z3340 GASKET
11 4 6Z0028 BOLT
12 4 6Z0036 WASHER
13 1 6Z0051 GASKET
14 1 660199 WORM
15 1 660096 SCREW
16 1 660226 OIL WICK
17 1 6Z0058 OIL FELT
18 1 660208 COVER
19 1 660271 SCREW
Sujetador de Hilo
artículo cantidad número de parte descripción, 5 carrete
1 6Z3489 THREAD STAND ASSEMBLY, 5-SPOOL
1 1 6Z3102 THREAD STAND ROD
2 1 640044 WASHER
3 1 640042 NUT
4 1 6Z1899 BRACKET
5 1 6Z0408 BRACKET
6 5 6Z2835 SPOOL PIN
7 5 640005 SPRING WASHER
8 5 6Z1828 NUT
9 5 6Z2838 SPOOL TRAY
10 5 6Z1900 CUSHION
11 5 6Z2837 SPOOL RETAINING PIN
12 2 640065 SCREW
13 2 6Z3347 WASHER
14 2 6Z2574 SCREW
15 1 640040 THREAD STAND, UPPER
16 1 6Z3100 JOINT
17 2 640057 SCREW
18 2 6Z1827 NUT
19 1 6Z2264 BRACKET
20 1 6Z2572 SCREW
21 1 6Z1828 NUT
22 1 6Z0237 THREAD GUIDE BAR ROD
23 2 6Z2573 SCREW
24 2 6Z1828 NUT
25 1 6Z1214 HOLDER
26 1 6Z2573 SCREW
27 1 6Z1828 NUT
29 1 6Z3074 THREAD GUIDE BAR, 5-SPOOL
32 1 6Z2573 SCREW
33 1 6Z1828 NUT
34 1 6Z0410 BRACKET
35 1 6Z0406 BRACKET
36 5 6Z3070 THREAD GUIDE
37 2 6Z2571 SCREW
38 2 6Z1827 NUT
39 1 640041 ROD CAP
Ensamblaje del control neumático, 6Z8278
artículo cantidad número de parte descripción
1 2 KQL03-35S FITTING, AIR, 90-DEGREE 4011012
2 1 MF-1010 COUPLING, 10-32
3 1 6Z2702 SHUTTLE VALVE MSV-1
4 3 6Z0172 FITTING, AIR MH-1016
5 2 6Z1395 LOCK RING BRACKET
6 5 SHCS10-32 × 3/4 SHCS 10-32 × 3/4
7 5 6Z0994 WASHER, FLAT, #10
8 5 6Z2826 WASHER, LOCK, SPLIT, #10
9 5 6Z1174 NUT, HEX, #10
10 5 KQL03-34S FITTING, AIR, 90-DEGREE 4011011
11 2 6Z3395 AIR REGULATOR, 0–30 PSI
12 3 6Z5846 NIPPLE, 1/8 NPT, 4011005
13 3 6Z8288 ELBOW, BRASS, 4011044
14 2 6Z3394 GAUGE 0–30 PSI
15 1 KQL07-36S FITTING, AIR, 90-DEGREE 4011047
16 3 SHCS 1/4-20 × 1 SHCS1/4-20 × 1
17 5 6Z1000 WASHER, FLAT, 1/4
18 5 6Z2832 WASHER, LOCK, 1/4
19 5 6Z1172 NUT, HEX, 1/4
20 1 4099029 VALVE, AIR PILOT
21 1 KQH11-36S CONNECTOR MALE
22 1 AS1000F-04 FLOW CONTROL, 1/8 IN-LINE
23 2 6Z2780 SHCS 1/4-20 × 3/4
24 1 KQT11-36S FITTING AIR, TEE BRANCH 4011020
25 1 409902 FILTER REGULATOR, AIR
26 1 50925K343 REDUCER, 3/8–1/8 NPT
27 1 6Z1556 MALE QUICK DISCONNECT
28 1 6Z4148 PANEL, PFM PNE, 802811
29 1 6Z4154 CLAMP, LOWER PFM PNE, 802851
30 1 6Z4156 MANIFOLD, 4-STA, 4099033
31 2 SHCS6-32 × 1-3/4 SOC. HD, CAP 6-32 × 1 3/4
32 2 6Z0139 WASHER, FLAT, #6
33 2 6Z1178 NUT, HEX, 6-32
34 2 6Z2829 WASHER, LOCK, SPLIT, #6
35 5 6Z3532 MALE CONNECTOR 5/32T × 1/8 NPT
36 1 6Z1971 PLUG-IN “Y” FITTING
37 1 KQU03-00 Y UNION
artículo cantidad número de parte descripción (continuado)
38 2 VVZ2000-31A-3 BLANKING PLATE, 4099034
39 1 6Z4153 CLAMP, UPPER PFM PNE, 802850
40 4 BHCS 5/16-18 × 1 BHCS 5/16-18 × 1
41 4 6Z1002 WASHER, FLAT, 5/16
42 4 6Z2833 WASHER, LOCK, SPLIT, 5/16
43 1 6Z8475 FILTER REGULATOR, GAUGE AND
LUBE 30 PSI
44 1 4464K331 PLUG, HEX 1/8 NPT
45 1 6Z8292 COUPLING, REDUCING 4011045
46 1 KQL07-34S FITTING, AIR, 90-DEGREE, 4011036
47 2 NVZ2150-5G VALVE, SOLENOID, 24 V
48 1 6Z4204 CABLE ASSEMBLY, PFM PNE 802854
49 1 6Z4209 MOLEX RECEPTACLE, 6-PIN,
4503035
50 4 6Z0941 CRIMP PIN, FEMALE 450302
51 17 TU0425B-20 TUBING, AIR, 5/32 O.D., 4011008
(NOT SHOWN)
52 2 TIUB11B-20 TUBING, AIR, 3/8 O.D., (NOT
SHOWN)
53 4 4021010 TUBING, AIR, 1/4 O.D., (NOT
SHOWN)
54 1 6Z8260 PNEUMATIC DIAGRAM PFM-4000
Símbolos
#10 WASHER...................41
4
40150031...........................33
4015032.............................33
4019015...............................9
4021010.............................60
402502...............................33
4027004...............................6
4047009.............................33
409902...............................59
4099029.............................59
4464K331..........................60
5
50925K343........................59
6
615390...............................29
640005.........................19, 57
640040...............................57
640041...............................57
640042...............................57
640044...............................57
640057...............................57
640065...............................57
660063.........................29, 33
660065...............................31
660074...............................23
660075...............................17
660078...............................17
660079...............................17
660080.........................17, 45
660082.............15, 17, 19, 51
660083...................17, 19, 23
660084...............................19
660086...............................19
660087...............................19
660089.........................19, 41
660090...............................19
660092...............................23
660093...............................23
660095...............................23
660096.............23, 35, 43, 55
660097...............................23
660099...............................20
660104...............................27
660108...............................33
660109...............................37
660110...............................29
660114.........................35, 37
660116...............................37
660118...............................37
660120.........................35, 39
660122...............................37
660128...............................45
660129...............................41
660131...............................39
660132...............................55
660133...............................52
660134...............................55
660140...............................51
660141...............................55
660142...............................51
660144...............................39
660145...............................39
660146...............................51
660150...............................43
660153...............................51
660154.........................51, 52
660156...............................51
660159...............................39
660160...............................43
660161...............................43
660162...............................43
660163...............................43
660165...............................45
660166...............................45
660167...............................45
660168...............................45
660169...............................39
660170...............................45
660176...............................47
660181...............................43
660182...............................43
660183...............................43
660184...............................43
660185...............................49
660190...............................49
660192...............................39
660193...............................39
660194...............................39
660195...............................39
660196...............................55
660199...............................55
660200...............................51
660201...............................51
660202...............................51
660203...............................51
660204...............................51
660205...............................51
660208...............................55
660216...............................41
660226...............................55
660227.............43, 51, 52, 55
660229...............................39
660230...............................39
660236...............................49
660238...............................43
660240...............................43
660241...............................43
660243...............................49
660244...............................49
660245...............................49
660247...............................39
660249...............................55
660250...............................51
660251...............................51
660256...............................43
660257...............................51
660260...............................49
660264...............................43
660265.........................39, 47
660266...............................43
660269...............................43
660271...............................55
660274...............................13
660275...............................13
660276...............................13
660277...............................13
660279...............................13
6Z
6Z0014..............................35
6Z0015..................17, 25, 41
6Z0016........................19, 37
6Z0017........................31, 45
6Z0018..............................45
6Z0020..............................41
6Z0021..................35, 37, 39
6Z0022..............................31
6Z0023.20, 29, 35, 37, 49, 52
6Z0024............17, 27, 31, 49
6Z0025..............................23
6Z0026......35, 37, 39, 43, 49
6Z0027..................29, 43, 49
6Z0028........................39, 55
6Z0031..............................29
6Z0032..............................45
6Z0033..............................45
6Z0034..............................49
6Z0035..............................39
6Z0036..............................55
6Z0038..............................17
6Z0039..............................41
6Z0041..............................13
6Z0042..................29, 43, 49
6Z0043..............................45
6Z0045..............................45
6Z0046..............................45
6Z0047..............................47
6Z0048..............................49
6Z0050..............................49
6Z0051..............................55
6Z0052..............................29
6Z0053..............................41
6Z0054..............................41
6Z0057..............................55
6Z0058..............................55
6Z0060..............................41
6Z0061........................29, 45
6Z0074..............................45
6Z0129..............................29
6Z0139..............................59
6Z0172..............................59
6Z0173................................9
6Z0178..............................41
6Z0207..............................41
6Z0215........................19, 27
6Z0224..............................41
6Z0237..............................57
6Z0317..............................41
6Z0376..................19, 27, 41
6Z0386..............................49
6Z0393........................19, 25
6Z0406..............................57
6Z0408..............................57
6Z0409..............................31
6Z0410..............................57
6Z0433..................25, 35, 37
6Z0478..............................10
6Z0489..............................10
6Z0526..............................31
6Z0551..............................23
6Z0565..............................33
6Z0614..............................25
6Z0709..............................15
6Z0854..............................43
6Z0905..............................43
6Z0941..............................60
6Z0947..............................31
6Z0994........................10, 59
6Z1000..............................59
6Z1002..............................60
6Z1033..............................39
6Z1048..............................31
6Z1077..............................19
6Z1161..............................15
6Z1172..............................59
6Z1174........................47, 59
6Z1178..............................59
6Z1214..............................57
6Z1254..............................45
6Z1395..............................59
6Z1407................................5
6Z1444..............................39
6Z1455........................35, 39
6Z1532..............................35
6Z1556..............................59
6Z1568..............................15
6Z1631........................29, 41
6Z1678..............................39
6Z1725..............................29
6Z1742..............................31
6Z1824..............................15
6Z1827........................47, 57
6Z1828..............................57
6Z1833..............................43
6Z1843..............................51
6Z1845..............................51
6Z1850..............................51
6Z1852........................35, 37
6Z1855..............................20
6Z1857..............................51
6Z1880..............................41
6Z1899..............................57
6Z1900..............................57
6Z1946................................6
6Z1947................................5
6Z1971..............................59
6Z1998..............................15
6Z2113..............................19
6Z2156..............................31
6Z2163..............................29
6Z2264..............................57
6Z2278..............................51
6Z2382..............................43
6Z2494..............................29
6Z2571..............................57
6Z2572..............................57
6Z2573..............................57
6Z2574..............................57
6Z2576.17, 19,
6Z2702..............................59
6Z2751..............................10
6Z2755..........................5, 10
6Z2762....................5, 10, 47
6Z2765................................5
6Z2774..............................31
6Z2780..................10, 33, 59
6Z2781..............................33
6Z2782..............................10
6Z2790................................6
6Z2794................................9
6Z2796................................5
6Z2826........................10, 59
6Z2829..............................59
6Z2832..............................59
6Z2833..............................60
6Z2835..............................57
6Z2837..............................57
6Z2838..............................57
6Z2869..............................37
6Z2870..............................15
25, 29, 41, 45
6Z2871..............................15
6Z2892..............................31
6Z2912..............................17
6Z3070..............................57
6Z3074..............................57
6Z3100..............................57
6Z3102..............................57
6Z3149..............................51
6Z3234..............................51
6Z3340..............................55
6Z3347..............................57
6Z3394..............................59
6Z3395..............................59
6Z3415..............................29
6Z3430..............................37
6Z3489..............................57
6Z3532..............................59
6Z3538........................49, 51
6Z3544..............................51
6Z3554................................5
6Z3556........................29, 33
6Z3585..............................47
6Z3594..............................41
6Z3615........................39, 55
6Z3621..............................39
6Z3622..............................51
6Z3639......17, 43, 49, 51, 55
6Z3640..................17, 35, 37
6Z3641..............................19
6Z3642..............................31
6Z3643..............................13
6Z3644..............................45
6Z3645..............................49
6Z3646..............................45
6Z3647..............................39
6Z3648..............................45
6Z3649..............................45
6Z3650..............................29
6Z3653..............................13
6Z3686..............................19
6Z3687..............................20
6Z4046........................29, 33
6Z4048................................5
6Z4049..........................5, 10
6Z4050................................5
6Z4051................................5
6Z4052................................5
6Z4054................................5
6Z4148..............................59
6Z4153..............................60
6Z4154..............................59
6Z4156..............................59
6Z4185..............................45
6Z4201........................31, 47
6Z4202................................5
6Z4203................................6
6Z4204..............................60
6Z4209..............................60
6Z4220................................5
6Z5270..............................37
6Z5271................................5
6Z5272..............................33
6Z5273..............................33
6Z5284................................5
6Z5310................................5
6Z5319..............................43
6Z5320..............................43
6Z5321..............................43
6Z5846..............................59
6Z5855..........................5, 47
6Z5856..............................47
6Z5872..............................33
6Z5906..............................47
6Z5908..............................43
6Z5919..............................47
6Z5921..............................33
6Z5923..............................47
6Z6173..............................43
6Z6360..............................49
6Z6372..............................31
6Z6373..............................31
6Z6484................................5
6Z6533................................9
6Z6713..............................47
6Z6715..............................47
6Z6762..............................47
6Z7002................................5
6Z7003................................5
6Z7028..............................47
6Z7029..............................47
6Z7126..............................19
6Z7175................................5
6Z7339..............................31
6Z7340..............................31
6Z7341........................31, 49
6Z7345..............................31
6Z8208................................9
6Z8211................................9
6Z8212................................9
6Z8213..............................10
6Z8214................................9
6Z8215................................9
6Z8216................................9
6Z8217................................5
6Z8218................................9
6Z8219................................9
6Z8220................................9
6Z8221................................9
6Z8222................................9
6Z8223................................9
6Z8224................................9
6Z8225................................9
6Z8226................................9
6Z8227................................9
6Z8228................................9
6Z8231................................9
6Z8232................................9
6Z8233................................9
6Z8234................................9
6Z8235................................9
6Z8236................................9
6Z8237................................9
6Z8239................................9
6Z8260..............................60
6Z8288..............................59
6Z8292..............................60
6Z8362................................9
6Z8370................................9
6Z8416................................9
6Z8475..............................60
6Z8520................................5
6Z8557..............................45
6Z8558........................19, 41
6Z8607..............................43
6Z9058..............................47
7
730000...............................17
730003. ............................. 17
730004. ............................. 17
730005. ............................. 17
730006. ............................. 17
730007. ............................. 17
730008. ............................. 17
730009. ............................. 17
730010. ............................. 17
730011. ............................. 19
730012. ............................. 19
730013. ............................. 19
730014. ............................. 19
730015. ............................. 19
730017. ............................. 19
730023. ............................. 20
730027. ............................. 23
730028. ............................. 23
730029. ............................. 23
730030. ................. 17, 19, 31
730031. ............................. 17
730032. ............................. 17
730034. ....................... 17, 43
730036. ............................. 19
730038. ............................. 23
730039. ............................. 23
730040. ............................. 23
730041. ............................. 23
730042. ............................. 23
730043. ............................. 23
730044. ............................. 23
730045. ............................. 17
730046. ............................. 23
730047. ............................. 23
730048. ............................. 23
730049. ............................. 23
730050. ............................. 17
730051. ....................... 19, 41
730053. ............................. 23
730054. ............................. 23
730056. ............................. 15
730057. ............................. 15
730058. ............................. 15
730059. ............................. 15
730061. ............................. 15
730063. ............................. 25
730064. ............................. 25
730065.
730066. ............................. 25
730067. ............................. 25
730068. ............................. 25
730071. ............................. 25
730072. ............................. 27
730073. ............................. 27
730074. ............................. 27
730075. ............................. 27
730076. ............................. 27
730077. ............................. 27
730078. ............................. 27
730080. ....................... 35, 37
730081. ............................. 29
730082. ............................. 29
730084. ............................. 35
730085. ....................... 35, 37
730087. ....................... 35, 37
730088. ............................. 37
730089. ............................. 37
730094. ............................. 29
730095. ............................. 15
730097. ................. 35, 37, 39
730098. ............................. 37
730105. ............................. 29
730106. ............................. 29
730108. ............................. 29
730112. ............................. 29
730117. ............................. 37
730118. ............................. 37
730119. ............................. 37
730122. ............................. 37
730123. ....................... 35, 45
730125. ............................. 37
730126. ............................. 37
730127. ............................. 37
730128. ............................. 37
730129. ............................. 37
730170. ............................. 35
730293. ............................. 49
730402. ............................. 37
8
800926. ............................. 49
800978. ............................. 31
800983. ............................. 31
.............................25
801026.
801257. ............................... 6
801276. ............................. 33
801356. ............................. 29
801443. ............................. 17
801546. ............................. 19
801548. ............................. 49
802388. ............................. 17
802453. ............................... 5
802592. ............................. 33
802593. ............................. 33
802594. ............................. 33
802596. ............................. 33
802597. ............................. 33
802598. ............................... 5
802599. ............................. 33
802682. ............................... 5
802683. ............................. 33
802685. ............................. 33
802687. ......................... 5, 19
802688. ............................... 5
802694. ............................... 5
802696. ............................... 5
802739. ............................. 37
802769. ............................... 5
802827. ............................. 33
802828. ............................. 33
802848. ............................. 33
9
90567A031. ........................9
93070A141. ........................5
A
AS1000F-04......................59
B
BHCS 5/16-18 × 1............60
BHCS10-32 × 3/8.............17
BHCS4MM × 12MM. ...... 19
BHCS8-32 × 1/2...............17
BHCS8-32 × 1/4...............17
F
FH2-56 × 1/4. ...................33
J
JN5/16-24. ..........................9
...............................5
K
KOL07-36S.......................59
KQH11-36S. .....................59
KQL03-34S...................9, 59
KQL03-35S.......................59
KQL07-34S.......................60
KQT11-36S.......................59
KQU03-00.........................59
M
M3.5 × 8............................47
MF-1010. ..........................59
N
NVZ2150-5G....................60
S
SHCS 1/4-20 × 1...............59
SHCS 10-32 × 5/8.............41
SHCS1/4-20 × 1-1/2. ........33
SHCS1/4-20 × 3/8.............10
SHCS10-32 × 3/4........47, 59
SHCS6-32 × 1-3/4.............59
SHCS6-32 × 3/8..................5
SHCS8-32 × 3/8................33
SHCSM6 × 16...................47
T
TIUB11B-20. ....................60
TU0425B-20. ....................60
V
VVZ2000-31A-3...............60
Loading...
