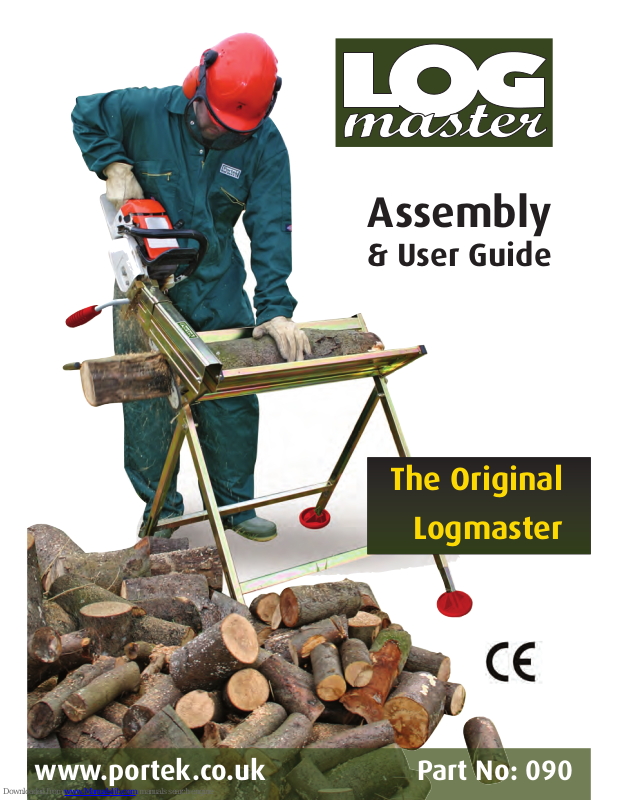

www.portek.co.uk Part No: 090
Assembly
& User Guide
The Original
Logmaster
![](/html/26/2680/26804a0a11a2b474786bc4d0fc8269c4b92b087bb352a44a0c87335812b93d80/bg2.png)
Instructions for assembly of the LogMaster
Before you start - tools you will require:
17 mm or 5/8” Spanner (Pivot Clamp Bolt)
and 13 mm or 1/2” Spanner (Chain Guard Nut).
Fig 1. Height Adjustable Legs and Feet
Insert support feet into the hollow legs of the
sawhorse and adjust height to suit. Tighten fixing
bolts supplied and place logmaster on a flat surface.
Push the red feet onto the bottom of the telescopic
leg as shown.
Fig 2. Pivot Clamp Support
and Measuring Rod
Insert the pivot clamp support (adjustable vertically)
into the sawhorse table along with the measuring rod
holder (adjustable horizontally) using the bolt and
washer supplied. The vertical adjustment for the pivot
clamp support is to accommodate different sized chain
bars - the larger and longer the bar, the higher the
pivot clamp should be placed. Adjust so that the tip of
the chain bar extends beyond the table, so that it is
cutting completely through the log. The measuring rod
can be adjusted horizontally to allow each log to be
cut to the desired length.
Fig 3. Pivot Clamp
Insert the male rod on the pivot clamp into the
female cylinder on the pivot support clamp and secure
with the R clip.
Fig 1.
leg
telescopic leg
loosen clamp bolt to
adjust telescopic leg
support foot
Fig 2.
pivot clamp
support
measuring rod
Fig 3.
pivot clamp
R clip
REMEMBER - WORK SAFELY
