Portech FTA-102L User Manual

FTA-102L
F
ree Roaming Gateway
User Manual
FTA-102L
PORTech Communications Inc.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
C
ontent
1. Introduction ........................................................................................................... 1
2. System Topology .................................................................................................. 2
3. Function Description ............................................................................................ 2
4. Parts list ................................................................................................................. 3
5. Dimension: 14*9*3 cm .......................................................................................... 3
6. Chart of the device ................................................................................................ 4
6.1 Front Panel....................................................................................................... 4
6.2 Back Panel ....................................................................................................... 5
7. Web Page Setting .................................................................................................. 6
7.1 Via WAN port ................................................................................................... 6
7.2 Via LAN port ..................................................................................................... 6
8. System Information. ............................................................................................. 7
9. Phone Book ........................................................................................................... 8
10. SIM Setting .......................................................................................................... 9
10.1 Remote SIM Setting (FTA-102L) ..................................................................... 9
10.2 SIM Setting (MV-37X) ................................................................................... 10
11. Phone Setting .................................................................................................... 11
11.1 Master Setting ............................................................................................... 11
11.2 Volume Settings ............................................................................................ 12
11.3 DND Settings ................................................................................................. 12
11.4 Caller ID ........................................................................................................ 13
11.5 Dial Plan ........................................................................................................ 14

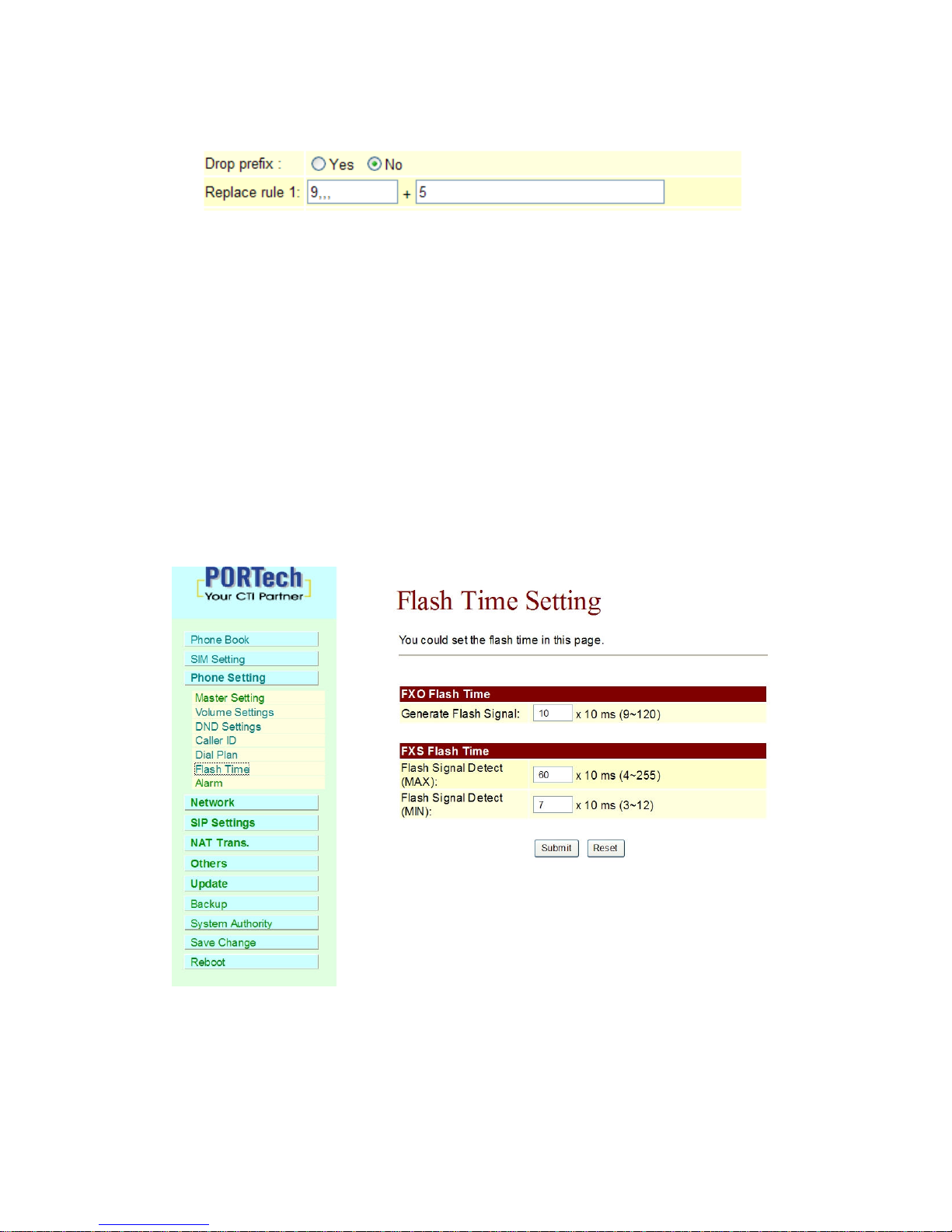

11.6 Flash Time..................................................................................................... 16
11.7 Alarm ............................................................................................................. 17
12. Network .............................................................................................................. 18
12.1 Network Status: You can check the current Network setting in this page. ..... 18
12.2 WAN .............................................................................................................. 19
12.3 LAN ............................................................................................................... 20
12.4 SNTP Settings ............................................................................................... 21
12.5 Virtual Server ................................................................................................. 22
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
13. SIP Settings ....................................................................................................... 23
1

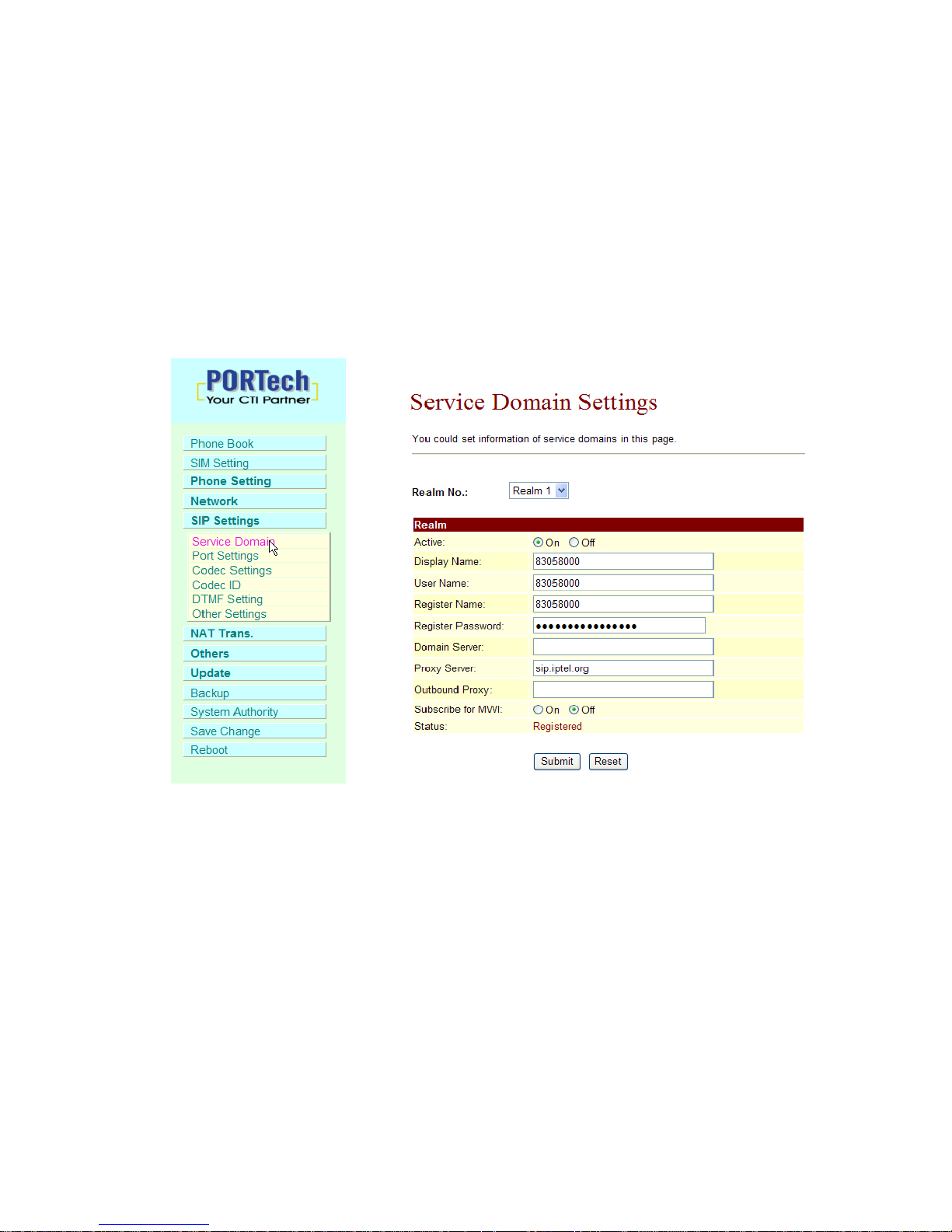

3.1 Service Domain ............................................................................................. 23
13.2 Port Settings .................................................................................................. 24
13.3 Codec Settings .............................................................................................. 25
13.4 Codec ID ....................................................................................................... 26
13.5 DMTF Settings .............................................................................................. 26

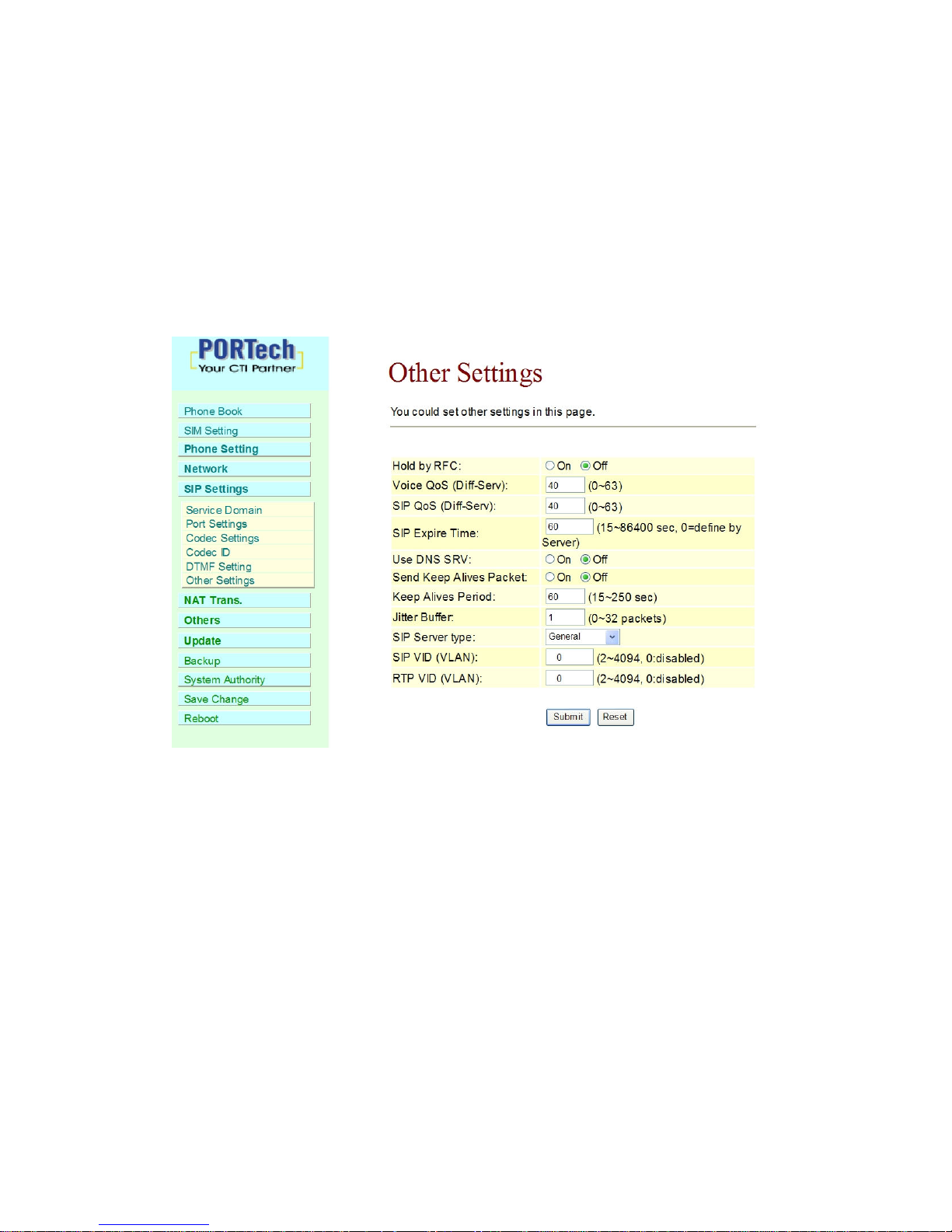

13.6 Other Settings ............................................................................................... 27
14. NAT Trans. ......................................................................................................... 28
14.1 STUN Setting (optional) ................................................................................ 28
14.2 uPnP Setting ................................................................................................. 29
15. Others ................................................................................................................ 29
15.1 FXO&FXS...................................................................................................... 29
15.2 Advance ........................................................................................................ 30
15.3 Status Log ..................................................................................................... 30
16. Update ................................................................................................................ 31
16.1 New Firmware ............................................................................................... 31
16.2 Default Settings ............................................................................................. 32
17. Backup ............................................................................................................... 33
18. System Authority .............................................................................................. 33
19. Save Change ..................................................................................................... 34
20. Reboot ............................................................................................................... 34
21. Specification...................................................................................................... 35
21.1 Call transfer ................................................................................................... 35
21.2 Conference call ............................................................................................. 35
22.3 IVR Command ............................................................................................... 35
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-1-
-
1. Introduction
When you go abroad with FTA-102L, all incoming calls of your
o
riginal mobile phone are free of charge. FTA-102L provide free
roaming fee for international inbound calls. When you are on
business travel oversea, your coworkers, friends, family, and
clients can just call your original mobile phone number to reach you.
This is of enormous benefit for user, you don’t’ need to use others
country phone access number. Also, it’s simply and easy to send
from your original mobile phone while traveling/abroad.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-2-
-
2. System Topology
3. Function Description
1. Answer self-Mobile call at foreign country without any r
oaming fee (A-B-D-C or A-B-D-F).
2. Caller ID authentication for incoming call (F-D-B-G or F-D-B-H).
3. Retrieve voice mail from foreign country ( C or F)
4. Dialing plan support for local FXO call.
5. C can transfer call to F, G or H.
6. A-C-F conference call.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-3-
-
4. Parts list
Please check the parts for any missing parts. If do, please
c
ontact our agents
4.1 FTA-102Lmain body
4.2 Power adaptor AC-DC (110V AC – 12V DC) or (220V AC – 12V
DC)
4.3 Network cable
4.4 Phone connecting Line
4.5 User Manual
5. Dimension: 14*9*3 cm
(4.2)
(4.1)
(4.3)
(4.4)
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-4-
-
6. Chart of the device

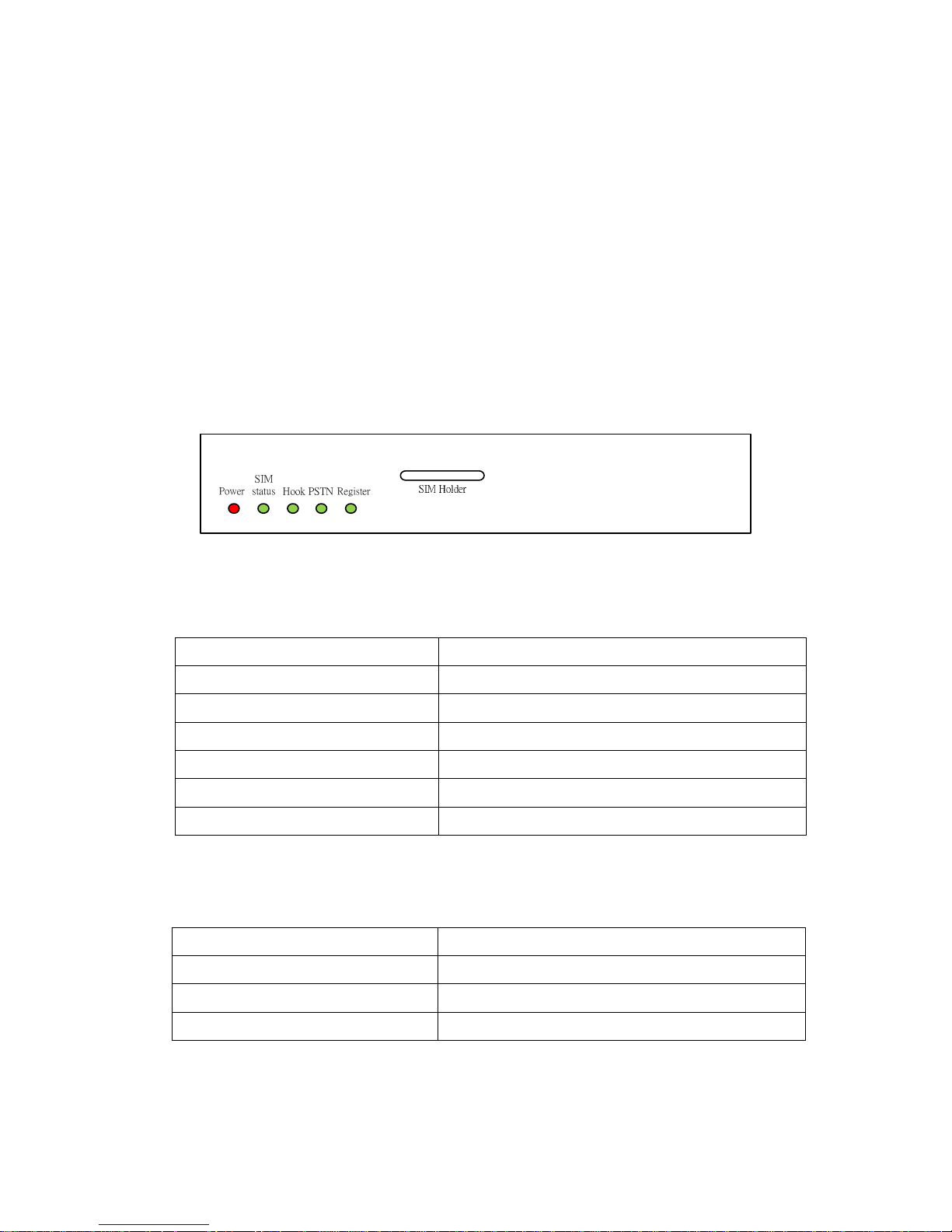

6.1 Front Panel
I
n normal situation, the register LED only blink at power-on stage
for 3~6 times. If register LED keep blinking, the system is not in
normal state and the registering of SIM may not be completed.
Once the register LED keep blinking for several minutes, check
ether-net connection or try another STUN server which can be set
in the WEB page.
Fig-1.
*Power: L
ED on after power on.
*SIM status:
LED status Behavior
OFF Default
ON SIM inserted but not registered
Slow blinking registering
Flash off Registered but in maintain mode
Flash on Registered( standby mode )
Fast blinking Incoming or outgoing ringing
*Hook: Indicate the status of phone.
*PSTN: Indicate the status of PSTN line.
*Register:
LED status Behavior
OFF Default
ON Registered to SIP proxy
blinking Checking NAT
FTA-102L
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-5-
-

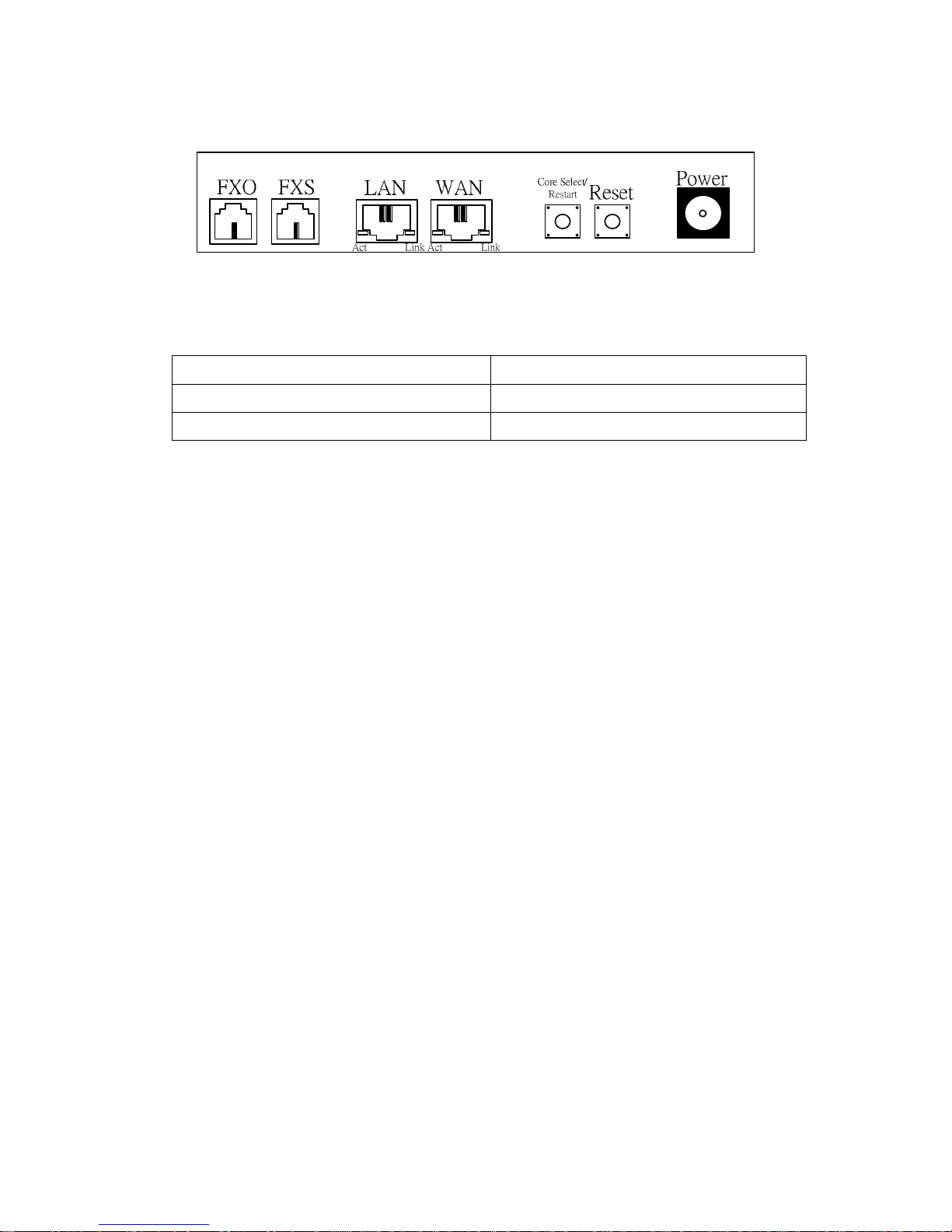

6.2 Back Panel
Fig-2.
*
Restart button
Action
Behavior
Short Click System restart
Long Press (over 5 second) System factory reset and restart
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-6-
-
7. Web Page Setting
When the IP setting is done, the operator may setup all the rest
p
arameters via web page.
Item
Value
HTML Port 9999
System User Name fta
System Password 1234
Normal User Name user
Normal Password 1234
WAN port IP Default DHCP
LAN Port IP 192.168.123.1
7.1 Via WAN port
Step1: Use the FXS port phone set to get the WAN IP by IVR (#126#).
Step2: Start a WEB browser window and enter the following line to access
WEB page.
http://wan_ip:9999
7.2 Via LAN port
Step1: Start a WEB browser window and enter the following line to access
W
EB page.
http://192.168.123.1:9999
Fig-3.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-7-
-
8. System Information.
8.1 When you login the web page, you can see the demo system c
urrent system information like firmware version, company…
etc in this page.
8.2 Also you can see the function lists in the left side. You can use mouse to click the function you want to set up.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-8-
-
9. Phone Book
You could add/delete items in current phone books.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-9-
-
10. SIM Setting
10.1 Remote SIM Setting (FTA-102L)
F
or SIM card registering setting, both FTA and MV should be
configured.
*Service Port: the UDP port of FTA used to connect with MV. Default value
is 38000.
*SIM ID: User defined SIM ID. The peer GSM module of MV will use this SIM
ID as identity ID to connect with FTA.
*Module Name or URL: The SIP account of peer MV port.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-10-
-
10.2 SIM Setting (MV-37X)
*Mode: When the SIM is inserted to SIM holder in MV, user should select
“Local” mode. If the SIM card is inserted in FTA, user should select Remote.
*Mobile ID: User defined ID which is used to identify the GSM module.
*Card ID: When the SIM card is inserted in FTA, user should configure MV to
connect with FTA. This field is used to fill in the SIM ID which is set in the
FTA.
*SIM Server: The format of the field is “server_ip:port”,
When MV is used with FTA, this field is updated by the information send from
FTA. User only has to fill in a dummy server setting for “server_ip”, and it’s
mandatory; “port” must corresponding to FTA’s Service Port.
Then Server will search and send back to FTA’s IP, user has to fill that new IP
as “server_ip”
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-11-
-
11. Phone Setting
11.1 Master Setting
*Master Number: The number that FXO dial out (i.e. the phone number of F in
the system topology). System uses this number to authenticate the caller ID
of PSTN incoming call. If the caller ID matches to the setting in the master
number, it has the permission to dial out via GSM in MV (i.e. F-D-B-G or
F-D-B-H).If the matching result is failed, the PSTN incoming call will ring the
local FXS directly (F-D-C).
*No Answer Fwd Time Out: Setup the FXS ringing period. For VOIP call
from MV, system always rings local FXS first. After ringing period, system
change to dial master number via FXO port. (Parameter “0”: forwarding to
PSTN directly.)
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-12-
-
11.2 Volume Settings
Y
ou could set the volume of your phone in this page.
11.3 DND Settings
You could set the do not disturb period of your phone in this page
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-13-
-

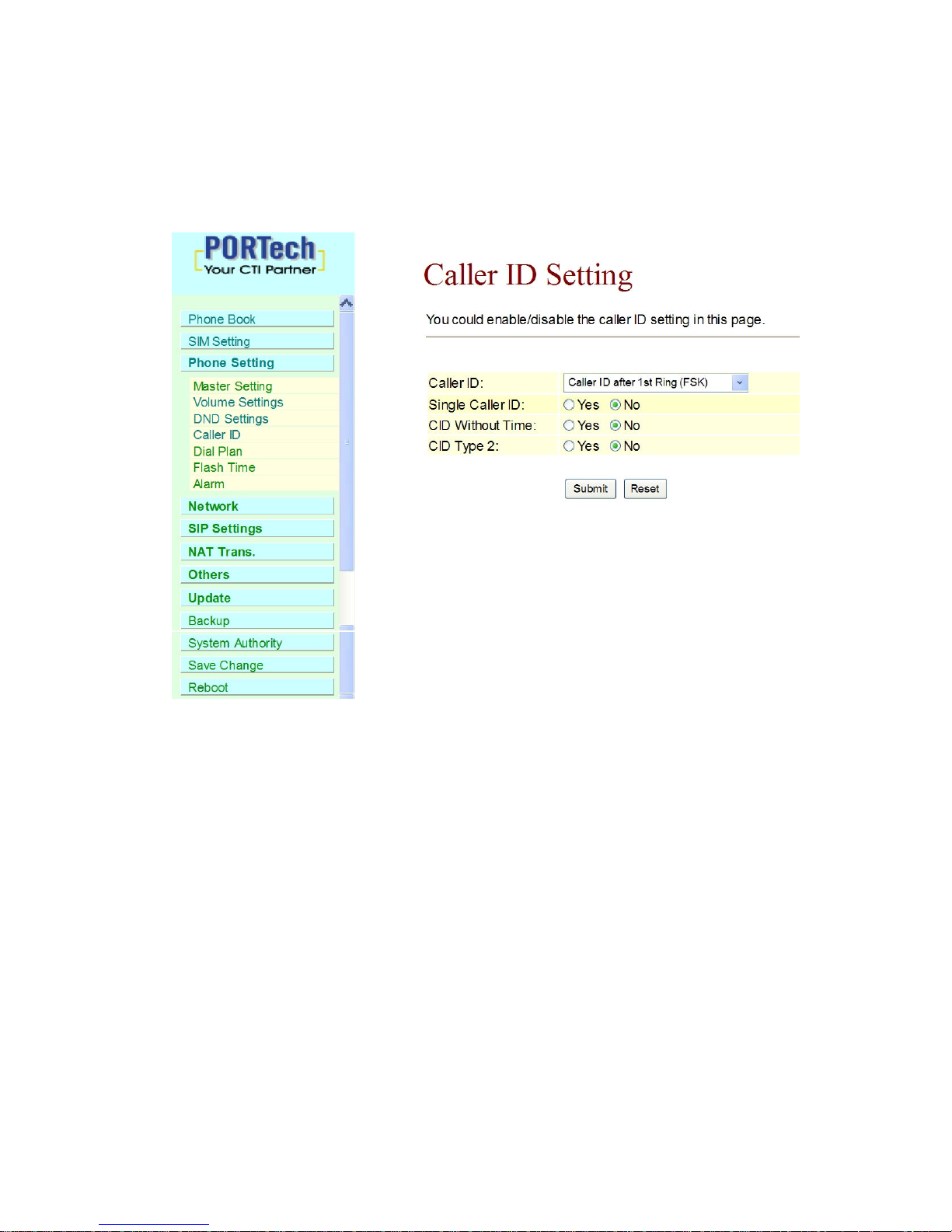

11.4 Caller ID
I
n order to correctly generate caller ID, user should set the caller ID format of FXS. You could enable/disable the caller ID setting in this page.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-14-
-
11.5 Dial Plan
*Routing to: Define the call direction (IP call or PSTN call) if the dialed digit
match the rule set in Routing rule field.
*Routing rule: Define the digit string of routing rule. Only digit 0~9 are valid
in rule string, as well as “x” denotes wildcard digit. Different patterns is
separated by sign “+”.
*Drop prefix:
Item Description
Yes The following replace rule define the prefix dropping rule
No The following replace rule define the prefix adding rule
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-15-
-
*

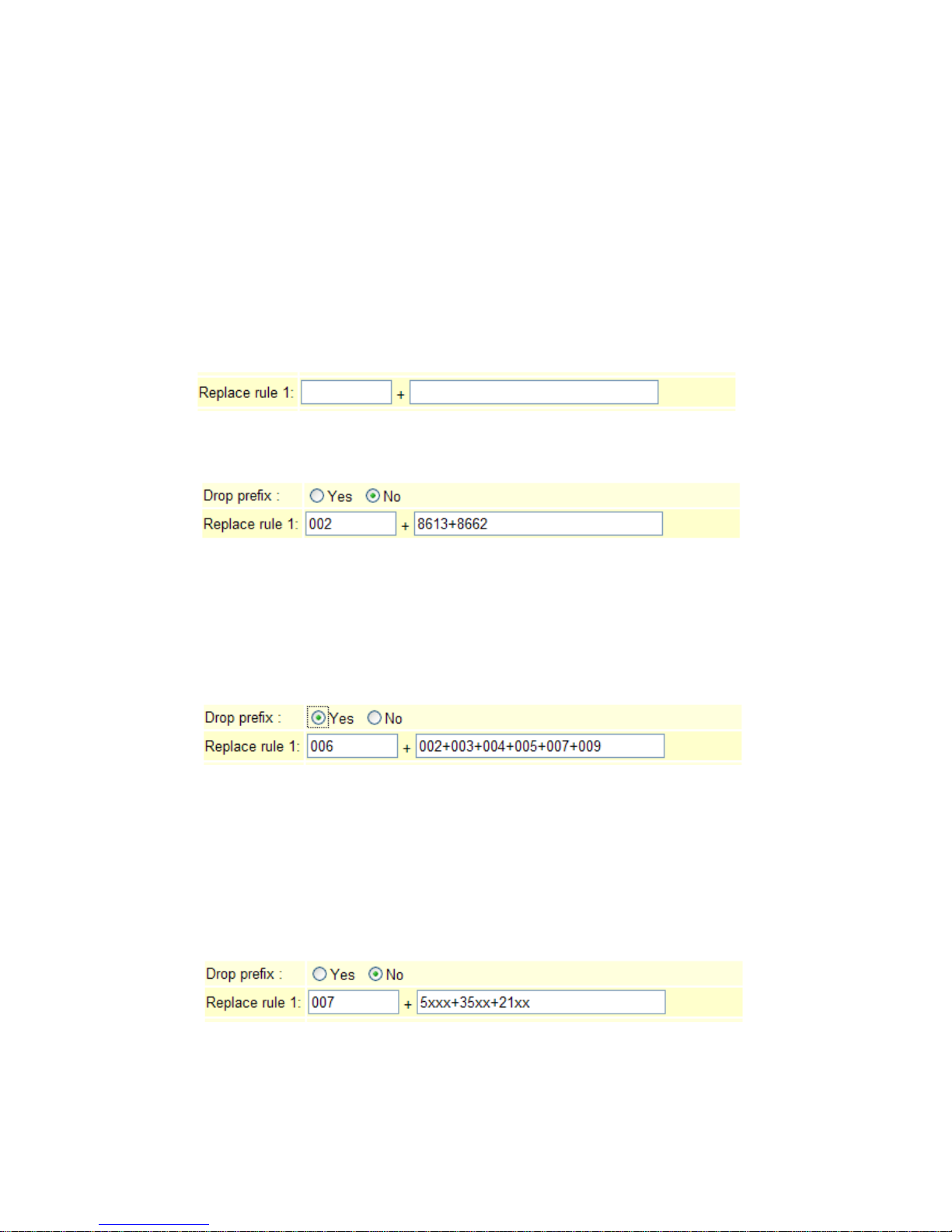

Replace Rule: The digit string defined in the first field will be added if the
dialed string match the digit string defined in the second field of the
replacement rule. If the selection of Drop prefix is “yes”, the matched digit
string in the dialed string will be removed before adding prefix. Otherwise, if
“No” is selected, the prefix is added at the beginning of dialed string without
removing any digits.
Only digit 0~9 are valid in rule string, as well as “x” denotes wildcard digit and
“,” denotes pause for one second. Different patterns is separated by sign “+”.
Example 1:
For example, the dialed string is 86621742885. After the processing of
replacement rule, the result dialing string will become 002+86621742885.
Example 2:
For instance, the dialed string is 00286621742885. After the processing of
replacement rule, the result dialing string will become 006 86621742885
since “Yes” of Drop prefix is select and “002” is dropped and replaced by
“006”.
Example 3:
In this example, any 4-digits string begin with 5, 35 or 21 will be add a “007”
prefix. e.g. 5171 will become 0075171.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-16-
-
E
xample 4:
In this example, any string begin with 5 will be add a “9” prefix. After the
prefix “9” digit, it will be hold in 3 seconds and then the succeeded digits.
*Realm Selection: The default call behavior of FTA act as a SIM extender.
The default IP call will direct to peer MV, thus call by GSM network. User can
specify ITSP by adding Realm Prefix before dialing destination number. The
configuration of Realm Prefix can be found in the Dial Plan page.
11.6 Flash Time
Y
ou could set the flash time in this page
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-17-
-
11.7 Alarm
Y
ou could set the alarm time in this page.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-18-
-
12. Network
In Network you can check the Network Status, WAN, LAN, STNP S
ettings, and Virtual Server.
12.1 Network Status: You can check the current Network setting in this page.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-19-
-
12.2 WAN
(1) The DHCP Client Configuration item is to setup the WAN port’s network environment.
(2) The PPPoE Configuration item is to setup the PPPoE Username and Password. If you have the PPPoE account from your Service Provider, please input the Username and the Password correctly. (3) When you finished the setting, please click the Submit button.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-20-
-
12.3 LAN
Y
ou could configure the LAN settings in this page.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-21-
-
12.4 SNTP Settings
S
NTP Setting function: you can setup the primary and second SNTP Server IP Address, to get the date/time information. Also you can base on your location to set the Time Zone, and how long need to synchronize again. When you finished the setting, please click the Submit button.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-22-
-
12.5 Virtual Server
Y
ou could set your virtual servers in this page. The usual port numbers are WEB [TCP 80], FTP(Control) [TCP 21], FTP(Data) [TCP 20], E-mail(POP3) [TCP 110], E-mail(SMTP) [TCP 25], DNS [UDP 53] and Telent [TCP 23].
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-23-
-
13. SIP Settings
In SIP Setting you can setup the Service Domain, Port Settings, C
odec Settings, Codec ID, DTMF Setting and Other Settings.
13.1 Service Domain
User need to set the registering information of SIP proxy at this page. FTA cannot work correctly without registering to SIP proxy.
First you need to click Active to enable the Service Domain, and then you can input the following items. (1) Display name: you can input the name you want to display. (2) User name: you need to input the User Name get from your ISP. (3) Register Name: you need to input the Register Name get from
your ISP.
(4) Register Password: you need to input the Register Password
get from ISP.
(5) Domain Server: you need to input the Domain Server get from
your ISP.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-24-
-
(6) Proxy Server: you need to input the Proxy Server get from your I
SP. Please note, FTA-102L must connect "message Server".
E.g. the free server we recommend, IPTel, with this feature. (7) Outbound Proxy: you need to input the Outbound Proxy get
from your ISP. If your ISP does not provide the information, then
you can skip this item. (8) You can see the Register Status in the Status item. (9) When you finished the setting, please click the Submit button.
Remember to click “Save Charge”
13.2 Port Settings
You could set the port number in this page.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-25-
-
13.3 Codec Settings
Y
ou can setup the Codec priority, RTP packet length in this page. You need to follow the ISP suggestion to setup these items. When you finished the setting, please click the Submit button.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-26-
-
13.4 Codec ID
Y
ou can setup the Codec ID in this page.
13.5 DMTF Settings
You can setup the DTMF Setting in this page.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-27-
-
13.6 Other Settings
O
ther Settings: you can setup the Hold by RFC and QoS in this page. To change these settings, please follow your ISP information. When you finished the setting, please click the Submit button. The QoS setting is to set the voice packets’ priority. If you set the value higher than 0, then the voice packets will get the higher priority to the Internet. But the QoS function still need to cooperate with the others Internet devices.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-28-
-
14. NAT Trans.
In NAT Trans. you can setup STUN and uPnP function. These f
unctions can help your VoIP device working properly behind NAT.
14.1 STUN Setting (optional)
There is a default setting of STUN server in the FTA system database; user can ignore this step, which is optional setting. If the STUN server is not connectable or service shutdown, please change STUN setting at this page.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-29-
-
14.2 uPnP Setting
Y
ou could enable/disable the uPnP in this page.
15. Others
15.1 FXO&FXS
User should set FXS and FXO type according to country which FTA located.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-30-
-
15.2 Advance
Y
ou could change advanced setting in this page.
15.3 Status Log
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-31-
-
16. Update
In Update you can update the system’s firmware to the new one or t
he factory reset to let the system back to default setting.
16.1 New Firmware
(1) In New Firmware function you can update new firmware via
Local PC in this page. You can upgrade the firmware by the
following steps: (2)Select the firmware code type. (3)Click the “Browse” button in the right side of the File Location or
you can type the correct path and the filename in File Location
blank. (4)Select the correct file you want to download to the system then
click the Update button. (5) Please click update/default setting after update firmware
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-32-
-
16.2 Default Settings
I
n this page: Update/ Default Settings, you could restore the factory default settings to the system. All setting will restore default setting. IP will retain original IP as usual not default IP.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-33-
-
17. Backup
You could save current system setting to file: System Settings and P
honeBook.
18. System Authority
In System Authority you can change your login name and password
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-34-
-
19. Save Change
In Save Change you can save the changes you have done. If you w
ant to use new setting in the VoIP system, you have to click the Save button. After you click the Save button, the system will automatically restart and the new setting will effect.
20. Reboot
Reboot function you can restart the system. If you want to restart the system, you can just click the Reboot button, and then the system will automatically.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-35-
-
21. Specification
21.1 Call transfer
During ongoing call, user can transfer current call by “flash hook”. The call
w
ill be transfer to PSTN if the current call is from VOIP, and vice versa.
21.2 Conference call
During ongoing call, user can initiate a conference call by “flash hook”+
#512#”.
22.3 IVR Command
Group
Action
key parameter(s)
Function IVR unlock #190#
Function IVR lock #191#
Function Reboot #195#
Function Factory #198#
Function Set DHCP client #111#
Function Set static IP
#112xxx*xxx*xxx*
xxx#
Static IP address
Function Set network mask
#113xxx*xxx*xxx*
xxx#
network mask
Function Set default gateway IP
#114xxx*xxx*xxx*
xxx#
default gateway IP
Function Set primary DNS
#115xxx*xxx*xxx*
xxx#
primary DNS
Info Check LAN IP Address #120#
Info Check DHCP client status #121#
Info User name of SIP account #122#
Info Check network mask #123#
Info Check default gateway IP #124#
Info Check DNS #125#
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
-36-
-
I
nfo Check WAN IP Address #126#
Info Software version #128#
Info
Check PSTN number of
forward all call
#147#
Info Check PSTN
number of no
answer forward call
#149#
Function Forward disable #145#
Function Forward all call to PSTN #147xxxxxxxx# PSTN number
Function No answer forward to PSTN #149xxxxxxxx# PSTN number
Function conference #512#
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
Loading...
