Porta Phone XTCB2015 Users Manual

)

V

)

)

FULL DUPLEX WIRELESS COMMUNICATION SYSTEM

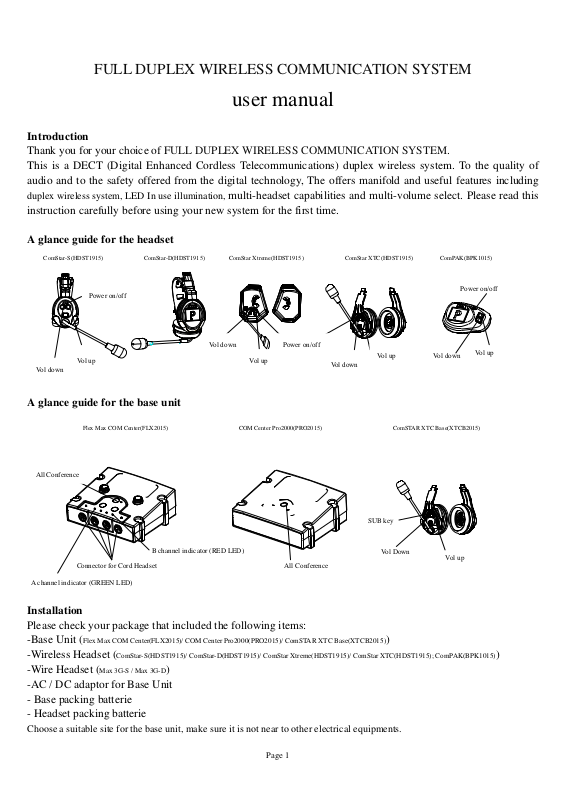

user manual

Introduction

Thank you for your choice of
This is a DECT (Digital Enhanced Cordless Telecommunications) duplex wireless system. To the quality of
audio and to the safety offered from the digital technology, The offers manifold and useful features including

duplex wireless system, LED In use illumination, multi-headset capabilities and multi-volume select. Please read this

instruction carefully before using your new system for the first time.

A glance guide for the headset

ComStar-S(HDST1915) ComStar-D(HDST1915) ComStar Xtreme(HDST1915) ComStar XTC(HDST1915) ComPAK(BPK1015)

Power on/off

Vol down

Vo l u p

A glance guide for the base unit

FULL DUPLEX WIRELESS COMMUNICATION SYSTEM.

ol down Power on/off

Vo l u p

Vol down

Vo l u p

Vol down

Power on/off

Vo l u p

Flex Max COM Center(FLX2015

COM Center Pro2000(PRO2015

ComSTAR XTC Base(XTCB2015)

All Conference

SUB key

A channel indicator (GREEN LED)

Connector for Cord Headset

B channel indicator (RED LED

All Conference

Vol Down

Vo l u p

Installation

Please check your package that included the following items:

-Base Unit (Flex Max COM Center(FLX2015)/ COM Center Pro2000(PRO2015)/ ComSTAR XTC Base(XTCB2015))

-Wireless Headset (ComStar-S(HDST1915)/ ComStar-D(HDST1915)/ ComStar Xtreme(HDST1915)/ ComStar XTC(HDST1915); ComPAK(BPK1015))

-Wire Headset (Max 3G-S / Max 3G-D)

-AC / DC adaptor for Base Unit

- Base packing batterie

- Headset packing batterie

Choose a suitable site for the base unit, make sure it is not near to other electrical equipments.

Page 1

Connect the AC adaptor socket to the Base Unit and the power socket. Turn on the power of base.

Power on/off

Charging indicator

And low battery indicator

The pack rechargeable batteries come with your

-Insert the rechargeable battery into the headset as the above figure indicated, matching correct polarity.

-Fit the battery compartment cover by sliding it down so that it clicks firmly into place.

NOTE: Reversing the orientation may damage the headset. Please use the battery type supplied or recommended equivalents. A

different battery could cause an explosion or damage of your headset.

battery pack

AC Adapter socket

SUB key A1-A4, B1-B4

Under Bottom

Power on/off

Charging indicator

And low battery indicator

charger.

AC Adapter socket

battery pack

Low battery indicator

Whenever you see the low battery indicator LED flash on the headset, or you have heard the low battery warning
tone during a call conversation, please:

-End the call as soon as possible.

-Change the headset battery.
To charge the battery, put the battery into the charger cradle. The charging LED on charger unit will come on to
indicated that the battery is in charging.

Basic Functions

Make a talk

-Power up the headset to search registered of base, the “In use” LED is ON.
During a talk conversation, you can adjust the talk volume (1 ~ 5 levels) by simply pressing  or  key.

Mute

-During a call conversation, you can mute your voice by rise up microphone arm.

-Deactivate the mute function, go down the microphone arm again.

Headset Power On / Off

To power Off the headset

- Press and hold “power on/off” key about 3 seconds, the headset will switch off which can prolong the use
time of headset.
To power On the headset

-Press “power on/off” key
The headset will power on with the “In use” LED light, the headset to search registered of base.

Out of range indication

If your headset has registered and is in located range, the “In use” LED will blanking steadily, when your
headset goes out of range, the communication link will be lose temporarily, the “In use” LED will blink.
