Port-A-Cool KA45 User Manual [en, fr, es]

Specifications and Main Features

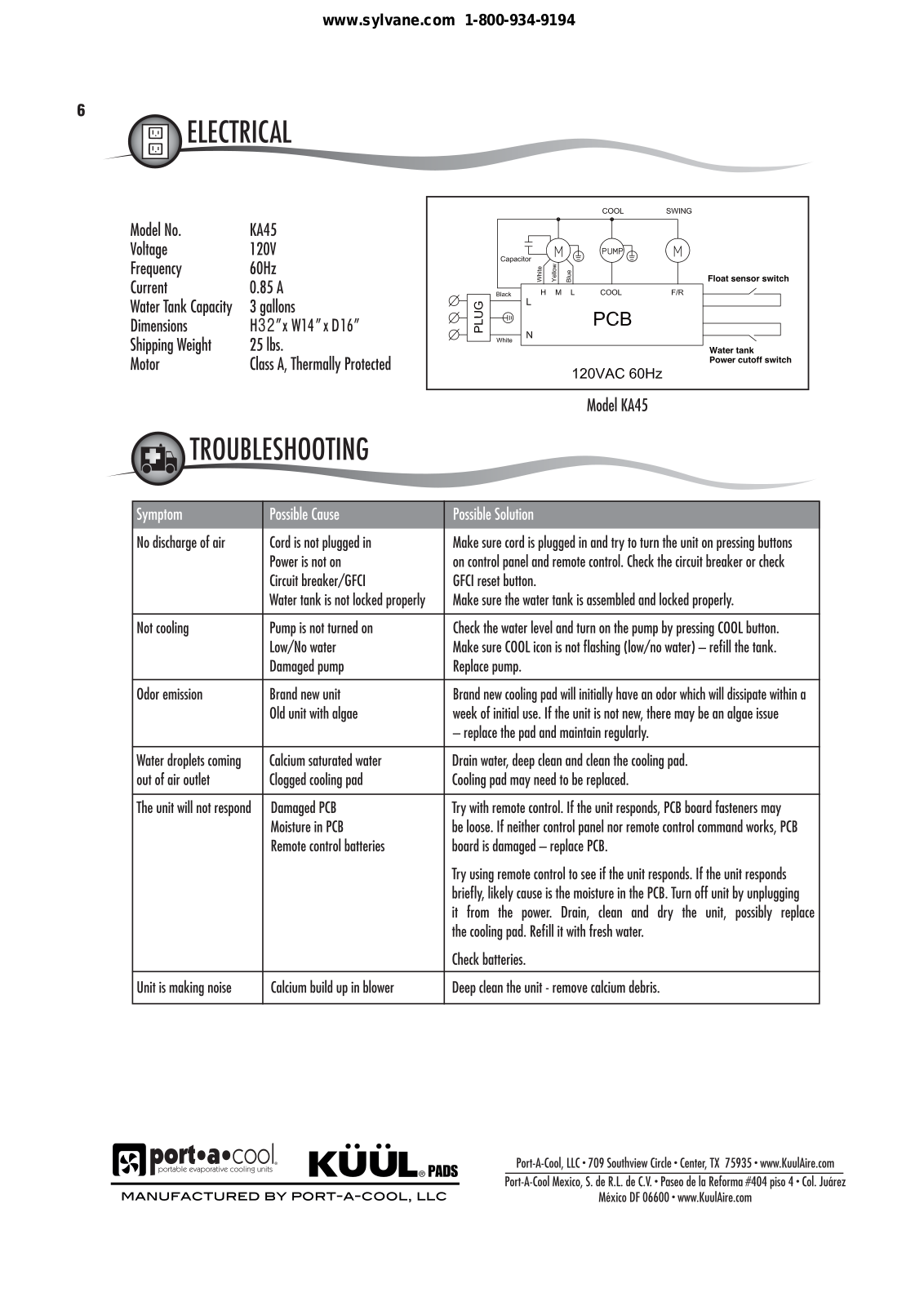

  • Model: KA45
  • Voltage: 120V
  • Frequency: 60Hz
  • Current: 0.85A
  • Water Tank Capacity: 3 gallons (11 liters)
  • Dimensions: H 32" x W 14" x D 16"
  • Shipping Weight: 25 lbs (11.3 kg)

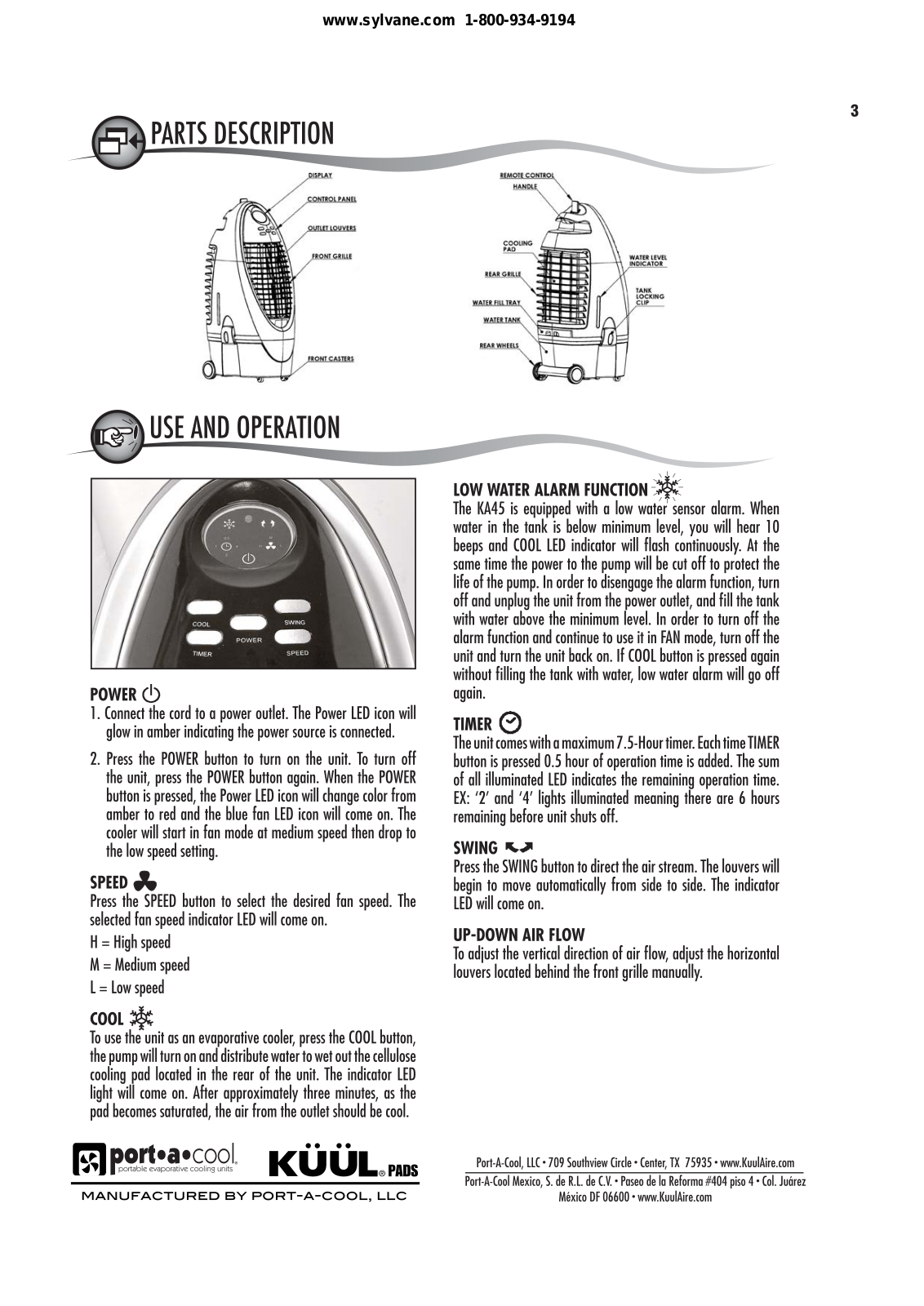

  • Fan Speeds: 3 (High, Medium, Low)
  • Automatic Timer: Ranges from a minimum of 30 minutes to a maximum of 450 minutes
  • Low Water Warning System: The pump shuts off automatically when it gets to a low water level and keeps it above a set minimum level

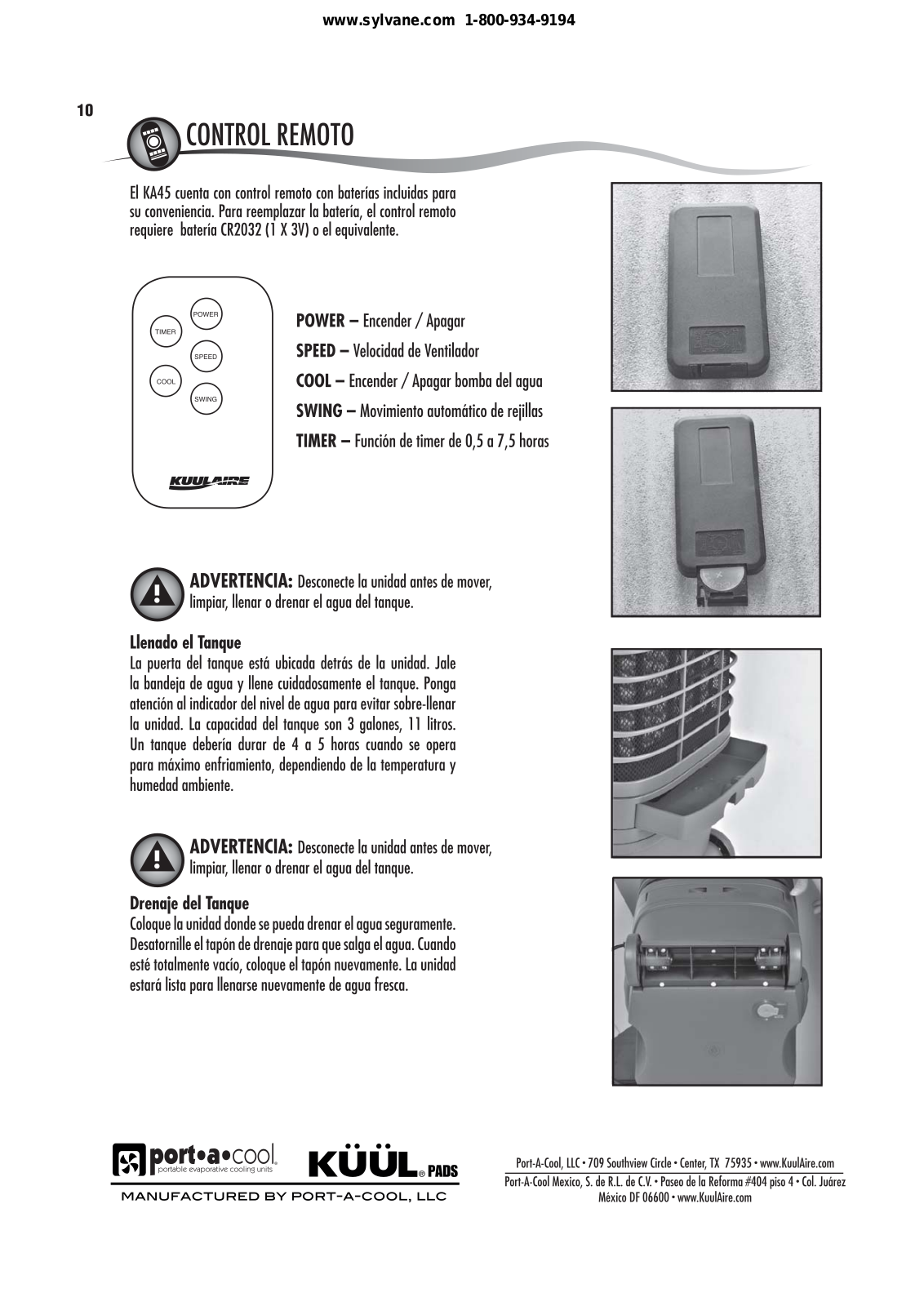

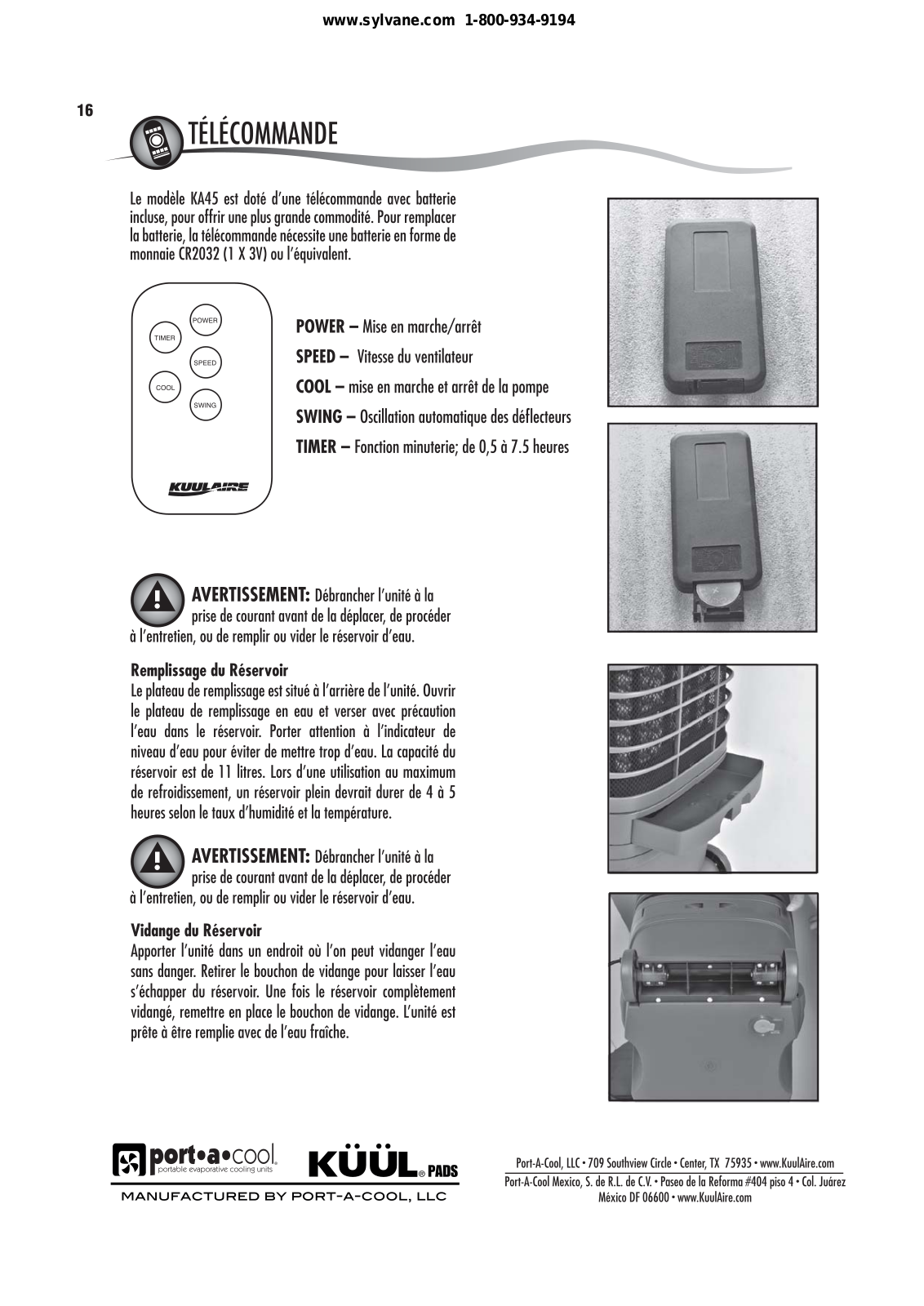

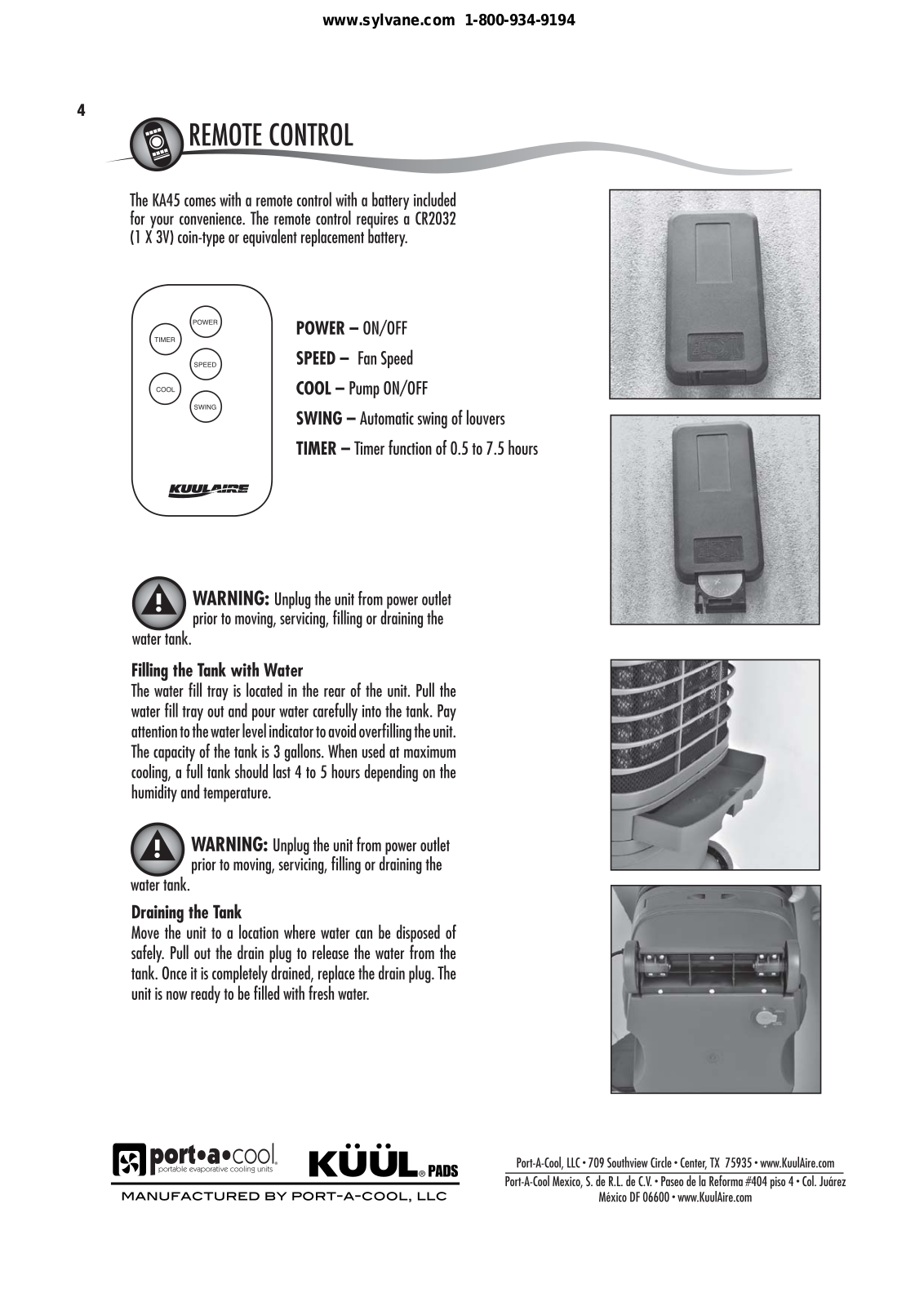

  • Remote Control: It features a remote control unit that comes with a battery CR2032
  • Pump-Valve: Wetting pad is automatically supplied with water in a coating
  • Cool Air Output: Commences within 3 minutes of operation
  • Air Swing: Moves in the required direction as it has auto swing mechanism
  • Manual Airflow Adjustment: Horizontal louvres behind the front grille adjust air flow vertically up and down the room

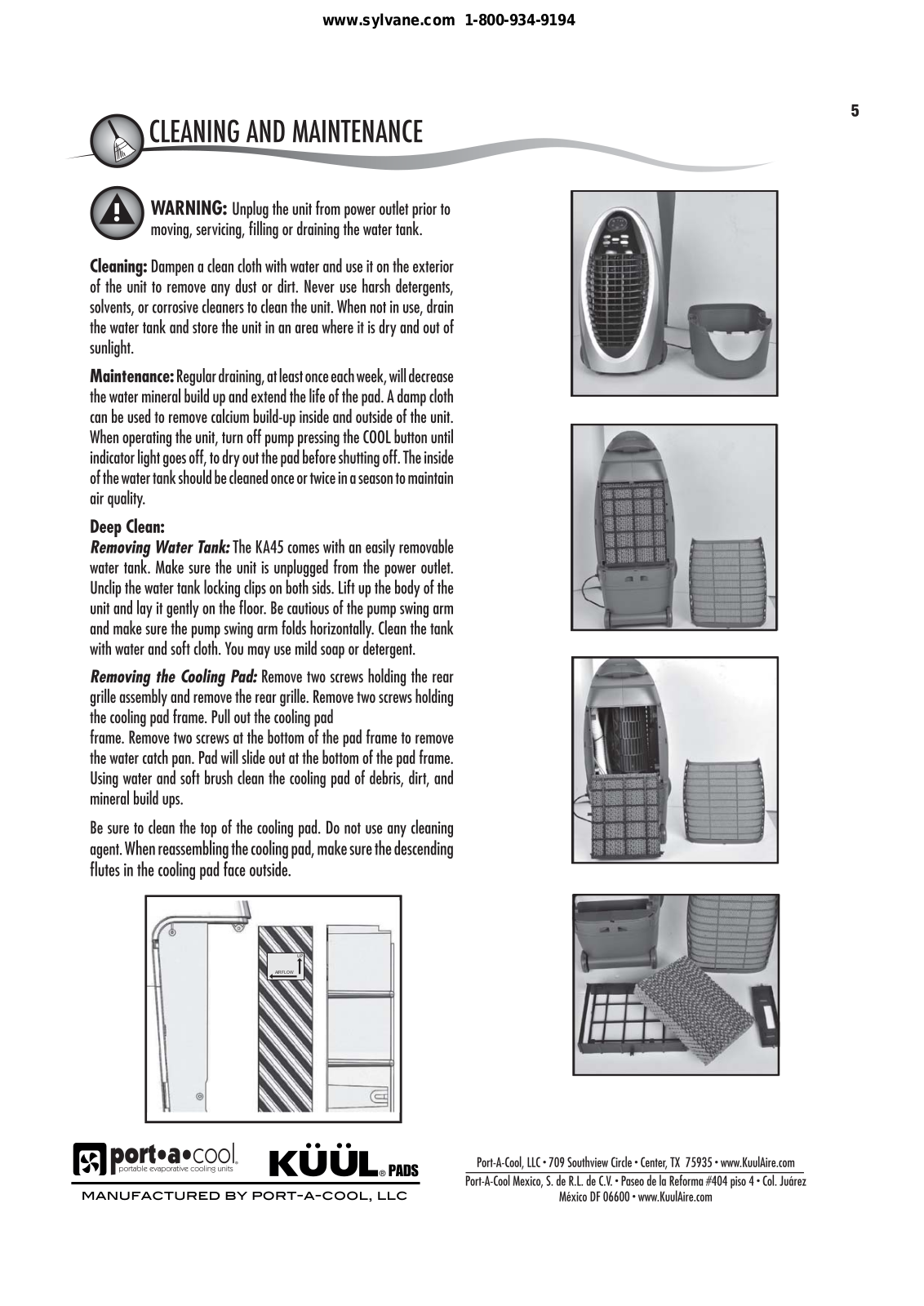

  • Cleaning: Cleaning the tank is simple since it separates from the rest of the cooler
  • Deep Cleaning Capabilities: Servicing easy with cooling pads positioned in easily accessible places
Frequently Asked Questions
  • Q: What is the input voltage for the KA45 cooler?

A: The KA45 requires 120V as an input.

  • Q: For how long can a full water tank be used while on cooling function?

A: A full tank may last about 4- 5 hours bearing in mind humidity and temperature.

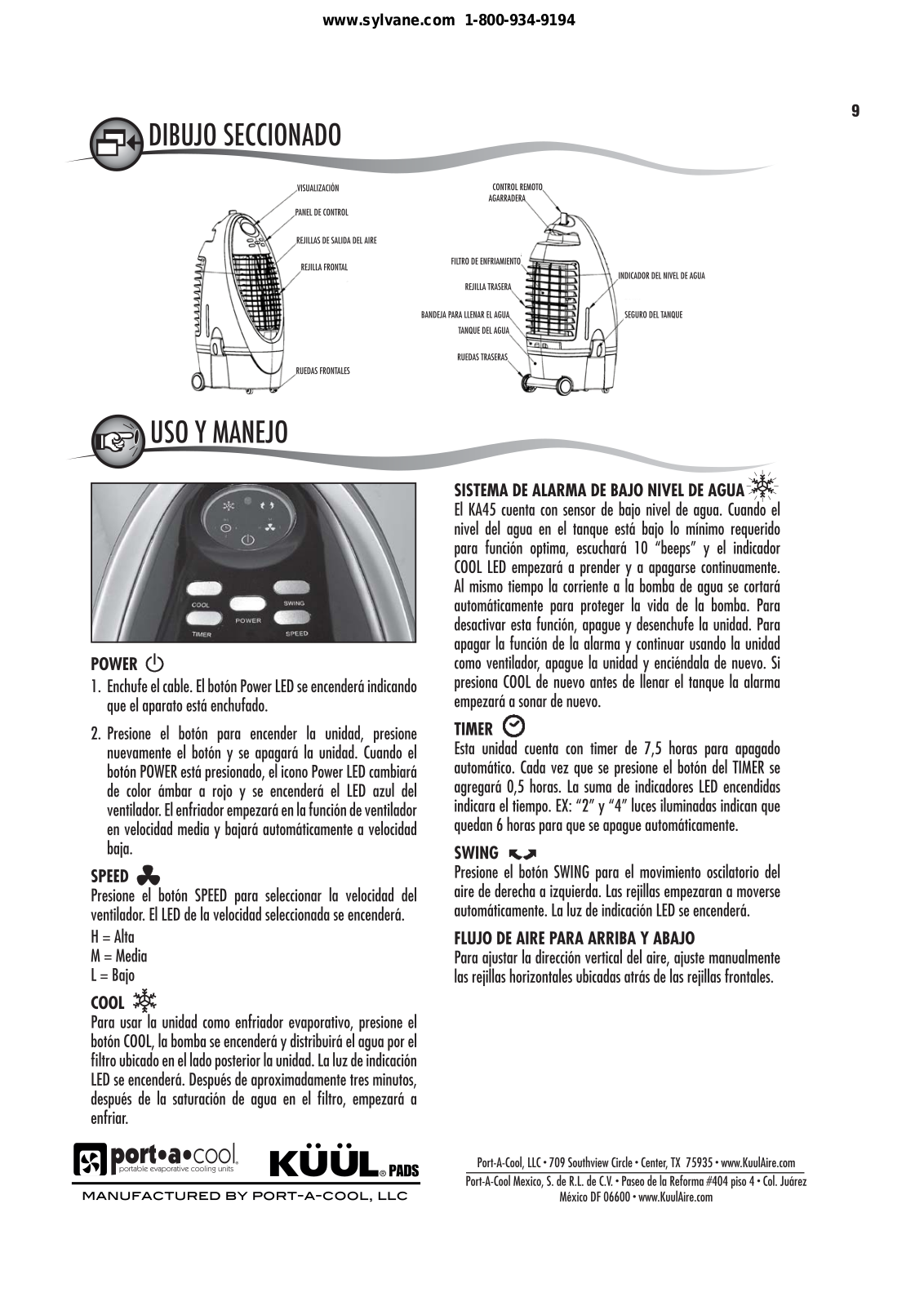

  • Q: When the water level of the tank is low, what happens?

A: The unit will produce 10 beeps simultaneously with flashing of the COOL LED and the pump will turn off in order to minimize damage.

  • Q: Is it possible to use the device outdoors?

A: This KA45 is only designed to be used indoors.

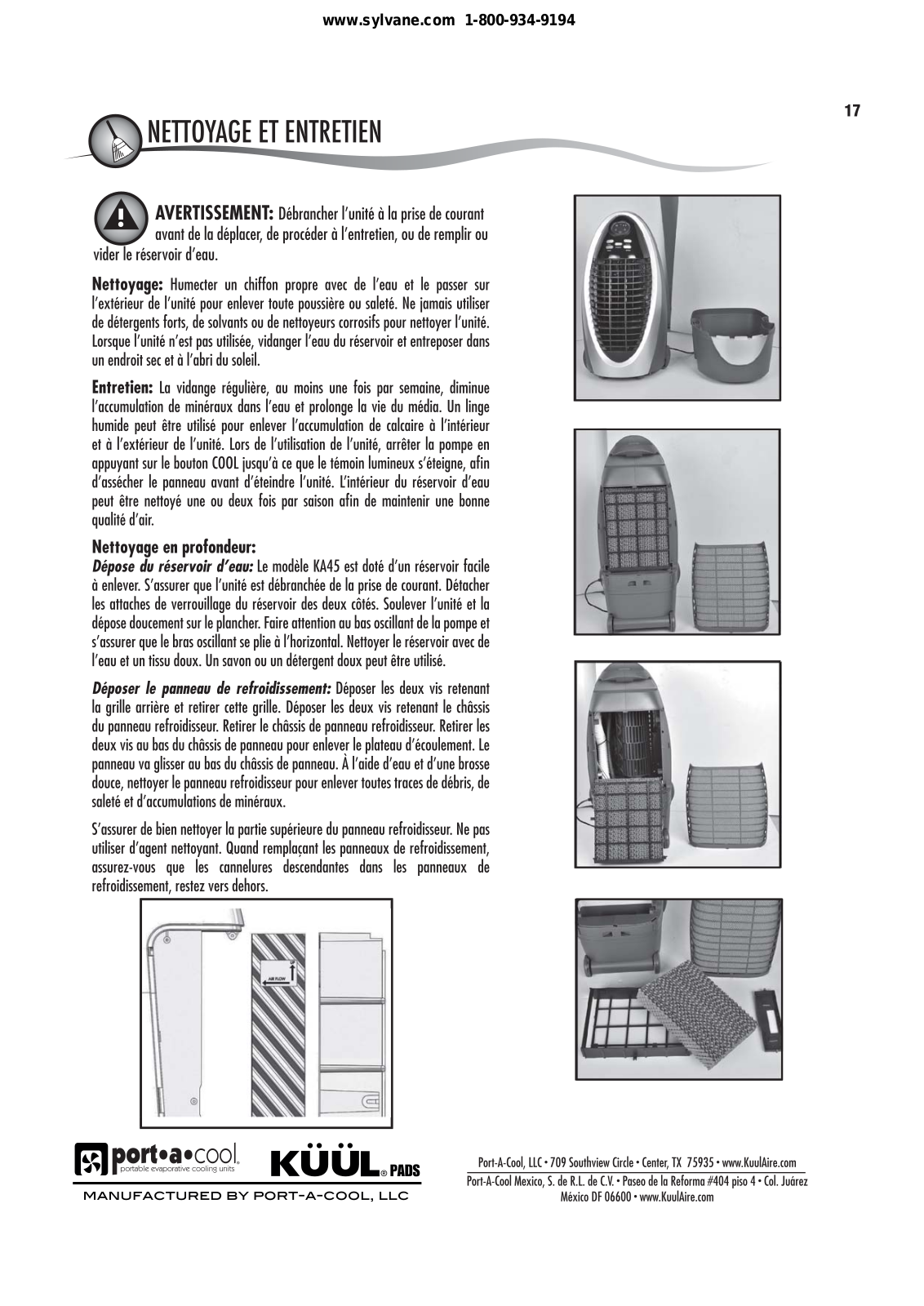

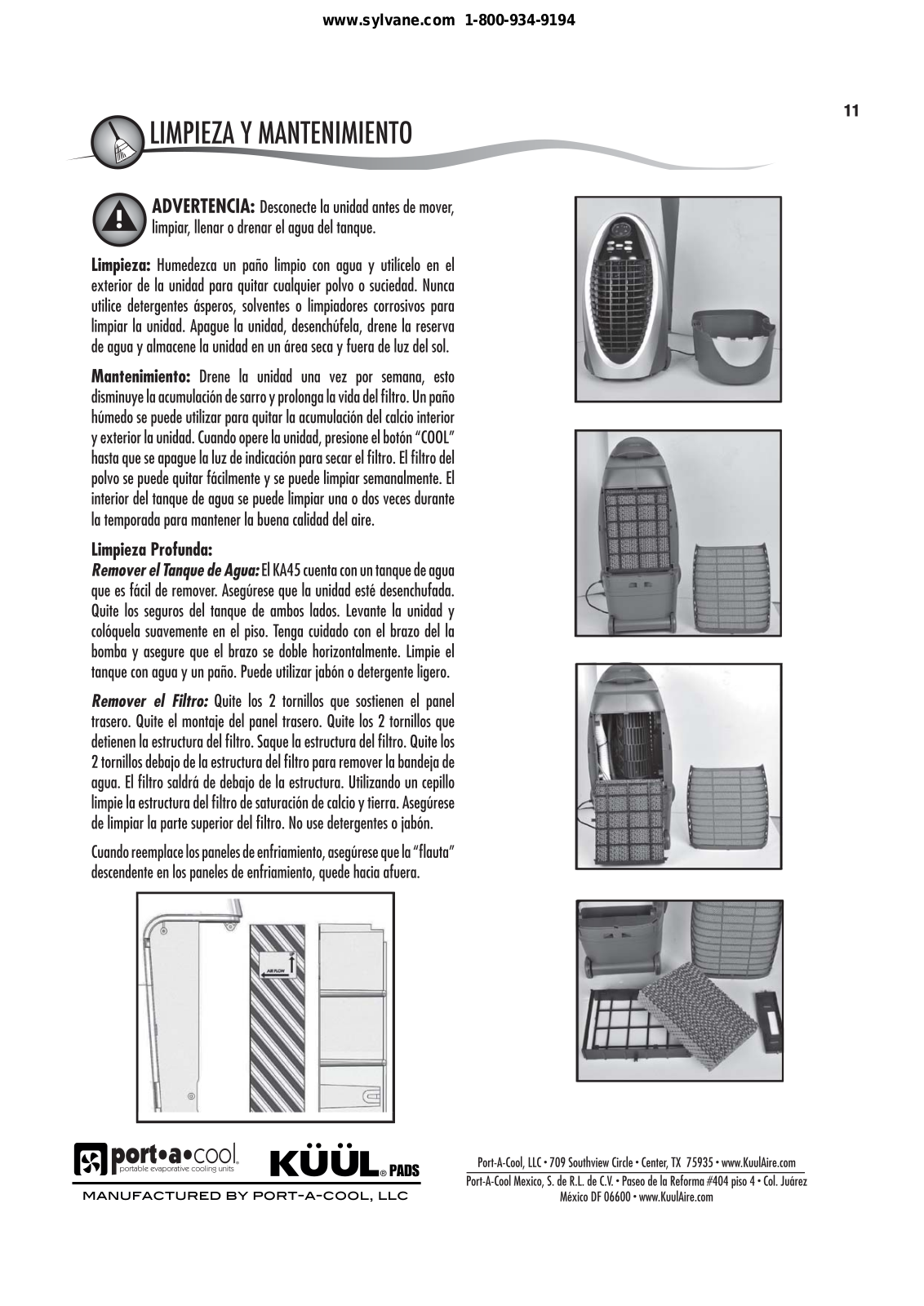

  • Q: How do I clean the cooling pad?

A: The cooling pad can be detached and washed with water and a soft brush but under no circumstance should cleaning products be used.

  • Q: What do I do if the unit is not cooling very well?

A: Make sure that the water level is sufficient, also confirm that the pump has been switched on by pushing the button marked COOL.

  • Q: Is there a timer function?

A: Yes, the KA45 possesses a timer which may be set to a duration from 30 minutes to 7 several hours.

  • Q: What is the storage volume of the water tank?

A: The storage volume of the water tank is recorded to be 3 gallons (11 liters).

  • Q: What can I do if the device produces some sound?

A: As a result of the accumulation of calcium particles in the blower, noise may result, and therefore, a deep cleaning may be required for this reason.

  • Q: Can I plug extension cord into this unit?

A: The manual warns against the usage of extension cords with the KA45.

User Manual
Page 1

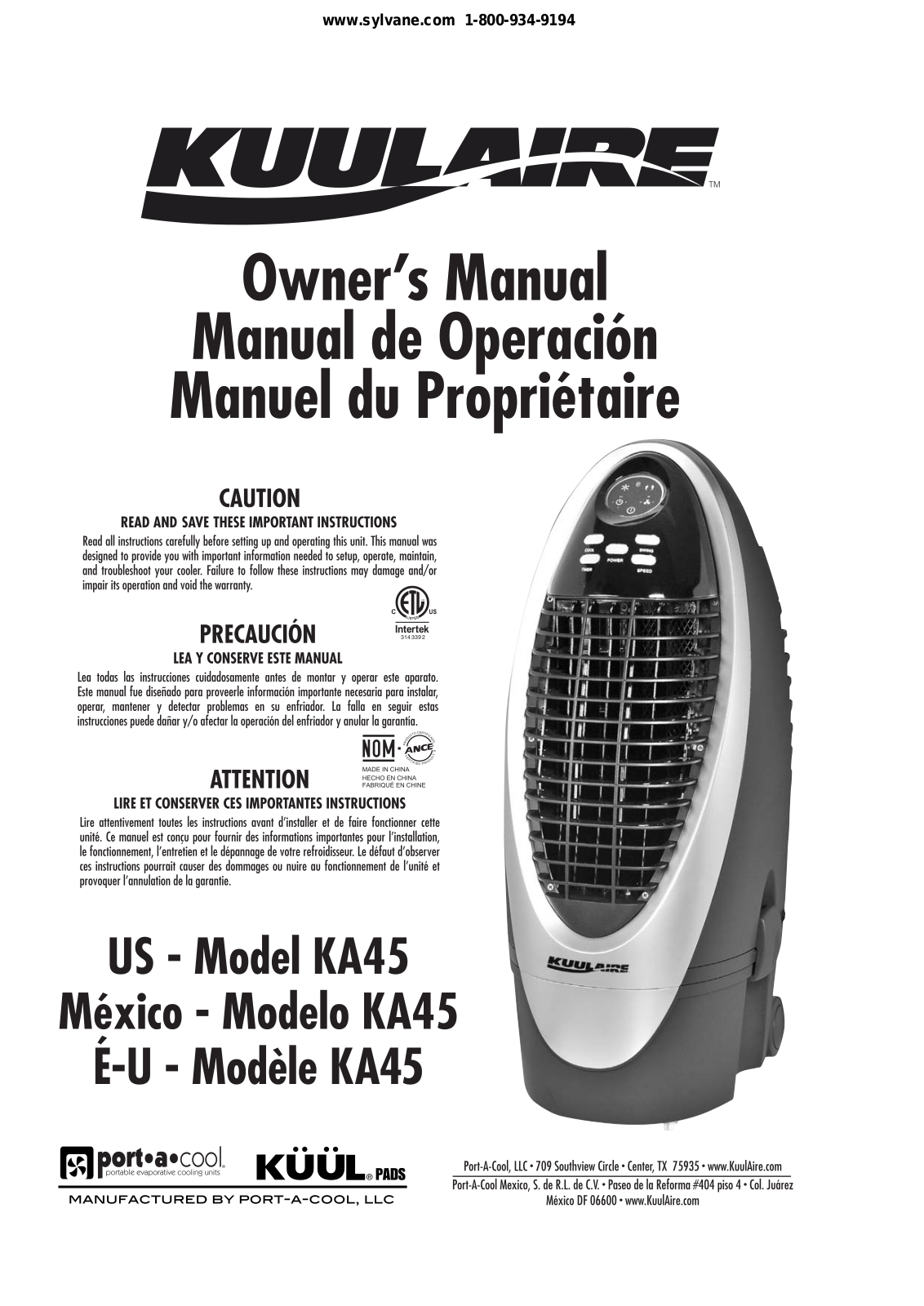

Port-A-Cool KA45 User Manual - ManualMachine.com
