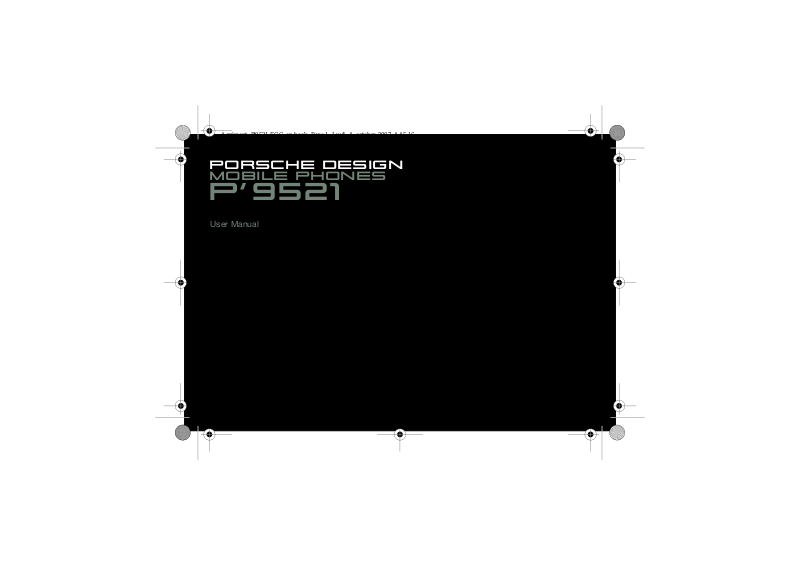

Porsche Design
Mobile phones
ß9521
User Manual
User Manual
Contents
1 Introduction.................................................................6
1.1 About this manual....................................................................6
1.2 Legal notice .............................................................................7
1.3 Description............................................................................... 8
1.4 Idle screen .............................................................................10
2 Quick start.................................................................11
2.1 Information on the SIM card ..................................................11
2.2 Installing the SIM card and the battery..................................11
2.3 Charging the battery ..............................................................12
2.4 Using advice..........................................................................13
2.5 Inserting the memory card.....................................................14
2.6 Getting started.......................................................................15
3 Phone menus ............................................................17
4 Calls .......................................................................... 19
4.1 Calling....................................................................................19
4.2 Receiving a call...................................................................... 19
4.3 Call log...................................................................................20
4.4 Calls parameters.................................................................... 20
5 Contacts.................................................................... 23
5.1 Using the phonebook ............................................................23
5.2 Storing a new contact ...........................................................23
5.3 Calling a contact from the phonebook..................................23
5.4 Contact options ..................................................................... 24
5.5 Lists ......................................................................................26
User Manual
6 Messages .................................................................. 27
6.1 Creating a text message [SMS or MMS] ...............................27
6.2 Saving the message without sending it .................................28
6.3 Sending the message............................................................29
6.4 Receiving messages..............................................................29
6.5 Messages menu ....................................................................29
7 Multimedia functions.................................................32
7.1 Camera ..................................................................................32
7.2 Player..................................................................................... 34
7.3 Files .......................................................................................37
8 Connection functions ................................................38
8.1 Internet...................................................................................38
8.2 Email ......................................................................................38
8.3 WAP.......................................................................................38
8.4 Connections........................................................................... 39
4–5
9 Phone customization ................................................44
9.1 Phone .................................................................................... 44
9.2 Display ................................................................................... 46
9.3 Fingerprint ............................................................................. 48
9.4 Multimedia ............................................................................. 48
9.5 Calls....................................................................................... 49
9.6 Security..................................................................................49
9.7 Networks ............................................................................... 51
9.8 Browsers................................................................................51
10 Other functions ......................................................... 52
10.1 Java applets ..........................................................................52
10.2 Calculator .............................................................................. 52
10.3 Alarm - Timer ......................................................................... 52
10.4 Diary ......................................................................................52
10.5 To do ..................................................................................... 53
10.6 Services ................................................................................. 54
User Manual
11 Appendix ................................................................... 54
11.1 Technical features .................................................................54
11.2 Certification and safety information for the United States and countries using FCC standards55
11.3 Certification and safety information for Europe and countries
using CE standards...............................................................65
11.4 For Customers in the United States......................................70
11.5 For customers outside the United States..............................75
11.6 End User Licence Agreement [EULA]....................................80
11.7 Java™....................................................................................86
11.8 Warranty conditions...............................................................91
11.9 Troubleshooting.....................................................................95
12 Index..........................................................................98
User Manual
1 Introduction
This phone can be used internationally in the various networks
[EDGE, GSM 900 MHz and DCS 1800 MHz or PCS 1900 MHz]
depending on the roaming arrangements with your operator.
This phone is approved to meet European standards.
Some services described in this guide may not be available
from the network or when roaming, or may require a specific
subscription.
Remember to back up your data and programs frequently, and
before sending the mobile phone for repair.
This phone, like any other wireless phone, operates using radio
signals and networks. Connection in all locations and
conditions cannot be guaranteed. Therefore you should never
rely solely on any wireless phone for essential communications
[for example, medical emergencies].
In some jurisdictions it may be unlawful to take a picture
without notice to or the consent of all participants.
6–7
It is recommended that you read this handbook carefully in
order to use your phone efficiently and in the best conditions.
You can also get animated descriptions, updates and
additional software from the official website
[http://www.mobileporschedesign.com].
1.1 About this manual
1.1.1 Symbols
The following symbols refer to specific passages of text:
Instructions and tips for operating the software
Further detailed information and explanations
Warnings
User Manual
1.2 Legal notice
The biometric functions used with this mobile phone are only
of incidental interest. Using these functions is only intended to
the phone user to practise personal activities exclusively.
1.2.1 Trademarks
– Porsche Design is a registered trademark of PLH | Porsche
Lizenz- and Handelsgesellschaft mbH & Co. KG.
– SAGEM is a trademark of Sagem Mobiles, SAFRAN group.
– T9® Text Input is a trademark of ©Tegic Communications
Inc.
– Java™ and all Java™ based trademarks and logos are
trademarks or registered tradema rks of Sun Microsystems,
Inc. in the U.S. and other countries.
– The WAP navigator and the softwares included are the
exclusive property of Openwave. For this reason, it is
forbidden to modify, translate, disassemble or even
decompile all or part of these softwares.
– Wellphone™ and SmartCom™ are registered trademarks
owned by SmartCom SARL France.
–The Bluetooth
Bluetooth
®
word mark and logos are owned by the
®
SIG, Inc.
– microSD™ is a trademark of SD Card Association.
– Windows is a trademark of Microsoft Corporation.
– Arkamys is a trademark of Arkamys SA.
– Opera Mini™ is a trademark of Opera Software™.
User Manual
1.3 Description
Front view
8–9
1] Fingerprint sensor
Secure the access to your phone or documents, browse the menus and access to certain functions directly [shortcuts]
2] Left programmable key
In idle screen: access to certain functions [shortcuts]
In menus: access to the selection shown on screen
3] Green key
1]
5]
2]
3]
4]
6]
7]
8]
During a call: activate/deactivate hands-free mode
Warning: in this mode do not bring the phone up to your ear
[at least 3.9 inches [10 cm]]
In call context: call - receive a call
In idle screen: display the call log
4] When composing a message:
Short press: switch from one input mode to another [upper
case/lower case, 123 mode]
Long press: activate/deactivate T9 mode
User Manual
5] Navigator
Navigation in menus
Confirmation of a selection
6] Right programmable key
In idle screen: access to certain functions [shortcuts]
In menus: access to the selection shown on screen in the
tab
7] Red key
Short press: switch on
Long press: switch off
In call context: reject a call - hang up
In menus: return to idle screen
8] When composing a message
Long press: modify the T9 mode language
Short press: display the symbol table
In other modes
In idle screen: long press: silent mode
In call reception mode: mute the ring tone
When playing sounds: mute/unmute the sound
Rear view
1]
2]
1] Flash 2] Camera lens
User Manual
Left side view
1]
2]
1] In photo camera preview: focus [half press] then take a
picture [full press]
In video camera preview: start and stop recording
In other modes: play or pause music playback
10–11
2] Set the volume [short press]
Change to the next or previous piece of music [long press]
1.4 Idle screen
The idle screen may contain the following icons:
Battery [when flashing red, the battery must be charged immediately]
Silent mode [the ring tone is off]
Unavailable network [only emergency call are possible]
Signal strength level
Message received [read your message], flashing: memory
full [delete some messages]
WAP connection
User Manual
2 Quick start
2.1 Information on the SIM card
To use your phone, you need a card called SIM card.
Warning: this card must b e han dle d and stored w ith c are in order not to be damaged. If you should lose your SIM card, contact your network provider immediately.
Please keep your SIM card out of reach of young children.
Your phone is identified by its IMEI number. Write this number
down, and do not keep it with your phone, because you may
be asked for it in the event of your phone being stolen, in order
to prevent it from being used, even with a different SIM card.
In order to display the IMEI on your phone screen, type:
06 .
2.2 Installing the SIM card and the battery
Fig. 1 Fig. 2
Fig. 3 Fig. 4
User Manual
– Turn the phone back. Use the notch as a lever to lift the
cover [Fig. 1].
– Draw the card holder gently. Put the SIM card inside, with
fold face down and cut corner as shown on the phone
drawing [Fig. 2].
– Place the battery by positioning first the top of it [Fig. 3].
– Place the back cover, clicking in first the upper part then
the lower part [Fig. 4].
2.3 Charging the battery
Your phone is powered by a
rechargeable battery. A new
battery must be charged for
4 hours at least before being
used for the first time.
When your battery has been
discharged, the empty battery
icon flashes. In this case charge
12–13
your battery for at least 15 minutes before making any calls in
order not to be cut off quickly.
To charge the battery:
– Connect the charger to a socket.
– Plug the end of the cable into the top connector of the
phone. The phone is then charging up. The battery icon
scrolls up and down to indicate that it is charging. When
the battery is fully charged, the charging stops on its own.
– Disconnect the cable.
When charging, the battery may warm up, this is normal.
Warning: if the battery has entirely discharged, the phone
cannot start. Plug the phone to the charger. The phone will
switch on after a few minutes of charge. You can use the
phone again when the Start option is displayed on the
screen.
Warning: there is danger of explosion if the battery is
placed in an incorrectly way or if it is exposed to fire.
Do not short circuit it.
User Manual
The battery does not have any part that you can change.
Do not try to open the battery casing.
Use only the appropriate chargers and batteries as shown
in the phone manufacturer's catalogue.
The use of other types of chargers or batteries may be
dangerous or invalidate the warranty.
Used batteries must be disposed of in the appropriate
places.
We advise you to take the battery out if you plan not to use
the phone for extended periods.
You are strongly advised not to connect your phone to the
charger if it doesn’t contain a battery.
The charger is a safety step-down transformer, it is
forbidden to modify, alter or replace it by another
component [power supply plug, etc].
2.4 Using advice
2.4.1 Improving antenna performance
The antenna is integrated in your phone, under the back cover
at the bottom.
Avoid putting your fingers on this area when the phone is
switched on.
User Manual
2.4.2 Increasing the battery life of your phone
The Bluetooth
®
function reduces the phone battery life. We
advise you to deactivate it when not in use.
2.5 Inserting the memory card
Fig. 1
Fig. 2
14–15
– Turn the phone back and remove the back cover. Remove
the battery.
– Insert the memory card, under the SIM card, in the way
shown on the phone drawing [Fig. 1]. Push it until it is
entirely inserted, and a click sound can be heard [Fig. 2].
– To remove the card, slightly push it inside the phone until it
springs out, then gently pull it out.
– Place the back cover.
Warning: the memory card is very fragile. Take care when
you insert or remove the memory card.
Some memory cards must be formatted with a PC before
first use with the phone.
User Manual
2.6 Getting started
2.6.1 PIN
If access to the SIM card is protected, the device prompts you
to enter the PIN:
Enter the code between 4 and 8 digits given to you when the
SIM card was issued.
These digits do not appear on the screen for security reasons.
If there are contacts saved in your SIM card, you are invited, if
you wish, to copy them in the phone contacts memory.
Warning: if a wrong PIN is entered three times in
succession, your SIM card is blocked. You must then:
Enter the PUK [Personal Unblocking Key] provided by your
operator, and validate.
Enter your PIN and validate.
Enter your PIN again and validate.
After 5 or 10 failed attempts [depending on the type of SIM
card], the SIM card is definitely locked. You must then
contact your operator to obtain a new card.
2.6.2 Fingerprint enrollment
The first time the phone is switched on, you are offered to
enroll your fingerprint in order to secure the access to some
functions.
If you accept, you must swipe your finger over the fingerprint
sensor several times.
For a proper recognition of your fingerprint, take care to swipe
the top part of your finger flat on the sensor, with a gentle
press.
User Manual
Then you must follow the following steps:
– Enter a backup code if, for instance, you lend the phone to
another person or if the sensor does not operate correctly.
– If you want, select the fingerprint recognition to replace the
PIN.
– Select the fingerprint recognition to secure the access to
contacts, messages and/or files.
16–17
Note: the full security option secures every access to your
phone, as well as all its data.
The Settings/Fingerprint menu is used to modify the selections
you made at the first fingerprint enrollment or to enroll if it has
not been done at the first switch on.
2.6.3 Network
If the network’s name appears, calls are possible on your
operator's network.
If the letter R and a network name are displayed, calls are
possible on a roaming network provider.
If the letter is displayed without any network name, only the
emergency services are accessible [ambulance, police, fire
brigade depending on your location].
If the network icon flashes, the phone is in search of an
available network.
The signal strength indicator displays the quality of reception.
If less than three bars are displayed, search for a better
User Manual
reception to call in good conditions.
2.6.4 Switching on/off
When your phone is off, a short press on the red key will turn it
on.
When the phone is on and if you are browsing inside the
menus, a short press on the red key will take you back to the
idle screen.
When you are in the idle screen, a long press on the red key
will switch off the phone.
3 Phone menus
Tools
Java applets
Calculator
Alarm
Timer
Diary
To do
Services
Player
Camera
Messages
New
Inbox
Outbox
User Manual
Sentbox
Drafts
Templates
Settings
Memory
Local information
Voice mail
Lists of contacts
Browsers
Internet
WAP
Files
Phone
microSD™
18–19
Calls
Dialed
Missed
Received
Durations
Contacts
Contacts
Lists
Settings
Phone
Display
Connections
Multimedia
Fingerprint
Calls
Security
Networks
Browsers
User Manual
4 Calls
4.1 Calling
Dial the number you want to call. Press the green key.
Tones may indicate the establishment of the call, then the
phone icon and duration counter appear.
You can adjust the volume using the navigator up/down keys
or the +/- side keys.
At the end of the conversation press the red key to hang up.
International call
Press 0 [hold down] to display "+", then dial the country code
without waiting for the dial tone, then the number of the called
party.
Emergency services
Depending on the network you can obtain the emergency
service with or without SIM card. You just have to be in an area
served by a network.
To obtain the international emergency service, dial 112 then
press the green key.
4.2 Receiving a call
When you receive a call, the number of your caller is displayed
when it is presented by the network.
Press the green key to answer, and speak.
To refuse the call, press the red key.
To stop the ring tone or the vibration, without refusing the call,
press or the little side key.
Hands-free mode
During a call: make a short press on the green key and confirm,
or press [Options] and select Amplified mode ON then confirm.
Warning: in this mode do not bring the phone up to your
ear.
All the numbers corresponding to incoming and outgoing calls
are logged in the list of recent calls.
User Manual
When on a call, pressing [Options] gives you access to
different functions. [Mute ON] switches off the microphone so
that your caller cannot hear you.
4.3 Call log
From the idle screen, press the green key to access the call
log.
It is divided into four lists that you can display using the
navigator left/right keys.
Various options are proposed: store a number in your
phonebook, call, send a message, etc.
You can also make a call to a number by pressing the green
key.
20–21
4.4 Calls parameters
The Settings/Calls menu allows you to manage all the calls
functions [call forwarding, numbers display, call waiting,
voicemail number, etc.].
4.4.1 Call forward
Depending on your subscription, this service forwards
incoming calls to a different number or to the voice mailbox.
4.4.2 View last calls
This option leads to the calls log.
User Manual
4.4.3 Counters
This option displays the duration of each type of calls.
It can also be used to check the volume of data exchanged.
4.4.4 Display numbers
Anonymous mode
You can decide whether or not your phone number will be
displayed on the phone of the person you call.
– Yes: your phone number will be displayed.
– No: your phone number will not be displayed.
– Preset: the phone default mode.
My number
– On outgoing calls: status of the Display numbers function.
–
On incoming calls
you have forwarded the incoming calls to another number.
: status of the Display numbers function when
Caller's Number
– On outgoing calls: status of the Display numbers function
when your call is forwarded to another number.
– On incoming calls: status of the caller's Display numbers
function.
On sub-LCD
If you select On, the caller’s number will be displayed on the
sub-LCD.
4.4.5 Call waiting
[Operator-dependent service]
During a call, you may be informed that a caller is trying to
reach you: you hear a special tone. The caller's identity is
displayed on the screen [name or number]. You can activate,
deactivate, or get the status of the call waiting service in order
to check if it is active or not. During a call, if a second caller
tries to contact you, the screen displays the call warning.
User Manual
4.4.6 Auto redial
This service automatically calls back a correspondent you
could not reach at first attempt.
You can set the redial function to inactive, on request or
systematic.
If you choose On demand, your phone will offer to redial your
caller automatically if his number is busy.
4.4.7 Blacklist
The blacklist is used to limit failures on automatic calls [calls
generated by the automatic redial function or by applications:
data, fax for example].
When several automatic calls failed with a number [number
busy or unknown], this number is put in the blacklist and no
automatic call will be done with this number any more until you
delete it from the blacklist.
22–23
Note: this function does not apply to the calls performed
manually.
4.4.8 Voicemail
This function is used to record your voicemail access number.
This number will be used during a call to the voice mailbox
using the programmable keys.
4.4.9 New number
After an incoming or outgoing call with a number not stored in
the phonebook, this option allows you to activate or deactivate
a request to store the number in the phonebook.
User Manual
5 Contacts
5.1 Using the phonebook
When a contact is selected, the icon appears at the top of
the screen if it is a contact stored in the SIM card and the
icon if it is a contact stored in the phone.
Note: you can quickly reach a contact by typing the first letters [up to three]. Then you can display it by pressing the navigator central key.
5.2 Storing a new contact
– Select the New contact option on top of the list.
– Select the location where the new contact will be stored.
– Enter the last name and press the navigator central key.
– Enter the number and press the navigator central key.
Note: you can fill other fields if you store the contact in the
phone memory [email, address, ringtone, photo, etc.].
– Press [Save] to store it.
5.3 Calling a contact from the phonebook
You can use any of the following ways:
– Select a contact and press the green key to start the call.
– Select a contact, press the navigator central key to display
it, press [Call] to start the call.
– Direct call from the idle screen [only for the contacts stored
in the SIM card memory]: type the number with which the
contact was saved then [example: 21 ] or the number
then , the number is displayed, confirm.
User Manual
5.4 Contact options
To display the various options, select a contact and press
[Options].
5.4.1 Modify contact
Modify what you want and validate then select Save once the
modifications are complete.
5.4.2 Send message
This option lets you write a new message that will be sent to
the contact selected [see chapter Messages].
24–25
5.4.3 Send by message
A new message will be created that contains the selected
contact information, so that you can send them to another
correspondent.
5.4.4 Send by Bluetooth
To send the details of one, several or all the contacts by
Bluetooth
®
.
5.4.5 Copy to SIM/Copy to mobile
This option allows you to copy your phonebook contacts from
one memory to the other. Only the name and the first phone
number will be copied.
User Manual
5.4.6 Export
The contact details are copied as a visit card in the Files/My
Contacts directory.
5.4.7 My numbers
You can create the entries corresponding to your own
numbers in order to consult them when necessary.
Select My numbers and validate. Enter the different details and
validate.
5.4.8 Memory
Select SIM or Telephone and validate.
– Telephone: the memory capacity is shared between the
phonebook and various other features. If you lack memory,
check if you can free some space.
– SIM: this memory is only available for contacts.
5.4.9 Delete/Delete all
This option deletes the contacts selected.
5.4.10 Set as my card/Business card
The details of a contact stored in the phone memory can be
saved in a business card.
– Select a contact and press [Options].
–Select Set as my card and [OK]. The details are saved as
Business card. Then you can read it, modify it, send it by a
message or exchange it by Bluetooth
®
.
User Manual
5.4.11 Add to mailing list
This option adds a contact to a mailing list, so that you can
easily send messages to a group of correspondents.
5.4.12 Settings
– List choice: this menu lets you select the default
phonebook [SIM, Phone, SIM and Phone] displayed when
the phone switches on.
– Sorting: this menu lets you change the way contacts are
sorted [by name or first name].
5.5 Lists
A mailing list is a list of contacts, so that you can easily send
messages to a group of correspondents.
26–27
To create a new mailing list:
– In the phonebook, select the Lists tab pressing the
navigator right key.
– Press [Options].
–Select Add mailing list.
– Enter a name and press the navigator central key.
– Then, on a list press [Options]. Select Add contact each
time you want to add a contact in the list.
User Manual
6 Messages
From this menu, you are able to send SMS and MMS. MMS is
a Multimedia Message Service, which allows you to enclose
photos, audio files, and others rich contents to your messages;
these messages can even be composed of several slides.
MMS are charged differently than SMS. Please contact your
network provider to get more information on their cost and the
service availability.
6.1 Creating a text message [SMS or MMS]
–Select Messages/New/Message.
– Type your text. The T9 mode is applied by default.
Using the T9 text input mode
The Easy Message T9® mode helps you to easily
write your messages.
The language used is the one you can select with a long press
on the key [if the language selected is not compatible with
the Easy Message T9®, the English language will be
automatically selected].
To type a word, type its letters by pressing once each of the
corresponding keys, without paying attention to the display.
The Easy Message T9® will guess the word accordingly. For
example, type 4, 3, 5, 5, 6 to get the word hello.
The same key sequence can lead to several words from the
dictionary. If the word that appears is not the word you
expected, press the navigator up/down keys to scroll through
the words corresponding to this key sequence.
Once you agree with the word proposed on the screen, press
the navigator right key to validate it or press the 0 key [which
validates and inserts a space after the word], and go on writing
the next word.
User Manual
If the word you expected is not proposed, please add
characters until you get the message Add a word? Press [Yes]
and validate if the word displayed suits you or modify this word
before adding it to the dictionary.
Note: you may change to capital letter, small letter or 123
[digit] mode at any time by pressing the key.
You may also obtain the digits by pressing and holding the
key you want.
To change the language in T9 mode: press and hold the
key.
Using another mode
To deactivate T9 mode press and hold the key. The ABC
mode then applies: press each key several times in a row to get
the letter you want [for example, press 2 twice to display B].
As in T9 mode, you may change to capital letter, small letter or
123 [digit] mode at any time by pressing the key.
Note: you may change mode by pressing [Options].
28–29
Punctuation characters
Punctuation characters are obtained by pressing the 1 key
[except in 123 mode], or with the help of the Symbol input
mode [direct access with a short press on the key].
Accented characters
Accented characters are generated automatically in T9 mode.
In ABC mode accented characters are available by pressing
the key supporting the non-accented character repeatedly.
6.2 Saving the message without sending it
Select [Options]/Save [the message is saved in the Drafts
folder] or [Options]/Save as Template [the message is saved in
the Templates folder].
Note: if it is a SMS, you have to select where the message will be saved [SIM card or phone].
User Manual
6.3 Sending the message
– Once the text is complete, press the navigator central key
or select [Options] then [Add recipient].
– Enter the receiver’s number or take it from your phonebook
by selecting [Options], then [Contacts]. You can also select
a contacts list in your phonebook.
–Select Send.
6.4 Receiving messages
When you receive a message, the phone plays the ring tone
that you selected, and a message icon appears.
This icon remains until you have read all your messages. When
it flashes, the memory is full.
Note that you have two different possibilities to receive MMS:
automatically or manually; if "manual mode" is activated, then
you will only receive a notification in your Inbox, meaning that
a MMS is available on the MMS Server; select Retrieve in the
options when you want to retrieve the MMS from the network.
6.5 Messages menu
6.5.1 Inbox
Messages are listed in chronological order, the latest one
being displayed first.
The number of Not Read and Not Retrieved messages is
displayed on the top. The corresponding messages titles are
displayed in bold.
User Manual
6.5.2 Outbox
The Outbox lists the messages that have not been sent. You
can therefore send them again.
6.5.3 Sentbox
The Sentbox is used to store all your sent messages if you
activated the option Store sent messages in the Settings
menu.
Warning: Too many messages saved will quickly fill up the available memory, and you will not be able to receive more messages until you delete some.
6.5.4 Drafts
The Drafts list contains all the messages you saved prior to
sending it.
30–31
To modify such a draft message, select it and press the
navigator central key, or select [Options] then [Modify].
Once your message is complete, you can send it by the usual
way.
6.5.5 Templates
Templates are messages you saved with the Save as template
option, so that you can edit them anytime to save typing.
6.5.6 Settings
This menu allows you to select various sending and receiving
options.
User Manual
6.5.7 Memory
– SMS: displays the memory available in the SIM card and in
the phone to save SMS.
– MMS: displays how much memory is used by the MMS.
6.5.8 Local information
This menu is used to activate reception of information
broadcast by the network.
You can choose whether you want to receive this information
or not [please contact your network provider].
6.5.9 Voicemail
This option calls your voicemail.
The number depends on the operator.
6.5.10 Lists of contacts
This option leads you to the mailing lists created in the
phonebook [see chapter Contacts].
User Manual
7 Multimedia functions
7.1 Camera
Warning: the camera is equipped with a flash for a shot in
case of low luminosity. For your safety, take care not to use
the flash close to a person in order to avoid any risk of
ocular lesion. In the same way, take care not to use the
flash near a vehicle driver.
1] 2]2]
7.1.1 Taking a photo
First you must turn the display to the camera position as shown
on the figures hereafter.
32–33
4]3]
The camera is now on and you can use your mobile phone like
any digital camera.
When you are ready to take a photo, slightly press the little side
key and hold it until the auto-focus is set, then fully press the
key to take the picture.
To zoom in and out, use the + and - side keys.
User Manual
Note: If the zoom selected does not match with the photo
format, the photo is automatically saved in an appropriate
format.
Photo camera settings
When the display is turned in camera position, the fingerprint
sensor acts like navigation keys: swipe your finger flat on it to
navigate in the menus. For example, swipe your finger from left
to right to move one step to the right. To validate, just press
your finger flat on the sensor for a short moment.
To go into the photo settings menu, press your finger flat on
the fingerprint sensor and navigate to the left/right to choose
an option: Applications, Flash, Photo format, Photo quality,
Focus, Saving location, Click sound, Timer, Modes, Effects or
Exposure. Then navigate up/down to select a setting and
validate with a short press on the sensor.
Once the photo is taken, it is saved in the phone memory or in
the memory card according to the saving location you have
selected.
If there is not enough memory to save the photo, a warning
message appears, prompting you to confirm whether you want
to go on.
Note: Using the camera during a call may disturb the call quality.
7.1.2 Recording a video
To record a video, turn the display to the camera position, then
press your finger on the fingerprint sensor to reach the
Applications menu and press again to validate the Video
camera option.
To start and stop recording, fully press the little side key. You
can also zoom in and out using the + and - side keys.
Briefly press your finger on the fingerprint sensor to go the
video settings menu, and navigate to choose an option:
Applications, Video quality, Video sound, Saving location,
Torch. Select Photo Camera to go back to photo preview.
User Manual
7.1.3 Browsing in the Media album
Once you have taken photos and recorded videos, you can
browse in the album from the camera position. Press your
finger on the fingerprint sensor to reach the settings menu,
select the Media album option and validate with a short press
on the sensor.
Navigate up/down using the fingerprint sensor to go to the
previous/next photo or video. To play and stop a video, fully
press the little side key.
Press the - side key to get a thumbnails view of your album and
navigate even faster. When you reach the photo or video you
want, press the + side key to display it in full screen.
When a photo or video is displayed, press your finger on the
fingerprint sensor to get options. Select New photo or New
video to go back to photo or video preview.
34–35
7.2 Player
The 3D sound effect is under licence from
Arkamys.
The integrated player is a fully featured
audio/video player with full-screen rendering, equalizer, sound
effects, playlists and a library with support for tags. It lets you
play music in the background while you are using any other
function of your mobile phone, and can still be commanded
with the phone side keys or the headset's Remote Control.
Important note: you can use any function of your mobile
phone while still listening to music in the background. Just
play music, quit the Player and answer Yes.
You can download music by connecting your phone to a PC
using a USB cable or Bluetooth
®
.
User Manual
3
2
7.2.1 Player mode
You can control music playback from the Player menu, or from
any other menu using the side keys.
When you listen to music its title is displayed on the idle
screen.
You may use the side keys for the following functions:
– Play or pause music
– Set the volume [short press]
– Change to the next or previous piece of
music [long press]
7.2.2 Control keys in the Player
1]
]
]
[Back]: exits the player while continuing to listen to music.
Various options to listen to music
– Playlist: displays the playlists.
– Library: lets you create playlists with all the music that is
stored in your phone and memory card.
You can select music from regular directories [Phone,
microSD™], from playlists you created, from automatic
lists [Recently played, Most played] or from the Sorted
folders to take advantage of the tags in your music files.
1] previous piece
4]
2] rewind
5]
3] next piece 4] play/pause 5] fast forward
User Manual
– Play: plays pieces of music from the playlist.
– Play options: lets you select the playback order.
– Repeat options: lets you replay the current playlist.
– Equalizer: offers a choice of equalization presets or custom
settings.
– View mode: offers a choice of visuals to illustrate music.
– Sound effects: lets you add special effects like 3D
rendering for both headset and speakers.
– Memory: displays the memory used by music files, along
with the other objects.
– Details: displays the properties of the selected music file.
7.2.3 Video playback
You can play video as well as music, with the same options.
Important note: to watch your video in full screen, play it in
the player then turn the display to the camera position [see
chapter Camera]. You can still control the player using the
side keys and the fingerprint sensor.
36–37
To convert and optimize your videos to the phone Player
format, use the Porsche Design Video Encoder PC
software available from the Downloads section of the
official website [http://www.mobileporschedesign.com].
The Player may not be compatible with some video
formats, unless they are converted with the official Video
Encoder.
7.2.4 Accessories
You may also listen to music using a hands-free kit or
Bluetooth
®
stereo headset [AADP and AVRCP profiles].
You can listen to music using the integrated stereo speakers,
or the headset with its Remote Control.
User Manual
7.3 Files
The Files menu contains all your files and directories, including
those you may have downloaded. A file can be a photo, a
video, a ring tone, music or anything else just like a computer
file.
There are two tabs that you can select by pressing the
navigator left/right keys:
– Phone tab [phone memory]
– microSD™ tab [available if you have inserted a memory
card in your phone].
Note: the memory card is provided with the phone.
You can copy or move the files from the phone to your memory
card, and from the card to your phone.
To display the various options of a directory, select it and press
[Options].
– Browse: enters the directory to display its contents.
– Rename: lets you modify the directory name.
– Delete: allows you to delete the directory.
– New folder: creates a new directory.
– New...: lets you take a new photo or video or to record a
sound.
– Format: deletes all the memory contents [phone or
microSD™].
Warning: all the files saved in this memory will be deleted.
– Memory: displays the memory used and available for files
and personal data.
To display the various options of a file, press [Options]. The list
of available options depends on the file type [photo, music,
etc.] but always includes Rename, Delete, Copy, Move, New
folder, New..., Format and Memory.
User Manual
8 Connection functions
8.1 Internet
Opera Mini™ offers user-friendly access to all Web pages. It
has all the features expected of a browser, and more, such as
smooth scrolling, bookmarks, history, search, secure
connection and RSS feeds. In addition, Opera Mini™
recognizes your phone capabilities and optimizes Web pages
accordingly for fast and easy browsing.
More information is available from http://www.operamini.com.
8.2 Email
You can access your email account by using the Internet
browsing.
38–39
8.3 WAP
WAP [Wireless Application Protocol] is a protocol that gives
you access to dedicated Internet sites from your mobile
phone. Using a WAP browser, you will be able to get
information and to download multimedia files such as ring
tones, screensavers, Java™ applets, videos and more.
The WAP navigator is under licence from:
The WAP navigator and the softwares included are the
exclusive property of Openwave. For this reason, it is
forbidden to modify, translate, disassemble or even decompile
all or part of these softwares.
User Manual
8.3.1 WAP connection
The connection to a WAP service on the GSM, GPRS or EDGE
network is not cut if an incoming call is received. You can
answer the call.
If you are connecting to the GSM, GPRS or EDGE network, the
symbol flashes, then you are charged.
8.3.2 Downloading objects
Some WAP sites allow you to download ring tones,
screensavers, Java™ applets, videos and more. Just follow
the instructions displayed on the corresponding pages, and
the files will be available from the Files menu.
8.3.3 WAP disconnection
To disconnect, press the red key. Disconnection happens
automatically after a few seconds of inactivity if you forget to
disconnect. This period is defined by the linger time setting.
8.4 Connections
You can exchange various data with other devices [PC, mobile
phones, personal assistants, printers, etc.] such as photos,
videos, music, To do tasks, Diary entries, contacts, etc.
Data exchange can be done through:
– a USB cable,
–a Bluetooth
®
connection.
User Manual
8.4.1 Bluetooth
Bluetooth® is a technology used to establish a wireless
connection with other Bluetooth
®
®
equipped devices: for
example, with a pedestrian kit or a car kit to phone or with a PC
to swap data. The range is about 10 m.
Paired devices
This menu lets you draw up the list of devices with which the
Bluetooth
®
connection is secure [by authentication and
encryption].
A device must be added to this list before it can be used in
Bluetooth
When you select send by Bluetooth
®
with your phone except for exchanging objects.
®
[photo, Todo task,
contact details, etc.] the phone displays the list of devices. You
do not need to select a device from this list at this time, you can
start a one-off search for a device when you initiate sending.
40–41
Mode
With this menu you can, on the one hand, activate and
deactivate the Bluetooth
when the Bluetooth
want other Bluetooth
device.
– Off: the Bluetooth
– On and hidden: your phone is not visible. It cannot be
detected by other Bluetooth
®
function and, on the other hand,
®
function is activated, select whether you
®
devices to be able to detect your
®
function is not available.
®
devices. In this mode, a
device can only connect to your phone using Bluetooth
you have already paired it. This mode lets you detect other
devices and pair with them from your phone.
– On and visible: your phone is visible for a period of
3 minutes. During this period, it can be detected by the
other Bluetooth
Select this mode when a pairing with your phone has been
initiated from another Bluetooth
–
On and always
the other
®
devices.
®
device.
: your phone is visible and can be detected by
Bluetooth® devices as long as this mode is selected.
®
if
User Manual
Important:
–The Off option ensures the best battery life for your phone.
– Bluetooth
®
security is better guarded when your phone
remains hidden to the other devices.
Pairing procedure
Select Paired devices/New device.
If the Bluetooth
to activate it using one of the 3 modes described above.
The phone searches for visible Bluetooth
®
function is not active, the phone prompts you
®
devices and
displays the list. Select the device concerned and validate your
choice.
Your phone then prompts you to enter a code which must be
the same as the code entered on the remote device. Enter and
validate this code: Your phone is now paired with the remote
device.
Note: refer to the user manual of the device with which you are pairing to find out how to set this device to the mode allowing this operation.
The code of the remote device may be predefined by the
device manufacturer. In this case, refer to the user manual of
this device to find out this code.
Device options
To display the various options of a device, press [Options]:
– Delete: deletes the device. Warning: using this function
requires you to start the pairing operation again if you need
this device later.
– Rename: lets you modify the name of the device.
– Delete all: deletes all your devices. Warning: using this
function requires you to start the pairing operation again if
you need one of these devices later.
– Activate: activates the connection with the device.
– Deactivate: deactivates the connection with the device.
– Mark as trusted: makes this device one of the trusted
devices, so that they can connect to your phone without
any confirmation. This option is only available if you have
activated the Trusted devices mode [see section Trusted
devices].
User Manual
– Set as favourite: gives priority to this device when several
devices are competing to connect to your phone. This is
particularly convenient when you are using more than one
headsets, and one is preferred. For example, you may want
the integrated headset of your car to take over the headset
in your pocket when you are driving.
My Bluetooth name
This is the name used to identify your phone when it is
detected by another Bluetooth
®
device.
Trusted devices
You can select some devices as being trusted so that
connection to your phone will be done automatically without
request of a code and a confirmation.
This is particularly convenient for a File Transfer Profile [FTP]
device that will make multiple accesses to your phone when
transfering a group of files.
To make the trusted option available to devices, you need to
activate the Trusted devices mode first.
42–43
8.4.2 USB mode
This menu lets you select the USB mode when connecting the
phone to a peripheral using the USB cable.
– At plugging-in: if you select this option, you will be asked
to select the mode you want each time you connect your
mobile phone.
– Modem: to exchange personal data between your phone
and a PC.
– USB key: to exchange files between the phone memory or
memory card, and a PC.
– Printer PictBridge: to connect the phone to a photo printer
without using a PC.
Data exchange between the phone and a PC with a USB cable
connection
– File exchange between the phone memory or memory
card, and a PC
First select the USB key mode.
User Manual
After connection of the USB cable between the phone and
the PC, the memory card is considered as an additional
memory in the Windows explorer files directory; just copy
files as you usually do on the PC.
Notes when the phone is connected to a PC in USB key mode:
The memory card cannot be used by the phone until the PC is
disconnected. Consequently, if you have configured your
phone with a wallpaper or a ring tone stored in the memory
card, those will not be available on the phone during the
connections. If your memory card is the default location for
photos and videos, you will no be able to take any during the
connections.
– Personal data exchange between your phone and a PC
First select the Modem mode.
After connection of the USB cable between the phone and the
PC, use the Porsche Design Mobile Manager software on your
PC [available from http://www.wellphone.com/porschedesign] to browse the contents of your mobile phone, to
synchronize, backup and restore your personal data, to
connect to the Internet using your phone as a modem, etc. See
your enclosed personal software licence number leaflet for all
necessary details.
Note: If a call comes in during an exchange of data with your PC, the link will be interrupted and will have to be manually re-started.
8.4.3 Car kit or headset
This menu allows you to configure the behaviour of the phone
when connected to a pedestrian.
User Manual
8.4.4 Synchronization
You can synchronize your contacts, your Diary entries and
your To do tasks with your computer with the Porsche Design
Mobile Manager PC software [available from
http://www.wellphone.com/porsche-design]. You only have to
activate Bluetooth
®
on your phone, or to configure a USB
connection in Modem mode.
44–45
9 Phone customization
9.1 Phone
9.1.1 Ring tones
This menu allows you to allocate a ring tone to different events
[incoming call, incoming message].
9.1.2 Silent mode
This menu allows you to switch to Silent mode.
Silent mode can also be activated from the idle screen with a
long press on the key.
When the phone is in silent mode, this icon appears on the
idle screen.
In this mode, the ring tone will not ring, except for the
alarm.
User Manual
Note: if you have activated the silent mode, it will still be
activated after you have switched your phone off then on.
9.1.3 Vibrate
This menu allows you to activate the vibration along with ring
tones.
9.1.4 Beeps
This menu allows you to activate a beep for the keypad, the
network, the battery or the flap.
9.1.5 Languages
This menu allows you to choose the phone language.
9.1.6 Date / Time
These menus allow you to modify the date and time, and the
associated settings [Automatic update, Display, Time zone,
Daylight savings, etc.].
9.1.7 Active flap
If you select Activate, calls are accepted as soon as you open
the phone flap.
Note: closing the flap always hangs up, except when you
are using a Bluetooth
®
headset.
9.1.8 Shortcuts
This menu allows you to allocate functions to the left and right
programmable keys.
User Manual
9.1.9 Auto orientation
This menu allows you to activate the automatic rotation of the
display according to the orientation of the phone in the camera
position. This is particularly convenient when taking a photo or
browsing the Media album in different orientations.
9.2 Display
This menu allows you to customize your display with different
presentations.
9.2.1 Wallpaper
This menu allows you to select a background picture.
You can select a wallpaper from the phone default wallpapers
[Preloaded] or from your own files [Multimedia], or several
wallpapers in a random way [Random].
46–47
You can also select the connection link [Download more] to
download pictures from WAP sites.
In the [Preloaded] or [Multimedia] option, select a wallpaper in
the list and:
– press [Select] to validate your wallpaper selection, or
– press the navigator central key: the picture is displayed.
Press [Select] to select it as your phone wallpaper or press
the navigator up/down key to display the others.
9.2.2 Skins
This menu allows you to select the background picture when
displaying menus.
9.2.3 Screensaver
This menu allows you to display an animation when the phone
is in standby mode.
User Manual
You can select a screensaver from the phone default
screensavers [Preloaded] or from your own files [Multimedia],
or even a slide show of your own files [Slide show].
You can also select the connection link [Download more] to
download pictures and animations from WAP sites.
In the [Preloaded] or [Multimedia] option, select a screensaver
in the list and:
–Press [Select] to validate your screensaver selection, or
– Press the navigator central key: the picture is displayed.
Press [Select] to select it as your phone screensaver or
press the navigator up/down key to display the others.
9.2.4 Operator logo
This menu allows you to display or hide the operator's logo on
the idle screen.
9.2.5 Energy saving
Backlight
– Screen only: only the screen is lit.
– Full backlight: both the screen and the keypad are lit.
Note: in any case, after a certain time of inactivity, the backlight will be automatically turned off to save battery life.
9.2.6 Contacts
This menu allows you to select the way to sort contacts in the
list of contacts [by last name or first name] and to select the
default phonebook [SIM, Phone, SIM and Phone] displayed
when the phone switches on.
User Manual
9.2.7 Call Font
This menu allows you to select a font size for the call number
you dial from the idle screen.
9.2.8 Connections
See section 8.4 Connections.
9.3 Fingerprint
The biometric functions used with this mobile phone are only
of incidental interest. Using these functions is only intended to
the phone user to practise personal activities exclusively.
This menu is used to modify the selections you made at the
first fingerprint enrollment or to enroll if it has not be done at
first use.
48–49
9.4 Multimedia
9.4.1 Media player
This menu allows you to select the play, view and repeat music
options.
9.4.2 Camera
This menu allows you to modify the camera settings [Timer,
Click sound, Photo format and quality].
User Manual
9.4.3 Video
This menu allows you to modify the video settings.
– Video sound: lets you record a video with or without sound.
– Video size restriction: allows you to limit the video size so
that you can send it in a message [MMS format] or to
record as long as you have memory left [None].
– Torch: lets you activate or not the torch when recording a
video.
9.4.4 Storage
This menu allows you:
– to format the phone memory or memory card.
– to select where the files are saved [phone memory or
memory card].
9.5 Calls
See section 4.4 Calls parameters.
9.6 Security
9.6.1 PIN
This menu allows you to activate and modify your phone PIN.
To modify the PIN, select Modify PIN and [Select].
Enter your old PIN and validate.
Enter your new PIN twice and validate.
To activate or deactivate the PIN, select the Control PIN menu
and [Select].
Enter your PIN and validate.
Select On or Off and validate.
User Manual
9.6.2 PIN2
You may need a second PIN to access certain functions.
These functions may or may not be available depending on
your SIM card.
Proceed as above in order to activate, deactivate or modify the
PIN 2 of your phone.
9.6.3 Confidentiality
The confidentiality settings prevent your personal data to be
retrieved by another user of your phone.
When active for calls, the calls log will be deleted each time
your phone is switched off.
When active for messages or diary entries, those will be
deleted when a different SIM card is inserted in your phone.
50–51
9.6.4 Operator
This menu lets you modify the operator code required to
modify the call barring settings [see hereafter].
Access to this service depends on your type of subscription.
9.6.5 Call barring
This menu allows you to block the sending or receiving of
certain calls.
Before you can use this service, a code will be provided by
your operator when you take out your subscription.
Access to this service depends on your subscription type.
To activate call barring:
– select incoming or outgoing calls.
– Select the call type for which you want to activate call
barring.
User Manual
–Select:
— either All,
— or If roaming, if you are away from your home country
and if roaming is available, so that only incoming calls
will be blocked.
– Select Activation and enter password.
9.6.6 Fixed dialling
This menu allows you to restrict the outgoing calls.
The availability of this menu depends on your SIM card.
Proceed as for any other list of contacts.
When activating this function, only the numbers stored in that
list of contacts can be called.
This phonebook is linked to the SIM card, and its size depends
on the card's capacity.
9.7 Networks
This menu allows you to configure network preferences.
Choose Selection to activate [automatically or manually] one of
the networks accessible in the area in which you are located.
Choose Preferred to view all the pre-registered networks.
Choose Network type to select your network: GSM-DCS or
PCS.
Choose GPRS to select the way you want to be attached on
the GPRS network: always, or only when needed [when
launching a data connection].
9.8 Browsers
This menu allows you to set various parameters required for
Internet and WAP connections [see chapter Connection
functions].
User Manual
10 Other functions
10.1 Java applets
This menu contains some applets for demonstration and the
applets you have downloaded.
10.2 Calculator
This menu allows you to use your phone as a calculator.
Use the navigator keys to make calculations:
–Up: add
–Down: subtract
– Right: multiply
– Left: divide
The following keys are used for:
– Left programmable key: equals or convert
– Right programmable key: delete
– or : decimal point.
52–53
10.3 Alarm - Timer
These menus allow you to set and activate the alarm and the
timer.
The alarm will ring even when the phone is switched off.
The alarm icon appears on the idle screen.
10.4 Diary
This menu gives you access to your diary, so that you can
check a day, week, month or specific date.
The Calendar menu lets you add entries, access the global
actions for all the entries and manage them by entry category.
– New written meeting/New vocal meeting: adds an entry of
the text or voice type. Fill in the different items. Save the
entry.
– Delete: deletes entries that took place more than one day,
week or month ago.
User Manual
– Memory: displays the memory used by your diary.
– Delete all: deletes all the entries from your diary.
– Categories: allows you to display the different entry
categories, assign a specific ring tone to each individual
category, display the number of entries in each category
and display them.
The other menus are:
– See month: displays the entries on a month-by-month
basis.
– See week: displays the entries on a week-by-week basis.
– See today: displays the entries for the current day and
gives you access to the possible actions for any entry [See,
Modify, Delete and Send].
– See date: displays the entries at a specific date.
10.5 To do
This menu allows you to add To do’s, access category-based
To do management and delete all the To do’s.
If there is no To do, the options below are displayed.
If there is a To do, press [Options] to display the options.
– New written To do/New vocal To do: adds a To do of the
text or voice type. Fill in the different items. Save the To do.
– Delete all: deletes all the To do’s from your To do.
– Memory: displays the memory used by your To do’s.
– Categories: allows you to display the different To do
categories, assign a specific ring tone to each individual
category, display the number of To do’s in each category
and see them.
To display a To do, select it in the list and press the navigator
central key.
User Manual
To display the different options for a specific To do, press
[Options].
– Modify To do: lets you modify the To do properties.
– Delete: deletes the To do.
– Send by message: creates a new message that contains
the To do properties, so that you can send them to another
correspondent.
– Send By Bluetooth: sends the To do by Bluetooth
®
.
– Export: copies the To do properties in a text file, that you
can act on in the Files menu.
10.6 Services
This item may not be present on your phone menu, as its
contents depends on your SIM card.
54–55
11 Appendix
11.1 Technical features
Weight: 139 g
Size: 91 x 48 x 18,4 mm
Original battery: 770 mAh
Battery life calls/standby: up to 3 h 15/240 h [these values are
theoretical ones and given for information only]
Camera: 3.2 megapixels with auto-focus and flash
Multimedia objects supported:
– Audio formats: Midi, WAV, AMR NB, AMR WB, MP3, AAC,
AAC+, eAAC+
– Graphic formats: bmp, jpeg, png, gif
– Video formats: H.264, 3GP, MPEG4
Size of memory available for messages: 100 SMS
Size of memory available for MMS, the phonenook and the
multimedia objects: up to 22 MB
Memory card maximum size: 4 GB
User Manual
Maximum size of each message:
– SMS: < 160 characters
– MMS: < 100 kB for outgoing messages, 300 kB for
incoming messages [depends on the phone configuration
and on the operator reservations]
Compatible profiles for accessories:
– File transfer: FTP
– Stereo headset: AADP - AVRCP
– Car kit - Headset - Hands-free kit: HSP and HFP
– Object transfer: OPP
– Modem: SPP/DUNP
Using temperature: from -10°C to +55°C
11.2 Certification and safety information for the United States
and countries using FCC standards
11.2.1 FCC Part 15 statement
This device complies with part 15, part 22 and part 24 of the
FCC rules. Operation is subject to the following two
conditions: [1] this device may not cause harmful interference,
and [2] this device must accept any interference, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
User Manual
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Warning: changes or modifications made to this equipment
not expressly approved by Sagem Mobiles for compliance
could void the user's authority to operate the equipment.
56–57
11.2.2 FCC SAR information
THIS MODEL PHONE MEETS THE FCC'S REQUIREMENTS
FOR EXPOSURE TO RADIO WAVES
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the limits for
exposure to radiofrequency [RF] energy set by the United
States Federal Communications Commission [FCC]. These
limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by
independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards
include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a
unit of measurement known as the Specific Absorption Rate,
or SAR. The SAR limit set by the FCC and Health Canada is
1.6 W/kg
*
. Tests for SAR are conducted using standard
User Manual
operating positions accepted by the FCC with the phone
transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone
while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
Before a phone model is available for sale to the public, it must
be tested and certified to the FCC that it does not exceed the
RF limit established by the government-adopted requirement
for safe exposure. The tests are performed in positions and
*. In the United States and Canada, the SAR limit for mobile
phones used by the public is 1.6 watts/kilogram [W/kg]
averaged over one gram of tissue. The standard
incorporates a substantial margin of safety to give
additional protection for the public and to account for any
variations in measurements.
locations [i.e., at the ear and worn on the body] as required by
the FCC for each model.
The highest SAR value for these model phones as reported to
the FCC when tested for use at the ear and when worn on the
body are [measured at a distance of 0.59 inches [1.5 cm]]:
SAR at the ear
[W/kg]
PCS 1900 PCS 1900
0.20 0.40
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the FCC
requirement. The FCC has granted an Equipment
Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this model phone is on file with
the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC ID
M9HEC2007P.
SAR worn on the body
[W/kg]
User Manual
Additional Information can be found on the website of the
World Health Organization [http://www.who.int/emf].
11.2.3 Safety Information
Aircraft: Switch off your wireless device whenever you are
instructed to do so by airport or airline staff. If your device
offers a “flight mode” or similar feature, consult airline staff as
to its use in flight.
Driving: Full attention should be given to driving at all times,
and regulations restricting the use of wireless devices while
driving must be observed. For further driving safety tips,
please refer to Driving safety tips at page 64.
Hospitals: Mobile phones should be switched off whenever
you are requested to do so in hospitals, clinics or health care
facilities. These requests are designed to prevent possible
interference with sensitive medical instruments.
Gas stations: Obey all posted signs with respect to the use of
wireless devices or other radio equipment in locations with
58–59
flammable material and chemicals. Switch of your wireless
device whenever you are instructed to do so by authorized
staff.
Interference with personal medical devices: You should always
consult your physician and review the device manufacturer's
instructions to determine if operation of your phone may
interfere with the operation of your medical device. As a
general rule:
– For pacemakers: Pacemaker manufacturers recommend
that a minimum separation of 6 inches [15 cm] be
maintained between a mobile phone and a pacemaker to
avoid potential interference with the pacemaker. To
achieve this, use the phone on the opposite ear to your
pace maker and do not carry it in a breast pocket.
– For hearing aids: Some digital wireless phones may
interfere with some hearing aids. In the event of such
interference, you may want to consult your hearing aid
manufacturer to discuss alternatives.
User Manual
The ring tone, info t ones, and handsfree talking are reprodu ced
through the loudspeaker. Do not hold the phone to your ear
when it rings or when you have switched on the handsfree
function [at least 3.9 inches [10 cm]].
Use only batteries and charging devices designed for your
phone. Otherwise you risk serious damage to health and
property and may void any warranty.
Caution! Small parts like the SIM card could be swallowed
by young children.
Do NOT open the phone. Only the battery and the SIM card
may be removed. Do NOT open the battery.
Keep the battery out of chidren’s reach. Do not allow the
battery to be put into the mouth.
11.2.4 Distance of operation
This phone is designed to comply with the FCC radio
frequency [RF] exposure guidelines when used as follows:
– Against the ear: Place or receive a phone call and hold the
phone as you would a wireline telephone.
– Body worn: When transmitting, place the phone in a
carrying accessory that contains no metal and positions
the phone a minimum of 0.59 inches [1.5 cm] from your
body. Use of other accessories may not ensure
compliance with exposure guidelines. If you do not use a
body worn accessory and are not holding the phone at the
ear, position the phone a minimum of 0.59 inches [1.5 cm]
from your body.
– Data operation: When using a data feature, position the
phone a minimum of 0.59 inches [1.5 cm] from your body
for the whole duration of the data transmission.
11.2.5 FDA consumer information on wireless phones
The US Food and Drug Administration [FDA] provides
consumer information on wireless phones
at: http://www.fda.gov/cellphones/qa.html.
User Manual
Following are safety related questions and answers discussed
at this web site:
Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health
problems are associated with using wireless phones. There is
no proof, however, that wireless phones are absolutely safe.
Wireless phones emit low levels of radiofrequency energy [RF]
in the microwave range while being used. They also emit very
low levels of RF when in the stand-by mode. Whereas high
levels of RF can produce health effects [by heating tissue],
exposure to low level RF that does not produce heating effects
causes no known adverse health effects. Many studies of low
level RF exposures have not found any biological effects.
Some studies have suggested that some biological effects
may occur, but such findings have not been confirmed by
additional research. In some cases, other researchers have
had difficulty in reproducing those studies, or in determining
the reasons for inconsistent results.
60–61
What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-
emitting consumer products such as wireless phones before
they can be sold, as it does with new drugs or medical devices.
However, the agency has authority to take action if wireless
phones are shown to emit radiofrequency energy [RF] at a level
that is hazardous to the user. In such a case, FDA could require
the manufacturers of wireless phones to notify users of the
health hazard and to repair, replace or recall the phones so that
the hazard no longer exists.
Although the existing scientific data do not justify FDA
regulatory actions, FDA has urged the wireless phone industry
to take a number of steps, including the following:
– Support needed research into possible biological effects of
RF of the type emitted by wireless phones;
– Design wireless phones in a way that minimizes any RF
exposure to the user that is not necessary for device
function; and
User Manual
– Cooperate in providing users of wireless phones with the
best possible information on possible effects of wireless
phone use on human health.
FDA belongs to an interagency working group of the federal
agencies that have responsibility for different aspects of RF
safety to ensure coordinated efforts at the federal level. The
following agencies belong to this working group:
– National Institute for Occupational Safety and Health
– Environmental Protection Agency
– Federal Communications Commission
– Occupational Safety and Health Administration
– National Telecommunications and Information
Administration
The National Institutes of Health participates in some
interagency working group activities, as well.
FDA shares regulatory responsibilities for wireless phones with
the Federal Communications Commission [FCC]. All phones
that are sold in the United States must comply with FCC safety
guidelines that limit RF exposure. FCC relies on FDA and other
health agencies for safety questions about wireless phones.
FCC also regulates the base stations that the wireless phone
networks rely upon. While these base stations operate at
higher power than do the wireless phones themselves, the RF
exposures that people get from these base stations are
typically thousands of times lower than those they can get
from wireless phones. Base stations are thus not the primary
subject of the safety questions discussed in this document.
What is FDA doing to find out more about the possible health
effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and
with groups of investigators around the world to ensure that
high priority animal studies are conducted to address
important questions about the effects of exposure to
radiofrequency energy [RF].
FDA has been a leading participant in the World Health
Organization International Electromagnetic Fields [EMF]
Project since its inception in 1996. An influential result of this
work has been the development of a detailed agenda of
User Manual
research needs that has driven the establishment of new
research programs around the world. The Project has also
helped develop a series of public information documents on
EMF issues.
FDA and the Cellular Telecommunications & Internet
Association [CTIA] have a formal Cooperative Research and
Development Agreement [CRADA] to do research on wireless
phone safety. FDA provides the scientific oversight, obtaining
input from experts in government, industry, and academic
organizations. CTIA-funded research is conducted through
contracts to independent investigators. The initial research will
include both laboratory studies and studies of wireless phone
users. The CRADA will also include a broad assessment of
additional research needs in the context of the latest research
developments around the world.
What steps can I take to reduce my exposure to
radiofrequency energy from my wireless phone?
If there is a risk from these products--and at this point we do
not know that there is--it is probably very small. But if you are
62–63
concerned about avoiding even potential risks, you can take a
few simple steps to minimize your exposure to radiofrequency
energy [RF]. Since time is a key factor in how much exposure
a person receives, reducing the amount of time spent using a
wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless
phone every day, you could place more distance between your
body and the source of the RF, since the exposure level drops
off dramatically with distance. For example, you could use a
headset and carry the wireless phone away from your body or
use a wireless phone connected to a remote antenna.
Again, the scientific data do not demonstrate that wireless
phones are harmful. But if you are concerned about the RF
exposure from these products, you can use measures like
those described above to reduce your RF exposure from
wireless phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to users of
wireless phones, including children and teenagers. If you want
User Manual
to take steps to lower exposure to radiofrequency energy [RF],
the measures described above would apply to children and
teenagers using wireless phones. Reducing the time of
wireless phone use and increasing the distance between the
user and the RF source will reduce RF exposure.
Some groups sponsored by other national governments have
advised that children be discouraged from using wireless
phones at all.
Do hands-free kits for wireless phones reduce risks from
exposure to RF emissions?
Since there are no known risks from exposure to RF emissions
from wireless phones, there is no reason to believe that
handsfree kits reduce risks. Hands-free kits can be used with
wireless phones for convenience and comfort. These systems
reduce the absorption of RF energy in the head because the
phone, which is the source of the RF emissions, will not be
placed against the head. On the other hand, if the phone is
mounted against the waist or other part of the body during use,
then that part of the body will absorb more RF energy. Wireless
phones marketed in the U.S. are required to meet safety
requirements regardless of whether they are used against the
head or against the body. Either configuration should result in
compliance with the safety limit.
Do wireless phone accessories that claim to shield the head
from RF radiation work?
Since there are no known risks from exposure to RF emissions
from wireless phones, there is no reason to believe that
accessories that claim to shield the head from those emissions
reduce risks. Some products that claim to shield the user from
RF absorption use special phone cases, while others involve
nothing more than a metallic accessory attached to the phone.
Studies have shown that these products generally do not work
as advertised. Unlike "hand-free" kits, these so-called
"shields" may interfere with proper operation of the phone. The
phone may be forced to boost its power to compensate,
leading to an increase in RF absorption.
User Manual
11.2.6 Driving safety tips
Wireless phones give people the ability to communicate
almost anywhere, anytime. But an important responsibility
accompanies those benefits, one that every wireless phone
user must uphold. When driving a car, driving is your first
responsibility.
Below are safety tips to follow while driving and using a
wireless phone that should be easy to remember.
Get to know your wireless phone and its features such as
speed dial and redial.
When available, use a hands free device.
Position your wireless phone within easy reach and where you
can grab it without removing your eyes from the road. If you get
an incoming call at an inconvenient time, if possible, let your
voice mail answer it for you.
Let the person you are speaking with know you are driving; if
necessary, suspend the call in heavy traffic or hazardous
weather conditions.
64–65
Do not take notes or look up phone numbers while driving.
Dial sensibly and assess the traffic; if possible, place calls
when you are not moving or before pulling into traffic. Try to
plan your calls before you begin your trip. But if you need to
dial while driving, follow this simple tip--dial only a few
numbers, check the road and your mirrors, then continue.
Do not engage in stressful or emotional conversations that
may be distracting.
Use your wireless phone to call for help. Dial 9-1-1 or other
local emergency number in the case of fire, traffic accident,
road hazard or medical emergency.
Use your wireless phone to help others in emergencies. If you
see an auto accident, crime in progress or other serious
emergency where lives are in danger, call 9-1-1 or other local
emergency number.
User Manual
Call roadside assistance or a special wireless non-emergency
assistance number when necessary. If you see a broken-down
vehicle posing no serious hazard, a broken traffic signal, a
minor traffic accident where no one appears injured or a
vehicle you know to be stolen, call roadside assistance or
other special non-emergency wireless number.
11.3 Certification and safety information for Europe and
countries using CE standards
11.3.1 CE conformance statement
User Manual
11.3.2 CE SAR information
THIS MODEL MEETS INTERNATIONAL GUIDELINES FOR
EXPOSURE TO RADIO WAVES
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines
were developed by the independent scientific organization
ICNIRP and include safety margins designed to assure the
protection of all persons, regardless of age and health.
The guidelines use a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit for mobile
devices is 2 W/kg and the highest SAR value for this device
when tested at the ear was 0.44 W/kg
offer a range of functions, they can be used in other positions,
such as on the body as described in this user guide
**
. As mobile devices
***
.
As SAR is measured utilizing the devices highest transmitting
**. The tests are carried out in accordance with international guidelines for
testing.
66–67
power the actual SAR of this device while operating is typically
below that indicated above. This is due to automatic changes
to the power level of the device to ensure it only uses the
minimum level required to reach the network.
The World Health Organization has stated that present
scientific information does not indicate the need for any
special precautions for the use of mobile devices. They note
that if you want to reduce your exposure then you can do so
by limiting the length of calls or using a 'hands-free' device to
keep the mobile phone away from the head and body.
Additional Information can be found on the websites of the
World Health Organization [http://www.who.int/emf].
Advice for limiting exposure to radiofrequency [RF] fields
For individuals concerned about limiting their exposure to RF
fields, the World Health Organization [WHO] provides the
following advice:
***. Please see the Distance of operation section about body
worn operation, page 69.
User Manual
Precautionary measures: Present scientific information does
not indicate the need for any special precautions for the use of
mobile phones. If individuals are concerned, they might
choose to limit their own or their children’s’ RF exposure by
limiting the length of calls, or using "hands-free" devices to
keep mobile phones away from the head and body.
Further information on this subject can be obtained from the
WHO home page http://www.who.int/peh-emf WHO Fact
sheet 193: June 2000.
11.3.3 Safety information
Never attempt to disassemble your phone. You alone are
responsible for how you use your phone and any
consequences of its use.
As a general rule, always switch off your phone wherever the
use of a phone is prohibited.
Use of your phone is subject to safety measures designed to
protect users and their environment.
Do not use your phone in damp areas [bathroom, swimming
pool…]. Protect it from liquids and other moisture.
Do not expose your phone to extreme temperatures lower than
- 10°C and higher than + 55°C.
The physicochemical processes created by chargers impose
temperature limits when charging the battery. Your phone
automatically protects the batteries in extreme temperatures.
Do not leave your phone within the reach of small children
[certain removable parts may be accidentally ingested].
Electrical safety
Only use the chargers listed in the manufacturer’s catalogue.
Using any other charger may be dangerous; it would also
invalidate your warranty. Line voltage must be exactly the one
indicated on the charger’s serial plate.
Aircraft safety
When travelling by plane, you will need to switch your phone
off when so instructed by the cabin crew or the warning signs.
Using a mobile phone may be dangerous to the operation of
User Manual
the aircraft and may disrupt the phone network.
Its use is illegal and you could be prosecuted or banned from
using cellular networks in the future if you do not abide by
these regulations.
Explosive materials
Please comply with warning signs at petrol station asking you
to switch your phone off. You will need to comply with radio
equipment usage restrictions in places such as chemical
plants, fuel depots and at any location where blasting
operations are under way.
Electronic equipment
To avoid the risk of demagnetisation, do not let electronic
devices close to your phone for a long time.
Electronic medical equipment
Your phone is a radio transmitter which may interfere with
electronic medical equipment or implants, such as hearing
aids, pacemakers, insulin pumps, etc. It is recommended that
a minimum separation of 15 cm be maintained between the
68–69
phone and an implant. Your doctor or the manufacturers of
such equipment will be able to give you any advice you may
need in this area.
Hospitals
Always make sure that your phone is switched off in hospitals
when so instructed by warning signs or by medical staff.
Road safety
Do not use your phone when driving. In order to give your full
attention to driving, stop and park safely before making a call.
You must comply with any current legislation.
Accessories
We advise you the use of SAGEM brand accessories for an
optimal operating of your phone and of your accessories.
User Manual
11.3.4 Distance of operation
This phone model has been tested and meets radiofrequency
exposure guidelines when used as follows:
– against the ear: place or receive a phone call and hold the
phone as you would a wireline telephone,
– body worn: when transmitting, place the phone in a carry
accessory that contains no metal and positions the phone
a minimum of 1.5 cm form your body. Use of other
accessories may not ensure compliance with
radiofrequency exposure guidelines. If you do not use a
body worn accessory and are not holding the phone at the
ear, position the phone a minimum of 1.5 cm from your
body,
– data operation: when using a data feature, position the
phone a minimum of 1.5 cm from your body for the whole
duration of the data transmission.
11.3.5 CE Environment
Packaging
To facilitate the recycling of packaging materials, please obey
the sorting rules instituted locally for this type of waste.
Batteries
Spent batteries must be deposited at the designated collection
points.
The product
The crossed-out waste bin mark affixed to the product
[including its accessories] means that it belongs to the
family of electrical and electronic equipment.
To promote the recycling and recovery of waste
electrical and electronic equipment [WEEE] and at the same
time safeguard the environment, European regulations require
you to obey the sorting rules instituted locally for this type of
waste.
User Manual
11.4 For Customers in the United States
LIMITED WARRANTY
Brightstar US, Inc. [Brightstar] warrants this product including
any accessories sold for use with the products against defects
in materials or workmanship under normal usage for the
periods outlined in the warranty provided with the product, as
follows:
DEAD ON ARRIVAL / OUT OF BOX FAILURE [DOA]:
This product is for standard consumer use only and is
guaranteed to be in proper working order as is determined
upon initial removal from the package and subsequent power
up and test call. If this product is determined to be defective,
Brightstar will repair or replace the product, at its option, at no
charge.
OUT OF WARRANTY REPAIR
Any unit requiring repair not covered by the warranty requires
authorization from your service provider and Brightstar.
70–71
Contact your service provider to obtain this authorization.
This warranty is valid only in the United States.
OTHER CONDITIONS
If Brightstar chooses to replace the equipment, Brightstar may
replace it with reconditioned equipment. Parts used in
repairing or replacing the equipment will be warranted for 90
days from the date the equipment is returned to you. This
warranty is not transferable.
LIMITATIONS AND EXCLUSIONS
TO THE EXTENT PERMITTED BY APPLICABLE LAW,
BRIGHTSTAR WILL NOT BE RESPONSIBLE FOR ANY
IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION,
THE IMPLIED WARRANTIES OF MERCHANTIBILITY OR
FITNESS FOR A PARTICULAR PURPOSE. BRIGHTSTAR
WILL NOT, IN ANY EVENT, BE LIABLE IN CONTRACT OR
TORT FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE
OF THE PRODUCT OR ACCESSORY, OR FOR ANY
INCIDENTAL, INDIRECT, SPECIAL OR CONSEQUENTIAL
User Manual
DAMAGES OF ANY KIND, INCLUDING TRAVEL EXPENSE,
TELEPHONE CHARGES, LOSS OF REVENUE, LOSS OF
TIME, INCONVENIENCE LOSS OF USE OF EQUIPMENT,
LOSS OF INFORMATION OR DATA, OR OTHER DAMAGE OR
LOSS CAUSED BY OR IN CONNETION WITH THE
PRODUCTS, ACCESSORIES, SOFTWARE OR EQUIIPMENT
FAILING TO FUNCTION PROPERLY. THIS WARRANTY SETS
FORTH ALL OF BRIGHTSTAR’S REPONSIBILITIES
REGARDING THIS PRODUCT AND ITS ACCESSORIES.
Caution! some states and jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
11.4.1 Limited Warranty
The mobile phone and software program developed by
Sagem Mobiles [SAGEM] remains the exclusive property of
SAGEM. YOU ARE STRICTLY PROHIBITED FROM
MODIFYING, TRANSLATING, DE-COMPILING OR
DISASSEMBLING THIS SOFTWARE PROGRAM OR ANY
PART THEREOF.
Brightstar US, Inc. [Brightstar] is the exclusive distributor for
SAGEM in the United States and is responsible for all
warranties for SAGEM phones and accessories sold in the
United States. Please DO NOT contact SAGEM directly
regarding any warranty claims; doing so will only delay the
processing of your claim.
THE LIMITED WARRANTY AND REMEDIES SET FORTH IN
THIS WARRANTY CARD ARE THE EXCLUSIVE WARRANTIES
AND REMEDIES PROVIDED BY BRIGHTSTAR AND ARE IN
LIEU OF ALL OTHER WARRANTIES, TERMS, OR
CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR
User Manual
BY OPERATION OF LAW. BRIGHTSTAR OR SAGEM MAKES
NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND
EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES,
INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. THE REMEDIES
SET FORTH HEREIN ARE YOUR EXCLUSIVE REMEDIES FOR
BREACH OF WARRANTY.
Usage precautions
Your phone allows you to download ring tones, icons and
animated screensavers. Some of these items may contain data
that may cause malfunction of your phone or data losses [a
computer virus, for example]. For this reason, Brightstar
disclaims all responsibility concerning [1] the reception of
downloaded data or losses of such data, [2] such data's
impact on the operation of the phone, and [3] damages
resulting from receiving any downloaded data or loss of such
data. In addition, any failure caused by receiving downloaded
data that do not comply with the phone's specifications is
excluded from the warranty. The diagnosis and repair of a
72–73
phone infected by downloaded data will be at the expense of
the customer.
Warranty conditions
Whenever you wish to make a warranty claim, please contact
Brightstar at the address given below and present the
purchasing paperwork that was given to you.
1. Brightstar warrants that the new phone [excluding
consumablesbut including new accessories bundled with the
phone], is free from defects in materials and workmanship
under normal usage for a period of twelve [12] months effective
from the date you purchased the phone, to be evidenced by
presentation of the paperwork stating the purchase date of the
phone. Phones that have been repaired or replaced as
standard during the warranty period stated above are
warranted [parts and labor] until the later of these two dates:
Expiry of the original warranty period of twelve [12] months
stated above; or three [3] months from the repair or
replacement under warranty.
User Manual
2. All faulty phones under warranty will be replaced or repaired
free of charge at Brightstar’s option.
3. You are responsible for sending the phone to the repair
center. In order to repair or replace a phone under warranty,
Brightstar also requires that a legible and unmodified purchase
document, stating vendor's name and address, date and place
of purchase, type of phone and IMEI [to display the IMEI on
your phone's screen, type: *#06#], be attached to the warranty,
and that the information on the phone identification label be
legible and that such label or any other seal have not been
tampered with. The warranty applies under normal usage for
the period outlined above. Prior to sending the phone for
repair, it is your responsibility to backup at your expense any
customized data stored in the phone [such as phonebook,
settings, wallpapers, and previously downloaded data].
BRIGHTSTAR IS NOT RESPONSIBLE FOR DAMAGE TO
CUSTOMER FILES, PROGRAMS OR DATA. The information or
operating elements and the contents of files will not be reinstalled in any case in the event of loss. Brightstar may
decide, at its option, to repair the phone with new or
reconditioned parts, or replace the phone with a new phone or
with a phone in good working condition. During its repair work
Brightstar may make, where necessary, any technical
modifications to the phone where these modifications do not
adversely affect functionality. Faulty parts to be replaced
during a repair under warranty become the property of
Brightstar. The application of the warranty is subject to the full
payment of the sums due for the phone when the request for
support is made
4. Breakdowns, damage or malfunctions due to the following
are excluded from the limited warranty: [i] non-compliance with
the installation and use instructions, [ii] an external cause [such
as shock, lightning, fire, vandalism, malice, water damage of
any type, contact with various liquids or any harmful agent,
unsuitable electric current, extreme humidity or heat, improper
storage, etc.], [iii] modifications of the phone made without the
written consent of Brightstar, [iv] a servicing fault, as described
in the documentation supplied with the phone, [v] lack of
.
User Manual
supervision or care, [vi] poor environmental conditions of the
phone [including temperature and hygrometry, effects of
variations in electric voltage, interference from the mains
network or earth], [vii] repair, including opening or trying to
open the phone or servicing done by personnel not approved
by Brightstar, [viii] inadequate packaging and/or poor packing
of the phone that is sent back to Brightstar, [ix] the use of
products or accessories not sold by Brightstar as compatible
with the phone, or [x] the opening or closing of a SIM Lock
done without the agreement of the original operator.
5. In addition, the warranty does not cover: [i] normal wear and
tear of the phone and accessories, [ii] change of parameters of
the cellular network made after the phone was sold, [iii] supply
of new software versions, [iv] delivery of consumables and
installation or replacement of these consumables, [v] phone or
software modified or added without the written consent of
Brightstar, [vi] phones returned to Brightstar without having
complied with the return procedure specific to the phone
covered by this warranty, or [vii] communication problems
74–75
linked with a poor environment, including problems accessing
and/or logging onto the Internet, breakdowns of the access
network, the failure of the subscriber's or his correspondent's
line, transmission fault [such as poor geographic coverage by
radio transmitters, interference, disturbance, failure or poor
quality of phone lines, etc.], a fault inherent to the local network
[such as cabling, file server, user phone] and/or transmission
network fault [such as interference, disturbance, failure or poor
quality of the network, etc.].
6. In the event a customer submits a product for repair or
replacement and such product is excluded from warranty
coverage or the warranty period has expired, Brightstar will
draw up an estimate to be given to the customer for
acceptance before any repair commences. The repair and
freight costs [to and from the repair center] given in an estimate
accepted by the customer will be charged to the customer.
7. Any questions or correspondence regarding this limited
warranty should be addressed to:
User Manual
Brightstar US, Inc.
Attn: SAGEM Warranty & Repair Services
1001 Technology Way
Libertyville, IL 60048
These provisions are valid unless Brightstar has made a
special written agreement with the customer. If one of the
provisions turns out to infringe a requirement under applicable
law that consumers could have the benefit of under the
national legislation, such provision will not be applied, but all
other provisions will remain valid.
11.5 For customers outside the United States
11.5.1 Warranty
You must always use your phone for the purpose for which it
was designed, under normal operating conditions.
Sagem Mobiles declines all responsibility for any use outside
of the scope of its designed purpose and for any
consequences of this use.
The software program developed by SAGEM remains the
exclusive property of Sagem Mobiles. It is therefore highly
prohibited to modify, translate, de-compile or disassemble this
software program or any part thereof.
Usage precautions
Your phone allows you to download ring tones, icons and
animated screensavers. Some of these items may contain data
that may cause malfunctions of your phone or data losses
[virus for example].
User Manual
For this reason, Sagem Mobiles rejects all responsibility
concerning [1] the reception of downloaded data or losses of
the said data, [2] the impact on the operation of the phone and
[3] damages resulting from receiving the said downloaded data
or loss of said data. In addition, Sagem Mobiles states that a
failure caused by receiving downloaded data that do not
comply with the specifications set by Sagem Mobiles is
excluded from the warranty. Consequently, the diagnosis and
repair of a phone infected by the said downloaded data will be
at the expense of the customer.
Any content that you download to your phone may be
protected by copyright belonging to third parties and
consequently you may not have the right to use this content or
its use may be restricted. Consequently it is up to you to
ensure that you have permission, such as under the terms of a
license agreement, to use any content that you download.
Furthermore, Sagem Mobiles does not gua rantee the accuracy
nor the quality of any content that you download. You alone
are responsible for the content that you download to your
76–77
mobile phone and how you use it. Sagem Mobiles cannot be
held responsible for this content nor for its use.
It is your responsibility to ensure compliance, at your own
expense, with the laws and regulations applicable in the
country where you use your phone.
Warranty conditions
Whenever you wish to make use of the warranty, please
contact your vendor and present him with the purchasing
paperwork that he gave you.
If a fault occurs, he will advise you.
1. The new phone [excluding consumables], including new
accessories bundled with the phone, are guaranteed by
Sagem Mobiles, parts and labour [apart from travel] against
any manufacturing fault for a period of twelve [12] months with
effect from the sale of the phone to the customer, on
presentation of the paperwork stating the purchase date of the
phone.
User Manual
Phones that have been repaired or replaced as standard
during the warranty period stated above are guaranteed [parts
and labour] until the later of these two dates:
Expiry of the guarantee period of twelve [12] months stated
above or three [3] months with effect from the date of support
provided by Sagem Mobiles.
Your legal rights under the terms of applicable national law as
well as your rights in relation to your retailer, as set out in the
sales contract, remain applicable and are not in any way
affected by this guarantee.
In any disputes, the phone is covered by the legal warranty
against the consequences of faults or hidden defects in
compliance with articles 1641 and subsequent of the French
civil code.
2. All faulty phones under warranty will be replaced or repaired
free of charge at Sagem Mobiles's option [with the exclusion of
repair of any other damage], once it has been specified that the
work required for the application of the warranty will be done
in a workshop and that the return costs [transport and
insurance] of the phone to the address to be indicated to it by
the Sagem Mobiles after-sales service, whose phone number
will appear on the delivery note, will be charged to the
customer.
Subject to essential legal provisions, Sagem Mobiles does not
accept any warranty, explicit or implicit, other than the
warranty provided expressly in this chapter, nor shall
Sagem Mobiles accept responsibility for any immaterial and/or
indirect damages [such as loss of orders, loss of profit or any
other financial or commercial damage] under the warranty or
not
3. The acceptance of a phone under warranty demands that a
purchase document that is legible and without modi-fication,
stating vendor's name and address, date and place of
purchase, type of phone and IMEI, are attached to the
warranty, and that the information on the phone identification
label is legible and that this label or any other seal has not been
tampered with.
The warranty applies in normal conditions of use.
User Manual
Prior to sending the phone for repair, it is the customer's
responsibility to backup at his expense the customized data
stored in the phone [phonebook, settings, wallpapers]. A list of
backup facilities can be provided by Sagem Mobiles on
request. The responsibility of Sagem Mobiles cannot be
invoked if damage occurs to customer files, programs or data.
The information or operating elements and the contents of files
will not be re-installed in any case in the event of loss.
Sagem Mobiles may decide, at its option, to repair the phone
with new or reconditioned parts, replace the phone with a new
phone or, in any dispute, a phone in good working condition.
During its work Sagem Mobiles reserves the facility to make,
where necessary, any technical modifications to the phone
where these modifications doe not adversely affect its initial
purpose.
Faulty parts to be replaced during a repair under warranty will
become the property of Sagem Mobiles.
The phone repair and standstill time during the warranty period
may not lead to an extension of the warranty period as stated
78–79
in article 1 above, provided no other vital provisions have been
agreed.
The application of the warranty is subject to the full payment of
the sums due for the phone when the request for support is
made.
4. The following are excluded from the warranty:
Breakdowns or malfunctions due to non-compliance with the
installation and use instructions, to an external cause of the
phone [shock, lightning, fire, vandalism, malice, water damage
of any type, contact with various liquids or any harmful agent,
unsuitable electric current...], to modifications of the phone
made without the written consent of Sagem Mobiles, to a
servicing fault, as described in the documentation supplied
with the phone, to lack of supervision or care, to poor
environmental conditions of the phone [especially temperature
and hygrometry, effects of variations in electric voltage,
interference from the mains network or earth] or even due to a
repair, a call-out [opening or trying to open the phone] or to
servicing done by personnel not approved by Sagem Mobiles.
User Manual
Damage resulting from inadequate packaging and/or poor
packing of the phone sent back to Sagem Mobiles.
Normal wear and tear of the phone and accessories.
Communication problems linked with a poor environment,
especially:
Problems accessing and/or logging onto the Internet, such as
breakdowns of the access network, the failure of the
subscriber's or his correspondent's line, transmission fault
[poor geographic coverage by radio transmitters, interference,
disturbance, fai-lure or poor quality of phone lines...], a fault
inherent to the local network [cabling, file server, user phone]
and/or transmission network fault [interference, disturbance,
failure or poor quality of the network...].
Change of parameters of the cellular network made after the
phone was sold.
Supply of new software versions.
Current servicing work: delivery of consumables, installation or
replacement of these consumables…
Call-outs for phone or software modified or added without the
written consent of Sagem Mobiles.
Faults or disruptions resulting from the use of products or
accessories not compatible with the phone.
Phones returned to Sagem Mobiles without having complied
with the return procedure specific to the phone cove-red by
this warranty.
The opening or closing of a SIM operator key and call-outs
resulting in the non-operation of the phone resulting from the
opening or closing of SIM operator key done without the
agreement of the original operator.
5. In the cases of warranty exclusion and of expiry of the
warranty period, Sagem Mobiles shall draw up an estimate to
be given to the customer for acceptance before any call-out.
The repair and carriage costs [there and back] given in the
accepted estimate will be charged to the customer.
These provisions are valid unless a special written agreement
has been made with the customer. If one of the provisions
turns out to infringe a legally essential rule that consumers
could have the benefit of under the national legislation, this
User Manual
provision will not be applied, but all other provisions will remain
valid.
6. Any questions or correspondence regarding this limited
warranty should be addressed to:
www.planetsagem.com.
11.6 End User Licence Agreement [EULA]
CONTEXT AND ACCEPTATION OF THE AGREEMENT
You have acquired a Mobile Phone device ["DEVICE"],
manufactured by Sagem Mobiles [MANUFACTURER], that
includes software either developed by the MANUFACTURER
itself or licensed third party Software suppliers ["SOFTWARE
COMPANIES"] to the MANUFACTURER with the rights to sublicense it to the purchaser of the device. Those installed
software products whatever their company of origin, and
wherever the name of the company of origin is indicated of not
in the DEVICE documentation, as well as associated media,
printed materials, and "online" or electronic documentation
80–81
["SOFTWARE"] are protected by international intellectual
property laws and treaties.
The SOFTWARE is licensed, not sold. All rights reserved.
IF YOU DO NOT AGREE TO THIS END USER LICENSE
AGREEMENT ["EULA"], DO NOT USE THE DEVICE OR COPY
THE SOFTWARE. INSTEAD, PROMPTLY CONTACT THE
MANUFACTURER FOR INSTRUCTIONS ON RETURN OF THE
UNUSED DEVICE[S] FOR A REFUND. ANY USE OF THE
SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE
DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS
EULA [OR RATIFICATION OF ANY PREVIOUS CONSENT].
SOFTWARE includes software already installed on the DEVICE
["DEVICE Software"] and Software contained on the CD-ROM
disk ["Companion CD"], if any is supplied with the product.
GRANT OF SOFTWARE LICENCE
This EULA grants you the following licence:
DEVICE Software. You may use the DEVICE Software as
installed on the DEVICE. All or certain portions of the DEVICE
Software may be inoperable if you do not have and maintain a
User Manual
service account with an appropriate Mobile Operator, or if the
Mobile Operator's network facilities are not operating or
configured to operate with the DEVICE software.
COMPANION CD. If any is supplied, additional software for
your personal computer is included with your DEVICE. You
may install and use the software component[s] contained in
the Companion CD only in accordance with the terms of the
printed or online end user license agreement[s] provided with
such component[s]. In the absence of an end user license
agreement for particular component[s] of the Companion CD,
you may install and use only one [1] copy of such component[s]
on the DEVICE or a single computer with which you use the
DEVICE.
Security Updates. The SOFTWARE may include digital rights
management technology. If SOFTWARE does contain digital
rights management technology, content providers are using
the digital rights management technology ["DRM"] contained
in the SOFTWARE to protect the integrity of their content
["Secure Content"] so that their intellectual property, including
copyright, in such content is not misappropriated.
Owners of such Secure Content ["Secure Content Owners"]
may, from time to time, request manufacturers or SOFTWARE
SUPPLIERS to provide security related updates to the DRM
components of the SOFTWARE ["Security Updates"] that may
affect your ability to copy, display and/or play Secure Content
through the SOFTWARE or third party applications that utilise
the DRM.
You therefore agree that, if you elect to download a licence
from the Internet which enables your use of Secure Content,
Suppliers may, in conjunction with such licence, also
download onto your DEVICE such Security Updates that a
Secure Content Owner has requested that SOFTWARE
SUPPLIERS distribute. The MANUFACTURER and
SOFTWARE SUPPLIERS will not retrieve any personally
identifiable information, or any other information, from your
DEVICE by downloading such Security Updates.
User Manual
DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS
COPYRIGHT. All title and intellectual property rights in and to
the SOFTWARE [including but not limited to any images,
photographs, animations, video, audio, music, text and
"applets," incorporated into the SOFTWARE], the
accompanying printed materials, and any copies of the
SOFTWARE, are owned by the MANUFACTURER or the
SOFTWARE SUPPLIERS. You may not copy the printed
materials accompanying the SOFTWARE. All title and
intellectual property rights in and to the content which may be
accessed through use of the SOFTWARE is the property of the
respective content owner and may be protected by applicable
copyright or other intellectual property laws and treaties. This
EULA grants you no rights to use such content. All rights not
specifically granted under this EULA are reserved by the
MANUFACTURER and the SOFTWARE SUPPLIERS.
Limitations on Reverse Engineering, Decompilation and
Disassembly. You may not reverse engineer, decompile, or
disassemble the SOFTWARE, except and only to the extent
82–83
that such activity is expressly permitted by applicable law
notwithstanding this limitation.
Single DEVICE. The DEVICE Software is licensed with the
DEVICE as a single integrated product. The DEVICE Software
installed in the memory of the DEVICE may only be used as
part of the DEVICE.
Single EULA. The package for the DEVICE may contain
multiple versions of this EULA, such as multiple translations
and/or multiple media versions [e.g., in the user
documentation and in the software]. Even if you receive
multiple versions of the EULA, you are licensed to use only one
[1] copy of the DEVICE Software.
Software Transfer. You may not permanently transfer any of
your rights under this EULA with regard to the DEVICE
Software or Companion CD, except as permitted by the
applicable Mobile Operator.
In the event that the Mobile Operator permits such transfer,
you may permanently transfer all of your rights under this EULA
only as part of a sale or transfer of the DEVICE, provided you
User Manual
retain no copies, you transfer all of the SOFTWARE [including
all component parts, the media and printed materials, any
upgrades , this EULA and, if applicable, the Certificate[s] of
Authenticity], and the recipient agrees to the terms of this
EULA. If the SOFTWARE is an upgrade, any transfer must
include all prior versions of the SOFTWARE.
Software Rental. You may not rent or lease the SOFTWARE.
Speech/Handwriting Recognition. If the SOFTWARE includes
speech and/or handwriting recognition component[s], you
should understand that speech and handwriting recognition
are inherently statistical processes; that recognition errors are
inherent in the processes; and that errors can occur in the
component's recognition of your handwriting or speech, and
the final conversion into text.
Neither the MANUFACTURER nor its suppliers shall be liable
for any damages arising out of errors in the speech and
handwriting recognition processes.
NOTICE REGARDING THE MPEG-4 VISUAL STANDARD. The
SOFTWARE may include MPEG-4 visual decoding technology.
MPEG LA, L.L.C. requires the following notice:
USE OF THIS SOFTWARE IN ANY MANNER THAT COMPLIES
WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED,
EXCEPT FOR USE DIRECTLY RELATED TO [A] DATA OR
INFORMATION [i] GENERATED BY AND OBTAINED
WITHOUT CHARGE FROM A CONSUMER NOT THEREBY
ENGAGED IN A BUSINESS ENTERPRISE, AND [ii] FOR
PERSONAL USE ONLY; AND [B] OTHER USES
SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA,
L.L.C.
If you have questions regarding this Notice, please contact
MPEG LA, L.L.C., 250 Steele Street, Suite 300, Denver,
Colorado 80206; Telephone 303 331.1880; FAX 303 331.1879
Termination. Without prejudice to any other rights, the
MANUFACTURER may terminate this EULA if you fail to
comply with the terms and conditions of this EULA. In such
event, you must destroy all copies of the SOFTWARE and all
of its component parts.
User Manual
Consent to Use of Data. You agree that SOFTWARE
SUPPLIERS may collect and use technical information
gathered in any manner as part of product support services
related to the SOFTWARE. SOFTWARE SUPPLIERS may use
this information solely to improve their products or to provide
customised services or technologies to you. SOFTWARE
SUPPLIERS may disclose this information to others, but not in
a form that personally identifies you.
Internet Gaming/Update Features. If the SOFTWARE provides,
and you choose to utilise, the Internet gaming or update
features within the SOFTWARE, it is necessary to use certain
computer system, hardware, and software information to
implement the features. By using these features, you explicitly
authorise SOFTWARE SUPPLIERS to use this information
solely to improve their products or to provide customised
services or technologies to you. SOFTWARE SUPPLIERS may
disclose this information to others, but not in a form that
personally identifies you.
84–85
Internet-Based Services Components. The SOFTWARE may
contain components that enable and facilitate the use of
certain Internet-based services. You acknowledge and agree
that SOFTWARE SUPPLIERS may automatically check the
version of the SOFTWARE and/or its components that you are
utilising and may provide upgrades or supplements to the
SOFTWARE that may be automatically downloaded to your
Device.
Links to Third Party Sites. The SOFTWARE may provide you
with the ability to link to third party sites through the use of the
SOFTWARE. The third party sites are not under the control of
the MANUFACTURER.
Neither the MANUFACTURER nor its affiliates are responsible
for [i] the contents of any third party sites, any links contained
in third party sites, or any changes or updates to third party
sites, or [ii] webcasting or any other form of transmission
received from any third party sites. If the SOFTWARE provides
links to third party sites, those links are provided to you only as
a convenience, and the inclusion of any link does not imply an
User Manual
endorsement of the third party site by the MANUFACTURER or
its affiliates.
Additional Software/Services. The SOFTWARE may permit the
MANUFACTURER to provide or make available to you
SOFTWARE updates, supplements, add-on components, or
Internet-based services components of the SOFTWARE after
the date you obtain your initial copy of the SOFTWARE
["Supplemental Components"].
If the MANUFACTURER provides or makes available to you
Supplemental Components and no other EULA terms are
provided along with the Supplemental Components, then the
terms of this EULA shall apply.
The MANUFACTURER reserves the right to discontinue any
Internet-based services provided to you or made available to
you through the use of the SOFTWARE.
EXPORT RESTRICTIONS. You acknowledge that SOFTWARE
is subject to U.S. export jurisdiction. You agree to comply with
all applicable international and national laws that apply to the
SOFTWARE, including the U.S. Export Administration
Regulations, as well as end-user, end-use and destination
restrictions issued by U.S. and other governments.
UPGRADES AND RECOVERY MEDIA
– DEVICE Software. If the DEVICE Software is provided by
the MANUFACTURER separate from the DEVICE on media
such as a ROM chip, CD ROM disk[s] or via web download
or other means, and is labelled "For Upgrade Purposes
Only", you may install one copy of such DEVICE Software
onto the DEVICE as a replacement copy for the existing
DEVICE Software and use it in accordance with this EULA,
including any additional EULA terms accompanying the
upgrade DEVICE Software.
–
COMPANION CD.
provided by the MANUFACTURER separate from the DEVICE
on CD ROM disk[s] or via web download or other means, and
labelled "For Upgrade Purposes Only" , you may [i] install and
use one copy of such component[s] on the computer[s] you
use to exchange data with the DEVICE as a replacement copy
for the existing Companion CD component[s].
If any Companion CD component[s] is
User Manual
RESPONSIBILITIES
SUPPORT AND INFORMATION Should you have any
questions concerning this EULA, or if you desire to contact the
MANUFACTURER for any other reason, please refer to the
address provided in the documentation for the DEVICE.
NO LIABILITY FOR CERTAIN DAMAGES. EXCEPT AS
PROHIBITED BY LAW, THE MANUFACTURER OR
SOFTWARE COMPANIES SHALL HAVE NO LIABILITY FOR
ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR
INCIDENTAL DAMAGES ARISING FROM OR IN
CONNECTION WITH THE USE OR PERFORMANCE OF THE
SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY
REMEDY FAILS OF ITS ESSENTIAL PURPOSE.
WARRANTY DISCLAIMER
FOR APPLICABLE LIMITED WARRANTIES AND SPECIAL
PROVISIONS PERTAINING TO YOUR PARTICULAR
JURISDICTION, PLEASE REFER TO YOUR WARRANTY
BOOKLET INCLUDED WITH THIS PACKAGE OR PROVIDED
WITH THE SOFTWARE PRINTED MATERIALS.
86–87
11.7 Java™
When running a Java™ application, you may be prompted to
grant access to protected features. These features are
protected because using them could incur you cost, or involve
your personal data. In case of doubt, don't hesitate to refuse
access by selecting the "No" button!
The security configuration menu is an expert feature! You must
know exactly what you are doing before attempting to change
security parameters of a MIDlet.
Misunderstanding changes may render MIDlet non functional
and/or lead to higher risks for your private data or impact your
airtime consumption. Any changes in the security
configuration are done under your responsibility. In no case
shall Sagem Mobiles and/or your network provider be liable for
any damages deriving from or arising out of such changes in
the security configuration.
You must be aware that applications downloaded to your
phone could cause the phone to perform actions for which you
User Manual
will be billed, like making calls and sending SMS. Depending
on your operator's billing policy, you may also be charged to
download the application because of airtime consumption.
Security considerations
Java™ MIDP technology is an efficient way to provide
powerful applications in mobile phones.
All these MIDP 2.0 features cannot be simply exposed to any
MIDlet installed in the handset: a careful access control system
is implemented in the device to protect your private data and
airtime consumption.
Access controls are gathered in 9 security groups:
– Network access
– Auto invocation
–Phone call
– Local connectivity
– Messaging receive
– Messaging sending
– Read User data
– Write User data
– Multimedia recording
Each of these security groups has one among 5 possible
authorizations levels [listed from the more restrictive to the
more permissive]:
– Never: The security group completely prevents access to
the protected features.
– Per use: Each time MIDlet tries to use protected feature,
user is prompted to grant access.
– Per session: First time a MIDlet uses a protected function,
user is prompted to grant access like in "Per use"
authorization but access is granted until the MIDlet
terminates.
– Single confirmation: The first time in the whole MIDlet life a
MIDlet uses a protected feature, user is prompted to grant
access. It remains valid until the MIDlet is removed from
the handset.
– Always: The security group unconditionally grants access
to protected features.
User Manual
A MIDlet has a security status which is either "uncertified", or
else "certified".
An "uncertified" status means that the source of the MIDlet
could not be verified by the mobile phone at installation time.
As far as the phone knows, the MIDlet could have been written
by anyone.
A "certified" status means that the MIDlet was digitally signed by
a known party, whose name is displayed by the mobile phone.
Security permissions are different for "uncertified" or
"certified" MIDlets.
Security configuration menu
When a MIDlet is installed in the mobile phone, default security
authorizations are applied. This default security configuration
may be altered through the "Settings/Security" menu of an
installed MIDlet.
Once in the "Security" menu, the security status of the MIDlet
is displayed.
If you do not want to enter the security menu, simply select
"Back" button. You can proceed by selecting "OK" button.
88–89
The menu displayed allows you to increase or decrease
permissions currently applied to the current MIDlet for each of
the security groups.
When you set a more permissive authorization to a security
group than the current value, mobile phone asks you to
confirm your increased risk exposure.
The maximum risk exposure increase is limited by the security
status.
What is Java™?
Business applications and games are easily downloadable by
the end-user on a Java™ featured handset.
Your mobile phone is a MIDP 2.0 compliant Java™ platform
which implements WMA [SMS support] and MMAPI
[Multimedia support] options, providing an exciting
environment to run highly graphical, networked and intuitive
MIDP applications.
User Manual
What is a MIDlet?
A Java™ application or a game designed to run in a mobile
phone is named a MIDlet [MIDP applet].
A MIDlet is usually made of 2 files:
– The JAD file
–The JAR file
JAD file stands for Java™ Application Descriptor. It is a small
file describing the content of a JAR file.
JAR file stands for Java™ Archive. It refers to the application
data themselves [program, images, sound]. A JAR file may be
up to 200 kilo-bytes large.
Note: In rare circumstances, MIDlet vendors may provide
no JAD file and the MIDlet is the JAR file alone. In such a
case it is your only responsibility to evaluate the risk to
download the JAR file without possibility of consulting the
JAD file.
Downloading a MIDlet [Java™ game or application]
MIDlets are easily downloaded in the mobile phone through
the Games or Applications menus or through the WAP
browser. In almost all cases, you will first receive a JAD file
which will be displayed on the screen.
When you select a JAD file, your mobile phone downloads it,
displays data contained and prompts you to acknowledge the
JAR file download.
The popup displays information below:
– Name of the MIDlet, Version, Size, Name, Security status,
URL.
If you do not want to download the main data [JAR file], you
shall refuse to acknowledge further airtime consumption by
selecting "Cancel".
If you agree on the MIDlet installation, just select [OK]. The
MIDlet is installed with security levels set to default values
associated with its security status.
Before downloading an application, such a message may
appear: "Your handset cannot identify the application, please
be sure of the source of the application before installing the
application".
User Manual
Trademarks
Java™ and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S.
and other countries.
Disclaimer
Some downloaded items may contain data or may induce
actions which may cause malfunctioning of your mobile phone
or loss or corruption of data or abnormal increase of your
airtime consumption.
You expressly acknowledge that the download of any
applications including Java™ applications or games is done
under your exclusive responsibility. In no event shall Sagem
Mobiles, your network service provider or their affiliates be
liable for any lost profits or costs of procurement of substitute
goods or services, loss of profits, interruptions of business,
loss of data or for any special, indirect, incidental, economic,
or consequential damages arising under contract, tort,
negligence, or other theory of liability relating to the download
90–91
of any application by any means, including Java™ applications
or games in the SAGEM devices.
You expressly acknowledge that any applications including
Java™ applications or games are provided strictly "as is".
Sagem Mobiles and/or your network service provider extend
no warranty whatsoever thereto. Sagem Mobiles and/or your
network service provider disclaim any express, implied or
statutory warranty of merchantability, fitness of any
applications including Java™ applications or games for a
specific purpose, satisfactory quality, security or otherwise.
FOR APPLICABLE LIMITED WARRANTIES AND SPECIAL
PROVISIONS PERTAINING TO YOUR PARTICULAR
JURISDICTION, PLEASE REFER TO YOUR WARRANTY
BOOKLET INCLUDED WITH THIS PACKAGE OR PROVIDED
WITH THE SOFTWARE PRINTED MATERIALS.
User Manual
11.8 Warranty conditions
You have just purchased a P'9521 Porsche Design mobile
phone and we thank you for your custom. This equipment was
manufactured with the greatest care and we hope that it gives
you complete satisfaction.
To avoid any possible inconvenience relating to the use of your
equipment, please read the user manual carefully.
If, despite our efforts, you experience difficulties with this
equipment, the following shall apply:
PORSCHE DESIGN LICENSEE warrants in the country the
product has been sold by PORSCHE DESIGN LICENSEE that
any new equipment will be, subject to the terms and conditions
below, free from any defect in workmanship and material
[labour and replacement parts included] under normal usage
****
during a period of thirty-six [36] months for the handset and
twelve [12] months for the accessories bundled with the phone,
from the date of purchase by the first customer.
****.except in the cases mentioned further in this document
Proof of purchase, warranty card and registration of the mobile
on the web site http://www.mobileporschedesign.com will be
required so please keep the receipts in a safe place.
PORSCHE DESIGN LICENSEE warrants any repaired
equipment during the original warranty period here above
mentioned, for a period expiring three [3] months after the date
of repair of such equipment or upon the expiration of the
warranty period applicable to the original equipment set out
above, whichever is later. The defective parts that have been
replaced shall become the property of PORSCHE DESIGN
LICENSEE.
This warranty shall apply provided that the equipment is used
properly for its intended purpose and under normal conditions.
Under this warranty, your product will be exchanged or
repaired free of charge at PORSCHE DESIGN LICENSEE's
convenience. Before depositing your product at the point of
sale, we recommend you call the hotline [refer to hot line
number of your country by connecting on the web site
http://www.mobileporschedesign.com] to find out where you
User Manual
can deposit your product and to confirm that the product is
defective. If you send your product to the point of sale, please
send your equipment back in suitable packaging, as product
damage during transportation is not covered by our warranty.
Before sending or depositing your equipment at the point of
sale, please remember to:
save all the details in your directory and other personal data
recorded in your equipment in your microSD™ card, as they
may be erased during the repair process. Remove the
microSD™ card as well as the SIM card before leaving your
mobile at the point of sale. PORSCHE DESIGN LICENSEE
shall not be liable in the event of damage caused to your data.
Under no circumstances will any data be reinstalled by
PORSCHE DESIGN LICENSEE in the equipment.
Include your name, address and telephone number inside the
equipment package.
Include a copy of proof of purchase of the equipment and the
warranty card duly dated and completed, at the date of
purchase, by the seller.
92–93
Repair or replacement as provided above is your sole remedy
and PORSCHE DESIGN LICENSEE's sole liability for breach of
PORSCHE DESIGN LICENSEE's limited warranty.
Your statutory rights under applicable national law shall remain
in force and are not affected by this limited warranty.
PORSCHE DESIGN LICENSEE's limited warranty is subject to
the exclusion listed below:
1. defects breakdown or malfunction due to: – failure to properly follow the installation process and
instructions for use; or
– a cause external to the Product [including but not limited
to, shock, lightning, fire, vandalism, malevolent action,
contacts with various liquids or vermin or water damage of
any nature, inappropriate electric voltage]; or
– modifications to the Product made without the written
approval of PORSCHE DESIGN LICENSEE; or
– a lack of routine maintenance [as described in the
documentation supplied with the Product] or a lack of
supervision or care; or
User Manual
– improper storage and poor environmental conditions,
particularly those related to temperature and humidity,
effects of variations in electric voltage, parasites from the
electric network or from the earth; or
– repair, work [opening or attempt to open the Product] or
maintenance of the Product by persons not authorised by
PORSCHE DESIGN LICENSEE;
2. damage due to insufficient or bad packaging of Product when returned to PORSCHE DESIGN LICENSEE;
3. wear and tear from normal daily use of the Product and its accessories;
4. communication problems related to an unsuitable
environment, including in particular:
problems related to access and/or connection to the
Internet such as interruptions by access networks or
malfunction of the line used by the subscriber or the party
calling the subscriber,
transmission faults [for example poor geographical coverage by
radio transmitters, interference or poor line quality],
local network faults [wiring, servers, workstations] or the
failure of the transmission network [such as but not limited
to interference, faults in or poor quality of the network],
modification of the parameters of the cellular network
carried out after the sale of the Product;
5. supply of new versions of software;
6. work in connection with normal use;
7. work on any Product or software modified or added without the consent of PORSCHE DESIGN LICENSEE;
8. malfunction due to the use of products, consumables or accessories which are non-compatible with the Product;
9. Product returned to PORSCHE DESIGN LICENSEE when the procedure for return under warranty in respect of the said Product has not been followed;
10. opening or locking of an operator's SIM key and work due to the malfunction of the equipment caused by the opening or locking of an operator's SIM key carried out without the original operator's approval;
User Manual
11. defects from materials supplied or chosen by the Distributor or from a design imposed by the Distributor.
In the case of warranty exclusion and/or expiry of the warranty
period, the Customer shall request a quotation and accept it
before return of any repaired Product to PORSCHE DESIGN
LICENSEE. The costs given in the estimate accepted will be
charged to the customer.
Warning: Subject to mandatory legal provisions, the
express warranties set out in this document are in lieu of all
other warranties express or implied. In particular,
PORSCHE DESIGN LICENSEE makes no representations
or warranty as to the quality or fitness of the equipment for
any particular purpose. PORSCHE DESIGN LICENSEE's
liability in respect of any claim made by you, whether
arising in contract, tort or otherwise, shall not exceed the
price paid by you for the equipment. In no event shall
PORSCHE DESIGN LICENSEE be liable for indirect,
special or consequential damage of any kind [including but
not limited to loss of orders, loss of profits, loss of data,
94–95
loss of anticipated earnings, damage to goodwill or
reputation, interruption of service and any other financial or
commercial damage] whether based on warranty, contract
or tort.
Subject to mandatory legal provisions, the time when the
equipment is repaired or unavailable during the warranty shall
not give rise to an extension of warranty.
The foregoing shall apply only in respect of the country where
the product has been sold by PORSCHE DESIGN LICENSEE.
If any provision of this warranty is held to be in whole or in part
invalid or illegal due to a mandatory rule applicable to
consumers pursuant to local legislation, such provision shall
not be applicable to those consumers. The remaining
provisions shall all remain applicable.
No person or entity, including your vendor, is authorised to
provide any other warranty with respect to your phone. If your
vendor has supplied a different warranty your remedies are
solely against the vendor.
User Manual
11.9 Troubleshooting
The phone won’t start and/or won’t take a charge
The battery has completely lost its charge.
Connect the phone to the charger for between 5 and
30 minutes. The phone will only switch on after it has been
charging for a few minutes.
You may use the phone again when the Start option is
displayed on the screen.
If the phone still won't start after 30 minutes’ charging, please
contact your customer service.
SIM not present
Check if the SIM card is present and properly
positioned / inserted.
Check the condition of the SIM card. If damaged, please go
back to the operator's shop for advice. Please contact your
xustomer service if the message persists.
The SIM card holder has come apart
Gently insert the card holder back in place, then the SIM card
in it. Note that the SIM card wouldn't connect properly without
the card holder. If the card holder is damaged and cannot be
inserted back in place, please contact your customer service.
Incorrect PIN
An incorrect PIN has been entered. Be careful! Three incorrect
PIN will block the SIM Card.
SIM BLOCKED
If a wrong PIN is entered three times in succession, your SIM
card is blocked. You must then:
– Enter the PUK [Personal Unblocking Key] code provided by
your operator, and validate.
– Enter your PIN and validate.
– Enter your PIN again and validate.
After 5 or 10 failed attempts [depending on the type of SIM
card], the SIM card is definitely locked. You must then contact
your operator to obtain a new card.
User Manual
SIM LOCKED
In certain cases, the handset can only be used with some types
of SIM cards. This message means that the SIM card you are
using does not fit with the phone. Take the SIM card out, and
switch it back on. If the message SIM not present appears on
the screen, you will need to check its compatibility next to the
place where you bought it. If not, please contact your customer
service.
No call connection
Check that the number you have dialled is correct.
If the letter R is displayed on the top right corner of the screen,
without any network name displayed, only emergency services
can be called.
Check the status of your credit.
Check that the SIM Card you are using offers the service you
are requesting; check if its validity has not expired.
Check and deactivate the outgoing calls restriction when
necessary.
96–97
The network could be saturated. Try later.
If the problem persists, please contact your customer service.
Cannot receive calls
Try to make a call in order to check that the phone and the
network are operational.
Check and deactivate the permanent call forwarding
[permanent call forwarding icon displayed on the screen].
Check and deactivate the incoming calls restriction when
necessary.
If the problem persists, please contact your customer service.
Bad quality of reception when calling
Avoid placing your fingers on the bottom of the phone, where
the antenna is integrated:: the phone will have to use full
strength to establish a quality transmission.
Impossible to send a message
Check that your SIM card does offer this service. Try to make
a call to check that the phone and thenetwork are operational.
Check if the voicemail number is properly configured.
User Manual
Check that the message centre number is correctly entered.
To do so, go to the Messages/Settings/SMS menu, select
Message centre number and check the number.
No voicemail
Check that your subscription does offer this service.
Program the call to be forwarded to your voicemail using the
information provided by the operator.
The operator name does not appear on screen
Check that the Operator logo option is On in the Settings/
Display menu.
Go into the Settings menu, select Networks, then Selection.
Wait until the operator appears, select it and validate.
Cannot play a video / Bad quality of video playback
The phone Player may not be compatible with the video format
and bitrate. First convert this video to the phone Player format
using the Porsche Design Video Encoder PC software
available from the Downloads section of the official website
[http://www.mobileporschedesign.com].
User Manual
12 Index
A
Accessories
Alarm
Applets
Auto orientation
Automatic redial
...............................................................................................68
............................................................................................................52
.........................................................................................................52
........................................................................................46
.......................................................................................22
B
.........................................................................................................11
Battery
Beeps
...........................................................................................................45
Bluetooth
®
.................................................................................................39
C
Calculator
Call barring
...................................................................................................52
.................................................................................................50
98–99
Call Font
Call forward
Call waiting
Calls parameters
Camera
Confidentiality
Connections
Contacts
Counters
...................................................................................................... 48
...............................................................................................20
................................................................................................21
.....................................................................................20
........................................................................................................ 10
...........................................................................................50
..............................................................................................39
...............................................................................................23, 47
..................................................................................................... 21
D
Date / Time
Diary
Display
Display numbers
................................................................................................45
............................................................................................................. 52
......................................................................................................... 46
......................................................................................21
E
............................................................................................................. 38
Email
Energy saving
...........................................................................................47
User Manual
F
Fingerprint
Fixed dialling
Flap
........................................................................................... 15, 48
.............................................................................................51
...............................................................................................................45
I
.........................................................................................................38
Internet
L
Languages
..................................................................................................45
M
Memory card
Messages
.............................................................................................14
...................................................................................................27
N
.................................................................................................16, 51
Network
O
Operator
Operator logo
...................................................................................................... 50
............................................................................................47
P
............................................................................................................ 10
PIN
................................................................................................................ 49
PIN2
.............................................................................................................. 50
Player
........................................................................................................... 34
R
Ring tones
..................................................................................................44
User Manual
S
Safety information
Screensaver
Security
....................................................................................................... 49
Shortcuts
Silent mode
SIM card
Skins
.............................................................................................................46
...................................................................................65
...............................................................................................46
....................................................................................................45
................................................................................................44
...................................................................................................... 11
T
...................................................................................................................27
T9
Timer
.............................................................................................................52
To do
............................................................................................................53
U
USB cable
..................................................................................................39
100–101
V
......................................................................................................... 45
Vibrate
Video
............................................................................................................ 10
View last calls
Voicemail
...........................................................................................20
..............................................................................................22, 31
W
Wallpaper
WAP
Warranty
...................................................................................................46
.............................................................................................................. 38
...............................................................................................71, 75
Loading...
